OBO Sebury Metal Access Control Keypad 125KHz Standalone RFID Board Access Controller EM Card Reader + 5pcs EM Keychains tags
63.50 56.98 $
SALE
ID: 47678
Quantity
OBO Hands RFID Access Control Keypad Programming Controller Metal Waterproof Keyboard with/without 125KHz Keyfobs for Door Lock
0.0 (2 votes) | 5 orders
Price:
US $17.92 - 61.00
/ piece
Discount Price:
US $
15.23 -
54.74
/ piece
-15%
- Color
-
-
Product Introduction
This a 125KHz RFID access control keypad, made of high quality Zinc Alloy material. Supports three different open door mode: Password, RFID cards, Password + RFID cards. Built-in high precision integrated microcontroller and circuit internal components. Standalone and full programming from the keyboard. Very suitable for access control system of home, office and apartments, etc.
Product Features:
1, Opening door modes: card, card + PIN, PIN.
2, Opening time: 50mS, 1-98 seconds for normal mode, 99 seconds for switch mode.
3, Electric lock mode: power-on unlocking (such as electric rim lock, electric strike), power-off unlocking (such as electric bolt, magnetic lock).
4, Built-in high-current MOS tube can directly drive the electric lock, and can resist strong magnetic unlocking.
5, Safe mode can be set: 10 times invalid card or password will automatically lock the machine for 10 minutes.
6, Can connect with an exit button, convenient to open the door from inside.
7, Safety screw at the bottom can prevent malicious destroy.
8, 1000 user cards bound with 1000 user passwords, and the user can modify password by himself.
9, Standalone, doesn't need to connect to computer. Off-line working.
Product Specifications:
Model: mKey
User Capacity: 1000pcs
Working Frequency: 125KHz
Reading Distance: 0-5cm
Card Type: EM or EM compatible cards
Working Voltage: DC 12V +/- 2V
Static Current: <= 20mA
Operating Current: <= 100mA
Drive Electric Lock Current: <= 3A
Working Temperature: -20℃~50℃
Relative Humidity: 0%-95%

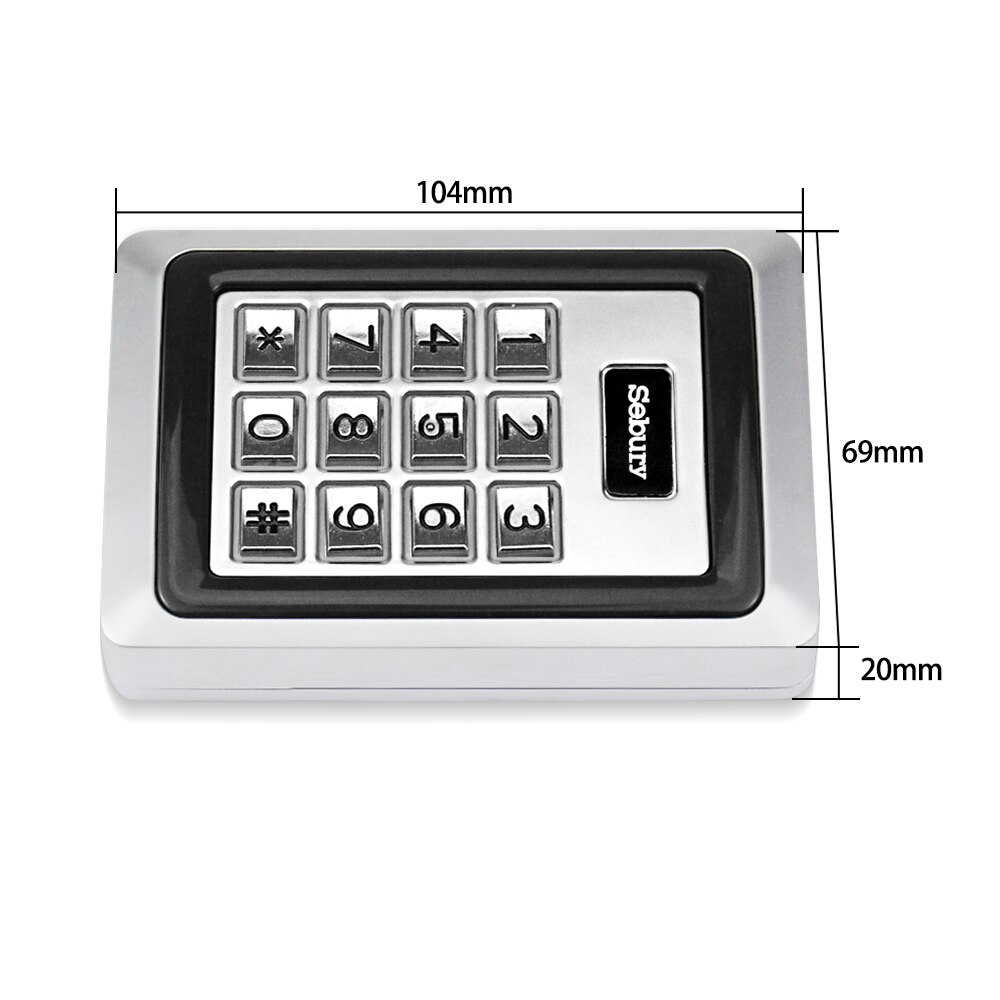

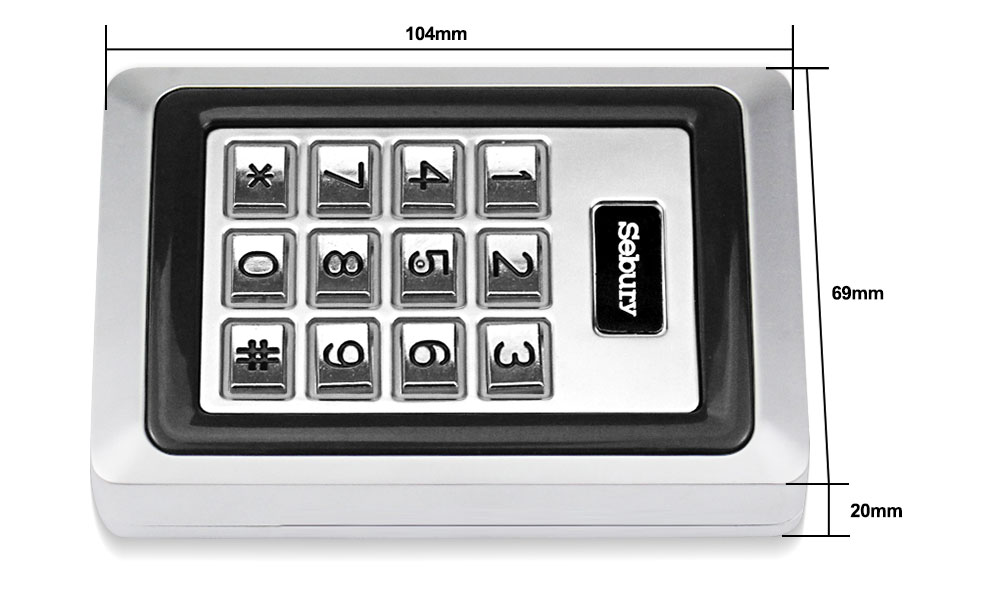

Dimension: 104X20X69mm (L/H/W)
Product Details:

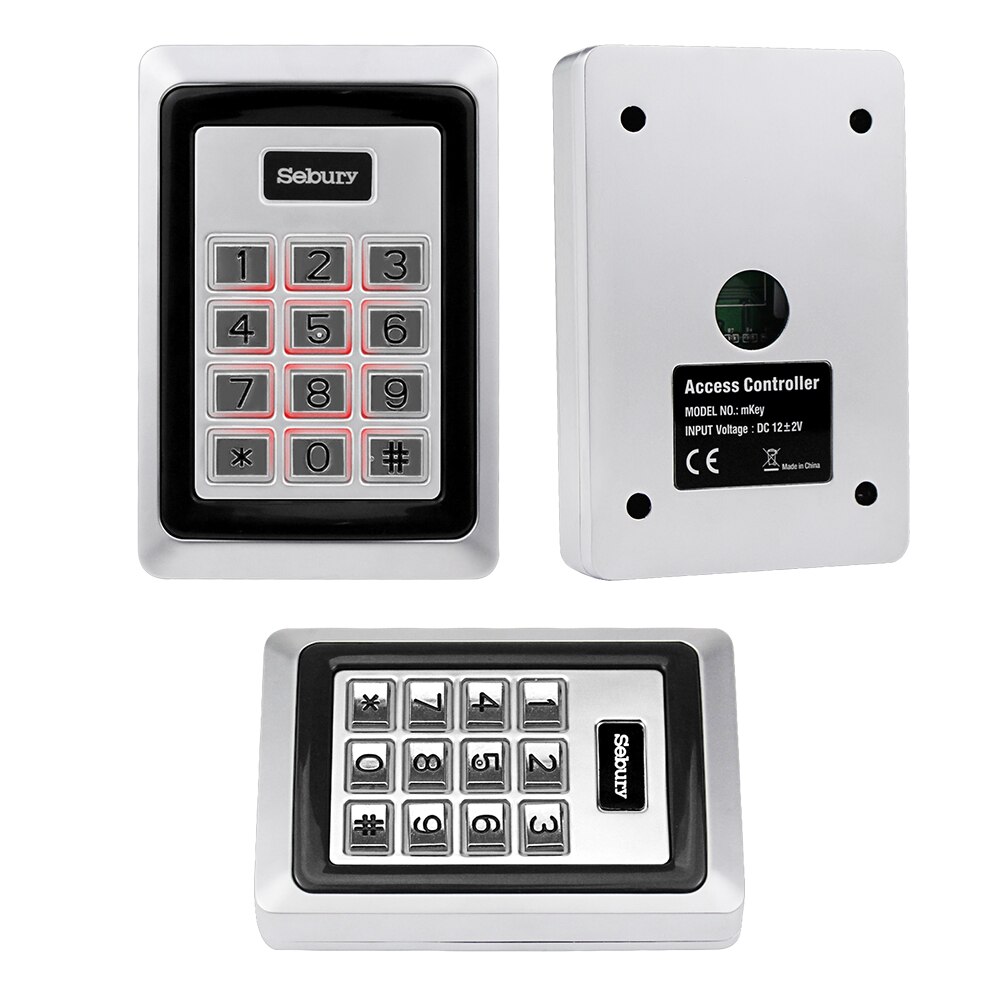

1, Adopt metal material, durable and surface waterproof.
Made of high quality Zinc Alloy material, durable and surface waterproof. If there is some drop pf water on the surface, it will not affect the using. But can not be installed outside, can not be used in rain or water.

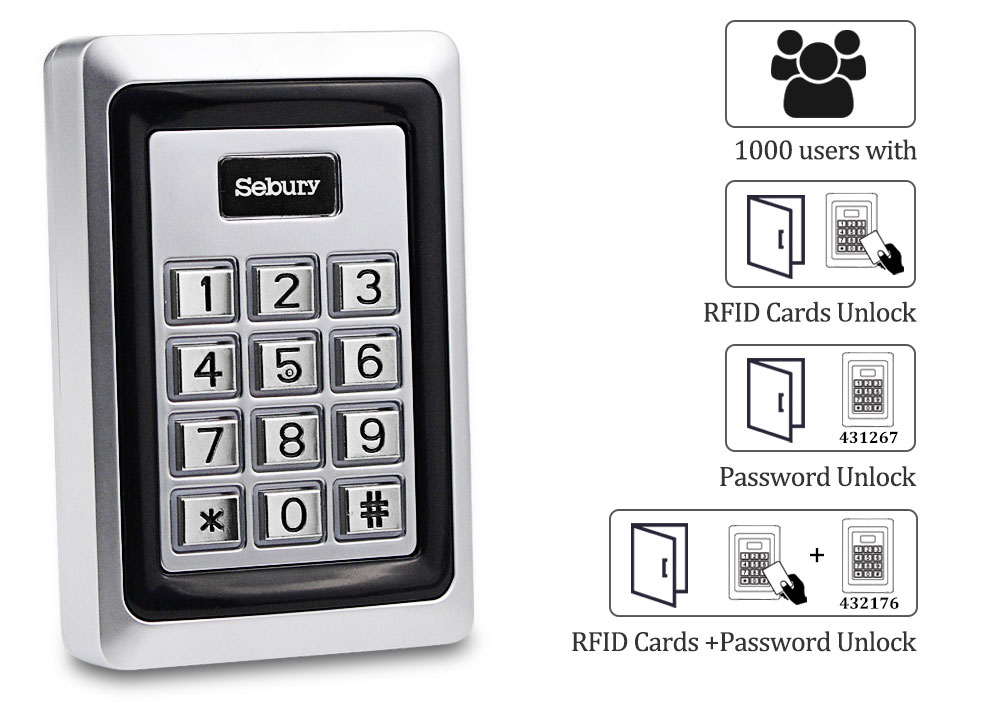

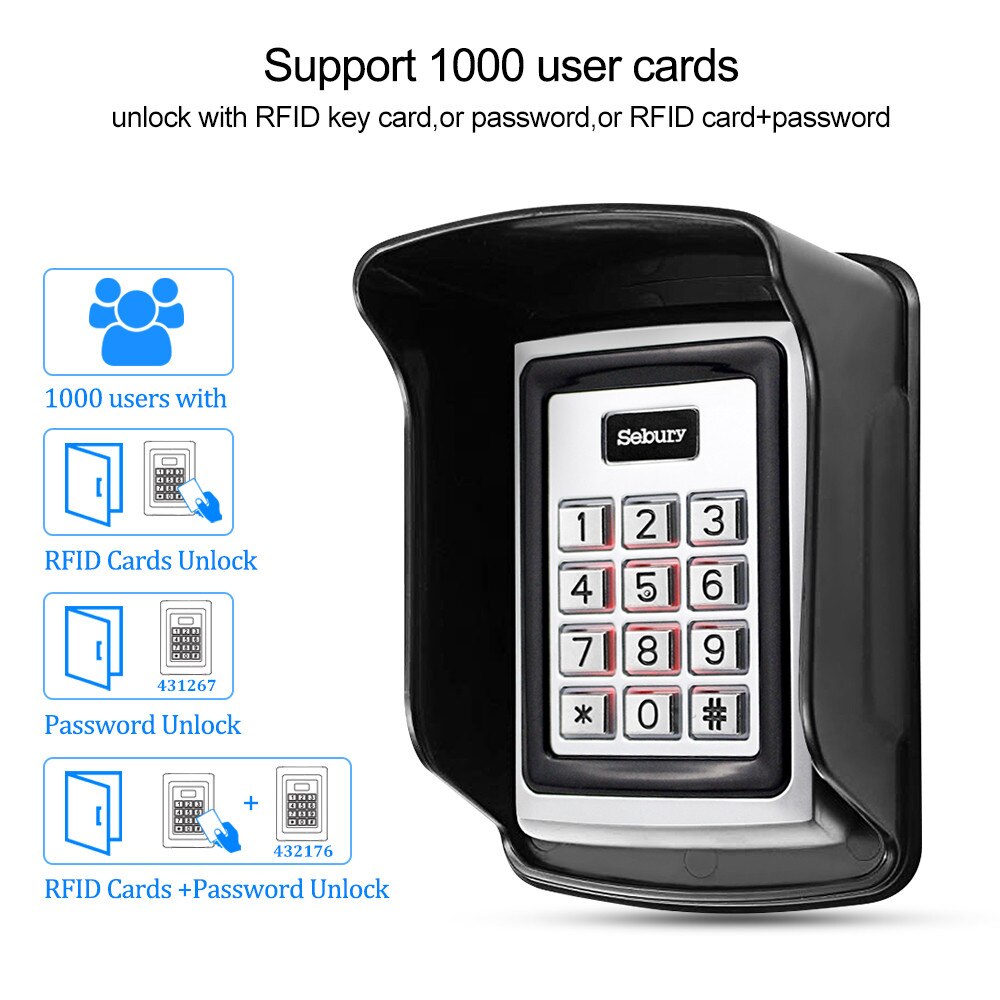

2, Large capacity and multi opening door mode.
Supports 1000 pieces users, large capacity. Support three open door mode: password, RFID card, password + RFID card.
Full programming from the keyboard, support to set password, add / delete user cards, etc.

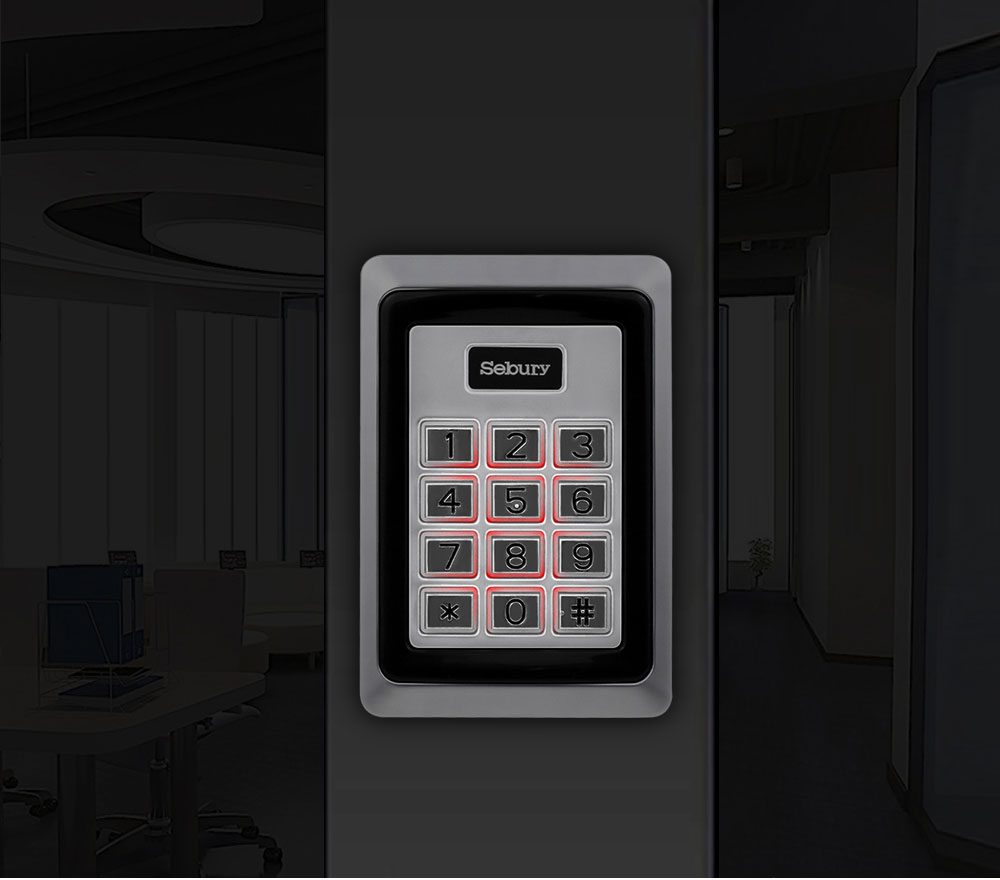

3, Metal keypad, digital backlit
All programming is done through the keypad，Up to 1000 user capacity.and the digital backlight key is convenient in night or dark enviroment.

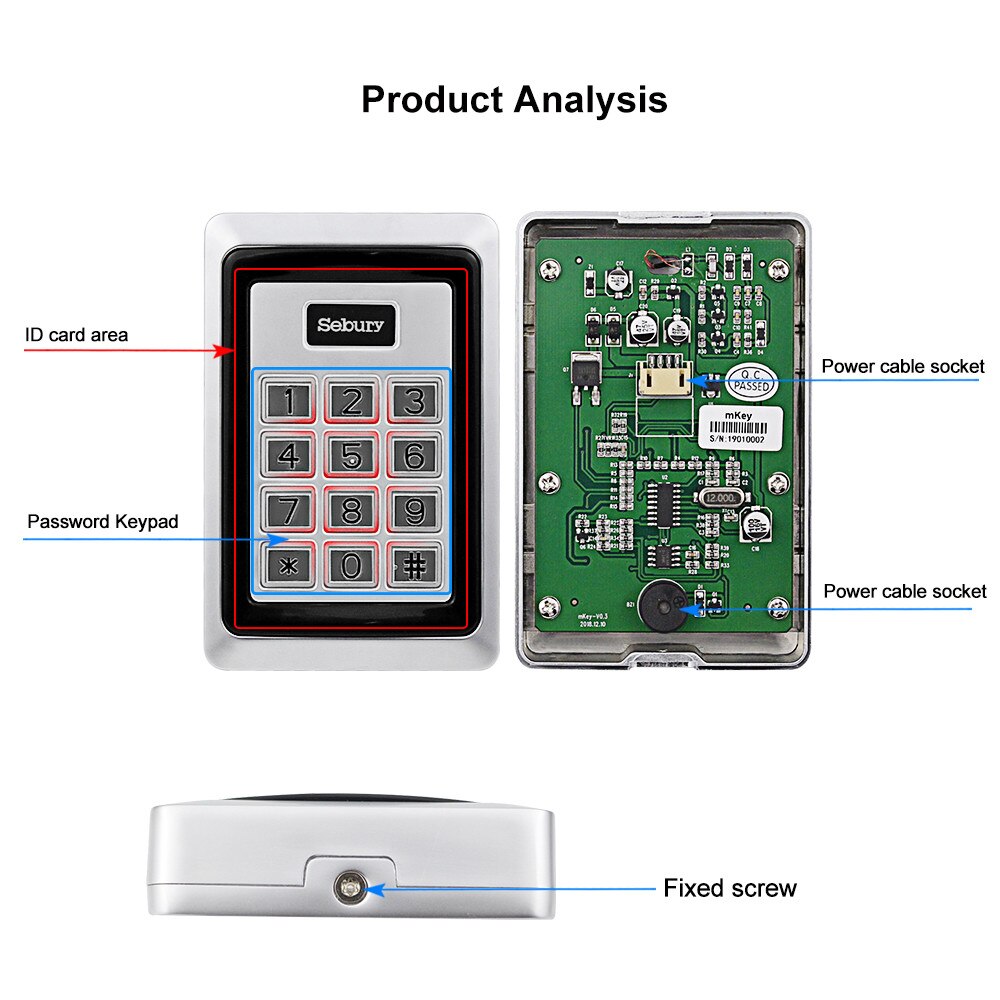

4, Safety screw at the bottom of the keypad, can prevent malicious destroy.
5, Easy Installation.

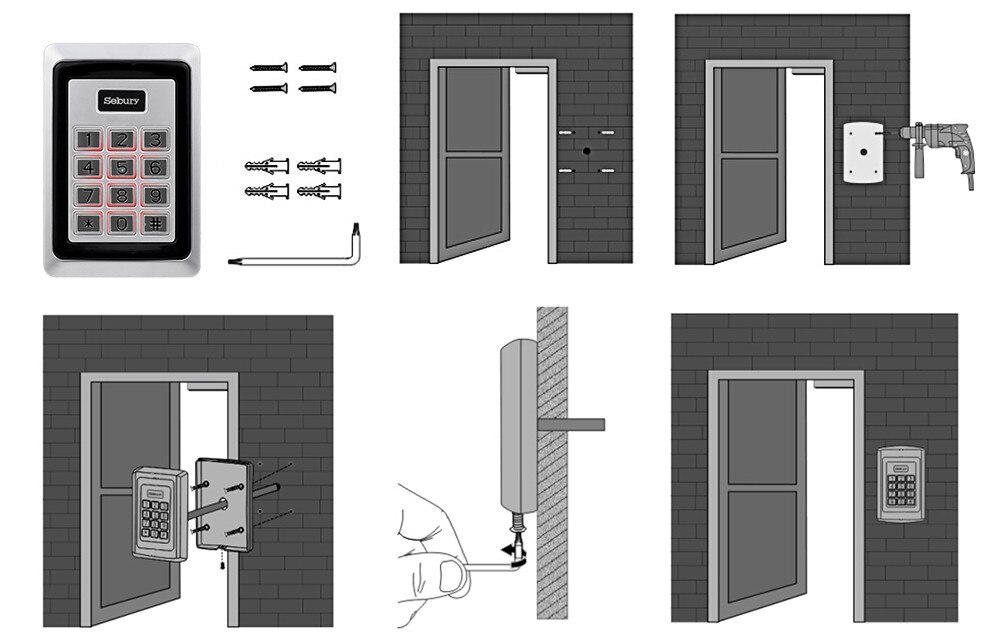

Unscrew the anti-tamper screw on the bottom of the product with the special anti-tamper screwdriver, remove the back case of the product, then according to the opening position of the back case, use the impact drill to open the corresponding holes on the wall, including a wire outlet hole with diameter larger than 8mm, and four plastic expansion screw holes with diameter of 6mm, then insert four matching plastic expansion screws, and fix the back case to the wall with four matching self-tapping screws. As shown below:

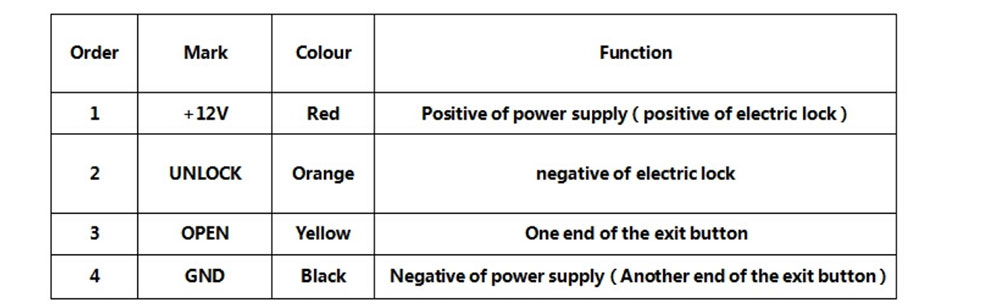

6, The correspondence between the color of wire and their function.
125KHz RFID Keyfobs
Instruction: You can read these keys on the access controller keypad to open the door conveniently.
Only the key finished programed with our instruction then can be open the door.
Specifications: Working Frequency: 125KHz
With ABS high quality
Each one has unique ID number on it
Reading Range: 1-10cm
Color: Red, Blue, Yellow, Green, Black (We will send 10pcs BLUE color by default, if you want other color, please leave us a message)
Quantity: 10pcs ( If you want more, please click below link. )

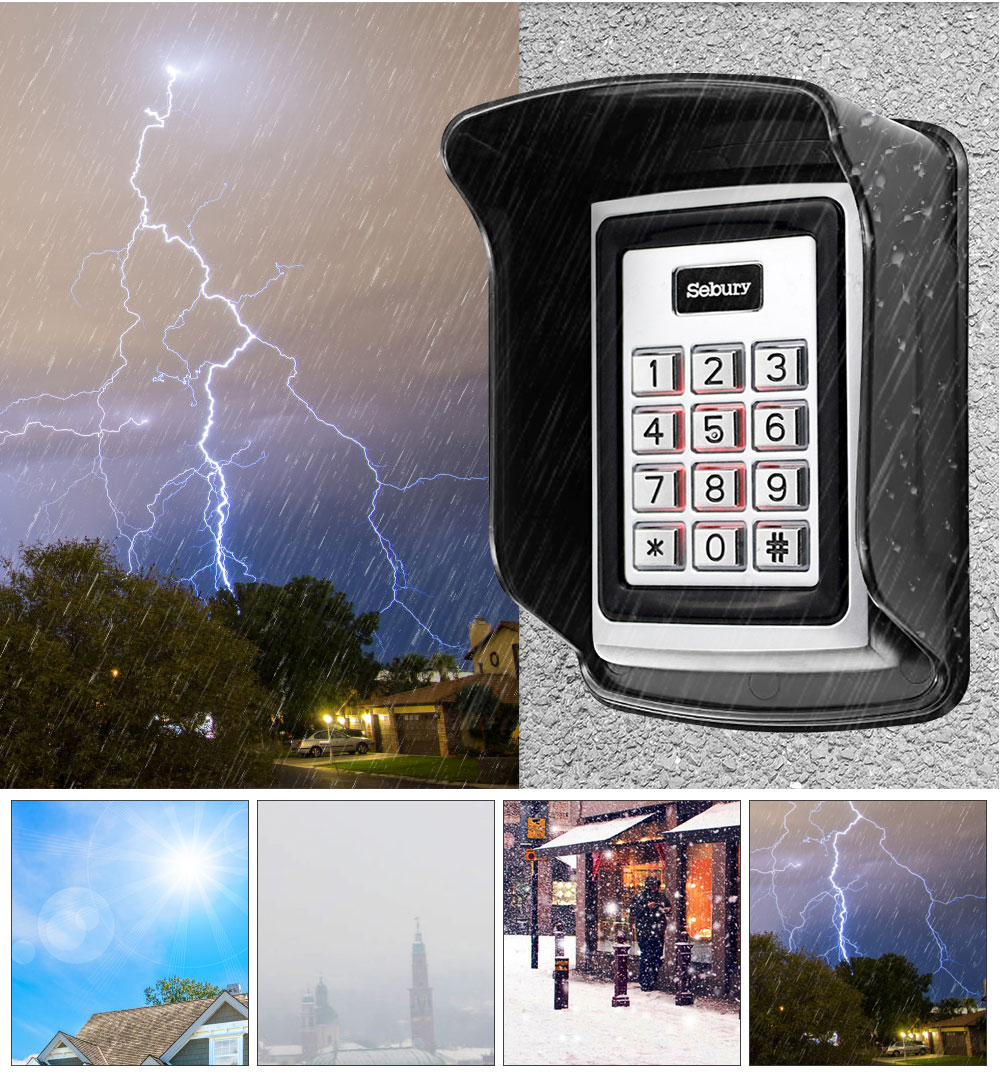

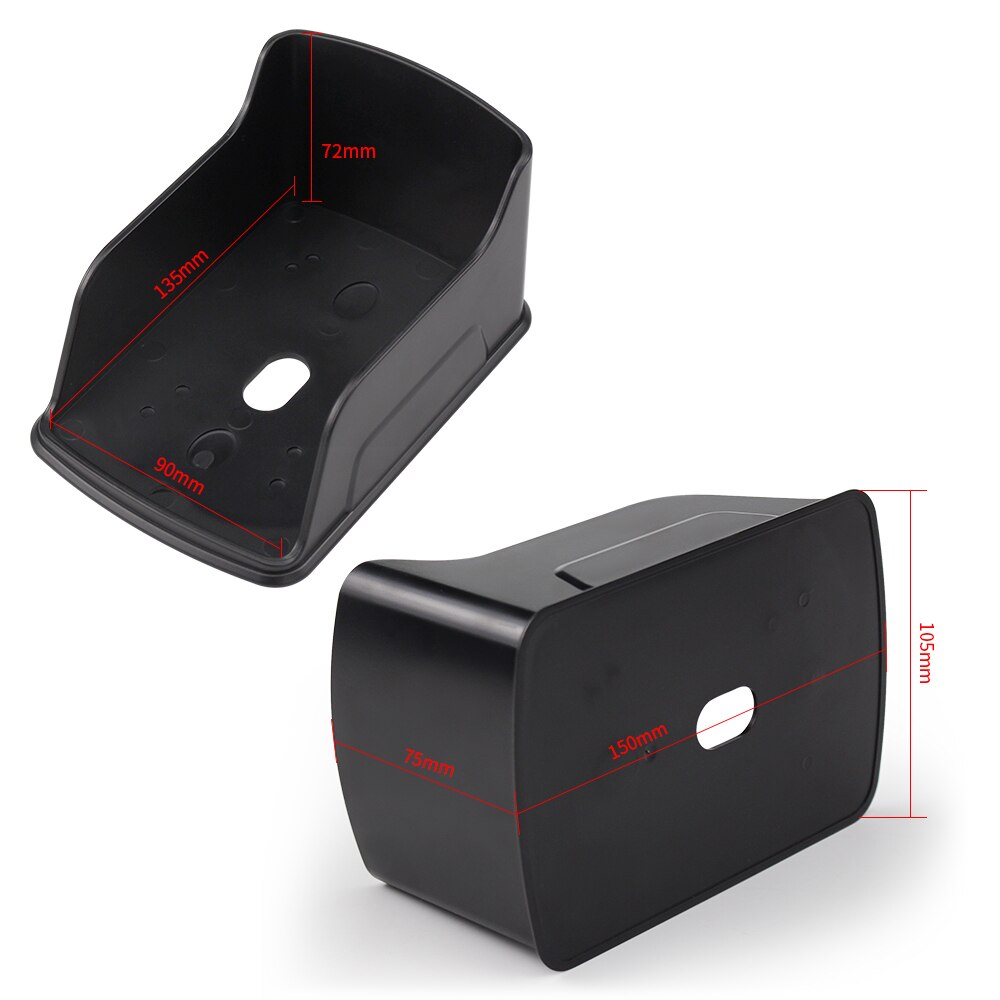

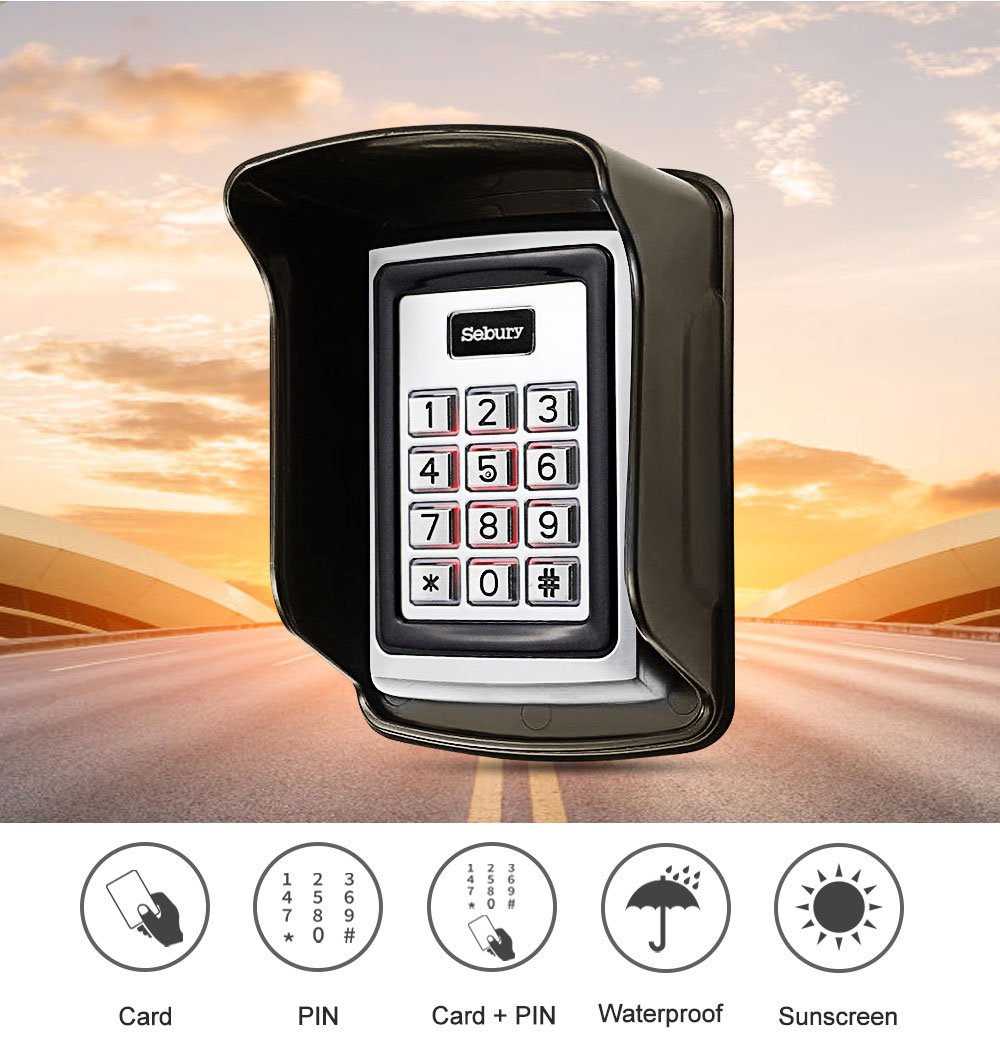

Rainproof Cover
Instruction: This waterproof shell is suitable for fingerprint device, access controller, standalone RFID door access controller, which length is less than 13cm, width is less than 8cm.
Dimension: Outside: 15cm*10.4cm*9cm (L*W*H)
Inside: 13.5cm*8.9cm*8.4cm (L*W*H)
( The mKey model access control is still working when there are some water on the surface, but can’t be use in rain directly. If you want to install item outside, please buy this rainproof cover to protect it. )

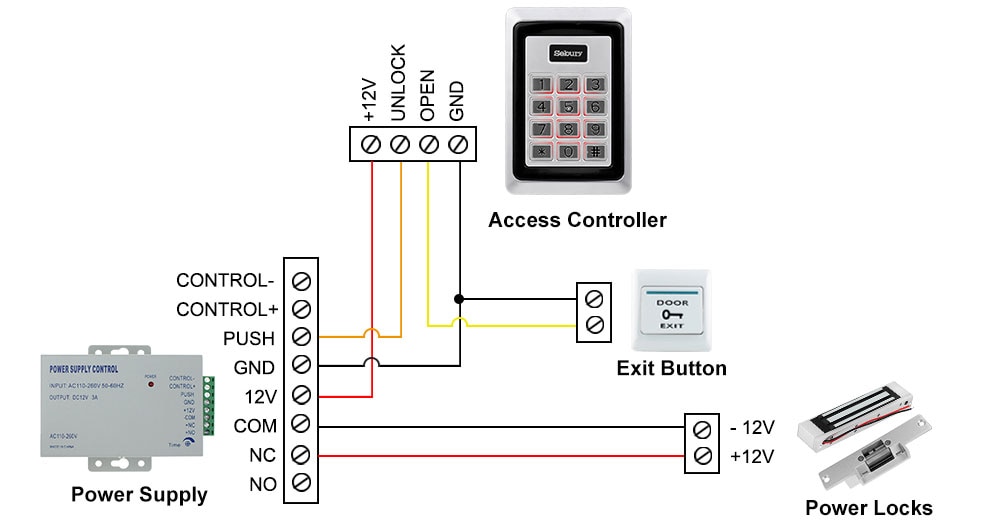

Wiring Diagram
This access control keypad should be connected as below wiring diagram shows, when you use a special power supply.But Please Attention: The power supply, electric locks and exit button shows in below picture are not included in package. If you need it, please contact us.
Multi-models for you to choose!!!
There are 5 different models for you to choose from. Please choose the suitable model according to your needs.

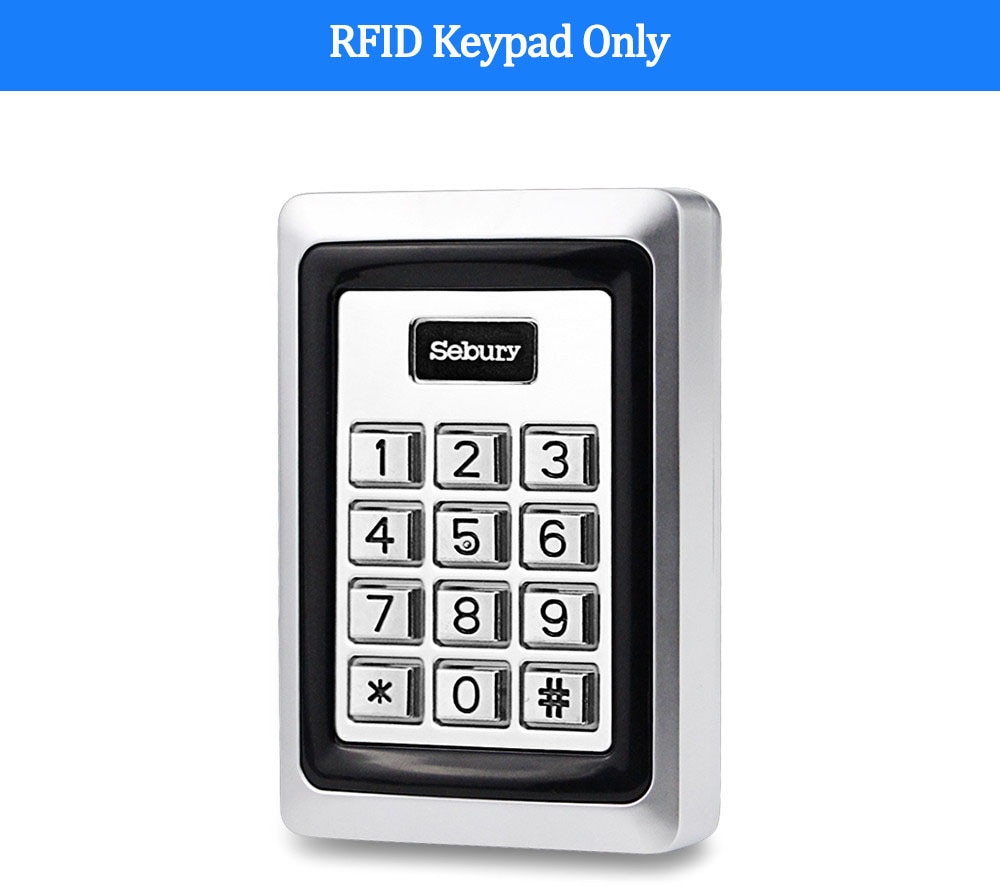

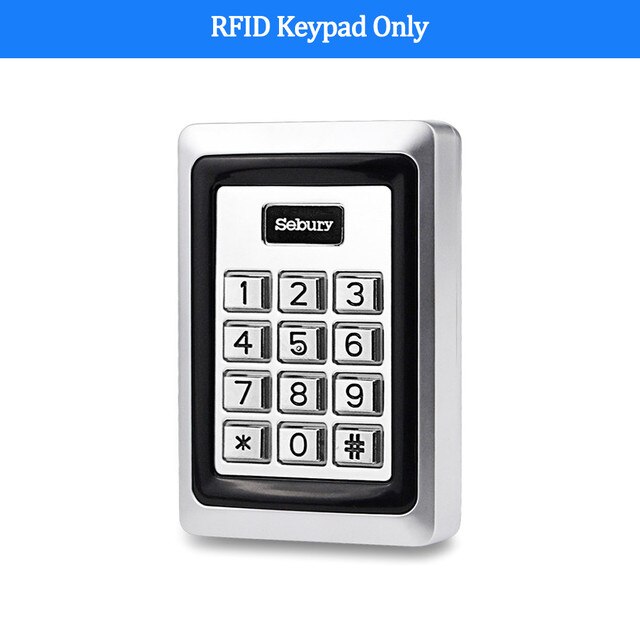

Model 1: Access Control Keypad Only
This model is a RFID access control keypad only. Don't include the RFID keyfobs or rainproof cover.
Package List:
Access control keypad x 1

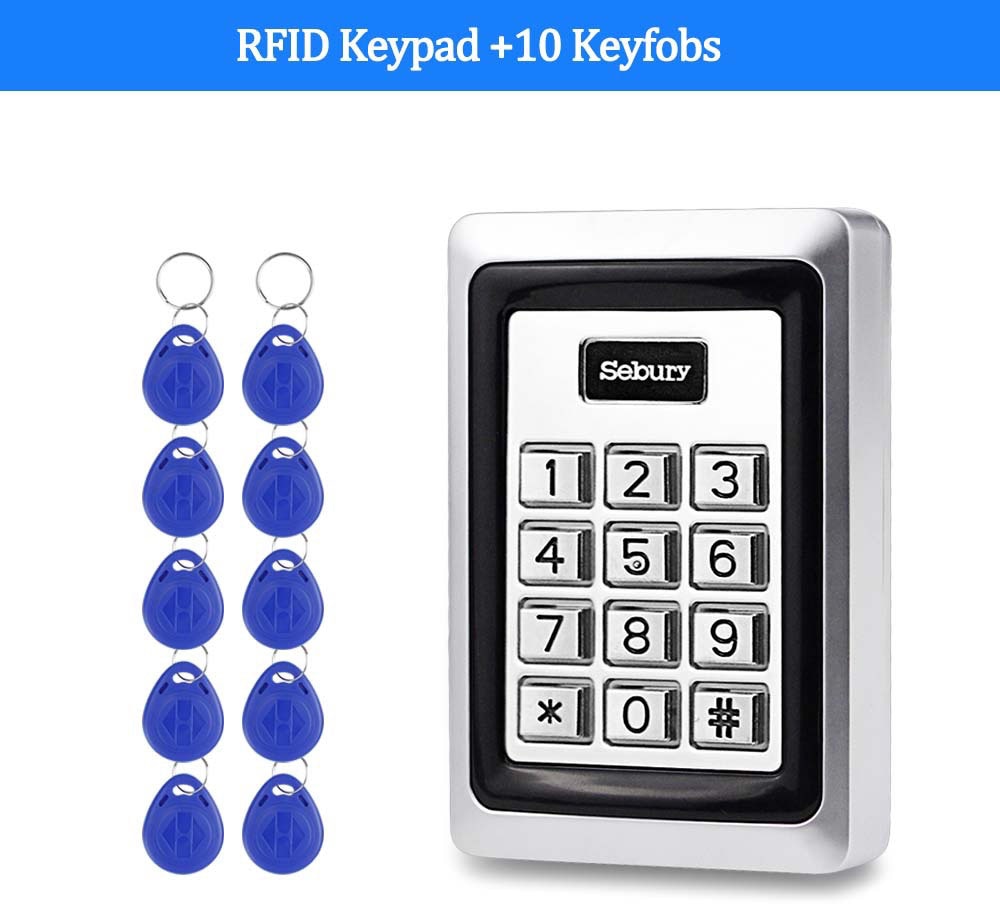

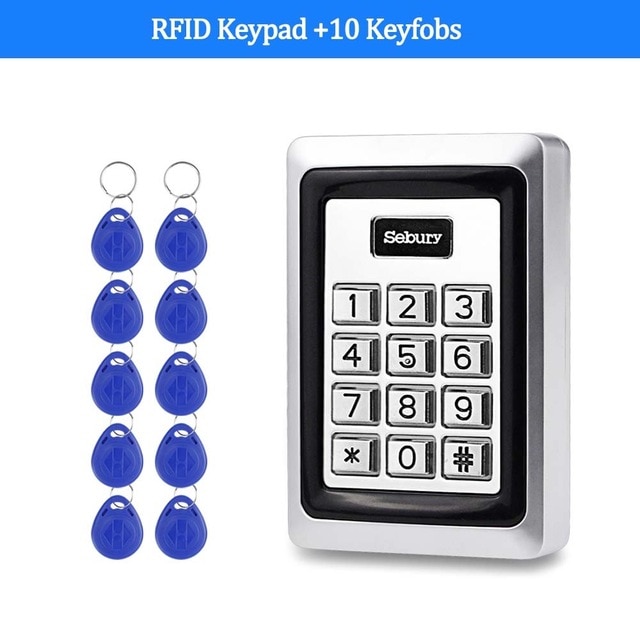

Model 2: Access Control Keypad with RFID keyfobs
This model is a RFID access control keypad with 10pcs RFID keyfobs. Don't include the rainproof cover.
Package List:
Access control keypad x 1
125KHz RFID keyfobs x 10 (Blue color)

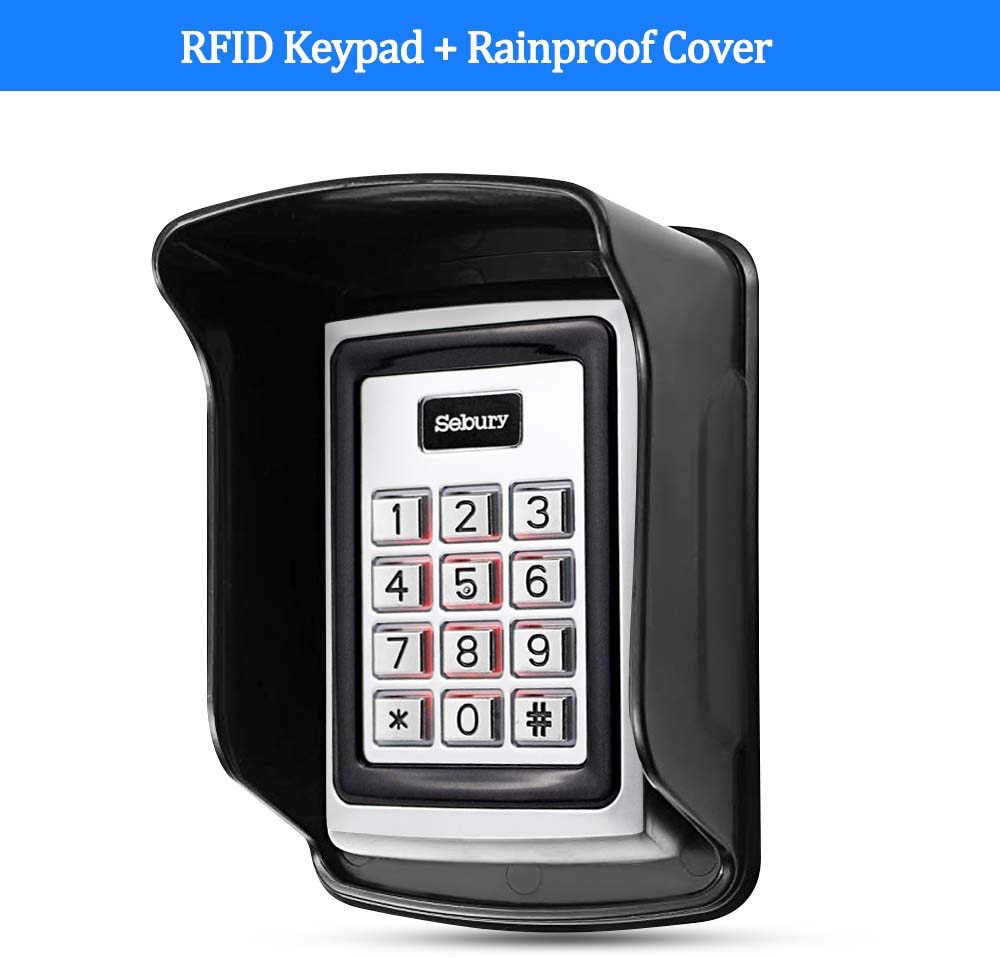

Model 3: Access Control Keypad with rainproof cover
This model is a RFID access control keypad with a rainproof cover. Don't include the RFID keyfobs.
Package List:
Access control keypad x 1
Rainproof cover x1

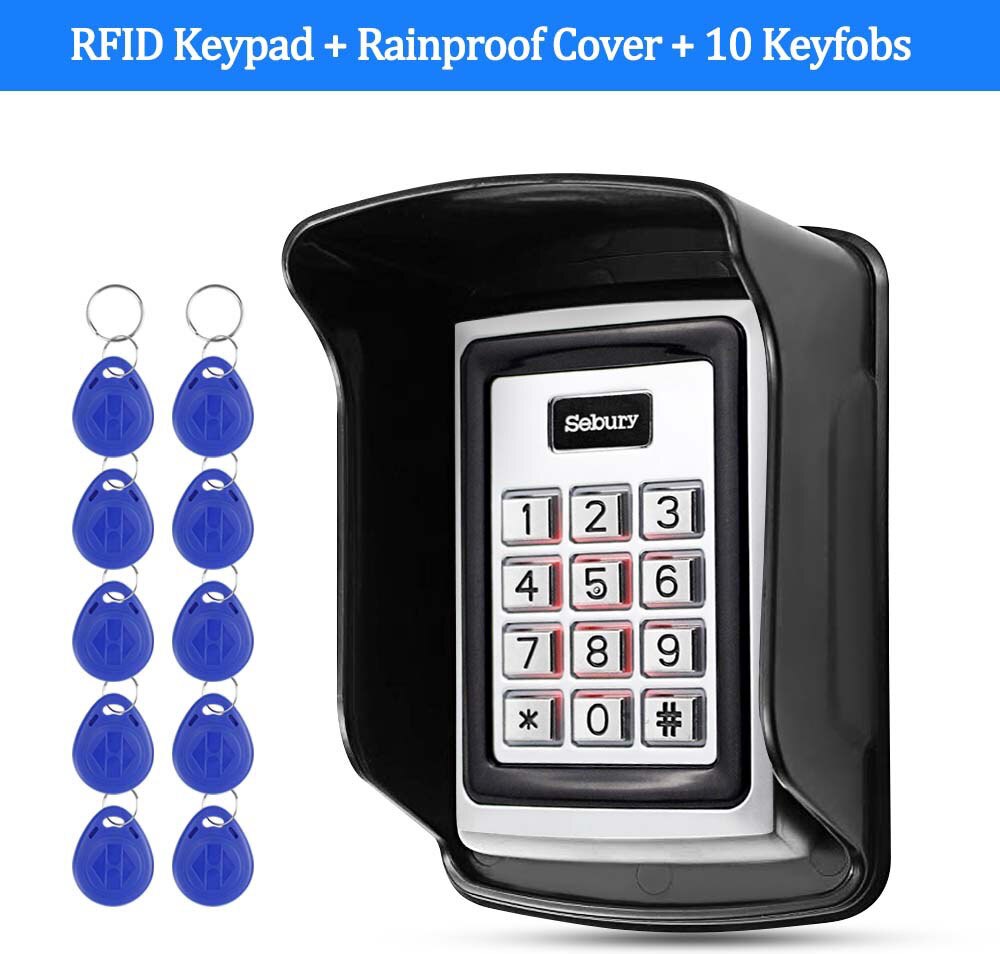

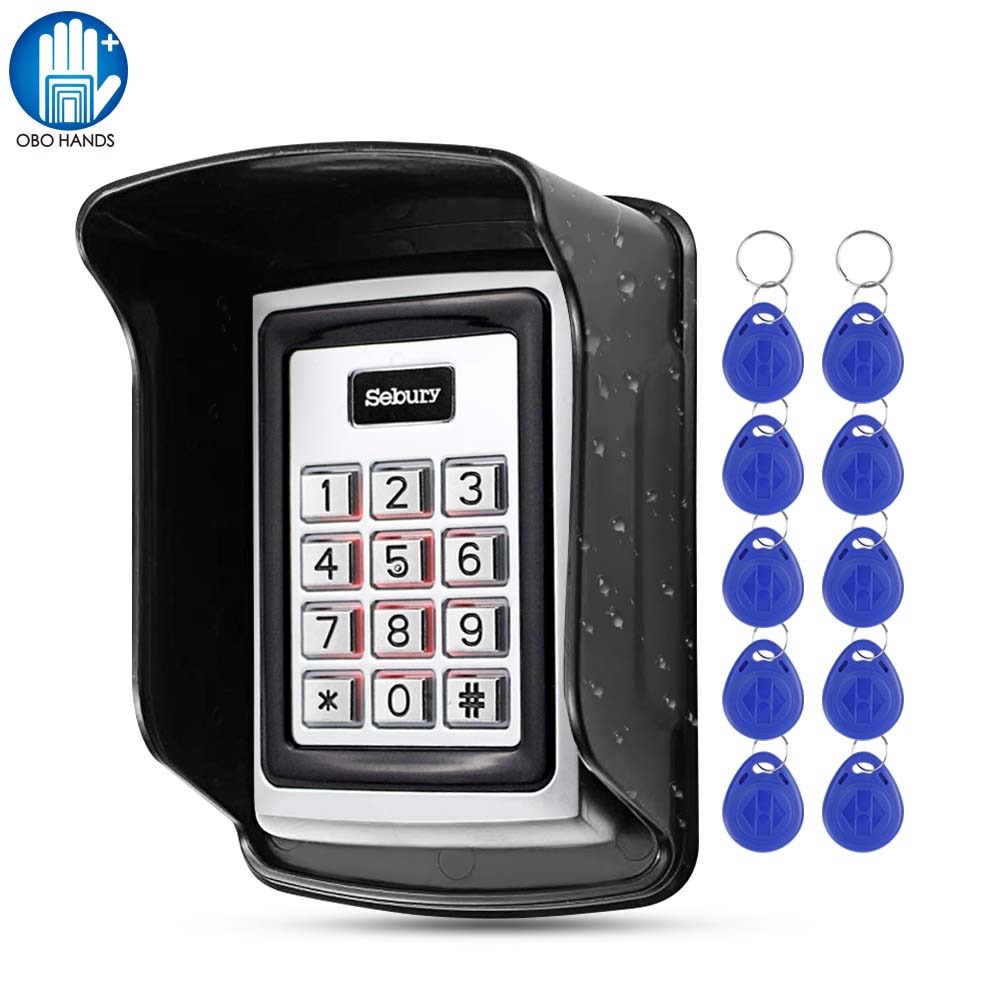

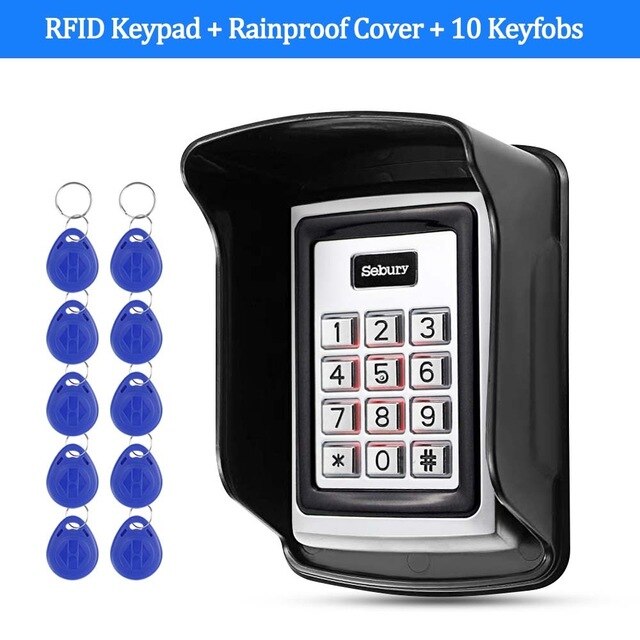

Model 4: Access Control Keypad with RFID keyfobs and rainproof cover
This model is a RFID access control keypad with a rainproof cover and RFID keyfobs.
Package List:
Access control keypad x 1
Rainproof cover x1
125KHz RFID keyfobs x 10 (Blue color)

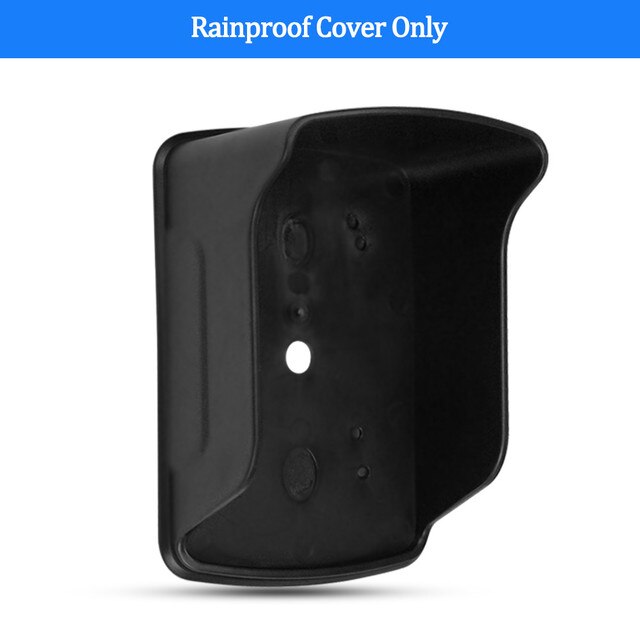

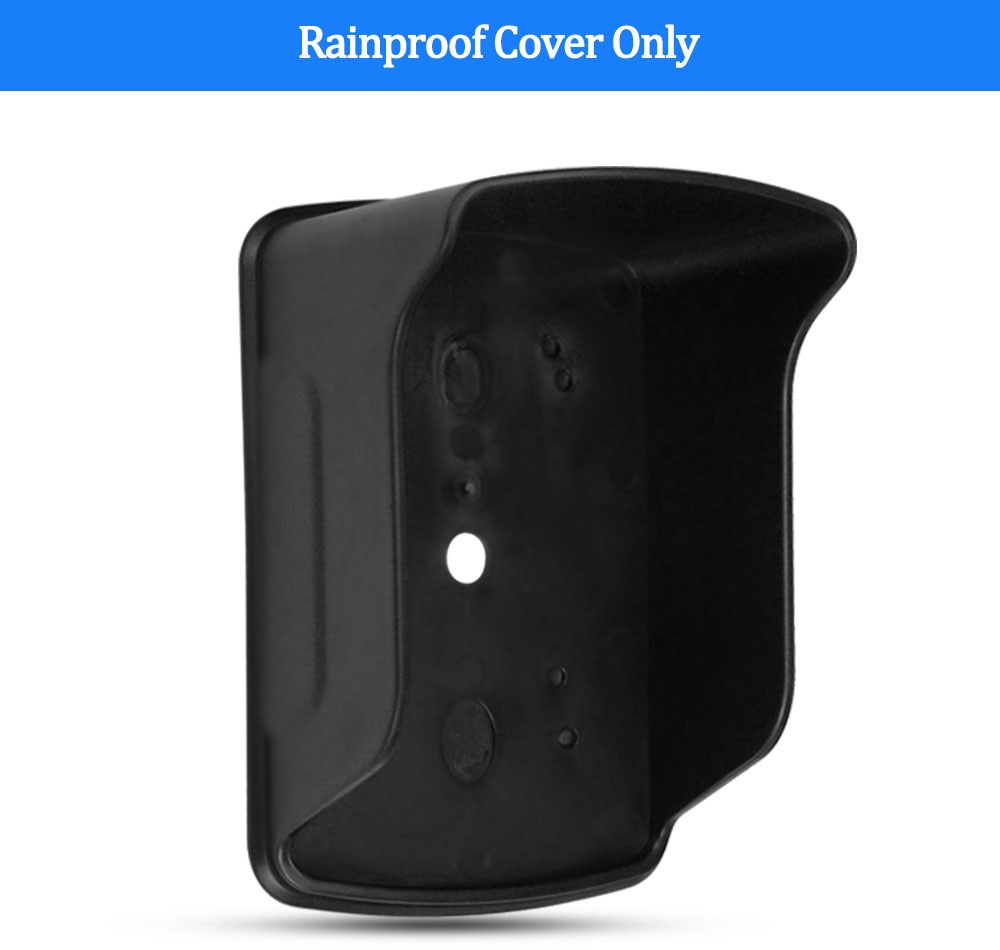

Model 5: A rainproof cover only
This model is a rainproof cover only. Don't include the access control keypad or RFID keyfobs.
Package List:
Rainproof cover x1
- Model Number: mKey
- Brand Name: OBO HANDS
- Origin: Mainland China
- Certification: CE
- Smart home platform: NONE
- User Capacity: 1000 card users
- Open Door Mode: Password, RFID card, Password + RFID card
- Working Frequency: 125KHz
- Working Voltage: DC 12V +/-2V
- Working Current: <100mA
- Reading Distance: 0 ~ 5cm
- Working Temperature: -20℃~50℃
- Dimension: 104*20*69mm(L/H/W)
