CCTV Tester Monitor IP Camera 8MP AHD TVI CVI CVBS CCTV Tester Monitor PTZ Controller Rapid ONVIF IPC Tester POE IPC1800 Plus
489.10 337.10 $
SALE
ID: 14809
Quantity

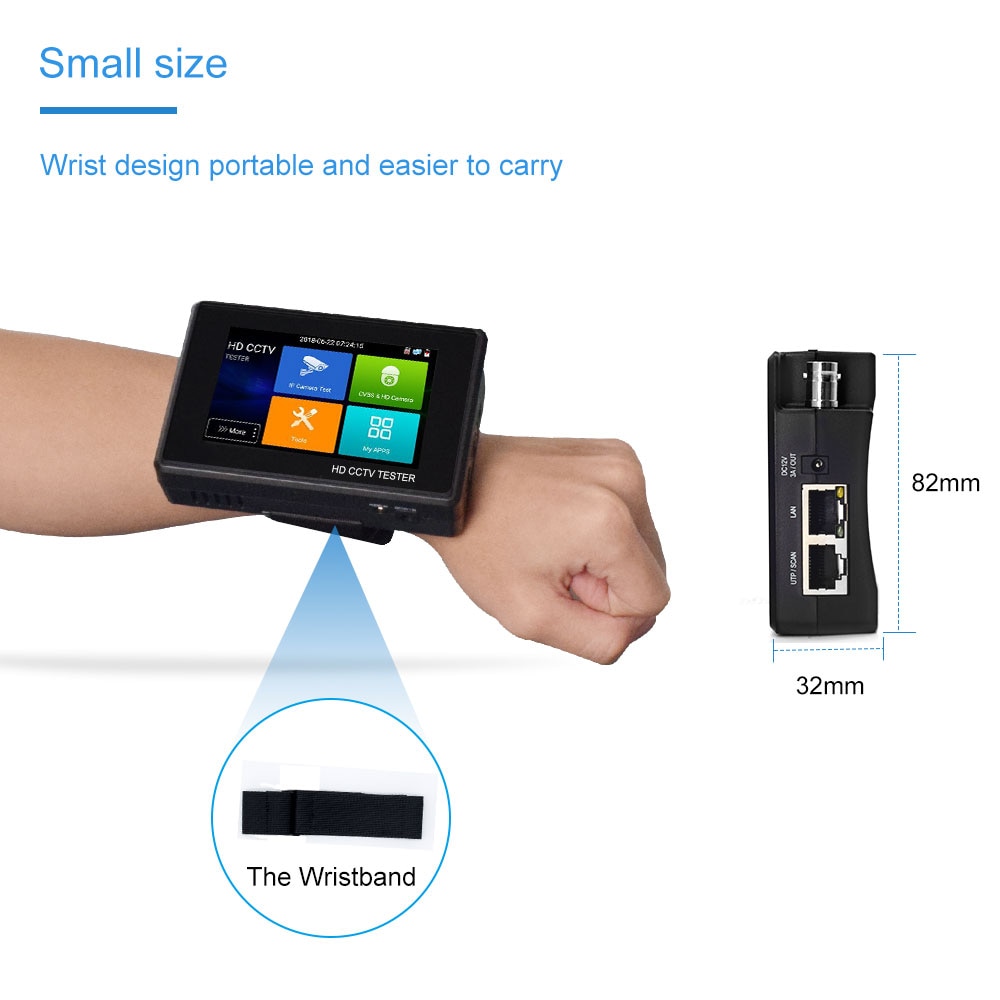

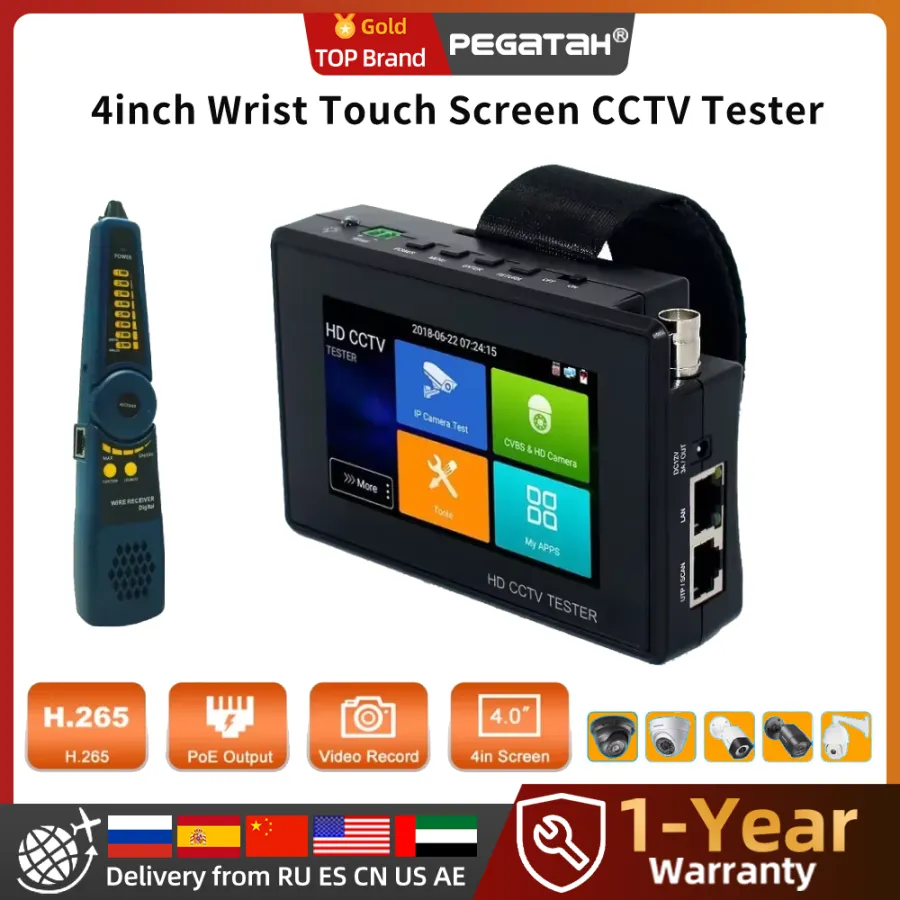

PEGATAH 4inch Wrist Touch Screen CCTV Tester for IP Camera Tester H.265 IPC Tester with POE Output for CCTV Camera Tester
4.8 (20 votes) | 132 orders
Price:
US $562.59 - 790.12
/ piece
Discount Price:
US $
334.38 -
469.93
/ piece
-41%
- Ships From
- Color
-
-
Código para clientes do Brasil
liqui4 45BRL-4BRL
liqui30 350BRL-30BRL
liqui70 1000BRL-70BRL
liqui100 1500BRL-100BRL
Pegatah 4K cctv tester cctv monitor for Ip camera tester Touch monitor IPC tester poe testers CCTV camera tester CFTV cameras
IP tester Support Languages
English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech
Model selection

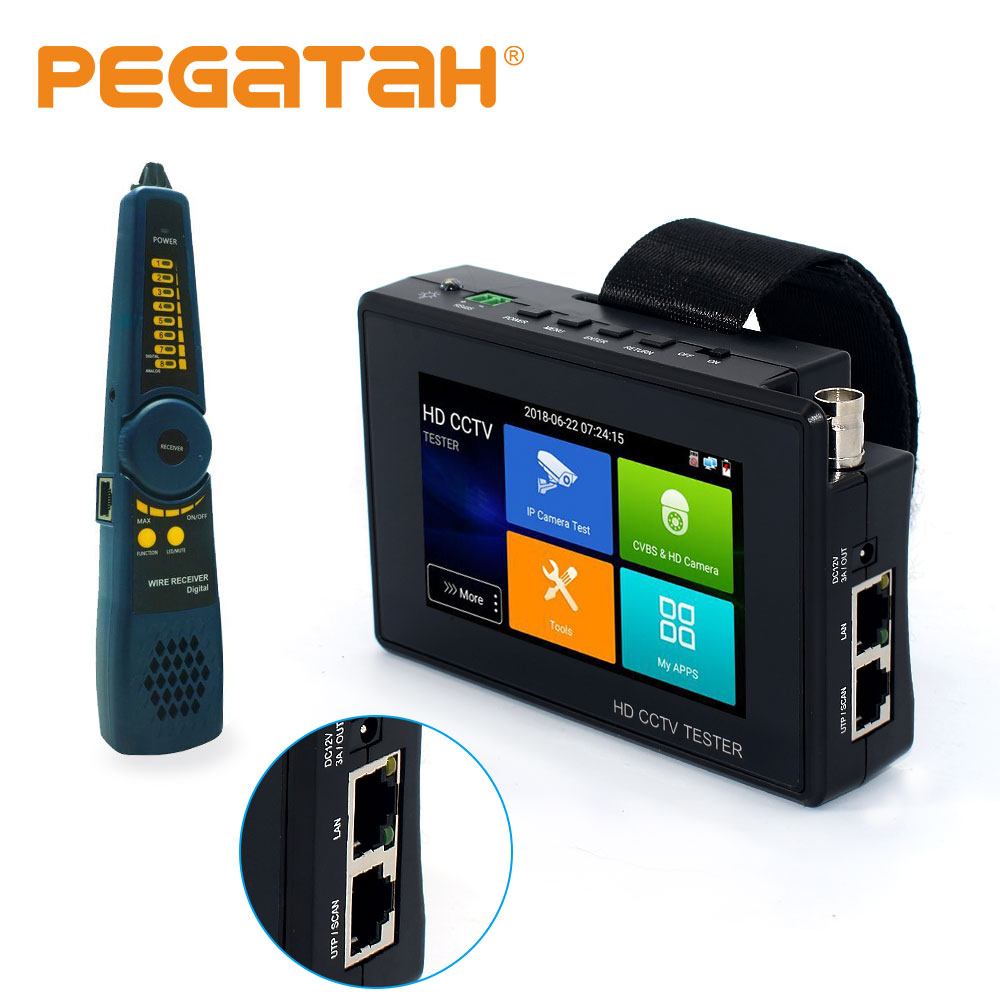

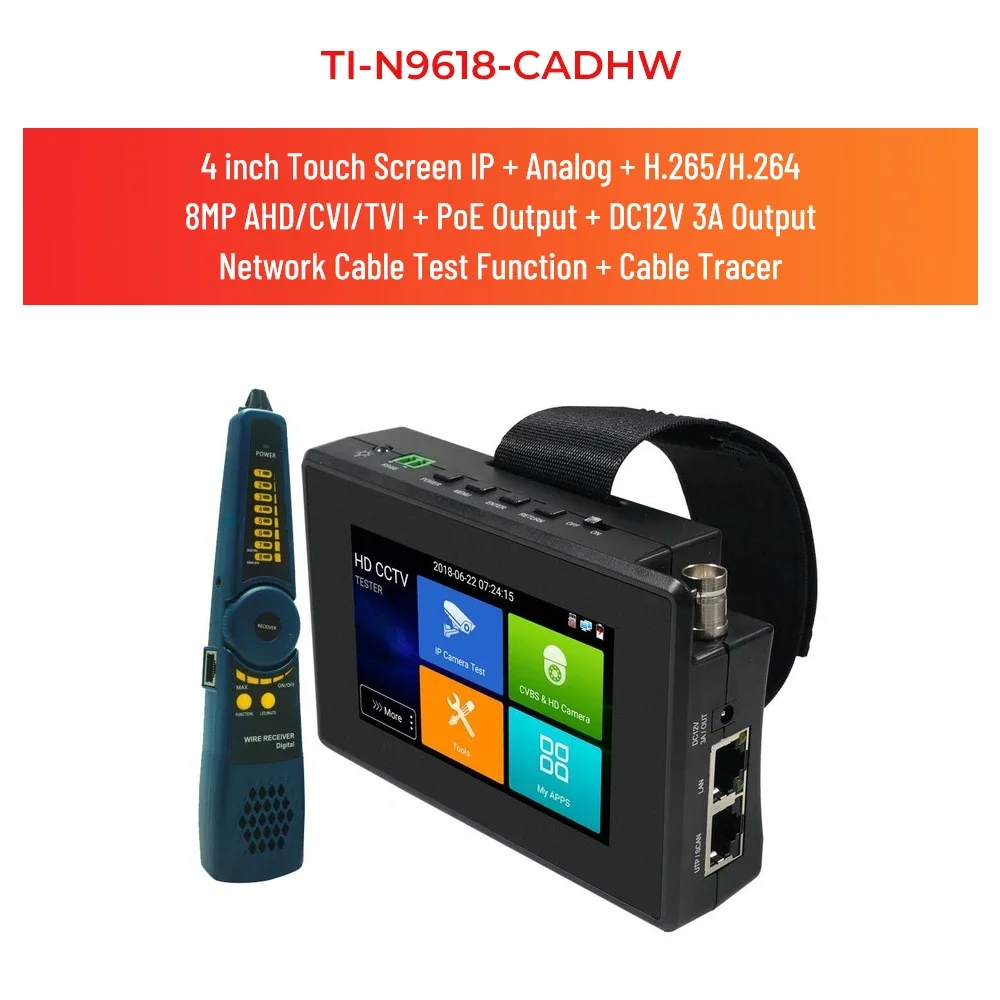

TI-N9618-CADHW
4inch touch screen H.265/H.264 IP+Analog+8MP AHD+8MP CVI+8MP TVI+POE output+DC12/3AOutput;

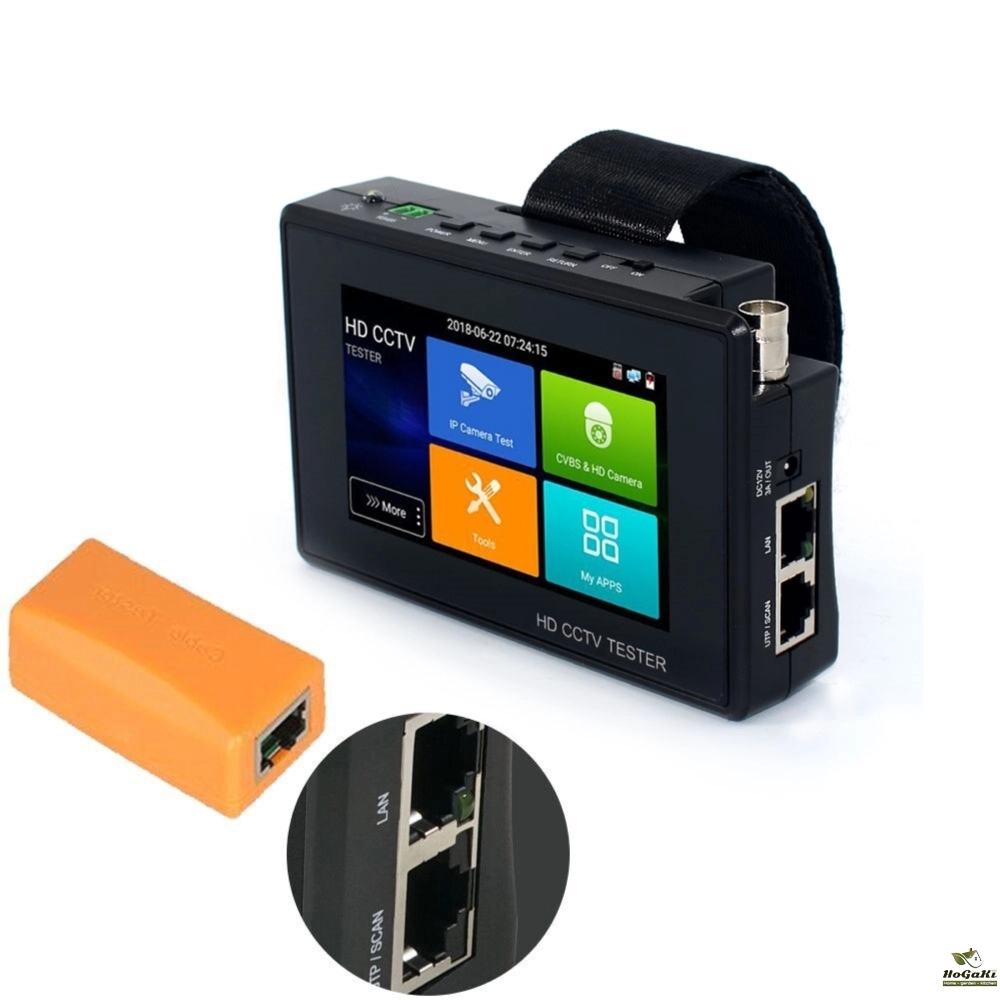

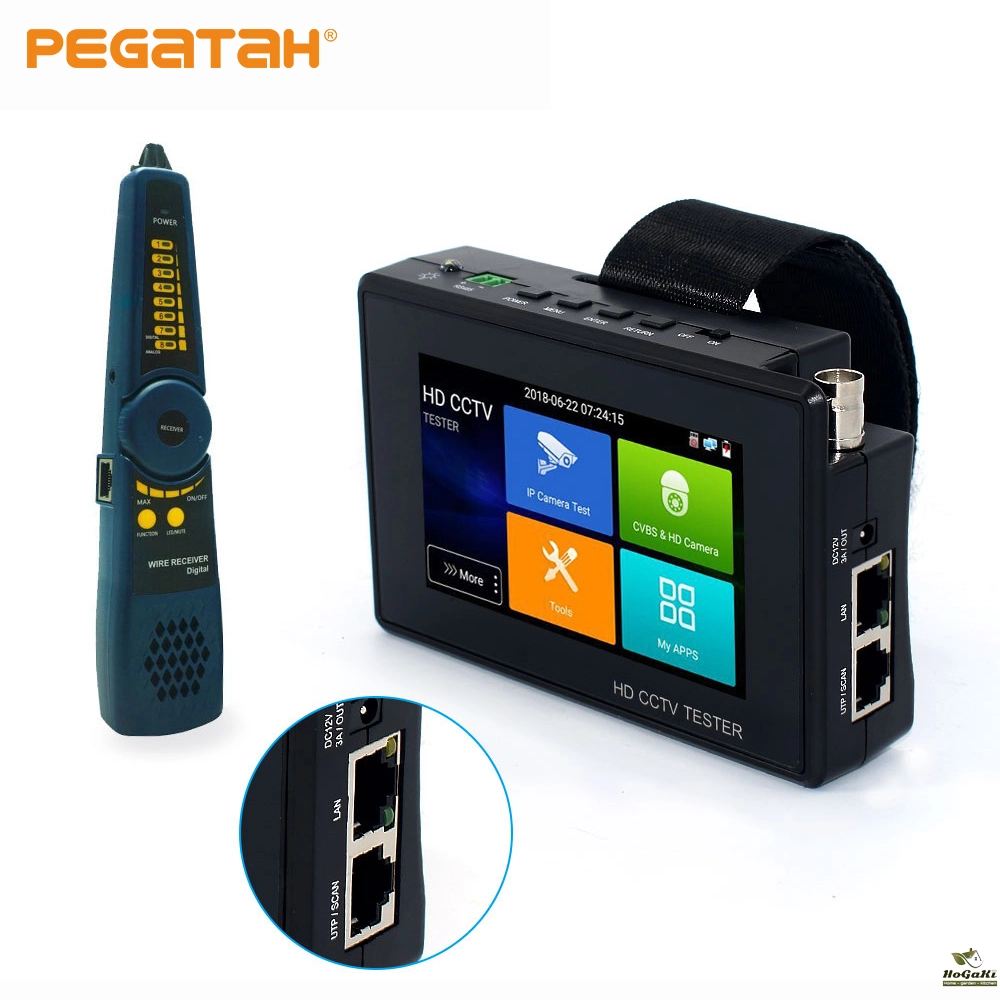

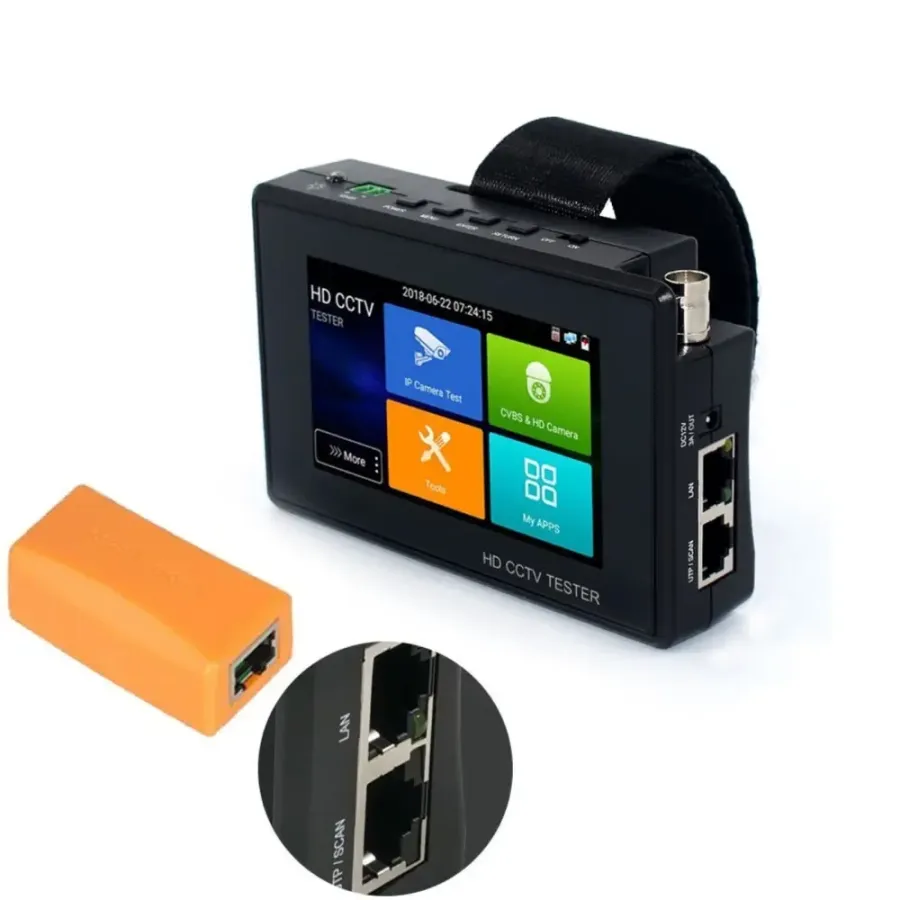

Added network line test function (an additional network port)+ Cable tracer

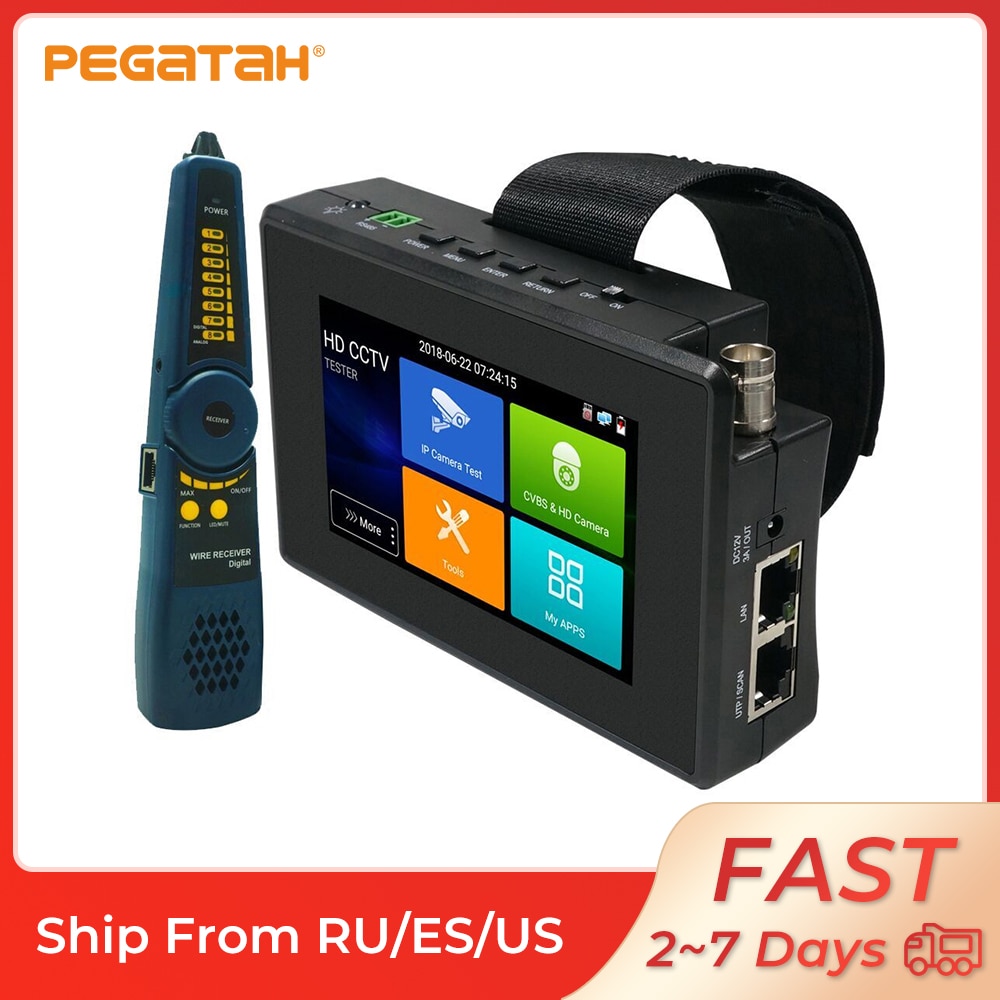

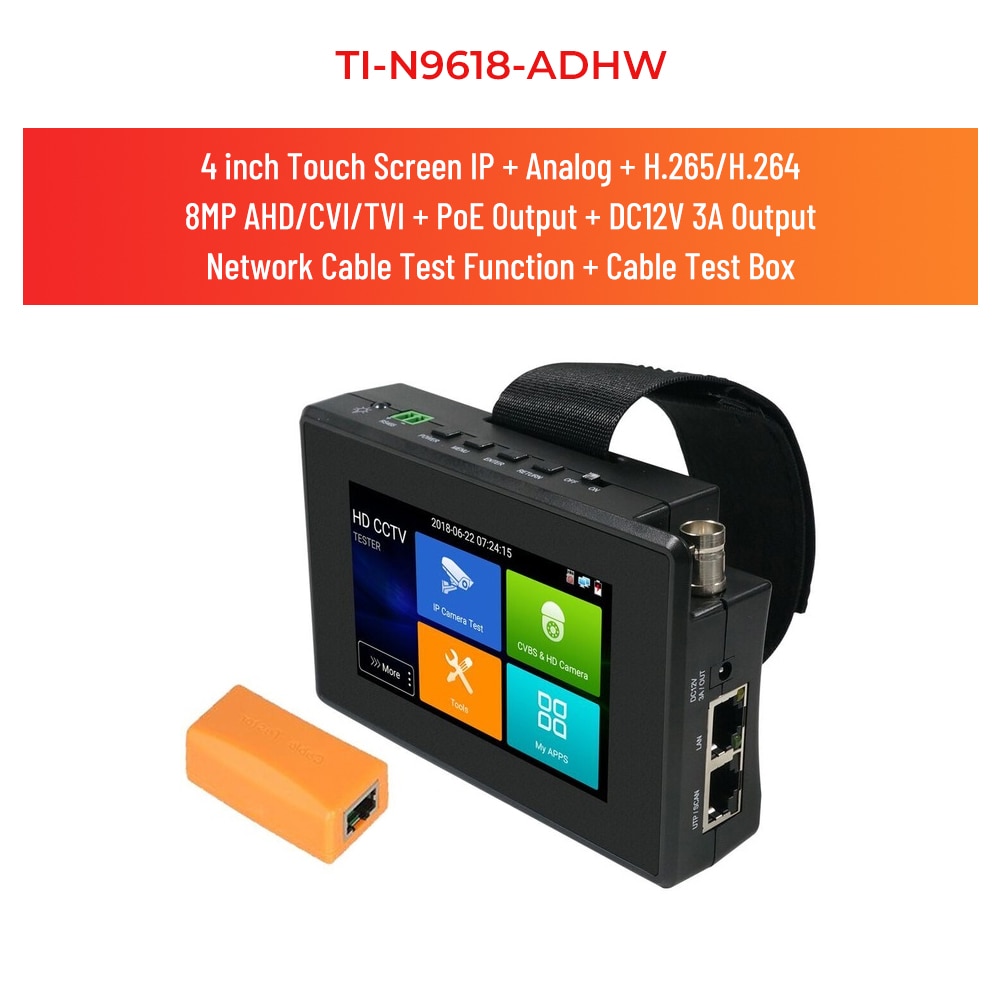

TI-N9618-ADHW
4-inch touch screen H.265/H.264 IP+Analog+8MP AHD+8MP CVI+8MP TVI+POE output+DC12/3A output; new network cable test function (one more network port), one more network cable test for accessories box

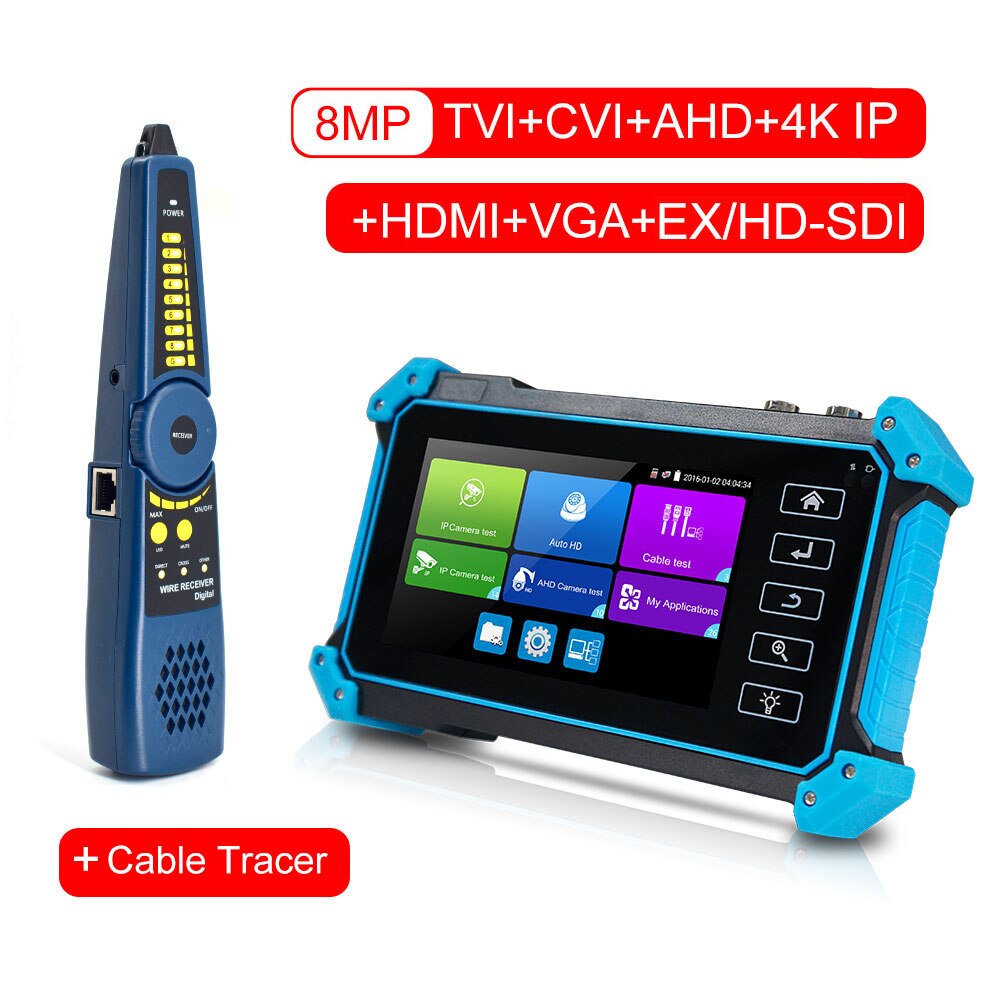

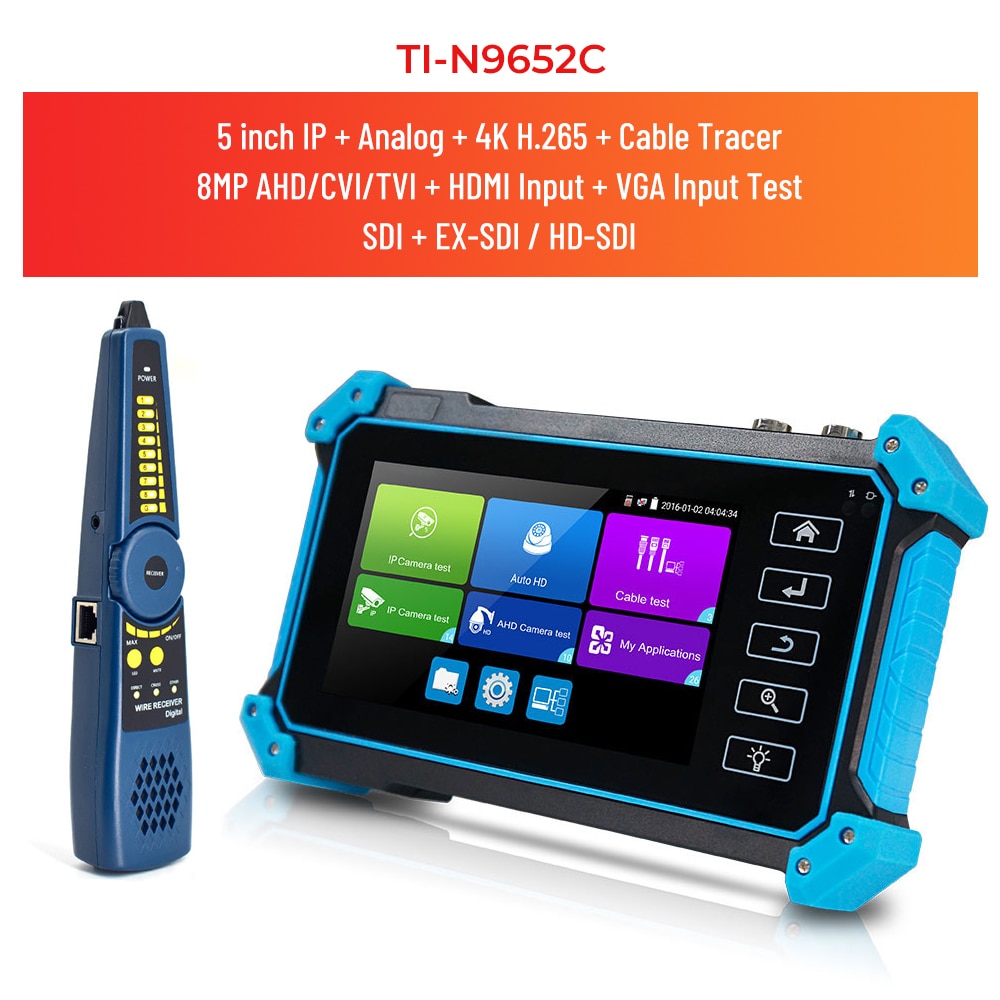

TI-HT9652C
5inch 1080P touch screen 8MP CVI/ TVI/ AHD/SDI camera test With HDMI+VGA input+DC12V 3A/POE Output+RJ45 TDR cable test Cable test+ Cable Tracer

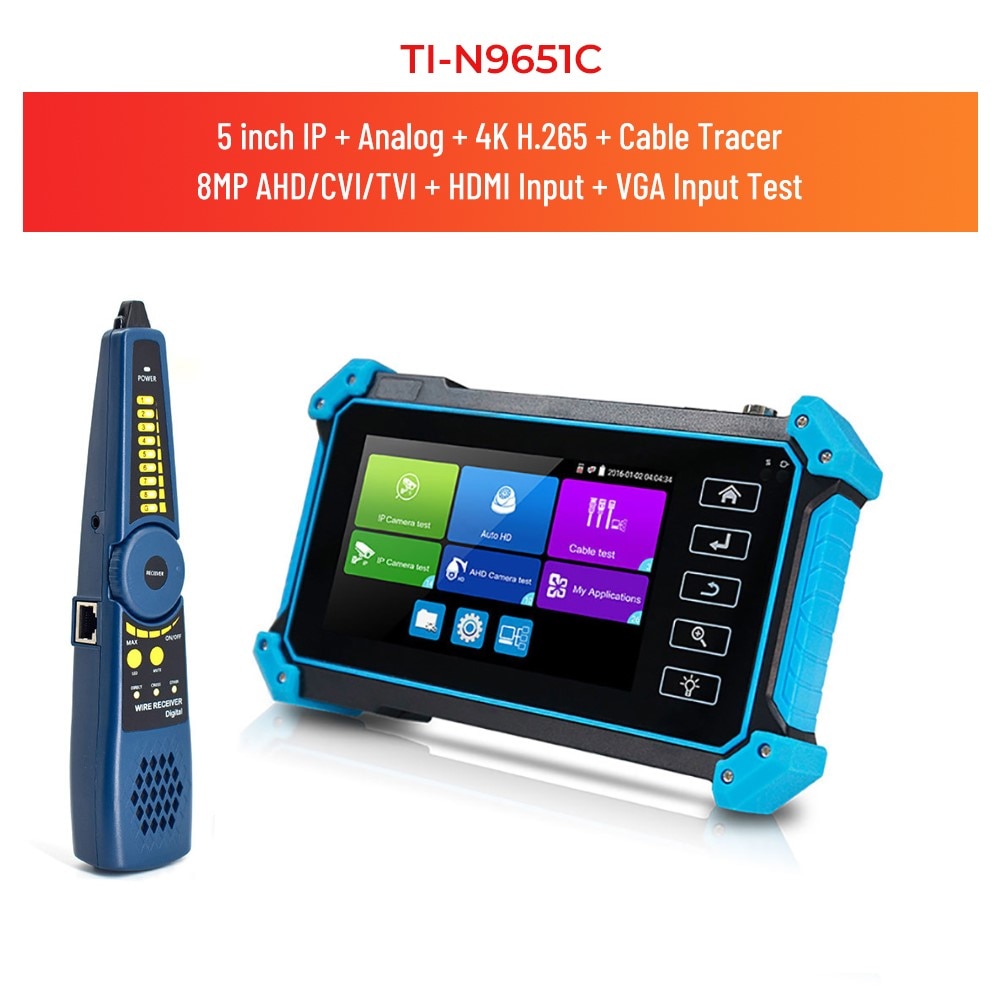

TI-HT9651C
5inch 1080P touch screen 8MP CVI/ TVI/ AHD camera test With HDMI+VGA input+DC12V 3A/POE Output+RJ45 TDR cable test Cable test+ Cable Tracer

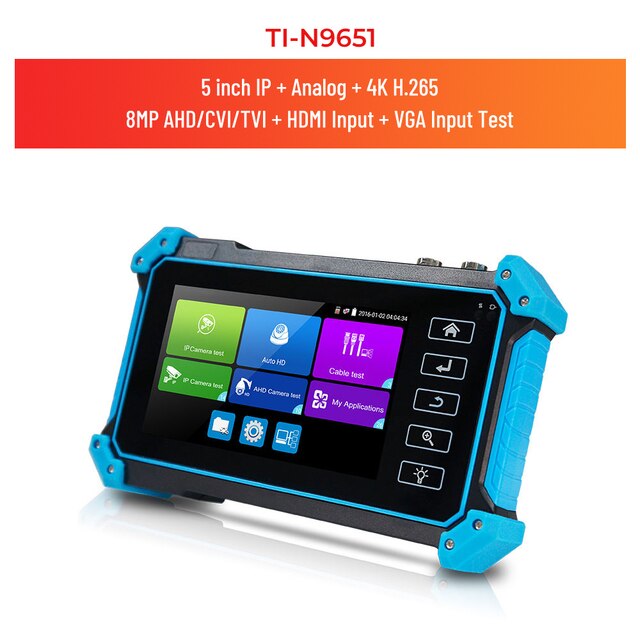

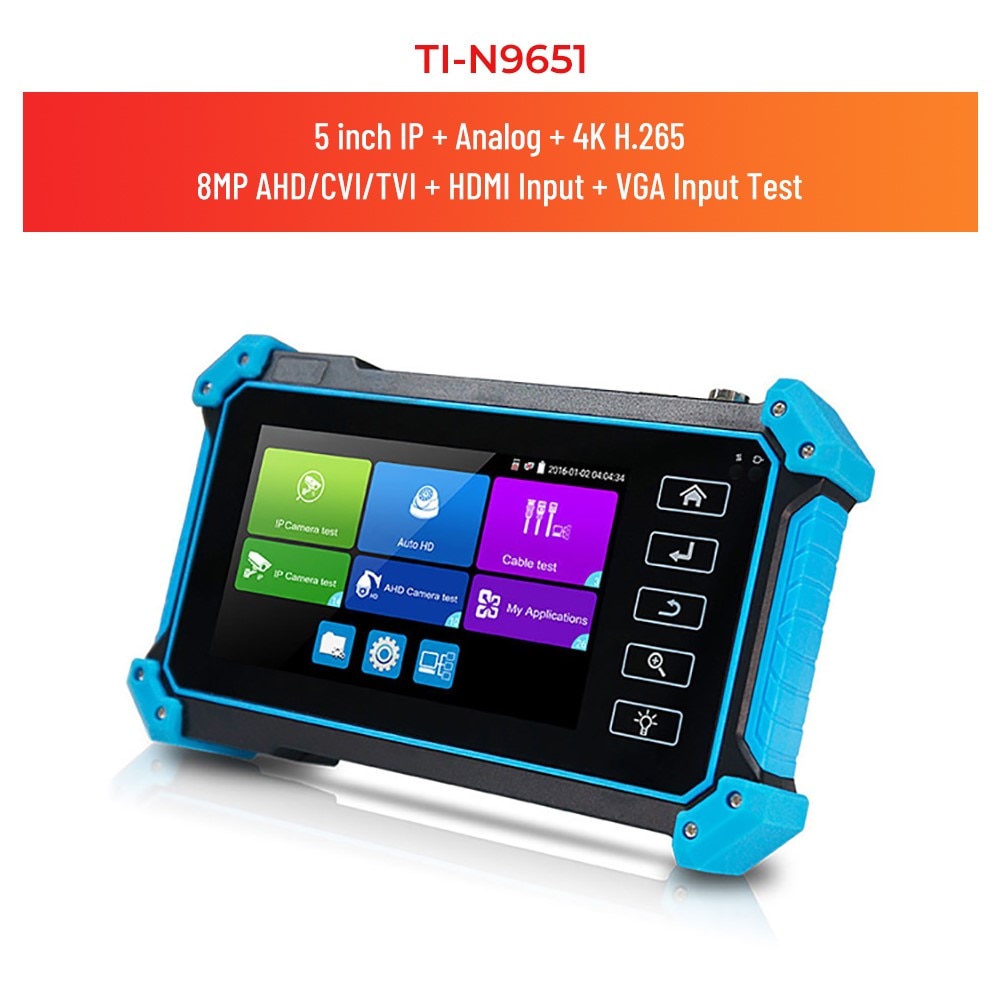

TI-HT9651
5inch 1080P touch screen 8MP CVI/ TVI/ AHD camera test With HDMI+VGA input+DC12V 3A/POE Output+RJ45 TDR cable test Cable test

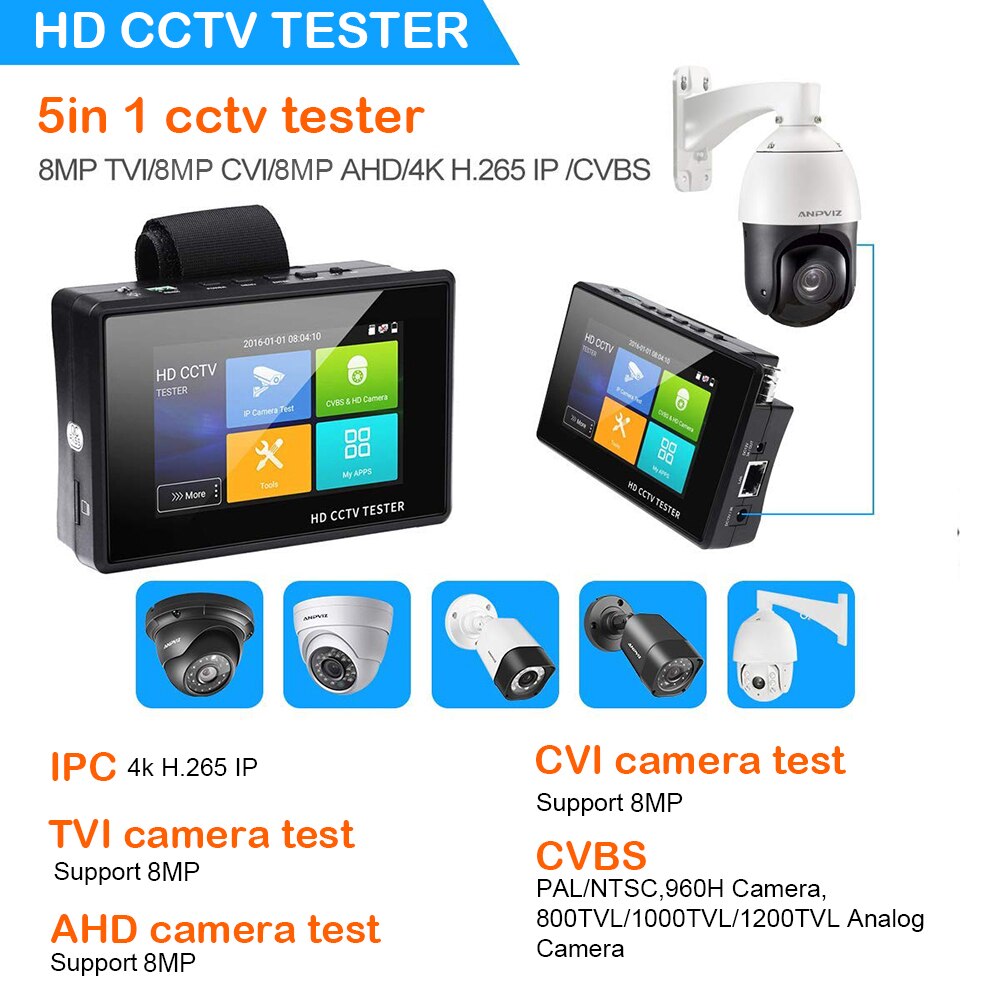

TI-N9618-ADHW/TI-N9618-CADHW-Features
1.4 inch IPS touch screen,800*480 resolution
2.New- H.264 and H .265 ,4K video display via mainstream
3.New- 8MP TVI test,3840 x 2160P 15 FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
4.8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
5.8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
6.PPPOE Dial test, can connect internet to PPPOE dial test
7.HD coaxial video signal quality test
8.IP & CVBS camera test, PTZ controller
9.New-IP discovery , just by one key to detect all network cameras IP address
10.Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
11.New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS
12.Hik test tool ,pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
13.Dahua test tool, test Dahua camera modify the user name, password and IP parameters
14.New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters
15.New- Drop-down menu , can select PoE power ,IP setting, CVBS, LAN info etc in any interface
16.New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc
17.ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF)

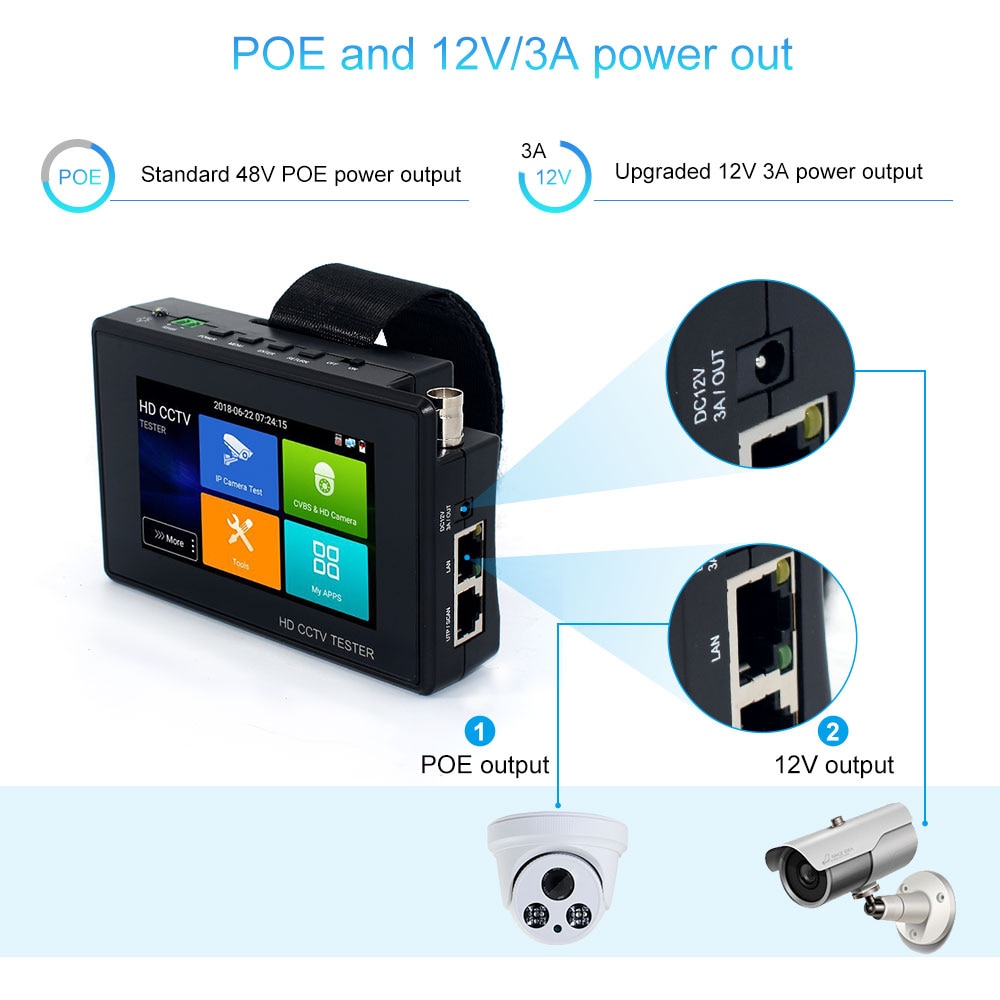

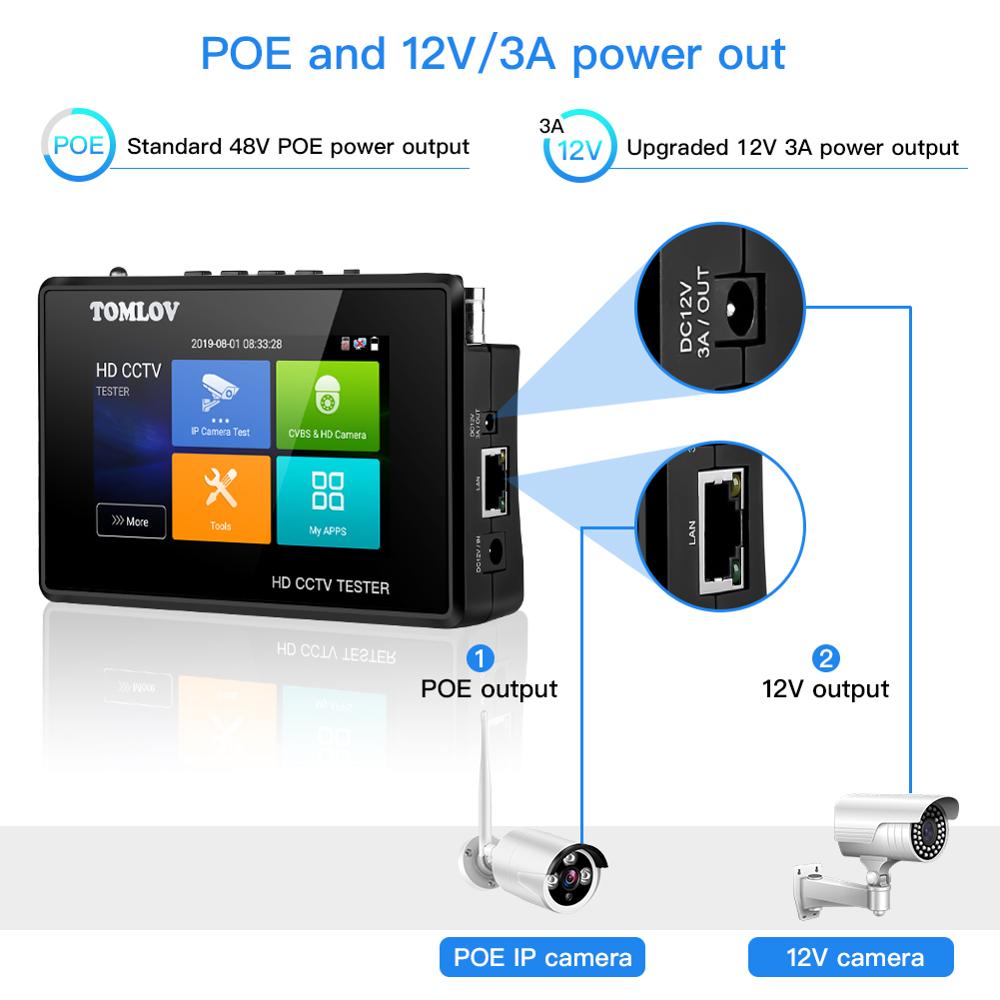

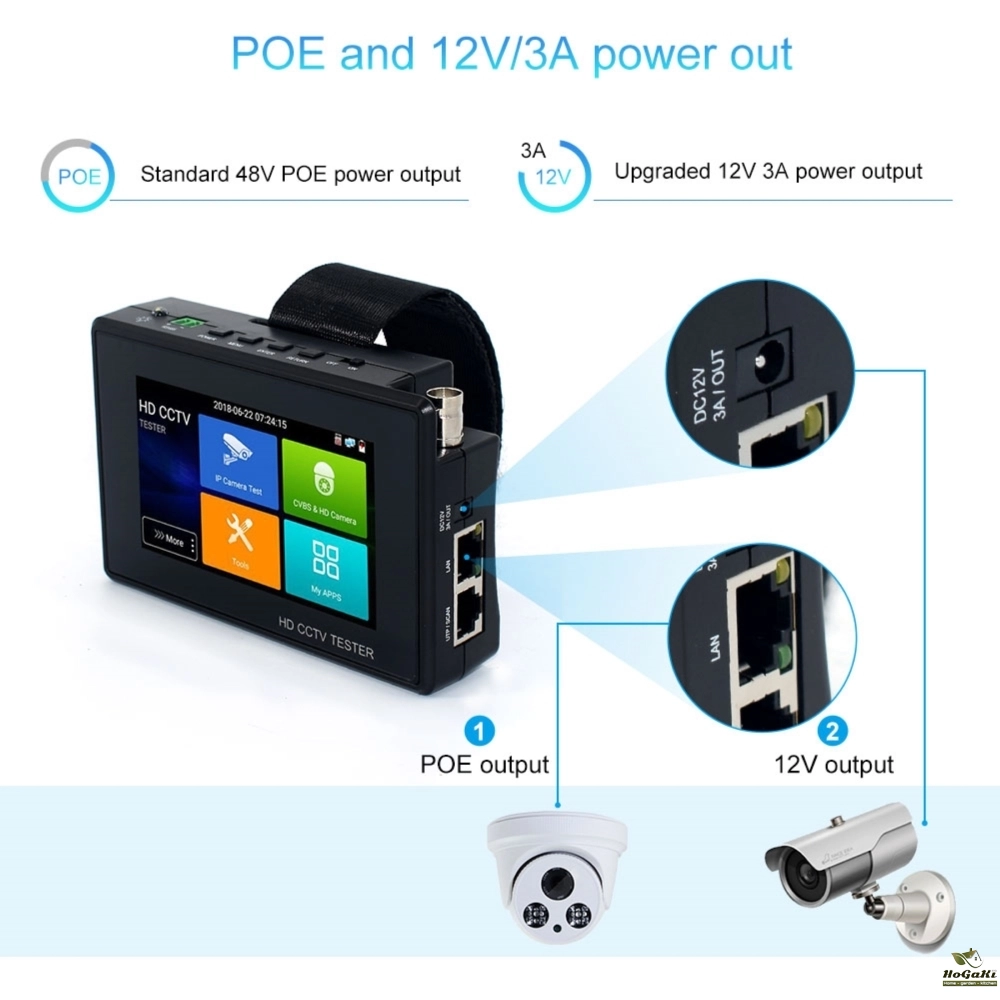

18.PoE DC48V power output, Max power 24W,DC 12V /3A power output
19.New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable
20.PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
21.PING test ,IP address scan, port flashing etc
22.Audio in , support record and save the audio/LED lamp, calculators, music players and other application tools
23.7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging , working time lasts 7 hours

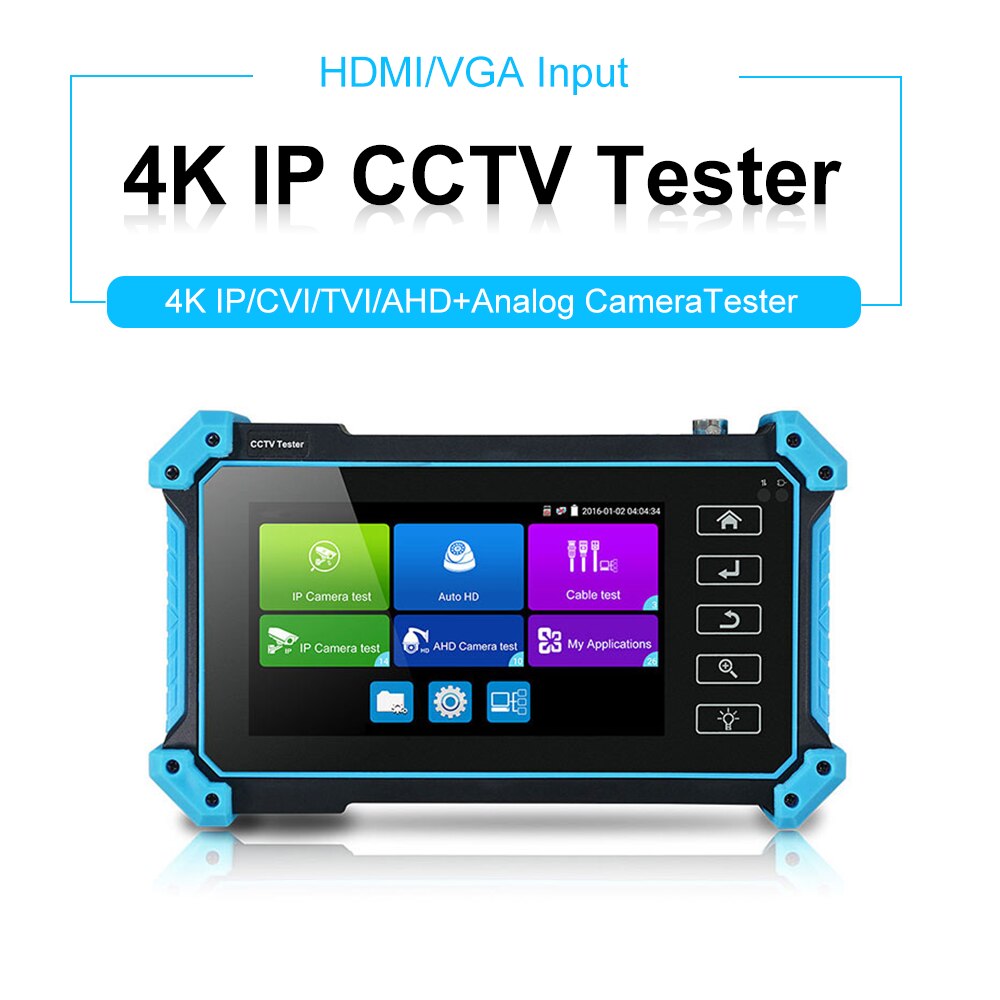

Application-TI-HT9651(C)TI-HT9652C

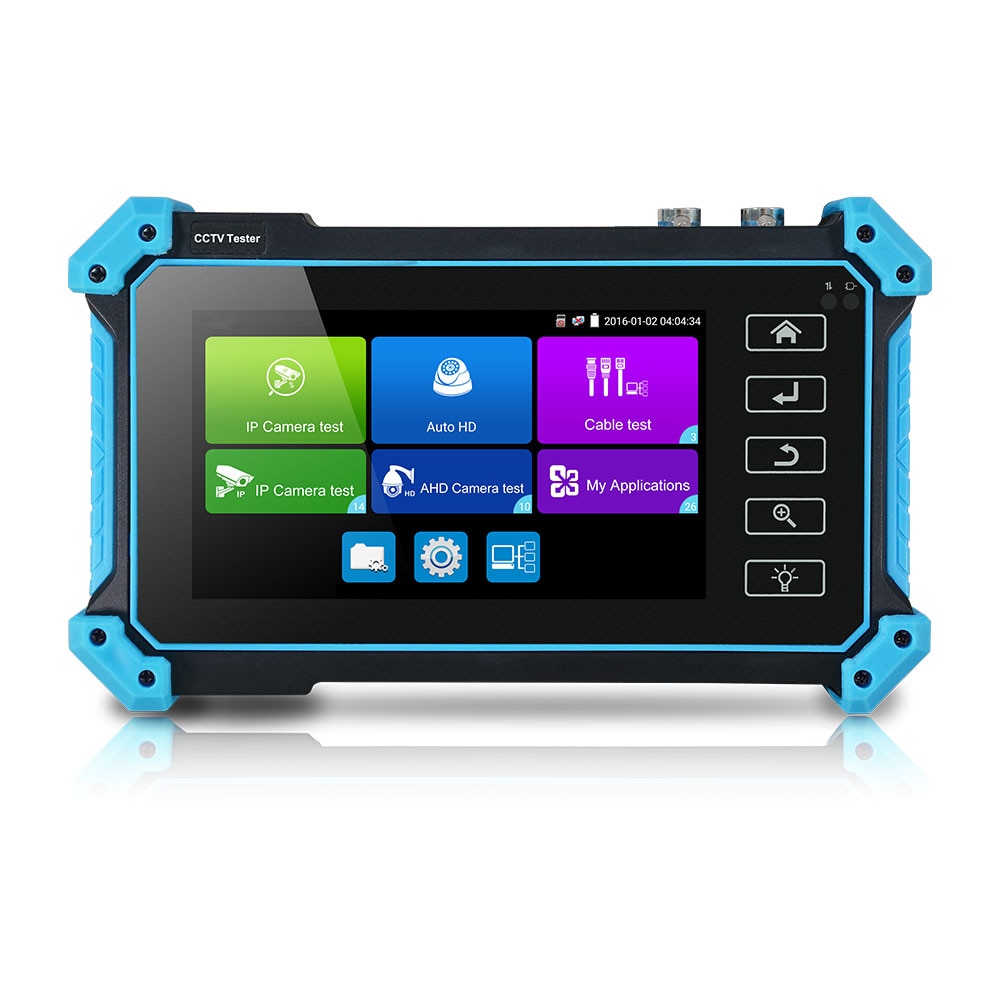

The 5 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

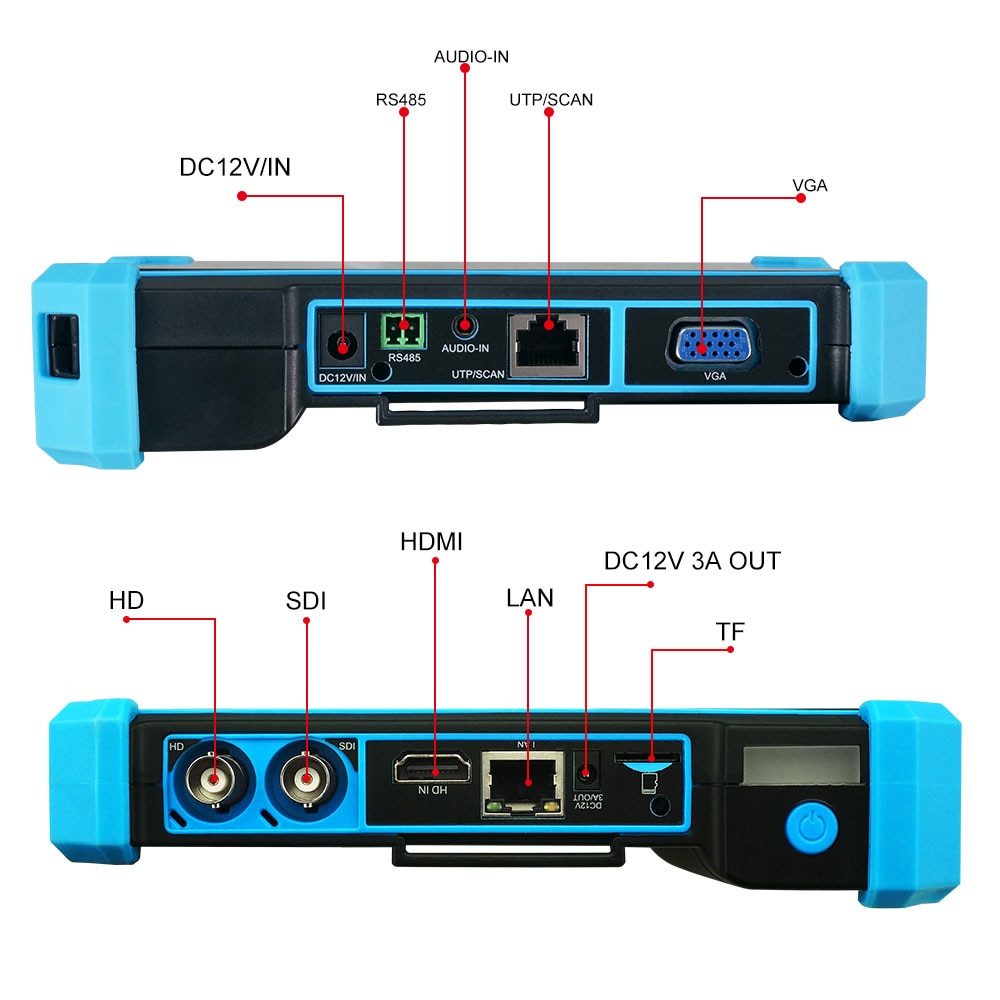

TI-HT9651(C)TI-HT9652C Features

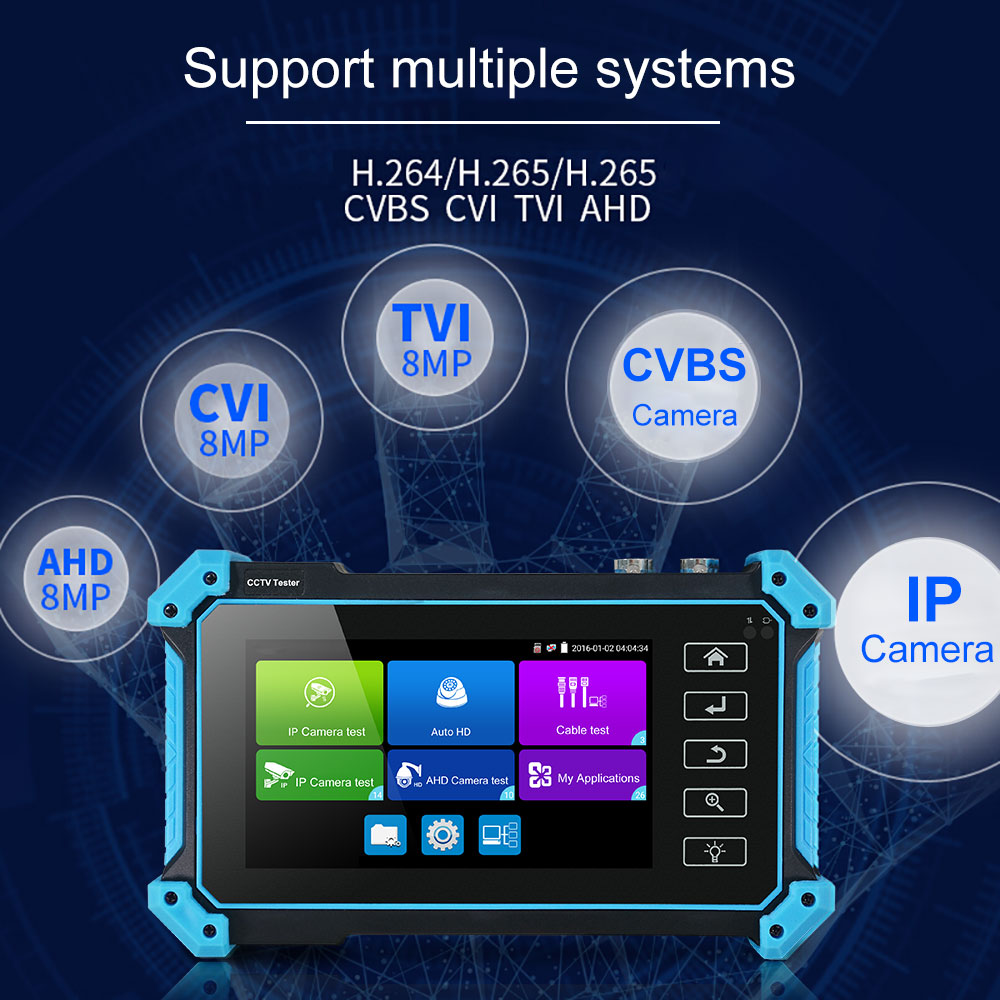

Key Feature

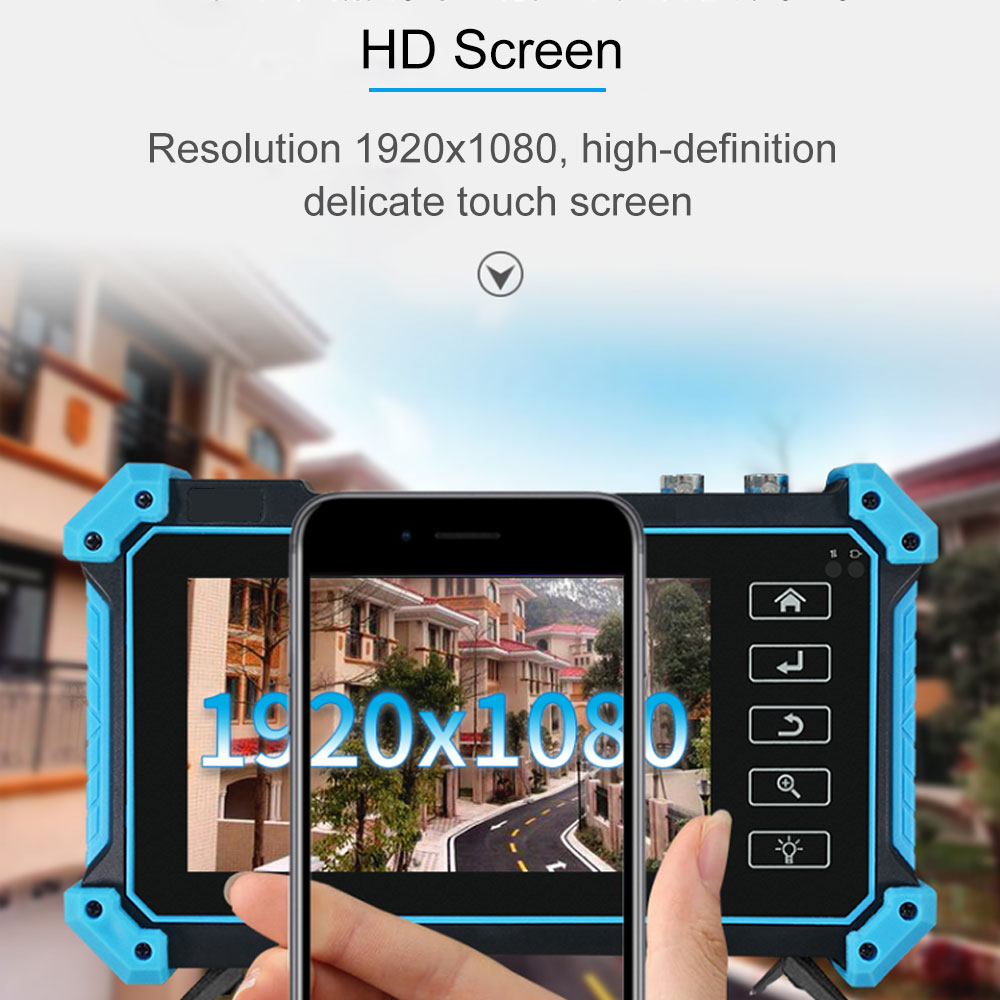

● 5 inch IPS touch screen, 1920x1080 resolution
● 8MP CVI/ TVI/ AHD camera test
● 8MP EX-SDI, HD-SDI, 3G-SDI camera test*
● H.265/H.264, 4K video display via mainstream

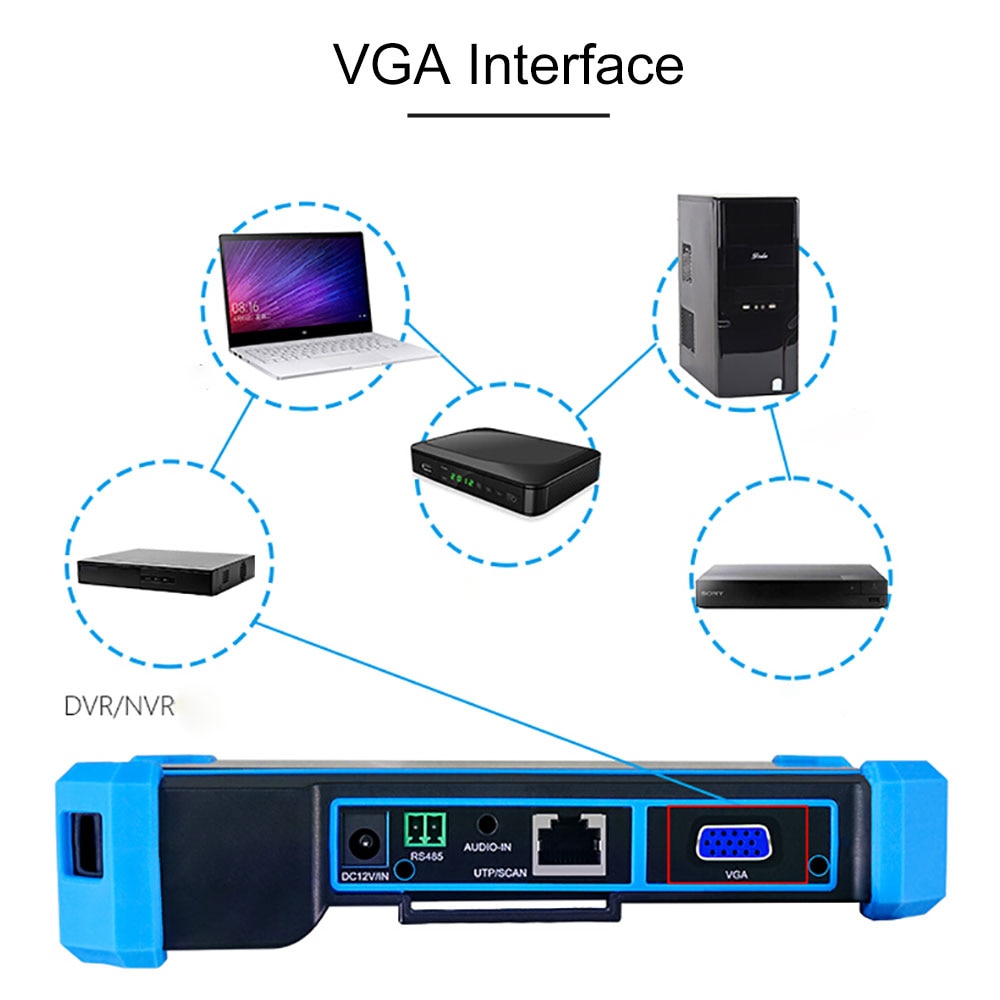

● VGA input, support 2048 x 1152 60FPS*
● HDMI Input, support 4K 30FPS*
● DC12V 3A, 48V PoE power output
● Rapid ONVIF, Create the test report and modify IP address, etc
● Auto HD, auto recognize HD coax camera type and resolution
● RJ45 TDR cable test, cable quality test
● UTP cable test, detect the near-end, mid-end and far-end fault point
of the network cable crystal head
Highlights
Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.
● VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback*
● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback*
● Rapid ONVIF, Auto log in and display image, create testing report
● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
Another Functions
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Customers self-update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /3350mAh Lithium Ion Polymer Battery, after 3-4 hours charging, working time lasts 5 hours

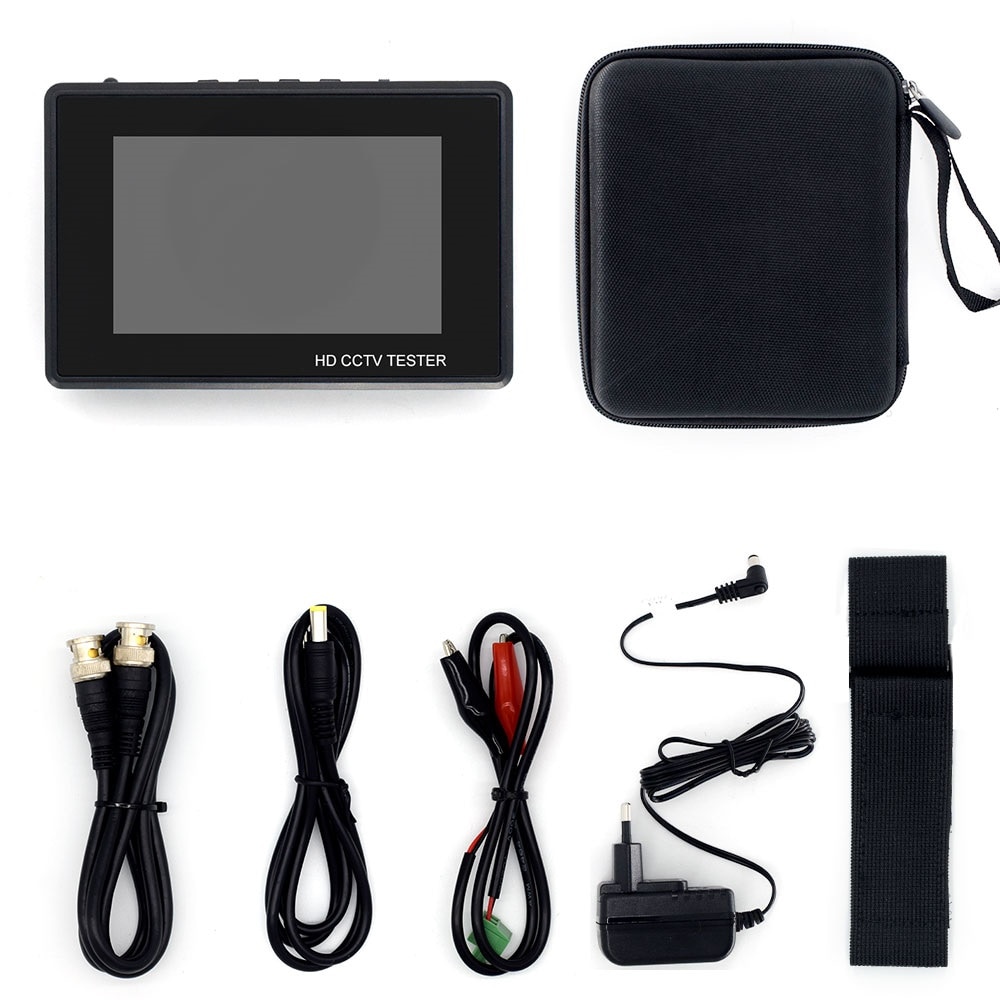

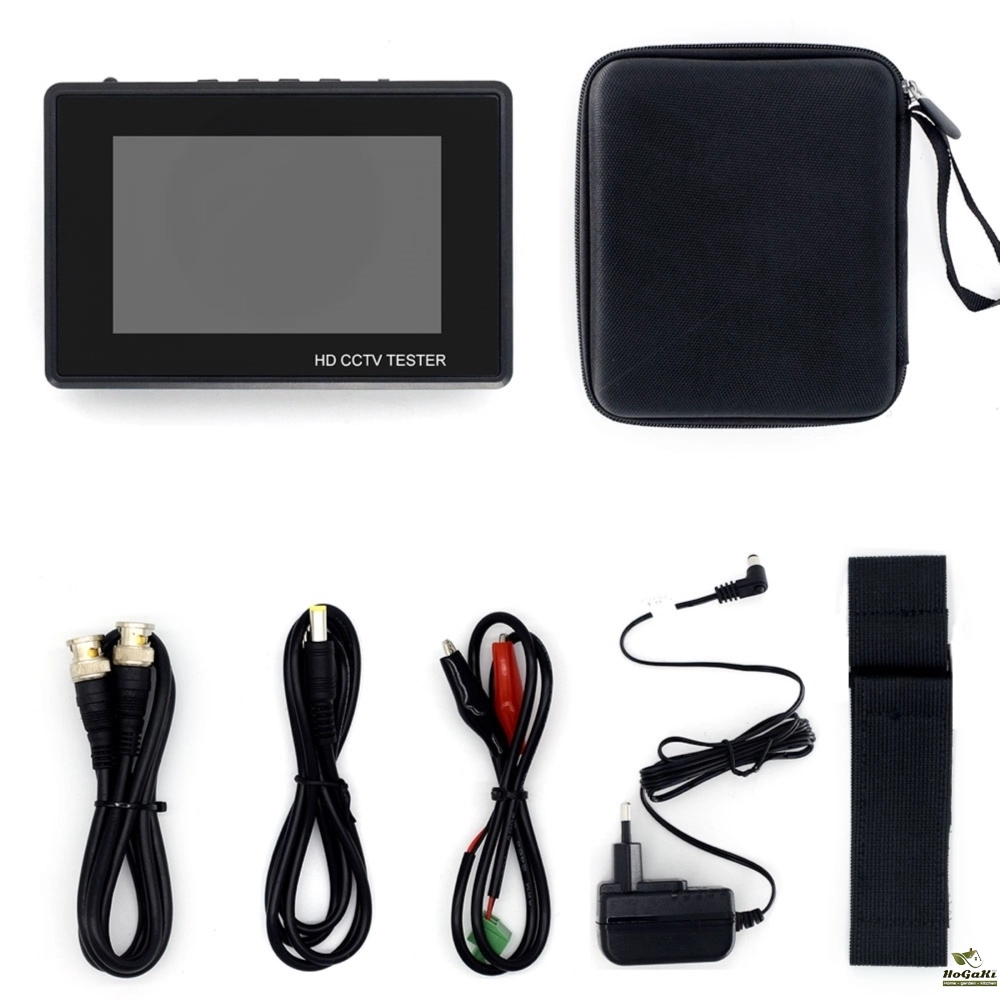

Packing list-TI-N9618-CADHW/TI-N9618-ADHW

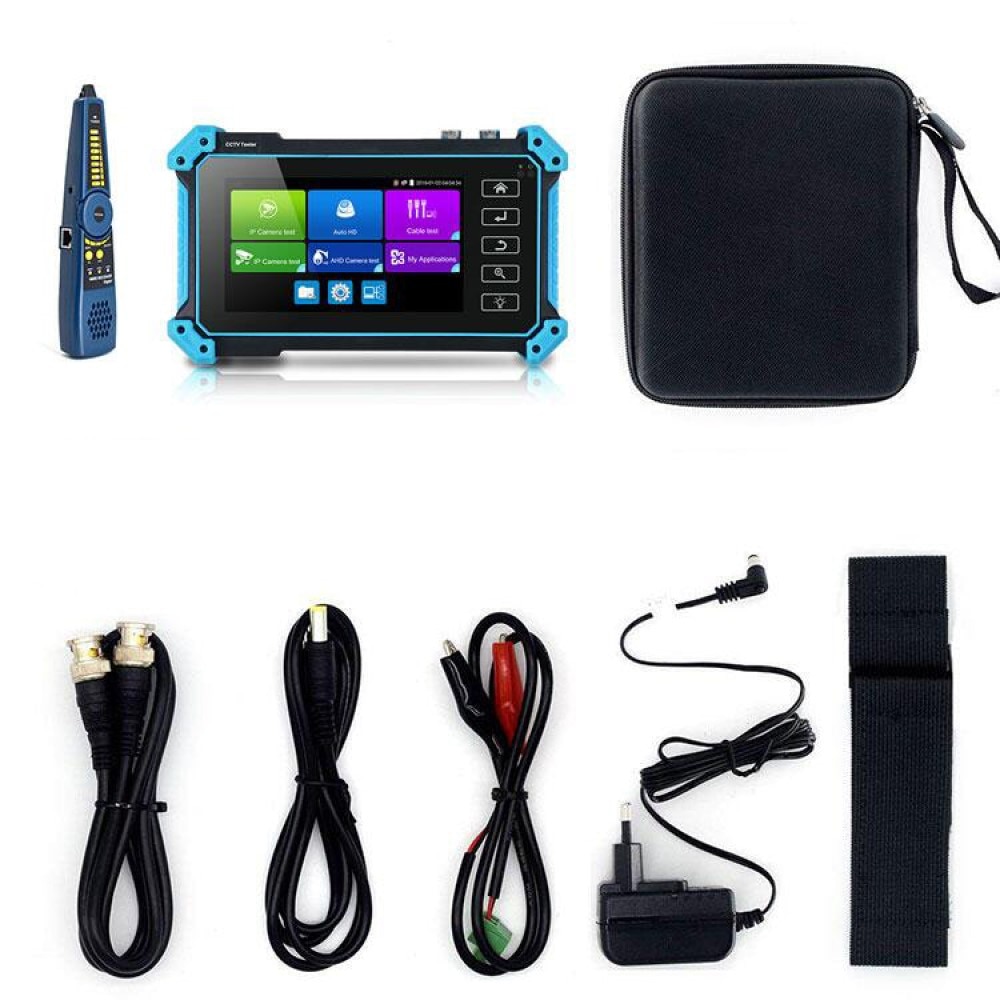

Packing list-TI-N9651/C/TI-N9652/C
- Plug Type: EU plug
- Sensor Type: Other
- Model Number: TI-N9618-ADH
- Maximum IR Distance(m): Other
- Sensor Size: Other
- Lens: Other
- Brand Name: PEGATAH
- Origin: Mainland China
- Certification: CE
- touch screen: 4 inch IPS 800*480 resolution
- video signal: HD coaxial video signal quality
- Video compression format: Support H.265/H.264, 4K video display
- Camera tester: Support CVBS and PTZ control
- TVI camera tester: 8MP
- CVI camera tester: 8MP
- AHD camera tester: 8MP
- PoE power output: DC12V 3A, DC48V
- Rapid ONVIF: auto view video and create
- Plug type: EU/US/UK
- Type: Security camera tester
- Technology: tester cctv
- Type 2: cctv tester 5mp
- PPPOE dial test: Support
- PTZ Control: Support
- SDI Camera: 8MP
- HDMI: 4K Max
- VGA: 2048 x 1152 60FPS Max
- Tester type: Security tester
- cctv tester: yes
- hdmi tester: support
- tester monitor: yes
- IP CAMERA MONITOR TESTER: yes
- Touch monitor: Support
- ipc tester: yes
- ahd monitor: Support
- hdmi monitor: yes
