New 5A DC-DC Step Up Power Module Boost Volt Converter 3.3V-35V To 5V 6V 9V 12V 24V
4.8 (68 votes) | 645 orders
Price:
US $10.16 - 11.99
/ piece
Discount Price:
US $
9.95
/ piece
-2%
- Color
-
-
Specification:

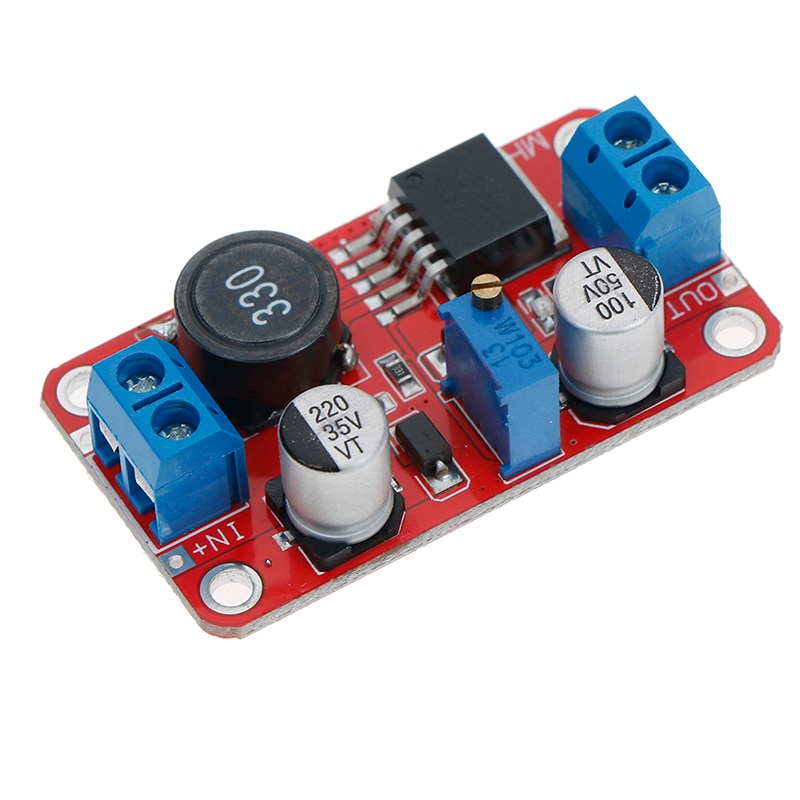

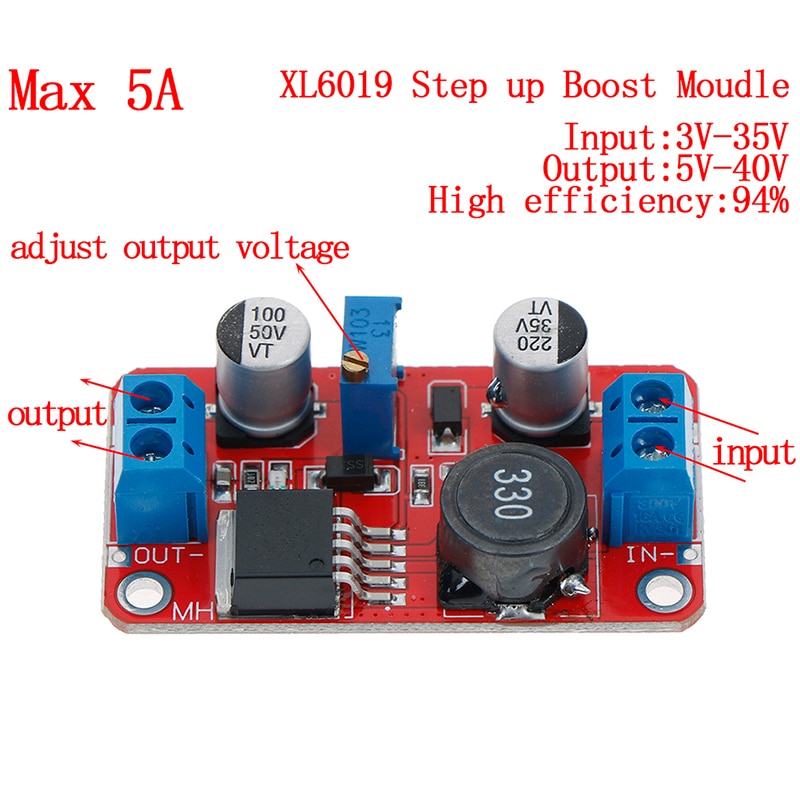

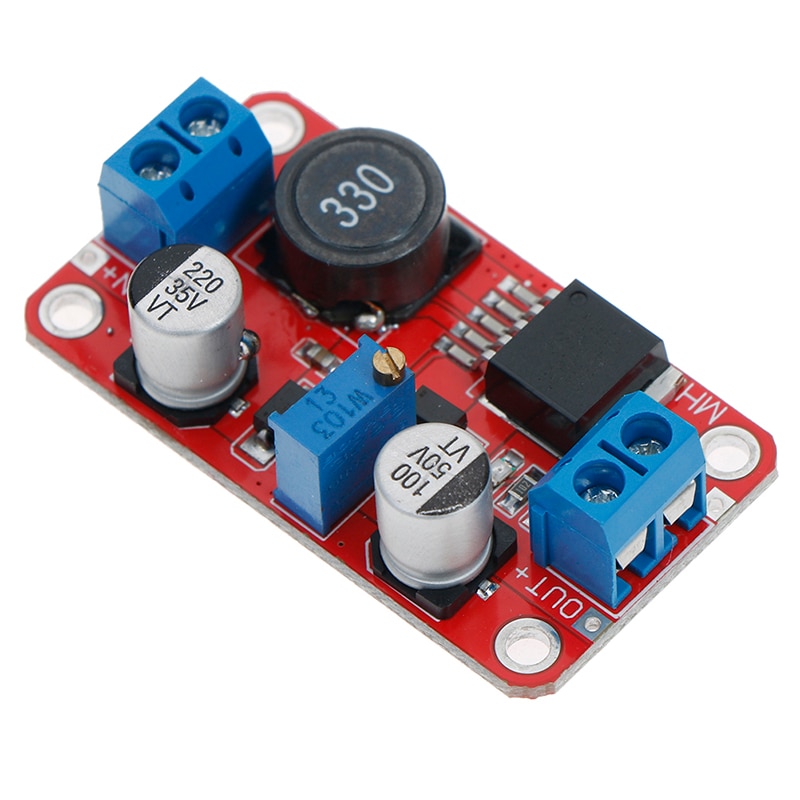

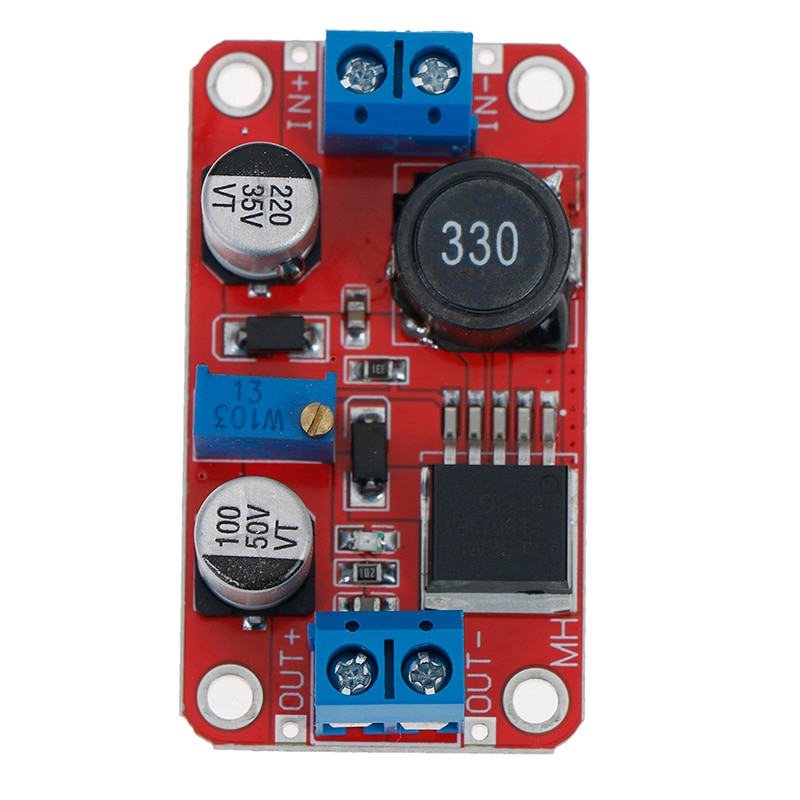

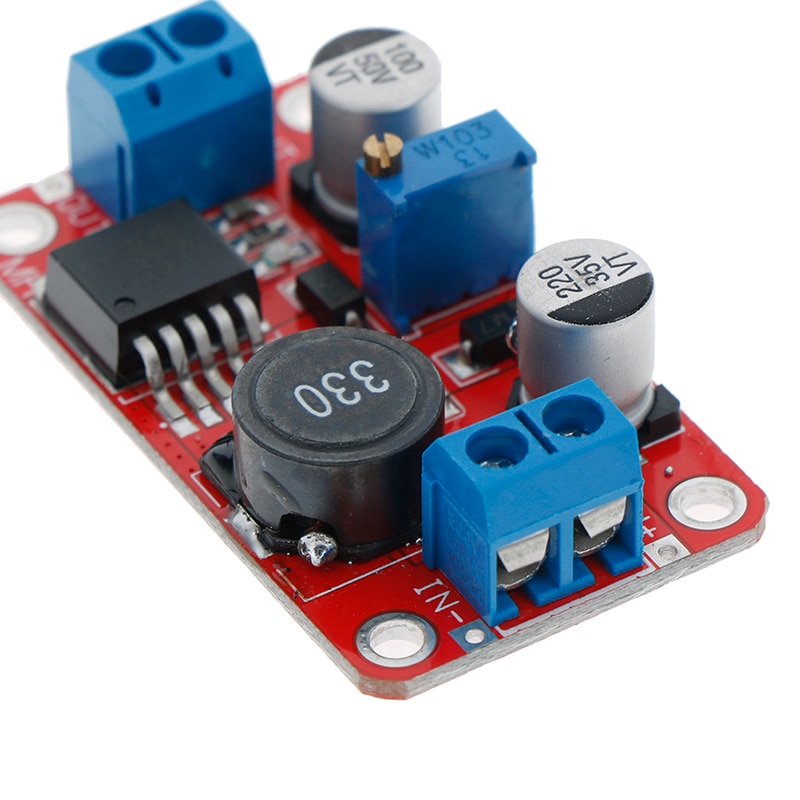

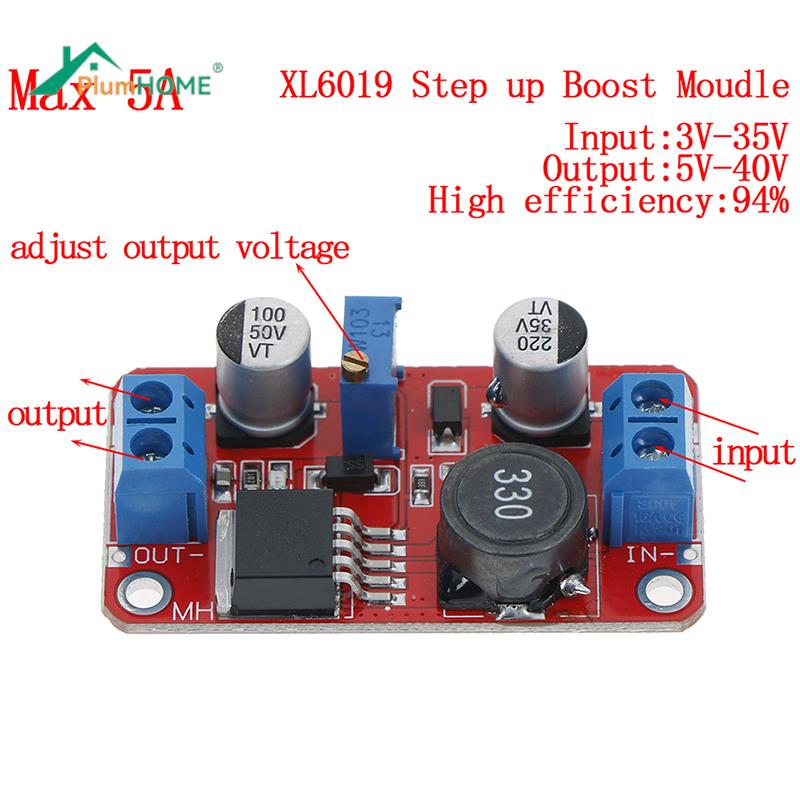

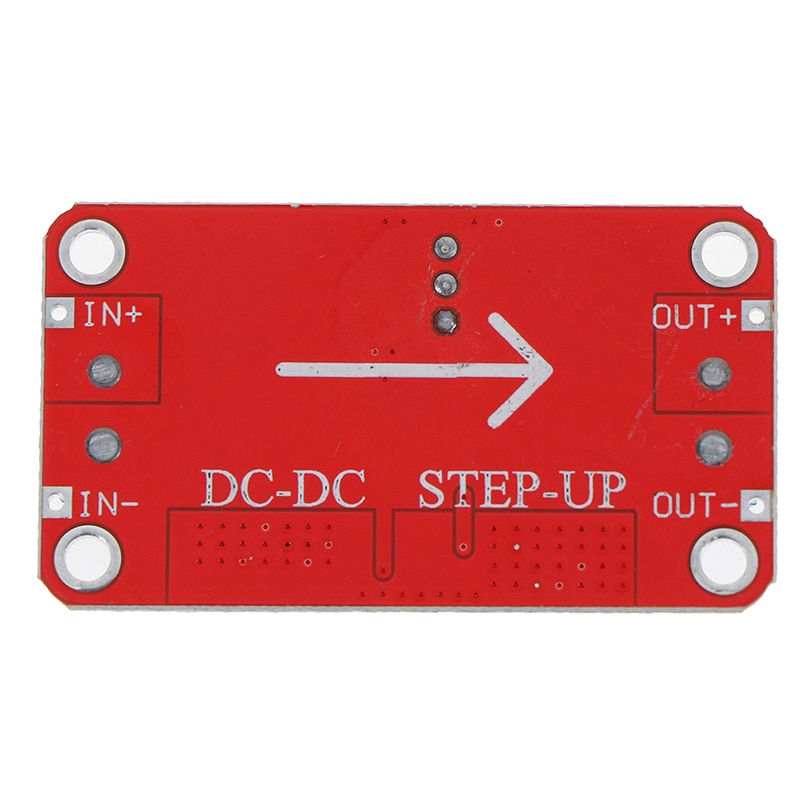

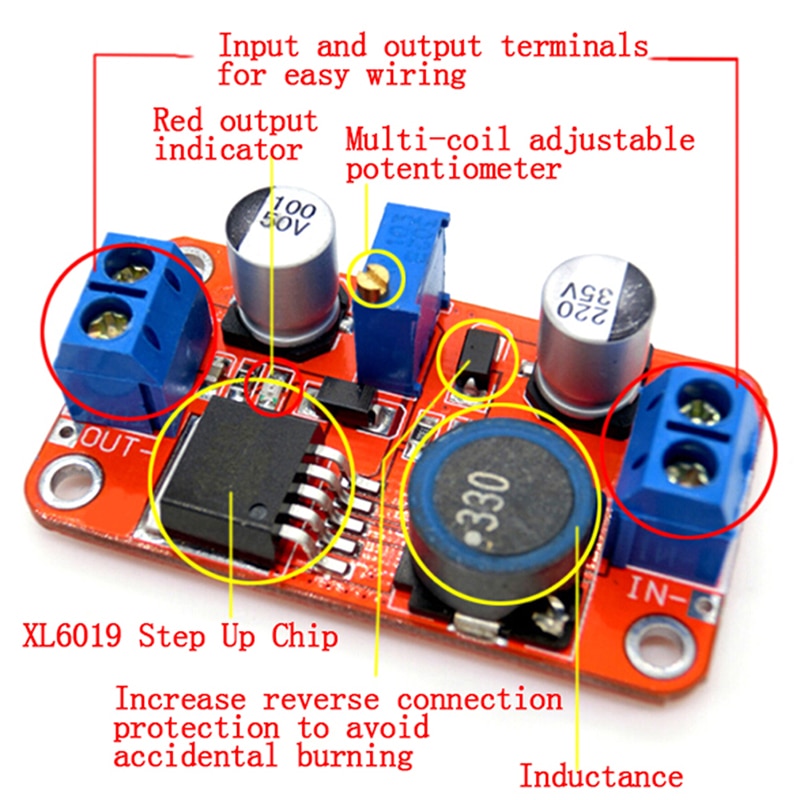

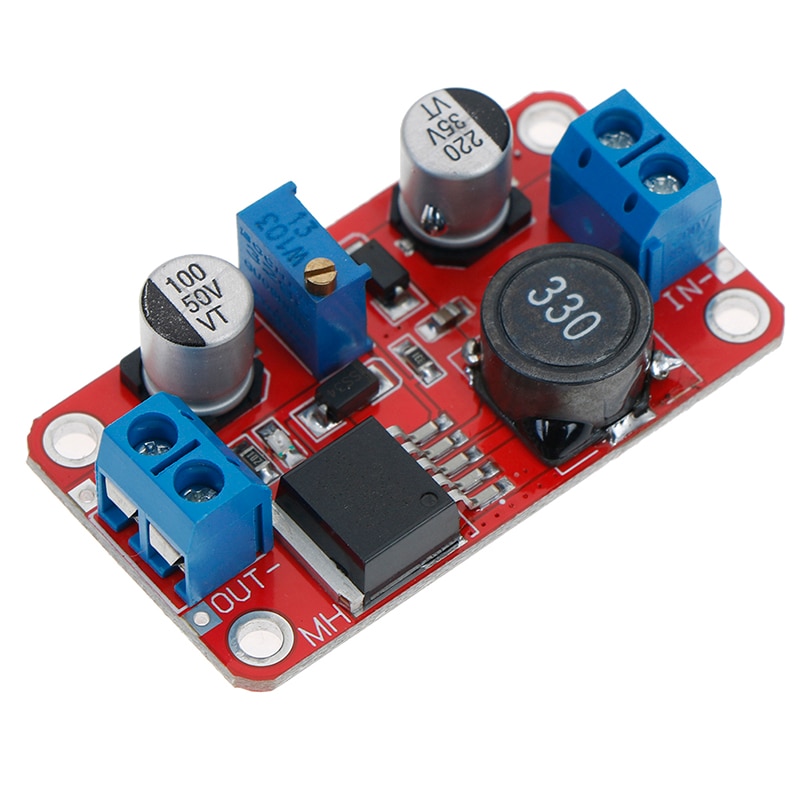

1.Module feature:XL6019 step up module
2.Module type:Non-isolated boost
3.Rectification method:Non-synchonous rectfication
4.Input voltage:3V-35V
5.Output voltage:5V-40V(notes can not step down voltage)
6.Input current:3A(maximum 5A)
7.Transfer efficiency:94%(The highest)Normal efficiency for 85%
8.Switching frequency:220KHz
9.Output ripple:<100mV
10.Load regulation:+-0.5%
11.Voltage regulation:+-0.5%
12.Operating temperature:-20°~+85°
13.Size:5cmx2.8cmx1.2cm(2.28"x1.10"x0.47")
Package include:
1Pcs 5A DC-DC Step Up Power Module
Description:
Material: Electronic Component
Color: See pictures
Description:
Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: 0.5%
Voltage regulation: 2.5%
Dynamic response speed: 5% 200uS
Input voltage:4-35V
3.2-40VOutput voltage:1.23-35V(Adjustable)
Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)
Dimension:4.3*2*1.4cm/1.69"*0.79"*0.55" (L*W*H)
Quantity:1Pcc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:

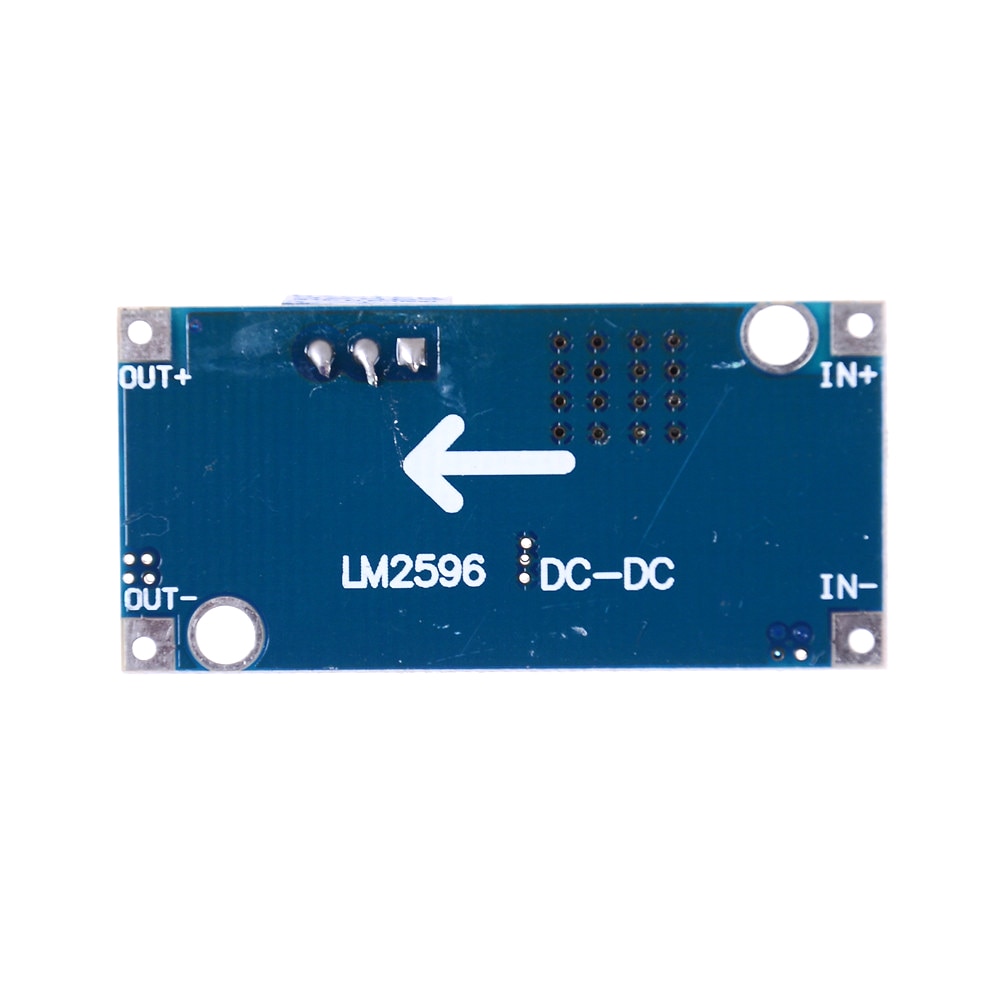

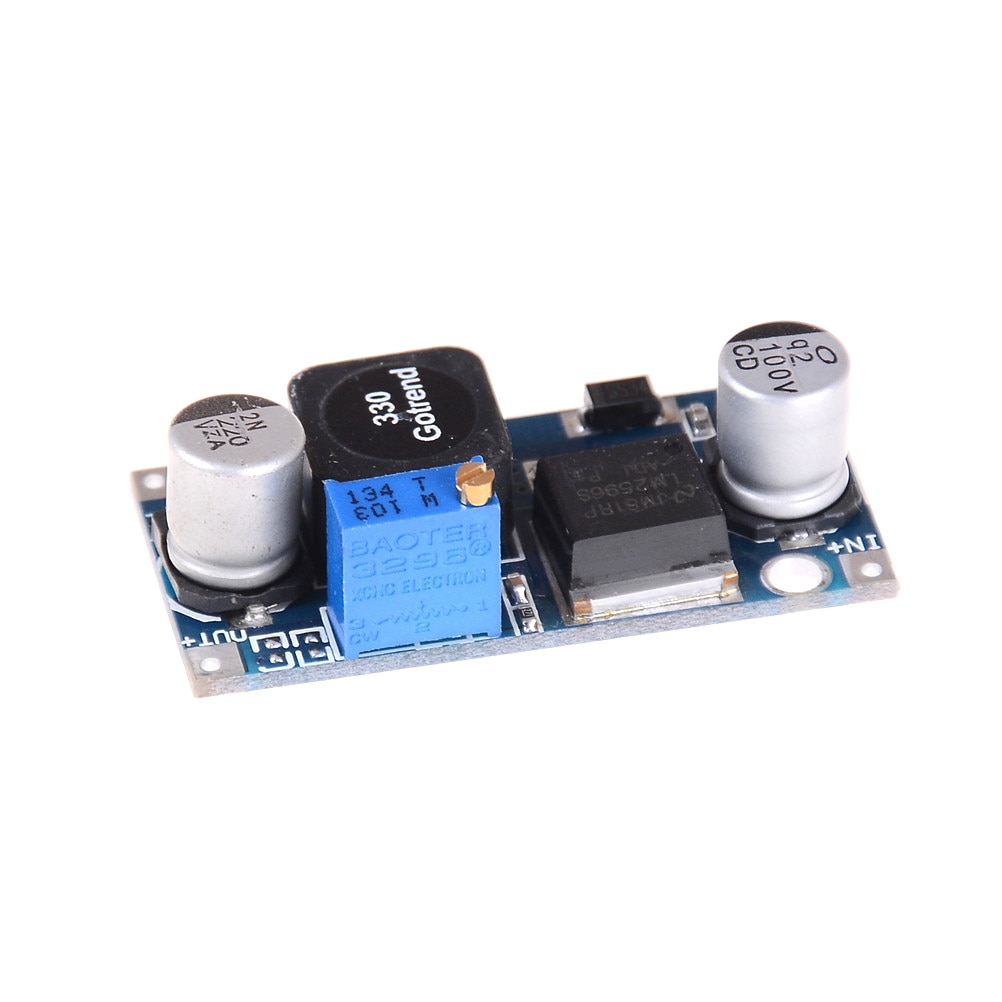

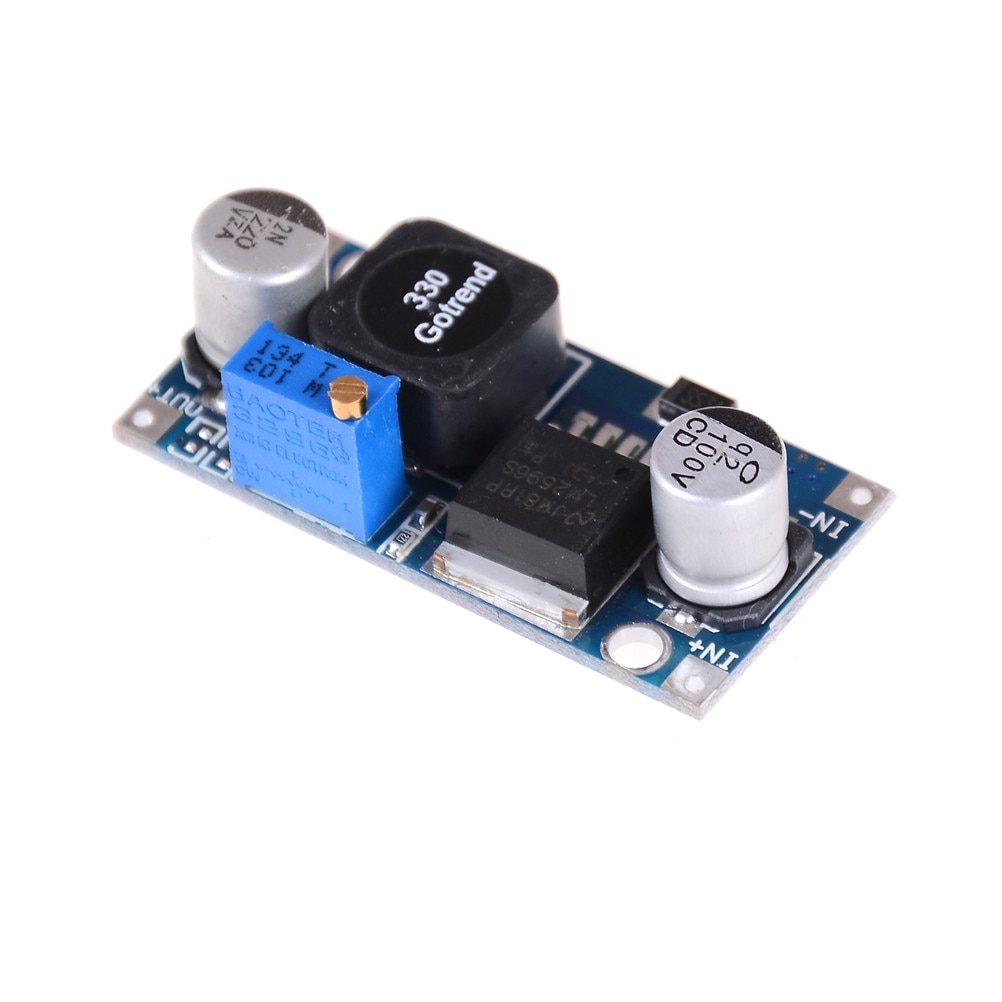

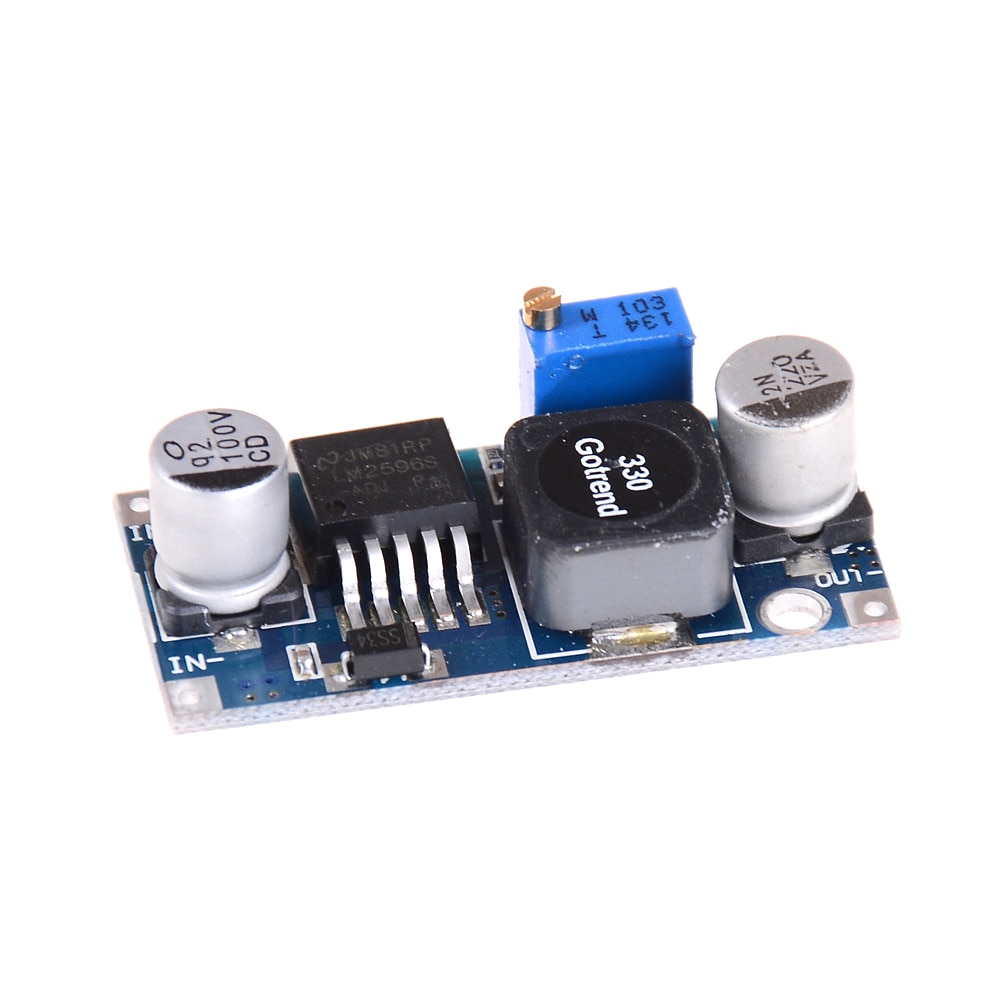

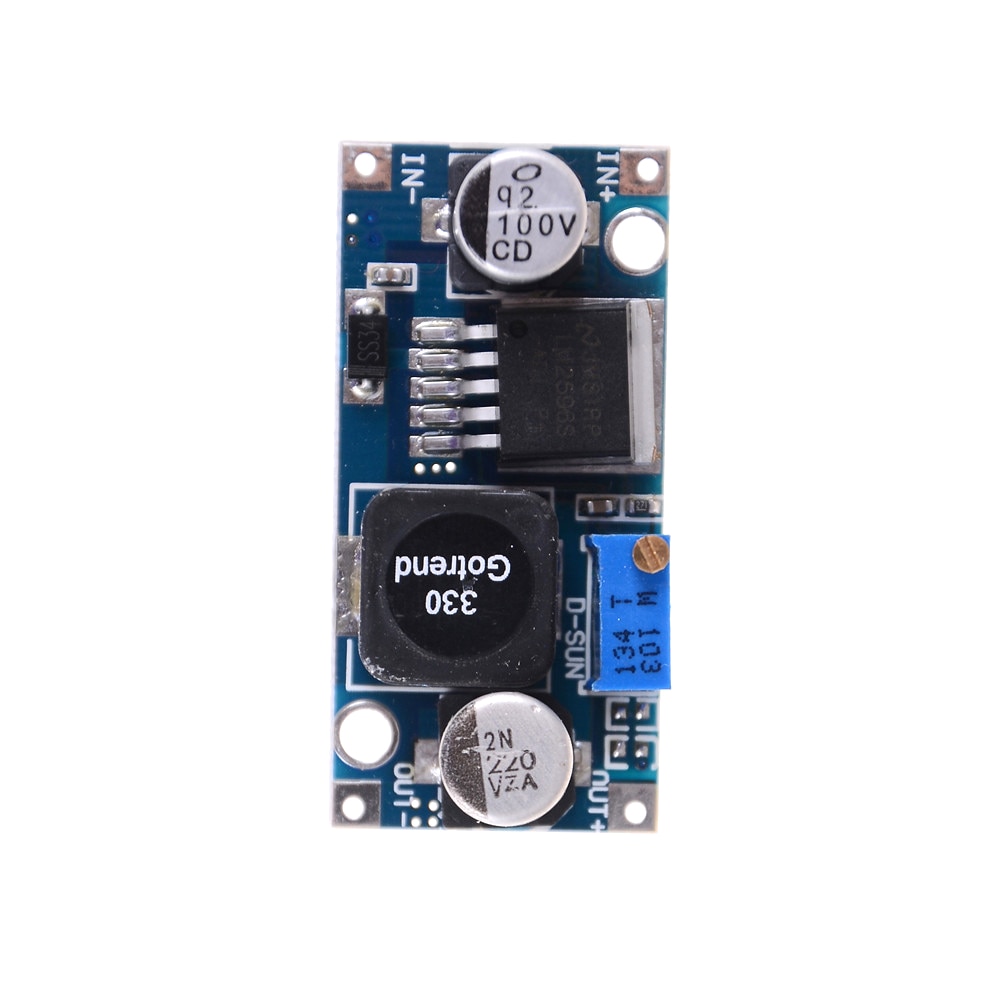

1Pc x LM2596S DC-DC Buck Converter Step Down Module
- Model Number: 5A DC-DC
- Type: DC/DC Converters
- Origin: Mainland China
- Certification: CE
