Wanptek Adjustable DC power supply 30V 10A 60V 5A Lab Bench Power Source Stabilized Power Supply Voltage Regulator Switch 220V

4.9 (450 votes)
Price: US $174.51 - 359.73 / piece
Discount Price:
US $ 98.25 - 161.75 / piece
-44%
Ships From
Color
Quantity




Wanptek's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine

1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.
3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current: output voltage and output current can be continuously 5.adjusted between 0 and nominal value with fine regulating and coarse regulating
6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection
7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11. AC 110v and 220v can work , rest assured to choose.
12. Encoder adjustment (With memory storage function) (Optional) DC power supply
FCC & CE certified product

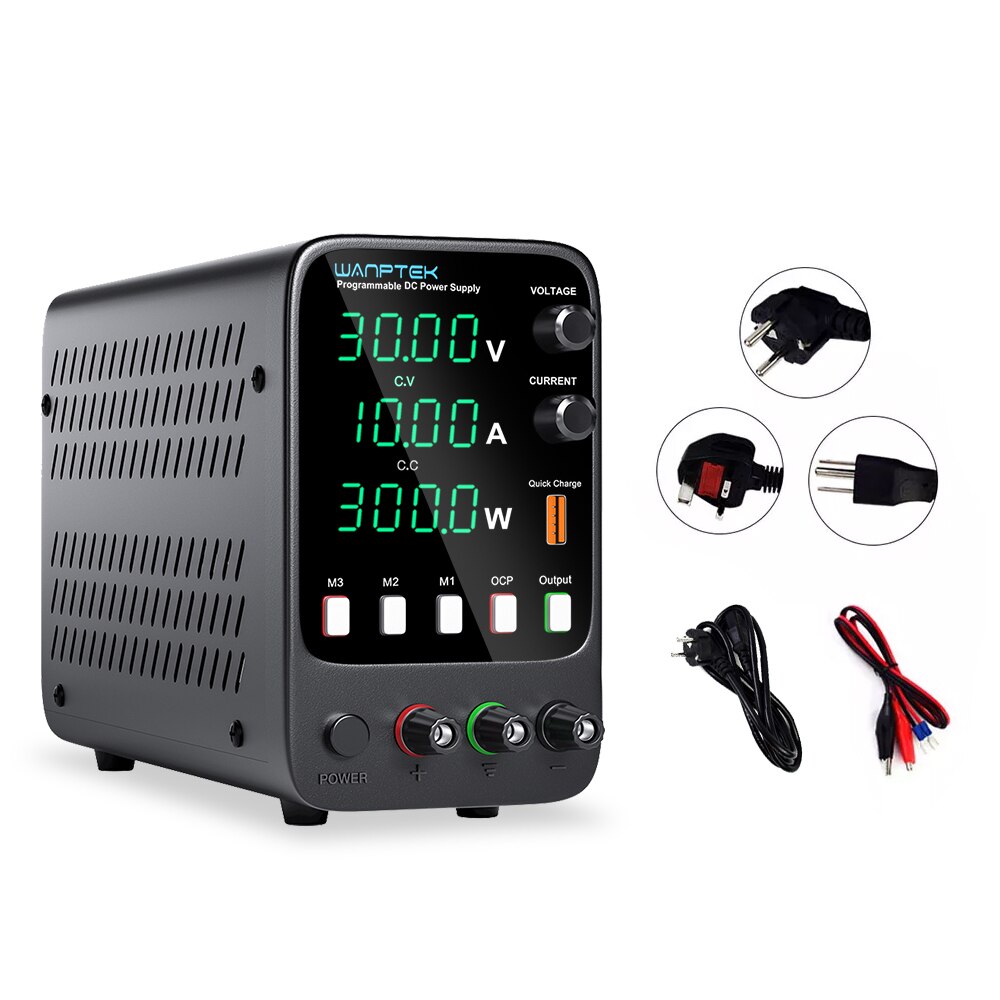

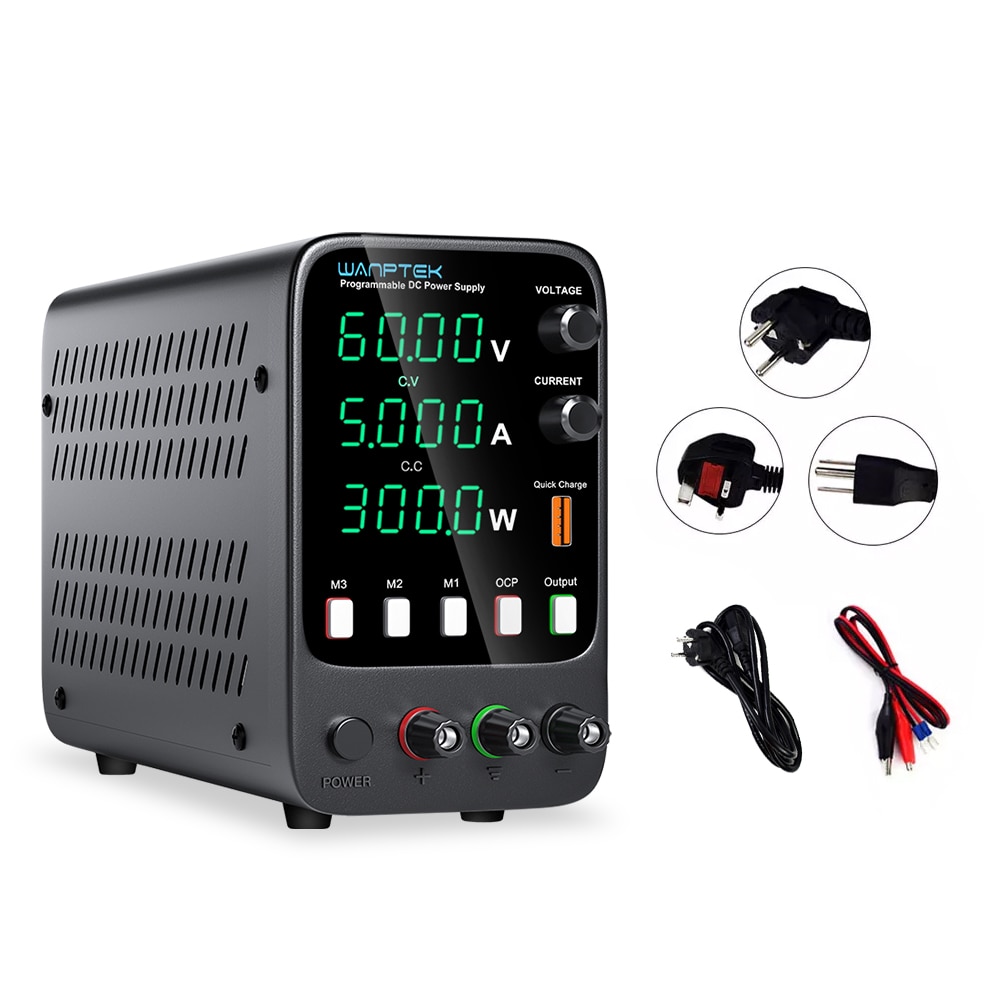

【STORAGE AND RECALL MEMORY FUNCTION】: Features 3 buttons with Storage and recall memory function. Easily storage or recall the commonly used current/voltage only by pressing the button. Support Constant Current (C.C.) and Constant Voltage (C.V.) modes.
Memory Function
1) Rotate the Knob to set the value you want to save.
2) Long press the "M1" button until the indicator is on, which means the value saved in the "M1" button successfully.
3) Press the "M1" button to light the button. The saved value will be read when the indicator is on. (M1/ M2/ M3 button works essentially the same way).


Output Power

150W/300W/320W/360W

Output voltage

0~30V/60V/120V/160V

Output current

0~2A/3A/5A/10A

working environment


input voltage:AC 230V/115V±10%;50Hz/60Hz

Working temperature:0℃~40℃;relative humidity:<80%RH

Storage temperature:-10℃~70℃;relative humidity:<70%RH

Constant voltage CV


Voltage stability:0.1%±3mV

Load stability: 0.2%±3mV

Ripple voltage:≤0.5% Vp-p

0 to rated voltage continuously adjustable

constant current CC


Current stability:0.1%±3mA

Load stability: 0.2%±3mA

Ripple current:≤0.5% Vp-p

Recovery time:≤500μS

Temperature coefficient:≤100ppm/℃

0 to rated current continuously adjustable

display


LED digit display

Display accuracy:0.5%±digits

Display resolution: voltage  0.1V, current  0.01A,voltage  0.01V, current  0.001A,

1. Production line test.

2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.

3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.

4. Charge the battery.

5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use

6. All other occasions requiring DC power supply.

1x DC power supply

1x power cord (EU,US,UK,AU)

1x Test line

1x Instructions





  • is_customized: No
  • Output Current: 0-10A
  • Output Frequency: 50HZ 60HZ

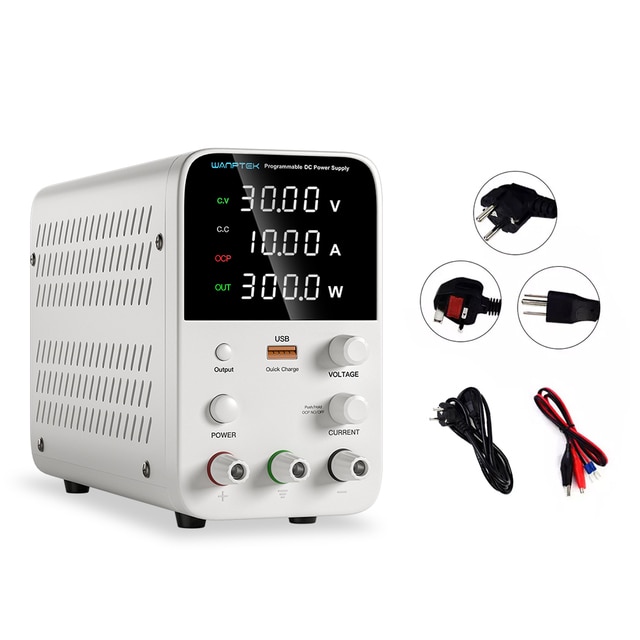

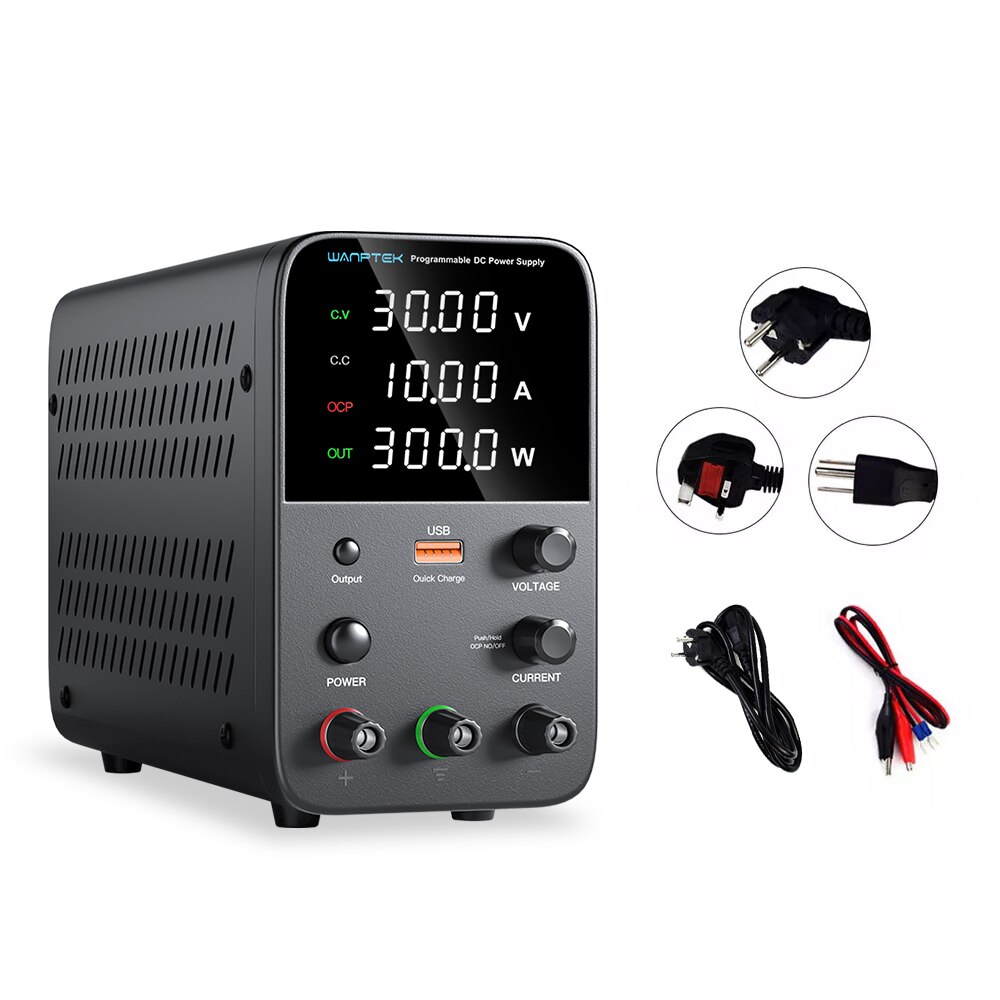

  • Model Number: WPS3010H APS3010H
  • Output Type: single
  • Output Power: 201 - 300W
  • Brand Name: wanptek
  • Origin: Mainland China
  • Certification: CE
  • Features1: Gold-plated metal power supply
  • Features2: Metal Anodizing Power Supply
  • Features3: laboratory power supply

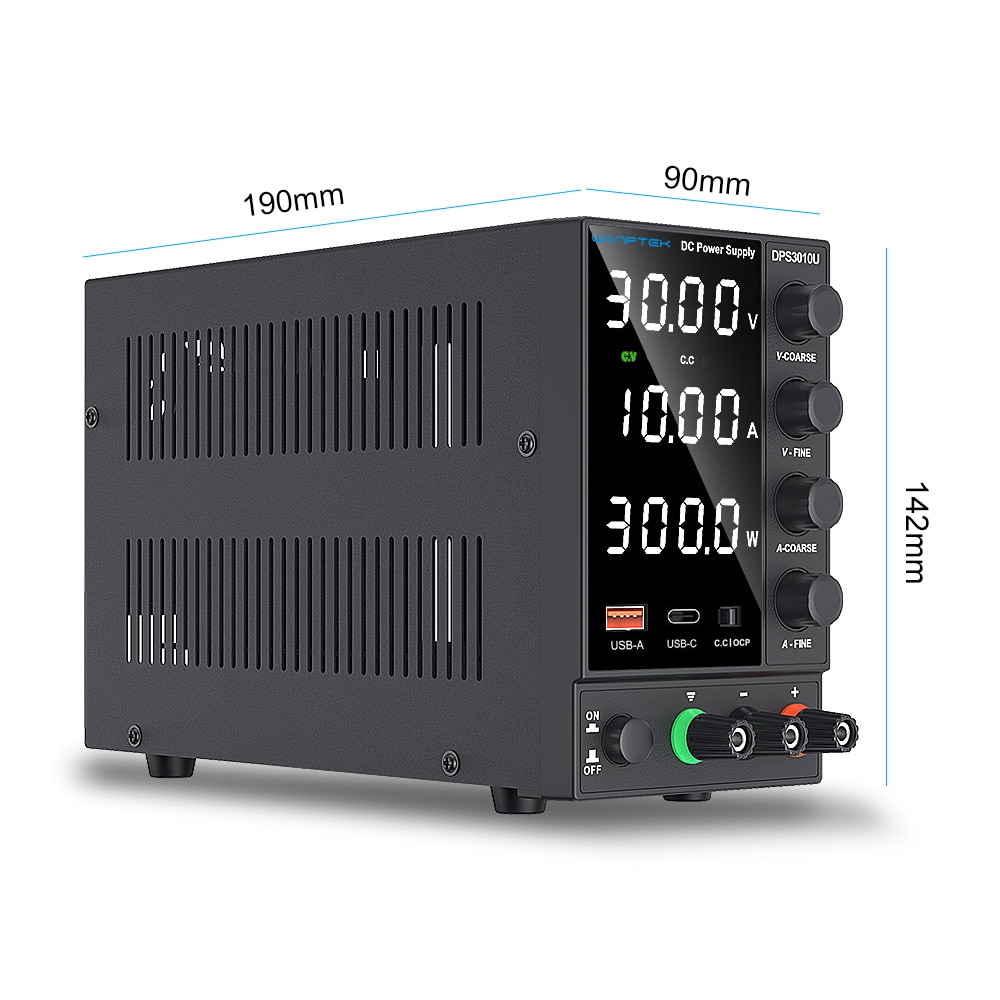

  • Features4: WPS3010H
  • Features5: APS3010H

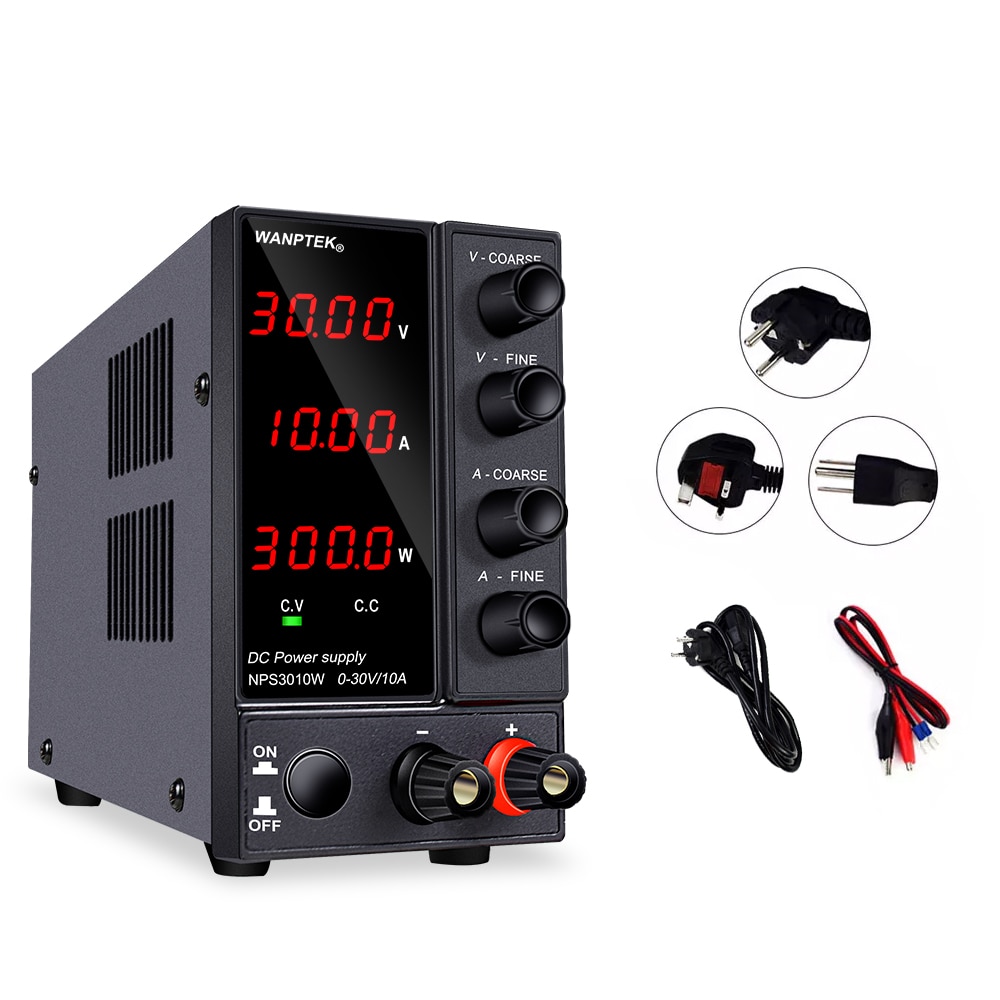

  • Features6: NPS3010W

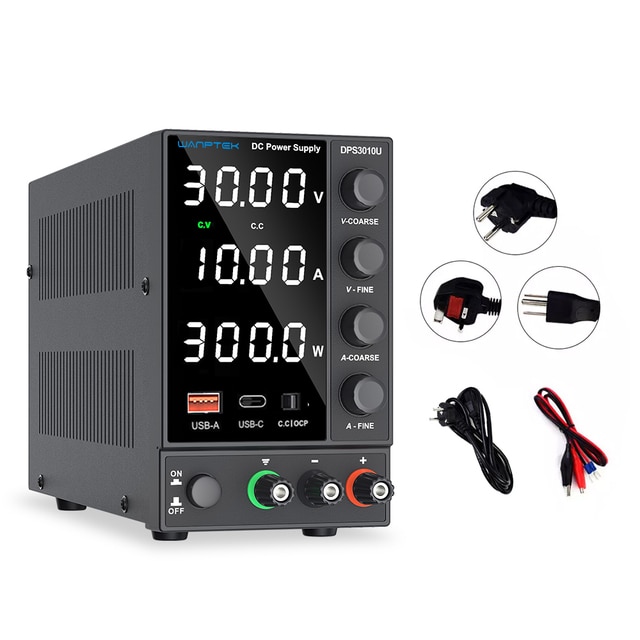

  • Features7: DPS3010U

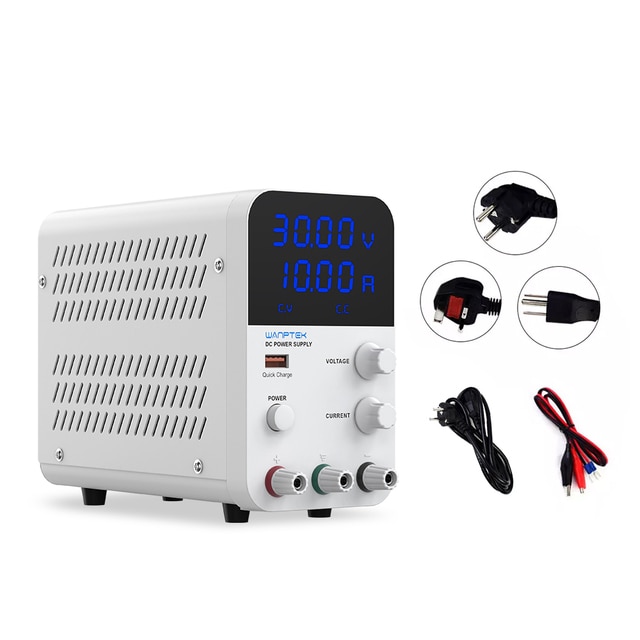

  • Features8: GPS3010D,NPS306W
