1pcs Adjustable DC to DC LM2596 LM2596S dc-dc Buck Boost Module 3A 4A 5AStep-down Power Supply Regulator module
5.0 (1 votes) | 16 orders
Price:
US $10.06 - 10.84
/ piece
Discount Price:
US $
9.95
/ piece
-1%
- Color
-
-
- Buck Module 3
Name : LM2596 DC-DC Buck module
Input voltage :4V ~ 35V
The output voltage : 1.23V ~ 30V
Output Current :3A( Max)
Conversion efficiency:92%( MAX )
Output ripple: <30mV
Switching frequency: 150KHz
Working temperature: -forty Five~ +85
Size :43mm * 21mm * 14mm(Long*Width*Hight)
Features:
1. the range of input voltage: 3.2 V to 40 V dc (input voltage must be higher than to the output voltage of 1.5 V above. Can't booster)
2. the range of output voltage: 1.25 V dc to 35 V voltage adjustable, high efficiency (92%) largest maximum output current is 3A.
Instructions:
1. Power (3-40V), power indicator light, the module is working properly.
2. Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.
Note:
Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the step-down module, in order to ensure stable output Set,please keep the minimum 1.5V differential.

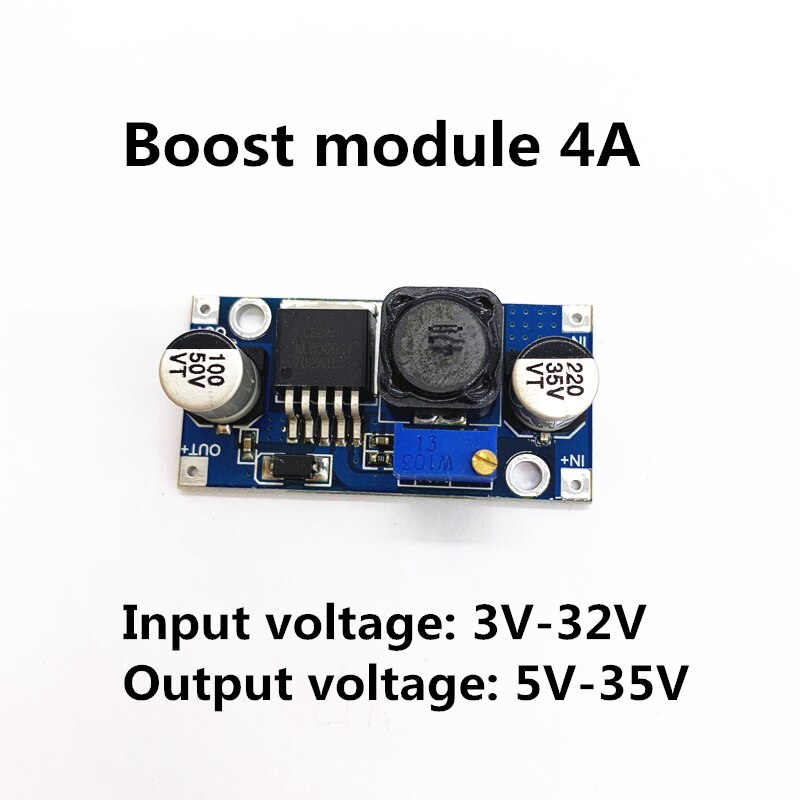

- Boost module 4A
XL6009 is a high-performance 400KHz 4A switch currency step-up (BOOST) module. This module XL6009 is coming with the 3rd generation high-frequency switch technology as the core chip, The performance is much higher than LM2577.
Wide input voltage: 3V~32V; Optimum operating voltage range: 5~32V; Wide output voltage: 5V~40V.
With 4A high efficiency MOSFET switches, so the efficiency can be up to 94%, (LM2577current is 3A only).
With ultra high switch frequency 400KHz , even if small capacity filtering capacitors can achieve very good results, ripple is smaller (Compare to LM2577 frequency 50KHz).
Specification:
Model: XL6009 boost module
Module Properties: Non-isolated boost (BOOST)
Rectification: Non-Synchronous Rectification
Input Range: 3V ~ 32V
Output Range: 5V ~ 35V
Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
Conversion efficiency: <94% (greater the pressure, the lower the efficiency)
Switching frequency: 400KHz
Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
Load Regulation: +/-0.5%
Voltage Regulation: +/-0.5%
Operating Temperature: -40 degree to +85 degree
Body Size: 43 x 20 x 12mm/1.7" x 0.8" x 0.47"(L*W*T)
Input way: IN+, IN-;
Output way: OUT+, OUT-

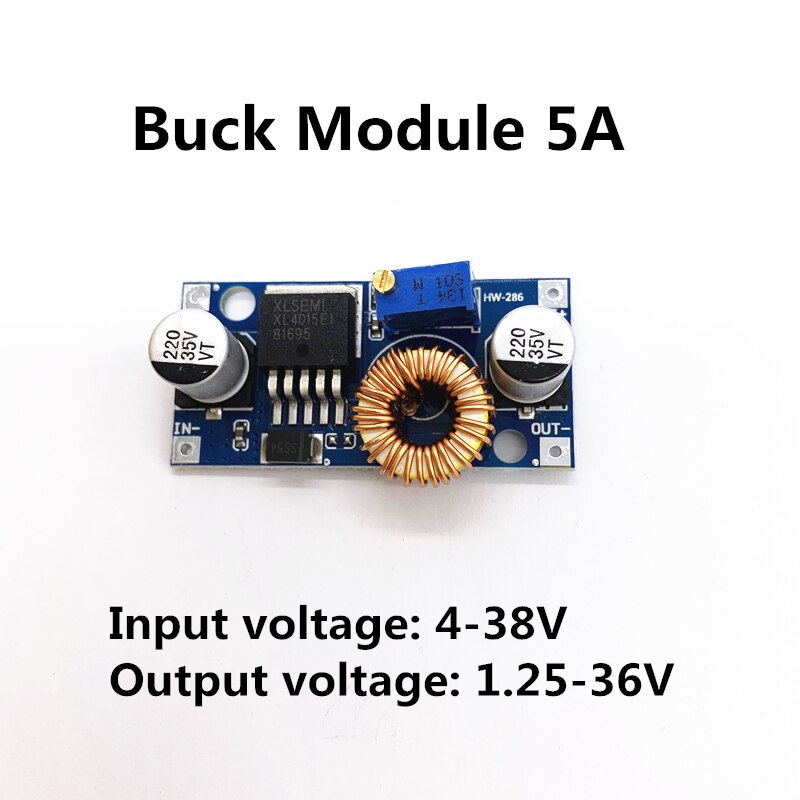

- Buck Module 5A
Module performance and features:
Module nature: Non-isolated Buck Module (BUCK)
Input voltage: 4-38V (Please try not to exceed 38V as input)
Output voltage: 1.25-36V continuously adjustable
Output current: 0-5A, recommended for use within 4.5A.
Output power: It is recommended to use within 75W. If more than 50W, please add heat sink.
Working temperature: -40~+85 degrees
Working frequency: 180KHz SUNLEPHANT
Conversion efficiency: up to 96% (efficiency related to input, output voltage, current, voltage difference)
Load adjustment rate: S(I) ≤ 0.8%
Voltage adjustment rate: S(u) ≤ 0.8%
Power indicator: Yes
Short circuit protection: Yes (limited current 8A)
temperature protection: Yes (automatically turn off the output after over temperature)
Input reverse connection protection: None, (If necessary, please input a large current diode in the input string)
Installation method: 2 3mm silk
Wiring method: welding, V-IN is input, V-OUT is output
- is_customized: Yes
- Output Current: 3A/4A/5A
- Weight: 0.02G
- Size: 43mm * 21mm * 13mm
- Output Type: single
- Model Number: LJH-168
- Type: DC/DC Converters
- Origin: Mainland China
- Certification: CE
