Mini N20 Gear Motor DC 3V-12V Slow Speed Full Metal Gearbox Gear Reducer Electric Engine Large Torque DIY Toy Robot
5.0 (13 votes) | 35 orders
Price:
US $10.59 - 12.27
/ piece
Discount Price:
US $
10.06 -
11.51
/ piece
-5%
Specification:

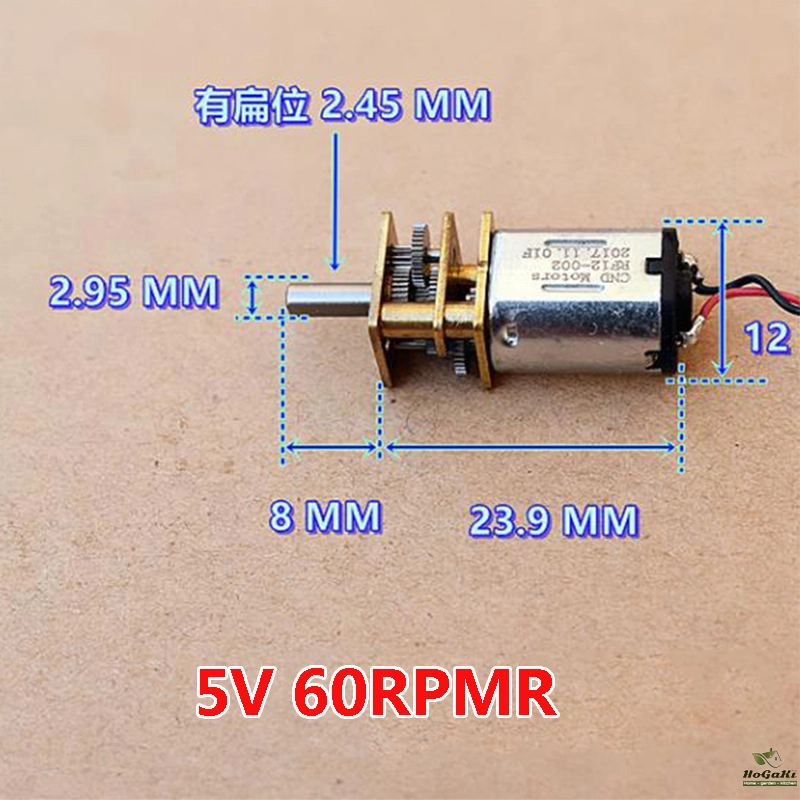

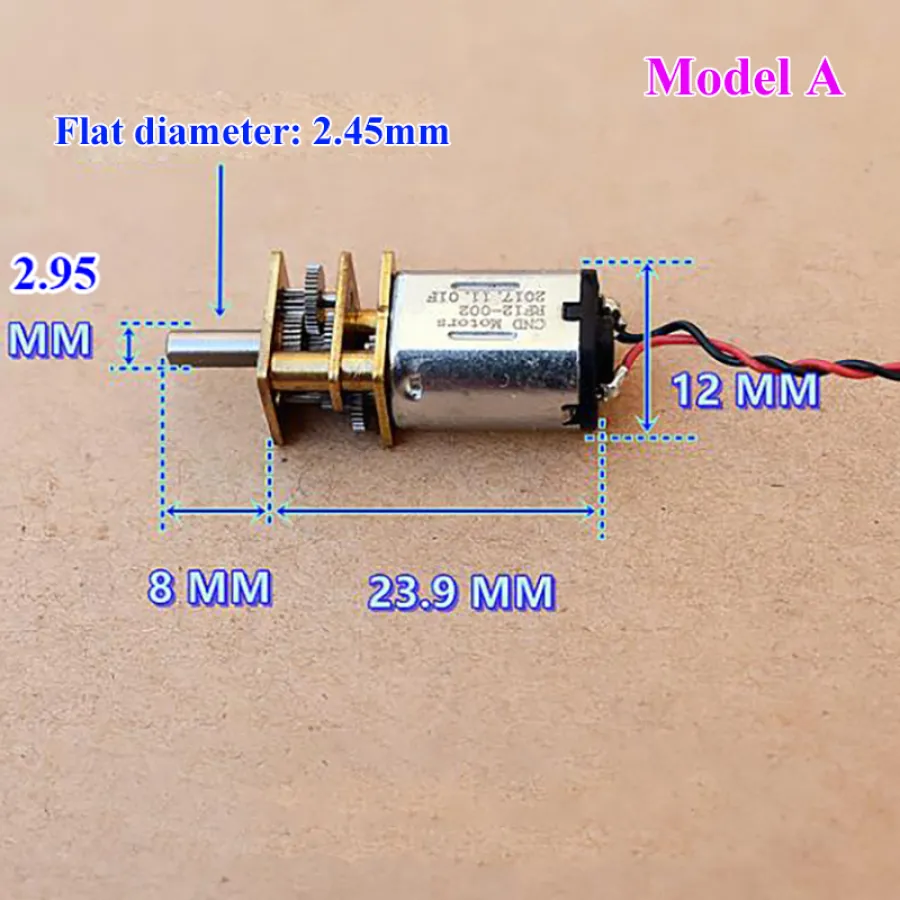

Model A
1.Rated voltage: DC 5V
2.No-load current: 50mA
3.No-load speed: 60RPM
4.Suitable voltage: DC 3V-6V
5.Speed: 35RPM-70RPM
6. Output shaft length: 8mm
7. Condition: New
====================================================================================
2.No-load current: 50mA
3.No-load speed: 60RPM
4.Suitable voltage: DC 3V-6V
5.Speed: 35RPM-70RPM
6. Output shaft length: 8mm
7. Condition: New
====================================================================================

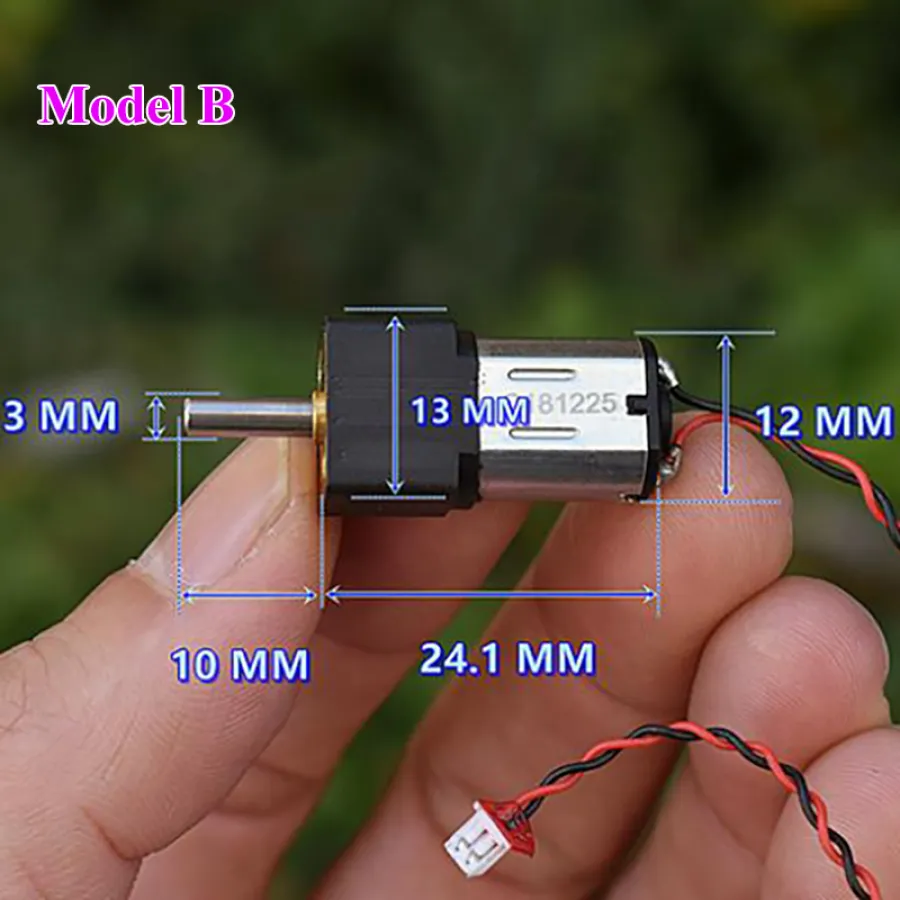

Model B:
1.Model: N20 Motor
2.Motor size: Motor 12mm*10mm
3.Motor height: 24.1mm
4.Output shaft diameter: 3.0mm
5.Output shaft length: 10mm
6.Weight: 10g
7.Voltage: DC 3V-6V
8.Test data:
Voltage:3.0V No-load speed:90RPM Current:30mA
Voltage:5.0V No-load speed:165RPM Current:36mA
Voltage:6.0V No-load speed:200RPM Current:40mA
9. Condition: New
=================================================================================

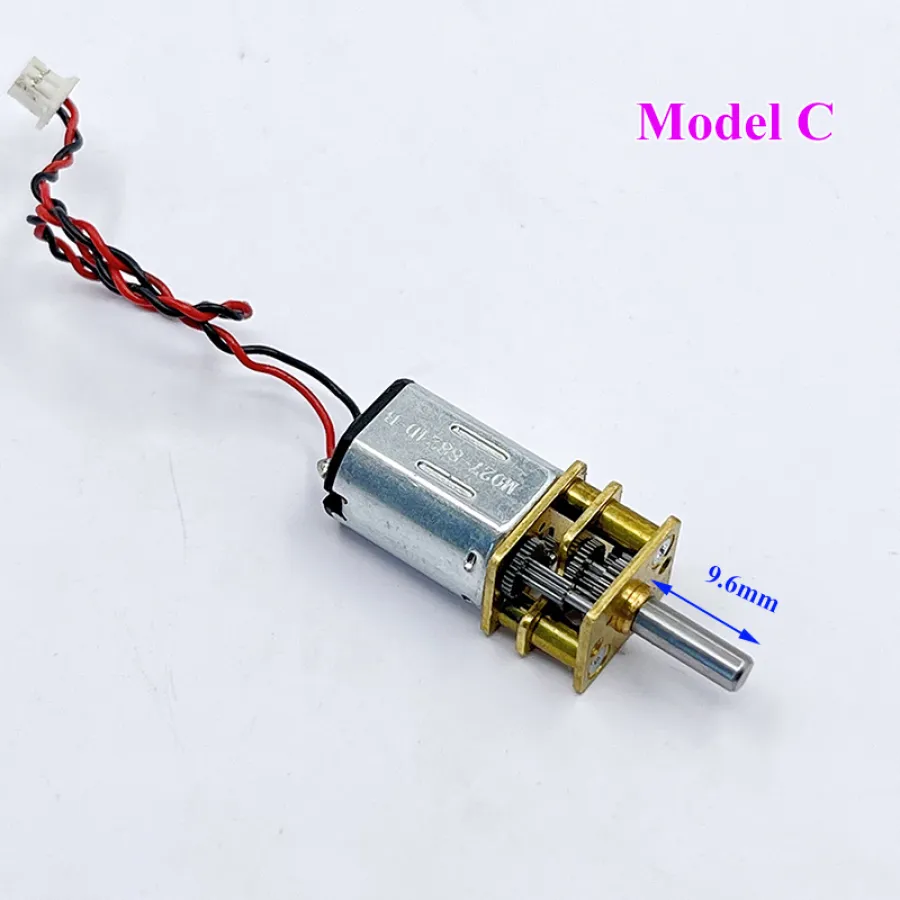

Model C
1.Rated voltage: DC 6V
2.No-load current: 30mA
3.No-load speed: 500RPM
4.Suitable voltage: DC 3V-6V
5.Speed: 240RPM-500RPM
6.Weight: 10g
7. Condition: Used
7. Condition: Used
=================================================================================

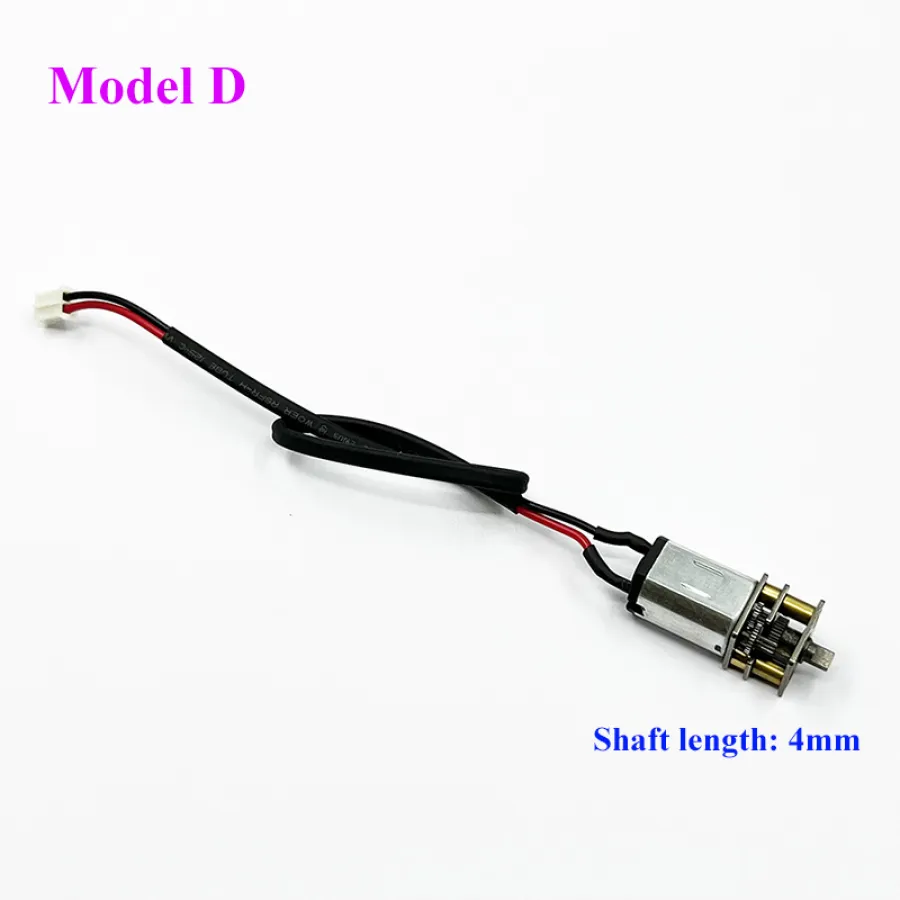

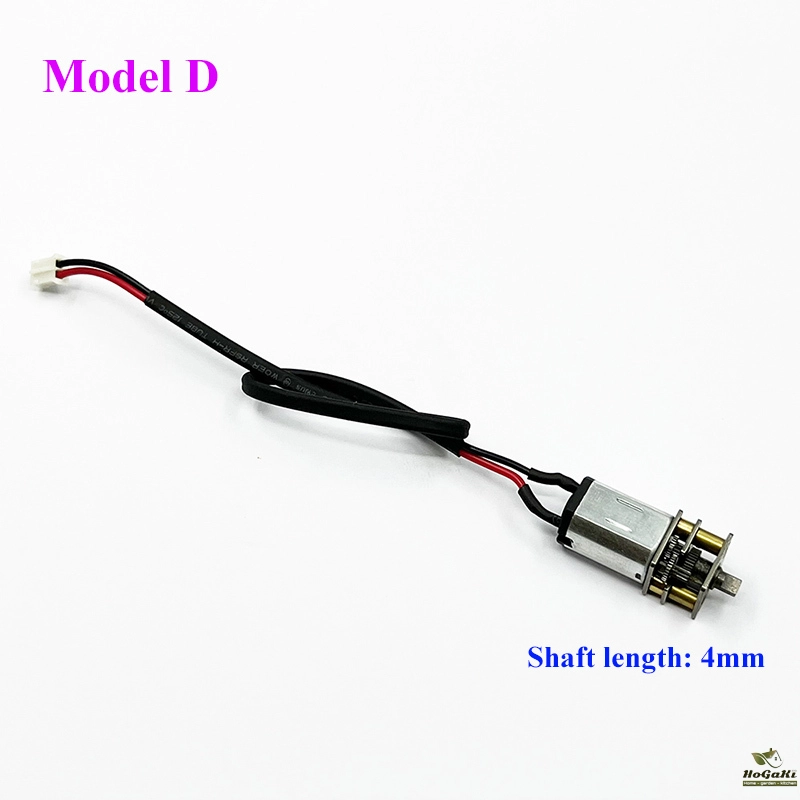

Model D
1. Suitable voltage: DC 3V-6V
2. Speed:500RPM-1000RPM
3. Shaft length: 4mm
4. Condition: New
=================================================================================

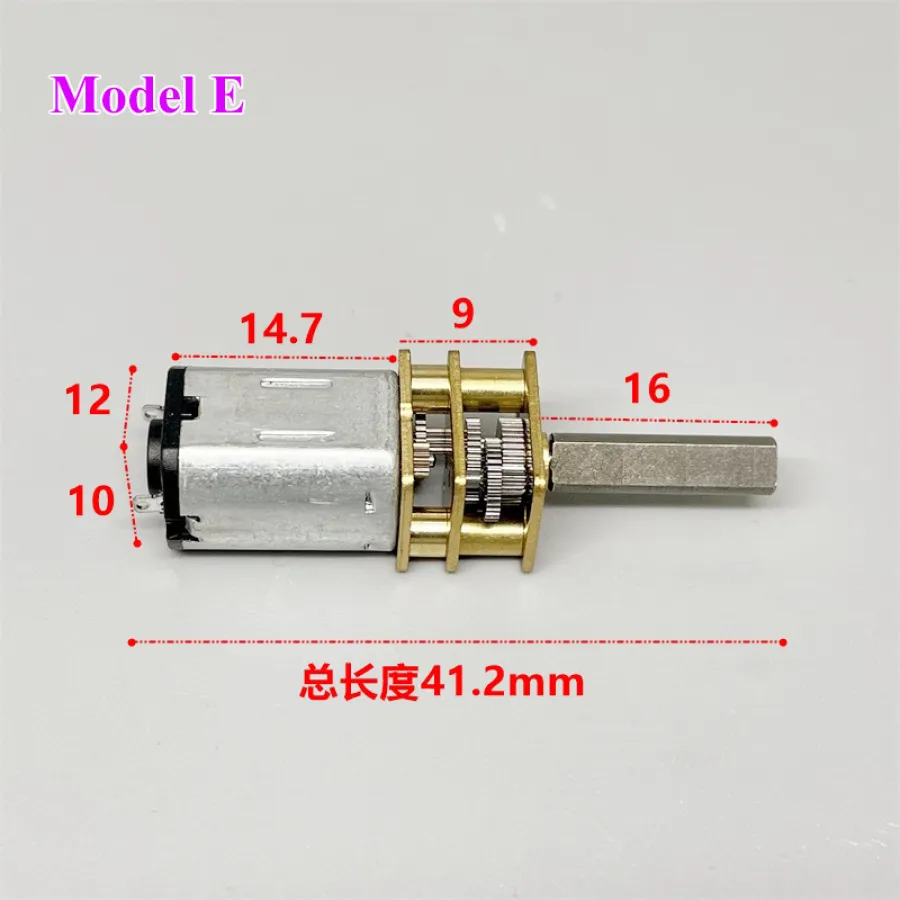

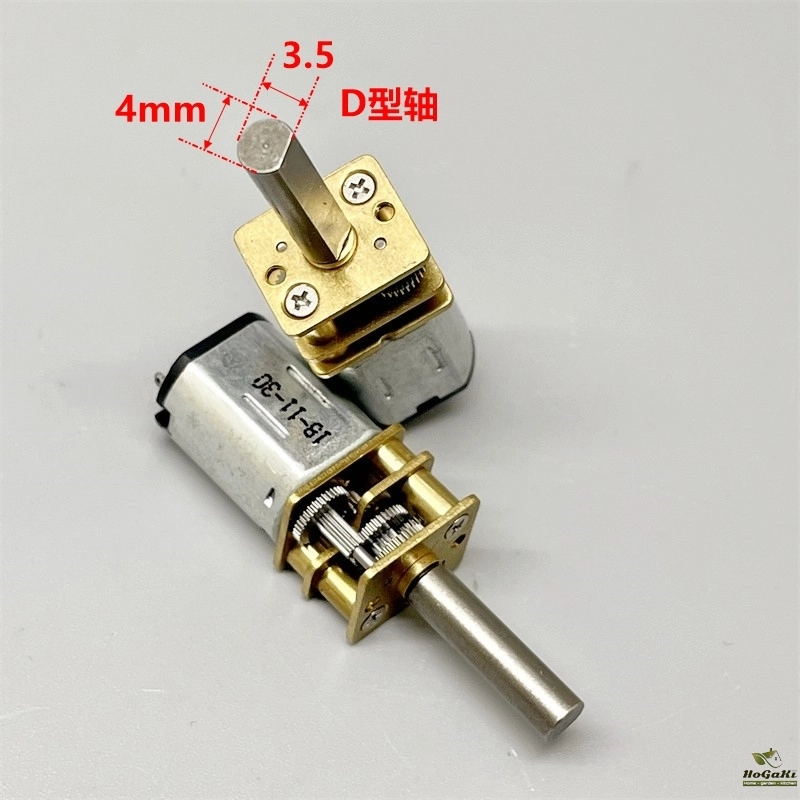

Model E
1.Brand: OT-12GAN20PAD006/150
2.Model: N20 Gear Motor
3.Output shaft dameter: 4mm (D shaft 3.5mm)
4.Output shaft length: 16mm
5.Weight: 10g
7.Rated voltage: DC 6.0V
8.Suitable voltage: DC 3.0V-6.0V
9.Rated voltage: DC 6 V
10.No-load current: ≤ 0.04 A (measured 25 mA)
11.No load speed: 152 ± 10% rpm
12.Load current: ≤ 0.13 A
13.Load speed: 118 ± 10% rpm
14.Locked rotor current: ≤ 0.43 A
15.Stall torque: 590 ± 120g. cm
16.Motor weight: 10g
17. Condition: New
======================================================================================
Model F
Brand new N20 micro gear motor,the output shaft is flat-type shaft.
The rated voltage is DC 5V,can work from DC 3V to DC 5V.
Stall torque is about 500g.cm-900g.cm,rated torque is about 200g.cm
The gear box gear ratio is about 1:95
Test data:
Voltage:3V No-load current:40mA No-load speed:80RPM
Voltage:5V No-load current:60mA No-load speed:130RPM
1.Motor weight: 10g
2.Motor size: 12.1mm*25.5mm
3.Output shaft diameter: 2.5mm*1mm(flat type)
4.Output shaft length: 2mm
5.Condition: New
==================================================================================

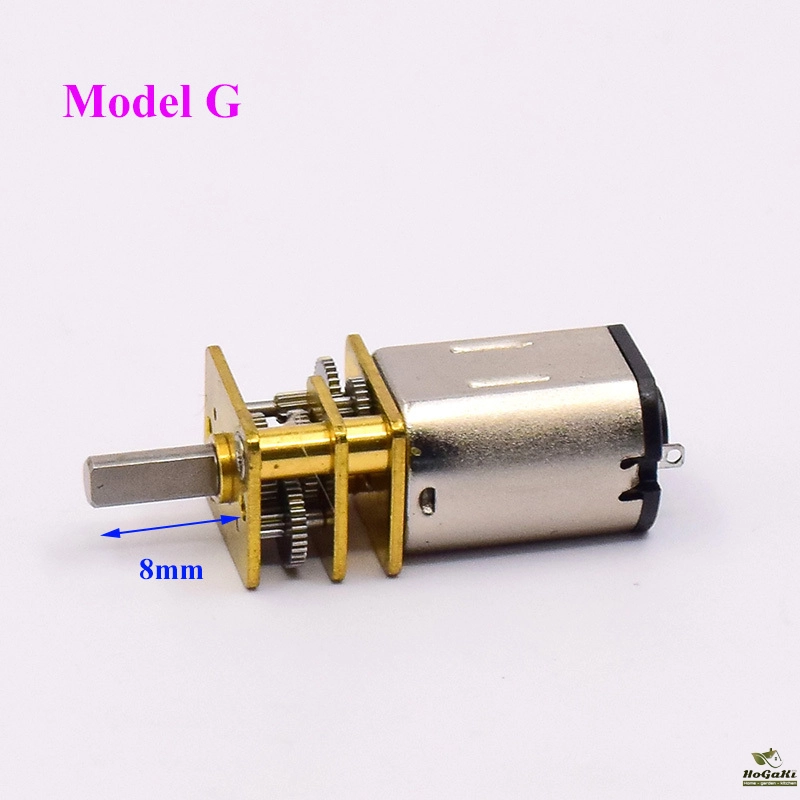

Model G
1.Test Voltage: DC 5V
2.No-load current: 40mA
3.No-load speed: 53RPM
4.Suitable voltage: DC 3V-6V
5.Speed: 31-65RPM(33mA -42mA)
6.Weight: 10g
7. Shaft length: 8mm
8. Shaft diameter: 3mm, 2.5mm D shaft
9. Condition: New
===================================================================================

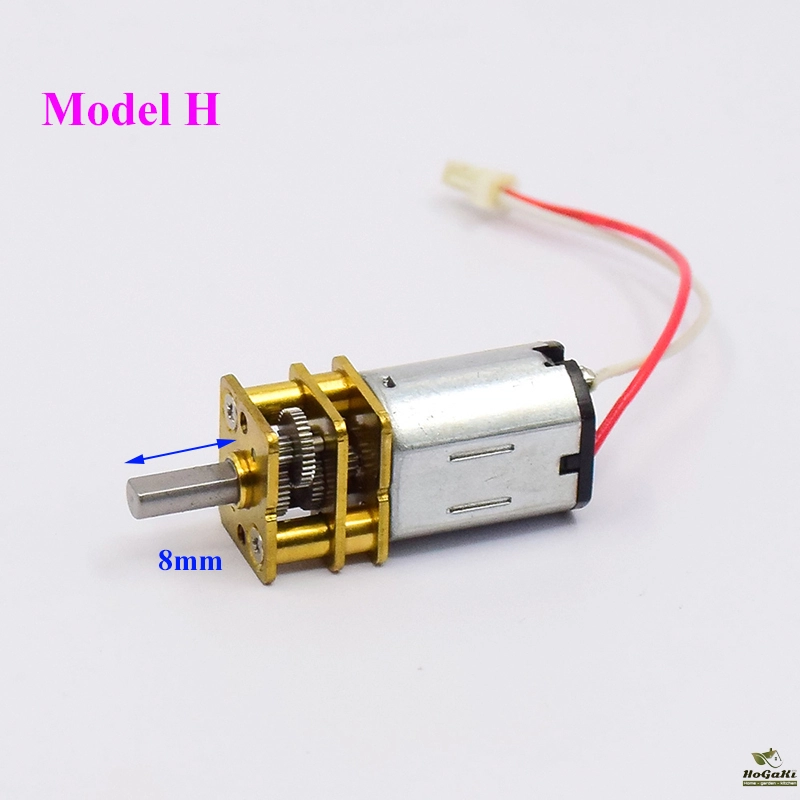

Model H
N20 reduction motor low speed, low noise and low energy consumption
[Measured parameters]
3.0V: 19.5 rpm/13mA
3.7V: 24.5 rpm/14mA
5.0V: 33.3 rpm/16mA
6.0V: 40.6 rpm/17mA
9.0V: 61 rpm/21mA
12.0V: 80 rpm/24mA
Shaft length: 8mm, shaft diameter: 3mm, 2.5mm D shaft
Condition: New
========================================================================================
Model I
(cable length about 40mm)
==========================================================================
Package:
Motor x 1
Packaging Details
- Unit Type: piece
- Package Weight: 0.020
- Package Size: 1x1x1
- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- Certification: None
- Origin: Mainland China
- Continuous Current(A): Not clear
- Output Voltage: Not clear
- Commutation: Brush
- Type: Micro Motor
- Protect Feature: Explosion-proof
- Construction: Permanent Magnet
- Use: Home Appliance
- Efficiency: IE 1
- Model Number: N20 Gear Motor
- Torque: not clear
- Choice: yes
