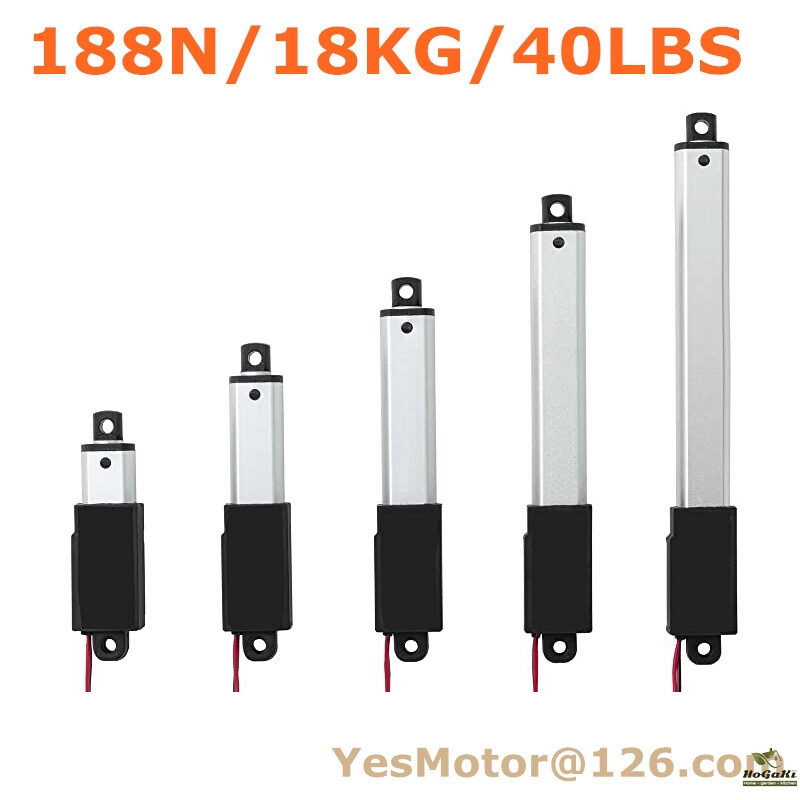

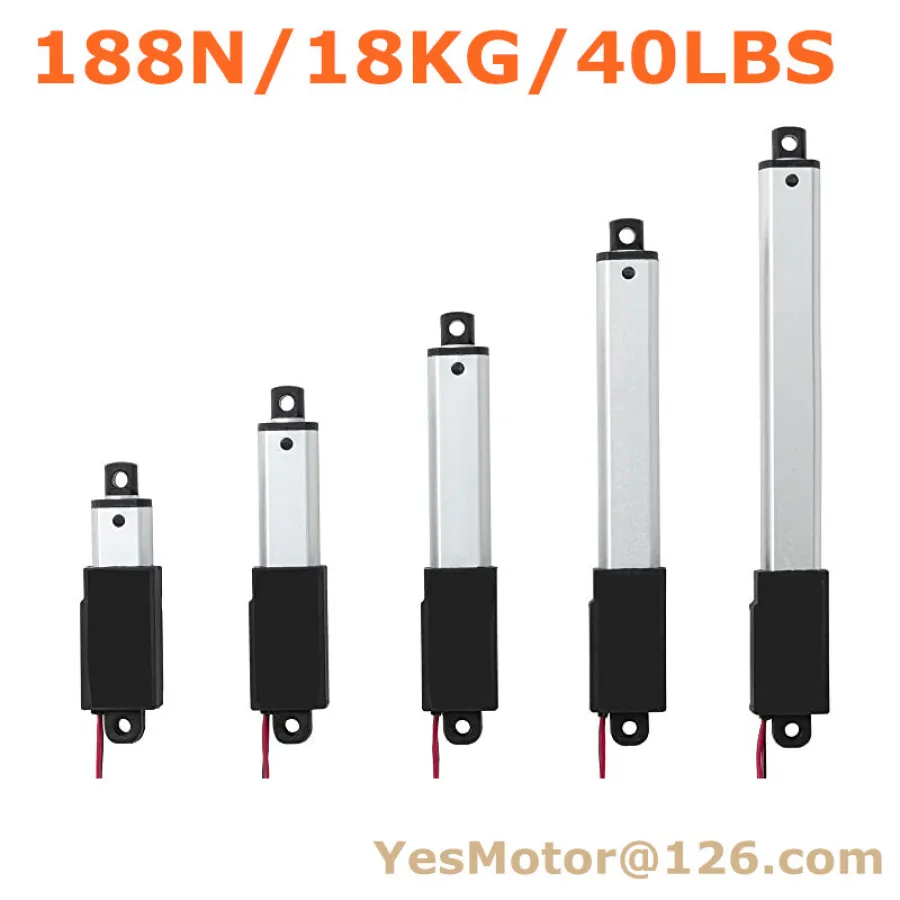

High quality 6V 12V 24V DC Micro new linear actuator DC motor 30/50/75mm 100mm 150mm stroke customized 188N force free shipping
ID: 151213

High quality 6V 12V 24V DC Micro new linear actuator DC motor 30/50/75mm 100mm 150mm stroke customized 188N force free shipping

4.8 (167 votes) | 1000 orders
Price: US $65.35 - 88.31
Discount Price:
US $ 56.83 - 82.80
-13%
Quantity

Buy Now
Add to Cart

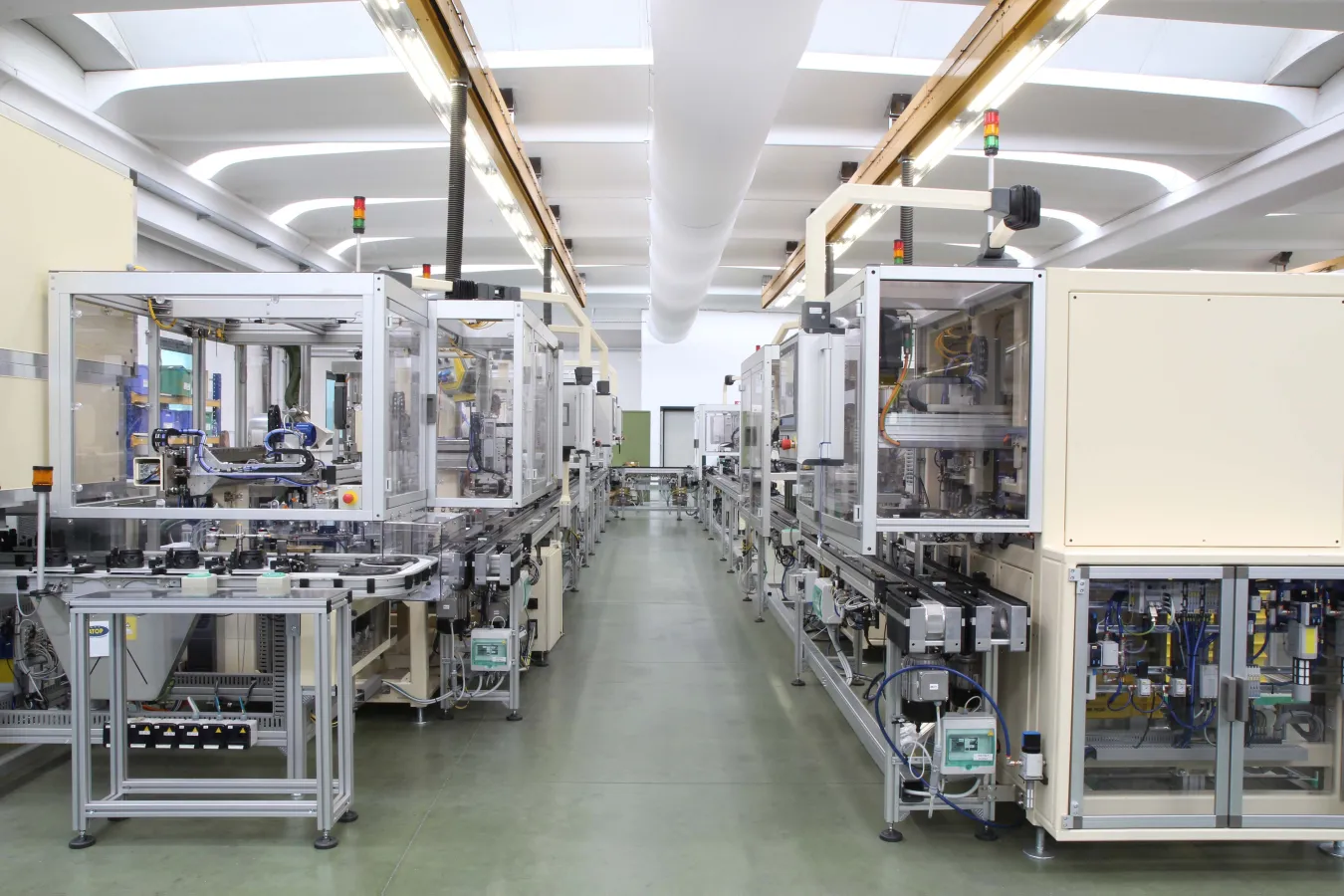

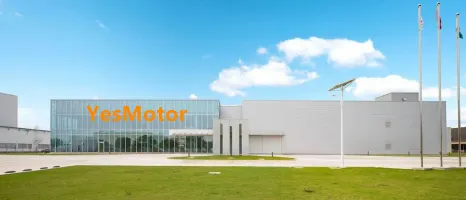

We are professional Linear Actuators,lifting column and controller manufacturer for more than 20 years old. We have ISO,CE,UKCA certificate. There are more than 500 types linear actuators,lifting columns and controllers in my company.

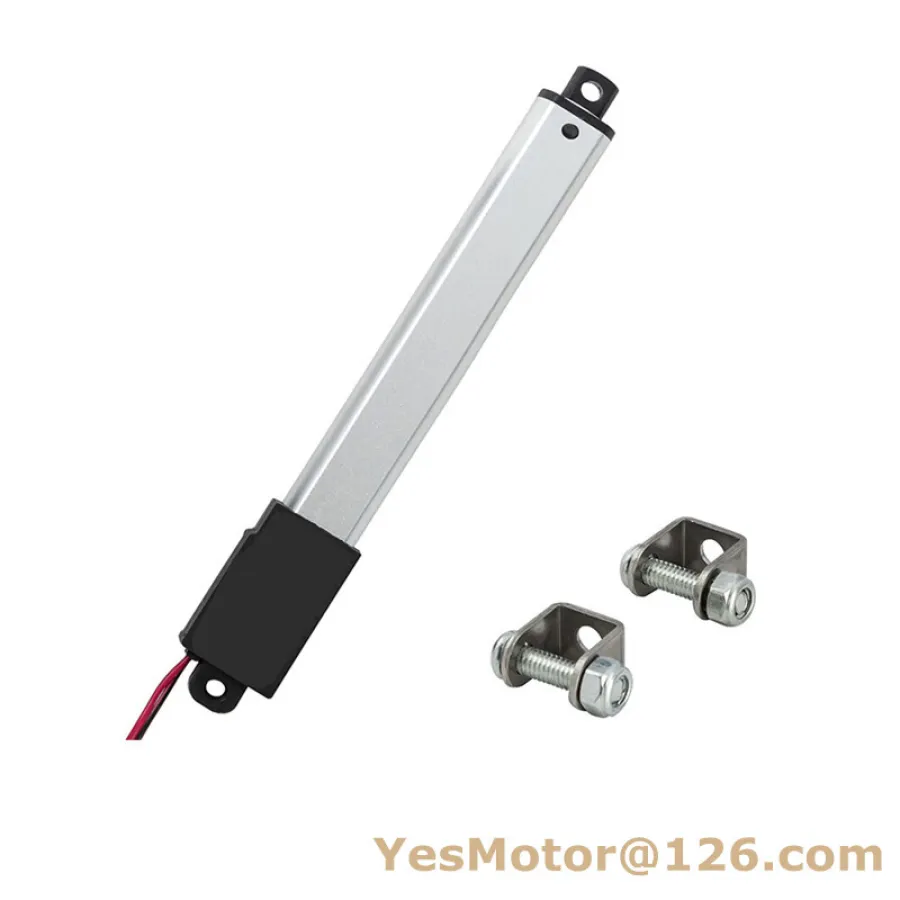

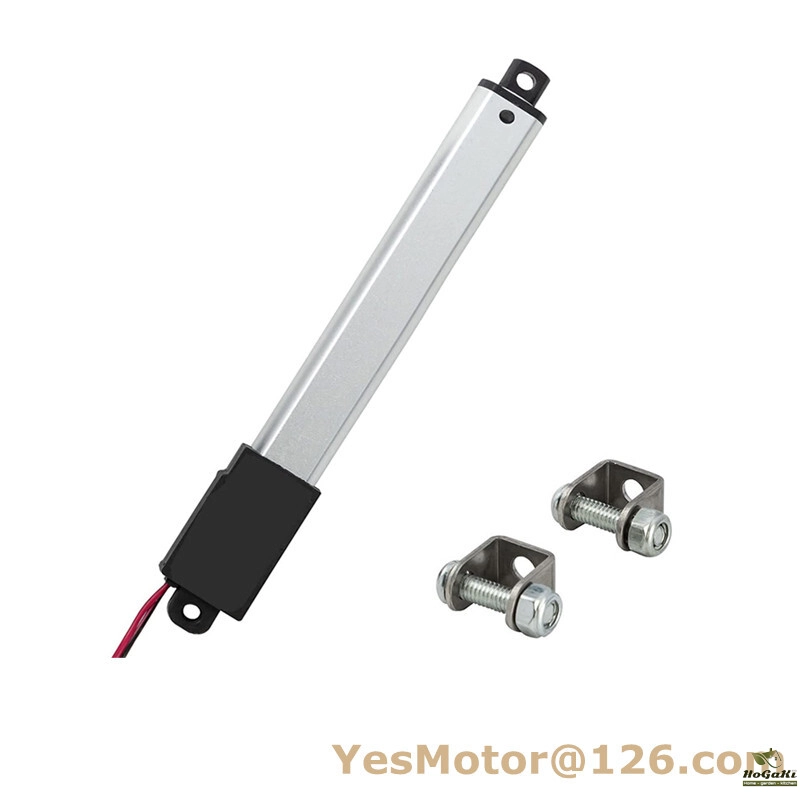

M5 is one of good quality and hot sell micro electric linear actuator,fixed inner intelligent limited switch,it can stop automatically when it arrives in end position. The engineer team offers varies of stroke,gear rations,input power,cable connector,length,controller to customers. If you need a customized micro linear actuator,we can help you.



Linear Actuator technical data

1 Type                                       M5 micro linear actuator

2 Input                                      6V 12V 24V DC

3 Max Load                                188N=18KG=44LBS

4 Max Speed                              150mm per second

5 Limited switch                          With

6 Duty cycle                               25%

7 Inner tube material                  Aluminum alloy

8 Stroke length                           Max 150mm

9 Retract length                          L1=54.5mm+stroke length

10 Color                                     Black

11 Feedback Potentiometer,with customized fee

12 Operation temperature            -26 ~ +65 degree

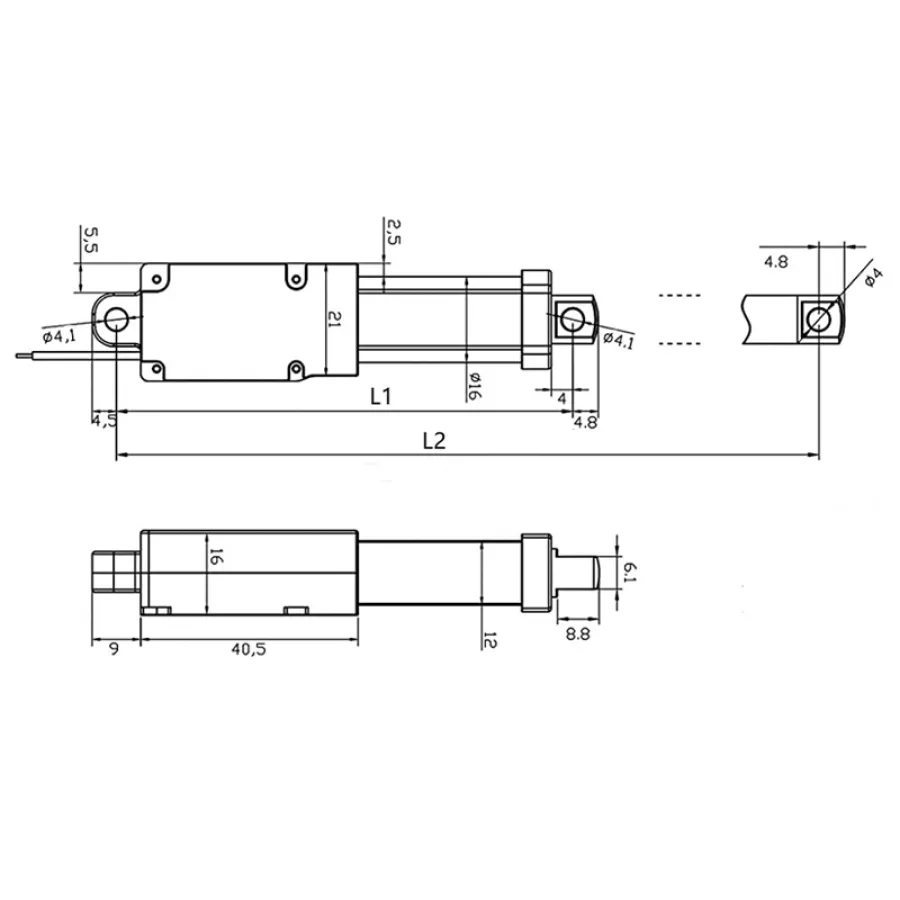

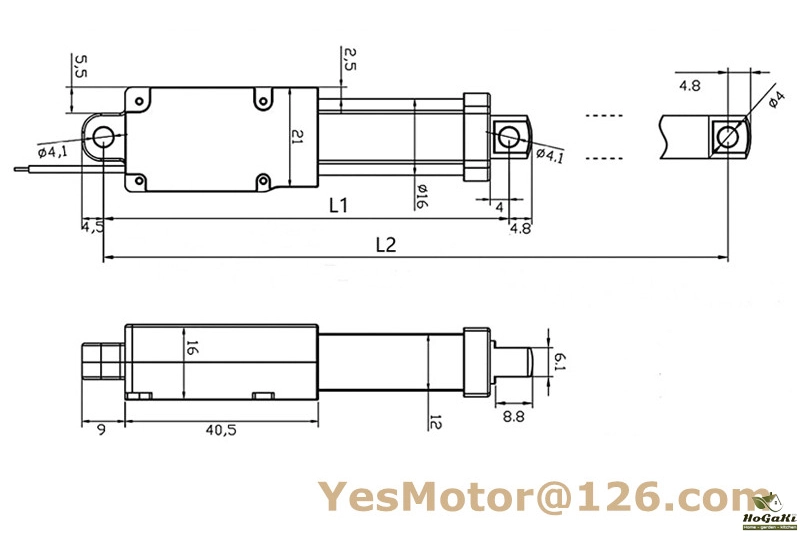

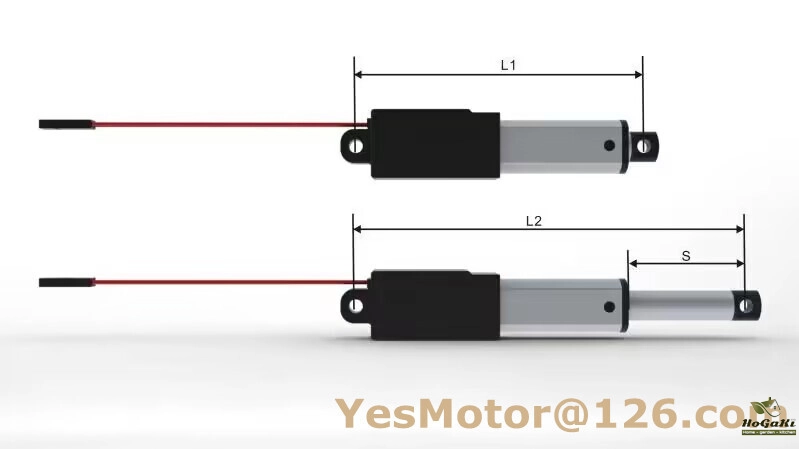

Linear Actuator technical drawing




1 L1=100% fully retract length

L1 means the length when linear actuator 100% fully retracts, meanwhile,it will touch the rear limited switch and stop itself.
2Stroke means the movement length of linear actuator.
3 L2=100% fully extend length
L2 means the length when linear actuator 100% fully extend, meanwhile,it will touch the front limited switch and stop itself.
Stroke 10MM    L1=64.5MM,  L2=74.5MM
Stroke 17.5MM L1=72MM,     L2=89.5MM
Stroke 21MM    L1=75.5MM,  L2=96.5MM
Stroke 25MM    L1=79.5MM,  L2=104.5MM
Stroke 30MM    L1=84.5MM,  L2=114.5MM
Stroke 50MM    L1=104.5MM,L2=154.5MM
Stroke 75MM    L1=129.5MM,L2=204.5MM
Stroke 100MM  L1=154.5MM,L2=254.5MM
Stroke 150MM  L1=204.5MM,L2=354.5MM

Advantage

1 Professional engineer team
2 Good quality control system
3 Product 100% check before shipping
4 We have good reputation in market
5 Good after sales service

Service

1 We supply customized front and rear connector size,L1 and L2 length,cable and controller.

2 We supply OEM and ODM service

3 We supply discount for bulk order.

4 For bulk order,we supply ocean and air cargo shipping service,it is much cheaper.

5 If you have friends or agent in China,we can send product to them,it is free shipping.


Warranty

1 If you do not receive product or meet quality problem, we will send you new one.
2 Payment mothod,paypal, Escrow,Western union,bank transfer,Wechat or Alipay and etc.
3 Please send correct address and contact info,the shipping will be faster.

Thank you so much.


Same linear actuator other sizes happy order link

Other type linear actuator happy order link

Thank you so much.





Packaging Details

  • Unit Type:
  • Package Weight: 0.350
  • Package Size: 1x1x1

  • Brand Name: NoEnName_Null
  • Certification: ce
  • Origin: Mainland China
  • Continuous Current(A): 0.3
  • Output Power: 4
  • Commutation: Brush
  • Type: Micro Motor
  • Protect Feature: Totally Enclosed
  • Construction: Permanent Magnet
  • Usage: BOAT
  • Efficiency: IE 4
  • Model Number: M5
  • Color: MULTI
  • Torque: 188
  • Input: 6V 12V 24VDC
  • Load: Max 188N/18.8KG/41LBS
  • Speed: max 150mm/s or options
  • Stroke: max 150mm
  • Feedback: Potentiometer,with customized fee

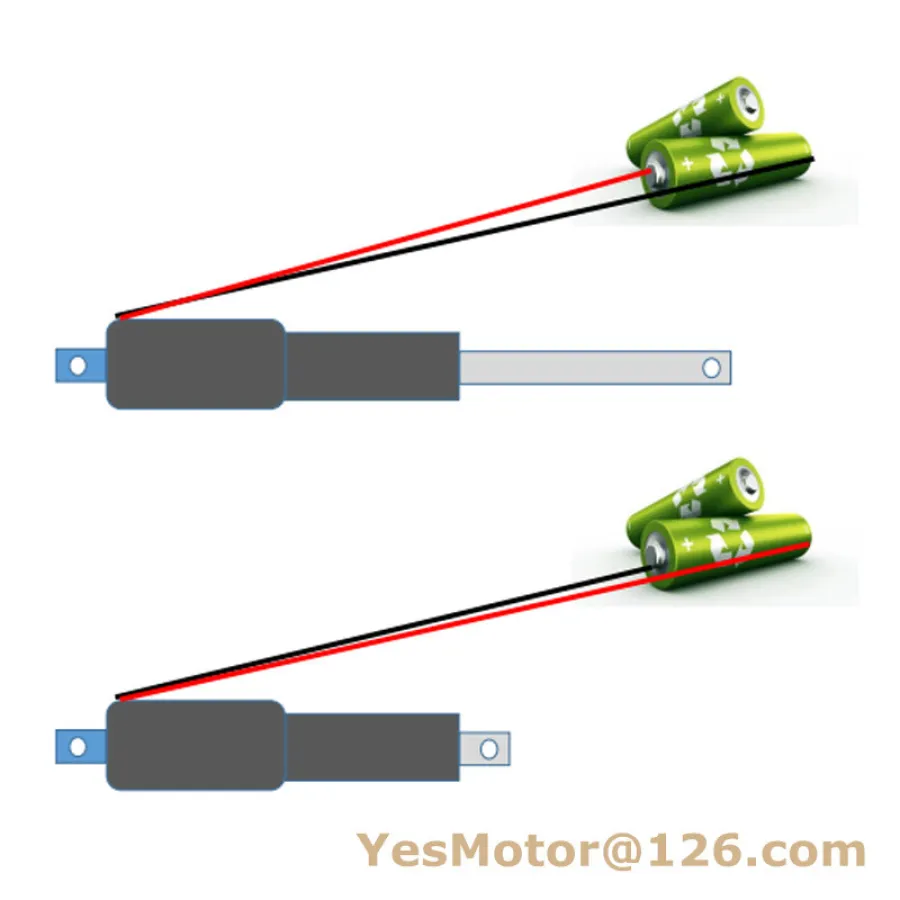

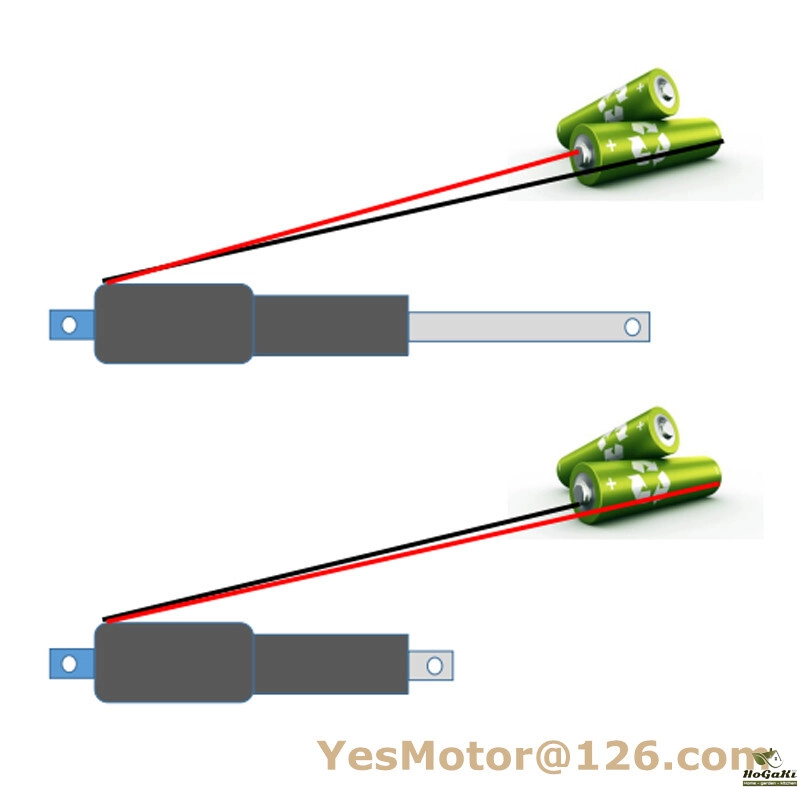

  • Cable: Two wire,+ and -
  • Customized: Yes
  • OEM: Yes
  • ODM: Yes
  • Choice: yes
  • semi_Choice: yes
