DC 12V PWM Speed Controller Fan Speed governor 4 Wire Computer Temperature control Switch for PC CPU Cooler Fan Manual Stop
5.0 (94 votes) | 1000 orders
Price:
US $
10.20
Product selling points:
1. High quality materials with guaranteed quality
2. With switch, it can be turned off
3. Exquisite product appearance
4. Simple and convenient wiring
5. Stable performance
Product parameters:
Working voltage: DC12V (it can work under 8-15V voltage, please note that the fan voltage is consistent)
Fan current: no more than 3A This current is limited by the switch and connector, and can be expanded through power cable alone
Loss of circuit board: less than 20mA without fan
PWM signal mode: 5V25KHZ
PWM signal output range: 0% - 100%
PWM adjustment range of starting position: 0% - 60%
Output interface model: 2510-4P dislocation, conventional CPU, chassis fan socket, pin spacing 2.54mm

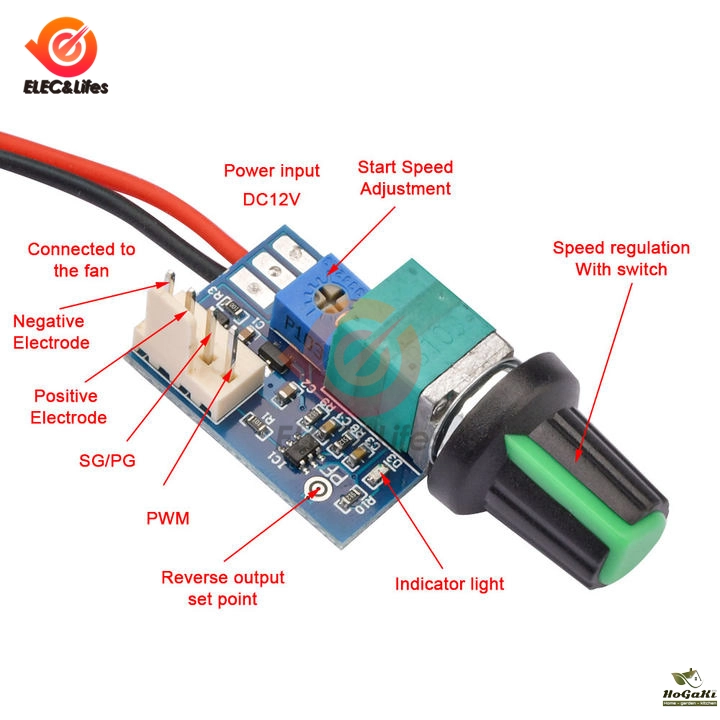

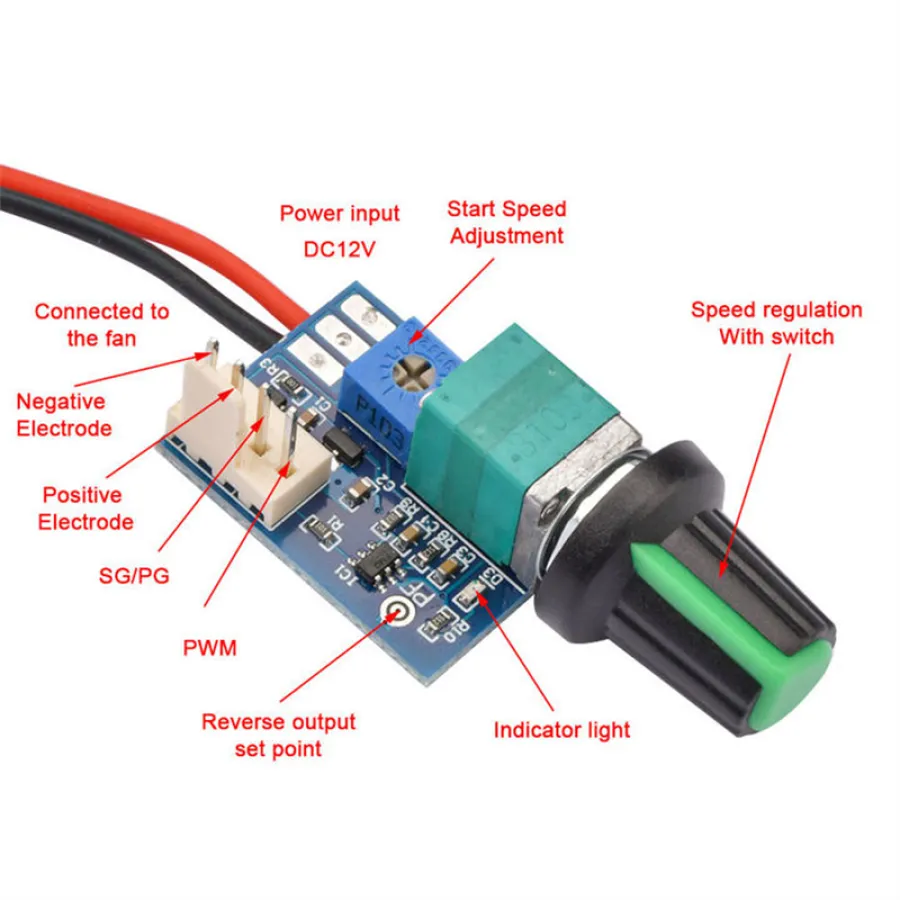

Function description:
Pay attention to the positive and negative poles and the power supply voltage. After the power fan is connected, it can be used. The potentiometer is closed counterclockwise to the end, and the maximum output is clockwise to the end
The independent small adjustable resistor (initial speed adjustment) on the board is used to adjust the speed at the just opened position
If the speed change of the fan is opposite to the adjustment direction, it means that the fan is an anti sequential fan, and the (PF) set point needs to be shorted with solder, and the power must be cut off before operation to avoid damage! After the short circuit, the PWM signal changes in the reverse direction with the adjustment, and the reverse sequential fan can realize the forward adjustment
matters needing attention:
This is a four wire PWM fan governor. It can only control 12V four wire fans that support PWM speed regulation. For example, many 12V four wire chassis or CPU fans cannot control 2-3 wire fans
Delivery list
Module X1
Packaging Details
- Unit Type:
- Package Weight: 0.016
- Package Size: 2x2x2
- Type: 12V PWM Speed Governor
- Brand Name: Aideepen
- Model Number: DC Motor Speed Controller
- Hign-concerned Chemical: None
- Motor Type: DC MOTOR
- Origin: Mainland China
- Certification: CE
- Motor: DC MOTOR
- Choice: yes
- semi_Choice: yes
