DC12V PWM Speed Controller 4-Pin Fan Speed Controller Type-C USB Power Supply DIY Water-cooling Cooling Pulse Width Modulation
4.9 (87 votes) | 900 orders
Price:
US $16.85
Discount Price:
US $
16.11
-4%

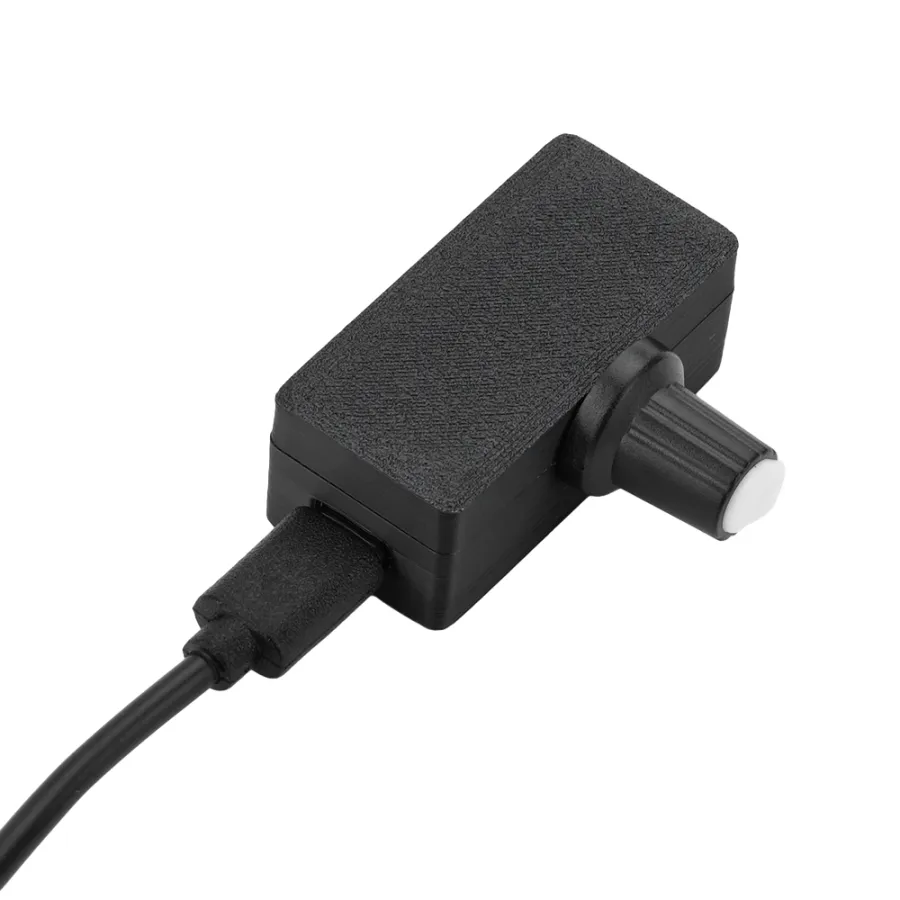

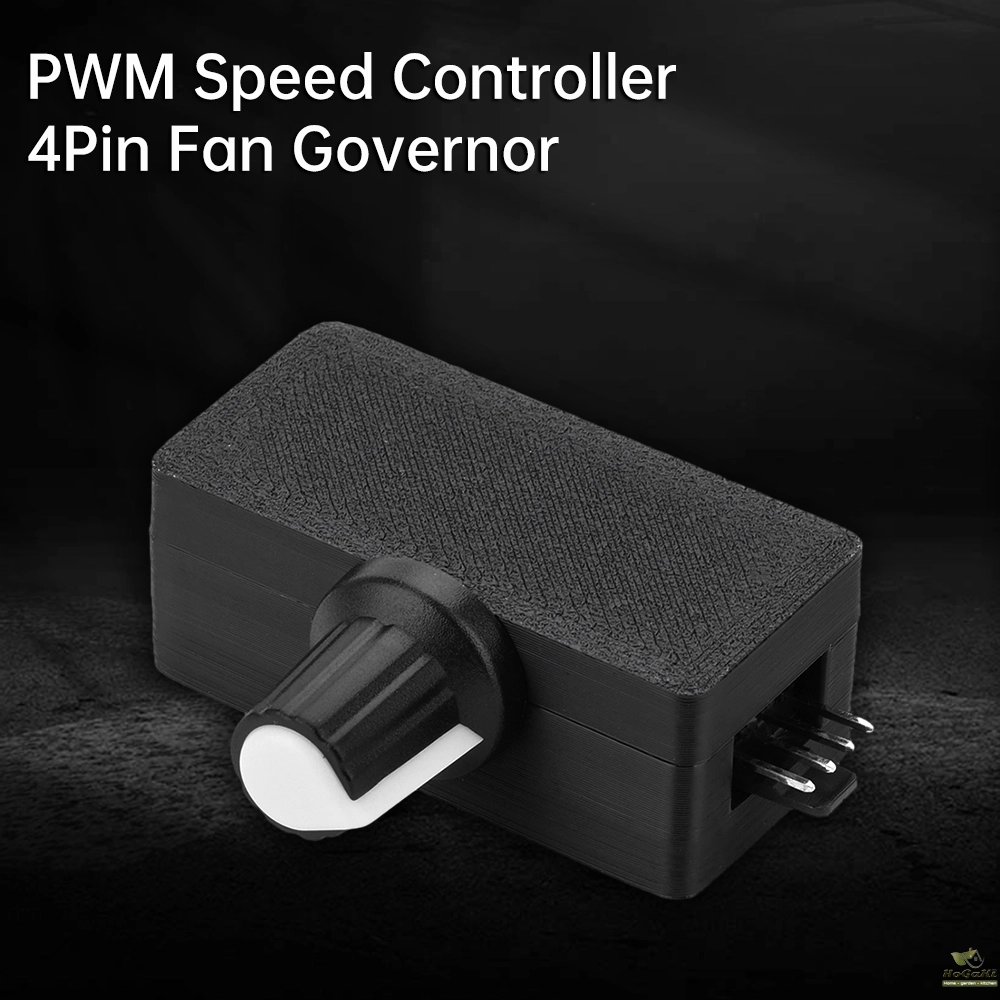

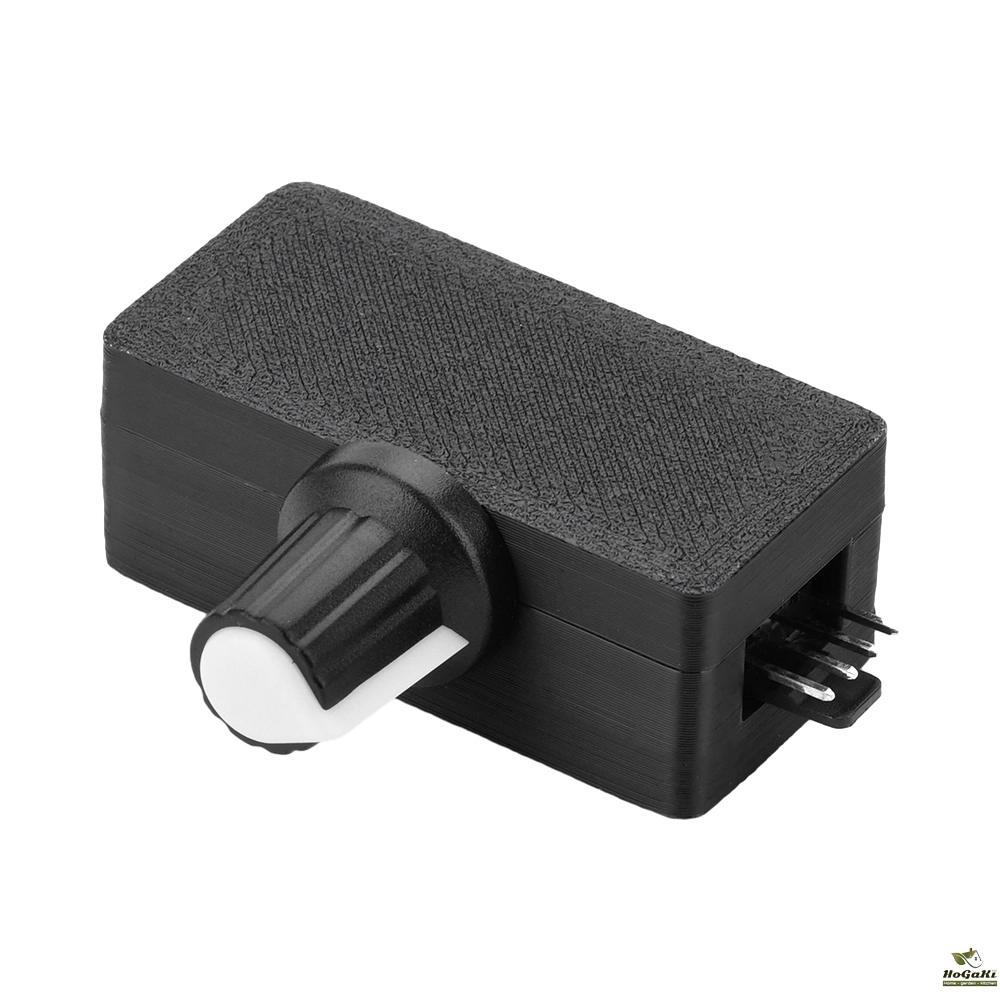

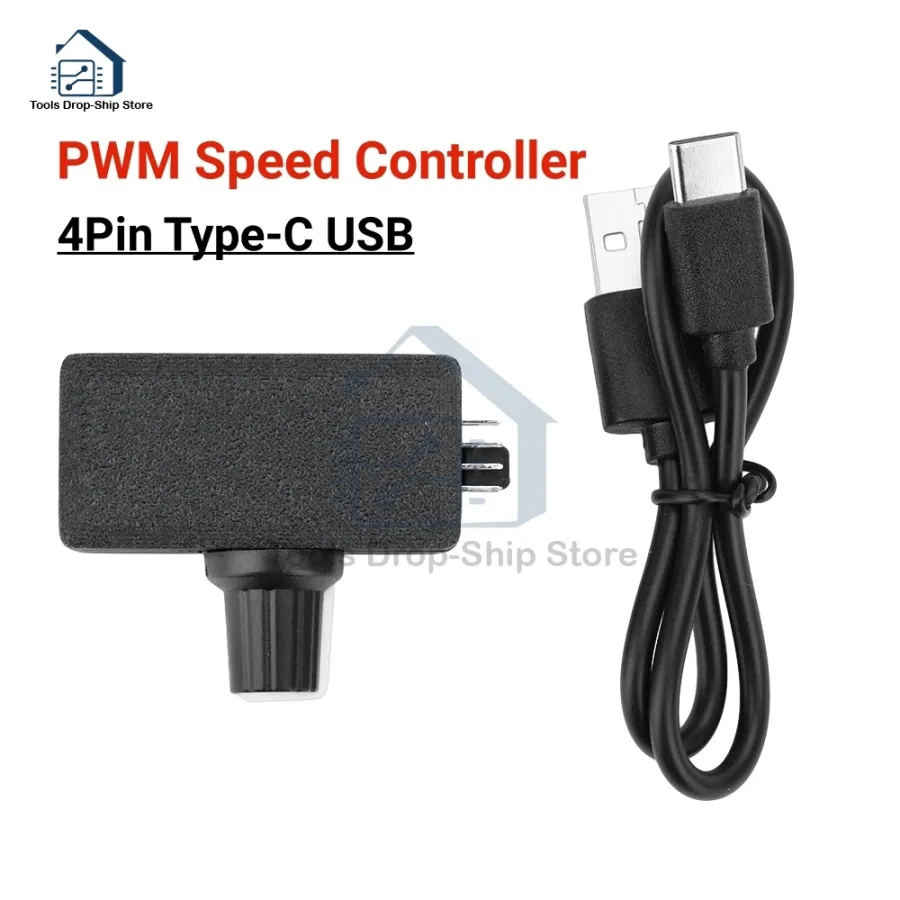

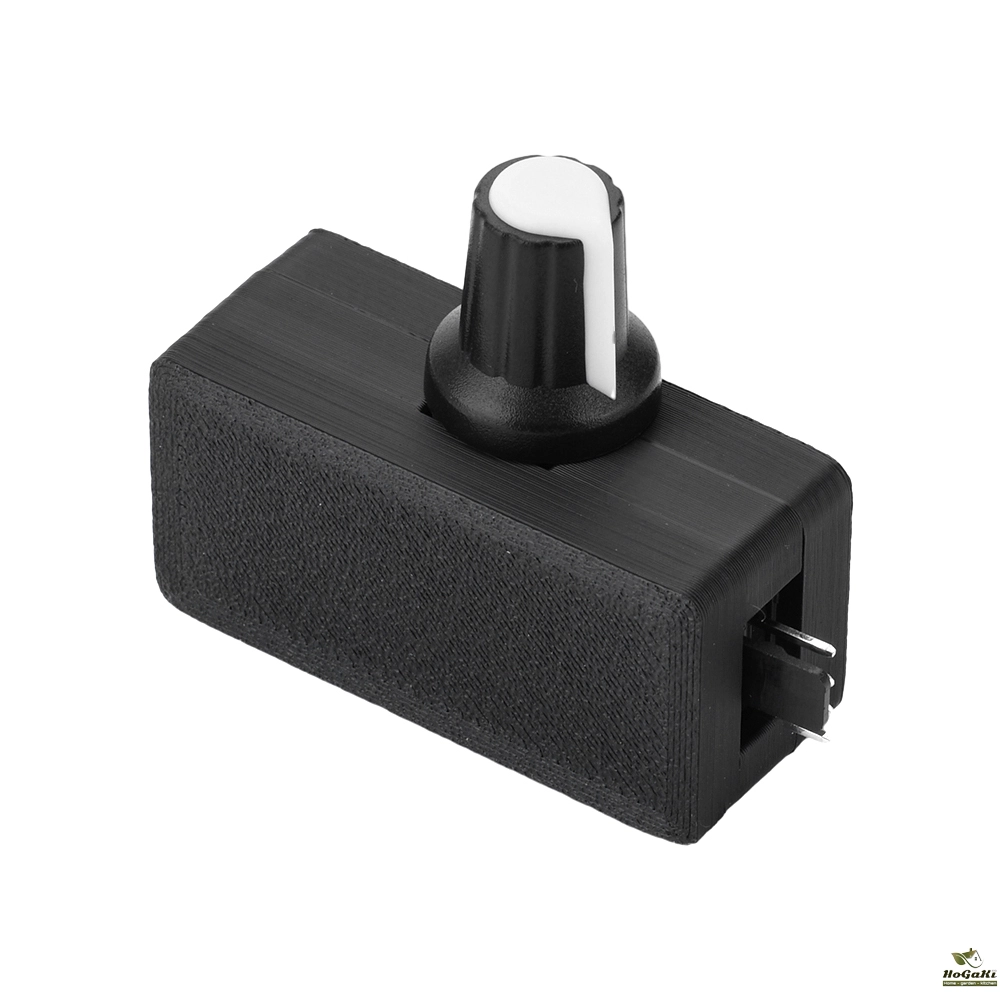

DC12V PWM Speed Controller 4-Pin Fan Speed Controller Type-C USB Power Supply DIY Water-cooling Cooling Pulse Width Modulation
Features:
1. The product is made of high-quality PLA environmental shell material, good toughness and wear resistance, excellent electrical insulation

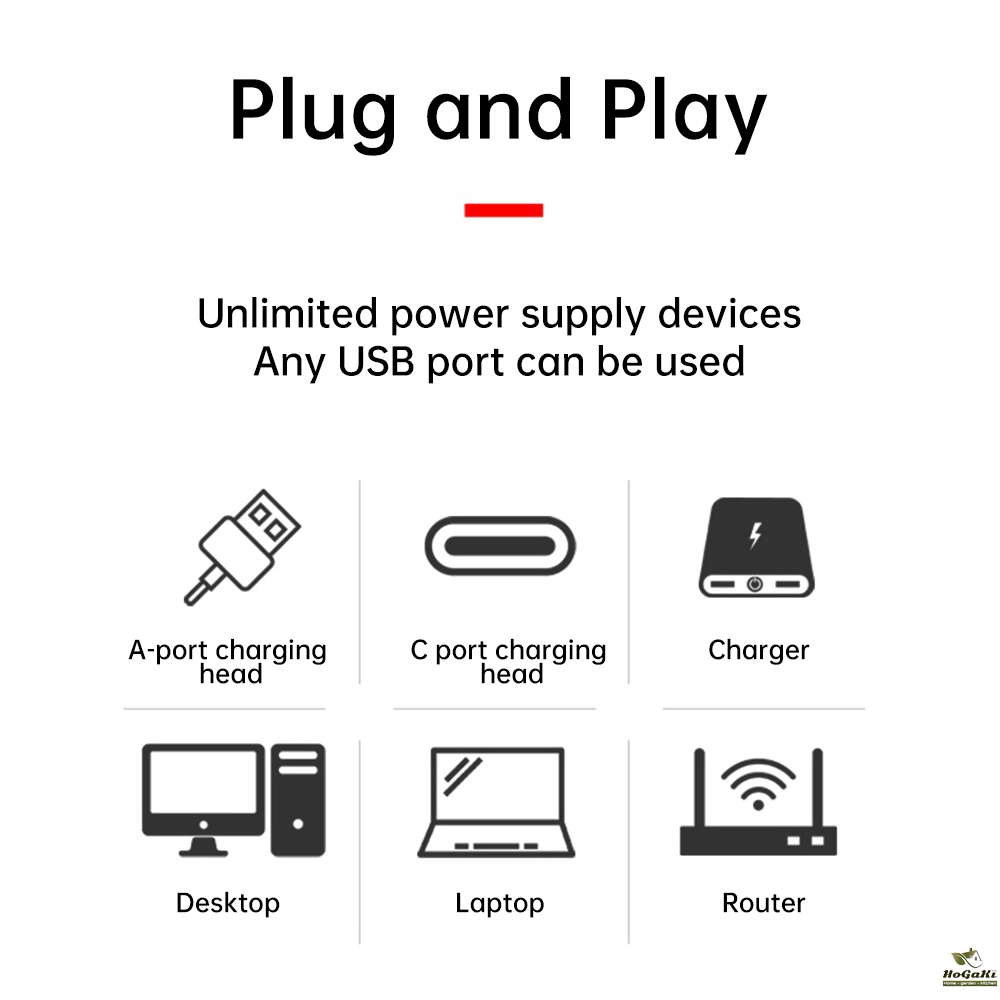

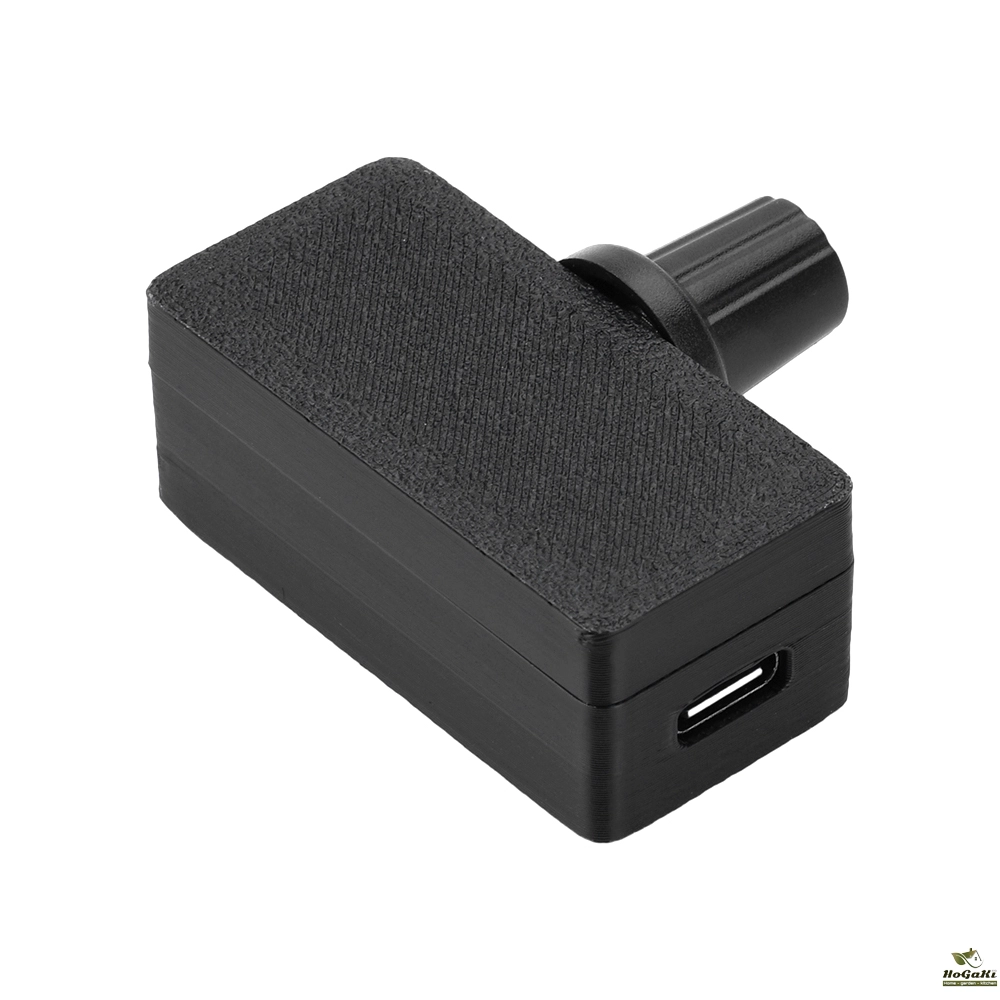

2.The input of the product is TYPE-C female port, can be perfectly compatible with TYPE-C port charger (PD) as a power supply device use

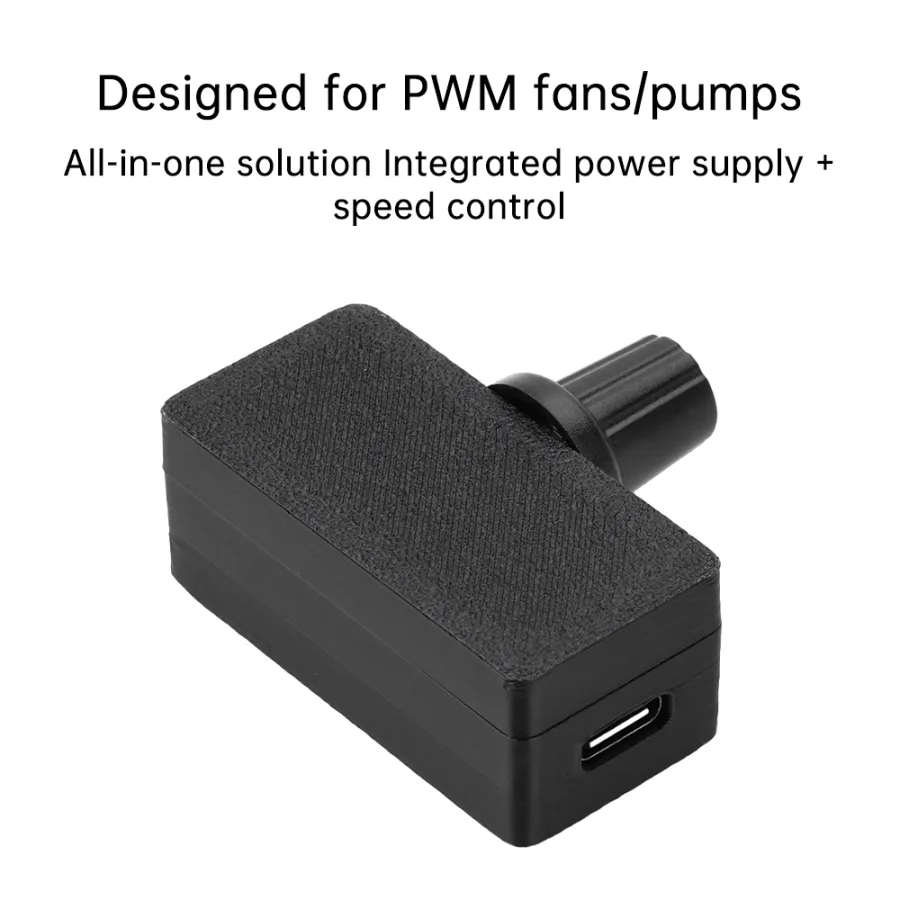

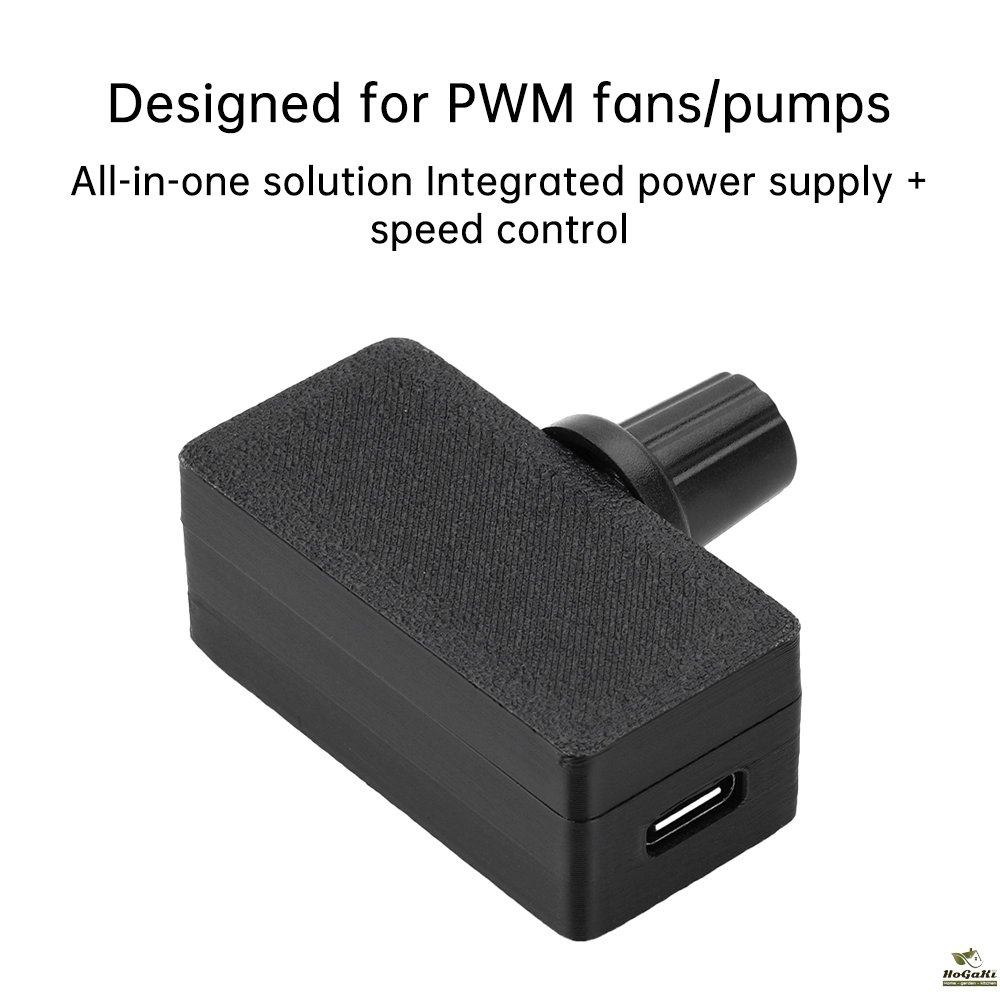

3. All-in-one solution, integrated power supply + speed control, more convenient to use.
4. Stable performance, built-in PWM signal generation circuit and DC-DC boost circuit.
5. Small speed regulator has a big role, compatible with most of the USB fan pump speed, can also be applied to routers / small host / soft routing and other DIY cooling
Product Description:

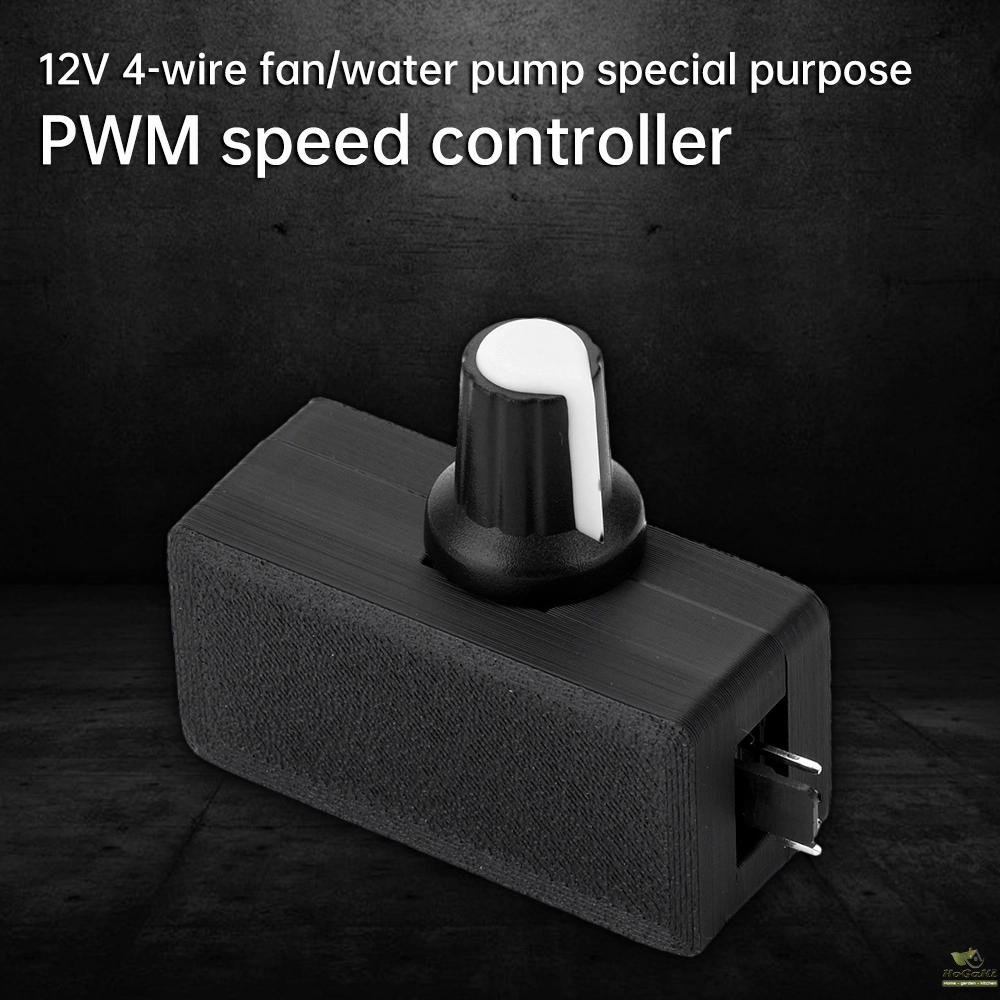

PWM speed regulator input for the C port, the output is a small 4Pin socket for PWM fan, built-in DC-DC boost circuit, 5V boost to 12V, speed regulation is achieved by outputting PWM signals, because the built-in boost circuit has losses (efficiency of roughly 85%), the output current is too large then there will be significant heating, it is recommended that the output current is controlled at 0.5A or less, for a short period of time can be up to 0.7A.
Parameter:
Product name: PWM speed regulator
Input voltage: 5V
Output voltage: 12V
PWM frequency: about 25KHz
Output Current: Rated 0.5A Upper limit 0.7A
Case material: PLA+ (FDM molding)
Input port: USB TYPE-C female port

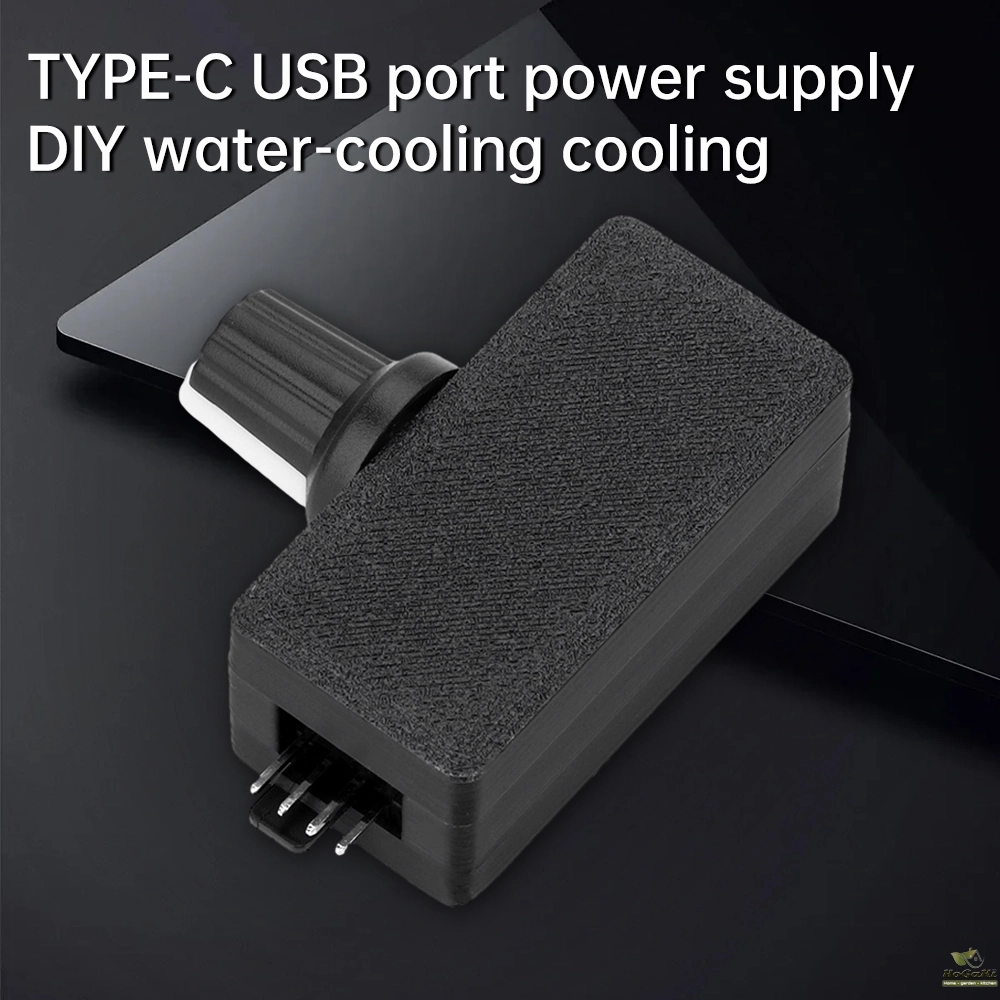

Output port: PWM 4Pin (KF2510)

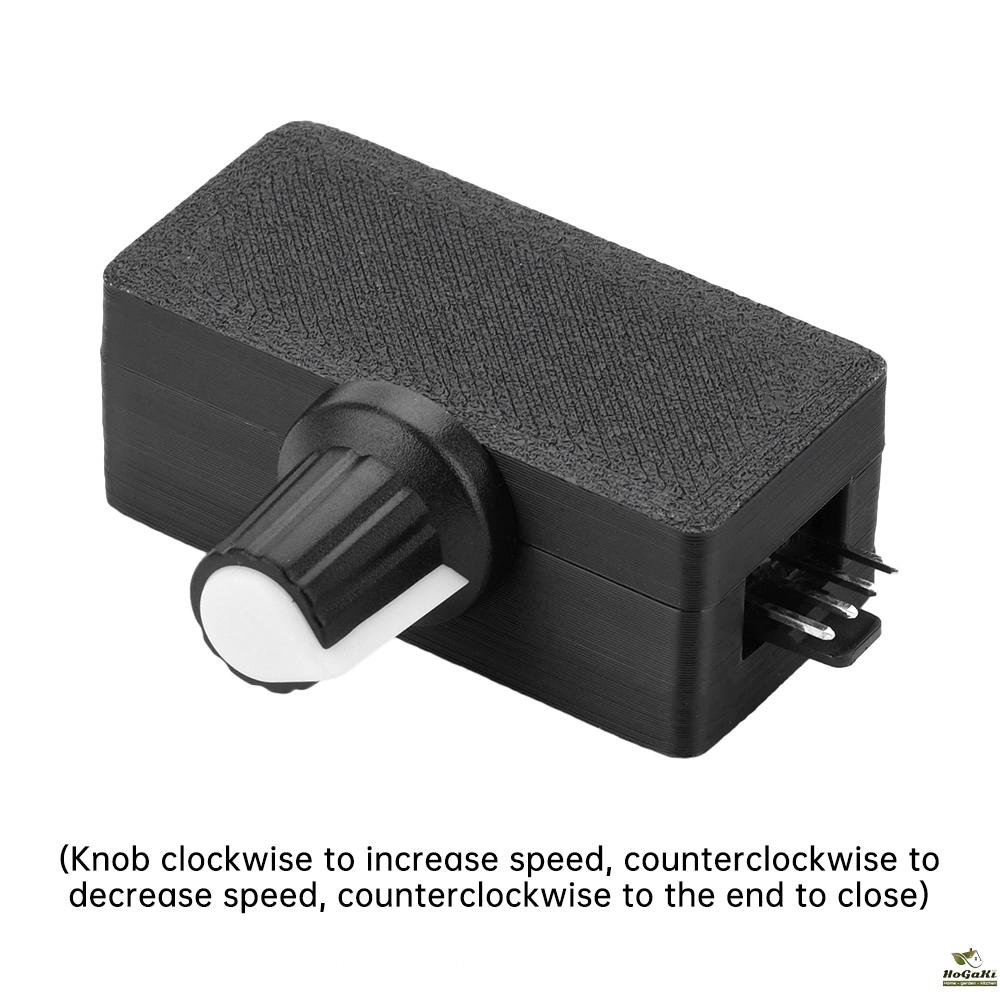

Speed control range: PWM duty cycle 0-100%

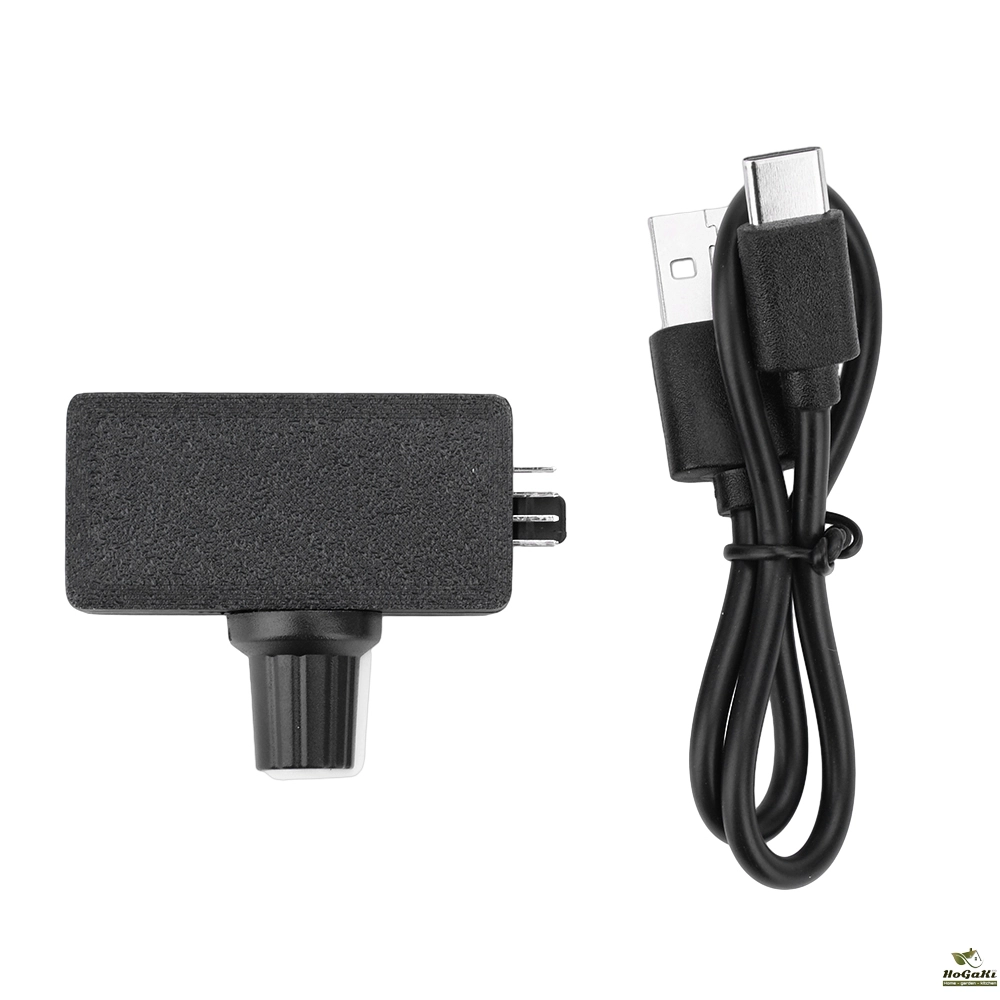

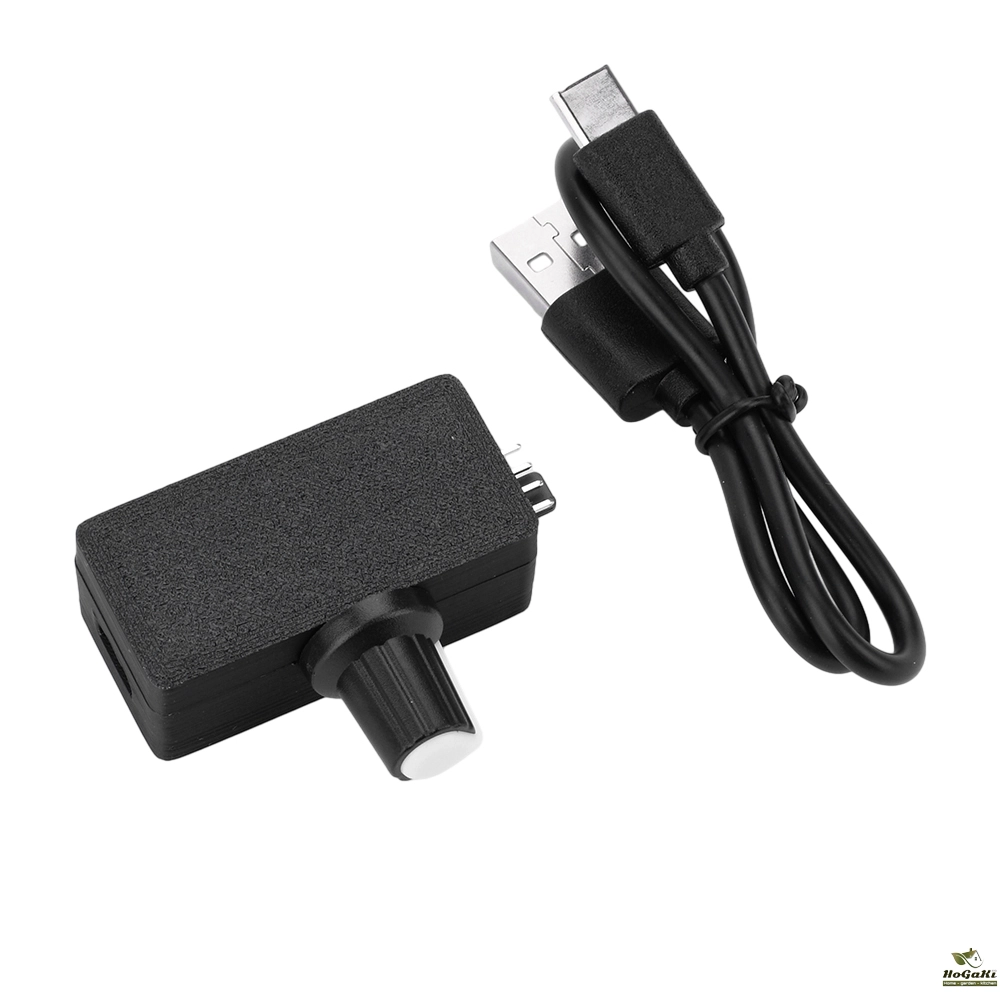

Package include:
Speed Controller *1
30cm short cable*1
Packaging Details
- Unit Type:
- Package Weight: 0.040

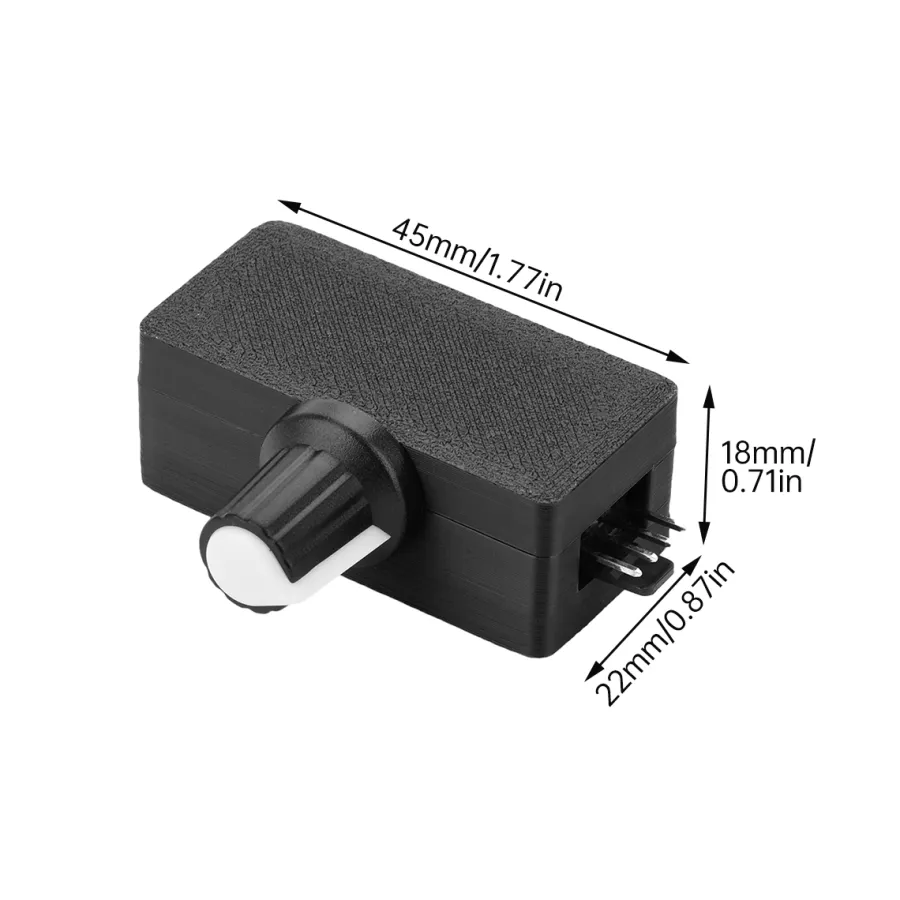

- Package Size: 2x2x5
- Brand Name: Aideepen
- Model Number: Speed Controller
- Hign-concerned Chemical: None
- Motor Type: DC Motor
- Origin: Mainland China
- Certification: CE
- Motor: DC Motor
- Choice: yes
- semi_Choice: yes
