Mini LED Digital Display Voltmeter Detector DC 0-30V / DC 4.5 -30V / AC 70 -500V Voltage Monitor Tester Gauge for Motorcycle Car
SALE
ID: 28778

Mini LED Digital Display Voltmeter Detector DC 0-30V / DC 4.5 -30V / AC 70 -500V Voltage Monitor Tester Gauge for Motorcycle Car

4.9 (15 votes) | 105 orders
Price:
US $ 9.98 - 11.44 / piece
Color
Quantity

Buy Now
Add to Cart
aeProduct.getSubject()
030518HO (1)

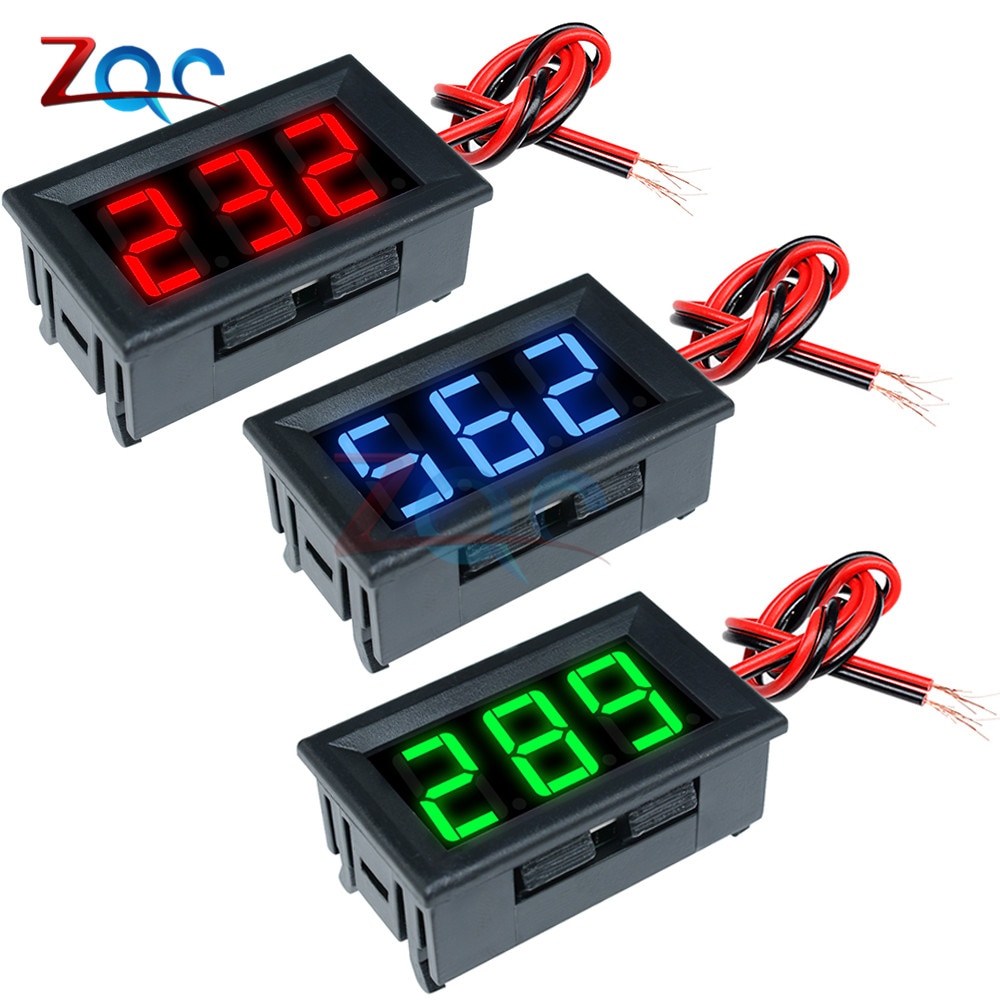

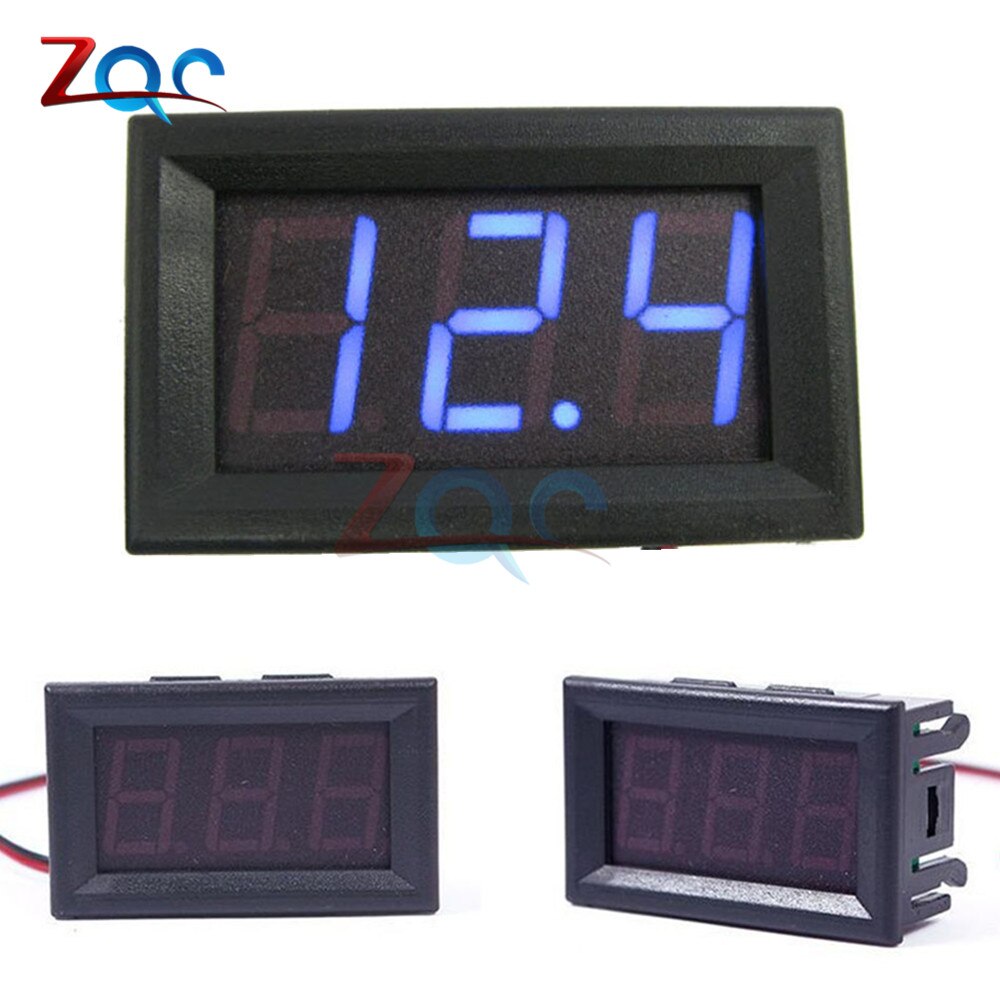

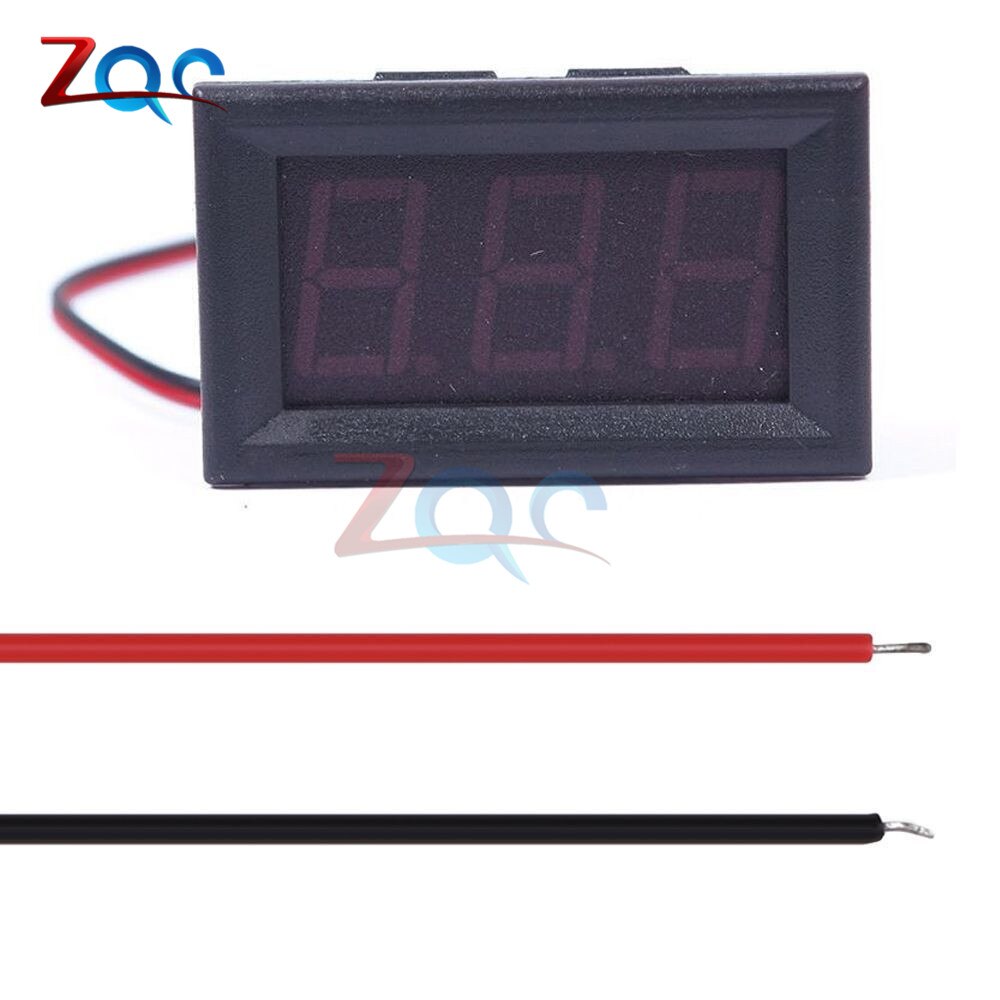

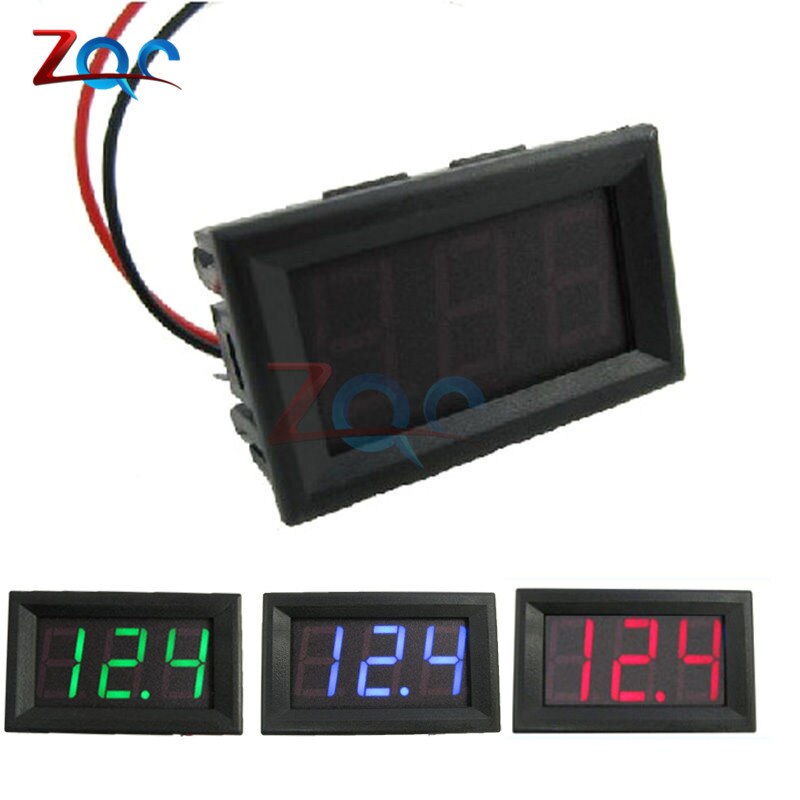

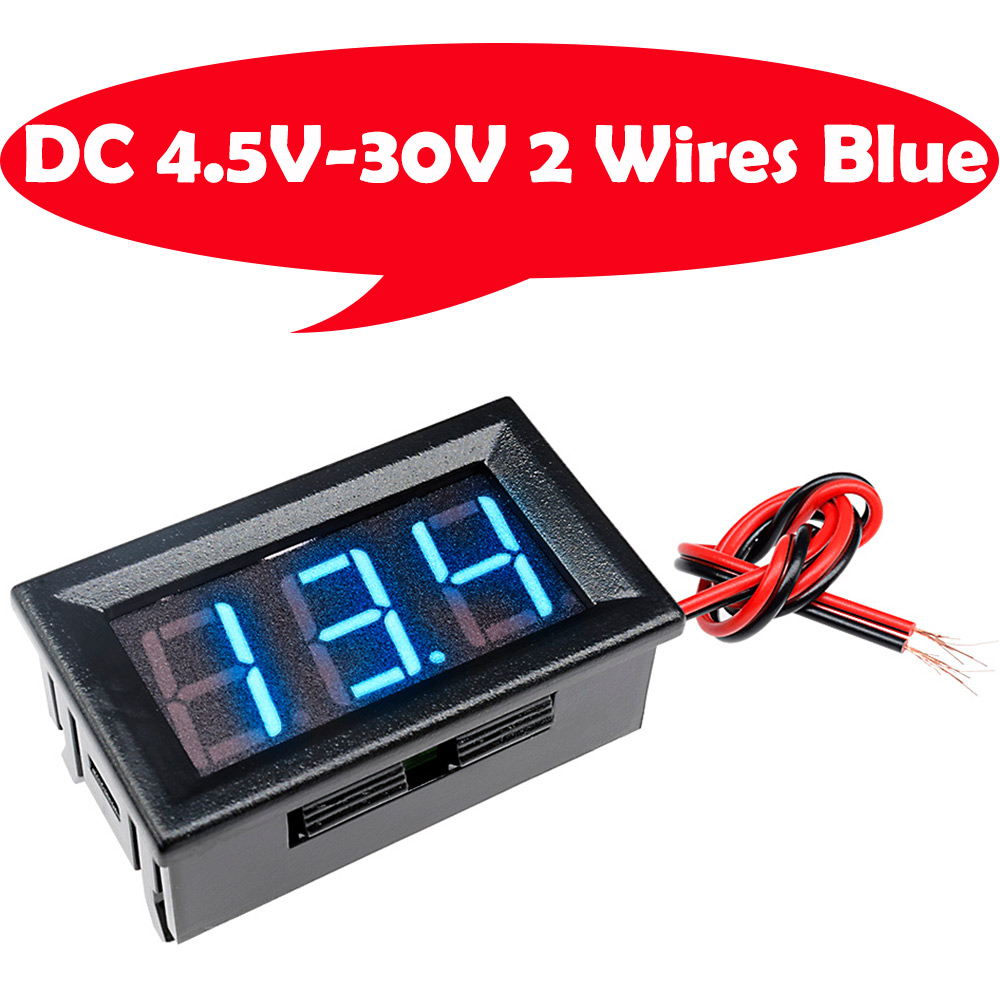

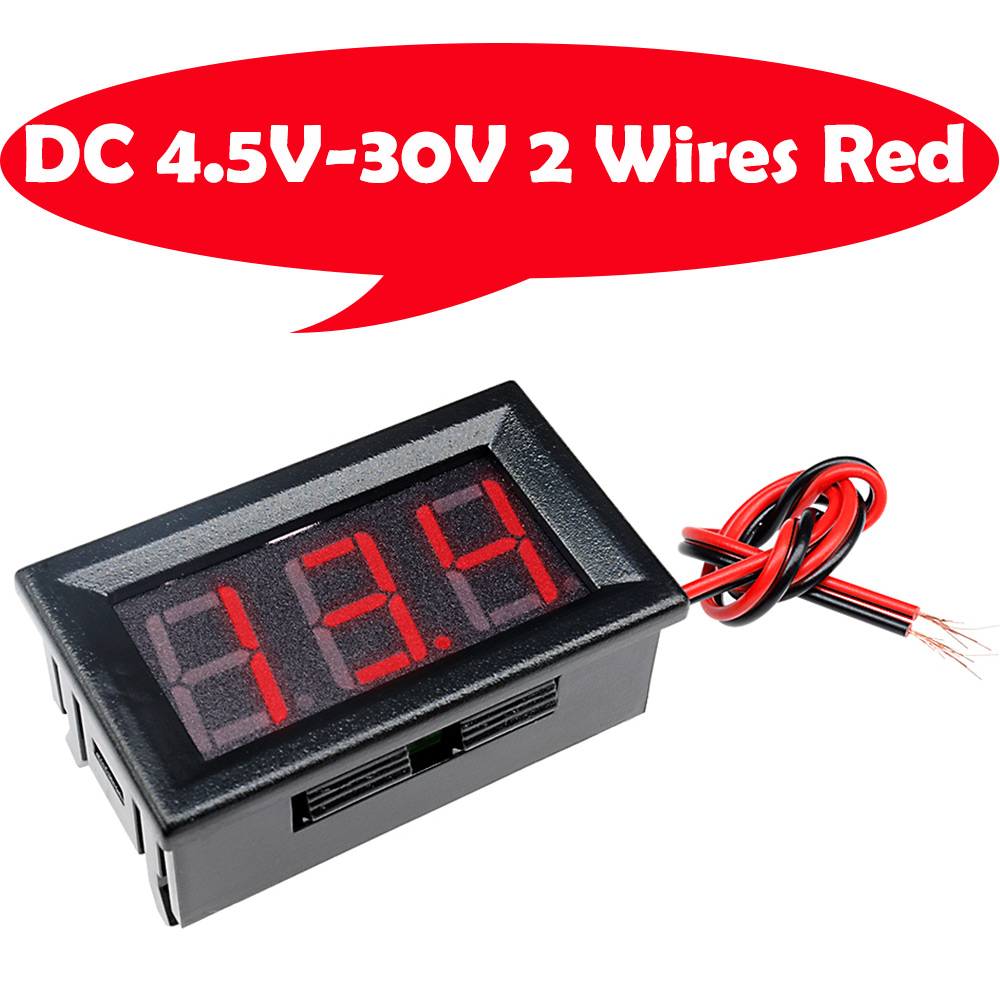

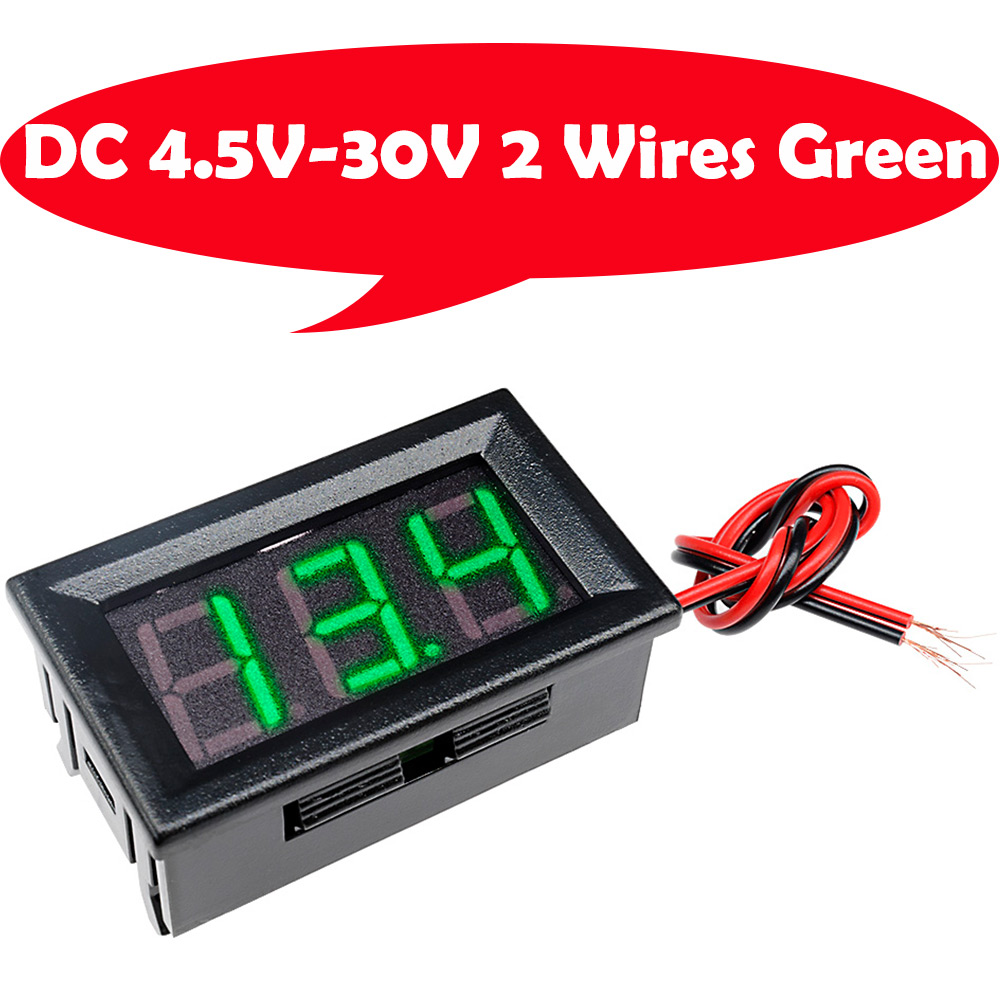

[2 Wire DC 4.5 -30V Voltmeter]
Description:
100% Brand new and high quality
This Red DC Voltage Meter with DC4.5-30V range. It is easy to read, install and use
And it is self-powered version and supports Reverse polarity protection.
When the voltage is under 10V, there will 2 readings after decimal point, which mean the accuracy is 0.01 when it is under 10V; when it is above 10v, the accuracy is 0.1

Mini RedLED display
No power supply needed
Measure Voltage: DC 4.5-30V two-wire access
Display: Three digit 0.56" LED, Red/Blue/Green color
Refresh Speed: Approx.300mS/time
Highest input:DC 30V (higher than 30v has the risk of burn up)
Minimum input:DC 4.5V(below than 4.5V,measurement is inaccurate or does not show)
Minimum Resolution:0.01V(<10V)/0.1V(>10V)
Resolution:1%plusmn1digit
Working Temperature:-20℃ -65℃
Size:Approx. 48mm x 29mm x 22mm(L*W*H)
Hole Size: Approx.46*27mm
Current Consumption:<23mA
LED Color: Red/Blue/Green (Optional)

030519HO (8)

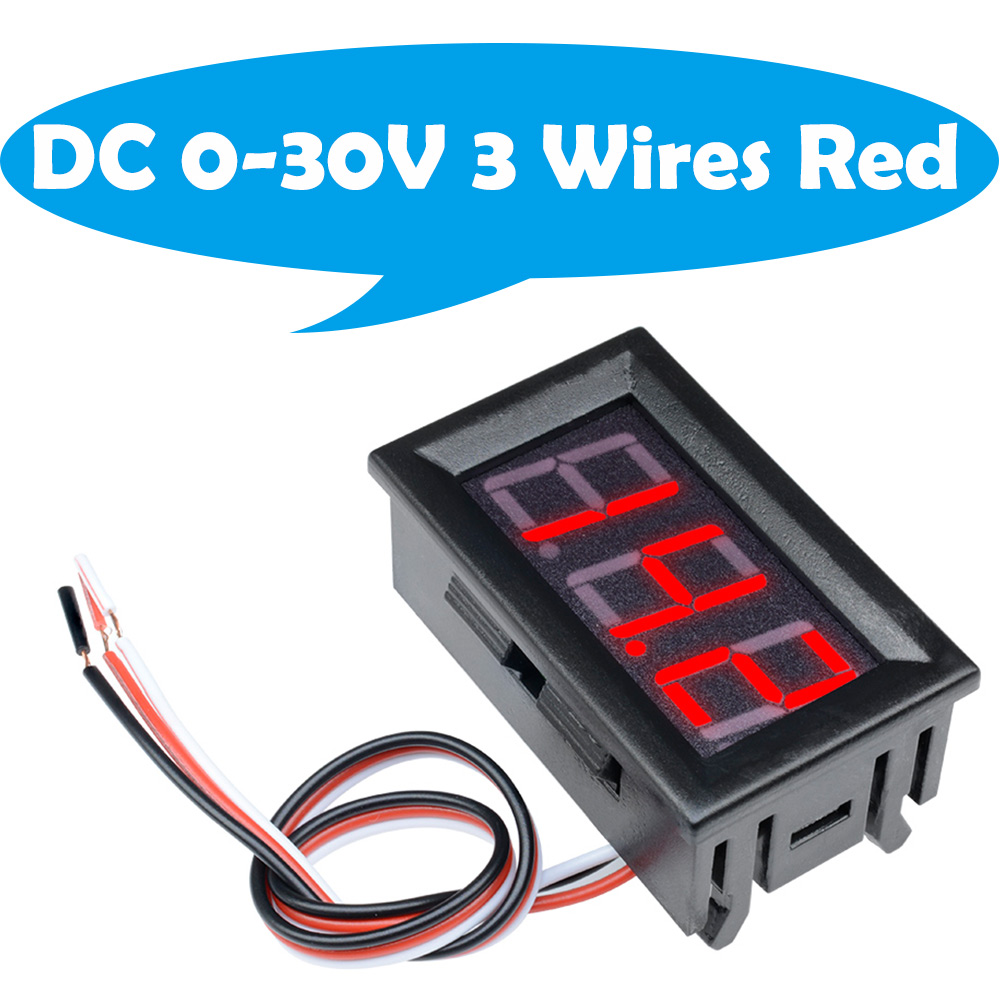

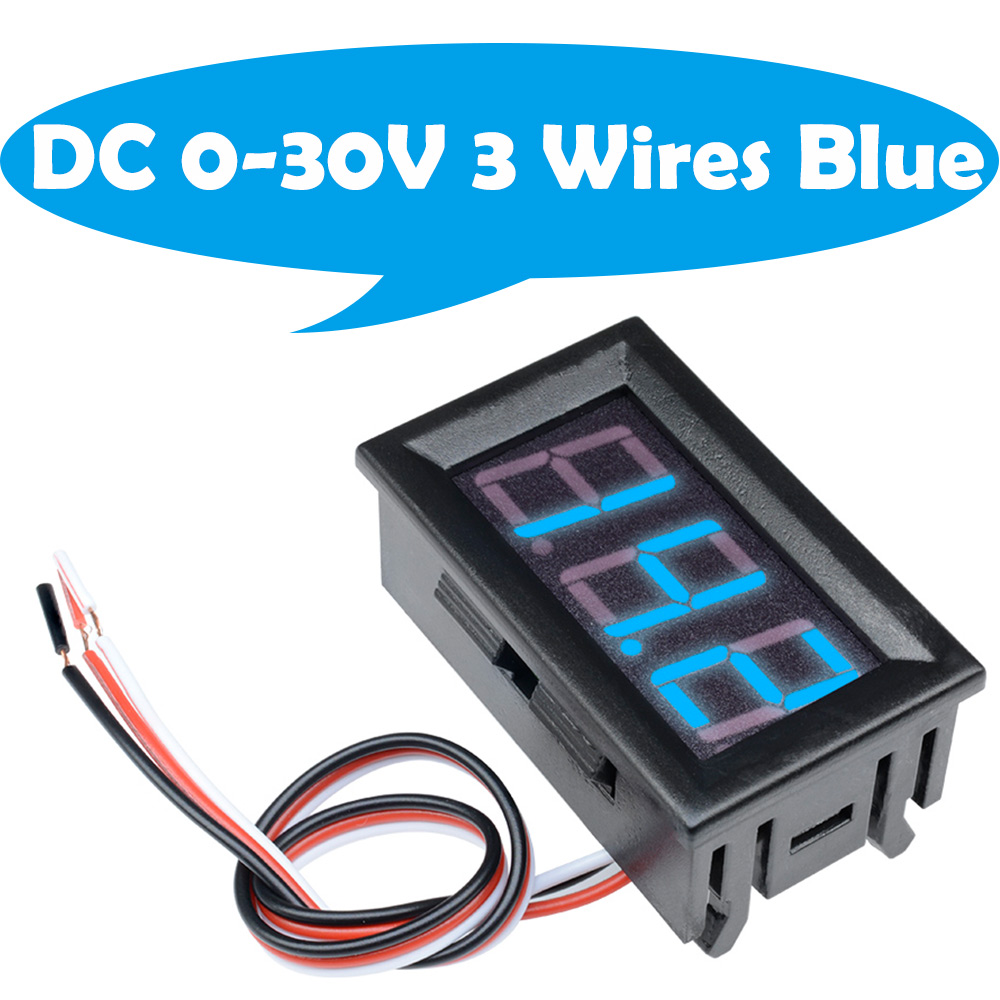

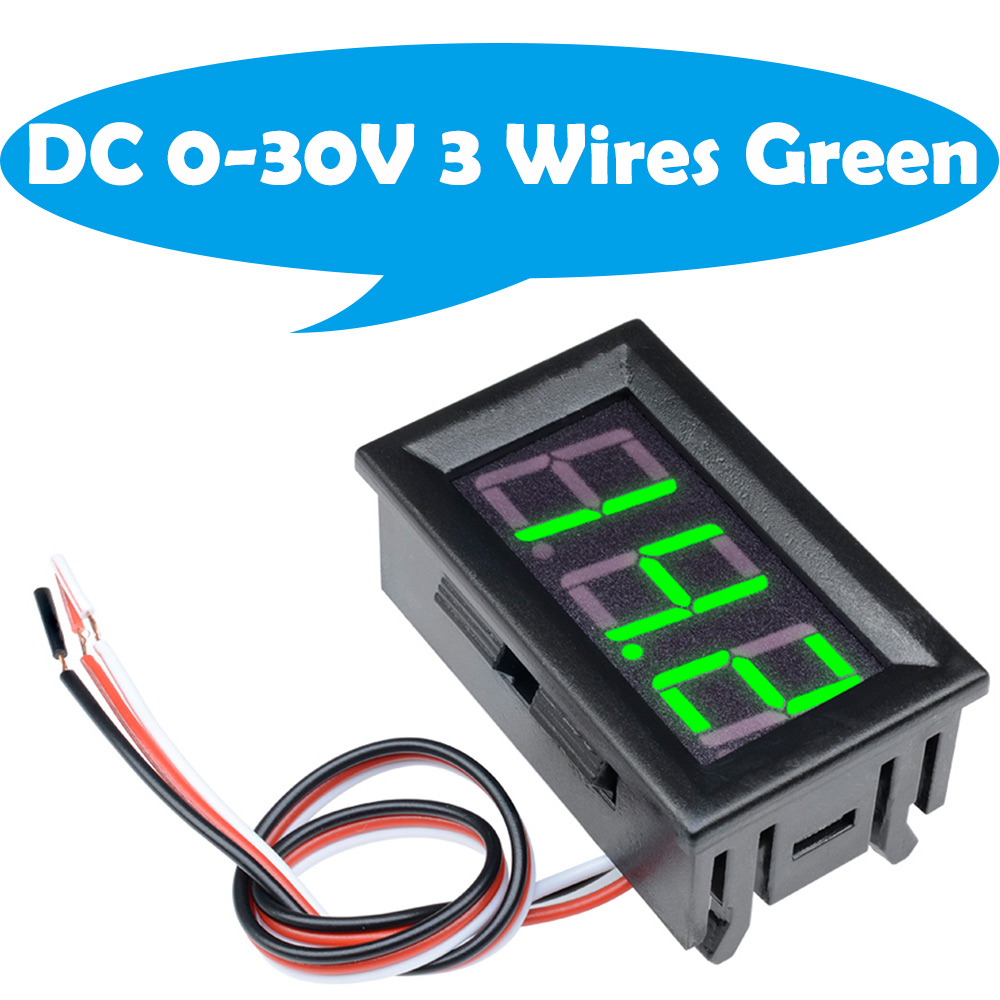

[3 Wires DC 0 -30V LED Digital Voltmeter]

Size: approx 46 x 29 x 22 mm
Precision: 1%
Display Mode: 3 digits
Measurement Range: DC 0V-30V
Feed input range: DC 4.5 -30V
Operating Current: less than 20mA
Display color: Red/Blue/Green (Optional)
Storage temperature: -10 -65℃
The black wire connects the common negative, the red wire connects the positive power, the white wire connects the positive input of the detention


10

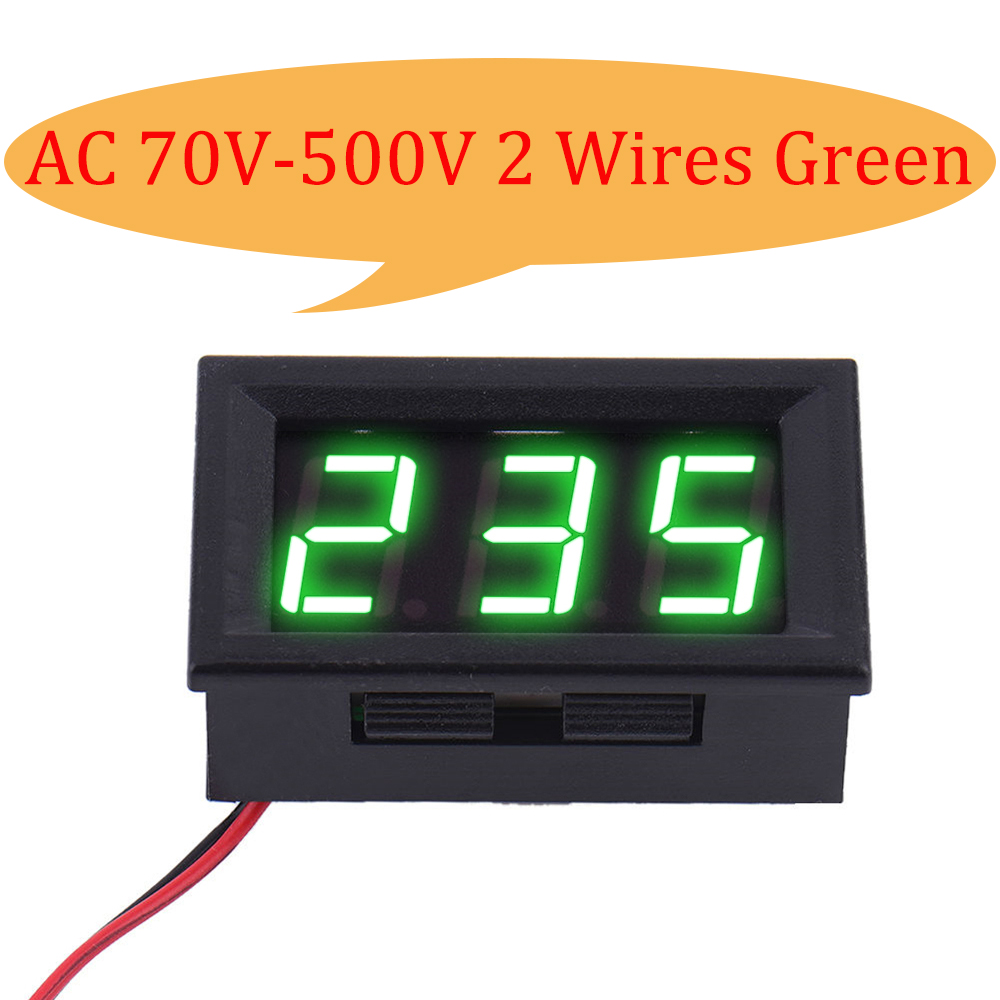

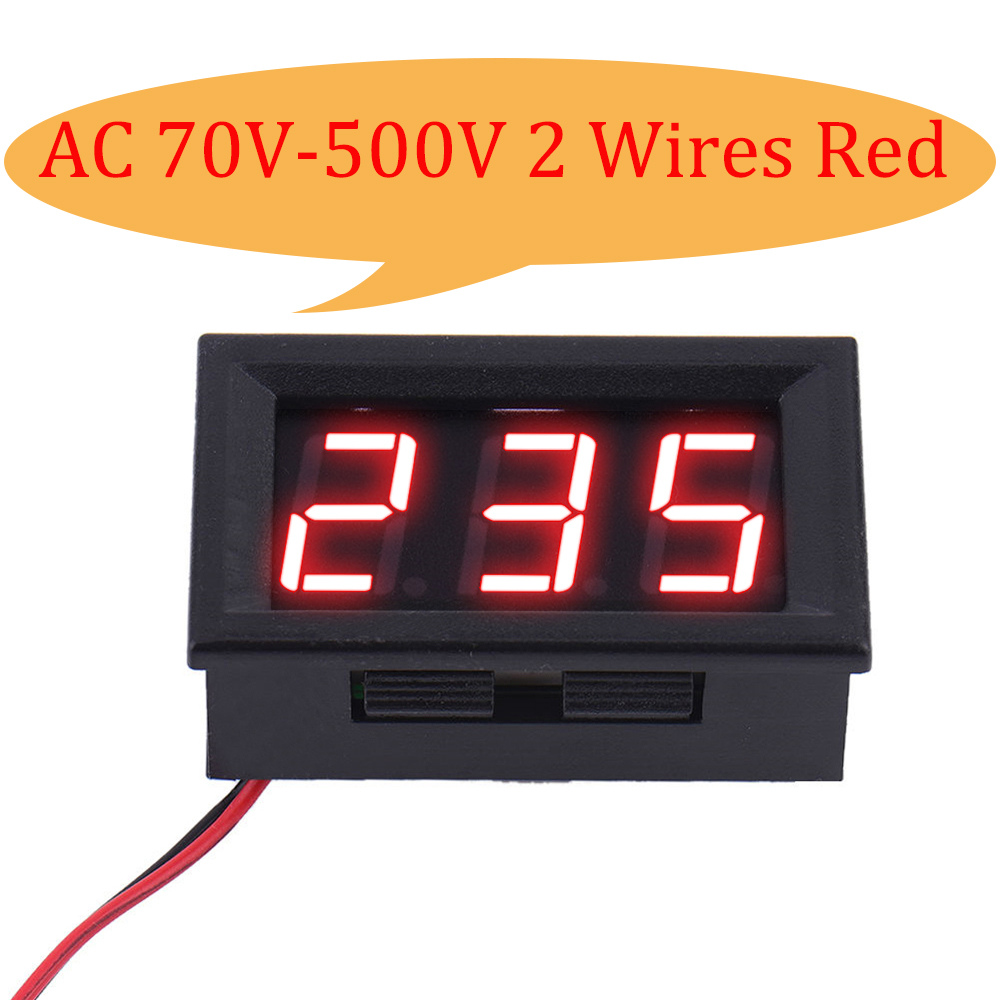

[2 Wire AC 70 -500V LED Digital Voltmeter]

Description:
1. Operating voltage: no need to connect to any power supply, two-wire system
2. The two-wire voltage meter design, the wiring is simple, easy to install

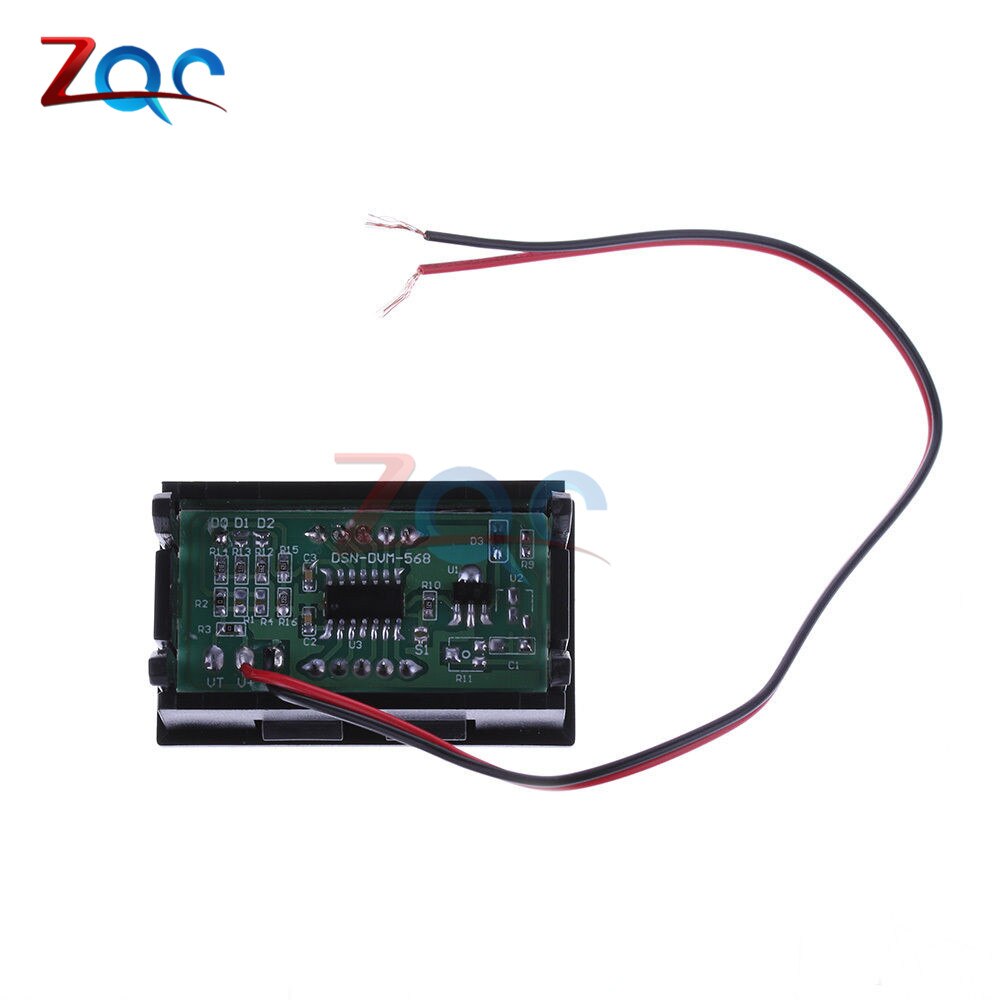

3. When there is a slight error, you can calibrate it through the circuit board, "fine-tuning" potentiometer for calibration

Parameters:
Measuring range: AC 70 -500V
Power supply:No additional power supply needed, direct use of the measured voltage as a power supply, range: AC70V-500V
Maximum input: AC 500V. Note: Input voltage higher than 500V may be permanently damaged!
Allowable error: ± 1%
Input impedance> 1M ohms
Refresh speed: About 300mS / time
Display mode: Three-digit " 0.56 " LED digital tube
Display the color: Green/Blue/Red (Optional)
Lead length: about: 20 cm / 7.87 in
Outside dimensions: about: 4.8 x 2.9 x 2.2 cm / 1.89 x 1.17 x 0.87 in
Hole Size: about 4.6 x 2.7 cm / 1.81 x 1.06 in
Operating temperature: -20 ° C to 65 ° C


aeProduct.getSubject()

123







030518HO (1)030518HO (2)030518HO (3)030518HO (4)030518HO (6)030518HO (7)030518HO (8)030518HO (9)030518LA (1)030518LA (2)030518LA (6)030518LA (8)030518LA (9)030518LV (1)030518LV (2)030518LV (3)030518LV (7)030518LV (9)

  • Power Supply: DC
  • Model Number: LED Digital Voltmeter
  • Dimensions: 48mm x 29mm x 22mm
  • Operating Temperature: -20 -65℃
  • Accuracy Class: High
  • Display Type: Digital Only
  • DIY Supplies: ELECTRICAL
  • Brand Name: diymore
  • Origin: Mainland China
  • Certification: CE
  • LED Size: 0.56 inch
  • Measuring Voltage Range: DC 4.5 -30V / DC 0 -30V / AC 70-500V
  • Accuracy: 0.1
