Bluetooth Tuya APP Door Access Control System Kit Waterproof RFID Keypad NFC Fingerprint, 180KG Electric Magnetic Strike Locks
4.1 (17 votes) | 105 orders
Price:
US $71.98 - 166.24
/ piece
Discount Price:
US $
57.58 -
133.00
/ piece
-20%
- Color
-
-
Sorry! This item is out of stock
Bluetooth Tuya APP Door Access Control System Kit Waterproof RFID Keypad NFC Fingerprint, 180KG Electric Magnetic Strike Locks
A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don't know how to choose, please contact us after taking a photo of the door, thank you.
Product Description

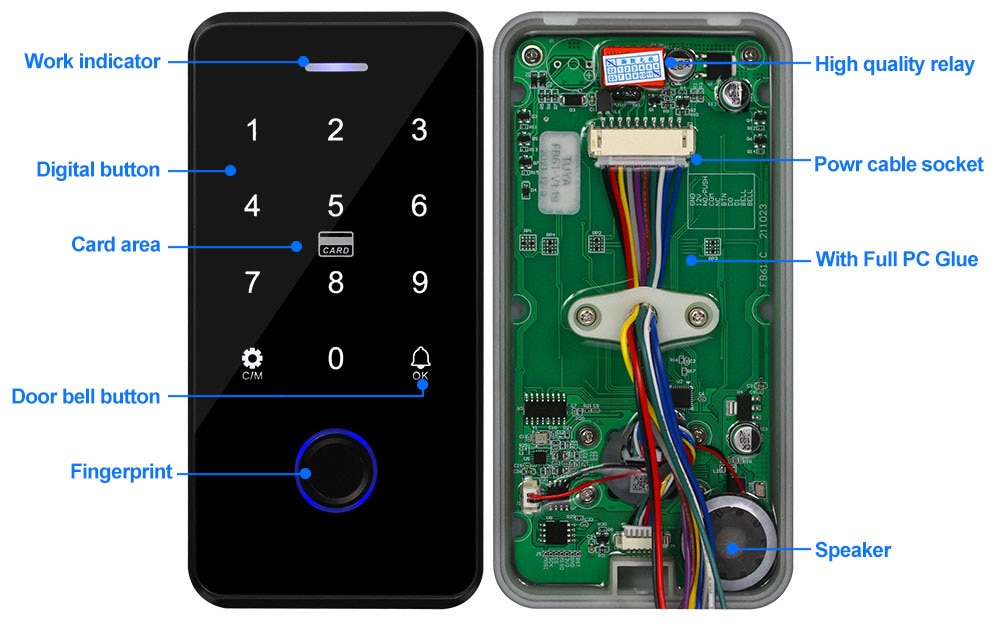

Access Controller
User capacity: 100 user
Material: ABS high quality material
Panel: touch screen panel
Working frequency: 13 56MHz
Card reading type: support MF 1K compatible card
Card reading distance: 0-5CM
ldentification method: Fingerprint, RFID card, NFC, password, Tuya APP remote unlock, temporary password to open the door.
Record capacity: Mobile phone APP remotely view the latest 10000 lock opening information.
Administrator: A maximum of three administrators can be configured.
Backlight: has white backlight
Waterproof function: IP68 waterproof, can be installed outdoor
Doorbell button: support wired doorbell
Language: Chinese, English.
Volume setting: 0~4 adjustable volume
Wiegand signal: WG26 input/output
Working voltage: DC 12V
Working current:≤30mA
Door opening time: 01 seconds - 30 minutes.
Working temperature: -20。C ~ 70。C
Working Humidity: 20% ~ 90%

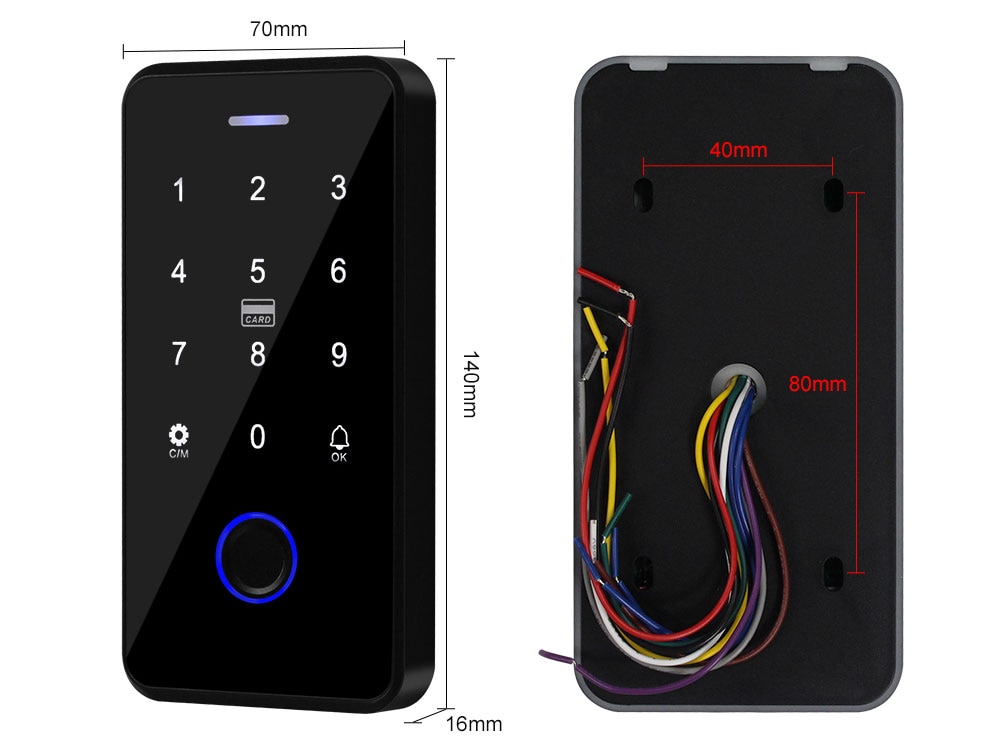

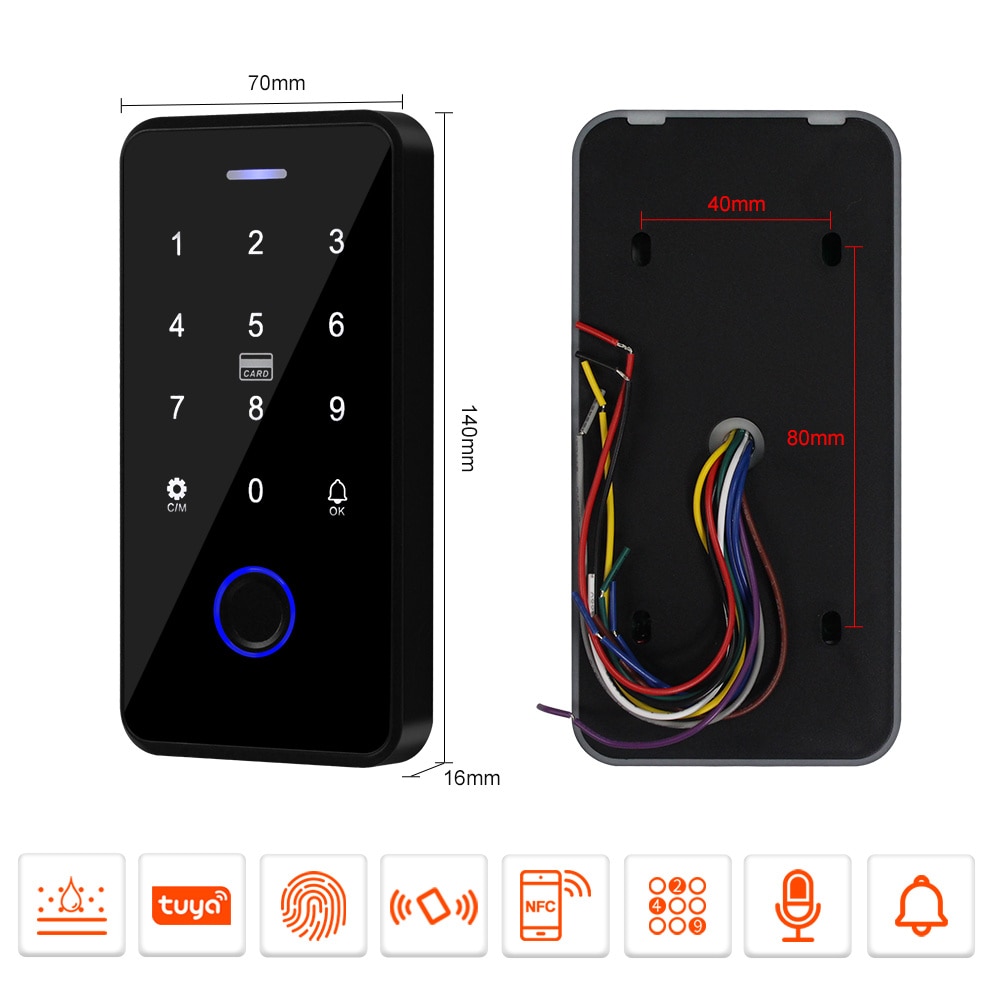

Product size: 140*70*16mm
Product Details:

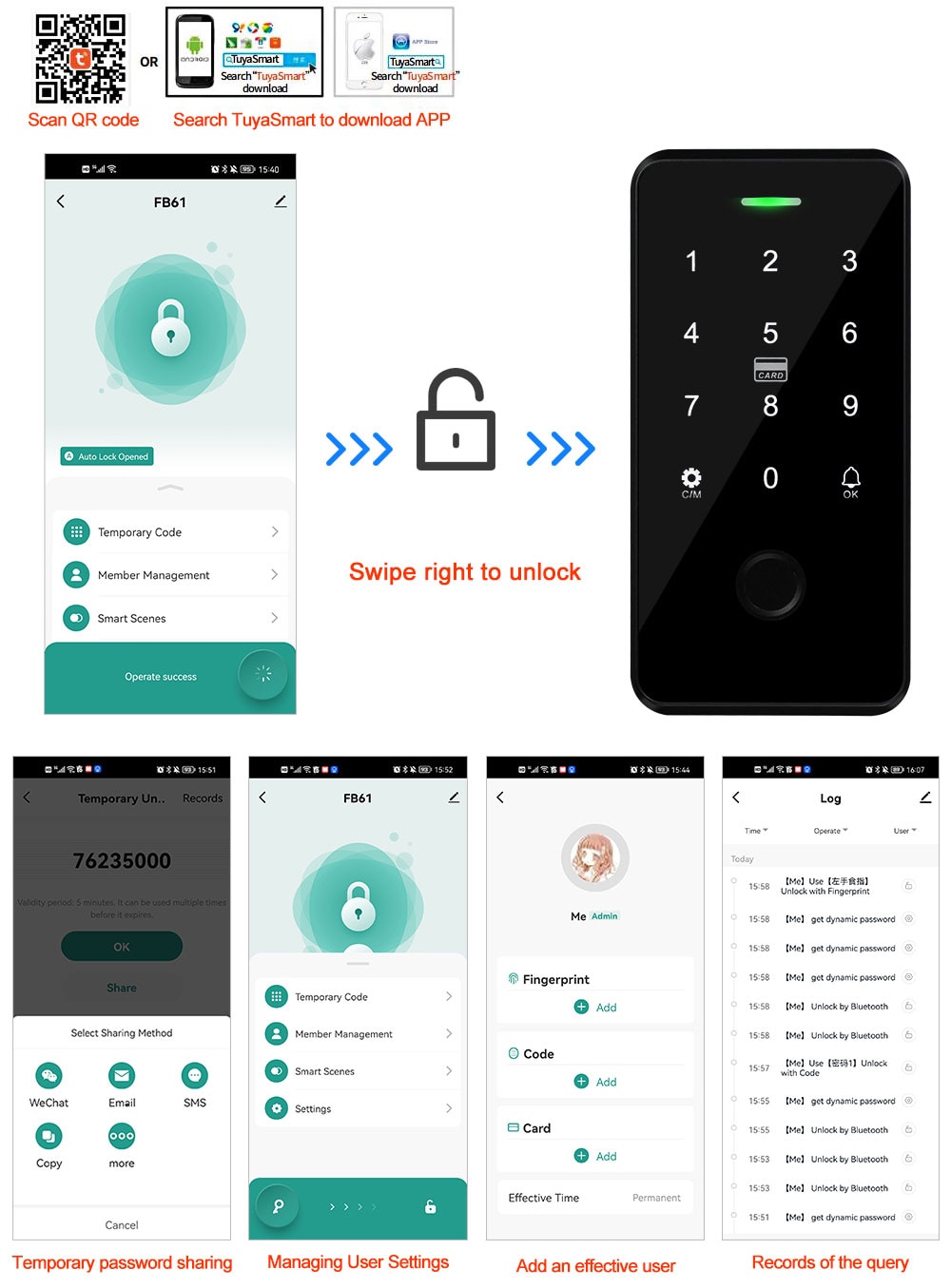

Support Tuya APP
1) Scan QR code to download Tuya APP or Search Tuya on App store to download it.
2) Connect device to your Tuya APP by wifi and Bluetooth.
3) Support 01 seconds to 30 minutes unlock time delay.
4) Supports language: Chinese, English.
5) You can add fingerprints, password, RFID cards on the APP, it's very convenient.
6) You can open the door with Tuya APP unlocking button, or Tuya password.
7) A periodic password can be set, and the password is valid for a certain period of time.
8) You can also set a one-time password to open the door, and the password will expire after being used once within 6 hours.
9) Supports sharing password via WeChat, Email and SMS.
10) Can set "family home", "door lock Alarm". Can set SMS reminder, phone reminder and other functions
11) Can view unlock records. Click reminder information to view logs.
2) Connect device to your Tuya APP by wifi and Bluetooth.
3) Support 01 seconds to 30 minutes unlock time delay.
4) Supports language: Chinese, English.
5) You can add fingerprints, password, RFID cards on the APP, it's very convenient.
6) You can open the door with Tuya APP unlocking button, or Tuya password.
7) A periodic password can be set, and the password is valid for a certain period of time.
8) You can also set a one-time password to open the door, and the password will expire after being used once within 6 hours.
9) Supports sharing password via WeChat, Email and SMS.
10) Can set "family home", "door lock Alarm". Can set SMS reminder, phone reminder and other functions
11) Can view unlock records. Click reminder information to view logs.
Support NFC unlocking
Support Mobile phone NFC unlocking, bank card unlocking, bracelet unlocking
Support Mobile phone NFC unlocking, bank card unlocking, bracelet unlocking

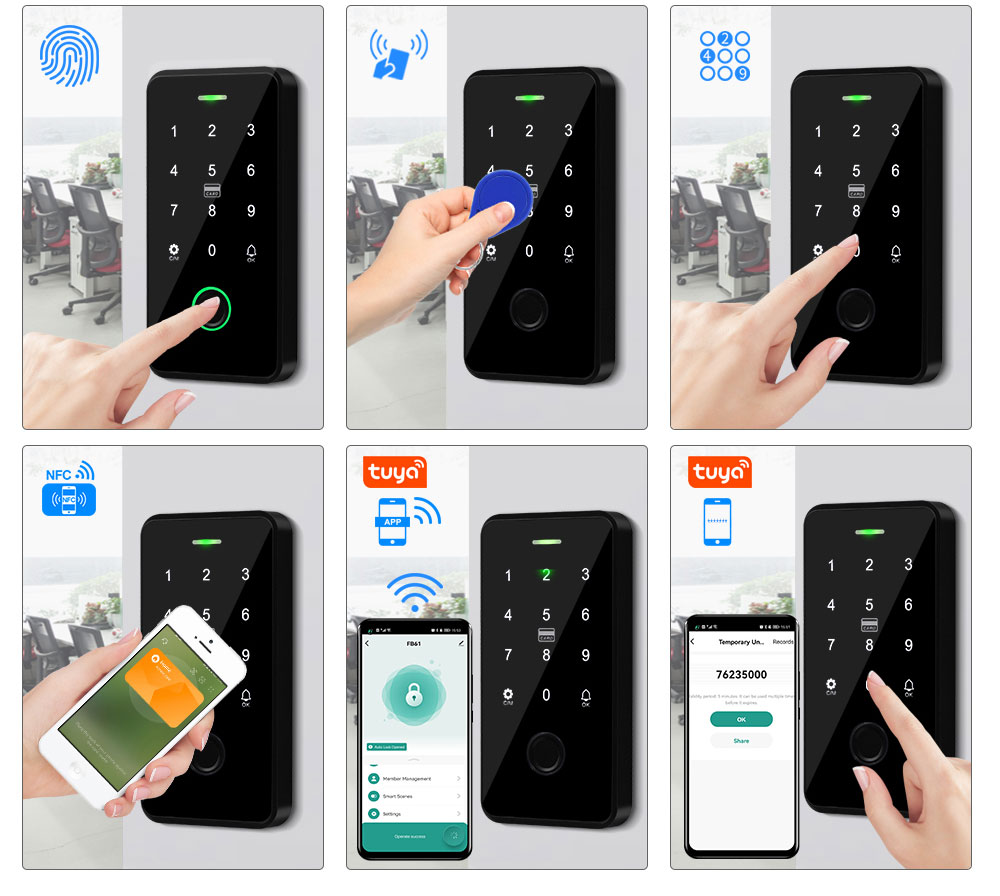

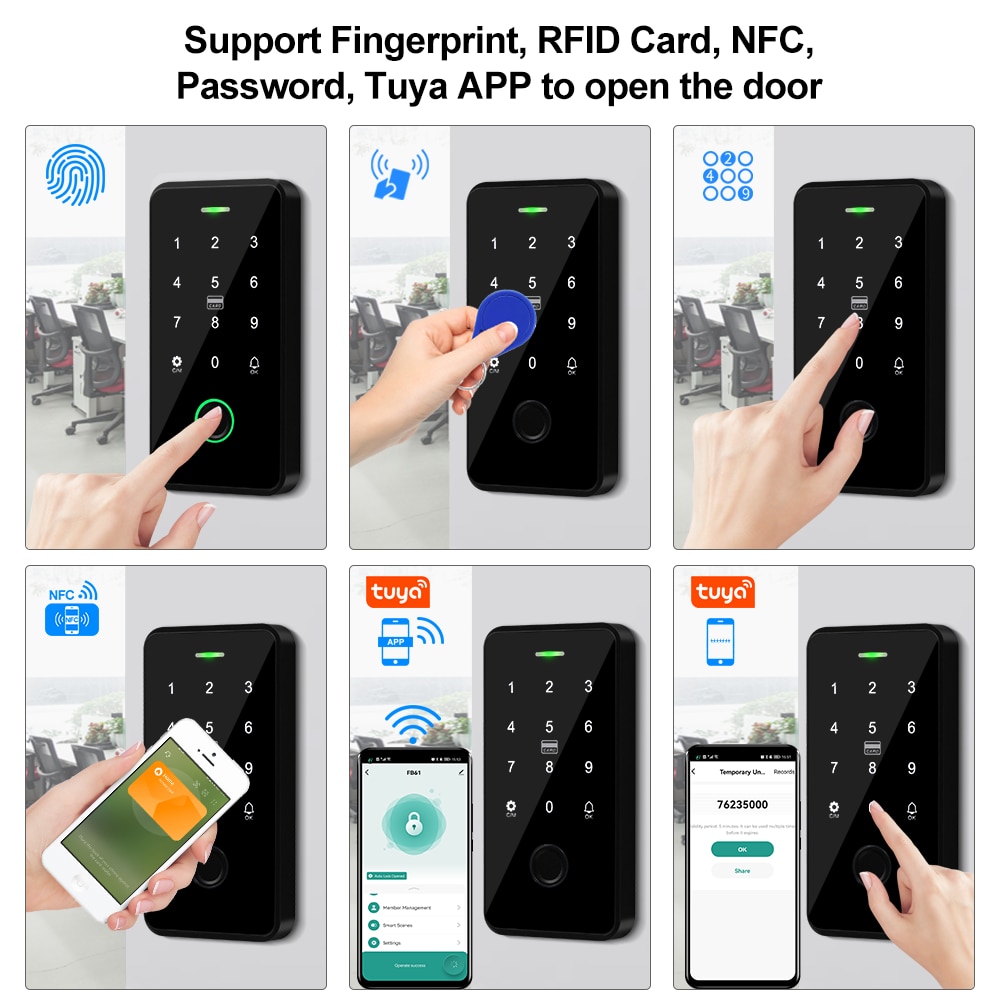

Support Fingerprint, RFID Card, Password, NFC, Tuya APP to open the door
Support 100 Fingerprint, 100 RFID card, 1 public password user capacity,
Mobile phone APP remotely view the latest 10000 lock opening information, more secure!
Support 100 Fingerprint, 100 RFID card, 1 public password user capacity,
Mobile phone APP remotely view the latest 10000 lock opening information, more secure!

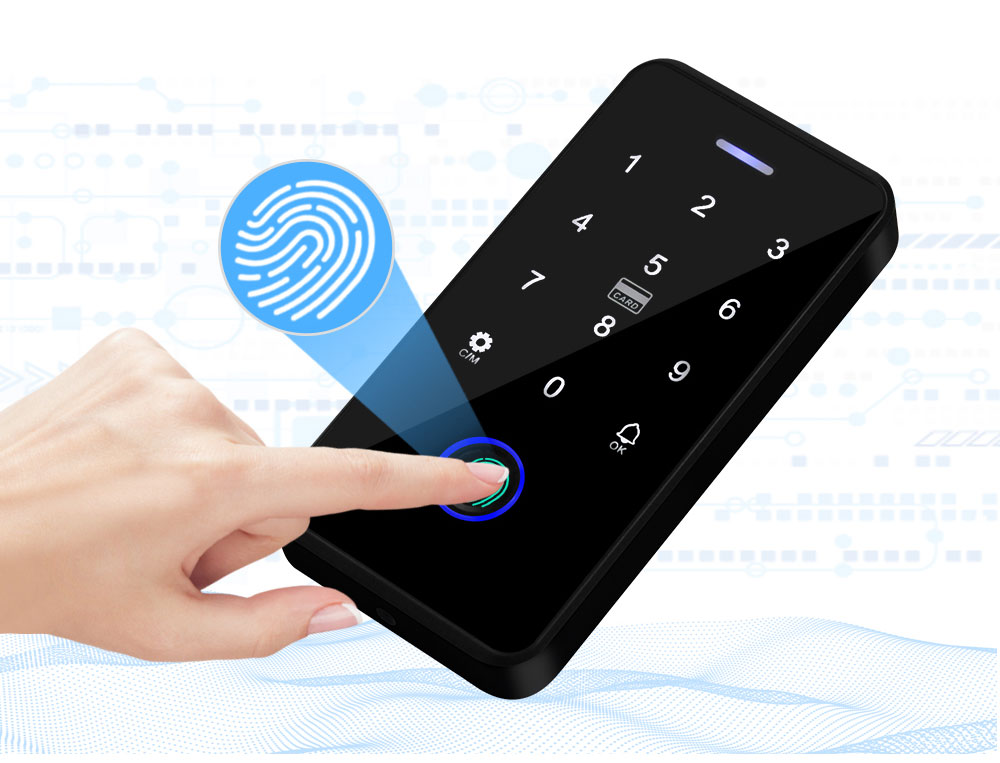

360 degree comprehensive fingerprint recognition, fast ldentify Speed
For different angles of fingerprints, it can be quickly and accurately identified
For different angles of fingerprints, it can be quickly and accurately identified

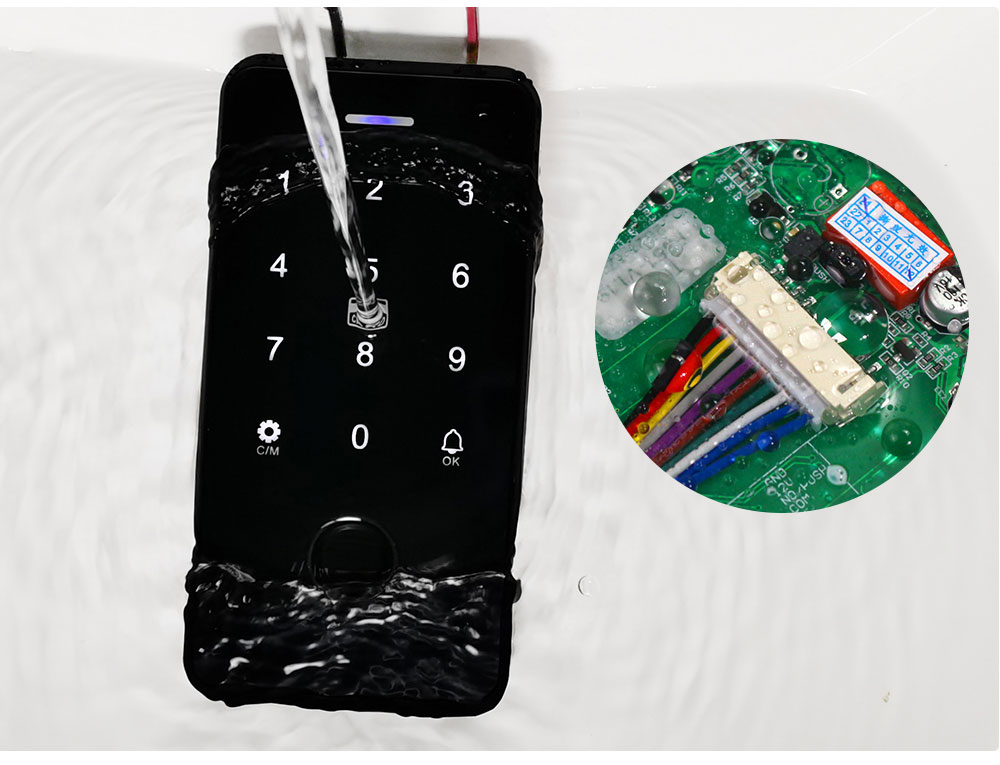

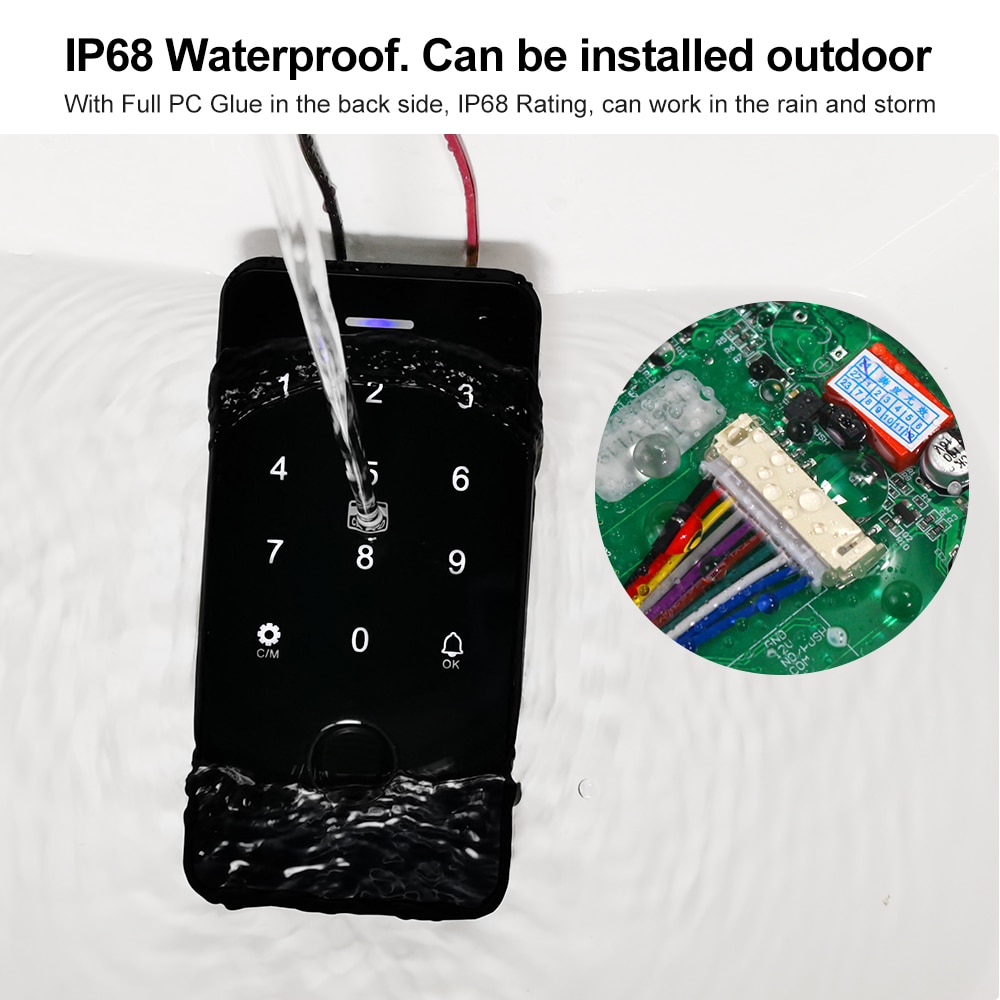

IP68 Waterproof. Can be installed outdoor
With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

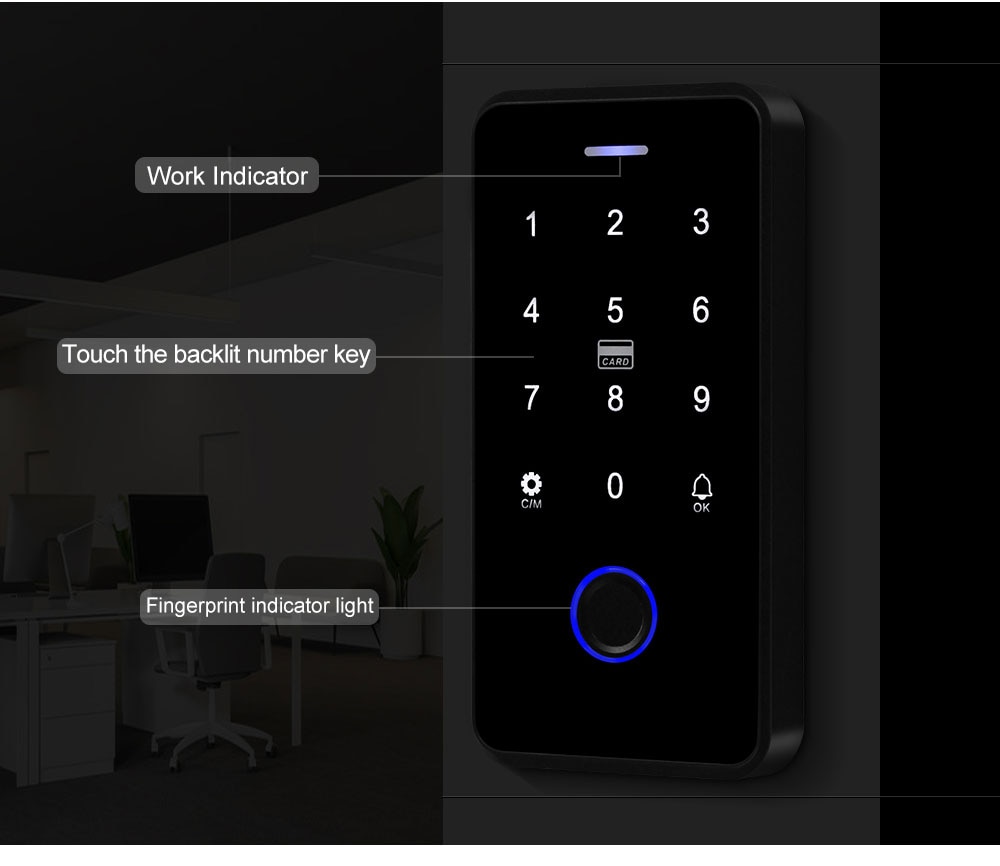

White Backlight keypad
The digits number can be seen clearly even at dark
Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity.
Suitable for most major access control solution.

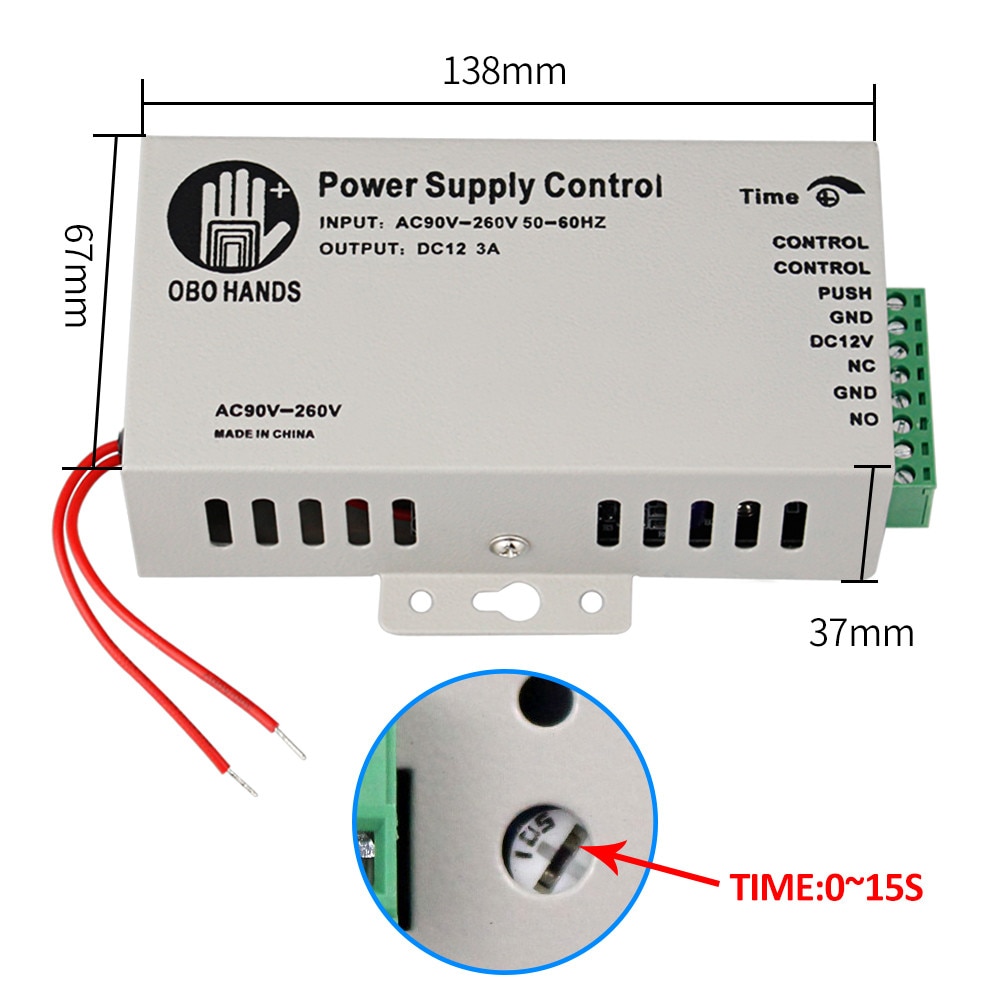

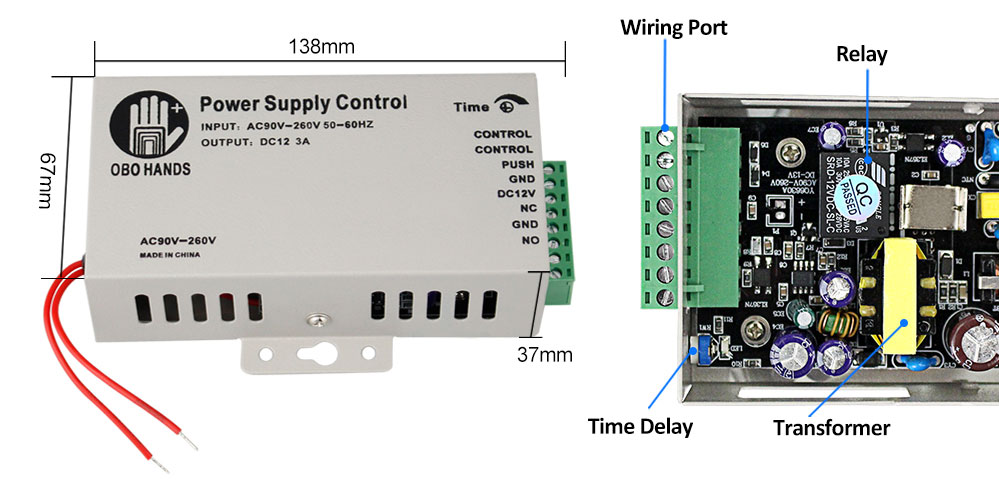

Power Supply:
This is AC110-260V, DC12V/3A power supply switch for access control system. Can connect to all kinds of access controoler, electric lock, exit button, remote control, etc. Help to reduce the overload of the access controller. NC/NO output mode cam be selected for different types of electric lock.
Model Name: K803A
Material: Steel
Input Voltage: AC110-260V
Input Frequency: 50-60Hz
Output Voltage: DC12V/3A
Output Power: 36w
Dimension: 105*91*34mm
Time Delay: 0-15 seconds
Door Exit Button:
Material: Hard Plastic
Maximum Power Rating:36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension:86X86MM ( L / W )
RFID Keyfobs:
13.56MHz frequency RFID keyfobs
Operating frequency: 13.56MHz
Detection range: 0-5cm
Each card pre programmed and has a metal keyring.
Please Noted: There are 5 color of the RFID keyfobs for optional (blue, red, yellow, green, black). We will send mix color by default. If you need other color, please leave message to us.
Operating frequency: 13.56MHz
Detection range: 0-5cm
Each card pre programmed and has a metal keyring.
Please Noted: There are 5 color of the RFID keyfobs for optional (blue, red, yellow, green, black). We will send mix color by default. If you need other color, please leave message to us.
Package List

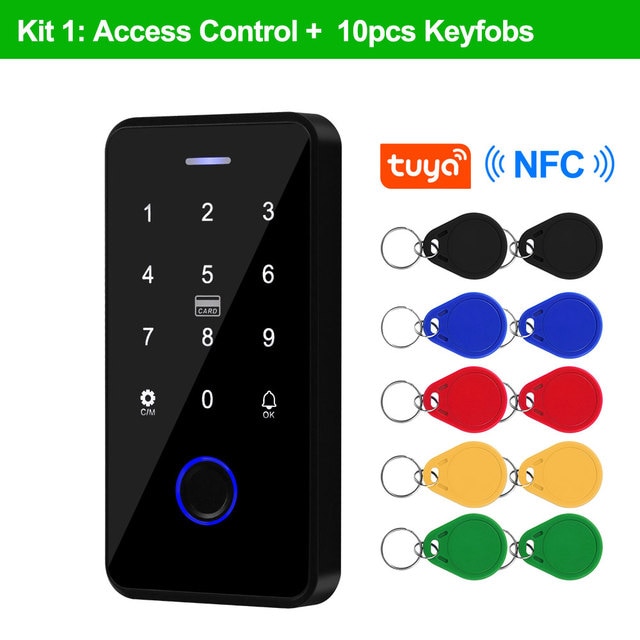

Kit1: Including RFID access control keypad + 10pcs 13.56Hz keyfobs.

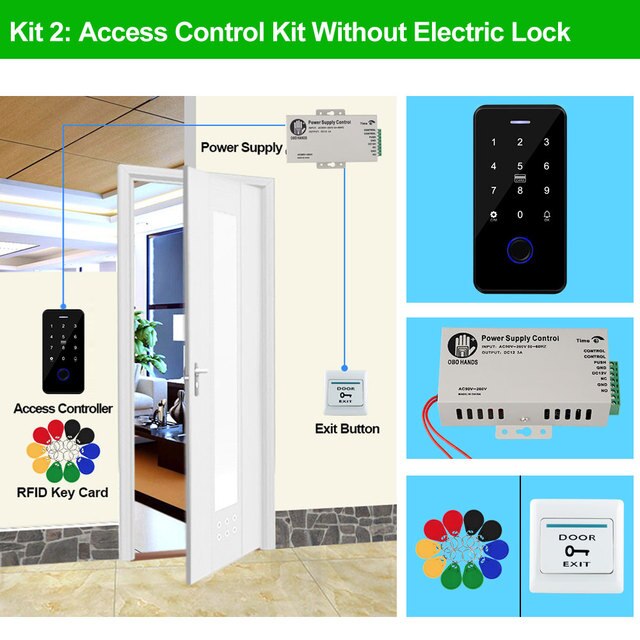

Kit2: Including RFID access control keypad + 10pcs 13.56Hz keyfobs+ Power supply+ Door exit button.
Kit3: Suitable for wooden door, metal door. convenient and beautiful. No need bracket.
Package including: Access Control keypad + Power supply + NC type Electric Strike lock + Exit button + 10pcs Keyfobs
(We will send the NC type by default, if you want NO type, please leave us a message.)

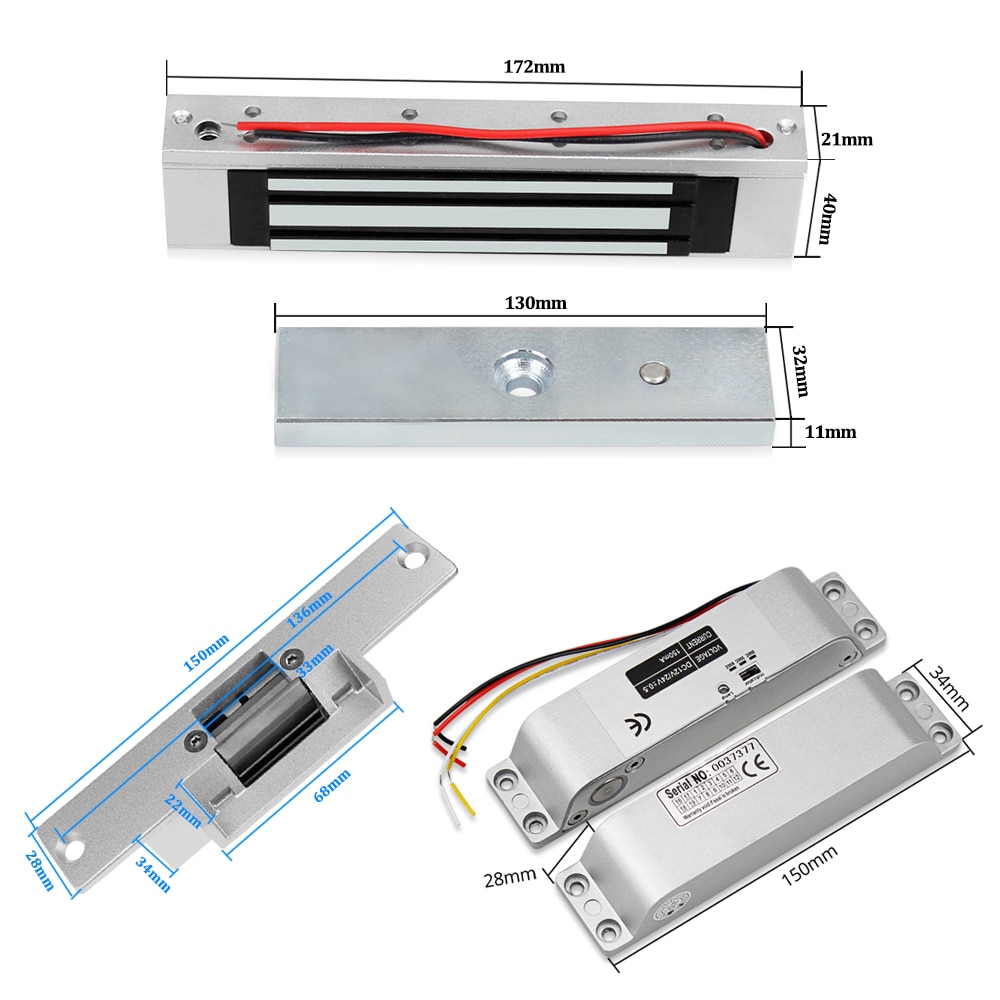

Working Voltage: 12V ± 10%
Current: 200mA - 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm（L / W / H）
Current: 200mA - 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm（L / W / H）

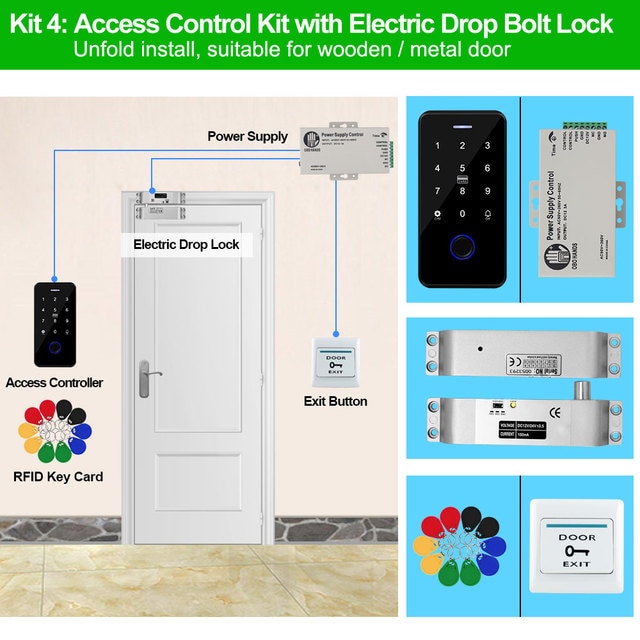

Kit4: Suitable for wooden, metal and Stainless steel door. No need bracket.
Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs
Working voltage: 12V
Time delay: 0s,3s,6s adjustable
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )

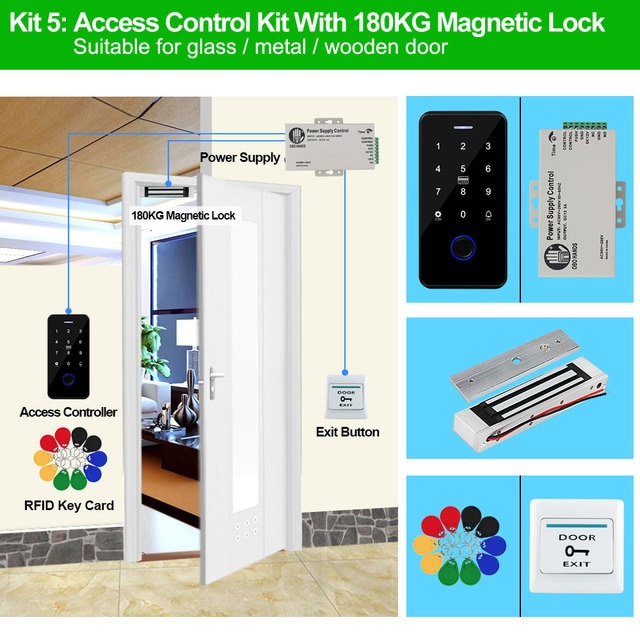

Kit5: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside

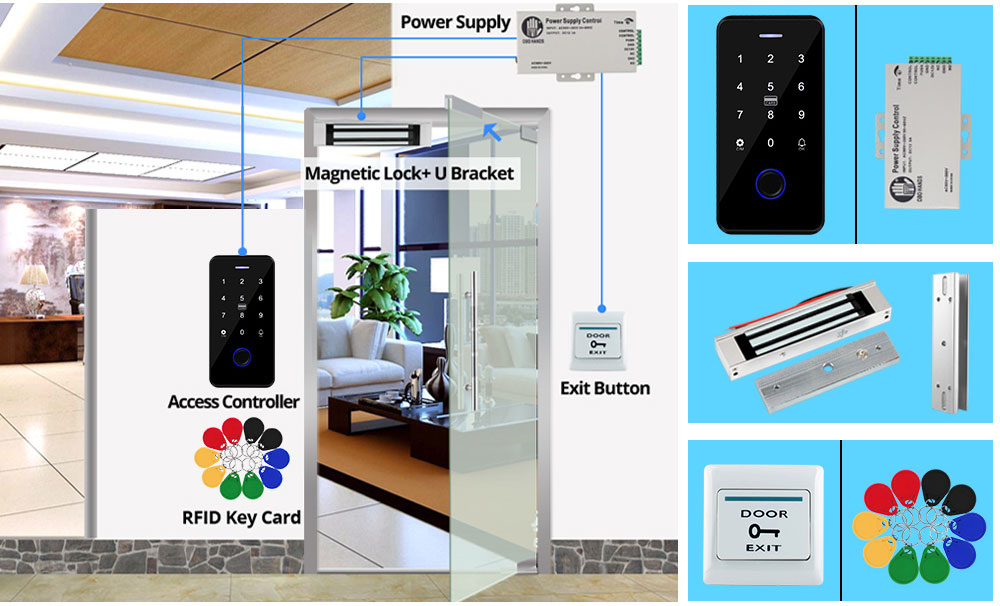

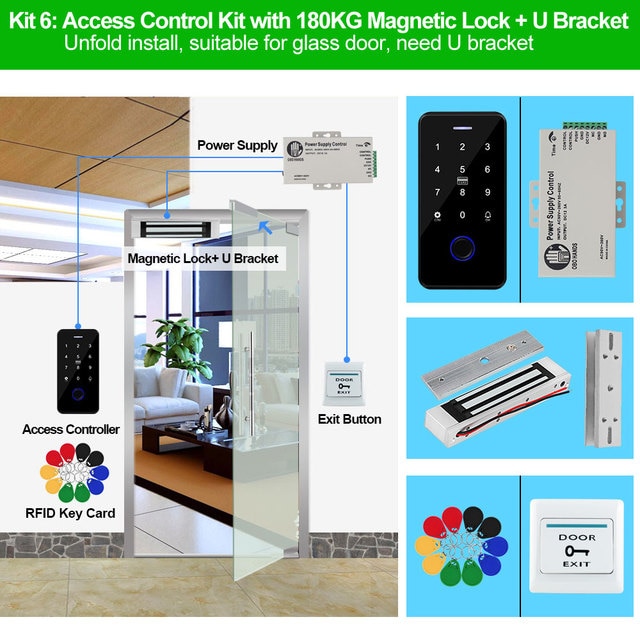

Kit6: Suitable for frameless glass door. Need U bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs
If your door is frameless glass door, then will need a U bracket
Size of U Bracket: 130* 33 * 26mm (L/W/H)

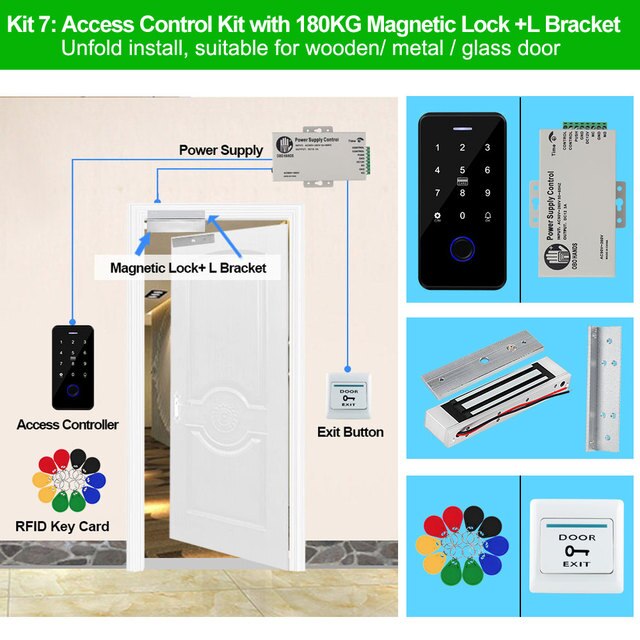

Kit7:Suitable for wooden, metal door. Need L bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobs
Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.
Size of L Bracket: 170* 34 * 25mm (L/W/H)

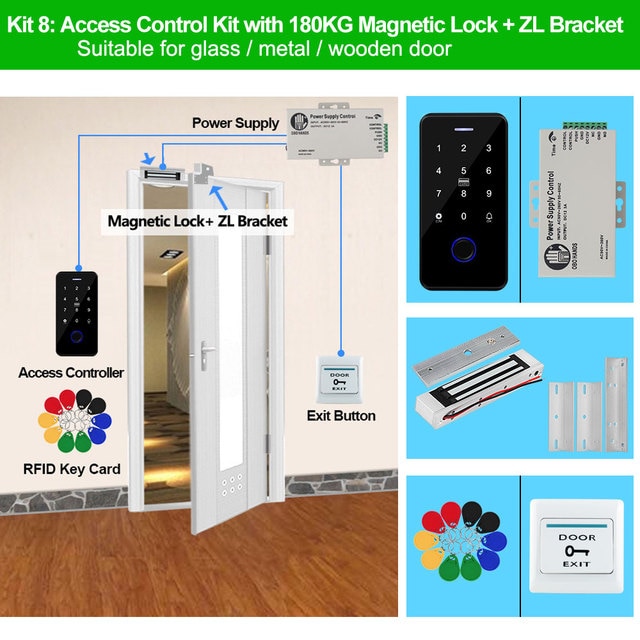

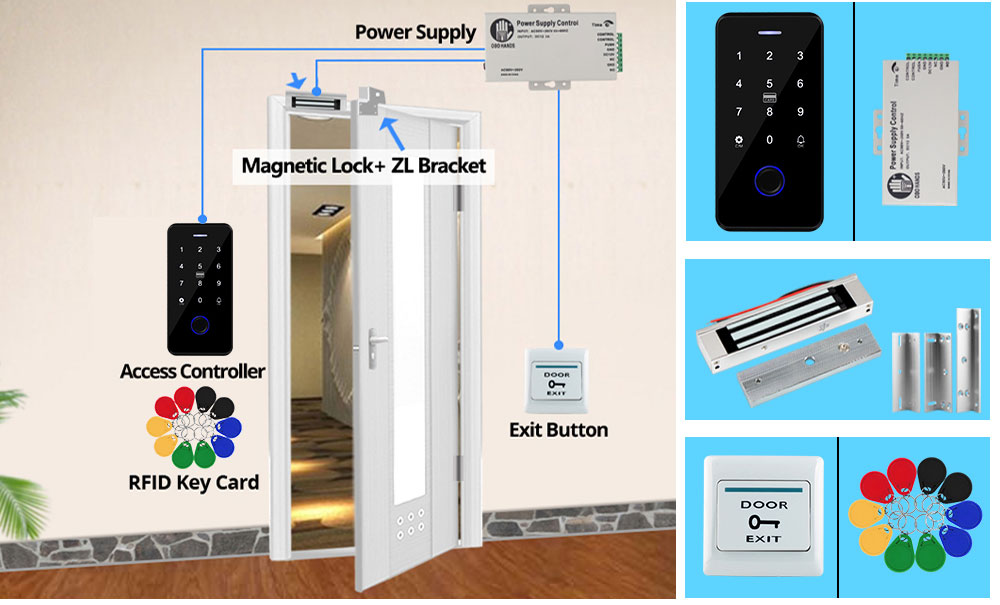

Kit8: Suitable for wooden, metal, glass door. Need ZL bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs
If your door is open from indoor, then need to add the ZL bracket.
Size of L Bracket: 170*34*25mm (L/W/H) ,
Size of Z Bracket: 138*45*45mm (L/W/H)

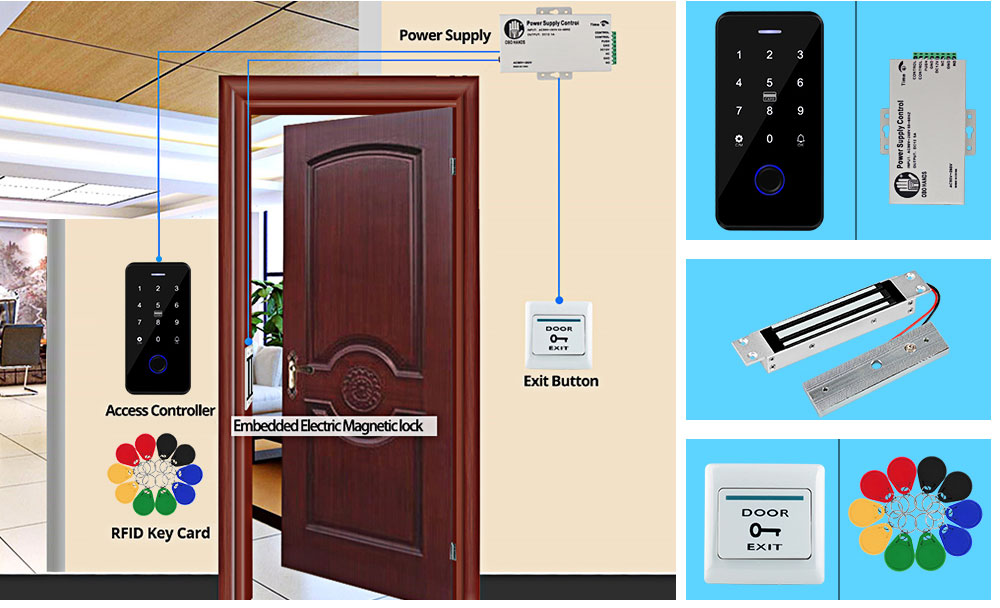

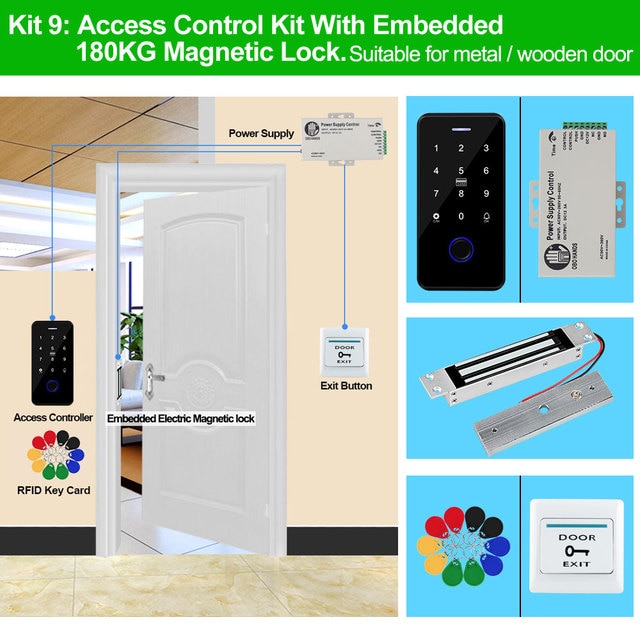

Kit9: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + Embedded 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs
Size of the Lock: 192Lx33Wx20H(mm)
Size of Armature Plate: 139Lx32x11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12VDC
Current: 12V/120mA
Size of Armature Plate: 139Lx32x11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12VDC
Current: 12V/120mA

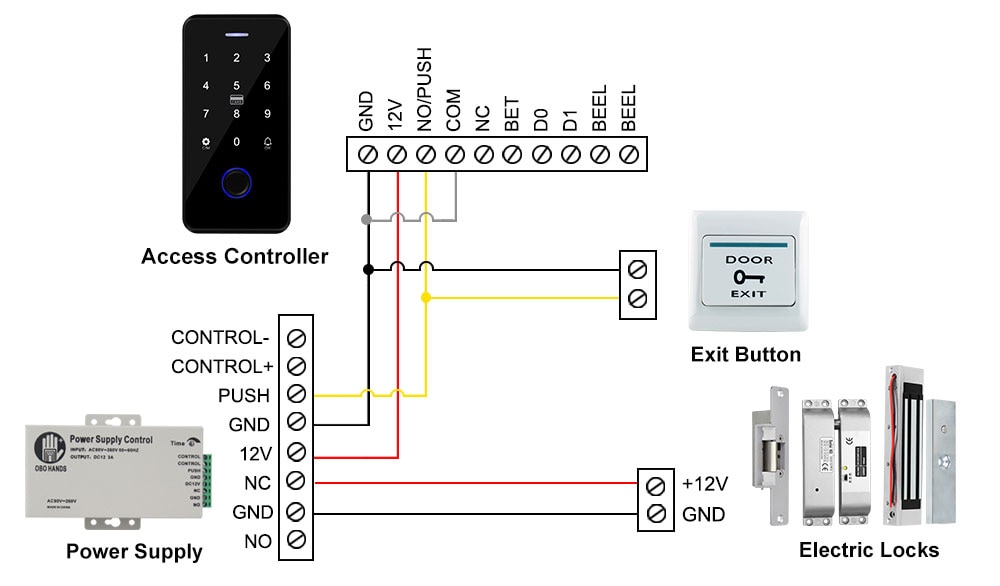

Wiring Diagram
- Brand Name: OBO HANDS
- Origin: Mainland China
- Model Number: F20 TUYA kit
- Certification: NONE
- Direction: None
- Security Mode: Fail Safe
- Type: Waterproof Access Control Kit
- Working Voltage: DC12V
- WG interface: WG26 input/output
- User Capacity: 100 users
- Unlock Mode: Tuya APP, NFC, Password, RFID Card, RFID card+password
- Working Frequency: 13.56MHz
- Lock1: 180KG Magnetic Lock
- Lock2: Electric strike lock
- Lock3: Electric drop bolt lock
- Bracket: L/U/ ZL Bracket
- RFID Keypad: F20 tuya
- Access control power supply: DC12V 3A
- Type1: Door Access control system
- Type2: RFID access control system
- RFID Access control keypad: IP68 Waterproof
SHIPPING AND DELIVERY
We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.
How do you ship packages?
Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.
Do you ship worldwide?
Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.
What about customs?
We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.
How long does shipping take?
Shipping time varies by location. These are our estimates:
| Location | *Estimated Shipping Time |
|---|---|
| United States | 10-30 Business days |
| Canada, Europe | 10-30 Business days |
| Australia, New Zealand | 10-30 Business days |
| Central & South America | 15-30 Business days |
Do you provide tracking information?
Yes, you will receive an email once your order ships that contains your tracking information.
My tracking says “no information available at the moment”.
For some shipping companies, it takes 2-5 business days for the tracking information to update on the system.
Will my items be sent in one package?
For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.
If you have any other questions, please contact us and we will do our best to help you out.
REFUNDS & RETURNS POLICY
Order cancellation
All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.
Refunds
Your satisfaction is our #1 priority. Therefore, if you’d like a refund you can request one no matter the reason.
If you did not receive the product within the guaranteed time(45 days not including 2-5 day processing) you can request a refund or a reshipment.
If you received the wrong item you can request a refund or a reshipment.
If you do not want the product you’ve receive you may request a refund but you must return the item at your expense and the item must be unused.
- Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
- Your order did not arrive due to exceptional circumstances outside the control of HOGAKI.COM - Home, Garden & Kitchen shop (i.e. not cleared by customs, delayed by a natural disaster).
- Other exceptional circumstances outside the control of hogaki.com
*You can submit refund requests within 15 days after the guaranteed period for delivery (45 days) has expired. You can do it by sending a message on Contact Us page
If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.
Exchanges
If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.
Please do not send your purchase back to us unless we authorise you to do so.
LARGE ORDER DEALS
Thank you for your interest doing business with us!
If you would like to get a discounted price for your large purchase orders, fill in the required blanks along with your email address, the product Item ID # and/or the link of the item that you want to order, item quantity (minimum of 30 pieces), shipping country and payment method is required. We will contact you with a discounted price as soon as we receive your inquiry.
