Charmvision EKU60H 60m 196ft USB HDMI KVM Extender Codec over Cat6 Cable for Remote Control PC CCTV DVR Monitor Local HDMI out
0.0 ( votes) | 2 orders
Price:
US $75.08 - 143.75
/ Set
Discount Price:
US $
56.30 -
107.80
/ Set
-25%
- Ships From
- Color
-
-
Please pay attention to choose the following specifications when you ordering:

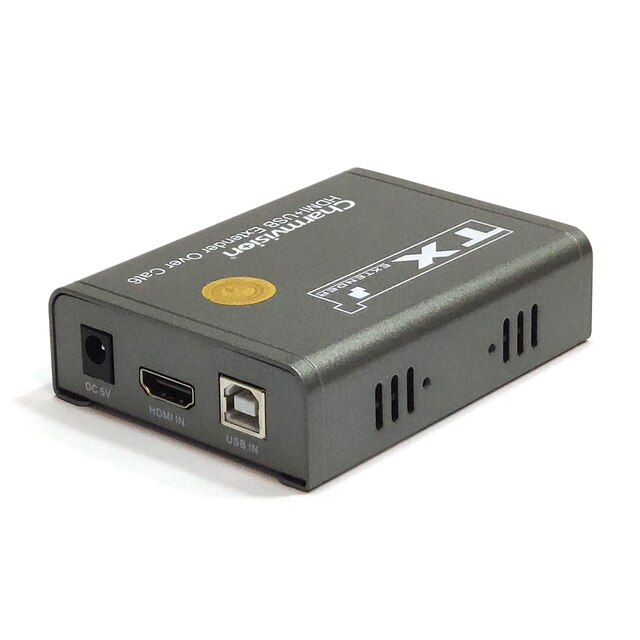

only Sender TX: EKU60H/S
only Receiver RX: EKU60H/R

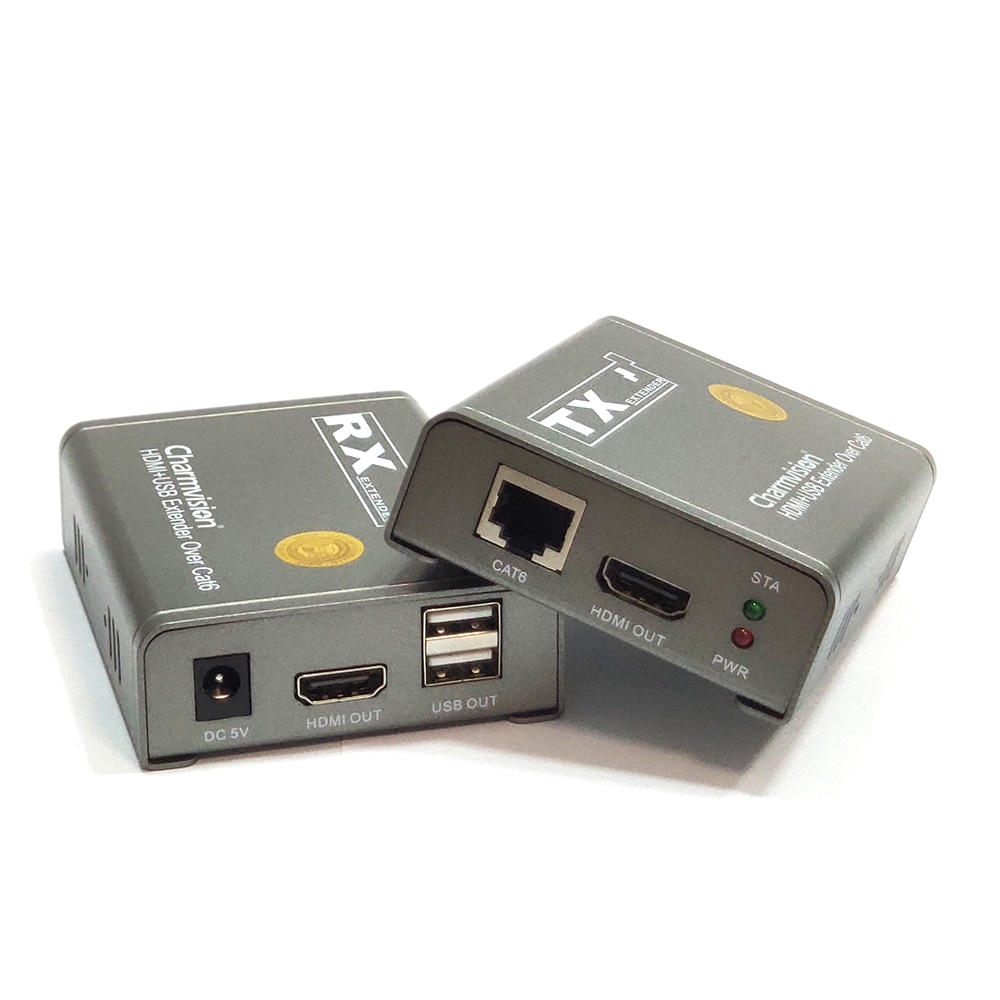

Sender TX + Receiver RX: EKU60H
Description
Charmvision EKU60H USB HDMI KVM Extender use single cat-5e or cat-6 (recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost, and support KVM control.
Features
Support HDMI 1.3；HDCP1.1&1.2
Support video input/output: 1080p/1080i/720p/576p/480p/480i
Signal transmission: Single cat-5e or cat-6 (recommended) cable up to 60 meters.
Audio format support: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Support long distance controlled by keyboard and mouse.
The design of pure hardware, plug and play, no need for additional software.
No loss of quality.
Specifications
Transmission distance: ≤60 meters
HDMI Input/output: 1080p/1080i/720p/576p/480p/480i
Support audio format input/output: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Max transmission bandwidth: 2.25Gbps (single link)
Input Video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TTL)
Max working current: 400mA
ESD Protection Human Body Model: ±8kV (air-gap discharge) ±4kV (contact discharge)
Operating Temperature range: 0°C~40°C/32˚F~104˚F
Storage Temperature: 20˚C~60˚C/-4˚F~140˚F
Operating Humidity range: 20%-90%RH (No Condensation)
Dimension (LWH): 95*73*26mm
Diagram
Package List
HDMI TX……………………….……. 1 pcs
HDMI RX………………………………1 pcs
USB cable……………………………1 pcs
Power adapter………………………2 pcs
User manual…………………………1 pcs
PACKING LIST
1. only Sender TX host:
Sender TX host 1pc
DC5V adaptor (US/UK/EU plug optional) 1pc
USB-A type cable 1pc
IR TX cable 1pc
Manual 1pc
2. only Receiver RX host:
Receiver RX host 1pc
DC5V adaptor (US/UK/EU plug optional) 1pc
IR RX cable 1pc
Manual 1pc
3. Sender TX+ Receiver RX:
Sender host 1pc
Receiver host 1pc
DC5V adaptor (US/UK/EU plug optional) 2pcs
USB-A type cable 1pc
IR RX cable 1pc
IR TX cable 1pc
Manual 1pc
- Model Number: EKU60H
- Brand Name: Charmvision
- Origin: Mainland China
- Smart home platform: NONE
- Certification: NONE
- Device Type: Audio and video codec
- Application: Extend HDMI & K/M ports of PCs
- Transmission Distance: ≥60m/196ft
- Input/Output Interface: HDMI, USB(for keyboar&mouse), RJ45
- Transmission Medium: Recommended Cat6 cable
- Resolution: 1080P
- Local Output: Build-in
- Audio Video Synchronization: Supports
- Dimension(LWH): 95*73*26mm
