Mini 6V 210MA 1.25W Monocrystalline Silicon Solar Panel with solar charger CN3065 Cell Phone Charging
4.5 (158 votes) | 1000 orders
Price:
US $
9.95 -
12.66
- Color
-
-
If you have any questions, you can contact the store customer service staff as soon as possible

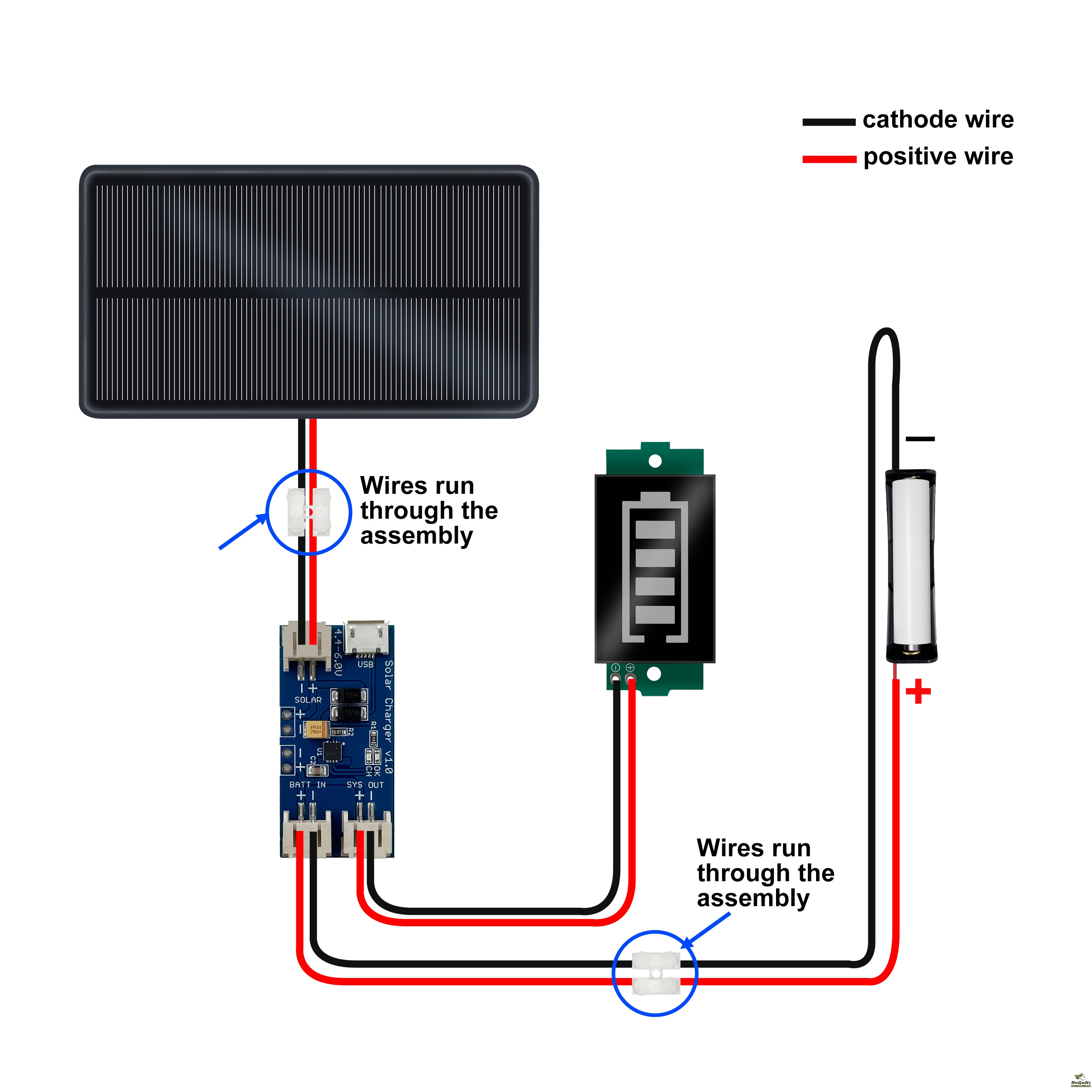

Connection example diagram

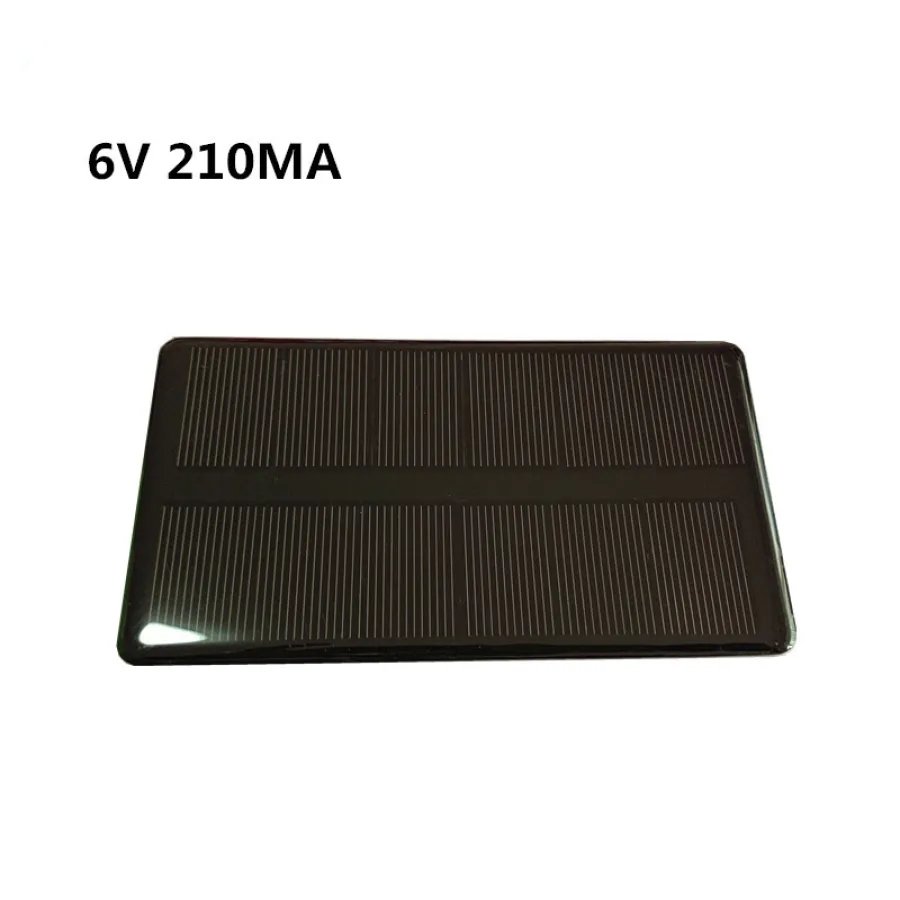

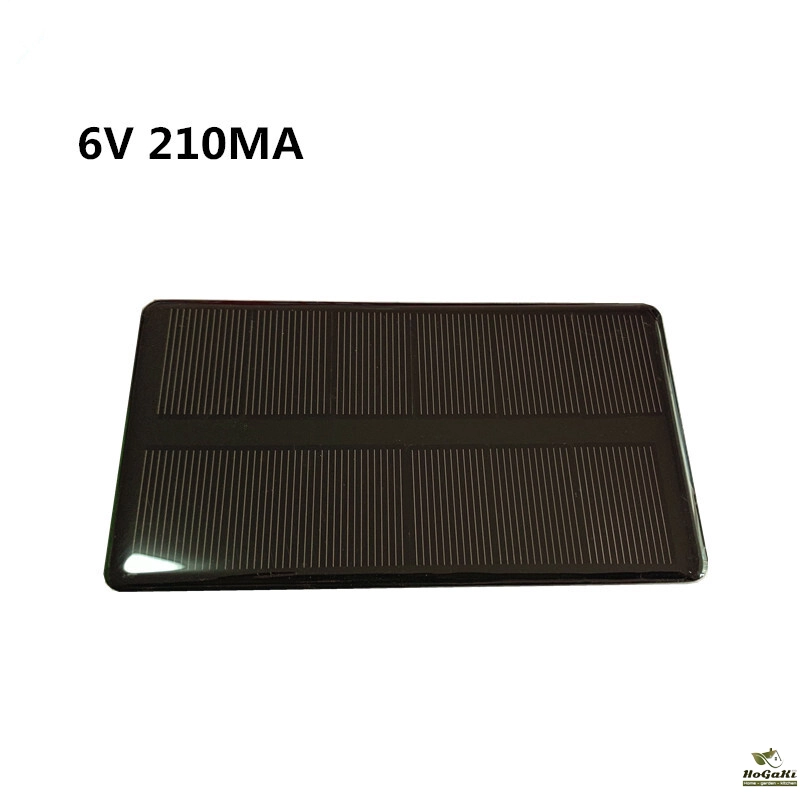

Feature:
Voltage:6V
Current: 210MA
Process: Epoxy
Material: high rate solar cell epoxy resin AB glue, PCB or fiberglass backplane
Size: 133*73MM
Package include:
1*Solar panel

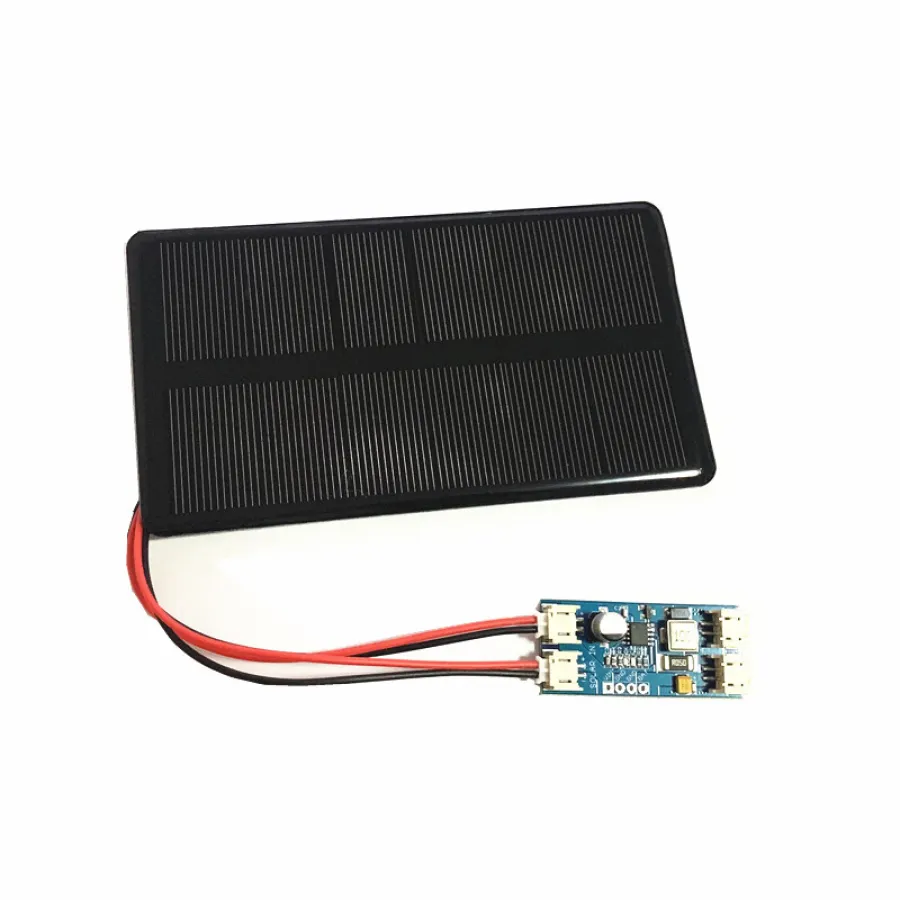

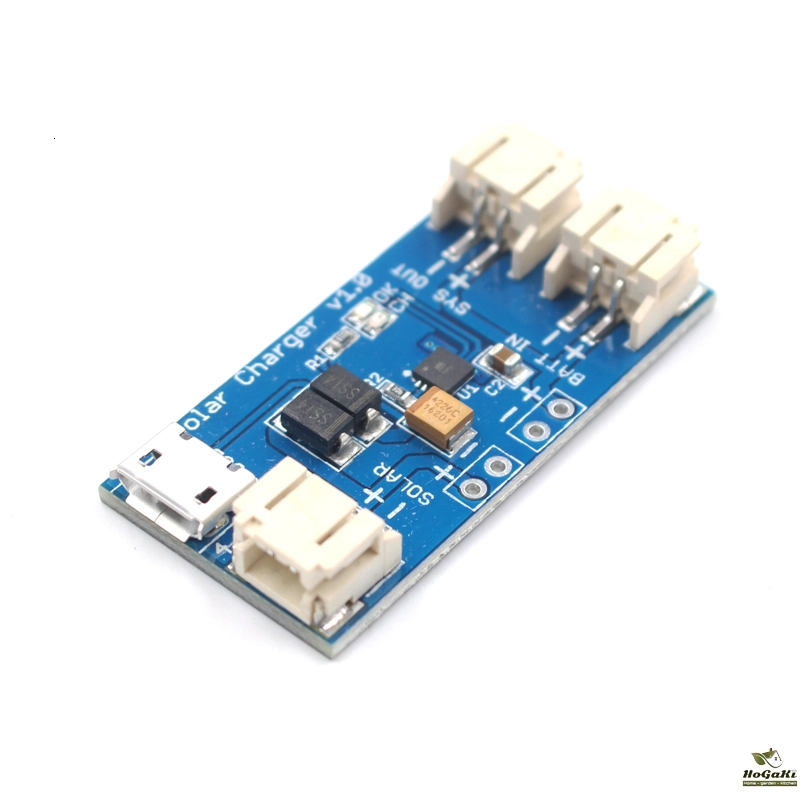

Solar charger

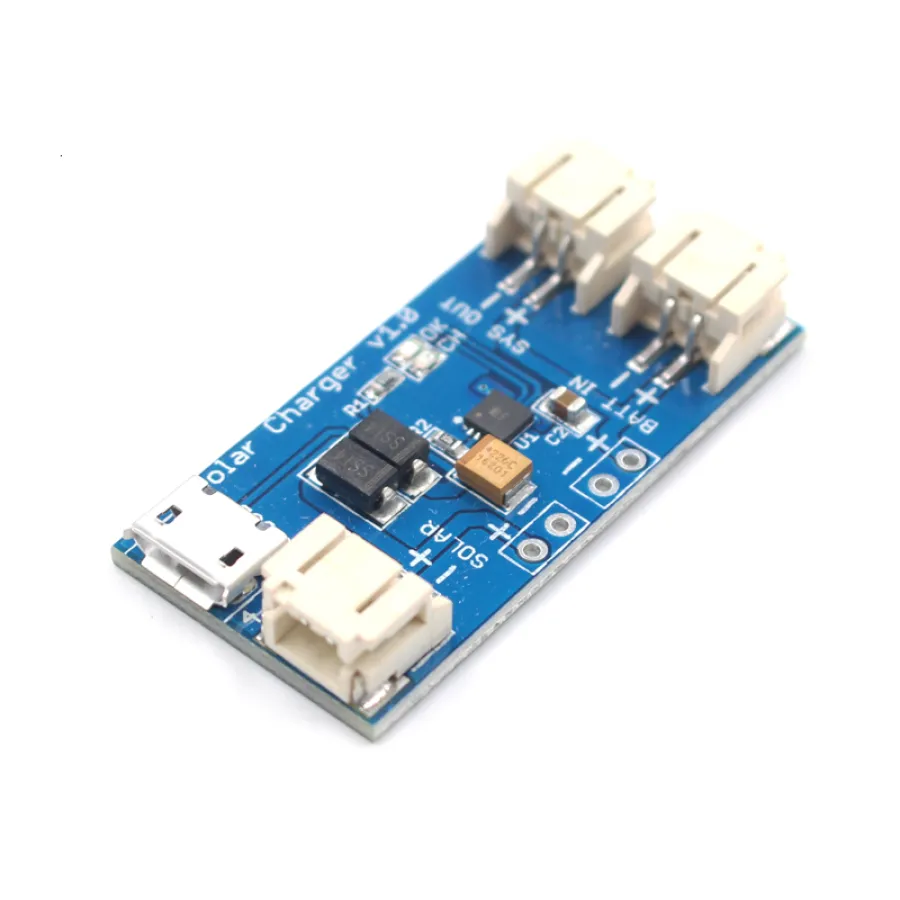

This is a supper mini Solar Lipo charger based on the CN3065 - a single lithium battery charge management chip.
This Solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!
The output of the Solar Charger is intended to charge a single polymer lithium ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 500mA with a maximum recommended input of 6V (minimum 4.4V). It's recommended that batteries not be charged at greater than their capacity rating.
Features:
Solar panel input: 4.4-6V
Max charge current: 500Ma
Interface: 2-pin JST connectors(or PH2.0)
Short circuit protection
Continuous Charge Current Up to 500mA
Battery status indication ( Red : Charging , Green: Charged )
Micro-USB Connector

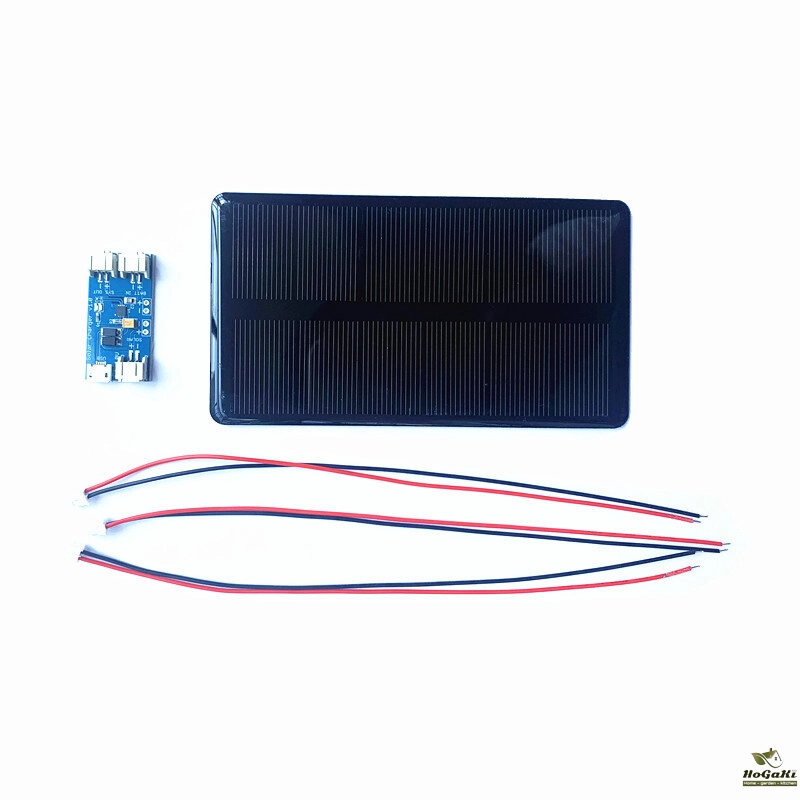

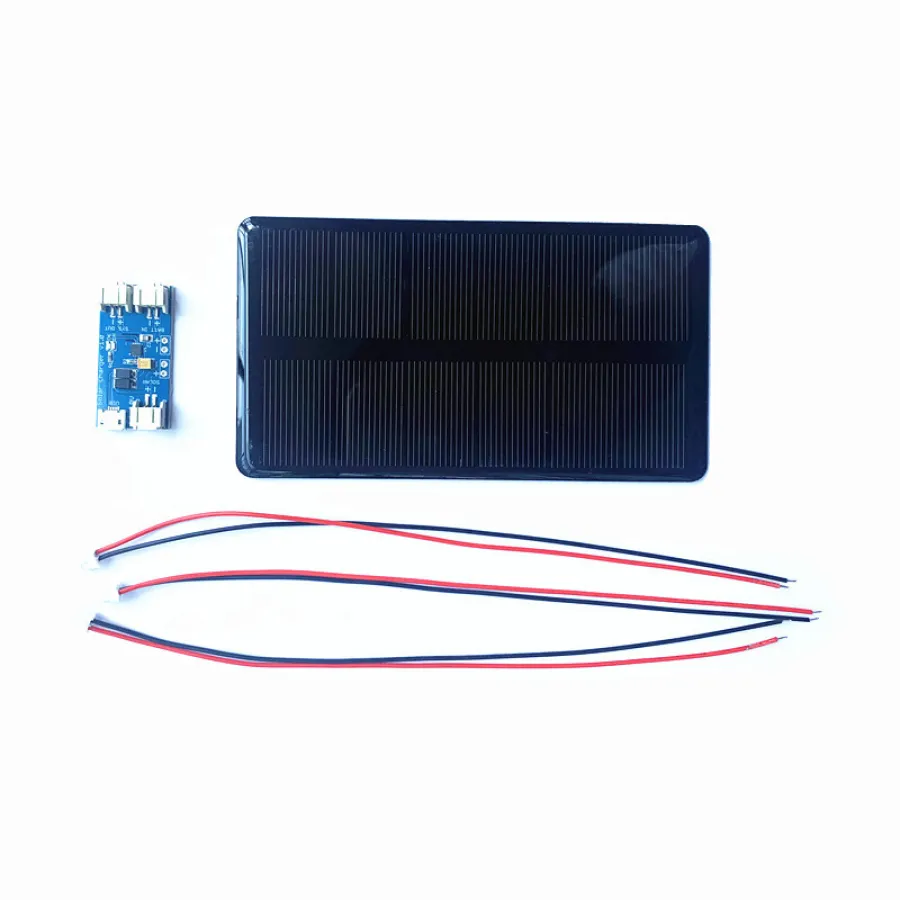

Package A Include
1* Solar Panle
1* Solar Charger
3*Cable

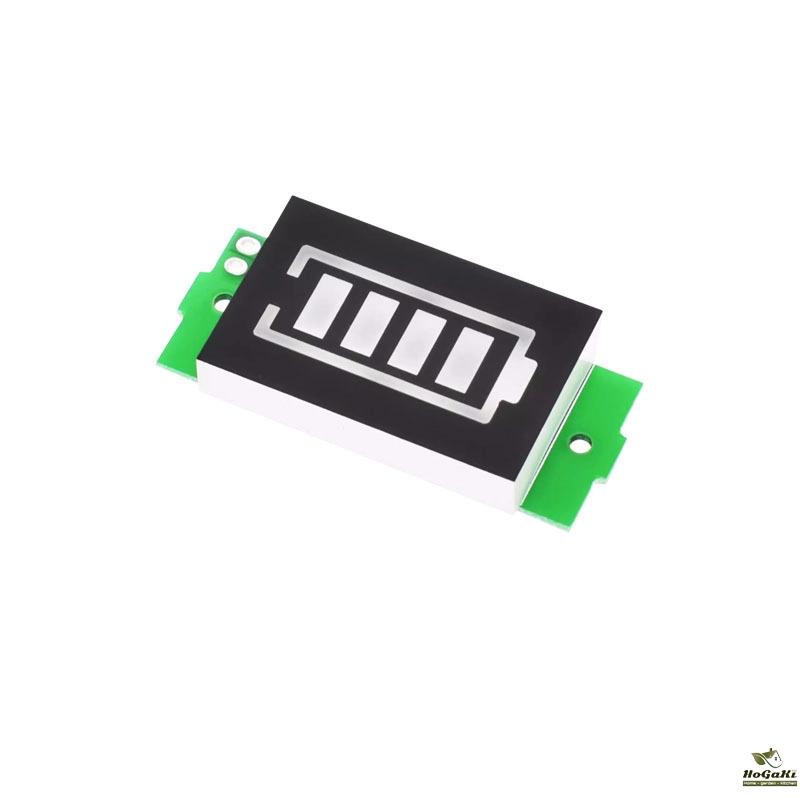

1S Power display
How to use: Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test, and the digital tube displays the real-time battery power
Display battery parameters:
(Remarks: N is the number of battery cells) (The following data is a reference value, there will be an error range of about 2%, do not shoot if high accuracy is required)
The battery voltage is greater than N × 3.3V, with 1 grid lit
The battery voltage is greater than N × 3.5V, with 2 grids on
The battery voltage is greater than N × 3.7V, with 3 grids on
The battery voltage is greater than N × 3.9V, with 4 grids on
The battery voltage is less than N × 3.3V, and the four-segment display is all off, indicating that the battery is below 3.3V, and it is time to charge the battery.

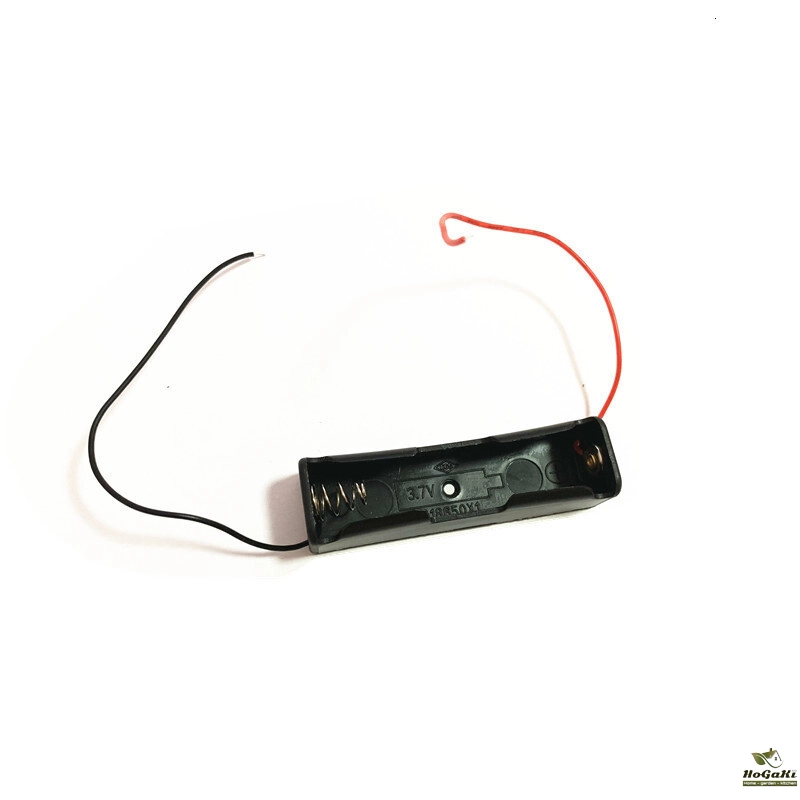

1S 18650 Battery Holder

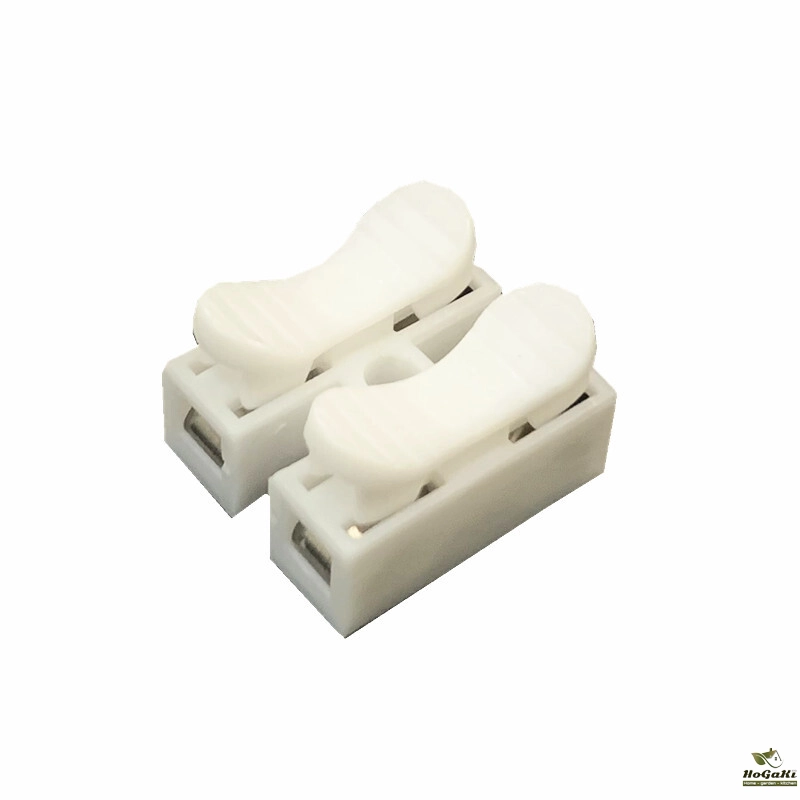

CH2 Quick Splice Lock Wire Connector

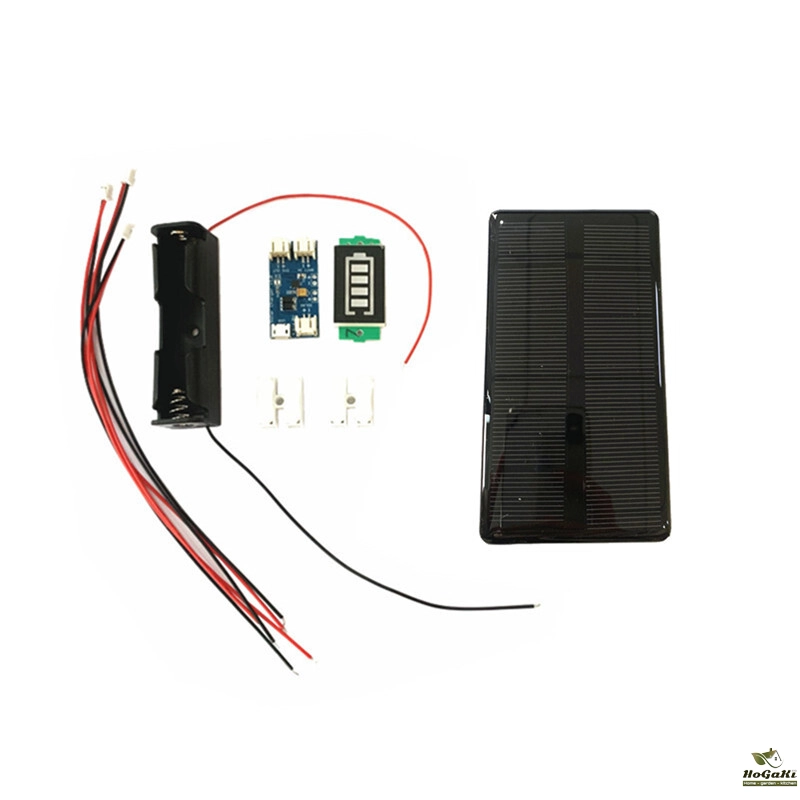

Package B Include

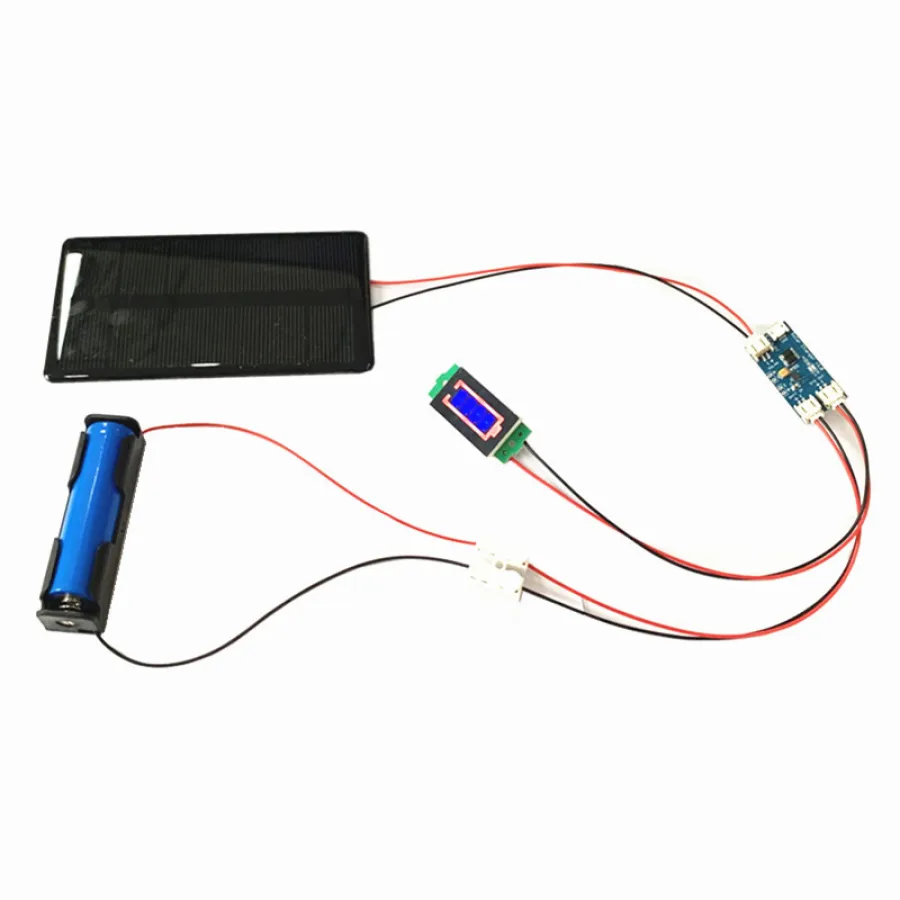

All set Package Include (battery not include )
1* Solar Panel
1*1S display
1* Solar charger
1* 1S battery Holder
2* CH2 Connector
3* Cable
Packaging Details
- Unit Type:
- Package Weight: 0.040
- Package Size: 15x2x15
- Brand Name: Heltec Automation
- Origin: Mainland China
- Hign-concerned Chemical: None
- Certification: None
- Choice: yes
