40A MPPT Solar Charge Controller 12V/24V Battery Voltage Max Solar Panel 100V EPEVER Regulator With LCD Data Remote Monitor NEW
ID: 151437

40A MPPT Solar Charge Controller 12V/24V Battery Voltage Max Solar Panel 100V EPEVER Regulator With LCD Data Remote Monitor NEW

4.9 (94 votes) | 600 orders
Price: US $507.31 - 909.08
Discount Price:
US $ 229.43 - 409.81
-55%
Color
Current
Rated Voltage
Quantity

Buy Now
Add to Cart

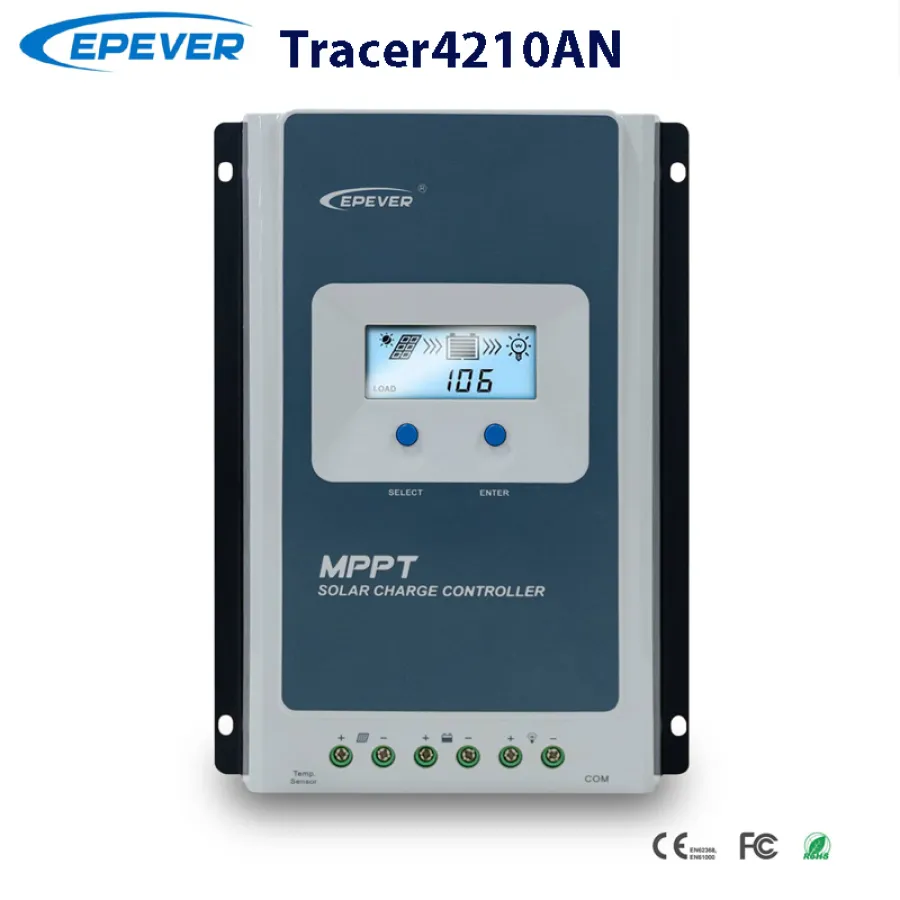

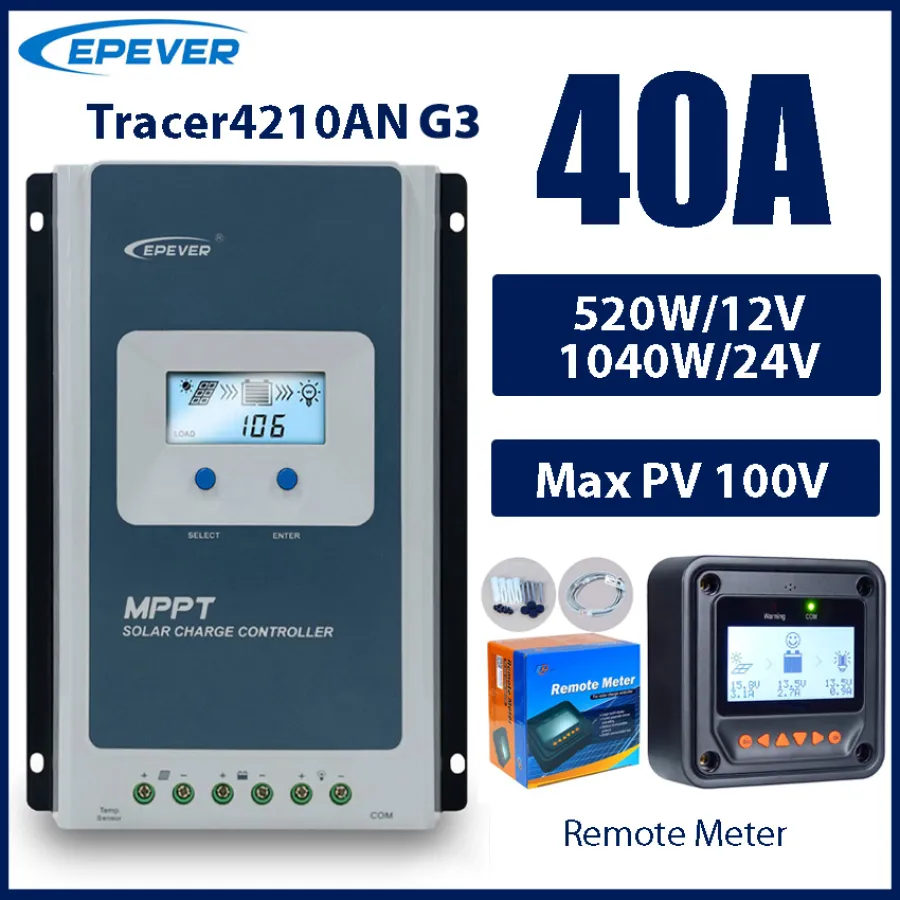

EPEVER MPPT Solar Charge Controller 40A 12V/24V Auto Work With Remote Meter Tracer4210ANG3

Overview:

Tracer-AN G3(10A-40A) series charge controller adopts MPPT (Maximum Power Point Tracking) technology. In any situation, it can track the maximum power point (MPP) of the solar array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared with the PWM charge controller. This series can accept max.100V Voc and work with the solar panels which are designed for on-grid applications. The multifunction LCD display the system status vivdly.

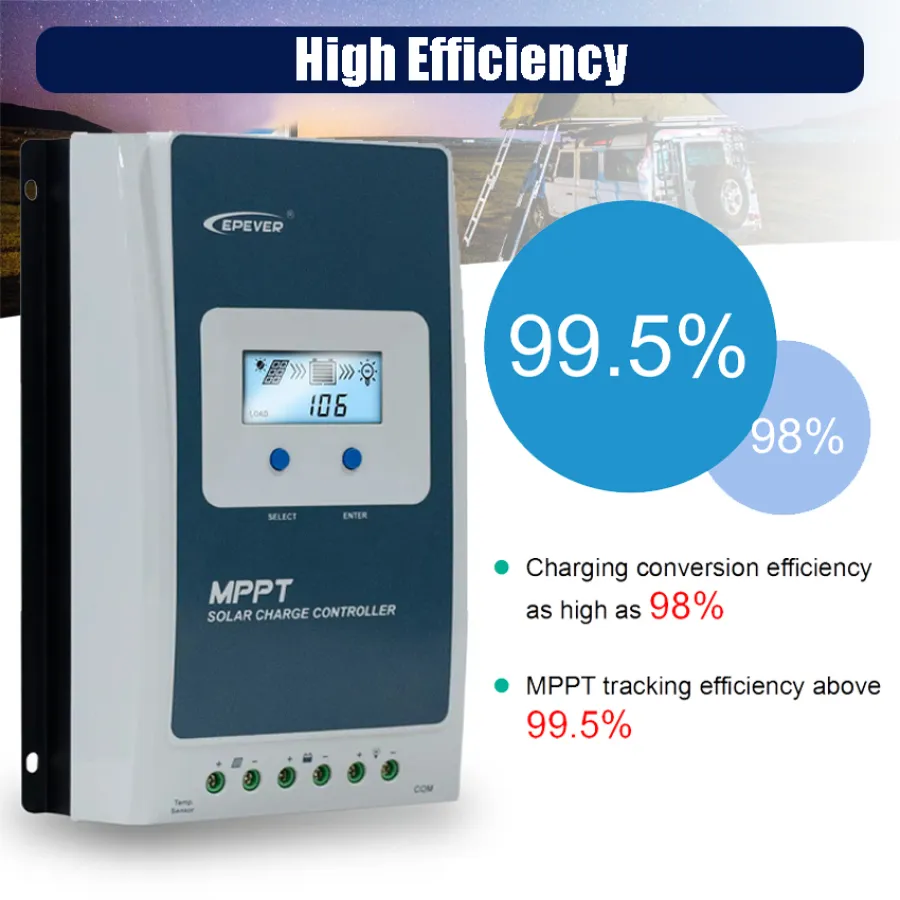

  • MPPT tracking efficiency above 99.5%

  • Maximum charge conversion efficiency as high as 98%

  • Support lead-acid and lithium-ion batteries

  • Supoport No-battery mode

  • Multiple load work modes

  • Charging power and current limitation function

  • High-temperature charging power derating function

  • Standard Modbus communication protocol with RS485 interface

  • Real-time energy statistics function

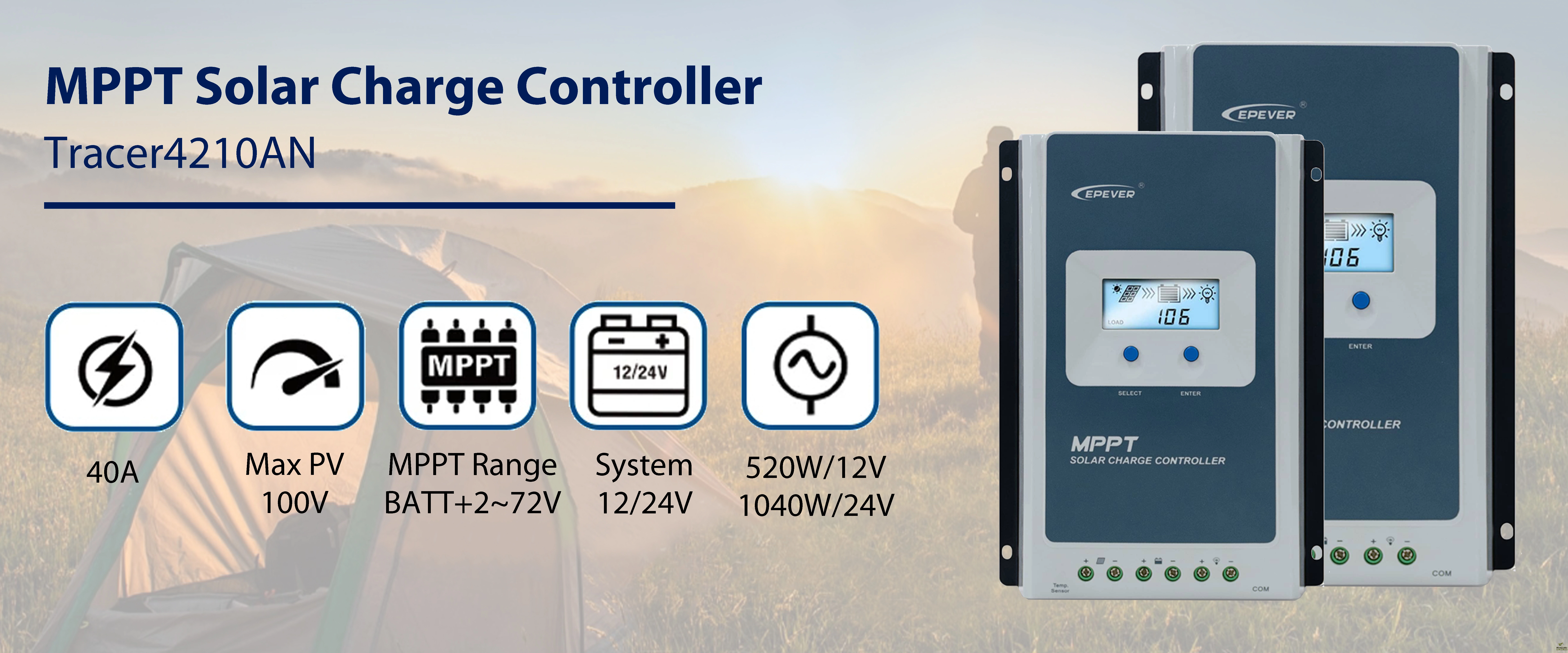

Model

Tracer4210AN G3

Nominal system voltage

12/24VDC/Auto

Controller Work Voltage Range

8~31V

Rated charge current

40A

Rated discharge current

40A

Rated charge power

520W/12V
1040W/24V

MPP voltage range

(Battery Voltage+2V)~72V

Max. PV open circuit voltage

100V(At minimum operating enviornment temperature)
92V(At 25℃ environment temperature)

Temperature compensation

-3mV/℃/2V(Default)

Relative humidity

≤95%,N.C.

Enclosure

IP30

Communication interface

RS485(RJ45)

Grounding

Common Negative

Working temperature range

-25℃~+45℃(100% loads working)

Dimensions(LxWxH)(mm)

252 x 180 x 63

Net weight

1.65kg


Steps: Connect solar system in this order: 1.battery--> 2. load--> 3.PV array, and disconnect solar system in the reverse order >3. >2. >1.

  • Battery must be connected first! Never connect soalr panel array to controller Without/Before connect battery.

  • DO NOT connect any inverter/wind/Alternator or Charger into the charge controller directly ! You should connect with battery and add fuse.

  • If there is a long distance between the PV array and controller or between the controller and battery, larger size wires should be used to reduce the voltage drop and improve performance. (Recommended wire size is only for reference.)

How to program for Lithium Battery?

  • Via Remote Meter (Accessories needed: MT50/MT52)

  • Via PC Software (Accessories needed RS485 cable :CC-USB-RS485-150U )

  • Via Phone APP (Android or IOS), (Accessories needed：WIFI or BLE)

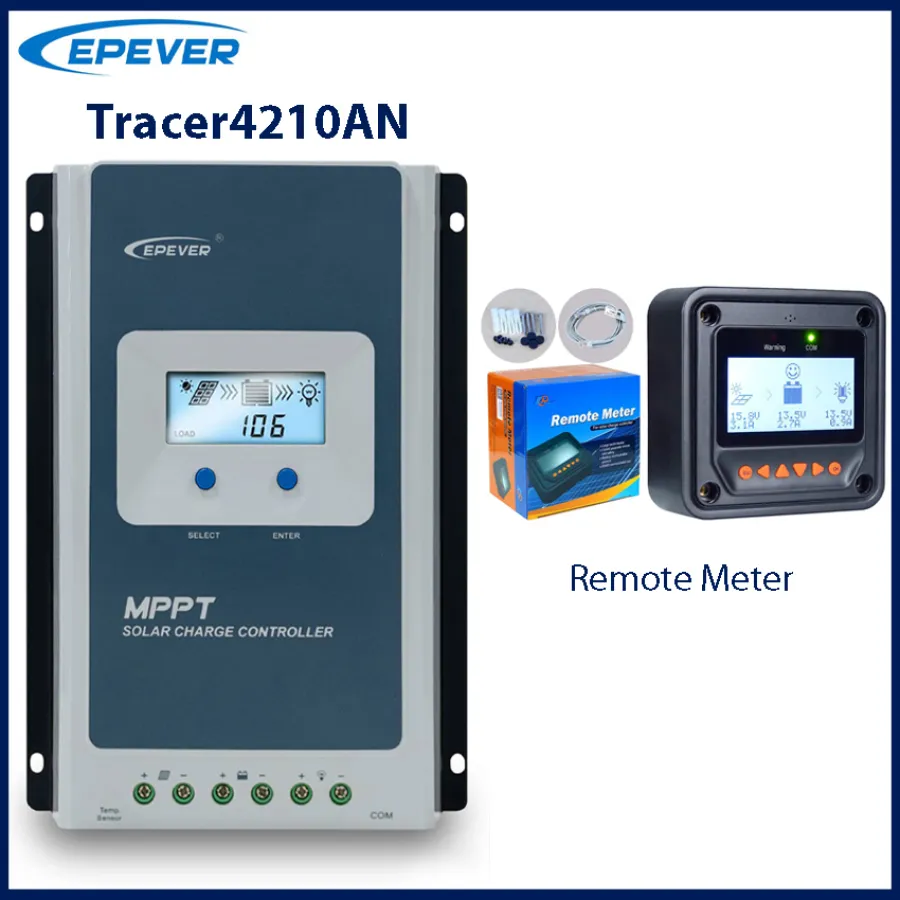

EPEVER Remote Meter


Overview:

Remote Meter is a new generation of remote meters designed based on the latest controller communication protocol and voltage technical standards. The remote meter, using the controllers equipped with RJ45 port, can monitor the controller's real-time working status and program the parameters.


Features:

  • For Tracer-AN/BN/BP, TRIRON-N, XTRA-N, LS-B, VS-BN, iTracer, eTracer

  • Automatic identify and diaplay the type, model and relevant parameter data of controllers

  • Real-time display the operational data and working status of the connection devices in digital, graphic and textual forms by a large-screen multifunction LCD

  • Direct, convenient and rapid operation of six nevigation function keys

  • Both data and power flowing in the same lead, no need for external power

  • Real-time data monitoring and remote load switchover of the controllers, and data browse and  modification of device parameters, charge control parameters and load control parameters

  • Real-time display and acoustic alarm of failure information of the connection devices

  • Longer communication distance based on RS485


Package List

Remote Meter IS OPTIONAL!

Packaging Details

  • Unit Type:
  • Package Weight: 2.379
  • Package Size: 20x20x40

  • Brand Name: EPever
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Model Number: Tracer4210ANG3
  • Maximum Current: 40A
  • is_customized: Yes
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Is Smart Device: Yes
  • Application: Charger Controller
  • Application: Lighting Controller
  • Application: Solar System Controller
  • Application: Solar Working Station
  • Choice: yes
