LP20E Magnet 2 Axis Digital Display DRO Magnetic Sensor Tape Displacement Readout Scale Position Transducers Encoder Woodworking
ID: 153349

LP20E Magnet 2 Axis Digital Display DRO Magnetic Sensor Tape Displacement Readout Scale Position Transducers Encoder Woodworking

4.8 (77 votes) | 398 orders
Price: US $257.74 - 442.42
Discount Price:
US $ 127.00 - 218.16
-51%
Color
Quantity

Buy Now
Add to Cart

LP20E 2 Axis Digital Display DRO Magnetic Sensor Tape Displacement Readout Scale Position Transducers Encoder Woodworking

Advantages

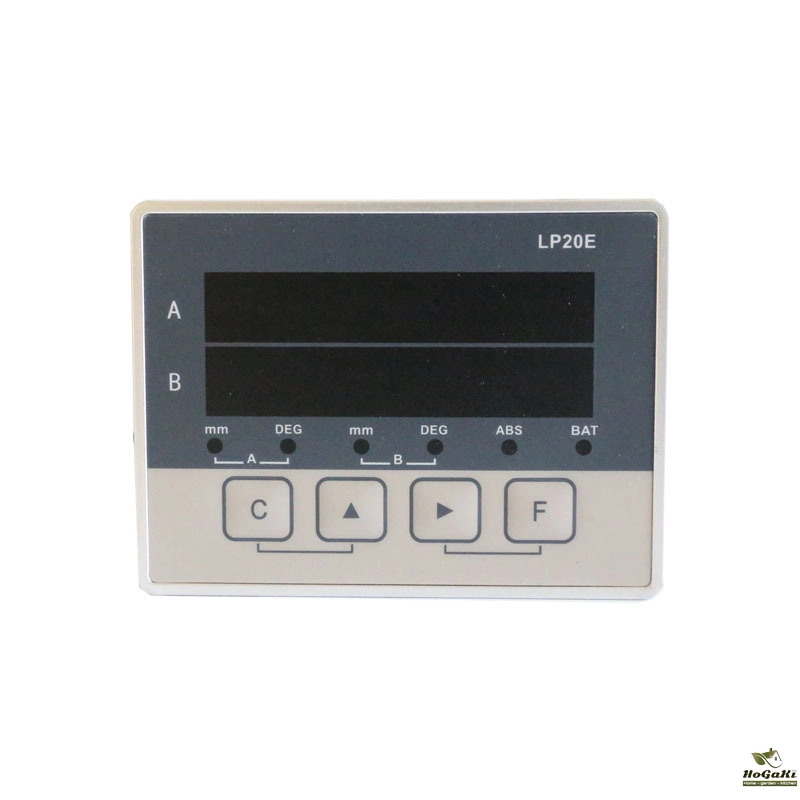

-2 axis digital display
-Multi-function menu, can be set parameter on demands
-High brightness, 7 digit digital tube display
-Length / angle, absolute / relative, mm / inch mode adjustable
-High-precision all-metal read head
-Initial value customization function
-Multi-segment linear compensation
-Non-contact measurement, zero wear
-Quasi-absolute measurement
-Initial Reset Function ("clear")

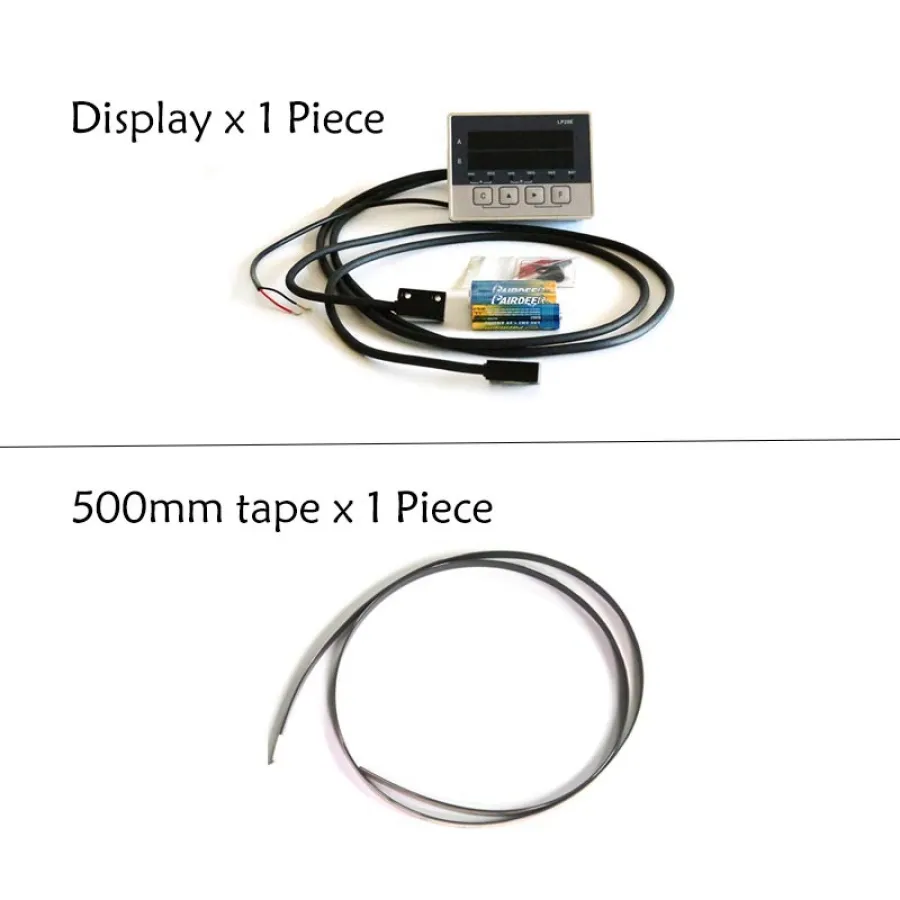

Package content

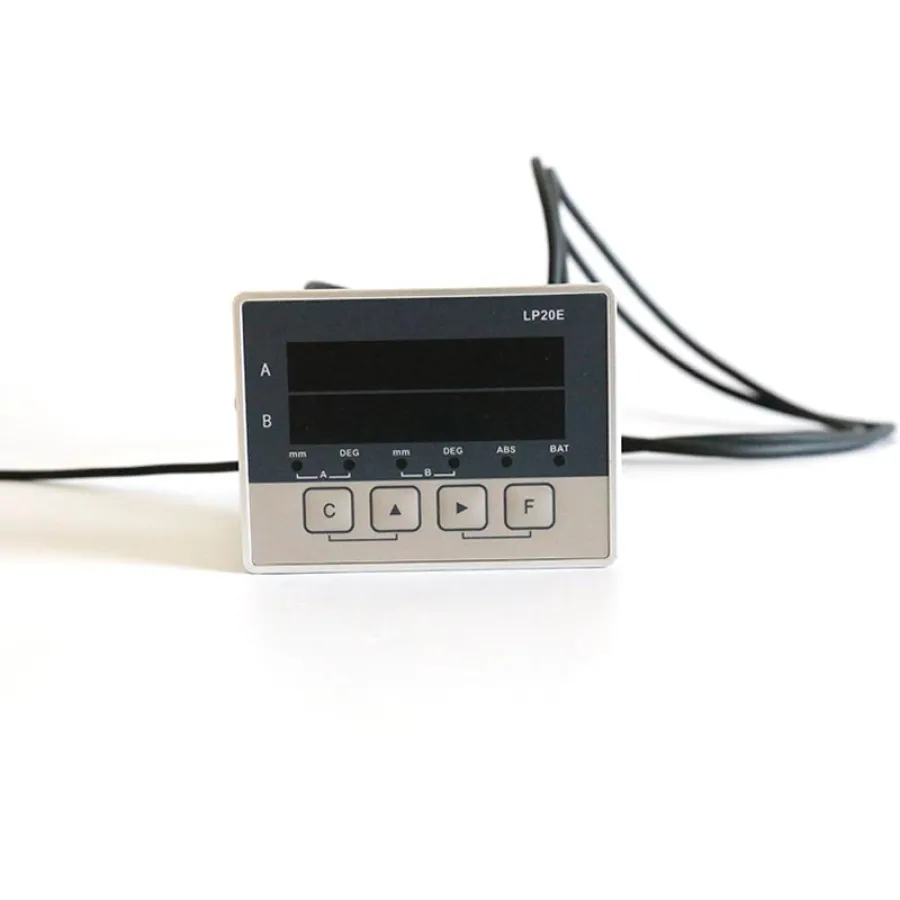

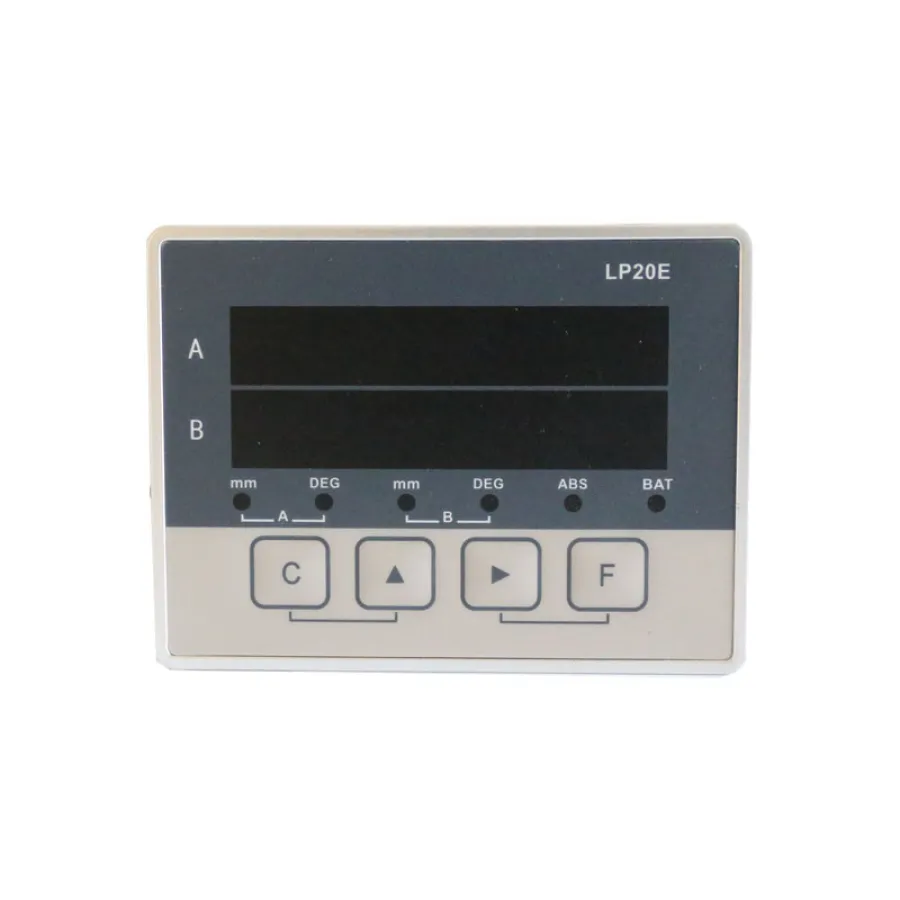

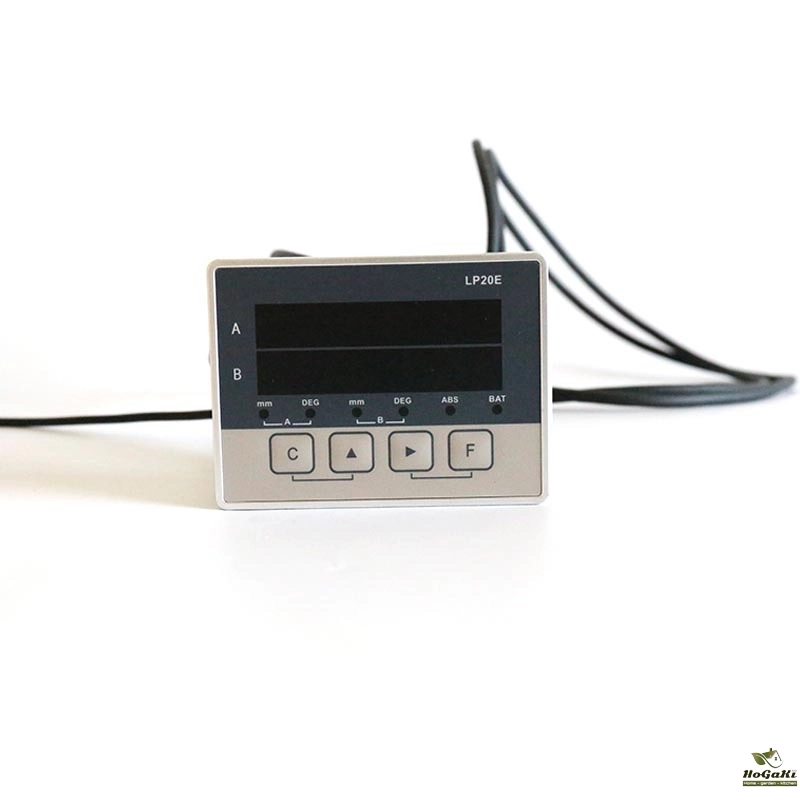

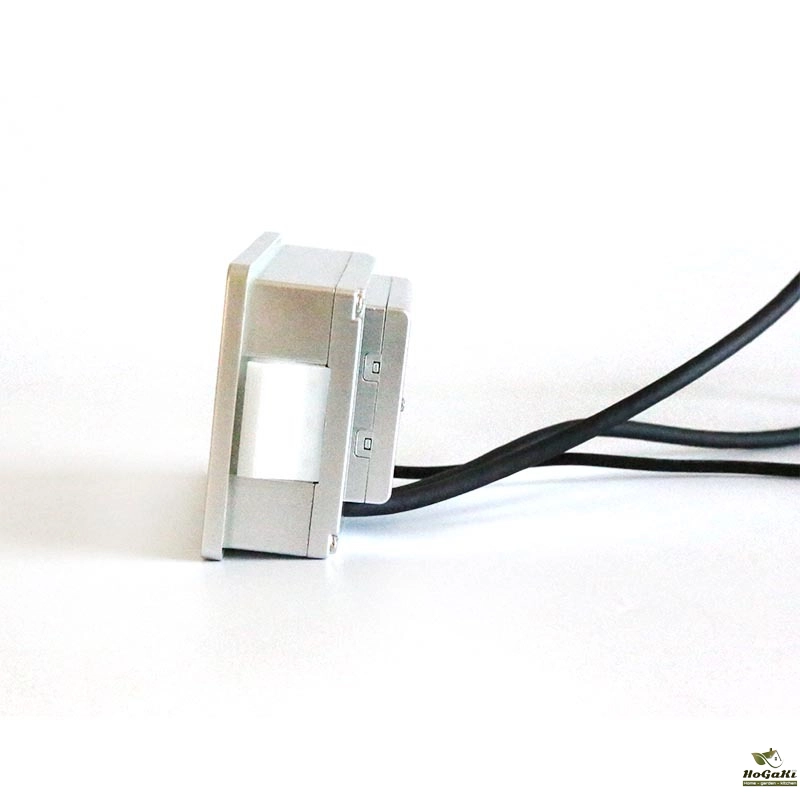

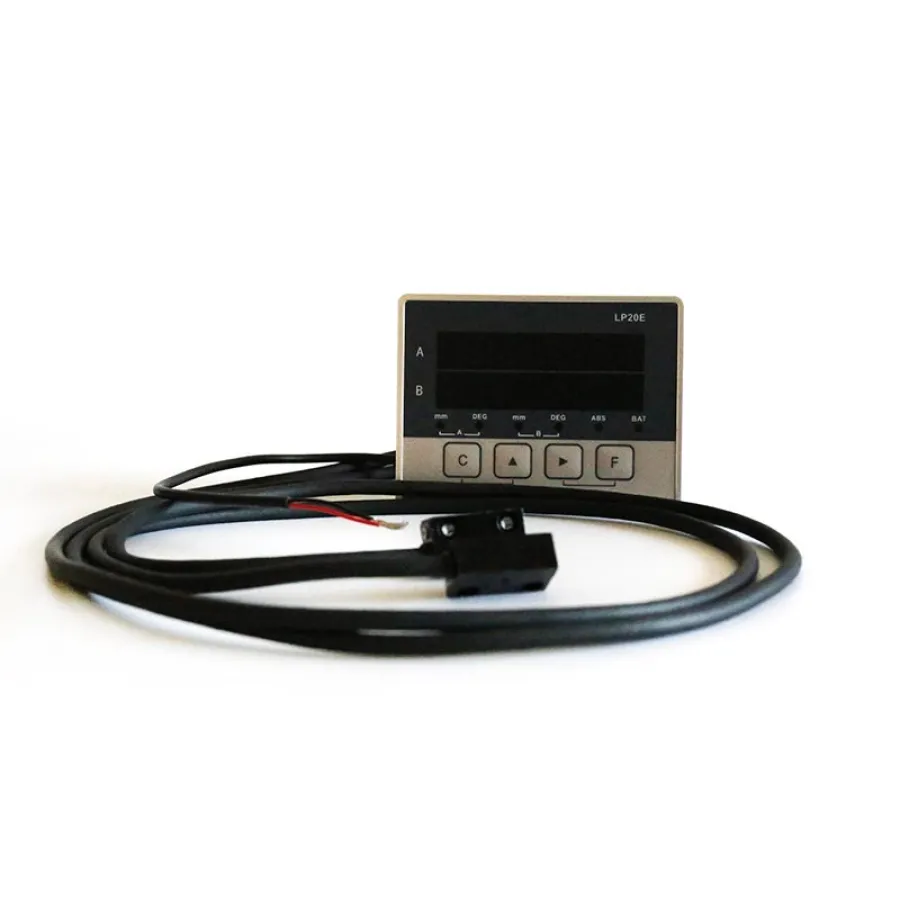

LP20E display sensor

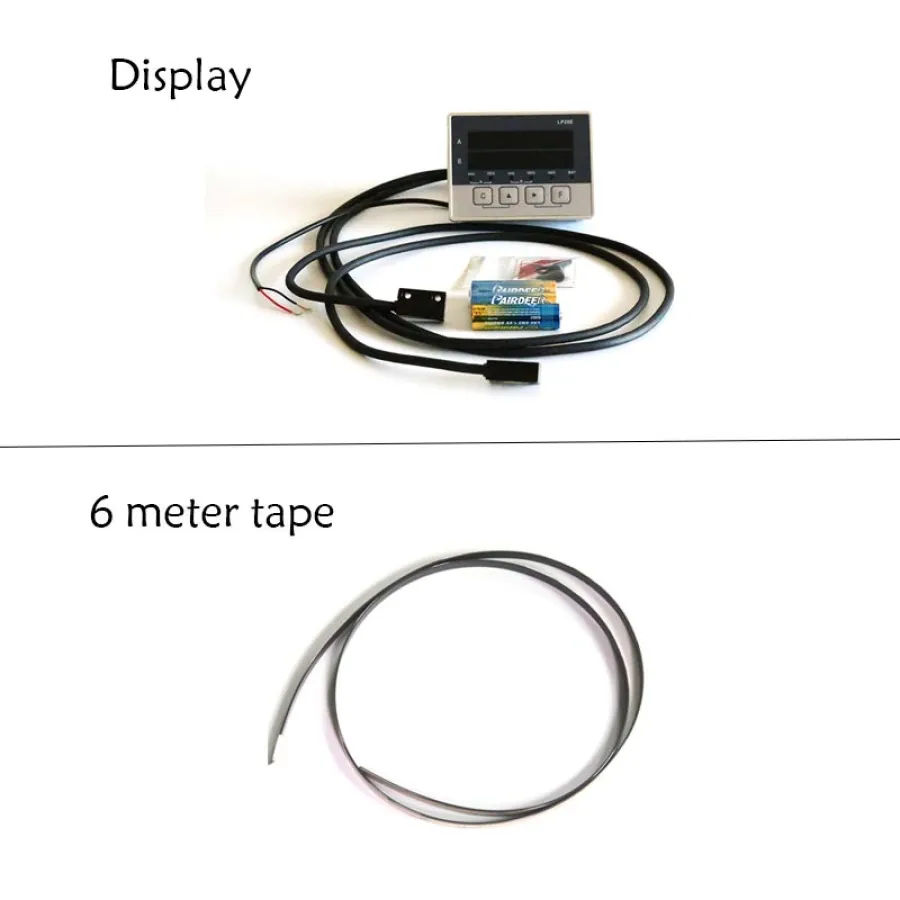

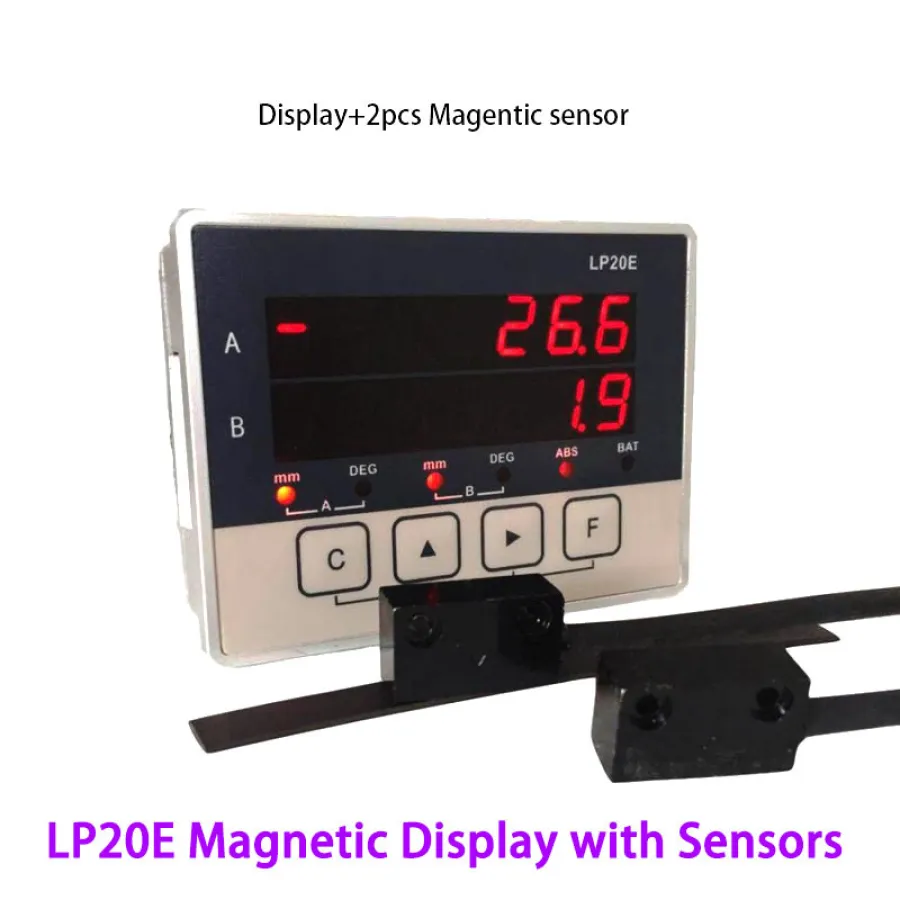

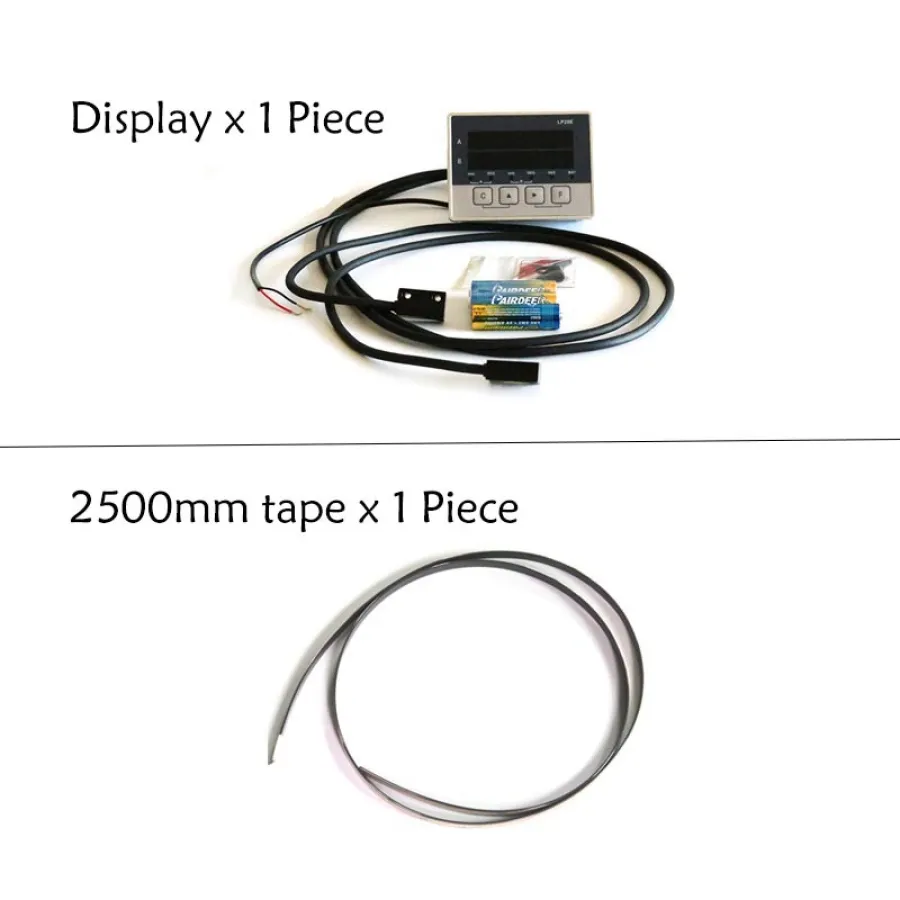

1 piece *LP20E display with 2 pieces magnetic sensors,

LP20E-XXXmm tape
1 piece *LP20E display with 2 pieces magnetic sensors
1 piece * XXXmm magnetic tape
(For example: LP20E-1000mm taple option, it includes 1 piece LP20E display with 2 pieces magnetic sensors And 1 piece 1000mm magnetic tape.)

Note: The display do not include battary, because it unable ship the battary by shipping company.

Please contact us if any question. thank you

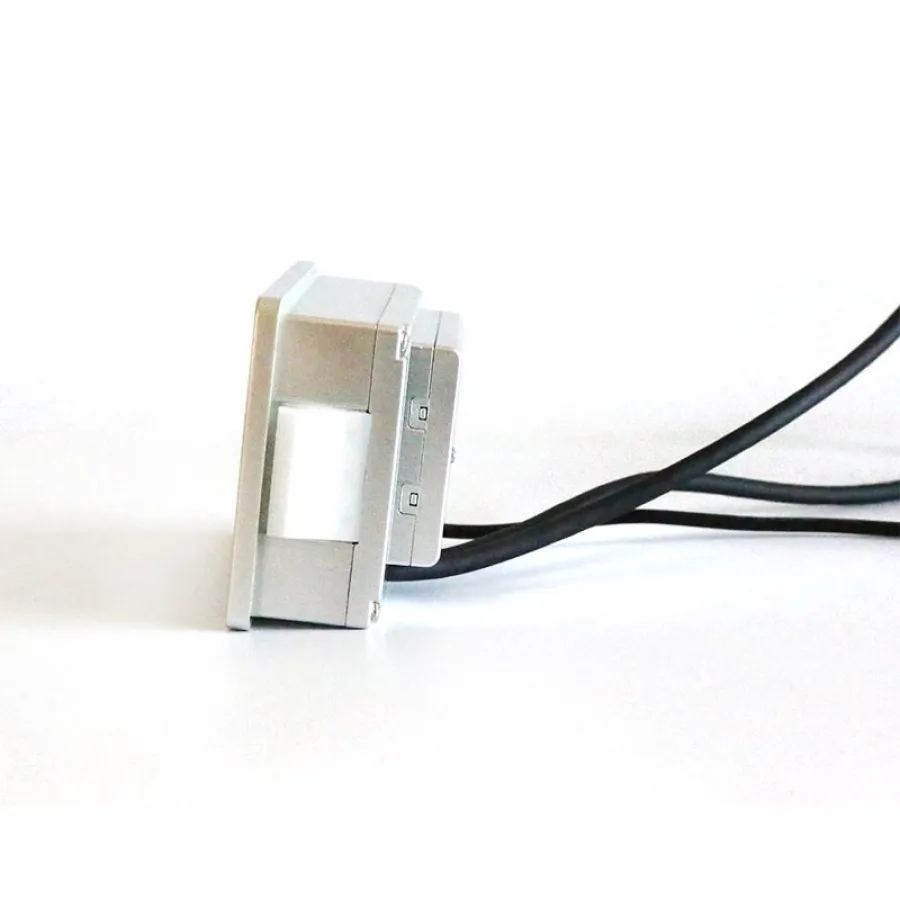

LP20E display sensor specification

System accuracy: + (0.03+0.01*L) mm L unit: 1meter
Repeatability: Max. + 0.01mm
Display range: -1999999-9999999
Consumption current: Max.500UA (backlight not opened)

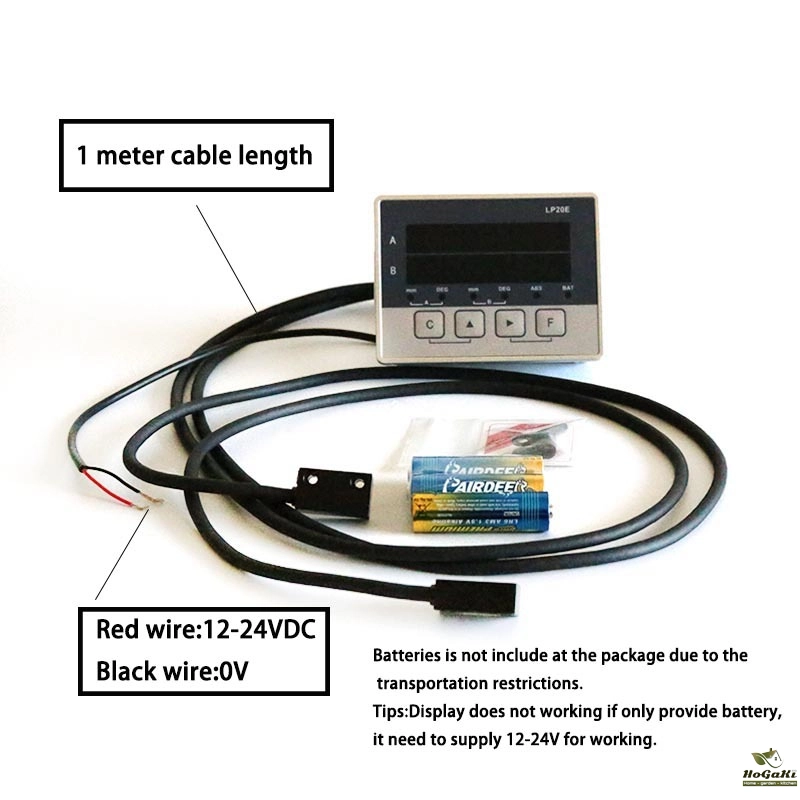

Power supply: 3pieces batteries No. 5 (AA)( for storage) / DC12-24V(for working)
Operating temperature: 0 degrees Celsius -60 degrees Celsius
Storage temperature: -10 degrees Celsius -70 degrees Celsius

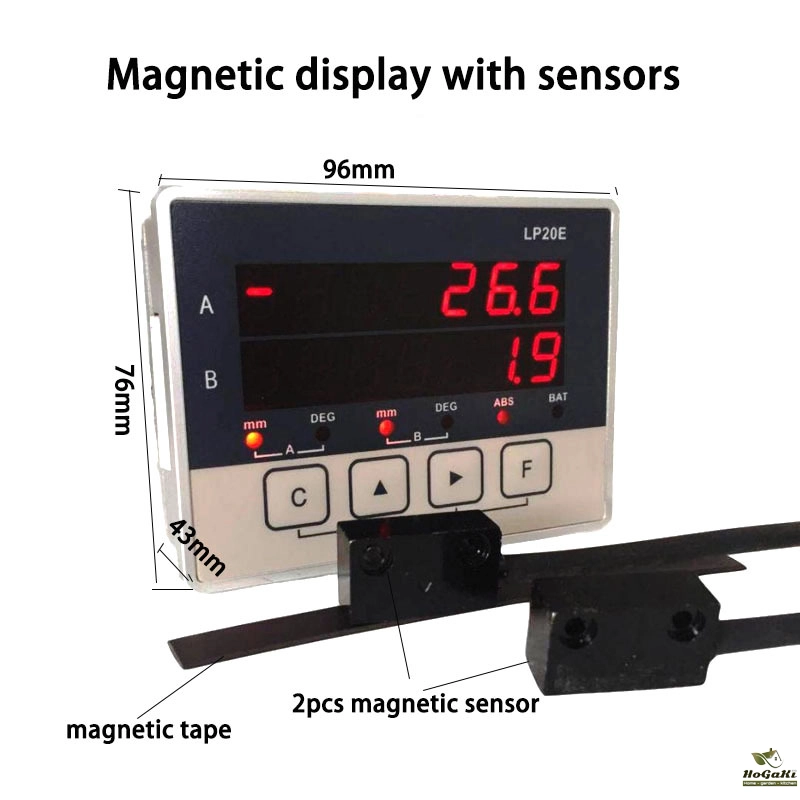

Outline size: 96*76*43mm
Read line length: 1m
Mobile speed: Max.4m/s
Read gap: Max.2.5mm, recommended 1.5mm
Matching magnetic stripe: TR50
Waterproof grade: digital display IP40, read head IP60
Weight: Max.300g


Basic datasheet

Resolution: 0.01mm /0.1mm / 1mm
Display mode:MM / INCH
Measuring: Length / Angle

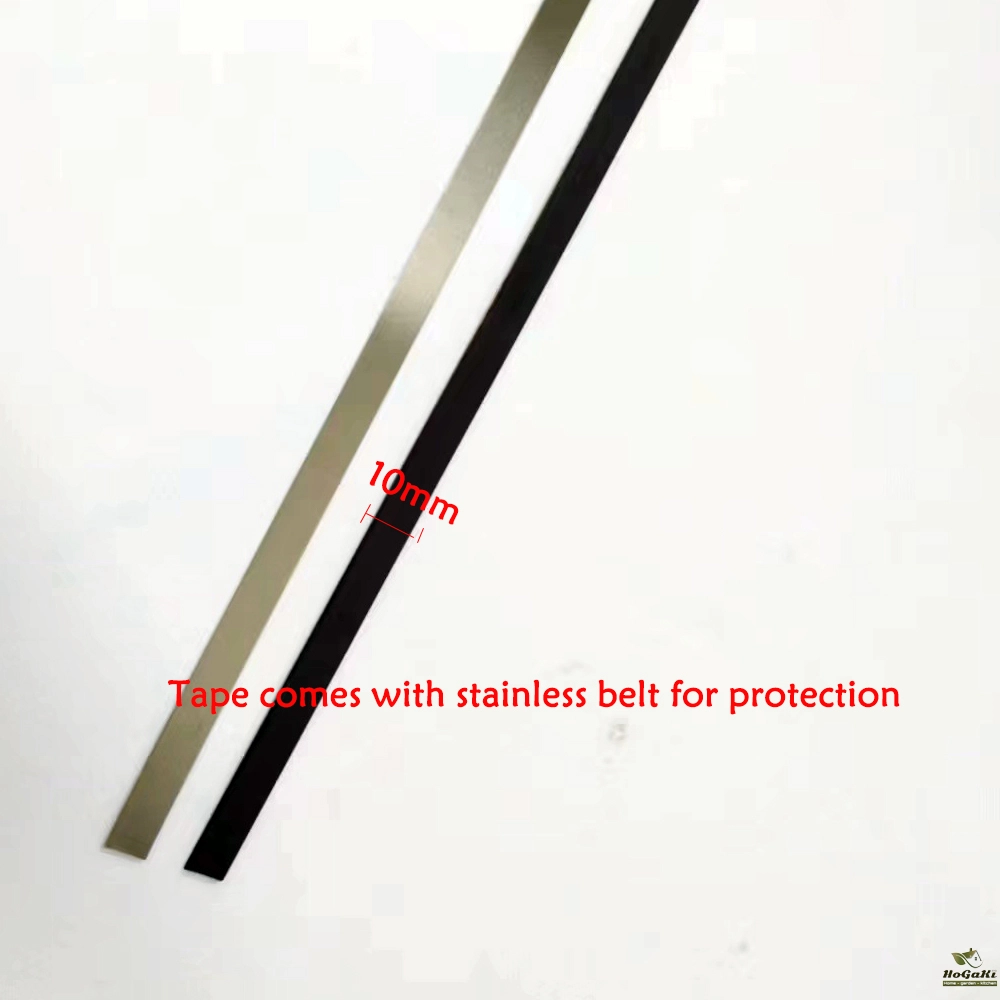

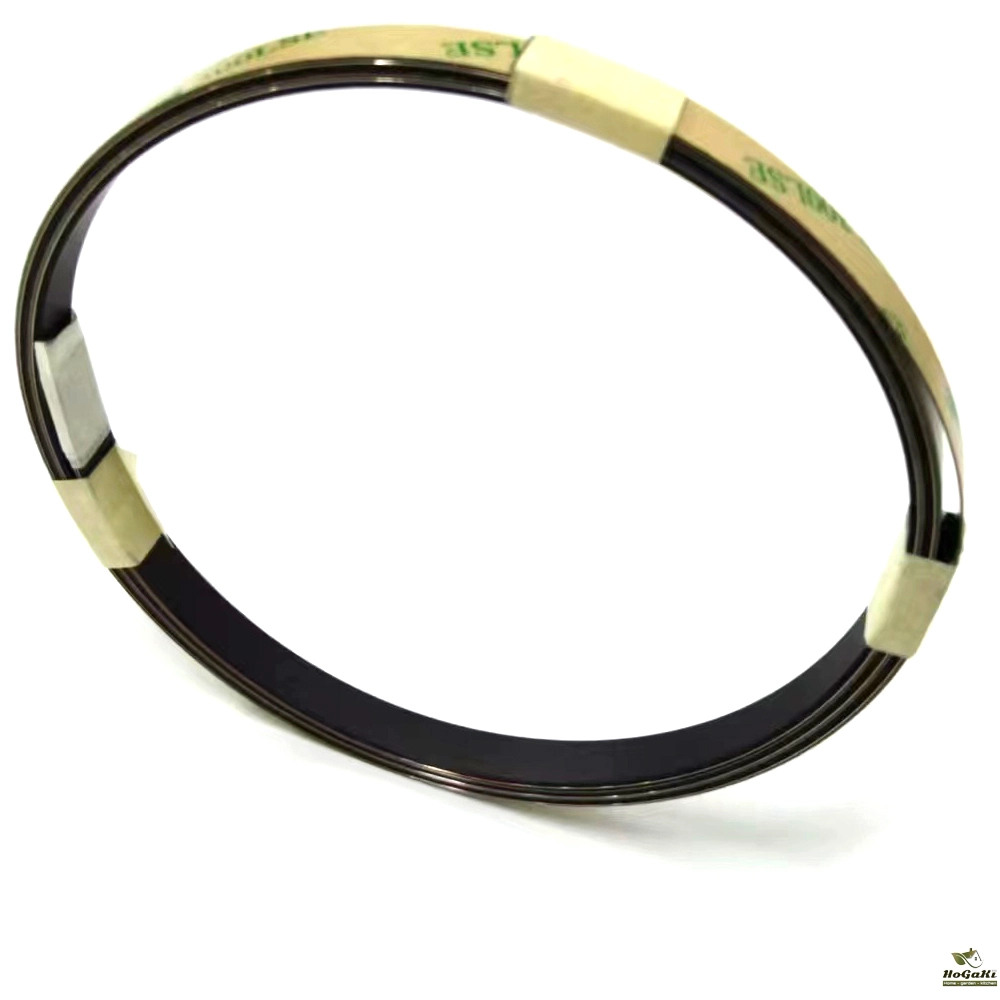

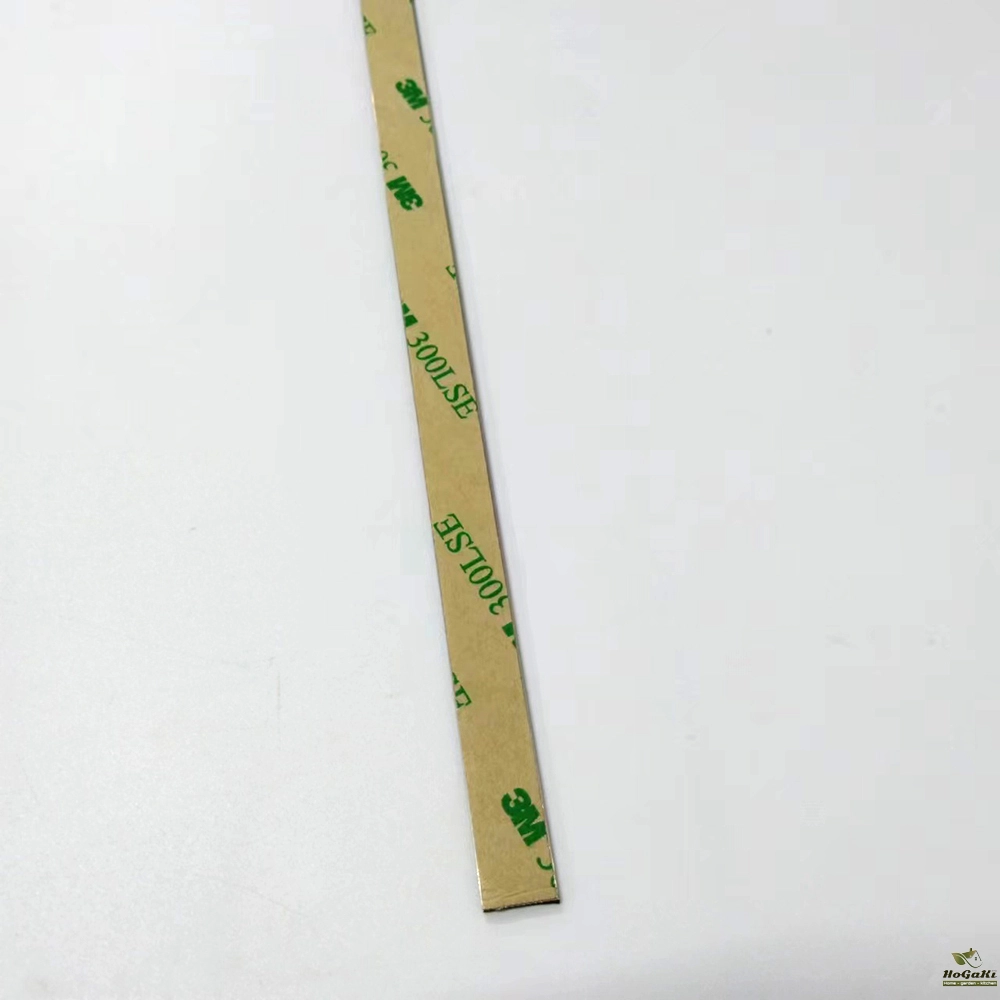

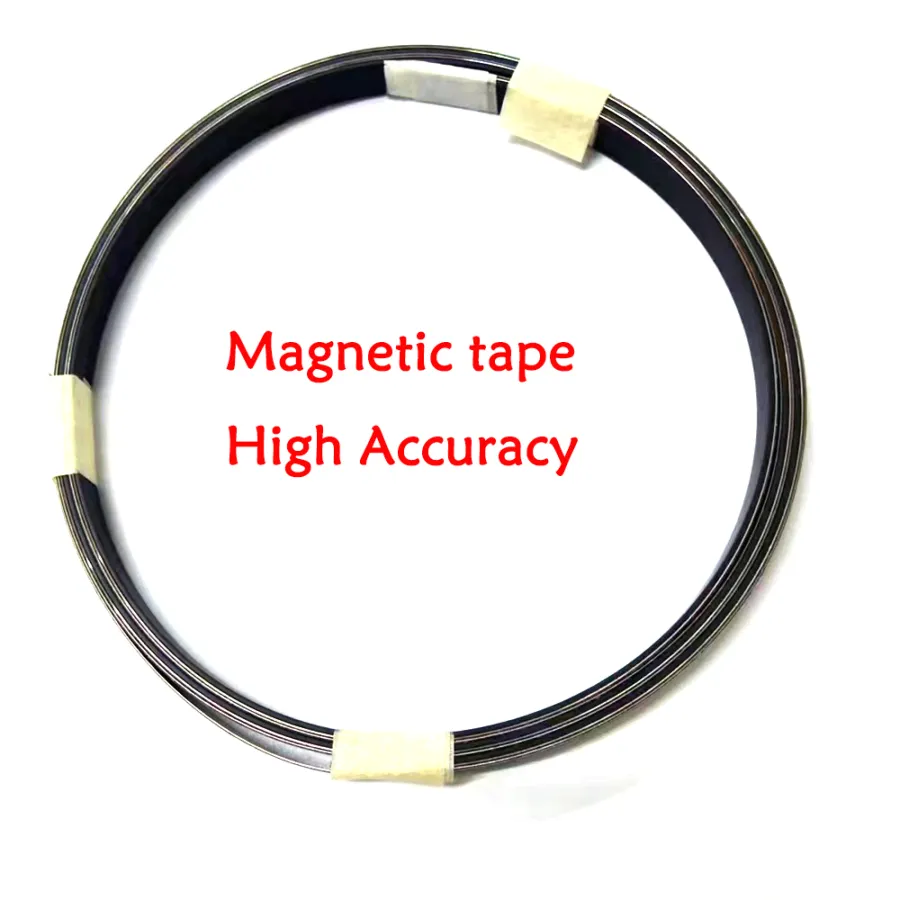

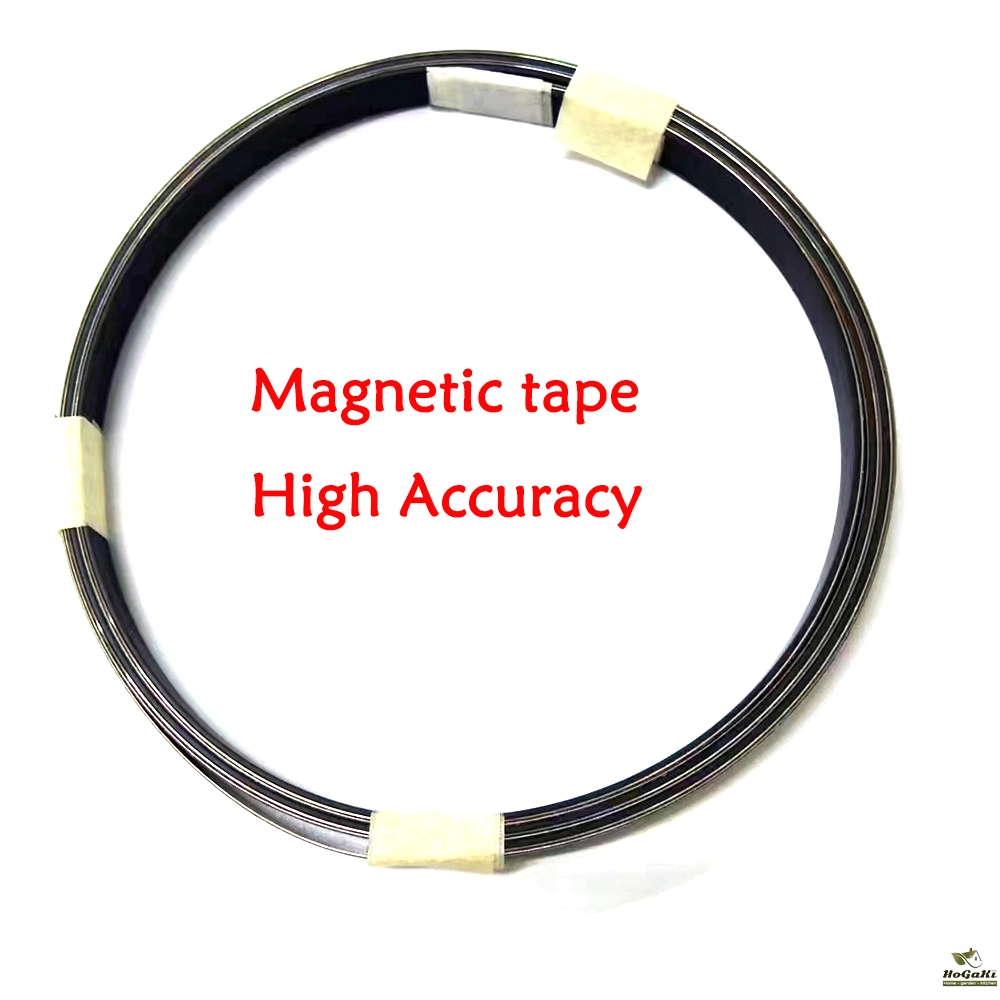

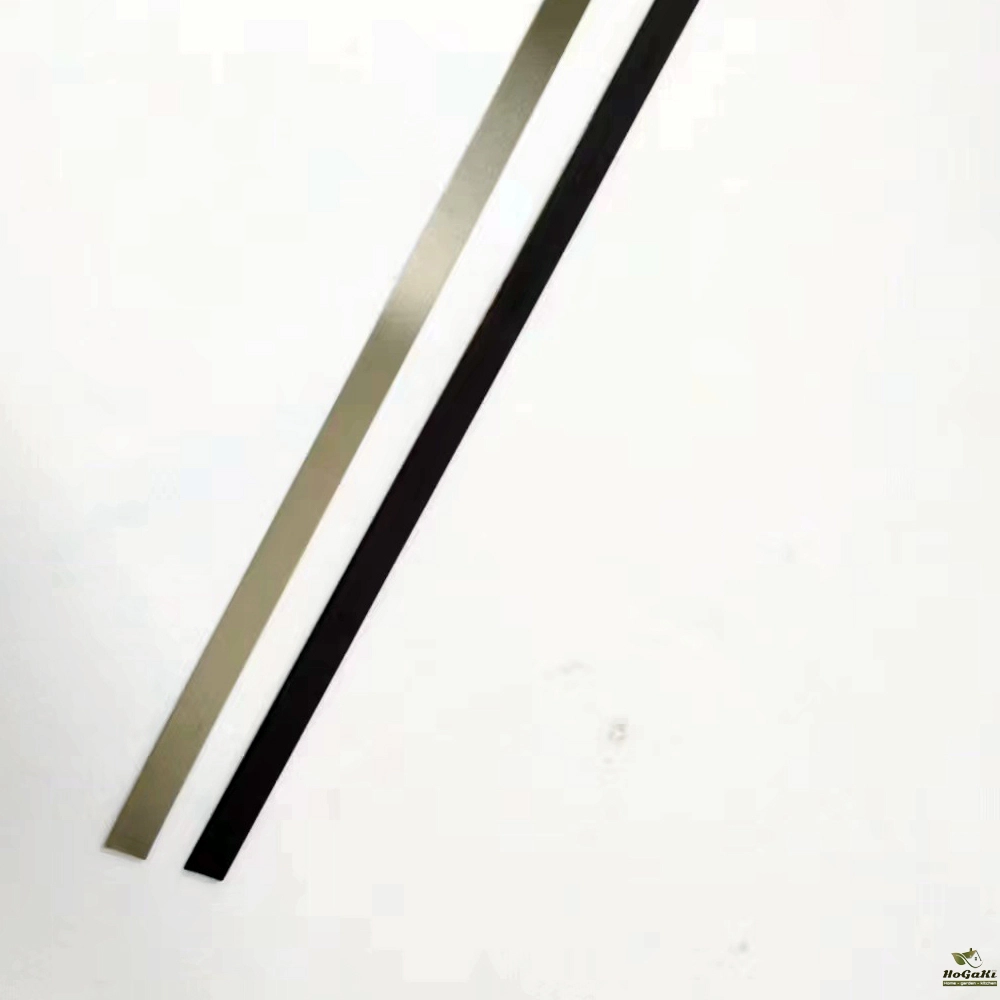

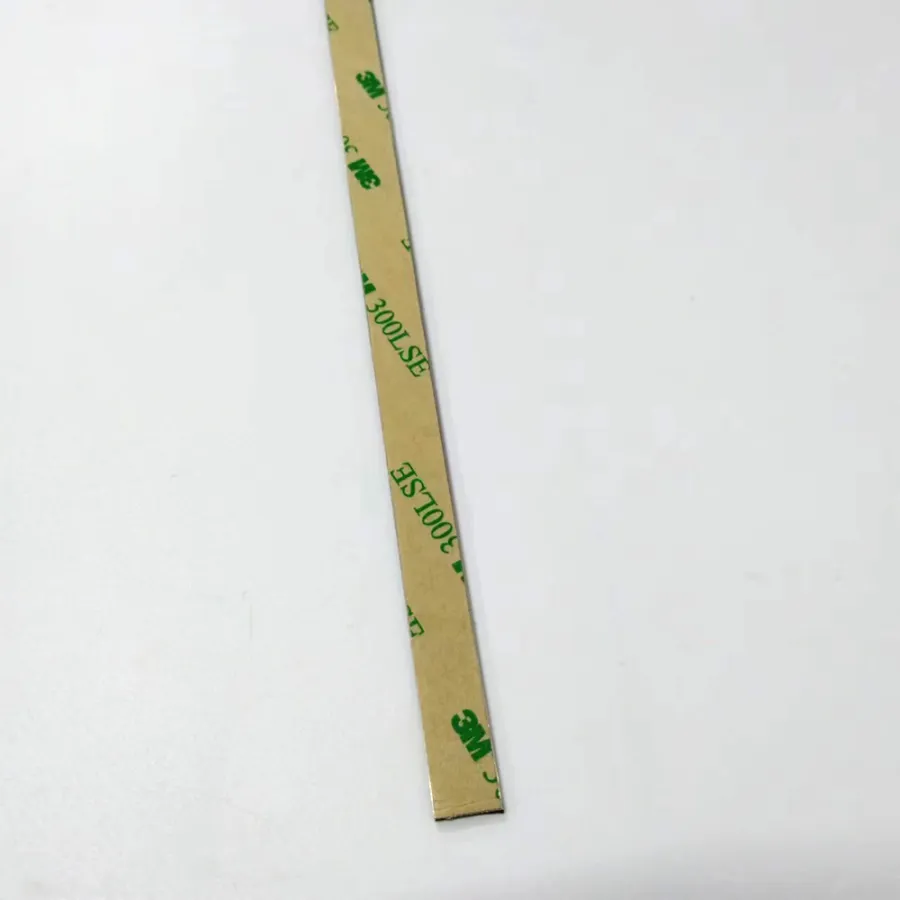

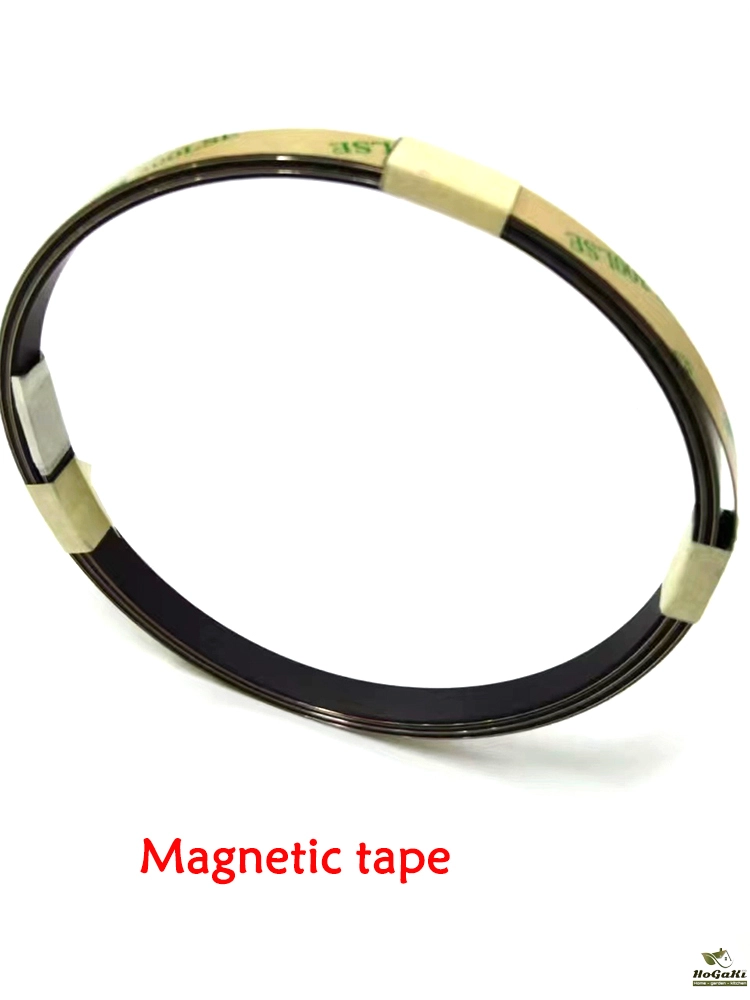

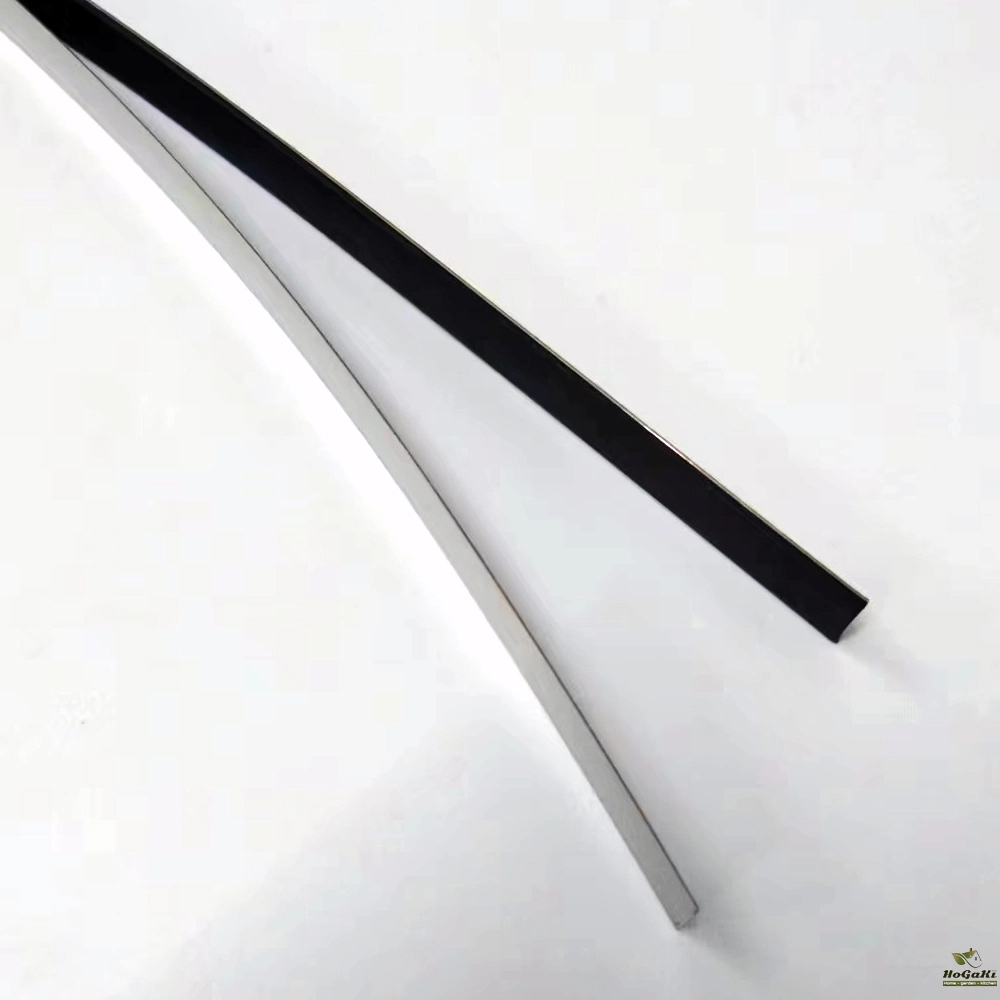

Mageneitc tape specification

Poles Pitch: 5mm/ 5+ 5mm
WidthxHeight:10x1.2mm
Working Temperature: -20~ +70°C
Storage Temperature: -30~ +80°C
Length: Customized,max 50 meter in a roll
Matched Magnetic Sensor: 5 Micron /5 um
Magnetization Accuracy:15~20um(L<1m; 20°C)



Packaging Details

  • Unit Type:
  • Package Weight: 0.588
  • Package Size: 15x9x22

  • Brand Name: jcgs
  • Certification: CE
  • Certification: RoHS
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Model Number: LP20E
  • Product name: Magnetic display with sensor
  • Resolution: 0.01mm/0.1mm/1mm
  • Display cable: 1 meter
  • Display size: 76x76x43mm
  • Display mode: MM/INCH
  • Power supply: 12-24VDC, 3pieces AA batteries
  • Waterproof grade: Digital display IP40, read head IP60
  • Moving speed: Max.4m/s
  • Operating temperature: 0 degrees to 60 degrees
  • Applications: Support frame, Wire cutting, woodworker
  • Matching magnetic tape: 5mm Pole Pitch
  • Battery Included: No
  • Battery Included: Yes
  • Choice: yes
