Mini N0/NC Wired Magnetic Reed Switch Door Sensor for Status Monitoring Ceiling-mounted Window Contacts Alarm System
4.8 (13 votes) | 60 orders
Price:
US $
9.95
- Color
-
-

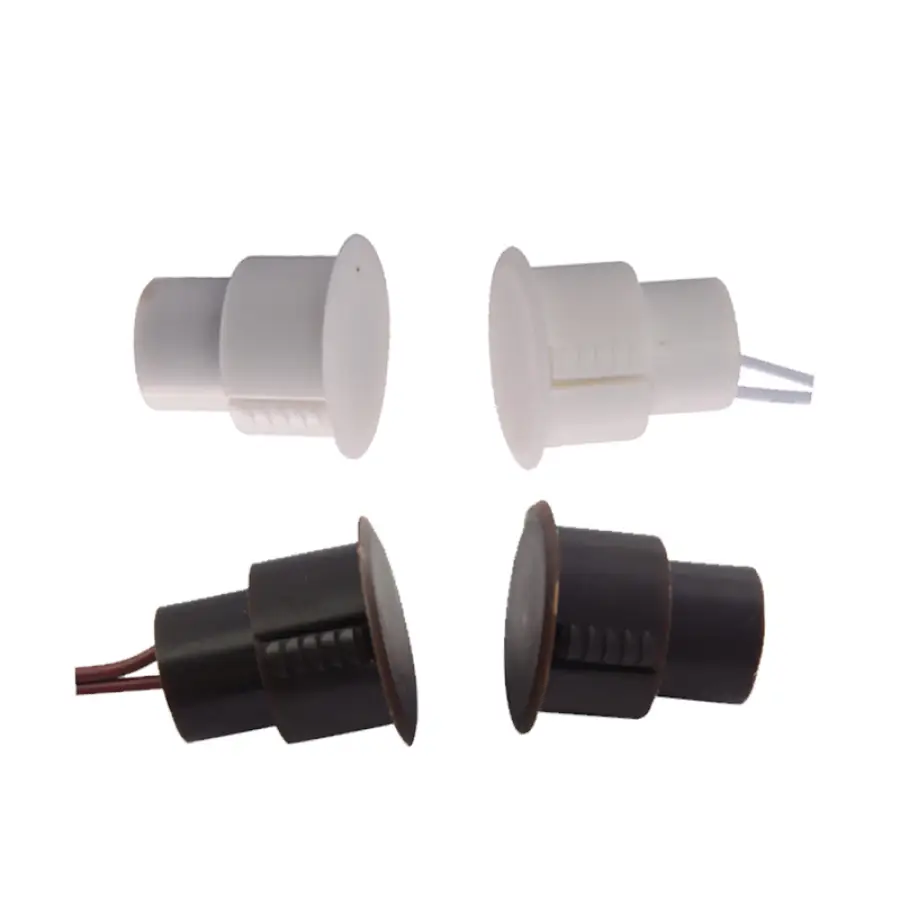

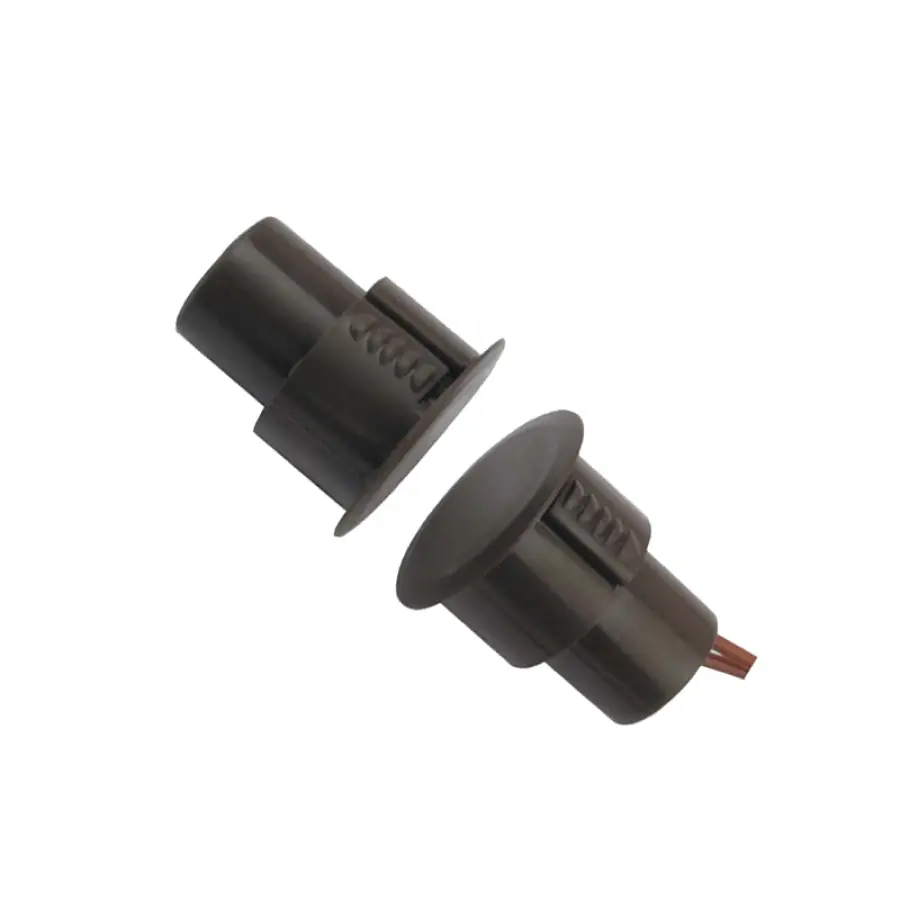

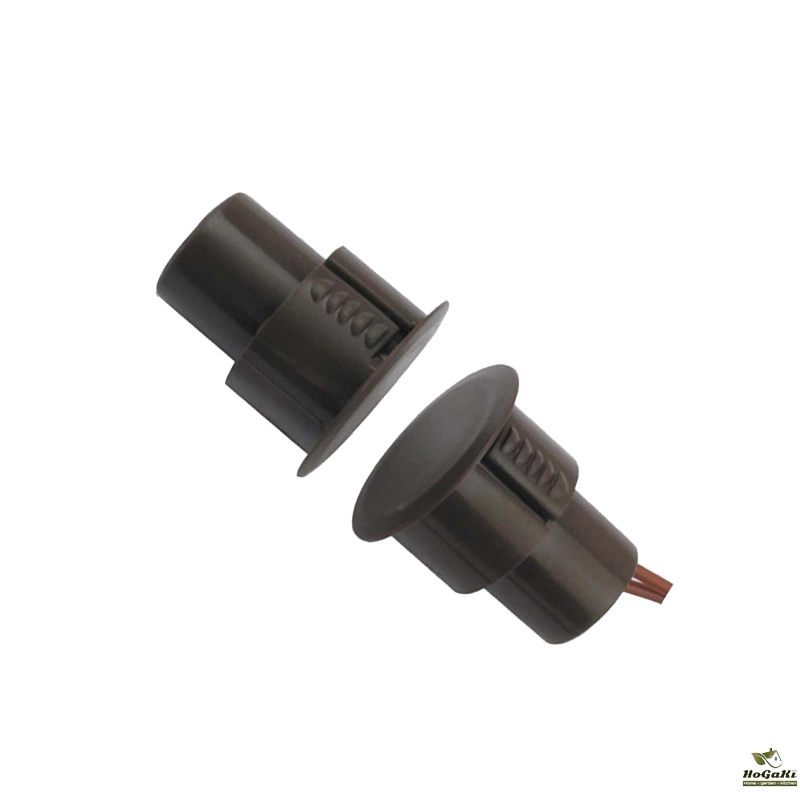

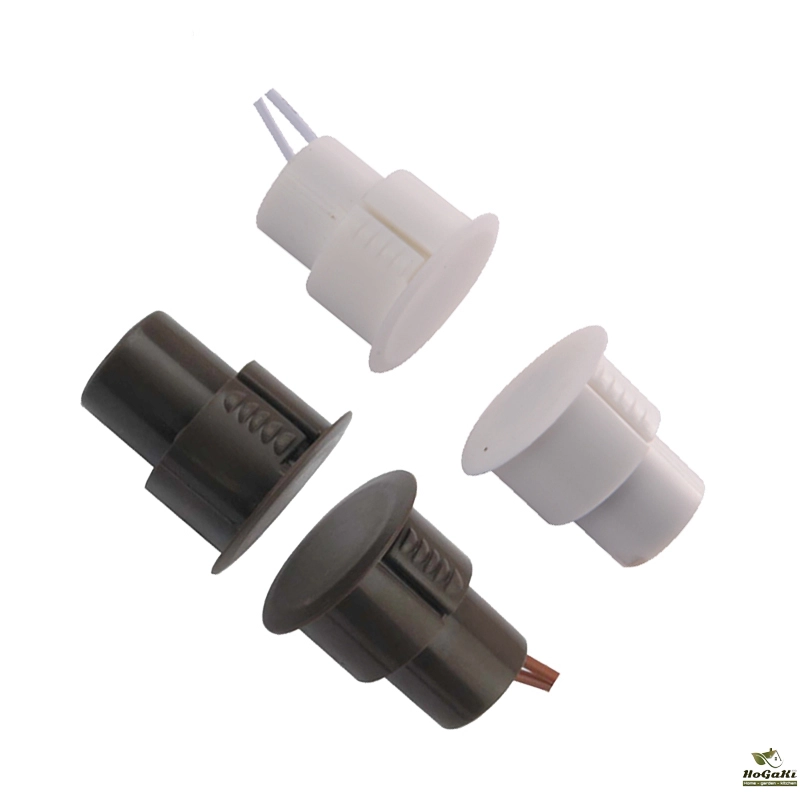

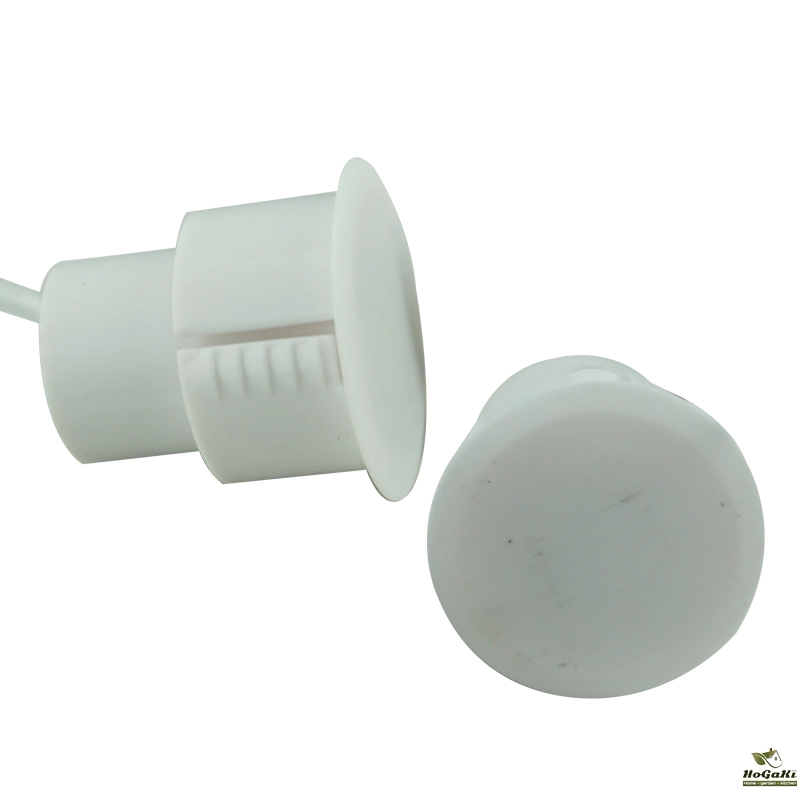

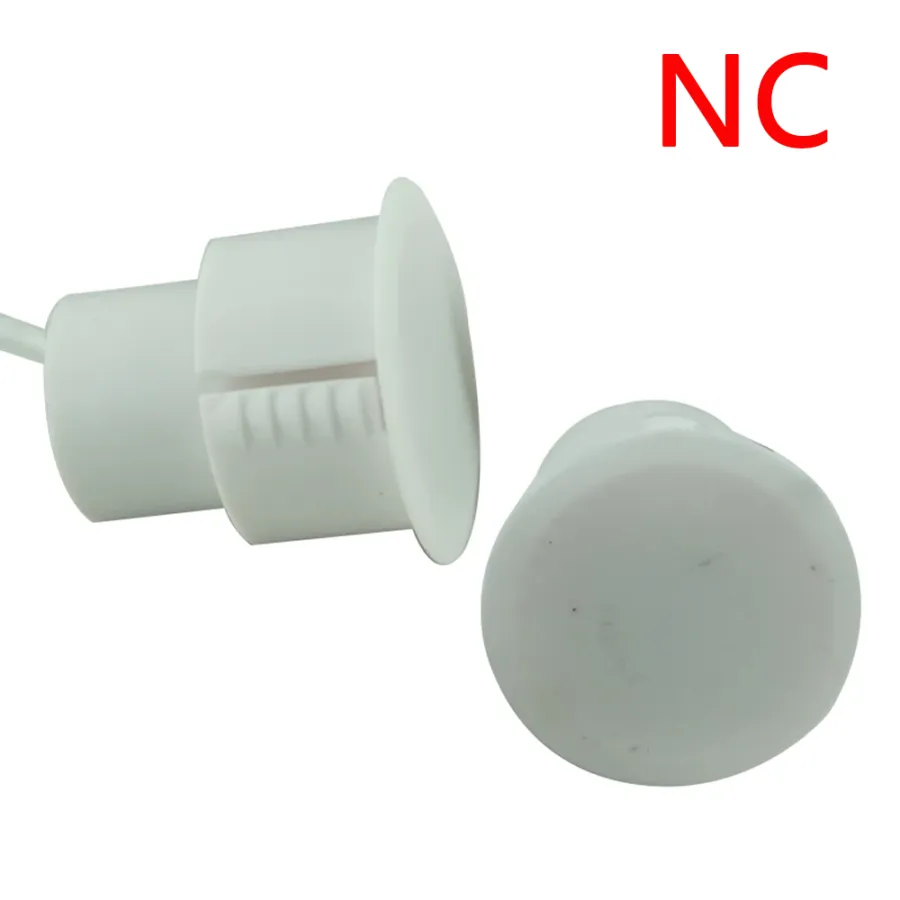

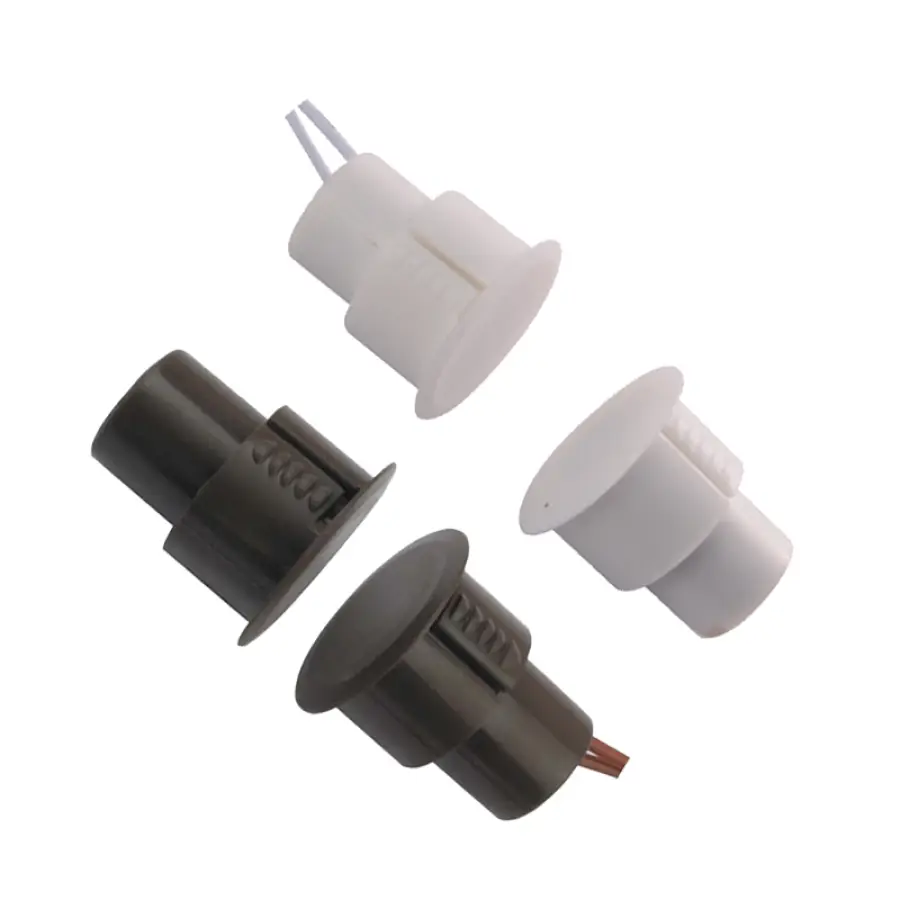

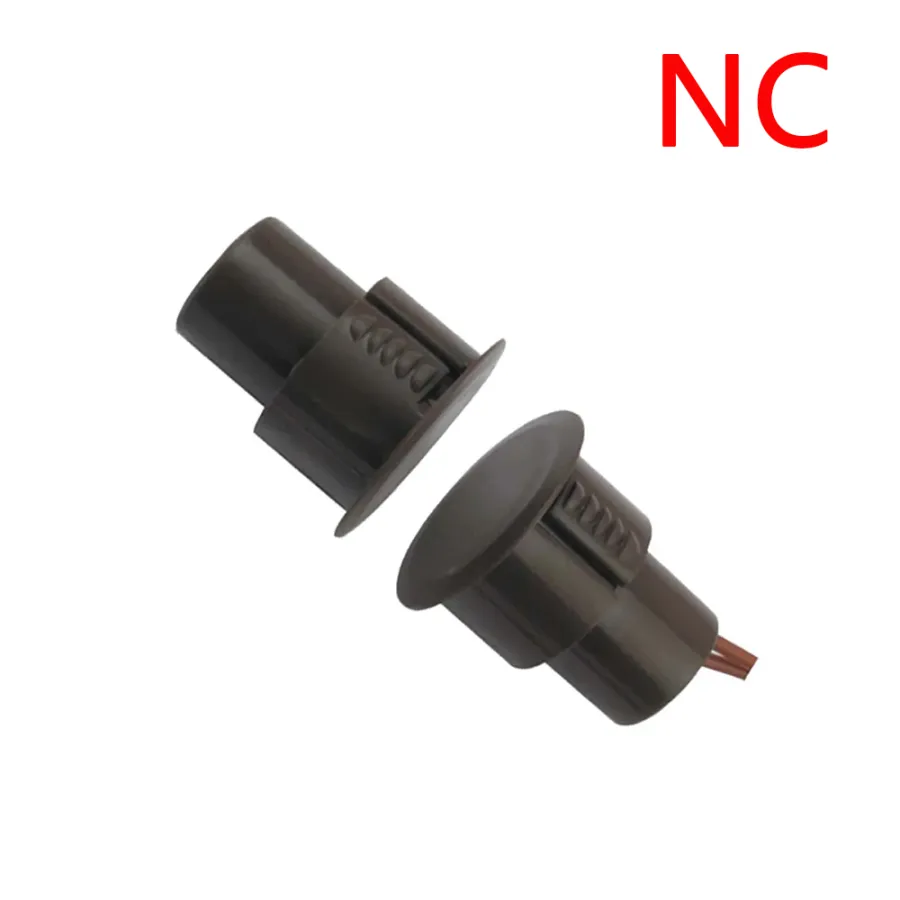

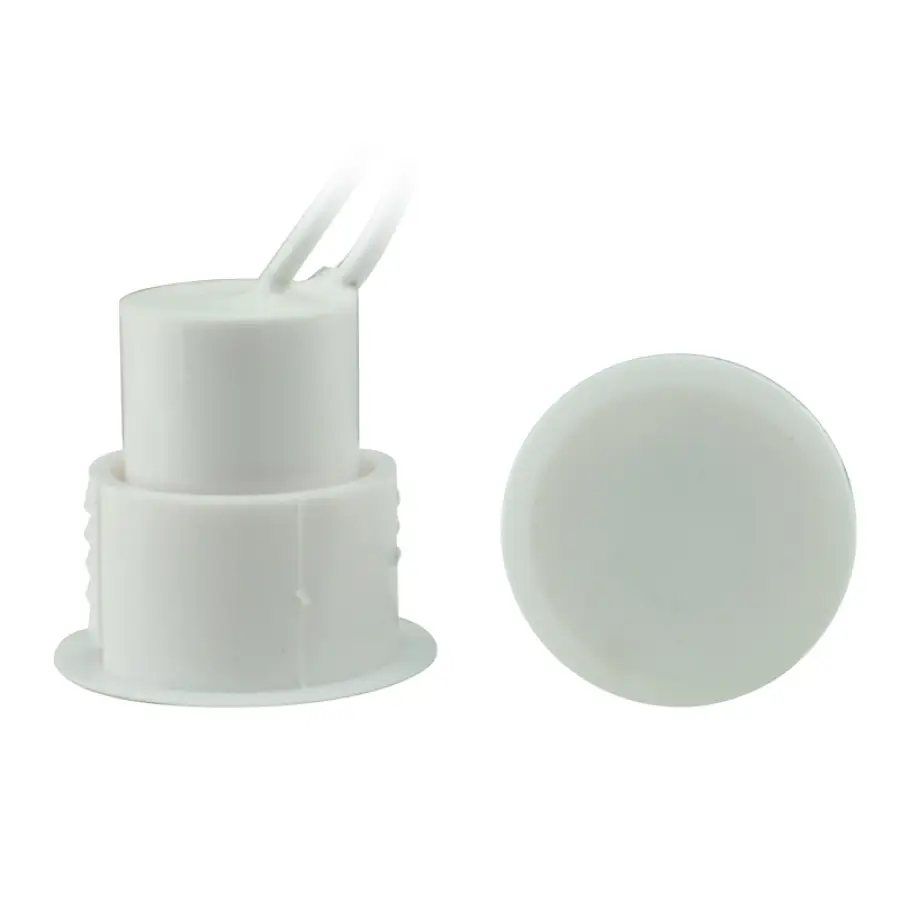

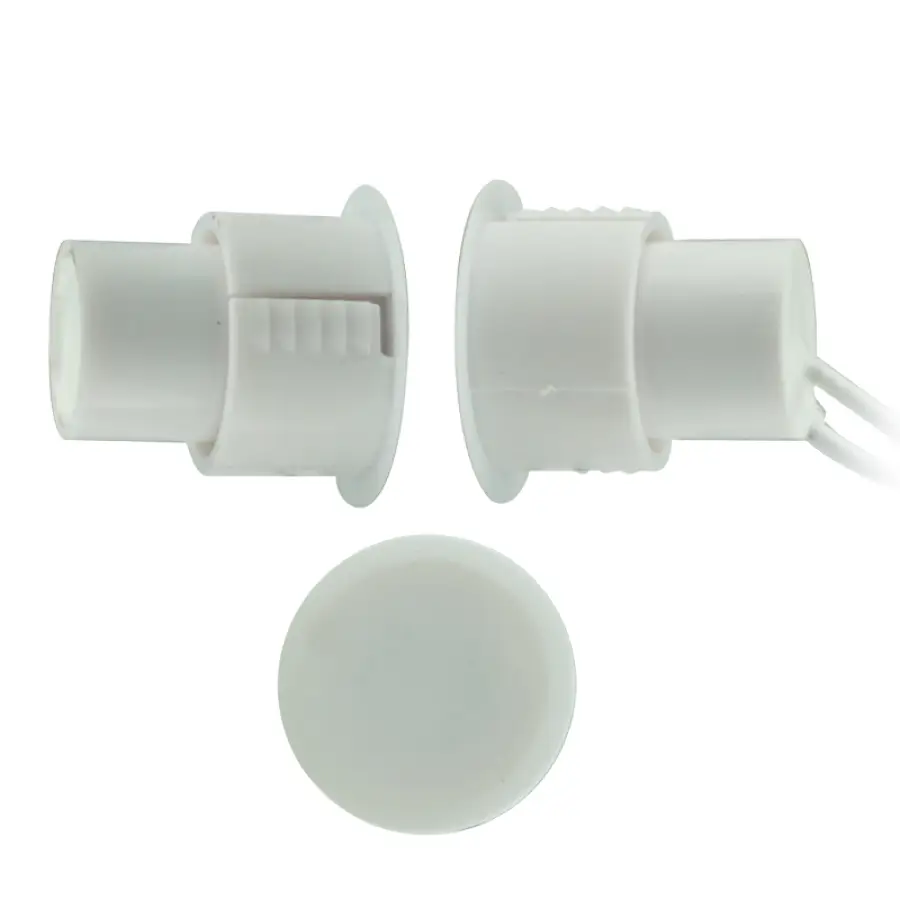

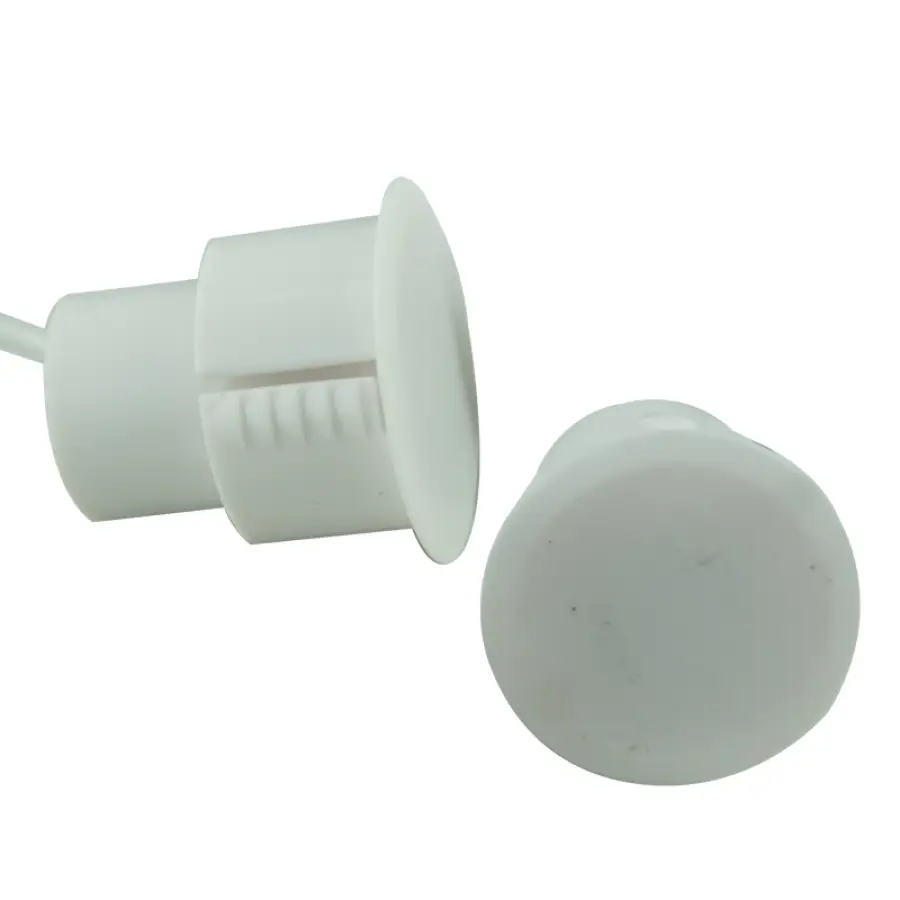

Ceiling- mounted Mini Wired Magnetic Reed Switch Window Sensor for Status Monitoring Door Contacts Alarm System
Parameter | |
Product Name: | Ceiling- mounted door or window magnetic contact |

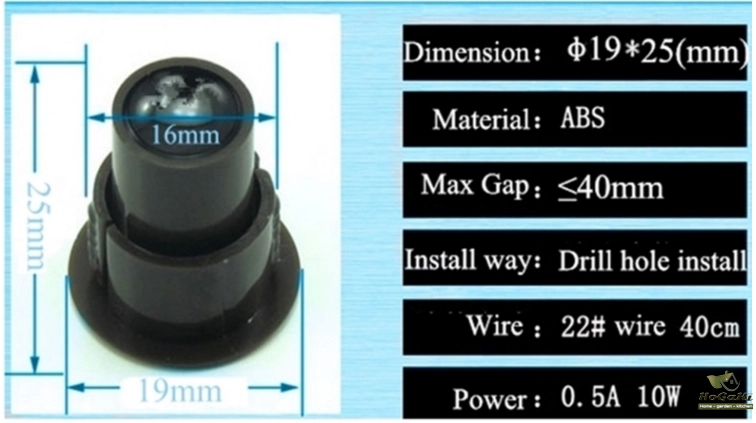

Dimension: | Φ19*25mm |
MAX Current: | ≤500mA |
MAX Voltage: | ≤100VDC |
MAX Rating: | ≤10W |
Send Distance: | 200m (in the open air) |
Code Mode: | NO/NC |
Material: | fireproof ABS housing |
Gap: | 35±5mm |
Suit for: | wooden door or window |
Weight: | 24g |
Product Feature

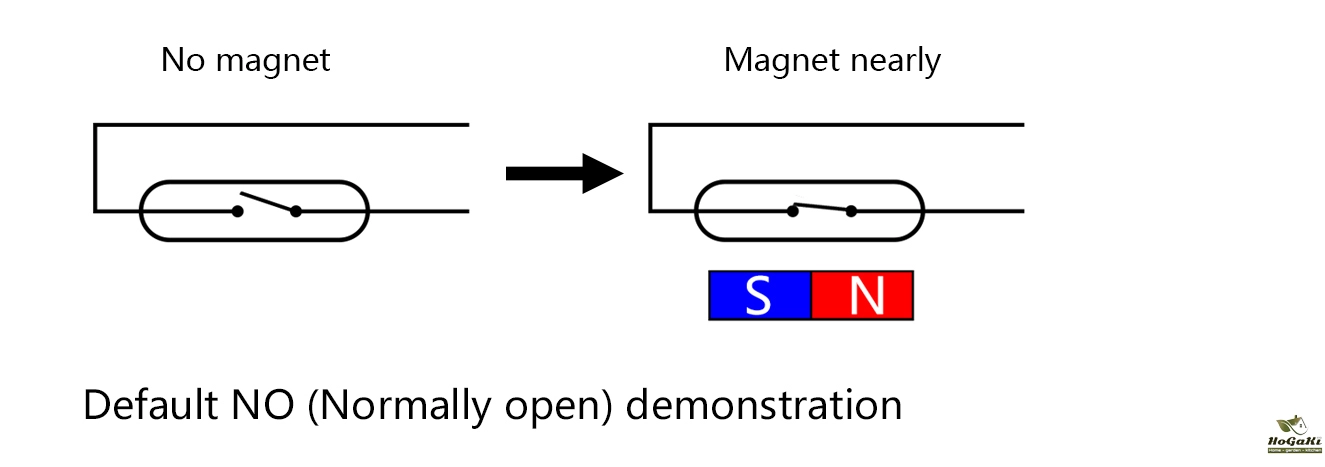

AC-136 Door magnetic contacts is an intrusion detector for doors and windows status monitoring in security system, which is made of a reed switch and a magnet. When doors and windows are closed, switch contact is affected by magnetic field of the magnet then forms a conducting state; When doors and windows are forced open, magnet is far from reed magnetic switch, the switch is disconnected and cause alarm.
Installation:
Wiring: 280mm 1007/22 # wires connect
Reed Form : NC, COM (NO, COM/NC, NO, COMCustomization )
Wiring Instruction:
1.COM(White line) : Public end, connected to thehost port.

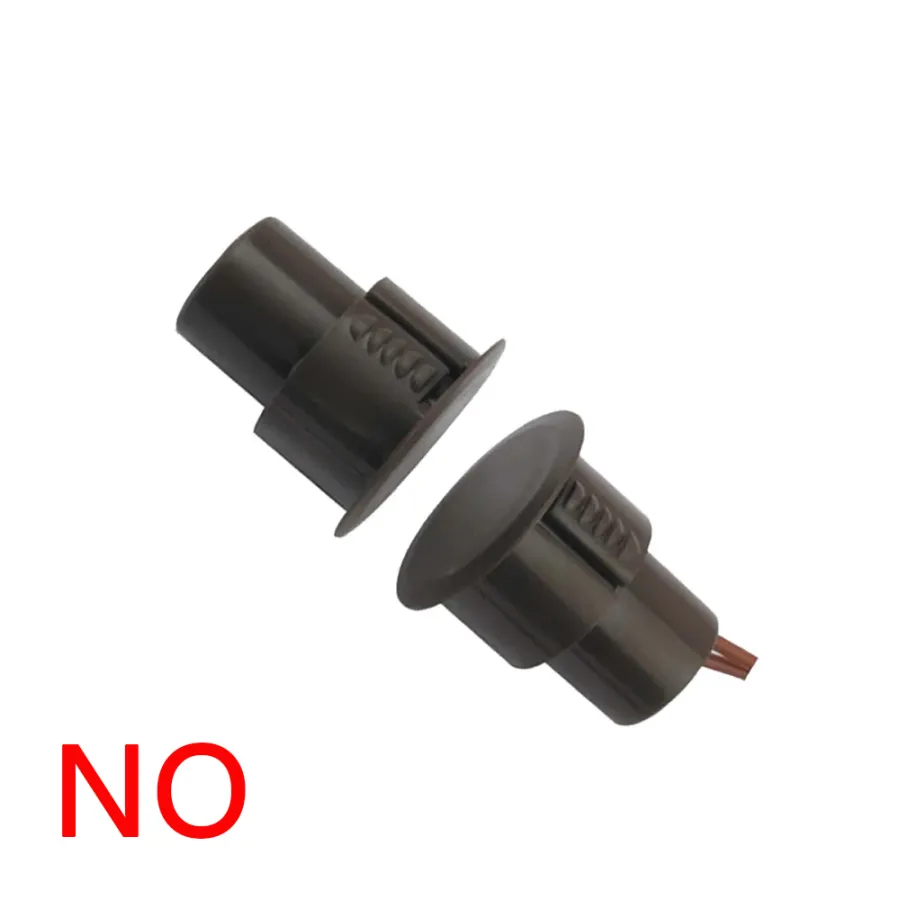

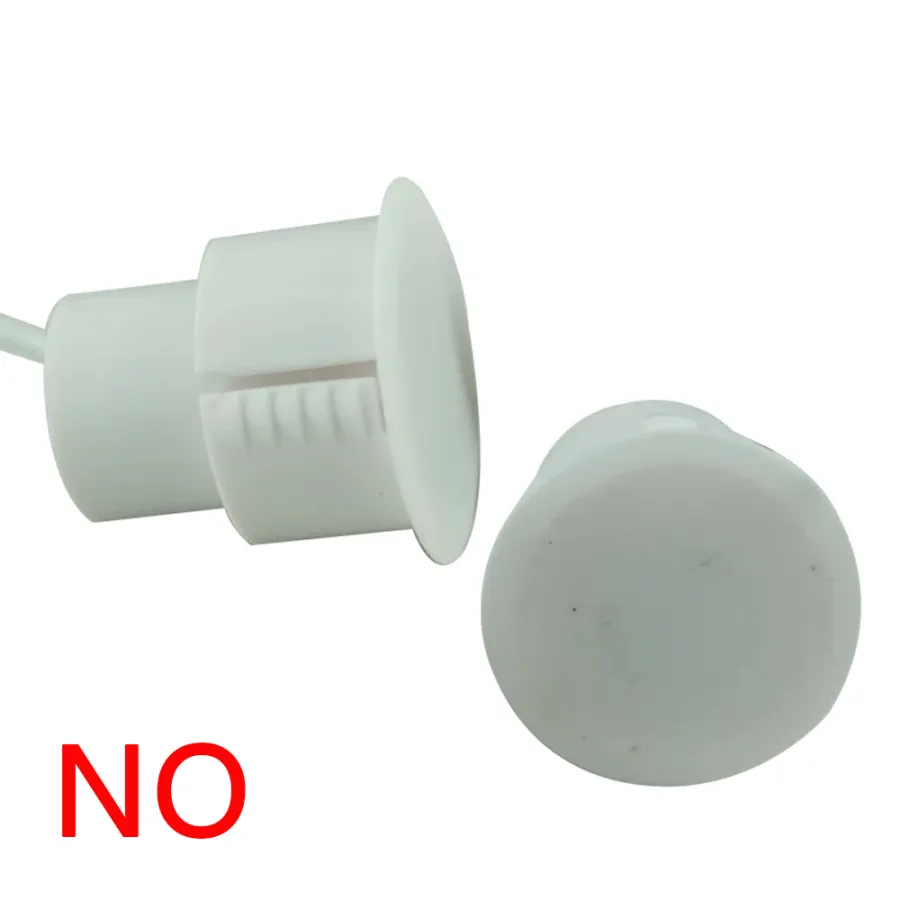

2.NO(Brown line) : NO output
3.NC(Grey line) : NC output
Accordingto actual use demand (Host/Alarm way/Fireproof door property), to connect NO/NCoutput with host port.
what features of Ceiling- mounted door or window magnetic contact ?
Product Display

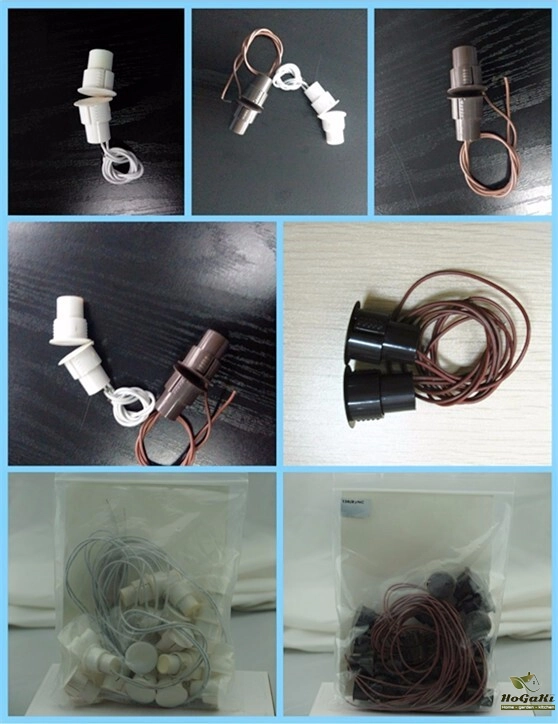

IN-KIND SHOOTING
Packaging & Shipping
1.Powerful R&D team can provide customized features and functions,referring to different
requirements from different customers.
2.Payment term: T/T, Western Union, and Paypal.
3.24 hours after-sale service is provided with the professional technical support and training.
4.Our artist team can provide Neutral pictures for distributor's website promotion.
5.Optional shipping service: couriers (UPS, DHL, TNT, and Fedex), by sea, and by air.
FAQ
FAQ
Q: Can I have a sample order?
A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.
Q:What is the lead time?
A:Sample needs 1-3 working days, mass production time needs 10-15 working days for order less than 5000pcs.
Q: Do you have any MOQ limit?
A:EXW MOQ is 100pcs under blank box.
Q: How do you ship the goods and how long does it take arrive?
A:The sample will be sent to you by optional shipping service (couriers, air, and sea). The delivery time depends on the shipping service.
Q:How will we proceed the order if I have logo to print?
A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.
Q:Does alarm panel work with any sensor?
A:The alarm system can work with all dry contact wired detectors and wireless detector, including almost all
of the wireless sensors from Chinese manufacturers. The wireless encode and decode is EV1527 or our wireless sensors.
Packaging Details
- Unit Type:
- Package Weight: 0.030
- Package Size: 12x3x15
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Model Number: AC136
- Size: 19*25mm
- Place of Origin: Guangdong, China
- Model Number: AC-136
- Network: NO/NC
- Dimension: 19*25mm
- MAX voltage: ≤100VDC
- Material: fireproof ABS housing
- Gap: 35±5mm
- Application: wooden door or window
- MAX rating: ≤10W
- MAX current: ≤500mA
- Colour: brown/white
- Warranty: 2 Years
- Certificate: CE Approved
- Choice: yes
- semi_Choice: yes
