9x1 HDMI Multi-viewer switcher Seamless 4x1 4K HDMI 4 9 Screen Real Time Multi Viewer Screen Splitter 9 in 1 out Switch Adapter
4.3 (4 votes) | 8 orders
Price:
US $88.06 - 288.78
Discount Price:
US $
56.70 -
171.51
-36%
- Color
-
-
HDMI 9x1/4x1 Multi-viewer switcher 4K Seamless 4 / 9 Screen Real Time Multi Viewer Splitter 4 in 1 out HDMI Switch Adapter with IR 1080P
There are 2 model:

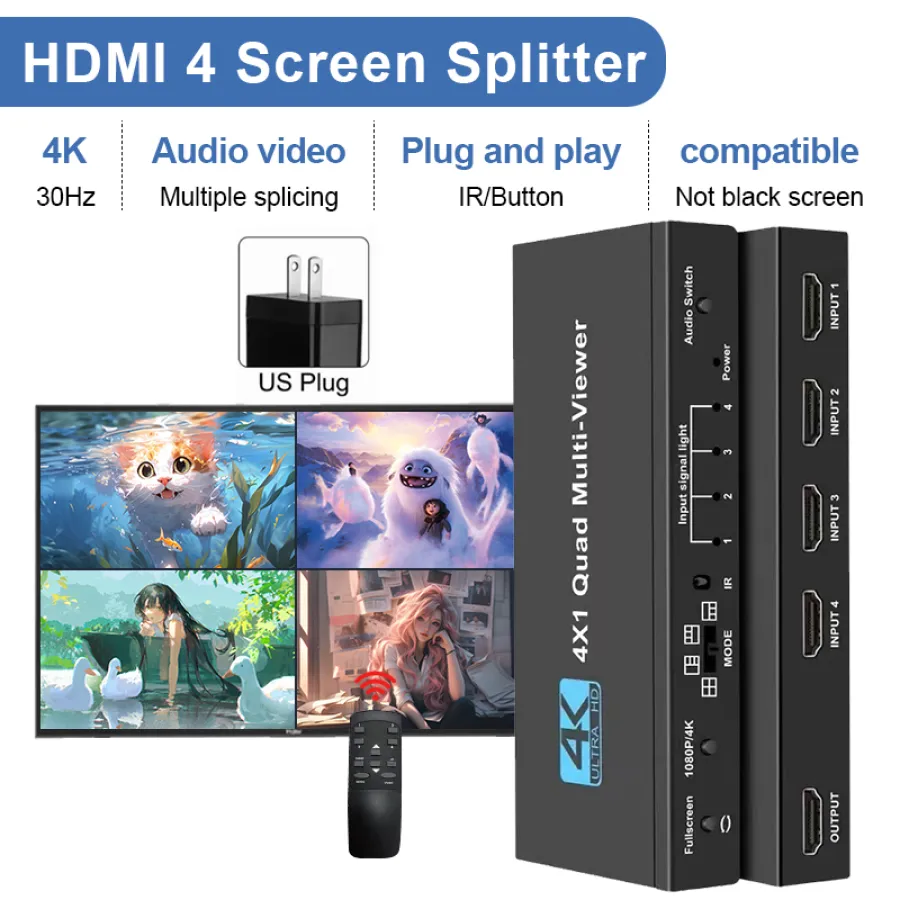

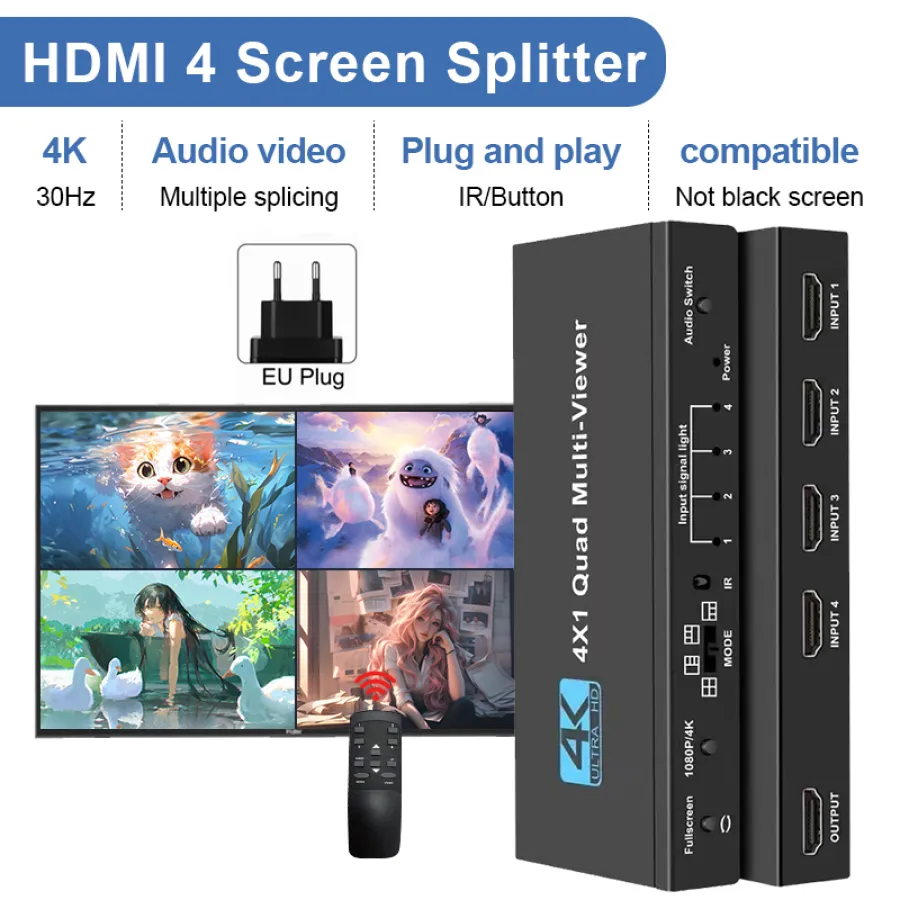

4X1 4 Screen Real Time Multi-viewer switcher (Support 1x1,2x2 screen segmentation display modes)

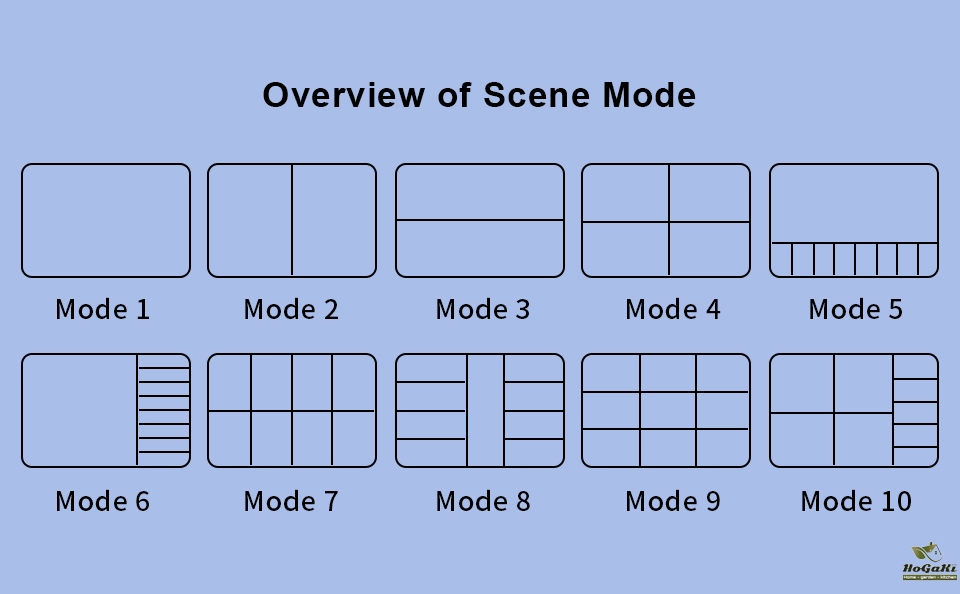

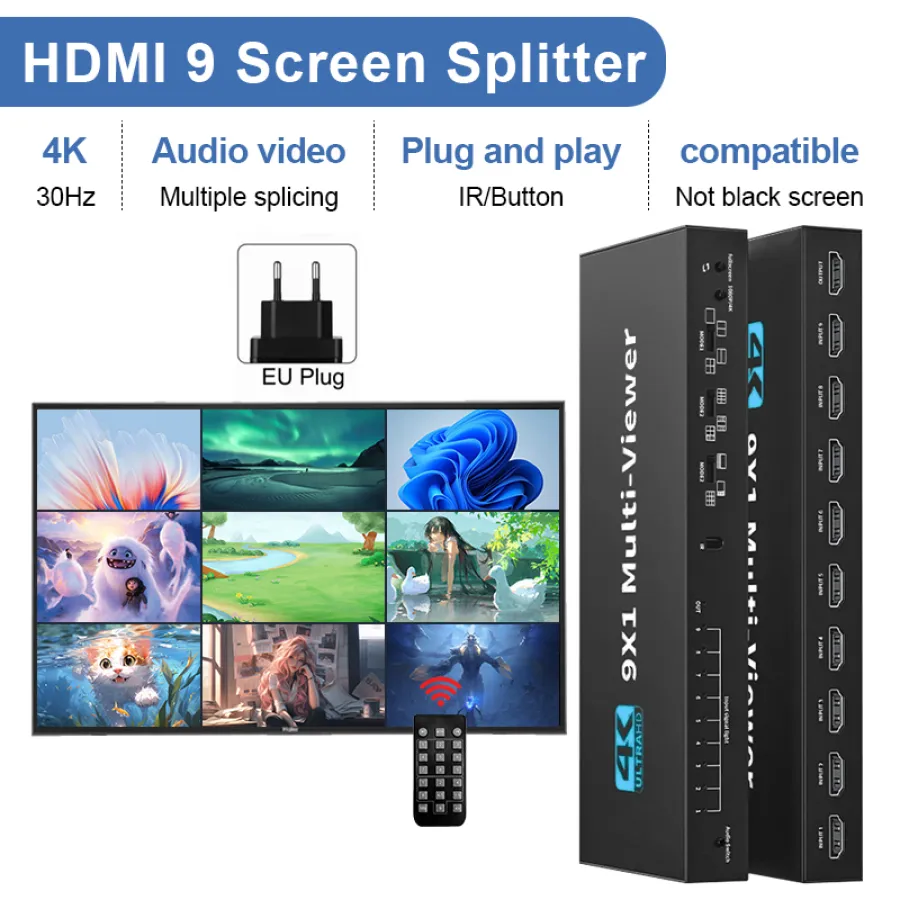

9X1 9 Screen Real Time Multi-viewer switcher (Support 1x1,1x2,2x2.4x2,3x3.... 9 split screen display modes)
Please choose the right specification for your needs.

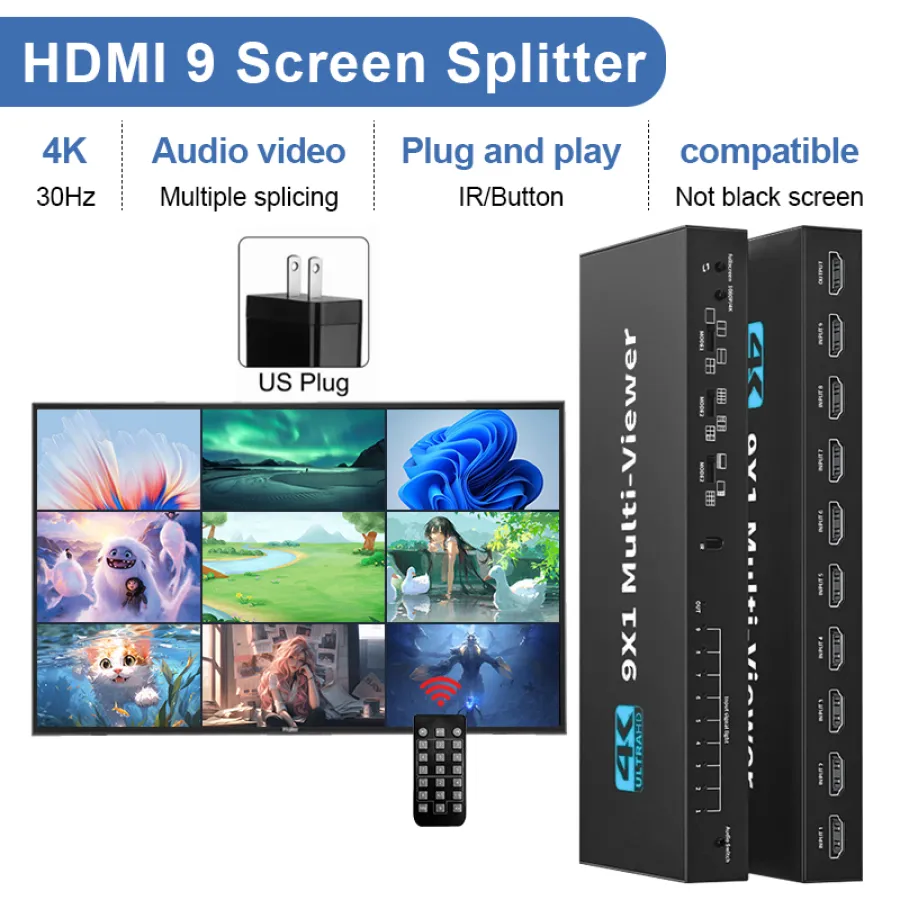

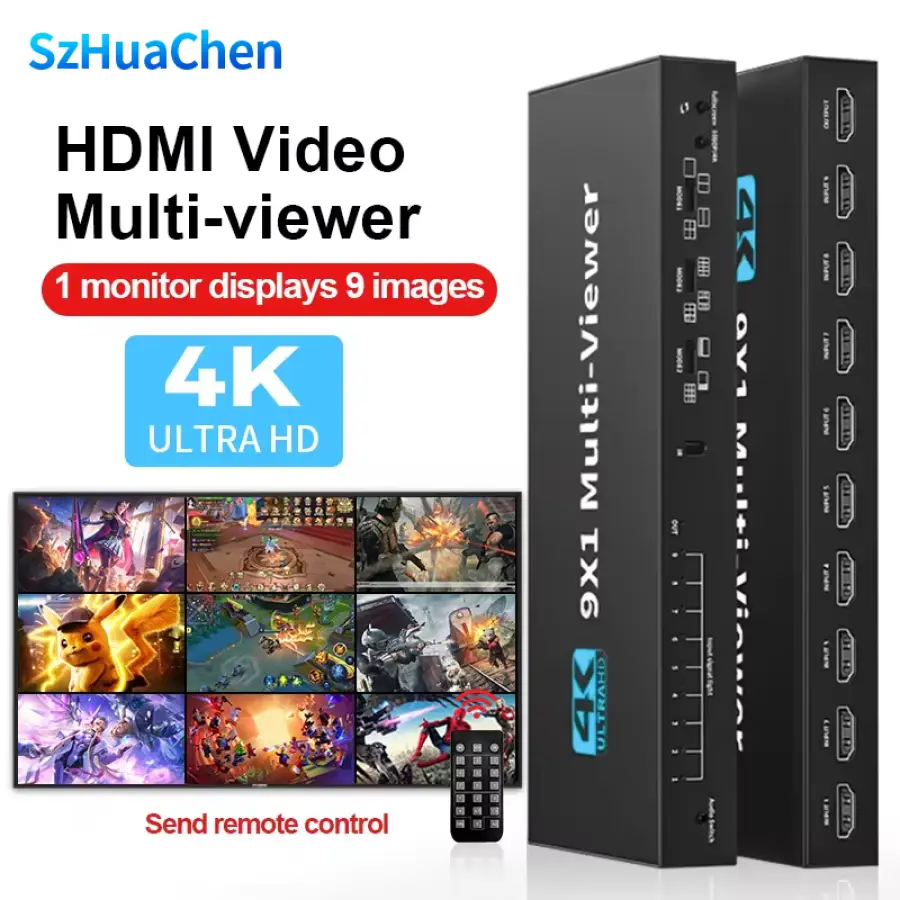

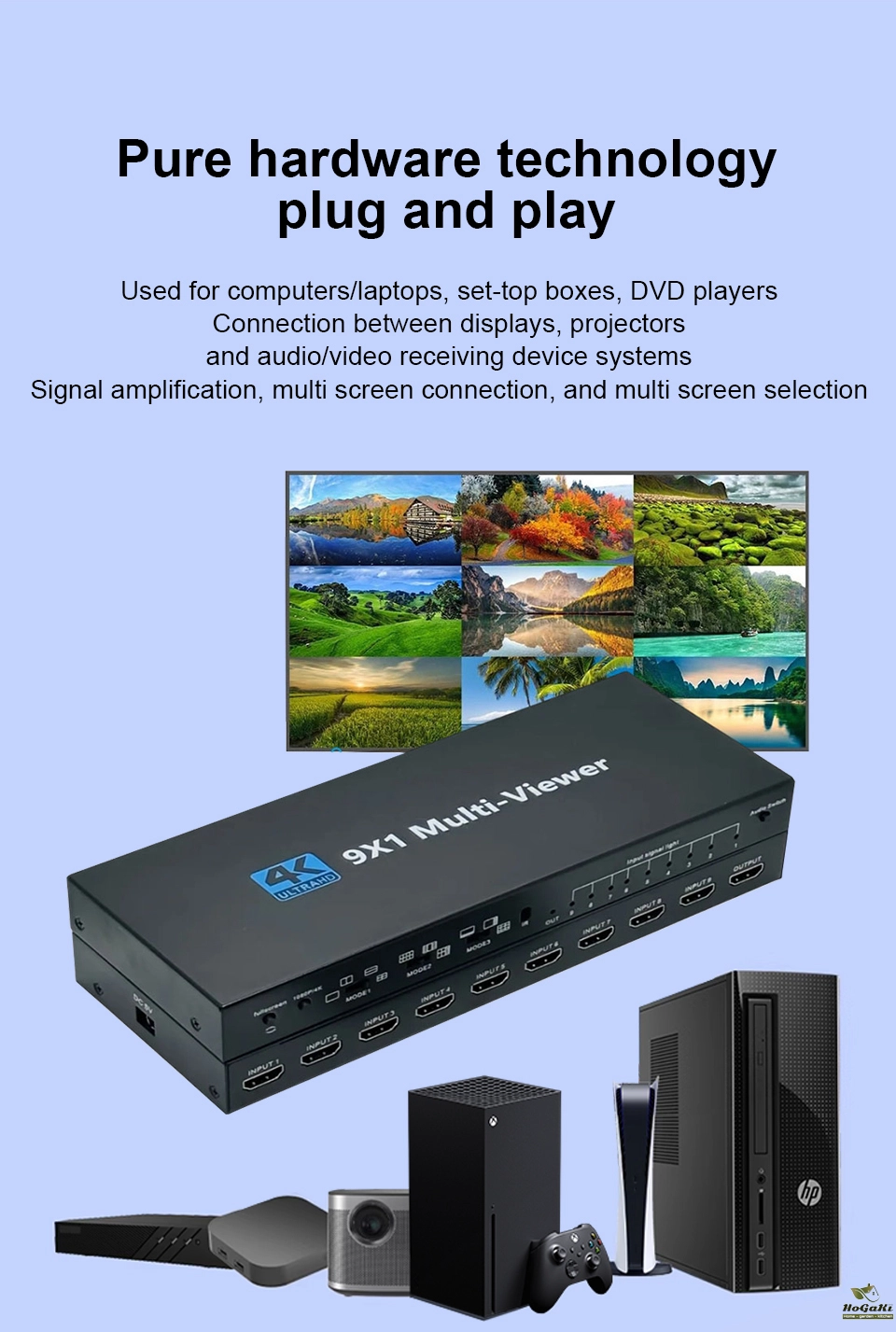

9x1 Model Product Description:

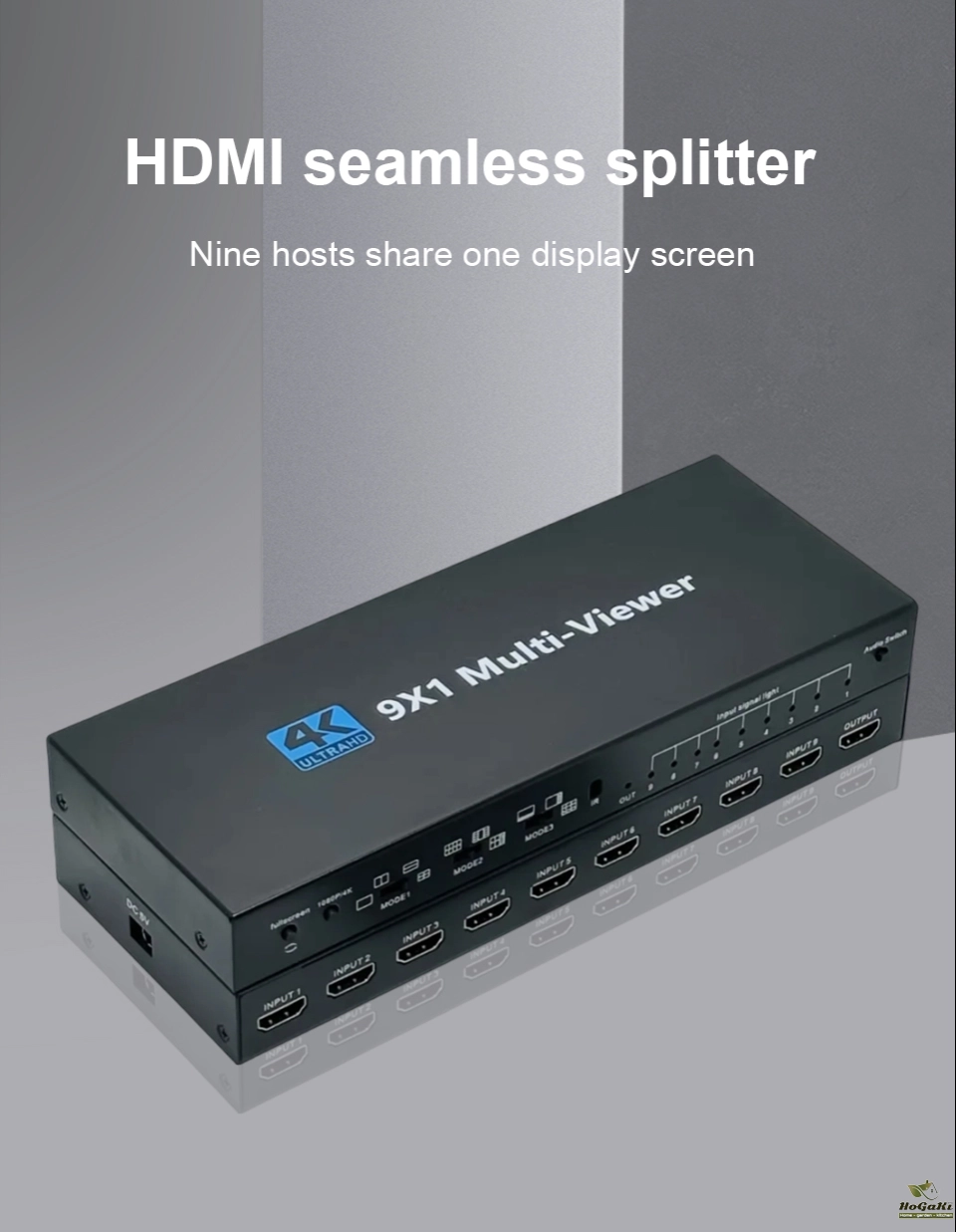

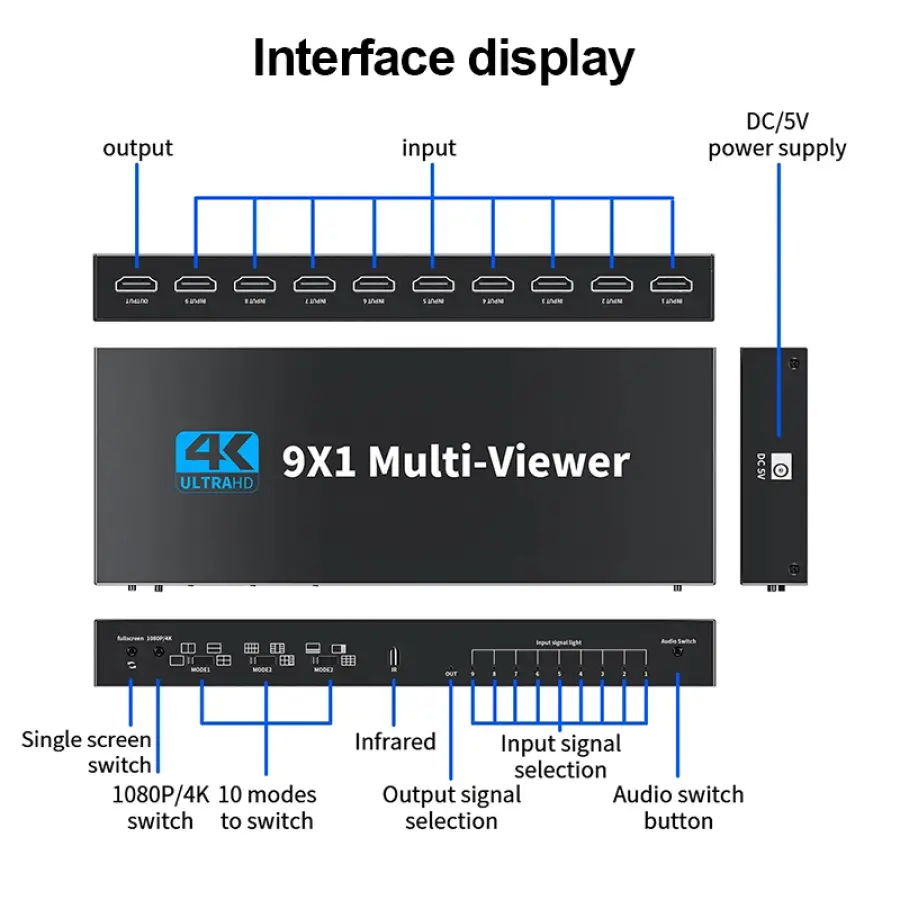

This HDMI 9 Multi-viewer is a high-performance switch withnine-channel HD screen segmentation and seamless switching output. lt candisplay 9HD digital video signal on the same screen, and has a variety ofvideo segmentation, seamless switching 9 HD input signal synchronously. Thecontrol methods of the switch is flexible, it can be switched via button and IRcontrol. lt is a very practical and stable switch that easy to install. lt can beused in the major projects, meeting halls and other places.
HDMl output resolution up to 1080P/60Hz and 4K/30Hz, and there are 9average screens in multi-viewer mode when you first use the product. Thescreen shows color bar in case of no signal input.
Product Features:
*Support 9 HDMI input, 1 HDMI output
*Support 9 HDMl signal screen segmentation
*Support 9 HDMl signal seamless switching
*Switch between 1080P/60Hz and 4K/30HZ， 4K30HZ (RGB) and backwardcompatible.
*Support HDMI1.4 HDCP1.4 and backward compatible.
*HDMl input and output transmission distance:high speed HDMI cable canreach up to 15M(HDMI cable 19+128AW)

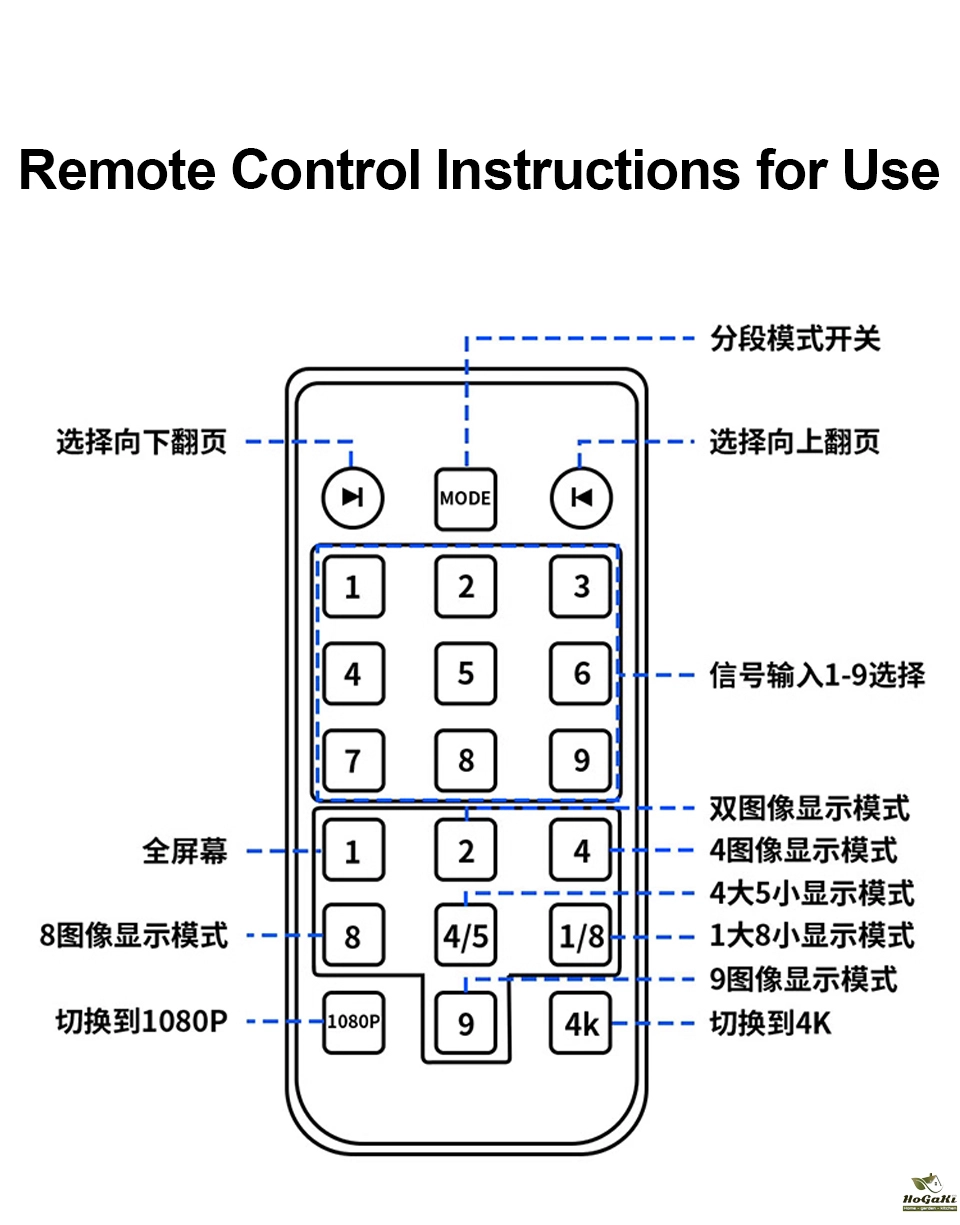

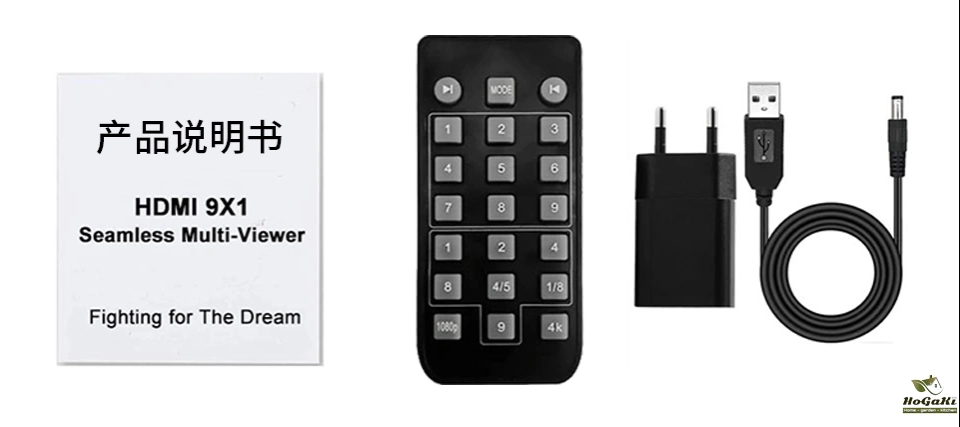

*Support IR control*Power Supply: DC5V2A

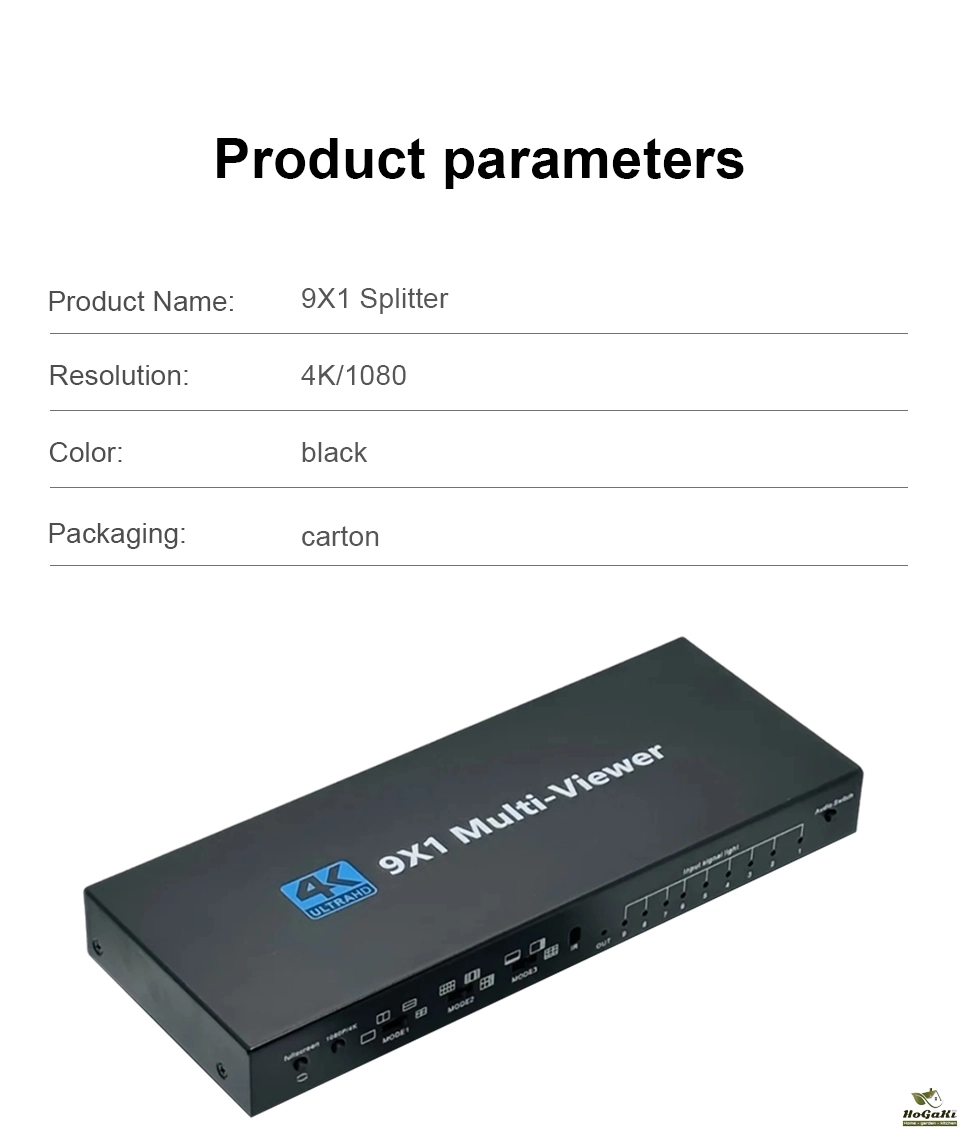

Specifications:
Support HDMl resolution:24/50/60fs/4K30HZ/1080P/1080i/720p/576p/576i/480p/480i
Support video color format:24bit/30bit/36bit.
Support audio input format:DTS-HD/Dolby-realHD/Dolby-AC3/DSD
Support audio output format: LPCM,PCM2
Max bandwidth: 330Mhz
Max bandrate:10.2Gbps
Input/Output TMDS signal:0.5~1.5V p-p(TTL)
Input/Output DDC sianal: 5Volts p-p(TTL))
Input cable distance: <15m AWG24 HDMI standard cable
Outout cable distance: <24m AWG24 HDMI standard cable
Max working current: 5V/0.6A
Operating Temperature range: (-15~+55°C)
Operating Humidity range: 5-90%RH(No Condensation))
Dimension (LX Wx H): 148*63*23mm
Packaging Details
- Unit Type:
- Package Weight: 1.000
- Package Size: 20x5x18
- Brand Name: SzHuaChen
- Hign-concerned Chemical: None
- Origin: Mainland China
- Certification: CE
- Model Number: 3
