Linshang LS237 Car Paint Thickness Gauge Checking Auto Coating Identify Ferrous Putty with Three Color and Rotatable Screen
ID: 153464

Linshang LS237 Car Paint Thickness Gauge Checking Auto Coating Identify Ferrous Putty with Three Color and Rotatable Screen

4.9 (236 votes) | 1000 orders
Price: US $457.41
Discount Price:
US $ 207.06
-55%
Color
Quantity

Buy Now
Add to Cart


Rechargable Car Paint Thickness Gauge Checking Auto Coating Identify Ferrous Putty With Three Color and Rotatable Screen



Description:

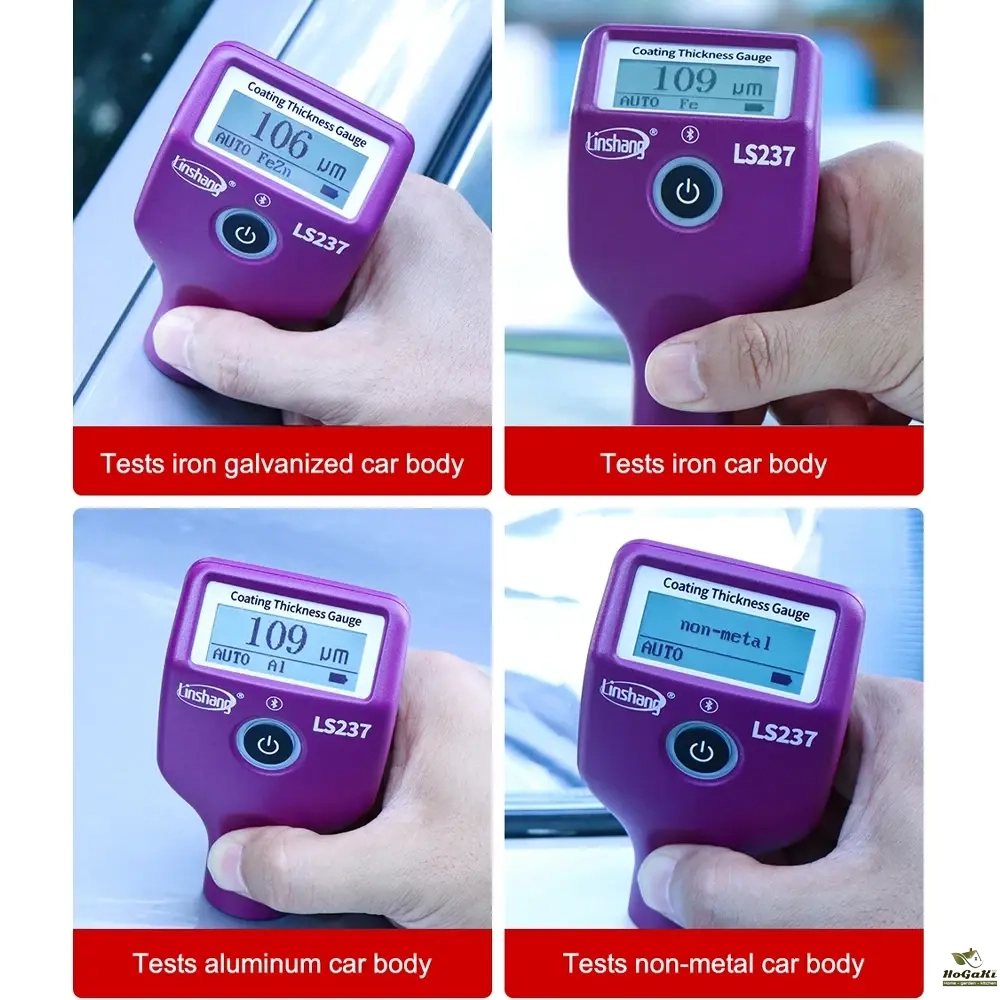

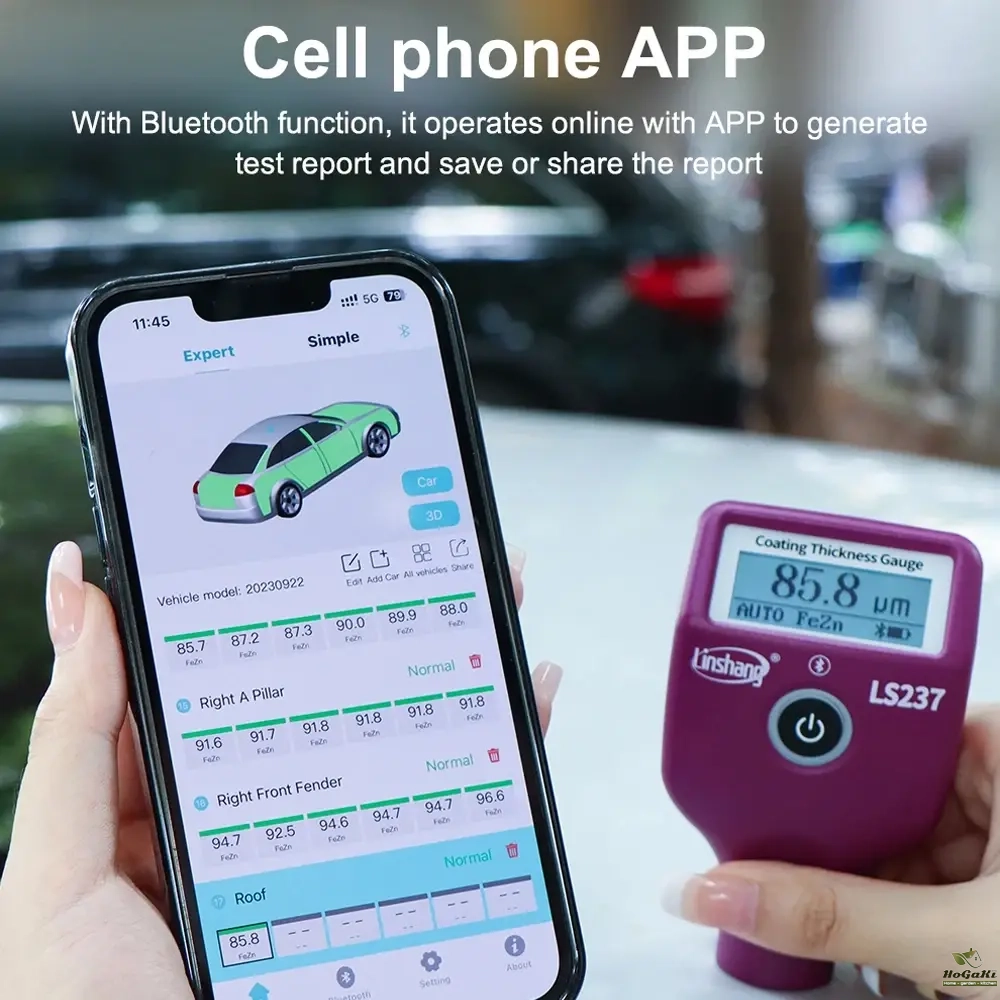

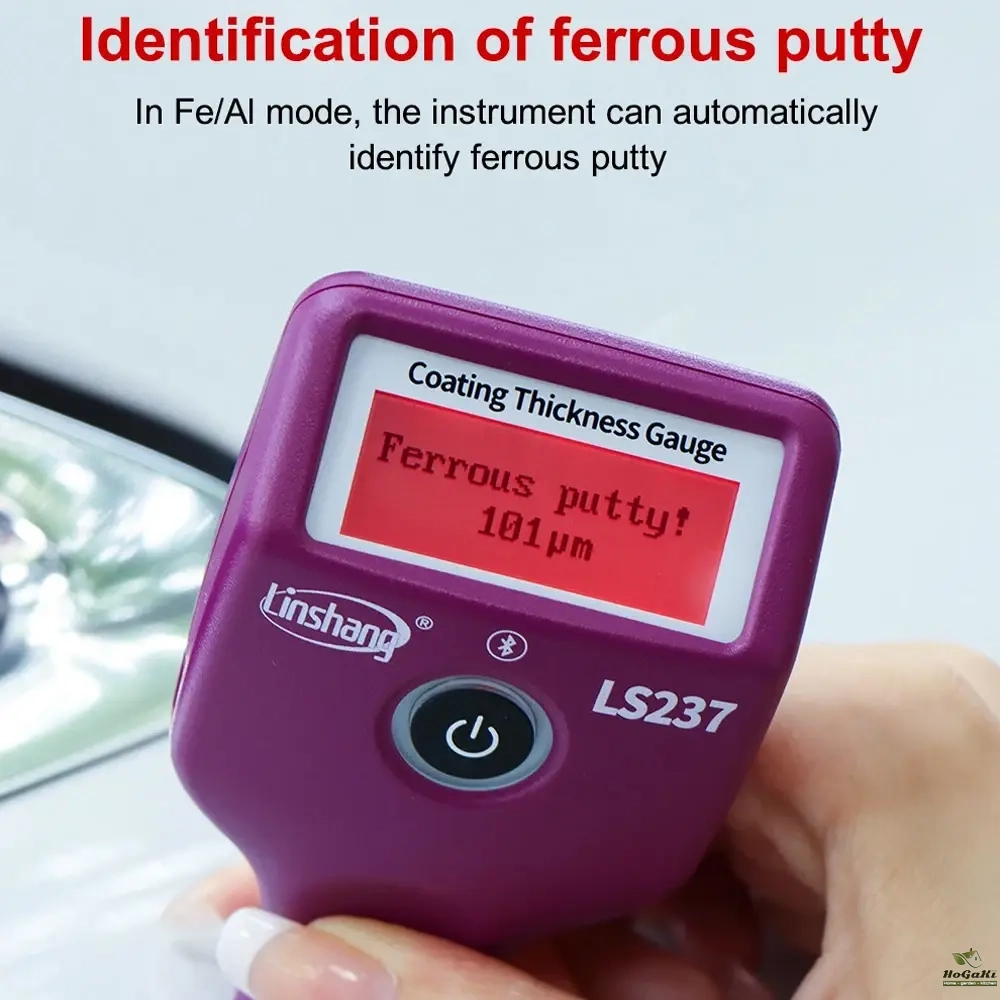

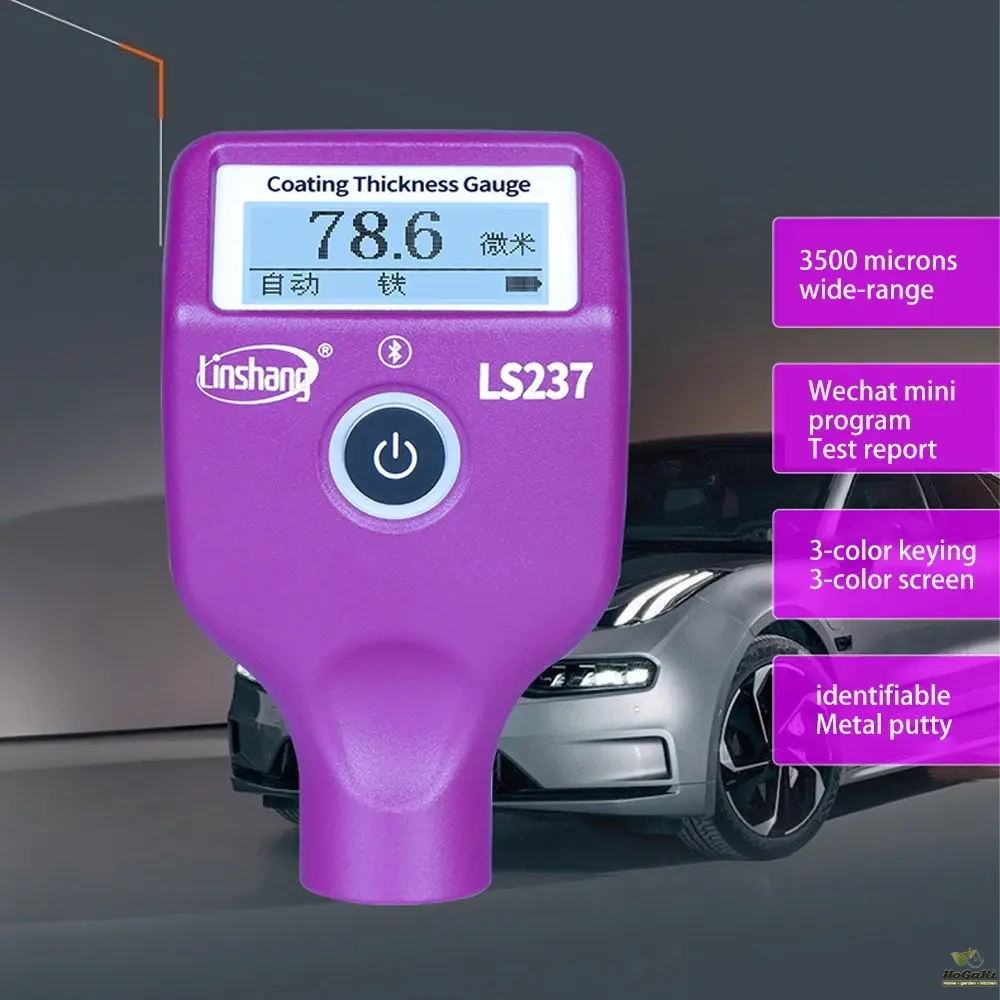

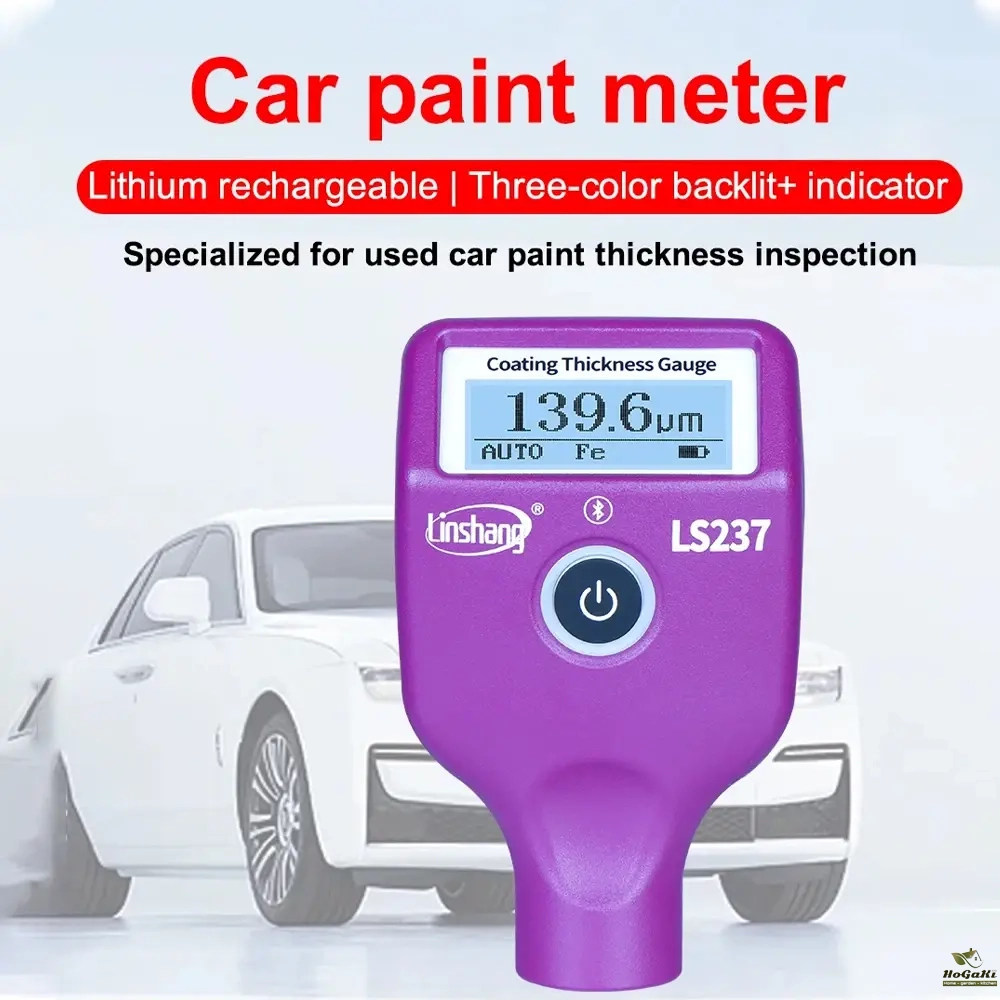

LS237 car paint meter is specialized in automotive paint thickness inspection. The instrument can not only measure the paint thickness above ferrous and aluminum materials, identify non-metallic, but also intelligently identify ferrous putty and iron galvanized. LS237 adopts three-color backlight and three-color indicator display, and according to different paint thicknesses the screen and buttons display different colors of light. LS237 paint film meter also adopts rechargeable lithium batteries to supply, with ultra-low power consumption. It also has Bluetooth function, equipped with APP, support inspection report export and sharing.



Specifications:

1. Probe tip: Ruby

2. Measurement principle: Fe: Hall effect / Al: Eddy current

3. Probe type: Integrated

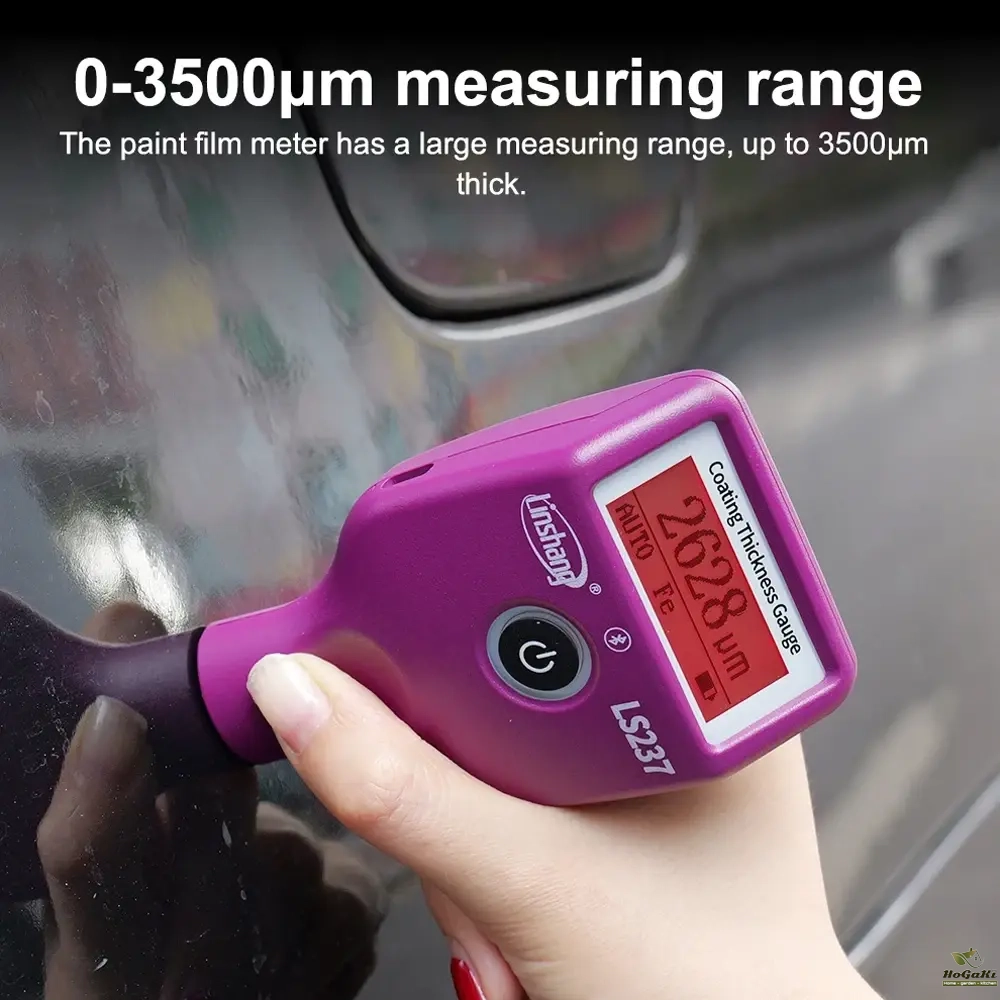

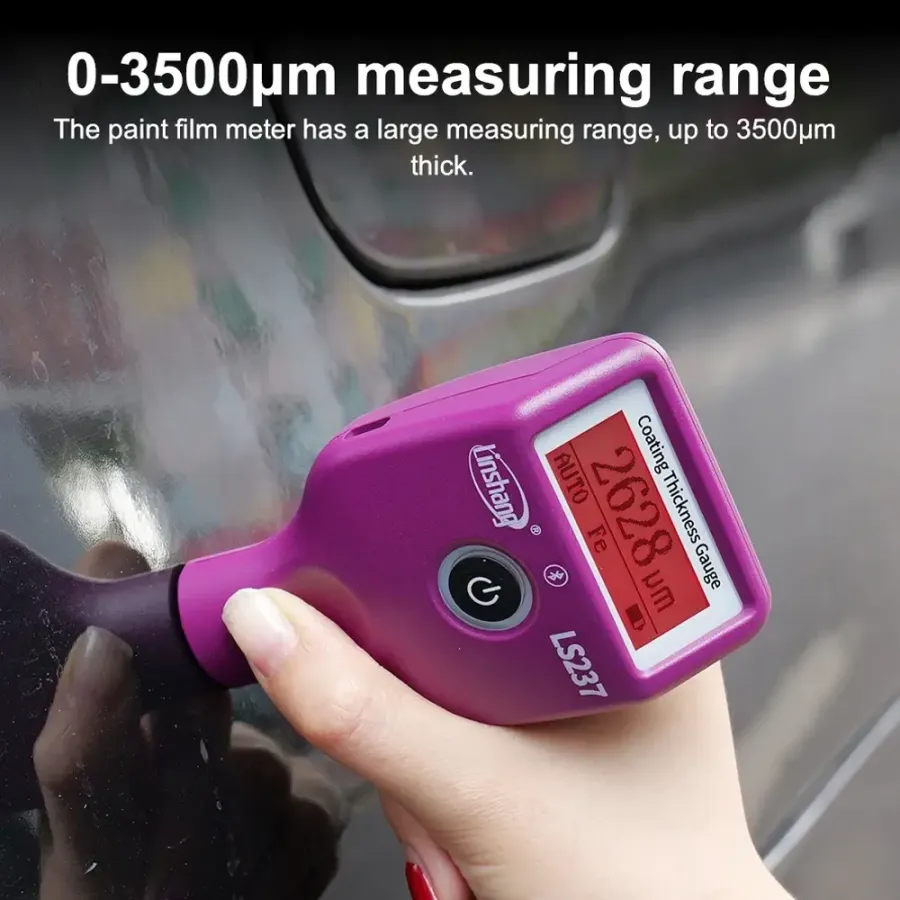

4. Measuring range: 0.0-3500μm

5. Resolution: 0.1μm: (0μm-99.9μm); 1μm: (100μm-3500μm)

6. Accuracy: ≤±(3%H+2μm), H is the standard value

7. Unit: μm / mil

8. Measuring interval: 0.5 s

9. Minimum measuring area: Ø = 25mm

10. Minimum radius of curvature: Convex: 5mm / Concave: 25mm

11. Minimum substrate thickness : Fe:0.2mm / Al:0.05mm

12. Display: 128×48 dot matrix LCD

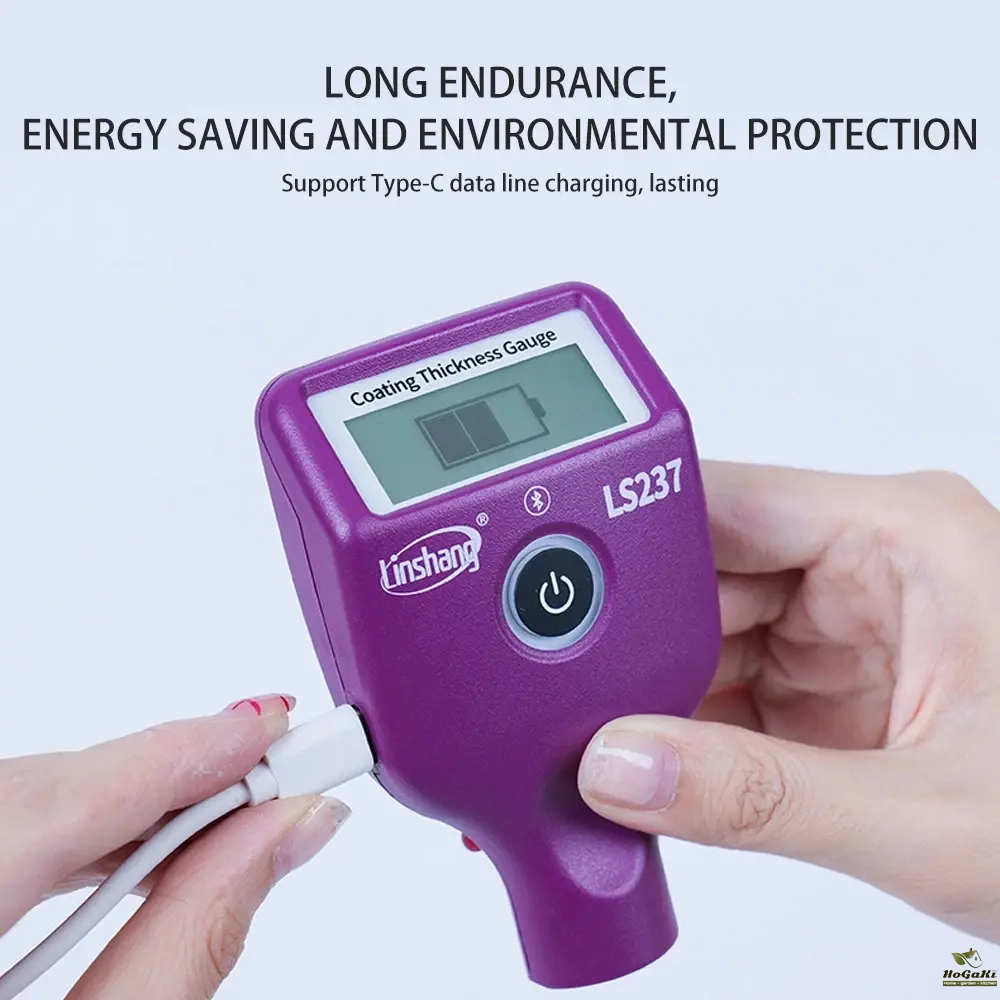

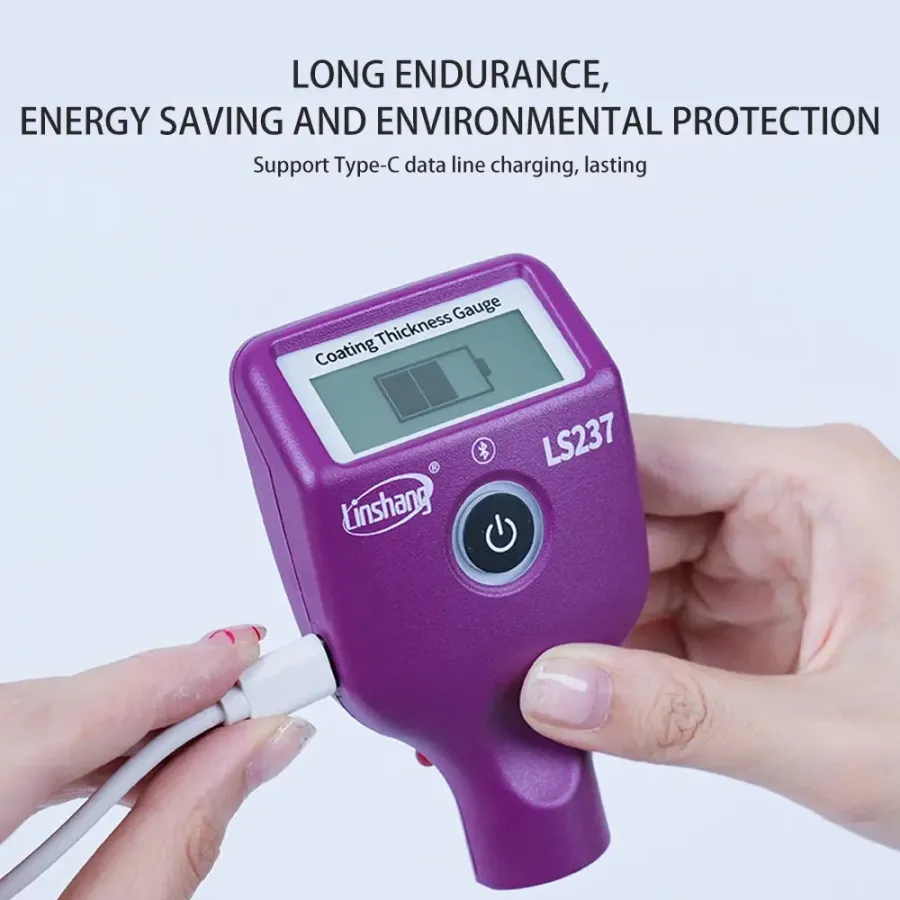

13. Power supply: Rechargeable lithium battery 3.7V@1200mAh

14. Range of working temperature: -20℃-50℃

15. Storage temperature range: -20℃-60℃

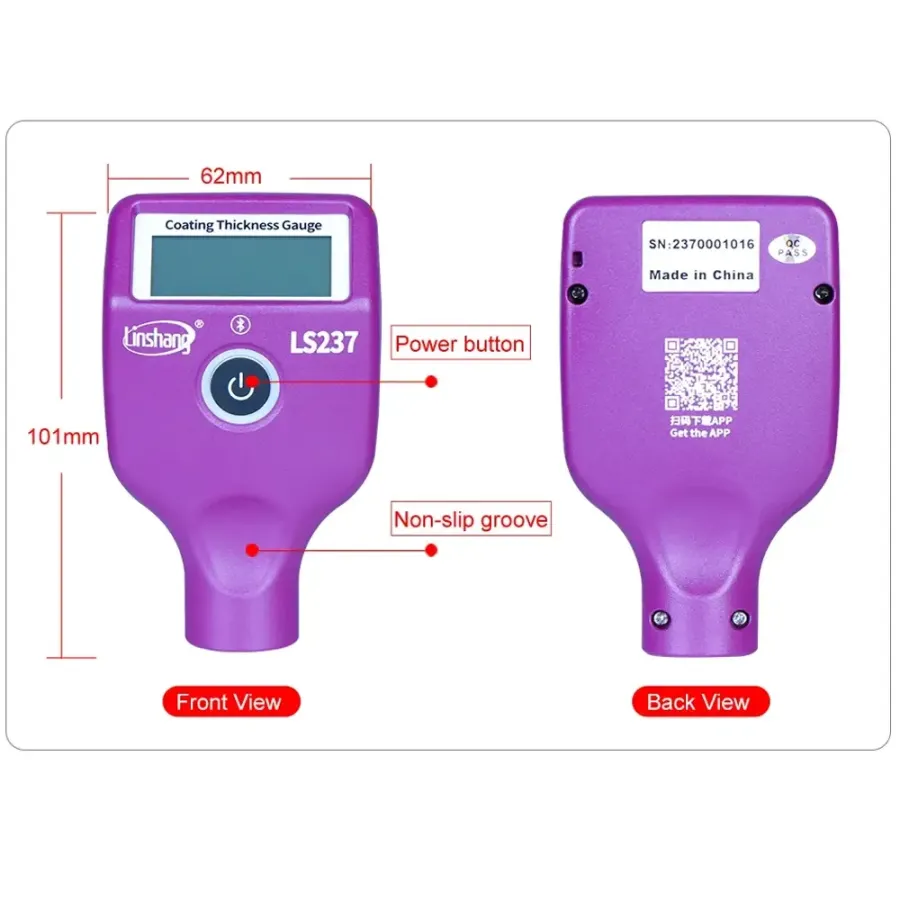

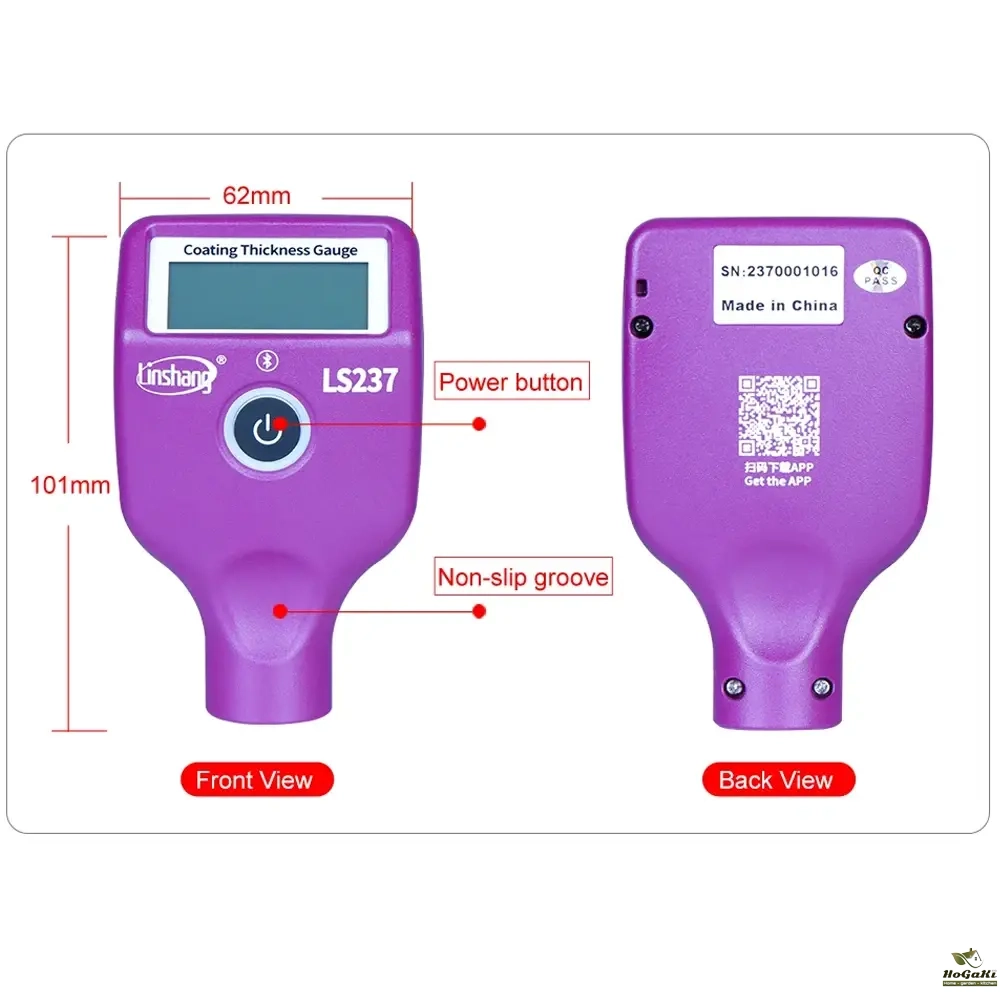

16. Host size: 101*62*28 mm

17. Weight (including battery) : 76g

18. Data transfer: Bluetooth


Packaging Details

  • Unit Type:
  • Package Weight: 0.216
  • Package Size: 9x5x14

  • Brand Name: PINTUDY
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • Certification: CE
  • With Backlight Or Not: Yes
  • Model Number: LS237
  • Measuring principle: Fe: Hall Effect / NFe: Eddy current
  • Probe tip: Ruby
  • Measuring range: 0.0-3500μm
  • Resolution: 0.1μm: (0μm-99.9μm)1μm: (100μm-3500μm)
  • Accuracy: ≤±(3% reading+2μm)
  • Unit: μm / mil
  • Measuring interval: 0.5s
  • Language: English, Russian, Turkish, Ukrainian, Chinese
  • Display: 128*48 dot matrix LCD
  • Power supply: Rechargeable lithium battery 3.7V@1200mAh
  • Choice: yes
