18650 Lithium Battery Capacity Tester
4.9 (1524 votes) | 5000 orders
Price:
US $71.23
Discount Price:
US $
36.61
-49%
- Color
-
-
Please note: The product upgrade will be randomly shipped for both pre upgrade and post upgrade products
Product Description:

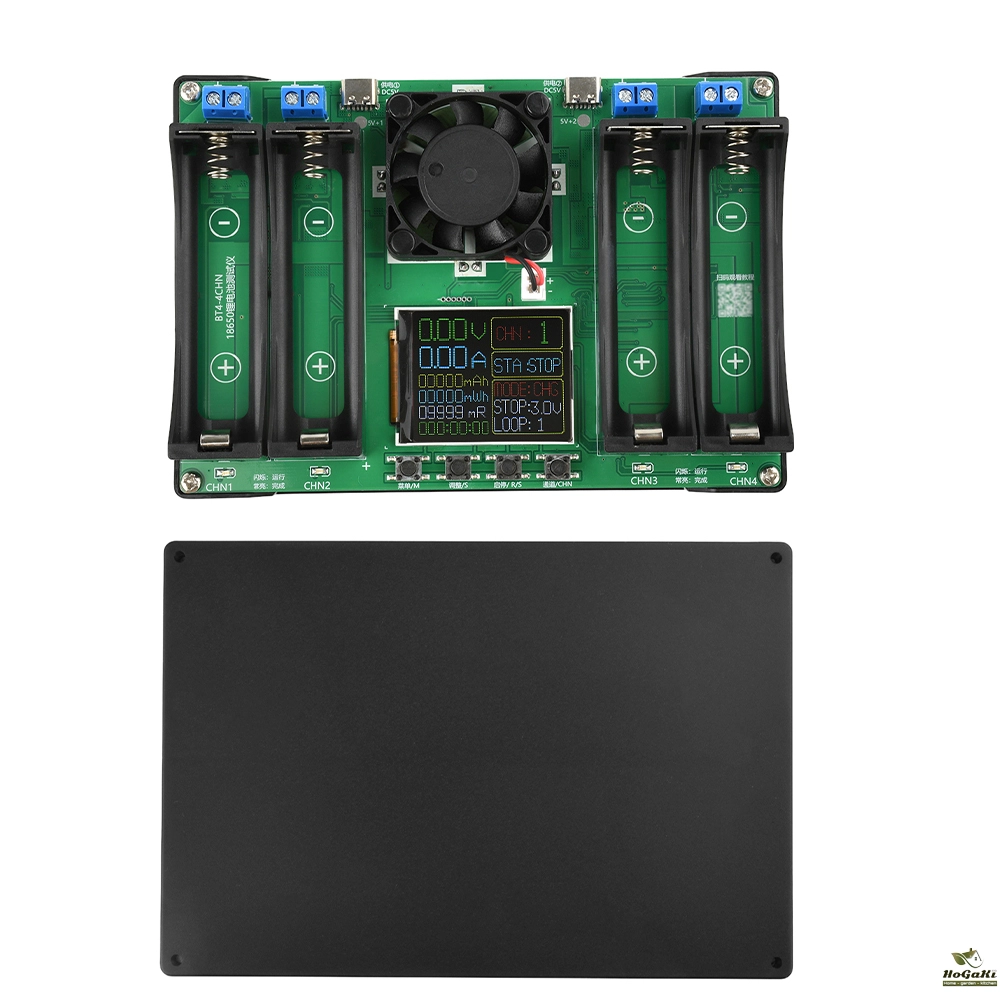

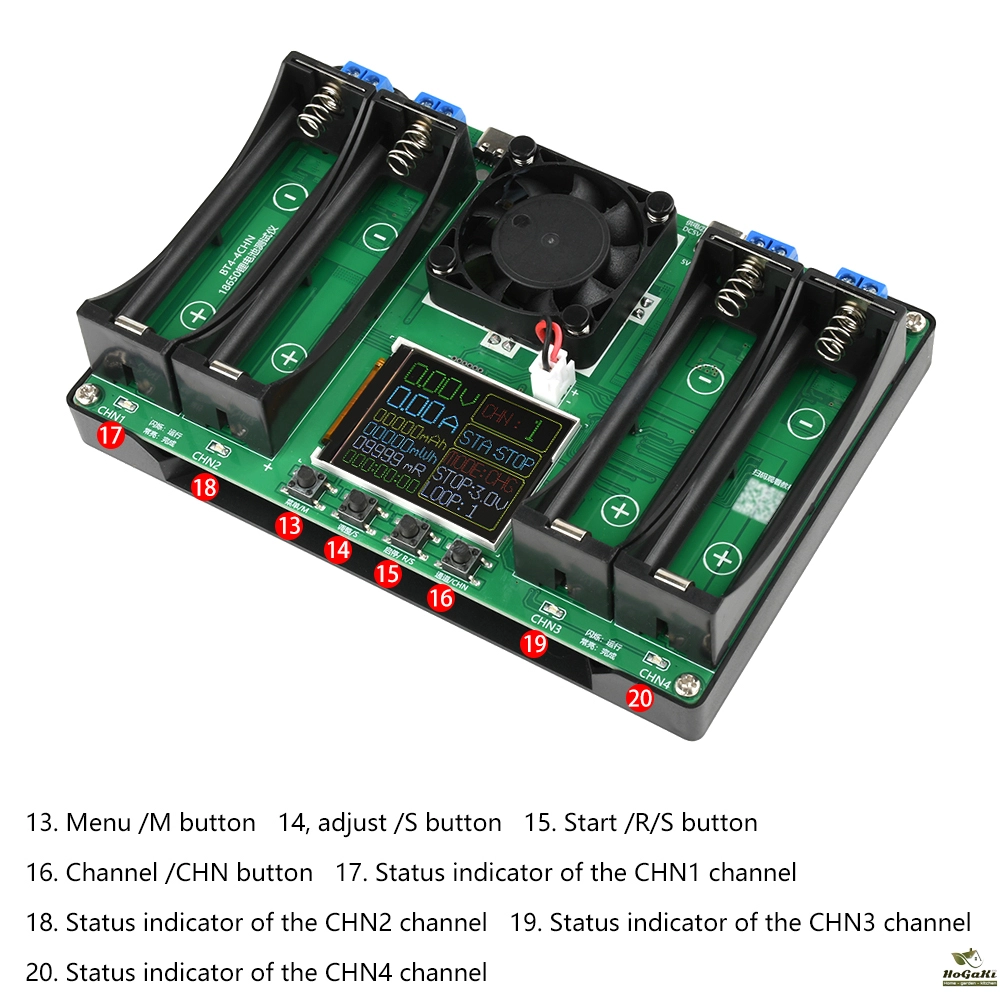

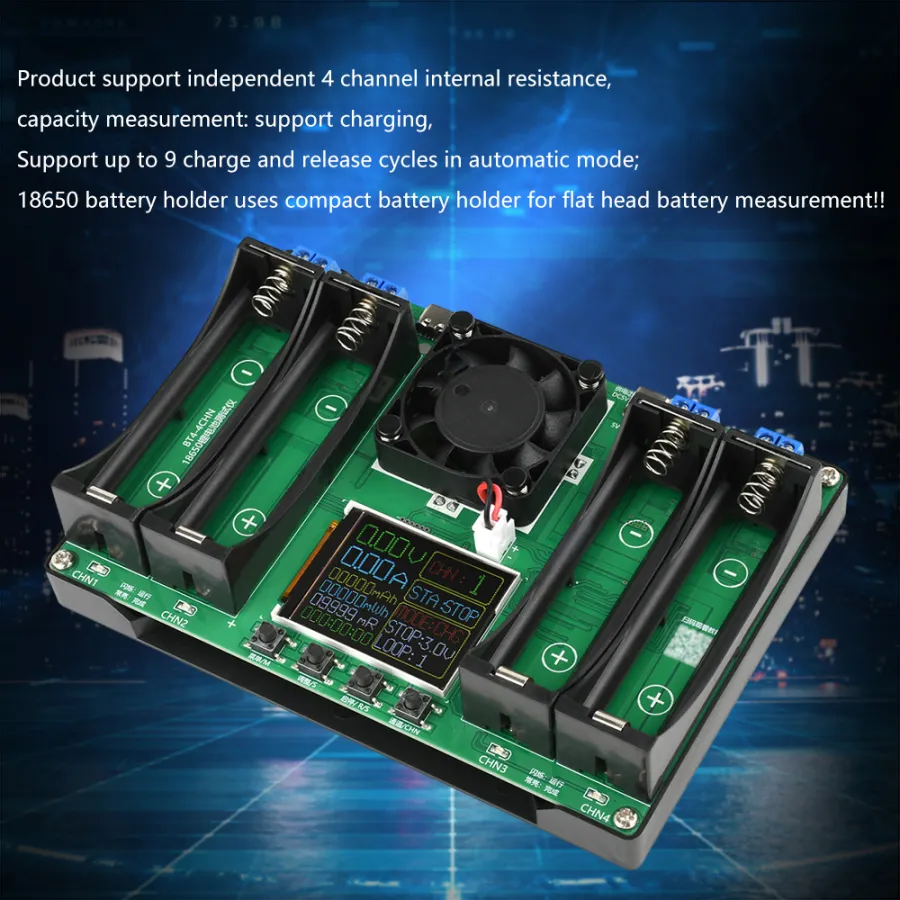

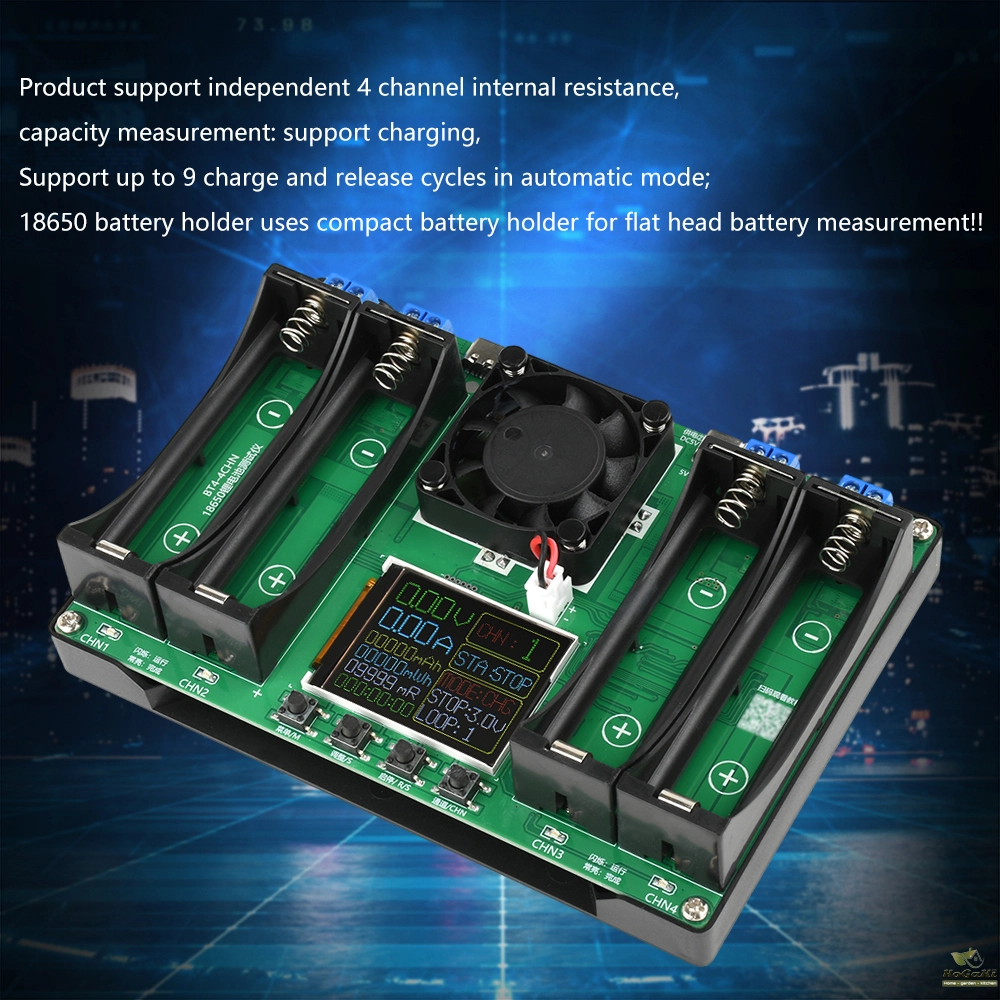

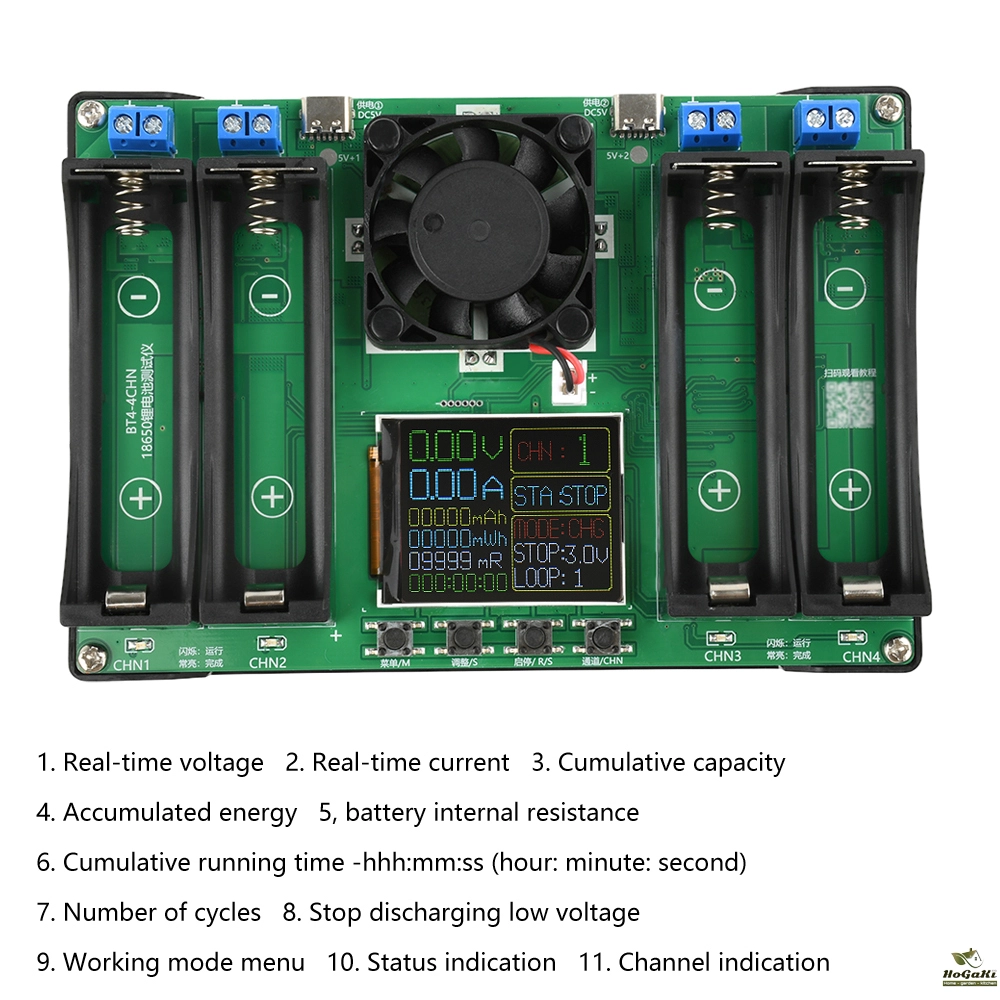

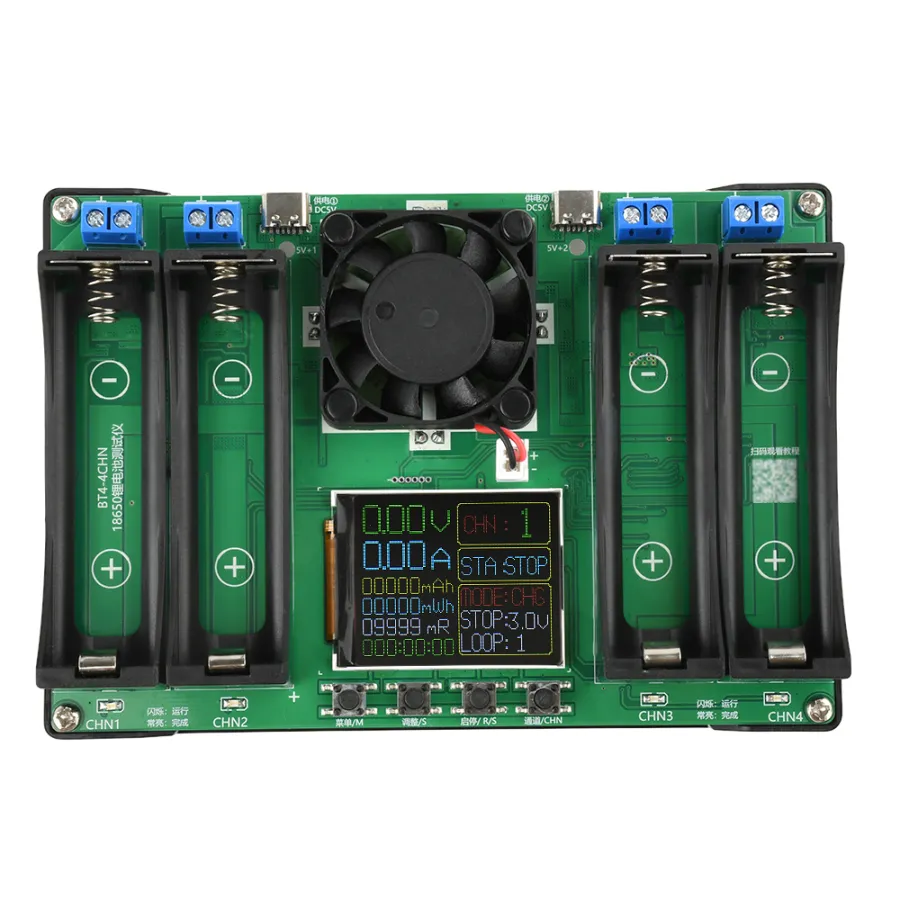

The product supports four-channel capacity, internal resistance measurement
Support individual charging, separate discharge, automatic mode support up to 9 charge and discharge cycles
Each channel is independent of each other, set separately, operates independently, and does not interfere with each other
The 18650 battery holder uses a compact battery holder for flat head battery measurements
Active fan heat dissipation Supports overheating protection
The internal resistance is tested by the DC two-wire method
Note: Lithium iron phosphate battery charging is not supported
Product Features:
Working voltage: DC5V
Material:ABS
Color: green
Applicable battery: meet the stop discharge voltage 2.5~3.5V, 2.8V start ~ 4.2V full battery is applicable

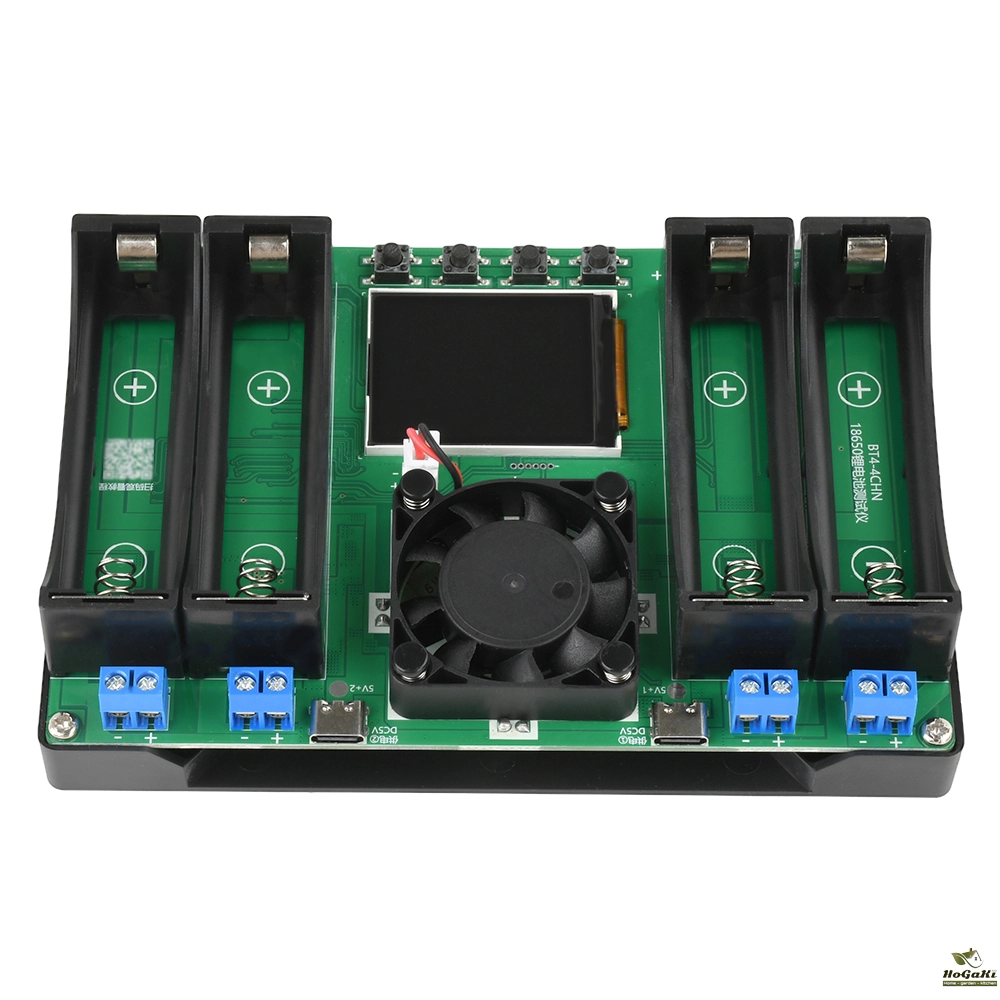

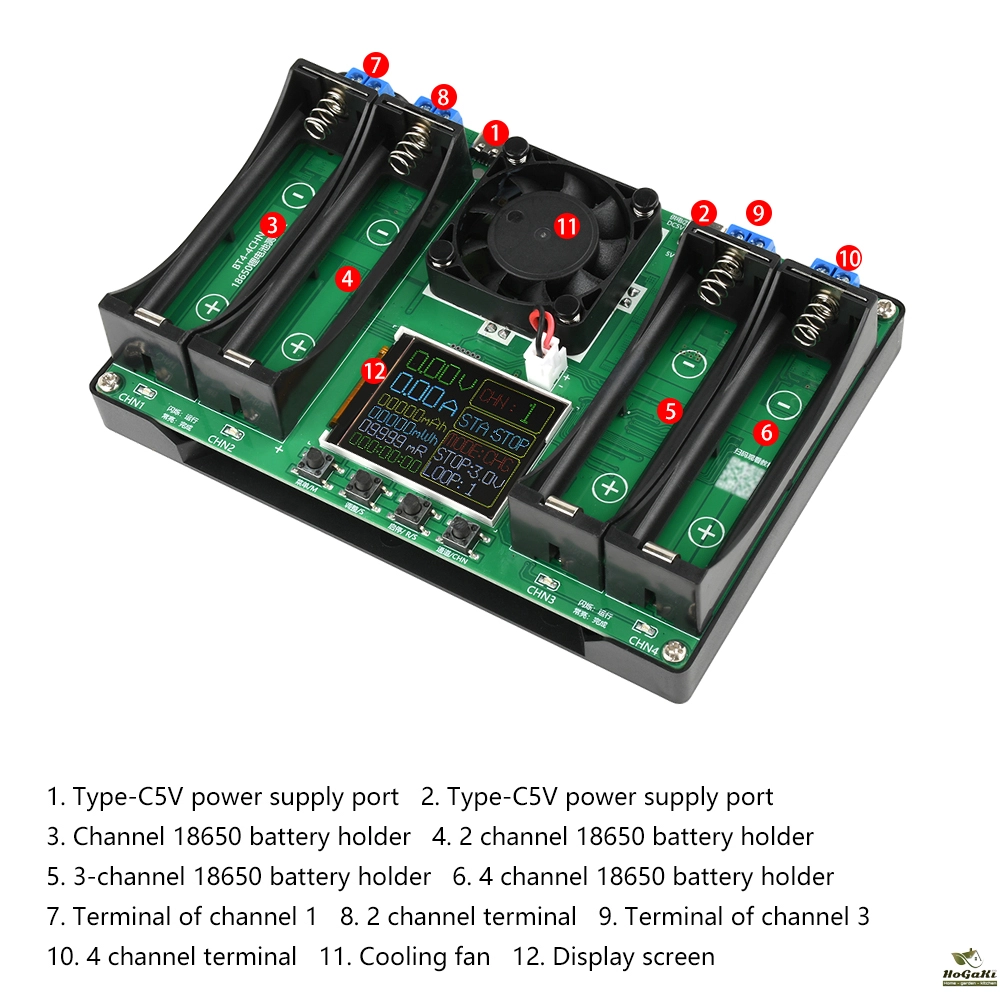

Power supply interface: two Type-C power supply interfaces (power supply and power cord are provided)
System language: English/Chinese switchable
Number of tests: 4-way charging and discharging measurement
Internal resistance measurement: Yes, the internal resistance is tested by DC two-wire method
Charging function: support, full charge automatic cut off charging (do not support lithium iron phosphate battery charging)
Discharge function: support, automatic stop when the condition is reached, discharge current is not adjustable
Auto Charge & Discharge: Yes, the battery is fully charged at the end of Auto mode
Cycle charging and discharging: support, 1~9 cycles adjustable (only supported in automatic mode)
Status Tip: Yes
Heat dissipation mode: The fan actively dissipates heat
Overtemperature protection: Yes
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V A total of 11 levels are adjustable
Discharge current: up to about 1A current, not adjustable, does not support autonomous transformation
Charging voltage: special battery charging chip control, up to about 1A charging, full voltage 4.2V
Power failure saving: Only the setting parameters are saved, and the metering data is not saved

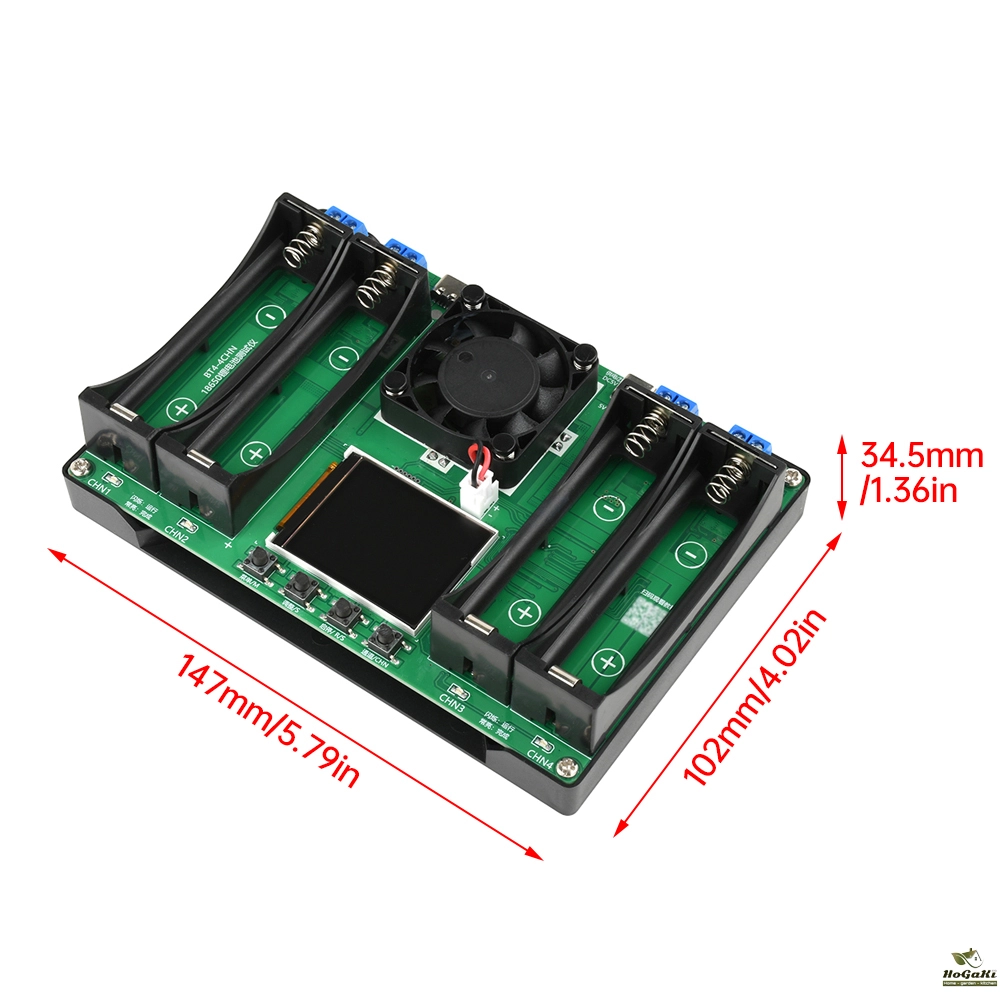

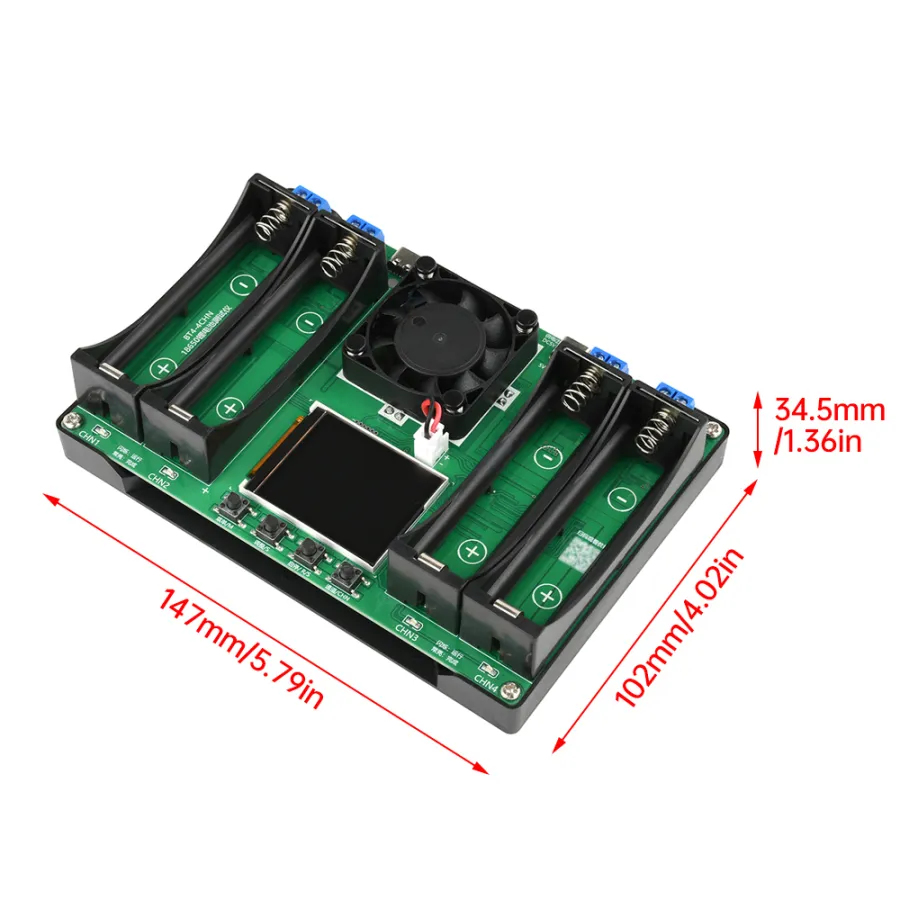

Product size: 150 × 103 × 36mm
Packing size: 182 × 112 × 50mm
Gross weight: 0.260kg
Net weight: 0.200kg
Color: Green
Information link: https://www.banber.com/gather/6374be9b2ee0e200077ec155
Shipping List:
18650 Battery Capacity Internal Resistance Tester X1
Packaging Details
- Unit Type:
- Package Weight: 0.241
- Package Size: 11x5x18
- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Battery Included: No
- Origin: Mainland China
- Type: Household Battery Tester
- Model Number: four way18650 lithium battery capacity tester
