GVDA NEW Generation 600V Digital Multimeter Ture RMS AC DC NCV Smart Multimetro Tester Ohm Capacitance Hz Voltage Meter
4.9 (492 votes) | 2008 orders
Price:
US $69.16 - 114.66
/ piece
Discount Price:
US $
30.67 -
49.46
/ piece
-56%
- Ships From

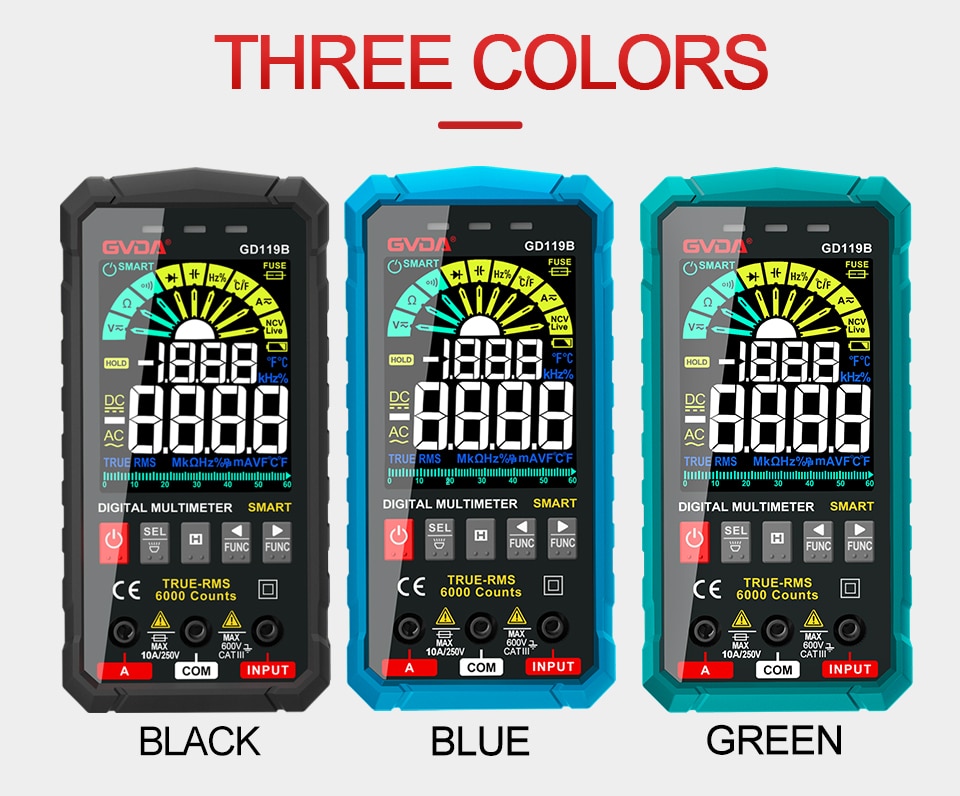

- Color
-
-

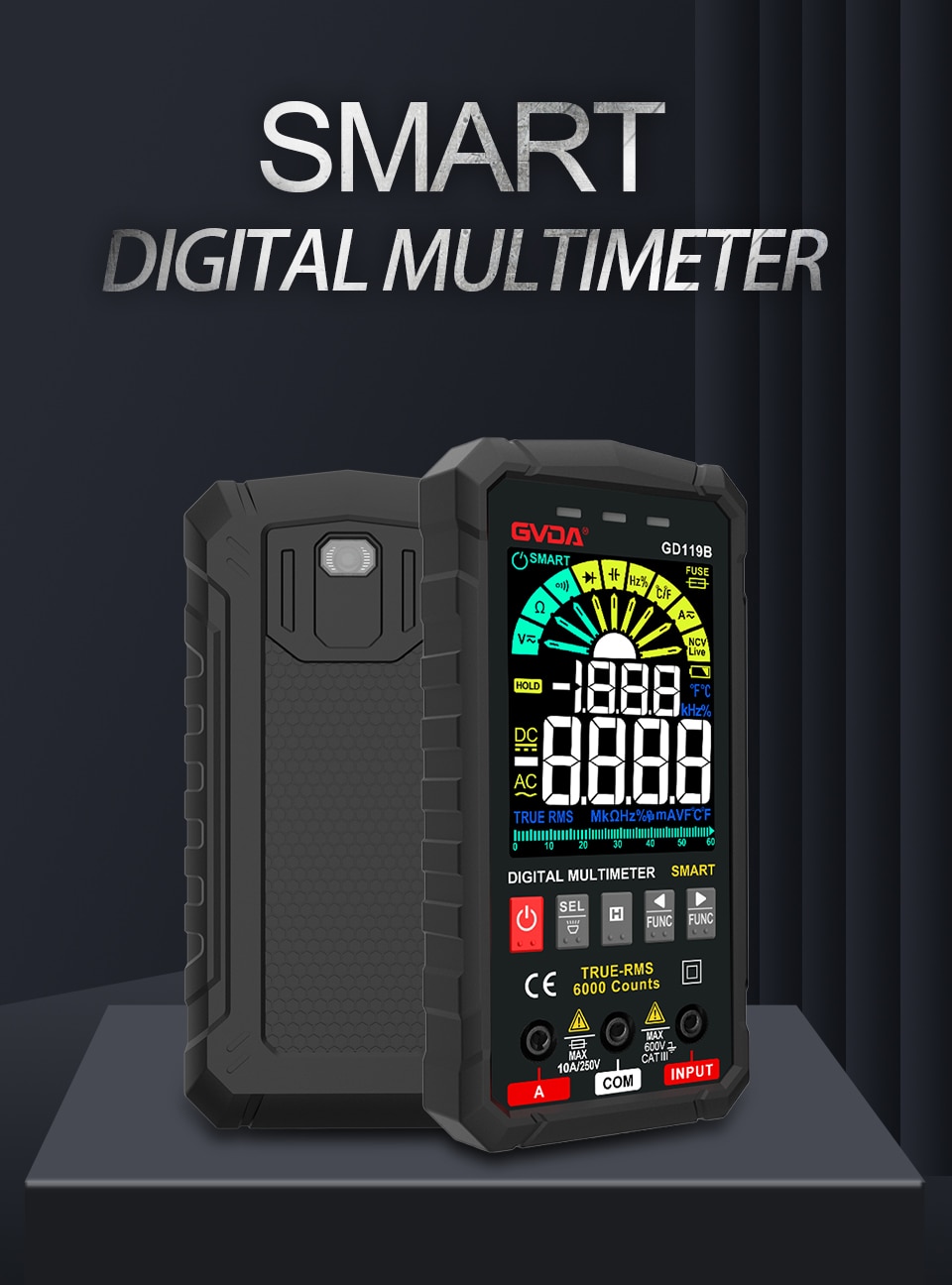

GVDA New 6000 Counts Smart Multimeter Digital True RMS Auto Range 600V 10A Tester Ohm Hz Capacitance REL AC DC DMM Multitester

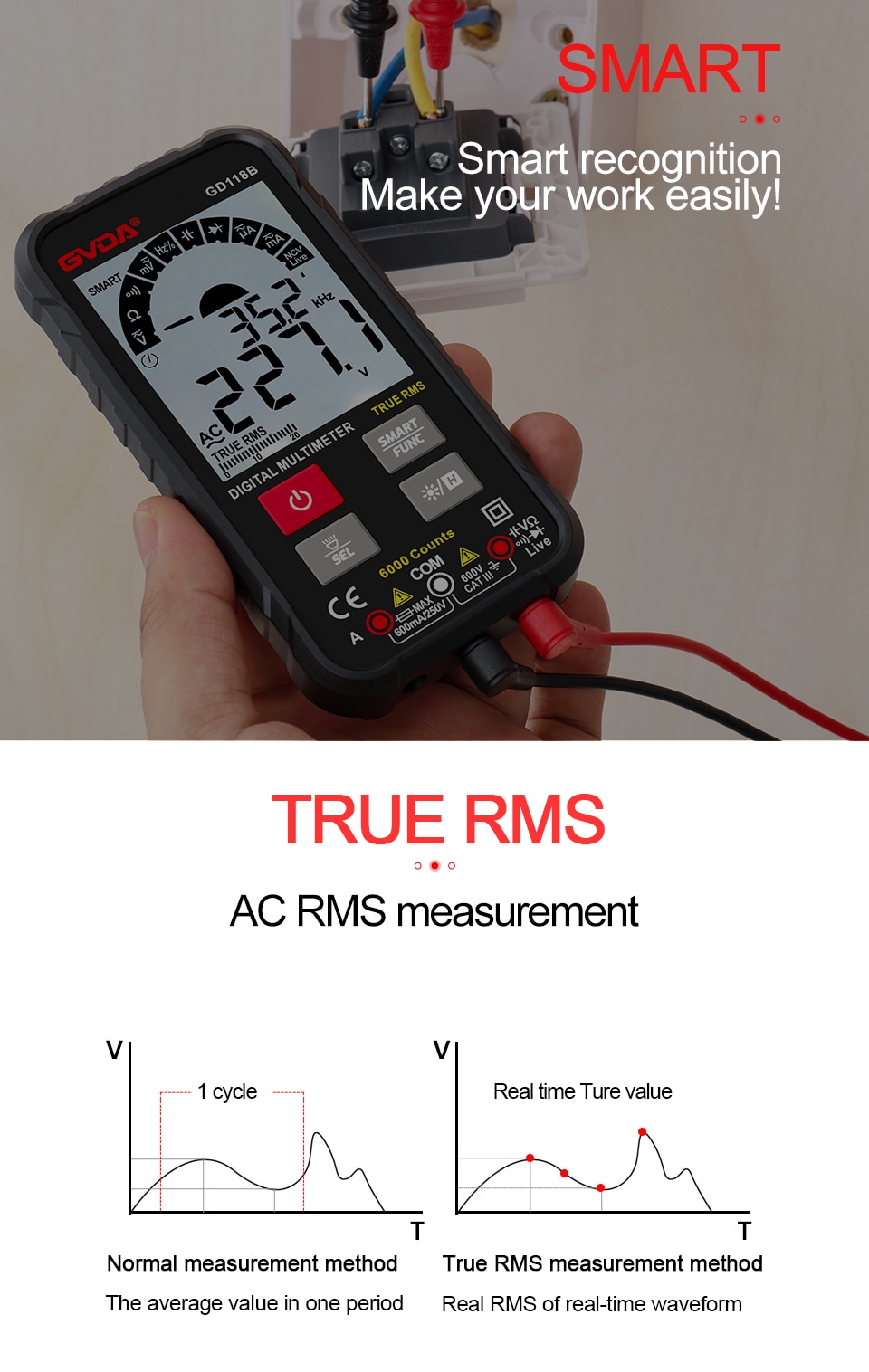

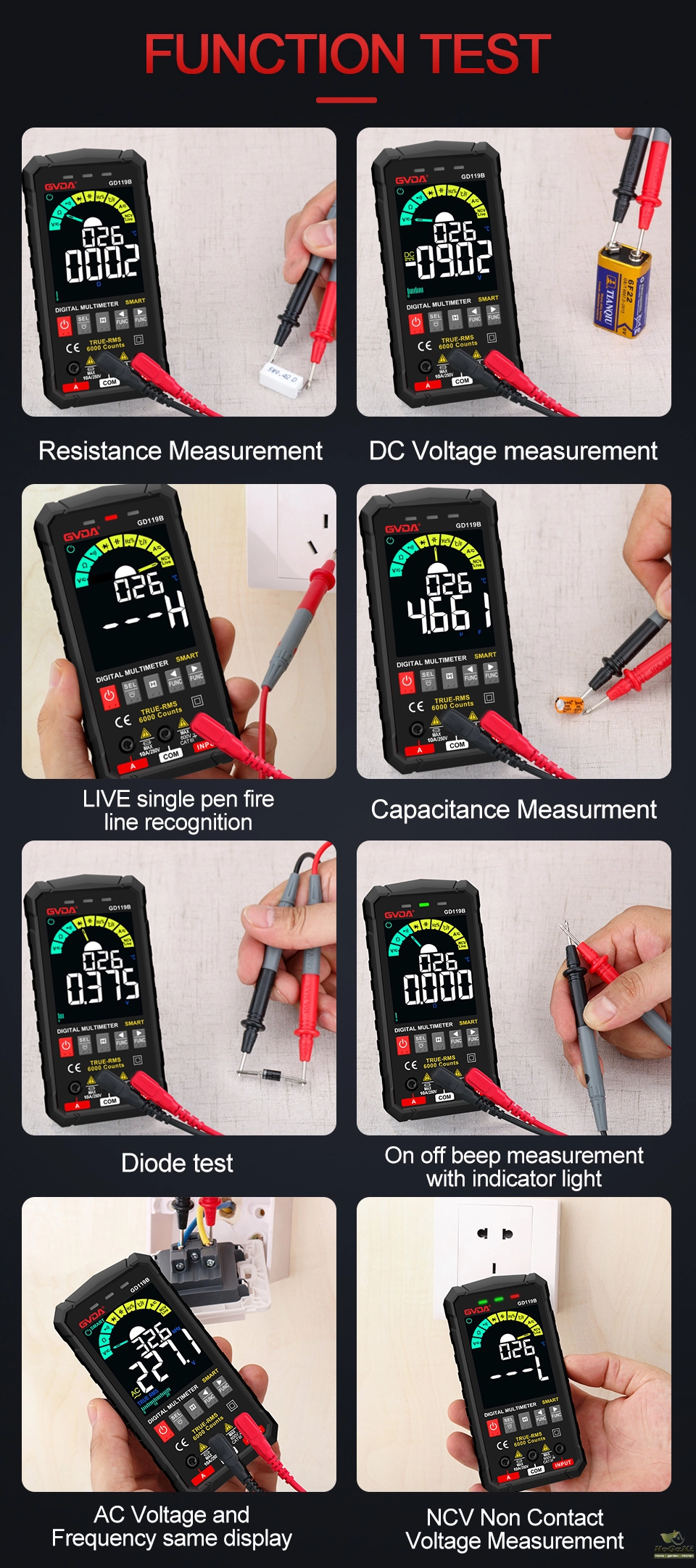

GVDA Multimeter is an intelligent true effective value multimeter, intelligent identification and manual function are integrated, which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV,etc.; It is the best choice for professional electrician, engineer, electronic enthusiast or family use.
Product Features GD119B

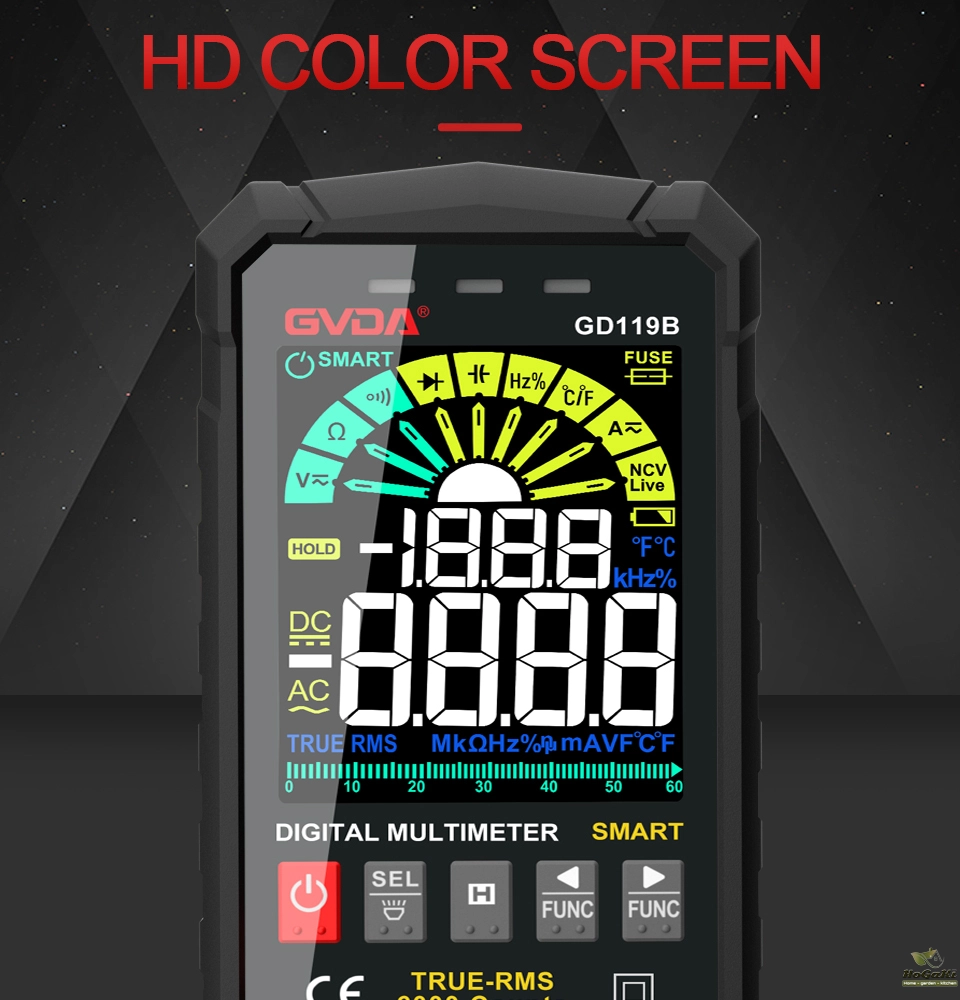

1) Colour Larger HD LCD Display
2) Maximum display: Maxium 6000 Counts display

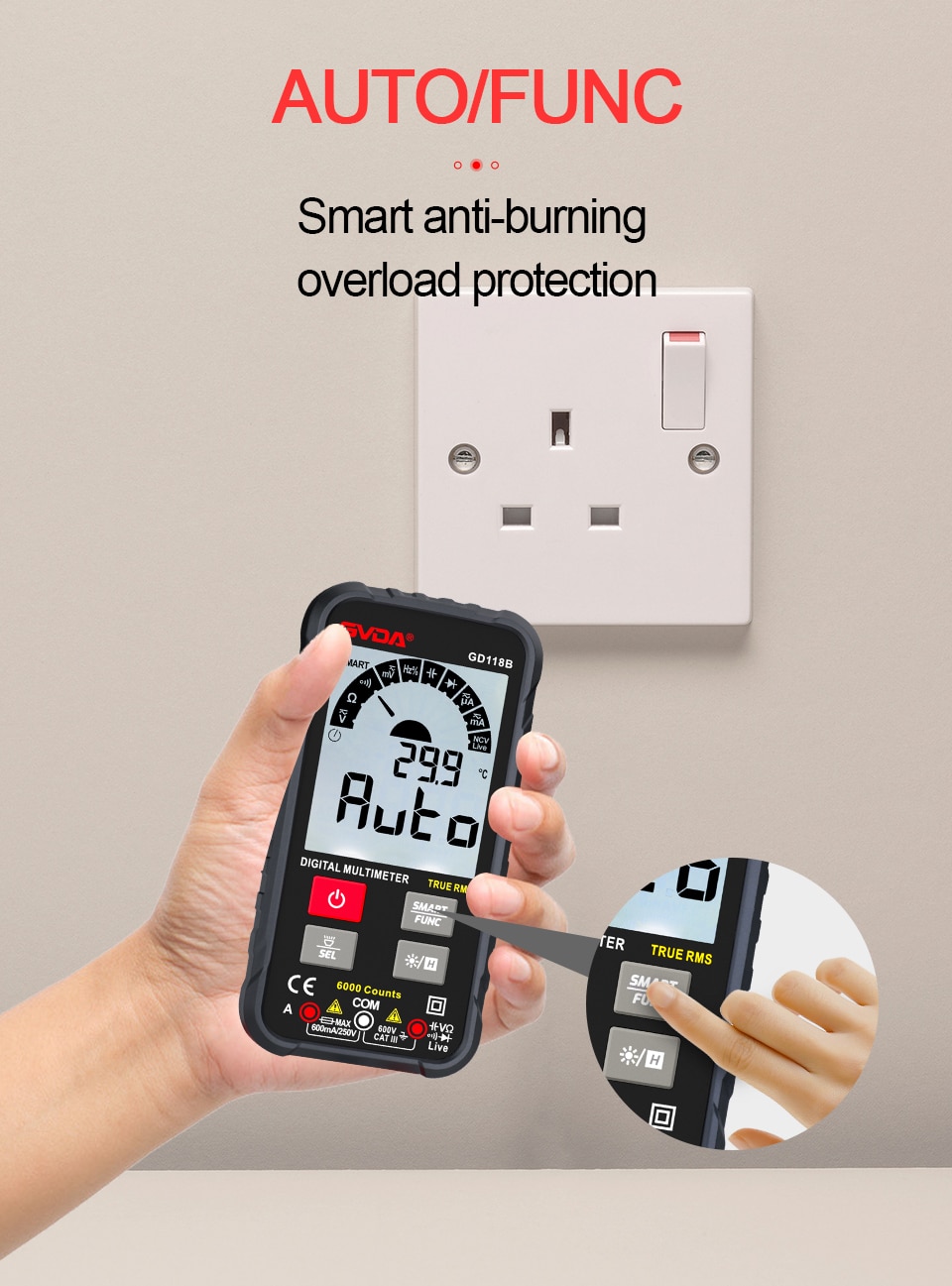

3) Auto range and Manual Range
4) Sampling Rate: About 3 times per second
5) Over range display: the highest position shows "OL"
6) Low voltage display: low battery indication
7) Working environment: (0-40)°C,relative humidity ＜80%

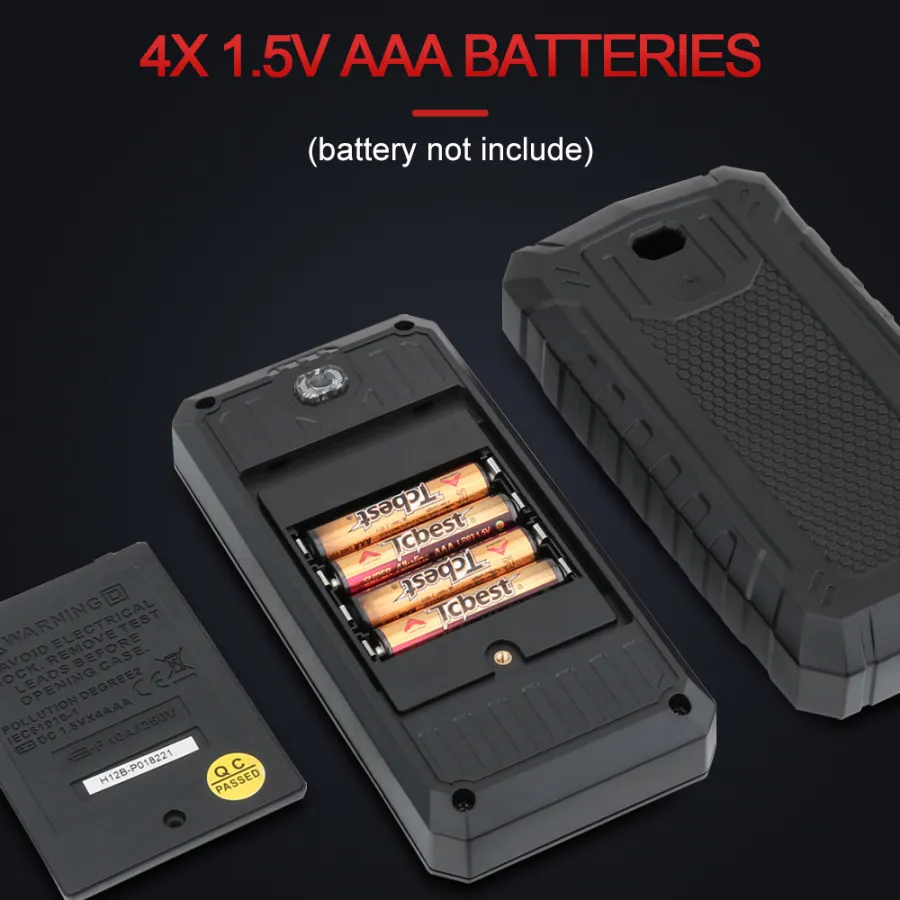

8) Power Supply: 4 x1.5V Batteries ( NOT include)

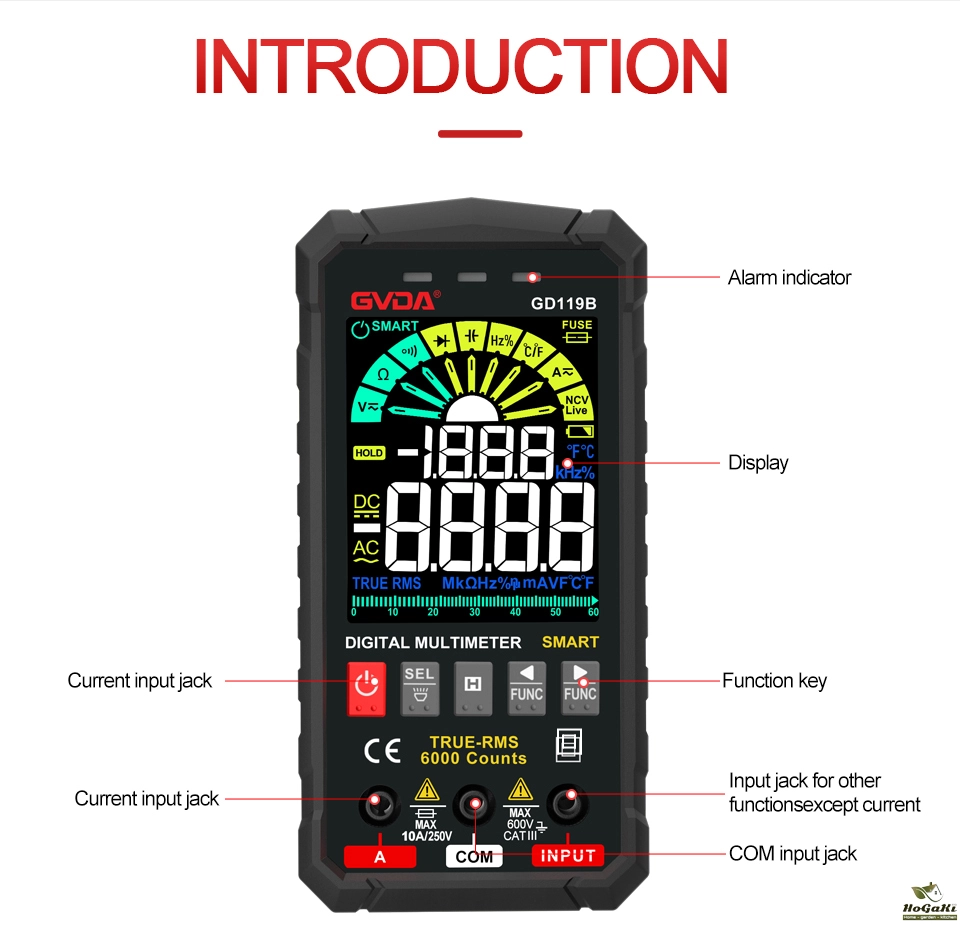

9) Input Jack Led Indication
10) It is a stable performance, high precision, high reliability clear readings, and overload protection.

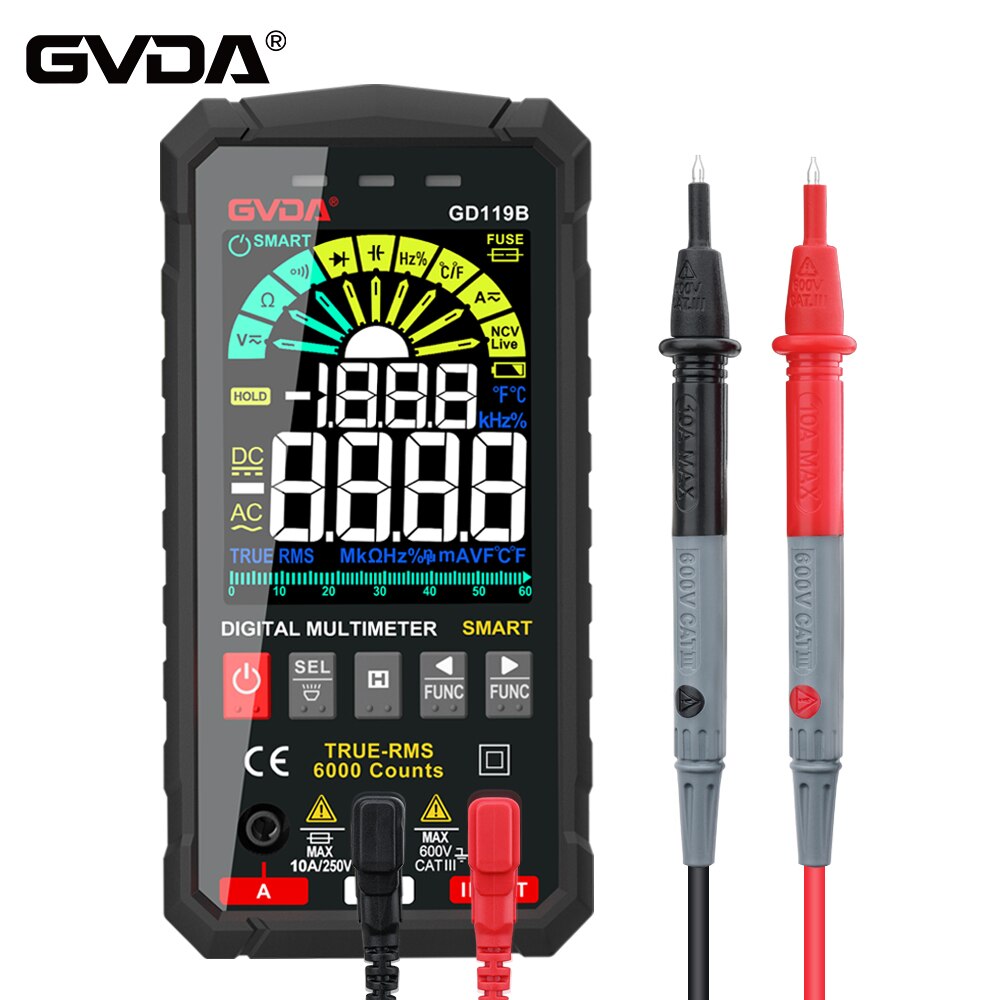

Technical Details GD119B Series
Brand: GVDA
Model name: GD119B
DC Voltage:600mV/6V/60V/600V ±(0.5%+3)
AC Voltage:6V/60V/600V ±(0.8%+3)
DC Current:600mA/6A/10A ±(1.2%+3);
AC Current:600mA/6A/10A ±(1.2%+3);
Resistance:600/6k/60k/600kOHM ±(1.0%+5);
6m/60mOHM ±(1.5%+10)
Capacitance:6nF/60nF/600nF/6uF/60uF/600uF ±(4.0%+5); 6mF/60mF ±(5.0%+5)
Frequency:6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0%+3)
Duty:1.0%-99.0% ±(1.0%+3)

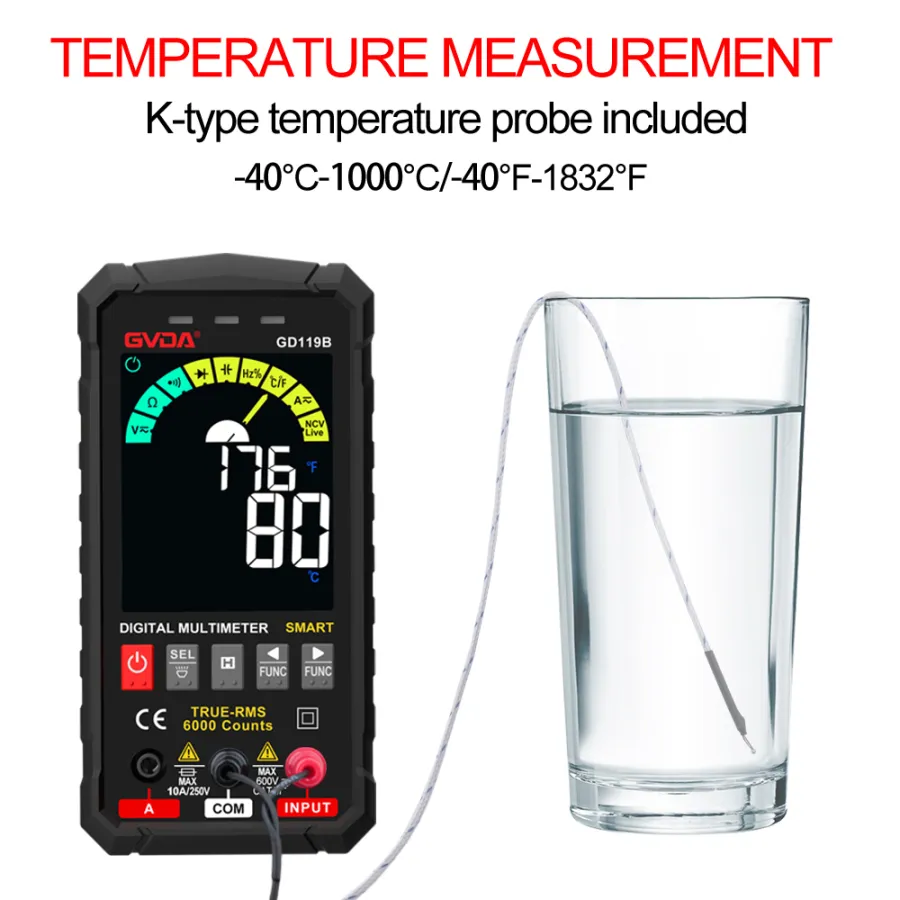

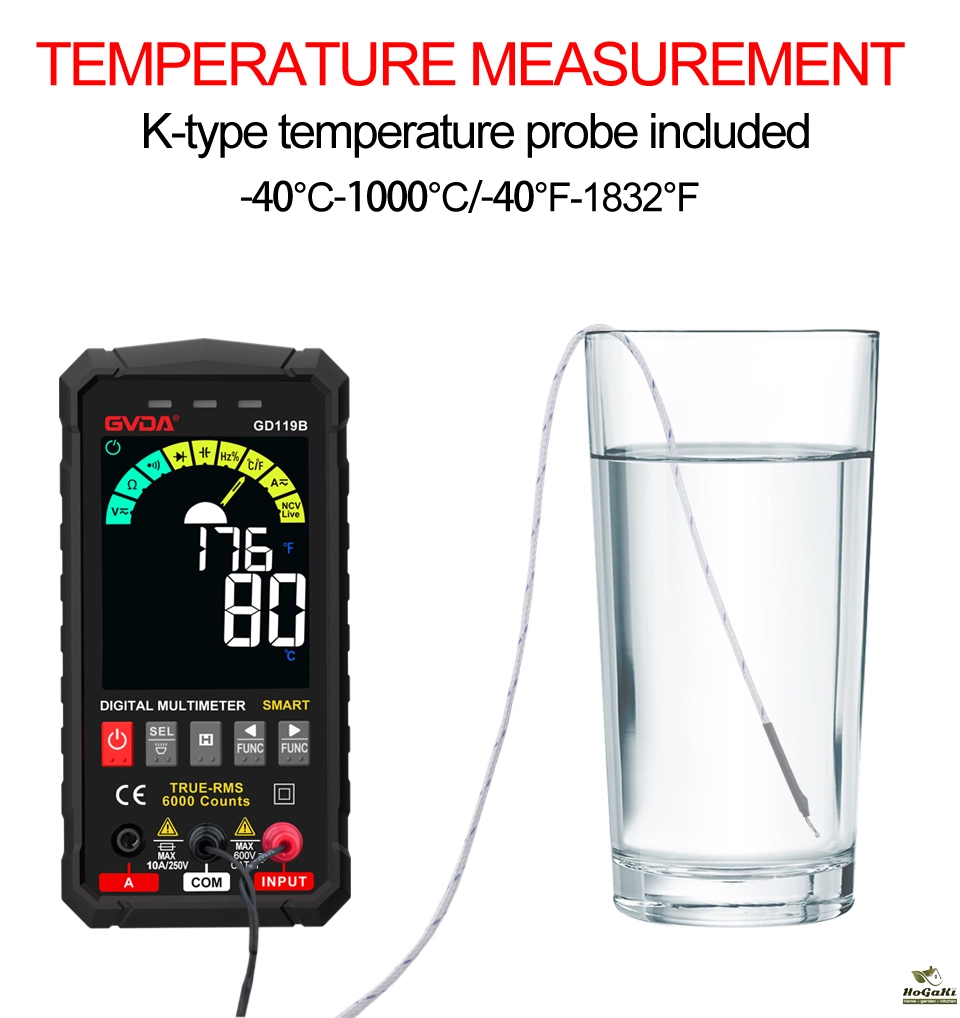

Temperature :-40~1000°C; -40-1832°F 2°C

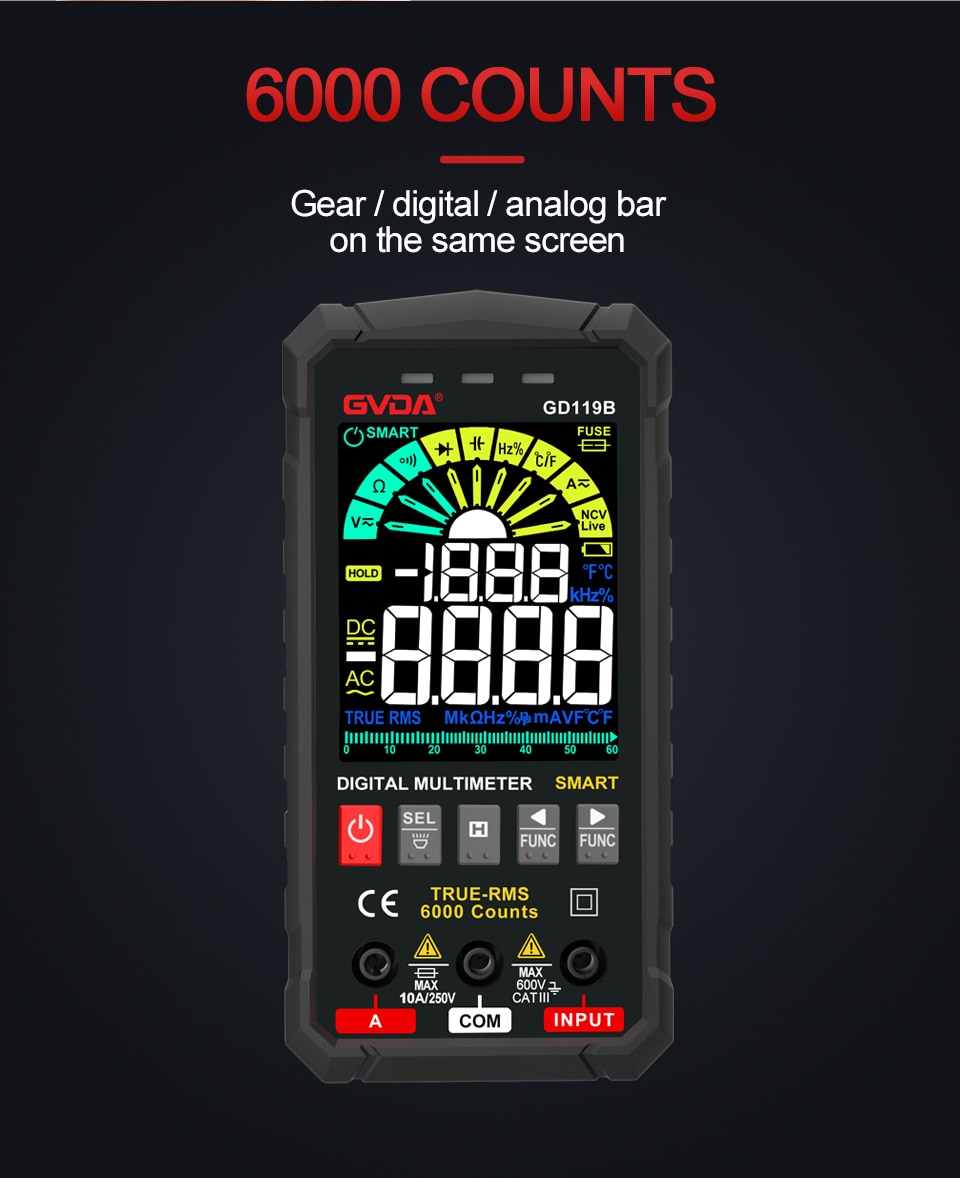

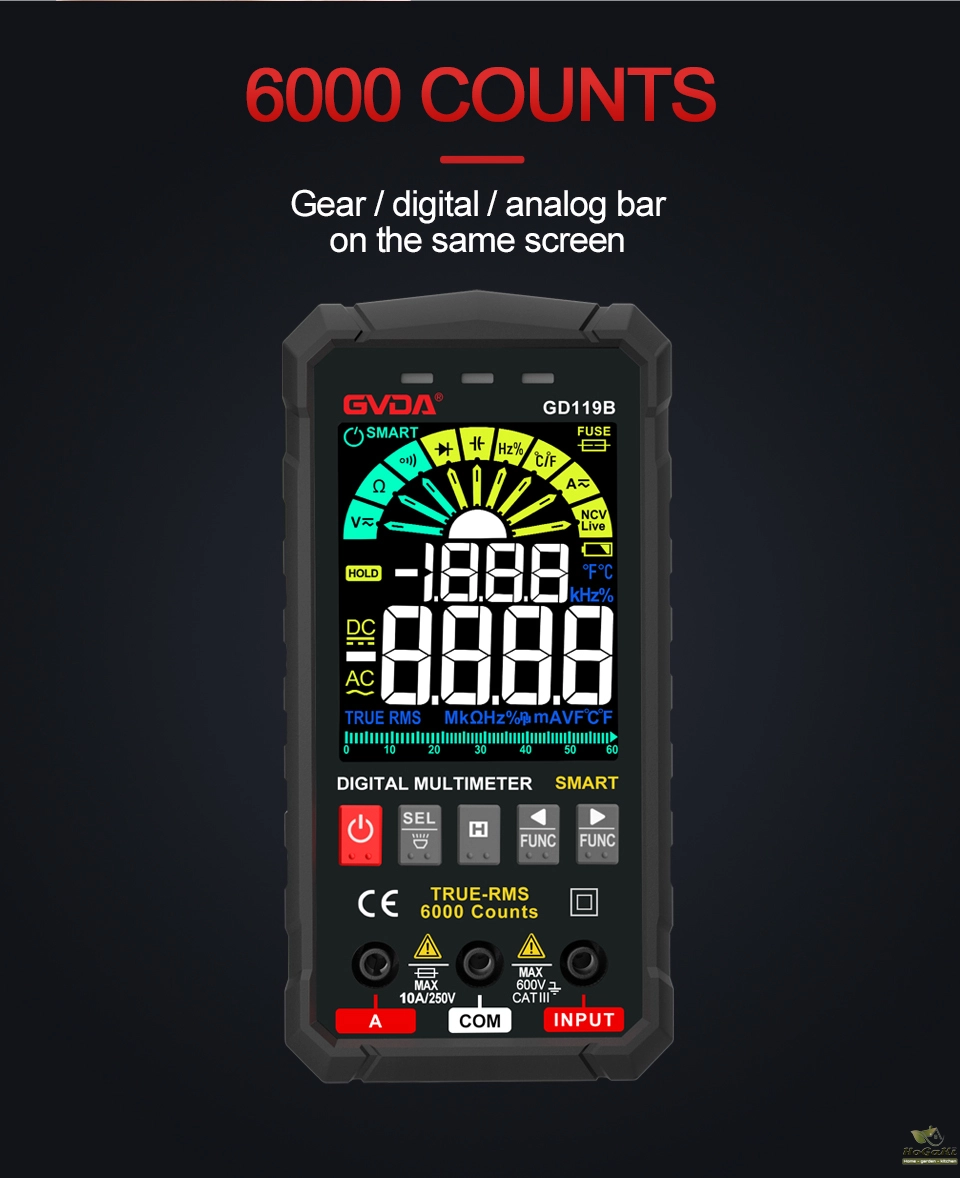

Counts:6000counts

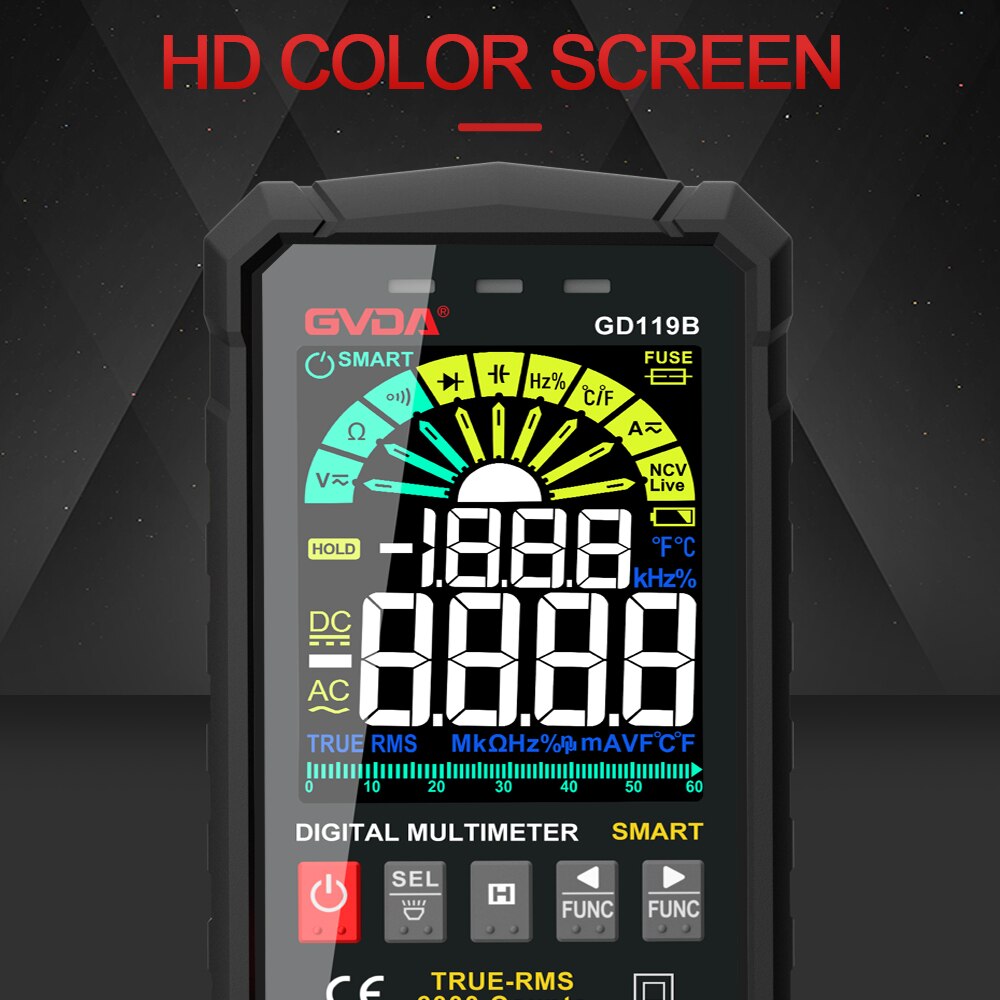

Display:HD Colour Display
Analog Bar/ Gear Display: Yes

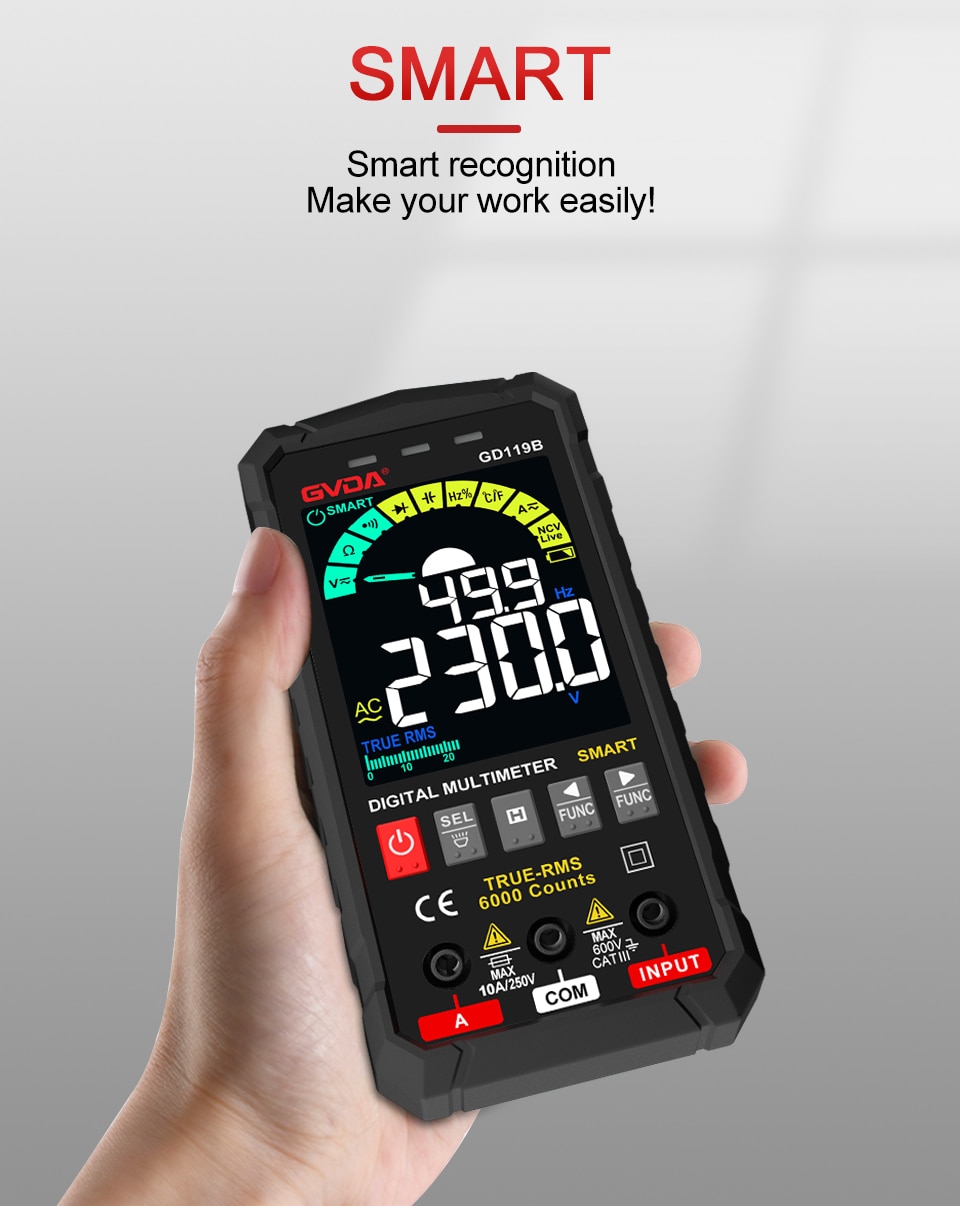

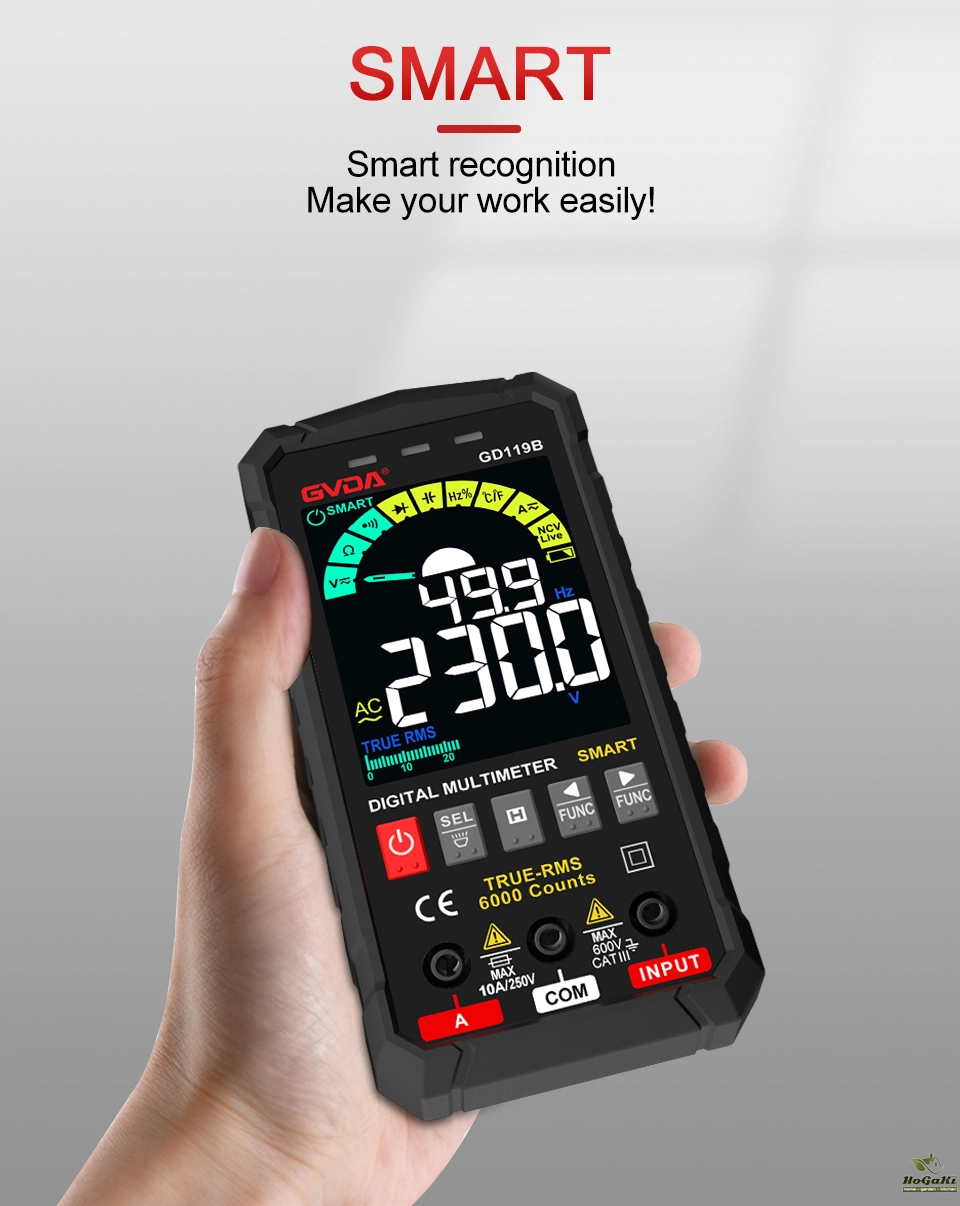

Smart Function(AC/DC Voltage,resistance and continuity):yes
Auto Identification of current input:yes

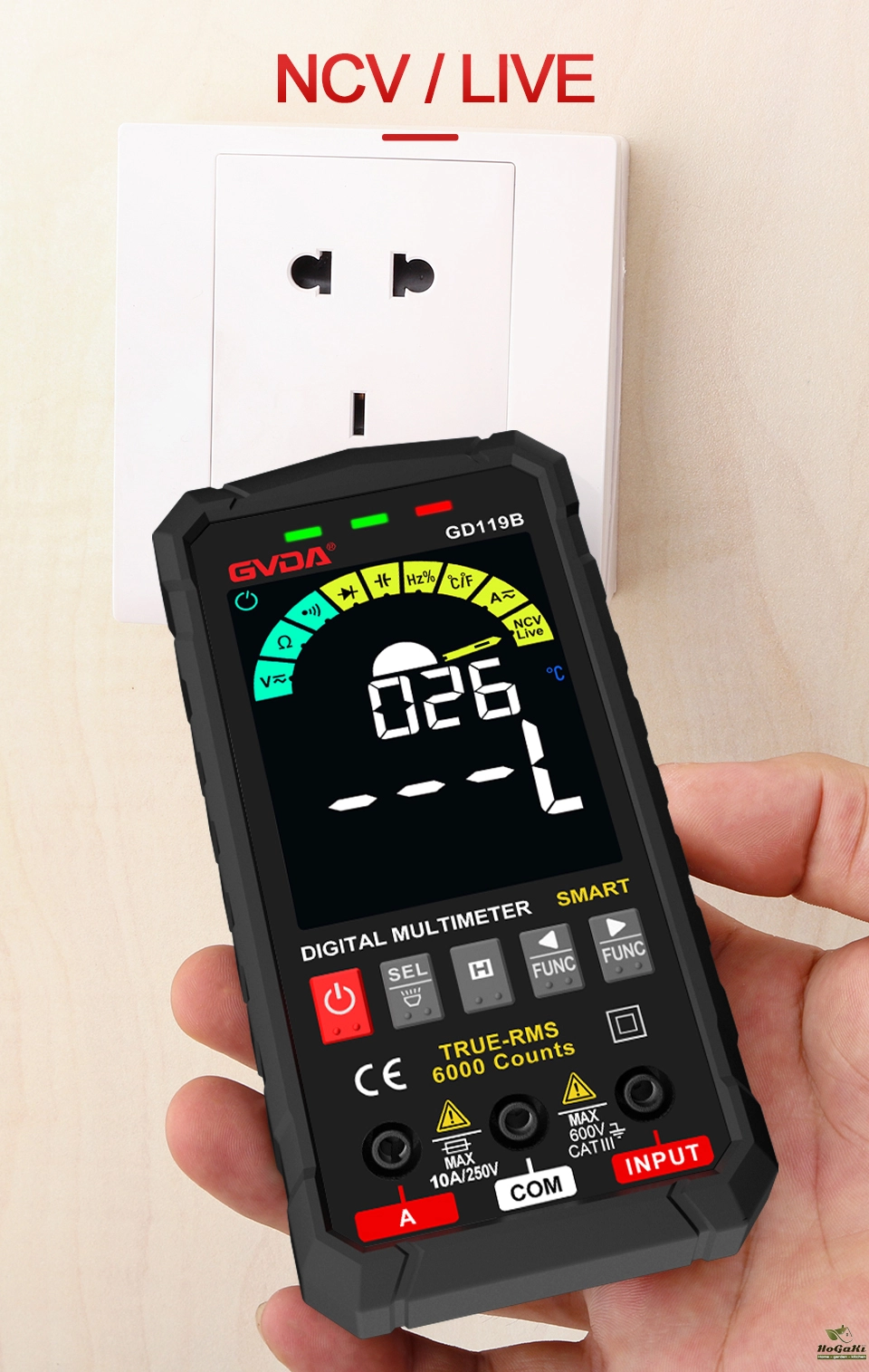

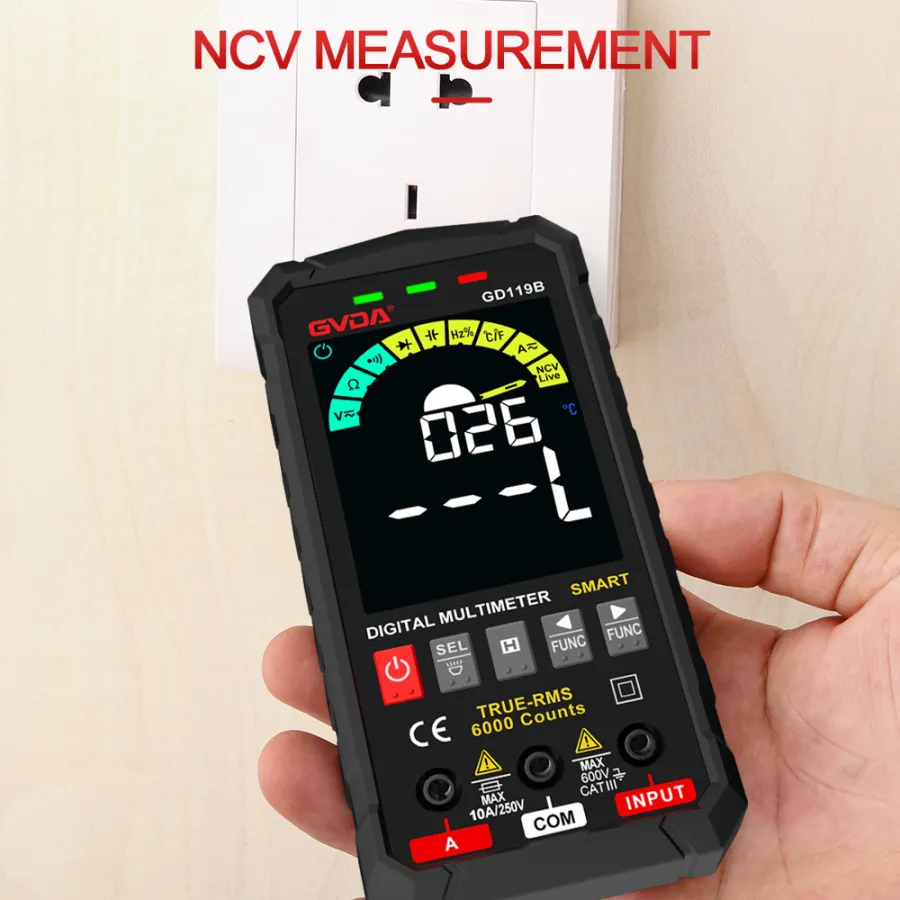

NCV/Live/Continuity test:yes(sound and light alarm)
Continuity: yes <50ohm
Diode test:yes(sound alarm) (0-3V)
Bargraph/Data hold /True RMS:yes
Fuse Burning Prompt:yes
Input Jack LED indication:yes
Low battery indication:yes
Auto power off：yes

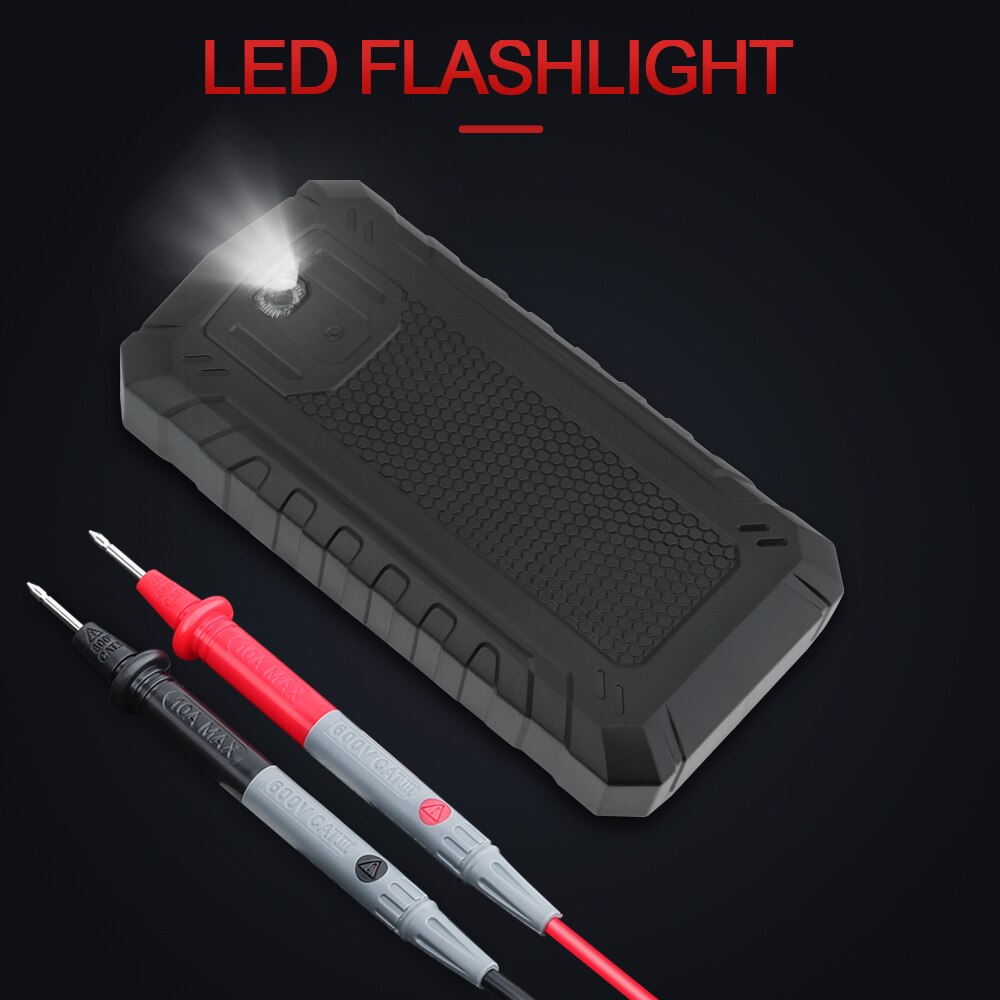

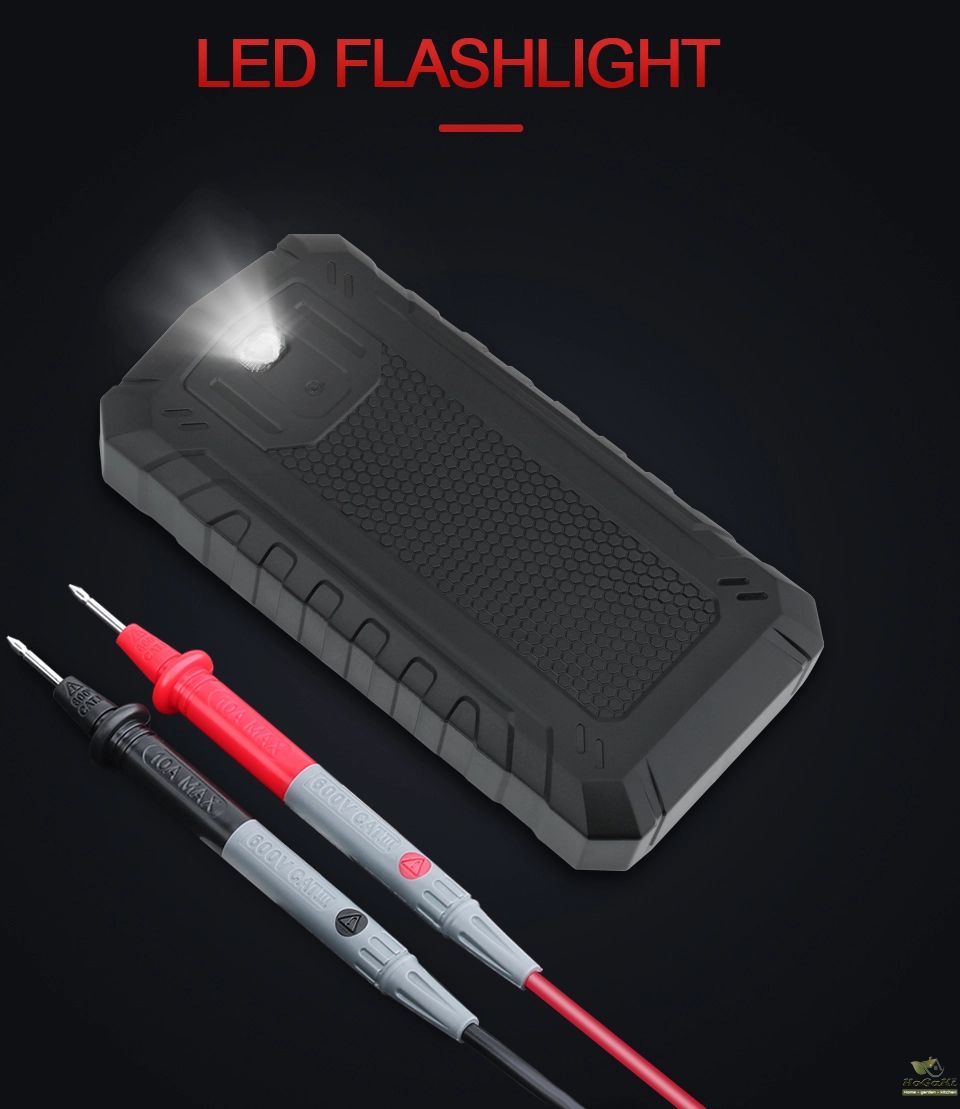

Flashlights:yes

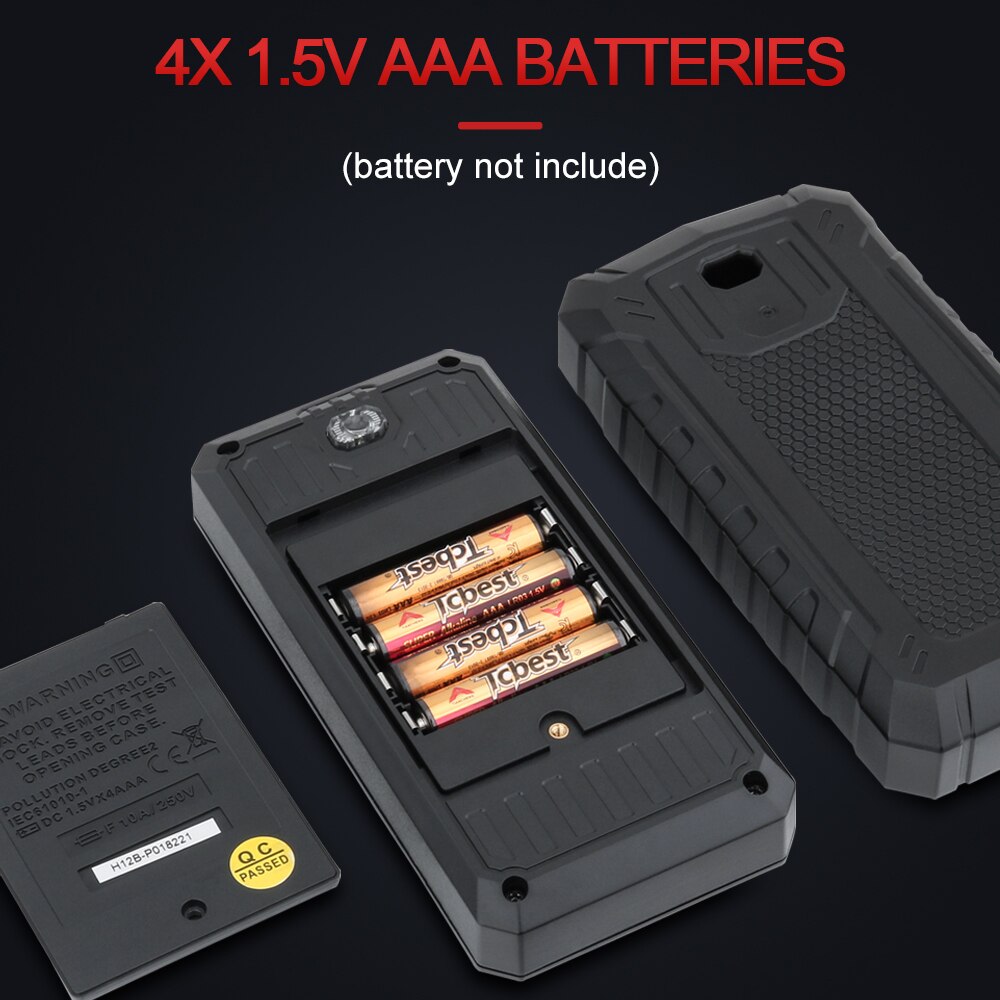

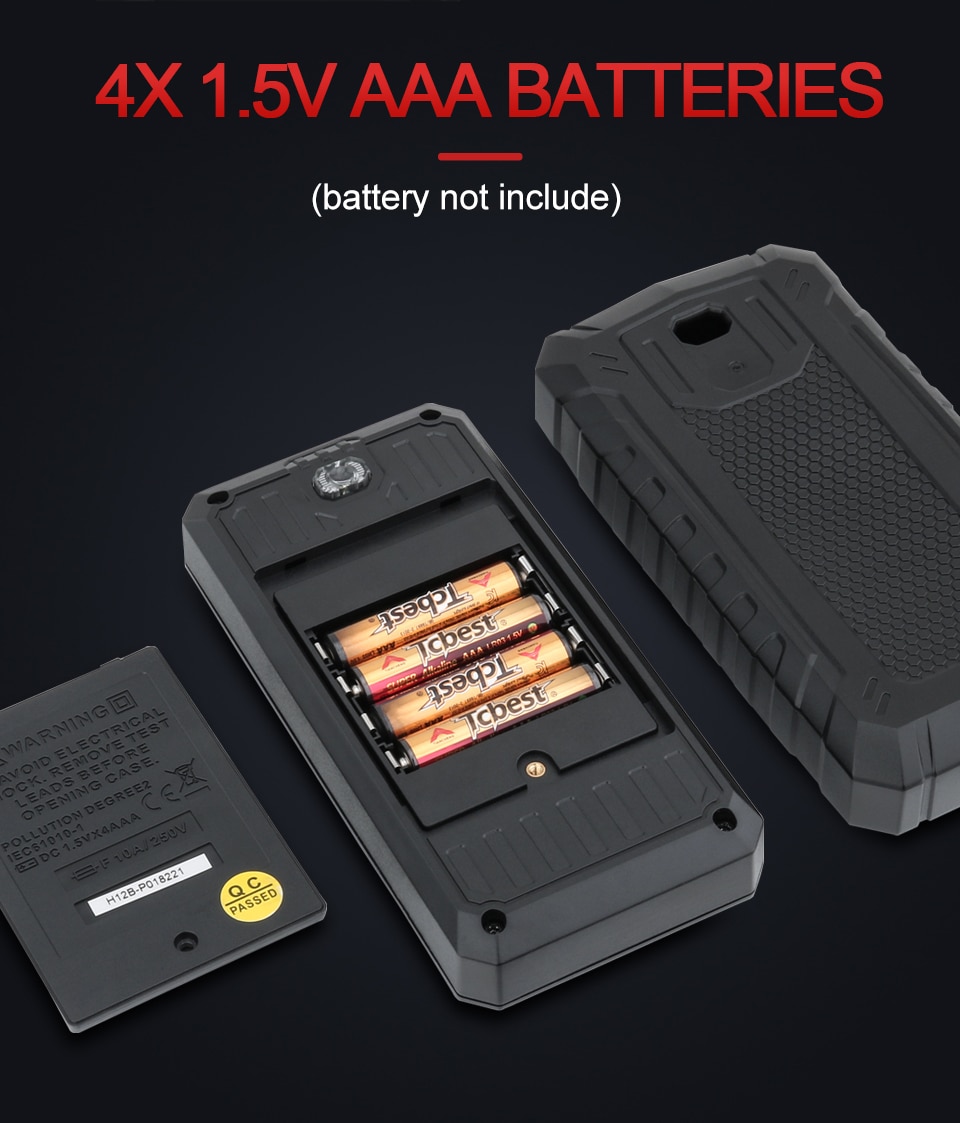

Power supply:4pcs AAA Batteries (not include)

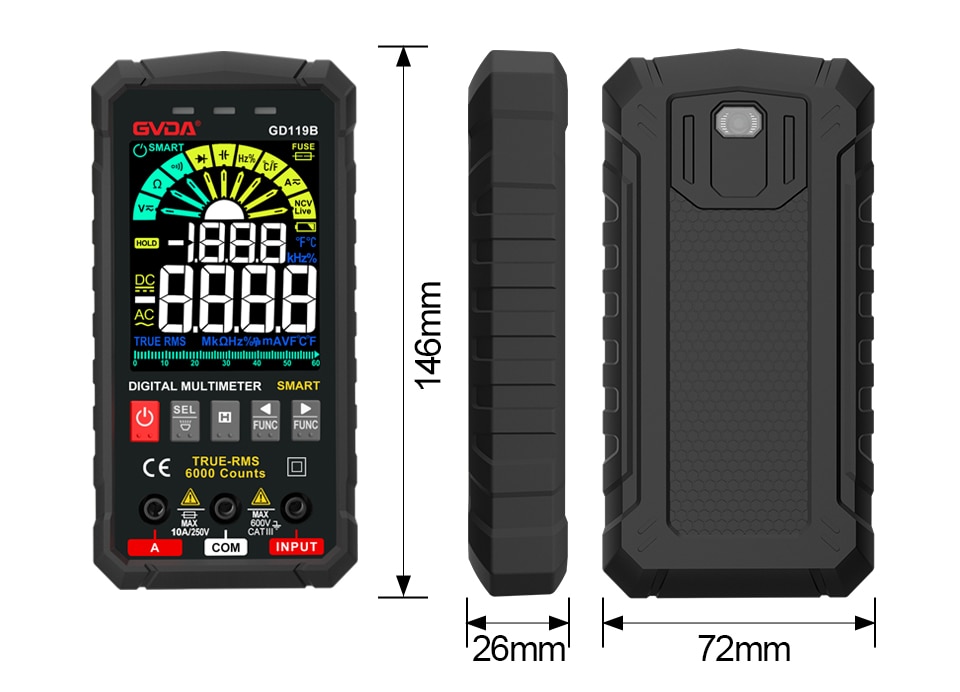

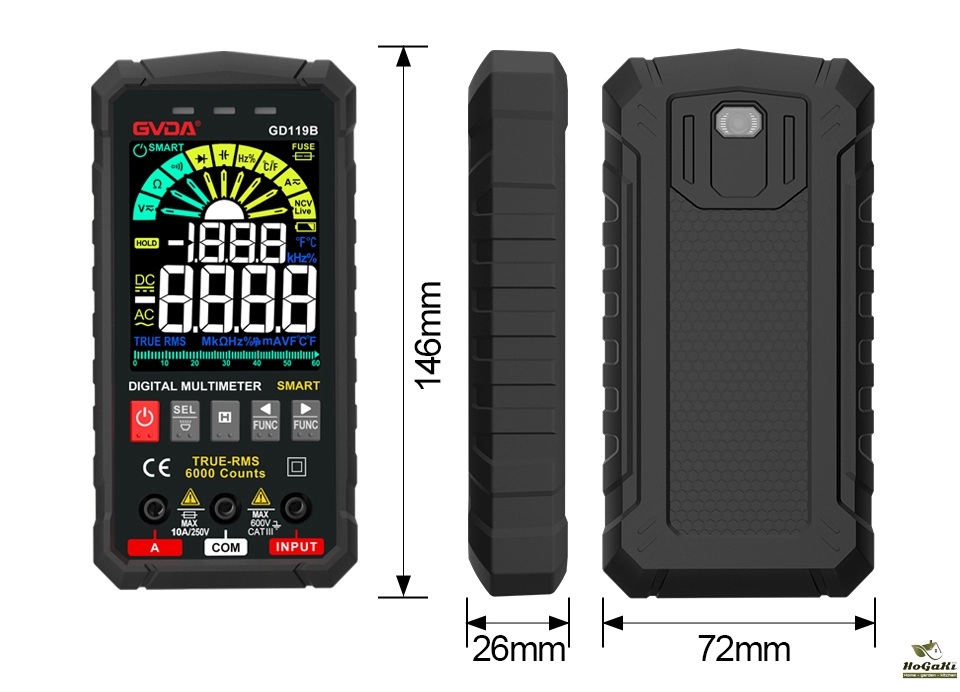

Product Size:113x68x19mm
Package Size:170x95x50mm
Package Weight:about 400g

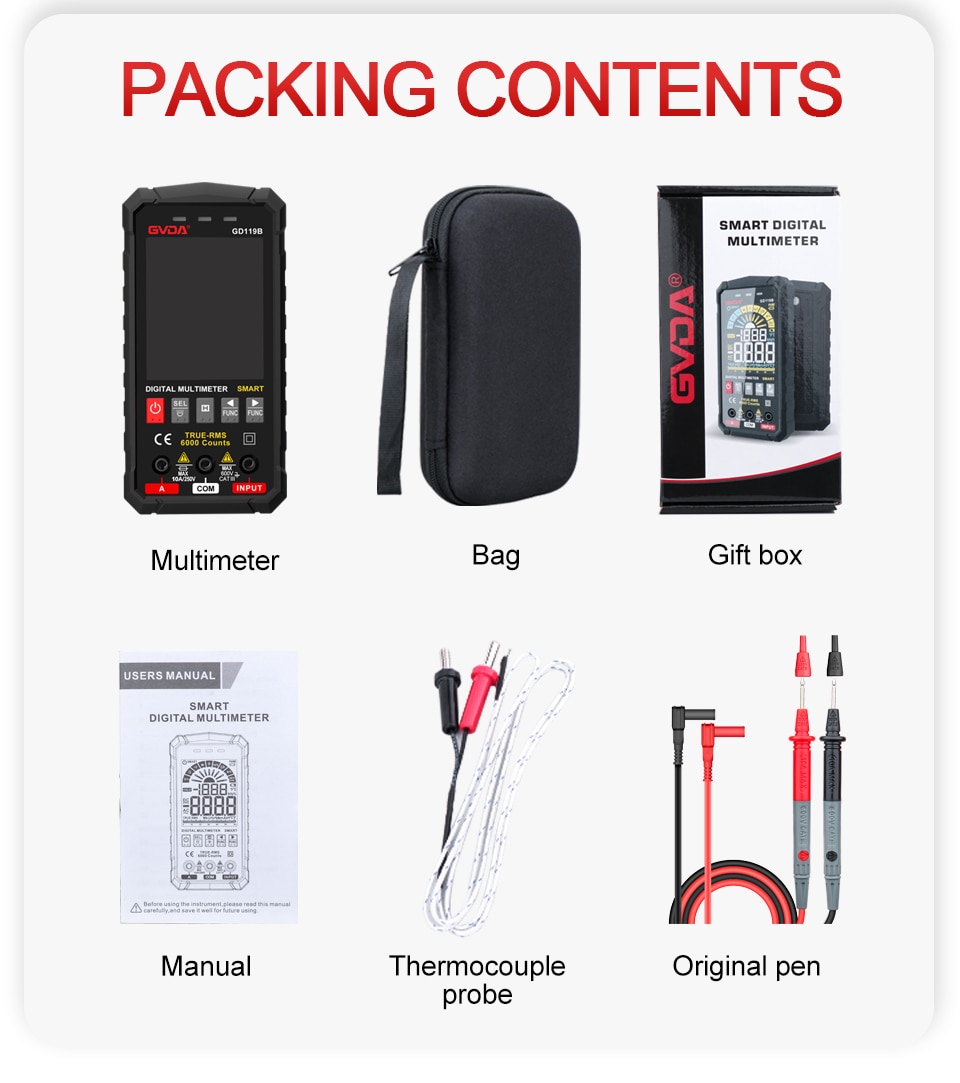

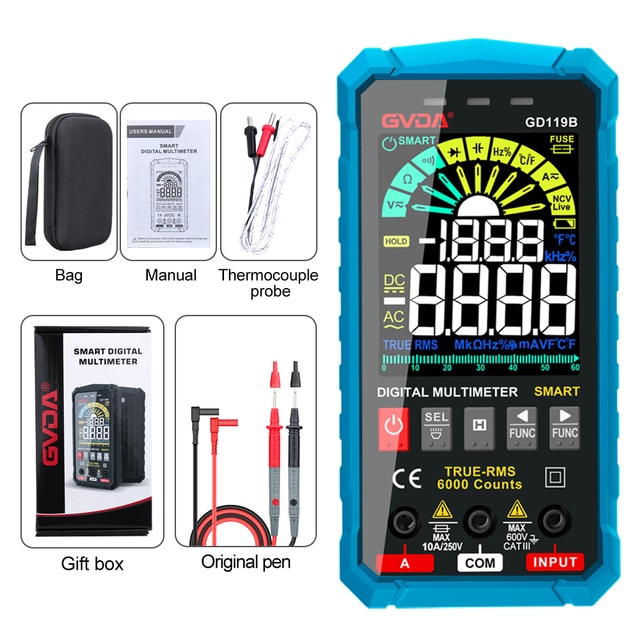

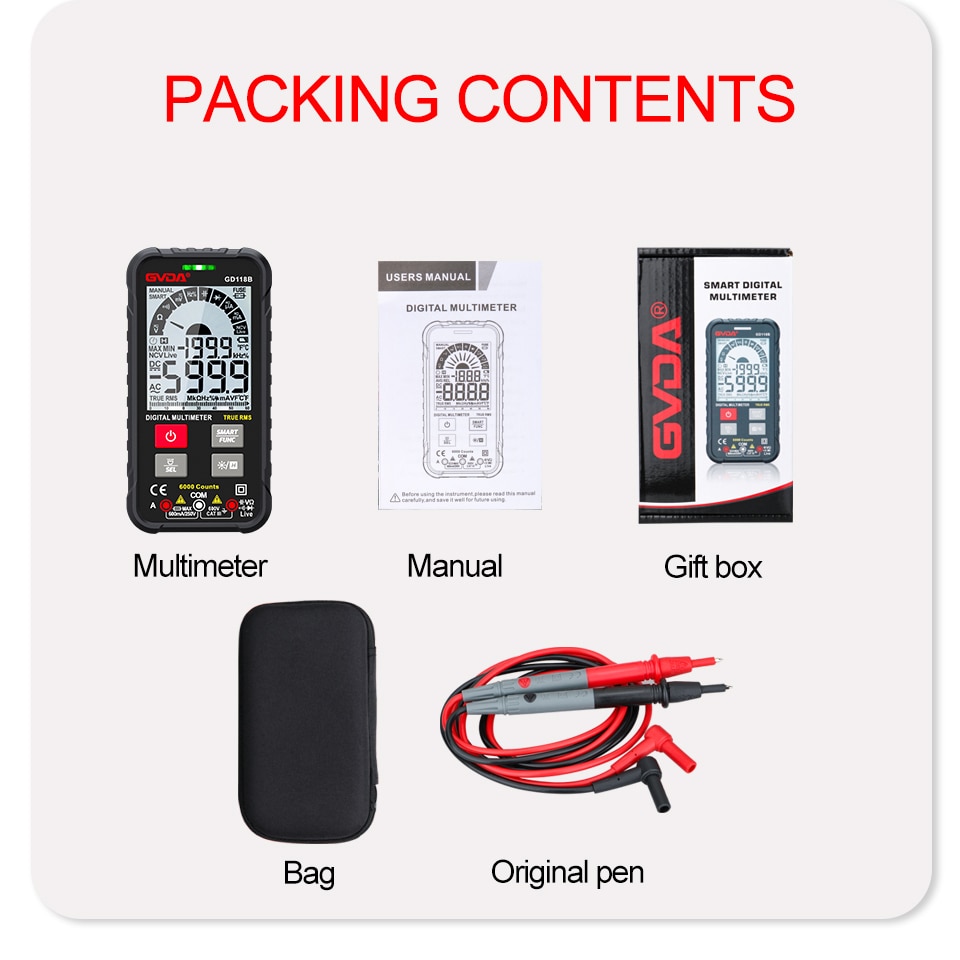

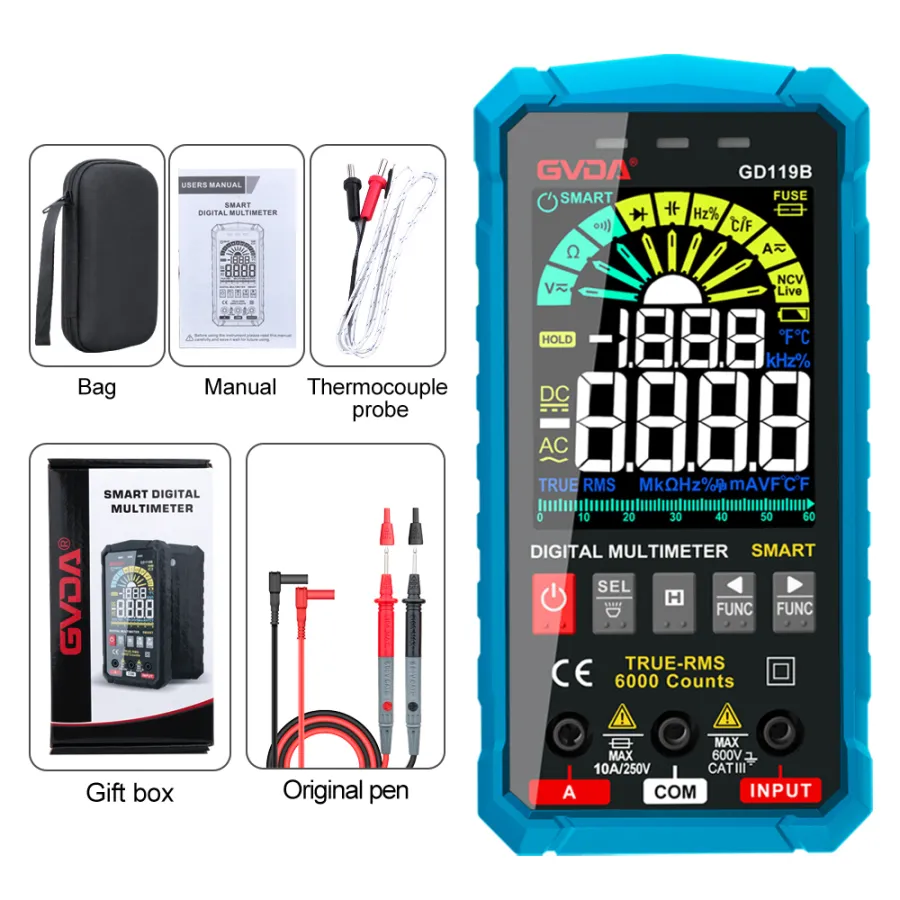

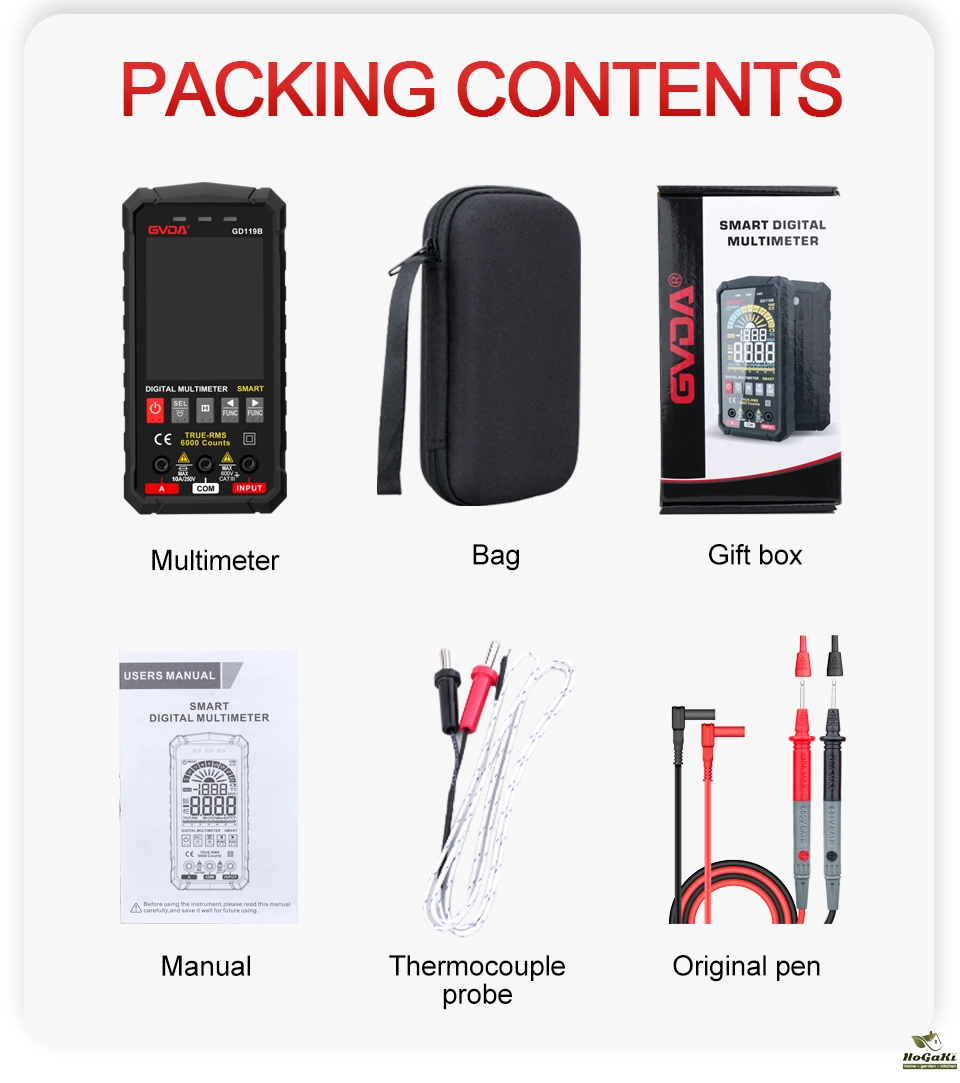

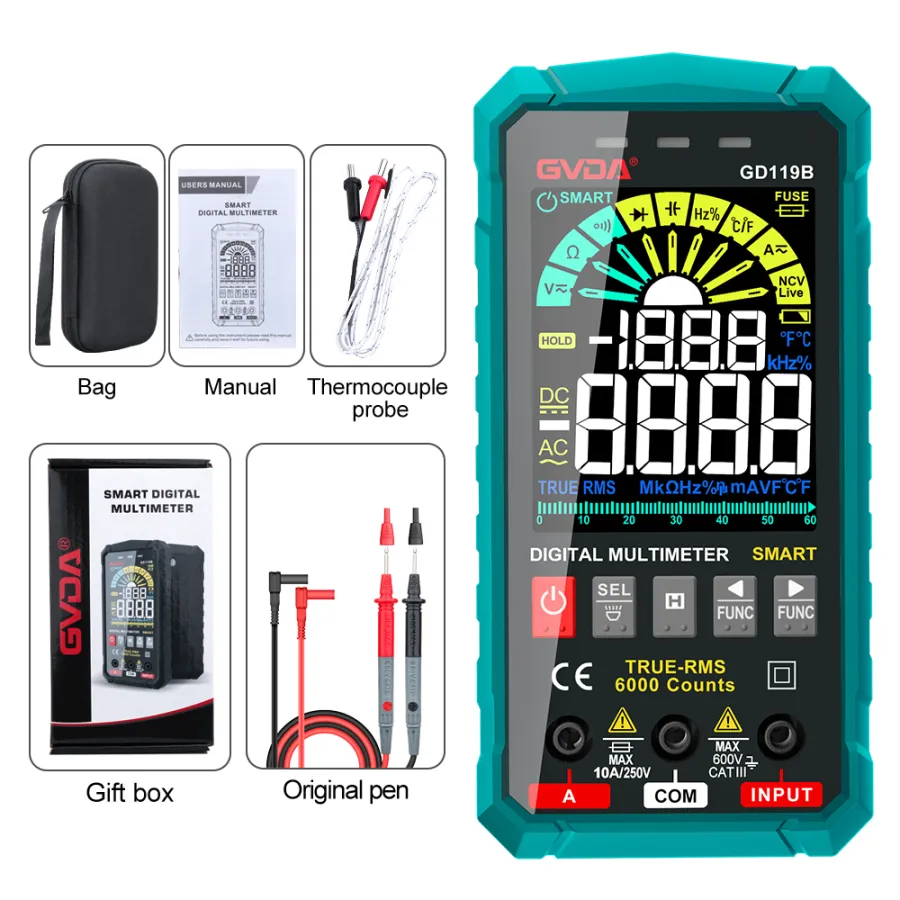

Packing Contents
1pc Multimeter

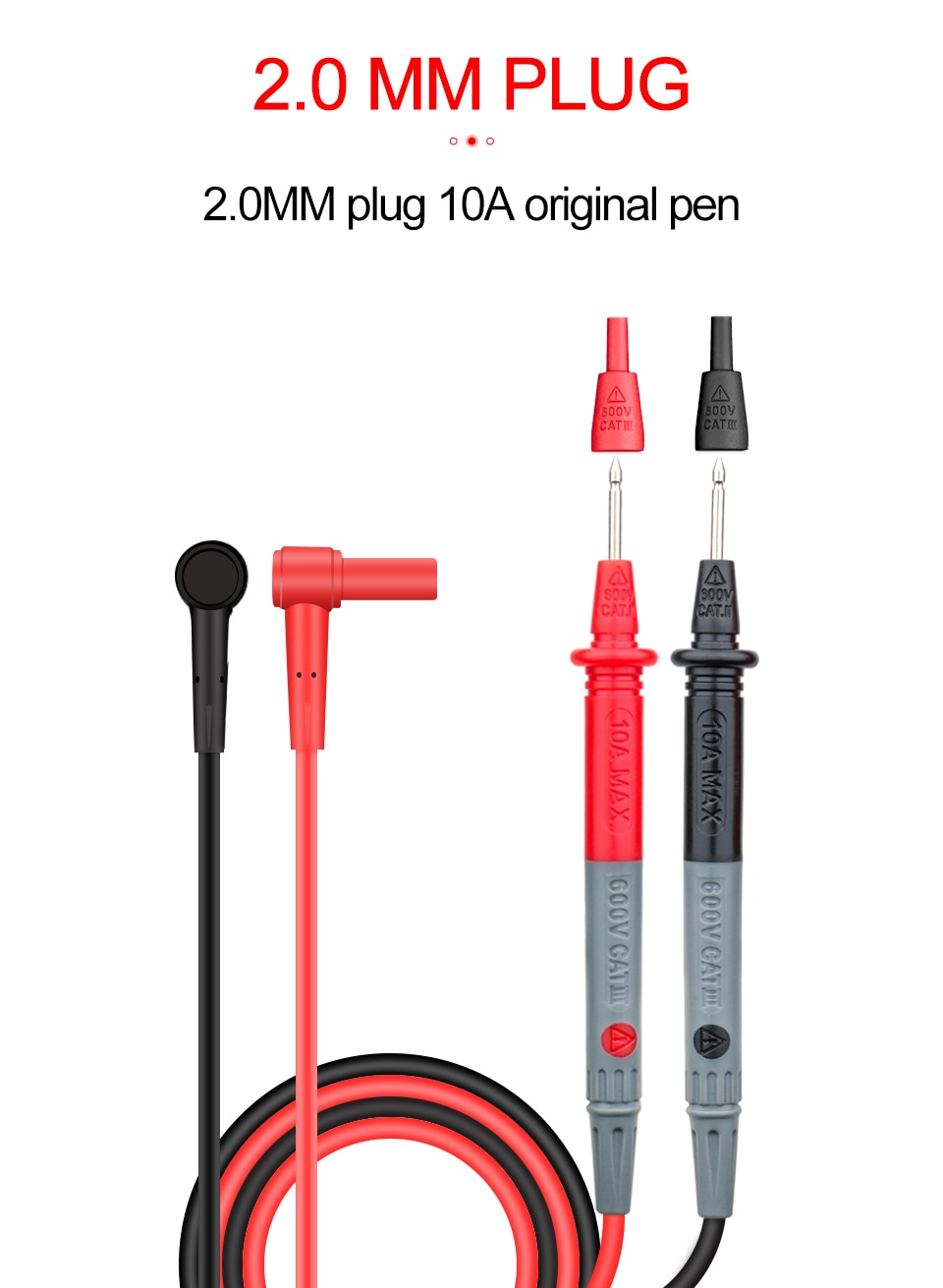

1pc pen cable

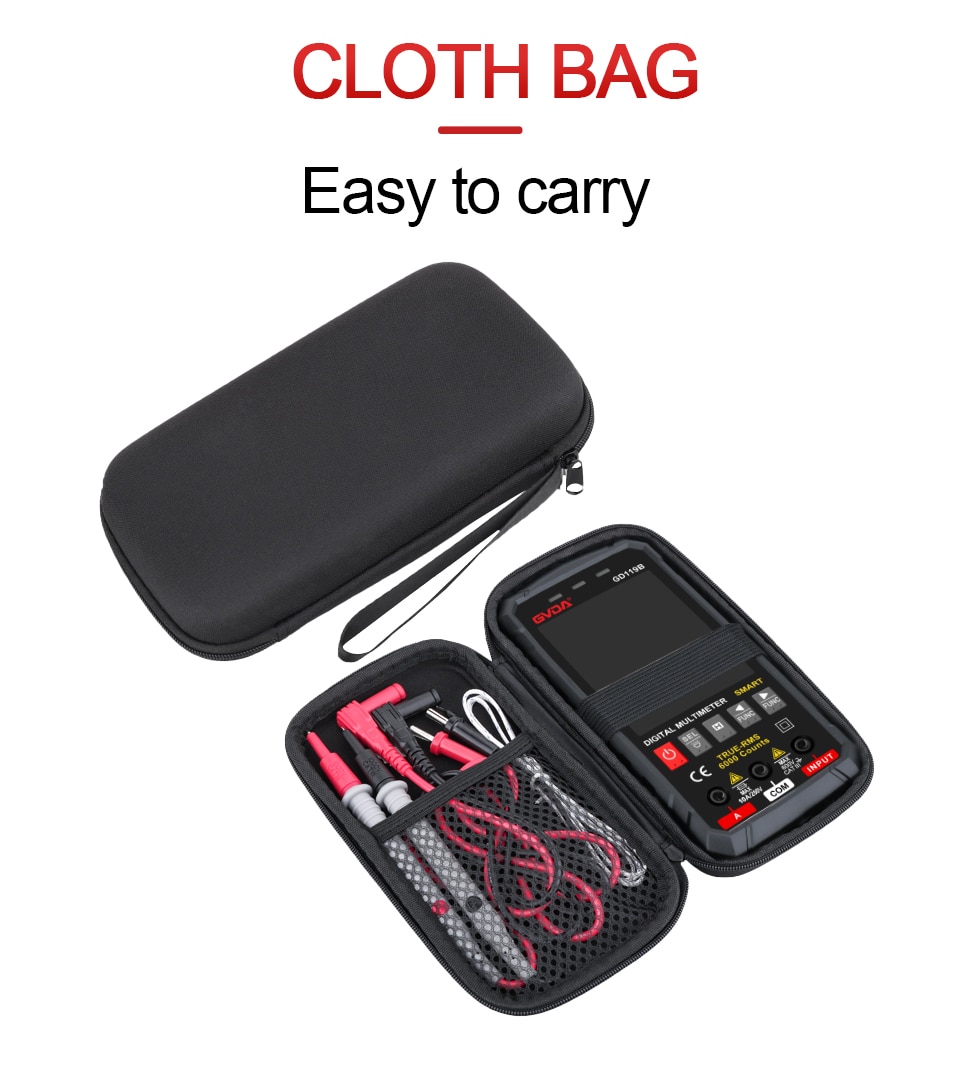

1pc cloth bag
1pc Thermocouple probe

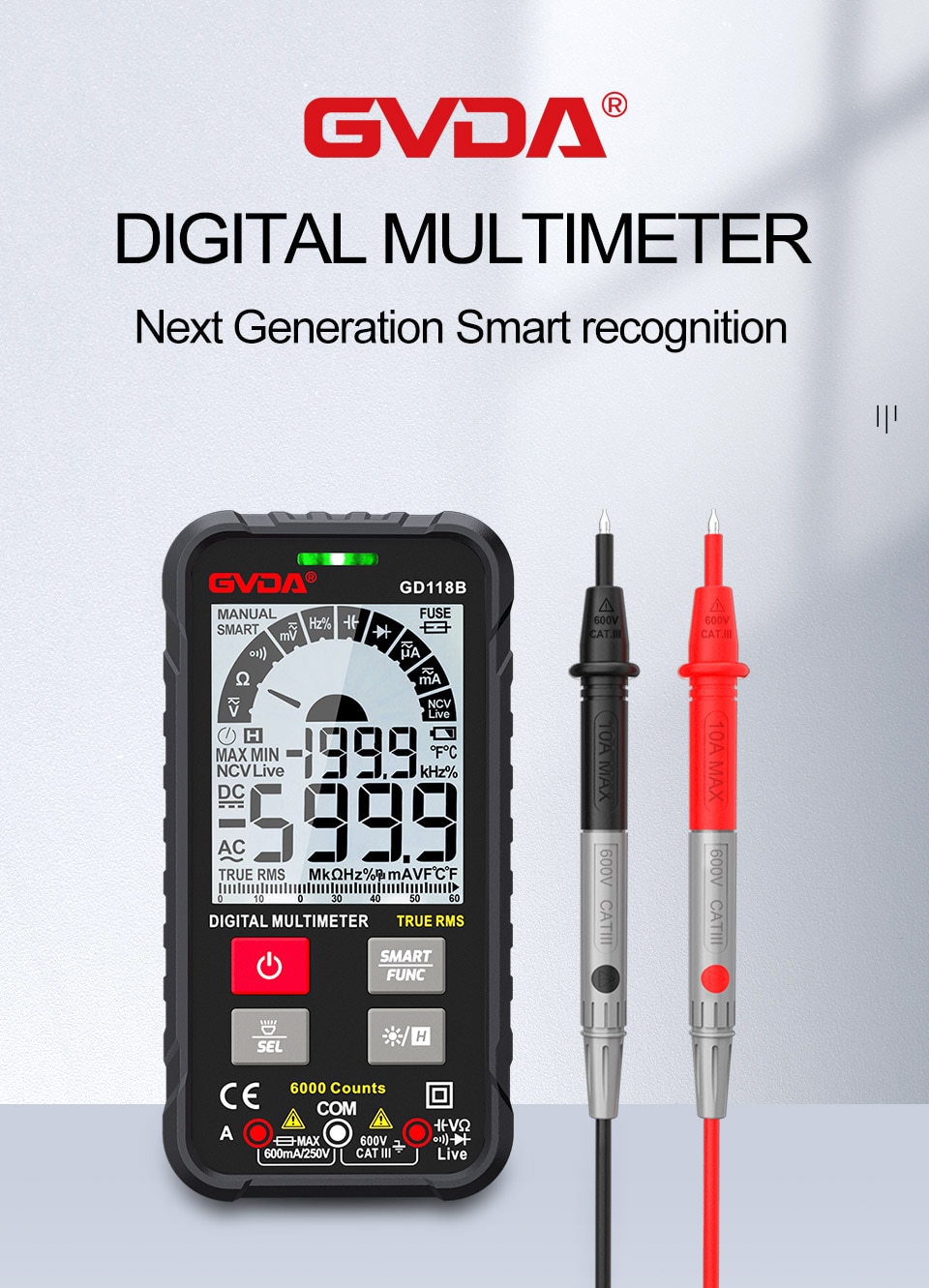

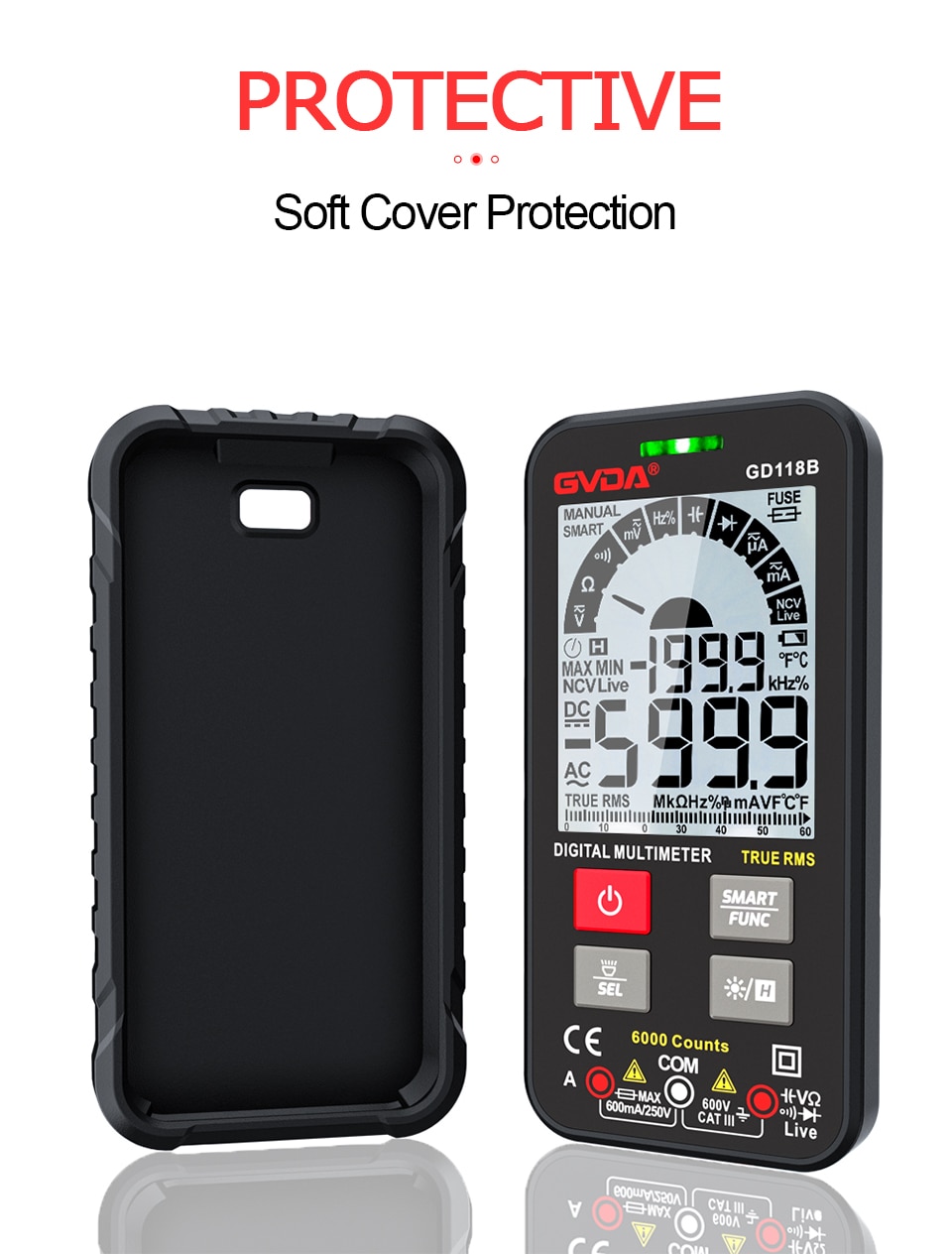

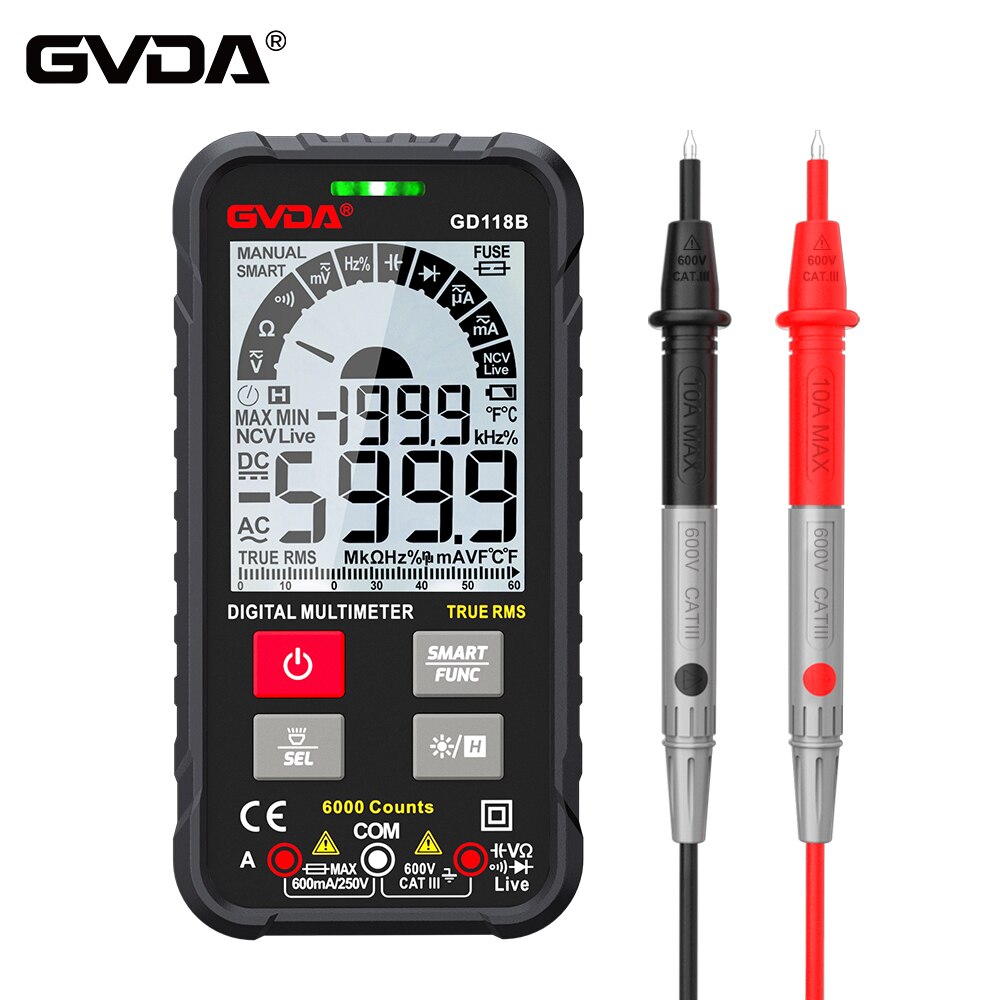

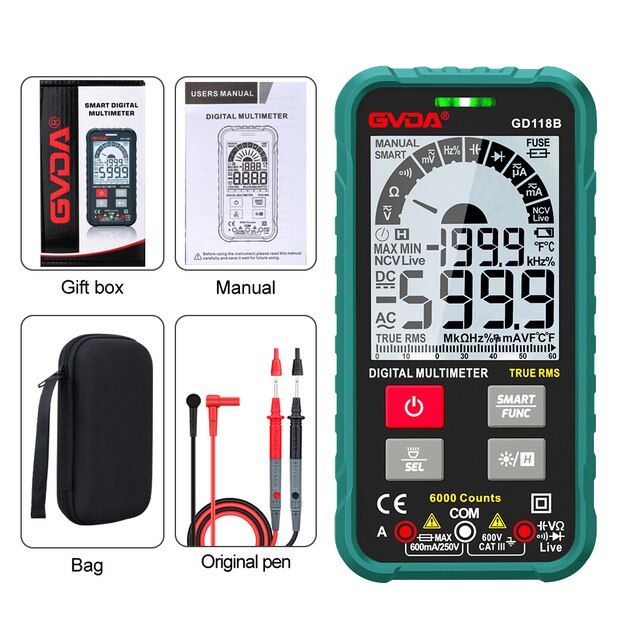

Technical Details GD118B Series
Model name: GD118B
DC Voltage: 60mV/600mV/6V/60V/600V ±(0.5%+3)
AC Voltage: 60mV/600mV/6V/60V/600V ±(1.0%+3)
DC Current: 6000uA/60mA/600mA ±(1.2%+5);
AC Current: 6000uA/60mA/600mA ±(1.5%+5);
Resistance:600/6k/60k/600kOHM ±(1.0%+5);
6m/60mOHM ±(1.5%+3)
Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF ±(4.0%+5);
6mF/60mF ±(5.0%+5)
Frequency: 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz/10MHz ±(1.0%+5)
Duty:1.0%-99.0% ±(3.0%+5)
Counts: 6000counts
Smart Function(AC/DC Voltage,resistance and continuity):yes
Auto Identification of current input:yes

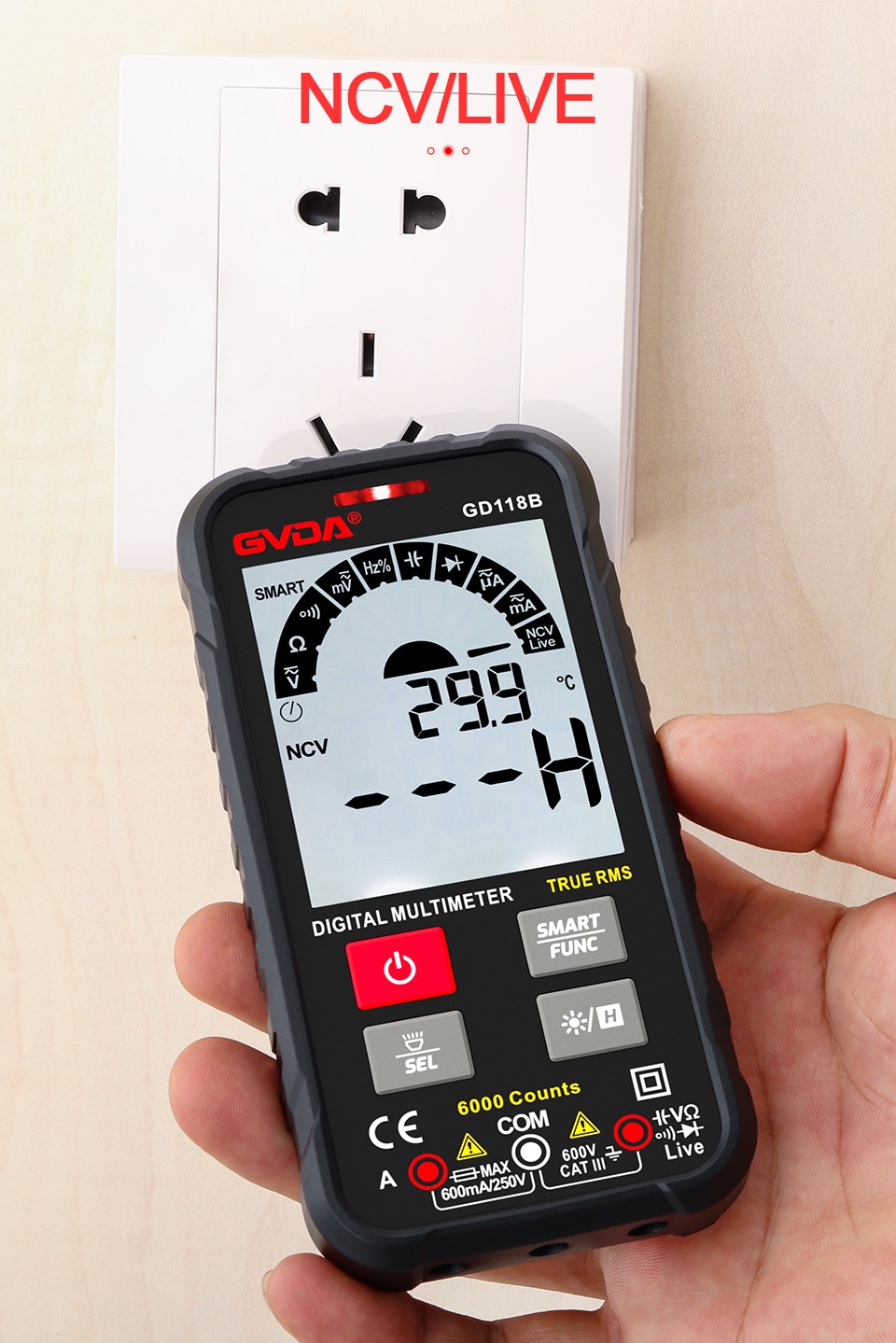

NCV/Live/Continuity test:yes(sound and light alarm)
Diode test:yes(sound alarm)
Bargraph/Data hold /True RMS:yes
Fuse Burning Prompt:yes
Input Jack LED indication:yes
Low battery indication:yes
Auto power off：yes
Flashlights:yes

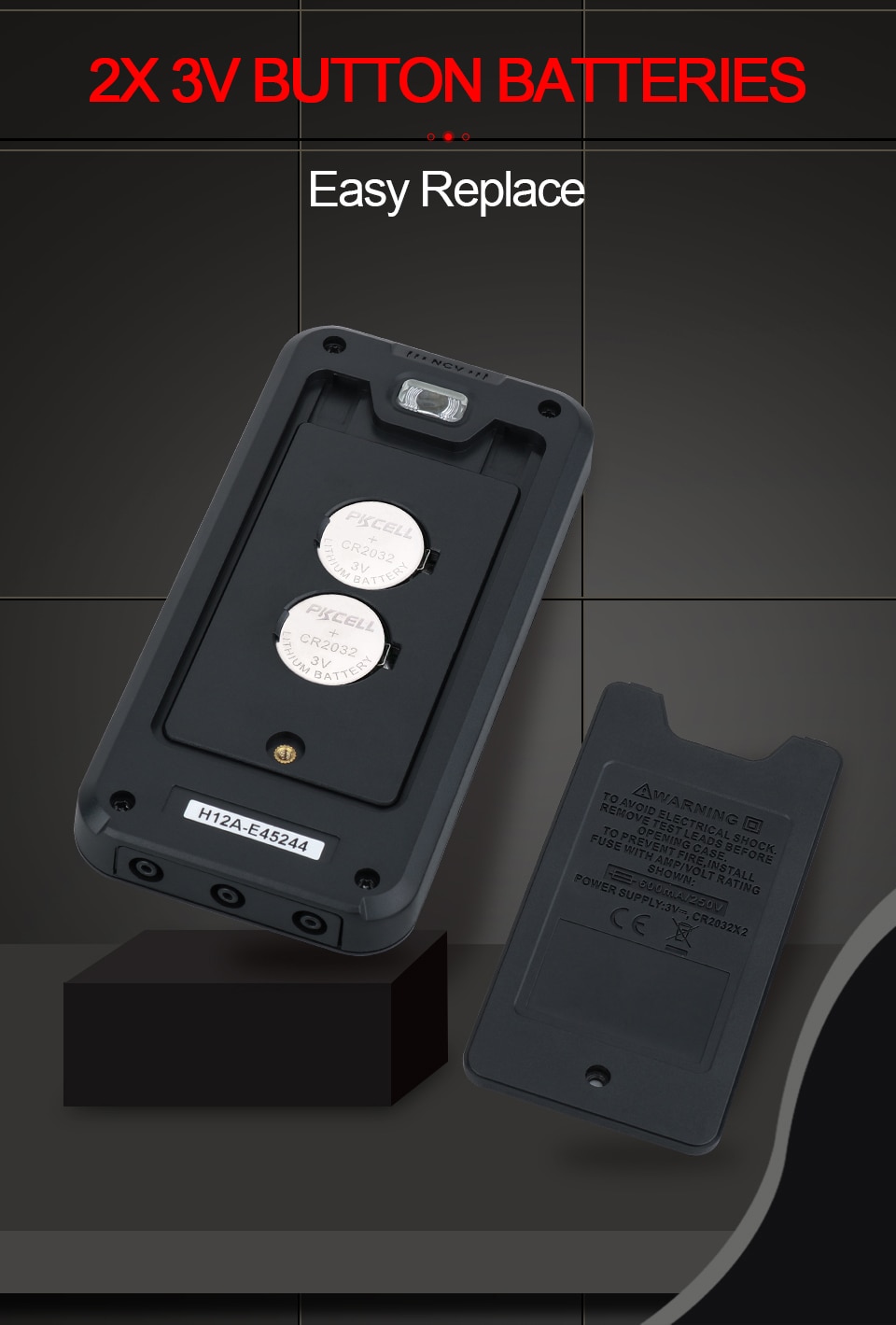

Power supply:2x CR2032 Batteries (not include)
Product Size:113x68x19mm
Package Size:170x95x50mm
Package Weight:275g
Packing Contents
1pc Multimeter
1pc pen cable
1pc cloth bag

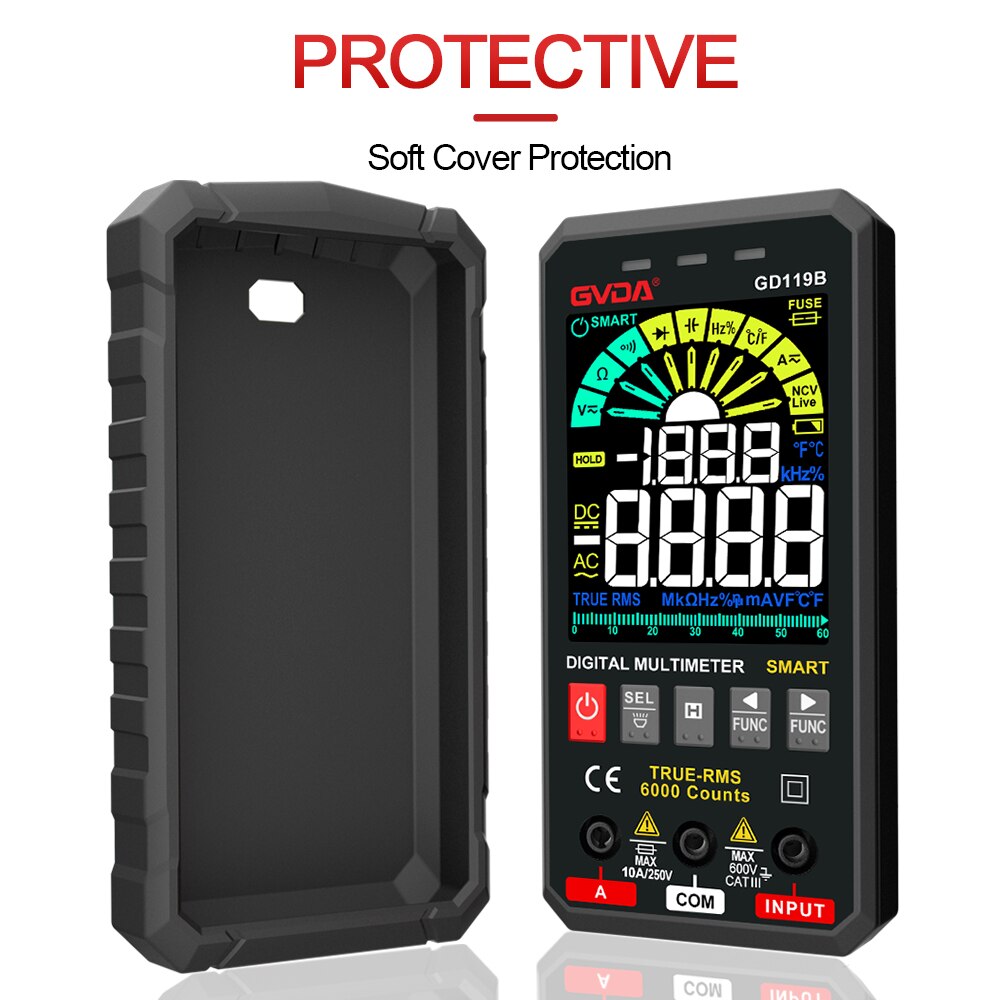

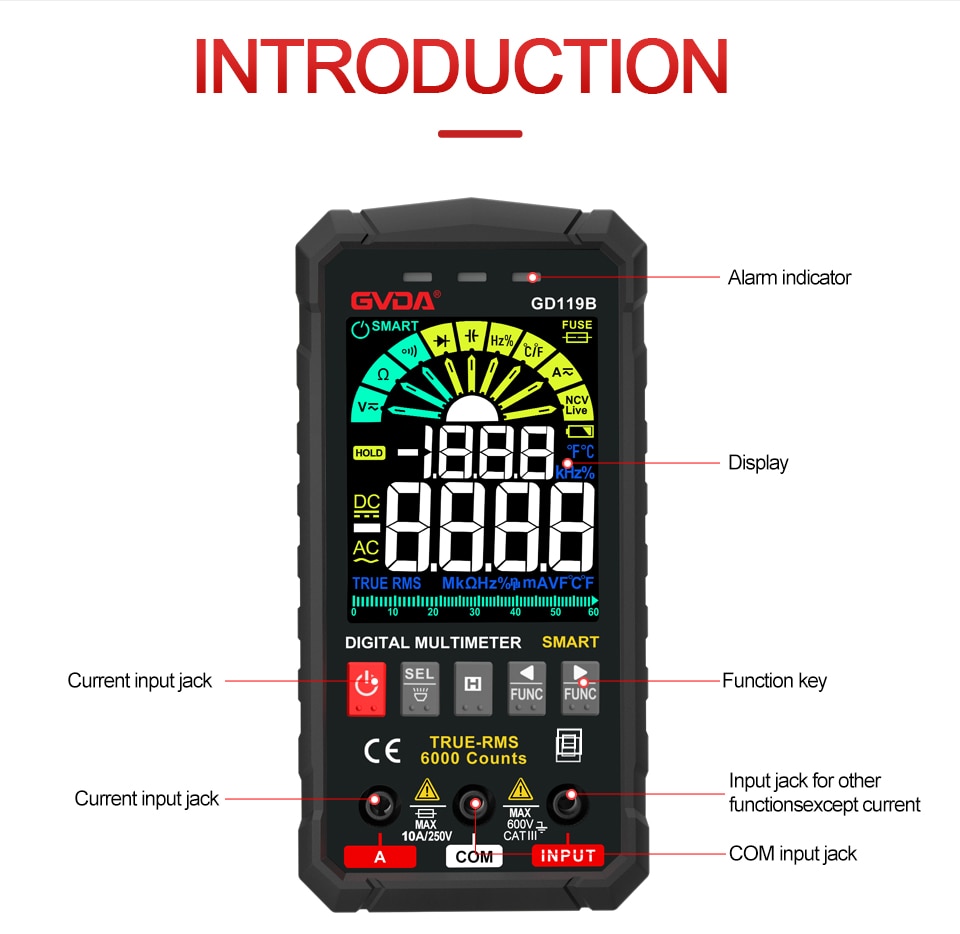

Below is Product Details for GD119B Series ( Color LCD Display)

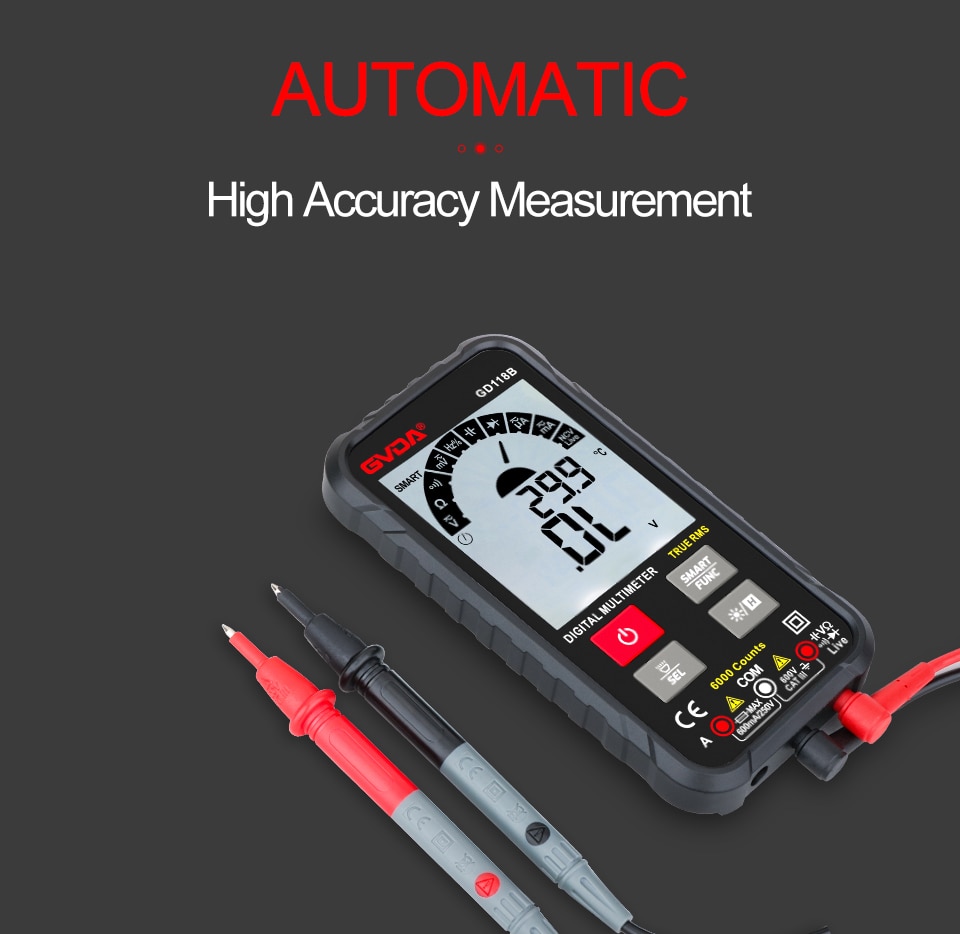

Below is Product Details for GD118B Series
