RD RD6006 RD6006W USB WiFi DC DC Voltage current Step-down Power Supply module buck adjustable converter 60V 6A Battery Charging
ID: 28791

RD RD6006 RD6006W USB WiFi DC DC Voltage current Step-down Power Supply module buck adjustable converter 60V 6A Battery Charging

4.9 (31 votes) | 104 orders
Price: US $245.75 - 390.51 / piece
Discount Price:
US $ 159.88 - 250.44 / piece
-35%
Color
Quantity

Buy Now
Add to Cart
Note about the packaging
for RD power supply, we change the design of the product box, New and old versions are shipped randomly, the products inside are same, please notice that


Note about the noise about 400W PSU:

1. There is a high-frequency noise when the switching power supply is unloaded, Due to the large output power range of the product, in order to reduce the power consumption of the switching power supply when no-load, the PWM control chip will jump some control cycles. Assume that the original working frequency is 60KHZ. If there are more skipping cycles, the working frequency will be reduced to less than 20KHZ. This Sometimes a noise audible to human ears is produced. The size of this noise is also related to the production process of the transformer. Since the winding and paint impregnation of each transformer's coil are slightly different, the noise of each product's operation is slightly different.


2. There is a loud sound when the fan is running; when the ambient temperature is high, the fan may work even if it is unloaded.

These are normal phenomena. It is recommended to turn off the AC switch when the product is not in use! If you mind it, please do not buy it.

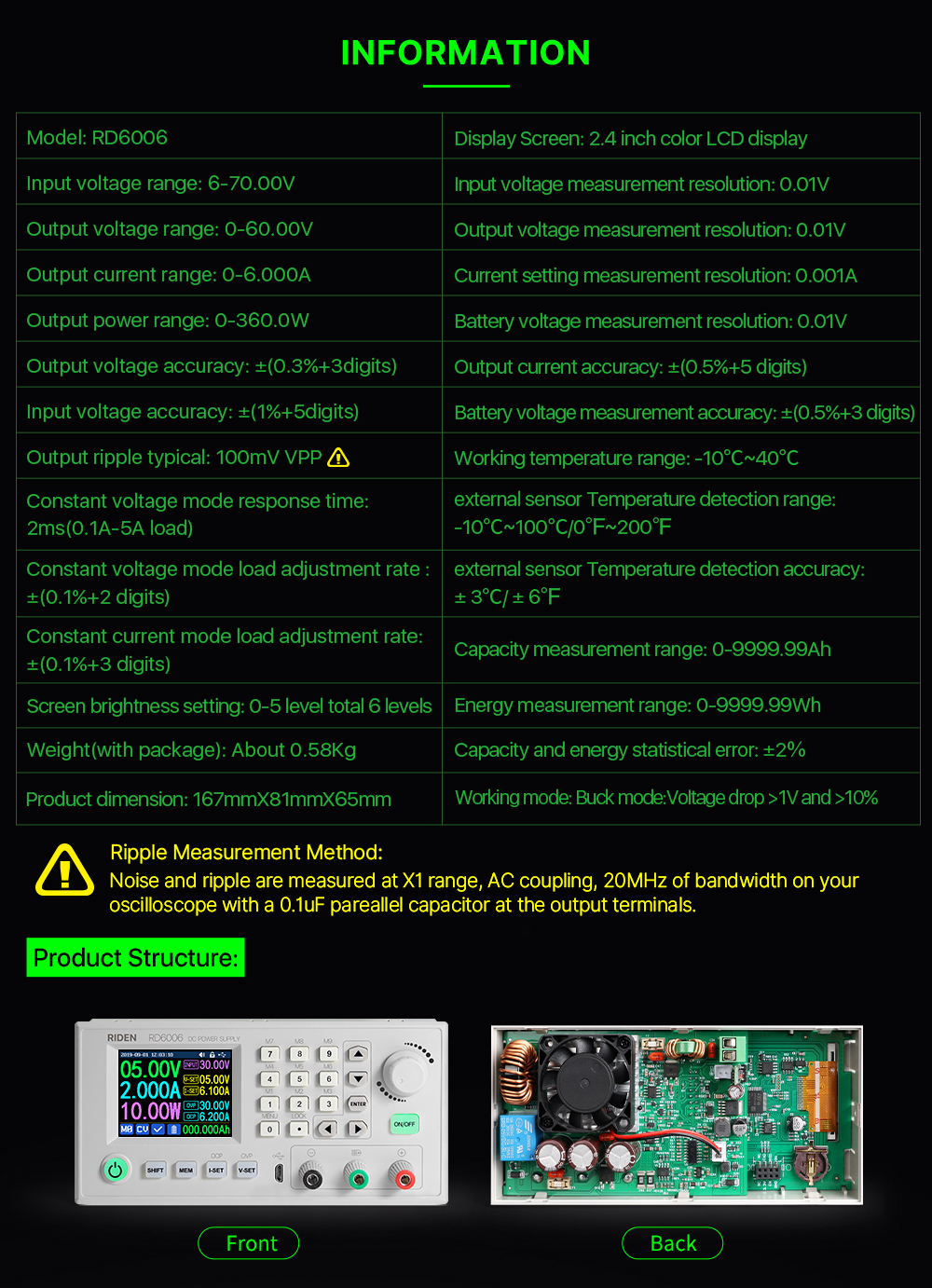

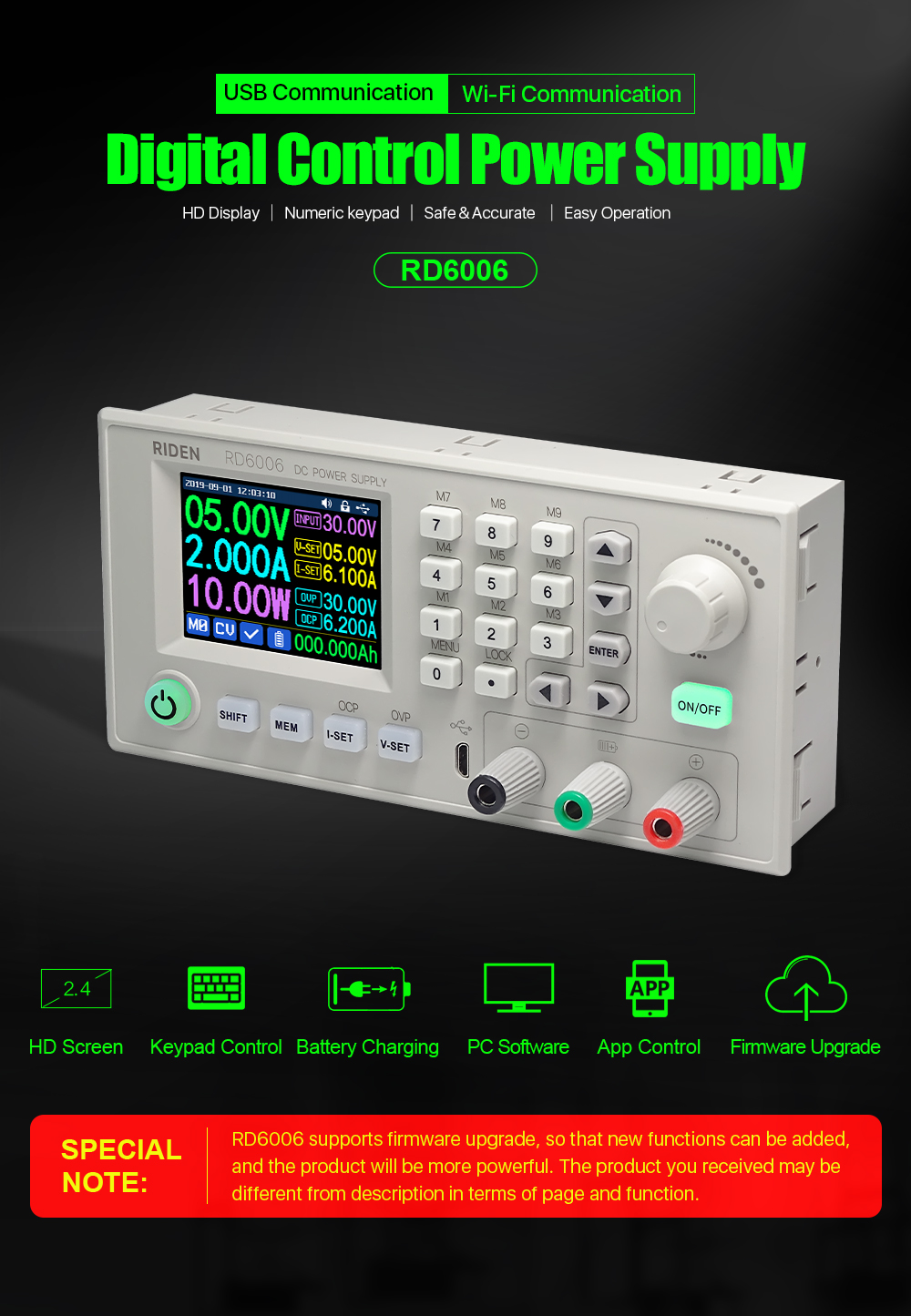

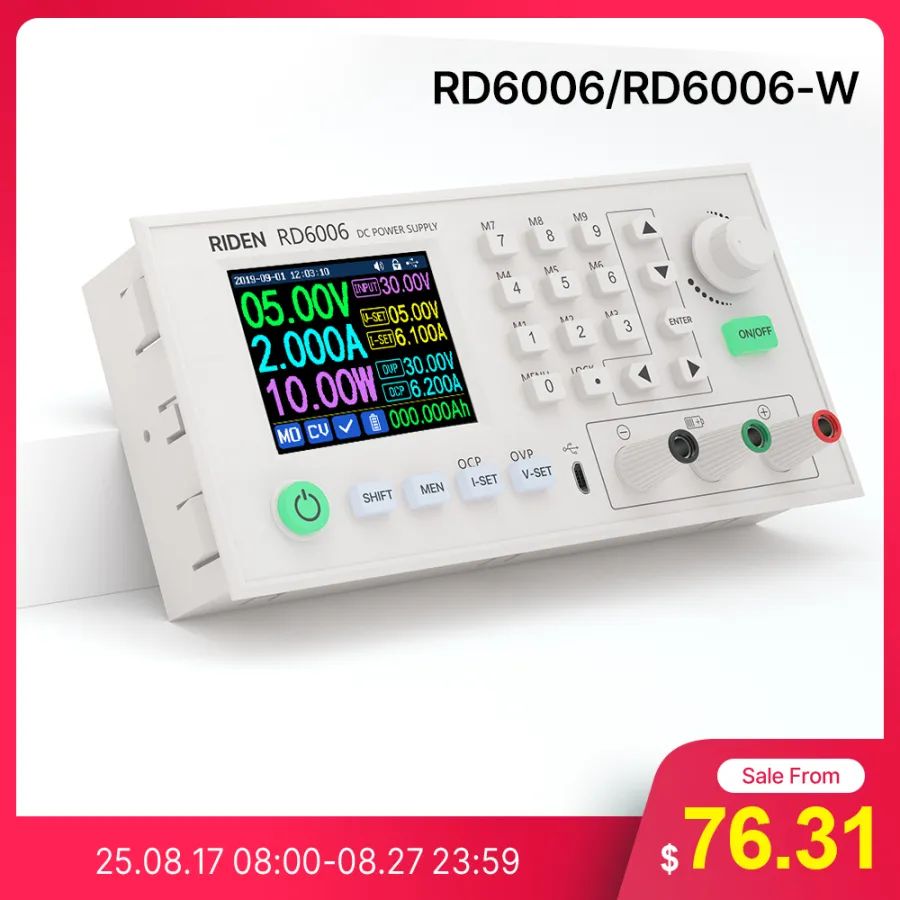

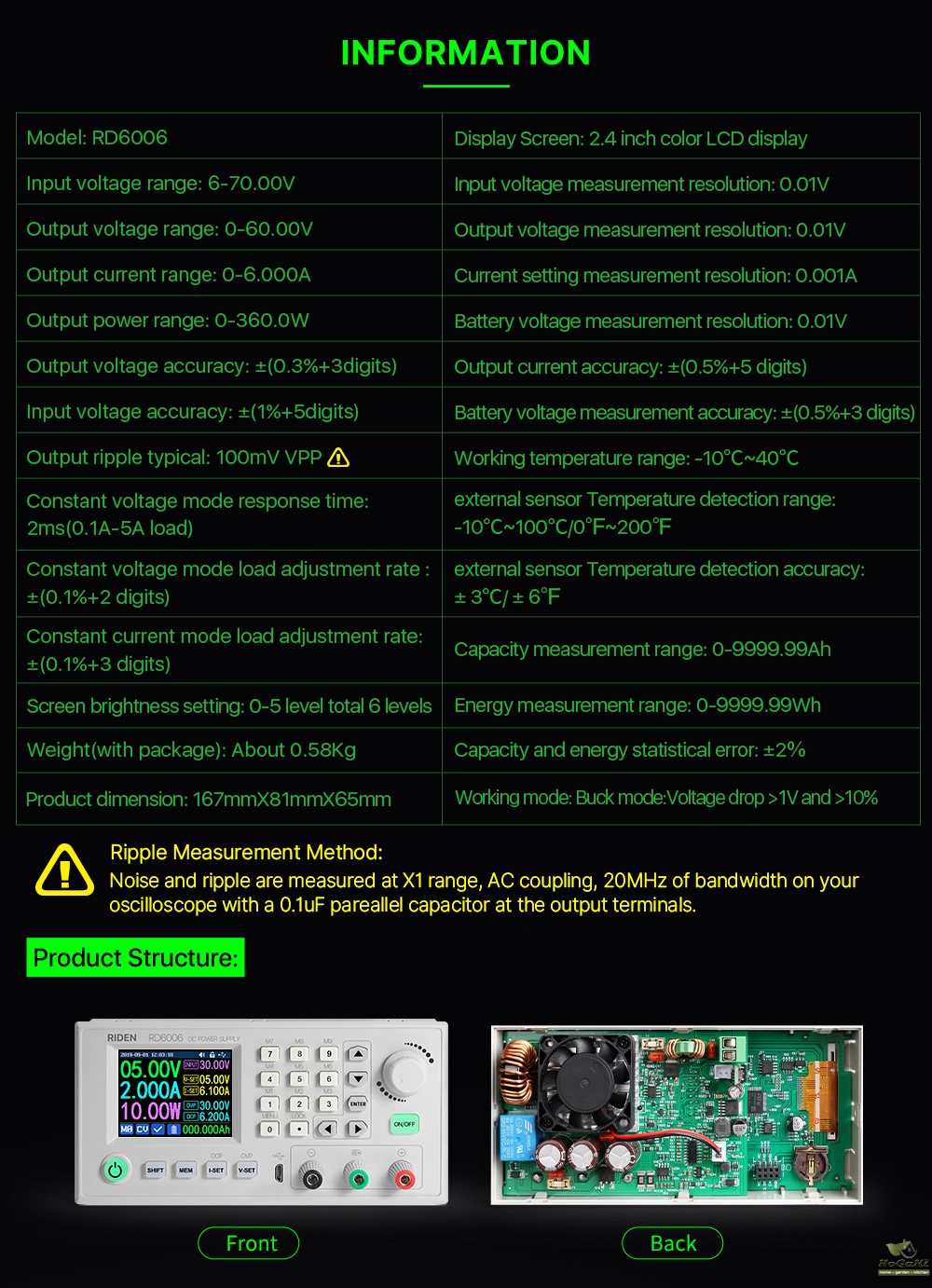

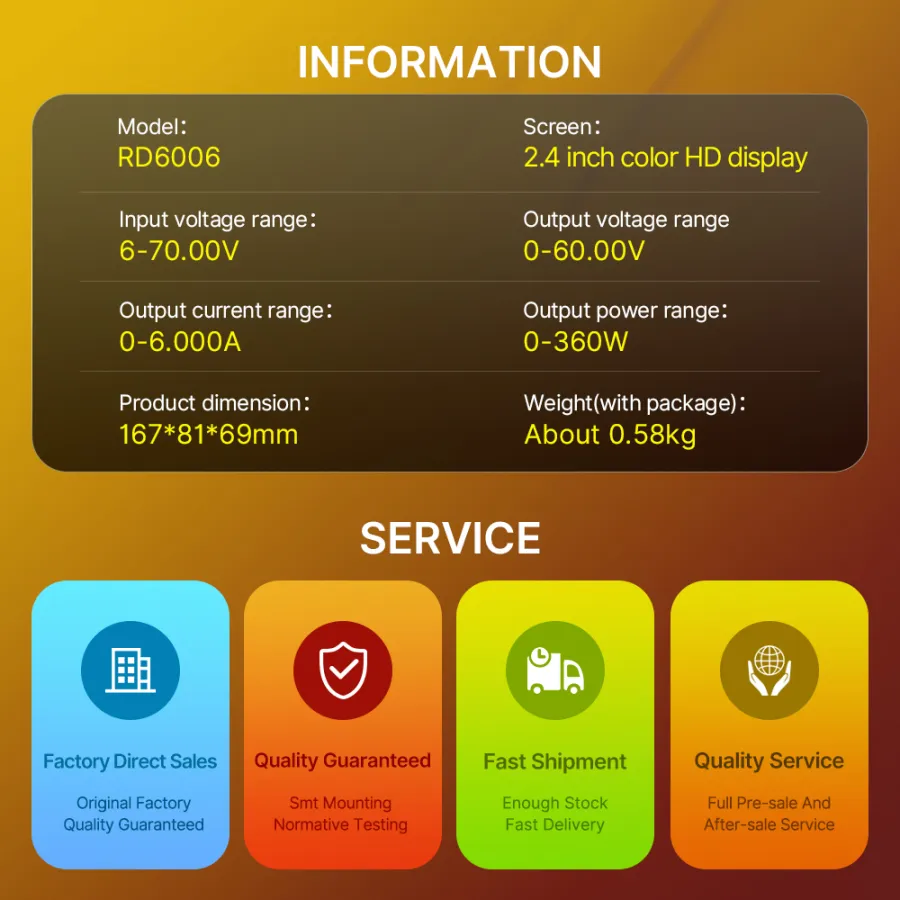

Model: RD6006/RD6006-W

Input voltage range: 6-70.00V

Output voltage range: 0-60.00V

Output current range: 0-6.000A

Output power range: 0-360W

Input voltage measurement resolution: 0.01V

Output voltagesetting measurement resolution: 0.01V

Output current setting measurement resolution: 0.001A

Battery voltage measurement resolution: 0.01V

Input voltage measurement accuracy: ±(1%+5 digits)

Output voltage accuracy between setting and measurement: ±(0.3%+3 digits)

Output currentaccuracybetween setting and measurement:±(0.5%+5 digits)

Battery voltage measurement accuracy: ±(0.5%+3 digits)

Automatic cut off current valuewhen charging:10mA

Output ripple typical:100mV VPP

Working temperature range: -10℃~40℃

External sensor Temperature detection range:-10℃~100℃/0℉~200℉

External sensor Temperature detection accuracy:±3℃/±6℉

Constant voltage moderesponse time: 2ms（0.1A-5A Load）

Constant voltage mode load regulation: ±(0.1%+2 digits)

Constant current mode load regulation: ±(0.1%+3 digits)

Capacity measurement range: 0-9999.99Ah

Energy measurement range: 0-9999.99Wh

Capacity and energy statistical error: ±2％

Buck working mode: Voltage drop >1V and >10%

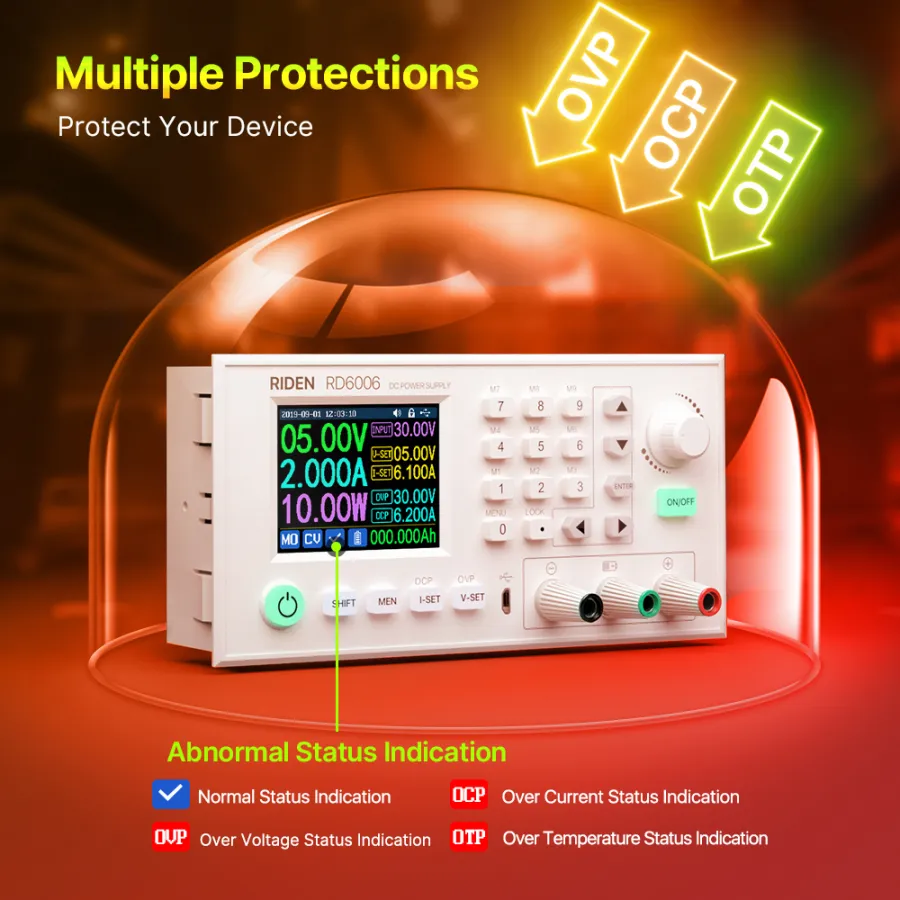

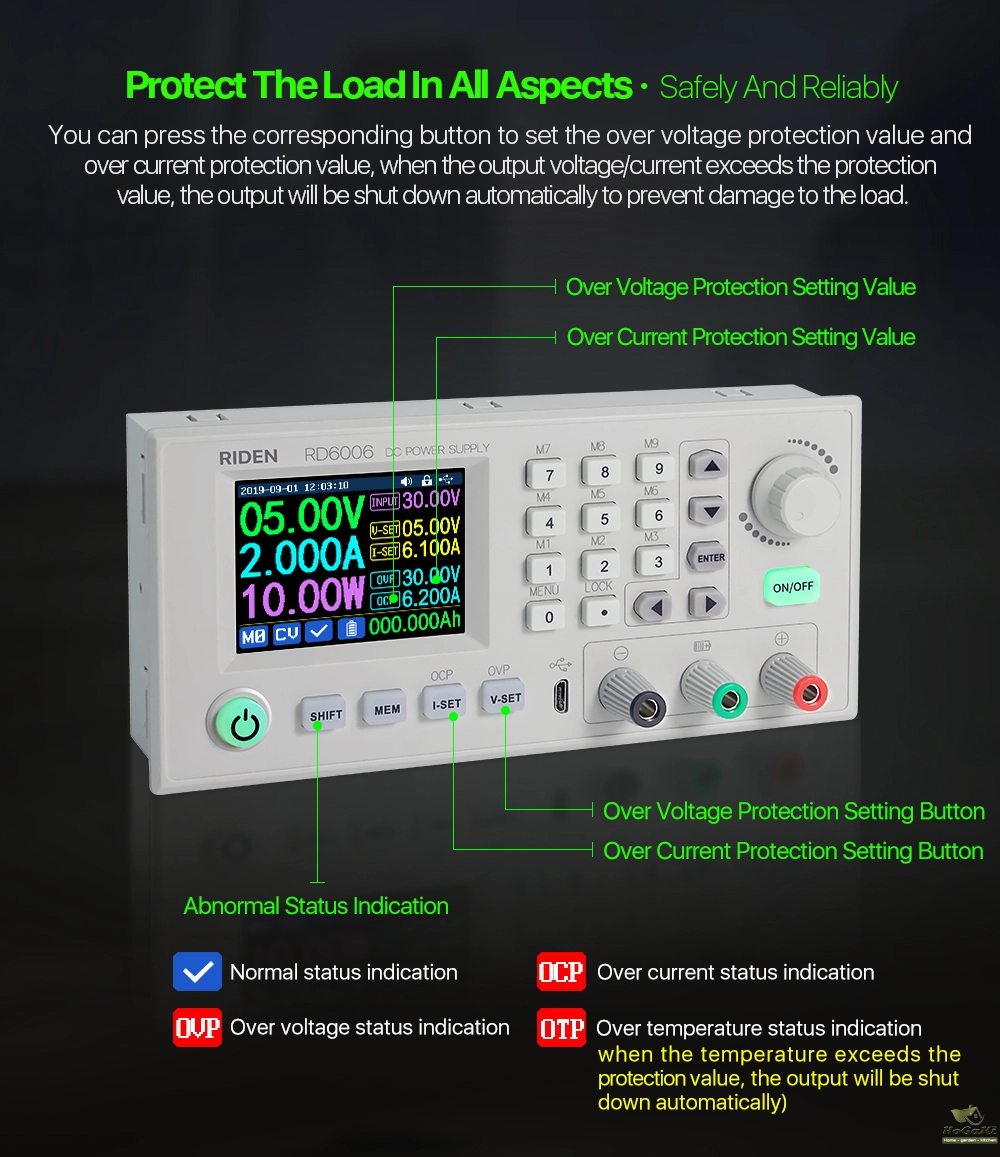

Over temperature protection: System temperature>80℃

Screen brightness setting: 0-5(6 level in total)

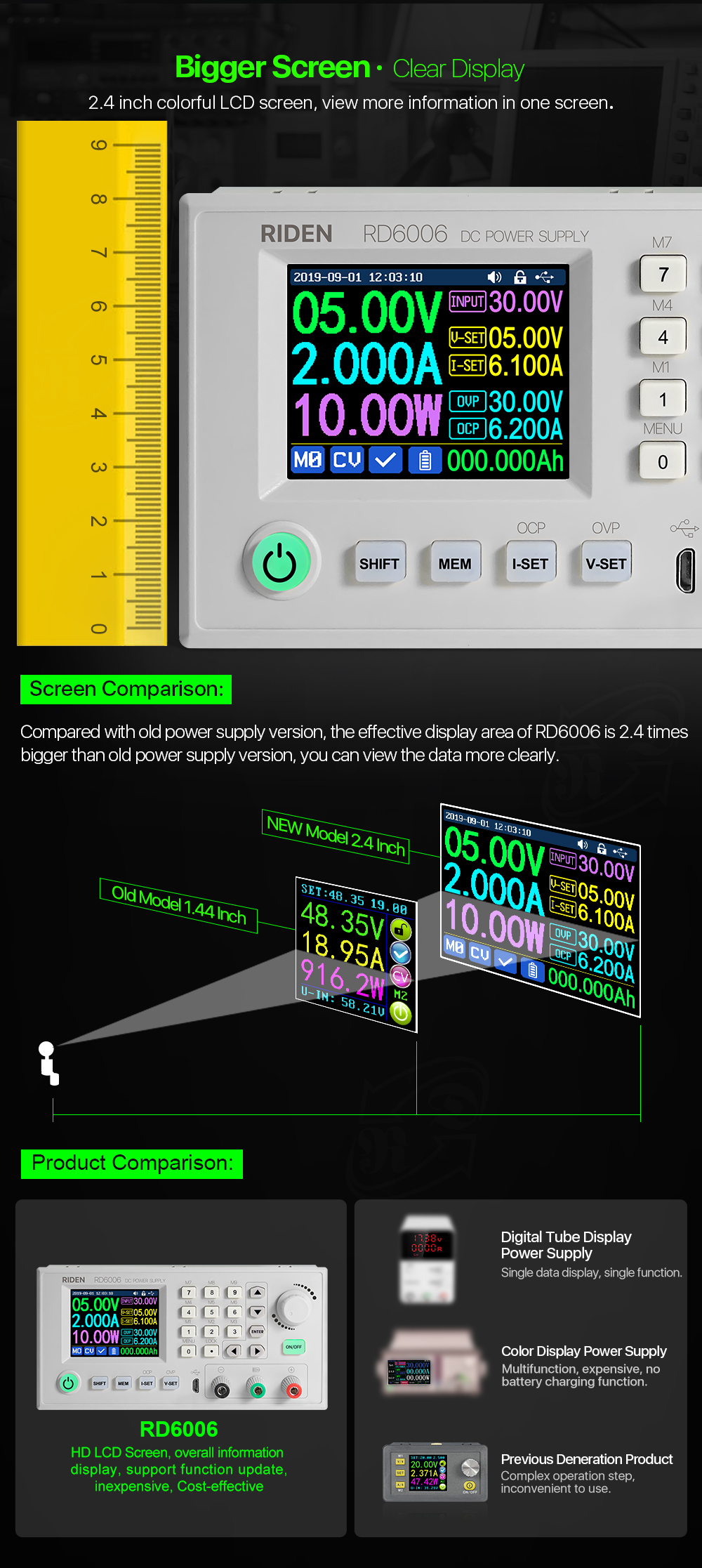

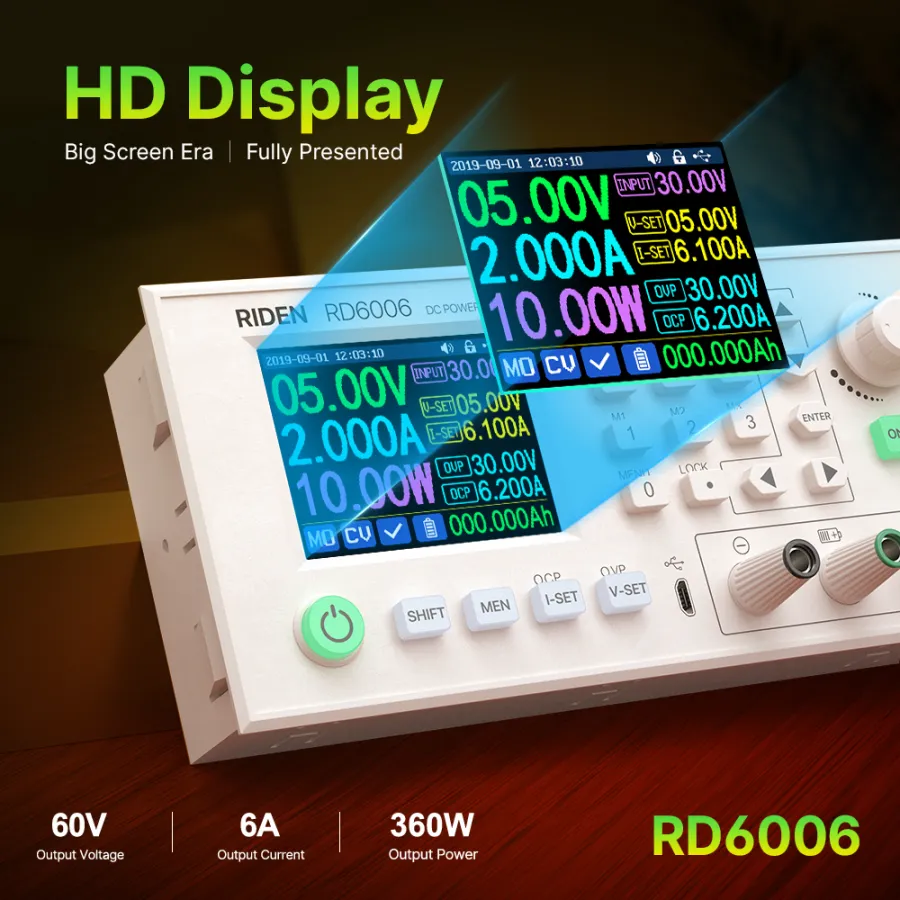

Screen: 2.4inch color HD display

Cooling fan start condition：Output voltage>40V or Output current>4A

or System temperature>45℃

Cooling fan shut down condition：Output voltage<40V and Output current<3.9A

and System temperature<45℃

Weight(with package):About 0.58kg

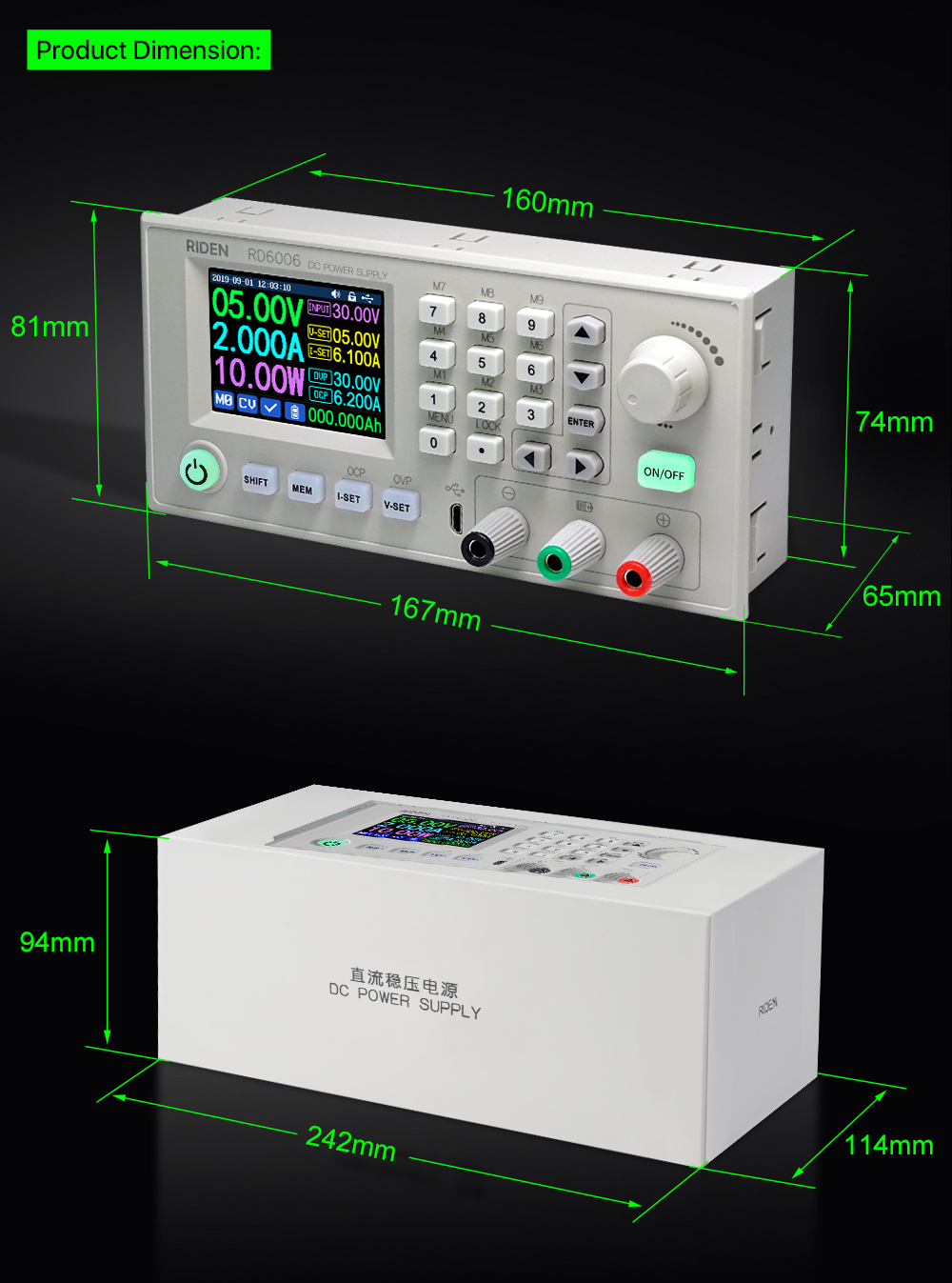

Product dimension: 167*81*65mm

1,Instruction:
All RD6006/RD6006W instruction and case installation instruction APP and PC software download Link :
A: Main download llink :https://drive.google.com/drive/folders/17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v?usp=sharing
B: Mediafire:http://www.mediafire.com/folder/ssjf3s35ev68v/RD6006

2,APP Download:
Android APP: download at file link:https://drive.google.com/drive/folders/17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v?usp=sharing
,Support android 8.0 and above phone
Android Google Play download:Search "RdPower" or "RuiDeng" to download , support Android 8.0 and above phone
IOS download :Search "RdPower" to download , support IOS10 and above phone

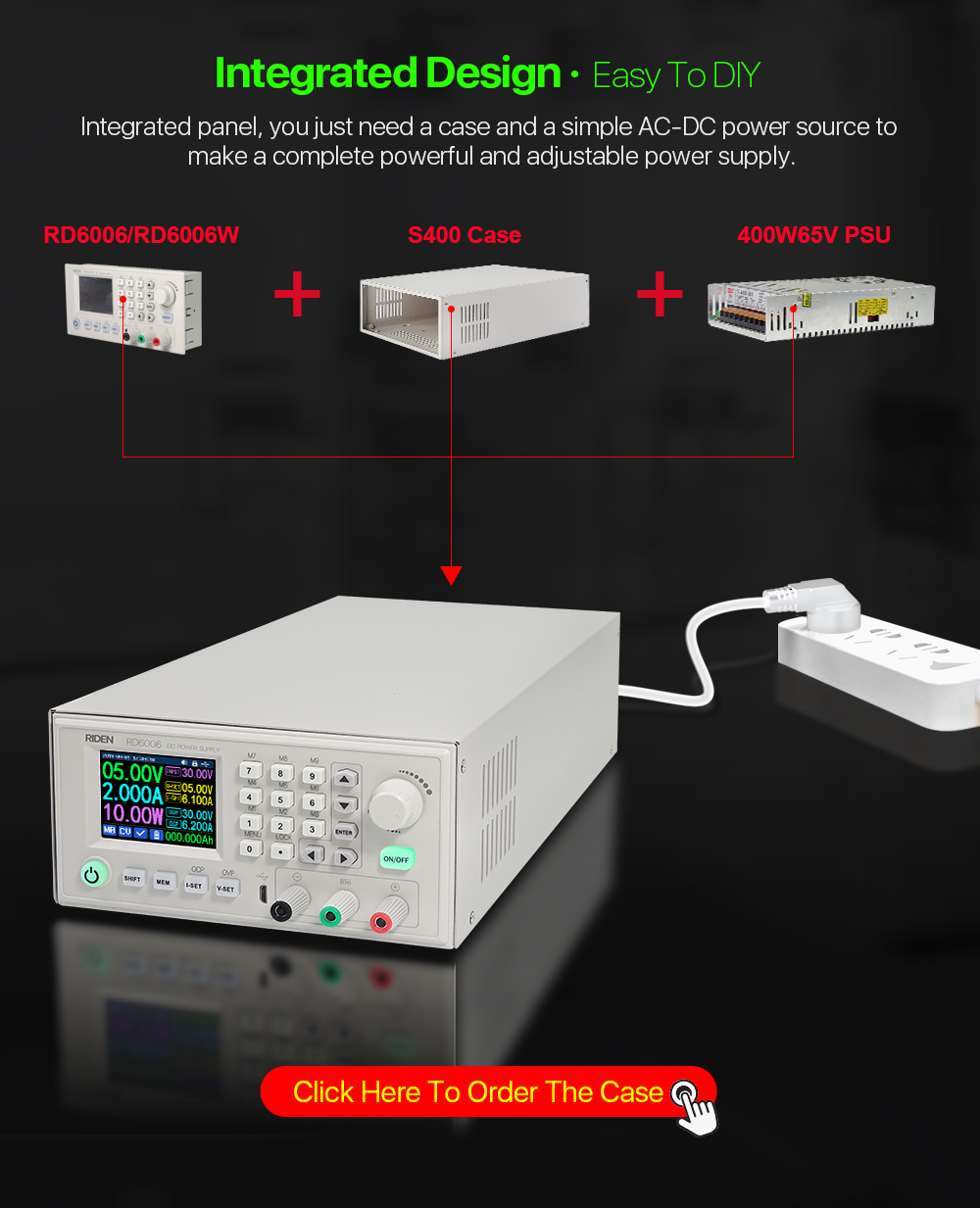

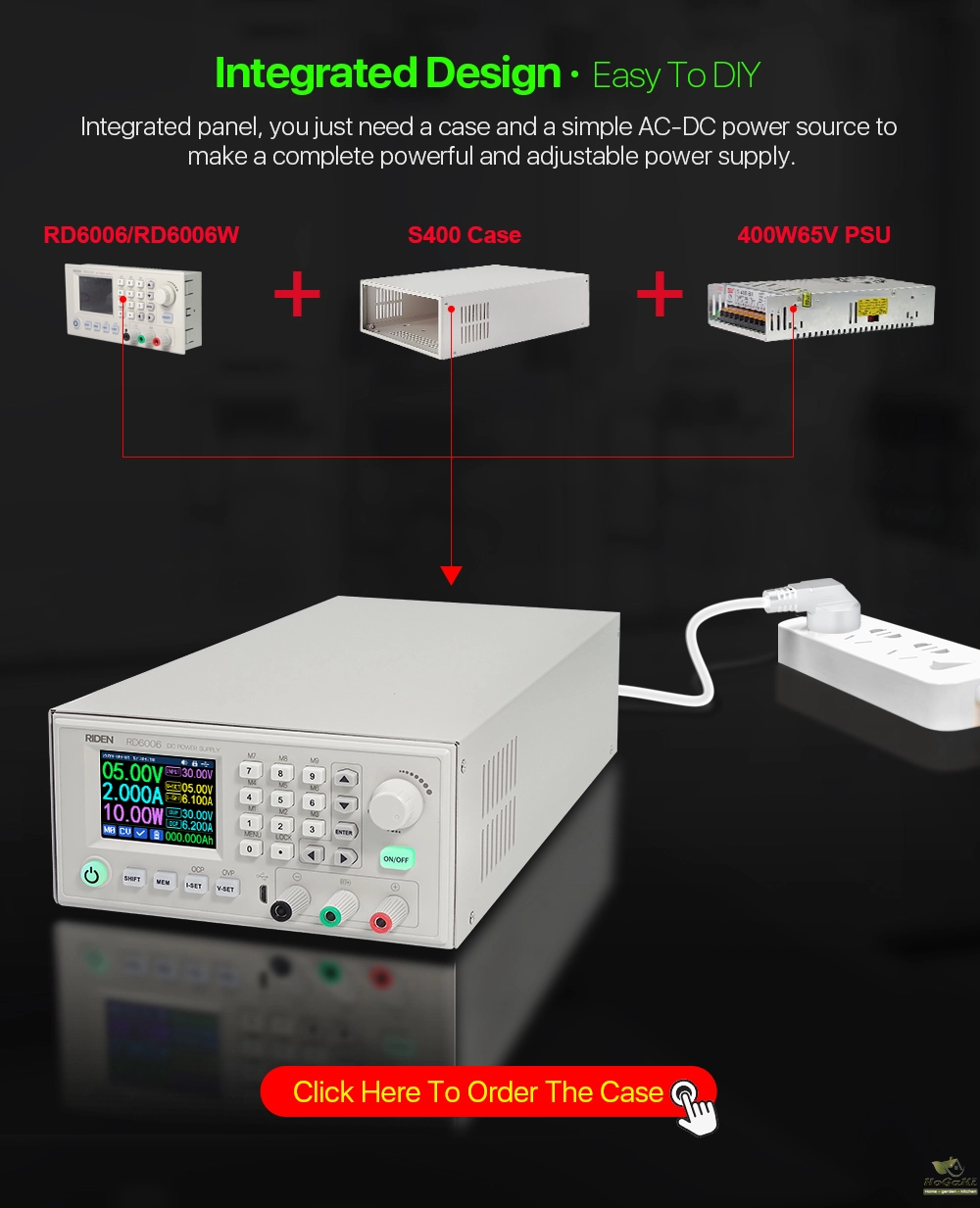

3, Case Assembly:
RD6006 and S400 case assembly instruction :
https://drive.google.com/drive/folders/13YYqMiaIhZ5PW2F6cQGkFlBHFYfti_4S?usp=sharing
RD6006 and S400 case assembly video: https://www.youtube.com/watch?v=8QxfppCdnmw

Model

Input voltage range

6-70V DC

7-70V DC

Display digit

4-digit

5-digit

Output voltage range

0-60V

Output current range

0-6A

0-12A

0-18A

0-24A

0-30A

0-6A

0-12A

0-18A

Output power range

0-360W

0-720W

0-1080W

0-1440W

0-1800W

0-360W

0-720W

0-1080W

Output voltage resolution

10mV

1mV

Output voltage accuracy

0.3%+30mV

0.05%+4mV

Output current resolution

1mA

10mA

0.1mA

0.1mA/1mA

1mA

Output current accuracy

0.5%+5mA

0.5%+50mA

0.1%+0.6mA

0.1%+0.6mA/
0.1%+6mA

0.1%+6mA

Default battery charging cutoff current

10mA

100mA

10mA

Output ripple typical
(VPP)

100mV

250mV@6A

100mV@12A
150mV@24A

50mV@15A
90mV@30A

20mV

Constant voltage mode response time

2ms(0.1A-5A load)

200uS
0.5A-18A

Constant voltage mode load regulation

±(0.1%+2mV)

±(0.1%+0.2mV)

Constant current mode load regulation

0.1%+3mA

0.1%+30mA

0.1%+0.3mA

0.1%+3mA

Cooling fan start condition

Output voltage
>40V or Output current>4A or
System temperature
>45℃

Output current>8A or
System temperature>45℃

Output current>4A or
System temperature>45℃

Output current>4A or
System temperature>50℃

Output current>6A or
System temperature>45℃

Cooling fan shut down condition when working

Output voltage <40V and Output current <3.9A and System temperature
<40℃

Output current <7.9A and
System temperature <40℃

Output current <3.9A and System temperature <40℃

Output current <3.9A and System temperature <45℃

Output current <5.9A and System temperature <40℃

Screen

2.4 inch

Input output fuse

1808 fast blow fuse

1032 fast blow fuse

1808 fast blow fuse

Fuse current

10A

20A

25A

30A

40A

10A

20A

25A

Input terminal

HT508K-2P

HT508K-4P

K14 Terminal

HT508K-2P

HT508K-4P

Product weight(about)

0.58kg

0.61kg

0.68kg

0.72 kg

0.74kg

0.62 kg

0.66kg

0.69kg


①:Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope with a 0.1uF parallel capacitor at the output terminals

②for example: input voltage is 24V，the max output voltage is 19.8V.




1,Instruction video：

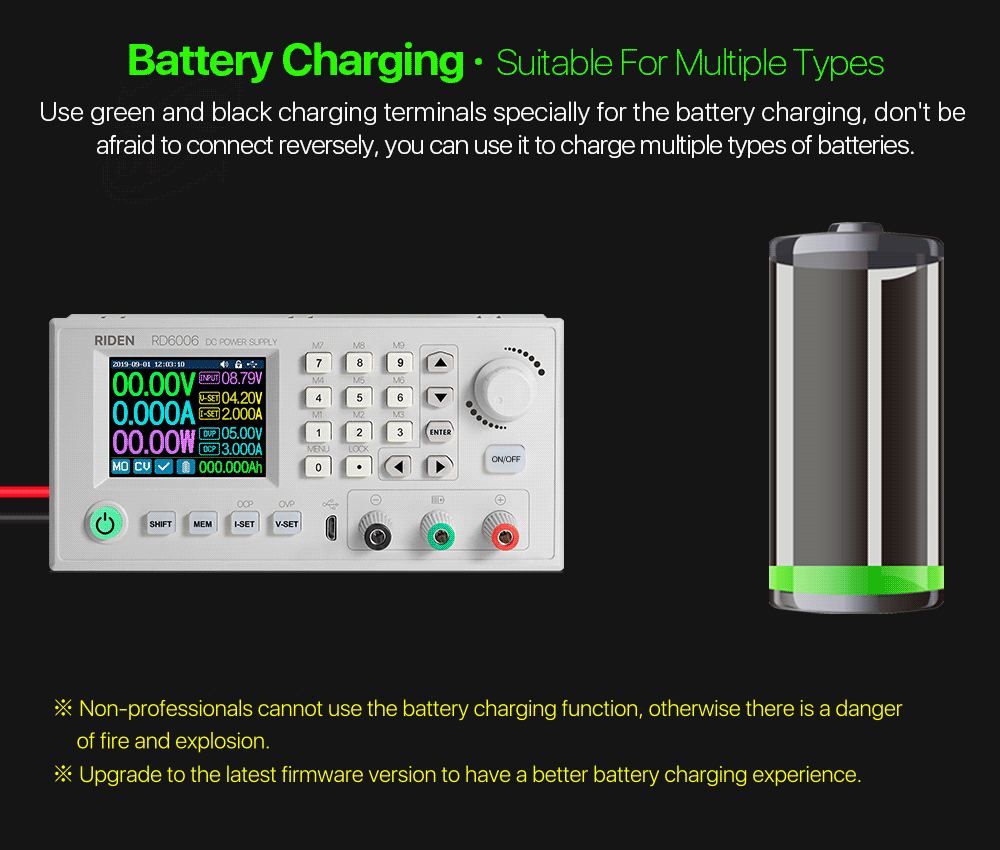

a.section 1.4.2.1Battery Charging Function Introduction:https://youtu.be/irTbqfqtgU0

b.section 1.4.2.2Output Voltage and Output Current Setting:https://youtu.be/S6Kan66dNsk

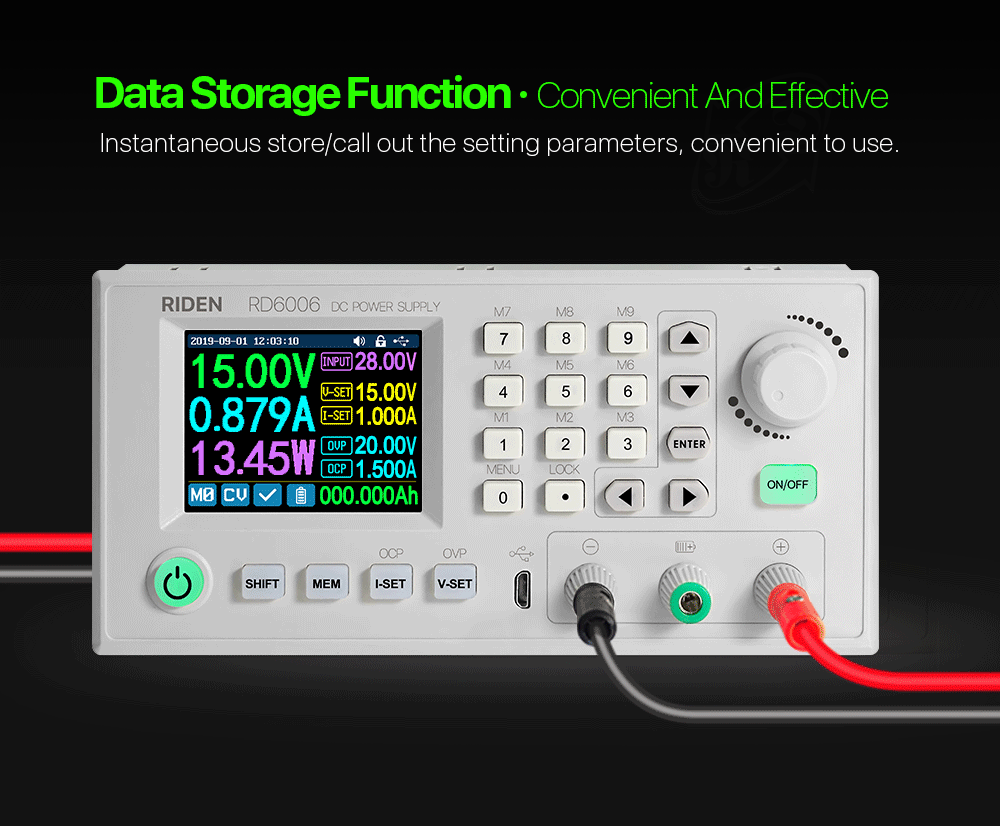

c.section 1.4.2.3Data Group Quick Storage and Call out:https://youtu.be/eo5saPjOGpo

d.section 1.4.2.4Keypad lock and unlock:https://youtu.be/zxpmasJyQ6Y

e.section 1.4.2.5System Setting:https://youtu.be/Q9d3rIgIrOc

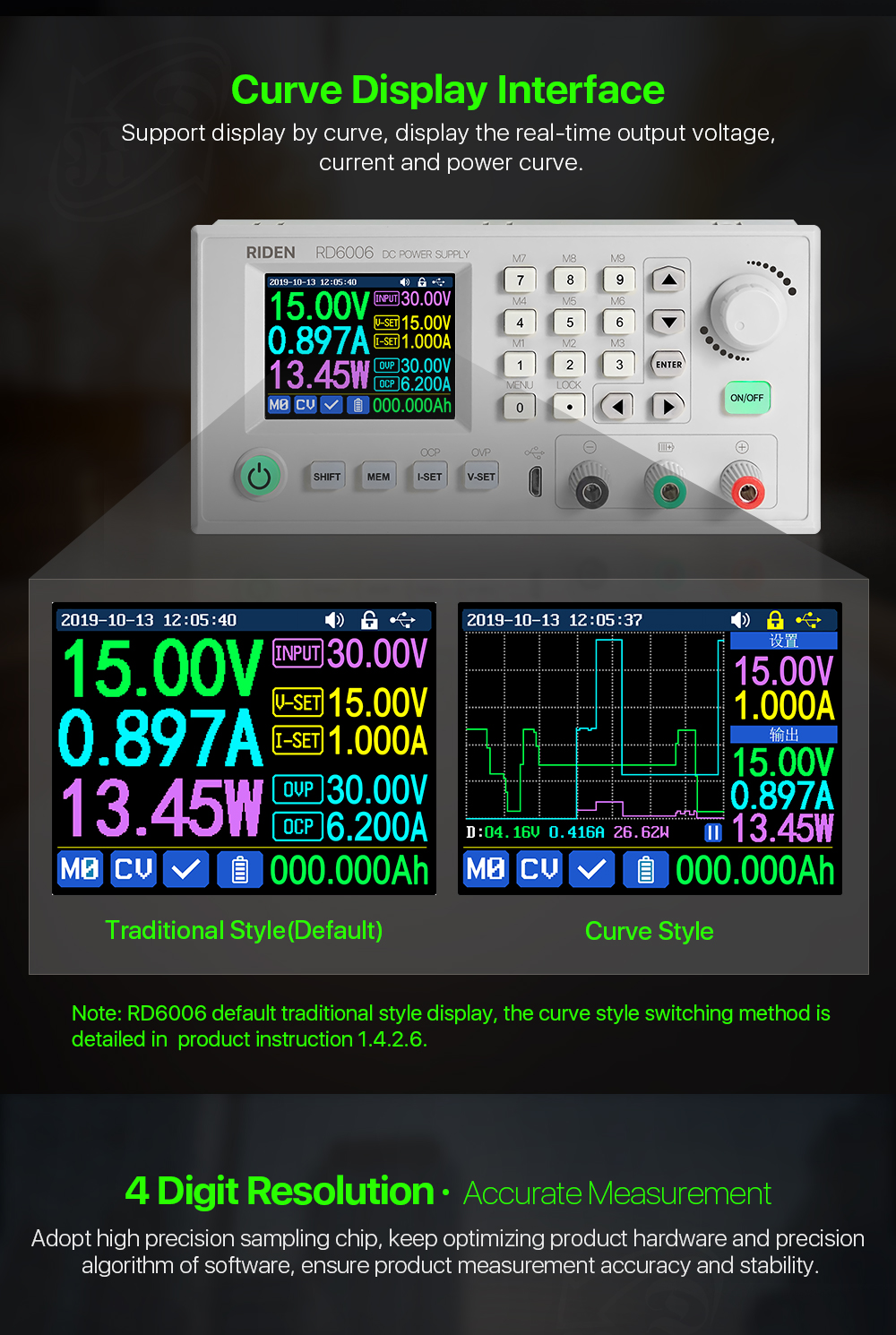

f.section 1.4.2.6Main Page Style Setting:https://youtu.be/f51VDiY2VHE

g:section 1.4.2.7Storage Data Setting:https://youtu.be/i1kTeurS13I

h:section 1.4.2.8System Information:https://youtu.be/Um4NQObeeJE

i:section 2.1.2IOS APP Download, Installation and Connection:https://youtu.be/nH2HYwop0TE

j:section 2.4.2IOS APP Operation:https://youtu.be/lXSw1CM9IY8

k:section 3.1.1/3.2.3.2Android APP Download, Installation and Connection:https://youtu.be/QwyBEUCnp9c

l:section 3.2.3.3Anroid APP Operation:https://youtu.be/hqrF4keTfbE

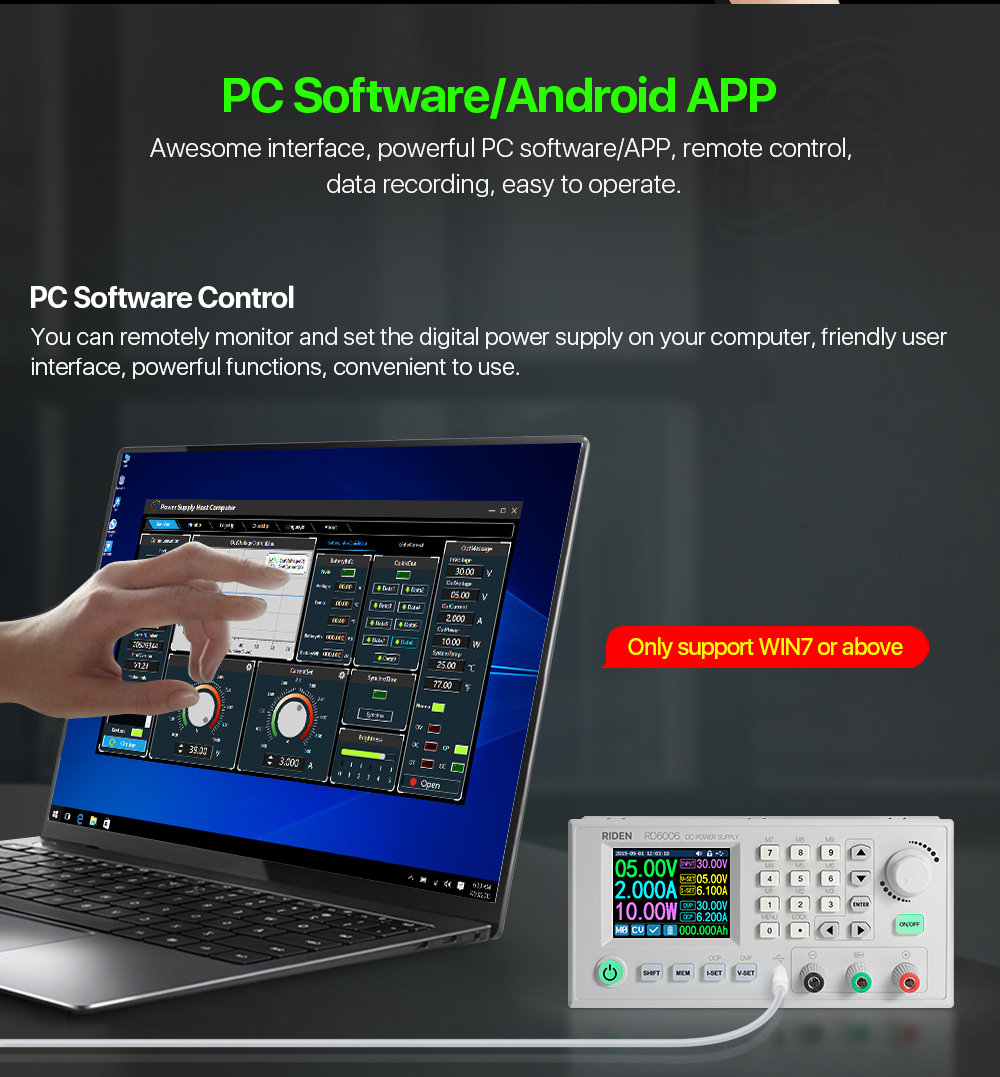

m:section 4.1/4.3.1PC Software Download and basic operation:https://youtu.be/mjt1RMaah1Y

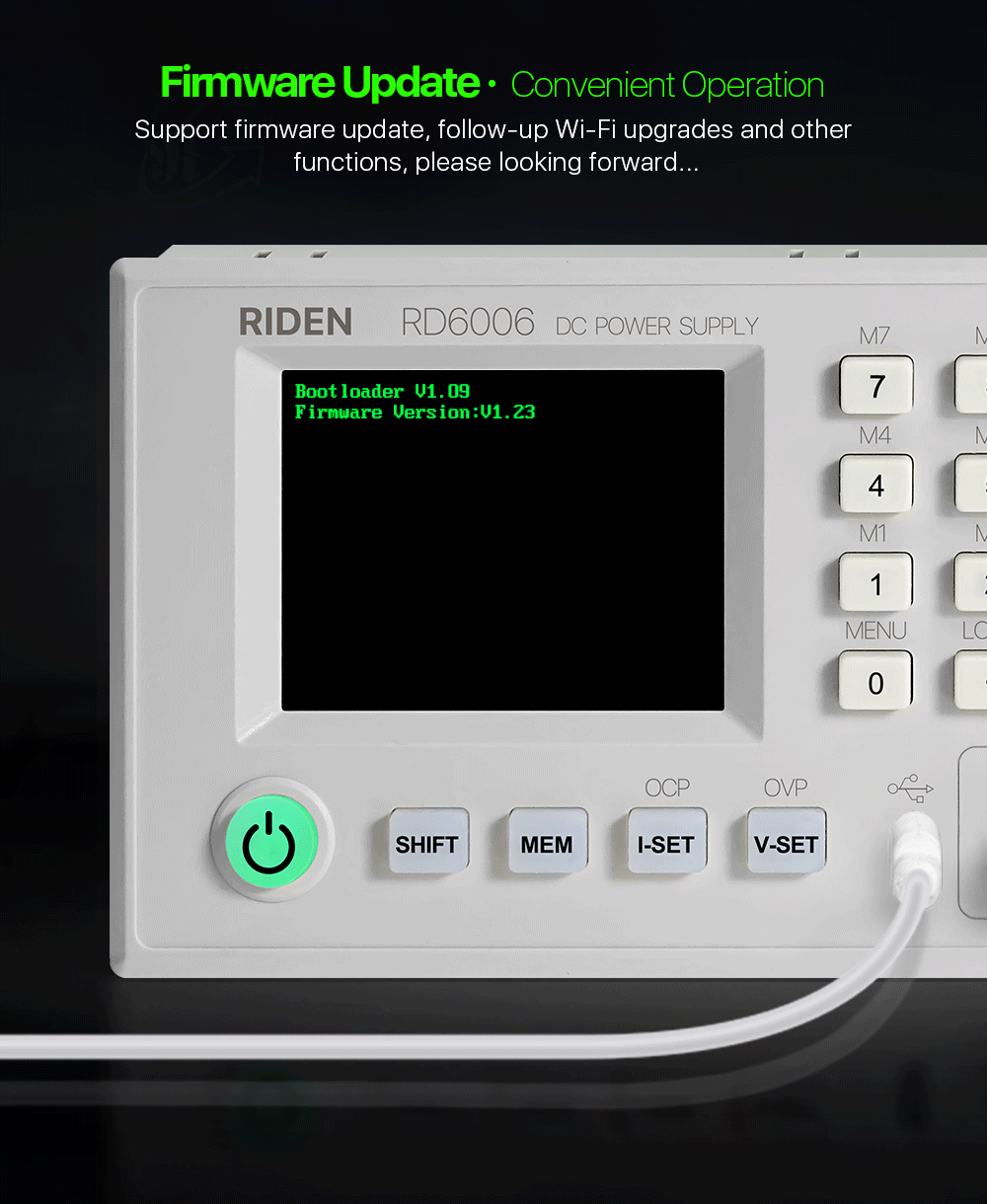

o:section 4.3.2Firmware Upgrade:https://youtu.be/NOoLfDw0DiY

p:section 4.3.3Calibration:https://youtu.be/c9sn1wY2mjE

q:section 4.3.4Logo Update:https://youtu.be/vuVhBsohWts

r: RD6006 wifi connection Problem and solution:https://www.youtube.com/watch?v=7sTtc1kweJM


2,PSU Notification

If you order the PSU, after getting the PSU, please use multimeter to check if the real output voltage is stable and fits the rated voltage, to see if it is damaged on the way, if the output is abnormal, please contact us, do not connect it to RD power supply to avoid more loss


3,Assembly Notification

You can only connect the cables with a foundation in electronic and electrical engineering and it must be reliably grounded!

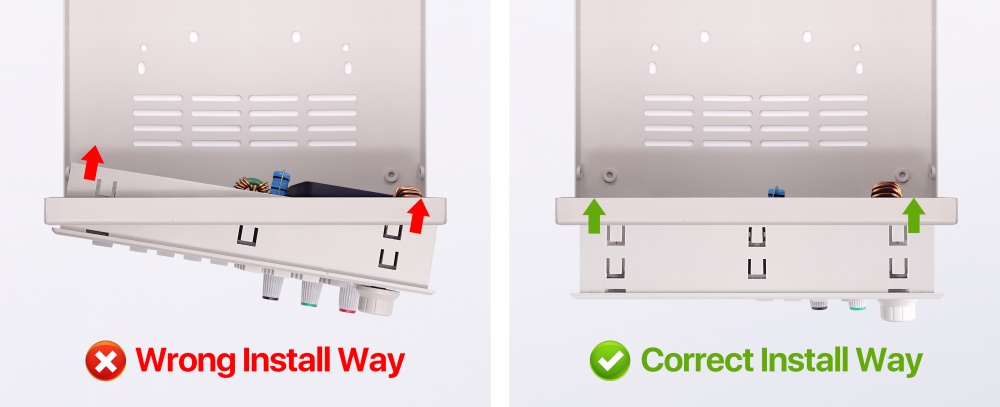

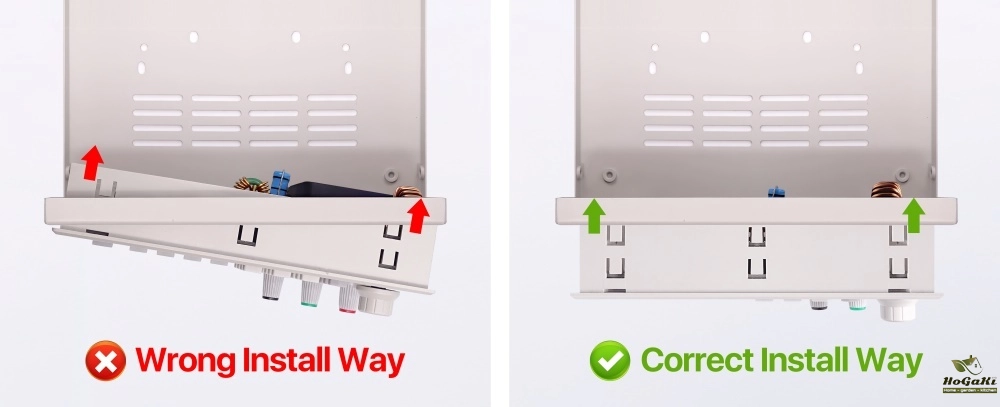

4,Correct Installation

5, Actual Test Video

https://www.youtube.com/watch?v=pz0T9rD4Ij0

PRODUCT QUESTIONS：

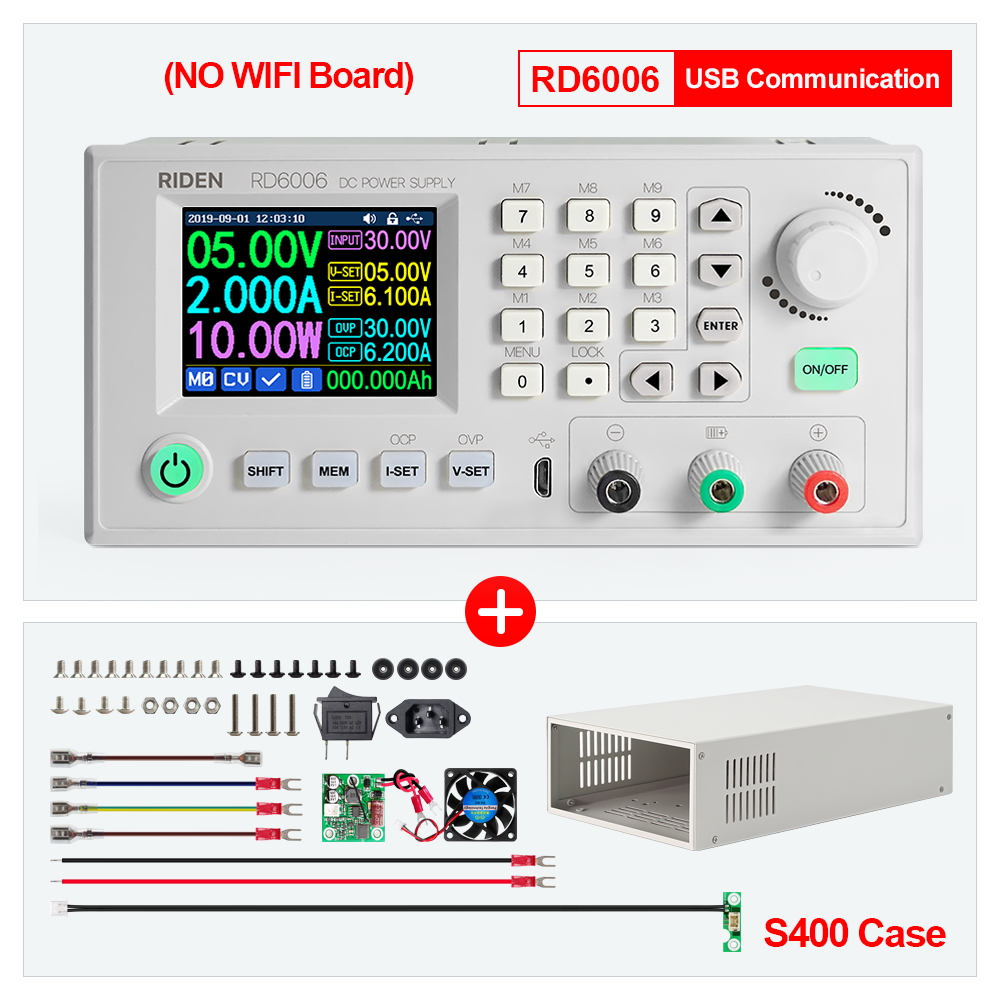

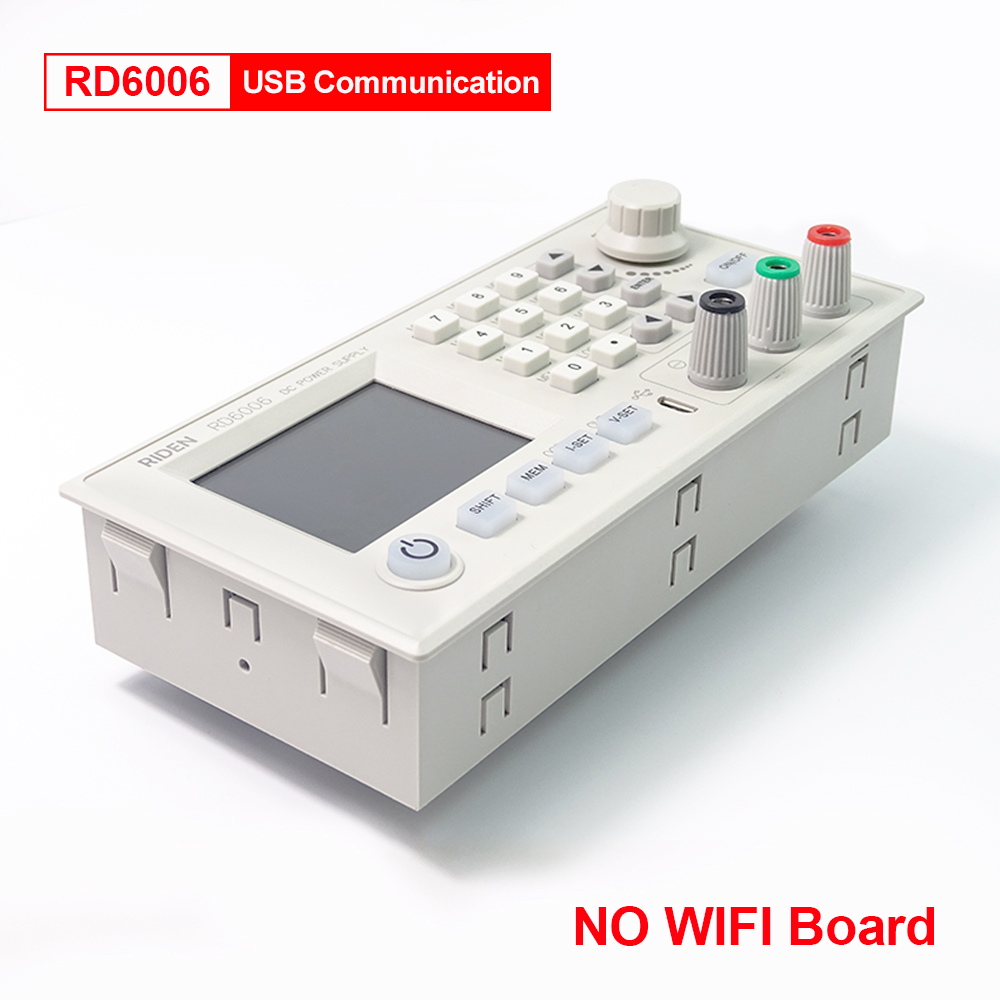

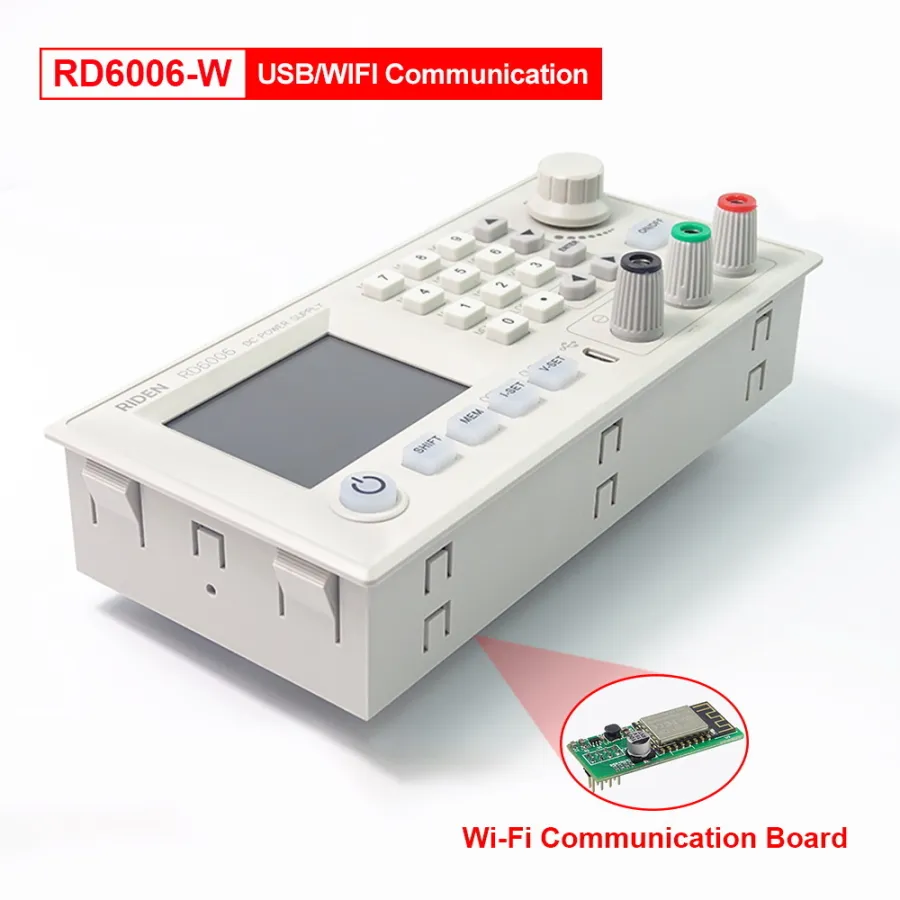

1. Q: What is the differences between RD6006 and RD6006-W?
A: RD6006-W has WIFI board , RD6006 doesn't have. RD6006-W can use WIFI board to connect APP, also use USB micro cable to connect PC software . RD6006 doesn't have WIFI board, only support PC software by connecting with USB micro cable, no support APP.

2. Q: What can I get in this link?
A: the option title and pictures shows what you can get, please check and make the order. For example, you choose "RD6006", you get RD6006, if you choose "S400 400W65V", you get S400 case and 400W PSU

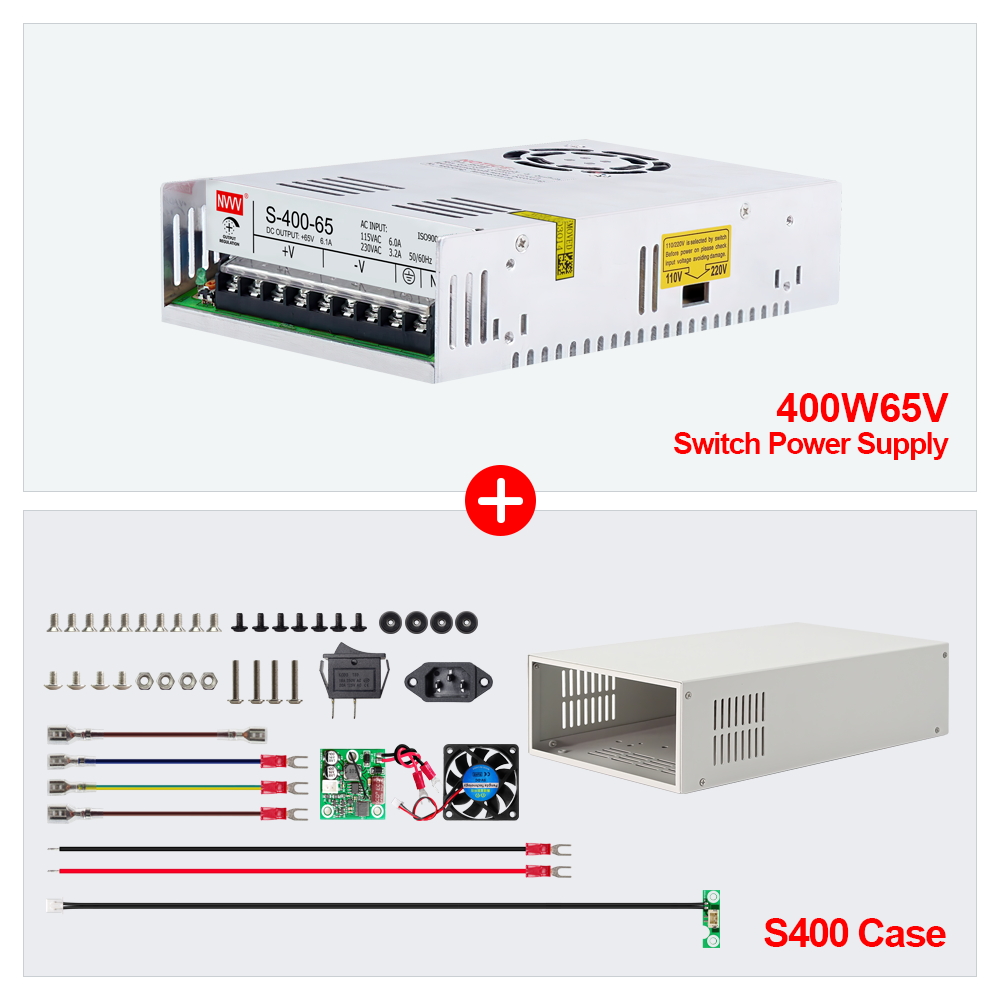

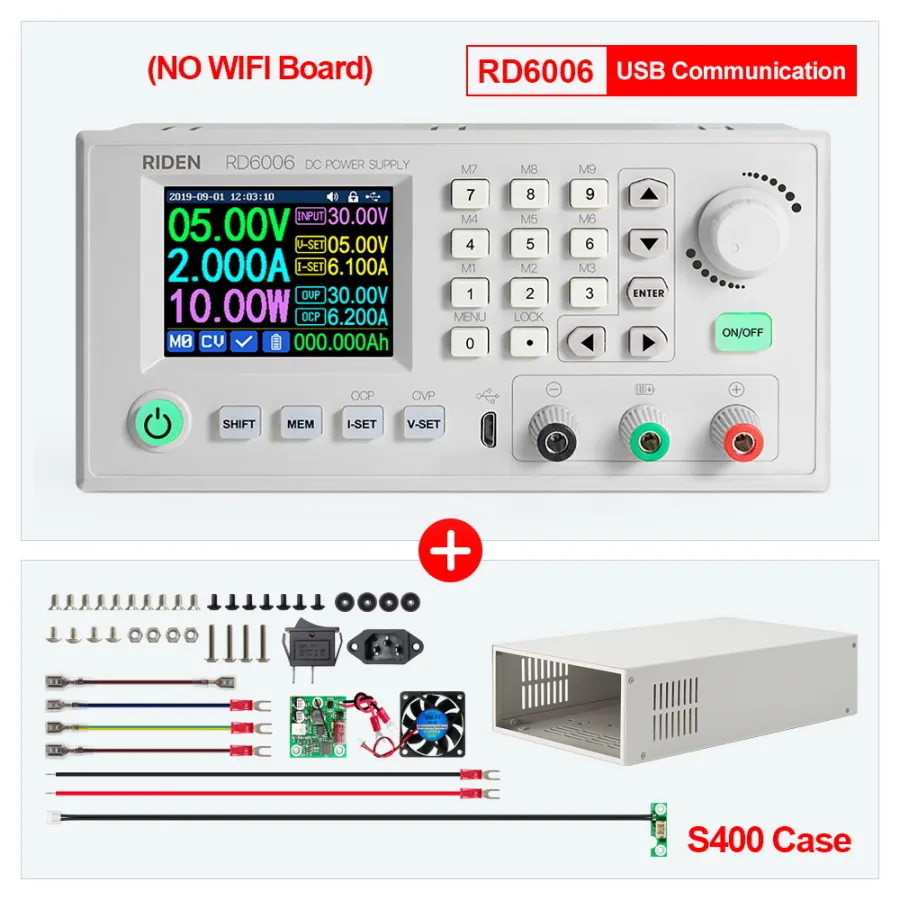

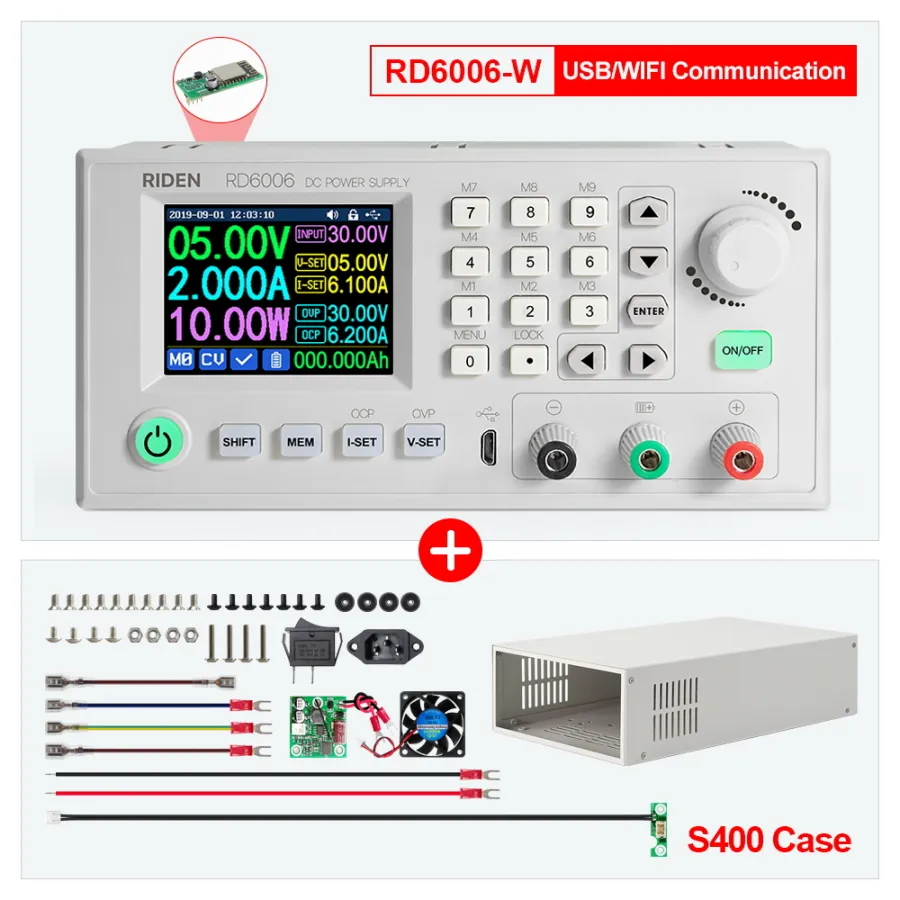

3. Q: What does S400 case contains?
A: For S400 case, it is just case, not containing any power supply, it contains the internal cables and screws, it is suitable for RD6006/RD6006W and AC-DC 400W switching power supply, you can buy them separately to assemble then together.

4. Q: Why the product I get is a bit different with the picture?
A: We keep updating the product hardware and software to make the device better, so the internal material details may be different, but it does not affect you to use the functions.

5. Q: why does the instruction not come with the product?
A: Because the products keep updating, we will add some function with the firmware and hardware update, so you can download the instruction online.

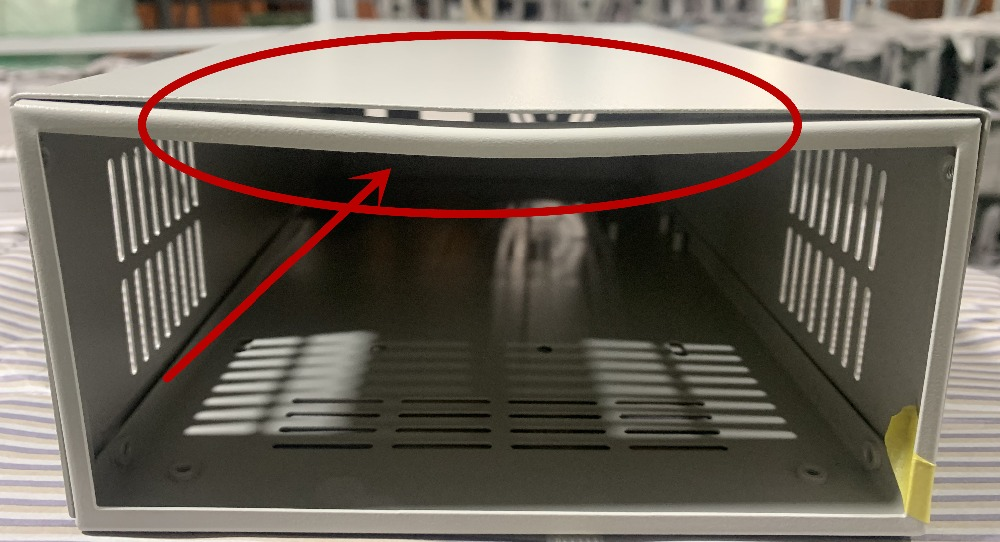

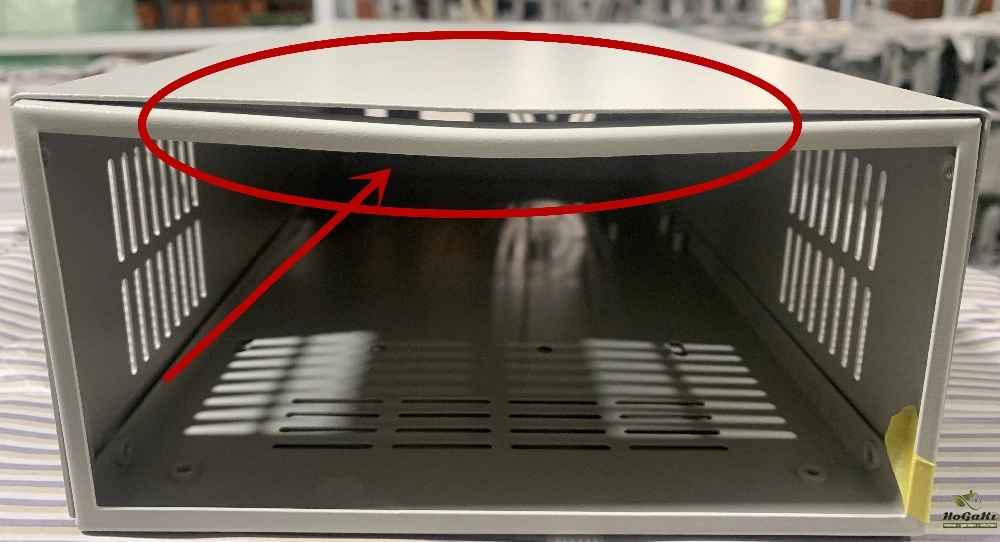

6. Q: the case I receive is a bit deformed?
A: For the case, during the shipping,maybe the case side will be a little deformed (just like picture ), you can use your hand to adjust, that's OK, if you mind this , please stop buying.

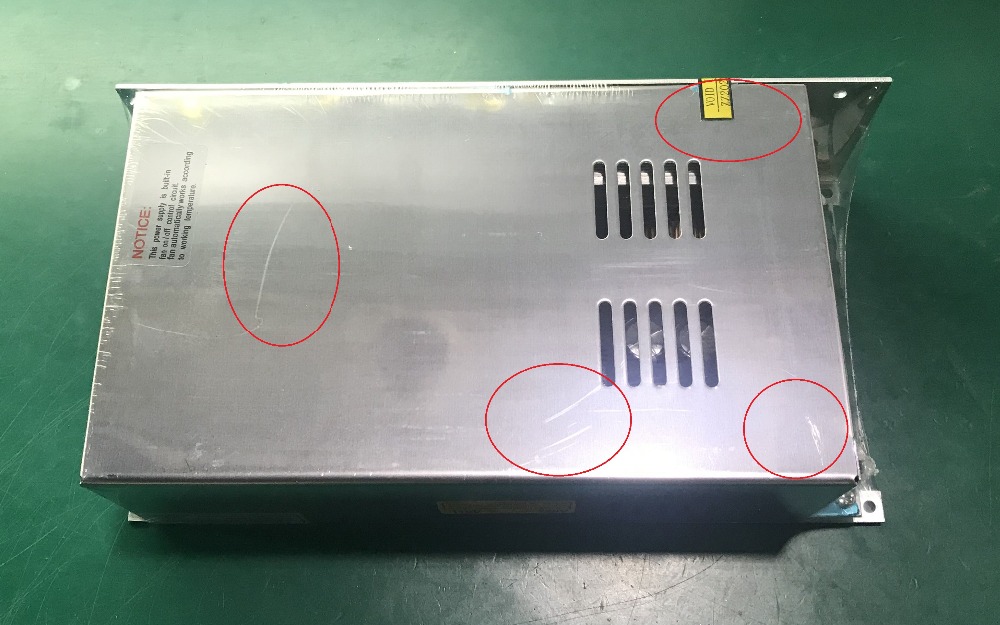

7. Q: the PSU I receive have some scratches?
A: There may be scratches on the surface but it doesn't affect the product performance, please do not be over picky, and if you do mind this, please do not buy this product
8. Q: the warranty label is broken, do I still get the warranty?
A: Due to express delivery, some power supply warranty labels may be damaged, which does not affect product warranty!

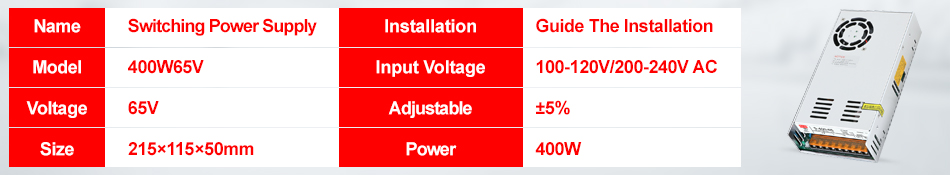

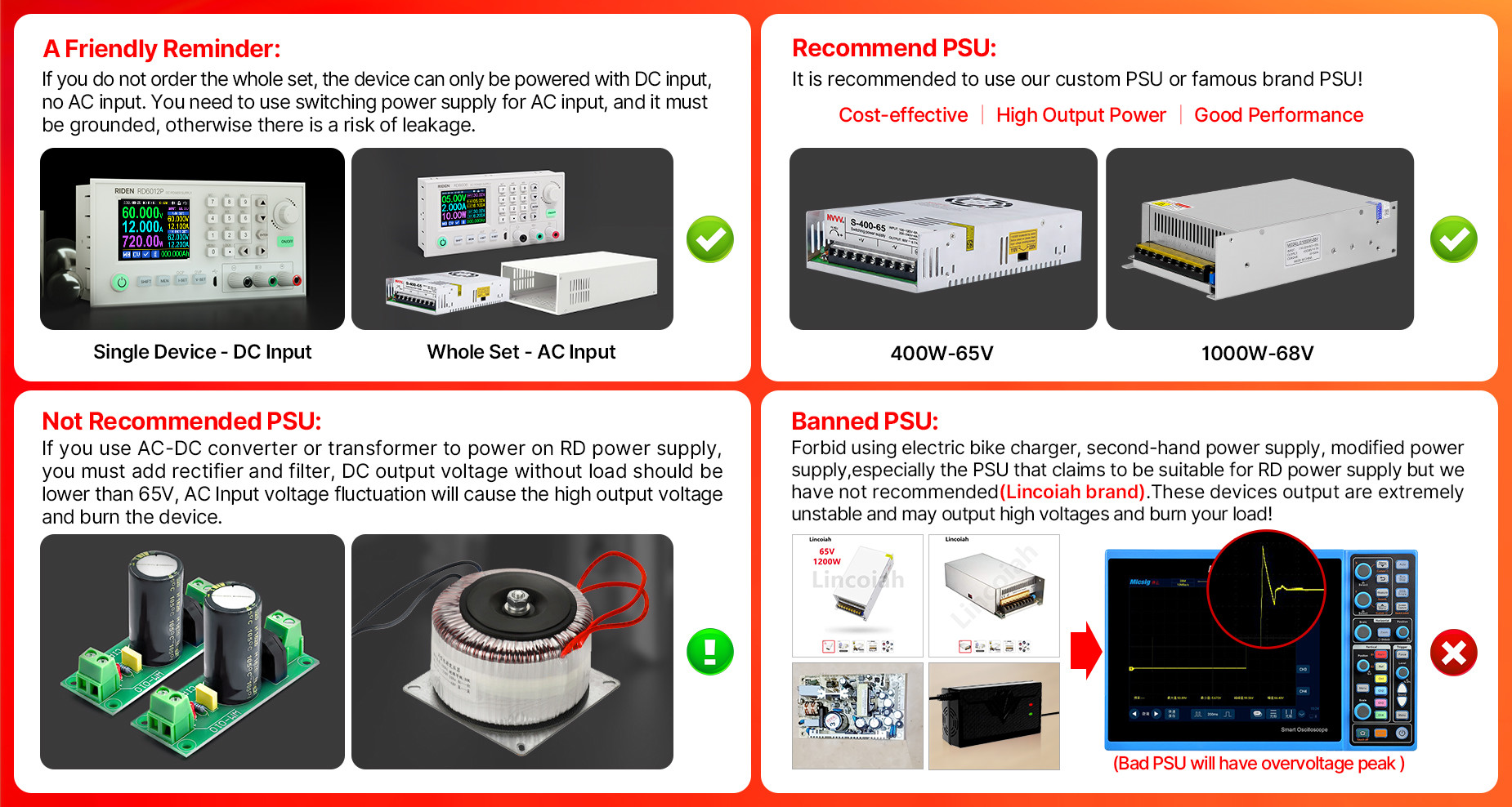

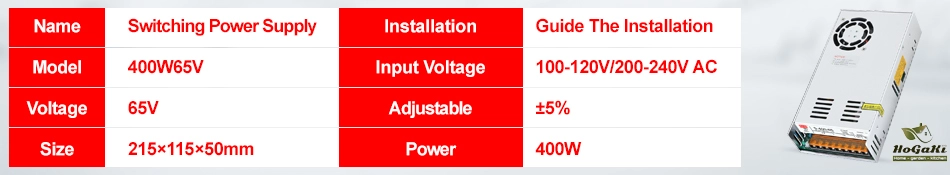

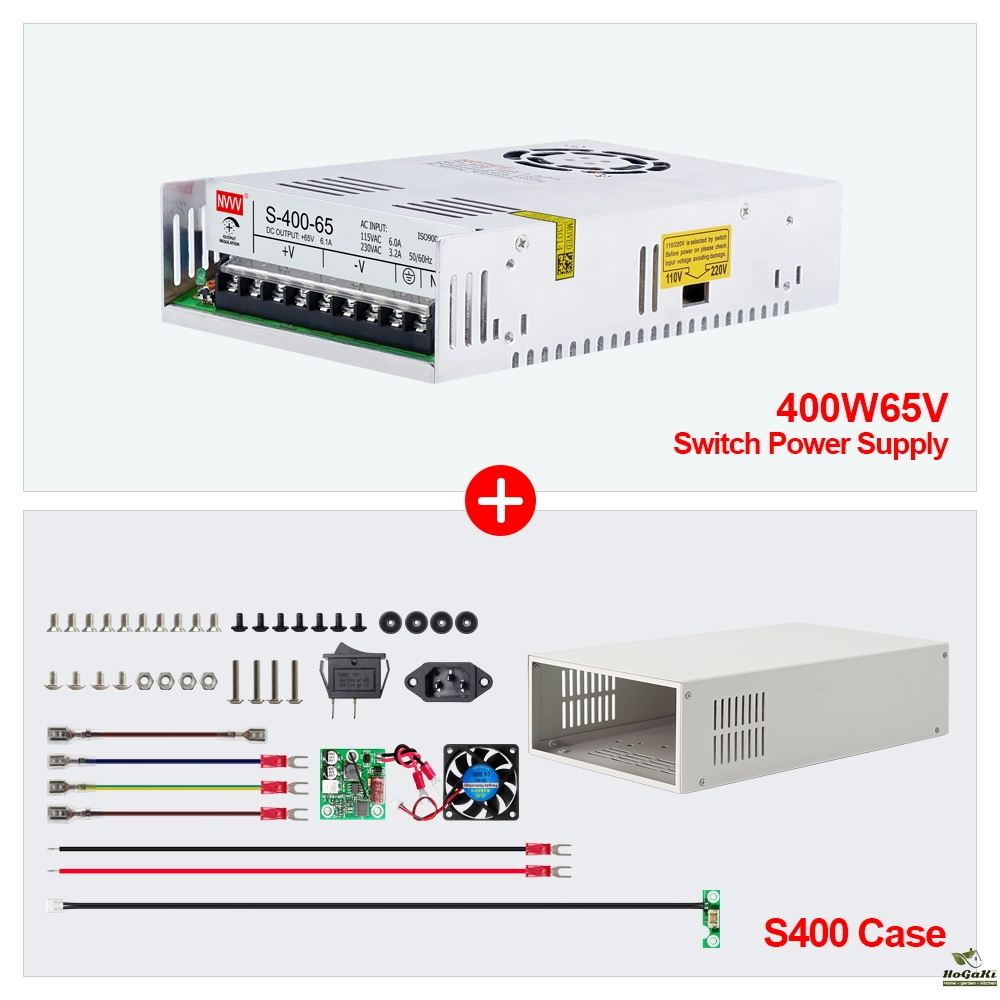

9.Q: How do I choose the PSU?
A:Friendly reminder, If you do not order the whole set, the device can only be powered with DC input, no AC input. You need to use switching power supply for AC input, and it must be grounded, otherwise there is a risk of leakage.
AA: Recommend PSU
It is recommended to use our custom PSU or famous brand PSU!
BB: Not recommended PSU
If you use AC-DC converter or transformer to power on RD power supply, you must add rectifier and filter, DC output voltage without load should be lower than 65V，power grid voltage fluctuation will cause the high output voltage and burn the device!
CC. Banned PSU
Forbid using electric bike charger, second-hand power supply, modified power supply, especially the PSU that claims to be suitable for RD power supply but we have not recommended ......These devices output are extremely unstable and may output high voltages and burn your load!(bad PSU will have peak over-voltage)
11.Q: Can I use it to power on inductive load?
A: If you connect inductive load (such as motor), the max working voltage and current is 1/3 of full range. don't exceed it.

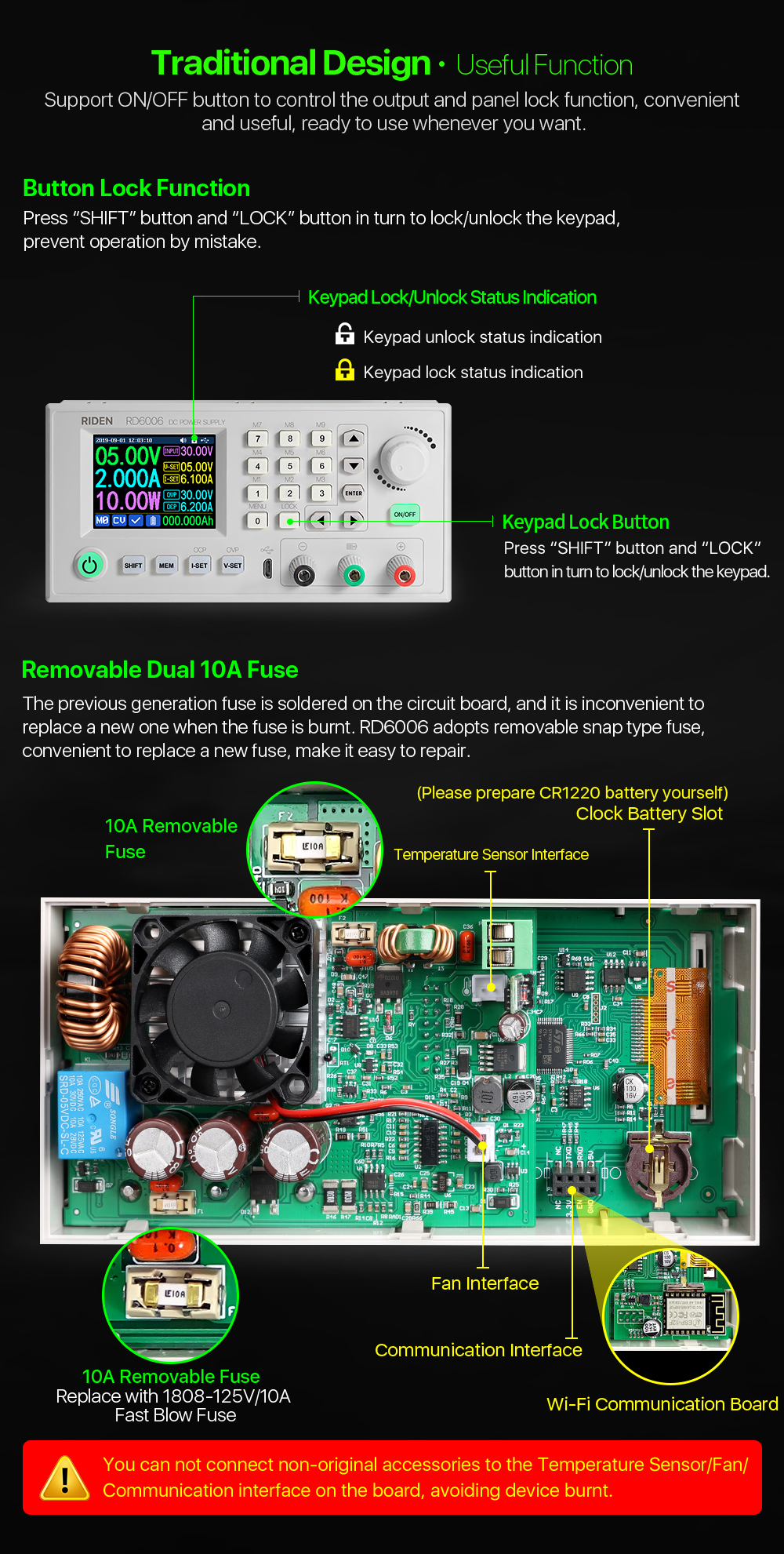

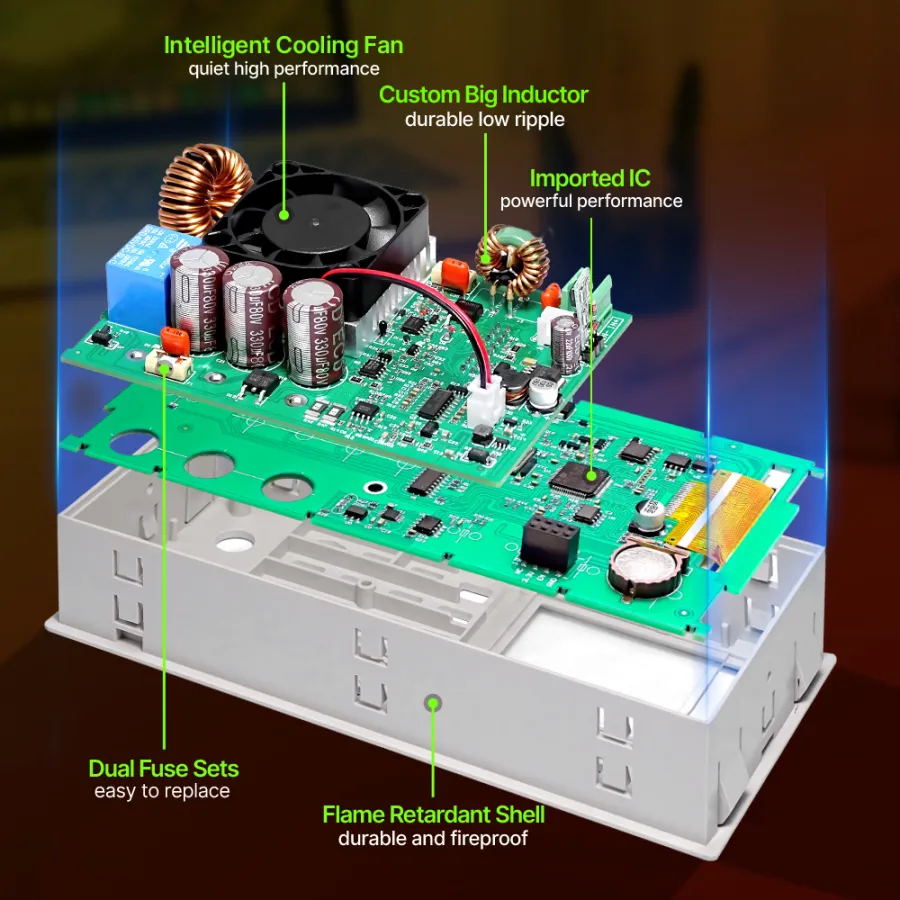

12. Q:why there is a fuse in the box? Should I install it?
A:Itis a BACKUP fuse in the, if you burn the fusewith wrong operation, you can replace the fuse in the socketwith the backup fuse to fix it.

13. Q: can I remove the case of the PSU for better heat dissipation?
A: when install our PSU into the case, please follow our instruction to assemble, do not remove the shell of the PSU to use. After removing the shell of the switching power supply, the structural change of the heat dissipation system will lead to insufficient heat dissipation,and some components will be overheated and damaged, in this case we don't offer after sell service

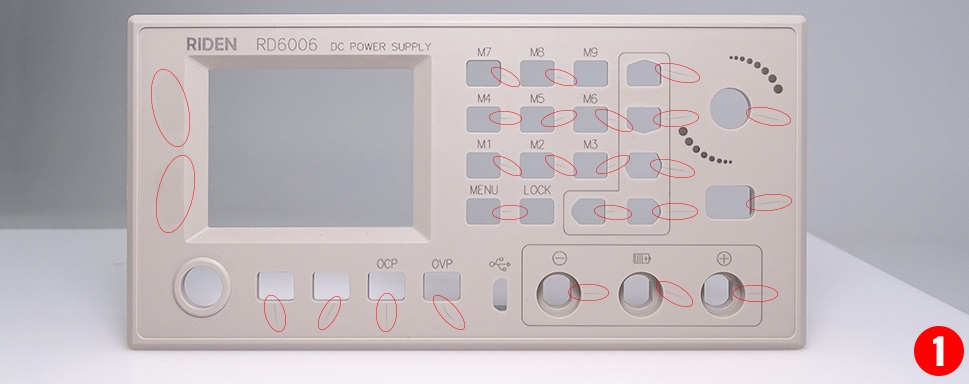

14.Q:I see some traces on the panel, is this means damaged?
A:Affected by the injection molding process, there are slight traces at the button holes of the shell. It can hardly be found in normal use. It can be found under the light (the shell is not crafts, don't be overly picky). as shown in picture, if you care, please don't buy this product
SOFTWARE QUESTIONS:
1. Q: The APP crashes on my phone, what the problem is?
A: For APP and PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can make order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.For PC software, it only support win 7 and above for now. For APP, it only support android 8.0 and above.

2. Why cannot I connect the RD6006W to my phone APP via WIFI?
A: Please check if the WIFI board is inserted properly, then check if the WIFI is 2.4G Hz and if you shut down the client isolation/ AP isolation and WMM function, and check if you turn on the location service and storage service when you install the APP. If there is still problem, contact us.

3.Why cannot I connect the RD6006W to PC via WIFI while I can connect to the Phone?
A:WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. Forthis function, we do not provide any guarantee and technical support, and we will decide whether to keep this function based on customer feedback.

Model

RD6006

RD6006-W

RD6012-W

RD6018-W

RD6006P-W

RD6012PW

RD6024W

Input voltage range

6-70.00V

7-70.00V

7-70.00V

6-70.00V

Output voltage range

0-60.00V

0-60.000V

0-60.000V

0-60.00V

Output current range

0-6.000A

0-12.00A

0-18.00A

0-6.0000A

0-6.0000A/

0-12.000A

0-24.00A

Output power range

0-360W

0-720W

0-1080W

0-360W

0-720W

0-1440W

Output voltage setting measurement resolution

0.01V

0.001V

0.01V

Output current setting measurement resolution

0.001A

0.01A

0.0001A

0.001A/

0.0001A

0.01A

Output voltage accuracy between setting and measurement

±(0.3%+3 digits)

±(0.5‰+4 digits)

±(0.3%+3 digits)

Output current accuracy between setting and measurement

±(0.5%+5 digits)

±(1‰+6 digits)

±(0.5%+5 digits)

Automatic cut off current value when charging

10mA

100mA

Set by yourself

Set by yourself

Set by yourself(higher than 100mA)

Output ripple typical

100mV VPP

250mV VPP@6A

20mV VPP

100mV@12A，150mV@24A VPP

Buck working mode

Voltage drop >1V and >10%

（input voltage÷1.1）-2

（input voltage÷1.1）-1

Weight(with package)

About 0.58kg

About 0.61kg

About 0.68kg

About 0.62kg

About 0.66kg

About 0.72kg

Product dimension

167*81*65mm

167*81*69mm

167*81*65mm

167*81*69mm

①:Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope with a 0.1uF parallel capacitor at the output terminals


②for example: input voltage is 24V，the max output voltage is 19.8V.



Packaging Details

  • Unit Type: piece
  • Package Weight: 0.700
  • Package Size: 12x10x20

  • Brand Name: RD
  • Hign-concerned Chemical: None
  • Current: other
  • Origin: Mainland China
  • input voltage: 6-70V DC
  • output voltage: 0-60.00V DC
  • output current: 0-6.000A DC
  • work mode: buck only
  • size: 167*81*65 mm

Shipping & Delivery

We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

How long does shipping take?

If you can't find the estimated delivery time on the product detail page, you can look at the following table for reference.
Shipping time varies by location. These are our estimates:

Location *Estimated Shipping Time
United States 7-25 Business days
Canada, Europe 10-30 Business days
Australia, New Zealand 10-30 Business days
Mexico, Central America, South America 15-30 Business days

Do you provide tracking information?

Yes, you will receive an email once your order ships that contains your tracking information, but sometimes due to free shipping tracking is not available.

My tracking says “no information available at the moment”.

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system.

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you’ve specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.


LARGE ORDER DEALS

Wholesale

Thank you for your interest doing business with us!

If you would like to get a discounted price for your large purchase orders, fill in the required blanks along with your email address, the product Item ID # and/or the link of the item that you want to order, item quantity (minimum of 30 pieces), shipping country and payment method is required. We will contact you with a discounted price as soon as we receive your inquiry.
