DC5V WS2812B Individually Addressable 5050 RGB Led Strip WS2812 Smart Pixels Led Light Black White PCB Waterproof IP30/65/67
ID: 8298

DC5V WS2812B Individually Addressable 5050 RGB Led Strip WS2812 Smart Pixels Led Light Black White PCB Waterproof IP30/65/67

4.9 (369 votes) | 1000 orders
Price: US $11.44 - 33.17 / piece
Discount Price:
US $ 9.95 - 21.27 / piece
-13%
Quantity

Buy Now
Add to Cart


Packing list：

1X Led strip(no power or led controller)


Pay Attention
(Important: WS2812B Must Work With 5V LED Power Supply,Over DC5.5V Will Burn Led Strip)
1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！
2. WS2812B Led strip can be cut buy every "one" led chip!

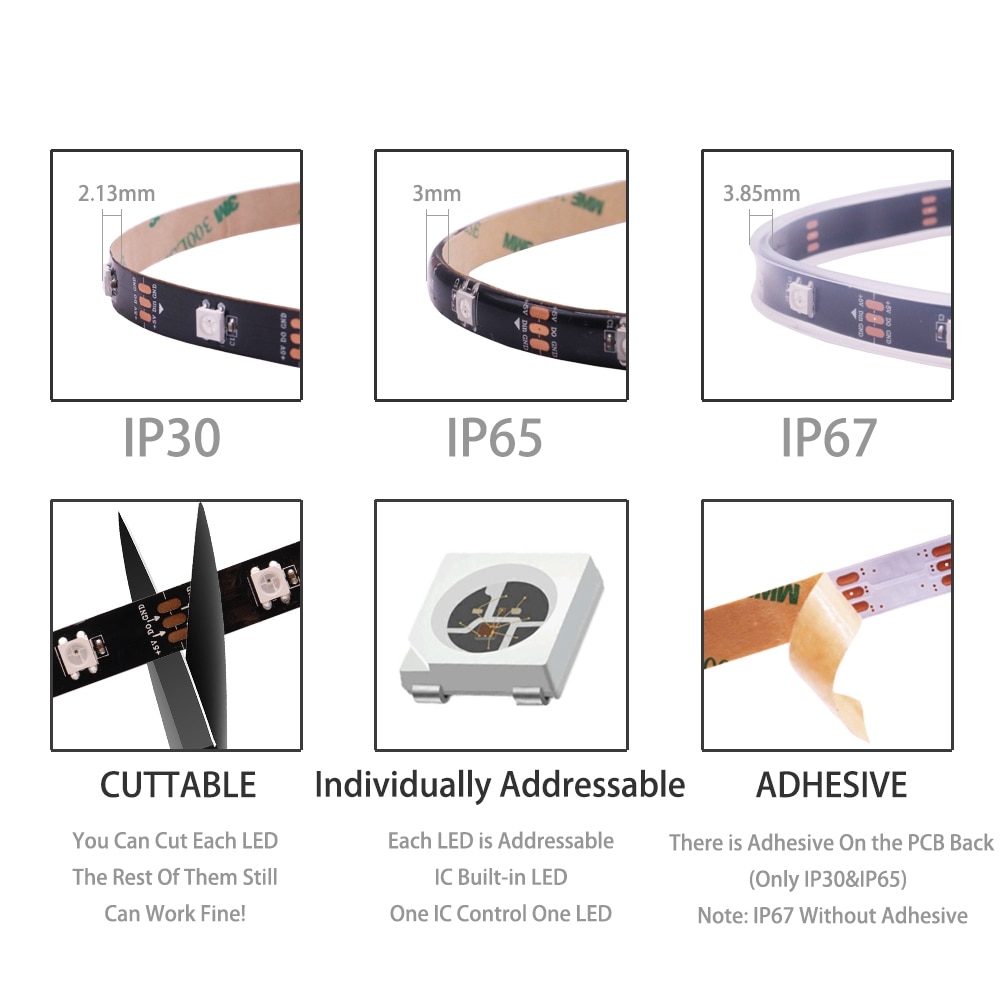

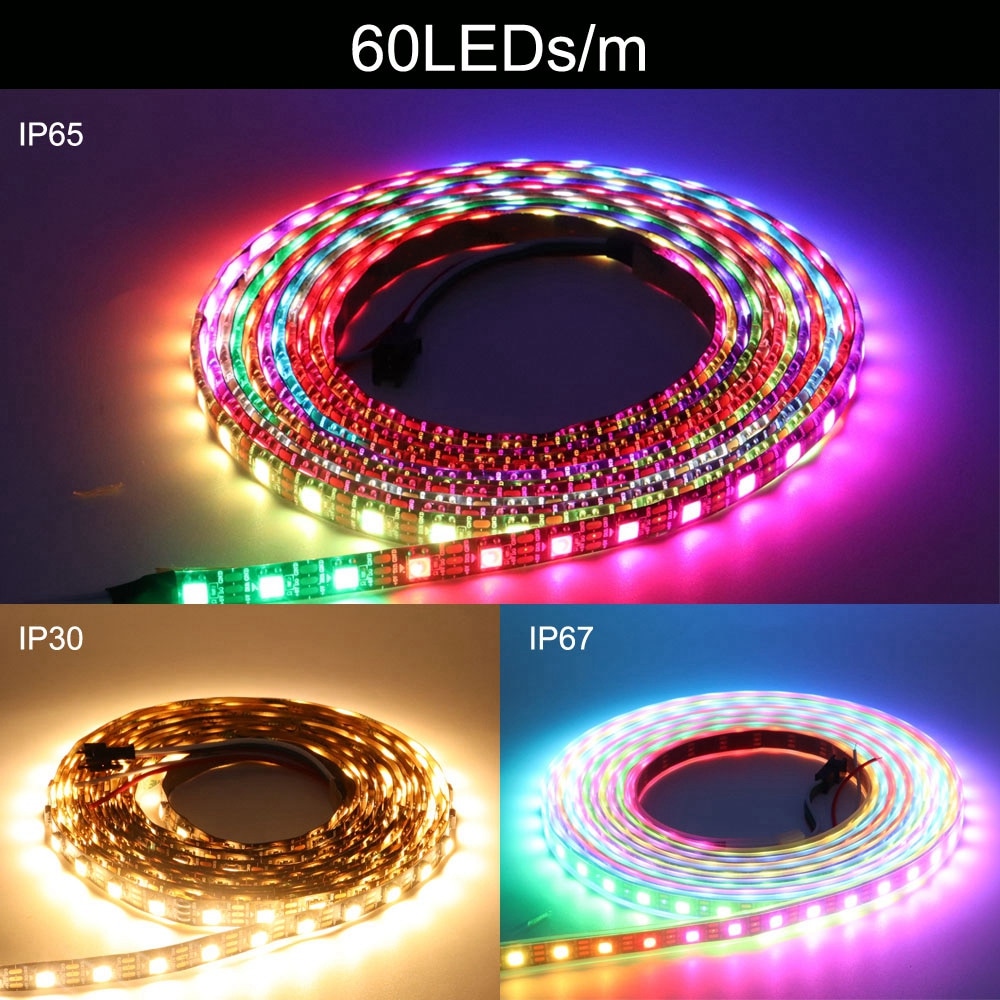

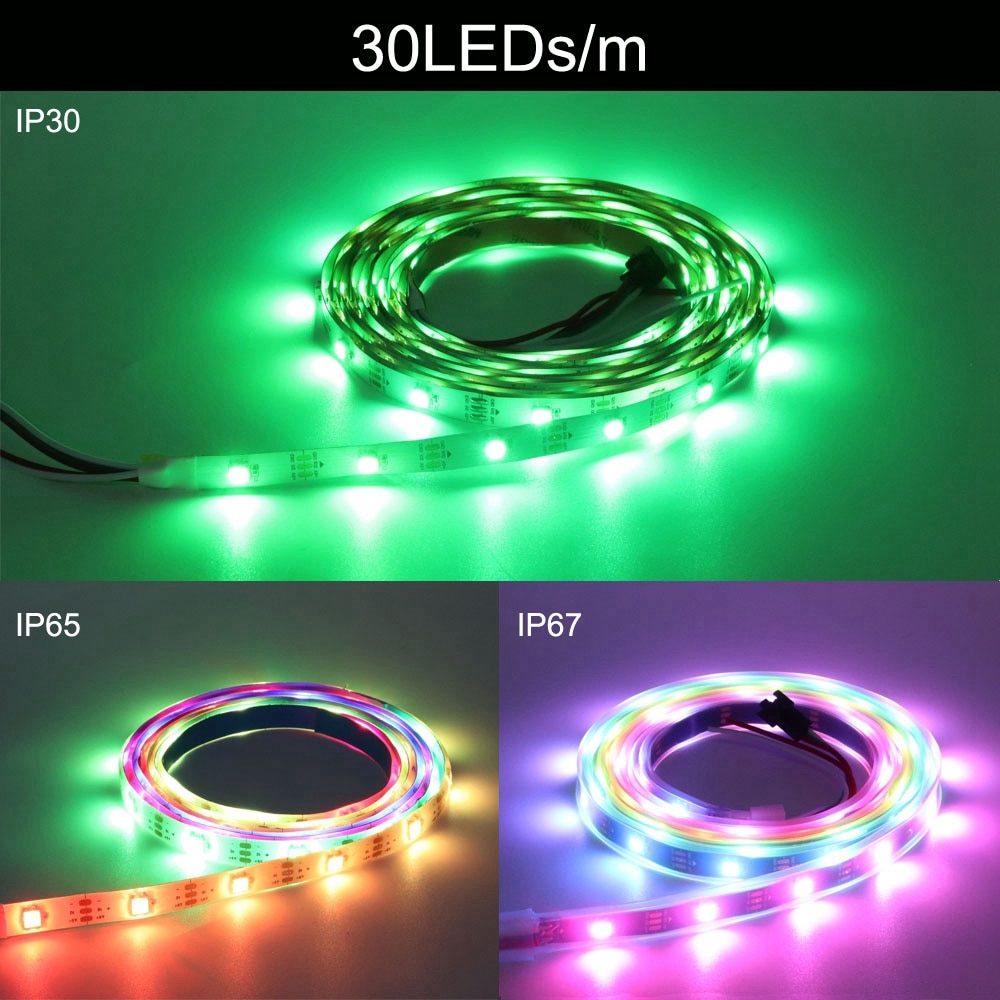

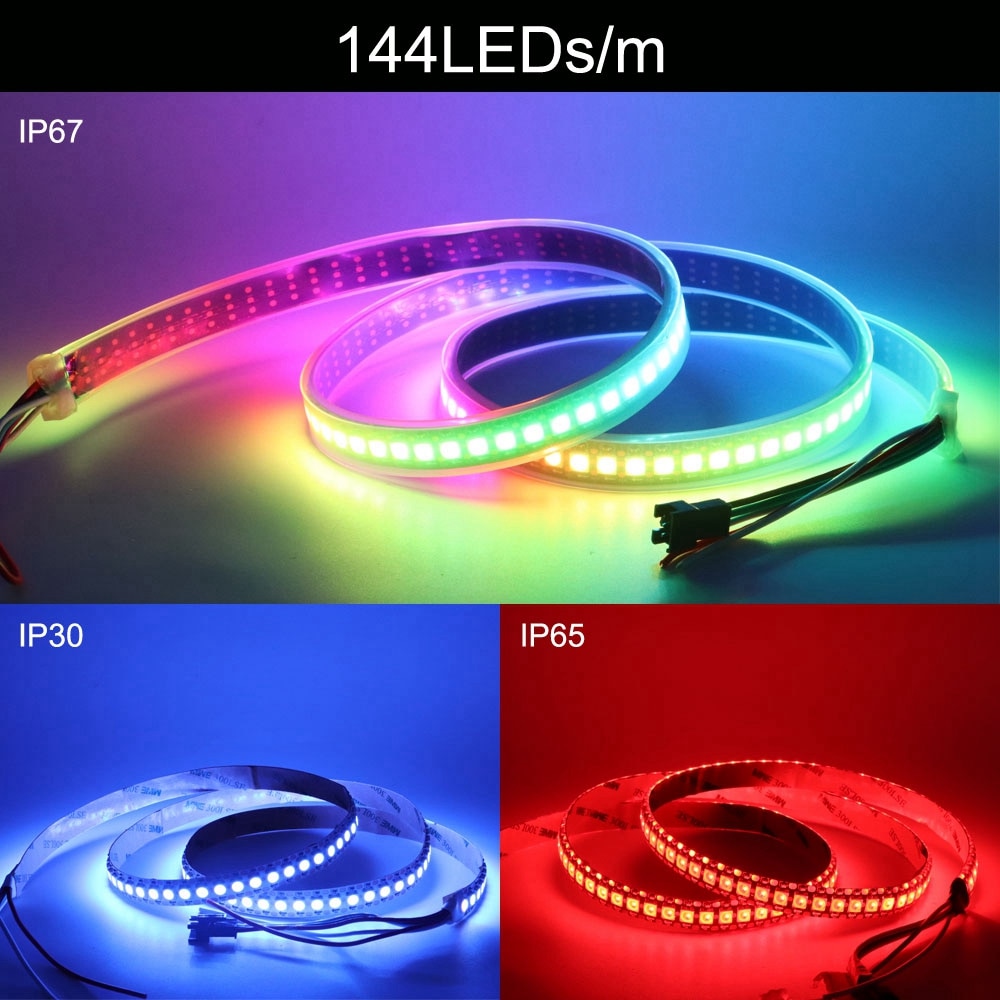

3. IP30: Non- Waterproof

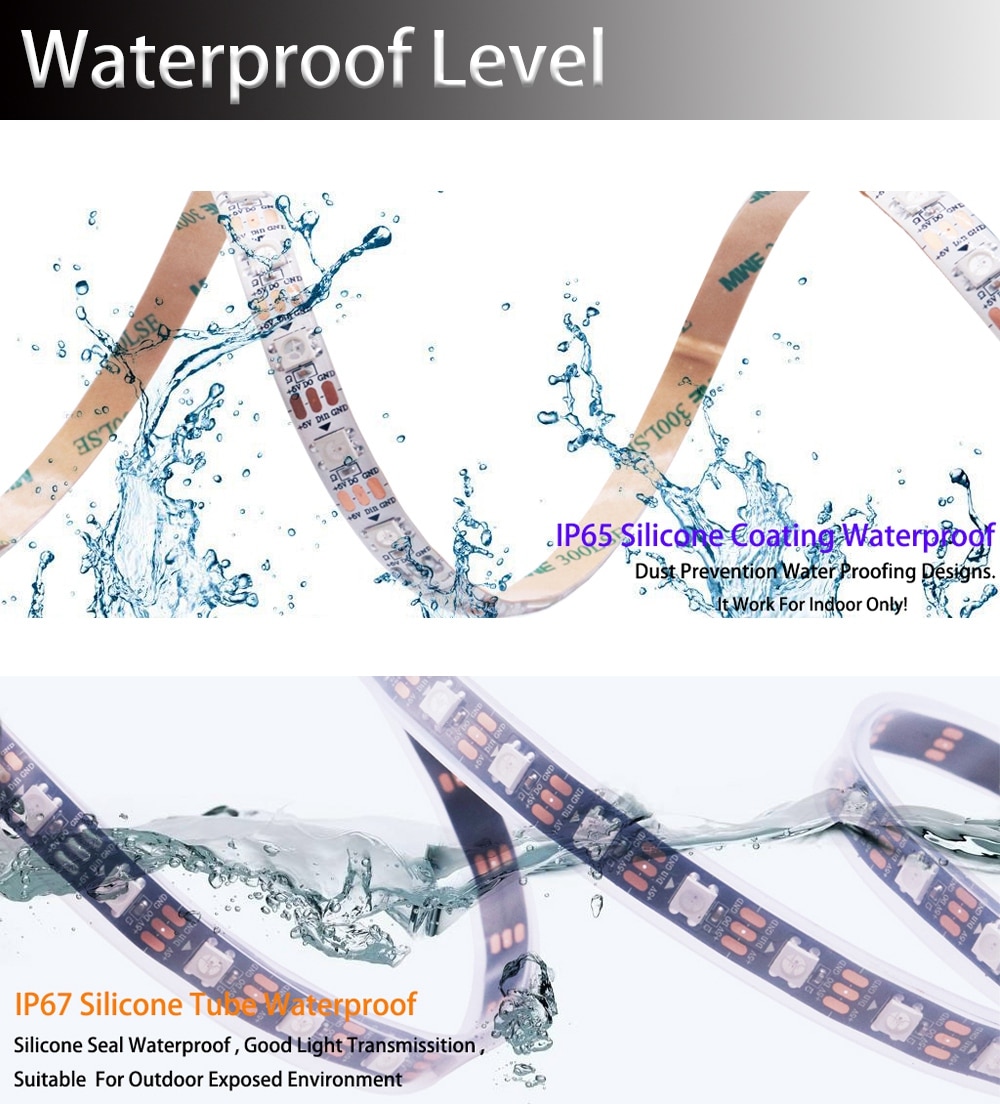

IP65: Waterproof in Silicon Coating
IP67: Waterproof in SiliconTube

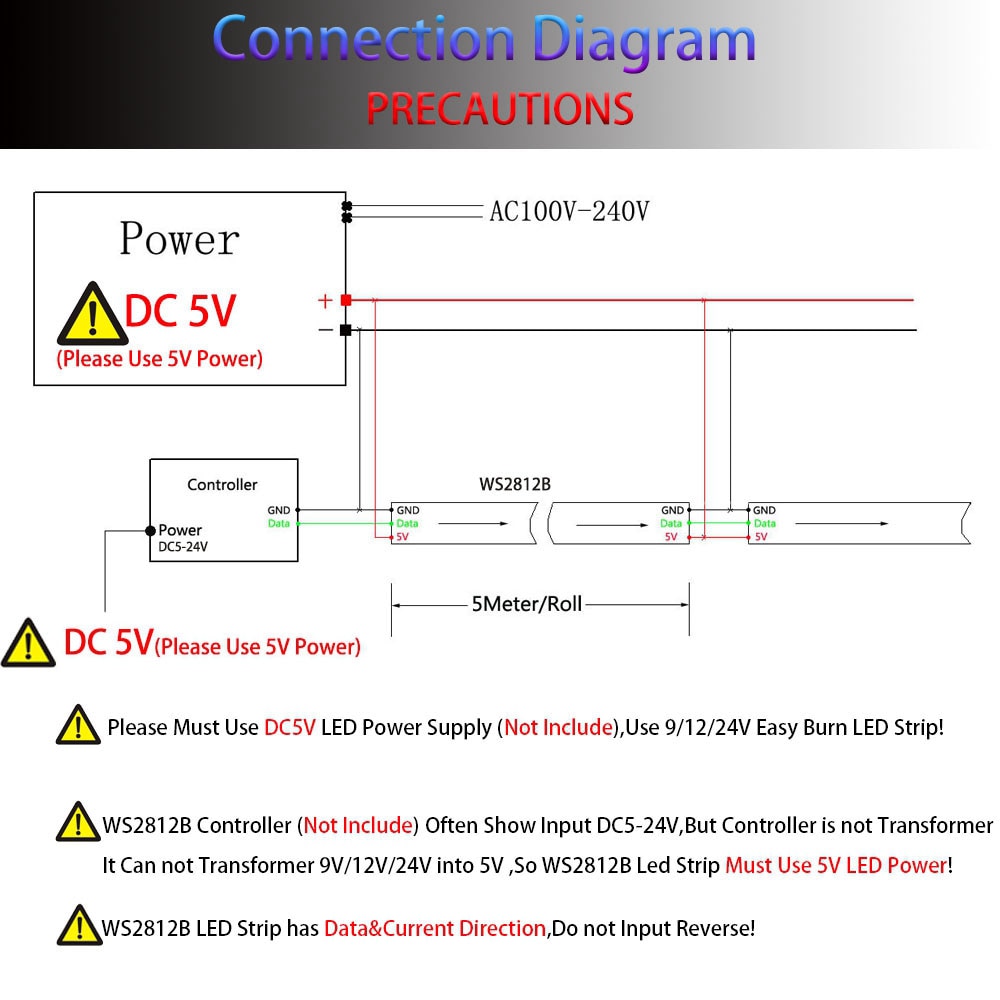

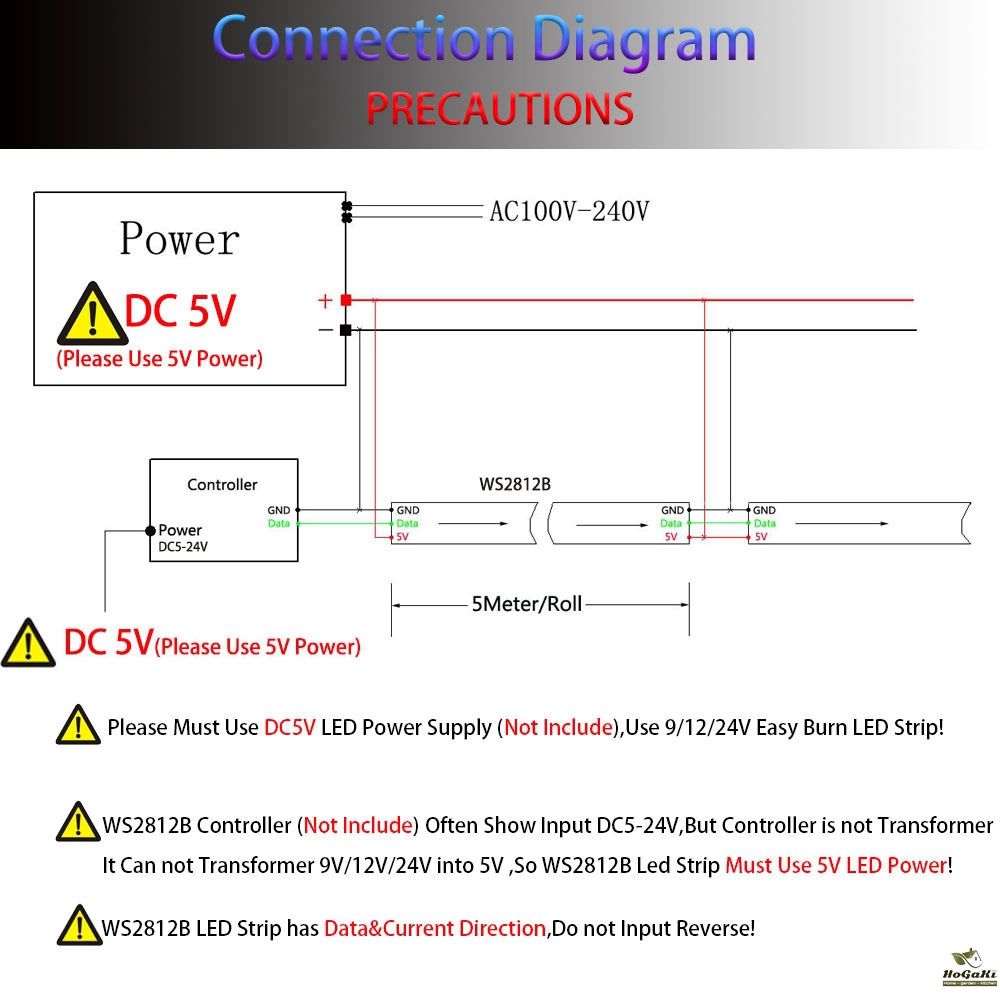

4. WS2812B Led Strip Work With DC5V Led Power Supply,And it must need a WS2812B Led Controller Control it.

Let's Know how to Choose Led Power
Calculated The Whole Led Strip Watts:
1.One Led Chip is About 0.2W,If You Buy is 5m 30Leds/m(Total Led Strip is 150Leds) ,So 0.2W*150=30W
2.And This Led Strip Work 5V,So 30W / 5V=6A,We Know This Led Strip Better at Least 6A......


Product Decsription:
1. WS2812B Led Strip is Powered By "5V Power Supply" (Not Included) And Is Controlled By A Single Data Line From A Suitable Controller (Not Included).

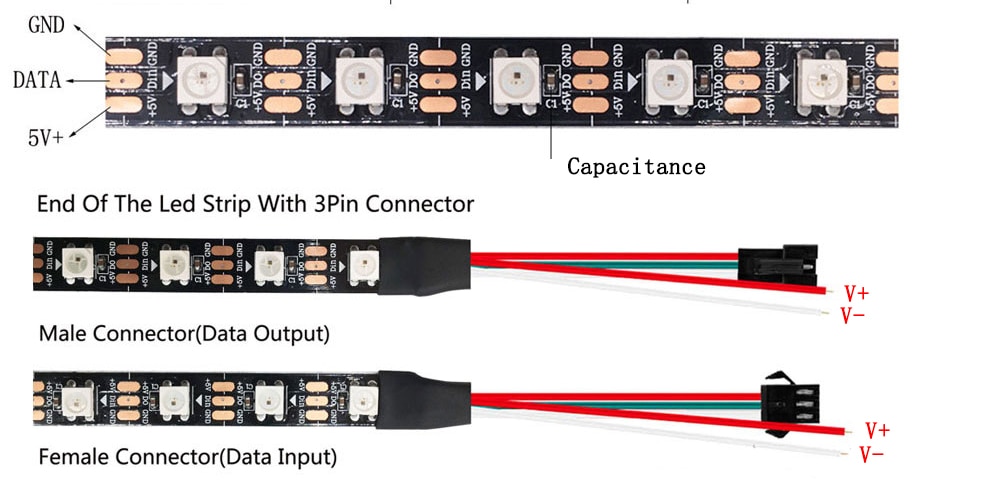

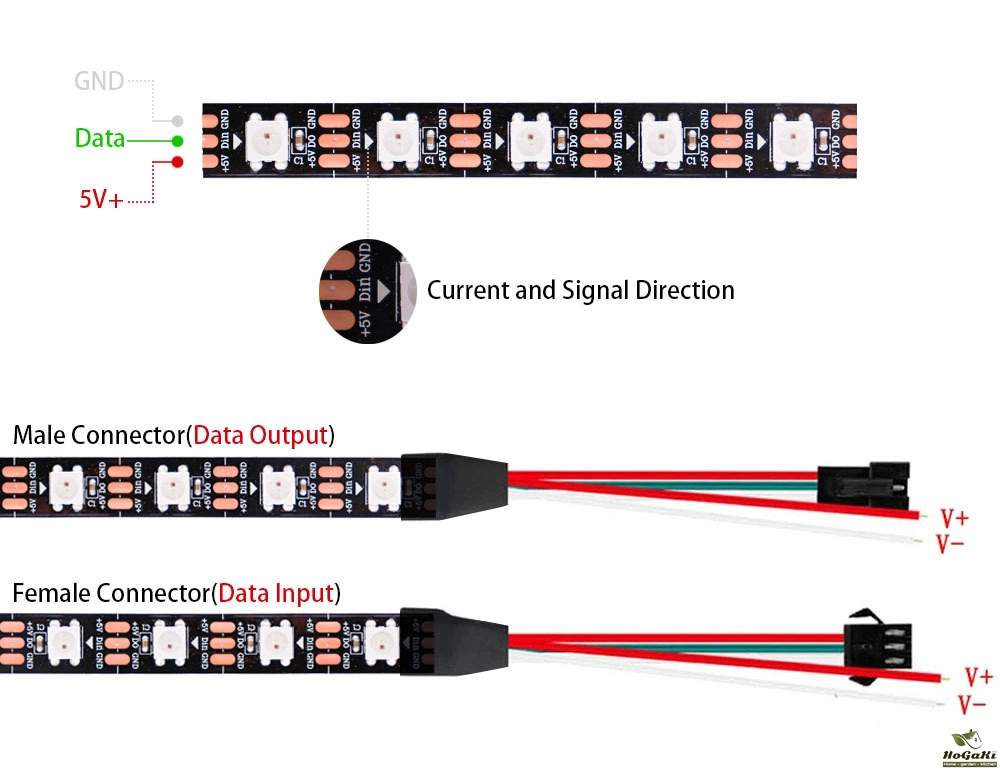

2. 3-Pin JST Connector Included: Red:VCC, Withe:GND, Green:DATA.
3. The Strip Has 3M Adhesive Tape On The Back(Except Ip67). Installation Surface Must Be Smooth, Clean And Dry.
4. Led Strip Can Be Cut Between Every Led To Create Custom Lengths.
5. Do Not Bend Strip Sharply.
6. Longer Runs Should Be Powered From Both Ends To Reduce Voltage Drop.
7. 3-Pin JST Connector Wire is 20AWG.

Products Application:
WS2812B Dream Color Strips Can Be Used For TV Hotel, KTV, Bar, Game Room And Other Leisure, Entertainment Decoration To Heighten The Atmosphere, Car Chassis, Car Decoration, Shop Decoration, Home Decoration And Other Decoration.

Product Details:
Input Voltage: DC5V
Power:

30Leds/m----6Watt/meter
60Leds/m----12Watt/meter
74Leds/m----14.8Watt/meter
96Leds/m----19.8Watt/meter
144Leds/m----28.8Watt/meter

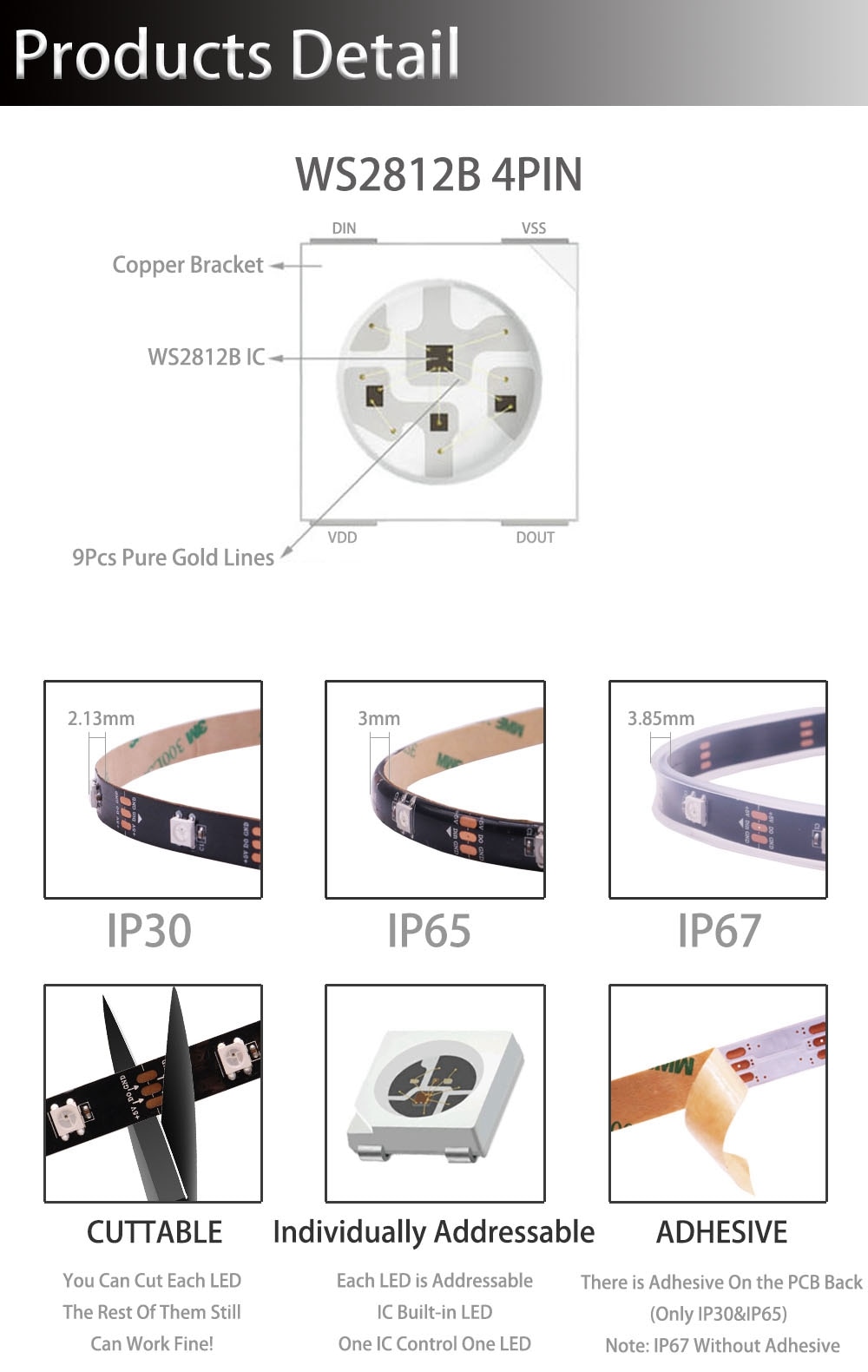

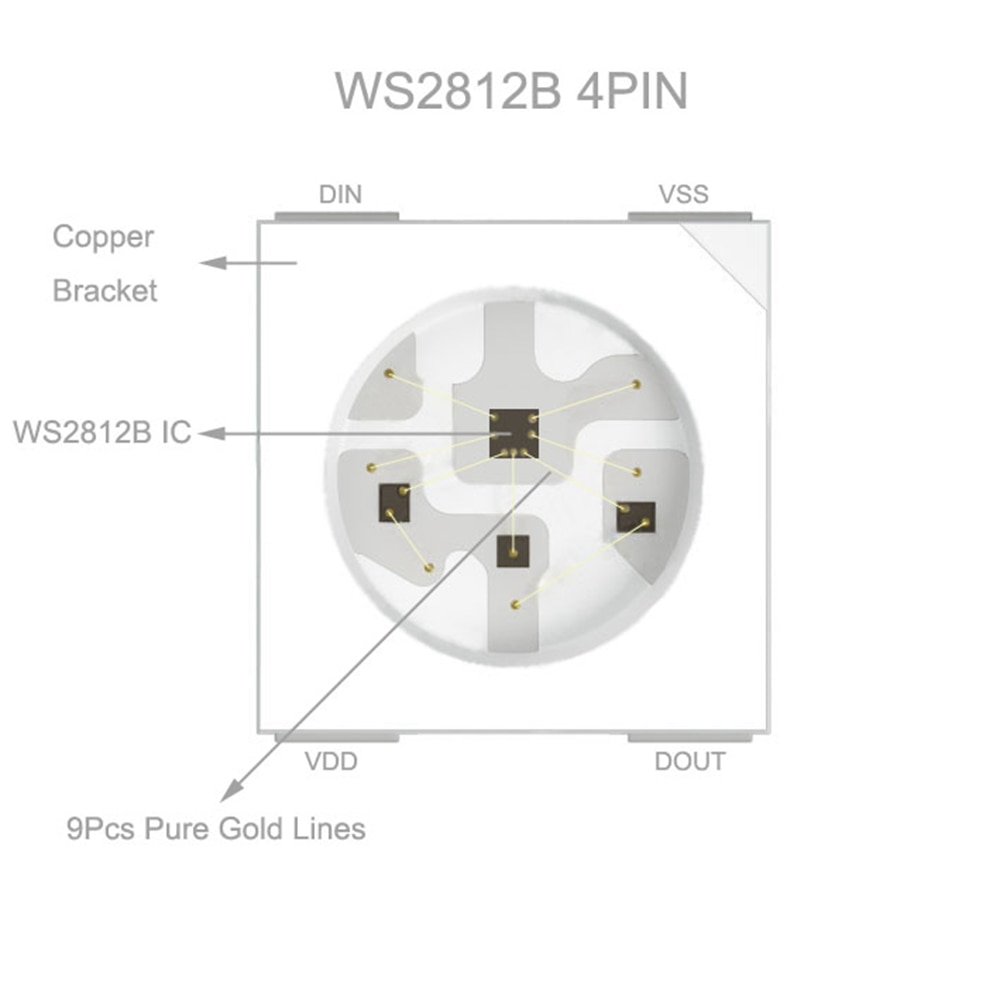

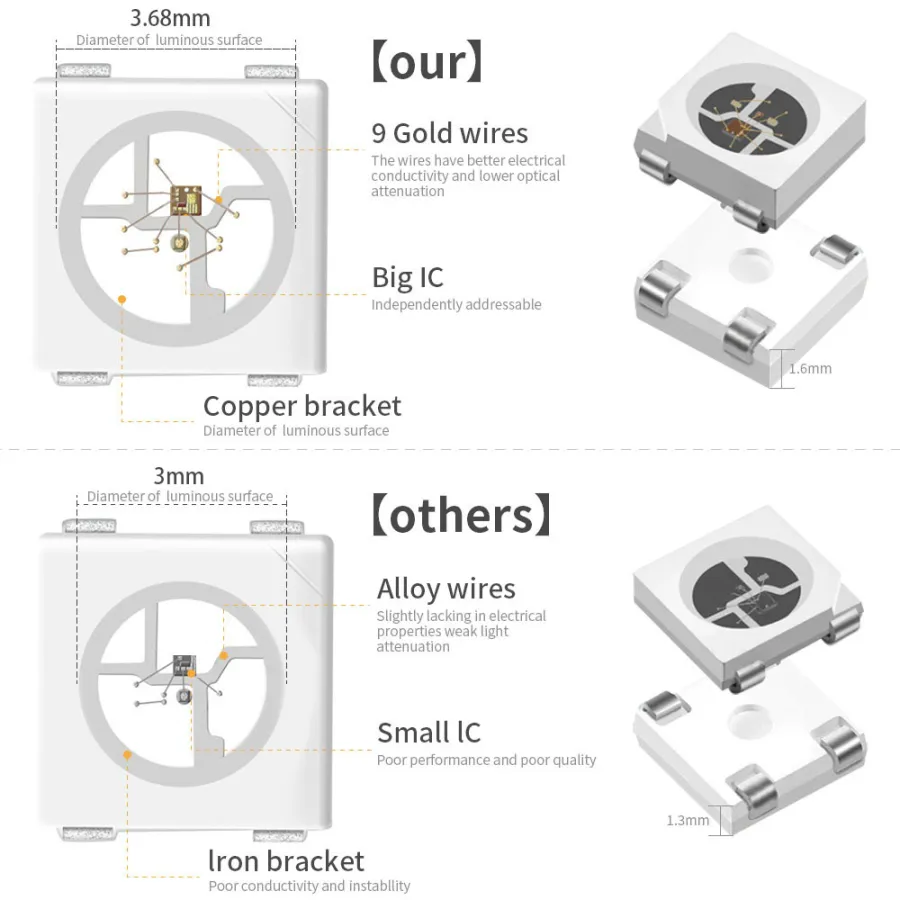

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)
LED: Each Led is Separately Controlled
IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)
Of IC: 1 IC Drives 1 Led Chip

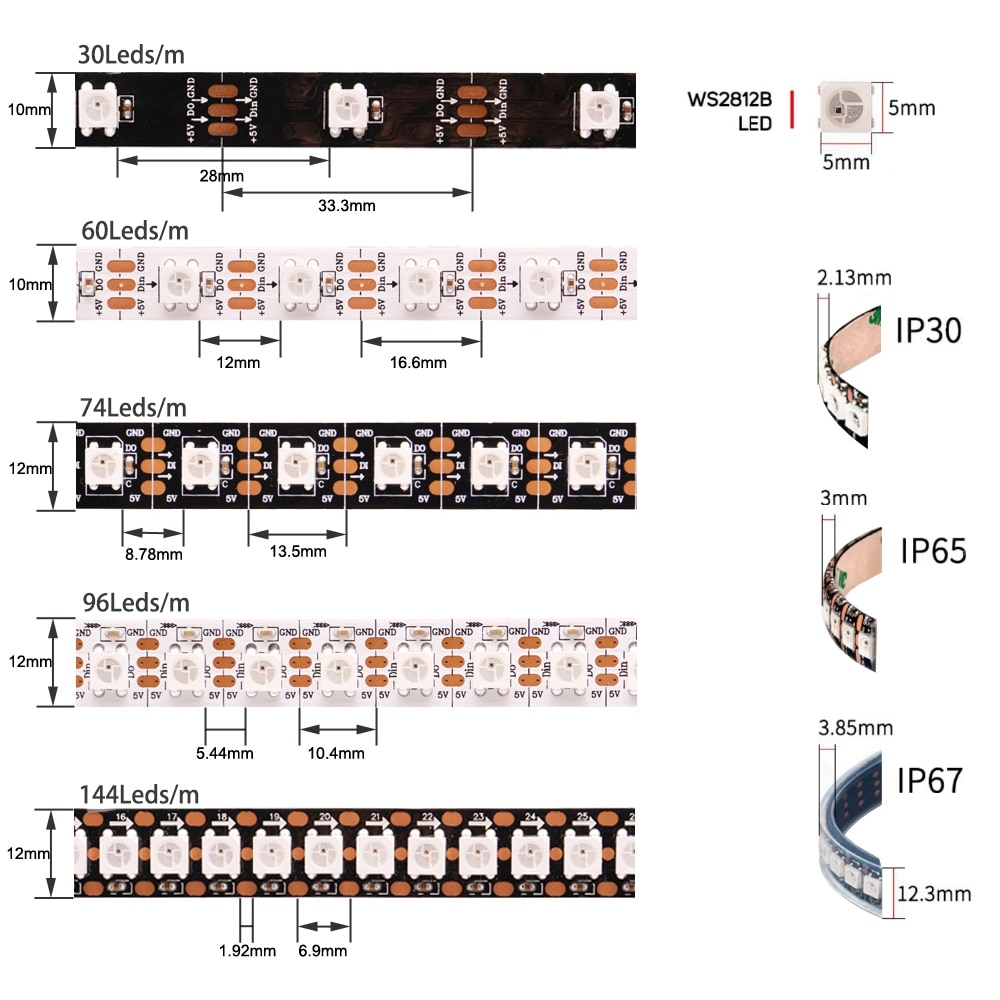

Pixels: 30/60/74/96/144/Meters
Pitch: 16.6mm(1000/64)
Grey Scale: 256
Bits/Color: 8-Bits/Color

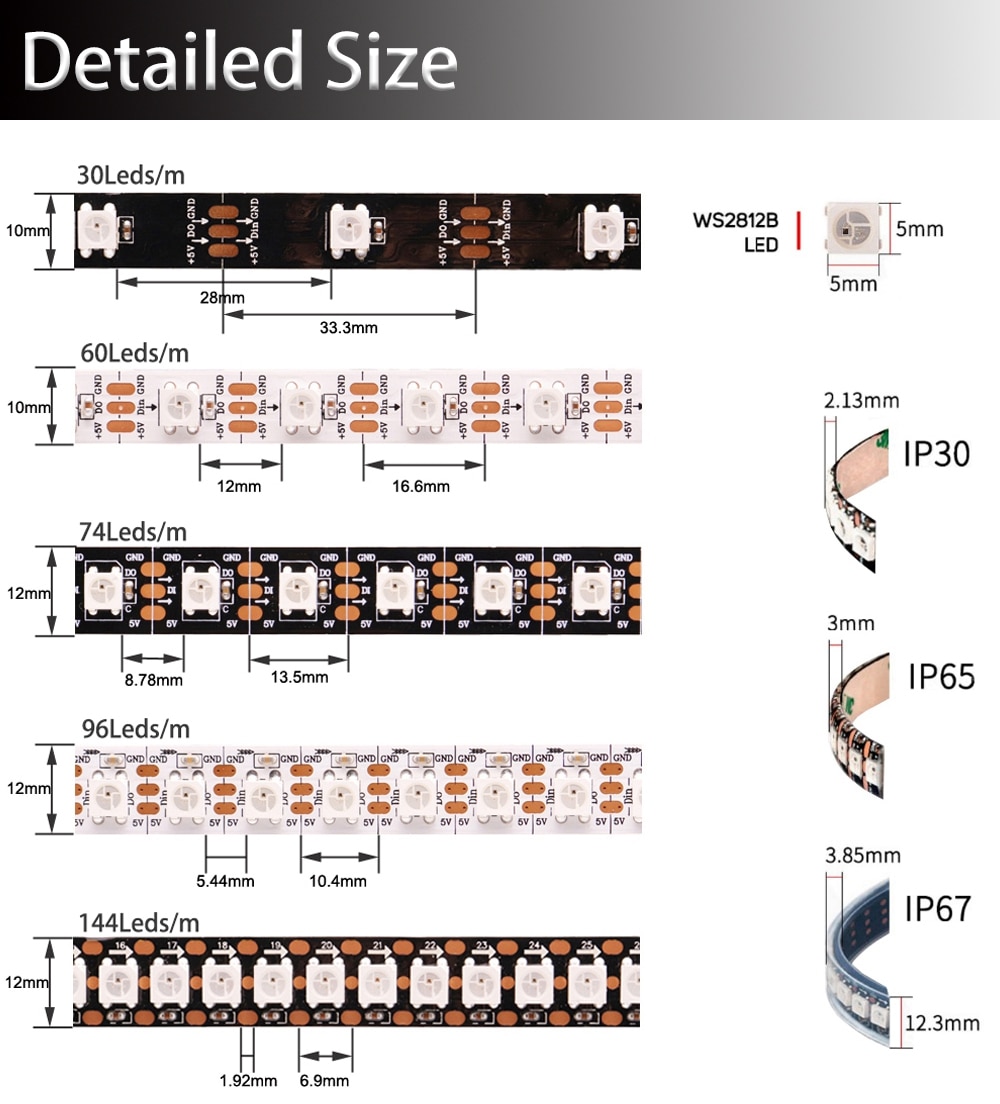

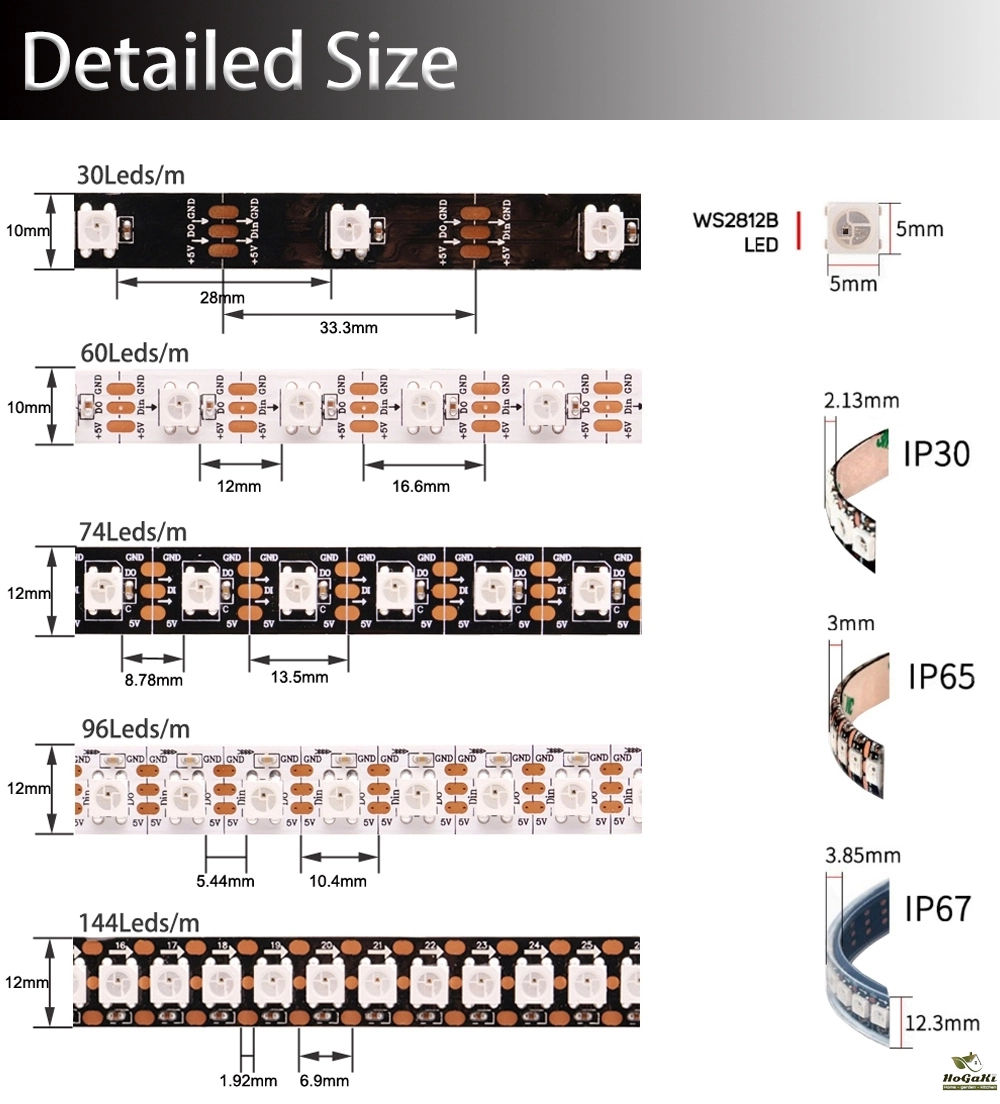

FPC Width:

30Leds/m----10mm
60Leds/m----10mm
74Led/m---12mm
96Led/m---12mm
144Leds/m----12mm
FPC color: Black/White

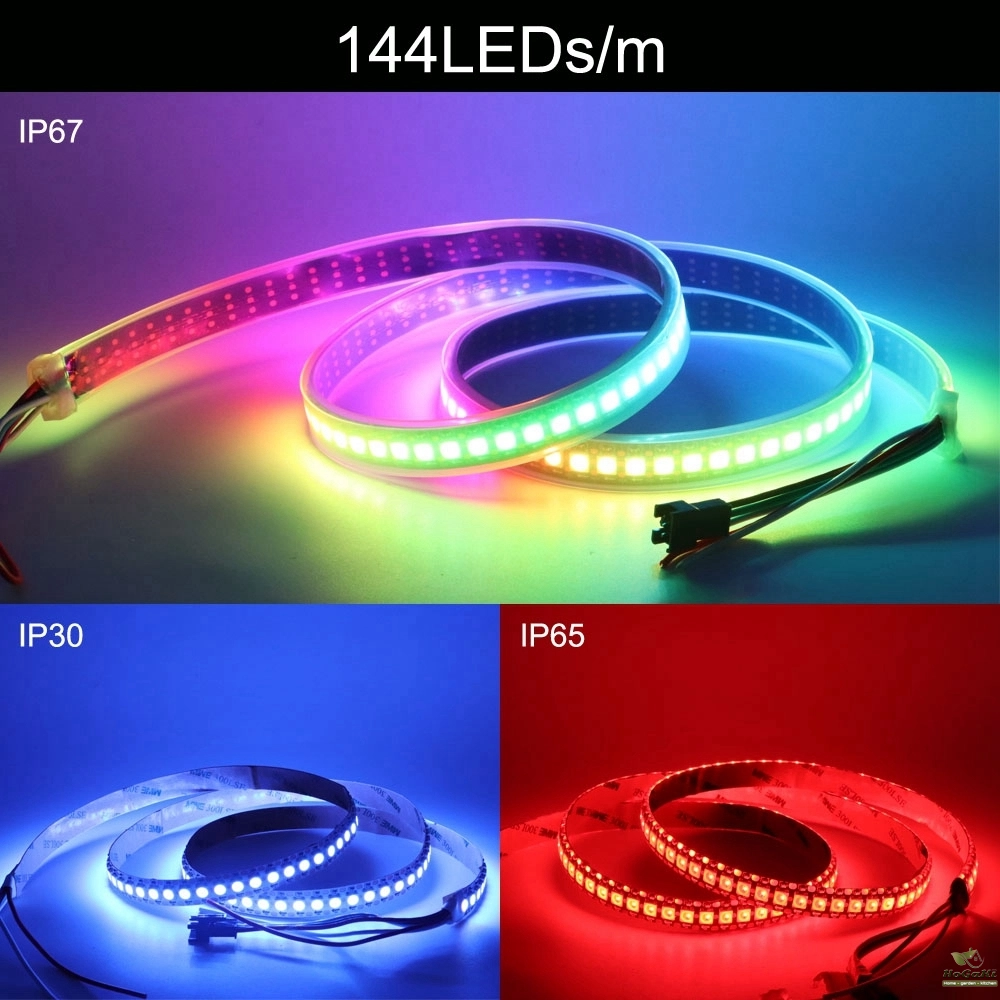

Protection Rate: IP30/ IP65 /IP67
Colors: Full Color RGB, Dream Color Changing
Cuttable: Every LED is Cuttable
Package:In Anti-Static Bag,IP30 IP65 With Double Adhensive Tape On The Back(IP67 Without Double Adhensive Tape )



Packaging Details

  • Unit Type: piece
  • Package Weight: 0.100
  • Package Size: 1x1x1

  • Brand Name: Xnbada
  • Hign-concerned Chemical: None
  • Luminous Flux: 249-2000
  • Is Batteries Included: No
  • Origin: Mainland China
  • Certification: CCC
  • Certification: ROHS
  • Certification: ce
  • Certification: FCC
  • Average Life (hrs): More Than 50000Hours
  • LED Chip Model: SMD5050
  • Strip type: SMD
  • Power Generation: Switch
  • Waterproof: Yes
  • Is Smart Device: Yes
  • Color Temp(K): k
  • Occasion: LIVING ROOM
  • LED Chip Brand: Epistar
  • Power Source: DC
  • Model Number: WS2812B WS2812
  • Specifications (light beads / m): 50
  • LEDs Number/M: 30/60/74/96/144PCS/M
  • Item Type: Strip
  • Power Consumption (W/m): 8.64W/m
  • Power Consumption (W/m): 11.52W/m
  • Voltage: 5V
