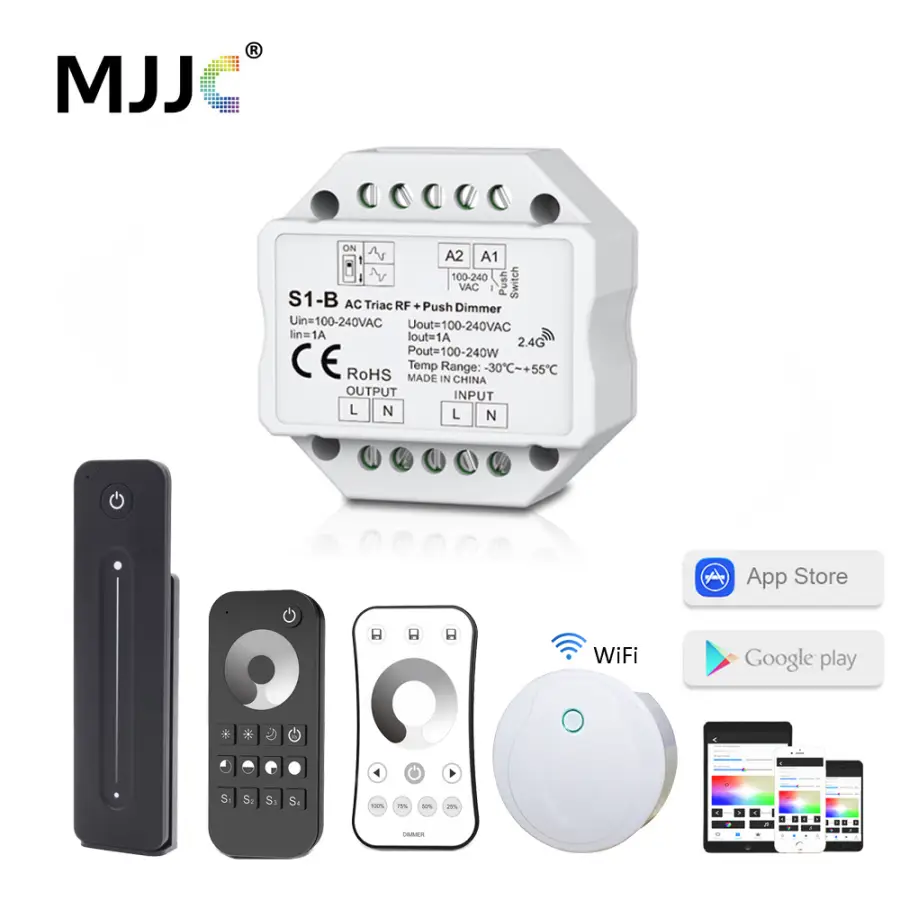

LED Dimmer 220V AC Triac Dimmer 230V 110V Wireless RF Dimmable Push Switch with 2.4G Remote Dimmer for LED Lamp 220V Bulb S1-B
Features:
● AC phase-cut RF dimmer with push-dim function.
● To dim and switch single color dimmable LED lamps or drivers, traditional incandescent and halogen lights.
● Suitable to insert standard panel bottom box.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● One RF dimmer can accept up to 10 remote control.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Great compatibility with a variety of dimming remote.
(Receiver) Specifications:
Product Name:2.4G Wireless RF Triac LED Dimmer with Push Dimmable Function
Input Voltage: 110V 220V 230V 240V AC
Output Voltage: 110V 220V 230V 240V AC
Working Temperature: -20-60centi-degree
Max load current :1.0A
Max Power Output: 100-240W
Output gray: 256 levels
Frequency of RF remote control: 2.4G MHz
Match Guide:
1. Match: Switch off the power, then switch on power again,
short press on/off key or zone key 3 times on the remote quickly within 5s after power on,
the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again,
short press on/off key or zone key 5 times on the remote quickly within 5s after power on,
the unlink is done once the light blinks 5 times.
(Sender/Remote Control)Specifications & Functions:
Output Signal: RF (2.4GHz)
Working Voltage: 3V DC (CR2032 Button Cell Battery) , 2*AAA Batteries (MJJC-RT1/RT6)
Standby Time: 12 months
Remote Distance: 30M

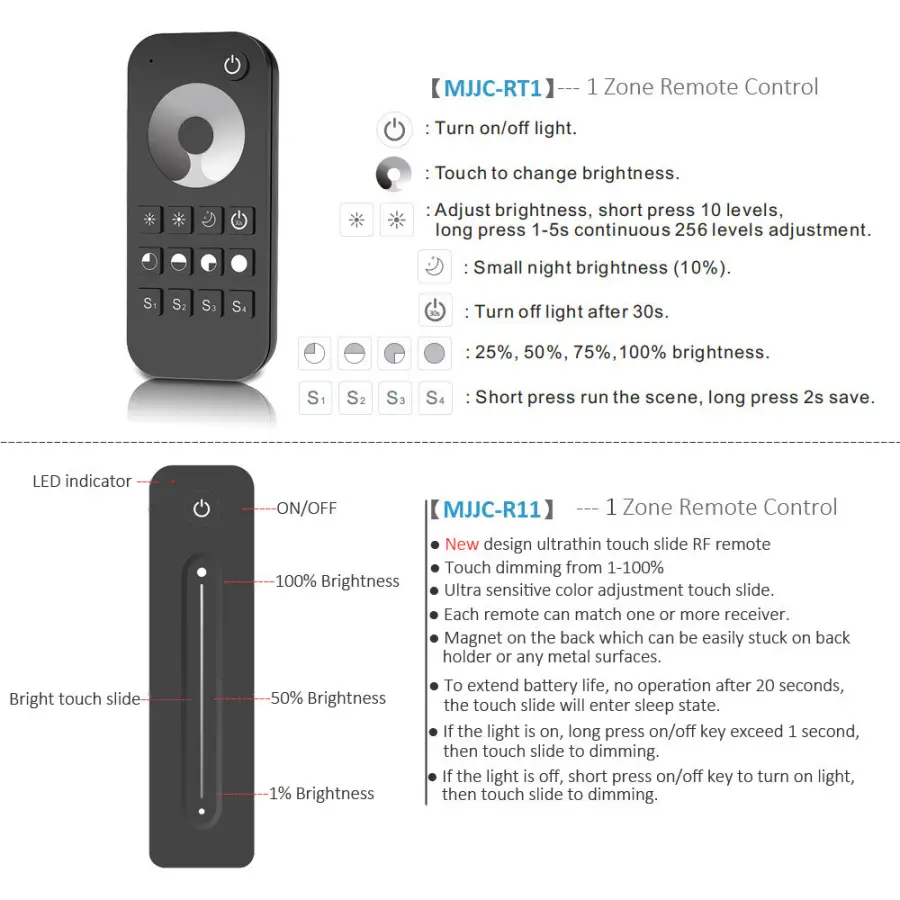

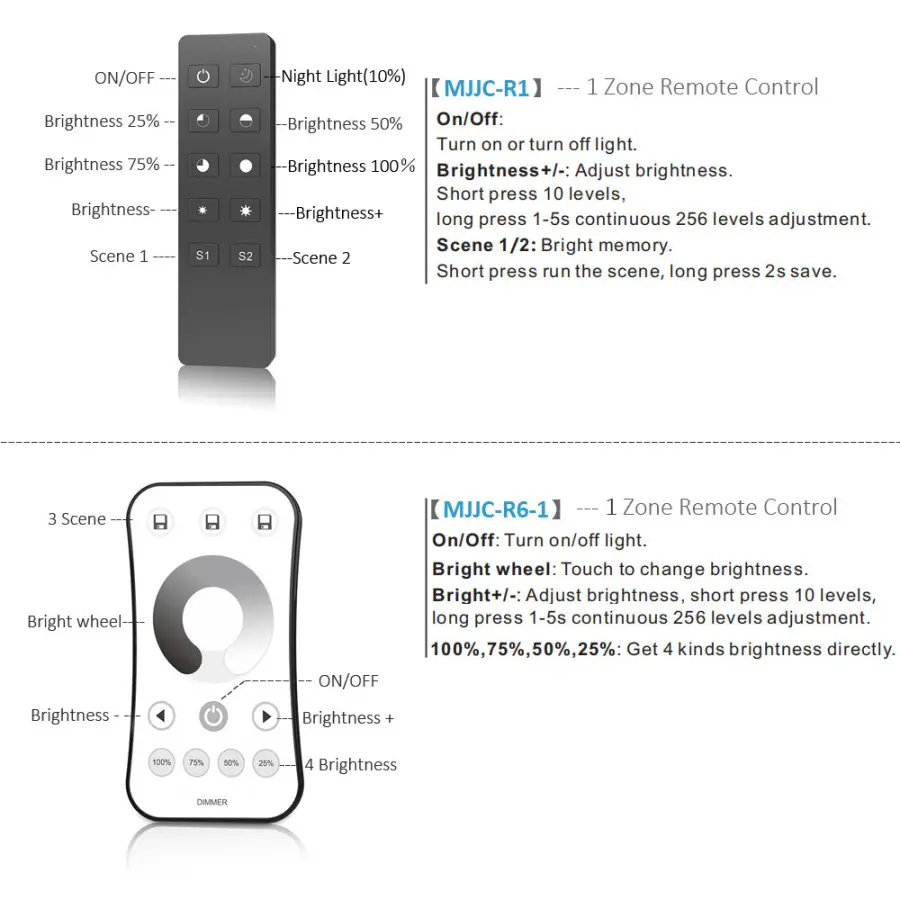

Single Zone Remote Control:
4 Zones Remote Control:
The WiFi-Relay controller converts WiFi signal to RF signal, also know as WiFi gateway or Wifi hub. it is compatible with multiple type of Skydance receivers. With WiFi-relay, you could control single color, dual color, RGB, RGBW, RGB+CCT LED lights by smart phone.
Note:This product can not be used alone,This wifi to RF converter need work with V1, V2, V3, V4, VP, KS, S1-B,S1-K etc wireless receivers
Features
● Can mix load all Skydance RF 2.4G LED controllers, LED dimmable driver and smart lamp.
● Can realize dimming, color temperature, RGB, RGBW, RGB+CCT light effects.
● Load 1-16 zones, 8 scene memory.
● Including one micro USB cable.
● Android / IOS software name: SkySmart.
Technical Parameters
● Input voltage : DC5-24V Input voltage
● Operation frequency: 2.4G
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Product size : Φ72×25mm

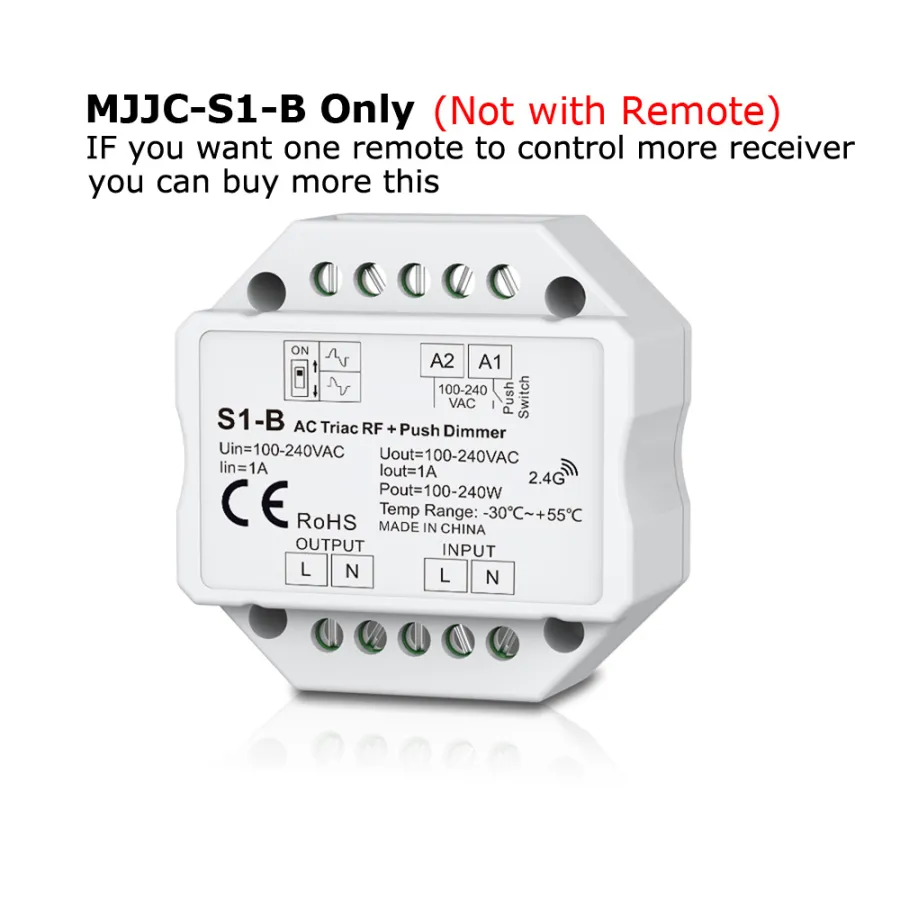

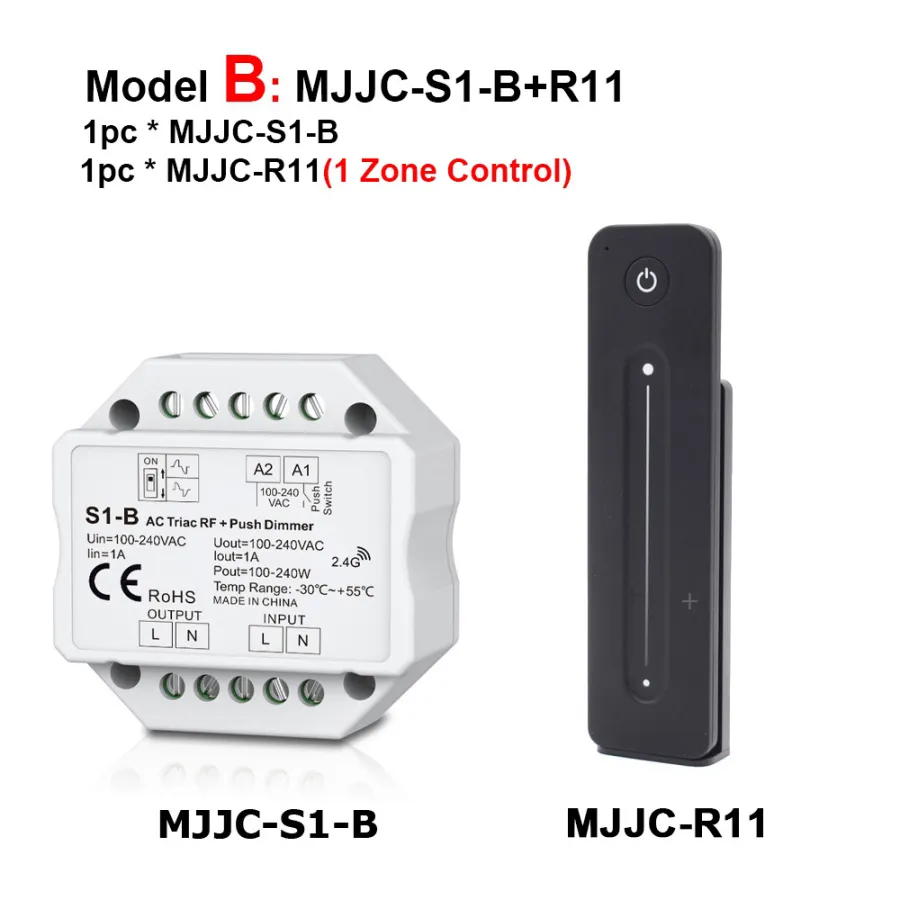

If you want to control more lamps by one remote, you need to buy more receiver (MJJC-S1-B). only do " Match Code" between Sender and receivers before using.

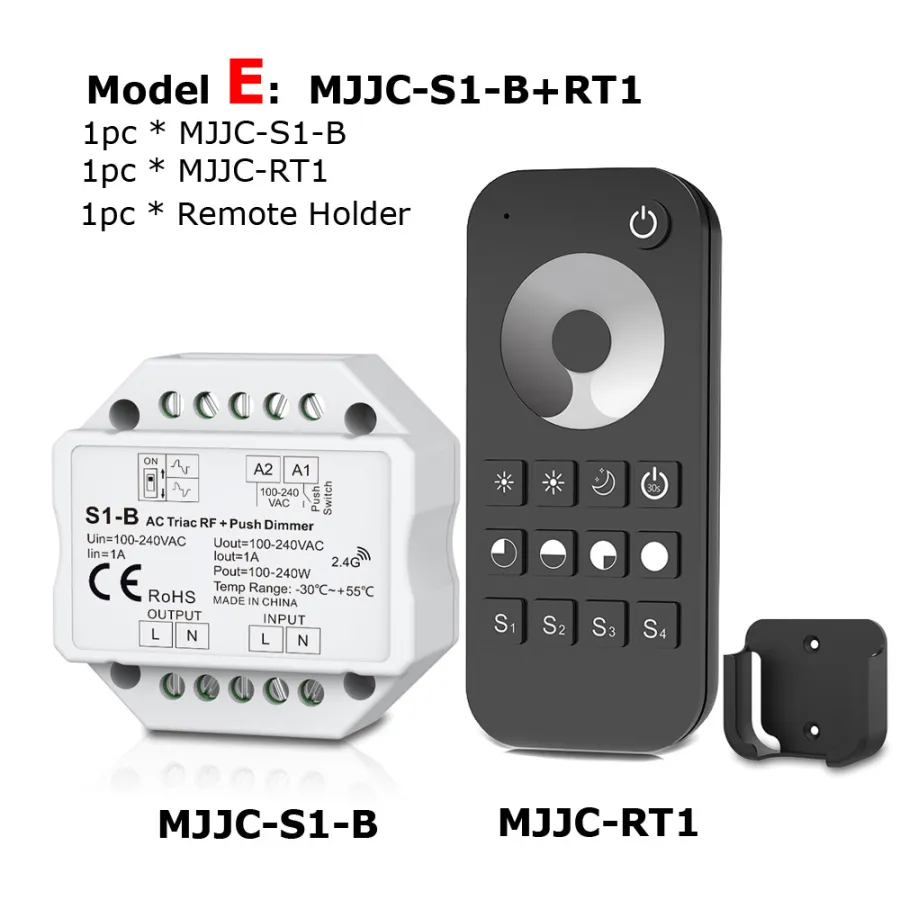

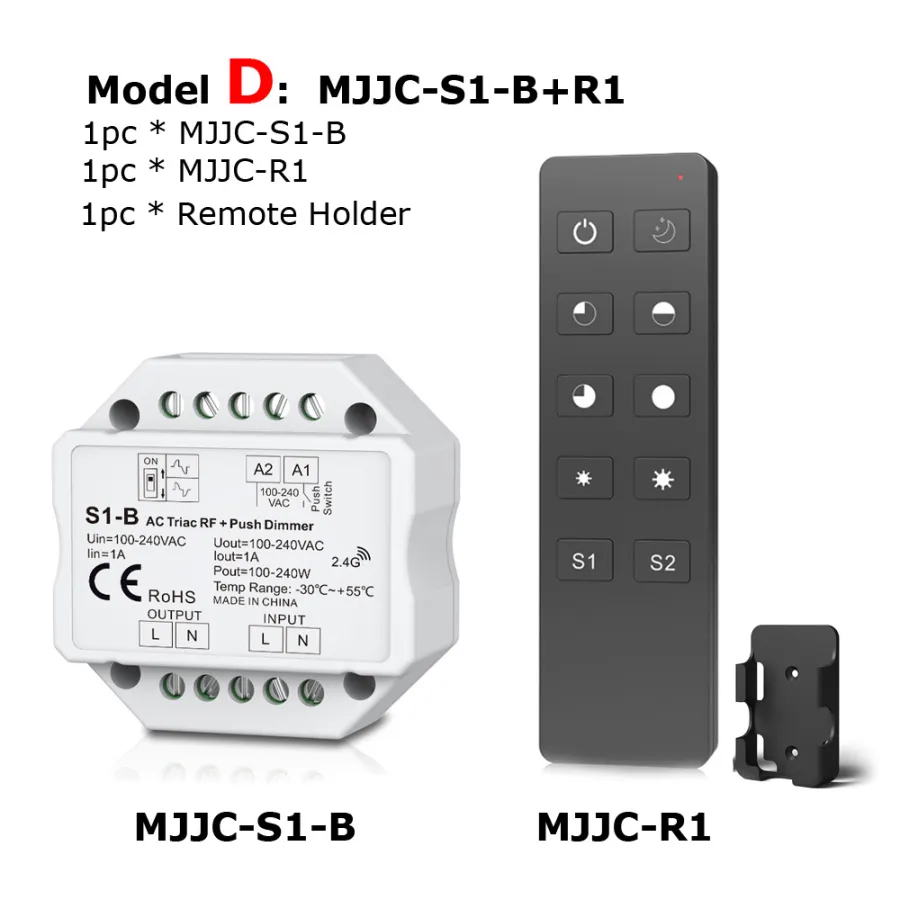

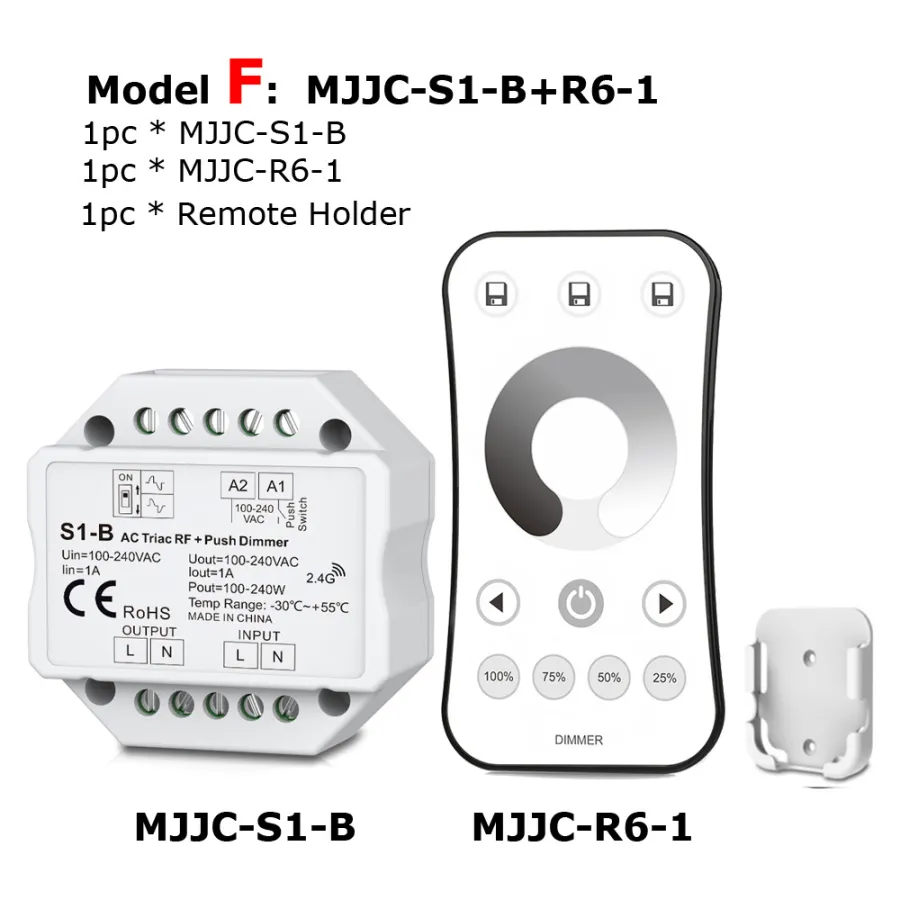

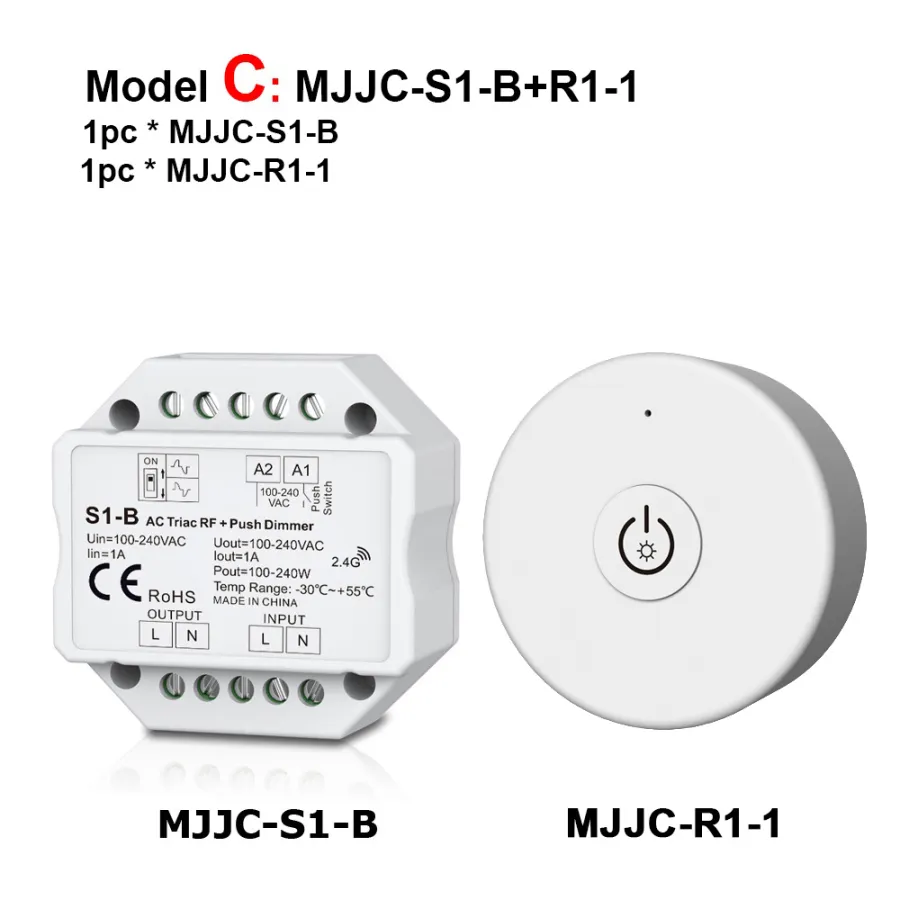

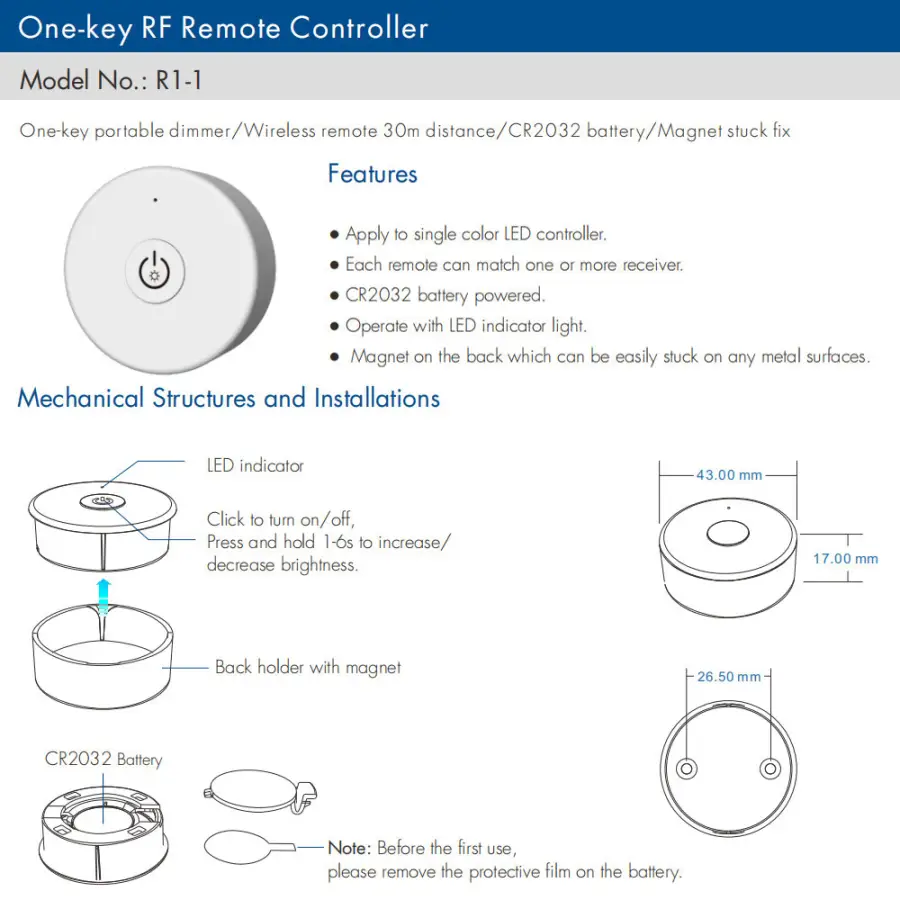

MJJC-R1,MJJC-R6-1, MJJC-RT1,MJJC-R11 are used for single zone control solution. ----- Only Synchronously Control.

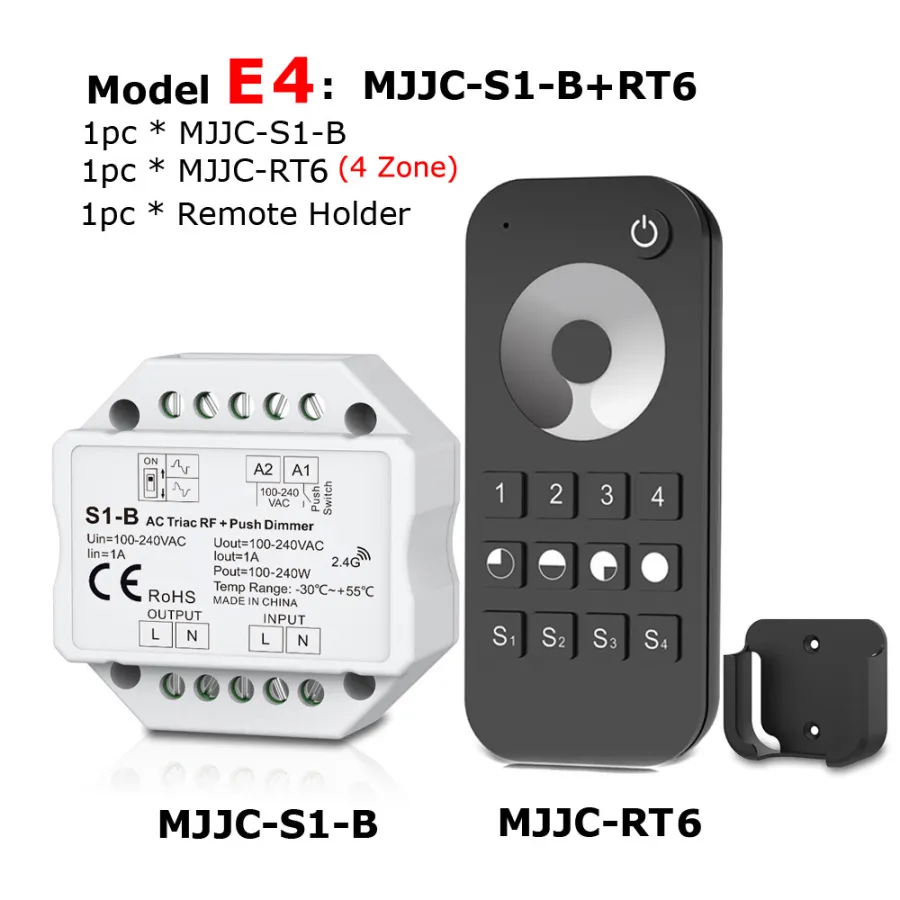

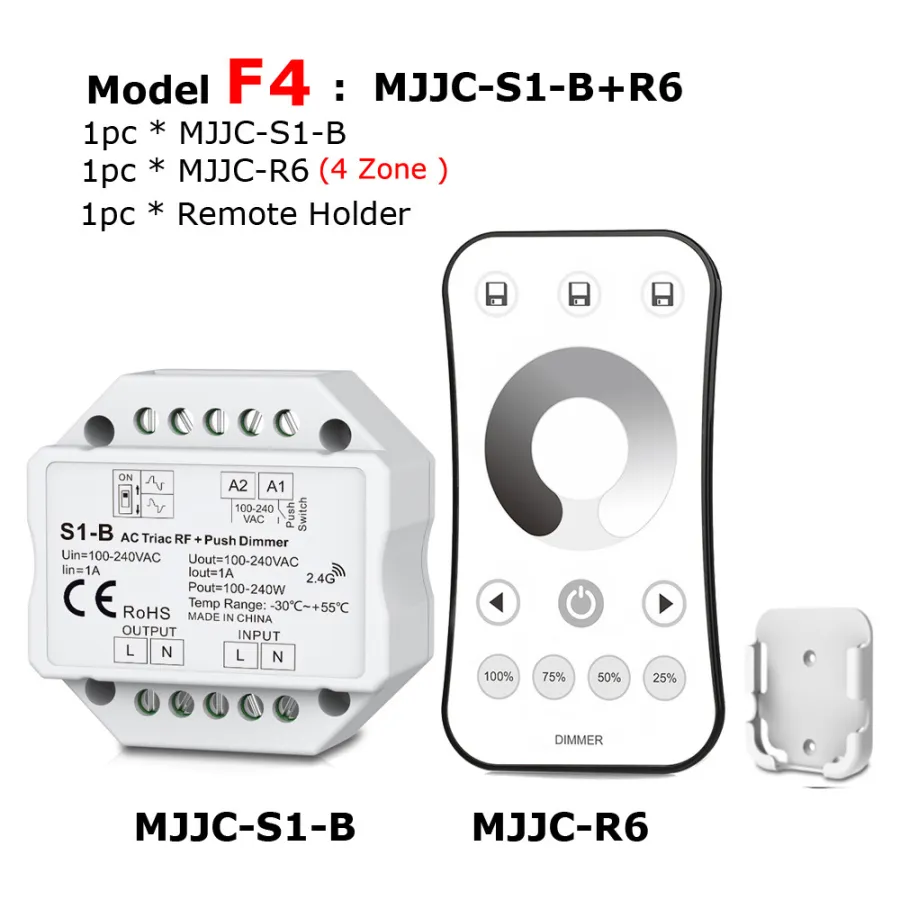

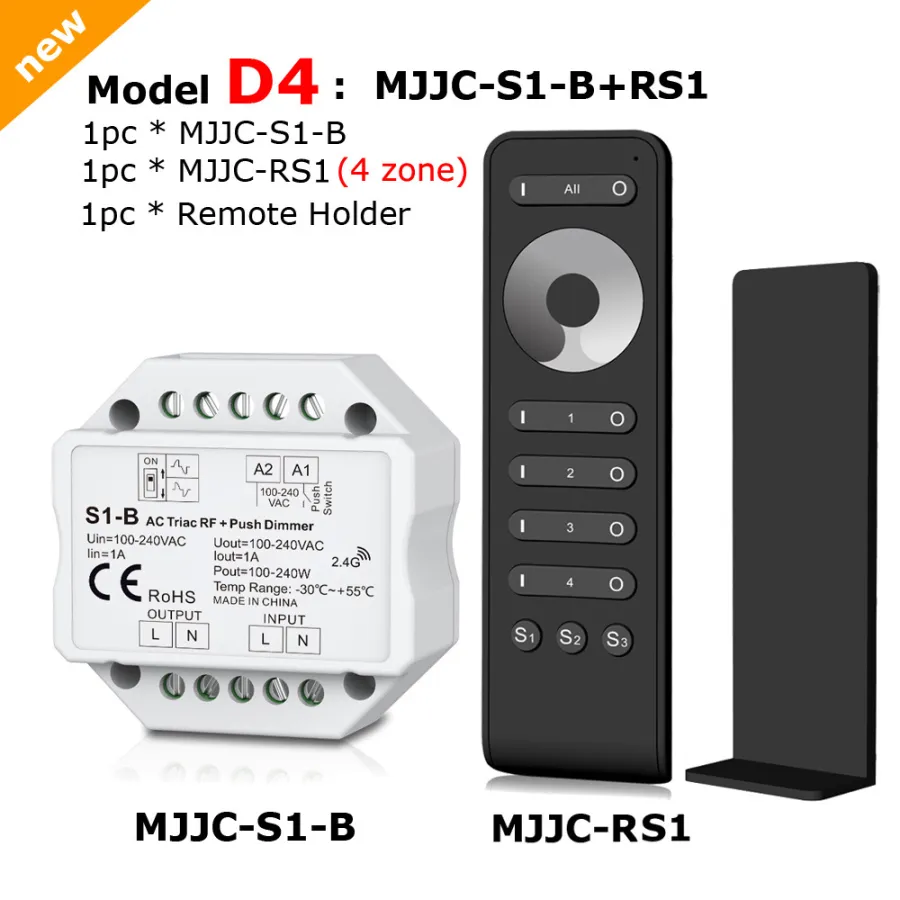

MJJC-RS1, MJJC-R6, MJJC-RT6 are used for 4 zones control solution. ------- Synchronously & Independently Control.
User Manual:
Please kindly note,there is only English version user manual, if English is difficuilt for you,kindly look at the user manual in this page. hope you understand.
Thanks
Package Including:
It depends on which Model you need,we will send out the goods according to your choice.
Packaging Details
- Unit Type:
- Package Weight: 0.13
- Package Size: 15x4x18
- Brand Name: MJJC
- Hign-concerned Chemical: None
- Origin: Mainland China
- Material: Plastic
- Item Type: Dimmers
- Warranty: 1 year
- Model Number: Dimmer 220V
- Max. Load Power: 240W
- Certification: CCC
- Certification: ce
- Certification: EMC
- Certification: FCC
- Certification: GS
- Certification: LVD
- Certification: ROHS
- Features: Triac Dimmable Controller
