SucceBuy Mini Metal Lathe Machine 7
ID: 153880

SucceBuy Mini Metal Lathe Machine 7"x14" 550W 180x350mm Variable Speed + 3 Jaw Chuck for Metalworking Turning Drilling Threading

4.5 (10 votes) | 72 orders
Price: US $1890.00 - 2060.10
Discount Price:
US $ 963.90 - 1088.80
-49%
Color
Quantity

Buy Now
Add to Cart
Product Description

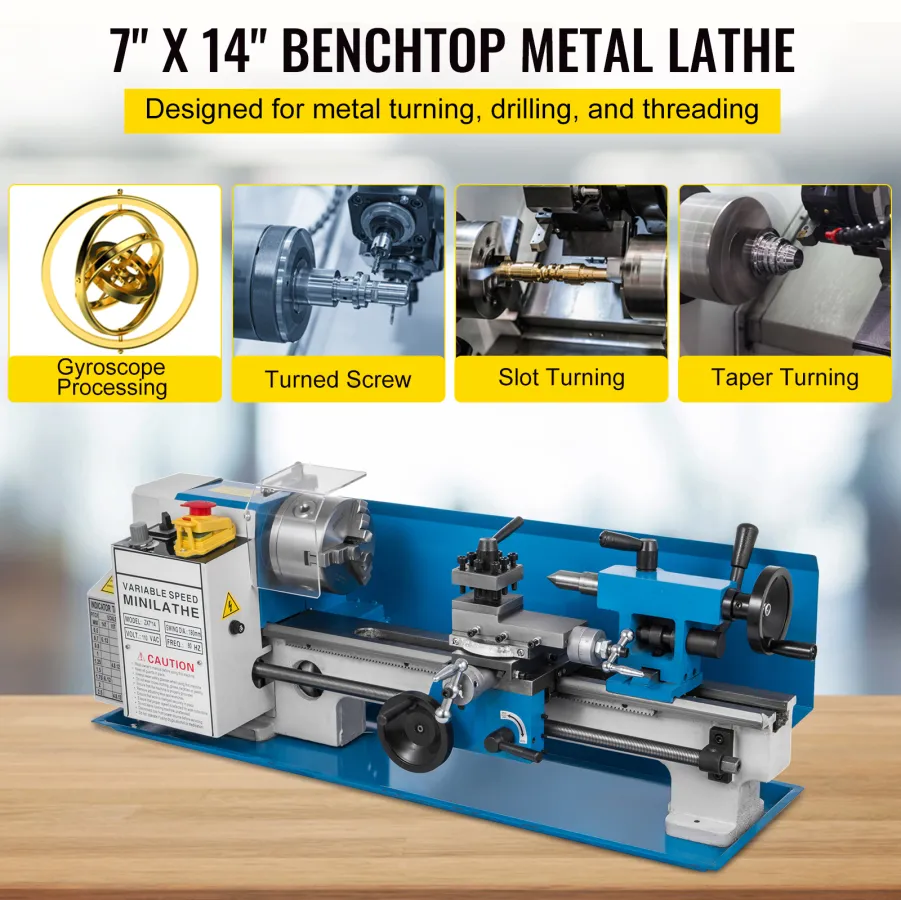

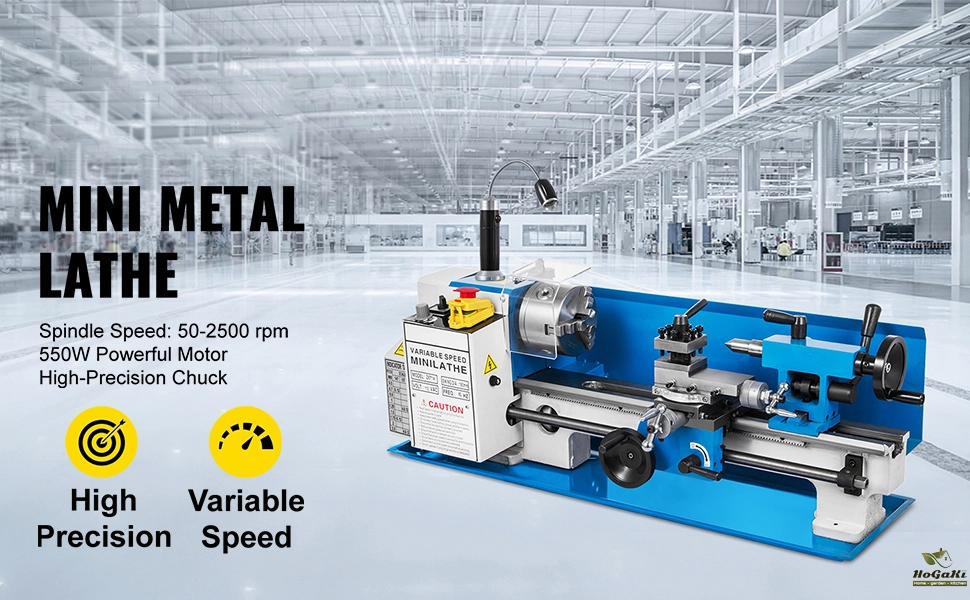

7"x14" Benchtop Metal Lathe
2500 RPM (Model Upgrade & Version A) /2250 RPM (Model Version B) & 550W DC Single Phase & High Efficiency
The precision lathe mill machine features a powerful motor. Upgraded metal gear and hand wheel can prolong the service time. LED light helps you work on the dim surroundings. It’s designed for turning, drilling, and threading.

  • Precise Engineering

  • Large Working Capacity

  • Upgrade Design

  • Complete Control

Tough Equipment & Tools, Pay Less
SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose SucceBuy?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features

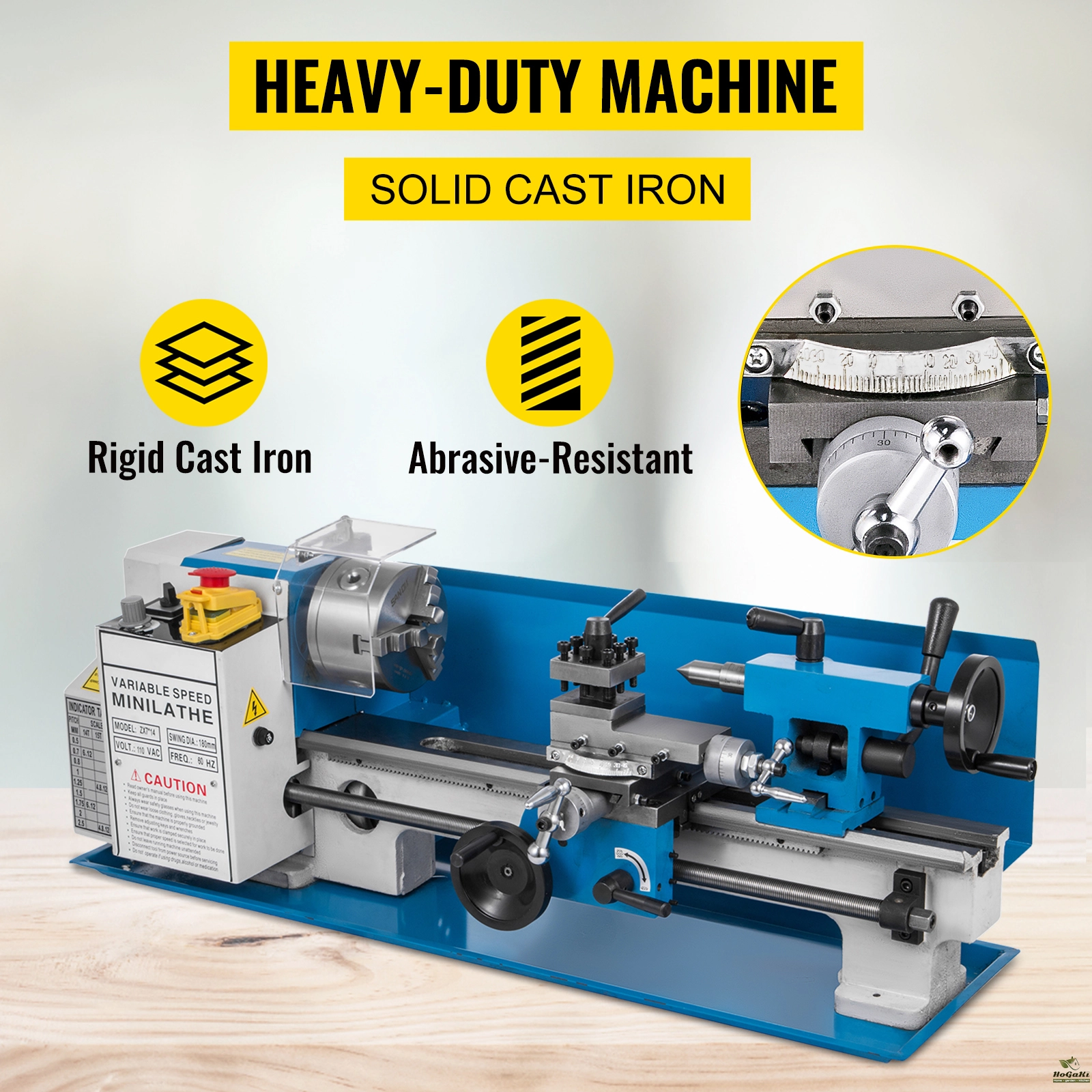

Heavy-Duty Machine
Made of superior iron, which can withstand long years. Feature a 7-inch swing over bed, 13.78 inch / 11.8 inch distance between centers. The wide through hole allows easy work with long and thin pieces including pins, bushings, axles, and shafts.

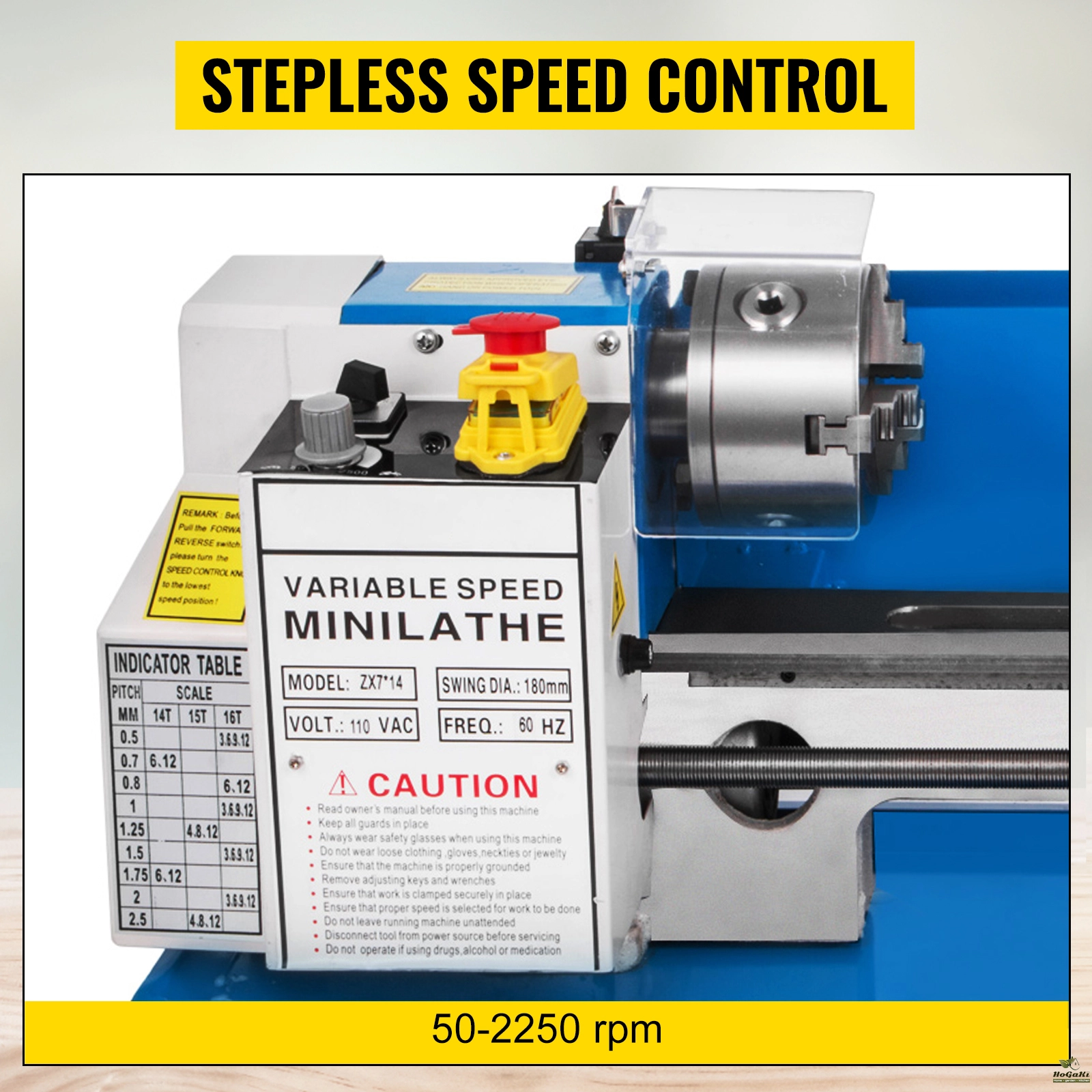

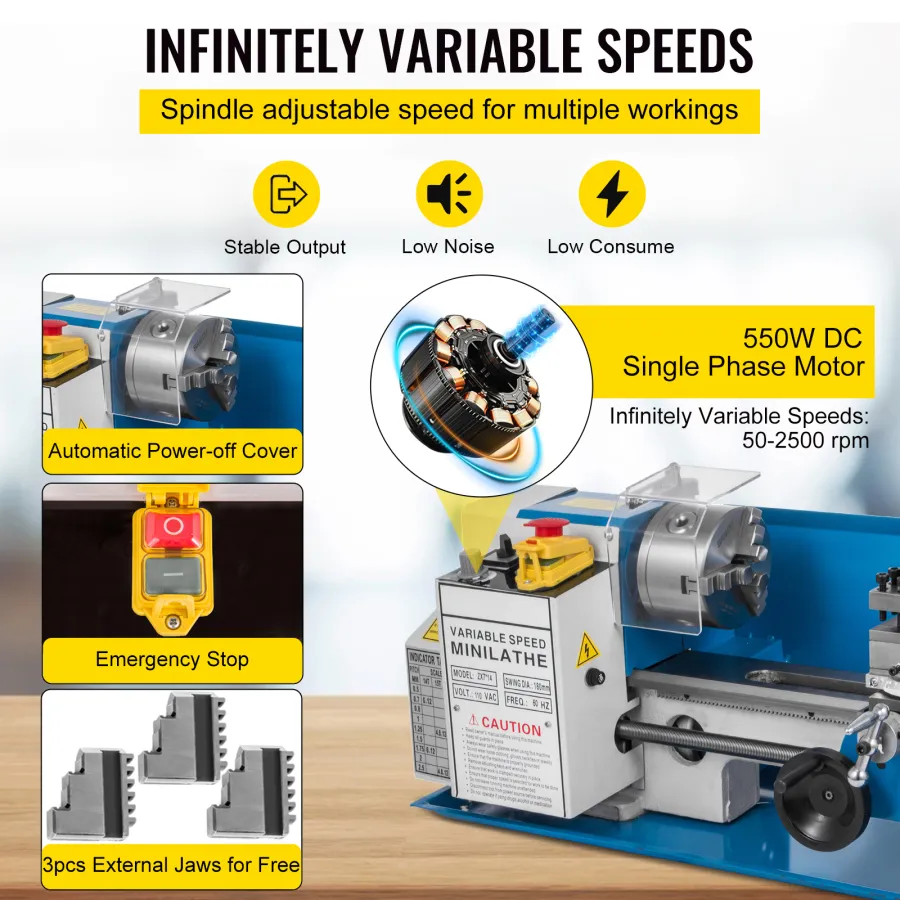

Stepless Speed Control
Variable speed from 50-2500 RPM / 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.

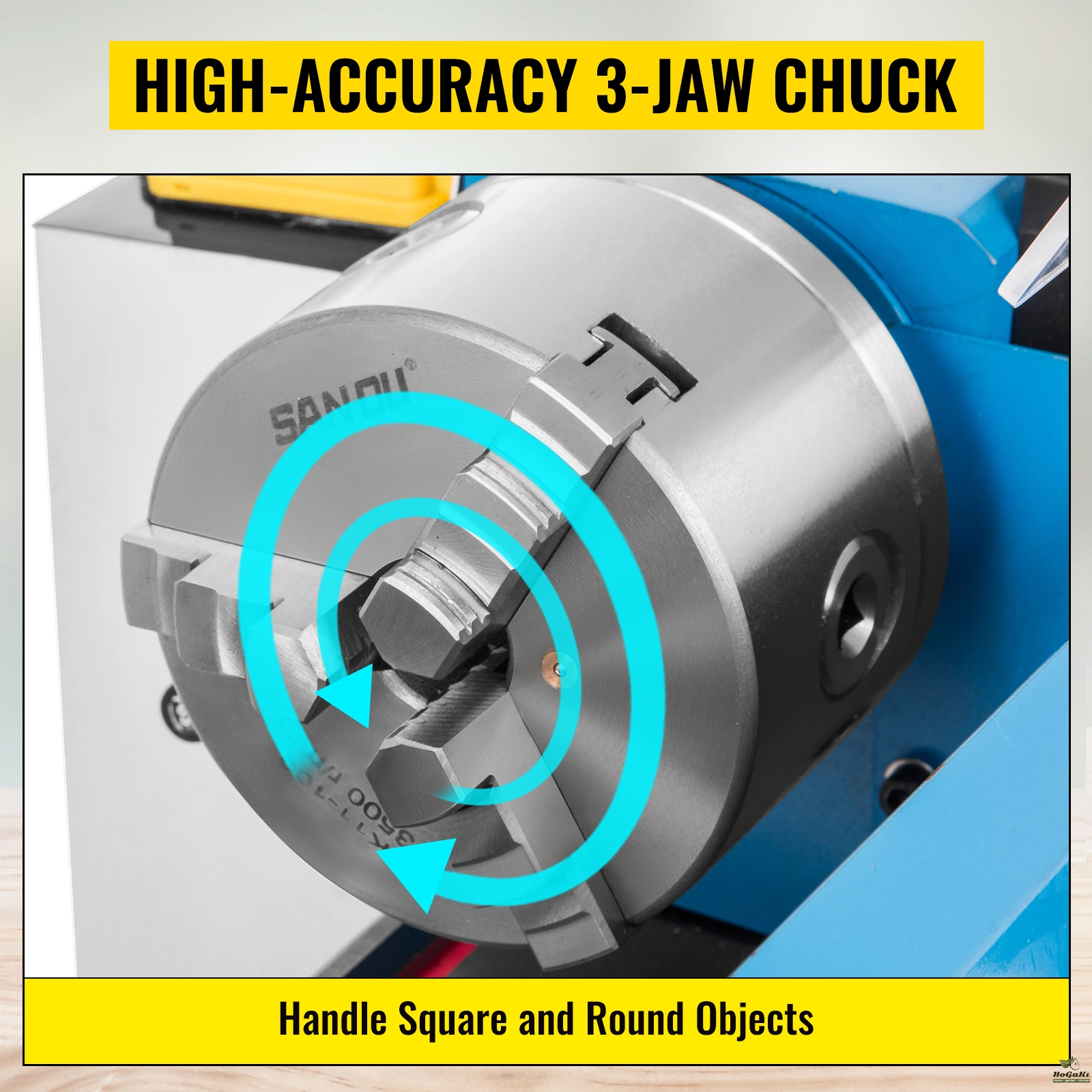

High Accuracy Chuck
The self-centering 3-jaw chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm.

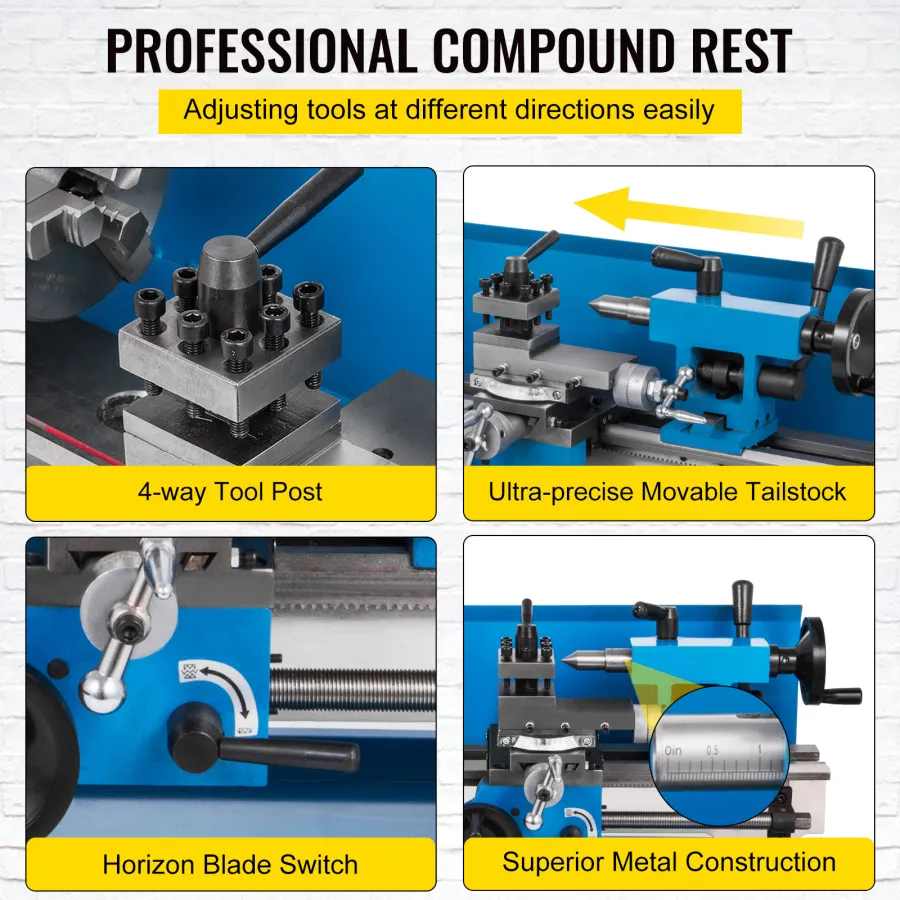

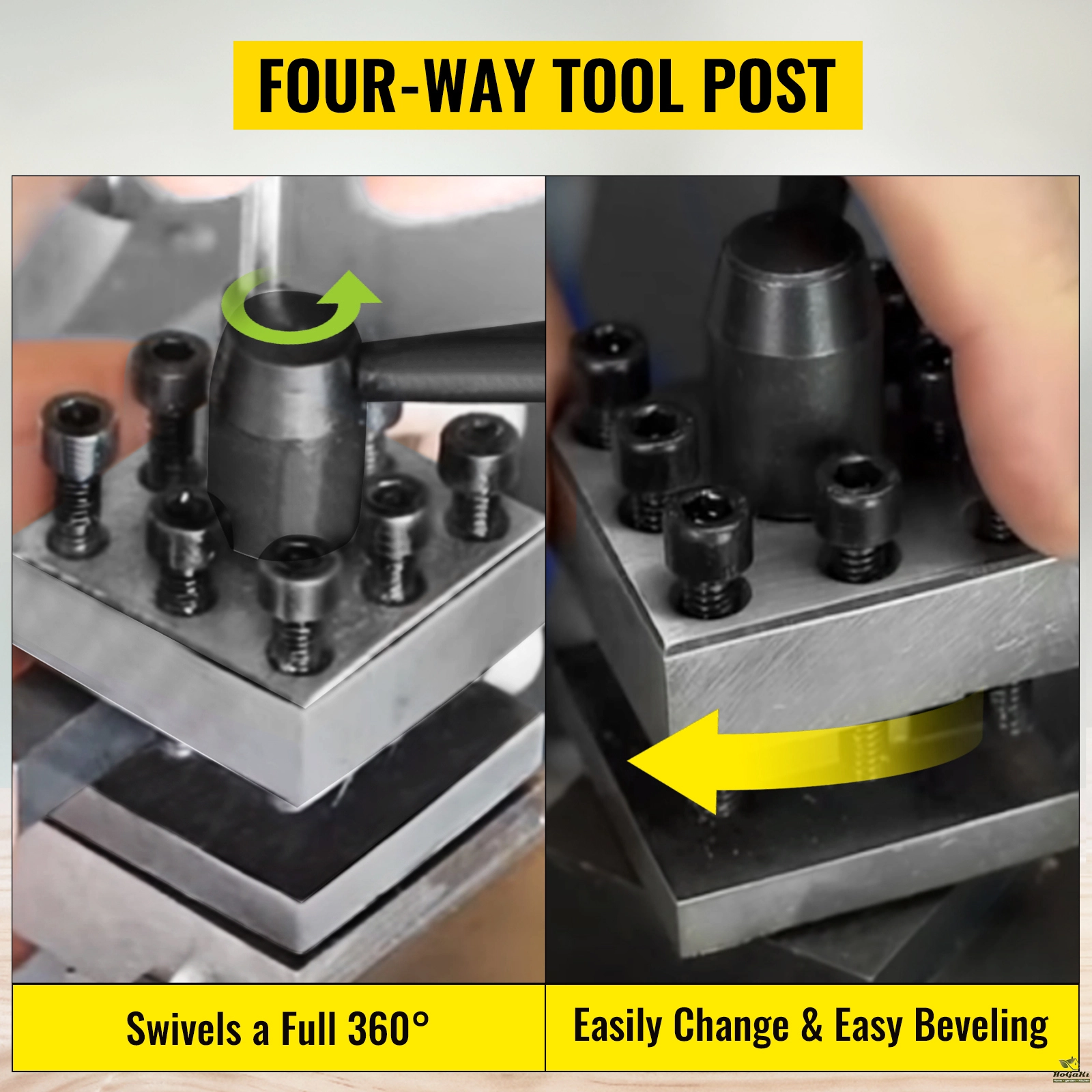

Four-way Tool Post
T-slotted compound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.

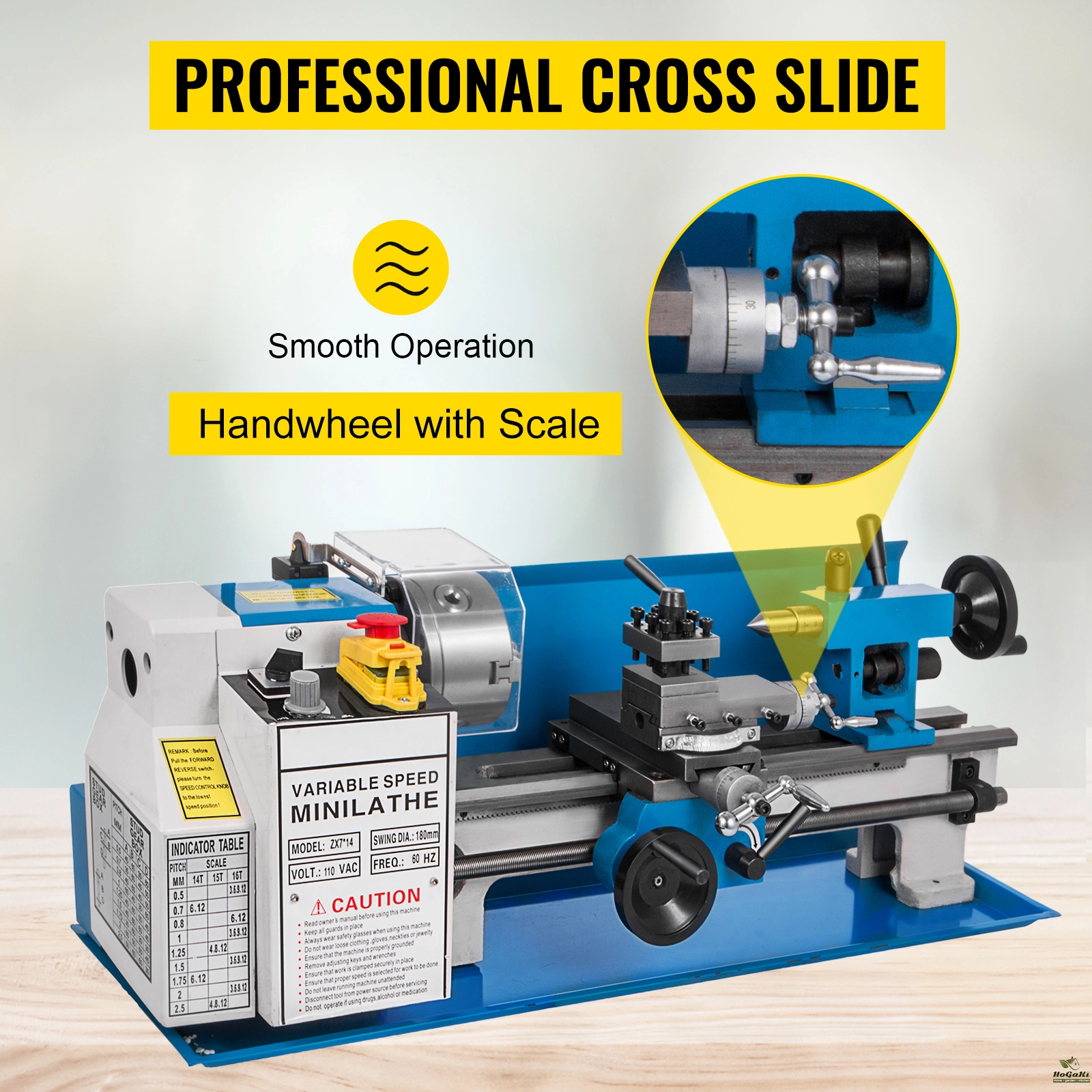

Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm. A lamp is for accurate operation in dark circumstances.

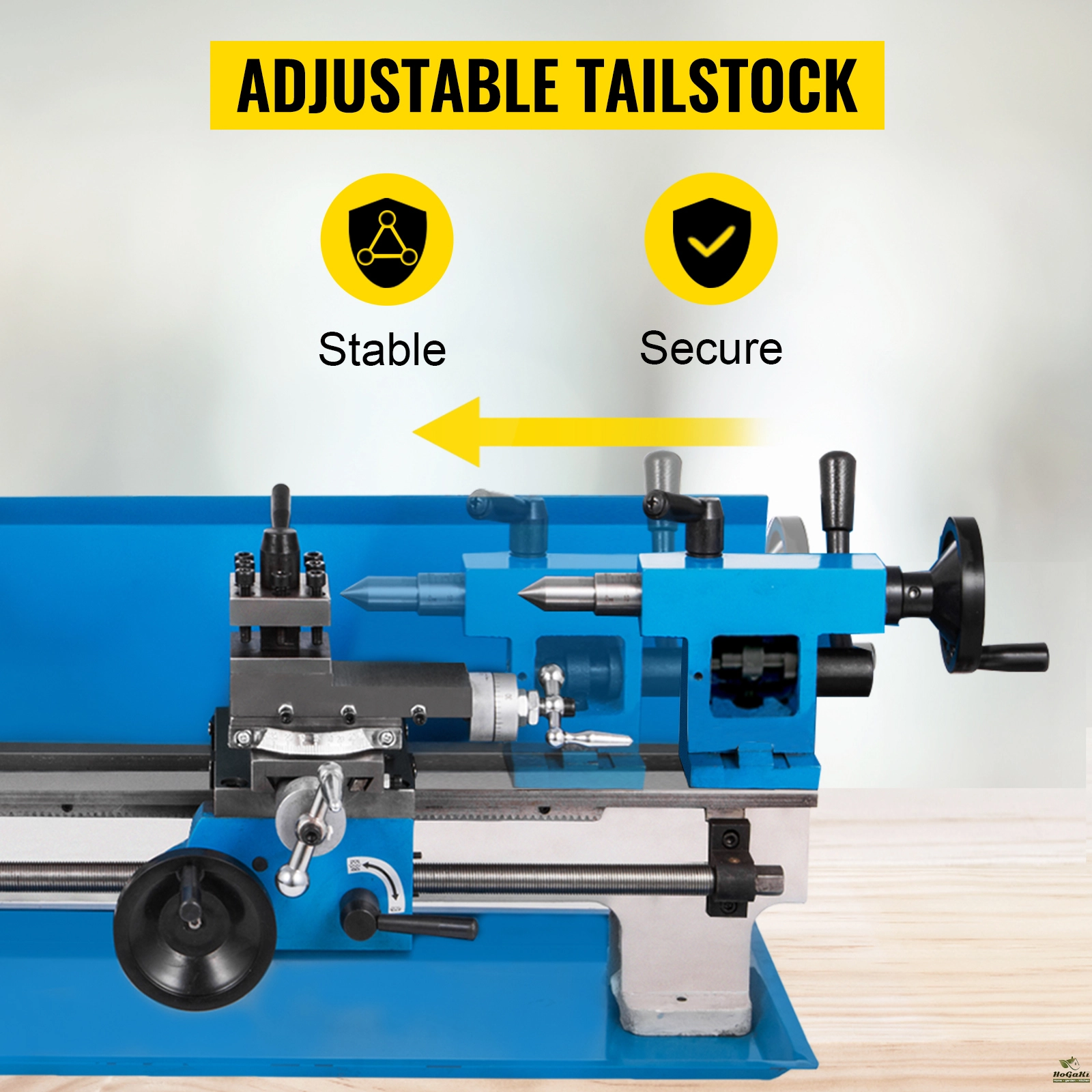

Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
Version A Specifications

  • Power of Motor: 550W DC Single Phase

  • Variable Speed: 50-2500PRM

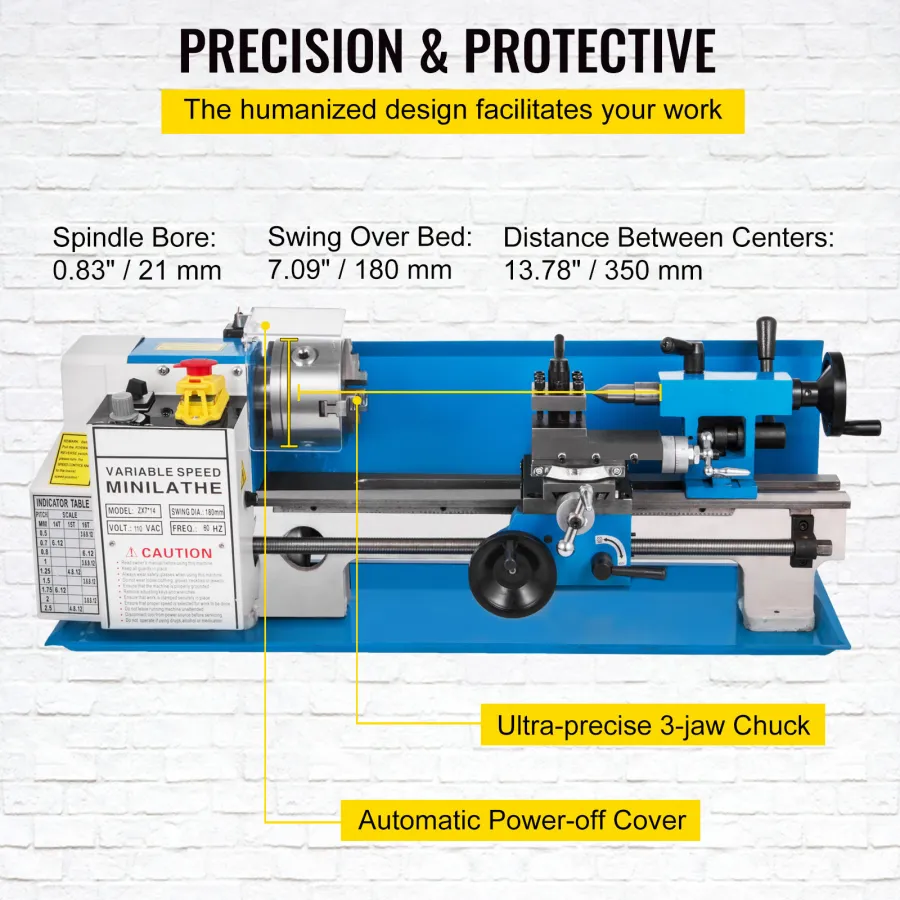

  • Swing Over Bed: 7.09" / 180 mm

  • Chuck Diameter: 3.94" / 100 mm

  • Centers Distance: 13.78" / 350 mm

  • Spindle Bore: 0.82" / 21 mm

  • Inch Thread: 12-52 T.P.I

  • Metric Thread: 0.5-2.5 mm

  • Item Weight: 88.18 lbs / 40 kg

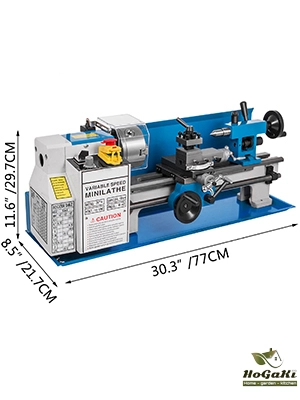

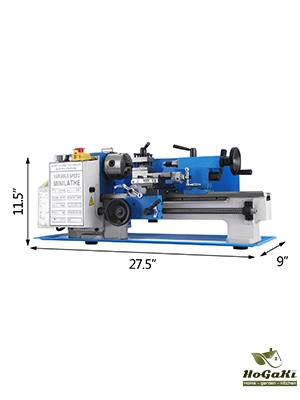

  • Item Dimensions: 27.5 × 8.5 × 11.6 in / 69.9 × 21.7 × 29.7 cm

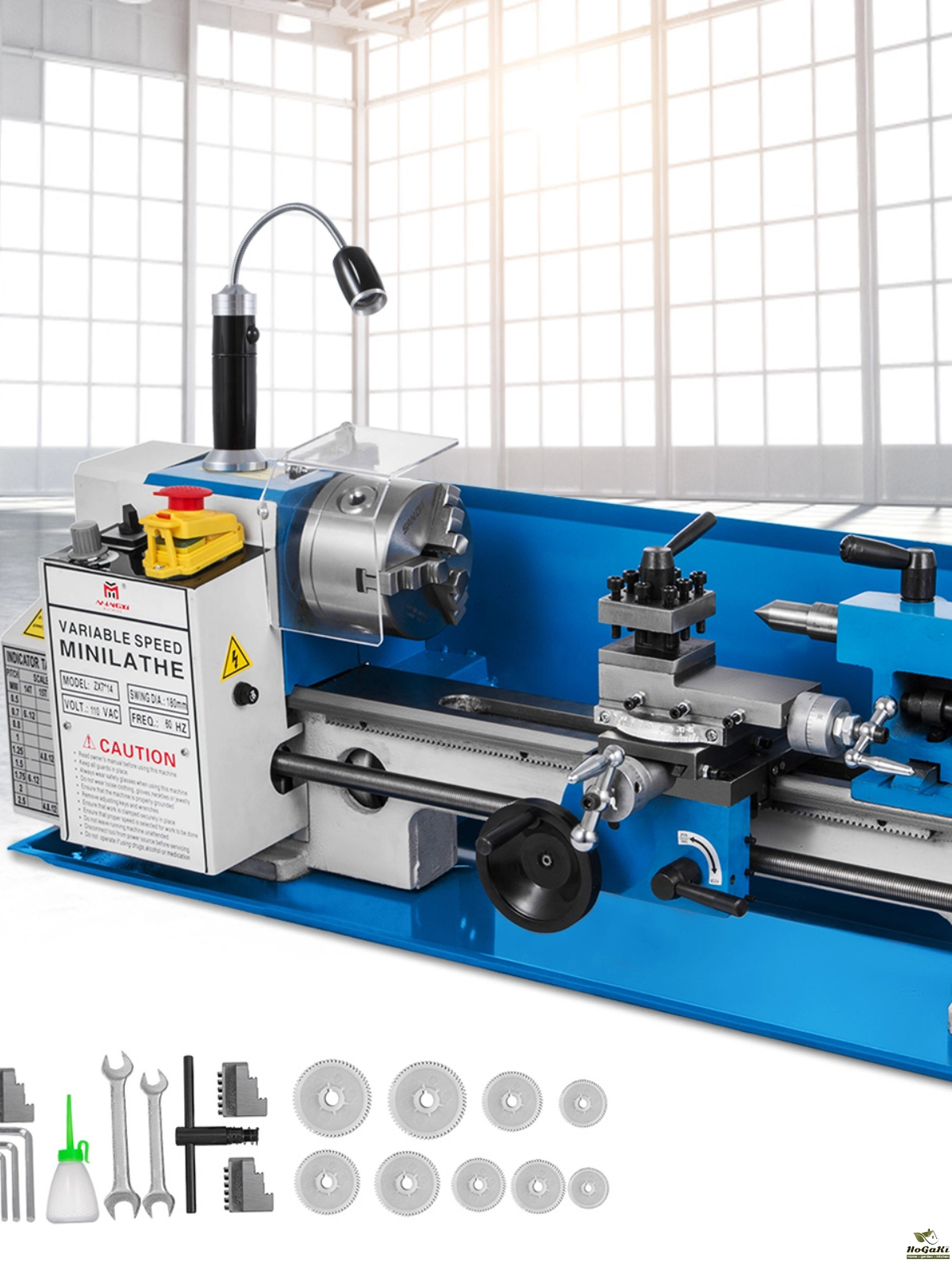

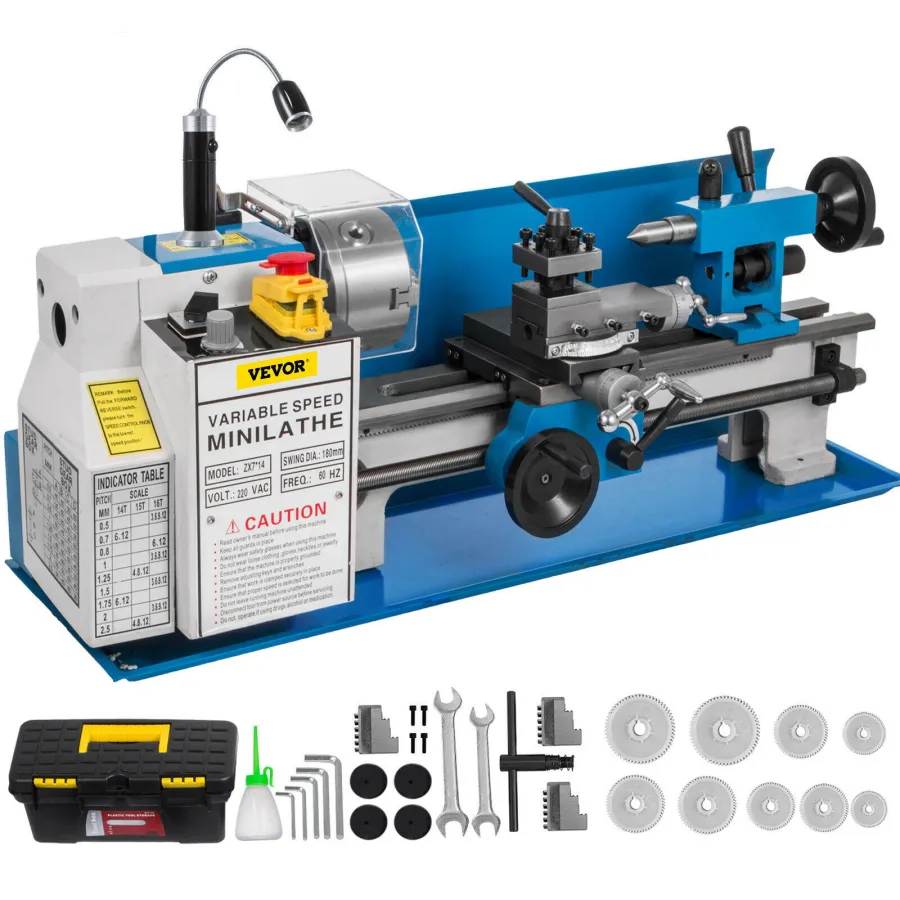

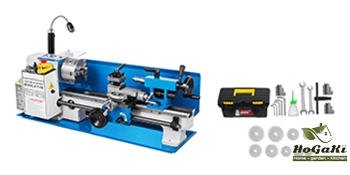

Package Content

  • 1 x Mini Metal Lathe

  • 1 x Working Light

  • 3 x Chuck Jaw

  • 1 x Chuck Wrench

  • 2 x Wrench

  • 1 x Oil Can

  • 5 x Hex Wrench

  • 9 x Plastic Nylon Gear

  • 2 x Handle

  • 4 x Rubber Feet

  • 4 x Screws

  • 1 x Tool Box

Upgrade Specifications

  • Power of Motor: 550W DC Single Phase

  • Variable Speed: 0-2500 RPM

  • Swing Over Bed: 7.09" / 180 mm

  • Center Distance:13.78" / 350 mm

  • Inch Thread: 12-52 T.P.I

  • Metric Thread: 0.5-2.5 mm

  • Voltage: 220V / 50Hz EU, 110V / 60Hz US

  • Material: Metal

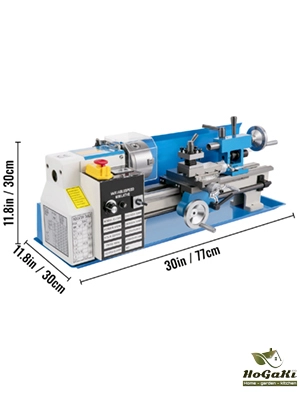

  • Product Size: 30" x 11.8" x 11.4"

  • Net Weight: 40 kg / 88.18 lbs

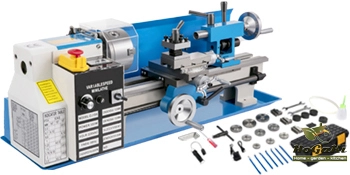

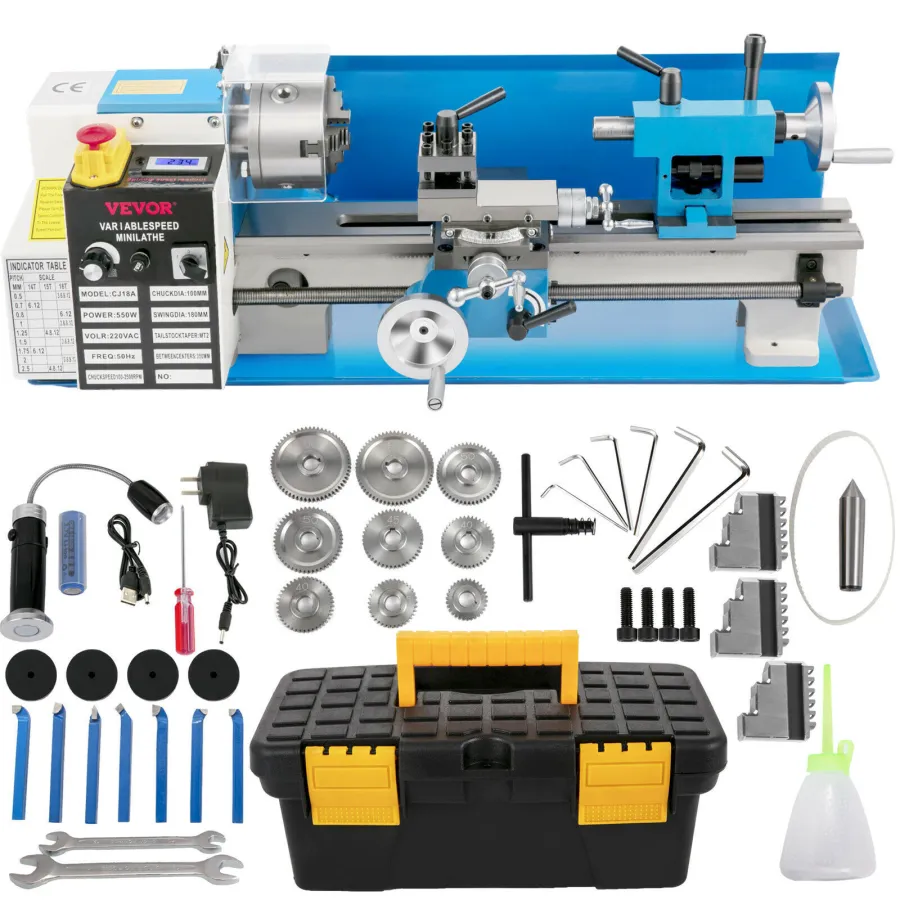

Package Content

  • 1 x Mini Metal Lathe

  • 1 x Working Light

  • 3 x Chuck Jaws

  • 7 x Turning Tools

  • 1 x A Set of Accessories

Version B Specifications (This model will soon be discontinued)

  • Power of Motor: 550W DC Single Phase

  • Spindle Speed: 0 - 2250 RPM

  • Swing Over Bed: 7.09" / 180 mm

  • Swing Over Cross Slide: 4.3" / 110 mm

  • Chuck Diameter: 3.94" / 100 mm

  • Centers Distance: 13.78" / 350 mm

  • Spindle Bore: 0.83" / 21 mm

  • Spindle Taper: MT3

  • Tailstock Taper: MT2

  • Cross Slide Travel: 2.53" / 65 mm

  • Top Slide Travel: 1.36" / 35 mm

  • Spindle Accuracy: 0.0004" / 0.01 mm

  • Inch Thread: 12 - 52 T.P.I

  • Metric Thread: 0.5 - 2.5 mm

  • Net Weight: 102.7 lbs / 46.6 kg

  • Item Dimensions (L x W x H): 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm

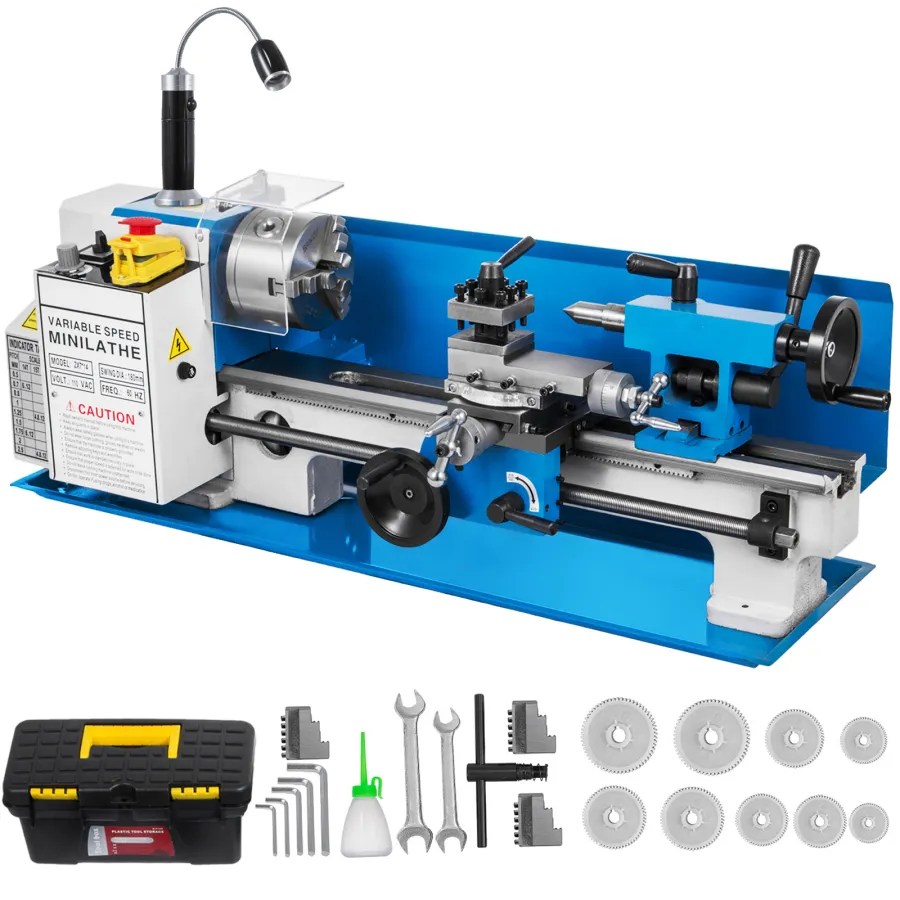

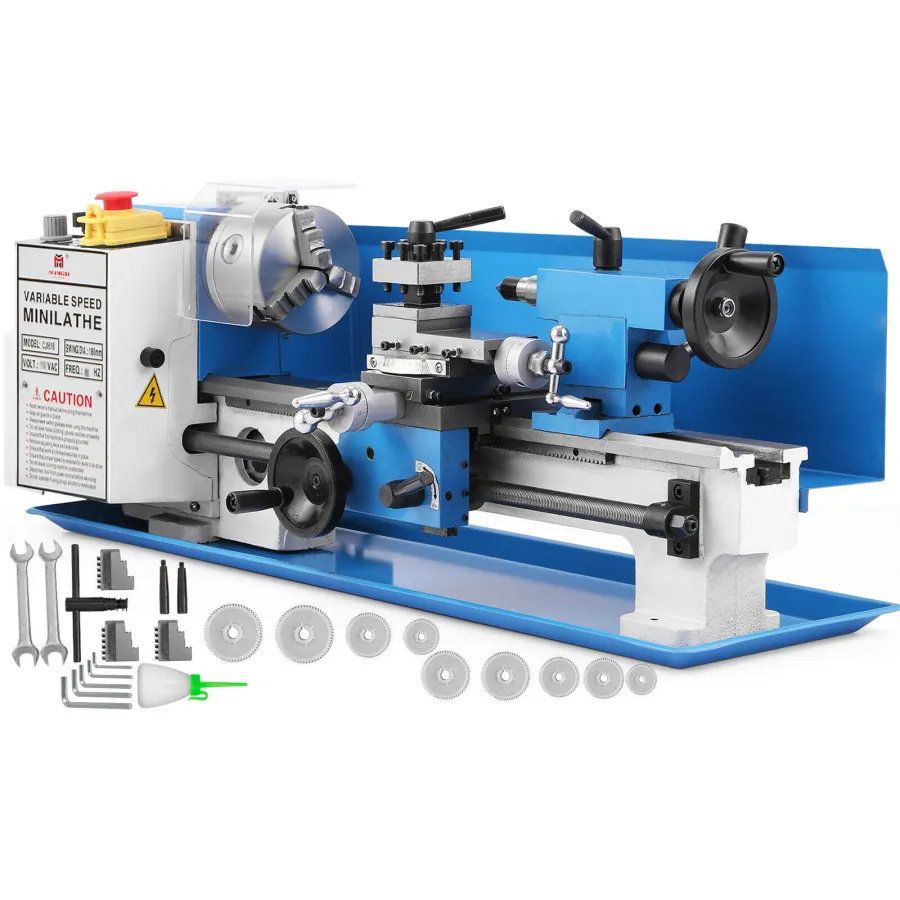

Package Content

  • 1 x Mini Metal Lathe

  • 3 x Chuck Jaws

  • 1 x Lathe Center

  • 1 x Chuck Wrench

  • 2 x Wrench

  • 1 x Oil Can

  • 5 x Hex Wrenches

  • 9 x Plastic Nylon Gears

  • 2 x Handle

  • 4 x Rubber Feet

  • 4 x Screws

  • 1 x Tool Box

Features & Details

  • 【Precise Engineering】: Ideal for professionals, this power metal lathe's high-precision 4-inch 3-jaw chuck handles both square and round objects with equal aplomb. It's especially suitable for jobs requiring high accuracy, such as threading.

  • 【Large Working Capacity】: This metal working lathe cranks out 550W and handles small to medium projects. It provides a 7.09" / 180 mm swing over bed and 13.78" / 350 mm center distance so that you can manage more extensive projects.

  • 【Upgrade Design】: This small metal lathe uses metal gear instead of a nylon one. Aluminum handwheel can increase service life. Automatic power-off protection switch to make it safer. An extra LED lamp can help you finish processing in places with insufficient light.

  • 【Complete Control】: The lathe's rotational speed can be set from 50 to 2500rpm and monitored by the digital display; the well-crafted head and tail stocks, large through-hole, and 4-way tool post also contribute to providing greater control of your work.

  • 【Professional Construction】: 4-way quick change tool post can install 4 standard turning tools at the same time. You can adjust tool post forwards/backward by turning blade adjusters with accurate scales clockwise/anticlockwise.



Packaging Details

  • Unit Type:
  • Package Weight: 52.3
  • Package Size: 36x45x87

  • Brand Name: succebuy
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Condition: New
  • Certification: CE
  • Power of Motor: 550W
  • Swing Over Bed: 7.09"/180mm
  • Center Distance: 13.78"/350mm
  • Inch Thread: 12-52 T.P.I
  • Metric Thread: 0.5-2.5 mm
  • Voltage: 220V/50Hz for EU, 110V/60Hz for US
  • Spindle Hole: 21 mm
  • Product: Mini Metal Lathe
  • Use: Turning, Drilling, and Threading
  • Type: 7" x 14" (180*350mm)
