MJJC V1 LED Dimmer 12V 24V 36V 5V 8A RF 2.4G Wireless Touch Remote LED Push Dimer Siwtch for 2835 COB Single Color Strip Light
4.9 (54 votes) | 483 orders
Price:
US $15.48 - 86.13
Discount Price:
US $
9.95 -
47.35
-36%
- Color
-
-
Features:
● Remote control or connected with external push switch to achieve on/off and dimming function
● Ultra sensitive brightness adjustment touch slide
● Smooth dimming and switch without any flickering

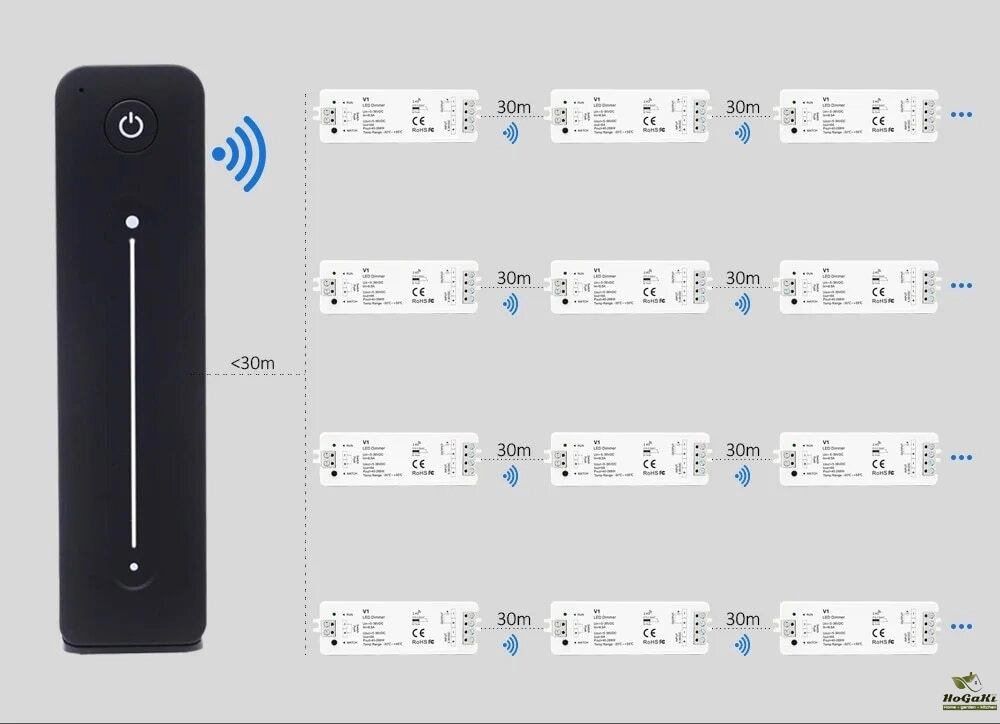

● Auto-transmitting function: Controller automaticly transmit signal to another controller with 30m control distance
● Synchronize on multiple number of controllers
● Magnet on the back which can be easily stuck on back holder or any metal surfaces
Match Remote Control:
End user must be pair the remote to the receiver before using,the steps as follows:
*** Match:
Short press match key, immediately press on/off key of the remote.
*** Delete:
Press and hold match key for 5s to delete all match,
The light blinks 5 times means all matched remotes
were deleted.
Main Functions:

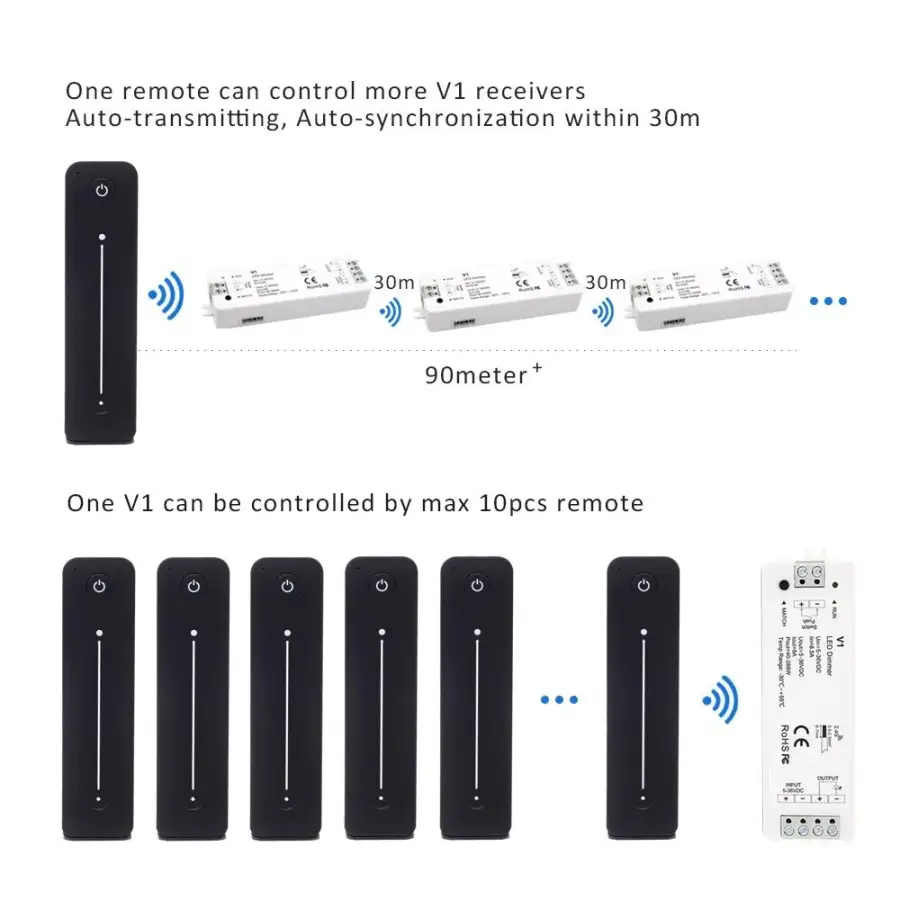

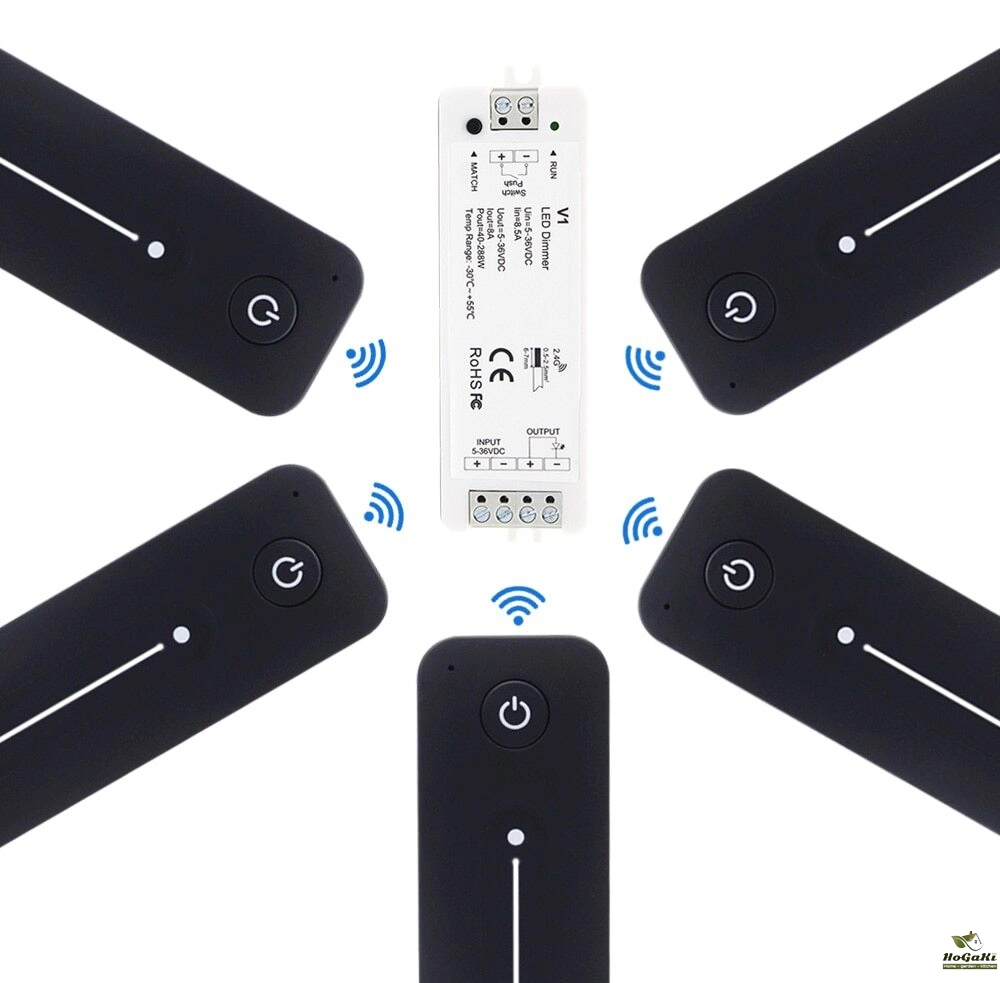

One V1 receiver can be controlled by max 10 pieces remote within 30m distance
Package Including:(Depends on which you selected)

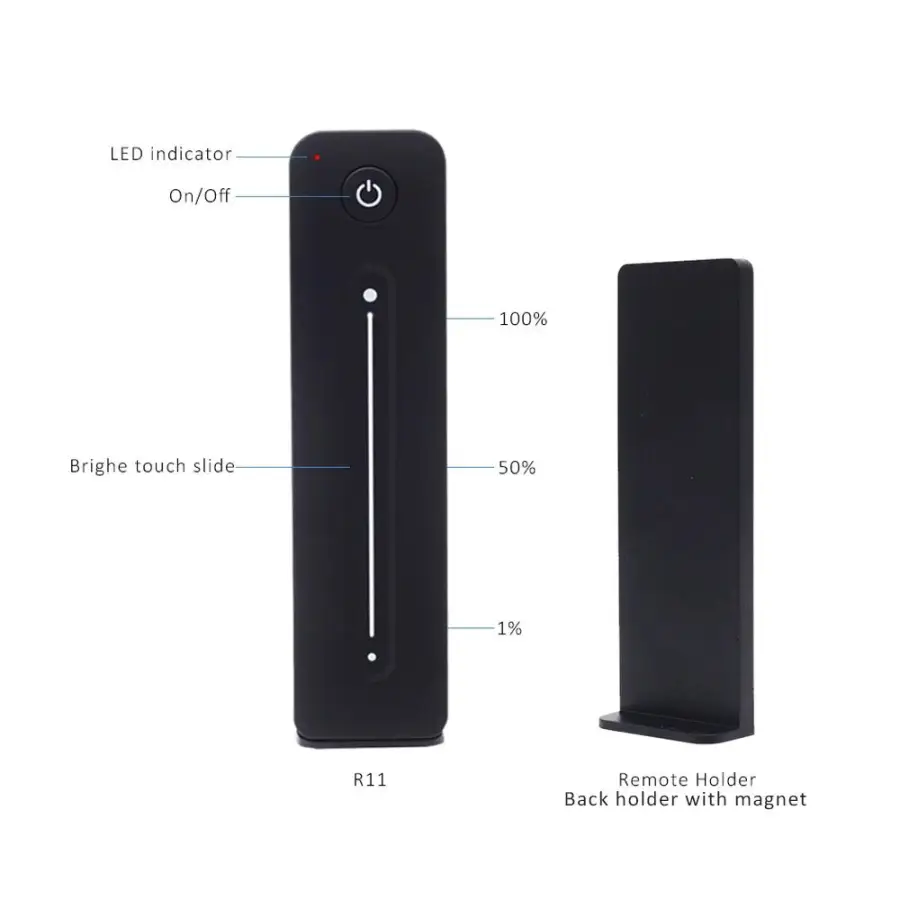

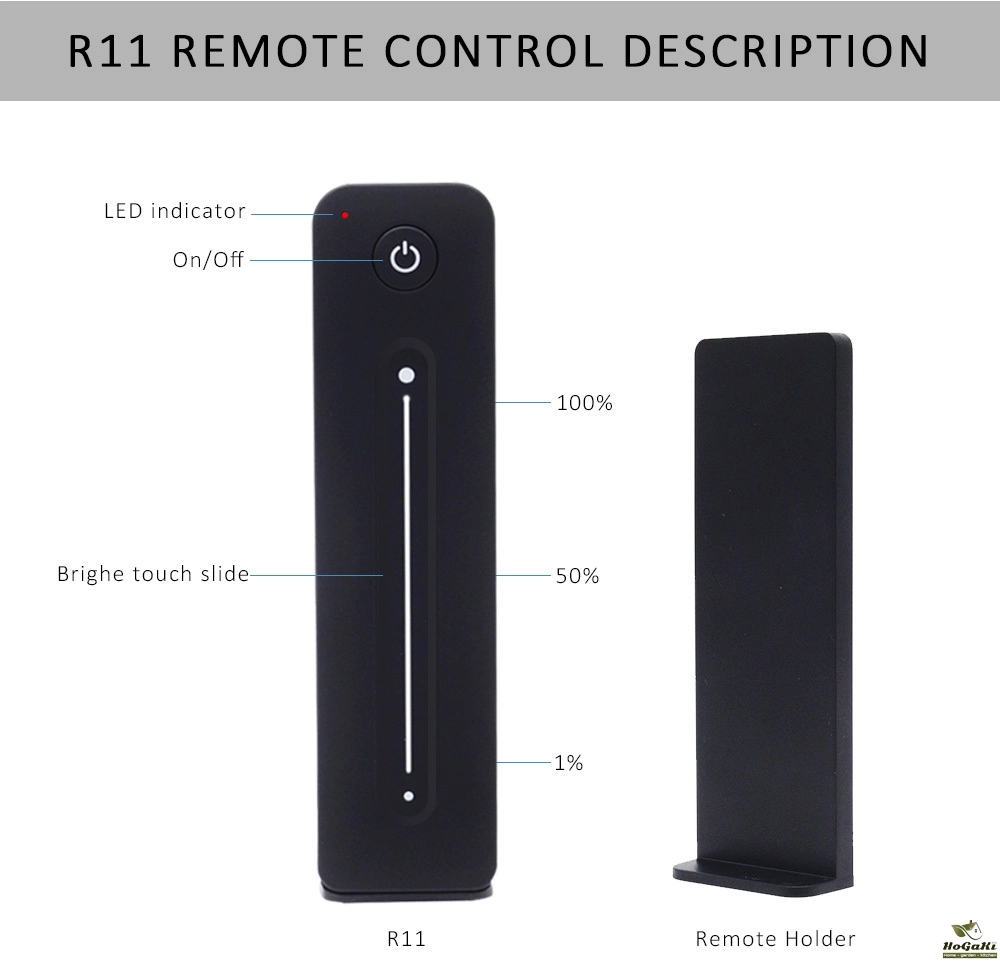

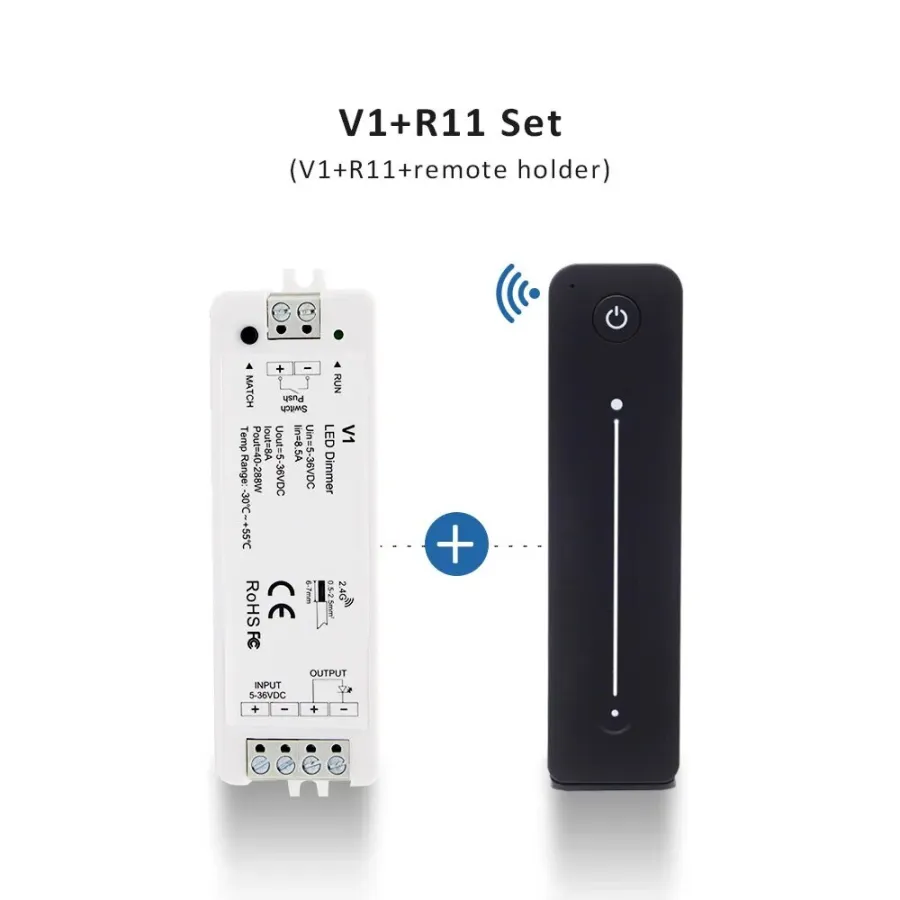

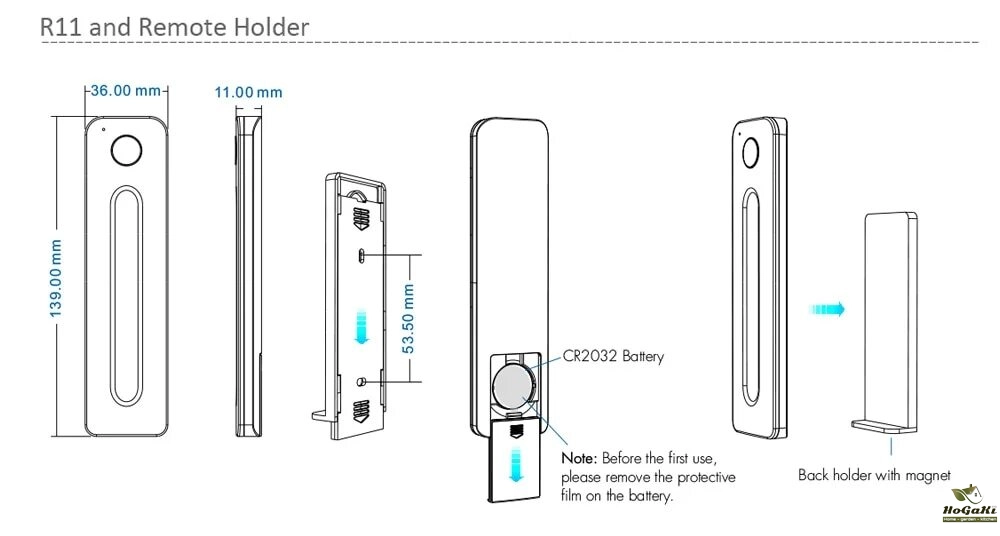

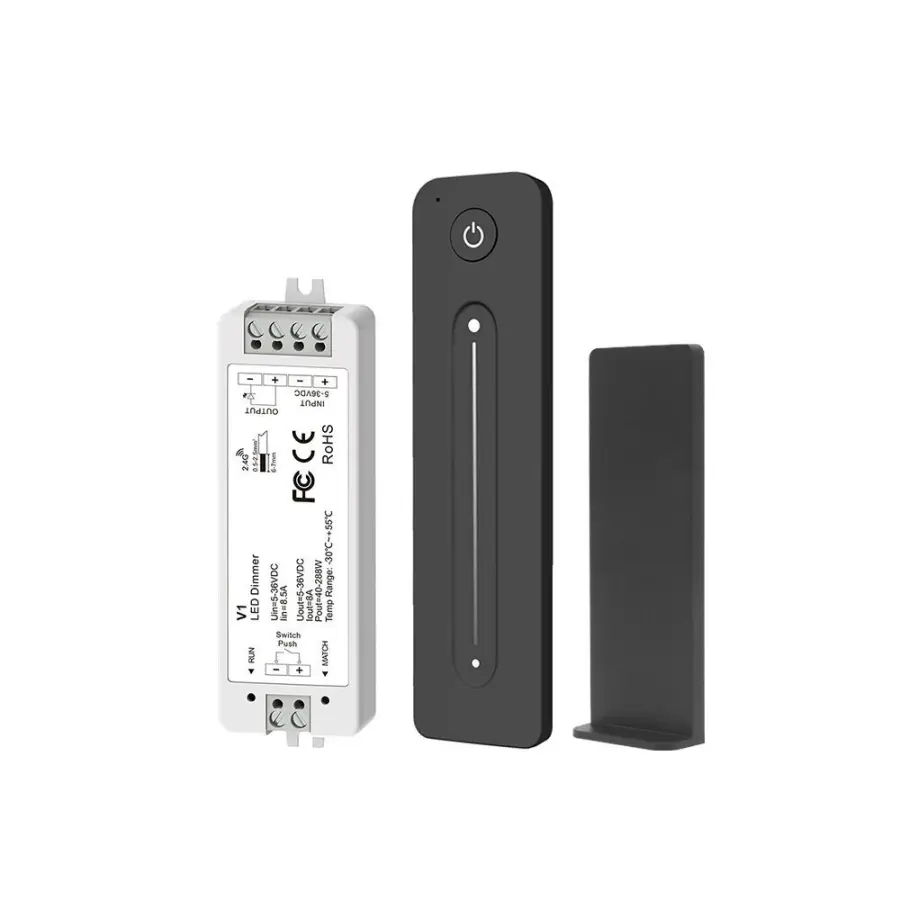

V1 and R11 Set = 1 x V1 + 1x R11 Remote + 1 x Remote Holder

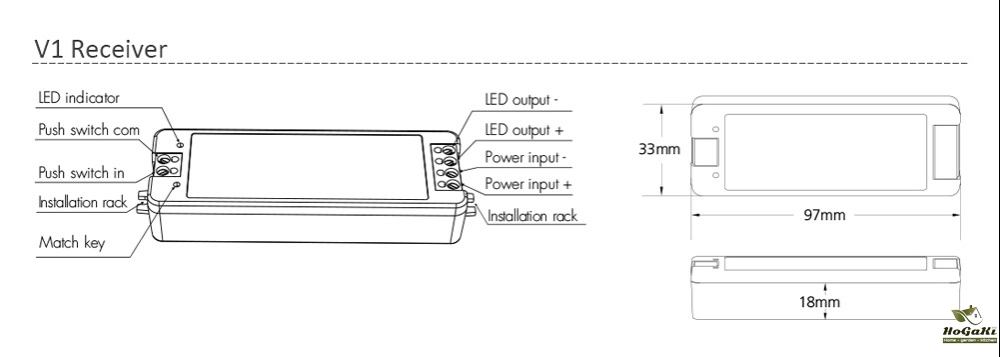

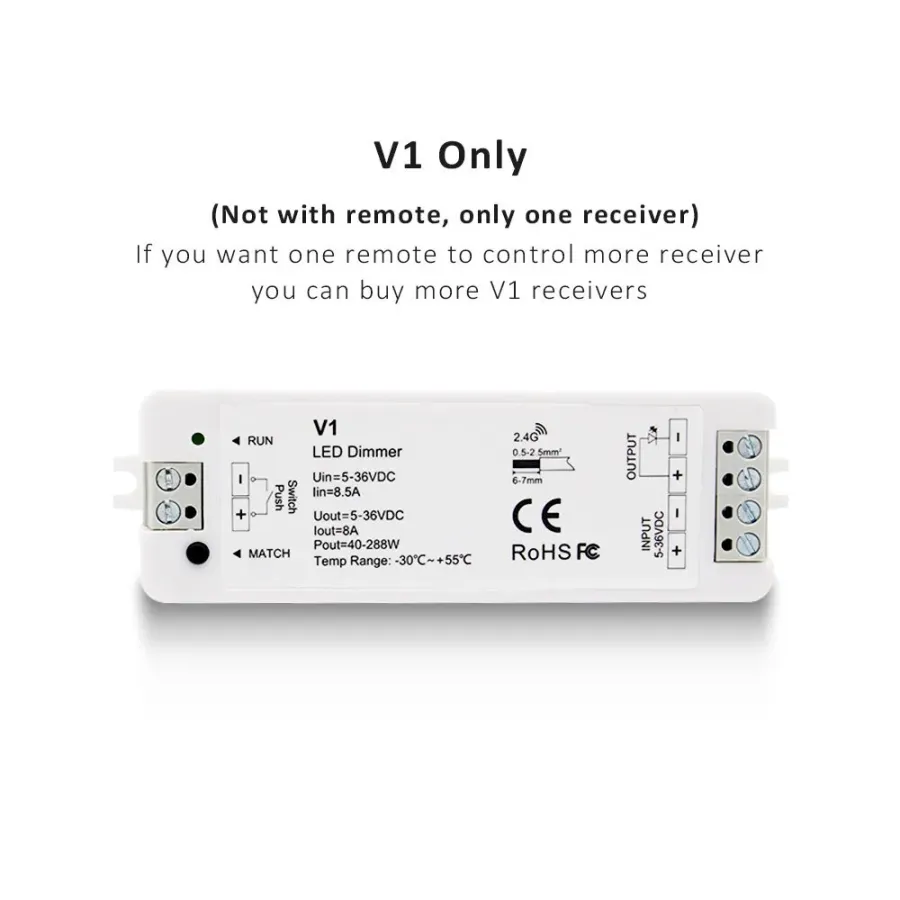

V1 Receiver Only = 1 x V1 Led Dimmer

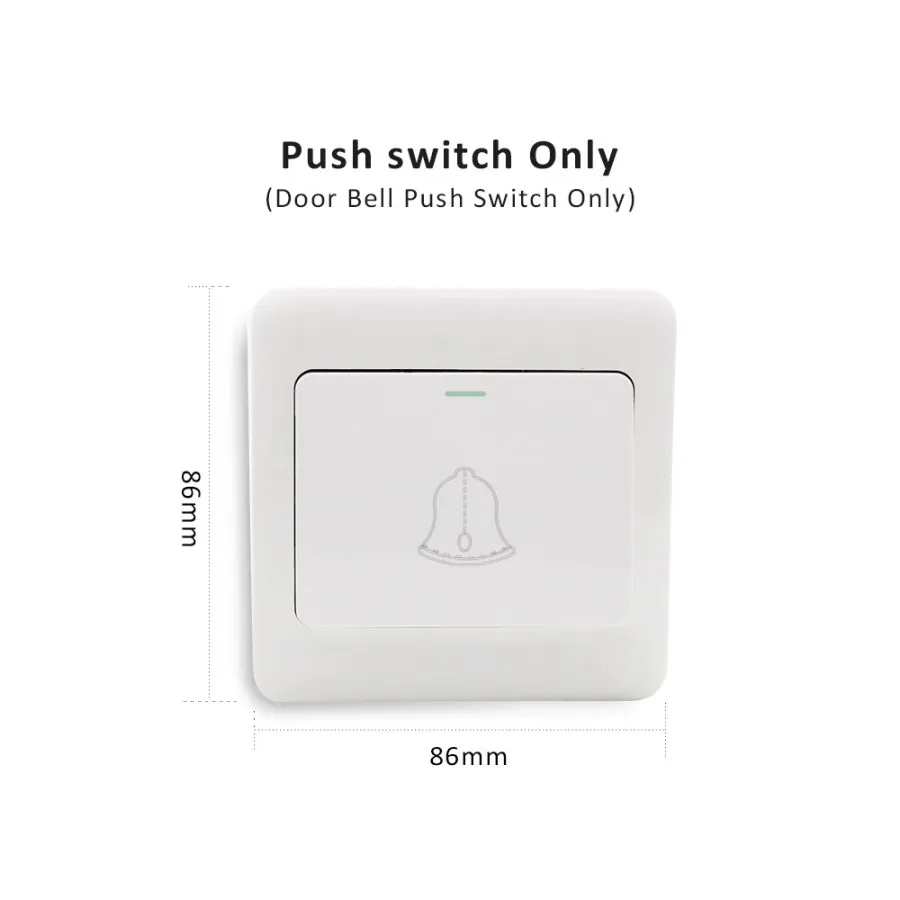

Push Switch Only = 1 x Push Switch (This push switch can used for dimming brightness work with V1 together)
* To extend battery life, no operation after 20 seconds, the touch slide will enter sleep state.
* If the light is on, long press on/off key exceed 1 second, then touch slide to dimming.
* If the light is off, short press on/off key to turn on light, then touch slide to dimming.
***Note: The battery is not included, because of the safety consideration during the shipping, hope you understand.
How to connect longer Led strip ?
1pc V1 led dimmer can control max 12v 96w/24V 192W led strip,if you want to control more than 96w/192W led strip light, you have 2 solution:
1. Buy moreV1 receivers,wireless connection, Sync effects 99%.

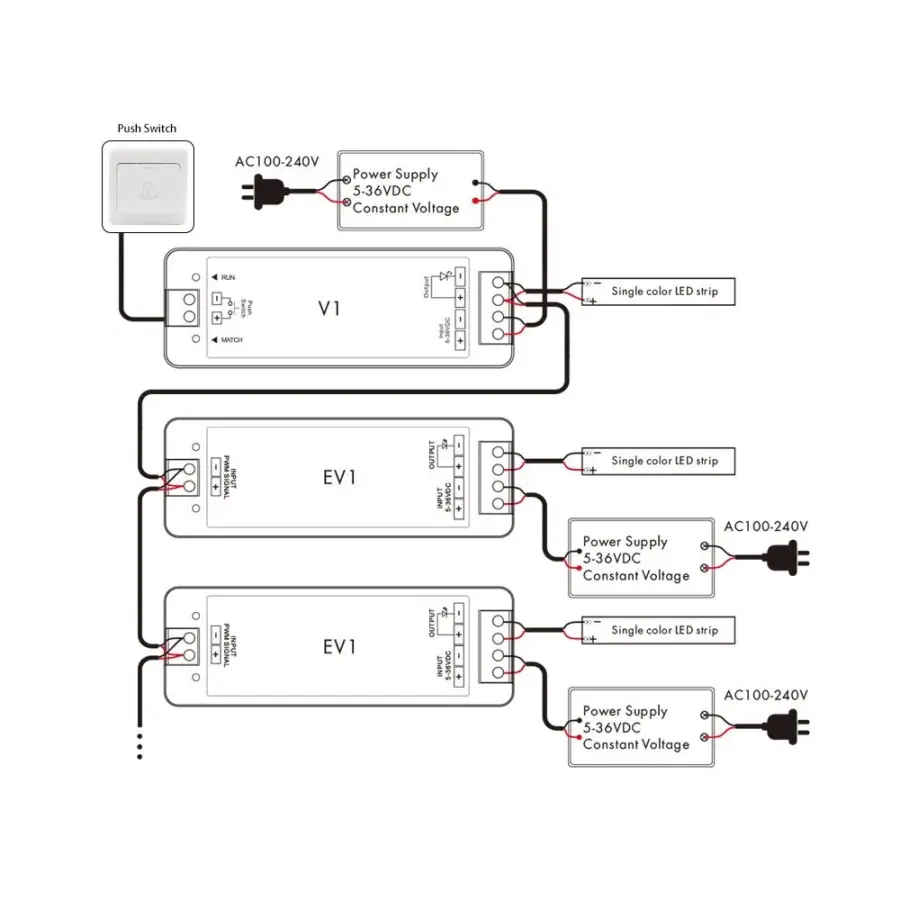

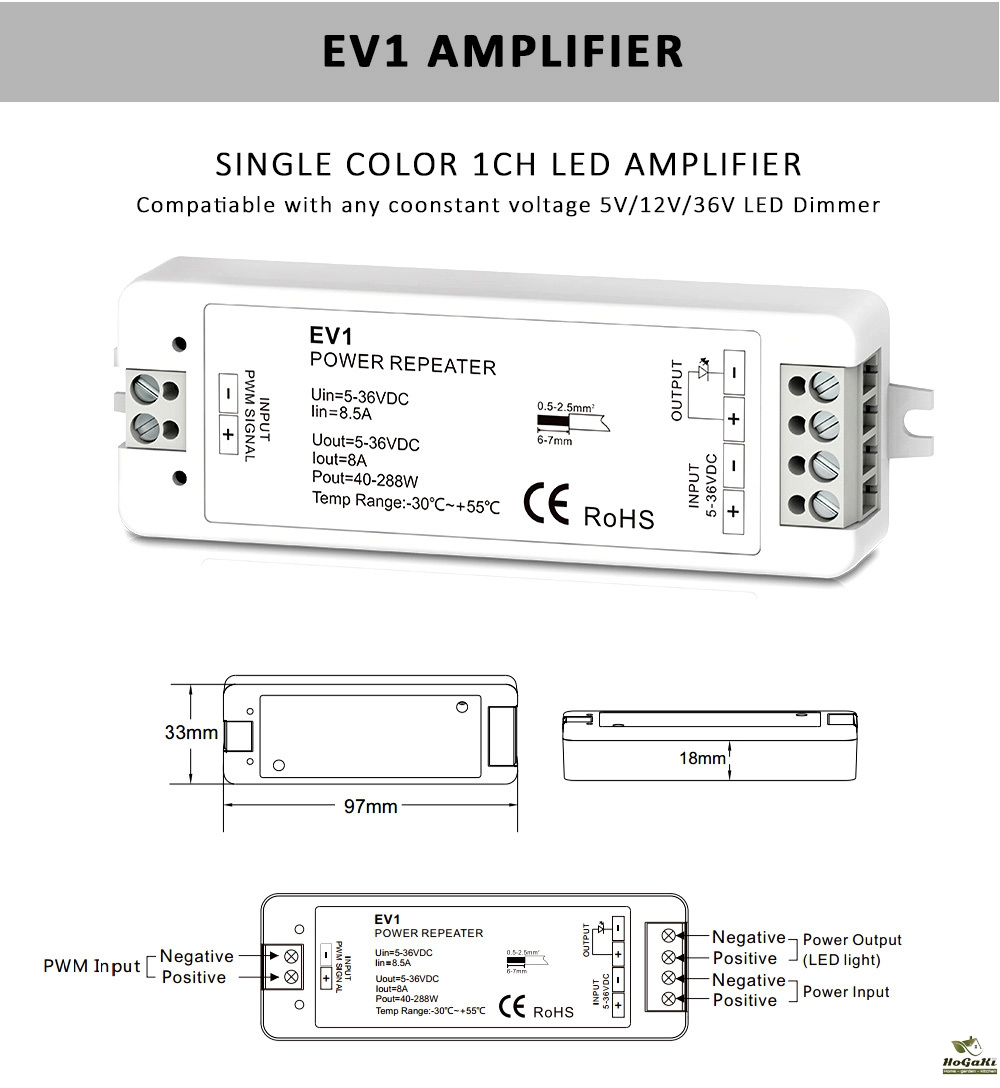

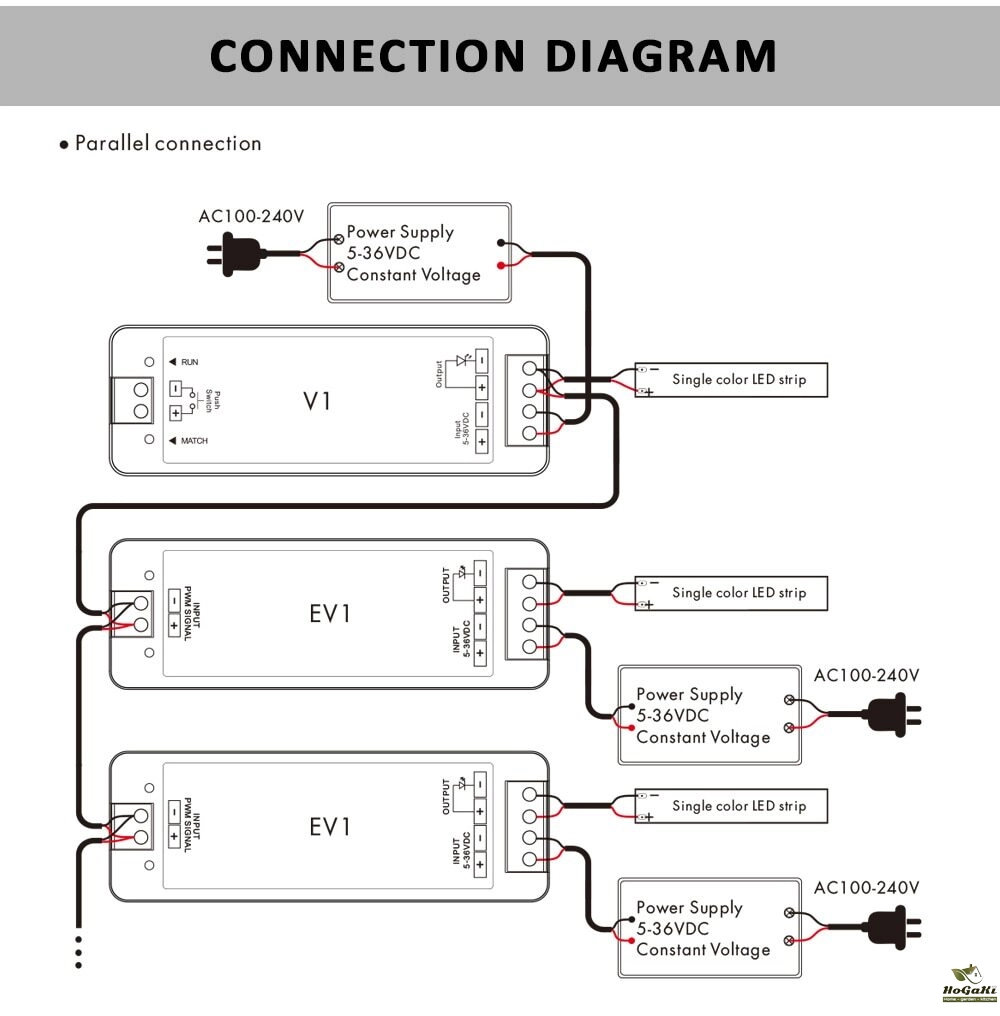

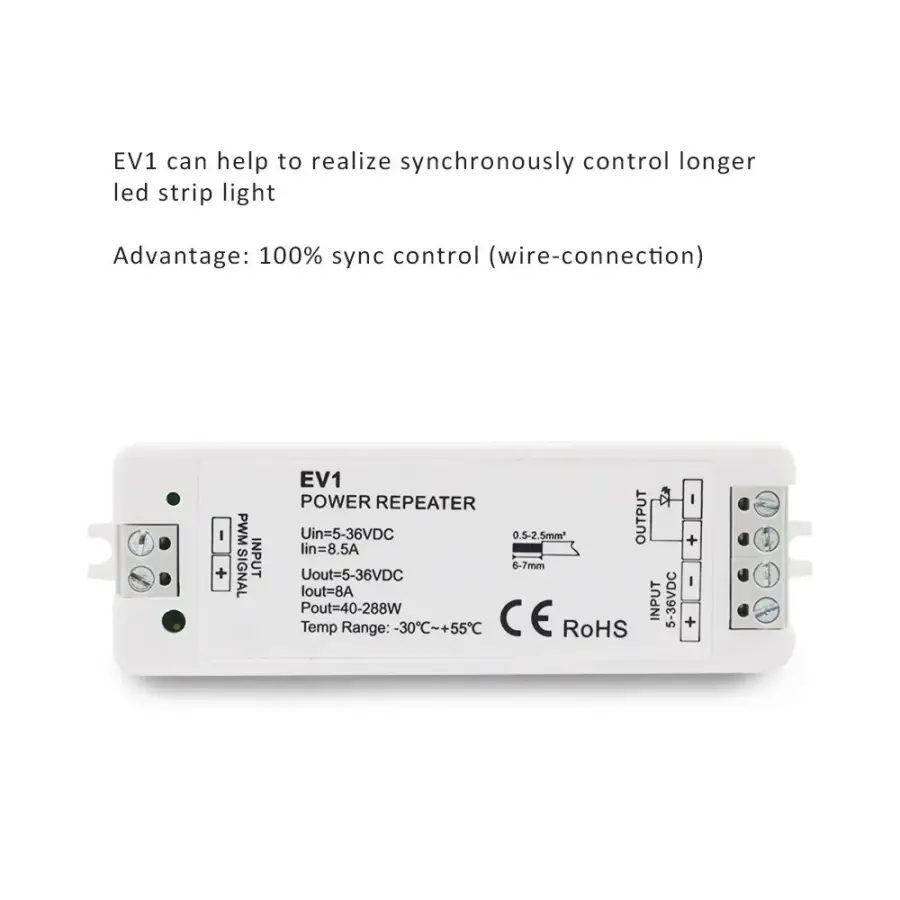

2. Buy moreEV1 LED amplifier, wire connection, Sync effects 100% through the following parrallel connection diagram.

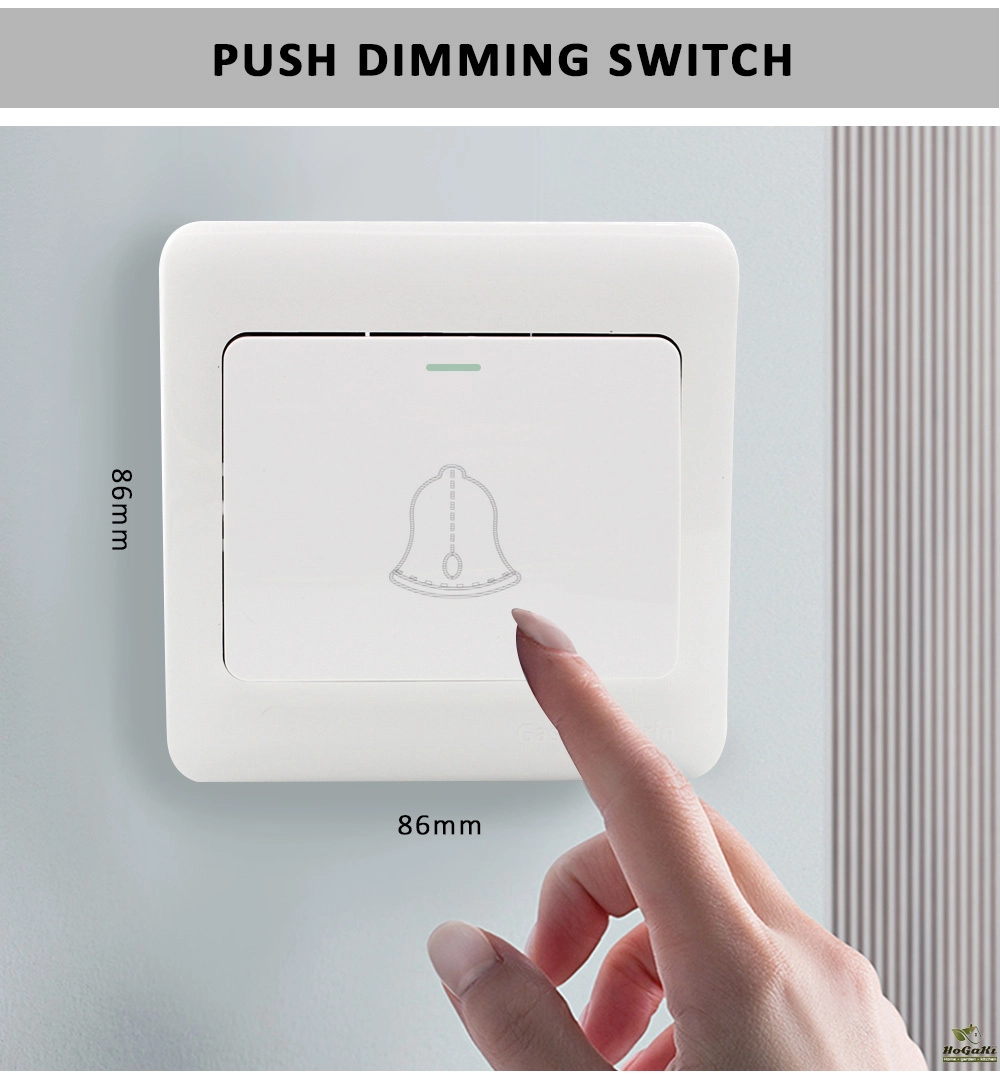

Push Dimming Switch:
You can also add a push switch to realize dimming.
The provided Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs.
● Short press:
Turn on or off light.
● Long press (1-6s):
Press and hold to step-less dimming,
With every other long press, the light level goes to the opposite direction.
● Dimming memory:
Light returns to the previous dimming level when switched off and on again, even at power failure.

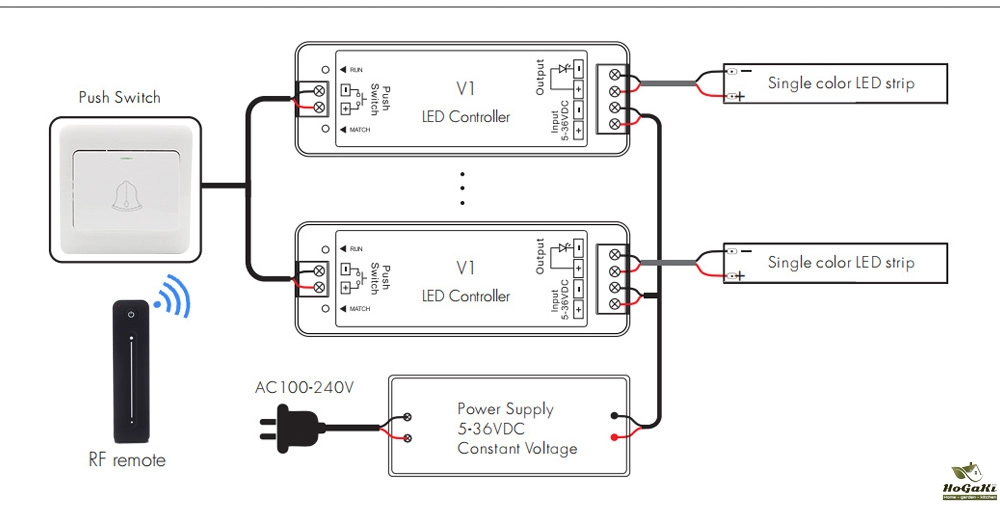

● Synchronization:
If more than one controller are connected to the same push switch, do a long press for more than 10s,then the system is synchronized and all lights in the group dim up to 100%.
This means there is no need for any additional synchrony wire in larger installations.
We recommend the number of controllers connected to a push switch does not exceed 25 pieces,
The maximum length of the wires from push to controller should be no more than 20 meters.

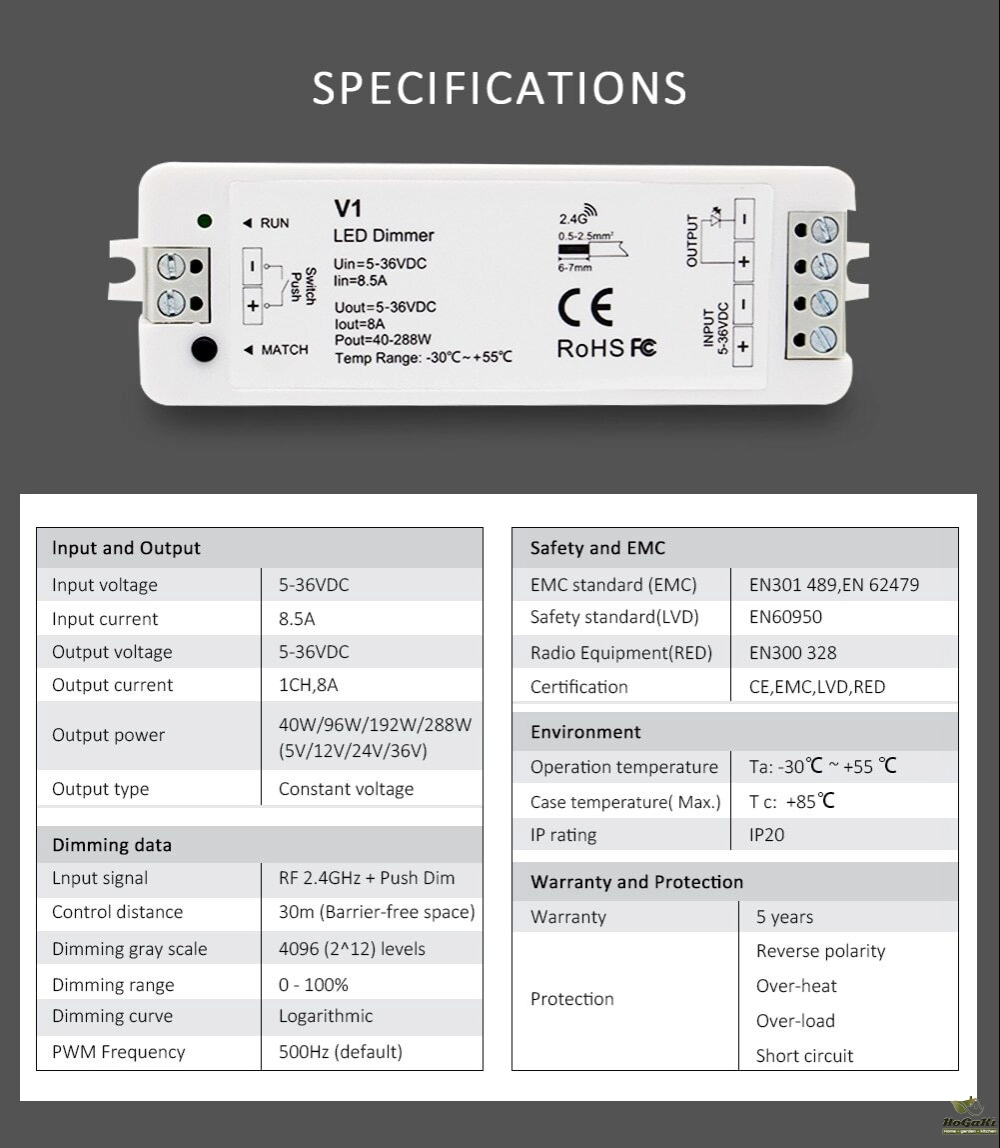

Packaging Details
- Unit Type:
- Package Weight: 0.083
- Package Size: 4x2x11
- Brand Name: MJJC
- Hign-concerned Chemical: None
- Origin: Mainland China
- Material: Plastic
- Item Type: Dimmers
- Warranty: 1Year
- Model Number: MJJC-V1
- Max. Load Power: 288W
- Certification: ce
- Certification: EMC
- Certification: FCC
- Certification: LVD
- Certification: ROHS
- Features: 2.4G Remote Control Dimmer
- Choice: yes
