LASER TREE 60W/40W/30W/20W Optical Power Laser Head with Air Assist 450nm Blue Light TTL Module for CNC Engraver Cutting Tools
1,467.18 750.60 $
ID: 158134
Quantity

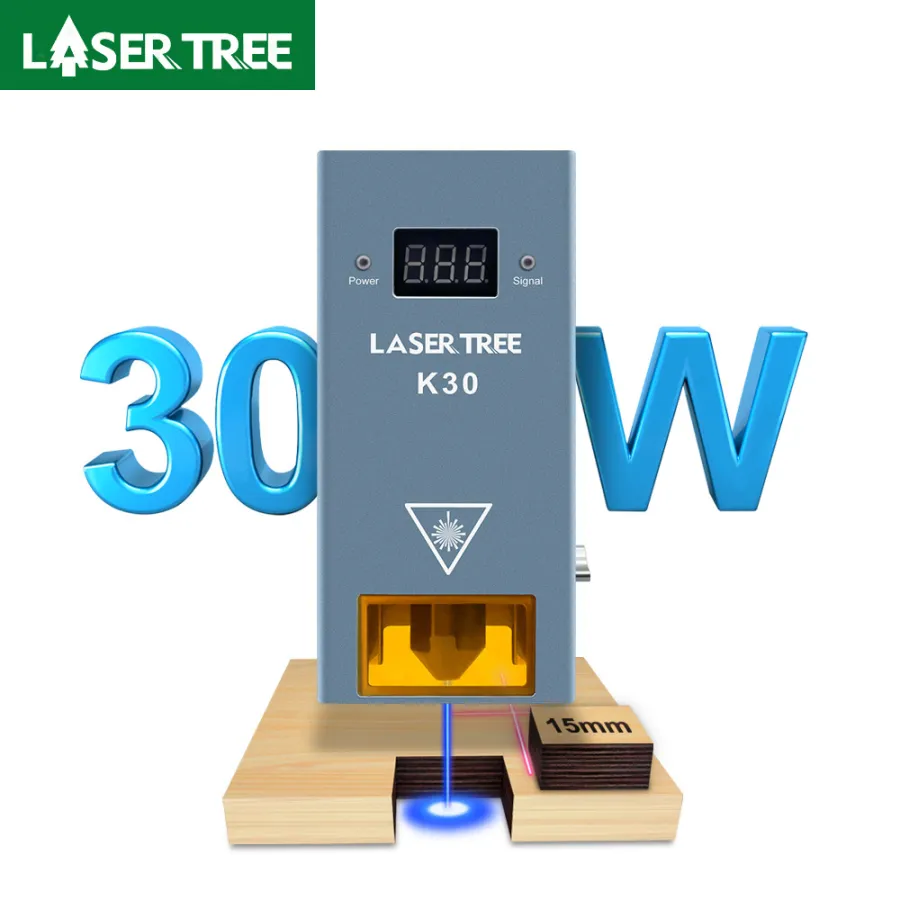

LASER TREE K30 30W Optical Power Laser Module with Air Assist 6 Diodes TTL Blue Light Laser Head for CNC Engraver Cutting Tools
4.9 (14 votes) | 61 orders
Price:
US $4230.00
Discount Price:
US $
1395.90
-67%
- Color
-
-

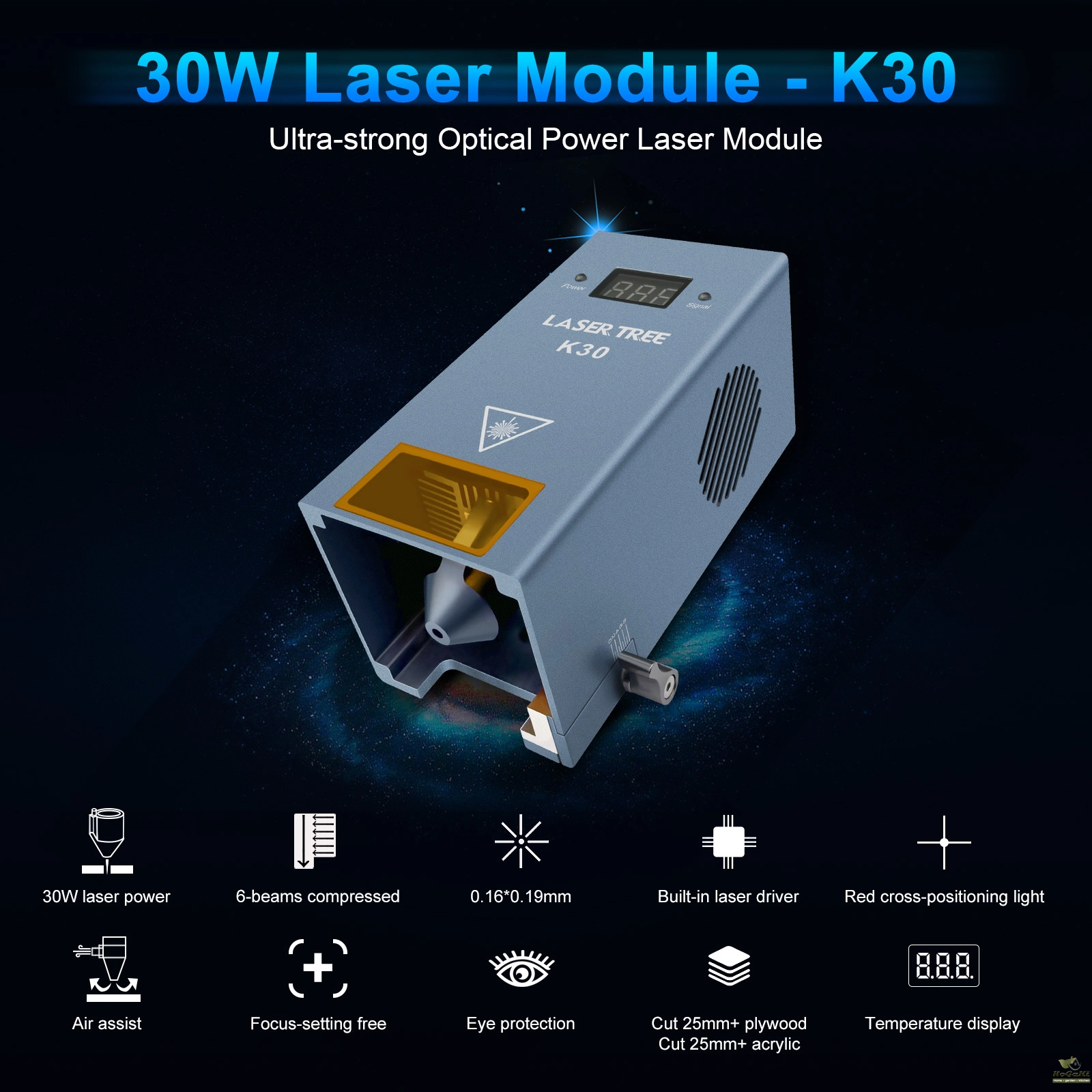

LASER TREE 30W Optical Power Laser Module with Air Assist 6 Diode Laser Heads for CNC Engraver Machine DIY Cutting Wood Tools
Features:
1. Ultra High Power

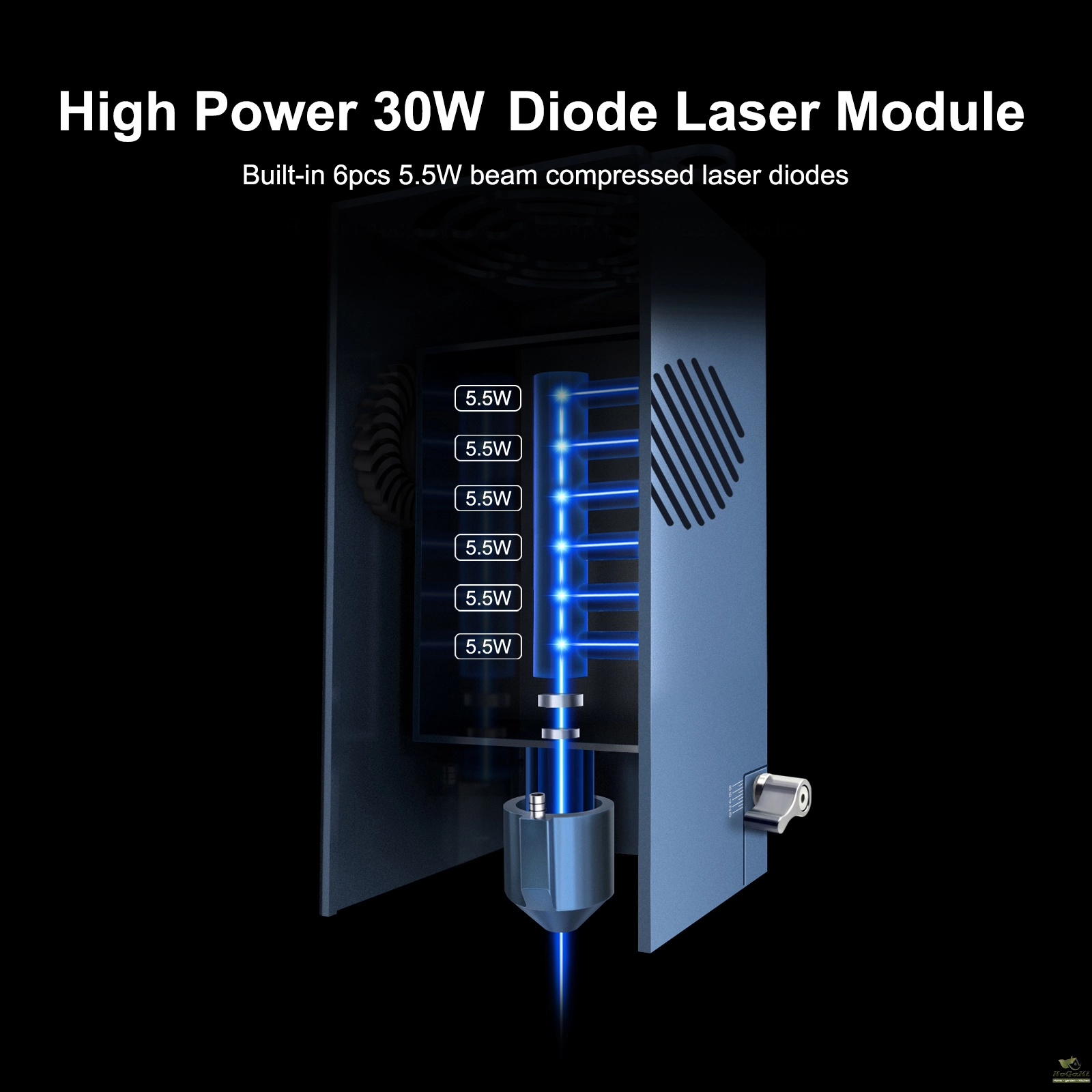

The LaserTree K30 laser head has an output power of 28W~32W. It uses beam compressed technology to combine 6pcs 5W laser diodes into a powerful laser beam with 30W laser power.
2. Powerful Cutting Ability
15mm basswood plywood: 180mm/min, one pass
15mm black acrylic: 35mm/min, one pass
20mm pine wood: 120mm/min, one pass
9mm MDF: 300mm/min, 2 passes
3. Built-in Air Assist Airway & Dual Fan Cooling Design
1>Built-in air assist airway to get clean-cut edges, improve cutting performance.
2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.
4. Working Status Indicator
The electrical connection status can be easily checked by the "Power" and "Signal" LED indicator.
5. Temperature Display & Alarm Function
Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.
LaserTree K30 create a solution with working temperature display,so that you can check the internal temperature of the module easily. When the working temperature of laser module over 55 ℃, it will sound an alarm through the buzzer.
6. Red Cross Line Locating
The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.
7.Super Fast Egraving Speed
3 times engraving speed compare with 10W laser power module.
8. Copper Core Protection Lens.
Easy to clean and replace when the lens is contaminated or dusty.
9. Laser View Window
Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.
10. Widely Compatible Design
In order to improve the compatiblity to different laser engraver machine, K30 provide a solution by adapter board for electric compatibiliy, and sliding plate with multi holes for installation compatibility.
LT-K30 laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
(please contact us if you are not sure about compatibility)

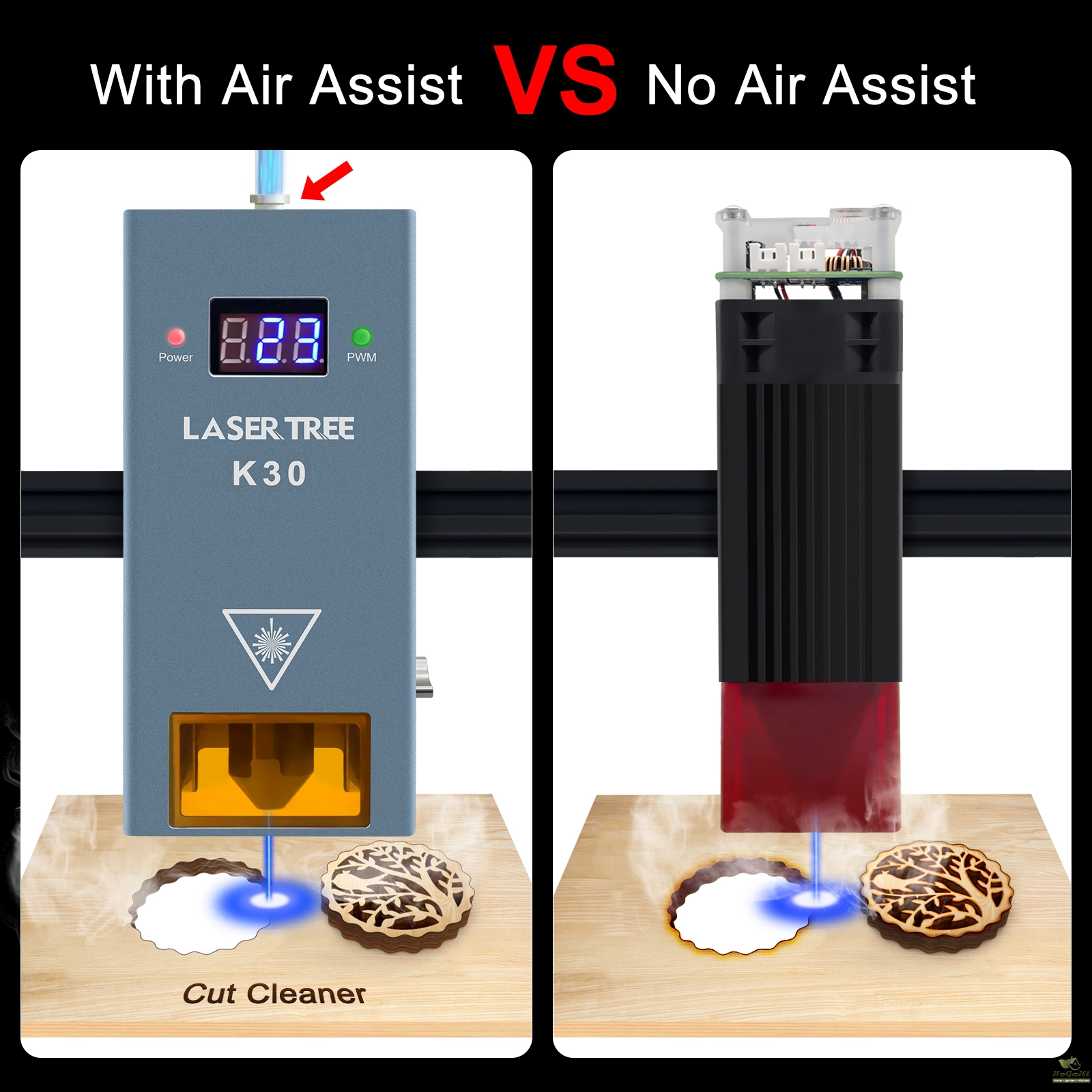

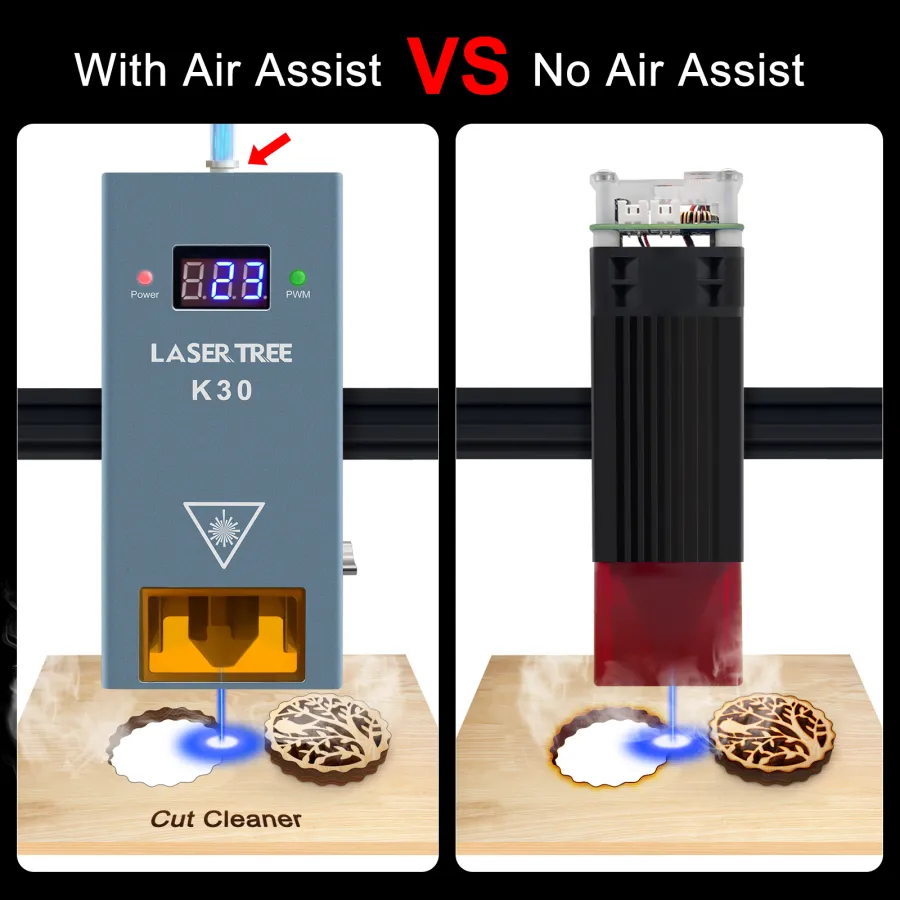

With Air Assist VS No Air Assist

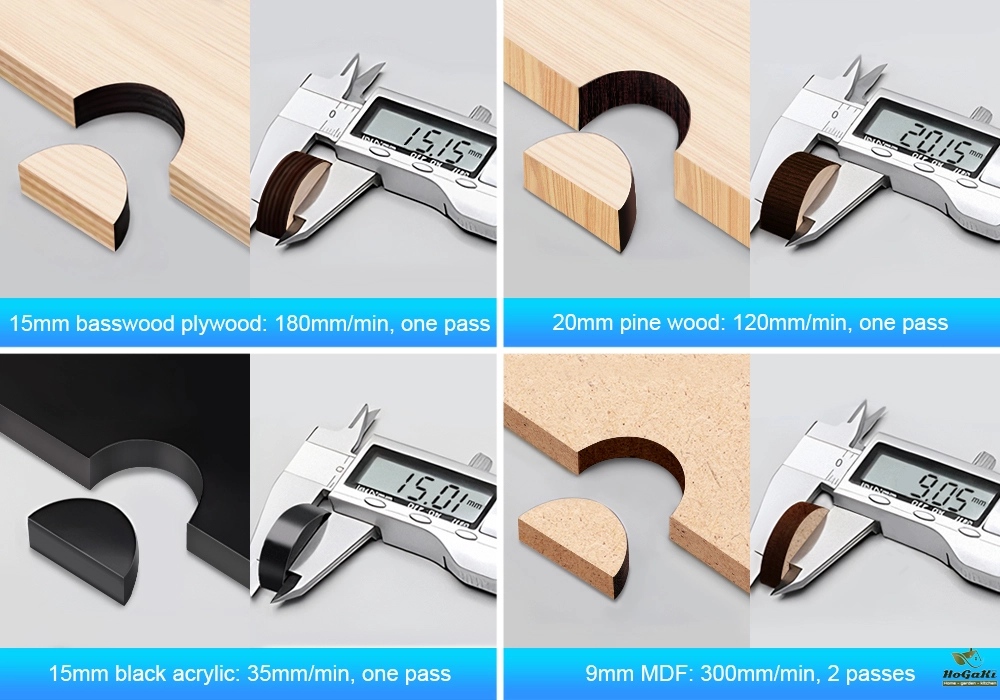

Powerful Cutting Ability
15mm basswood plywood: 180mm/min, one pass
15mm black acrylic: 35mm/min, one pass
20mm pine wood: 120mm/min, one pass
9mm MDF: 300mm/min, 2 passes

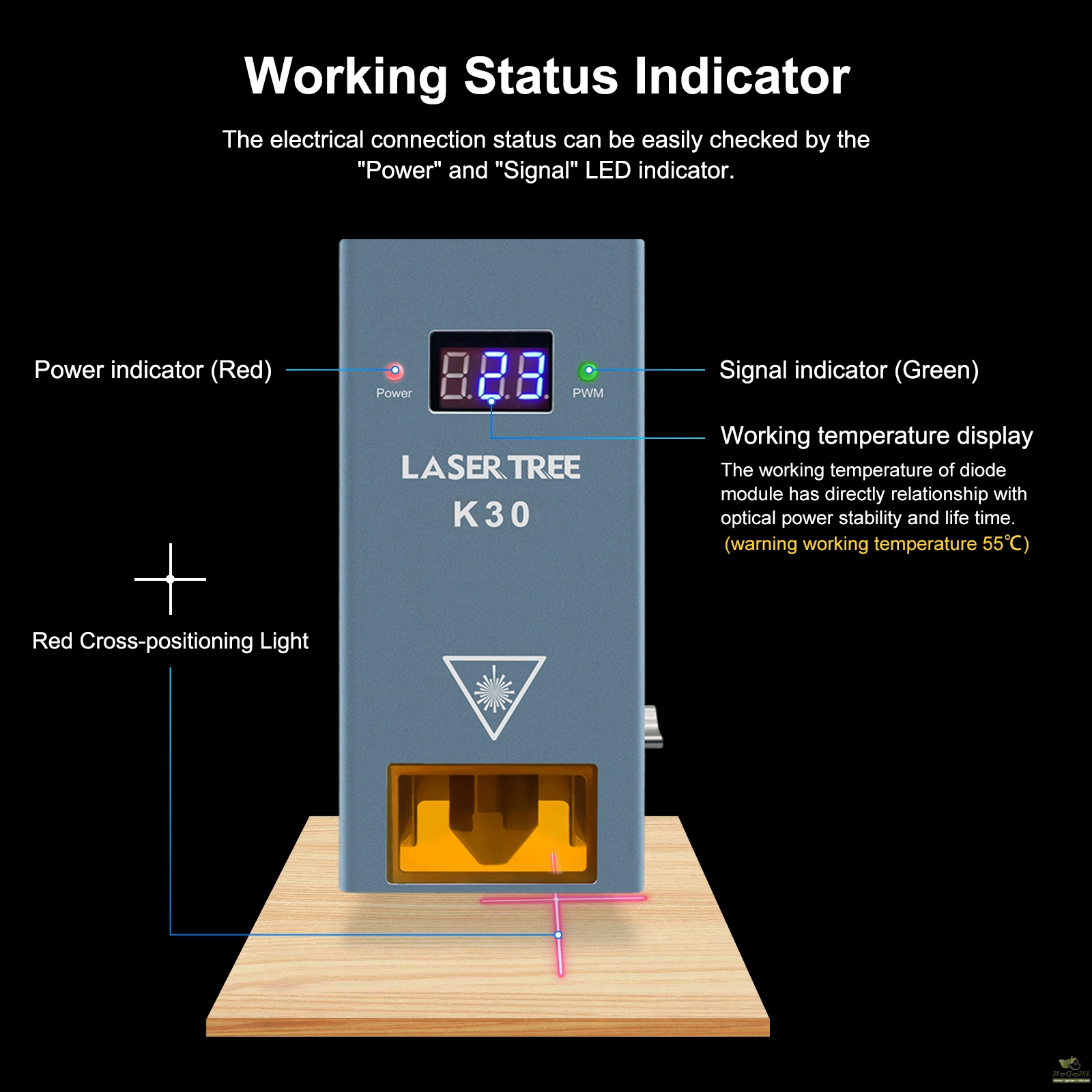

Working Status Indicator
Power indicator: it is red when power supply is connected.
Signal indicator: it is green when signal is received.

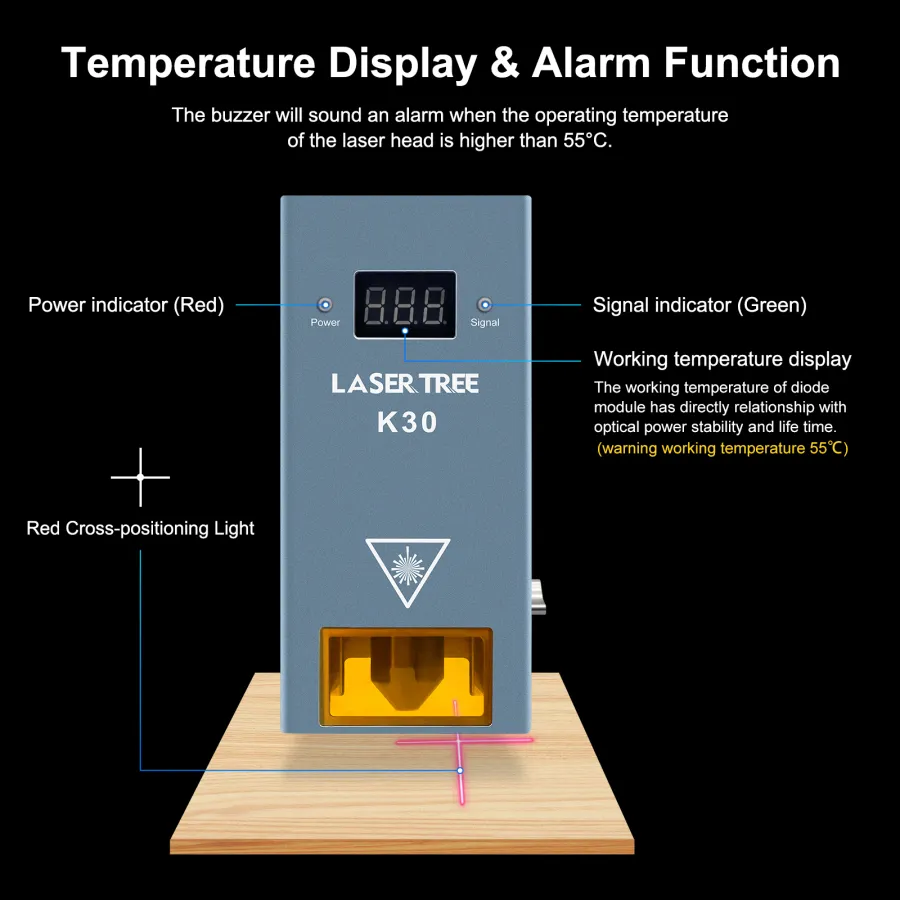

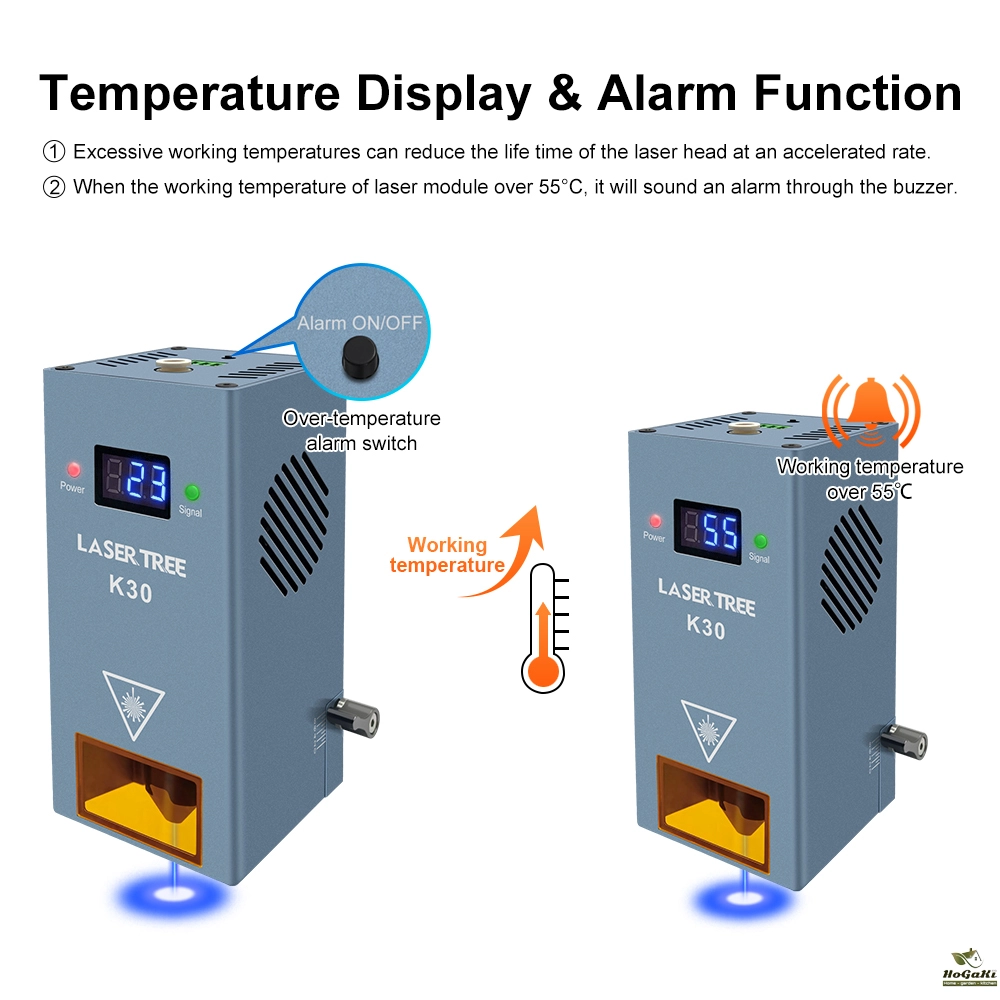

Temperature Display & Alarm Function
1>The buzzer will sound an alarm when the operating temperature of the laser head is higher than 55°C.
2>Use in high temperature environments can affect the long term life of the laser head.(Suggested environmental temperature <35C.)

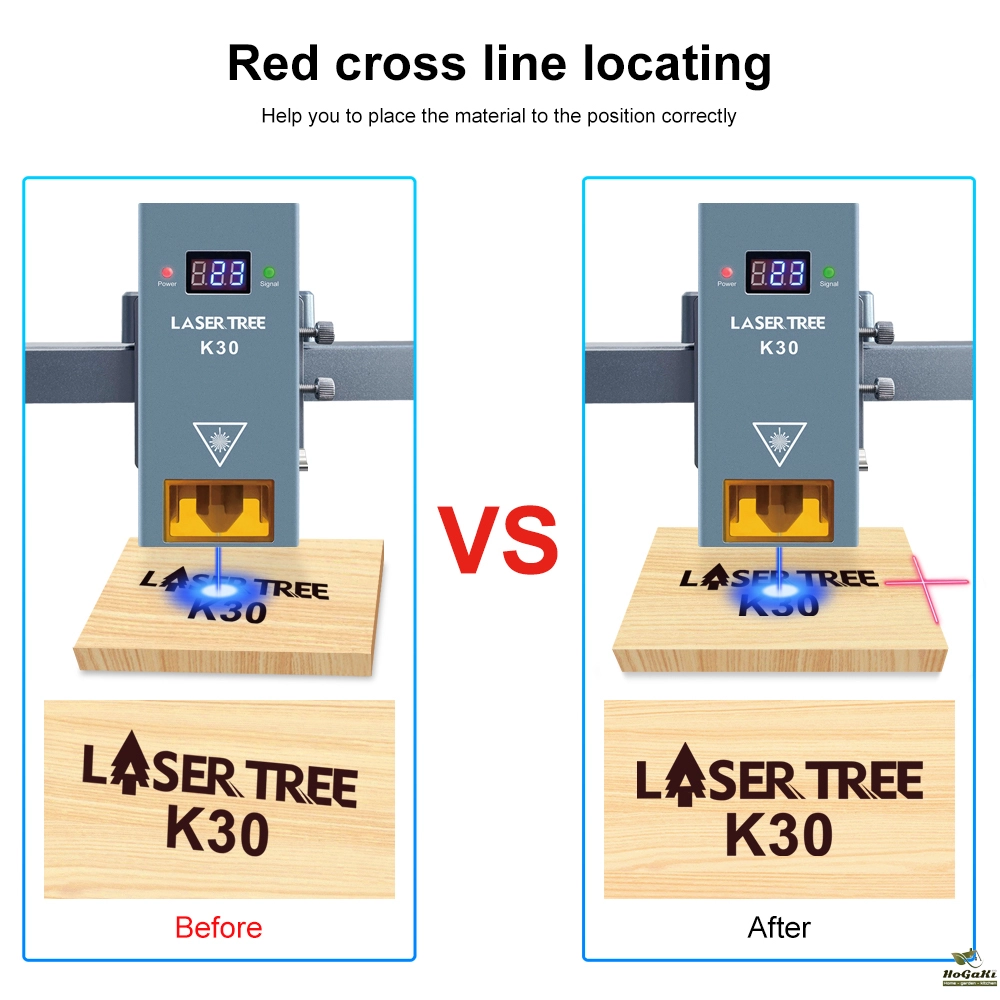

Red Cross Line Locating
The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.
Super Fast Egraving Speed
3 times engraving speed compare with 10W laser power module.

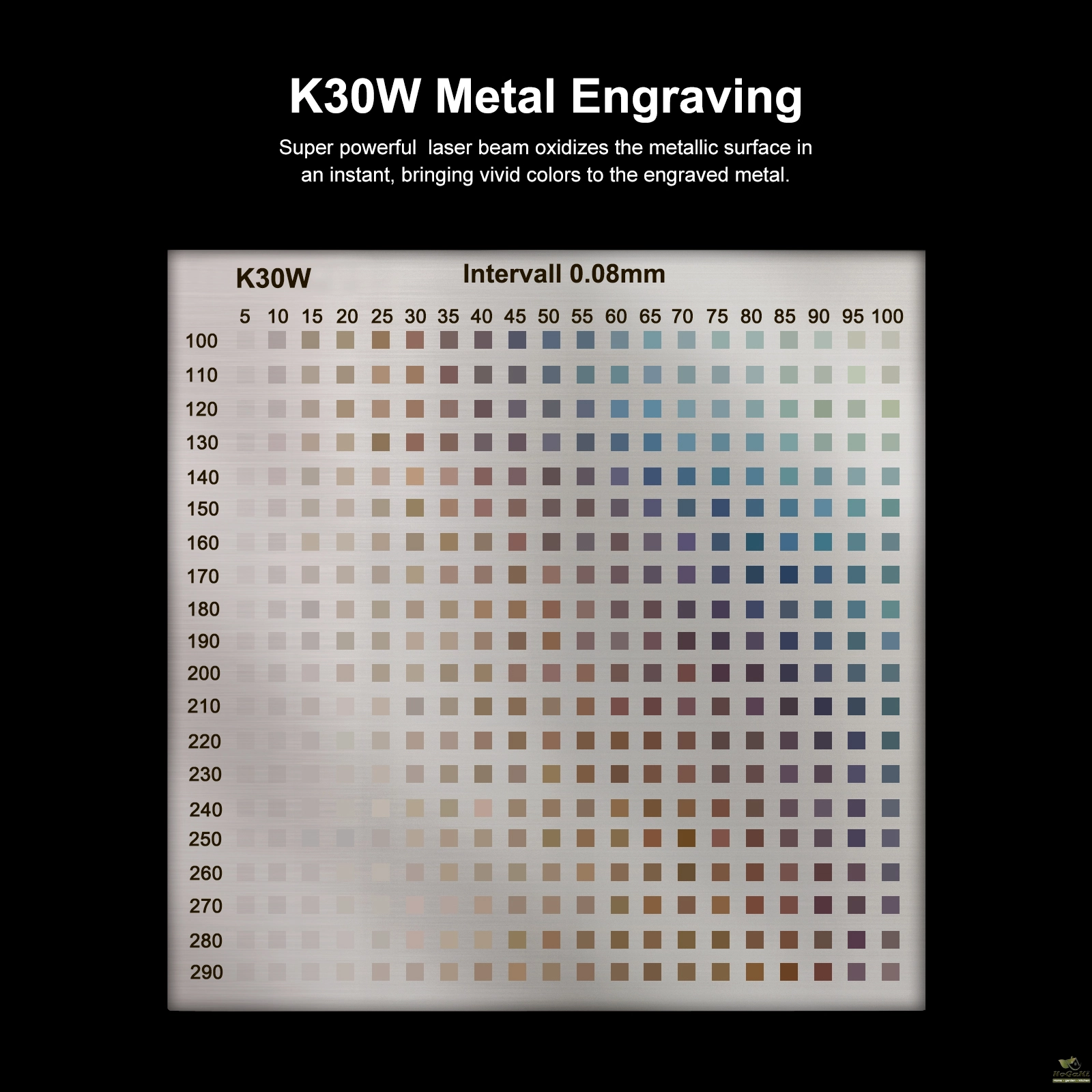

K30W Metal Engraving
Super powerful laser beam oxidizes the metallic surface in an instant, bringing vivid colors to the engraved metal.

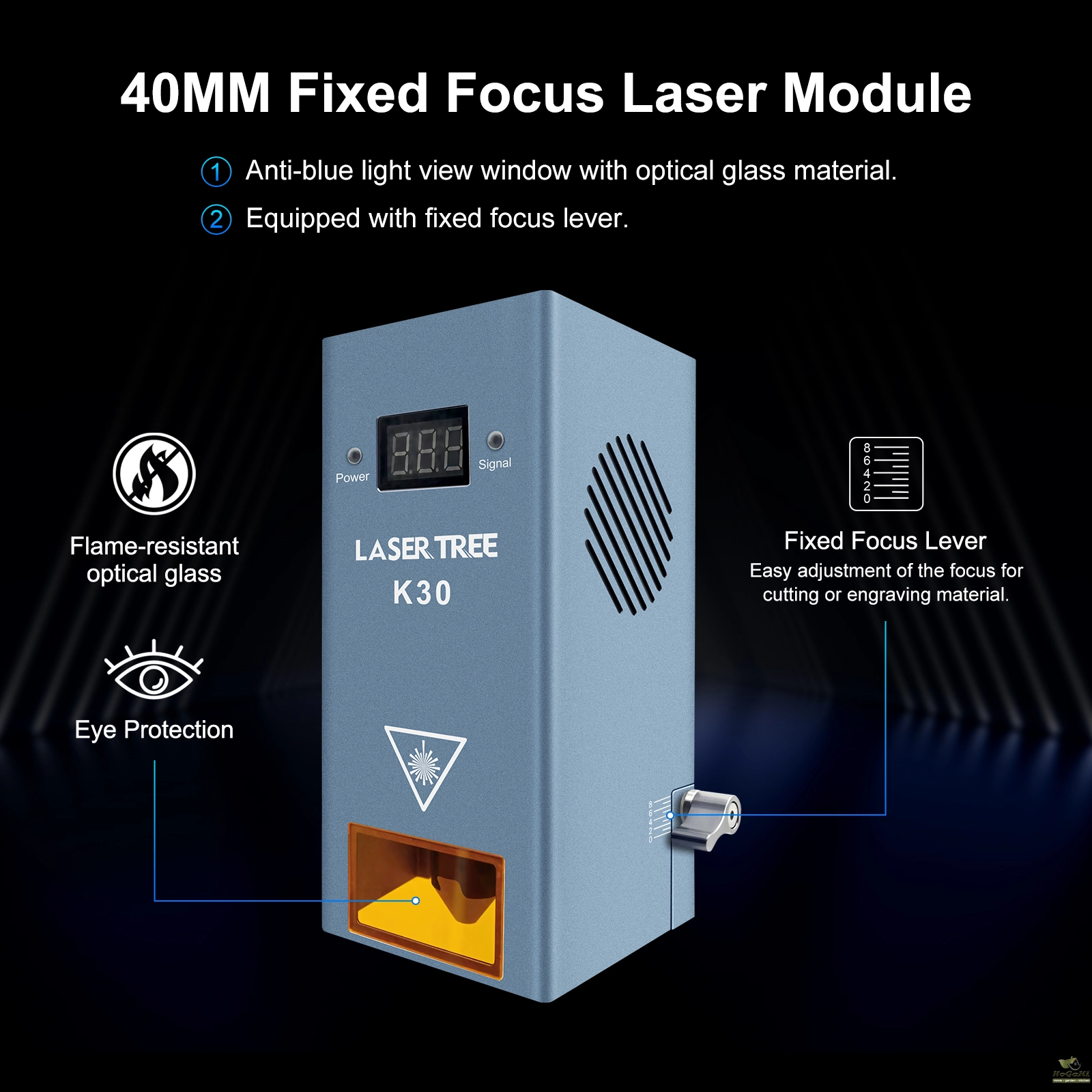

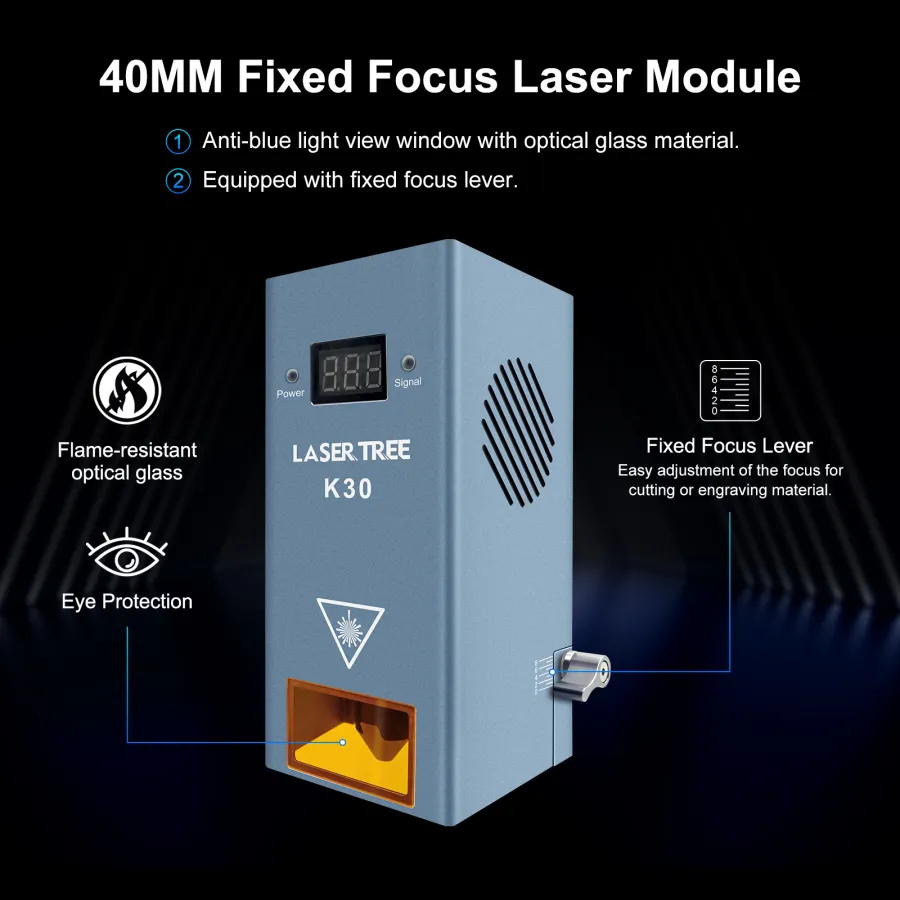

40mm Fixed Focus Laser Module
1>Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.
2>Equipped with fixed focus lever.

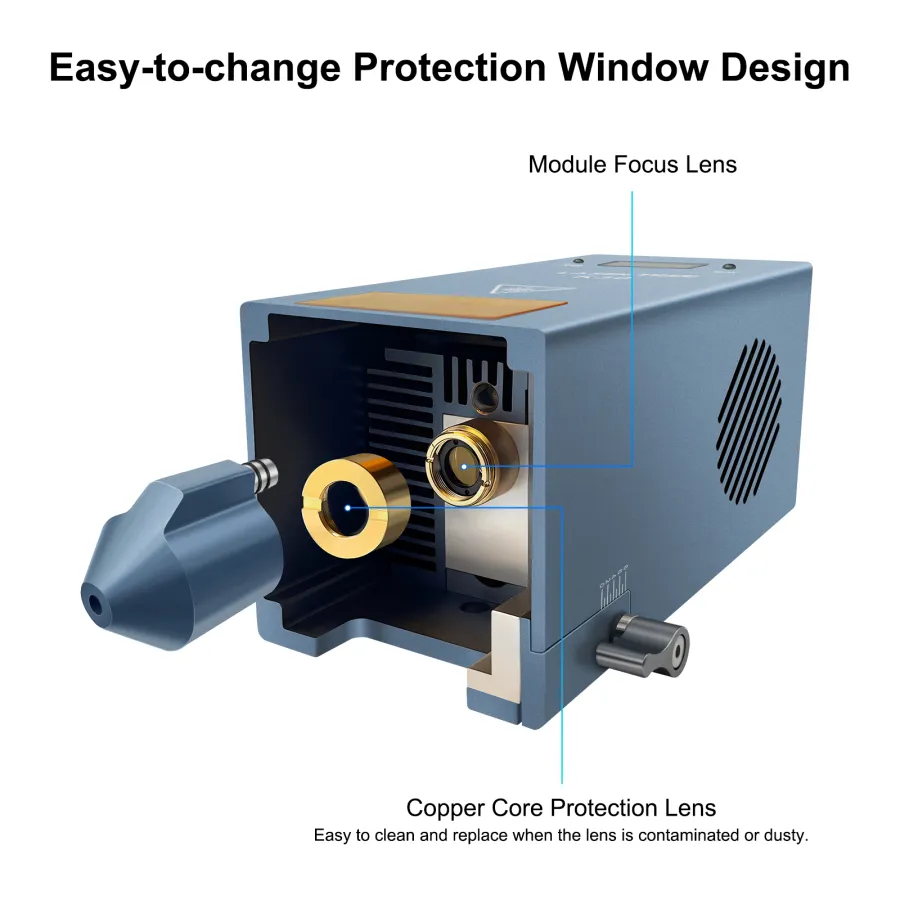

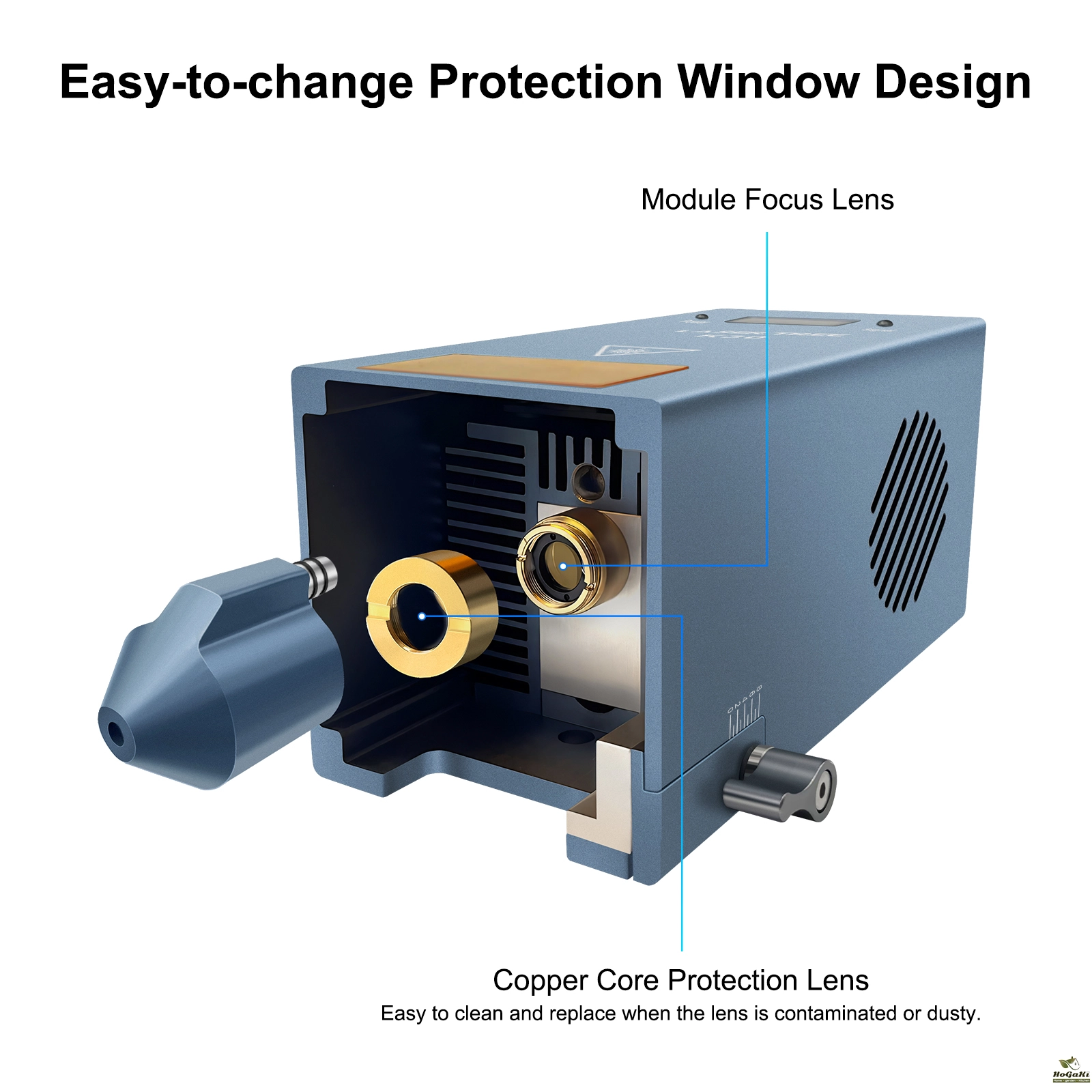

Easy-to-change Protection Window Design
1>Copper Core Protection Lens.
2>Easy to clean and replace when the lens is contaminated or dusty.
Easy to set the focus
Focus bar design makes it easy to set the focus of the module.
For Engraving
Please make the focus locate on the engraving material surface.
For example, if you want to perform engraving, just make the focus on the engraving material surface and adjust the fixed focus lever to 0mm.

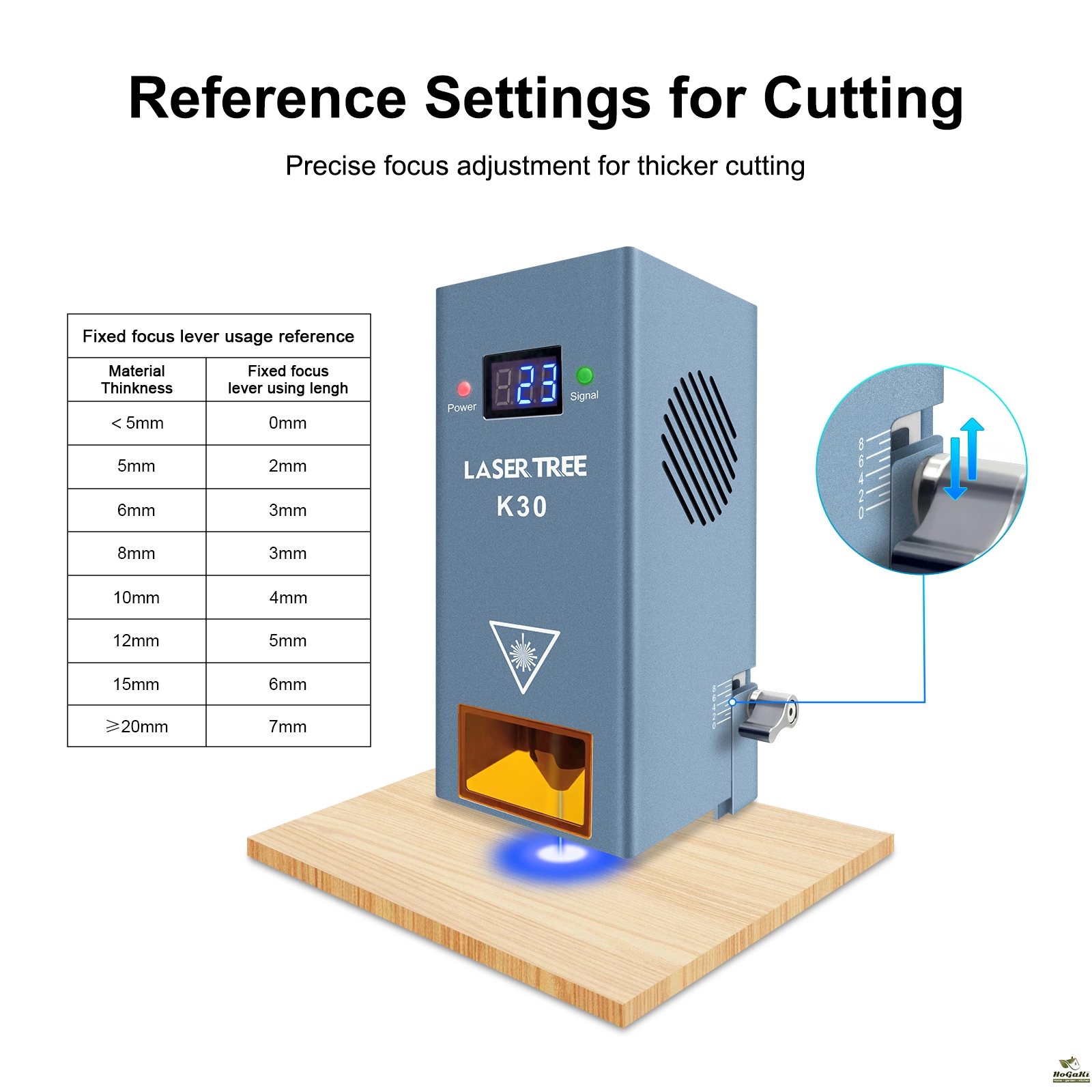

For Cutting
Please make the focus locate lower than the cutting material surface.
For example, if you want to cut 10mm material, the focus should be 4mm lower than material surface, please adjust the fixed focus lever to 4mm.

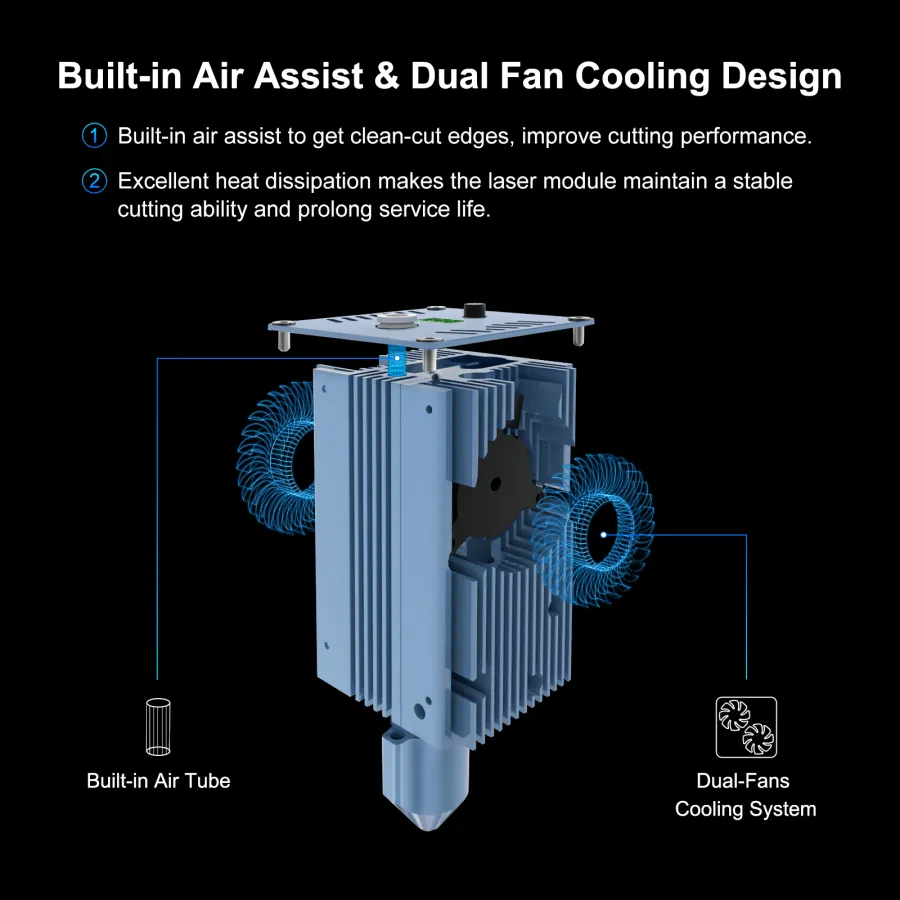

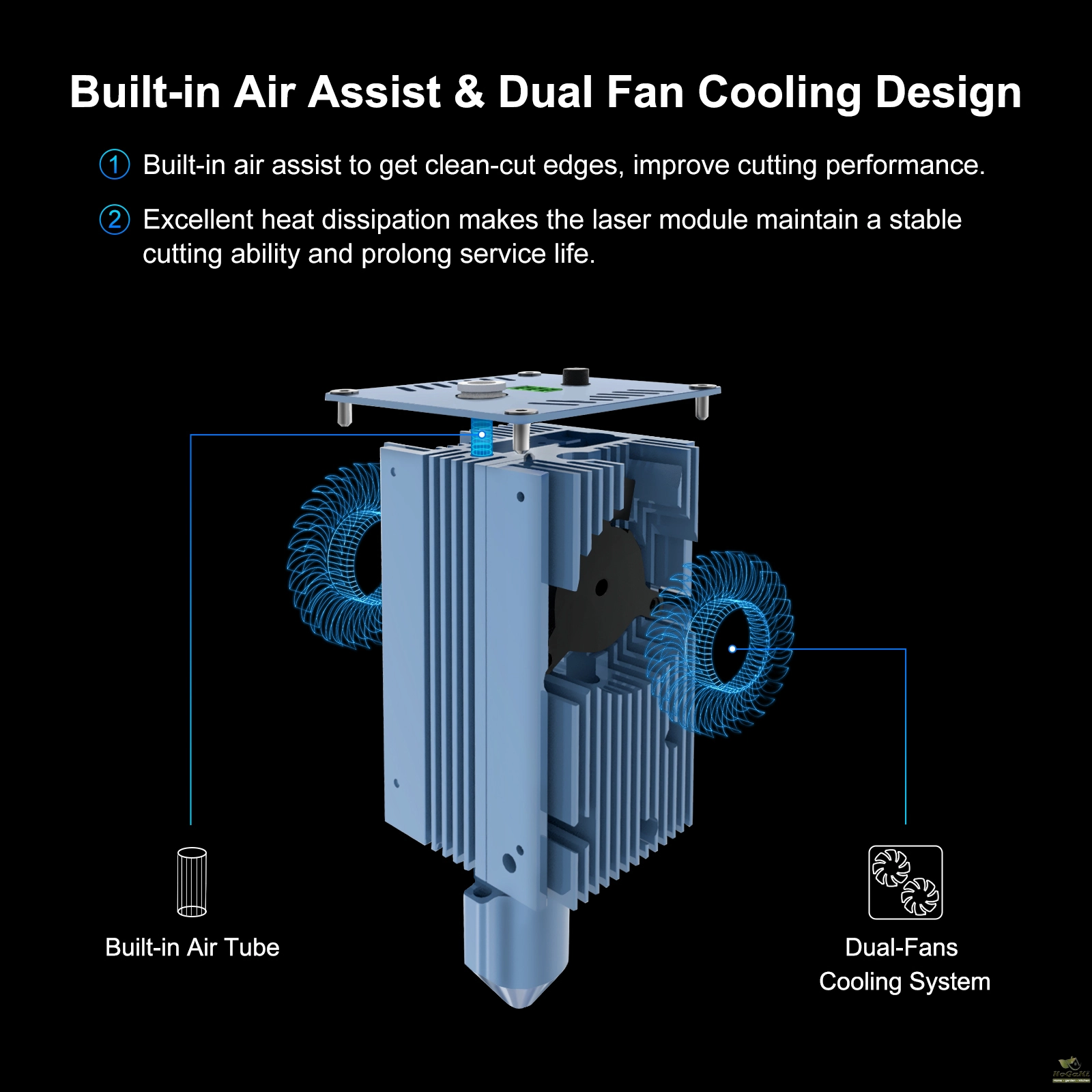

Built-in Air Assist & Dual Fan Cooling Design
1>Built-in air assist to get clean-cut edges, improve cutting performance.
2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

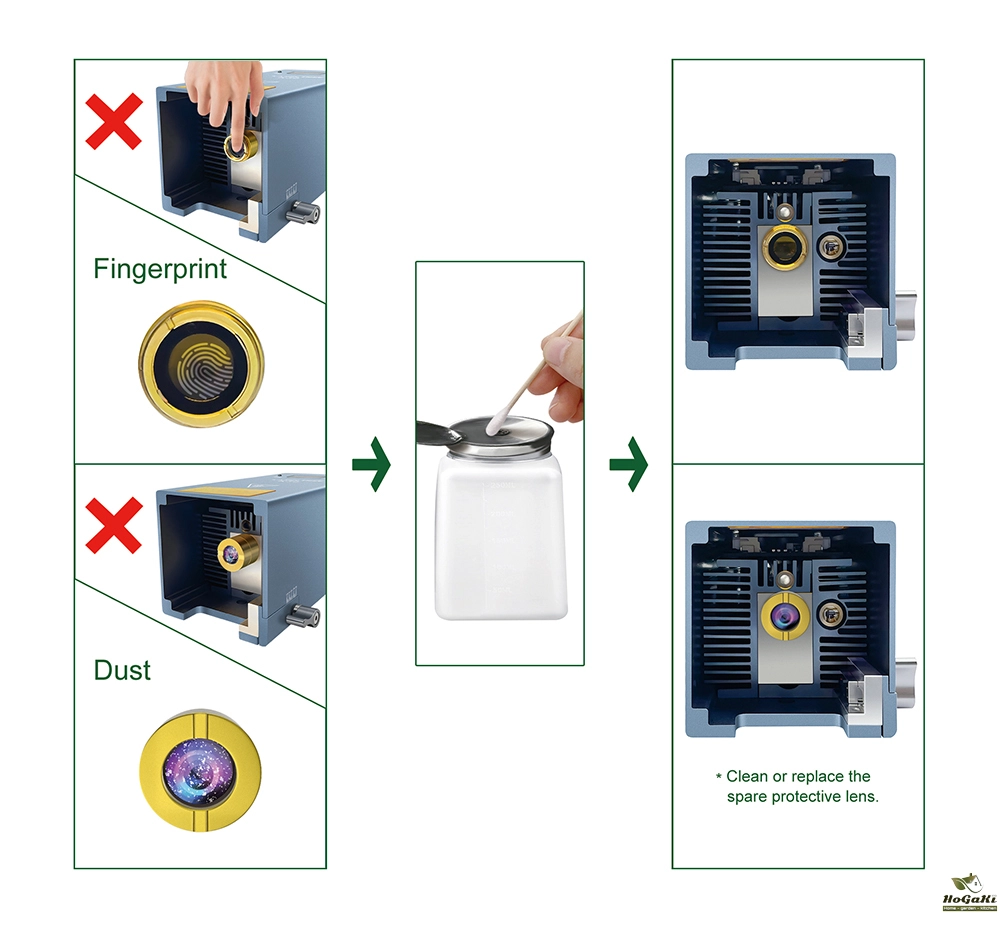

Lens Maintenance
When the laser module is not used for a long time, please ensure that the lens is not polluted by dust.
When you replace the air nozzle, please ensure that your operation will not pollut the lens. Finger prints or dust on the lens will weaken the output power of the laser module, or even damage the lens.
When you find the cutting ability decreases, the lens might be not clean. Please use a clean alcohol swab to clean it according to the following figure.

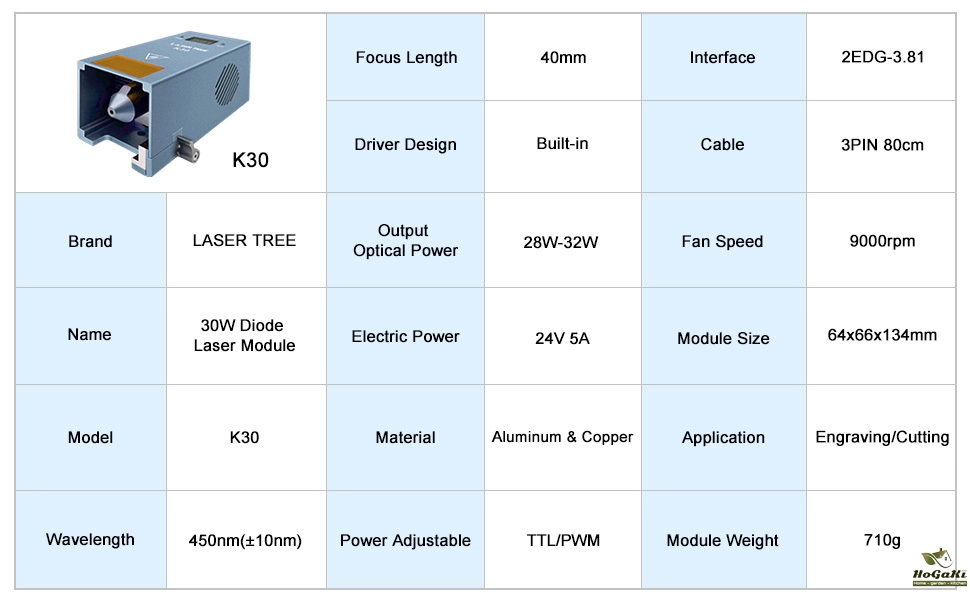

Packaging Details
- Unit Type:
- Package Weight: 2.000
- Package Size: 21x9x27
- Brand Name: Laser Tree
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: LT-K30
- Certification: CE
- Certification: RoHS
- Certification: weee
- Optical power: 28W~32W

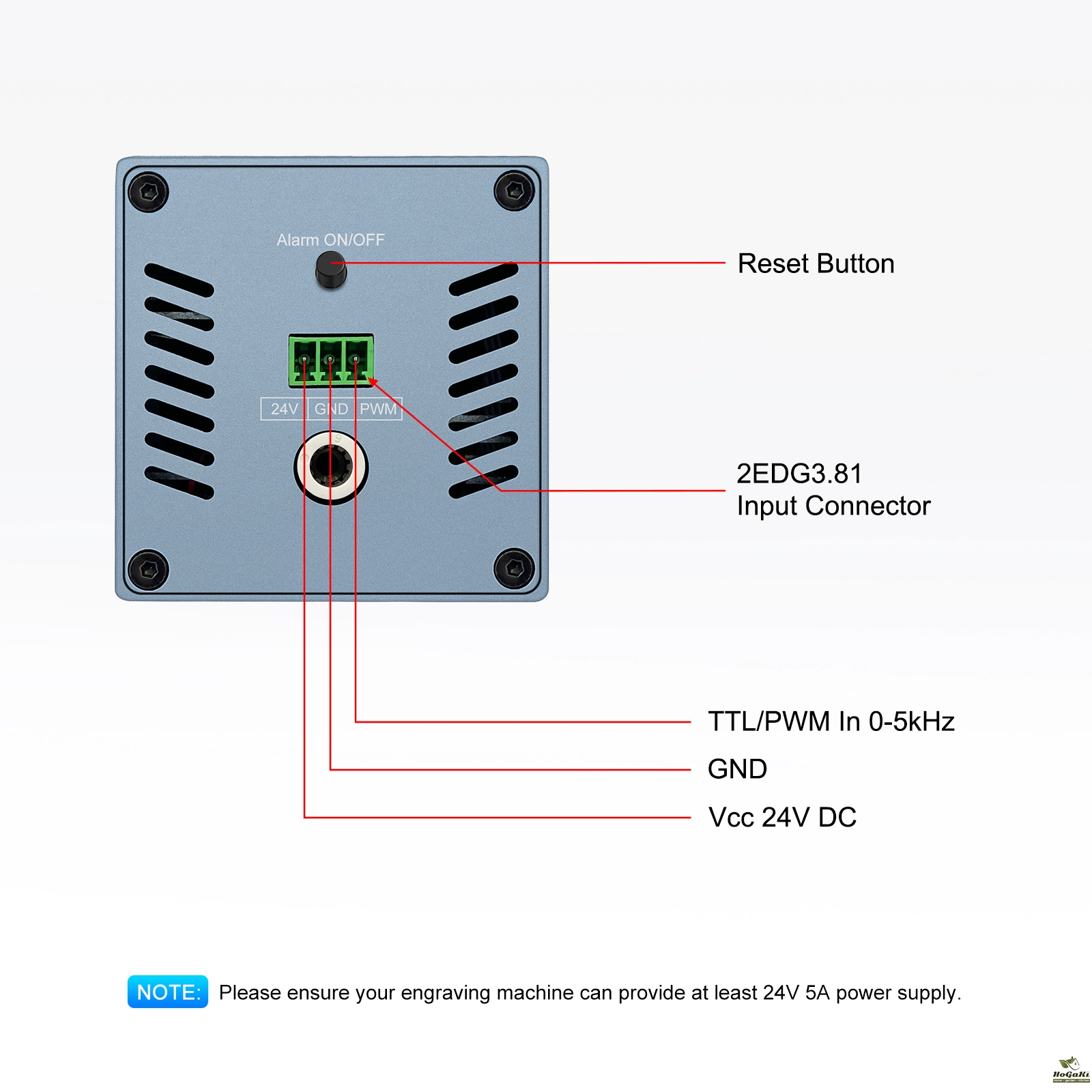

- Input: 24V 5A
- Wavelength: 450nm
- Focus length: 40mm
- Air assist: Built-in airway
- Power adjustable: TTL/PWM
- PWM modulation: 0/3-12V, 0-5kHz
- Fan speed: 9000rpm
- Operating temperature: 0-60°C
- Interface: 2EDG-3.81
- Cable: 3PIN, 80cm
- Material: Aluminum & Copper
- Module weight: 710g
- Application: Engraving or Cutting
