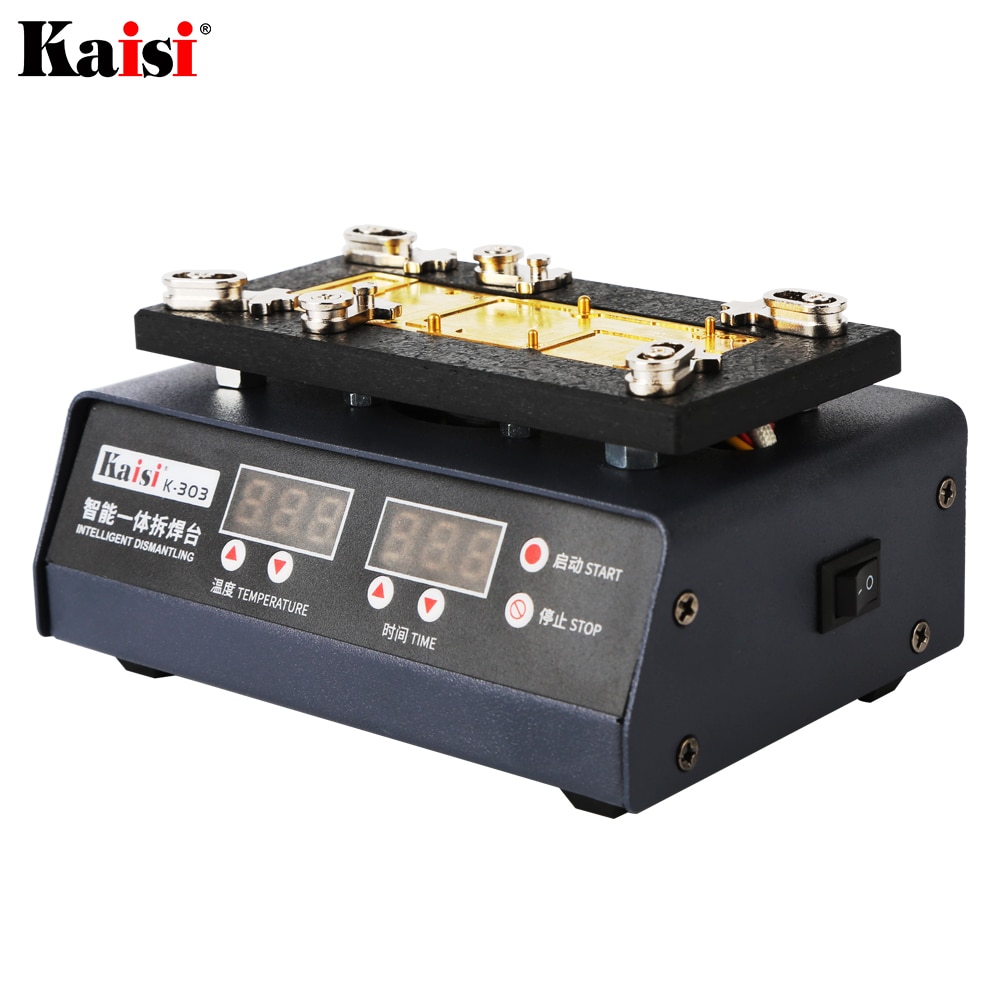

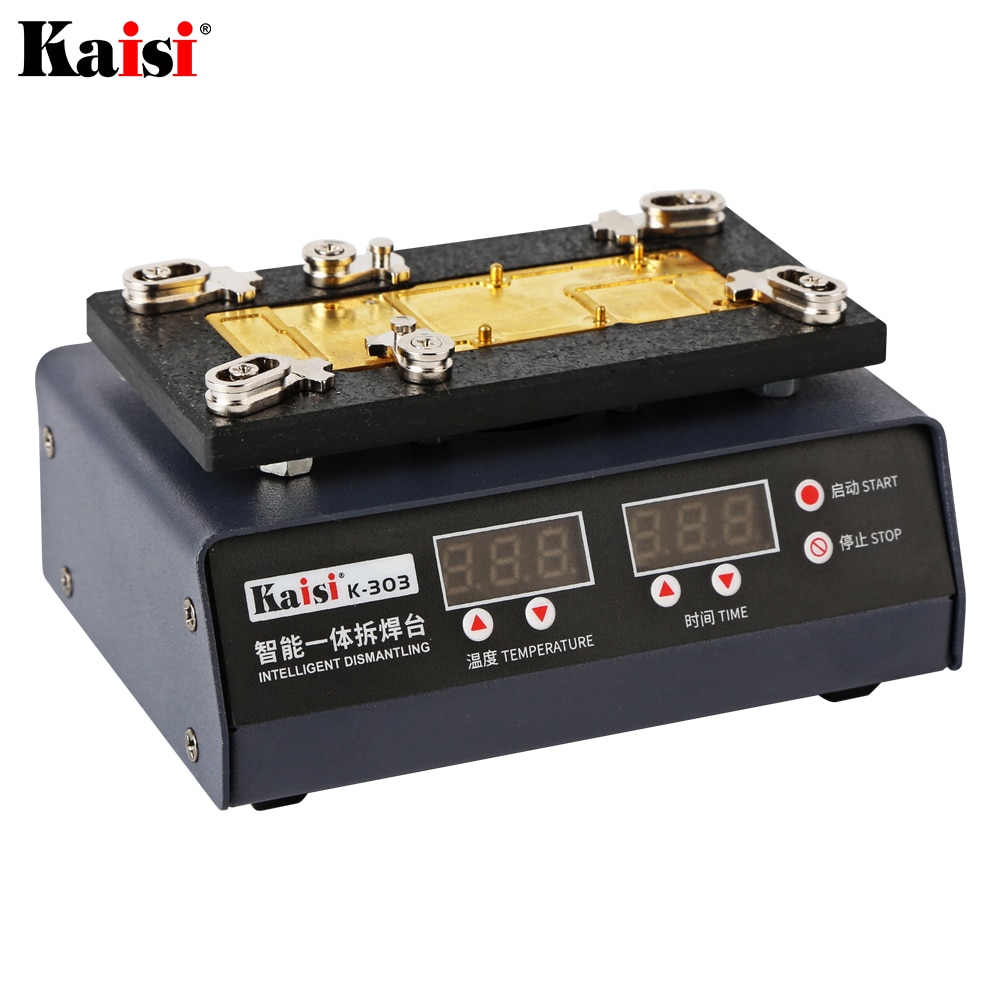

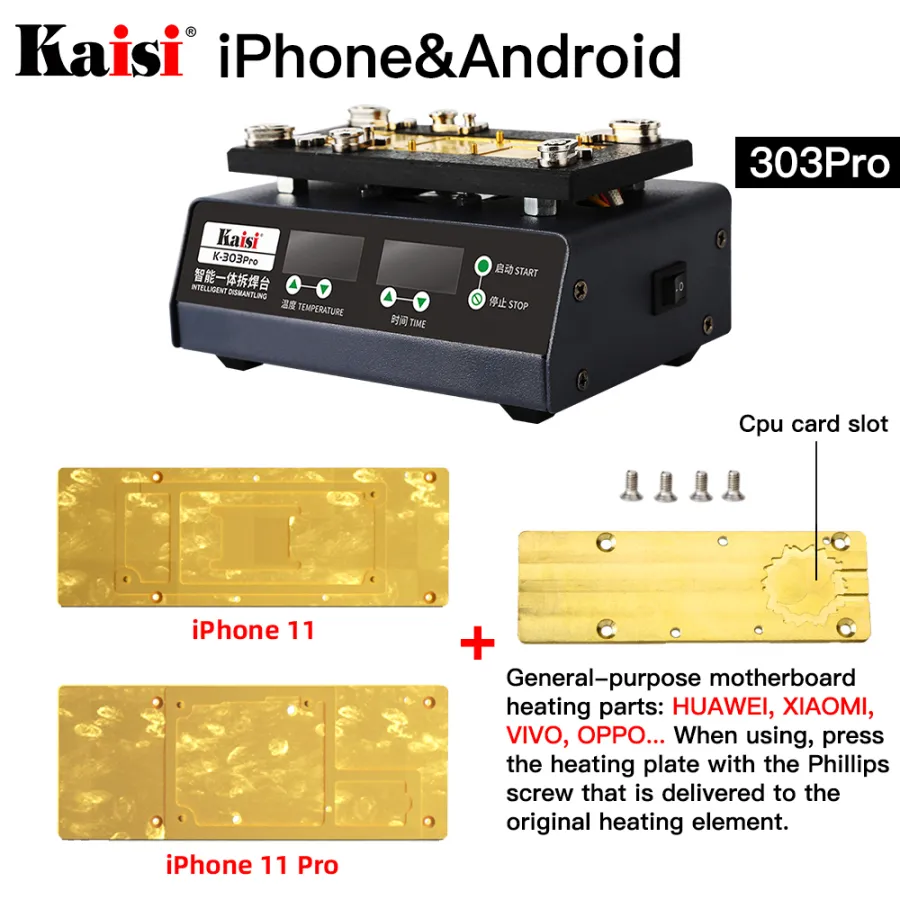

Kaisi 303pro Motherboard Heating Station Separation Explosion Proof Tin Preheating Platform For iPhone13/12/11ProMax/X/XS MAX
34.58 23.77 $
SALE
ID: 78633
Quantity
Kaisi 303pro Motherboard Heating Station Separation Explosion Proof Tin Preheating Platform For iPhone13/12/11ProMax/X/XS MAX
4.5 (10 votes) | 30 orders
Price:
US $34.58 - 237.48
/ piece
Discount Price:
US $
23.77 -
154.92
/ piece
-31%
Kaisi 303pro Motherboard Heating Station Separation Explosion Proof Tin Preheating Platform For iPhone13/12/11ProMax/X/XS MAX

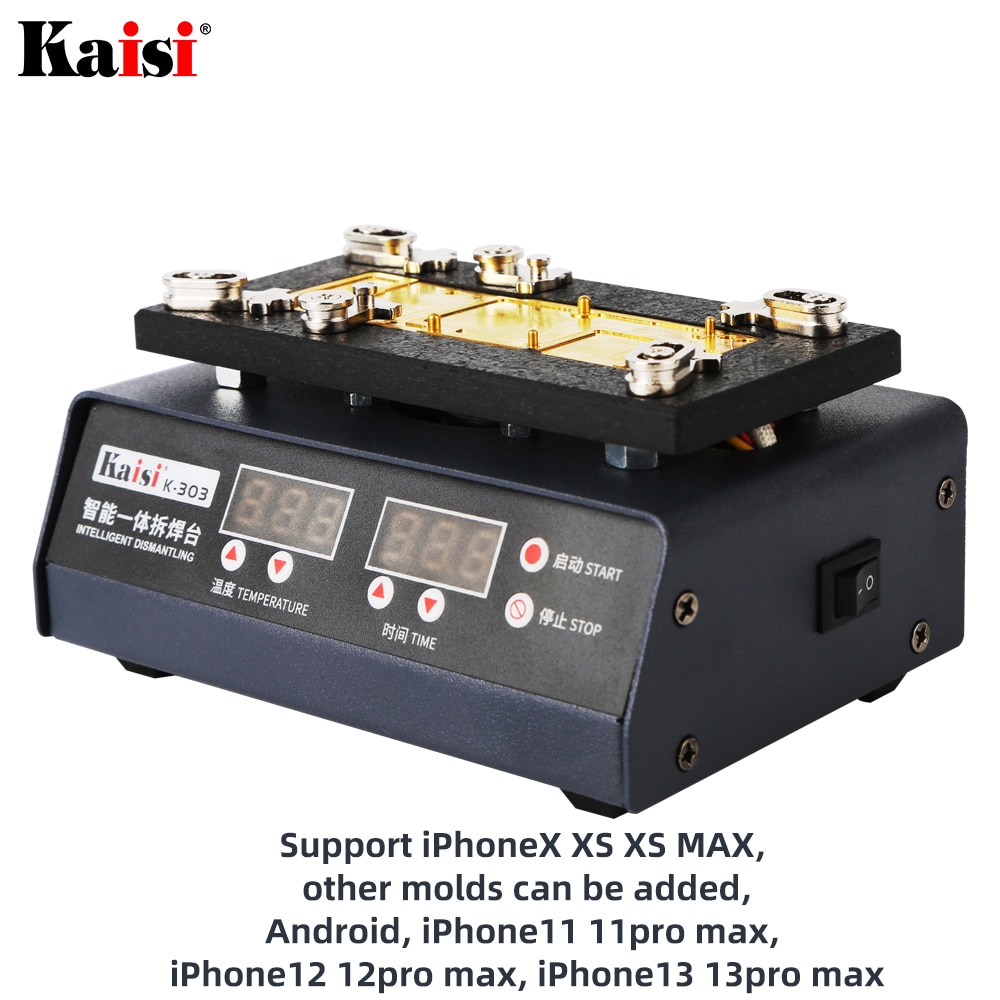

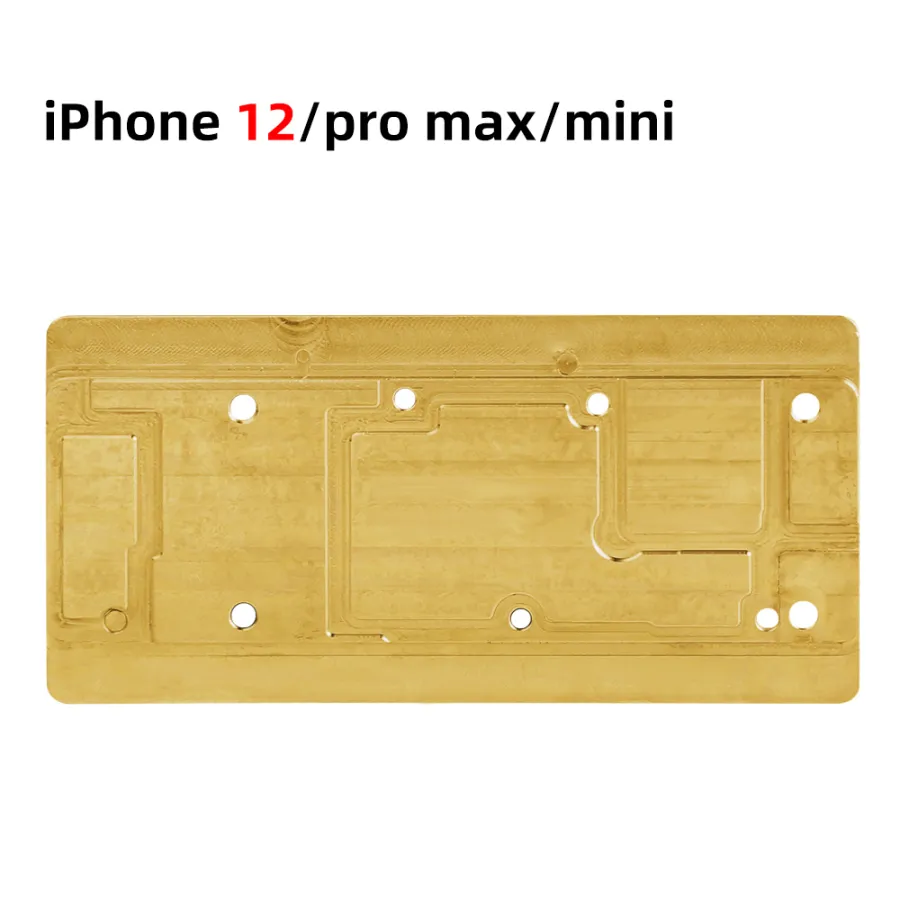

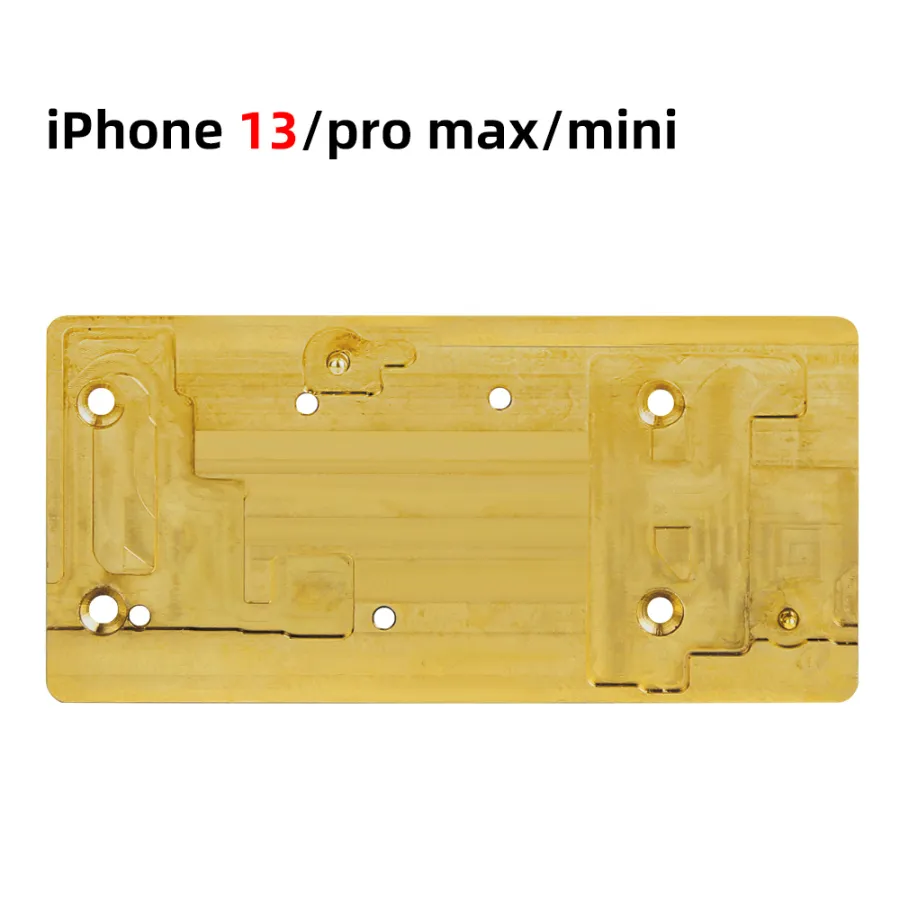

For iPhone IX IXS IXSMAX 11 11pro 12 12pro max 13 13pro max CPU

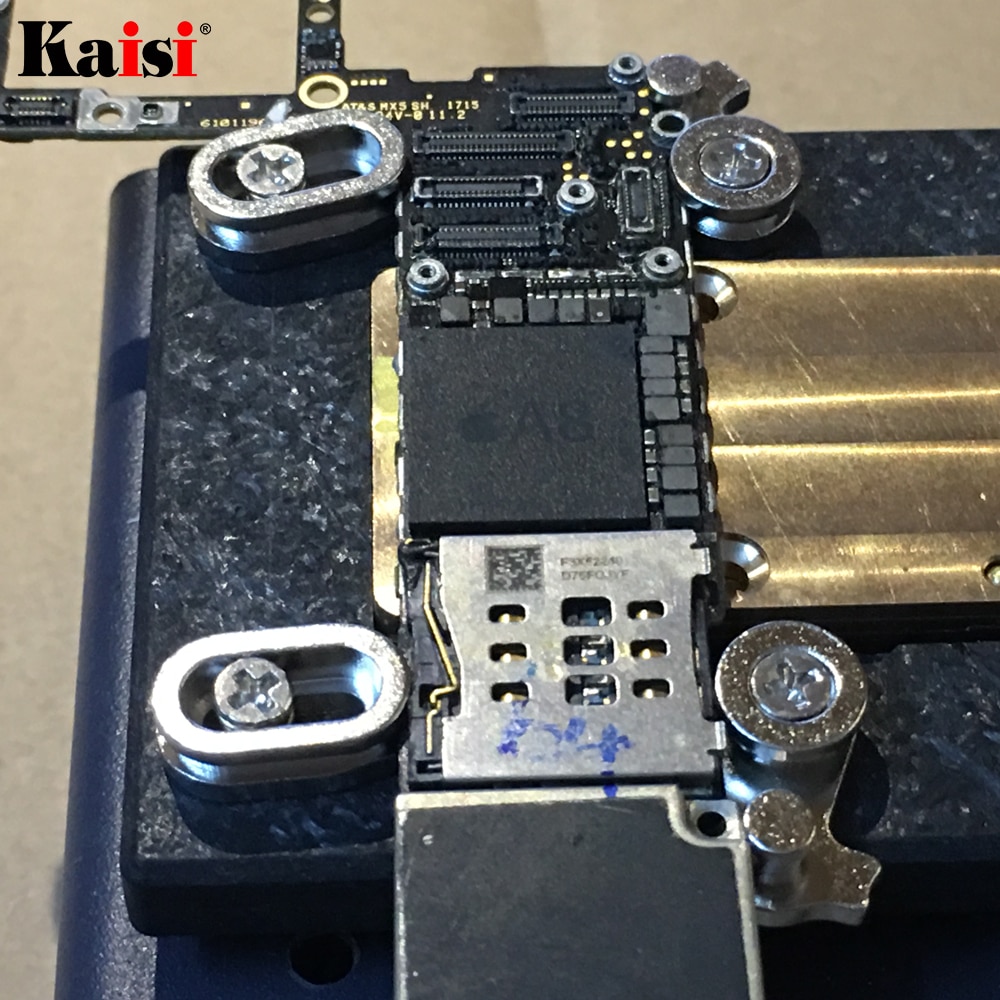

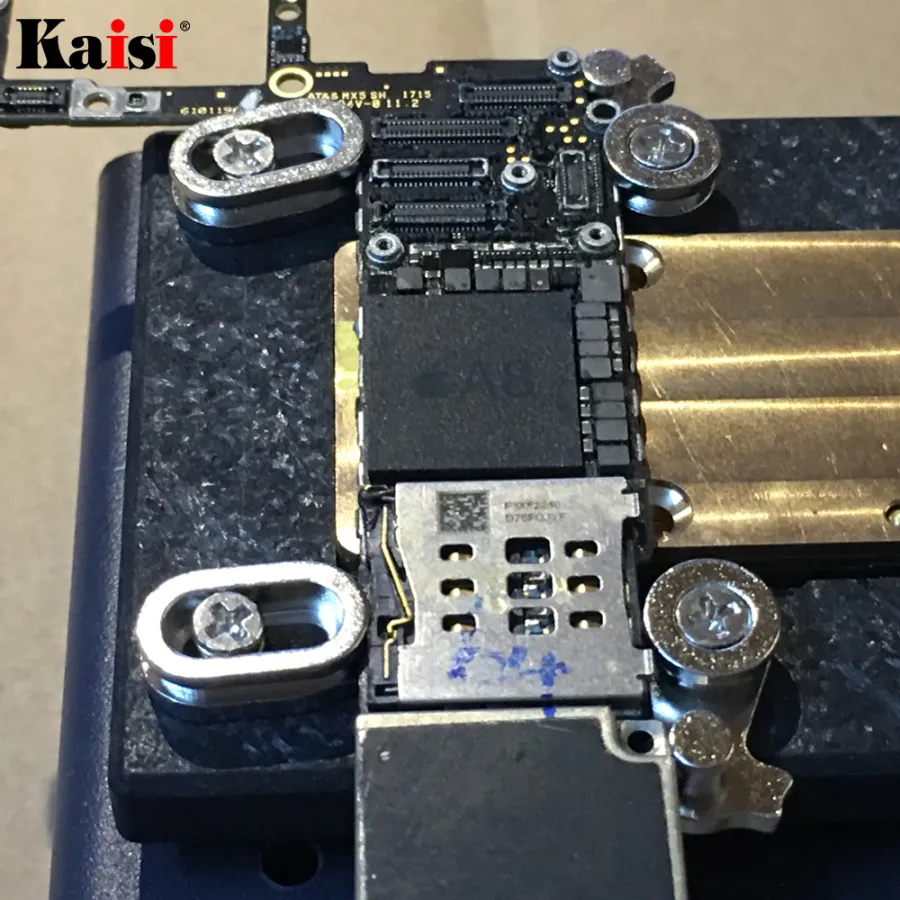

1.Separation process by setting separation temperature parameters through thermostat operation .Firstly, the layered motherboard alignment pin holes will be installed on the separator heating board,Then push the button back and tighten the motherboard. Setting separation temperature recommended 200-220 Degrees .Setting the time required for separation process about 10 seconds recommended The thermostat feedbacks the actual temperature value of the current heating plate in real time.Then press the start button,The heating pipe is heating the heating plate.
2.Heating temperature reaches the set temperature value,The control board sends out three beeps to "di, di, di",Stop heating and automatically maintain heating temperature control,When the countdown time arrives,the control panel emits a "di" buzz and stops heating at the same time, and starts the cooling fan to heat the heating board forcibly. After the temperature of the heating plate drops by 55, the control panel emits "di ~~~~"for 3 seconds.The layering machine enters a low-power standby sleep state.
3.At this time, you need to start the machine again. You can start the layering work again by pressing the start button after replacing the motherboard to be layered. The machine uses the last set parameter to run by default. If you need to modify the parameters,you can modify the required parameters and then press the start button. After the machine is used,it is recommended to turn off the main power or unplug the machine when the machine is in standby.

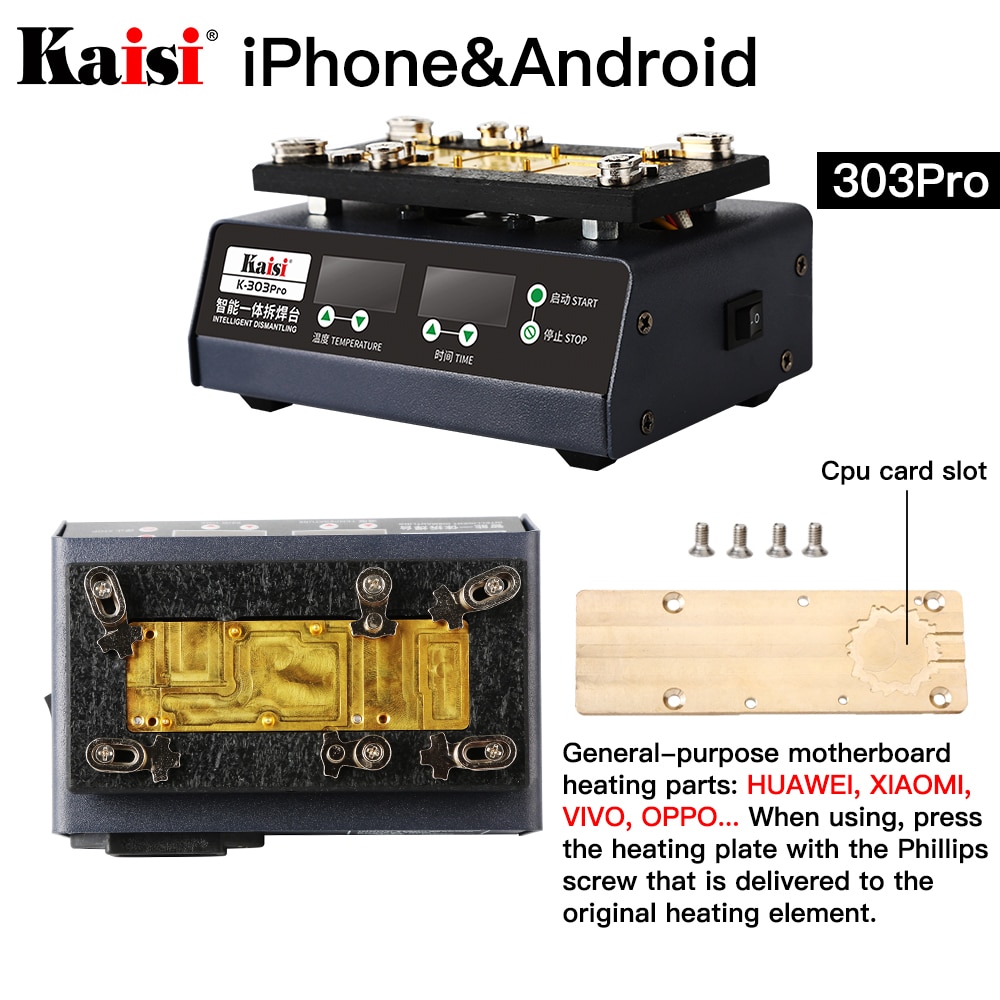

Button description
1.Set the temperature up and down keys:Press this key to set the control temperature range.
2.Countdown key: Press this key to set the countdown time range.
3.Start button and emergency stop button: can be turned on or emergency stop output(Emergency stop button: After starting the heating work, press the emergency stop button to cut off the heating, and the cooling fan starts to turn off automatically.)
Functional description
1.This product will not be heated automatically after power-on. After setting the temperature and time,press the start button to start heating,When the heating reaches the set temperature,the buzzer will be called three times, and the set time of the countdown will start.After the countdown is zeroed,the buzzer will beep once, and the heating output will be cut off, and the cooling fan will start,When the measured temperature is lower than 55 Degrees , the buzzer will be called for three seconds and then enter the low-power standby.
2.The parameter set by the machine will not be cleared when it is used. The next time it is used, the last set parameter will be called.
3.The separated electrical control scheme designed by this machine is of high quality and practical.Temperature control is controlled by a thermostat connected to an intermediate relay to control the temperature of the heating tube.The temperature is measured by the thermocouple probe to meet the high temperature detection and control, and the sheet heating plate is uniformly heated to improve the heating efficiency.The thermostat indirectly controls the self-protection that is conducive to such high thermal efficiency, and prevents the thermostat from being damaged due to excessive heating current.The thermostat feedbacks the actual temperature value of the heating plate in real time, and directly starts heating by the start button, and the digital tube displays the real-time feedback heating state and the countdown time.

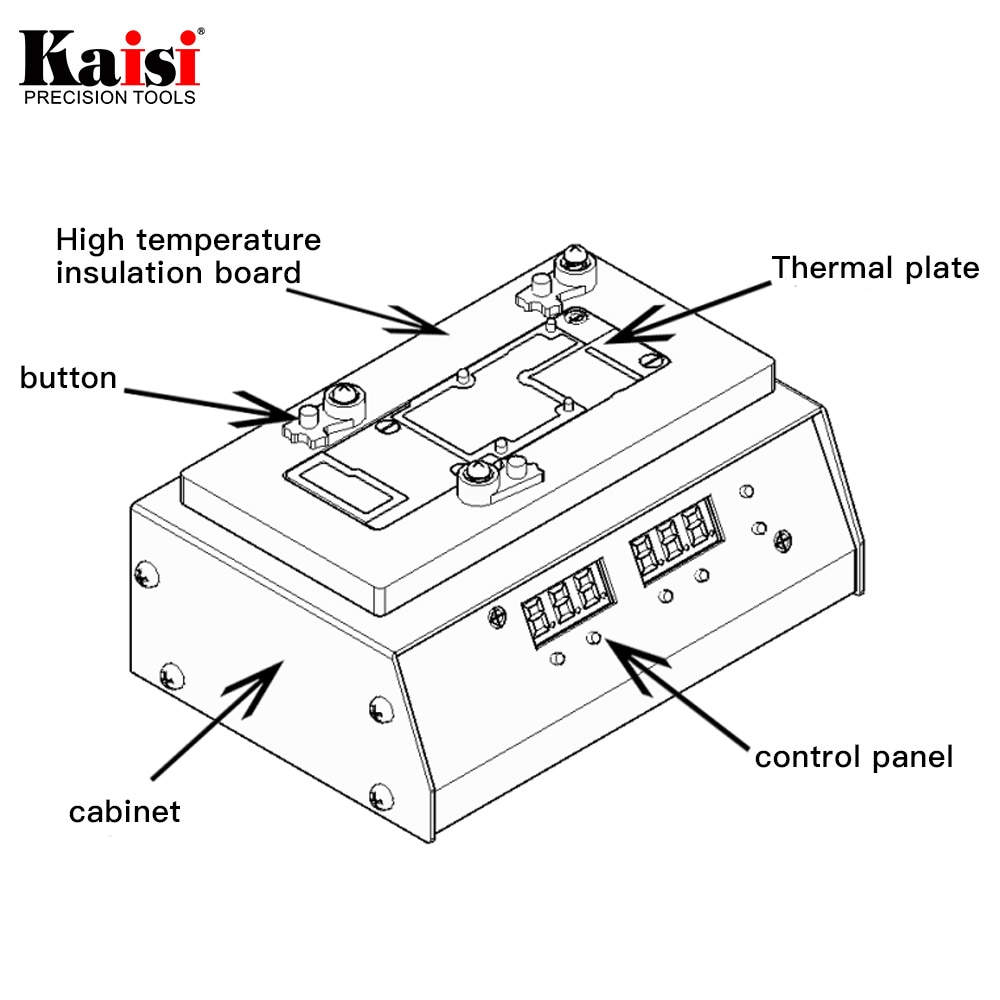

High temperature isolation scheme: Since the machine is equipped with a high-temperature heating source and its heating plate, the solution is to install a high-temperature isolation plate between the casing and the heating plate.A heating plate is installed in the middle of the high-temperature isolation plate, and the high-temperature isolation plate is fixed by screws between the high-temperature isolation plate and the casing.It effectively reduces heat diffusion during the separation process time and provides a safety protection effect.
Parameter setting:
Power:100W

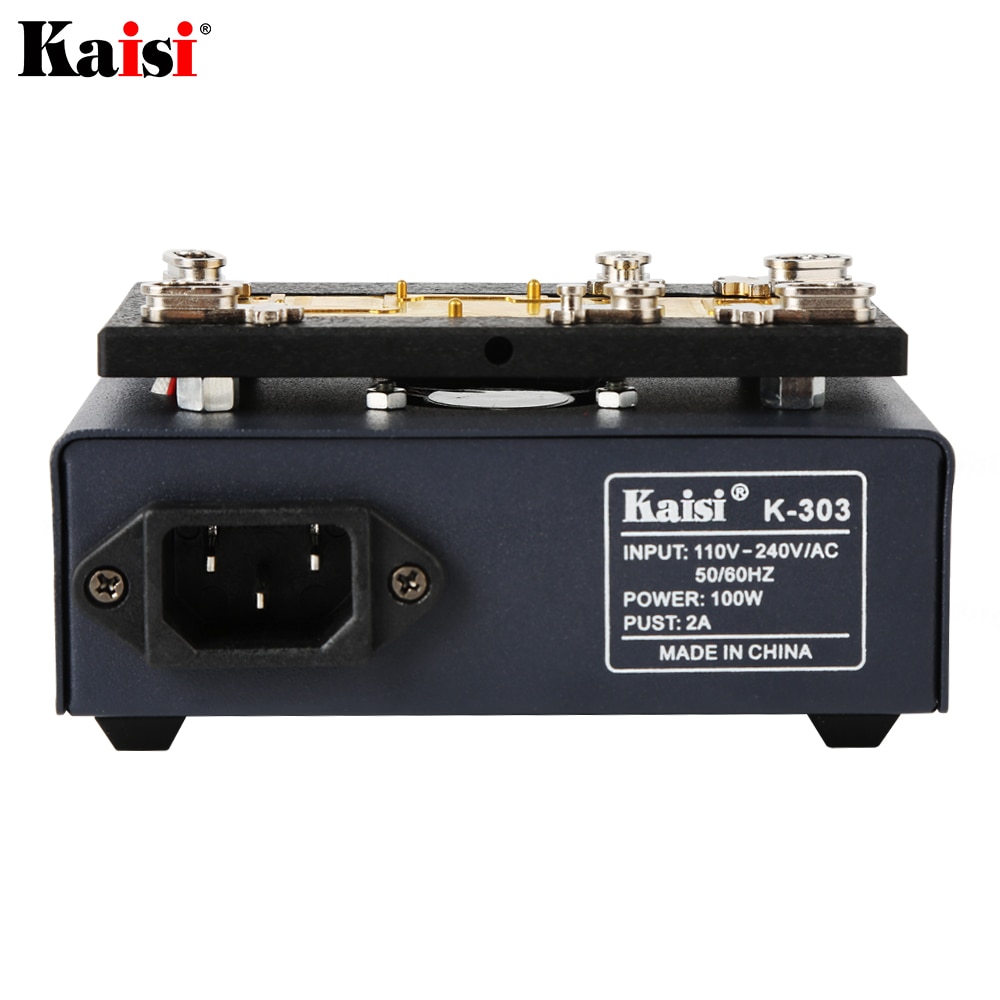

Voltage: 110V AC / 220V AC 50~60HZ
Temperature Display Range: 0-260 Degrees
Temperature control range: 50-260 Degrees
Temperature deviation: about 5 Degrees
Countdown setting range:0-999second
Dimensions:120x85x55mm
Weight:0.55Kg
Carton size:230x190x90mm
Use tips:
The machine can not only quickly separate, but also put the tin on the main board and put it into the machine for heating. It is better controlled than the hot air gun.
- is_customized: YES
- Package: BOX
- Model Number: 303pro
- Application: Computer Tool Kit
- Type: Combination
- DIY Supplies: ELECTRICAL
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Certification: CE,FCC
- Function: for iphone 6 7 8 X XS MAX motherboard repair
- Function2: Separation Disassembly Platform for iPhone

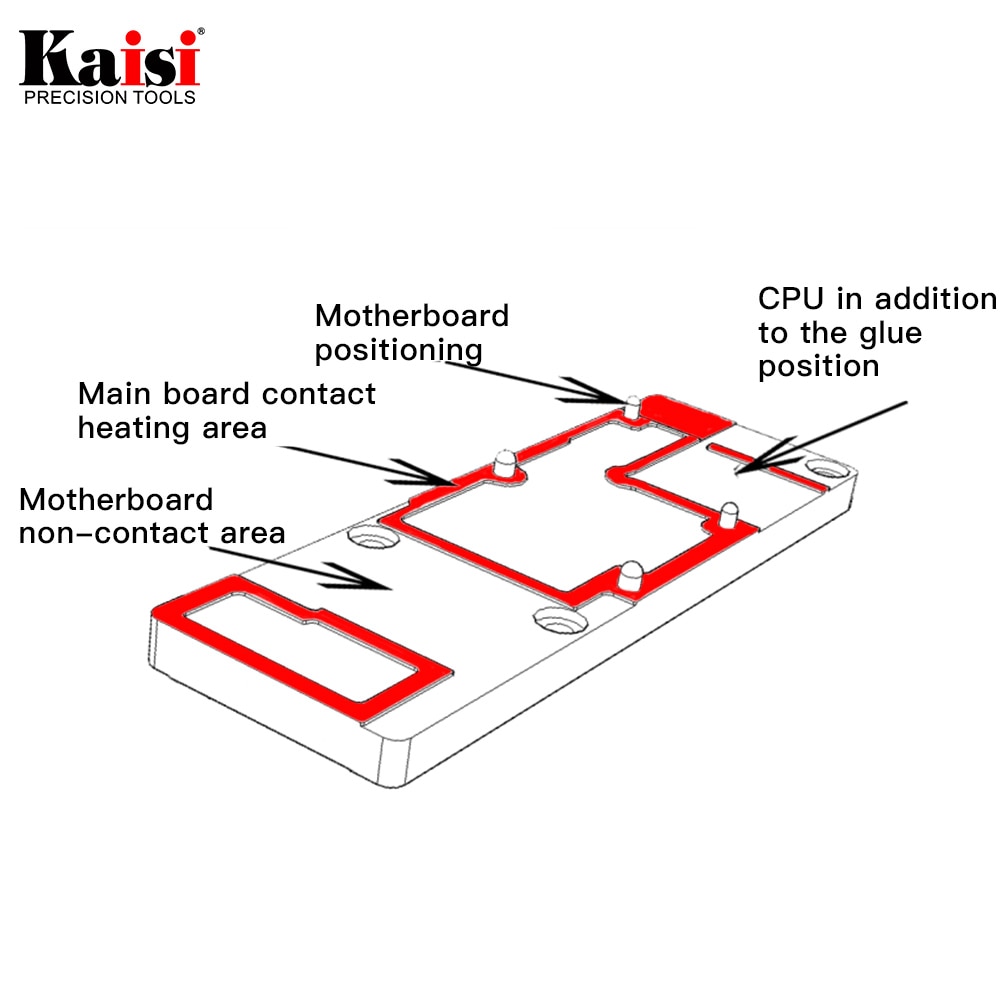

- Features3: with Different iPhone Motherboard Heating groove
