LASER TREE Laser Module 4W 5W 10W Optical Power with Air Assist Laser Head 450nm TTL Blue Light Engraver Cutting Wood DIY Tools
ID: 158142

LASER TREE Laser Module 4W 5W 10W Optical Power with Air Assist Laser Head 450nm TTL Blue Light Engraver Cutting Wood DIY Tools

5.0 (8 votes) | 71 orders
Price: US $543.47 - 1327.40
Discount Price:
US $ 164.98 - 414.14
-70%
Color
Quantity

Buy Now
Add to Cart
Recommend :  LT-K1-MINI-10W (10W Laser Engraving Machine)
LT-K30(30W+ Laser Module)
LT-K40(40W+ Laser Module)

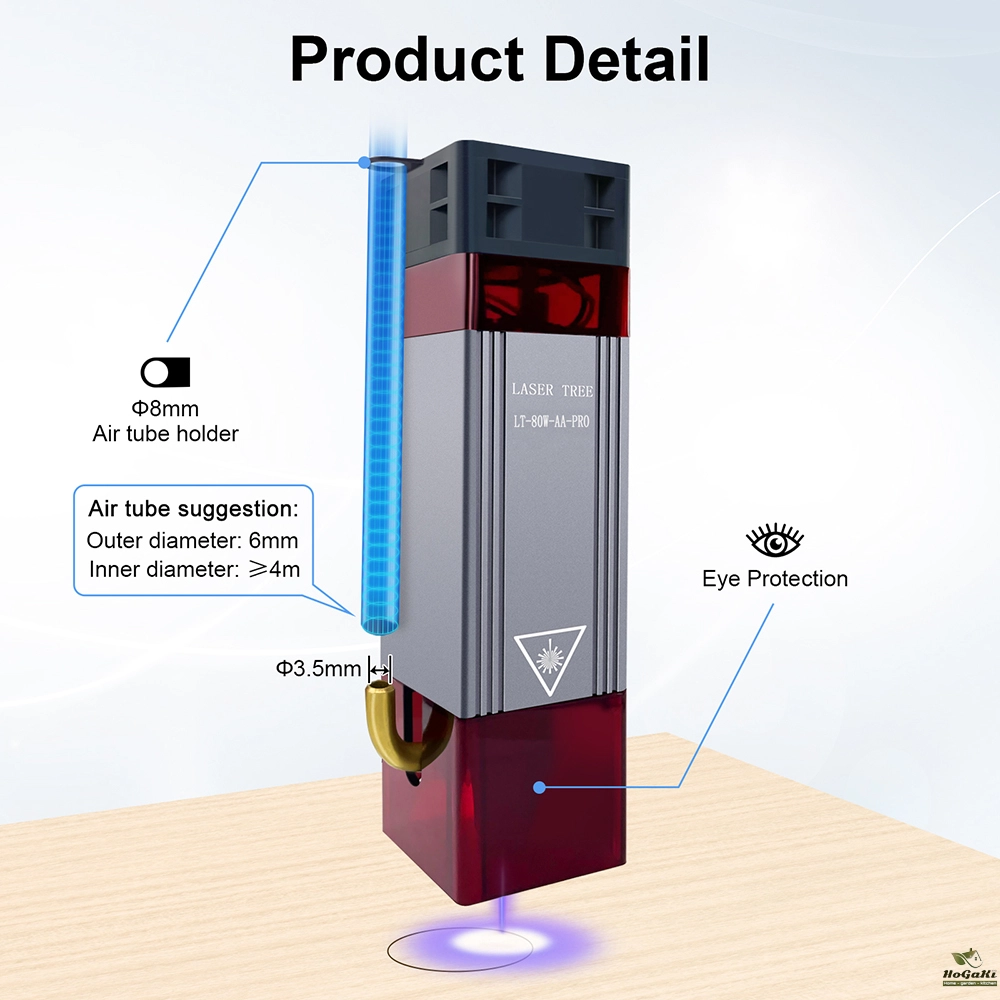

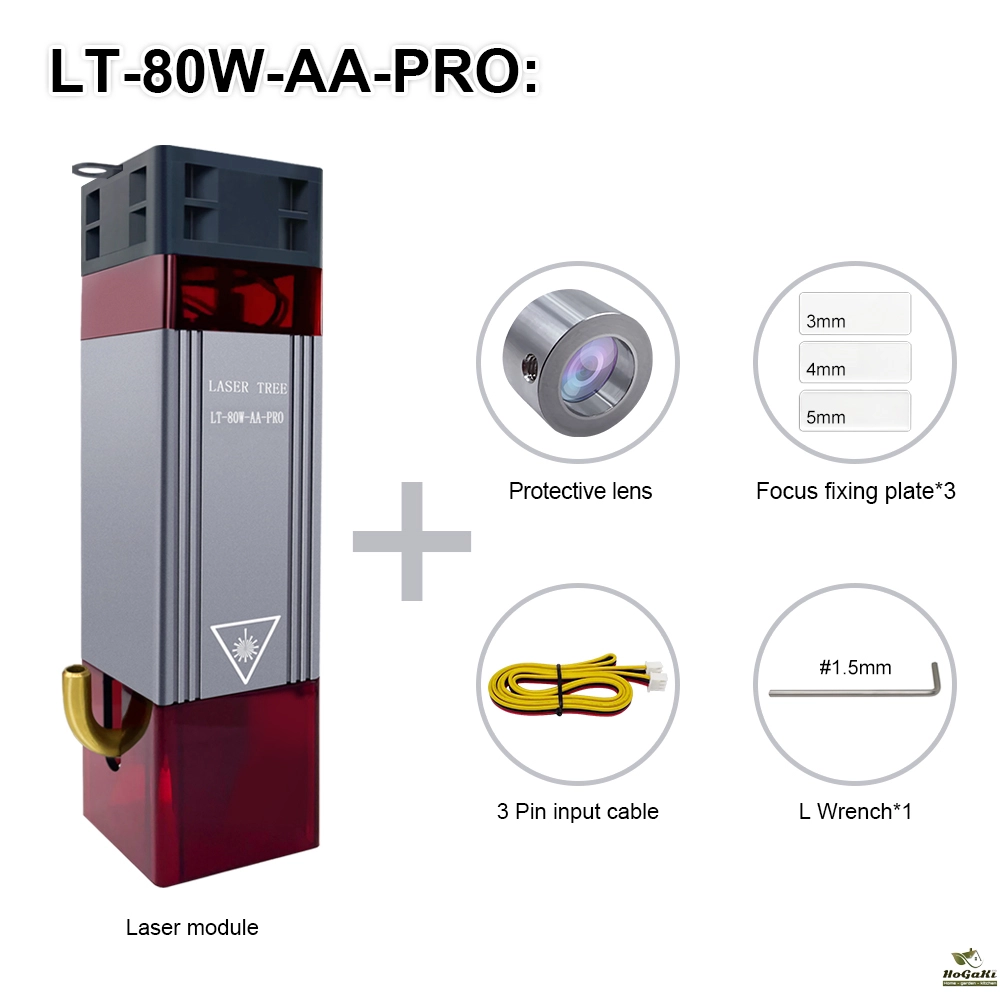

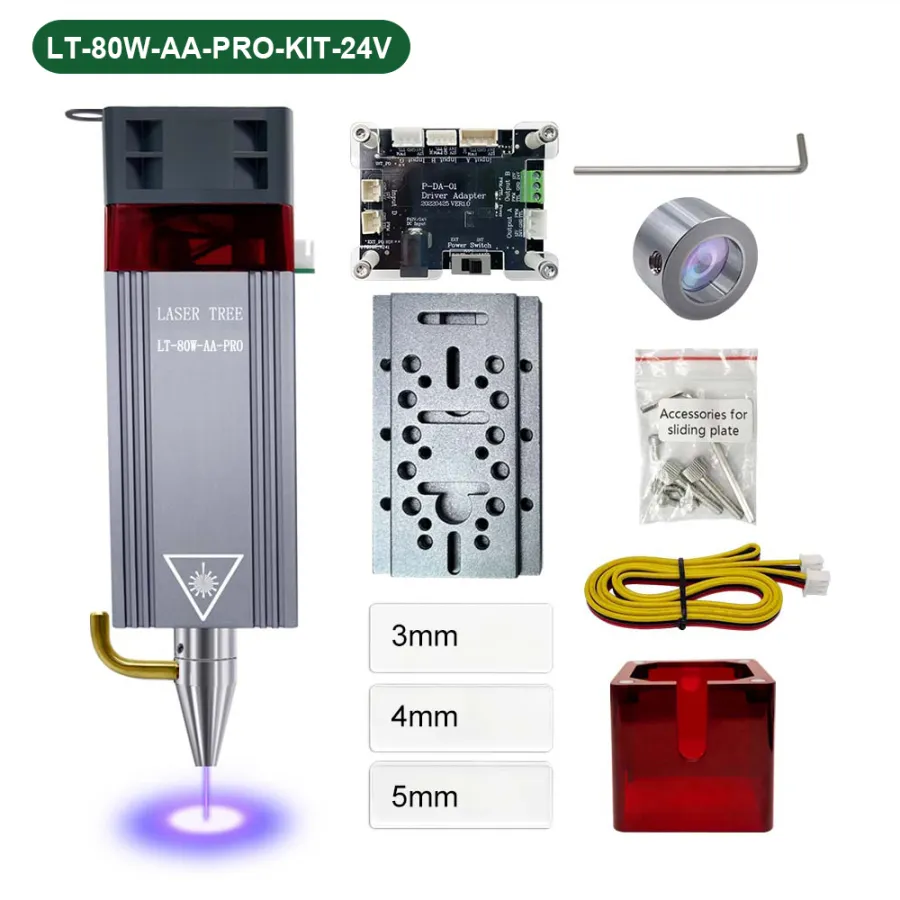

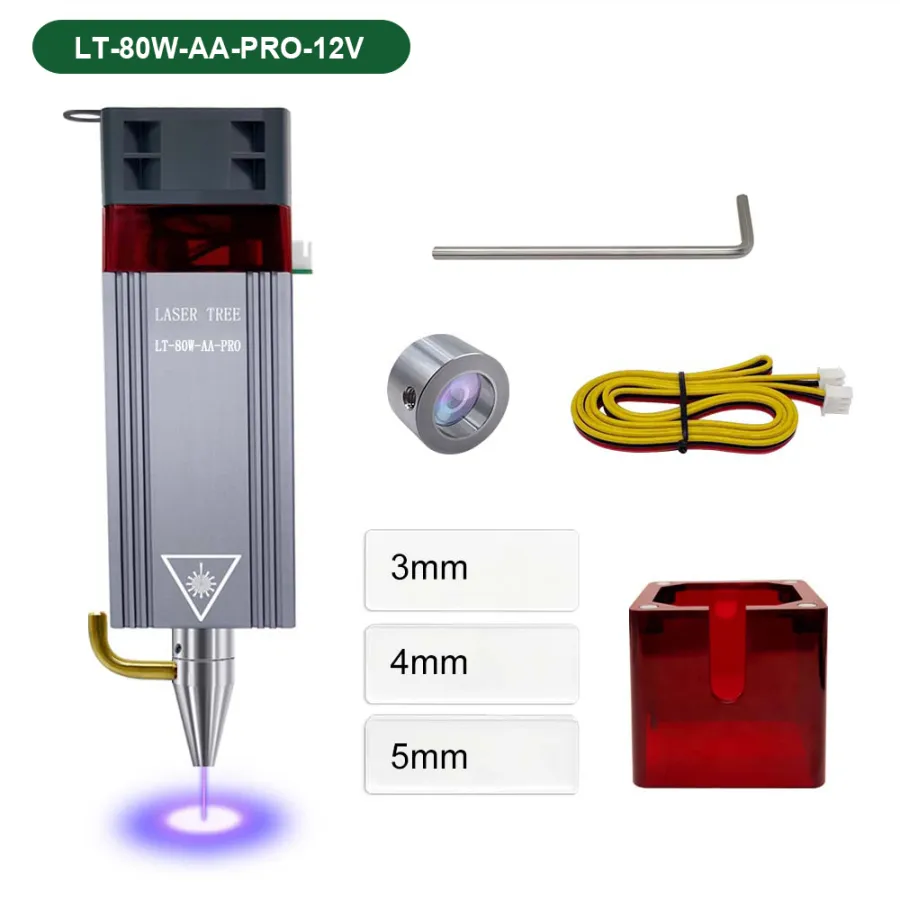

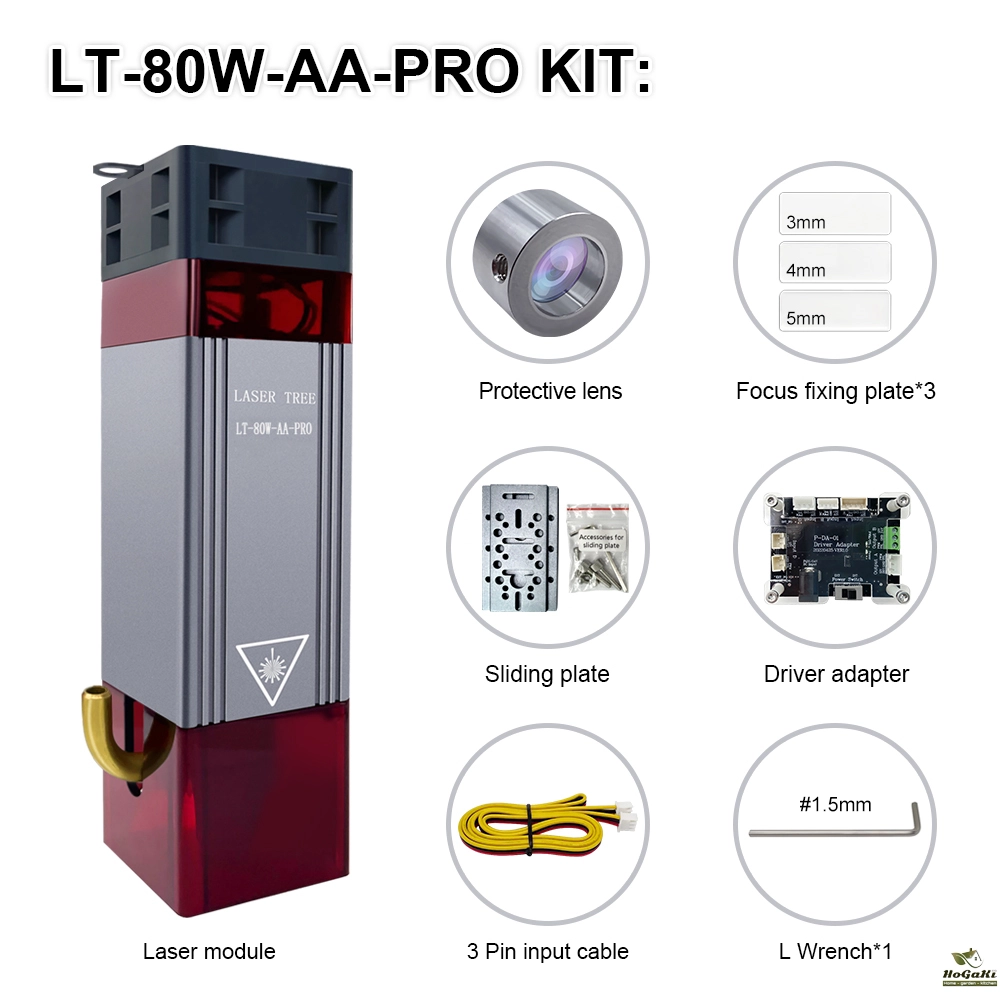

10W Laser Module: LT-80W-AA-PRO


Product Features

1. High Power Laser Module--- 2-Beam compression technology, 10W optical power laser module

2. Powerful Cutting Ability

Cut 8mm bass plywood:  120mm/min,  100% power,  by one pass

Cut 5mm black acrylic:    50mm/min,    100% power,  by one pass

Cut 5mm MDF:               150mm/min,   100% power,  by 2 passes

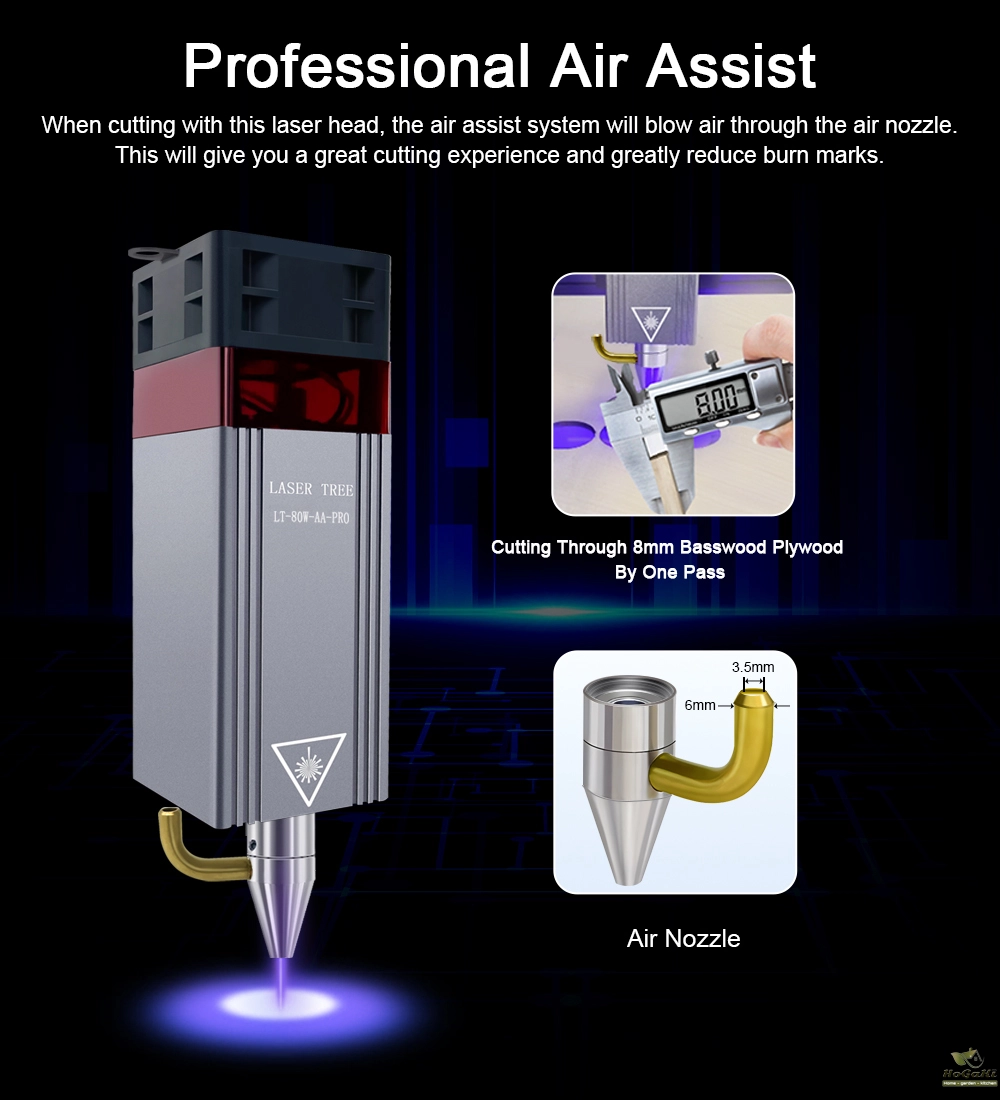

3. Professional Air Assist--- Blowing through the air nozzle to get clean-cut edges, improve cutting performance


4. Super Fast Engraving Speed--- ultra-fast engravingon stainless steel-30mm/s


5. Widely Compatibility--- Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

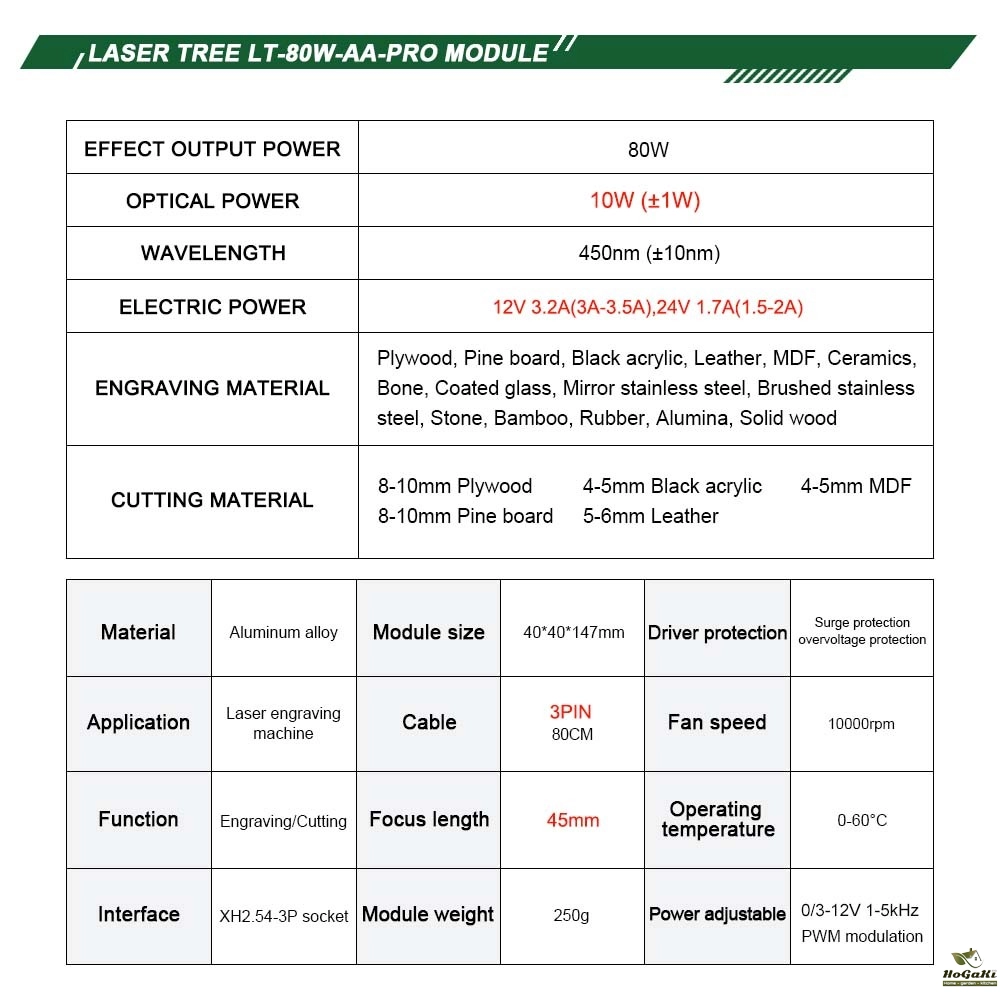

Specification:

Material: aluminum alloy

Optical Power：10W (±1W)

Wavelength: 450nm (±10nm)

Light color: blue

Focus Length: 45mm

Spot form: Punctiform, fixed focus

Electric power: 12V 3.2A(3A-3.5A); 24V 1.7A(1.5A-2A)


PWM Modulation: 0/3-12V 0-5kHz TTL/PWM

Input port: XH2.54-3P socket

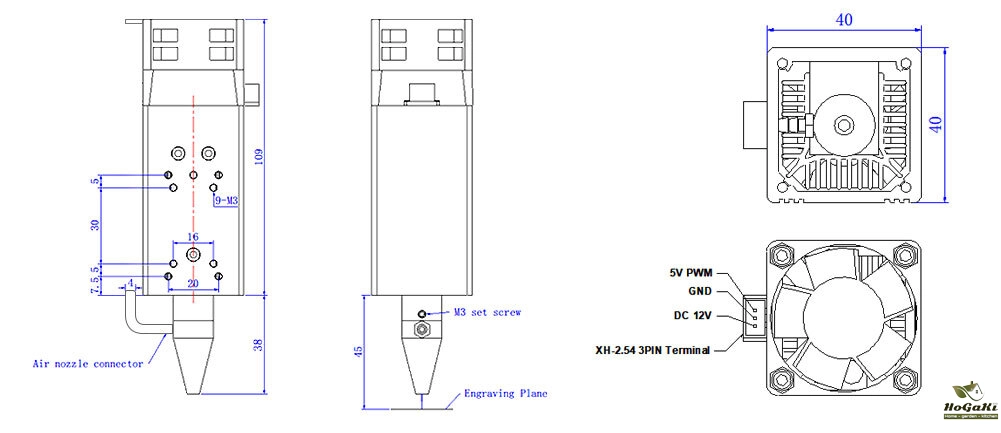

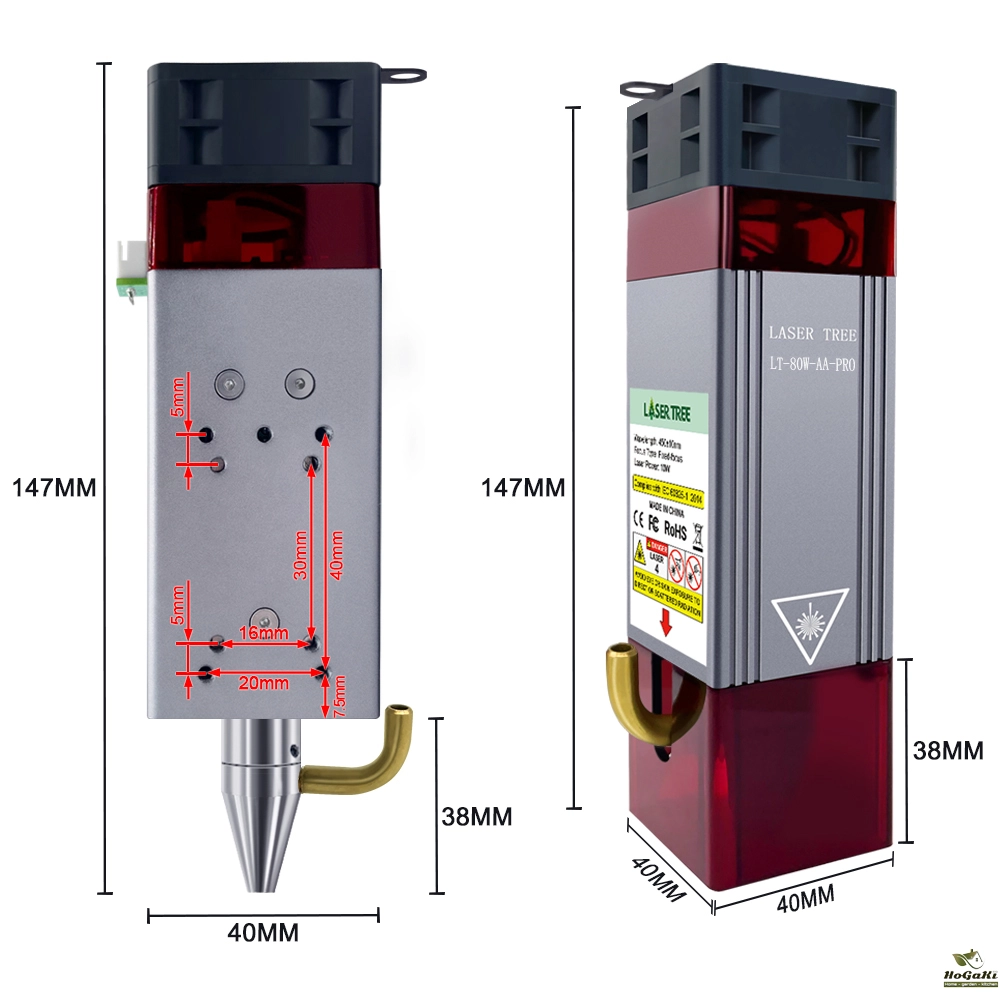

Item size: 40*40*147mm

Laser module net weight: 250g

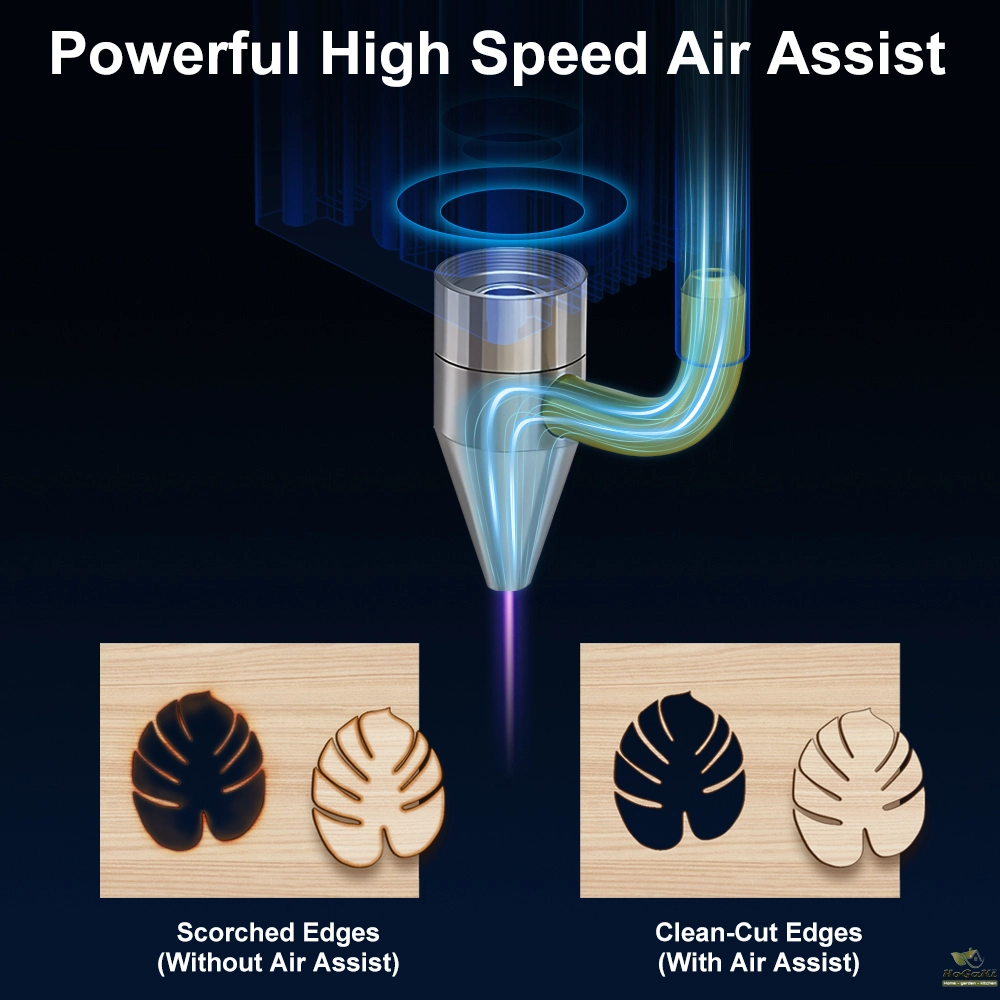

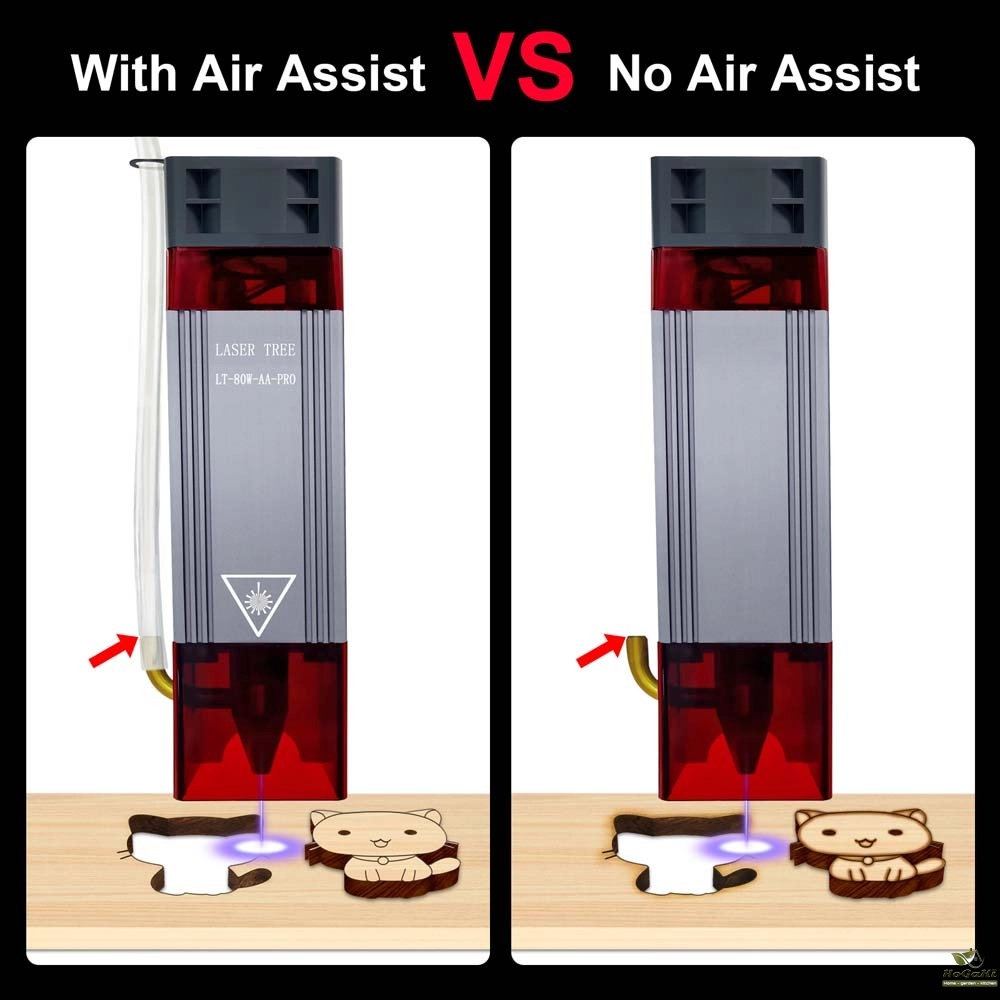

With Air Assist VS No Air Assist

Blowing through the air nozzle to get clean-cut edges, improve cutting performance
without Air Nozzle:  Scorched Edges
with Air Nozzle:  Clean-Cut Edges

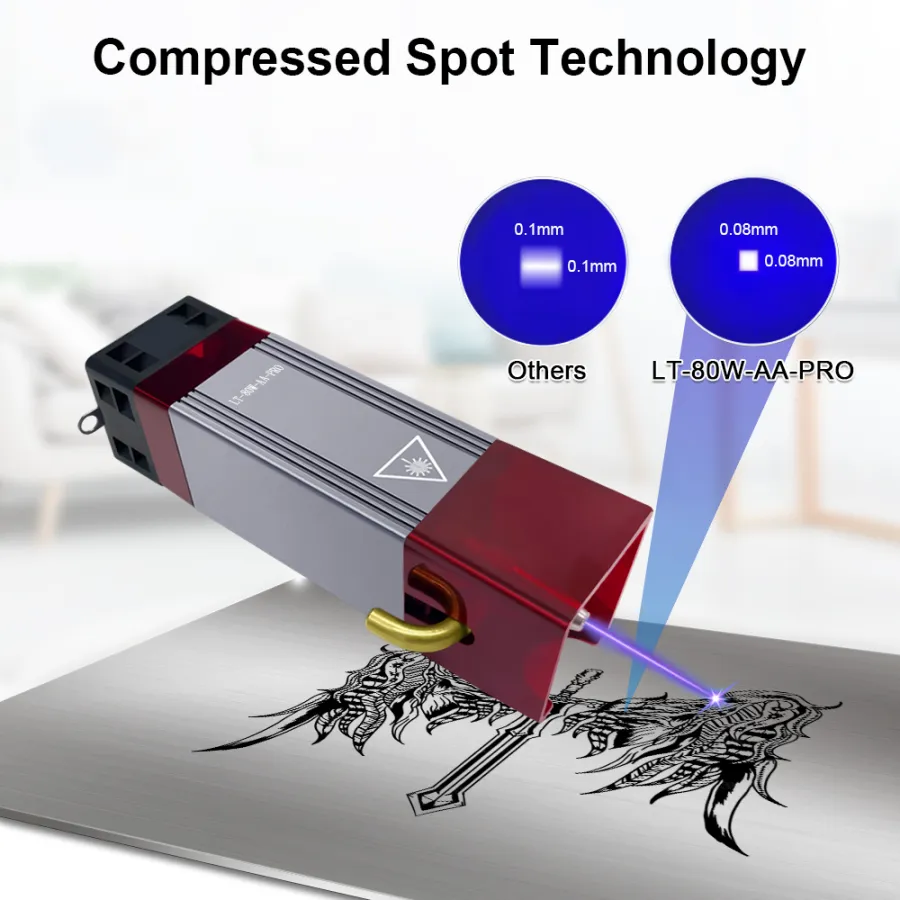

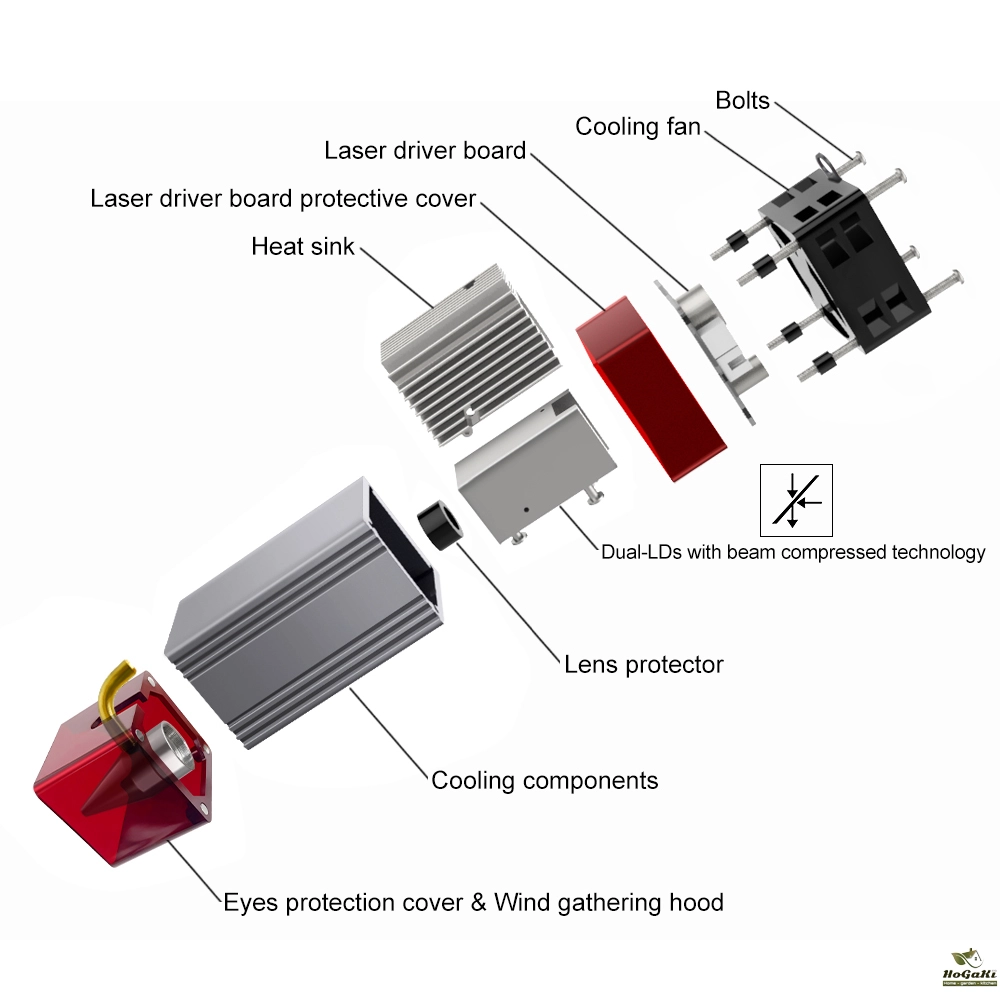

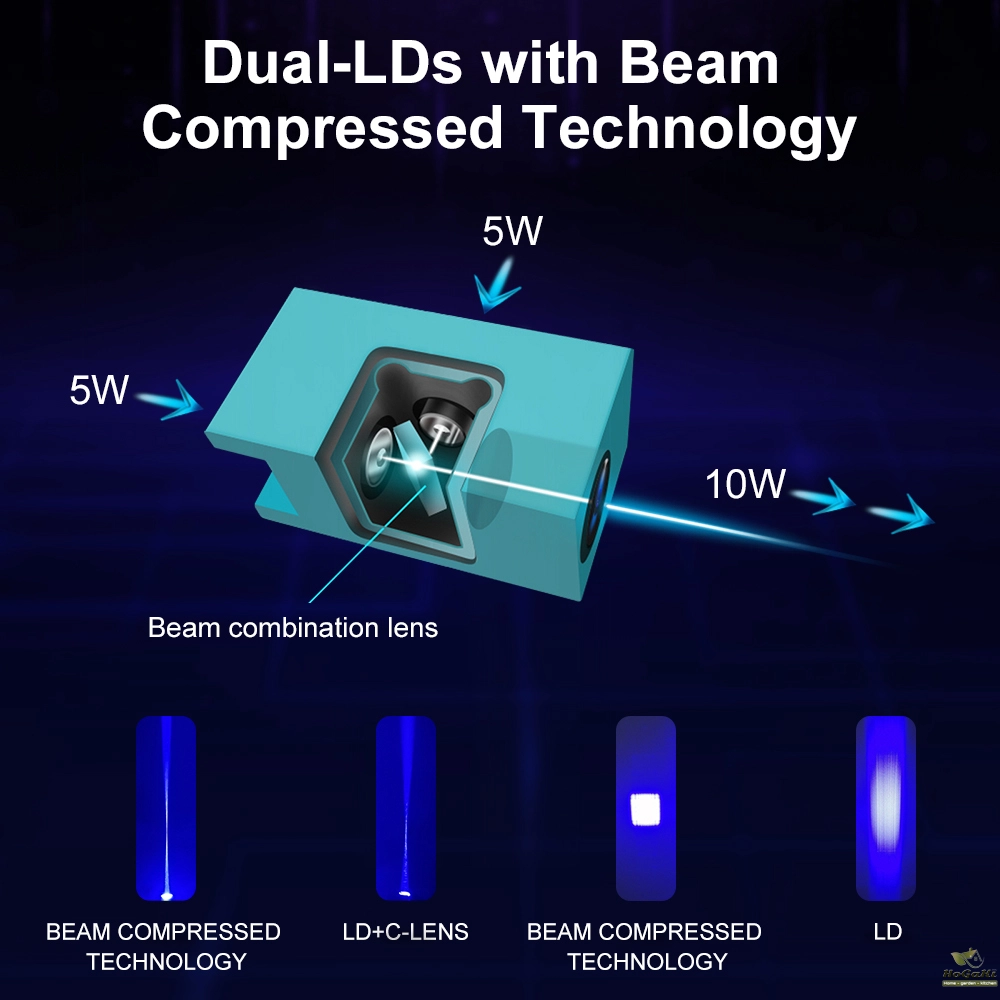

Dual-LDs with Beam Compressed Technology

One laser module has two built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

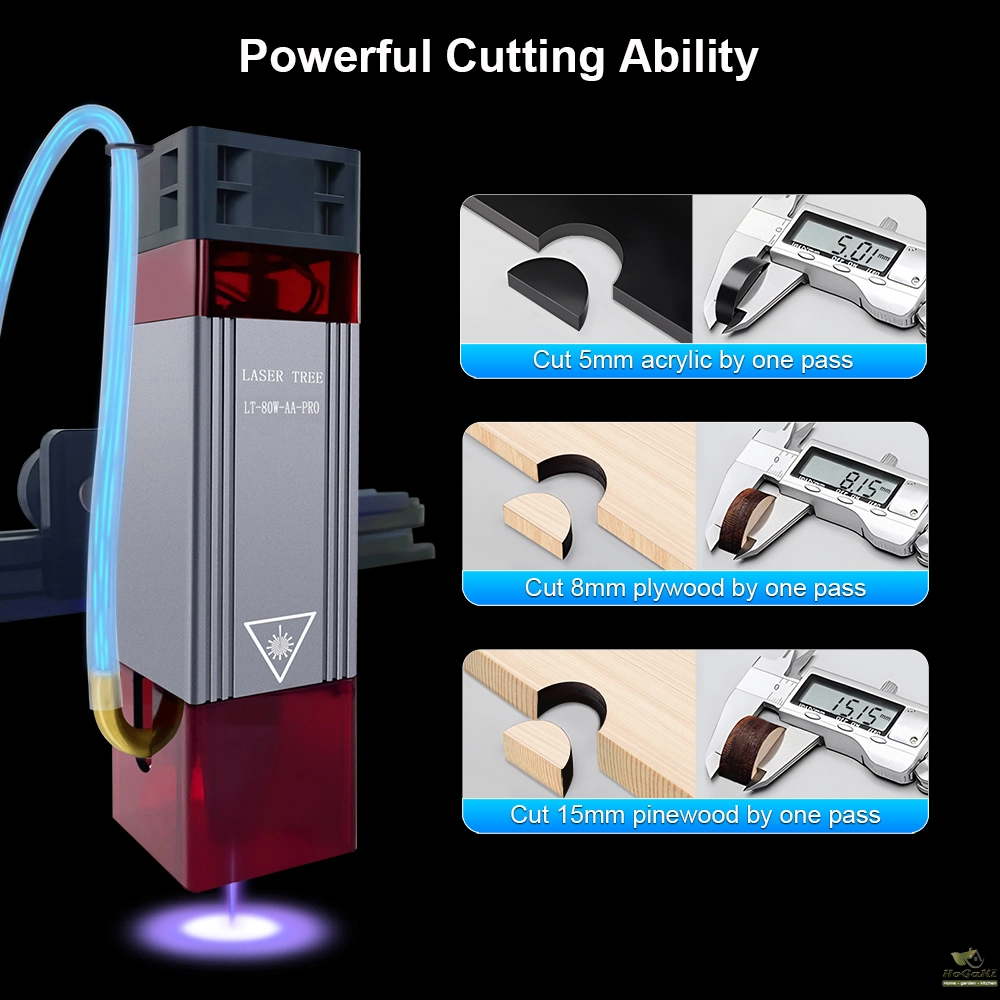

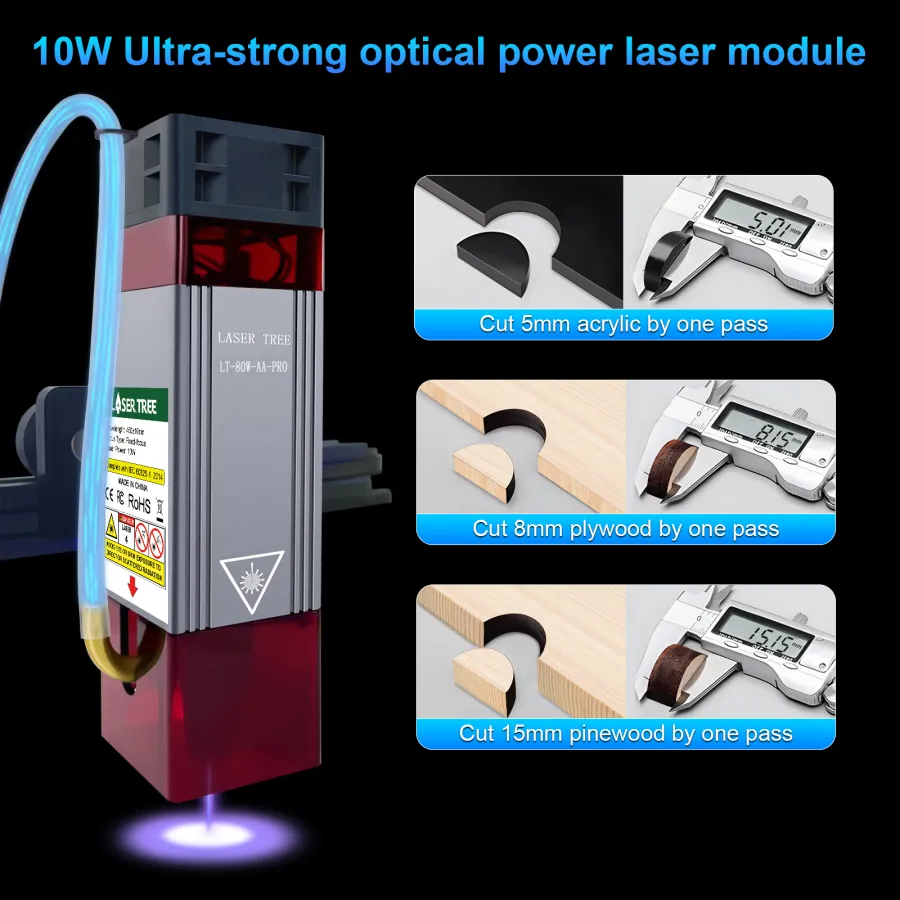

Powerful Cutting Ability

Cut 8mm bass plywood: 120mm/min,100% power,by one pass
Cut 5mm black acrylic: 50mm/min,100% power,by one pass

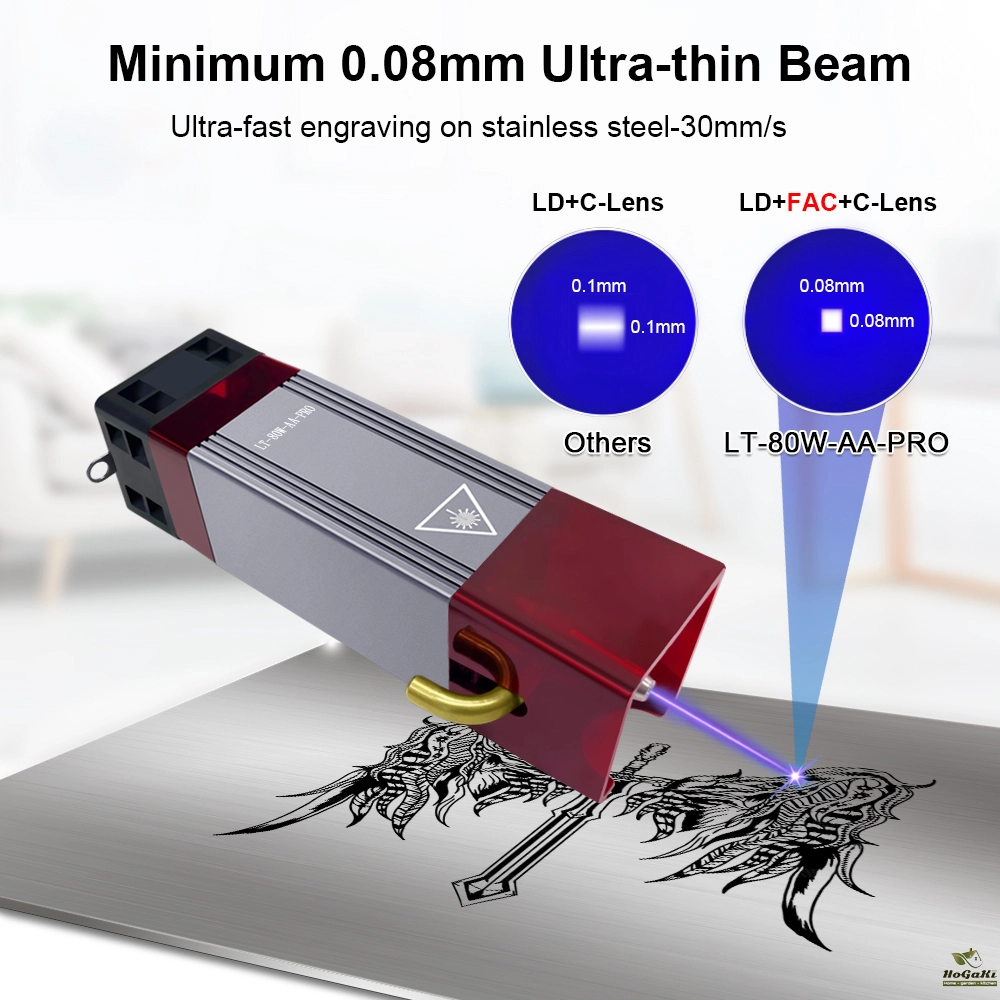

Cut 5mm MDF: 150mm/min,100% power,by 2 passesMinimum 0.08mm Ultra-thin Beam

Ultra-fast engraving on stainless steel-30mm/s

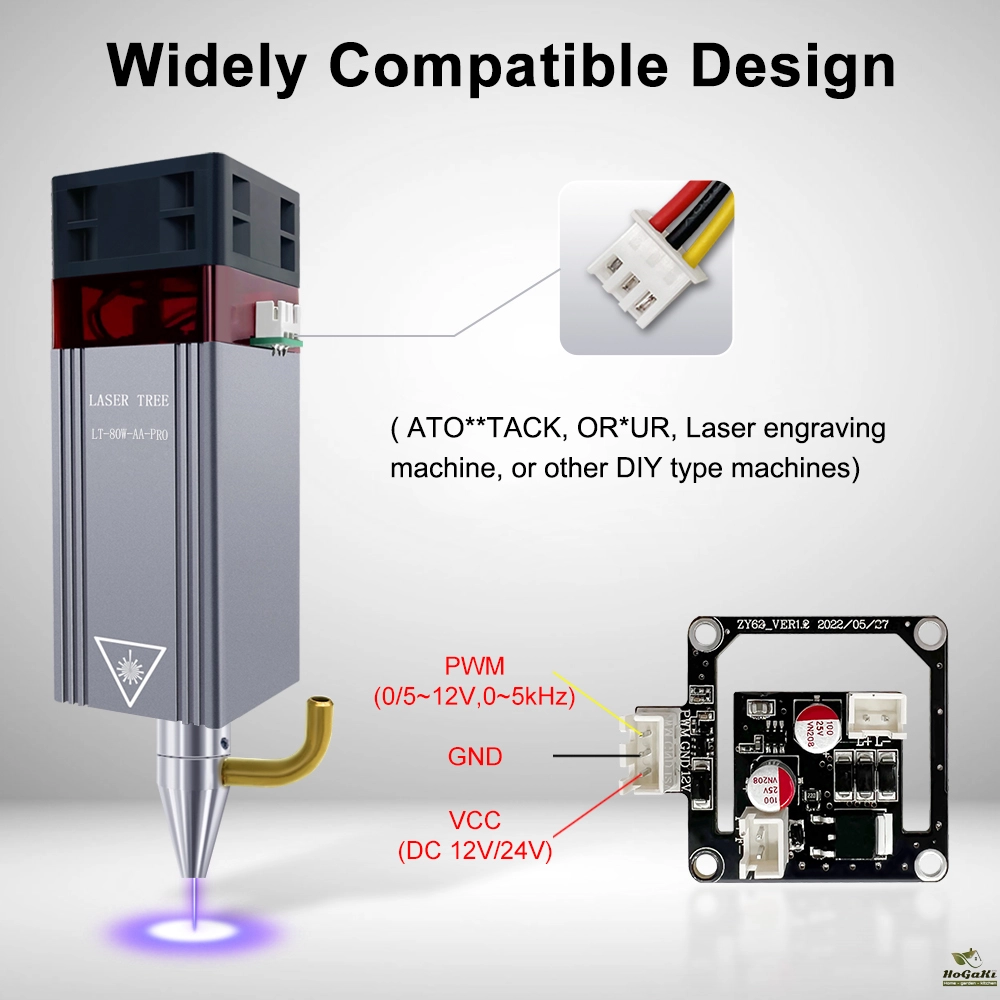

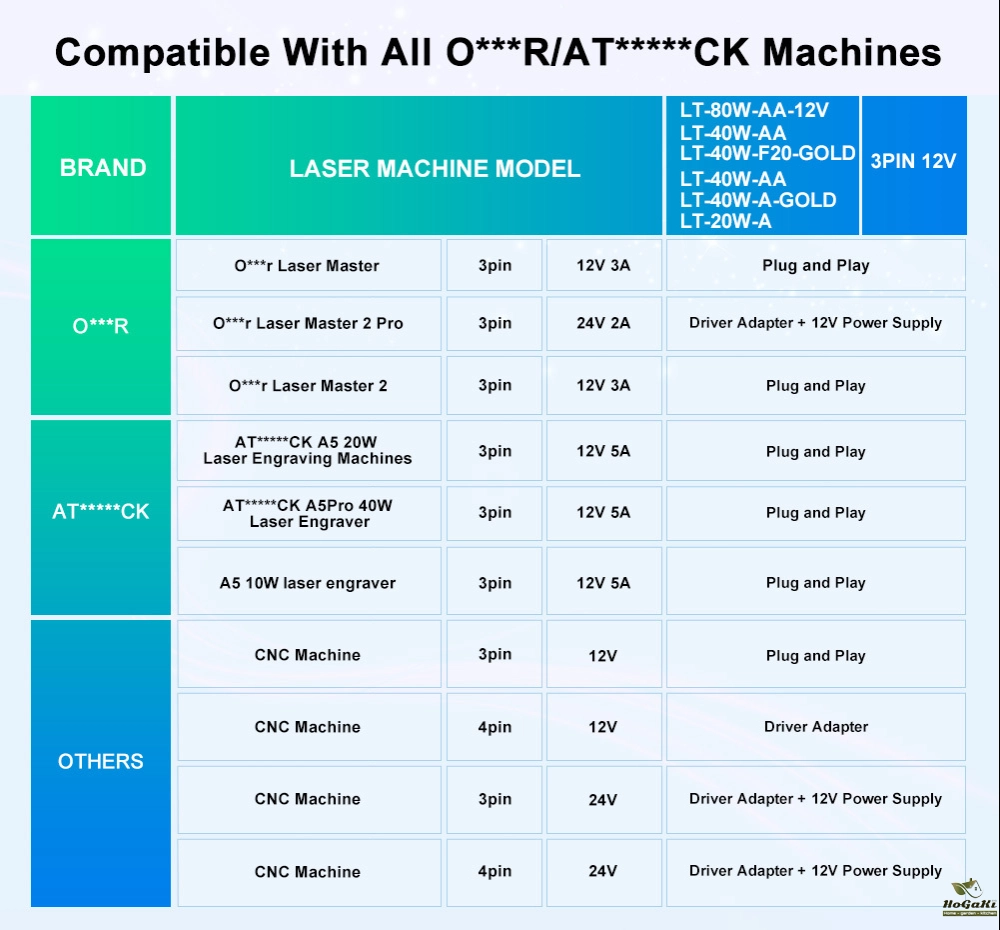

Widely Compatible Design

Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines

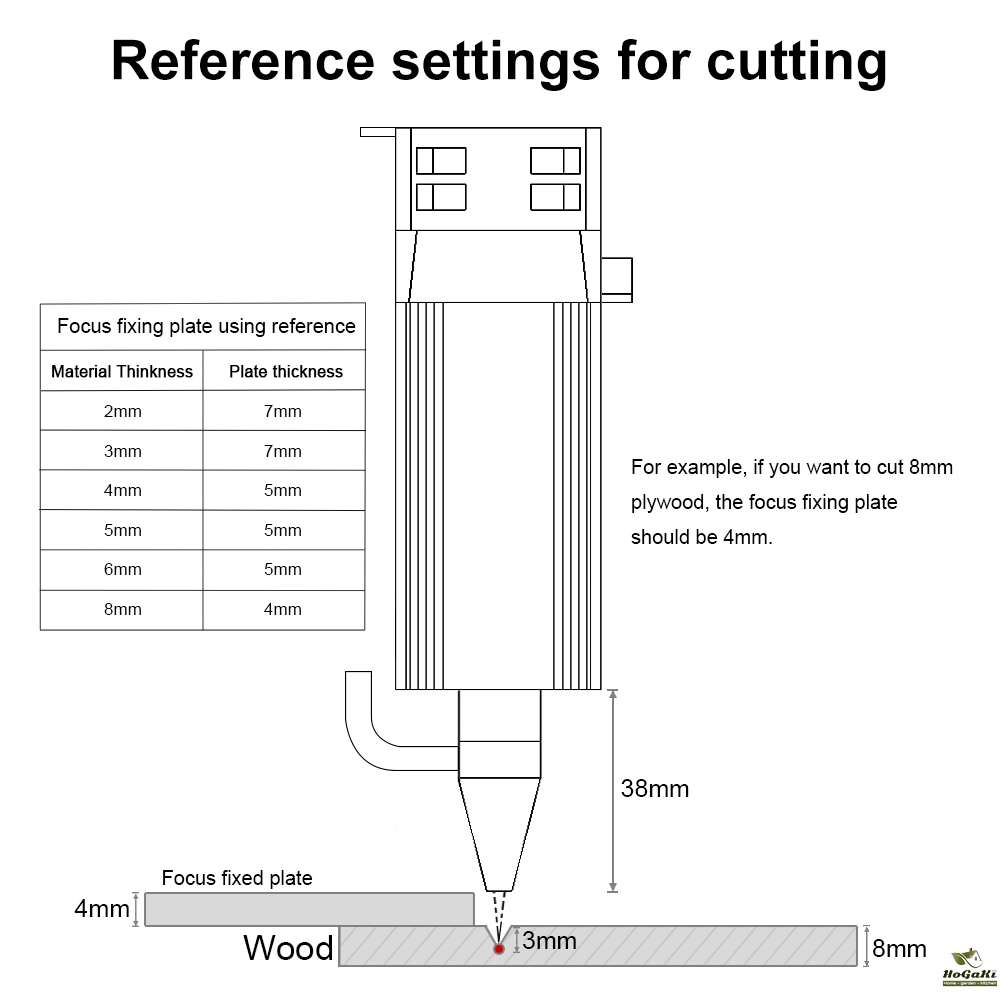

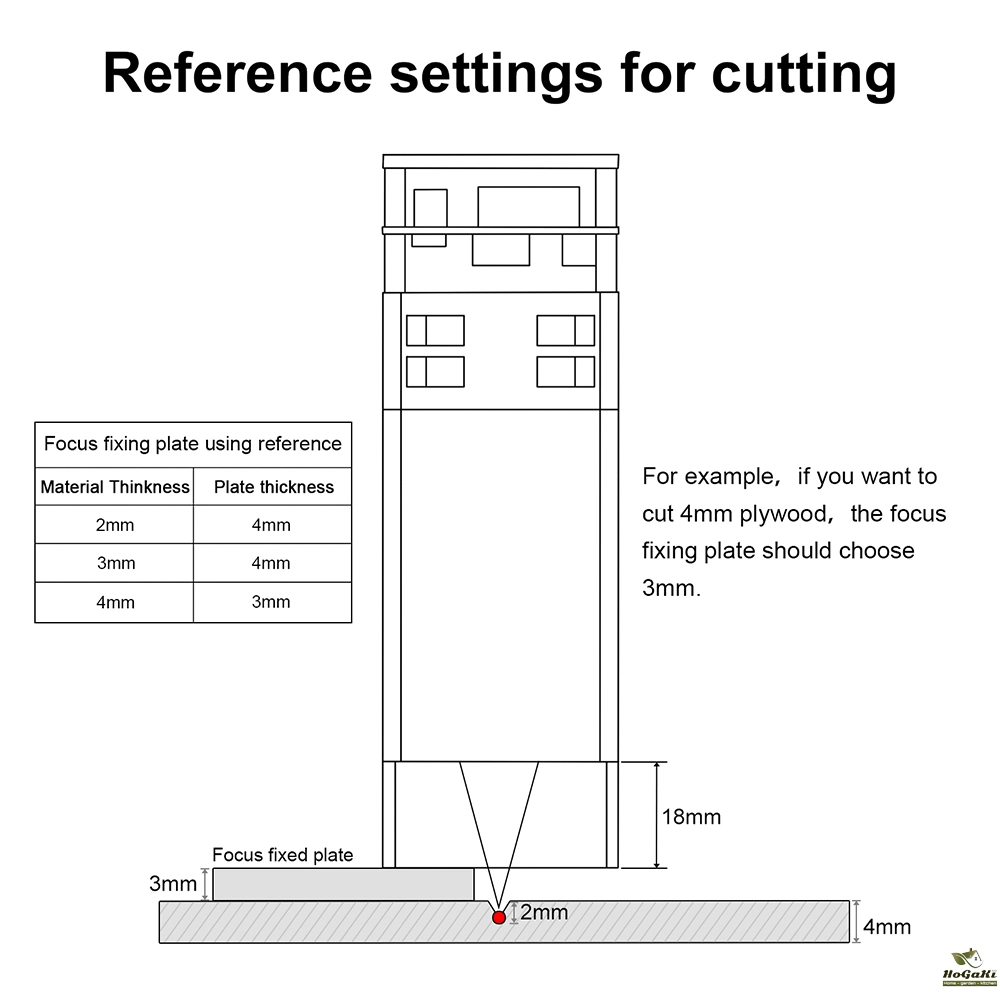

Reference Settings for Cutting

Reference Settings for Engraving

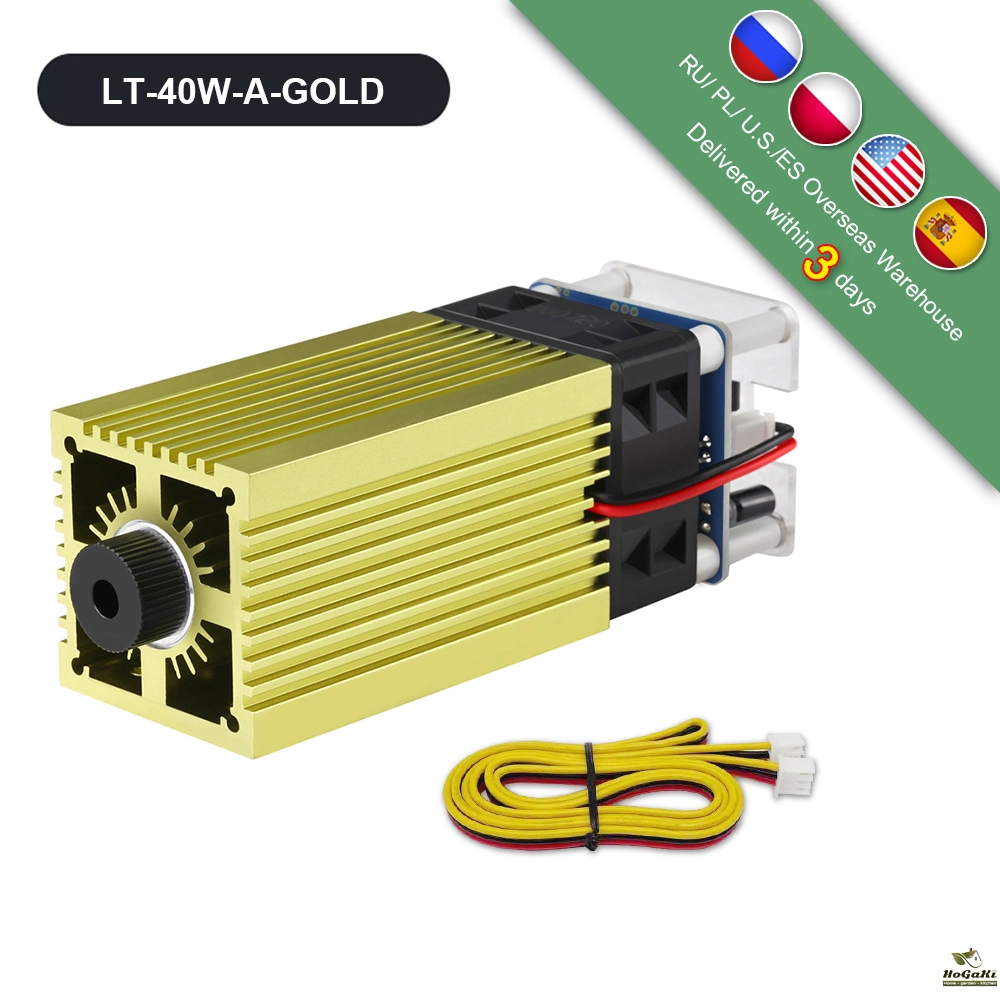

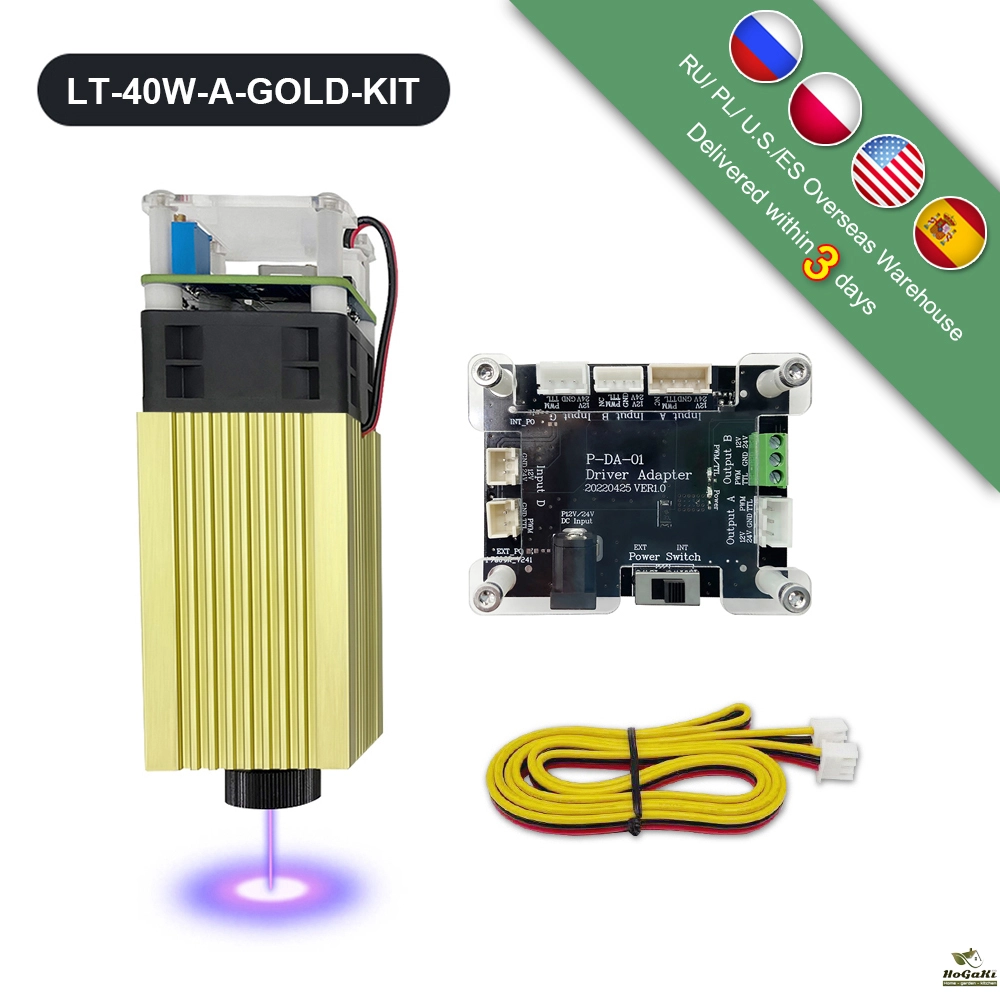

5W Laser Module: LT-40W-A-GOLD

450nm 40W Adjustable Focus Blue Laser Module


Specifications:

Effect Laser Power: 40W

Optical Output Power: 5W

Material: Aluminum Alloy+Plastic

Light Color: Blue

Wave Length: 450nm

Facula Form: Punctiform, Adjustable Focus

Input Voltage: 12V 1.5-2A

Modulation: 0/5-12V TTL/PWM

Item Size: 40x40x120mm

Item Weight: 225g

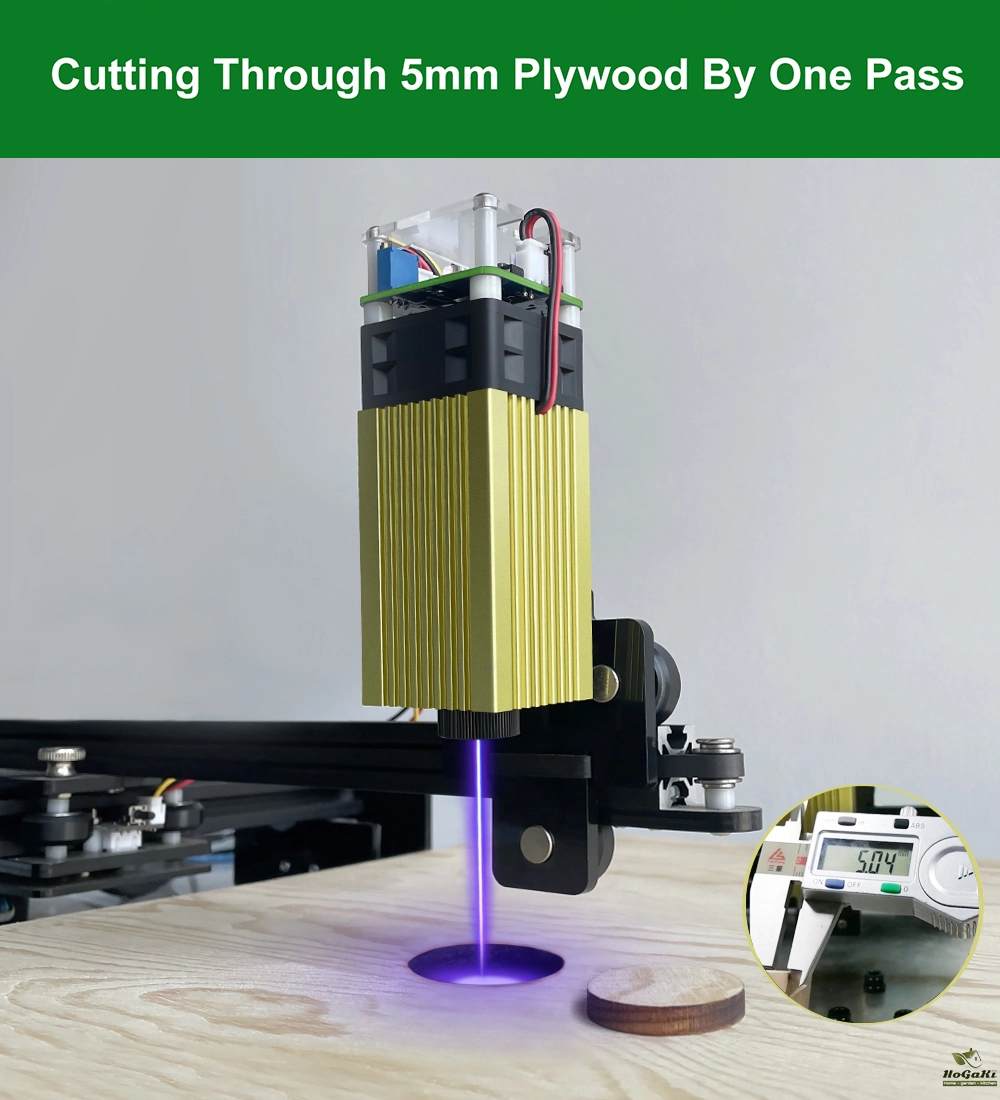

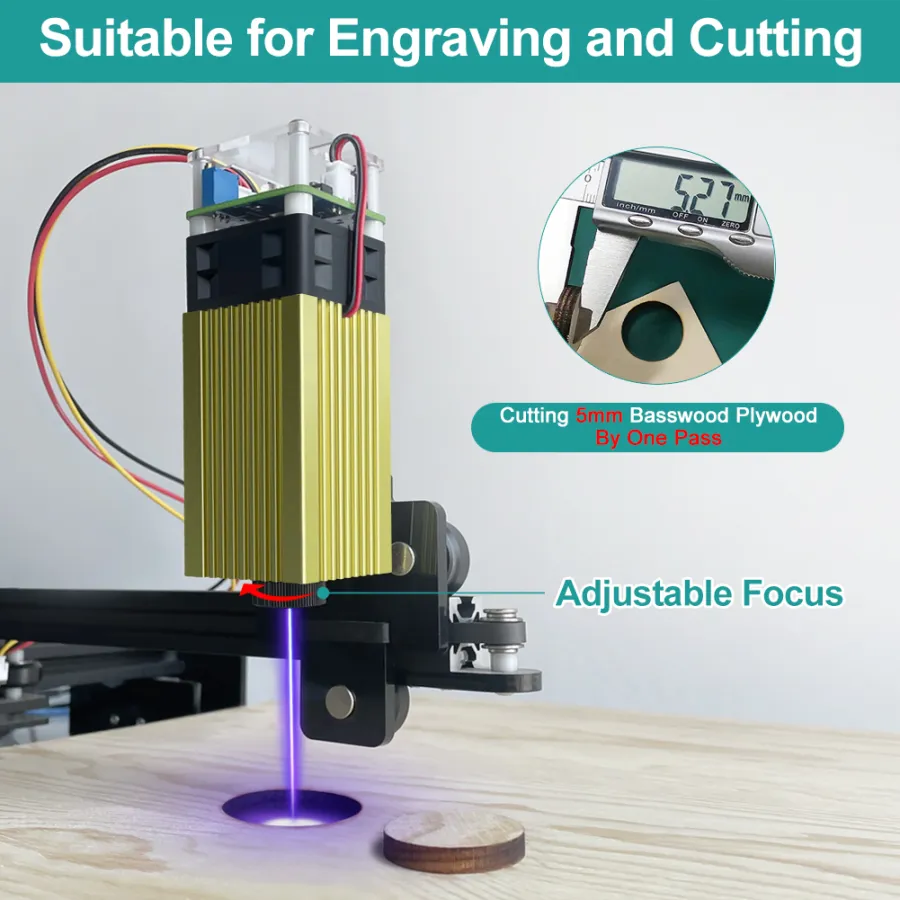

Cutting Through 5mm Plywood By One Pass

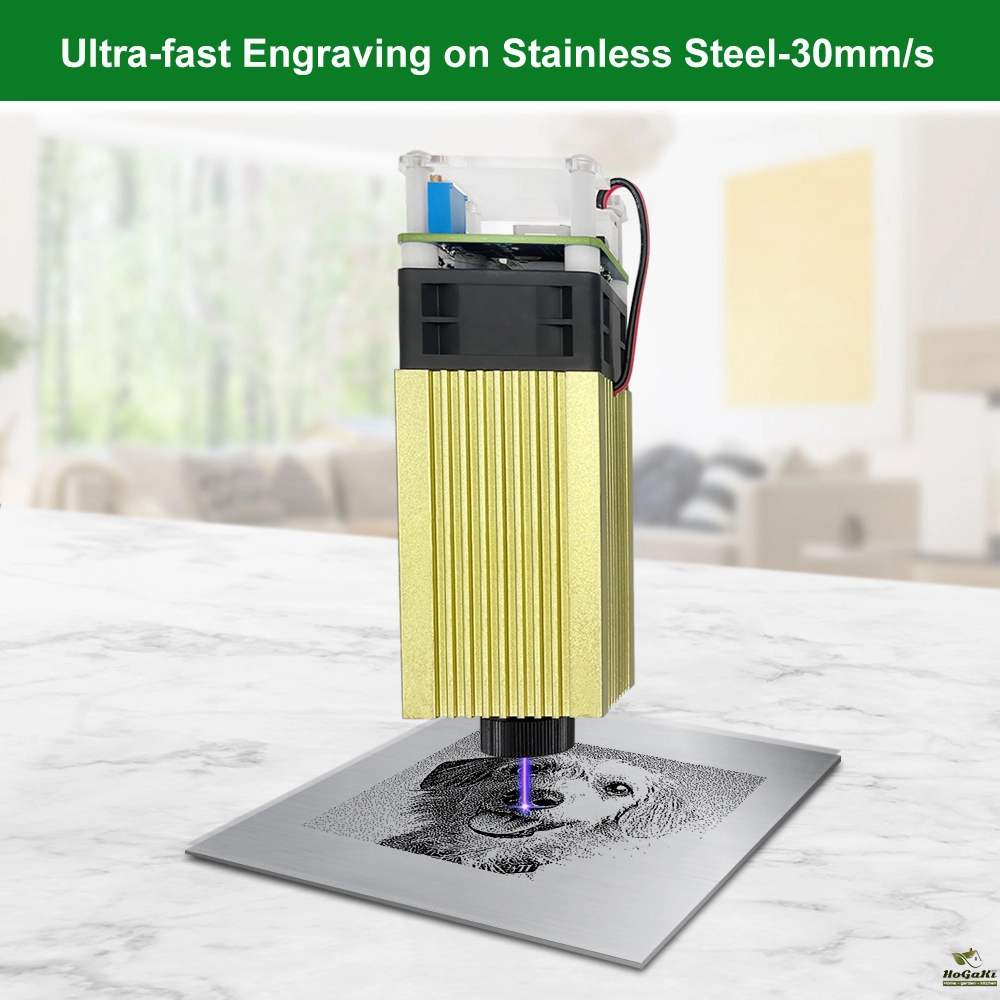

Ultra-fast Engraving on Stainless Steel-30mm/s

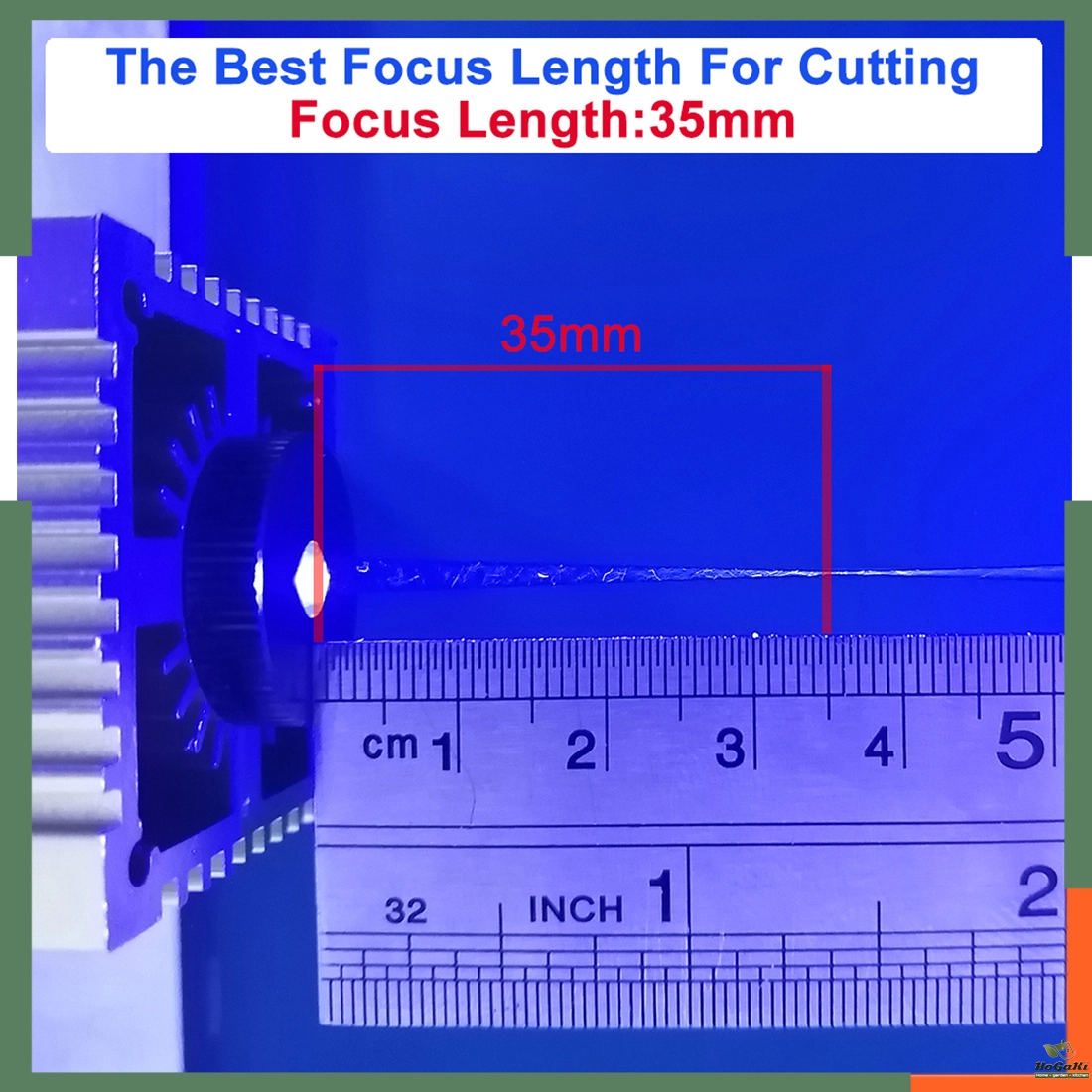

The Best Focus Length For Cutting Focus Length:35mm

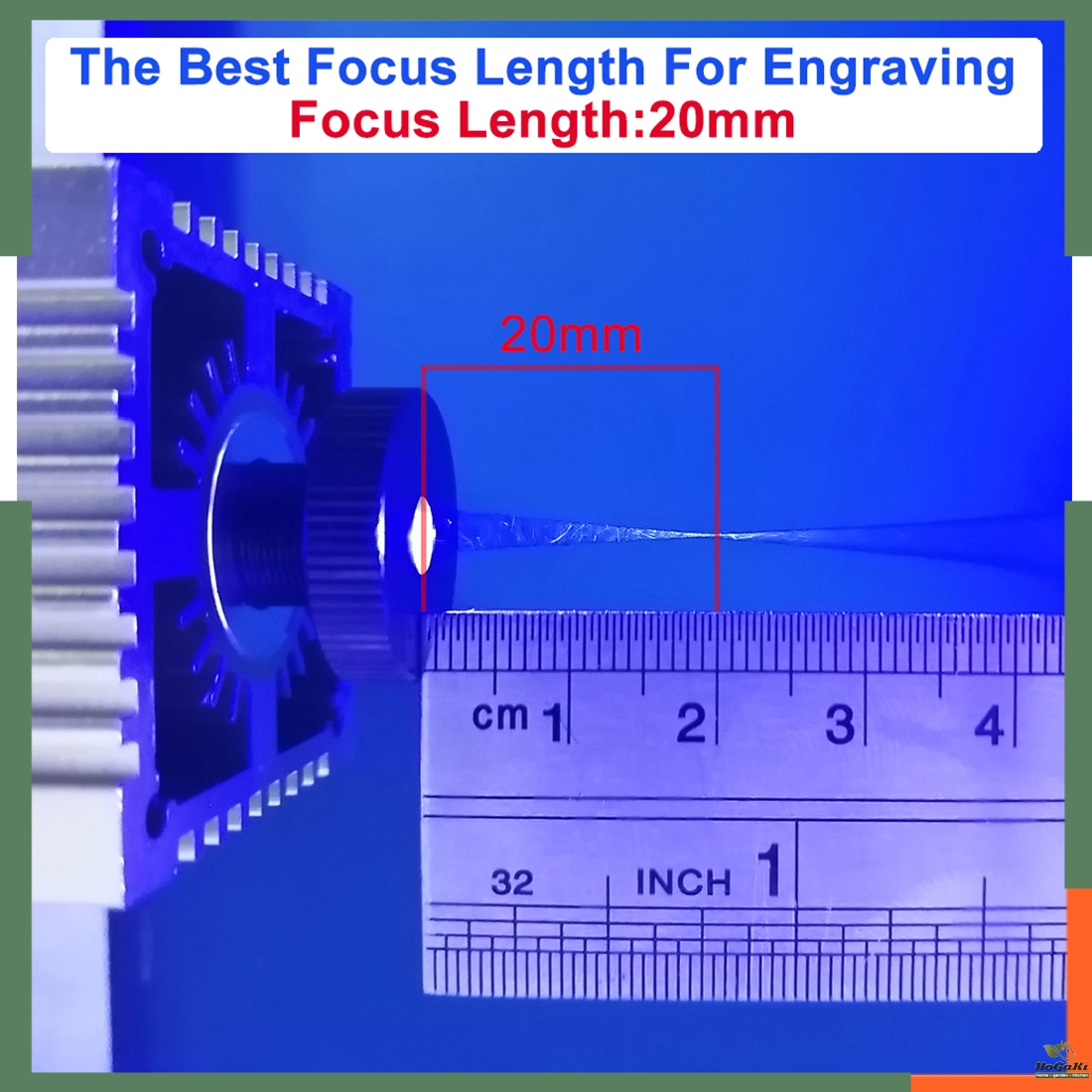

The Best Focus Length For Engraving Focus Length:20mm

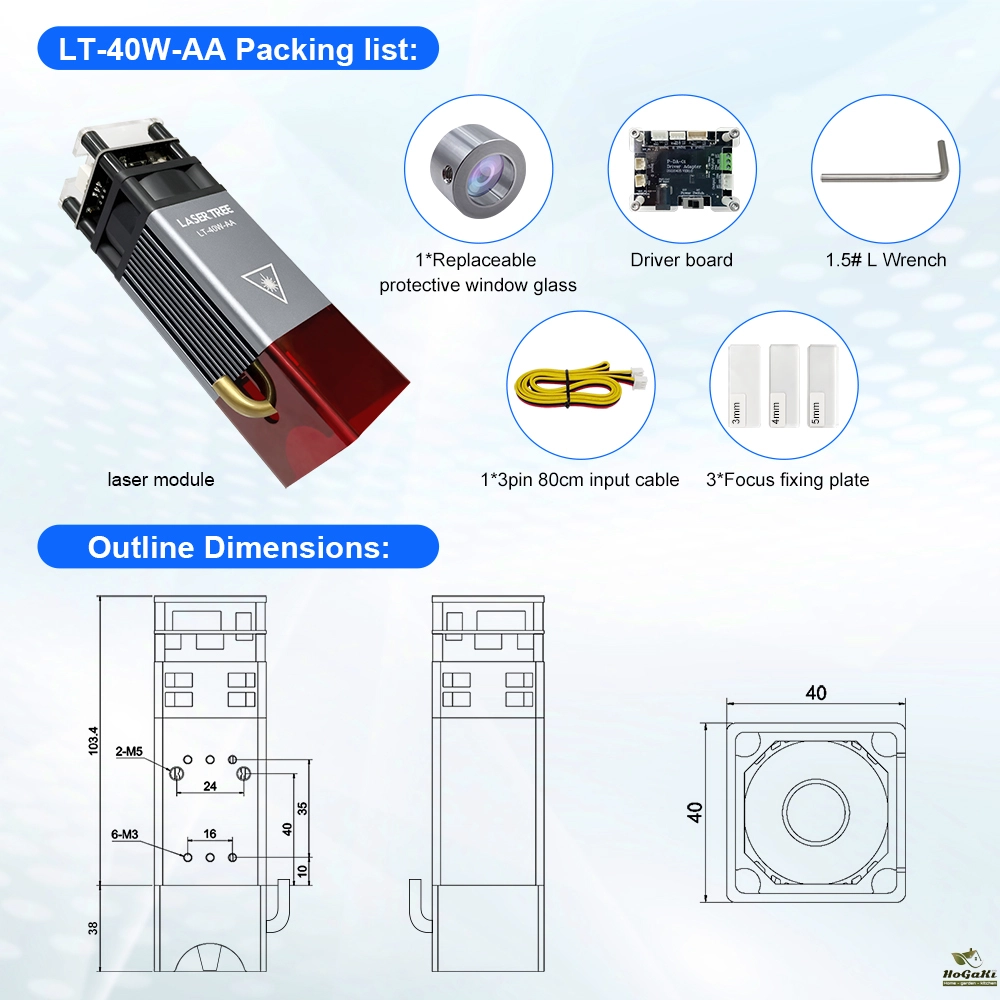

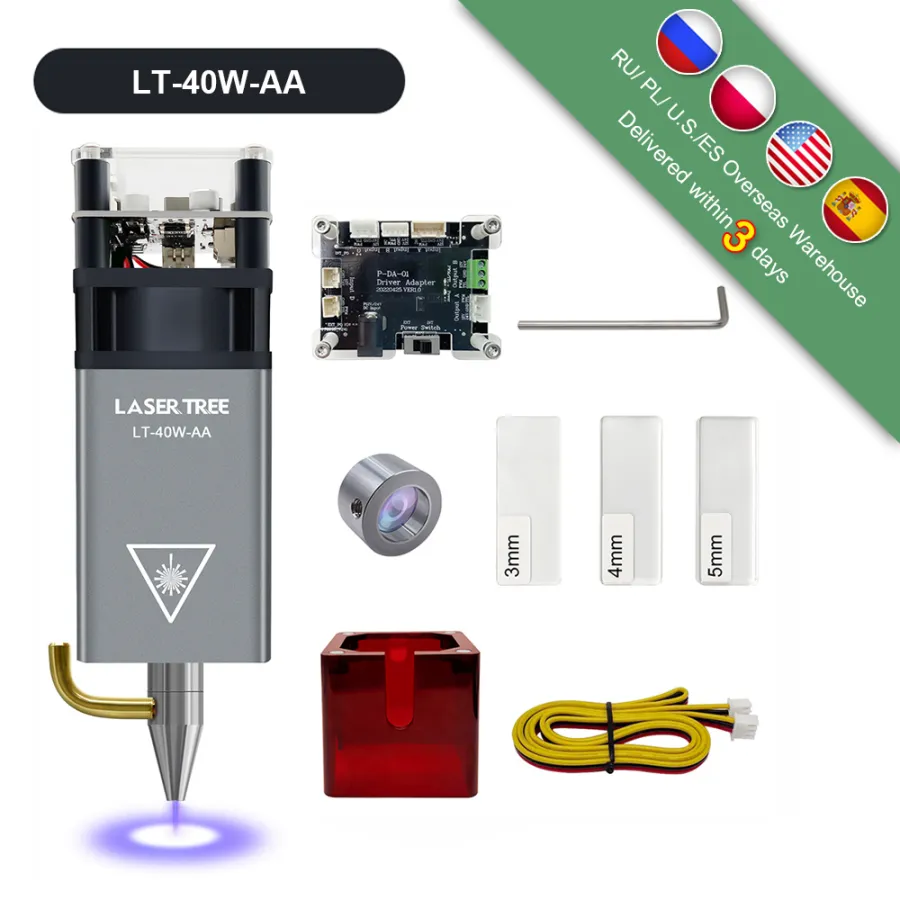

5W Laser Module: LT-40W-AA

LT-40W-AA, as a 5W laser module with air assist, can effectively get clean-cut edges, improve cutting performance and increase the service life of lens.

Features:

1. Optical power is 5W (±0.5W), electrical power is 12V (1.5A-2A).
2. It can cut through 4mm plywood by one pass, the speed is 190mm/min, 100% power.
3. High precision engraving resolution 0.08mm.
4. With air assist, when performing laser cutting operations, the air assist system blows air through the air nozzle to remove dust and debris to improve cutting performance and reduce burn marks, and can also prevent the dust and debris generated during the cutting process from contaminating the optical lens and lens surface , thereby increasing the service life of the lens.

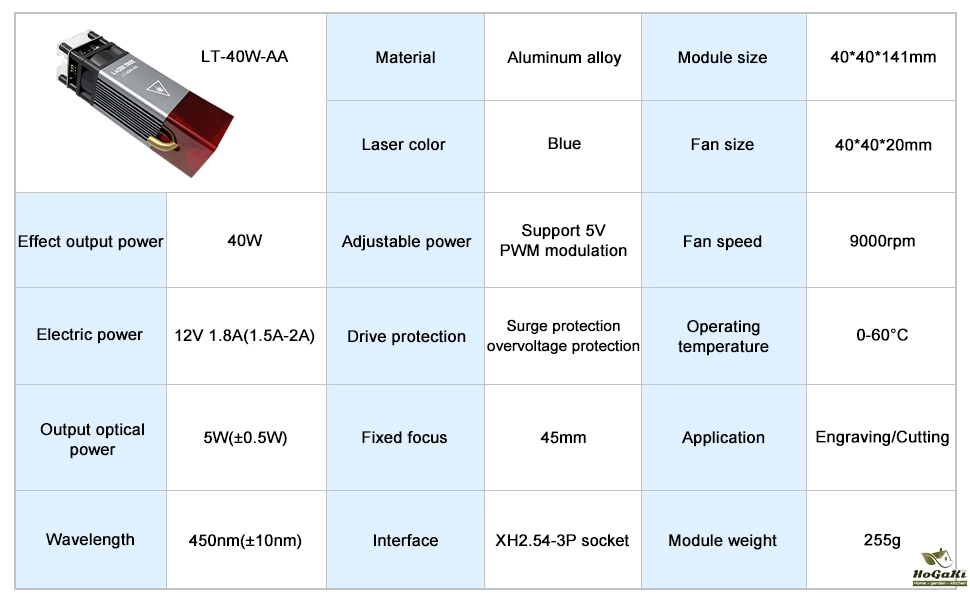

Specification:
Output optical power: 5W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V 1.8A(1.5A-2A)
Interface: XH2.54-3PIN socket
Modulation: 0/3-12V 0-5kHz TTL/PWM (0V off, 3-12V on)
Item size: 40*40*141.4mm
Product weight: 255g

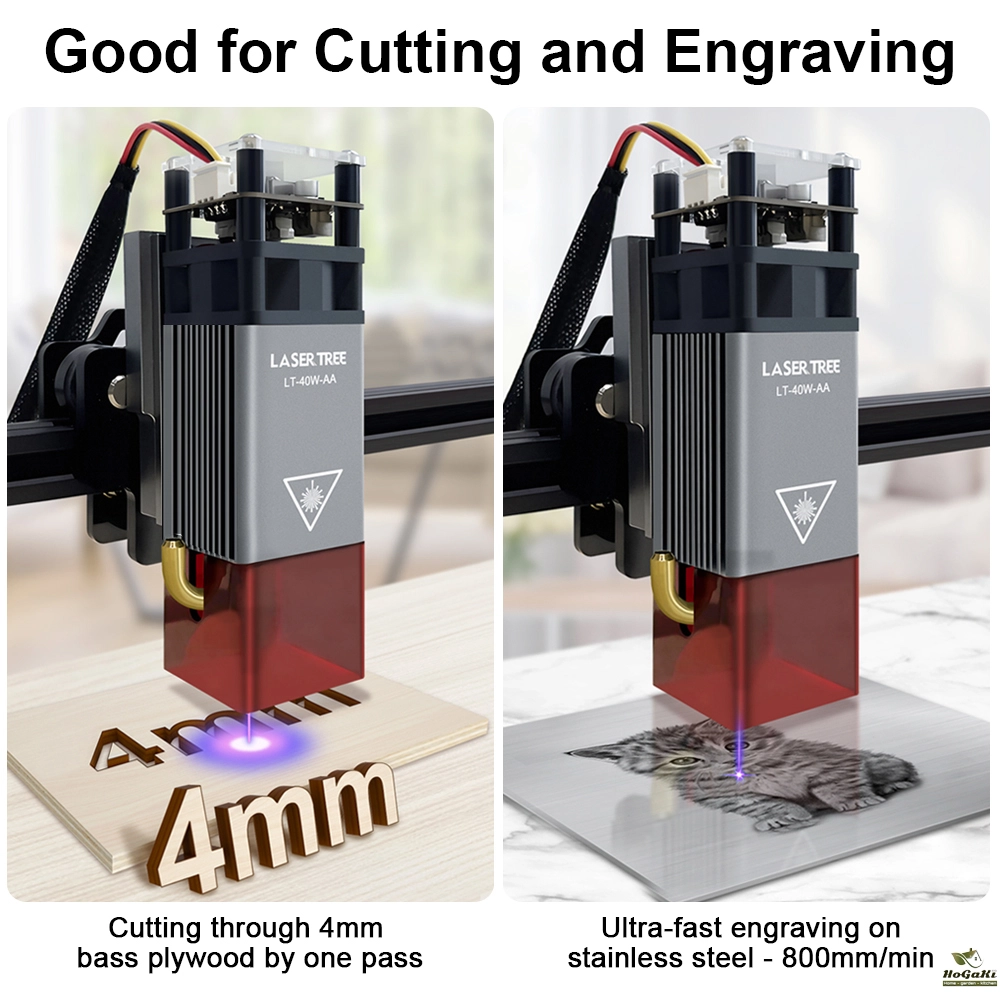

Good for Cutting and Engraving

Cutting through 4mm bass plywood by one pass

Ultra-fast engraving onstainless steel -800mm/min

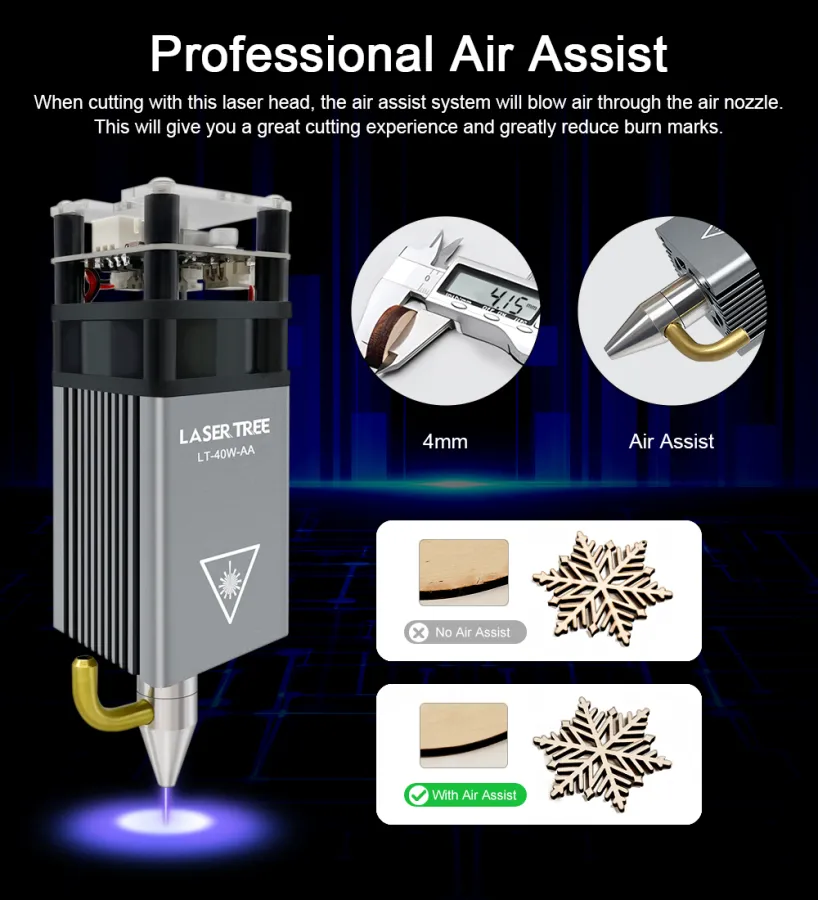

Professional Air Assist

Magnetic Eye Protection Cover

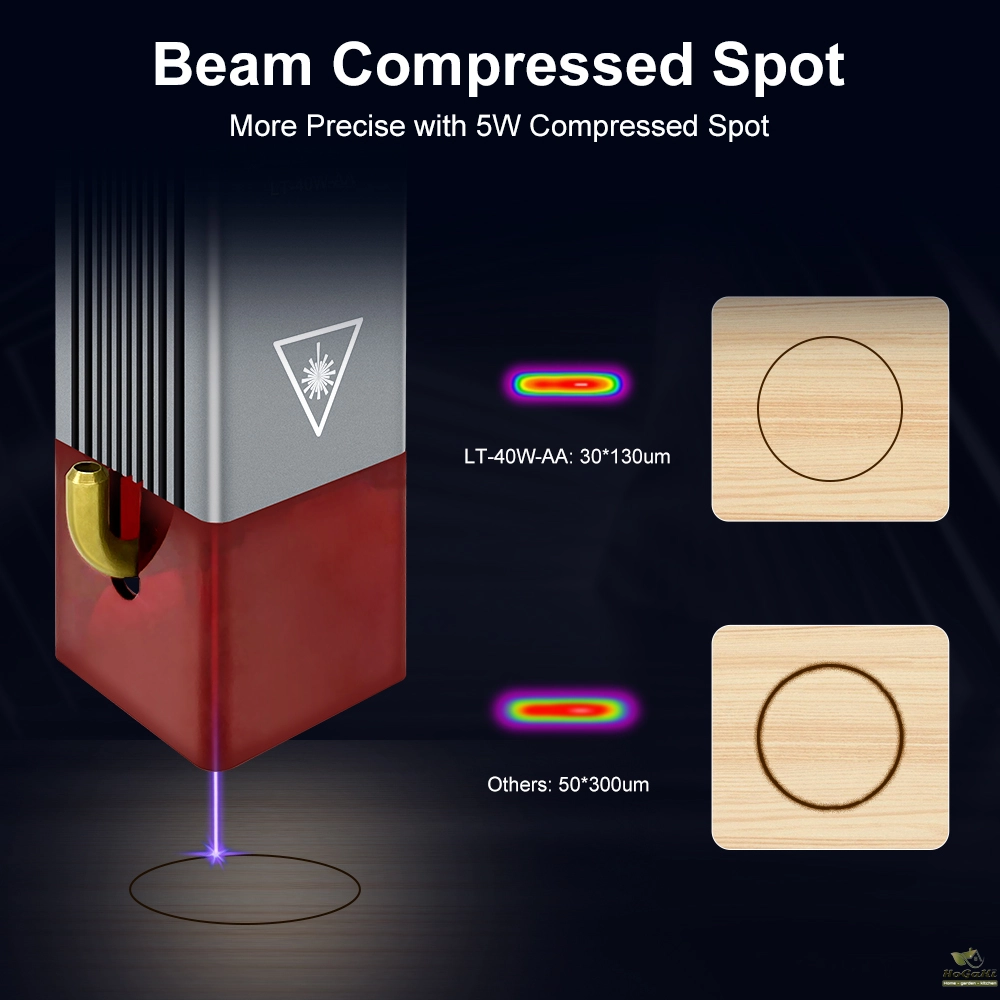

Easy to remove and installBeam Compressed Spot

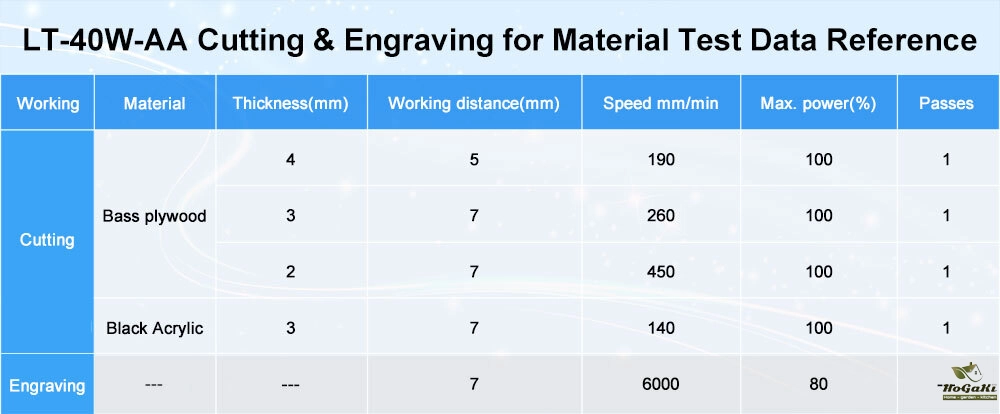

More Precise with 5W Compressed SpotLT-40W-AA Cutting & Engraving for Material

Test Data Reference

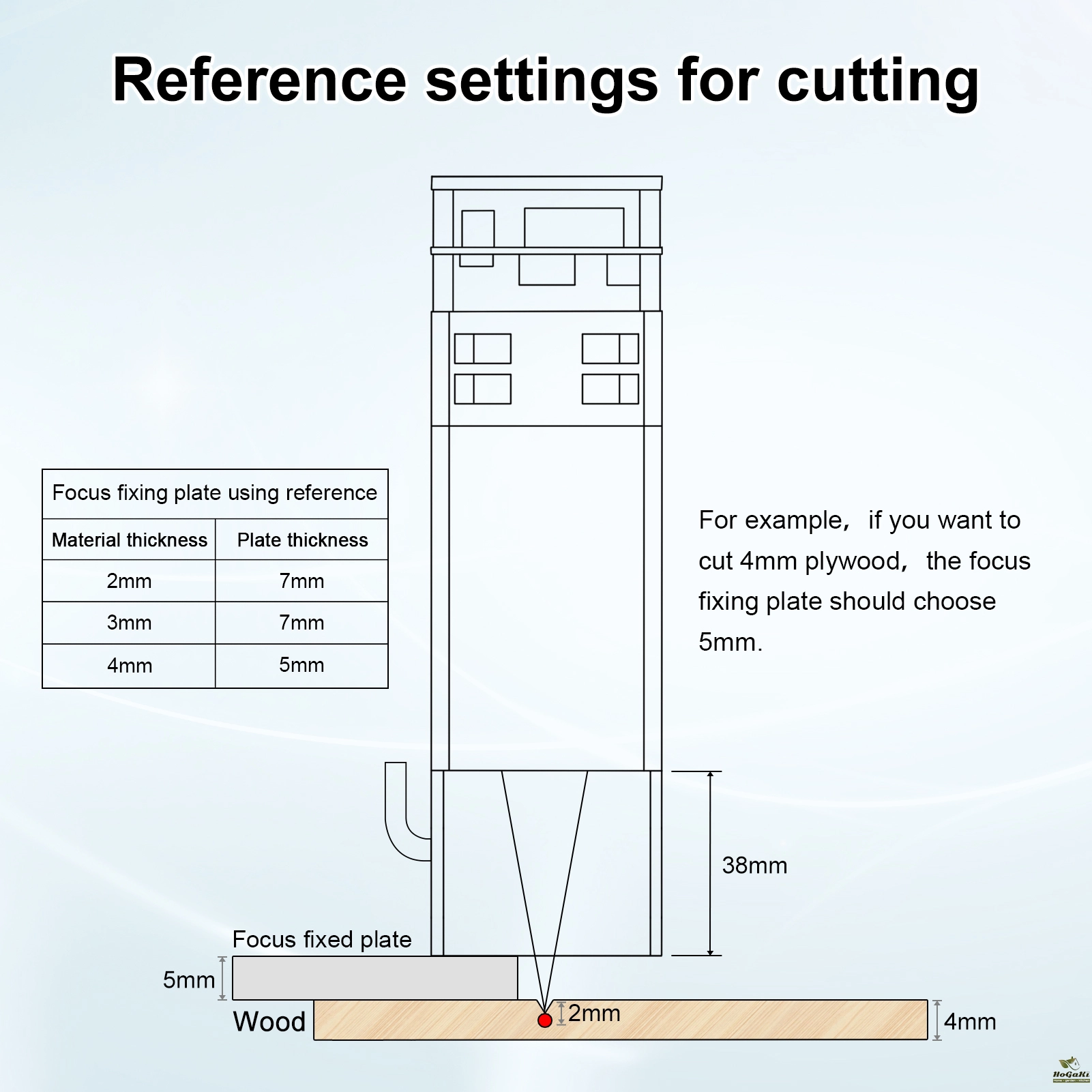

Reference settings for cutting

For example, if you want tocut 4mm plywood, the focus fixing plate should choose 5mm.

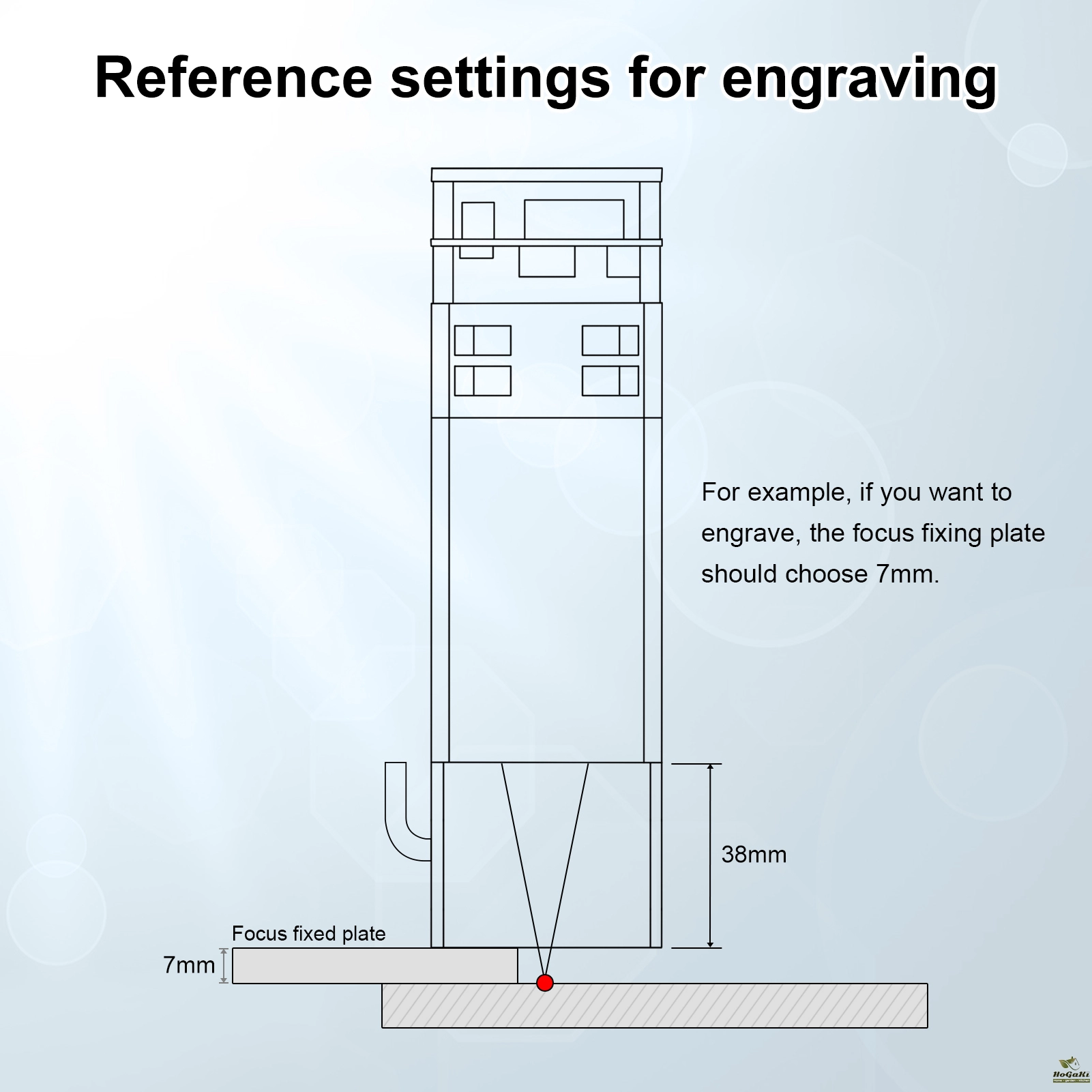

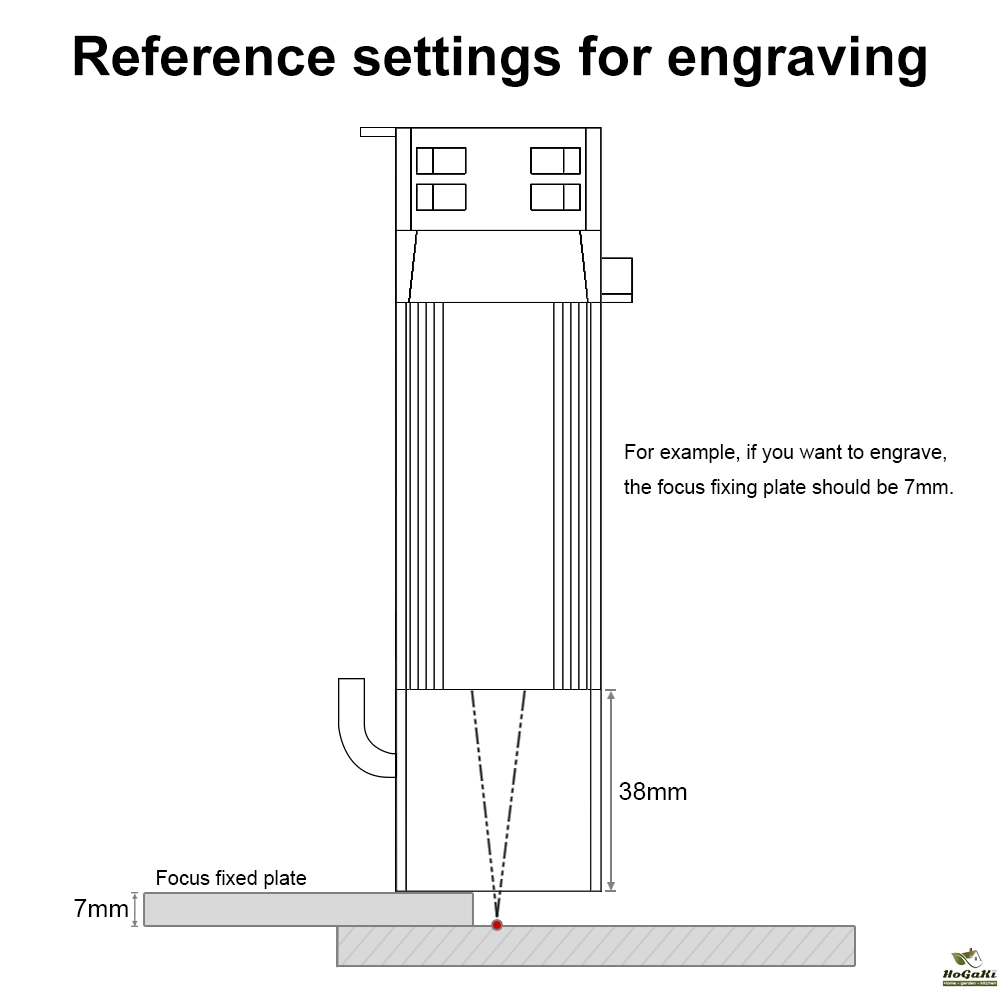

Reference settings for engraving

For example, if you want toengrave, the focus fixing plate should choose 7mm.

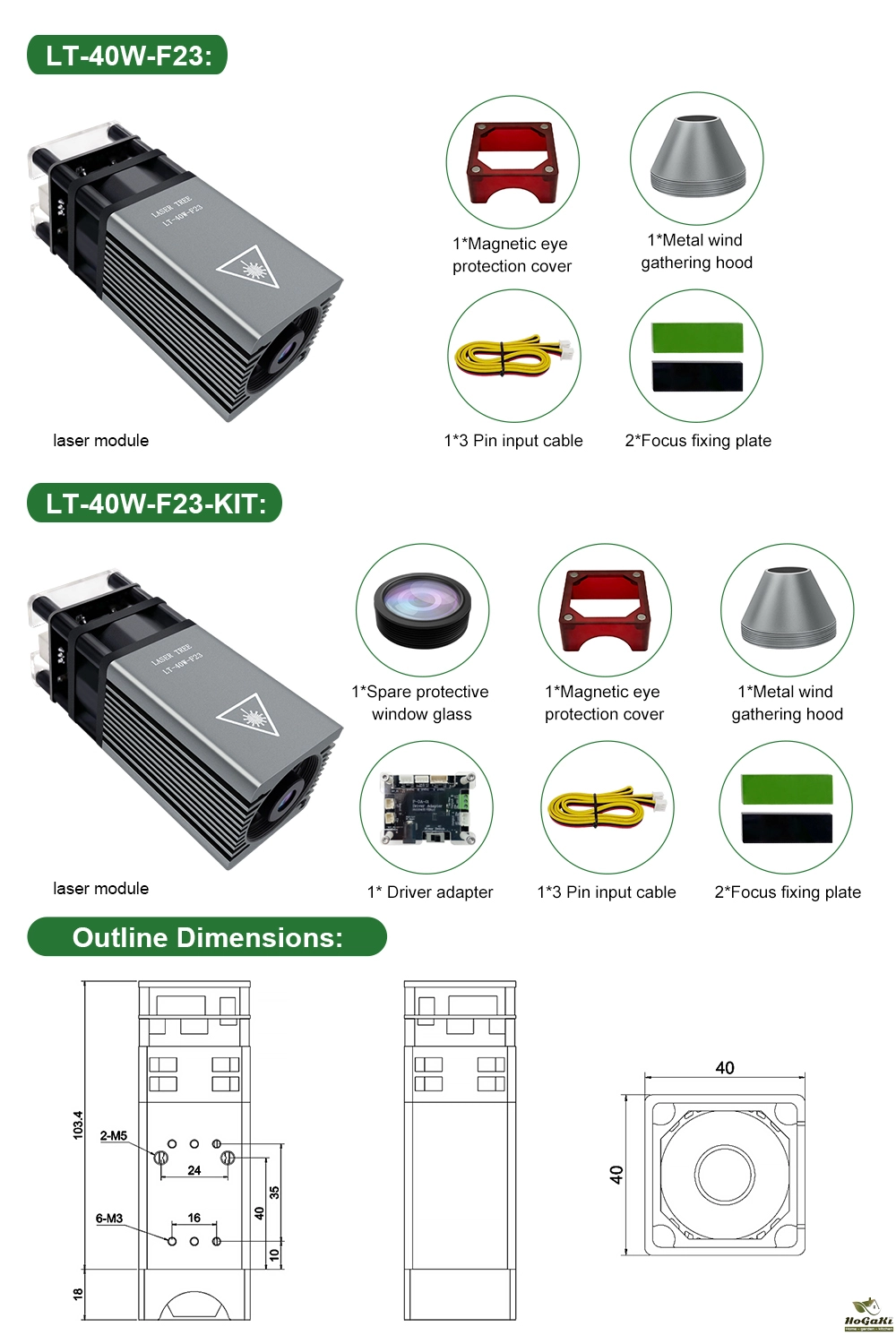

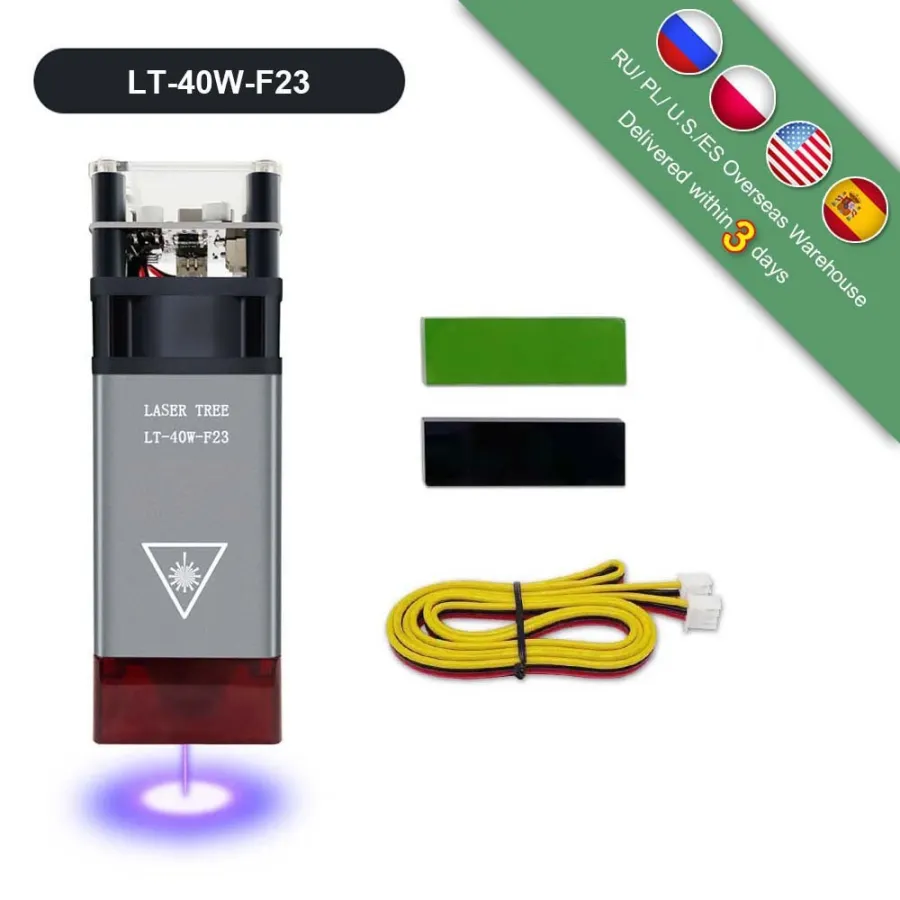

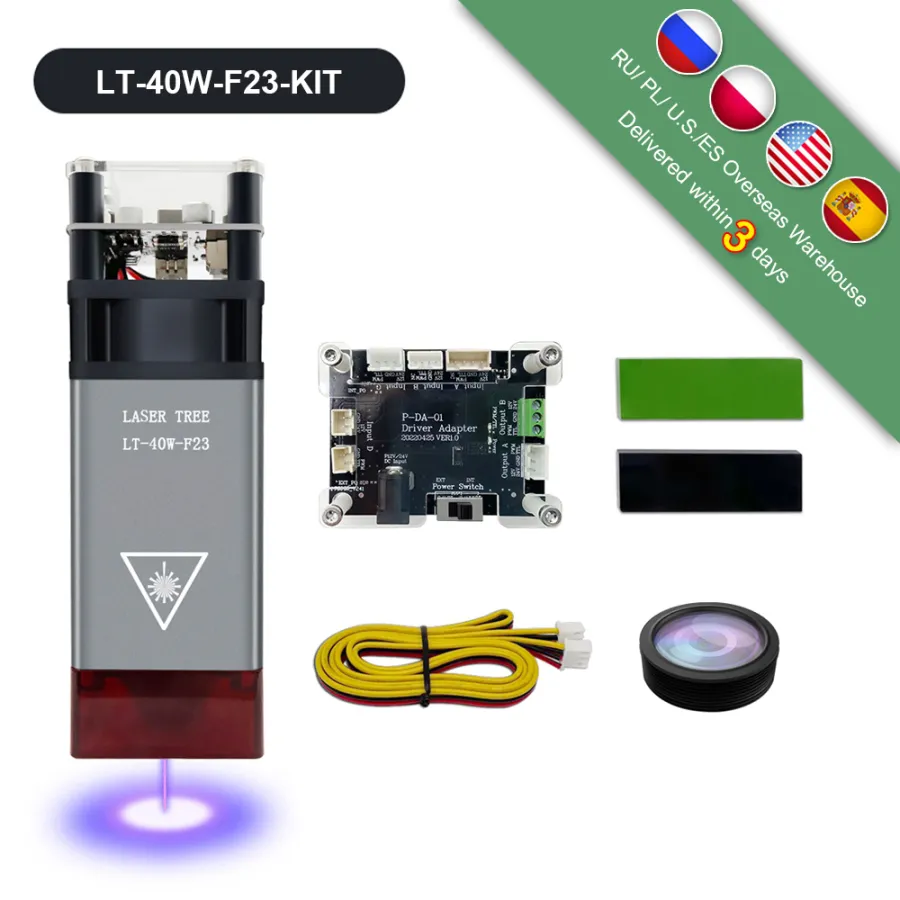

5W Laser ModuleLT-40W-F23:

Product Description

Upgraded Laser Module, LASER TREE 23mm Fixed Focus Balance Engraving and Cutting Head, Laser Engraver Module 5W Optical Power with Metal Wind Gathering Hood, Suitable for Laser Engraver Machine


Product Features:

1.Engraving Mirror Stainless Steel, no need to Paint Black.

2.Very Fast Engraving Speed: 23mm focal length, engrave 304 stainless steel at speeds up to 800mm/min.

3.Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 80-100mm/s.

4.Magnetic eye protective cover: It allows you to see the laser module in action without the need for eye protection and is easy to disassemble without screws.

5.Metal cutting air outlet: Which does not generate heat and can resist flames.

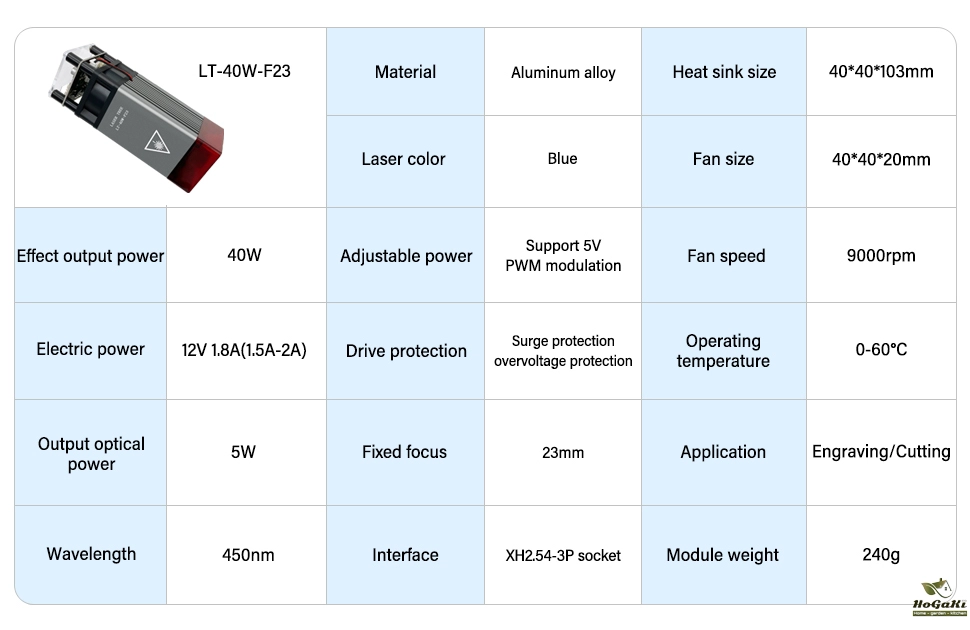

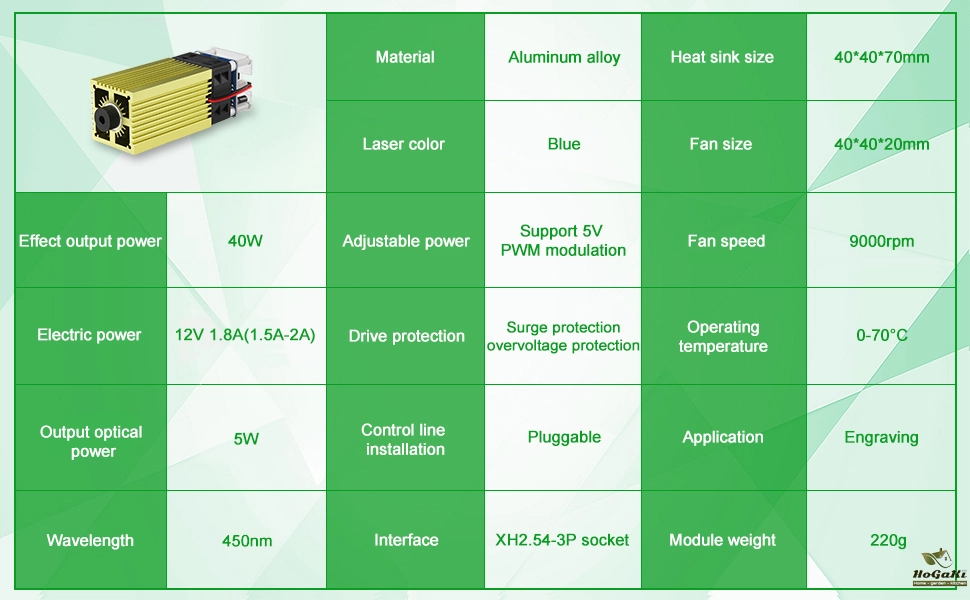

Specification:

Material: Aluminum alloy

Effect Output Power: 40W

Output Optical Power: 5W

Electric Power: 12V 1.8A(1.5A-2A)

Focus Length: 23mm

Interface: XH2.54-3P socket

Power Adjustable: Support 5V PWM modulation

Function: Engraving/Cutting

Module Size: 40*40*121mm

Module Weight: 240g

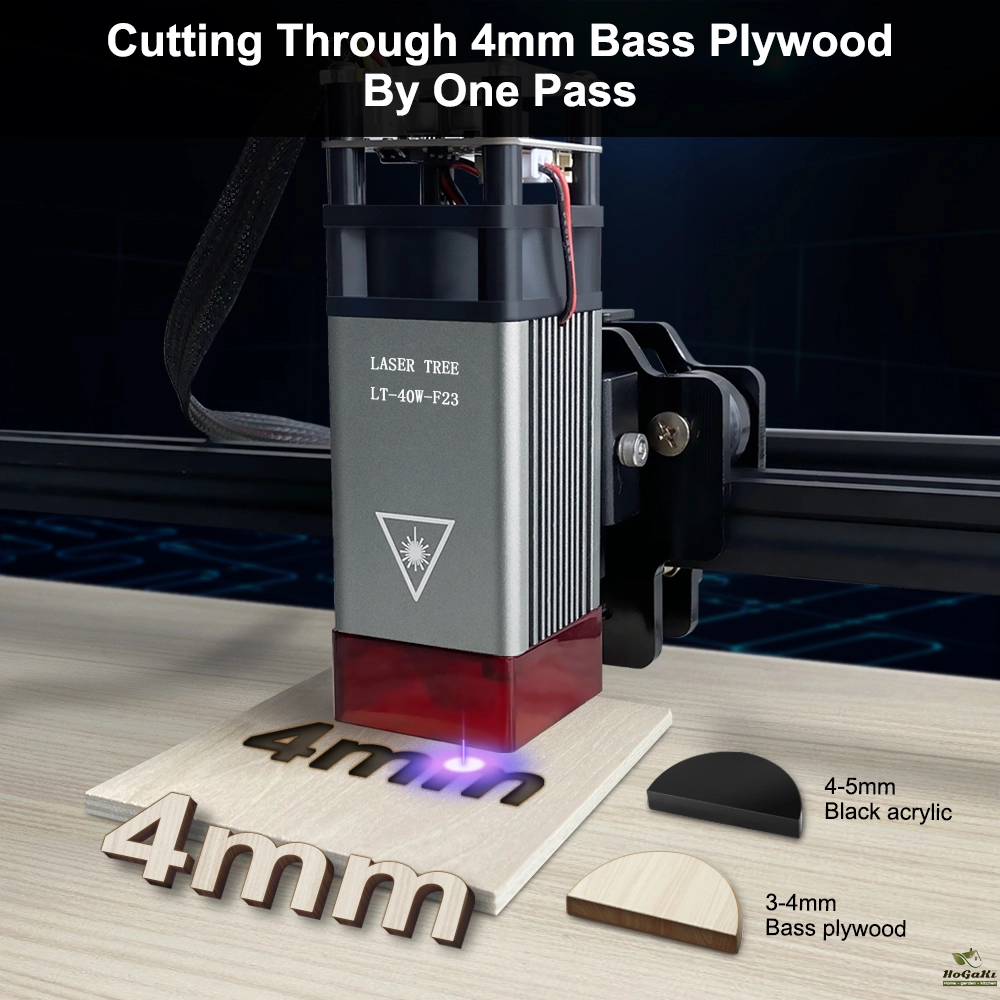

Cutting Through 4MM Bass Plywood By One Pass

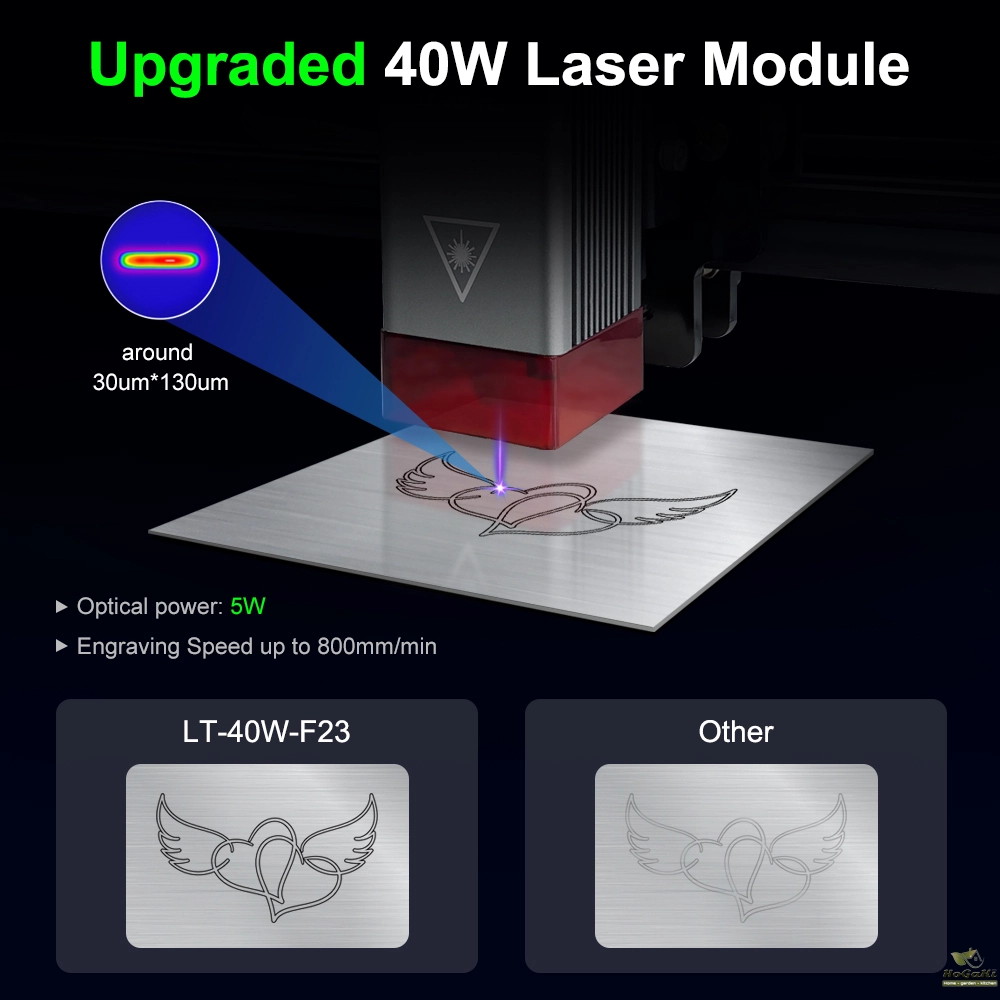

Upgraded 40w Laser Module

>Optical power: 5W

>Engraving Speed up to 800mm/min

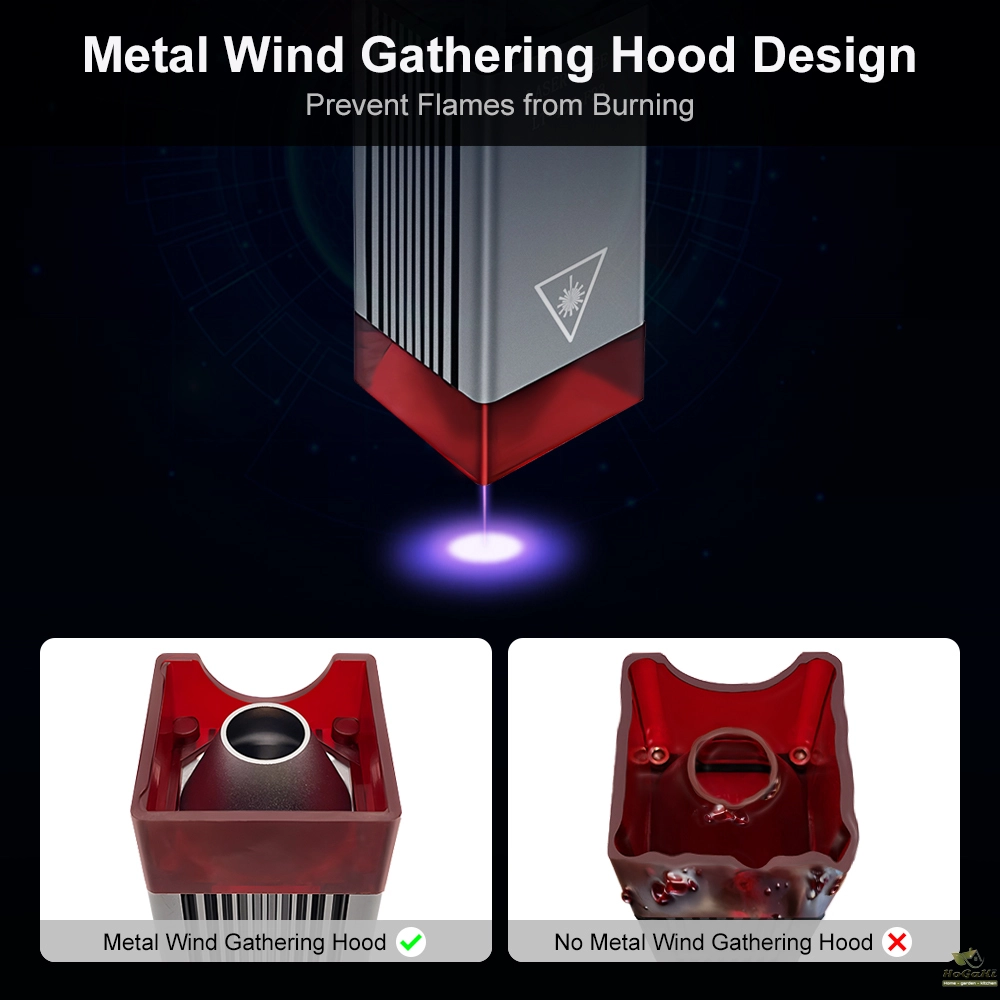

Metal Wind Gathering Hood Design

Prevent Flames from Burning

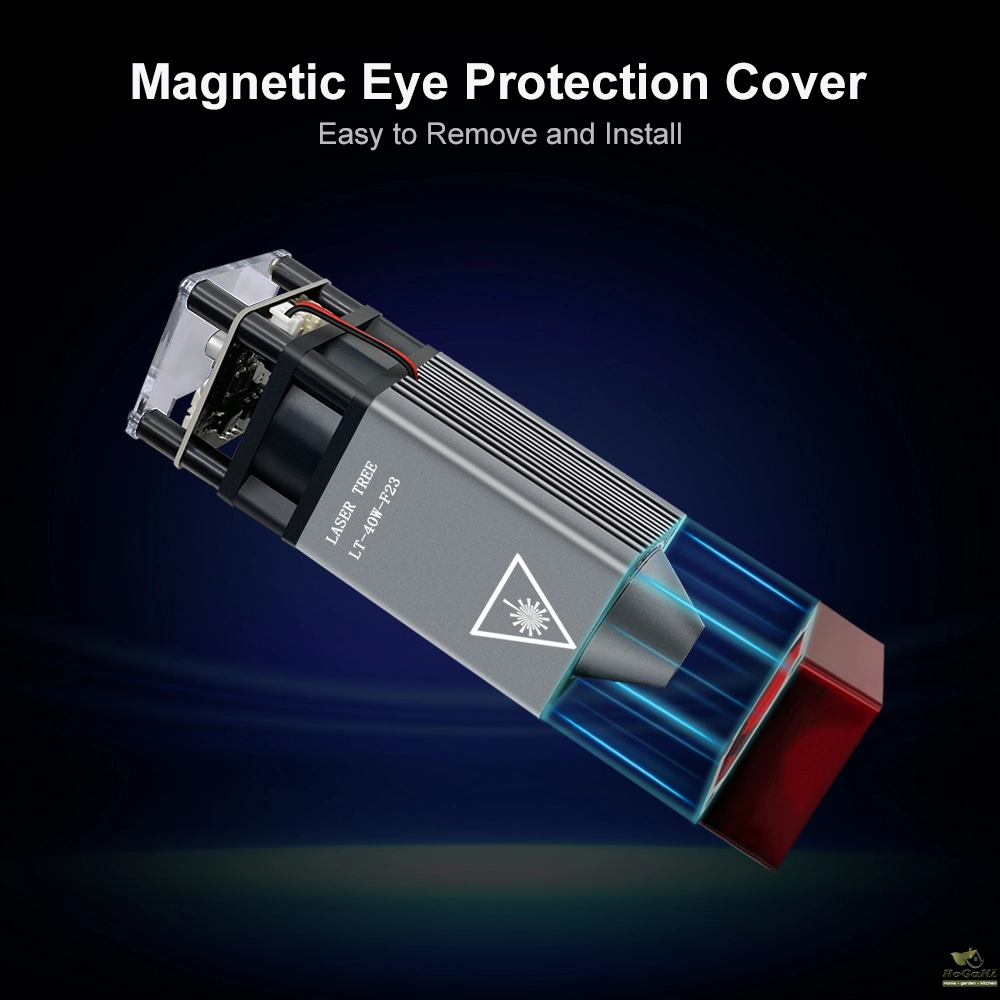

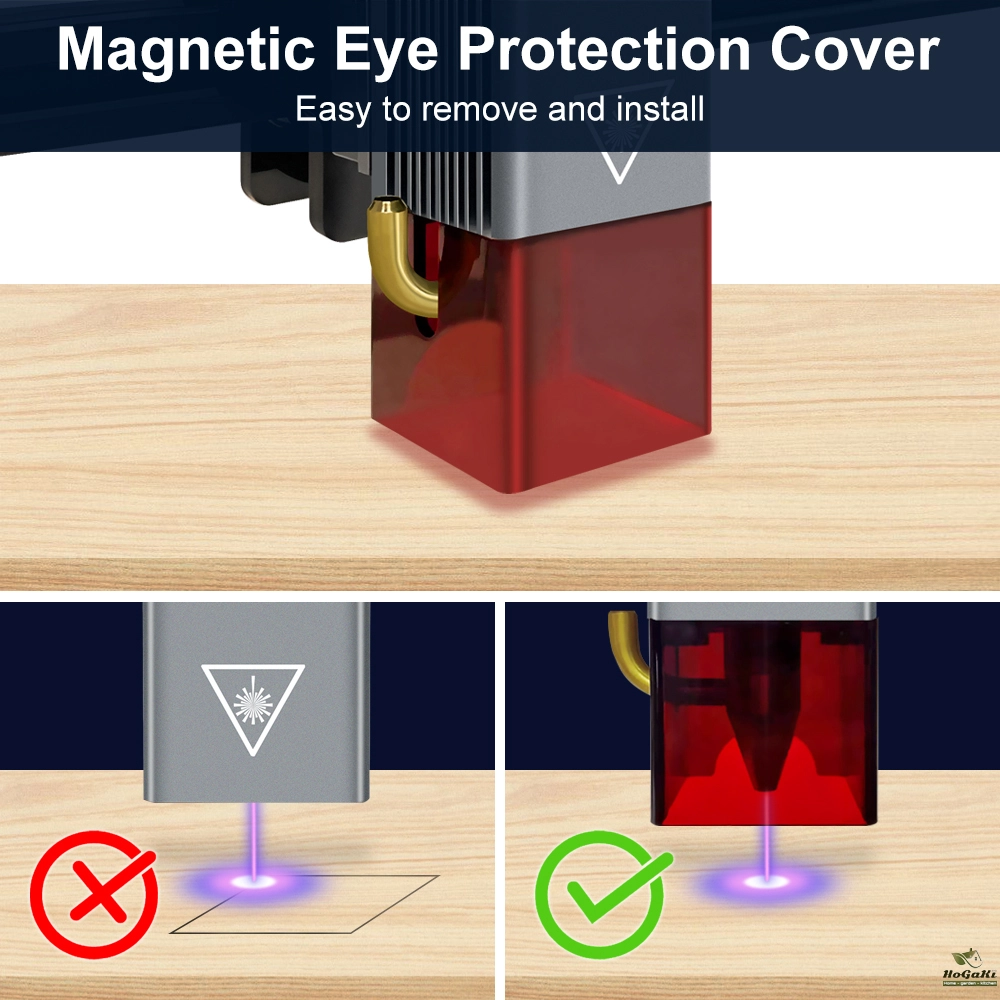

Magnetic Eye Protection Cover

Easy to Remove and install

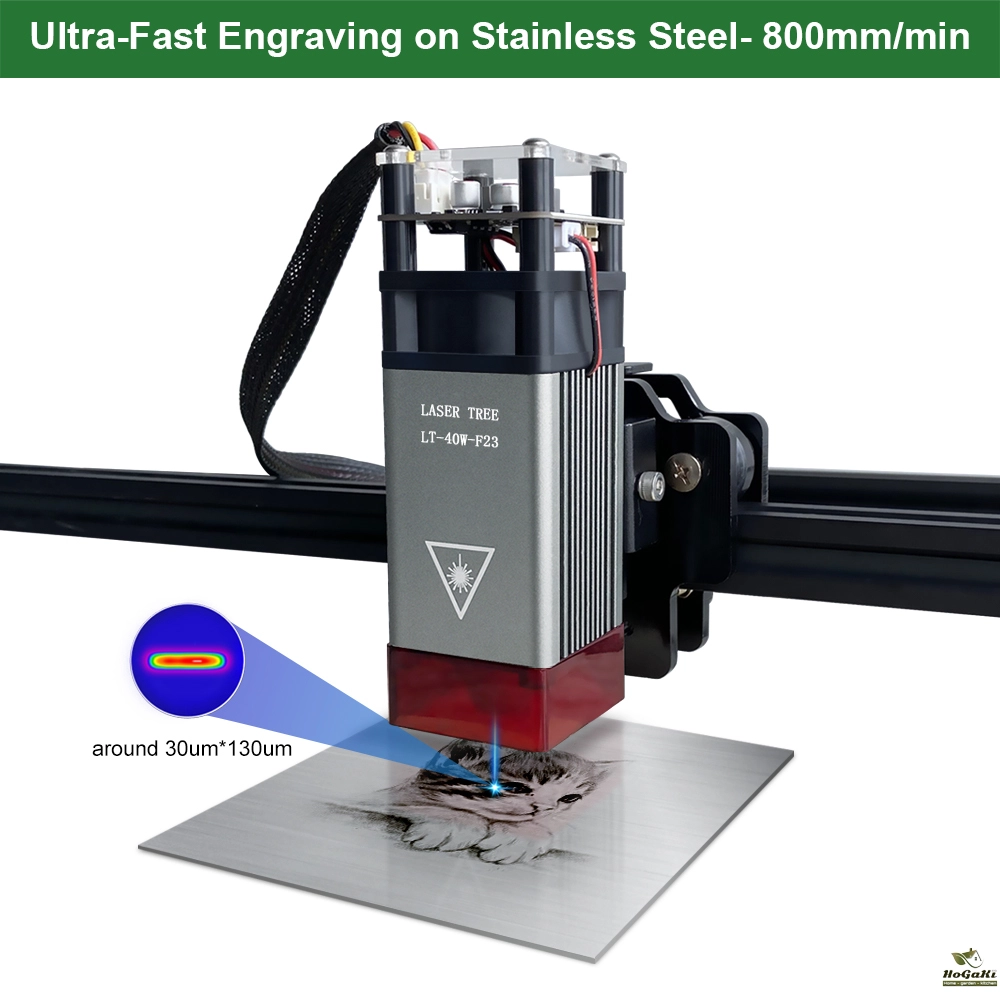

Ultra-Fast Engraving on Stainless Steel-800mm/min

Note:

If you need the instruction manual, please contact us, thank you!


Packaging Details

  • Unit Type:
  • Package Weight: 1.000
  • Package Size: 15x10x20

  • Brand Name: Laser Tree
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • Model Number: 5w/10w Laser Head
  • CNC or Not: CNC
  • Is Smart Device: Yes
  • Condition: New
  • Certification: CE
  • Type: Blue Laser Head
  • Material: Aluminum alloy + plastic
  • Optical Power: 5W/10W
  • Wavelength: 450nm
  • Operating Voltage: 12V/24V
  • Modulation: 0/5-12V 0-5kHz TTL/PWM
  • Interface: XH2.54-3P socket
  • Application: Cutting/ Engraving
  • Compatible with: Various models of DIY laser engraver cutter
  • Service: Dropping Shipping Service
