Infrared Bule Backlight Touch Exit Button Contactless Door Release Switch for Access Control System

0.0 ( votes)
Price: US $26.72 - 26.81 / piece
Discount Price:
US $ 18.76 - 18.82 / piece
-30%
Color
Quantity

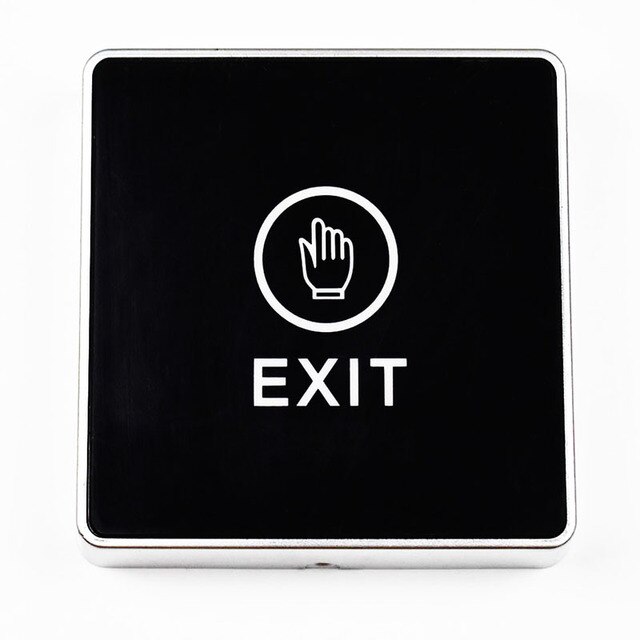

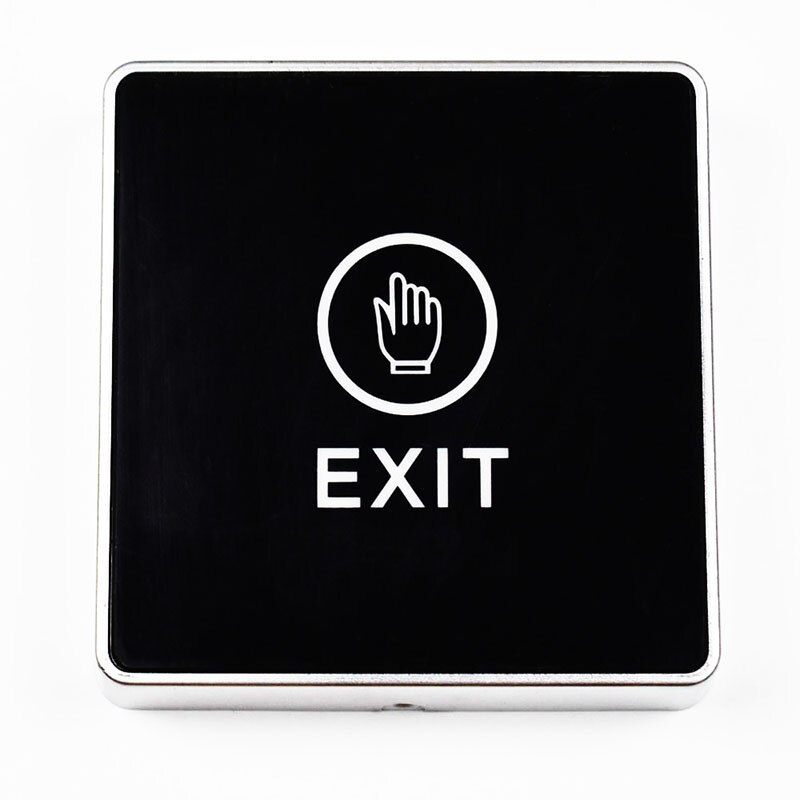

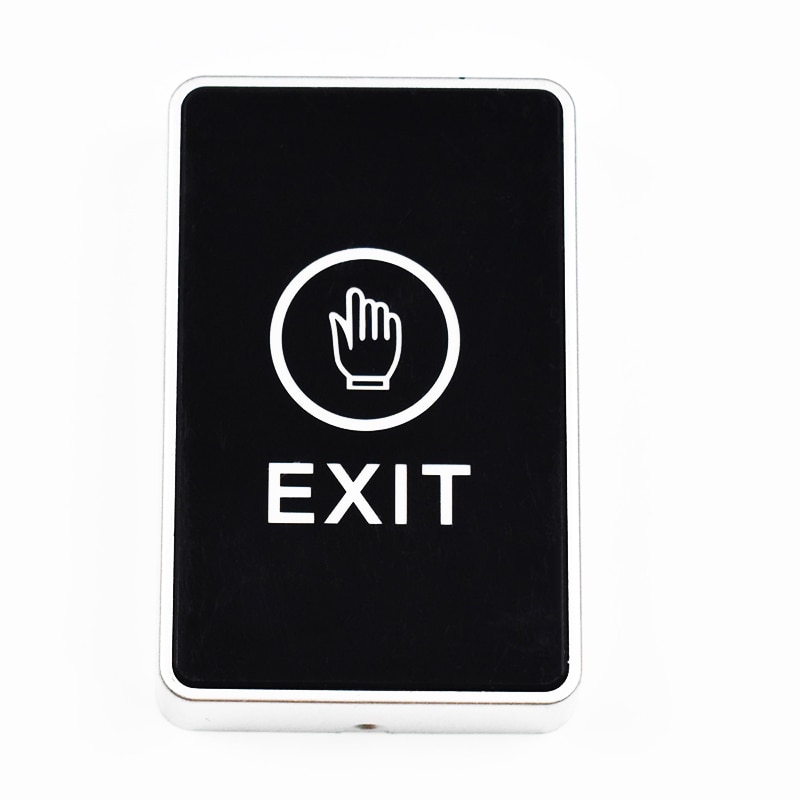

Bule Backlight Touch Exit Button Infrared Contactless  Door Release Switch for Access Control System

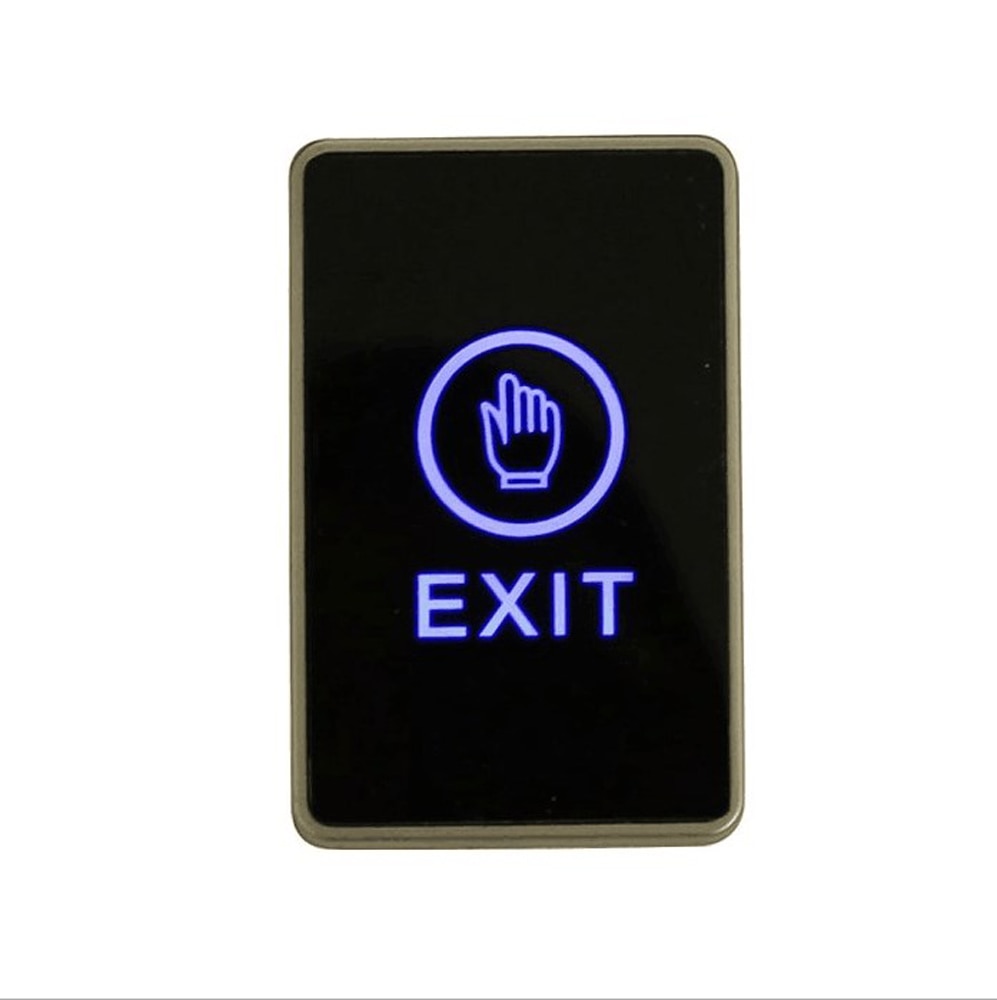

This is a touch switch with blue backlight for access control system, when the button on standby condition the backlight is blue, if there are insufficient light you can accurately find the position of the switch, when touch the switch the backlight becomes red then the door open.


Made of high quality material, it is duable for long time life

High secure and easy to operate

Connect to a stable power supply and which will open when it is energized

Fit for desk, cabinet, window or safe box...etc

Suitable for NO, NC Electric / Magnetic Lock


Specifications:


Working Voltage: DC 12V

Face Plate: Organic Glass

Electrical performance: 3A@12VDC

Output Contact Point: NO, NC, COM

Mechanical Life: 500,000 test

Temperature: -20~+50 celsius degree

Humidity: 0~95%(relative humidity)

Trigger: Touch


LED Indicator: White LED indicate POWER OFF

Blue LED indicate POWER ON (Standby)

Red LED indicate POWER ON (Sensation)

N.W.: 0.1kg

Size:86Lx50W x20T(mm)/86Lx86Wx20T


Application: apply to all kinds of gate frame

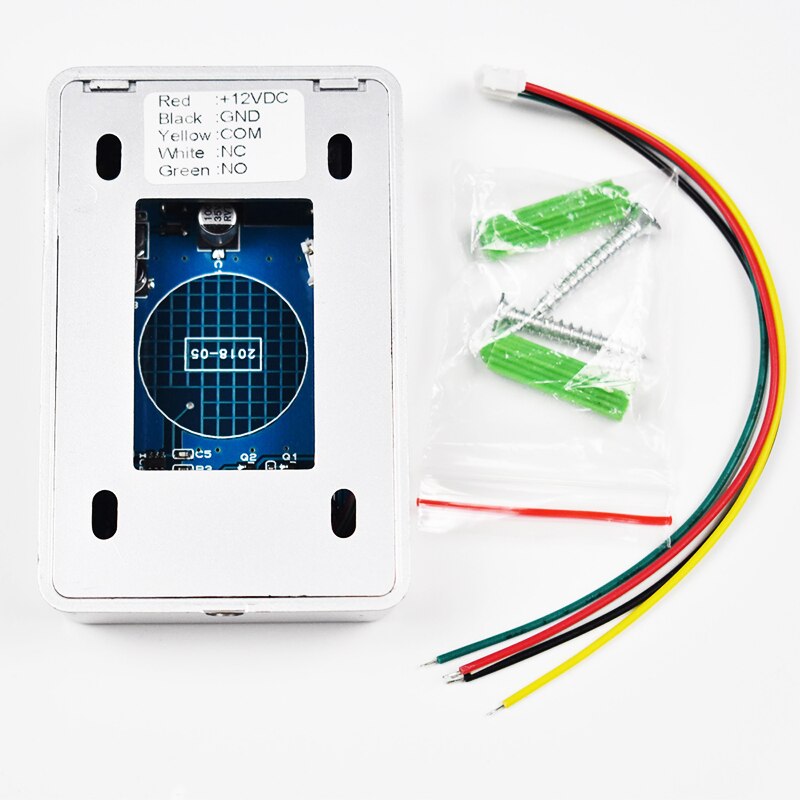

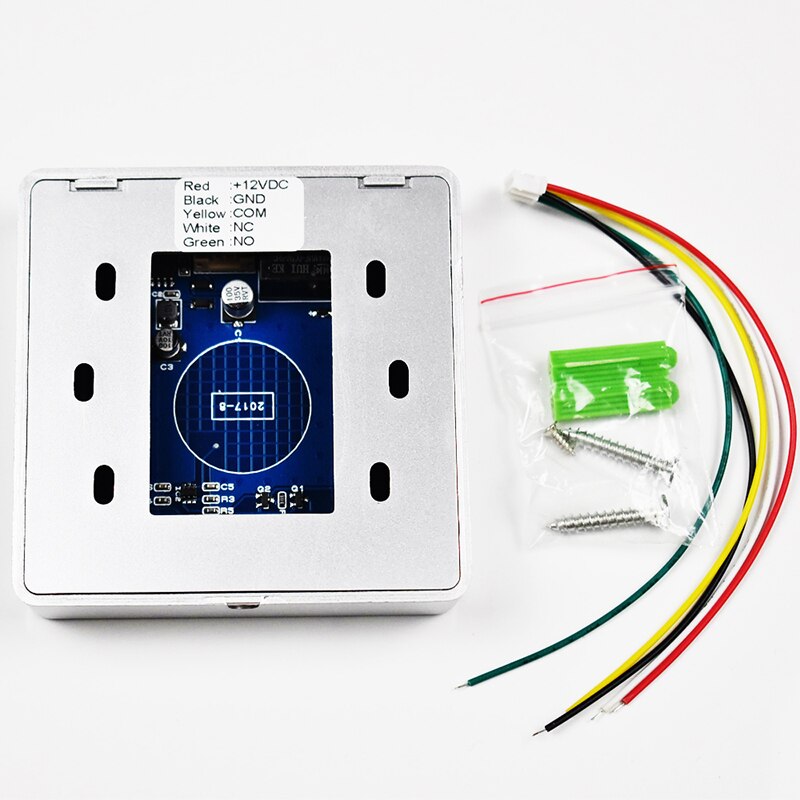

For install:

Red line:+12VDC

Black line:GND

Green line:NO

White line:NC

Yellow:COM (Relay)



Package Content:

1 x Door Switch Button

1  x  Wiring  and  Instruction

2 x Screws




Return and refund

>>Return and refund is acceptable when item is broken during shipping and package is returned within 7 days after receiving. Please be patient to give us 3-5 working days to process your return and refund

>> All the product is 90 days warranty.



Contact us

>>We sincerely hope we can have a happy transaction, If there is some problem for the transaction, Please do not hesitate to contact us freely.

>>Please do not leave any negative or neutral feedback if no any communication. We believe that we can solve any problem with good communication and have happy transaction. Welcome to our shop!

Feedback:

1. If you are satisfied with our service, please leave us a positive feedback with 5 stare

2. We are always ready to being in touch to answer any questions or just see that all is going smoothly. Please contact us to resolve the issue before leaving negative feedback.






  • Model Number: door-release-011
  • Size: 86Lx50W x20T(mm)/86Lx86Wx20T
  • Item Type: Exit Button
  • Brand Name: zhizaibide
  • Origin: Mainland China
