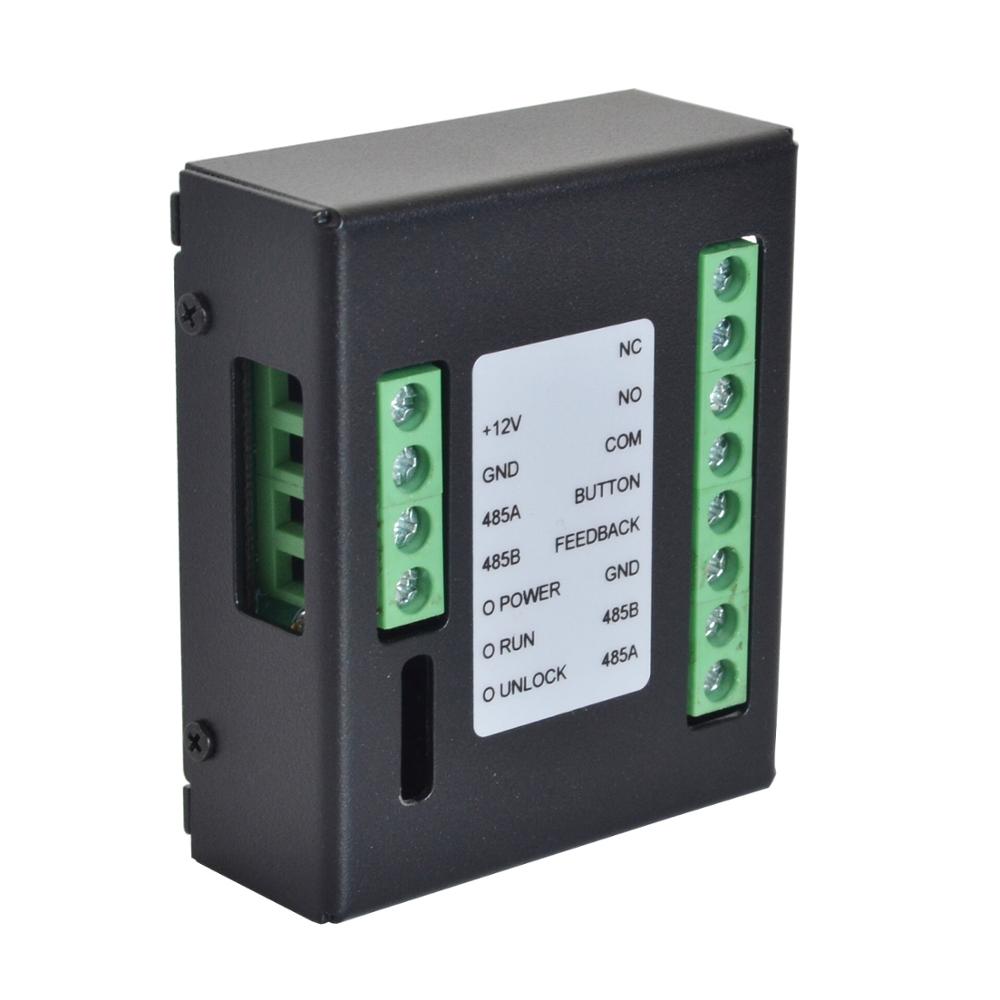

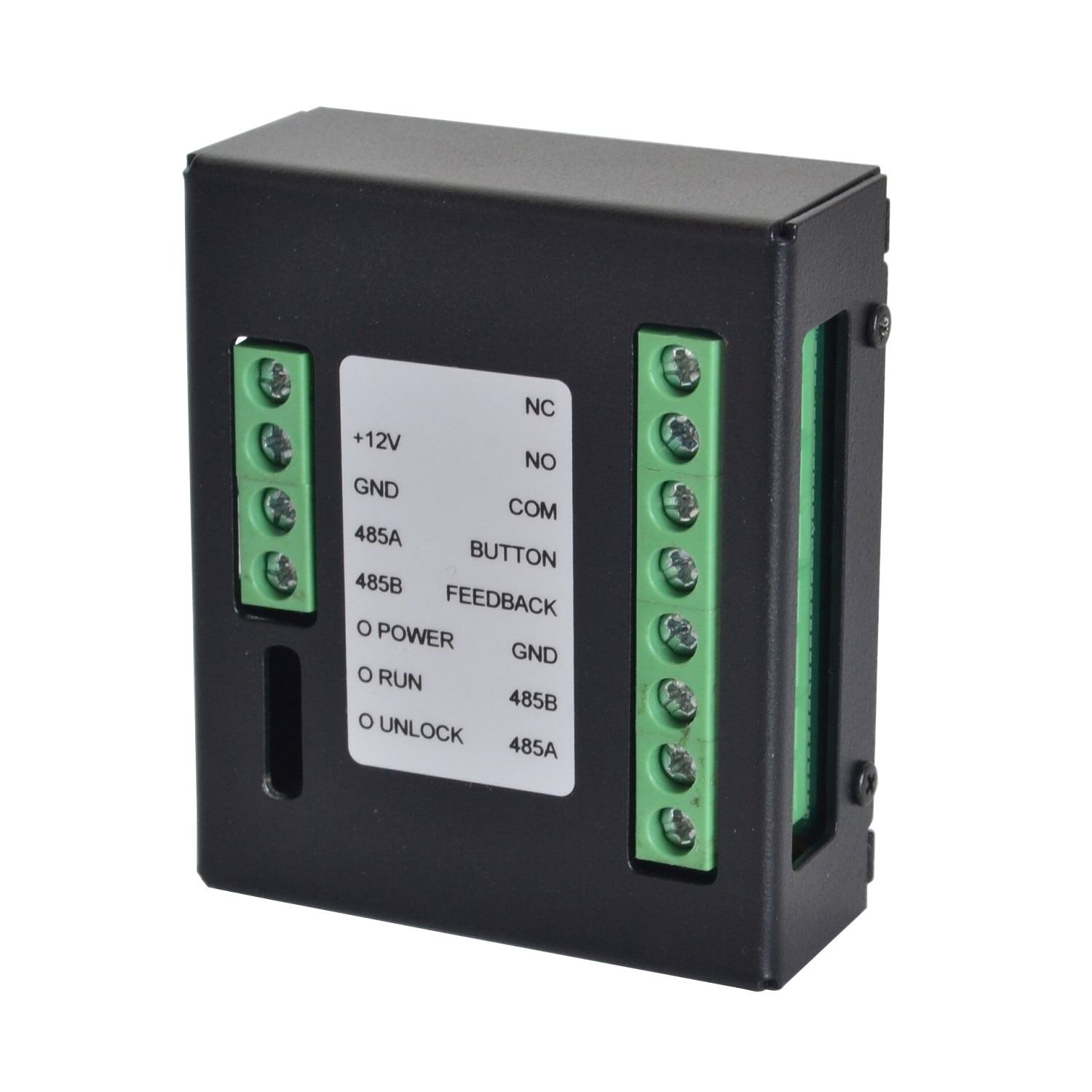

DH-DEE1010B Access Control Extension Module
5.0 (10 votes) | 74 orders
Price:
US $
57.00 -
68.40
/ piece
Important:
If you have any questions about EU Tax, Please chat with me
Access Control | ||||||||
Lock NO Output | Yes | |||||||
Lock NC Output | Yes | |||||||
Open Button | Yes | |||||||
Door Status Detection | Yes | |||||||
Operating Mode | ||||||||
Input | Card swiping input (card reader required and unlockutton) | |||||||
Basic Specifications | ||||||||
Power | DC12V±10% | |||||||
Power Consumption | Standby ≤0.5W,Working ≤1W | |||||||
Environment | -10°C~+60°C | |||||||
10%~90%RH | ||||||||
Dimensions | 58mm*51mm*24.5mm (L*W*T) | |||||||
Weight | 0.56 Kg | |||||||

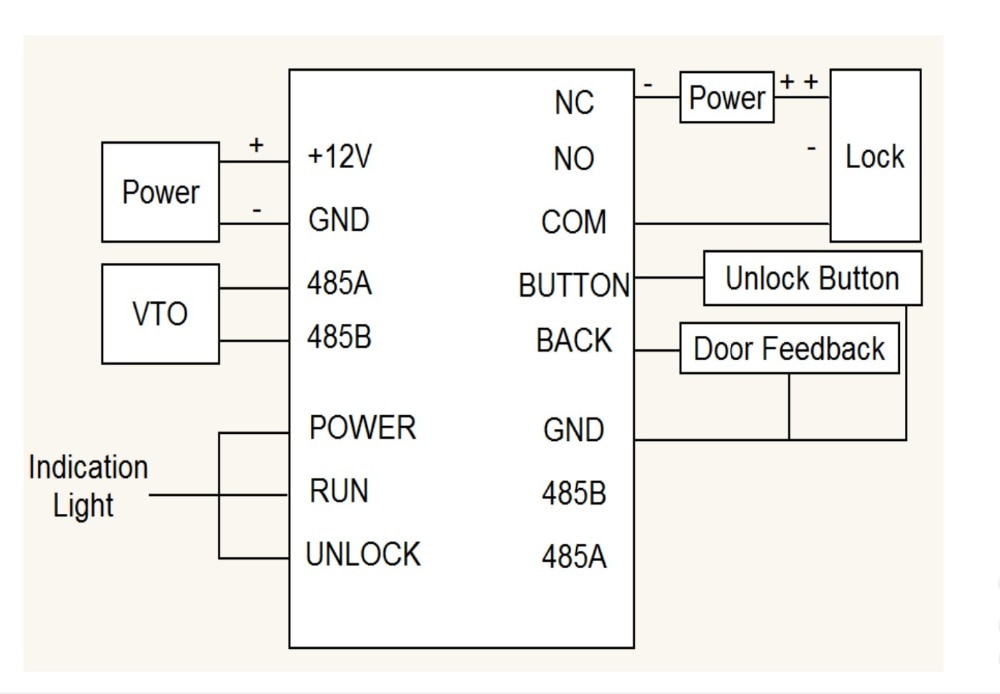

Technical Speci?cation | ||||
Group | Color | Function | Color | Function |
4-Pin Cable A | 01-Black | GND | 03-Brown | Door sensor response |
02-Orange | Alarm input | 04-Yellow | Open button | |
3-Pin Cable (Lock Control) | 05-Grey | NC | 07-Blue | Public port |
06-Purple | NO | |||
4-Pin Cable B | 08-Green | Door station,cascading 485+ | 10-Black | Power ground |
09-White | Door station,cascading 485- | 11-Red | +12V | |
2-Pin Cable | 12-Pink | Card reader 485+ | ||
13-Yellowgreen | Card reader 485- | |||

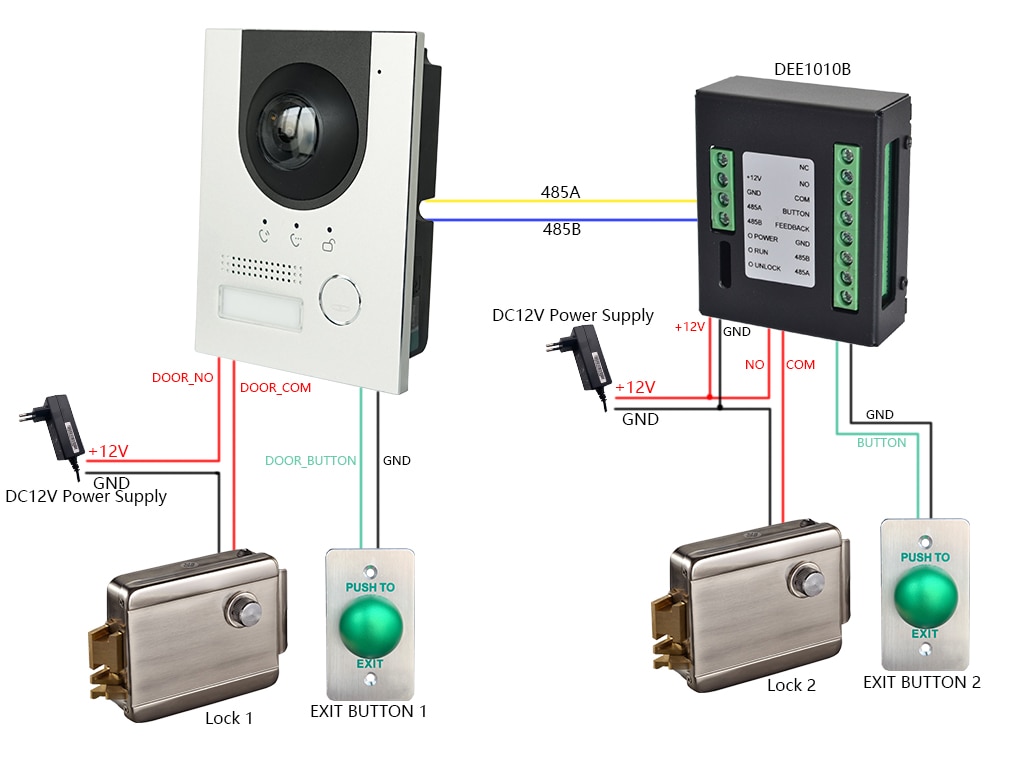

How to connect VTO and DEE1010B
- Model Number: DH-DEE1010B DEE1010B
- Size: 58mm*51mm*24.5mm
- Item Type: Exit Button
- Brand Name: XHJYVISION
- Origin: Mainland China
