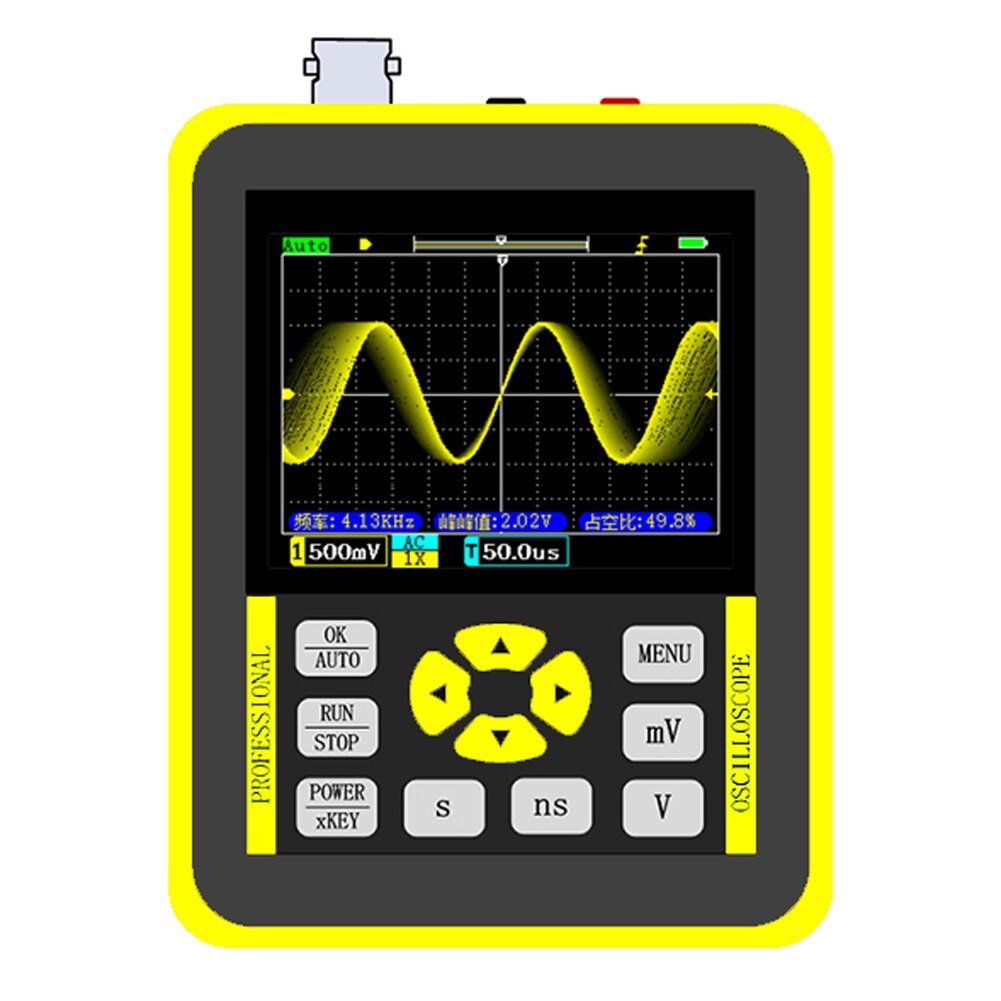

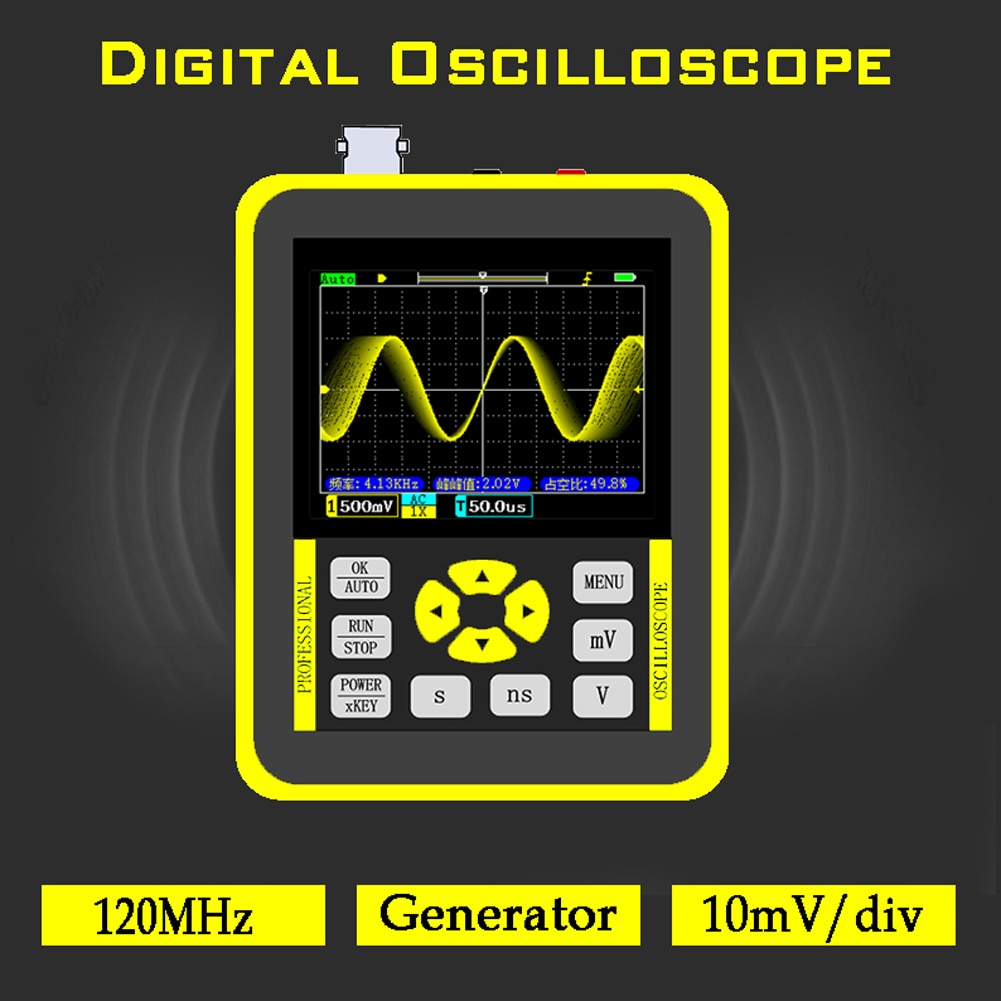

DSO2512G120M Bandwidth Dual Channel Oscilloscope Digital Oscilloscope10mV Minimum Vertical Sensitivity FFT Spectrum Analysis

This is a kind of quality oscilloscope, with 120M bandwidth and 500M sampling rate, more stable and with higher precisions. 14 measurement options available, Frequency, Peaks-to-Peaks, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle. Support switch the output waveform: sine wave, square wave, triangle wave, etc. Widely application on mcu debugging, car repair, home appliance repair, DIY electronic competition, power-supply debugging, inverter, etc. You can have a try.

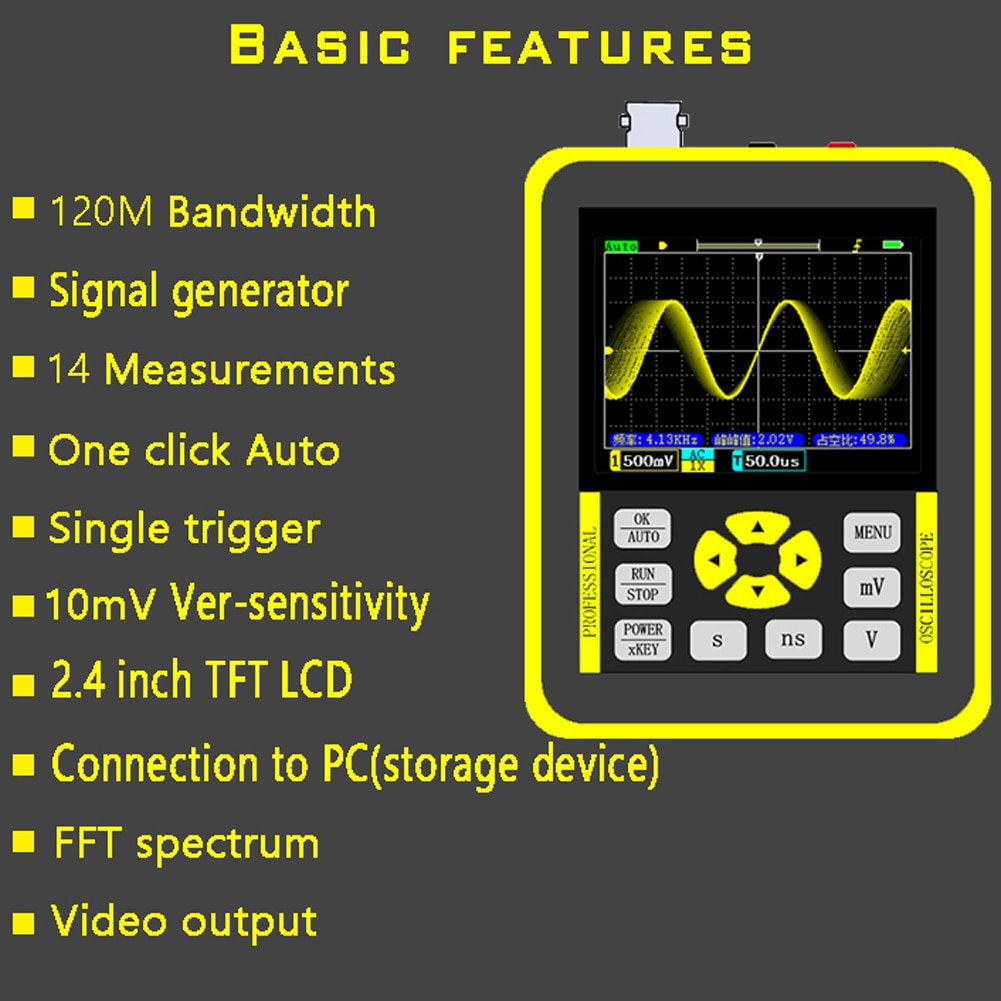

Features:
Resolution: Equipped with 320*240 resolution color display, with bright colors and high contrast, you can see the data clearly.
Bandwidth and sampling rate: With 120M bandwidth and 500M sampling rate, more stable and with higher precisions.

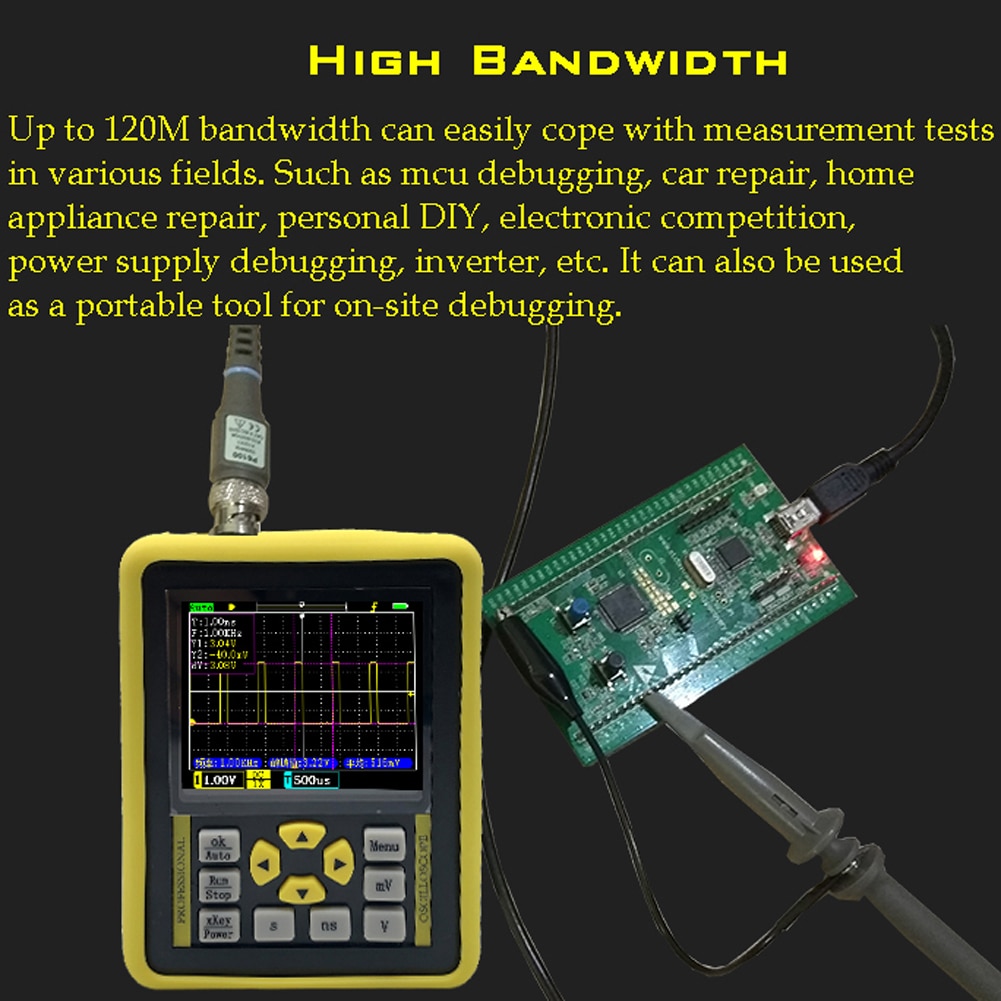

High bandwidth: Up to 120M bandwidth can easily cope with measurement tests in various fields.
There are 14 measurement options available as follows: Frequency, Peaks-to-Peaks, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.

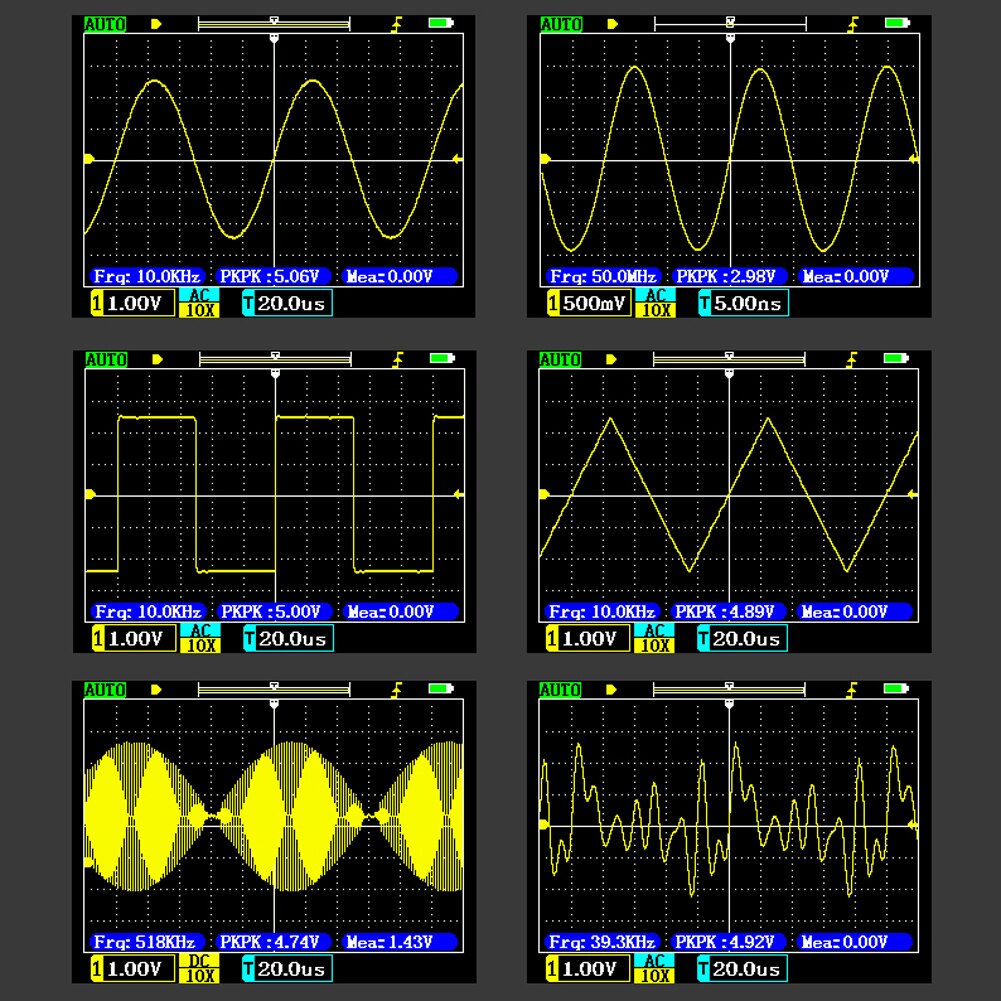

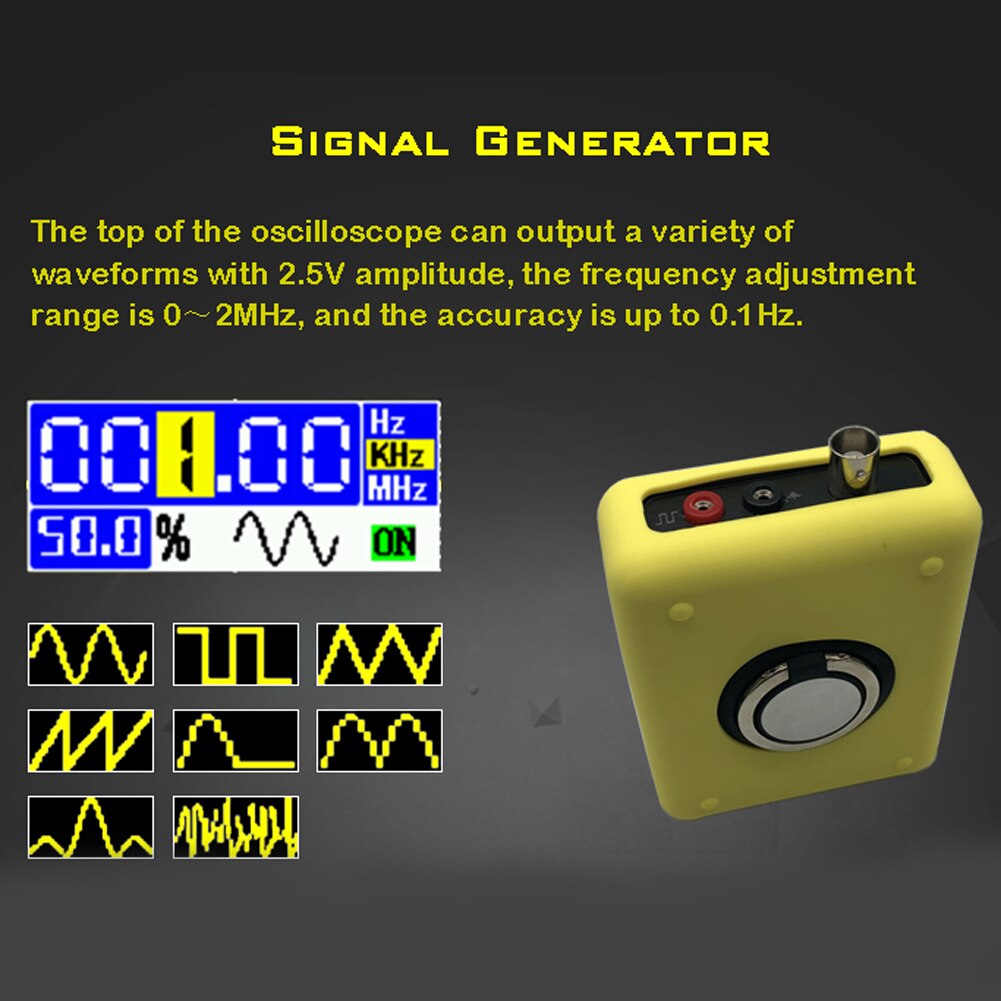

Support switch the output waveform: sine wave, square wave, triangle wave, etc.
FFT: FFT is used to convert time domain waveforms into frequency domain and is widely used in harmonic analysis and other fields. Support three display modes: logarithmic, linear, and music spectrum.

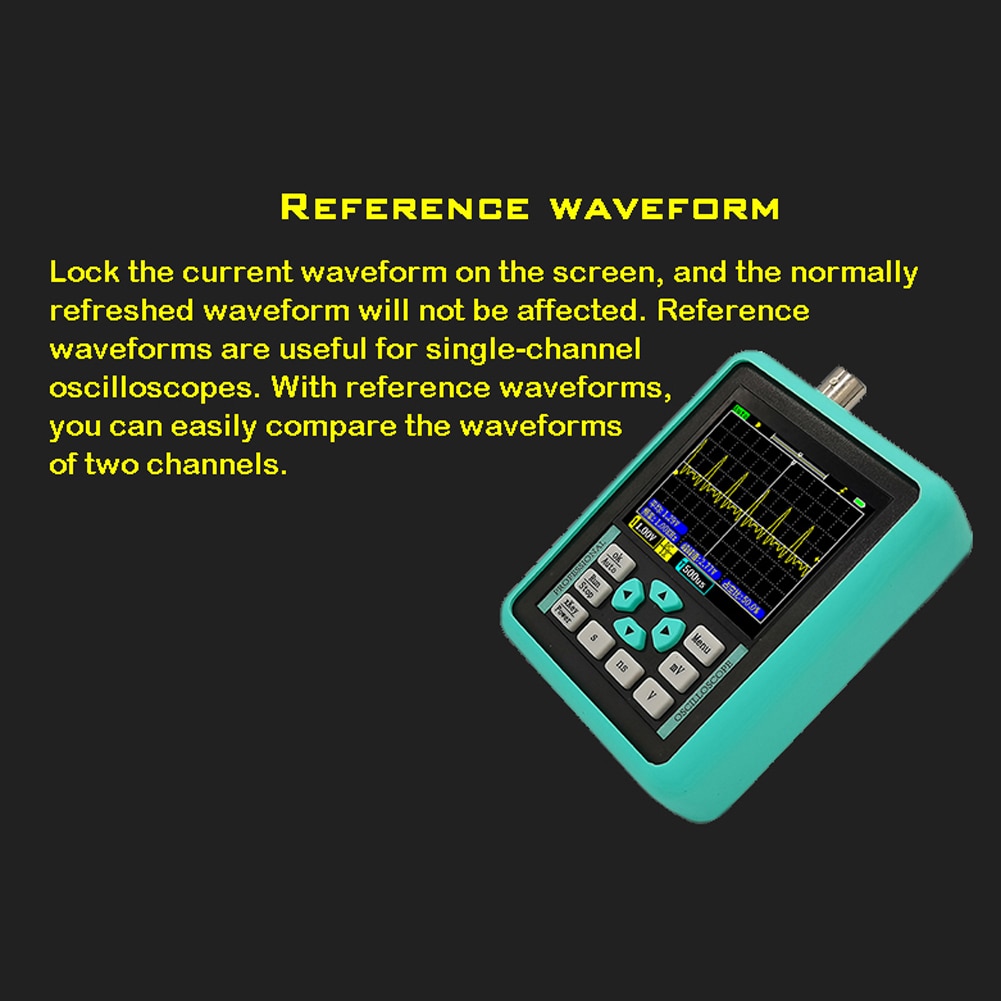

Reference waveform: you can measure the waveform first, lock the current waveform on the screen, and the normally refreshed waveform will not be affected. Reference waveforms are useful for single-channel oscilloscopes. With reference waveforms, you can easily compare the waveforms of two channels.

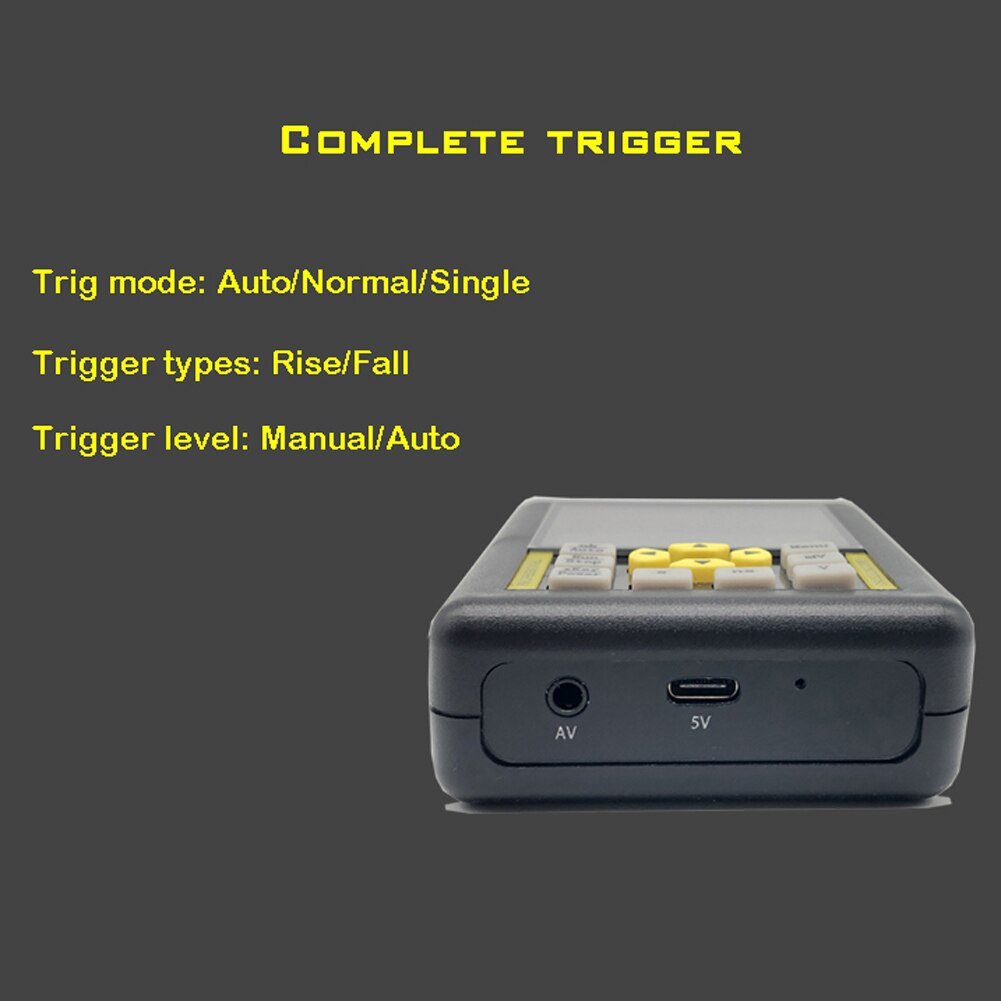

Complete trigger: Trig mode: Auto/Normal; Trigger types: Rise/Fall, Trigger level: Manual/Auto
Vertical sensitivity and time base: The scope's vertical sensitivity is ranges from 10mV/div to 10V/div (1X ranges). The oscilloscope time base is ranges from 5ns to 10s.

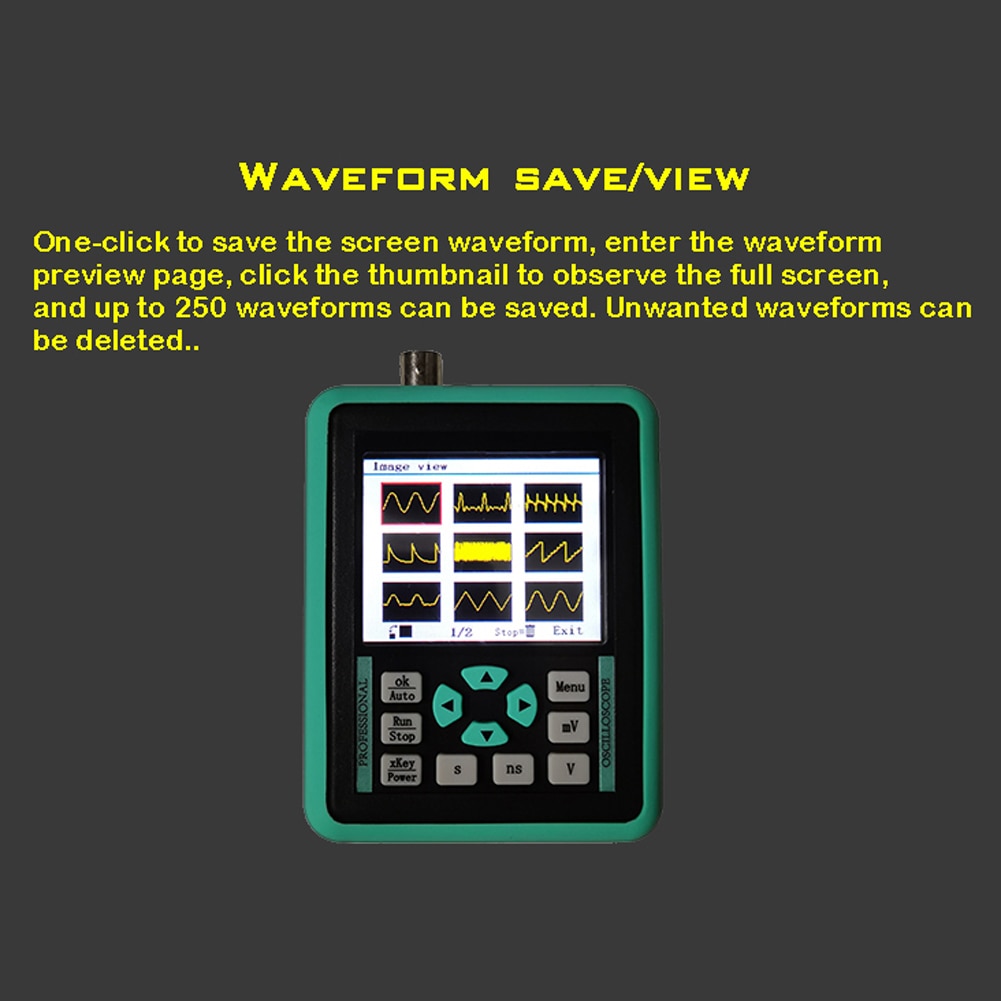

Waveform save: One-click to save the screen waveform, and also support delete or browse historical screenshots..

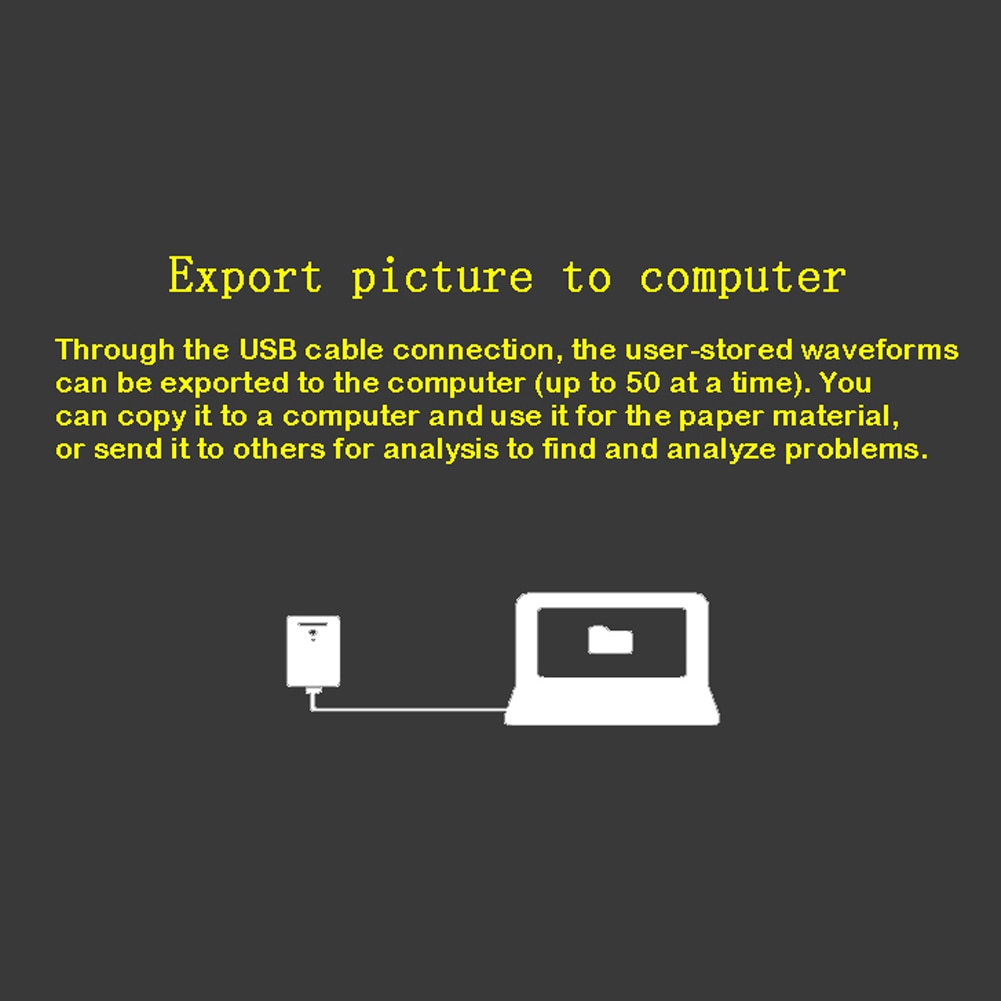

Connect to PC: The screenshot pictures can be exported to a computers via a USB connection.

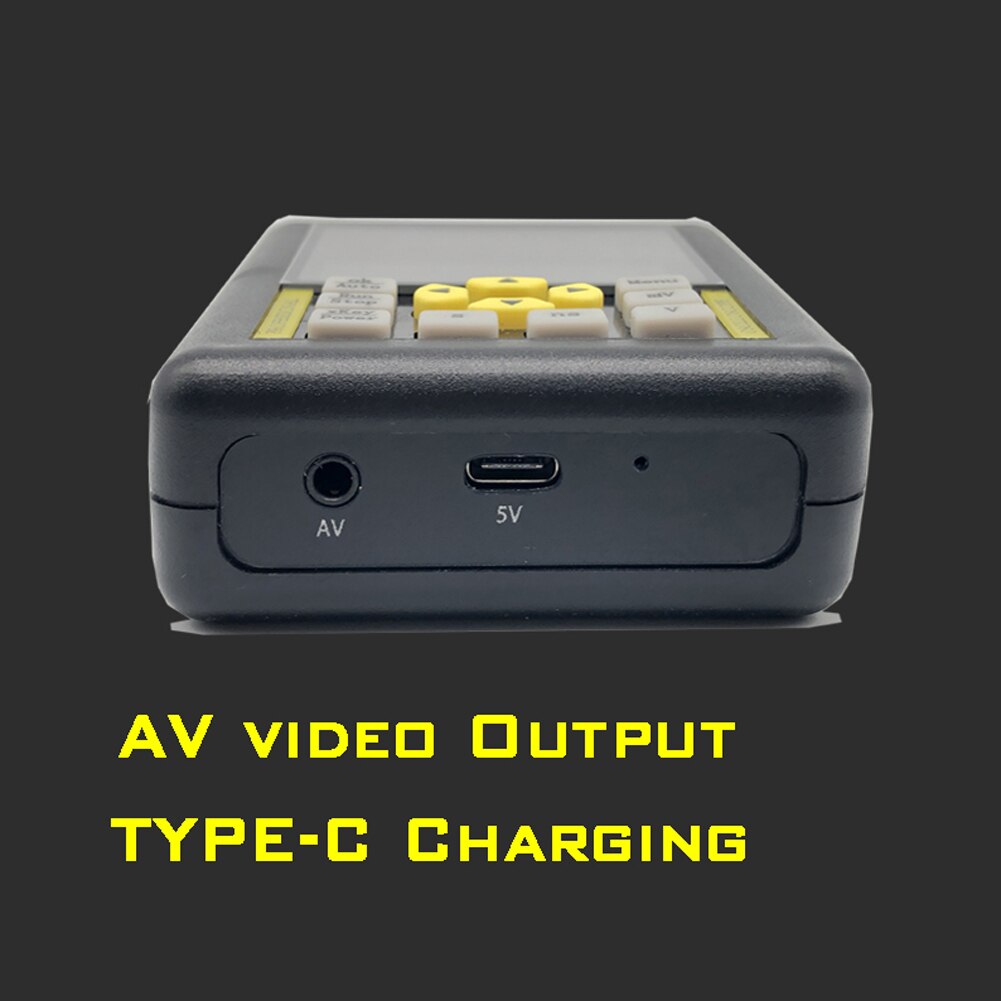

Video output: The 3.5mm headphone jack at the bottom can output AV video simulating signal, which can be connected to a TV or projector.
Power-supply: built-in rechargeable lithium battery, 3.7V, 3000mAh large caparity, full-charged can provides long working time.
Compact size: lightweight and portable, also can be used as a portable tool for on-site debugging.

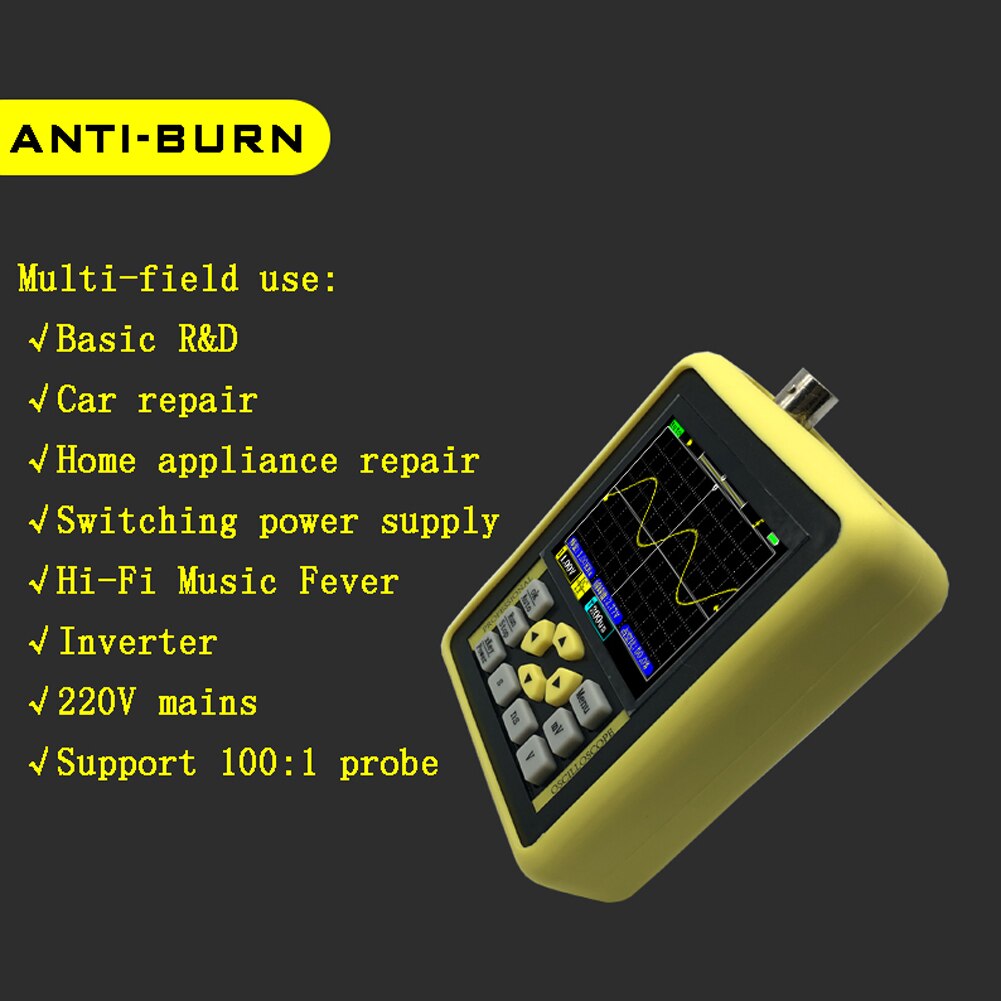

Widely applications: suitable for mcu debugging, car repair, home appliance repair, DIY electronic competition, power-supply debugging, inverter, etc.

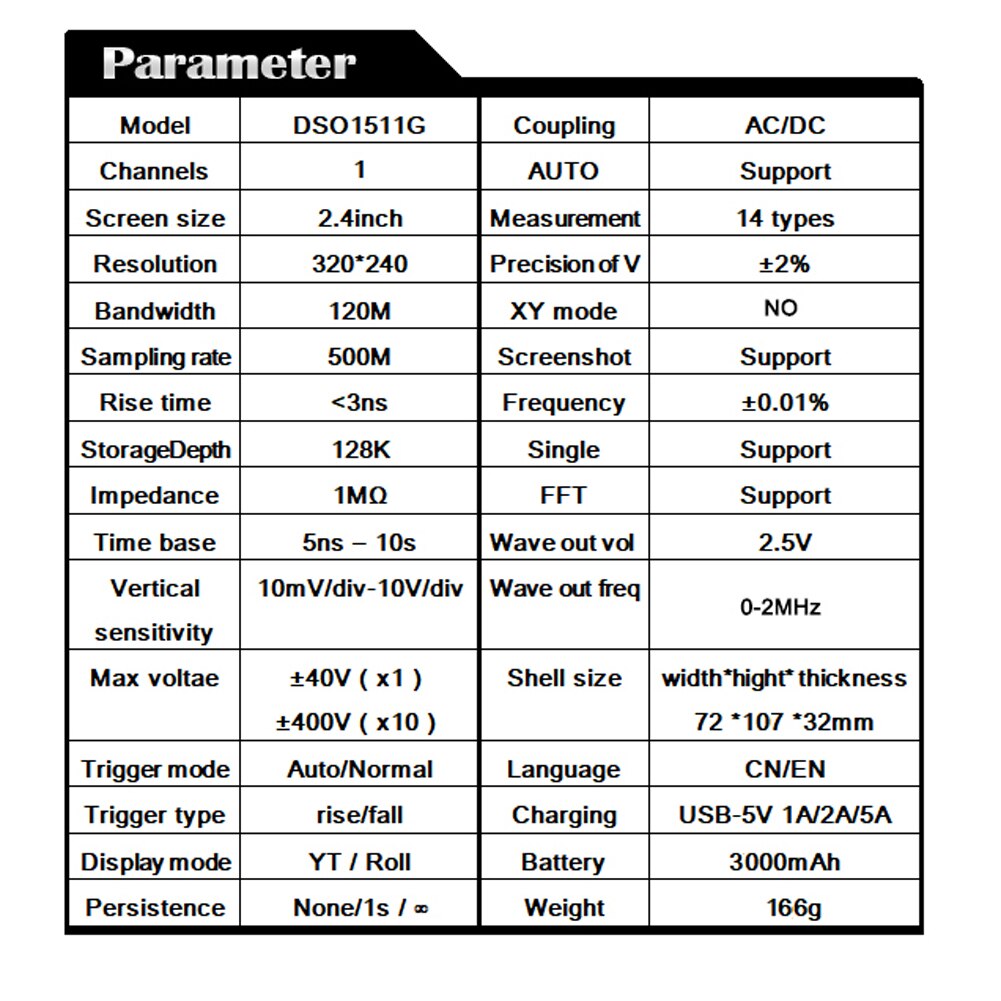

Specicifations:
Name: Oscilloscope
Model: DSO1511G
Color: yellow, green (optional)
Battery: 1 * 2.5V, 3000mAh battery (included)
Channels: 1
Screen size: 2.4 inch
Measurement: 14 types
Resolution: 320*240
Bandwidth: 120M
Sampling rate: 500M
Rise time: <3ns
Storage depth: 128Kbit
Impedance: 1MΩ
Time base: 5ns–10s
Ver sensitivity: 10mV/div-10V/div
Max voltae: ±40V(x1); ±400V(x10)
Trigger mode: Auto/Normal
Trigger type: rise/fall
Display mode: YT/Roll
Persistence: None/1s / ∞
Coupling: Direct Current/Alternating Current
AUTO: Support
Precision of V: ±2%
Reference: Support
Screenshot: Support
Single: Support
FFT: Support
Frequency: ±0.01%

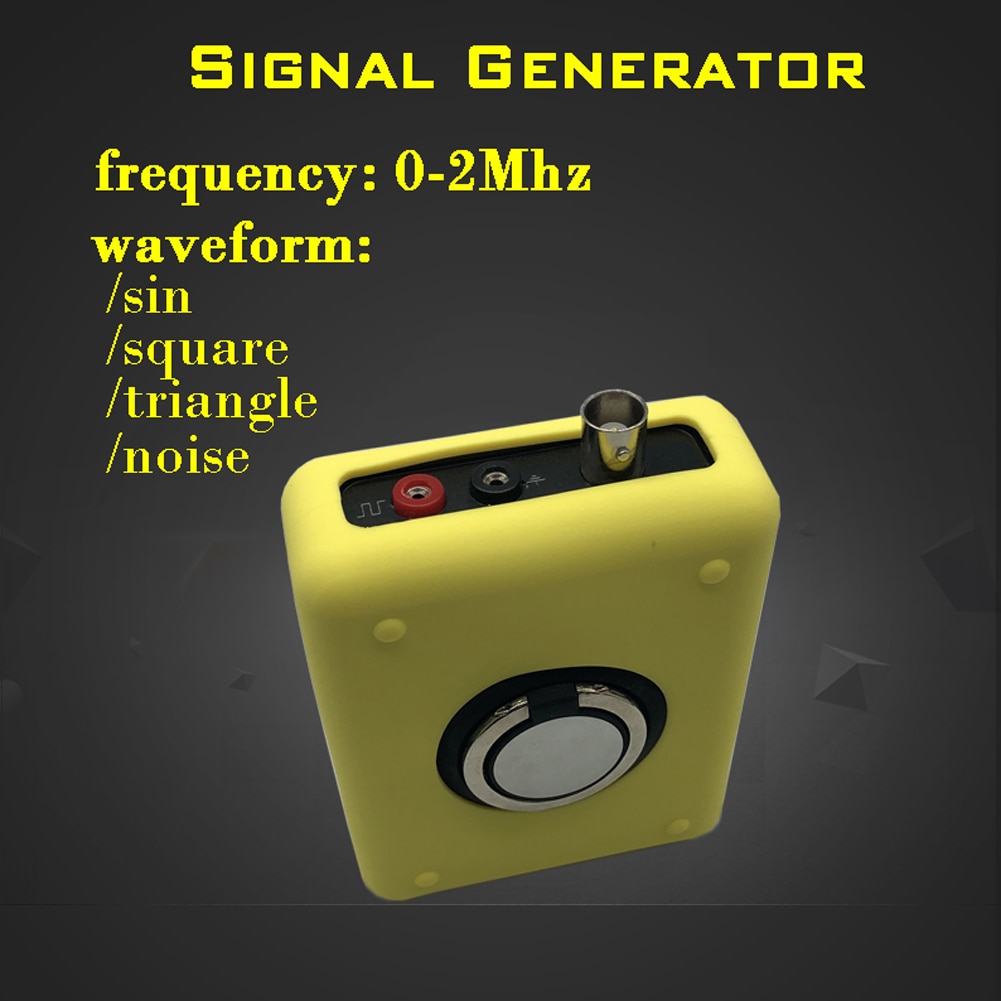

Generator: 0-2Mhz/2.5V
50%: Support
Language: CN/EN
Recharging: USB TypeC-5V 1A/2A/5A

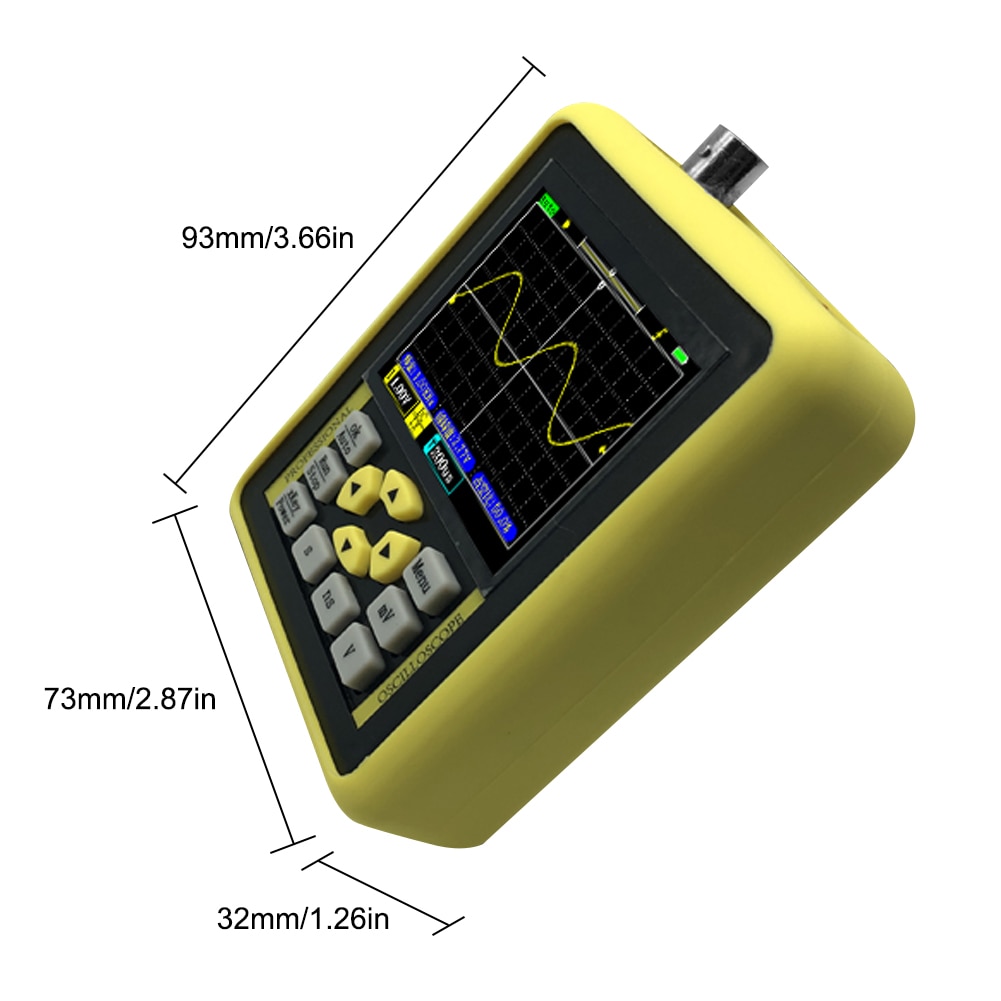

Item size: 73 * 93 * 32mm / 2.87 * 3.66 * 1.26in
Item weight: 166g / ounce
Package size: 190 * 100 * 130mm / 7.48 * 3.94 * 5.12in
Package weight: 500g / 1.10lb

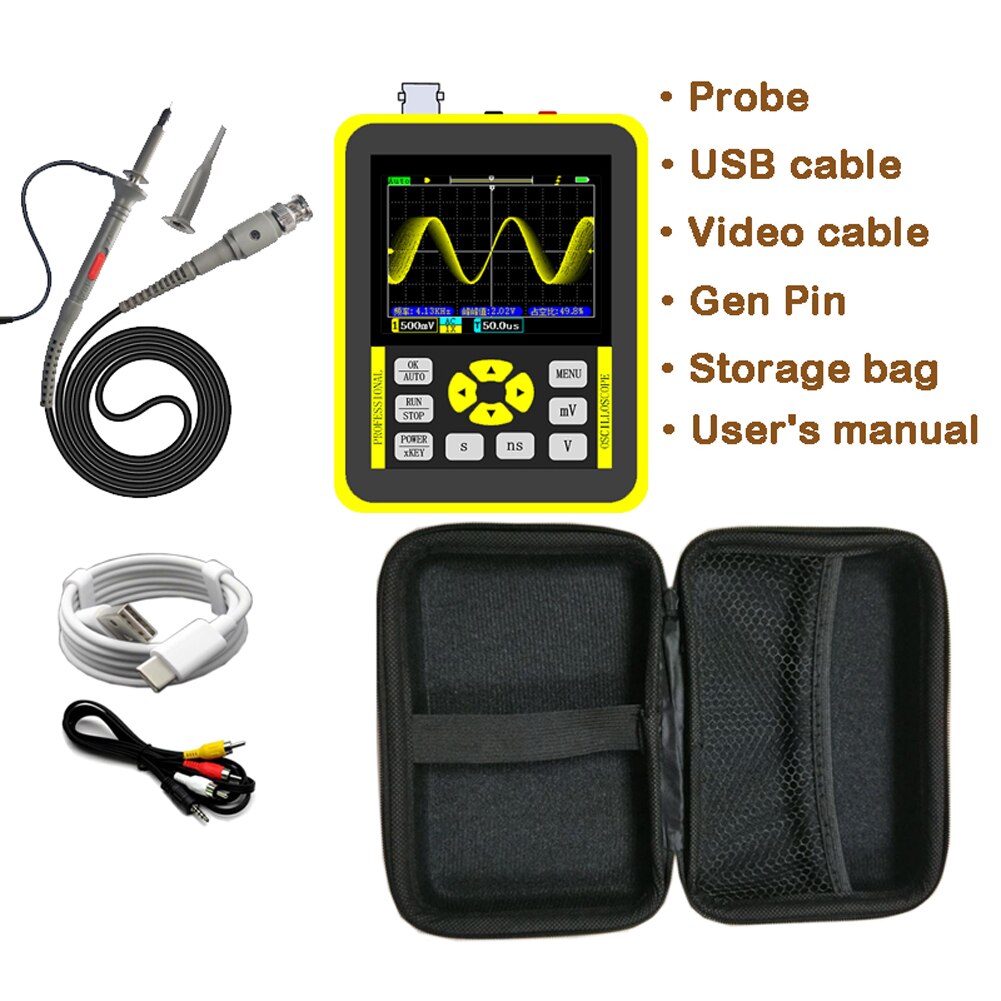

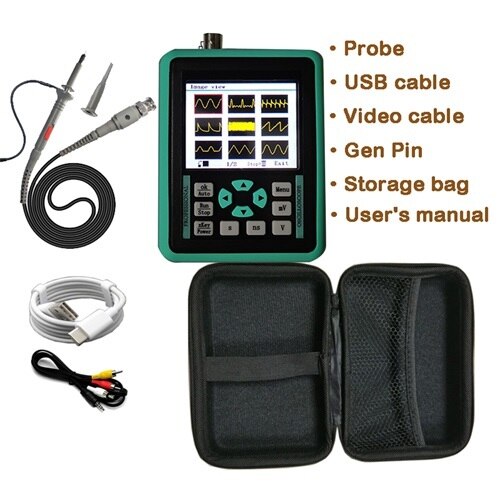

Packing List:
1 * Oscilloscope
