High Power Water Level Automatic Controller Liquid Sensor Switch Solenoid valve Motor Pump automatic control Relay Board 12V 30A
16.01 14.14 $
SALE
ID: 58506
Quantity

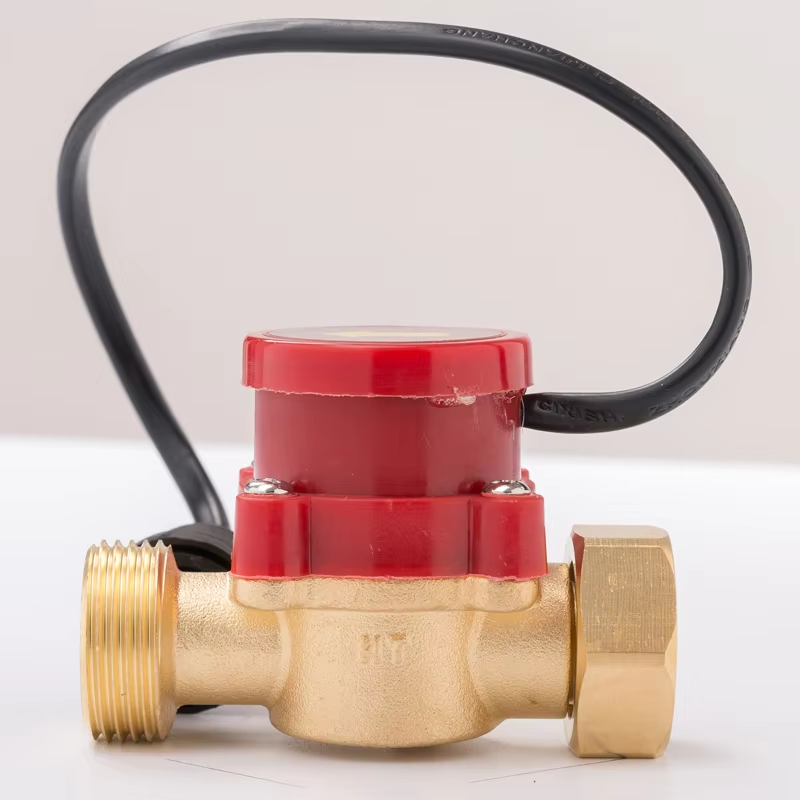

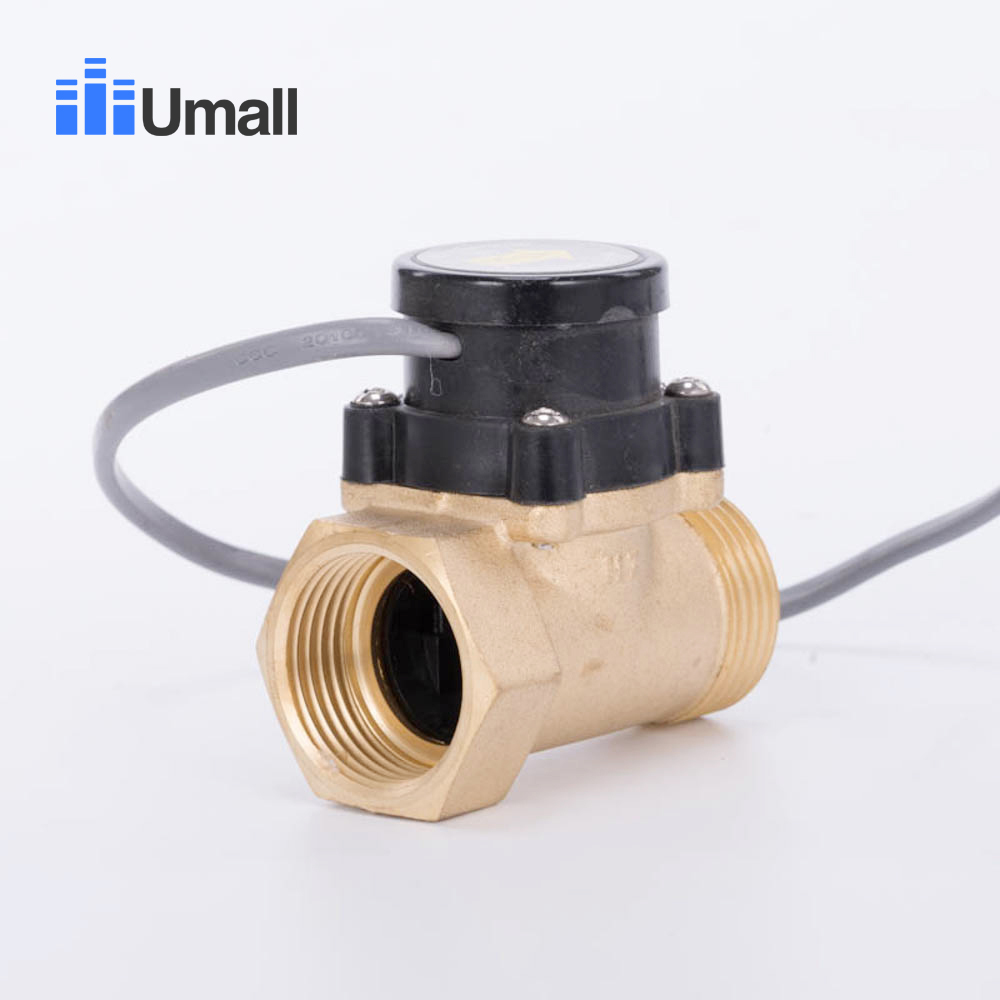

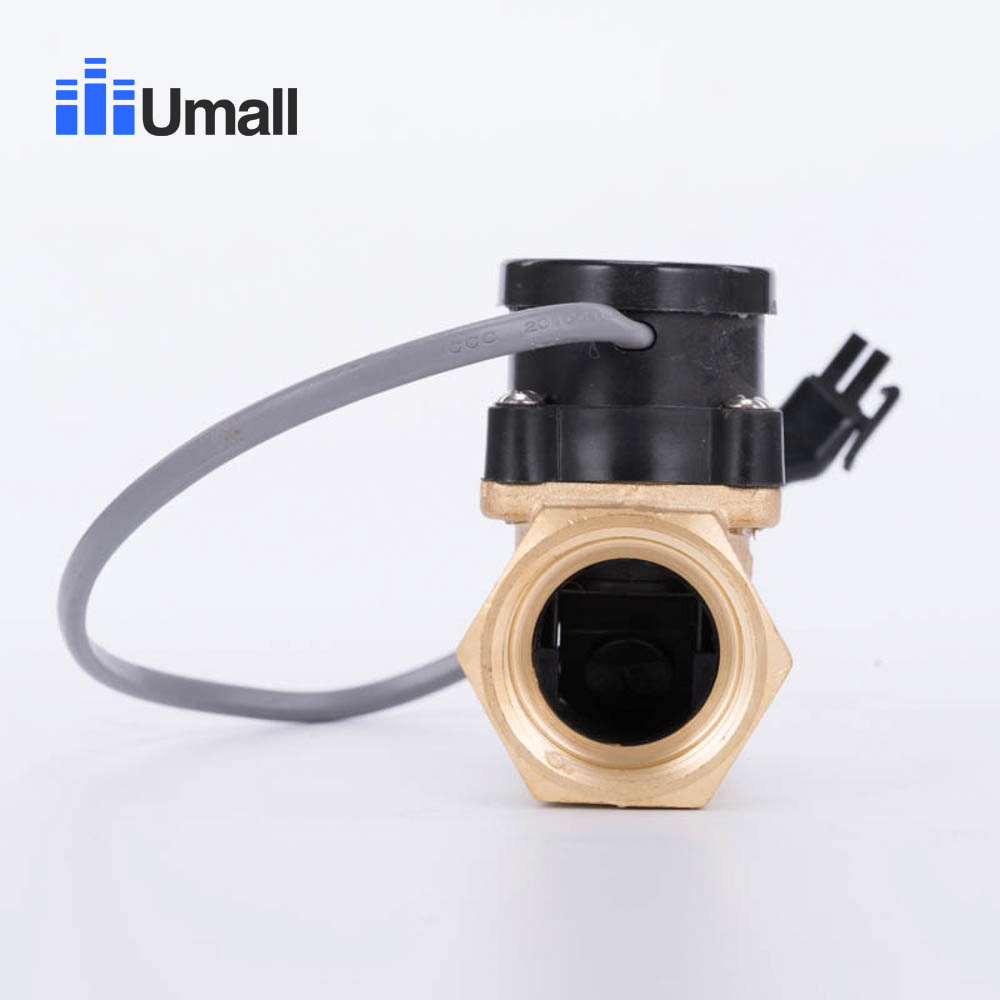

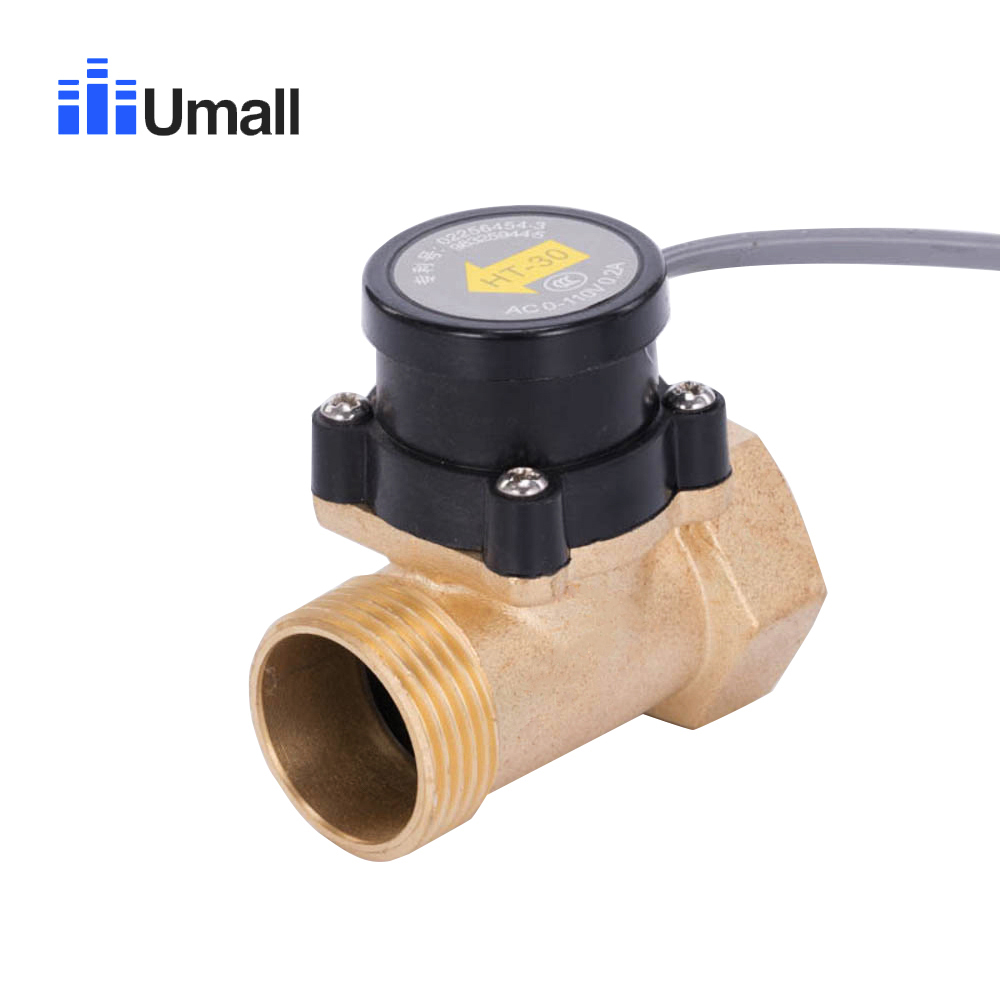

HT30 1 One Inch Water Flow Sensor Switch Boosting Pump Full Copper Magnetic Automatic Electronic Pressure Valve Controller 110V
5.0 (1 votes)
Price:
US $22.78 - 45.60
/ piece
Discount Price:
US $
18.21 -
36.48
/ piece
-20%
dianxiaobao_1
dianxiaobao_2
110v voltage HT-30 G1"-1" one inch water pump flow switch 0.2A for Brazil.America.Mexico.Colombia.japan.Sadi arablic
flow switch and auto switch
110V/60HZ. Direct voltage is available if require.
pipe size:1 inch
one inch to one inch

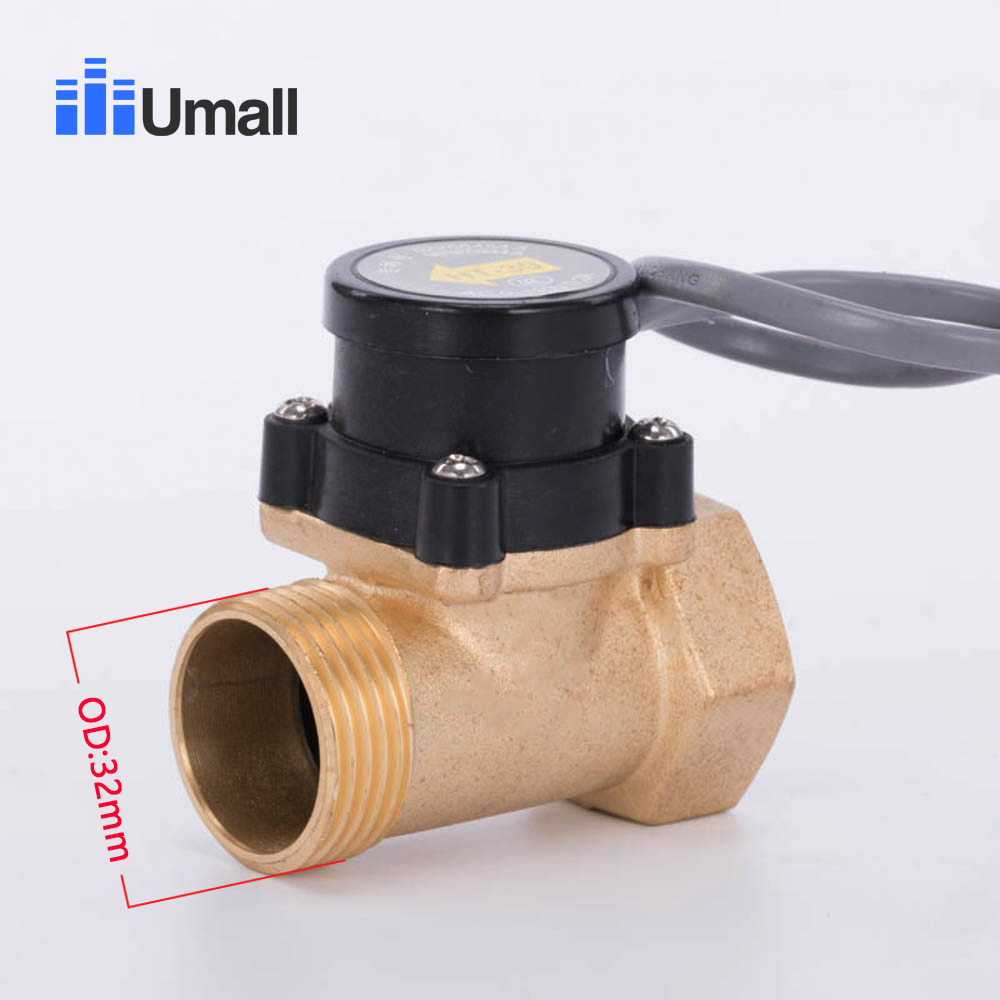

Flow Switch out screw diameter:32MM
Flow switch inner screw diameter: 32MM
currect load:0.2A
The starting capacity is 6-7L/min
After turning on the tap the flow wil push the plate to rotate.at a given positon the induction componet will be activated and the switch is on.the pump starts.the spring will force the plate to rotate back after turning off the tap.the induction component will be shut off and the pump stops.
The pipeline booster pump flow switch adopts the water flow type magnetic control device to carry out on-off control for the induction element.
To start and close the role of the pump. This product is widely used, mainly for the families of thousands of low water pressure area
Tap water pressure, especially for the low voltage ignition of the shower device is more important laser equipment, environmental protection
Equipment.
Technical characteristics:
1, stable. In the design of the induction room, magnetic control room, electronic components room separation, to avoid the pipeline iron containing material is magnetic material
Material adsorption, so as not to switch failure.
2, resistant to high temperature. Using high temperature resistant material production, the product can be used in cold and hot water conditions.
3, low water pressure start. The reset spring adopts the high quality stainless steel material, and the function of the water pump is reached.
4, security: the use of electronic components as a control device, so that the use of products in the process of no spark, all closed.
Working principle:
The water flow in the pipeline is opened, and the flow direction of the water flow impulse induction door is rotated in the direction of the rotating shaft to the water flow direction.
Someone with axle loading, magnetron turning, positioning to west, triggering the sensing element, the switch on household conduit booster
When the water pump is started with water equipment closed off, induction door in burning under the action of the reset spring, drive shaft and magnetron
The system installed together to drive rotation, position and failure, induction switch, household Barbara road booster pump to stop running.
Technical index:
Using medium tap water and physical and chemical can be similar to similar liquid.
Medium pressure:0~6Mpa
Medium temperature 100°C
After turning on the tap the flow wil push the plate to rotate.at a given positon the induction componet will be activated and the switch is on.the pump starts.the spring will force the plate to rotate back after turning off the tap.the induction component will beshut off and the pump stops.
We use many flow switches in hot water circulation pump.booster pumps.
dianxiaobao_3
dianxiaobao_4
- Model Number: HT-30
- DIY Supplies: Plumbing
- Brand Name: SHALUO
- Feature: Flow Sensor
- Material: Brass
- Interface: 1 Inch
- Rated Voltage: 110V
- Rated Current: 0.2A
