LASER TREE 80W Laser Module Air Assist 20W 40W Laser Head for Laser Engraving Cutting Machine 450nm Blue Light Wood Marking Tool
ID: 133085

LASER TREE 80W Laser Module Air Assist 20W 40W Laser Head for Laser Engraving Cutting Machine 450nm Blue Light Wood Marking Tool

4.9 (17 votes) | 77 orders
Price:
US $ 425.10 - 2526.00 / piece
Ships From
Color

Sorry! This item is out of stock



Product Description


The Blue Laser Module is designed for CNC mill. With 450nm wavelength, it is an effective tool for laser engraving and laser cutting. they can engrave and cut a variaty of materials.

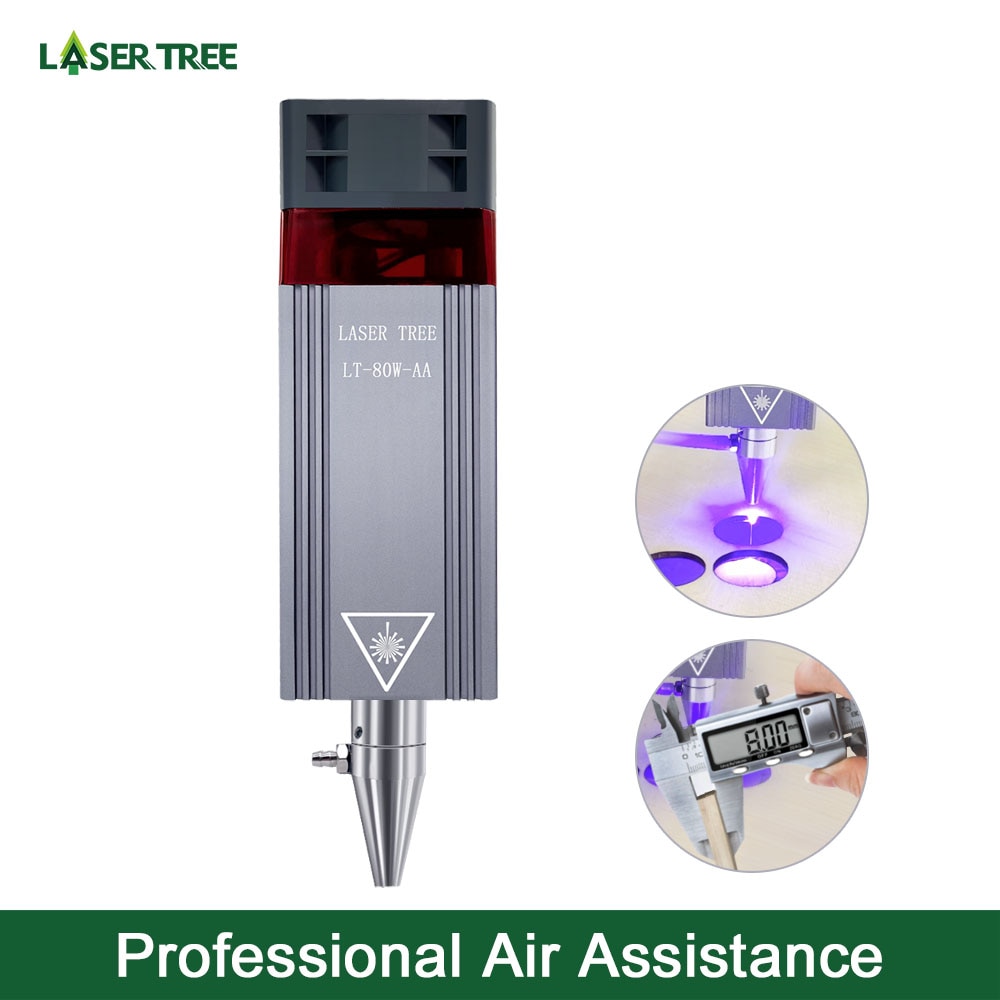

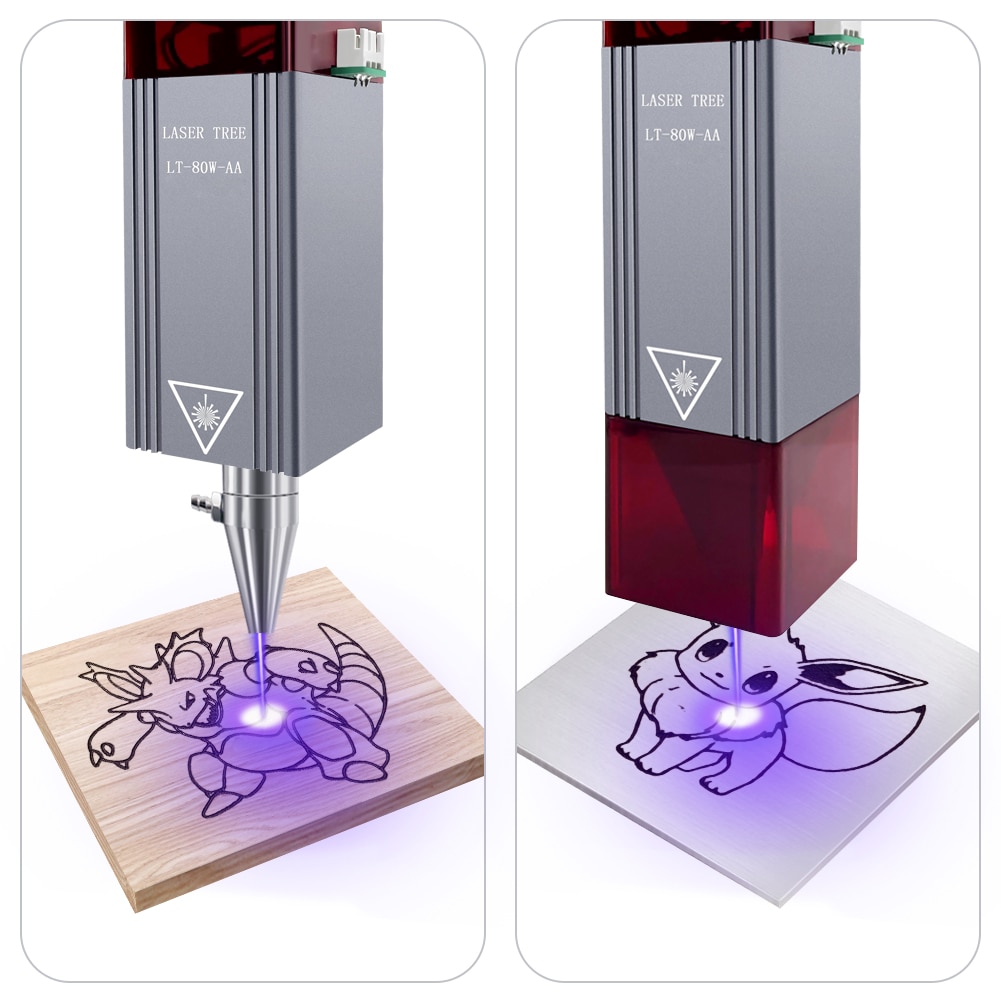

Two Ways to use LT-80W-AA:

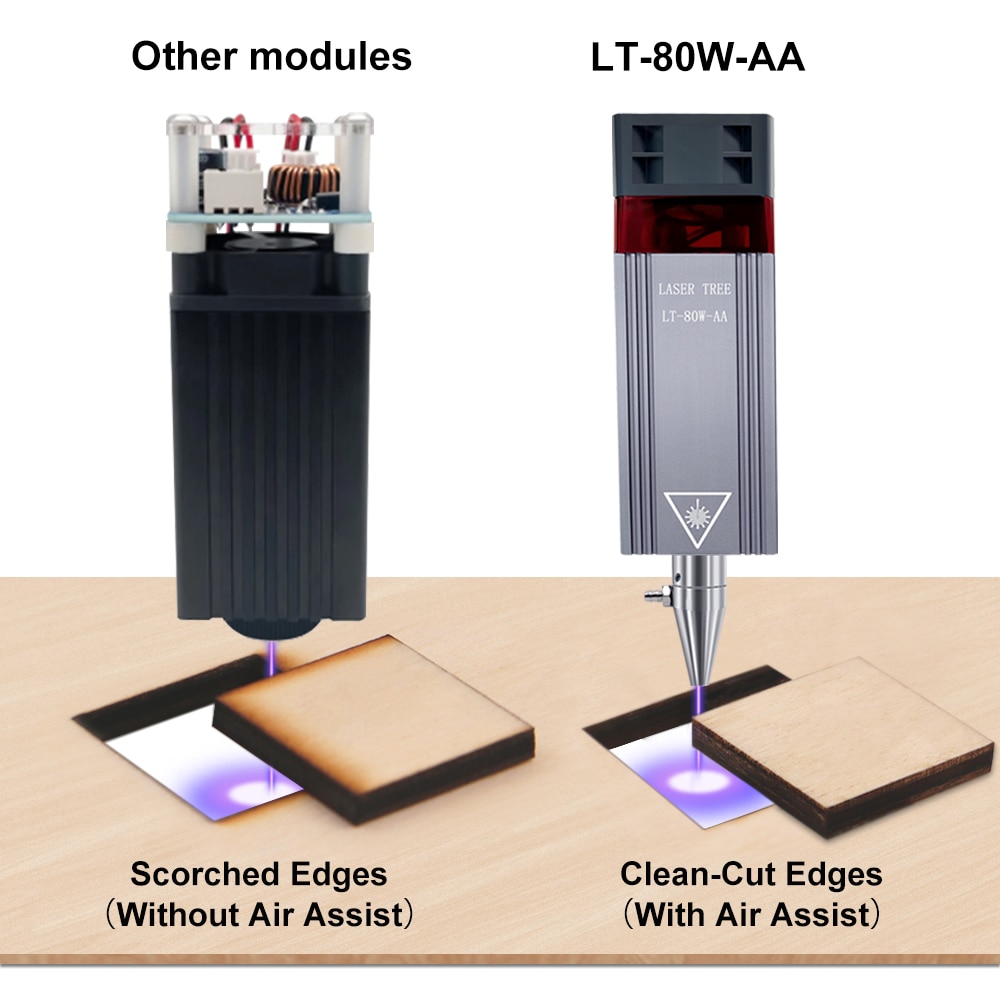

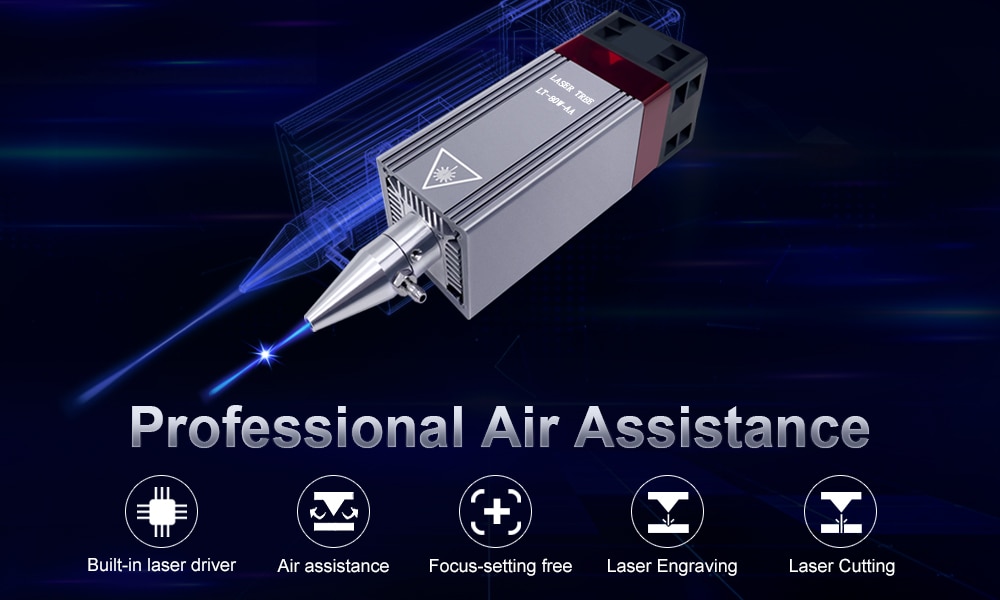

Way 1: with the air asssit nozzleThe laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.





Way 2：with the laser protective cover When engraving with this laser head, please use this protective cover that can effectively filter blue light. You can peform engraving without wearing laser goggles for convenience.

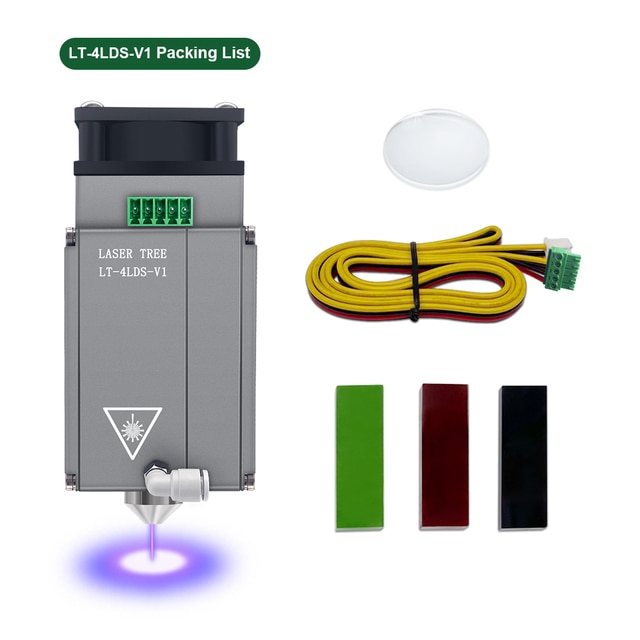

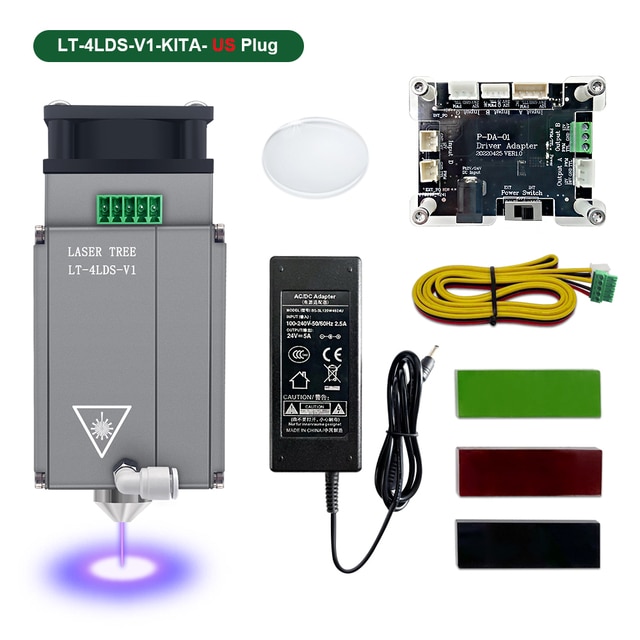

LT-4LDS-V1:


1. The optical power 20W module is the most powerful blue laser head on the market.

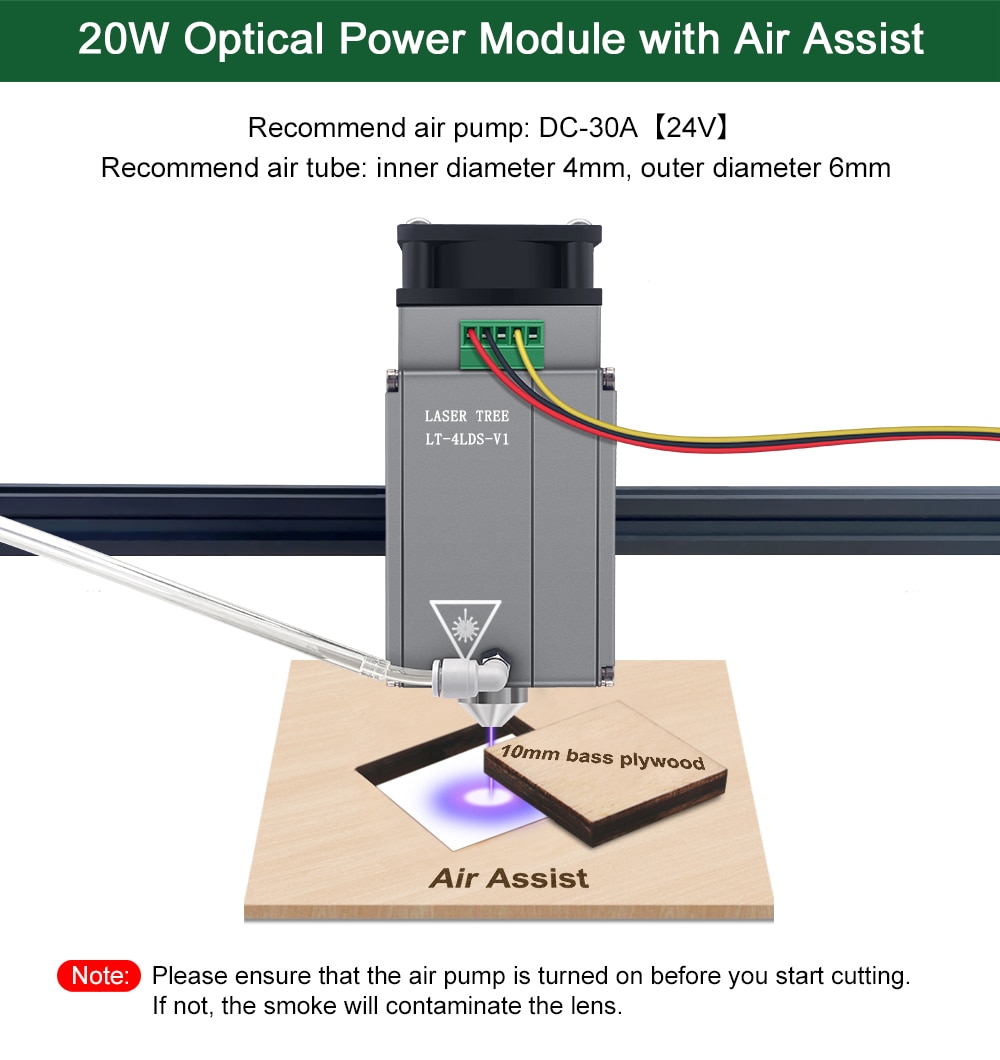

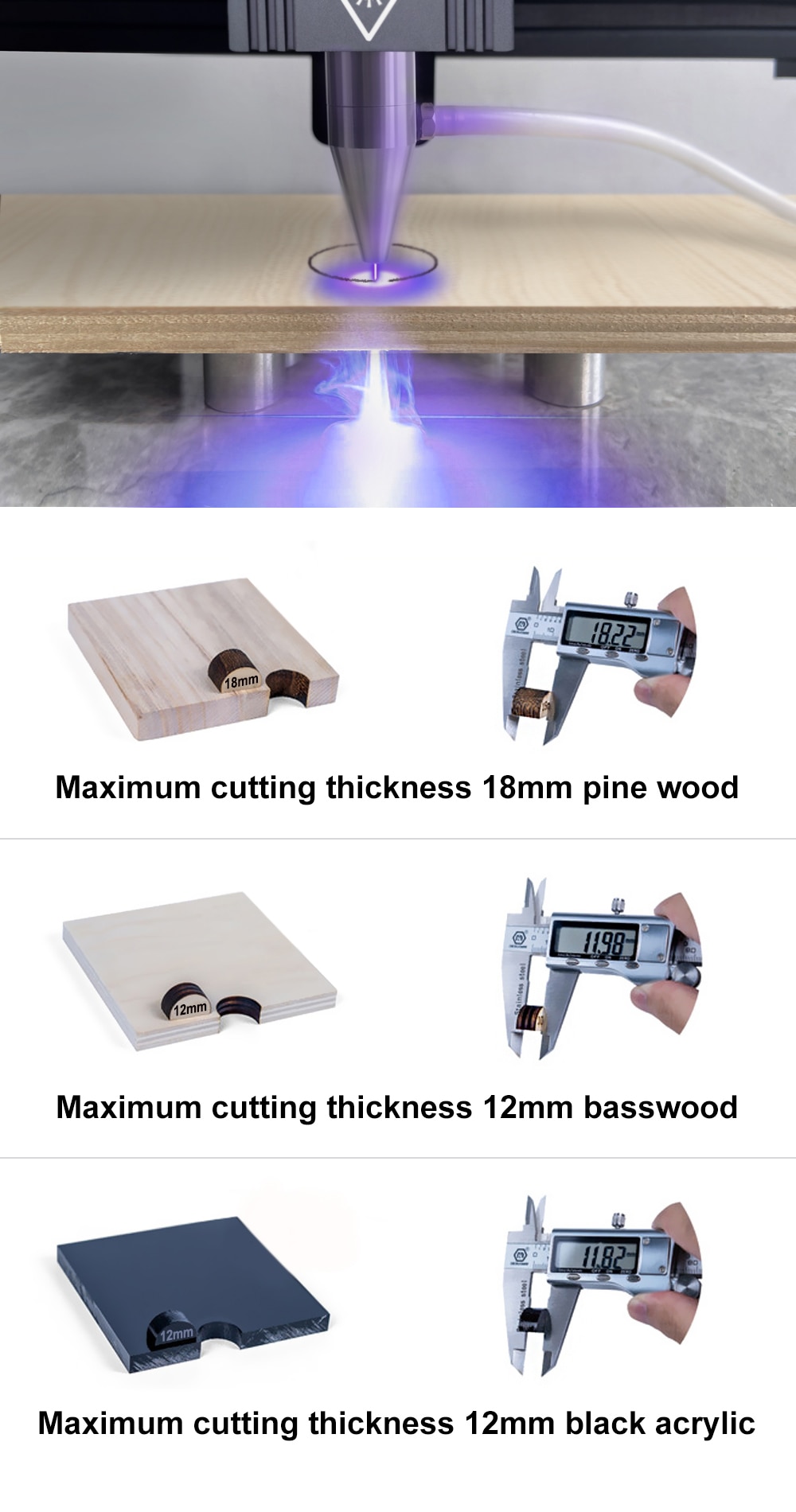

2. Cutting through 10mm bass plywood by one pass.

    Cutting through 20mm  bass plywood by 4 passes.

    Cutting through 20mm pine plywood by 2 passes.

3. With professional air assist.

4. Stable power output at long working time.

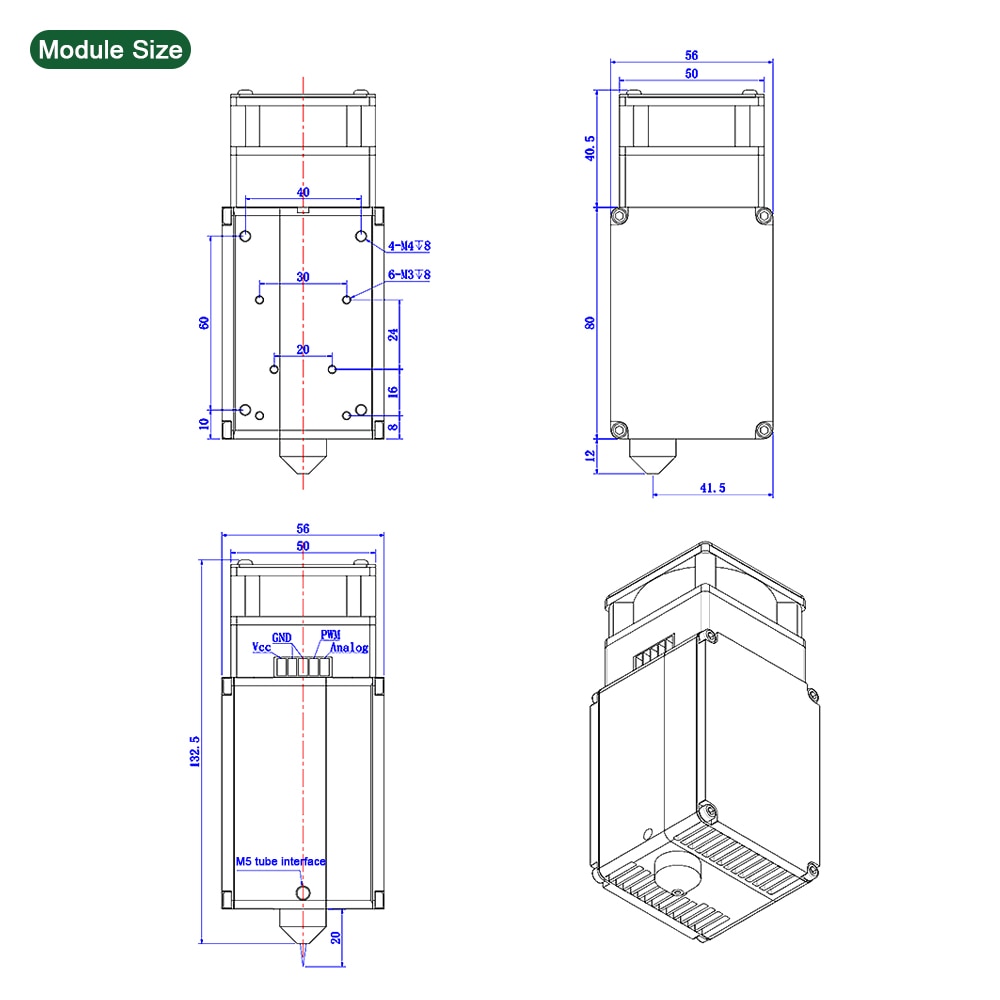

5. 56*56 housing size with excellent heat dissipation design.

6. Only 300~400mw power decrease with 100% power output in 30mins.

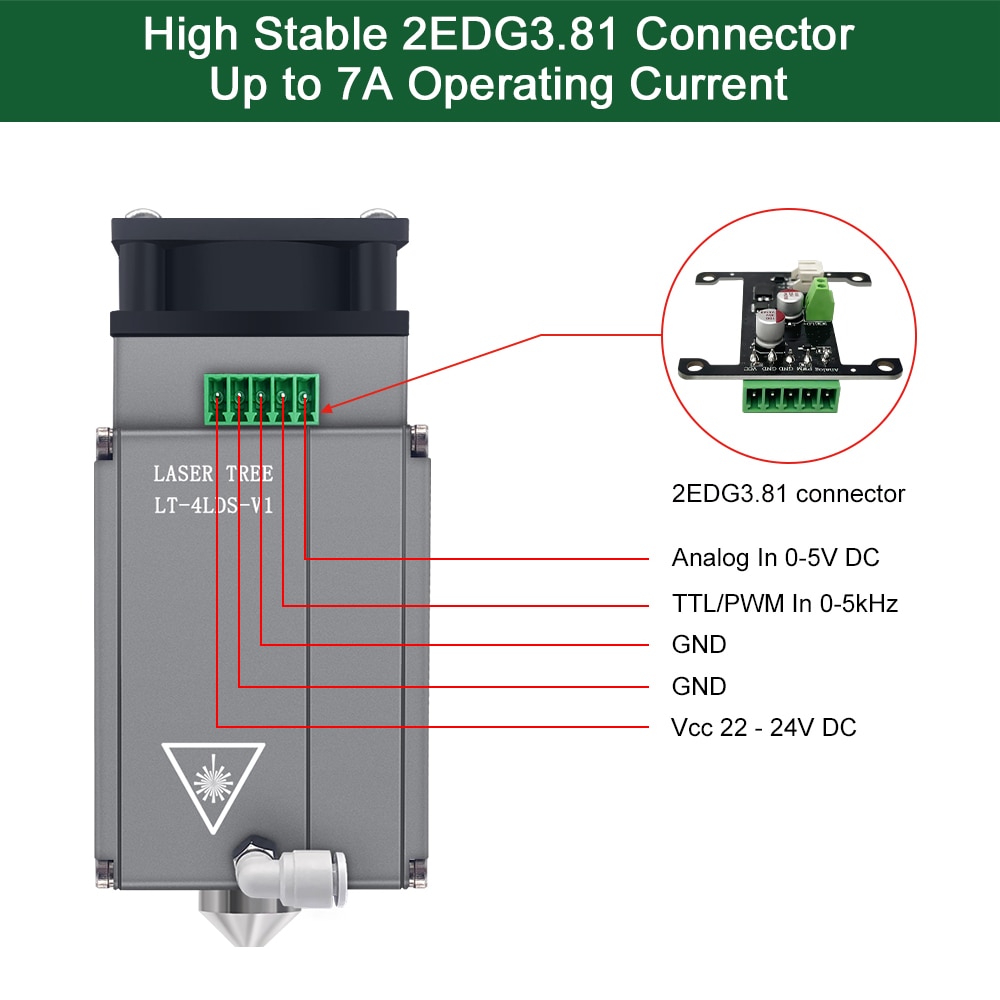

7. Easy for DIY connection:

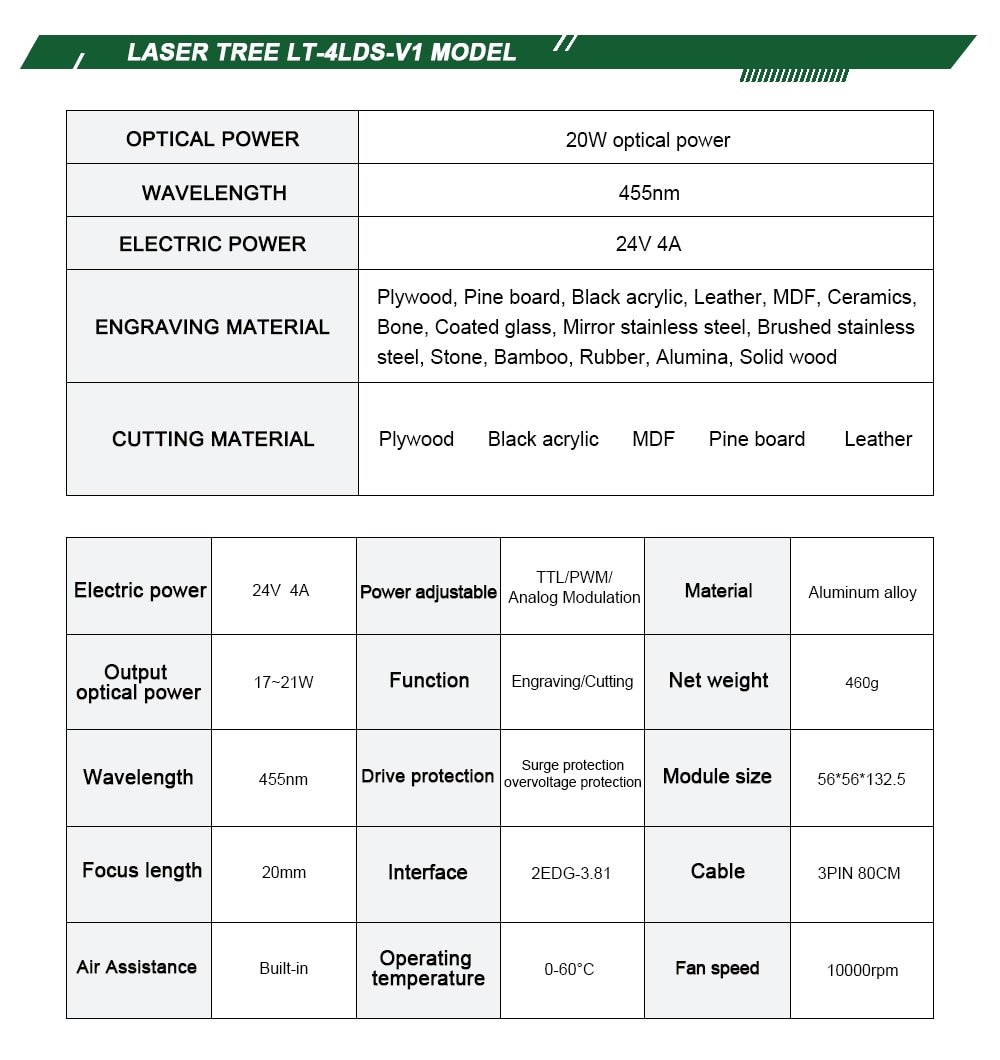

Specifications:

Effect Laser Power: 20W

Material: Aluminum Alloy+Plastic

Light Color: Blue

Wave Length: 450nm

Facula Form: Punctiform, Adjustable Focus

Input Voltage: 12V 2A

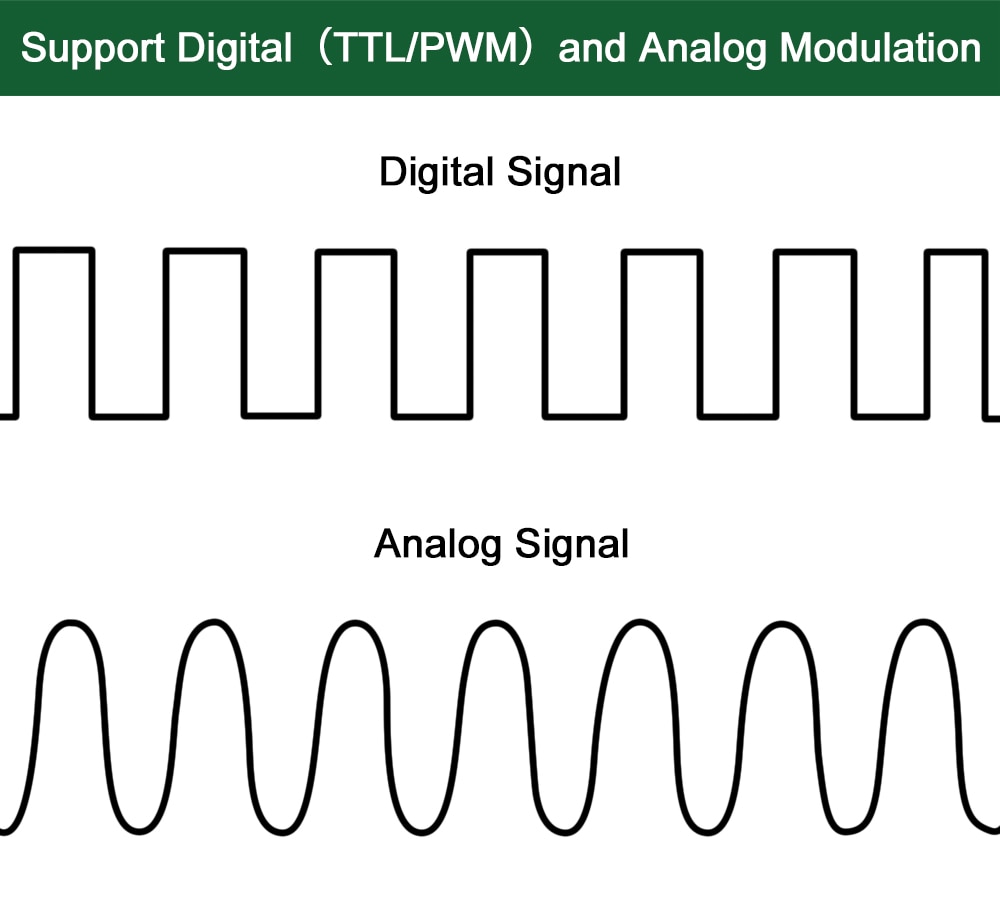

Interface Parameter: Support TTL signal controls power

Item Size: 9.5*3.5*3.5cm

Package Size: 14*6.2*6.2cm

Item Weight: 146g


Package List:

1 * Laser Head

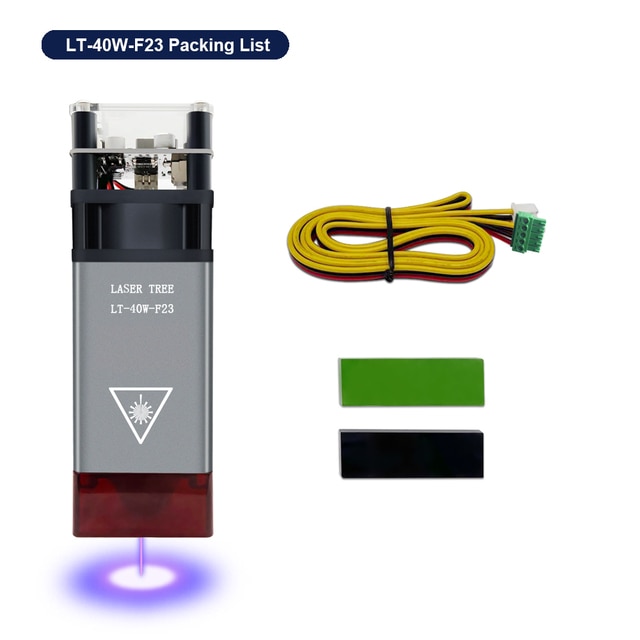

LT-40W-F23

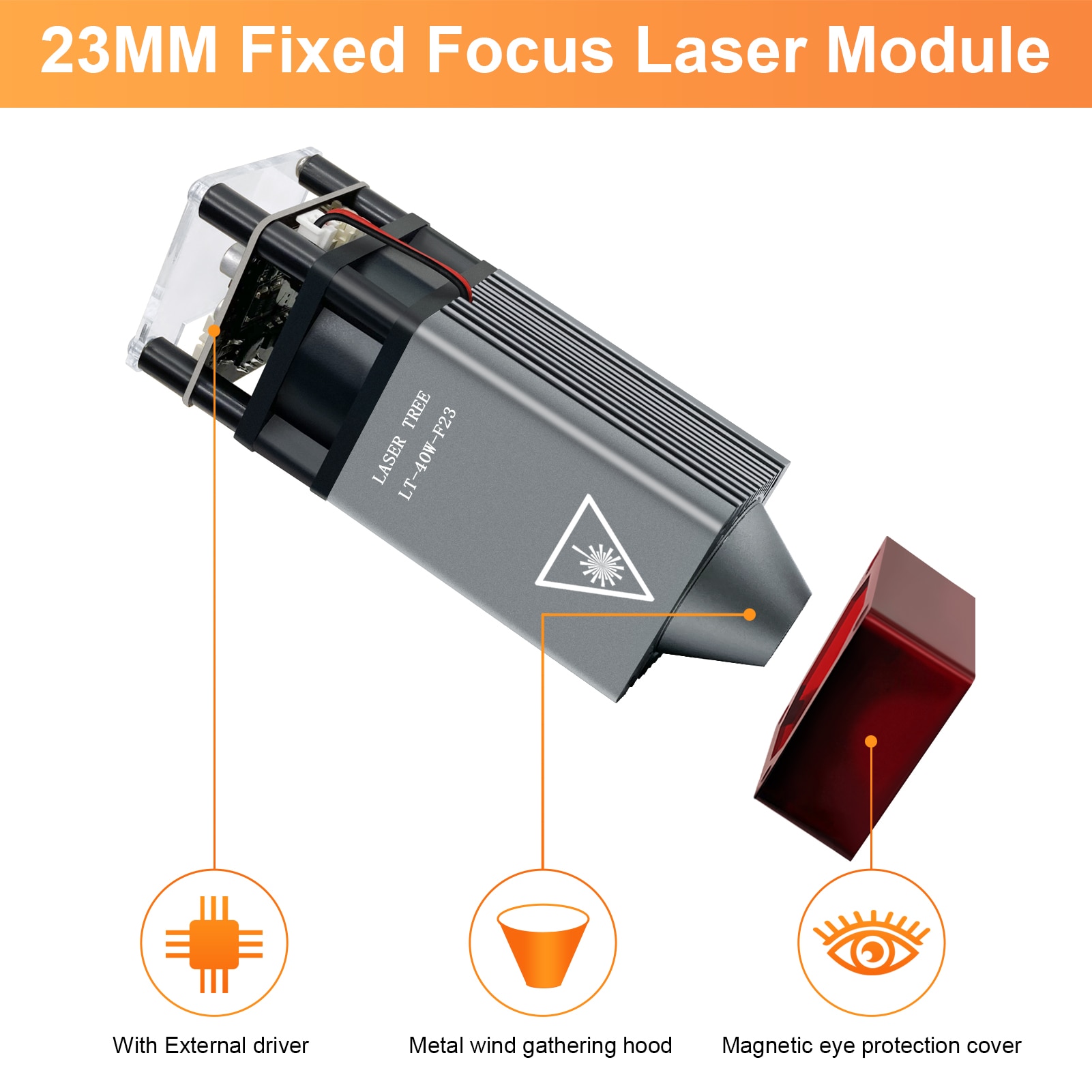

【Upgraded 23mm Fixed Focus Laser Module】

a.Directly engrave mirror stainless steel: no need painting black;

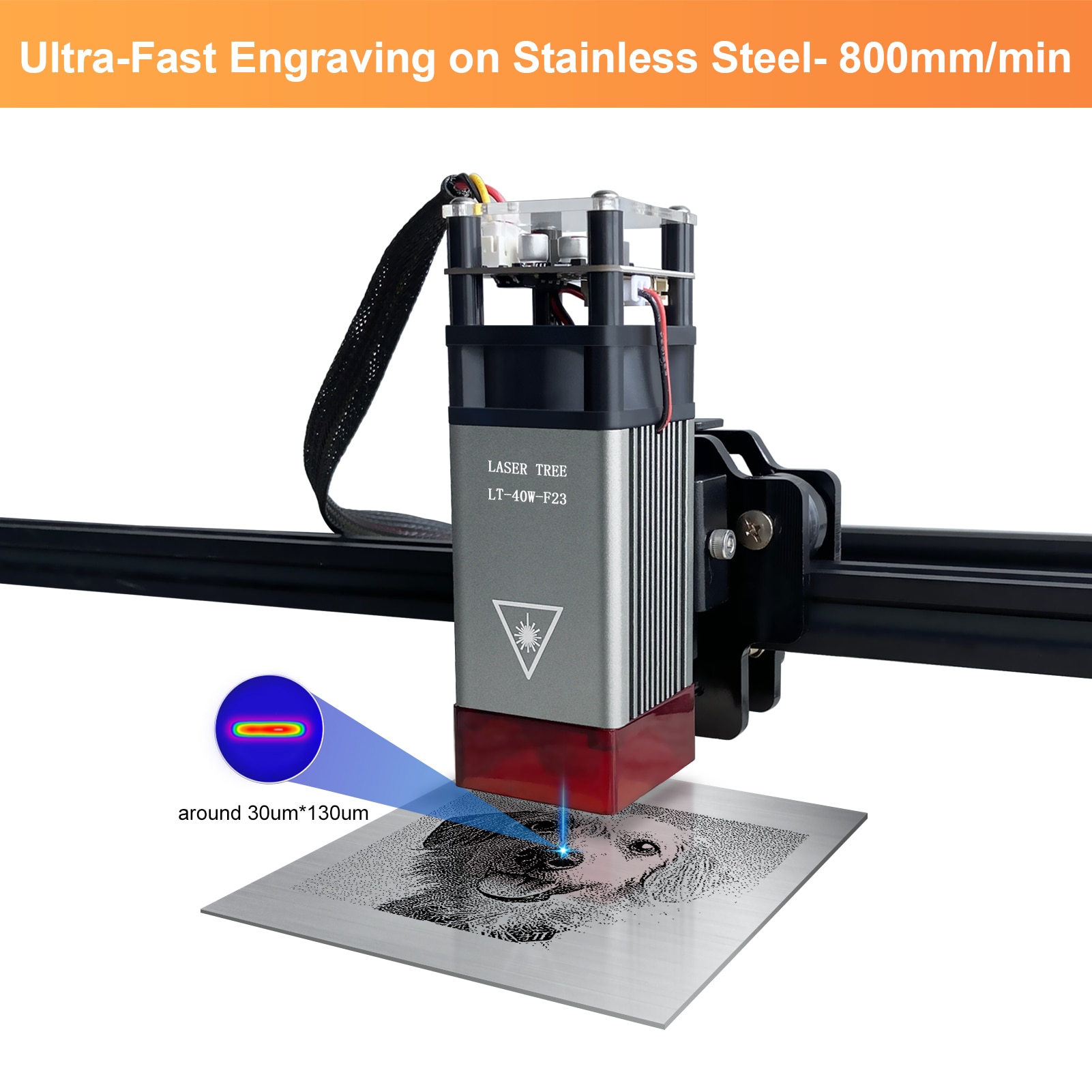

b. Super fast engraving speed: 304 stainless steel, up to 800mm/min with 23mm focus length;

c. Remarkable cutting ability: cutting through 4mm thickness plywood by one pass at speed of 80-100mm/min.

【Original Diode with FAC】

our
blue laser module with Original diode, high quality,20,000 hours life
time! Built-in FAC to make the beam size much smaller at focus, power
density increase 4~5 times, the engraving speed increase 4~5 times
accordingly. At same time, the precision increase 4~5 times also. The
solution make high engrave speed and high precision possible.

【Easy to Use and Remove to Install】

The
40W laser engraving head with metal wind gathering hood,Prevent Flames
from Burning. Upgraded Magnetic eye protective cover, Easy to remove and
install. Control line installation method: pluggable. suitable for DIY
engraving and cutting machine.

【Applicable Materials】

Plywood,
black acrylic, MDF, wood, paper, leather, bamboo, plastic, rubber,
alumina, stainless steel, etc. (Unable to engrave:
blue/purple/white/transparent material, aluminum without oxide layer)

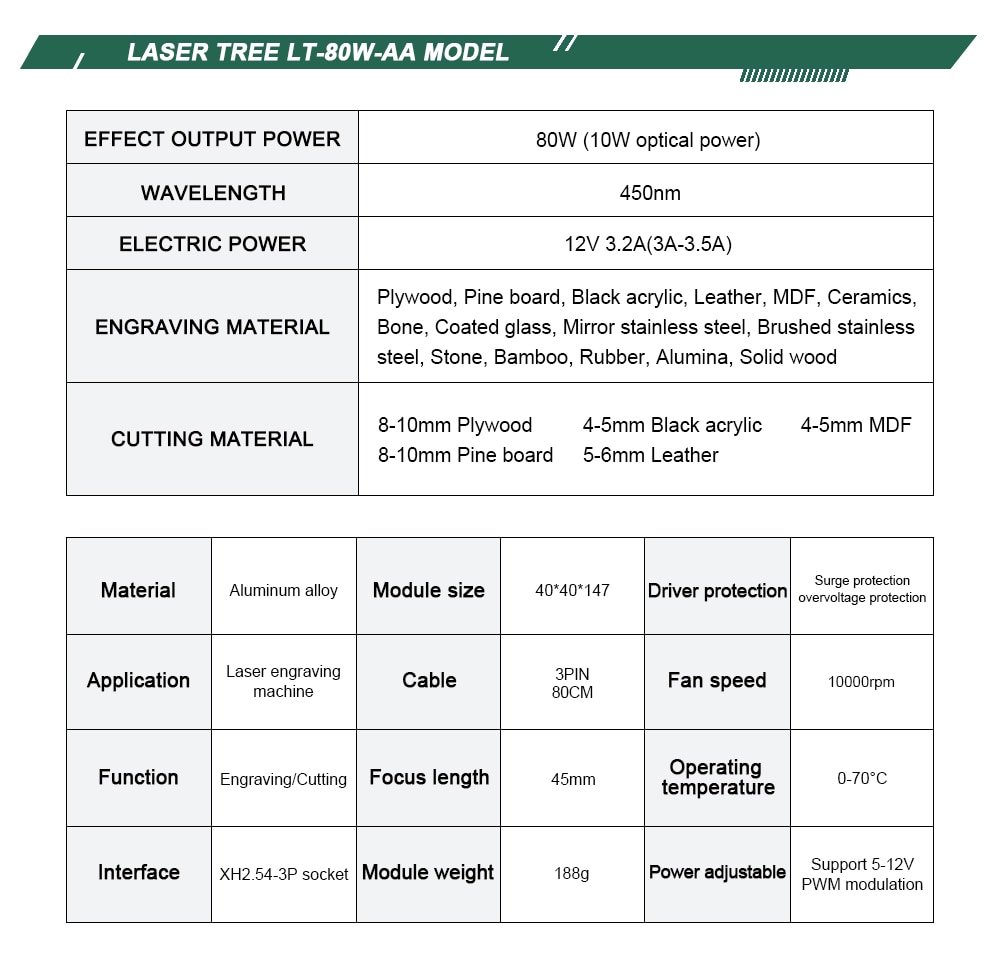

  • Brand Name: Laser Tree
  • Origin: Mainland China
  • Model Number: LT-80W-AA/LT-20W-A
  • Certification: CE
  • Effect Laser Power: 80W
  • Optical power: 10W
  • Material: Aluminum Alloy+Plastic
  • Light Color: Blue
  • Wave Length: 450nm
  • Facula Form: Fixed focus
  • Input Voltage: 12V 4A
  • Interface Parameter: Support TTL signal controls power
