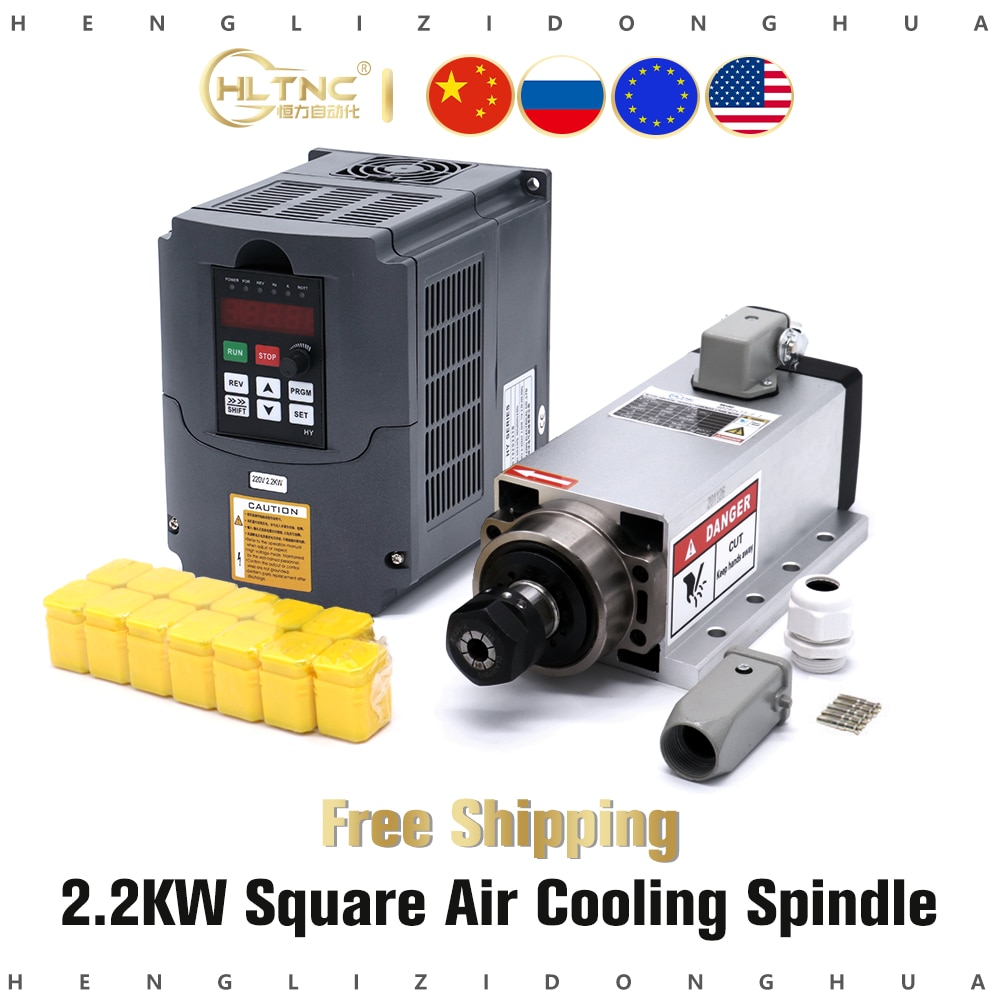

HLTNC Free Ship 110V 220V 380V 2.2kw ER20 Square Air Cooled Spindle Motor with HY YL Inverter VFD Kits for CNC Milling Machine
4.6 (9 votes) | 68 orders
Price:
US $922.00 - 1056.98
/ piece
Discount Price:
US $
566.34 -
665.90
/ piece
-39%
Different Power Applications of Air-cooled Square Spindle
Relief carving, advertising carving, material wood, pvc, acrylic board | |
Relief carving, advertising carving, material wood, aluminum, part of soft metal, pvc, acrylic board | |
Relief carving, advertising carving, hollow cutting process of PVC, acrylic, MDF, LED and other materials, and need faster speed and cutting power, materials wood, aluminum, some soft metals, pvc, acrylic board. | |
For solid wood cutting and perforating, it can also be used as a cutting machine, 4.5-7.5kw, select the appropriate power according to the hardness of the material and the depth of the hole. | |
For solid wood cutting and perforating, it can also be used as a cutting machine, 4.5-7.5kw, select the appropriate power according to the hardness of the material and the depth of the hole | |
7.5KW | For solid wood cutting and perforating, it can also be used as a cutting machine, 4.5-7.5kw, select the appropriate power according to the hardness of the material and the depth of the hole |
6KW ATC Spindle | Automatic tool change spindle: automatic tool change engraving machine or woodworking machining center |
Automatic tool change spindle: automatic tool change engraving machine or woodworking machining center |
Option 3 | Option 1 | ||||||
|
| ||||||

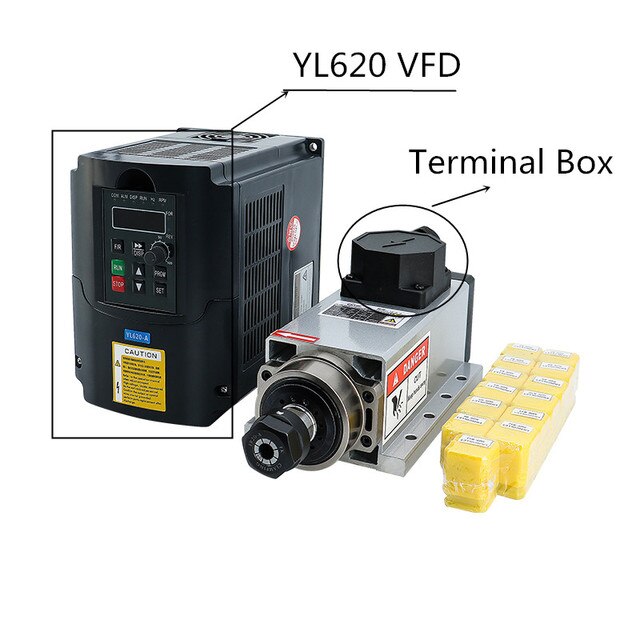

Terminal Box HY Kit | 2.2kw HY kit (Aviation Connector) | ||||||

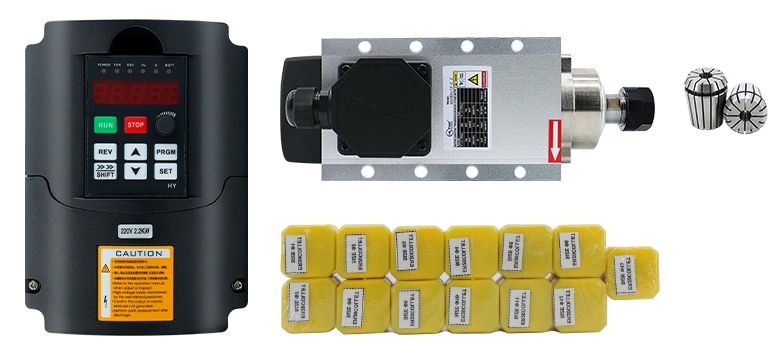

| 1 &220v 2.2kw ER20 4 bearings air cooled spindle | ||||||
| 1 &220v 2.2kw Huanyang inverter/VFD | ||||||
| 1 kit ER20 high accuracy collet(≤0.008mm) （Quantity: 15） | ||||||
□φ1*1 | □φ2 *1 | □φ3 *1 | □φ3.175*1 | □φ4*1 | □φ5 *1 | □φ6 *2 | |
□φ7*1 | □φ8*1 | □φ9*1 | □φ10 *1 | □φ11 *1 | □φ12*1 | □φ13*1 | |
Option 4 | Option 2 | ||||||
|
| ||||||
Terminal Box YL Kit | 2.2kw YL kit (Aviation Connector) | ||||||
| 1 &220v 2.2kw ER20 4 bearings air cooled spindle | ||||||
| 1 &220v 2.2kw YL620-A inverter/VFD | ||||||
| 1 kit ER20 high accuracy collet(≤0.008mm) （Quantity: 15） | ||||||
□φ1*1 | □φ2 *1 | □φ3 *1 | □φ3.175*1 | □φ4*1 | □φ5 *1 | □φ6 *2 | |
□φ7*1 | □φ8*1 | □φ9*1 | □φ10 *1 | □φ11 *1 | □φ12*1 | □φ13*1 | |

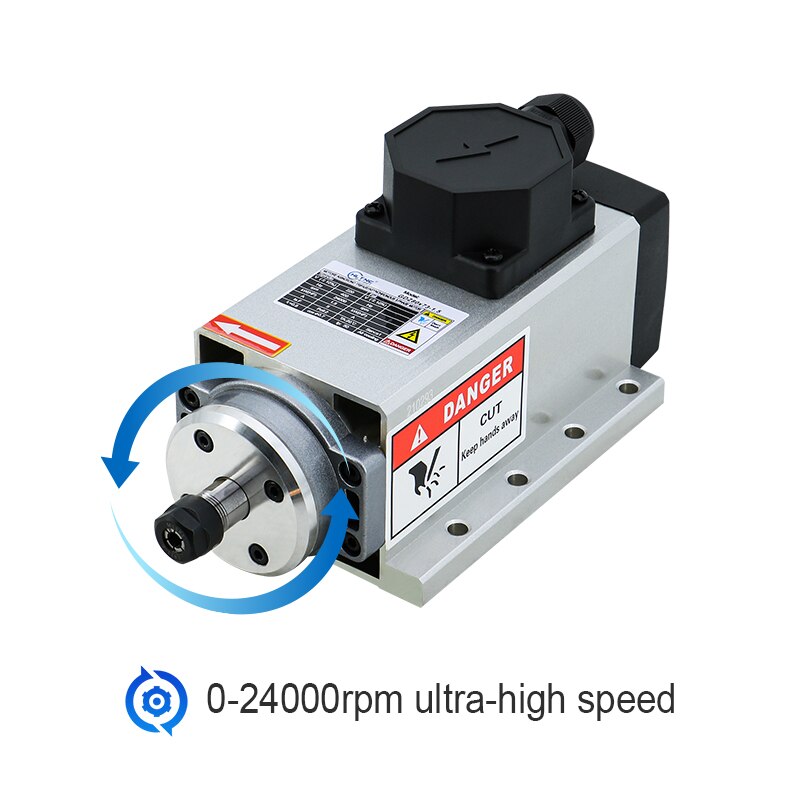

1. 0-24000rpm ultra-high speed

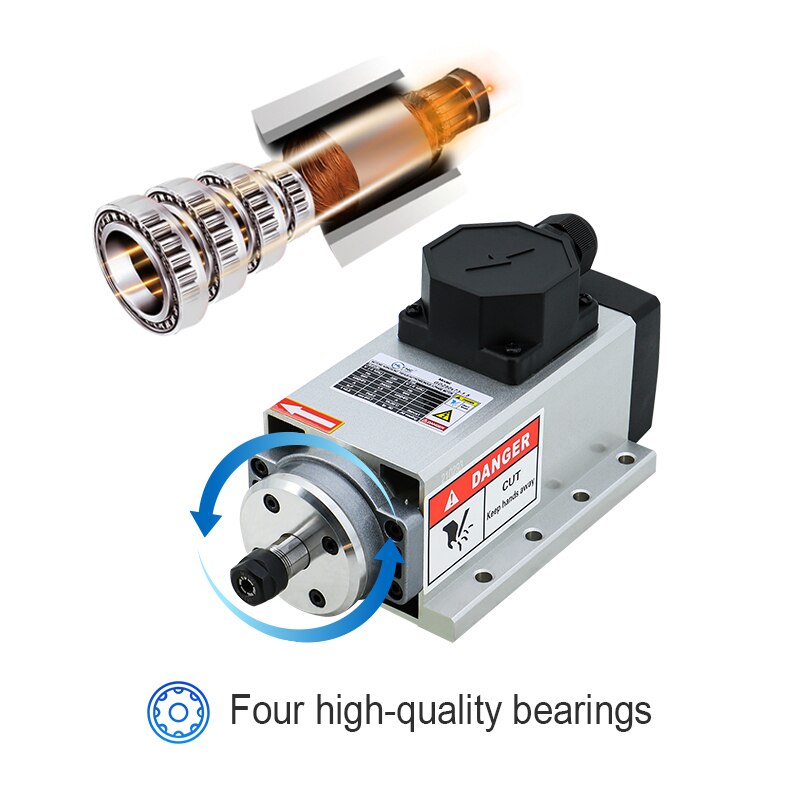

2. Four high-quality bearings
3. Run silent
4. High temperature resistance
5. long life
|
| Aviation Plug |
| Cooling Fan | |
| Metal body | |
| Parameter | |
| Lengthened rotor | |
| Chuck |
MOTORE ASINCRONO TRIFASE/ASYNCHRONOUS 3 PHASE MOTOR
Spindle | Fail | ||
V（±10%） | 220 | V（±10%） | |
Hz | 400 | Hz | |
rpm | 24000 | rpm | |
KW (HP) | 2.2 | KW (HP) | |
A | 6 | A | |
IS .F | Poli:2 | TA :20℃ | Serv:S1 |
=0.8 | Cosφ0.7 | IP：50 | Air Cooling |
Termial Box Type Spindle
Aviation Connector Type Spindle

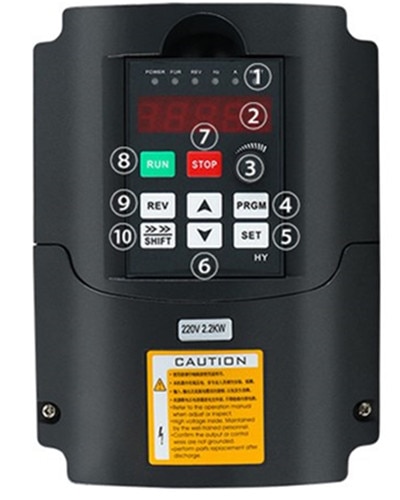

Huanyang HY Inverter
 |
| LED Display zone indicating For., Rev.,frequency,current,recolution, etc. | |
| Main display zone indicating frequency,current,ACV ,DC V,revolution,counter,temperature,etc | ||
| Speed controller | ||
| Function key | ||
| Set Key (enter) | ||
| Value Change key | ||
| Stop/Reset key | ||
| Run key | ||
| FOR/REV Switch | ||
| (DISP) Shift key | ||
Tech parameters | |
Power:2.2KW | Input Voltage :220V |
Input Frequency :50/60Hz | Input Phase : 1phase |
Output Voltage : 220V | Output Phase : 3pahse |
Output Current :10A | Output Frequency: 400Hz |
Control Method : V/F control; Open-loop fiux vector control | |

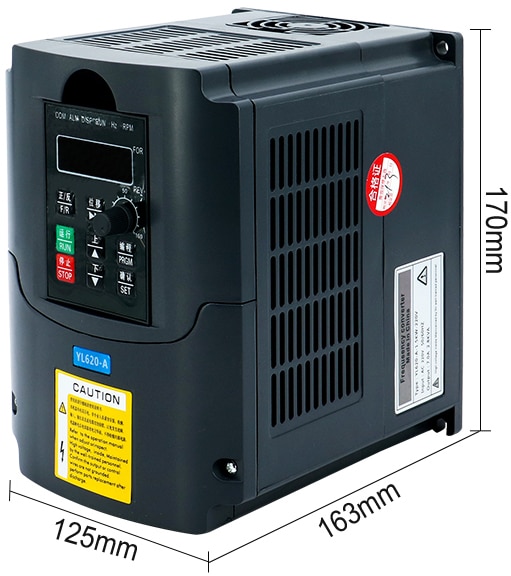

YL Inverter
 |
| Digital Display | |
| Forward/Reverse Switch Key | ||
| Run Key | ||
| Stop Reset Button | ||
| Shift Key | ||
| Frequency Adjustment Key | ||
| Programming Key(Forward/Backward) | ||
| Select/Confirm Key | ||
| Up and Down Keys | ||
Tech parameters | |
Power:2.2KW | Input Voltage :220V |
Input Frequency :50/60Hz | Input Phase : 1phase |
Output Voltage : 220V | Output Phase : 3pahse |
Output Current :10A | Output Frequency: 400Hz |
Control Method : V/F control; Open-loop fiux vector control | |
The factory default setting of YL inverter is 400hz, no need to set it,
it is suitable for our spindle motor

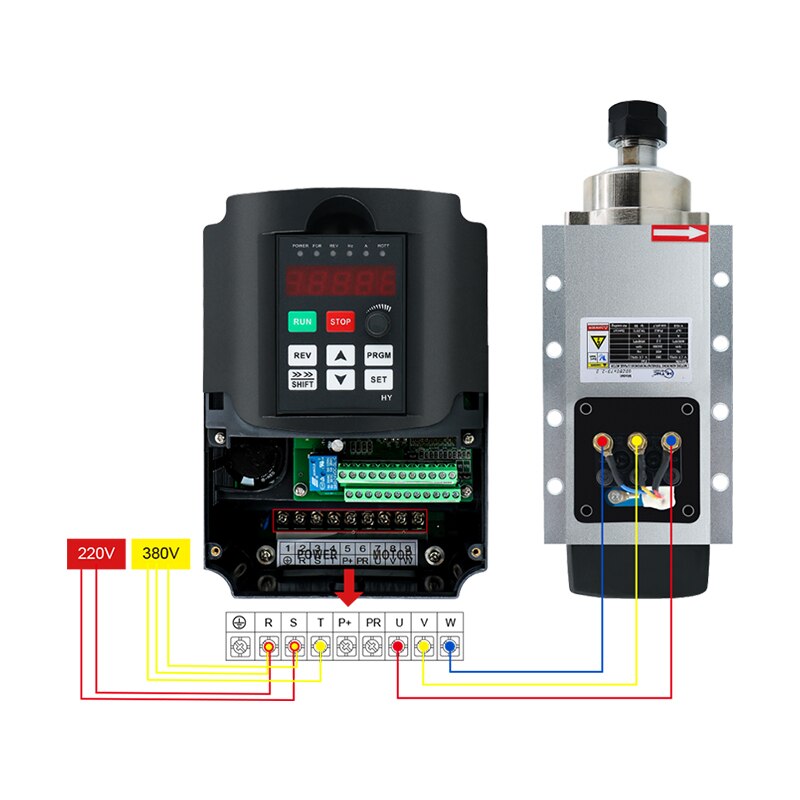

Function description of Main circuit terminals
Symbol | Function Description |
R S T | Input terminal of AC line power.(220V class,for both single.three phase,single phase connected to any two phases) |
U.V.W | Output terminal of the inverter |
P.Pr | Connector for braling resistor（optional) |
E | Ground terminal:the third method of grounding for 220V and special grounding for 380V of electrical engineering regulations. |
| |||||||
□φ1*1 | □φ2 *1 | □φ3 *1 | □φ3.175*1 | □φ4*1 | □φ5 *1 | □φ6 *2 | |
□φ7*1 | □φ8*1 | □φ9*1 | □φ10 *1 | □φ11 *1 | □φ12*1 | □φ13*1 | |
Inverter Setting Scheme | |
PD013=8 | Restore factory setting |
PD005=400 | Set max operating frequency |
PD004=400 | Set base frequency |
PD002=1 | Set board potentiometer control |
PD070=1 | Set analoy input |
PD072=400 | Set high analoy frequency |
CHUCK REPLEACEMENT
| ||
Wood Carving | Soft Metal Engraving | Aluminum Alloy Carving |
| ||

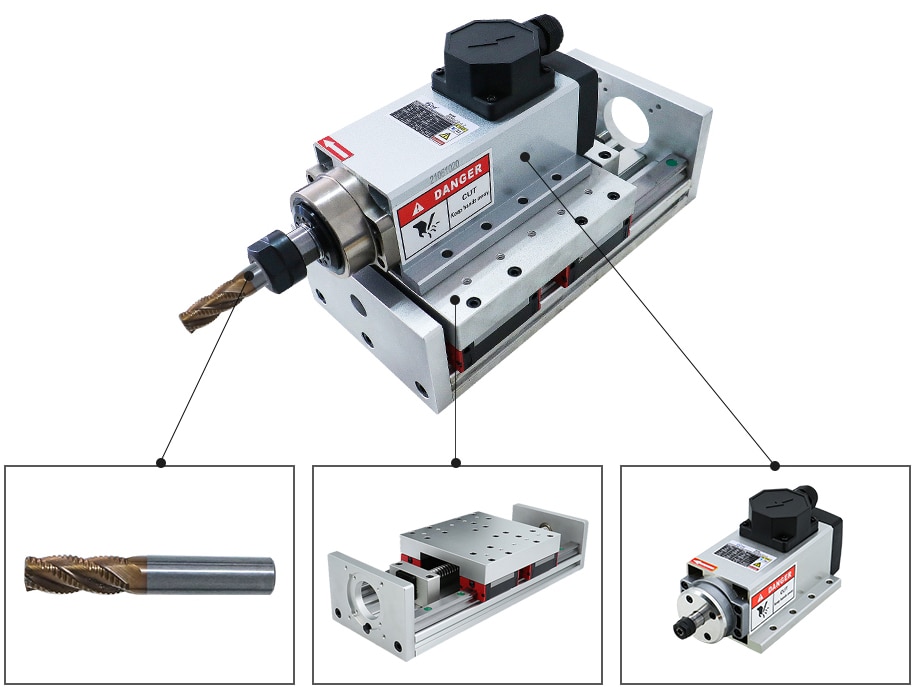

Milling Cutter | Sliding Table | Air Cooled Spindle |
1:The spindle has been running for a period of time and the temperature is very high. Is it normal? What is the working environment temperature range?
Answer:Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c
2: Application of air-cooled spindle
Answer:This air-cooled spindle is suitable for woodworking, aluminum and some soft metals, and can be used with a variety of milling cutters
3:Number and material of bearings
Answer:4 steel ball bearings, model C7002
4:Continuous working time
Answer:If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.
5: Can the spindle run vulgarly?
Answer: Yes, the maximum speed of this spindle is 0-24000rpm, which is all possible within this range
6:Abnormal sound
Answer:If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.
- Operating Speed: 24000rpm
- Maximum Torque: 1.17Nm
- Application: Milling
- Model Number: 2.2KW Air Cooled Spindle
- Drive: Motor
- Brand Name: HLTNC
- Origin: Mainland China
- Certification: CE
- Voltage: 110V/220V/380V
- Collet: ER20
- Input: 1 phase
- Output: 3 phase
- Overseas warehouse: Spain/Russia/Poland/China
- is_customized: yes
- Spindle Frequency: 300Hz/400Hz
