Hantek 6022BE USB Digital Storage Oscilloscope with 20Mhz Bandwidth,2 channels AU DE Shipping

5.0 (3 votes) | 17 orders
Price:
US $ 131.41 - 144.36 / piece
Ships From
Quantity

Customer who from Spain please note, post code begins with  35 and 38 cannot be shipped from Spain for there is a limit of our carrier company to the island address of Spain, thank you for your understanding.

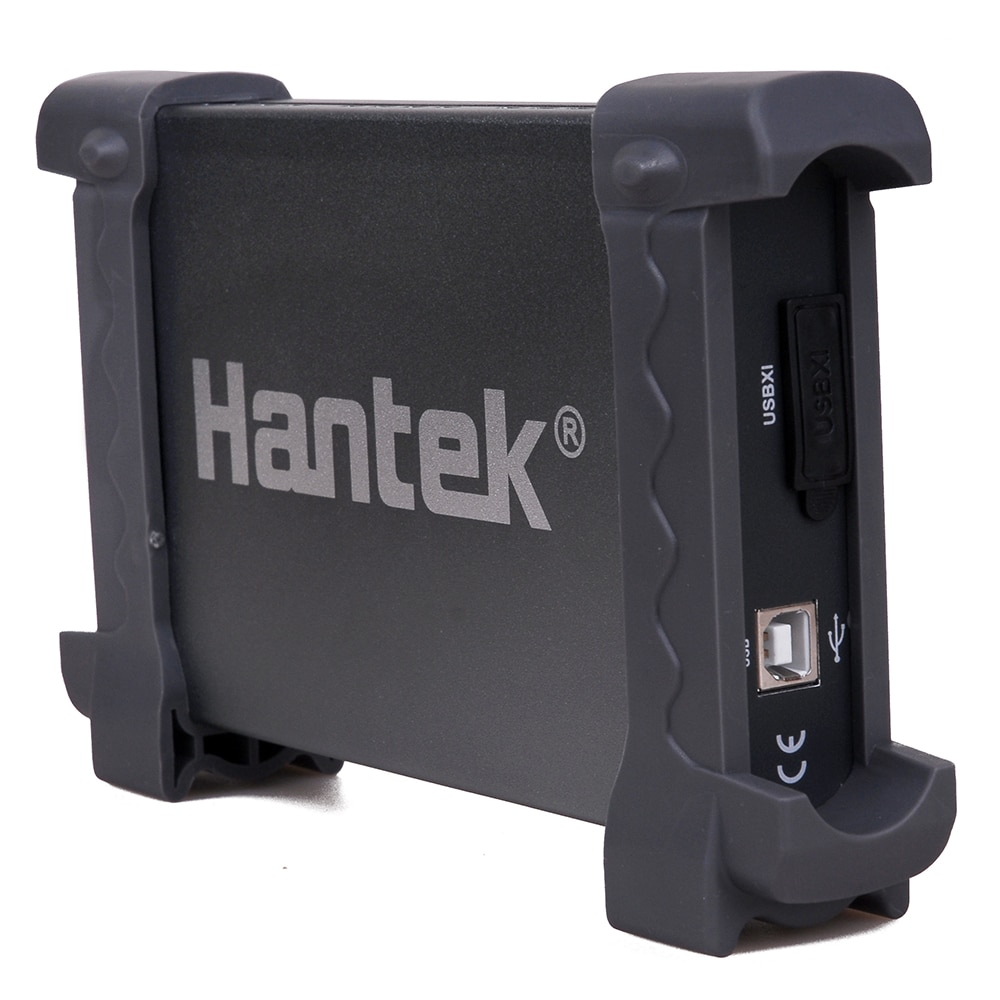

Hantek 6022BE is a high cost-effective digital storage oscilloscope with the bandwidth 20MHz, 2 channels, sample rate 48MS/s and dual probes. It is a good industrial design, which has the anodic aluminum oxide shell. It improves the aluminum alloy surface hardness and has good heat resistance and abrasion resistance. It comes with the USB(TM) cord that can be easily inserted into the USB chassis.

Features:

  • Support operating system: Windows 7, Windows NT, Windows 2000,Windows XP, VISTA

  • High refresh rate and high sampling rate

  • Memory depth: 1Mbytle/channel

  • Built-in Fast Fourier Transform function(FFT)

  • 20 Automatic measurements

  • Automatic cursor tracking measurements

  • Fast selectable offset calibration

  • Add, Subtract , Multiply and Division Mathematic Functions

  • Waveform storage, adjustable waveform intensity and more effective waveform view

  • Several user-selectable languages

  • Waveform can be saved as EXCEL, BMP, JPG based on the time and voltage

Specifications:

Item

Hantek 6022BE

Bandwidth

20MHz

Channel

2 channels

Maximum Real-time Sample Rate

48MS/s

Storage Depth

1M

Vertical Resolution

8Bit

Impedance

1MΩ 25pF

Coupling

DC

Voltage range

20mV-5V, 8Steps

DC Vertical Accuracy

±3%

Time Base Range

1ns-5000s, 39 Steps

Adjustable Vertical Position

Yes

Input Protection

Diode clamped

X-Y

Yes

Horizontal

Automatic, standard and single

Trigger Slope

+/-

Adjustable Trigger level

Yes

Trigger Source

CH1, CH2

Pretrigger

0-100%

Sampling Rate Choice

Yes

Fai Line Shows

Dot/line, intensity control

Network

On/off

Cursor Measurement

Yes

Arithmetic

Quick fourier transform, reverse, add, subtract,  multiply and divide

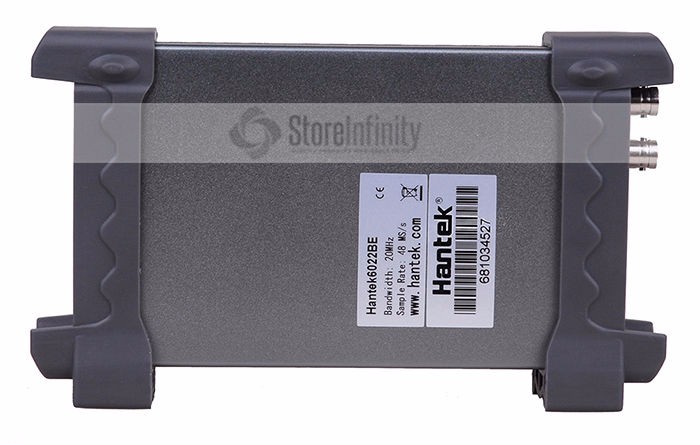

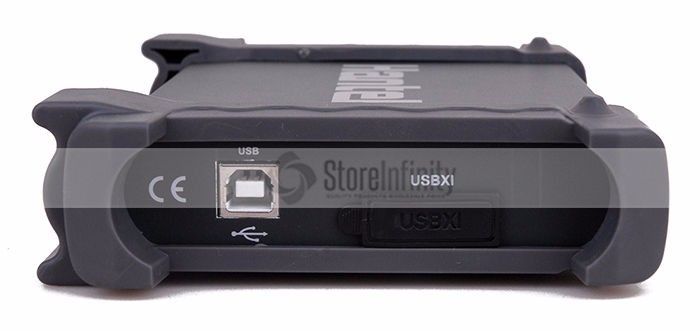

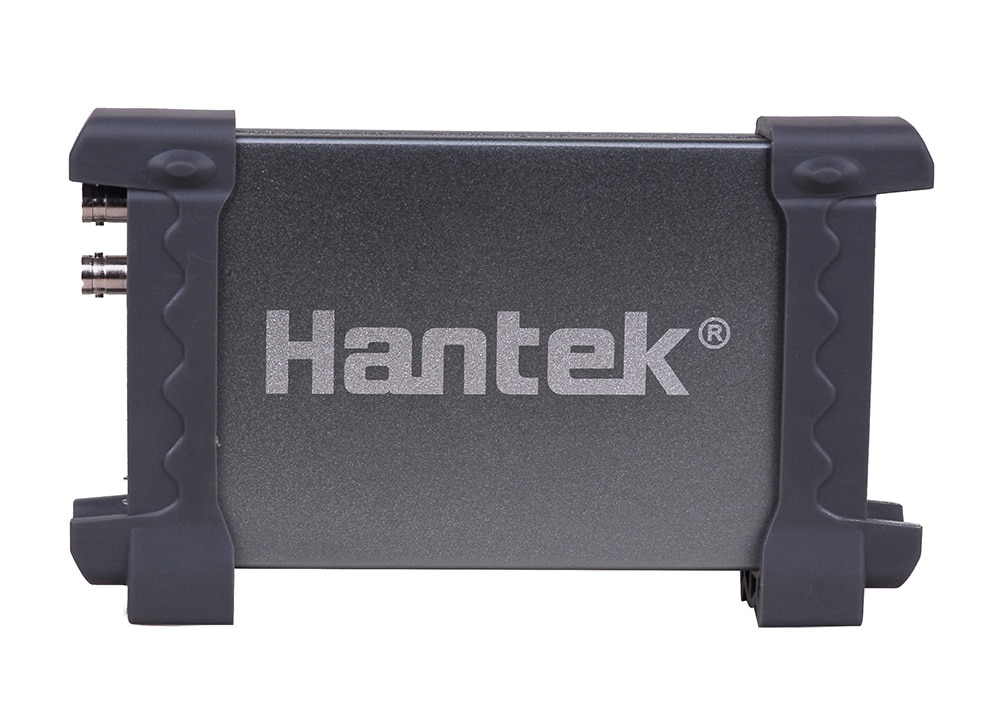

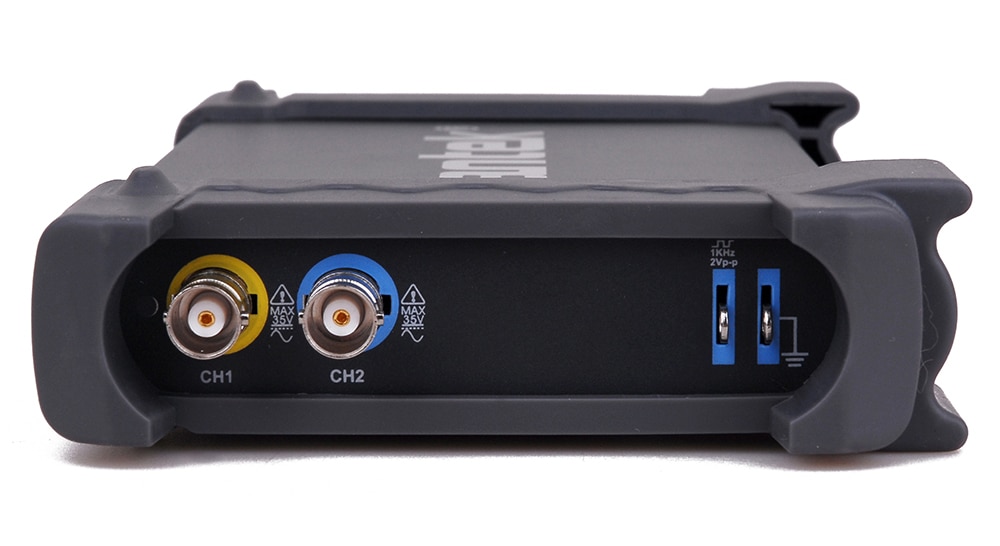

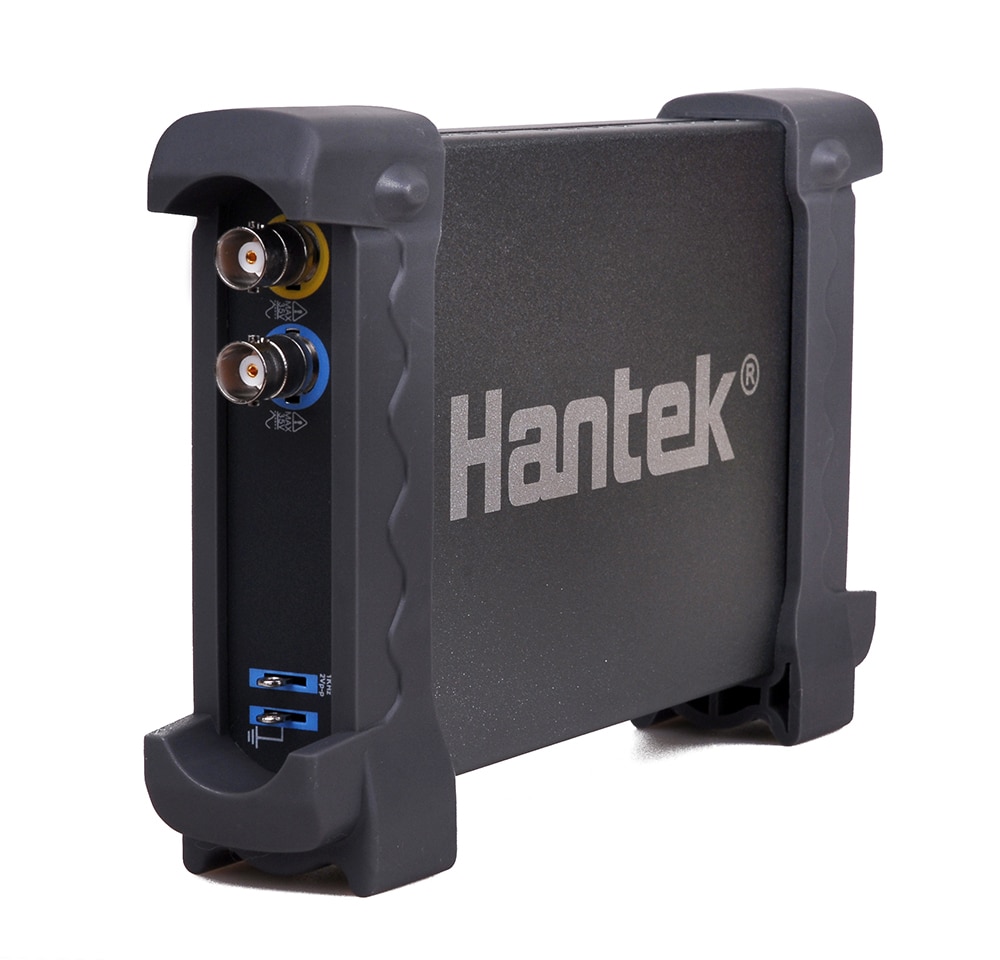

Closer Look:

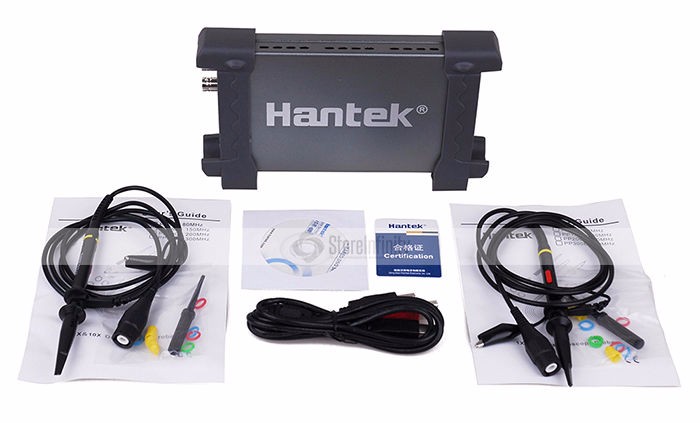

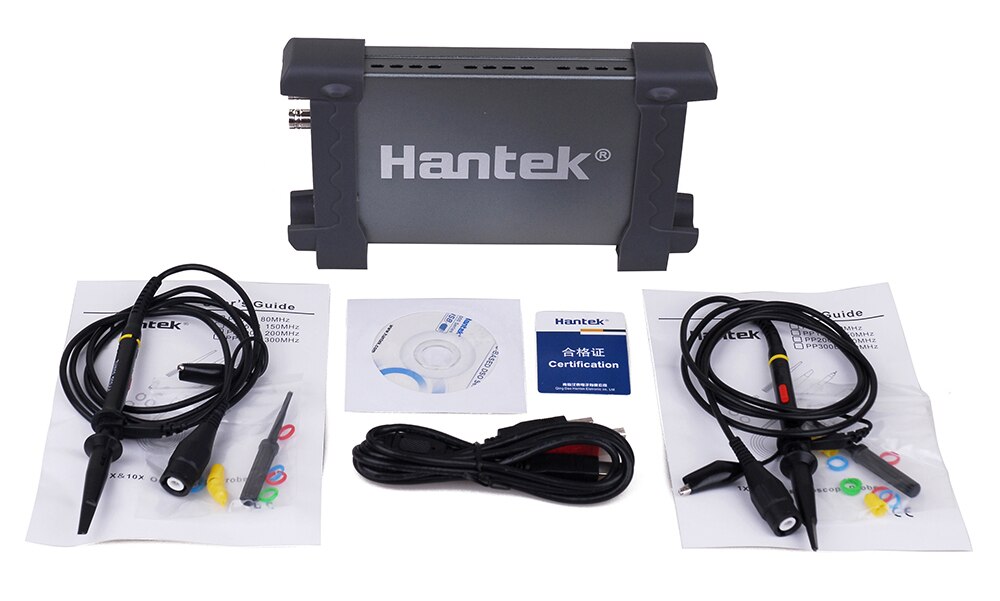

Package Includes:

  • 1  x   Hantek 6022BE USB Digital Storage Oscilloscope

  • 1  x   USB Cable

  • 2  xOscilloscope probes




  • IS Battery Demountable: No
  • Record Length: 1
  • Model Number: Hantek 6022BE
  • Real Time Sampling Rate: 48MS/s
  • Display resolution: Other
  • Display Size: None
  • Band Width: Less than 60MHz
  • Digital Channels: 2
  • DIY Supplies: ELECTRICAL
  • Brand Name: Hantek
  • Certification: NONE
  • Origin: Mainland China
