Foot Pedal Switch Current Controller Welding Machine Remote Control 12Pin 4M 13ft Cable for TIG Pulse AC DC Welder

4.9 (7 votes) | 20 orders
Price: US $265.91 / Set
Discount Price:
US $ 157.84 / Set
-41%
Ships From
Color
Quantity

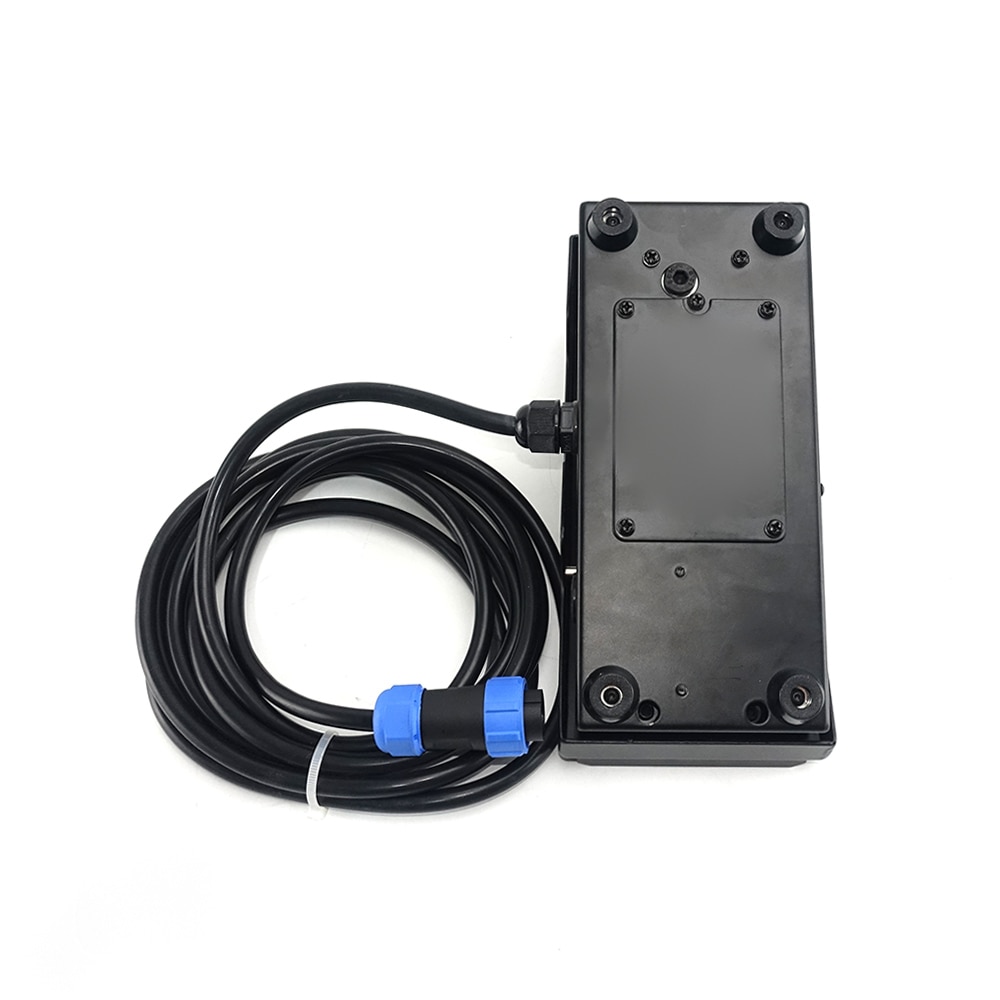

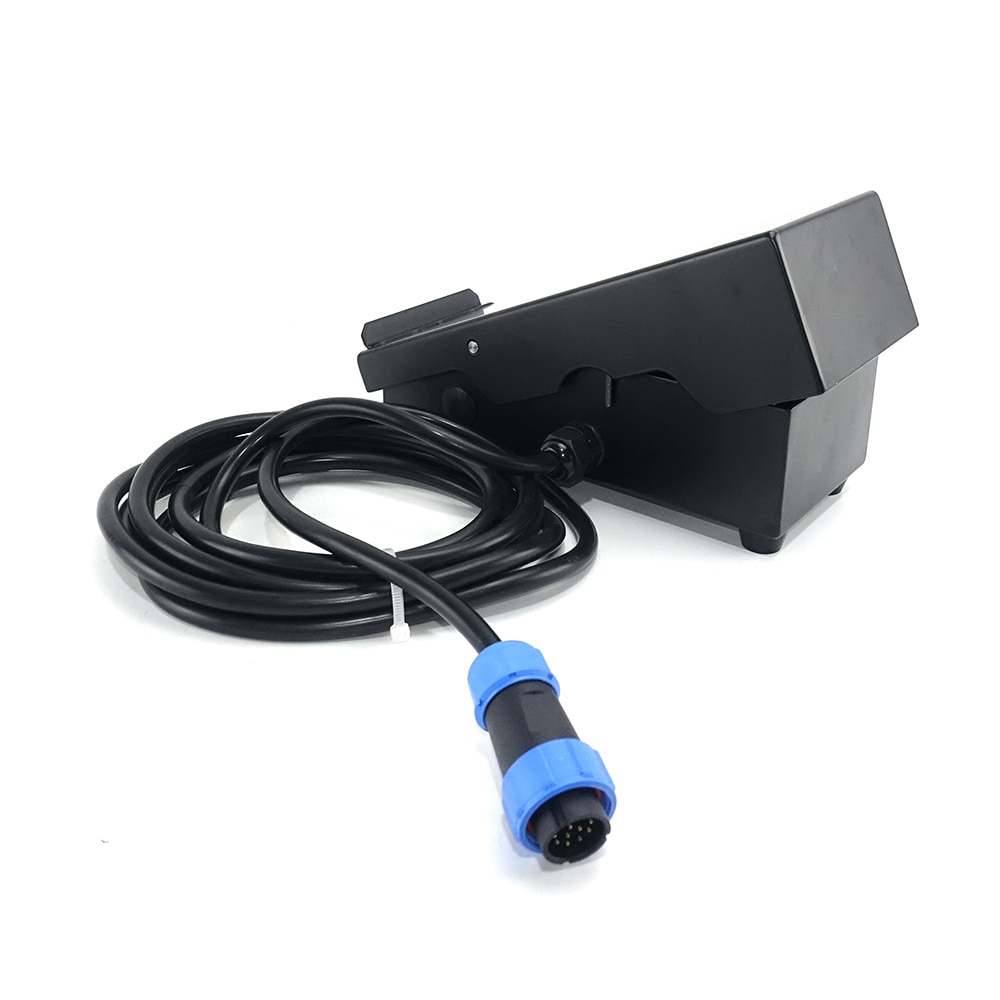

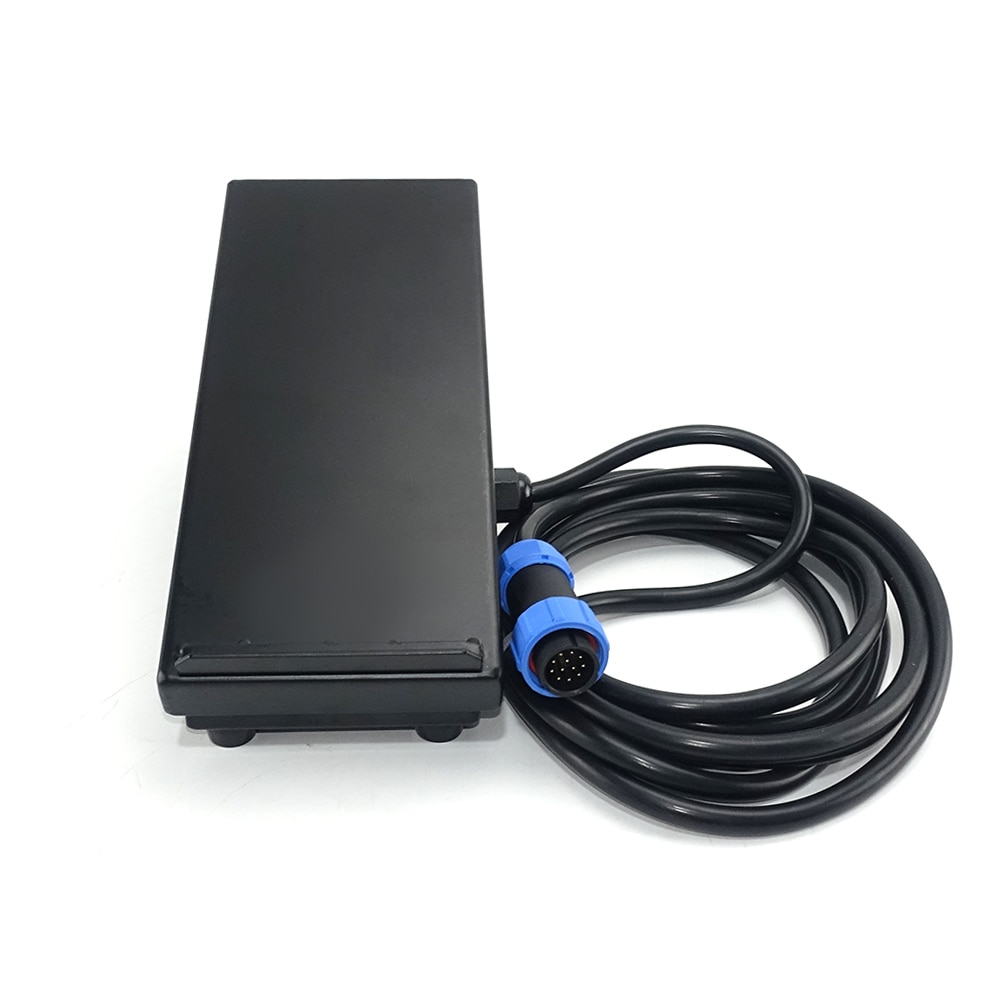

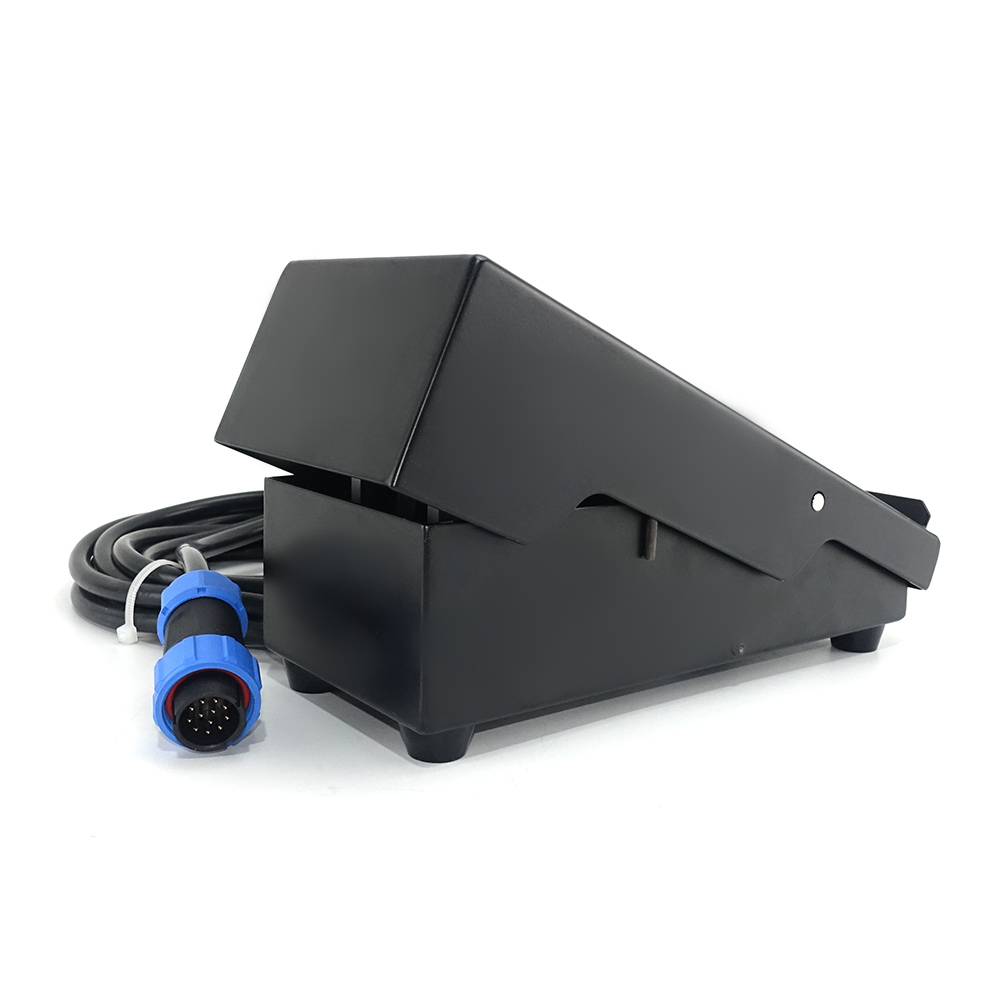

Foot Pedal Switch

Cable Length: 4m (13ft).
Pedal Material: Metal with black powder coating.
Variable Resistance: 10K.
Weight(net): about 1.8kg.

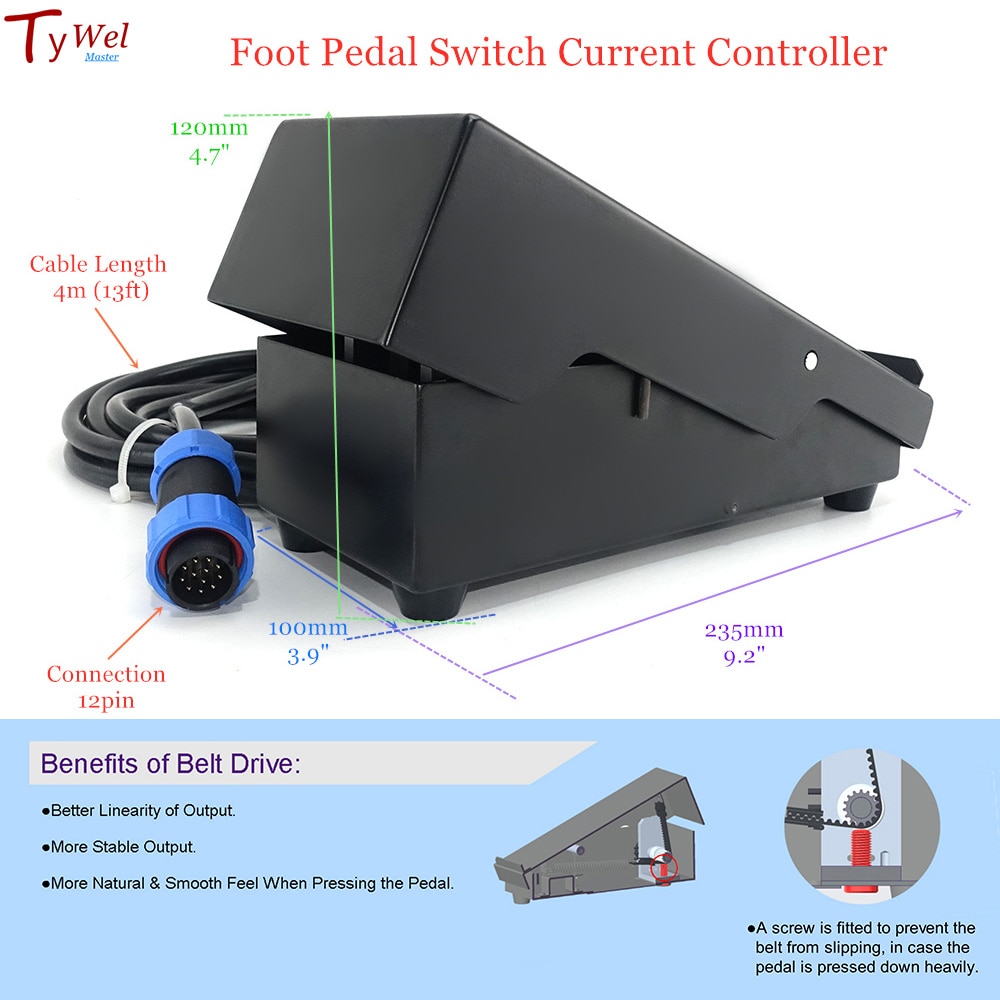

Dimension: 235x120x100mm (9.25x4.72x3.93”), please reference picture.

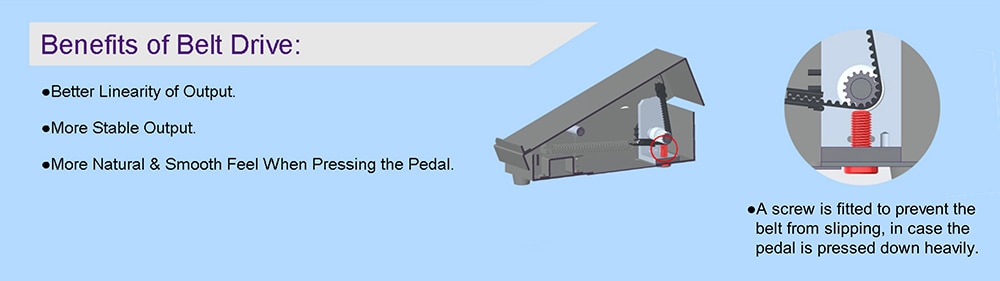

Belt Drive is much better than other gear drive

It is more stable control, more natural & smooth feeling when pressing.

Connection: 12pin connector

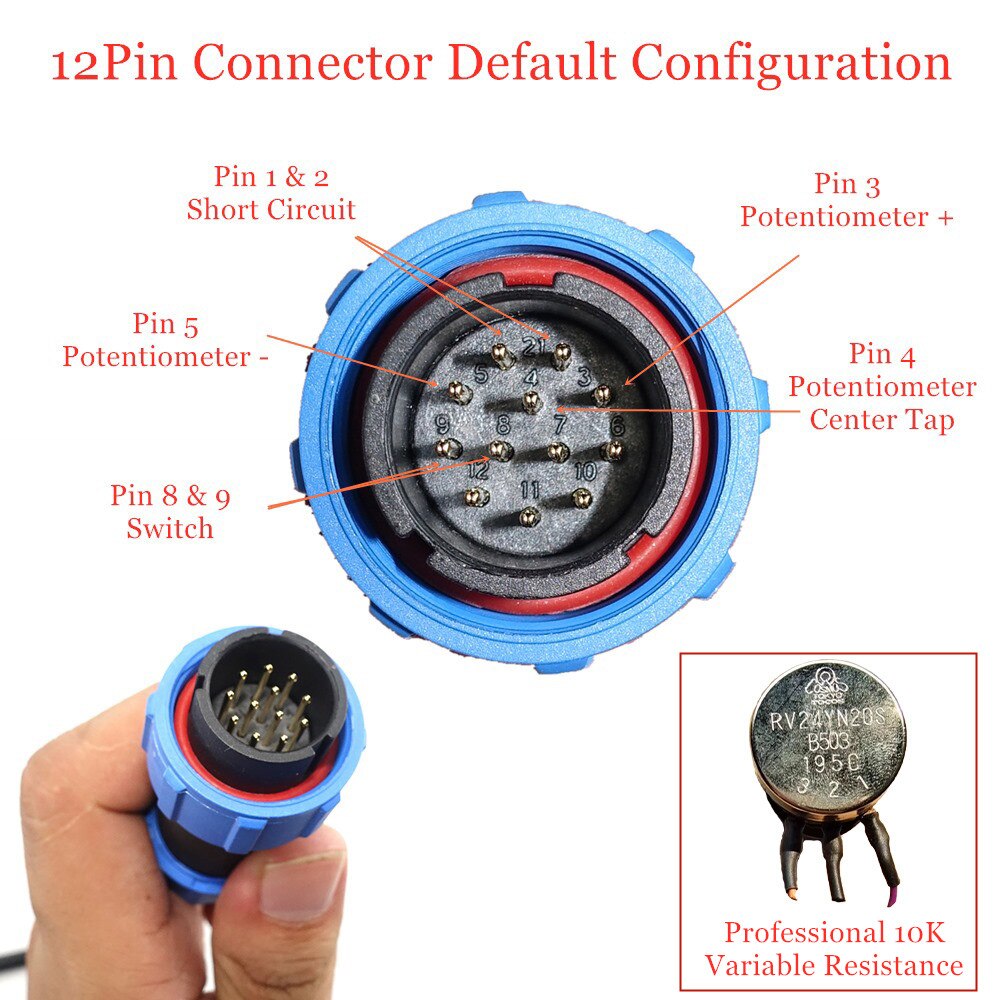

The pin configuration is below:
The 8 and 9 of the 12pin aero socket is gun switch; The 1 and 2 of the 12pin aero socket is short circuit; The 3, 4 and fifth of the 12pin aero socket is pedal adjustable resistance (can reference picture).
(Attention: If your machine configuration is different, or connector is different, then you need to change it accordingly.)

Package:

1pcs.

Additional Offer:

We are offering full range professional welding & cutting products, visit our shop for more option.



  • Plug Type: EU plug
  • Is Smart Device: No
  • Usage: Remote Current Controller
  • Dimensions: 23.5x12x10cm (9.25x4.72x3.93")
  • Rated Duty Cycle: NA
  • Pilot Arc Current: NA
  • Pulse Frequency: NA
  • Arc Current: Various
  • Model Number: Foot Pedal
  • Brand Name: TywelMaster
  • Certification: CE
  • Origin: Mainland China
  • Color: Black
  • Pedal Material: Metal
  • Connection: 12pin
