Dahua 4K H.265 PoE NVR NVR4104-P-4KS2/L NVR4108-8P-4KS2/L For IP Camera CCTV Network Video Recorder Support Onvif Protocal
226.10 217.06 $
SALE
ID: 14706
Quantity
H.265 Max 4K Output CCTV NVR 10CH 16CH 4K/ 9CH 32CH 4K Security Video Recorder H.265 Motion Detect P2P CCTV NVR Face Detection
4.8 (341 votes) | 1825 orders
Price:
US $131.78 - 250.76
/ piece
Discount Price:
US $
58.99 -
112.31
/ piece
-55%
Now Black some have no Stock, But White color Metal case have enough stock in Russia, link as below:

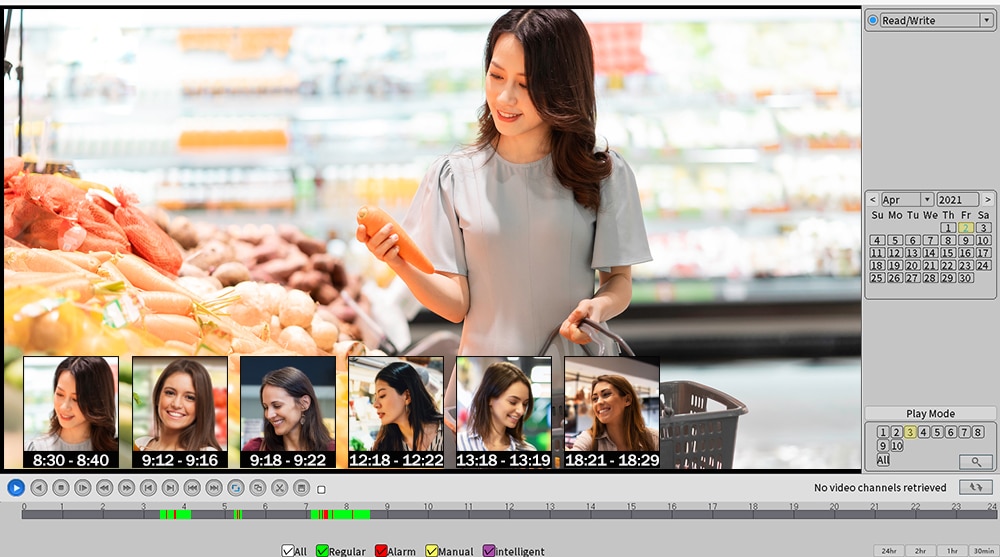

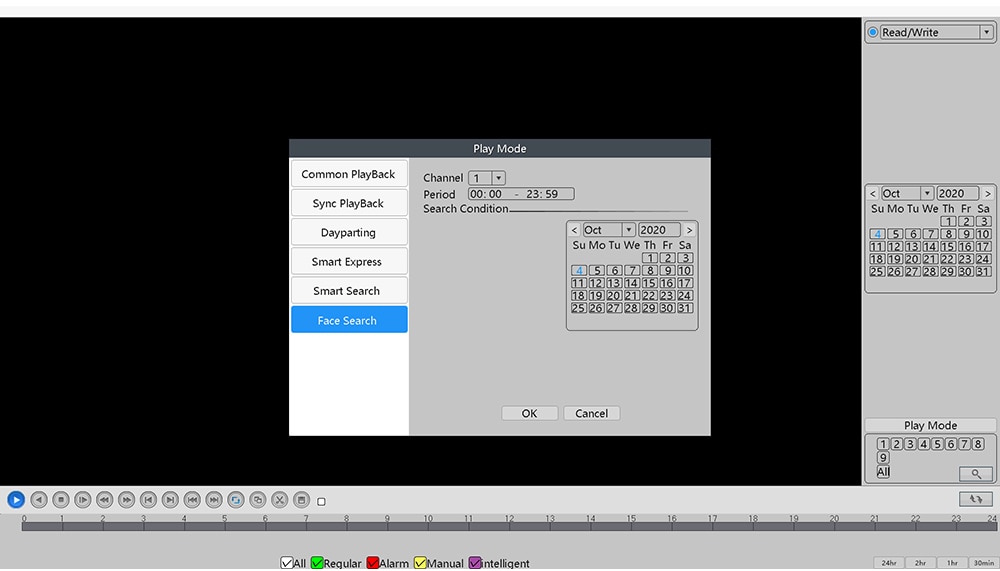

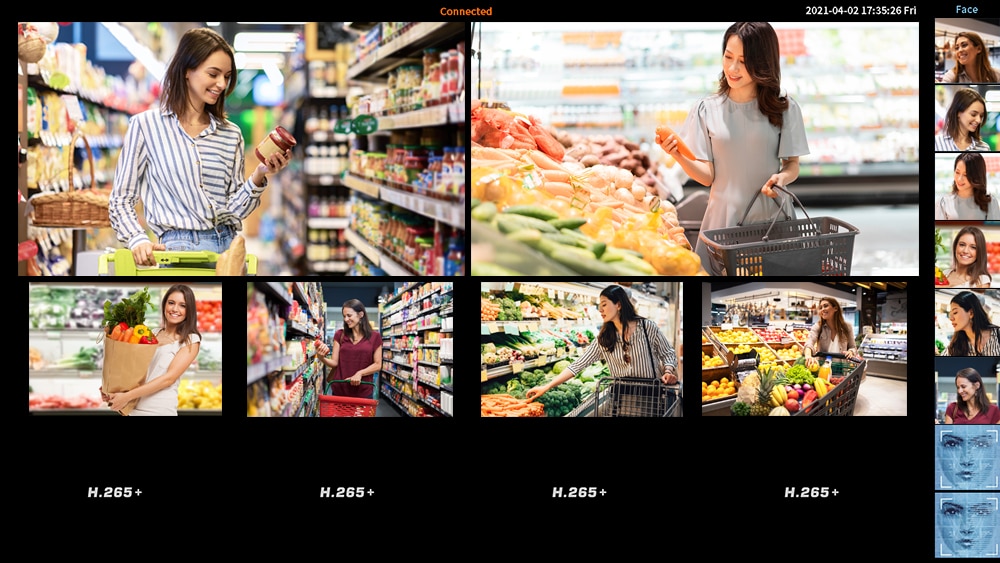

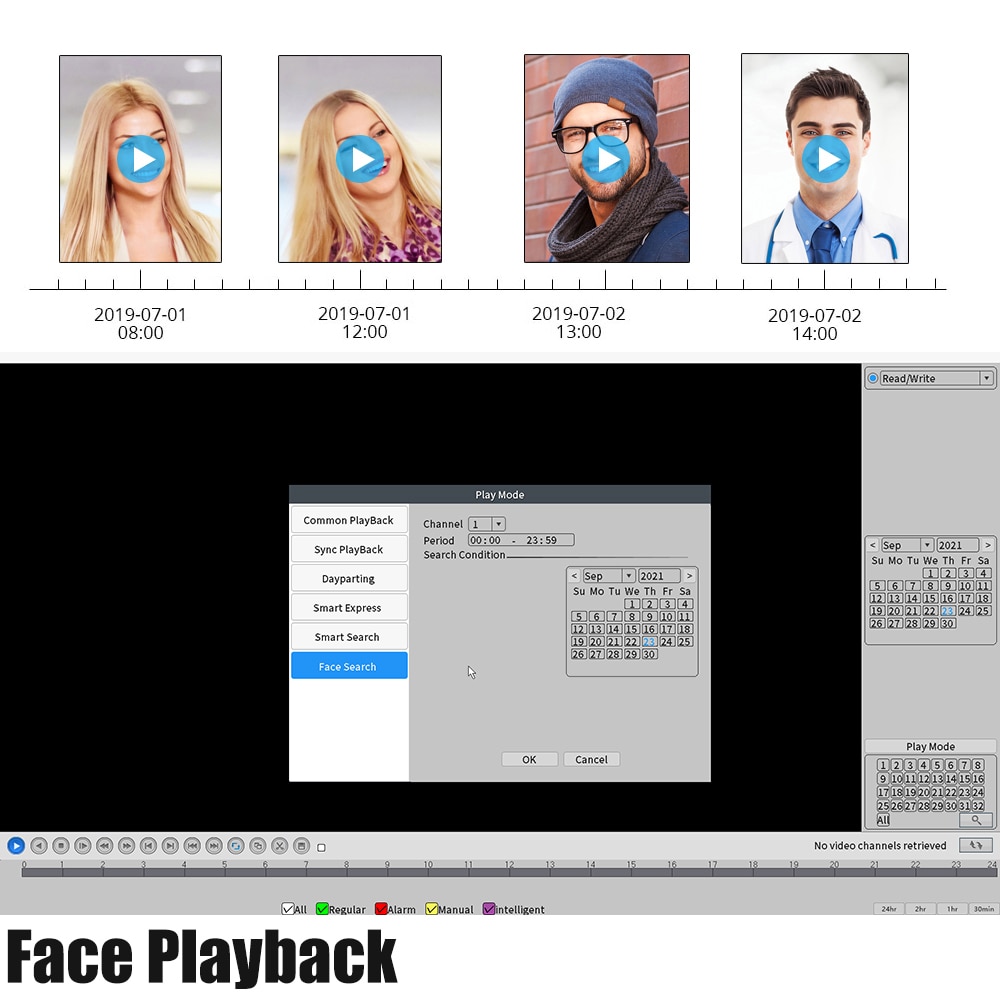

Face Record/Face Detection/Face Playback
Record every face that appears on the lens, without missing any details.
Please note, to work human detection and face detection, You need to have compatible ip camera!
Compatible cameras: (Only) Netip Protocol Face IP Camera

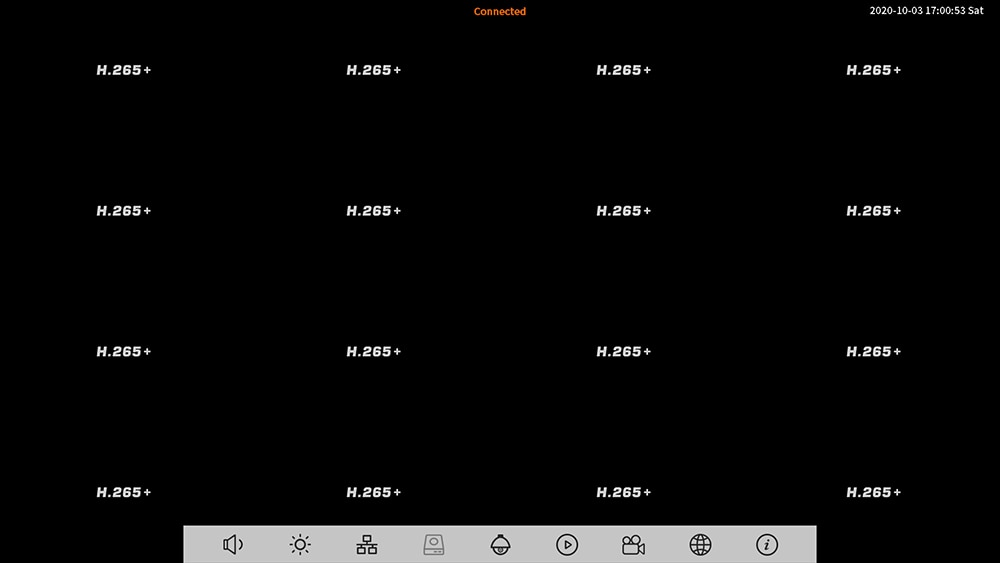

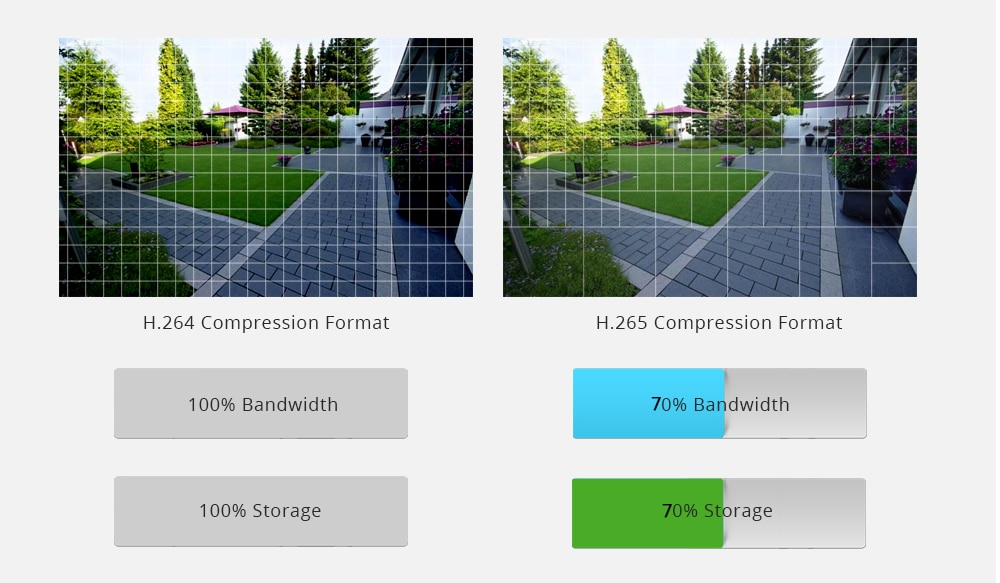

Advanced H.265++ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.

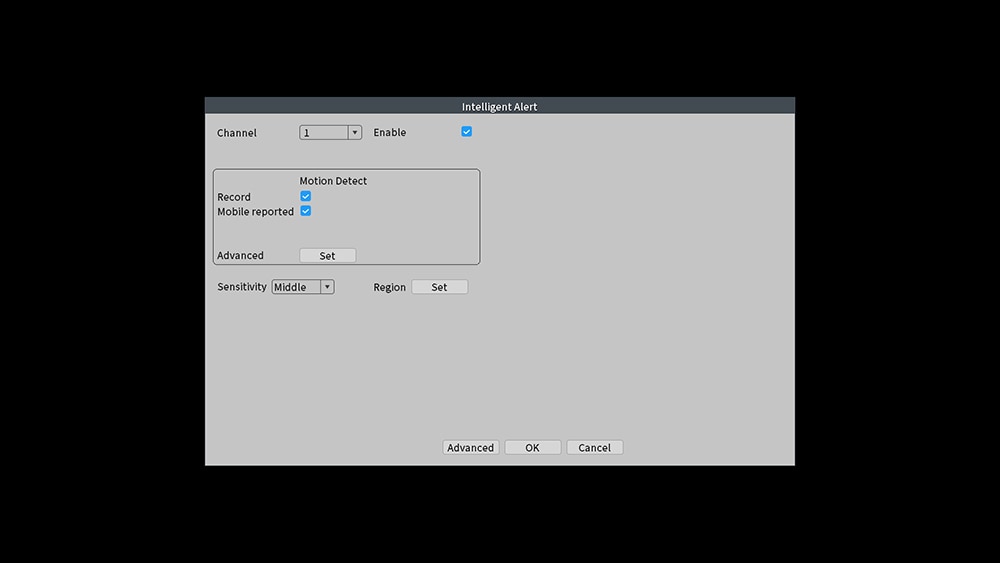

Motion Detection & Email Alert/Record
when motion is detected, the NVR can send email or start record to the hard disk without missing any important events.
4K Super HD Resulution
4K NVR provies crystal-clear images and videos with 3840x2160P HD resolution.
You will see all details that happens at your surroundings.

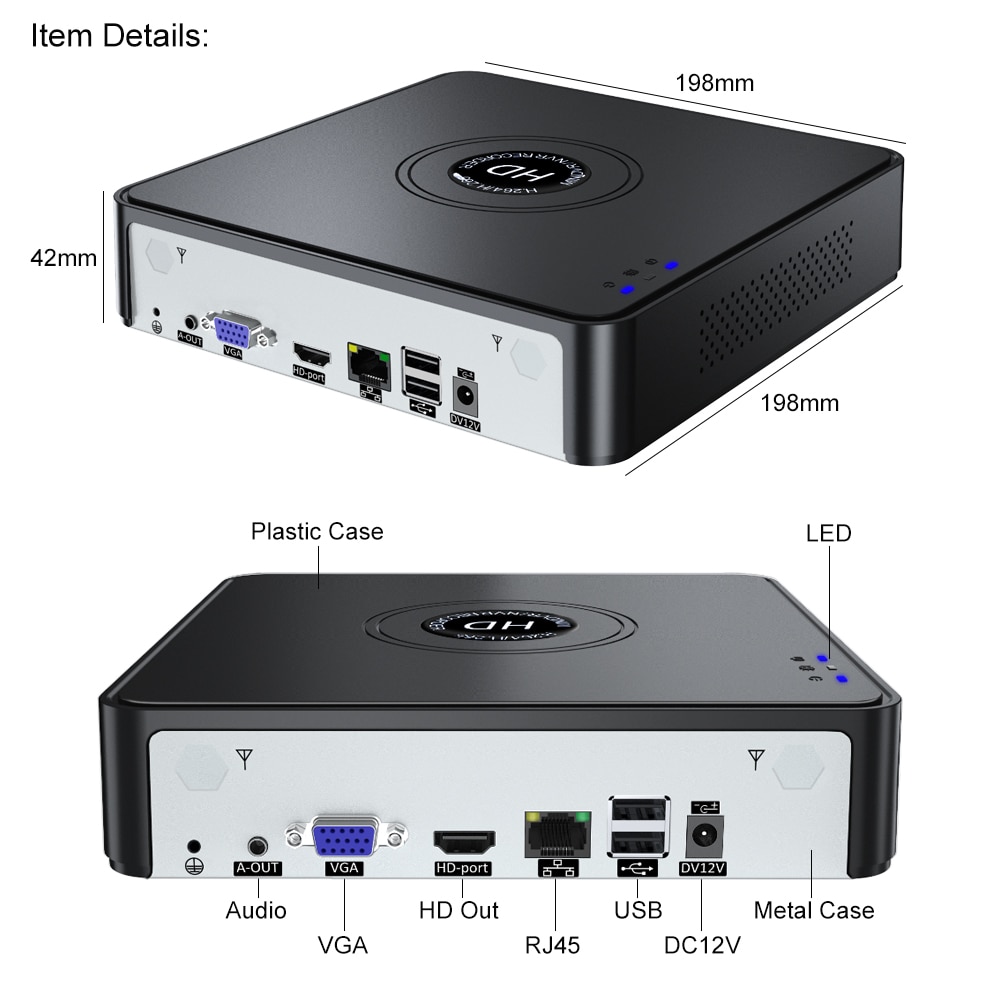

Product Material, Size
Plastic Case, built-in main Board
20x20x4CM

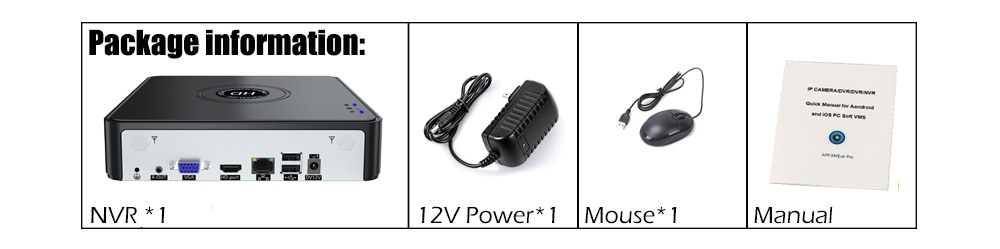

Package Information
Description of applicable cameras

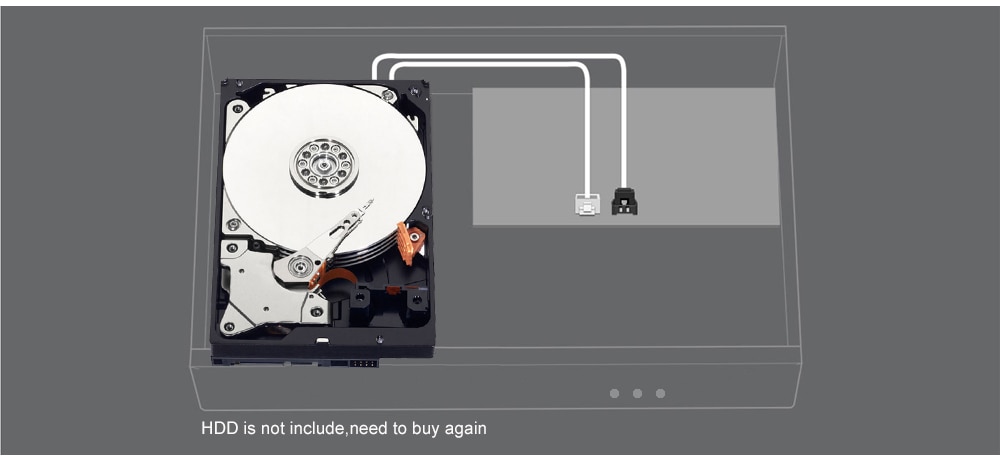

One PCS HDD Support
Support 3.5CH HDD
Orgional Newest HDD Recommend
TOSHIBA, Seagate, Western Digital HDD
Others brands HDD will not work.
Recommend use the Security HDD, not PC HDD
Suitable for multiple environments

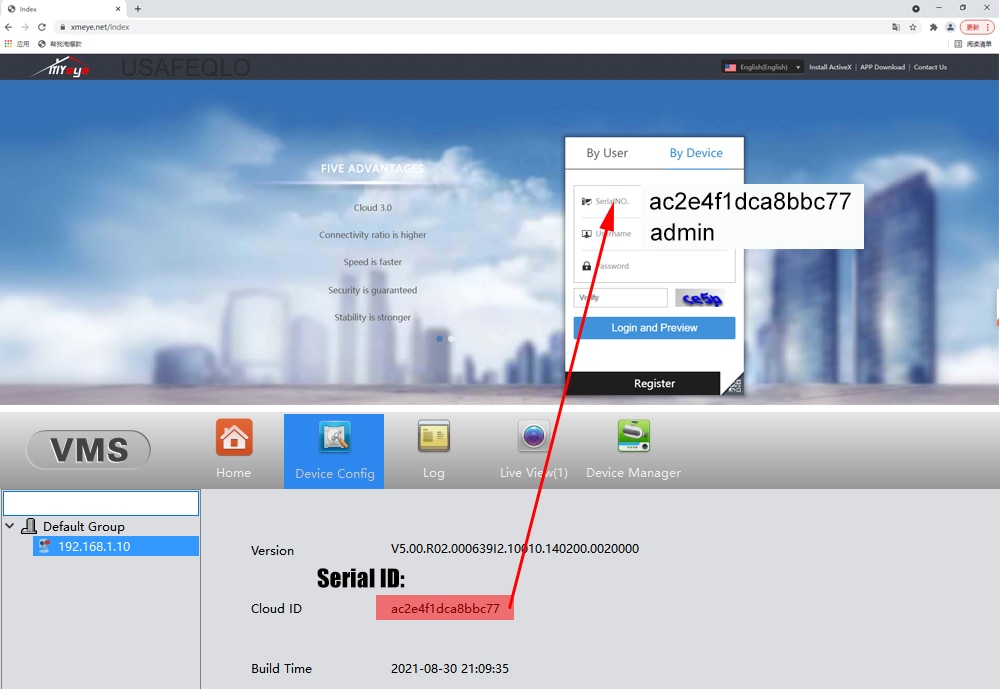

Easy remote access Anytime anywhere

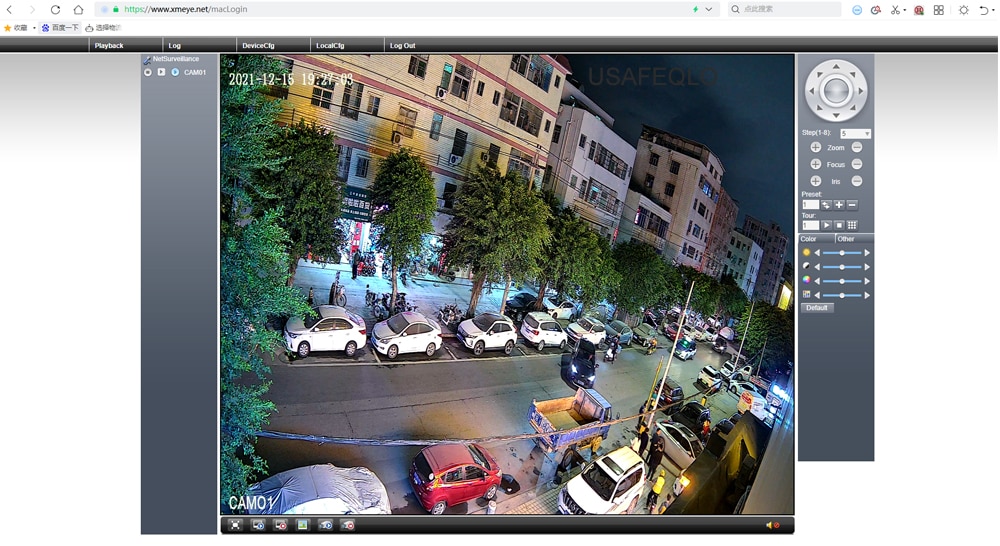

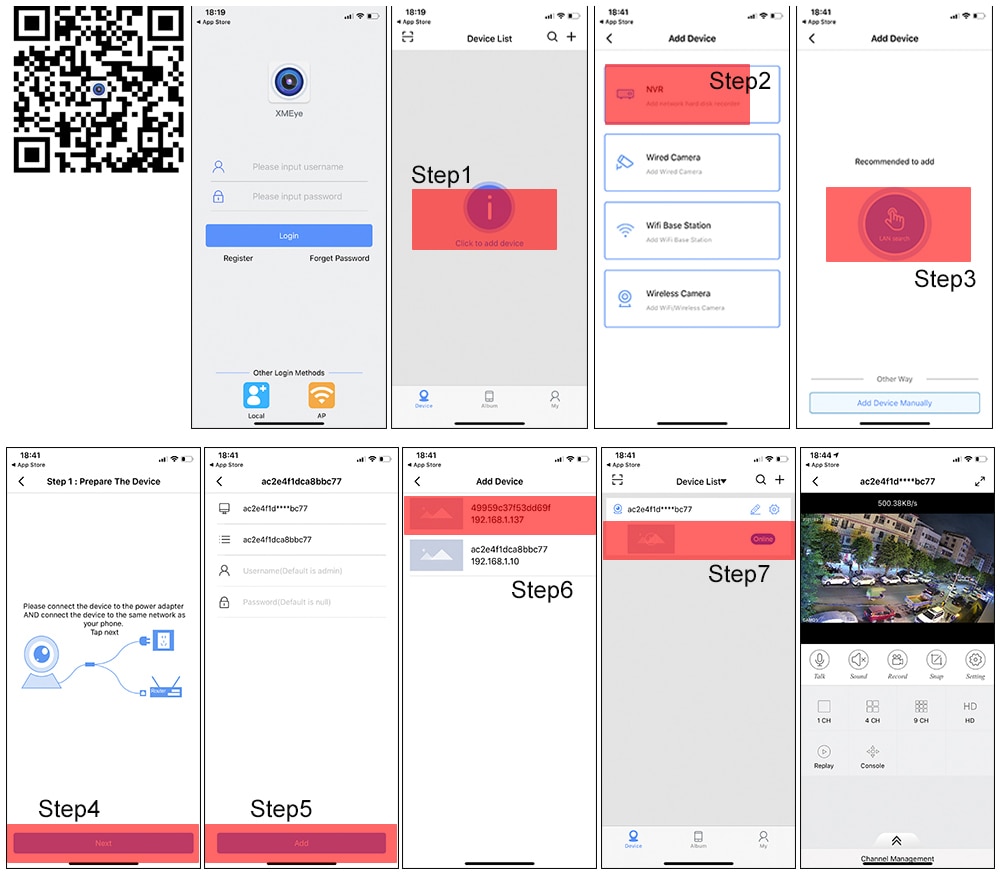

P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the camera.

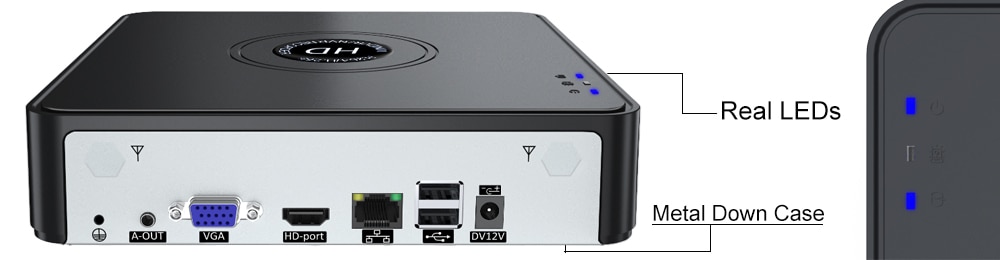

1: We are the OEM factory, Label will not same all the time 2: 8CH SKU is the XM3536 chip,This new chip Operating temperature will be higher than Hi3536 chip,if you care about the temperature, please do not buy it 3: If item work well, not recommend update. 4: This one 8CH will be Metal Base for help Heat dissipation |
Features :
RTSP Function: RTSP Must work with Netip Protocol and Same Local internet, Onvif and Thired items all not support
Our NVR RTSP function only support TRSP Visit the NVR, not support ADD any other cameras.
With H.265 High efficiency Video Compression
With unique time screen in front of the panel, and displays recorder.
Support Symbian S60V3/V5, Windows Mobile, Iphone, Android,, Blackberry and so on.
Support 1*HDD( 8TB), with 2*USB2.0 for backup, burning, upgrading operation
Stronger network service. support IE browse and CMS software
Build-in org,dyndns.net,oray.net and myq-see.com free DDNS dynamic domain name
Built-in own free DDNS Domain Name Server:
With HDMI-Compatible, Support 4K Output
Support P2P cloud functions

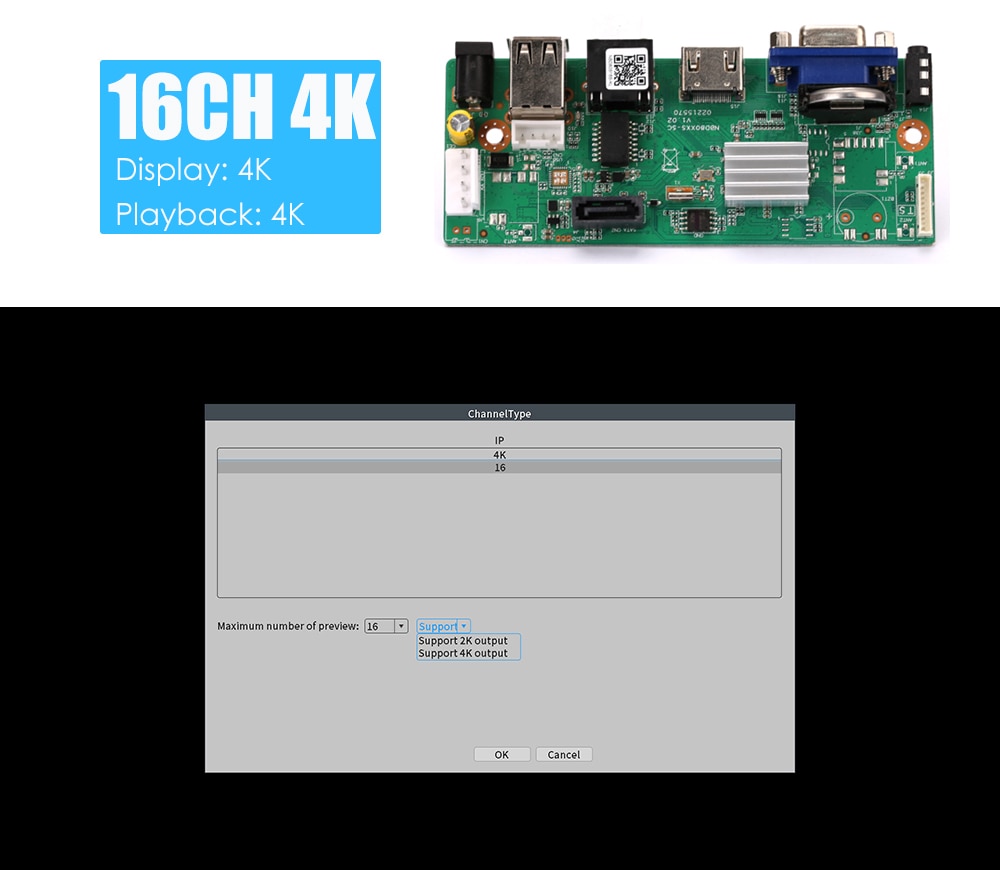

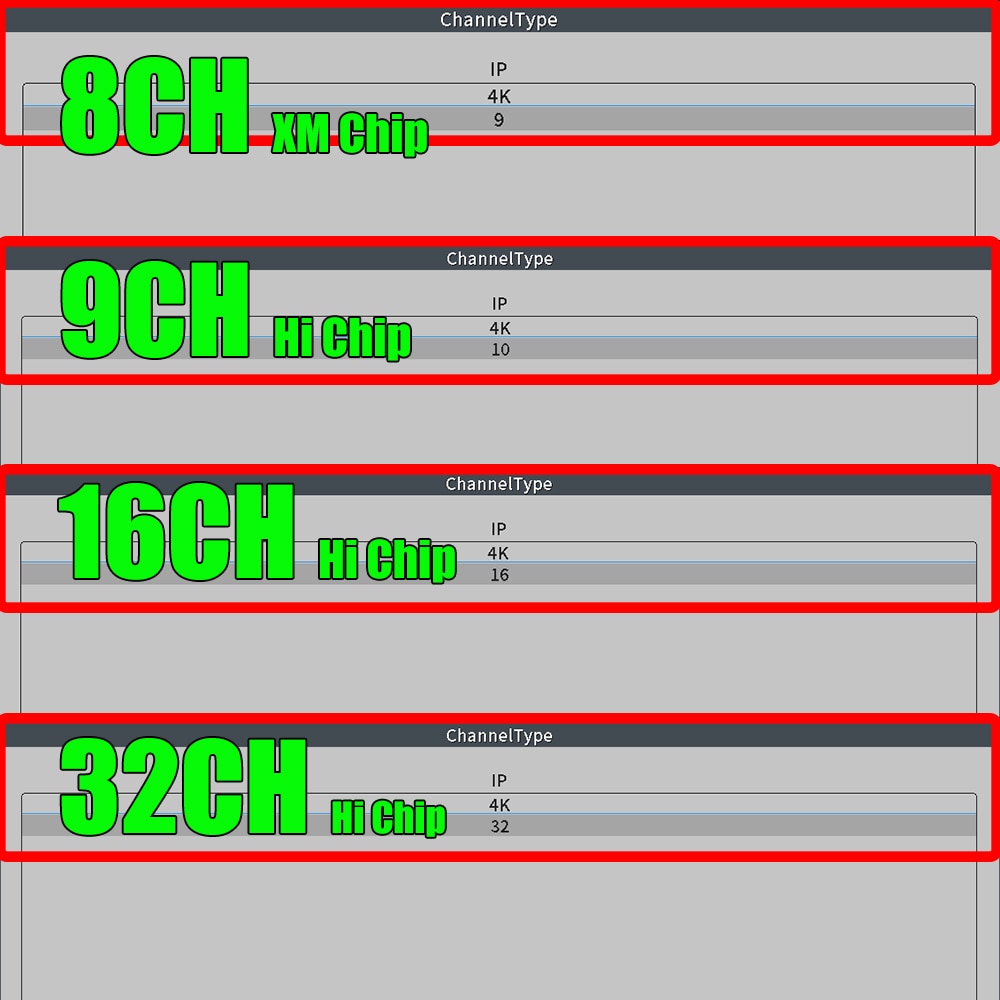

System | Model | 32CH | 16CH | 10CH | 9CH | |
Chip | NOVA | Mstar | Mstar | XM | ||
Operating System | Embedded Linux | |||||
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |||||

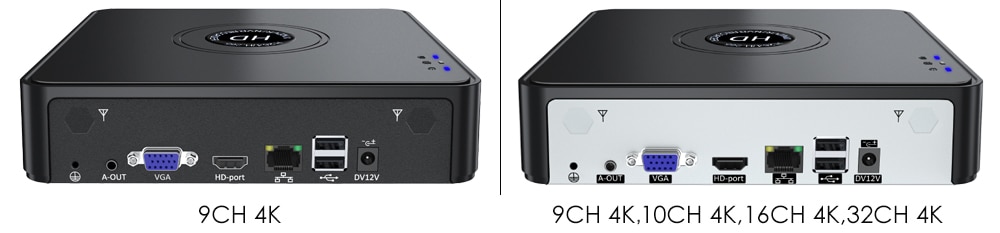

Material | Case | Plastic | Plastic | Plastic | Metal+Plastic | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation | ||||

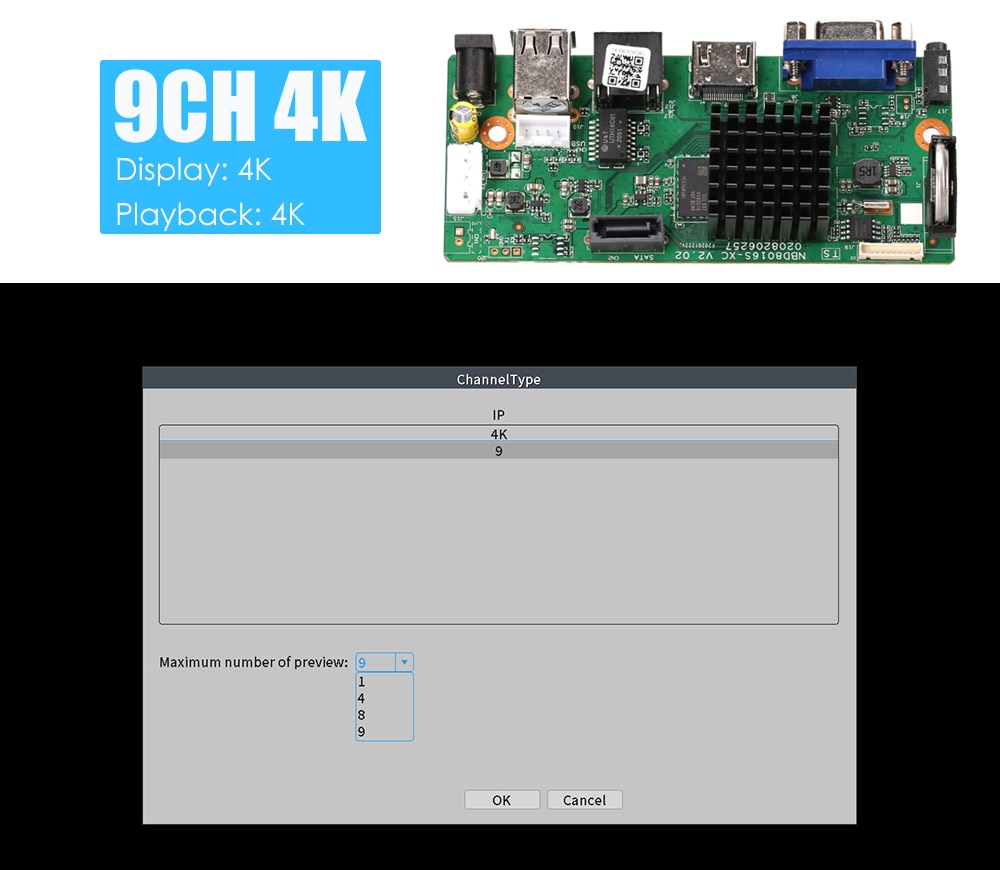

Preview | 1/4/8/9/16/25/32 | 1/4/8/9/16 | 1/4/8/9/10 | 1/4/8/9/10 | ||
Video | Video input (IP) | 32CH*4K | 16*4K | 10*4K | 9*4K | |
Video compression | H.265/H.264 | |||||
H.265 Require | H.265 Must be the same program Item, or not work. | |||||
Display quality | Max 4K | Max 4K | Max 4K | Max 4K | ||
Playback quality | Max 4K | Max 4K | Max 4K | Max 4K | ||
Motion Detection | Support | Support | Support | Support | ||
Face Detection | Support | Support | Support | Support | ||
Face/Human Compatible cameras: (Only) Netip Protocol Face IP Camera We have recommend IP camera as below: Normal 4MP 5MP 8MP Face camera link: Better IMX335 IMX307 Face camera link: | ||||||
Human Detection | Support | Support | Support | Support | ||
Decode | 4K 8MP/5MP/1080P | |||||
VR | Unsupport | |||||
Motion detection | Support(depend on camera) | |||||
Recording mode | Manual>Alarm>Dynamic Detection>Timing | |||||
Local payback | Max 4K | Max 4K | Max 4K | Max 4K | ||
Record & playback | Search mode | Search by Time/Calendar/Event/Channel | ||||
Record storage,usafeqlo | HDD,Network | |||||
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |||||
Video output | 1ch VGA,1ch HDMI-Compatible HD output | |||||
Audio I/O | 0/0 | |||||
External interface | 3G/Wifi | 32CH Support | 16CH Support | 10CH Support | 9CH Not Support | |
10CH 16CH Please ask seller send firmware Wifi function | ||||||
Network interface | 1*RJ45 10M/1000MBPS | 10/100MBPS | ||||
USB interface | 2*USB2.0 ports (Not support the keyboard) | |||||
HDD | 1* SATA(Up to 14TB for each disk) | |||||
ESATA | Not Support | |||||
Audio Out | 1 Channel | |||||
Third Protocol | Support Some (Support Most of Camera, but if you use Reolink,HIK,Dahua cameras, please ask your camera seller weather can support Xmeye nvr .) | |||||
Power supply | 12V/2A | |||||
Other | Power Consumption | <10W(Without HDD) | ||||
Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |||||
Dimension | L255*W245*H42mm | |||||
Weight | A total of about 920g | |||||
Model | 1032/16/10/09R-KL | |||||
Wifi Adapter is not include, if you need, you can Press the photo as below to buy:
(9CH not support Wifi, Only 10CH 16CH 32CH board support wifi adapter)

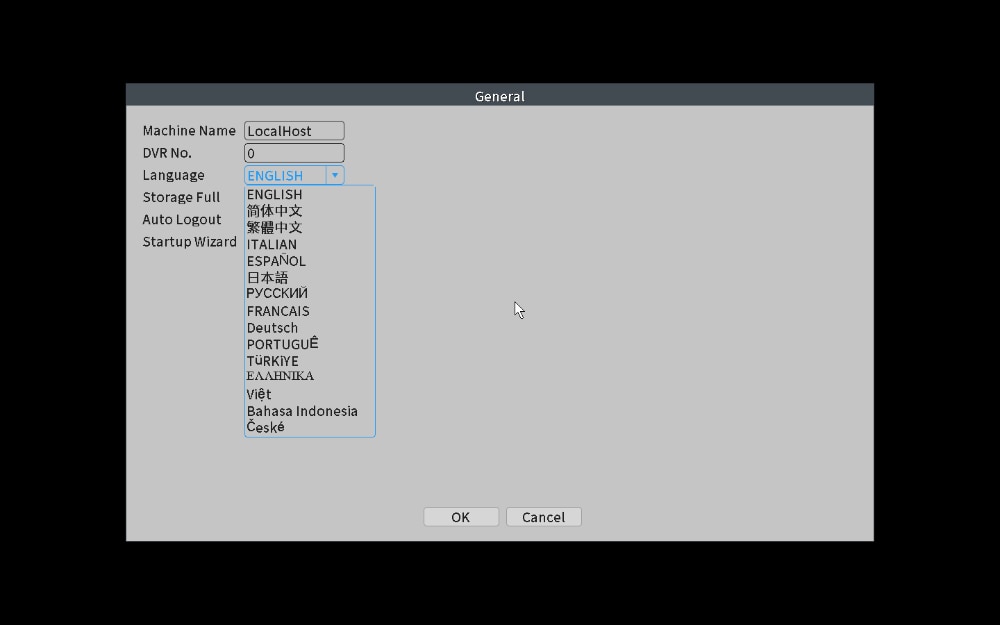

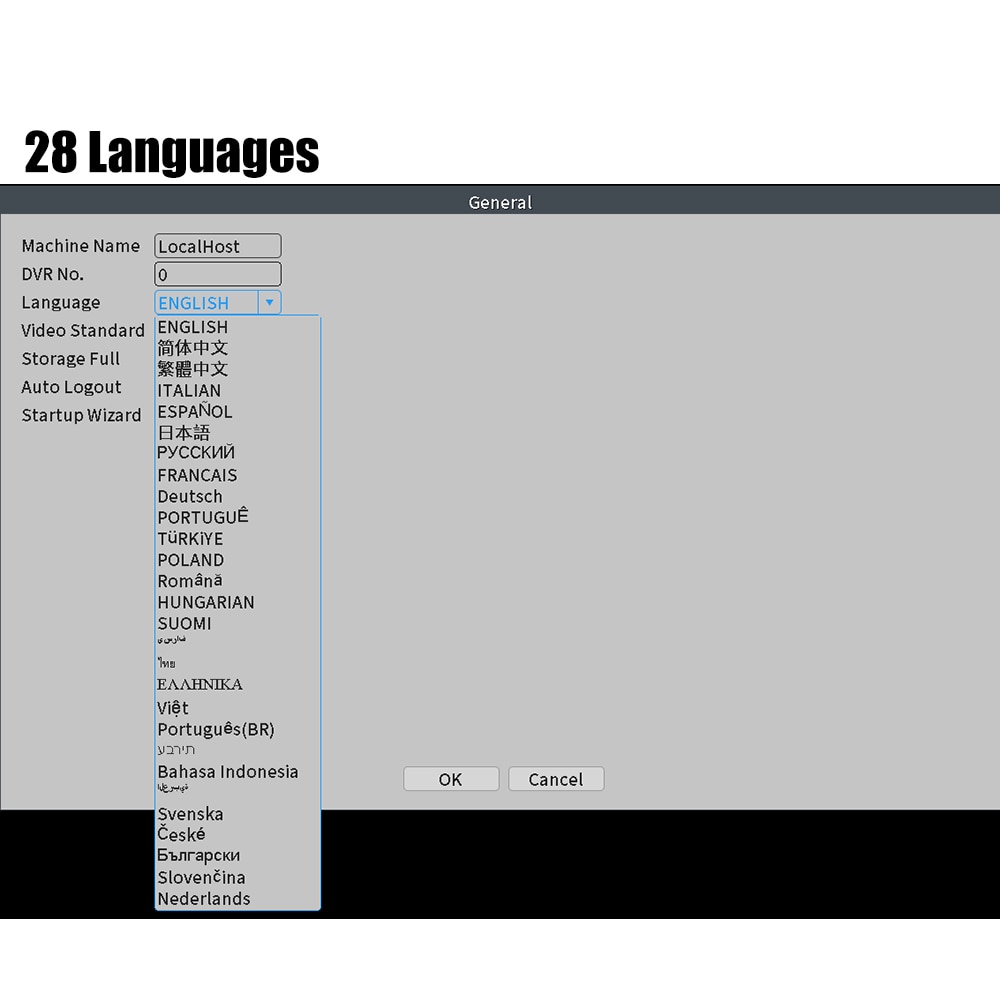

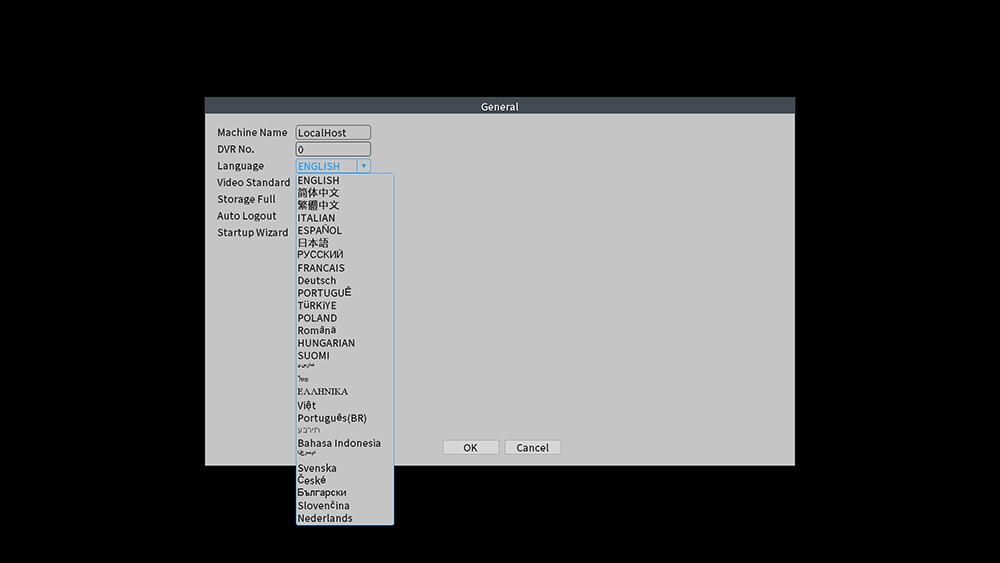

Language Attaction:
8CH Language is few, if your language is not the same as below, please order 9CH/16CH/32CH
9CH 16CH 32CH Language is as below:

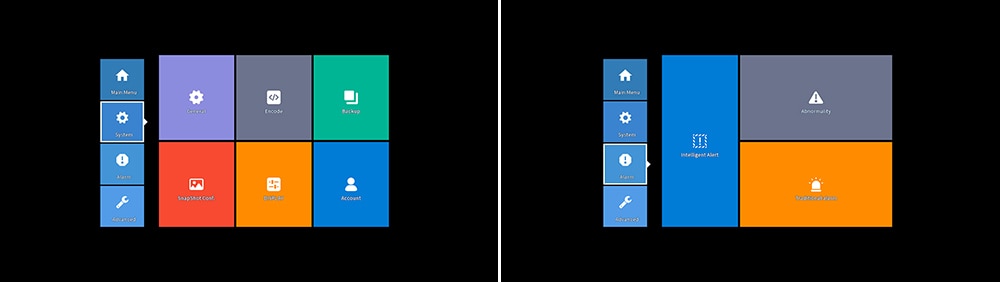

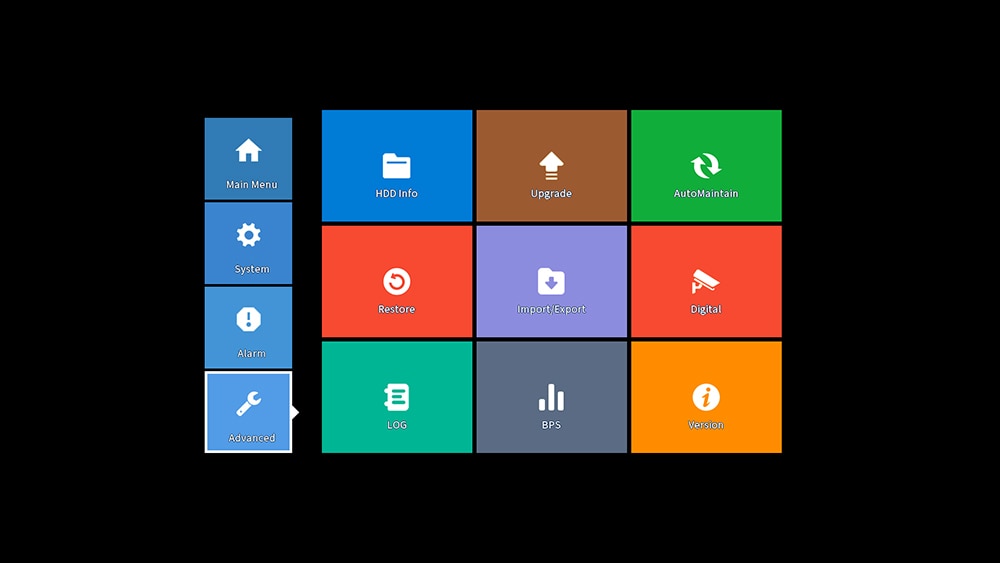

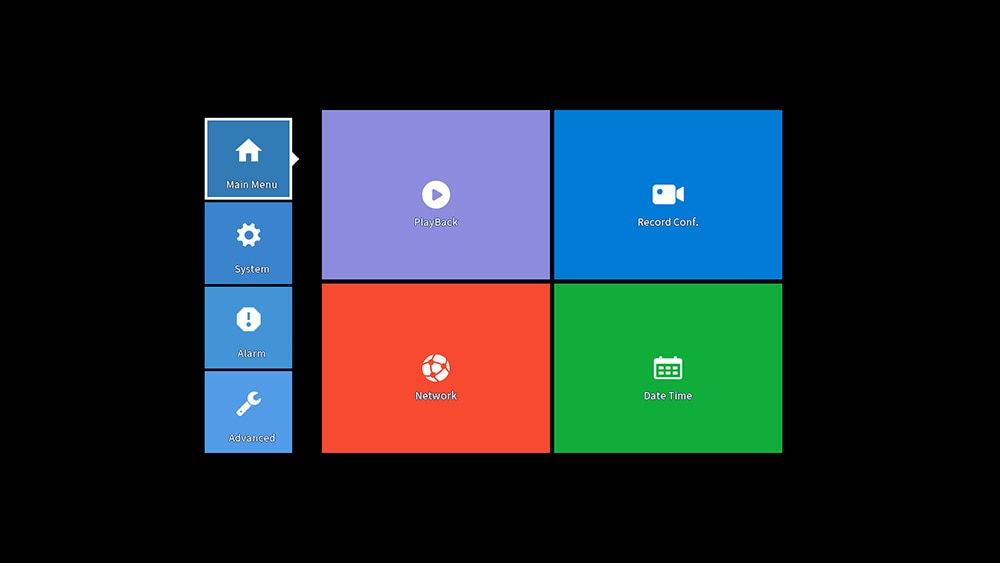

New Style Menu

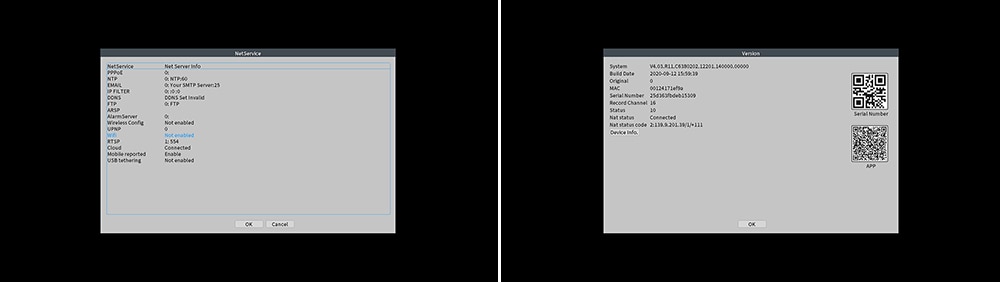

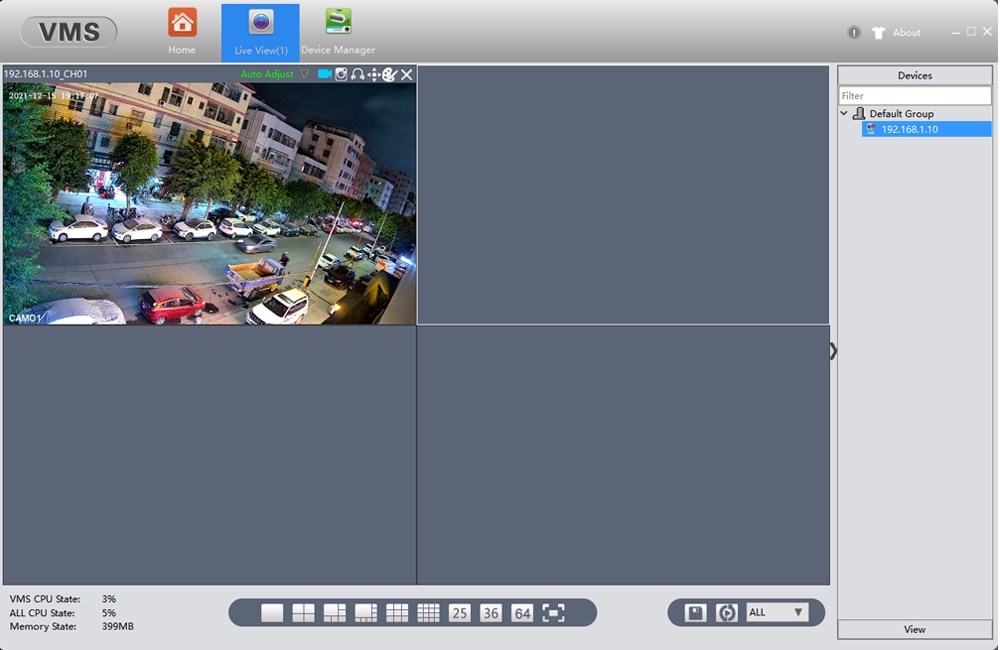

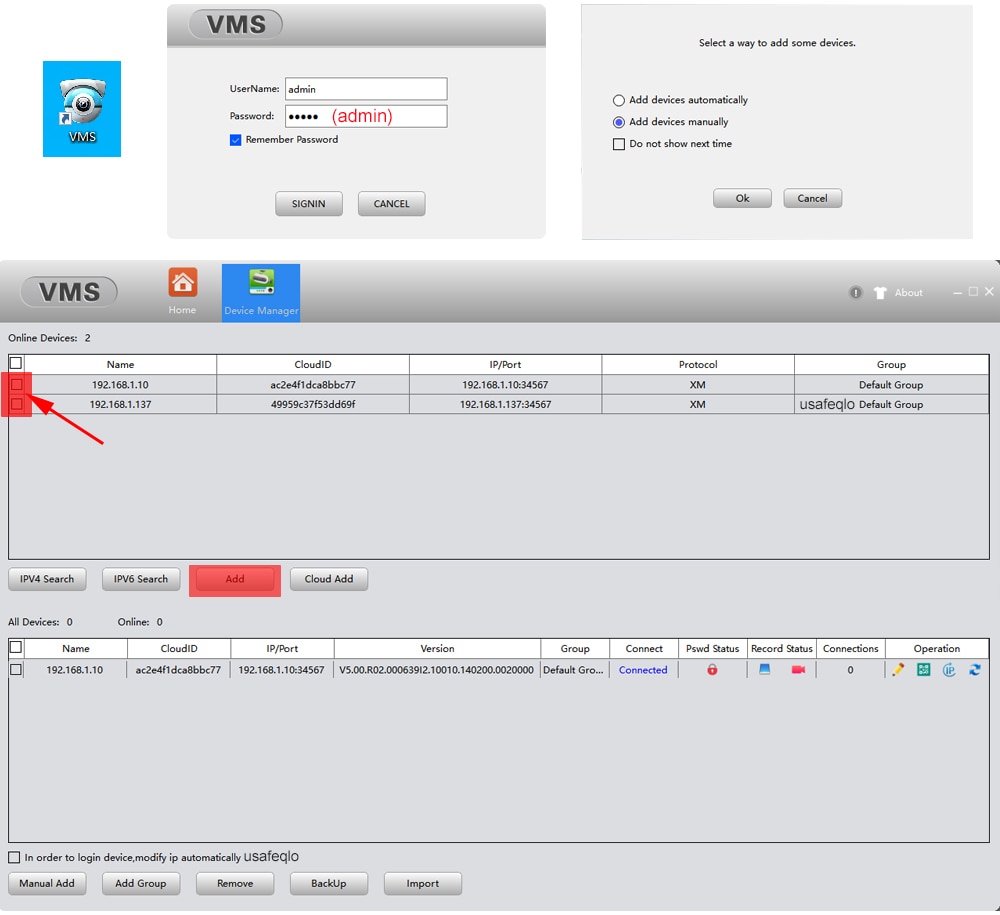

VMS/Website Details
- POE: None
- e-Cloud(P2P): YES
- Two-way Audio: No
- Alarm Action: FTP Photo,Email Photo,Local Alarm
- Backup Type: Hard Drive
- Supported Operating Systems: Microsoft Windows 98,Microsoft Windows ME,Microsoft Windows 2000,Microsoft Windows XP,Microsoft Windows Vista,Microsoft Windows 7,Mac OS
- Supported Mobile Systems: iPhone OS,Android,Windows Mobile
- IP Mode: Static IP address
- Wireless Security: WEP
- Network Protocol: TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,PPPoE,FTP,DNS
- Communication Interface: RS232
- Network Interface: RJ45 10/100M
- Hard Drive Size: 3.5''
- Hard drive Interface Type: SATA
- Audio Output: None
- Video Output: 1VGA + 1HDMI-Compatible
- Video Standard: NTSC,PAL
- Audio Compression Format: G711A
- Audio Input: 1 Channel
- Video Input Interface: RJ45
- Compression Format: H.265,H.264
- Technology: Network
- Model Number: 1009/16/32R-KL/GL/OEM
- Brand Name: USAFEQLO
- Origin: Mainland China
- Certification: NONE
- Smart home platform: Other
- Video Input: 9/10/16/32 CHANNEL IP
- Main Processor: XM/ Mstar/ Mstar/ NOVA
- HDD: up to 8TB(3.5ch HDD)
- Phone: Mobile phone, I-Pad, I-Phone, etc
- USB: 2* USB 2.0(Not support Keyboard)
- Power supply: 12V2A
- CMS: Support
- 3G Wifi: 9CH/16CH/32CH Support 7601 Wifi adapter
- Audio Out: 1CH
