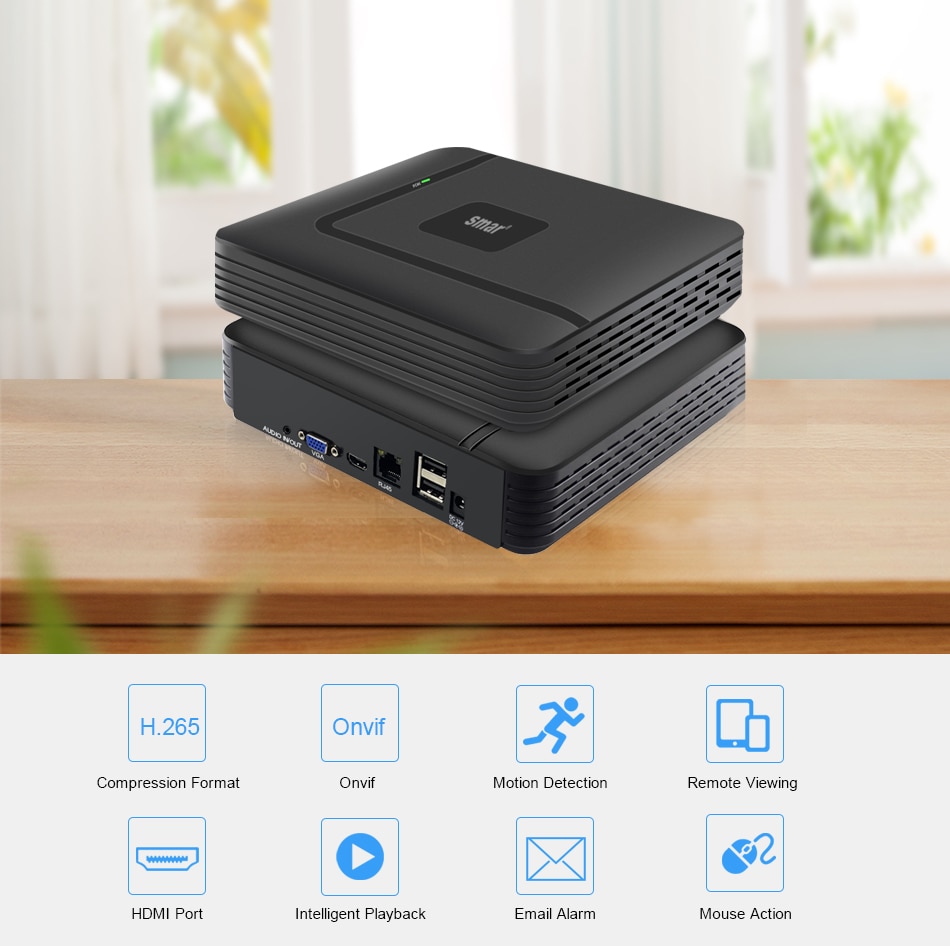

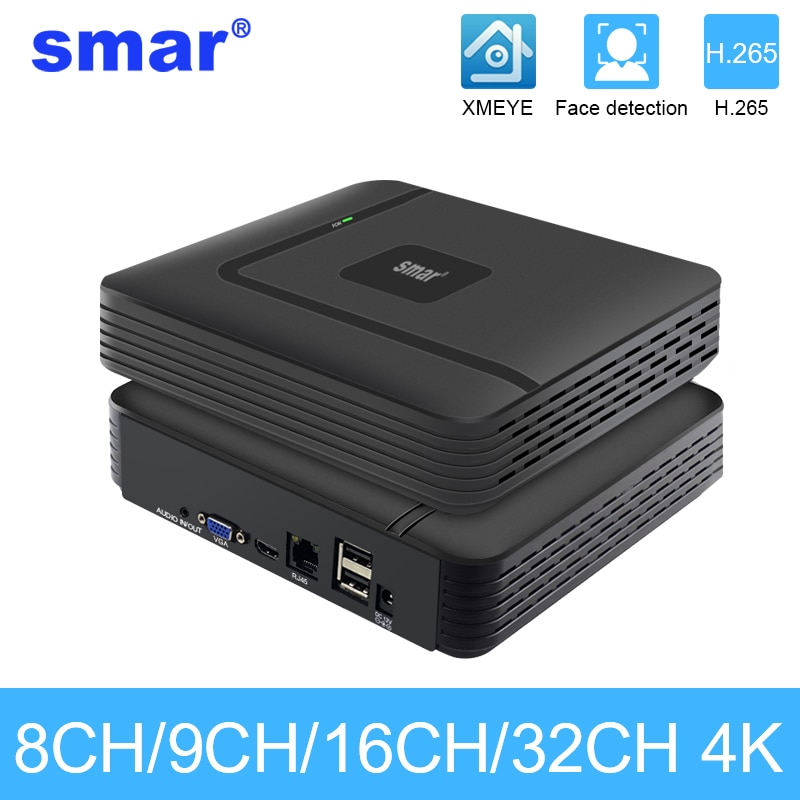

H265/H264 16CH*4K 5MP NVR Network Digital Video Recorder 1 SATA Cable Motion Detection P2P CMS XMEYE Security
103.25 47.71 $
SALE
ID: 14700
Quantity
Smar H.265 CCTV NVR 8CH 9CH 16CH 32CH For 5MP 4K IP Camera Support Face Detection Email Alart Video DVR Recorder XMEYE APP Onvif
4.8 (144 votes) | 291 orders
Price:
US $76.99 - 287.47
/ piece
Discount Price:
US $
63.90 -
238.60
/ piece
-17%
- Ships From
Note:
If you purchase the Security Video Recorder with HDD, we will install the HDD in the video recorder before leaving the factory to avoid crushing during transportation!

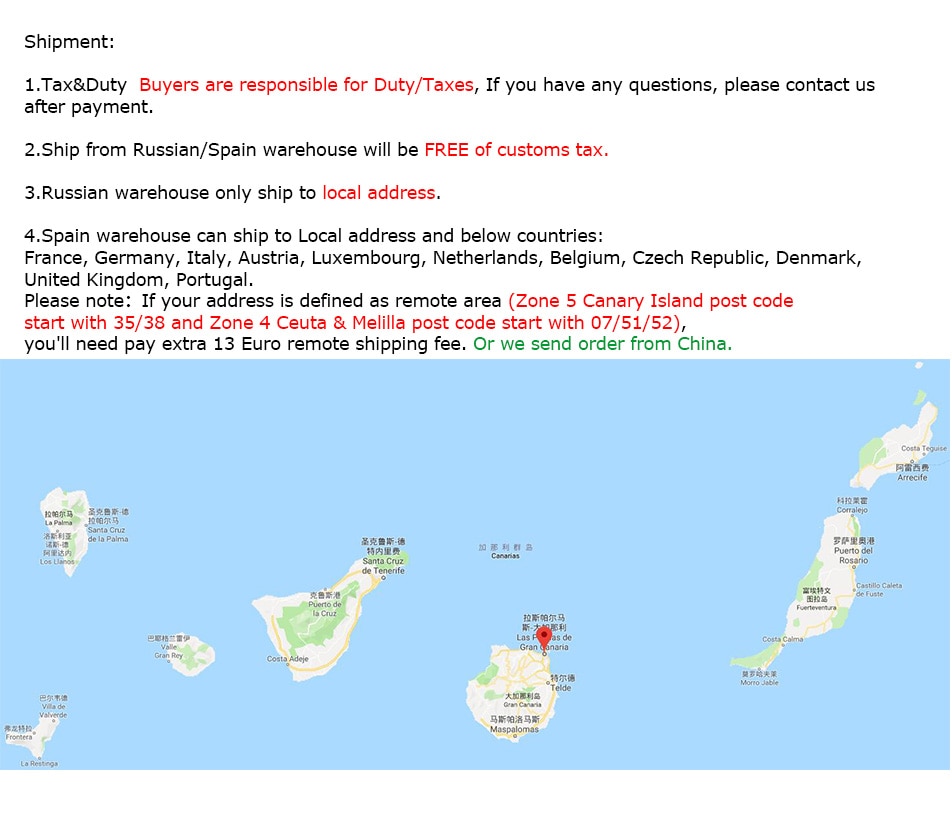

Customs TAX & Duty & VAT:
1.From CN Warehosue
About Europe member country:
IF amount is lower than €150,Hogaki will charge VAT and customs duty from buyer.
IF higher than €150,buyer must need to pay the customs duty and VAT in destination country.
About other country , buyer need to pay the customs tax in the destination
2.From ES/PL Warehouse,Hogaki will charge VAT from buyer
3.From RU Warehouse,be FREE of customs tax.Russian warehouse only ship to local address
PS:Hogaki just withhold and remit tax
4.Spain warehouse can ship to the local (except the Canary Islands and remote city) and the following countries:Portugal, France, Germany, Italy, Austria,Czech Republic, Denmark, Luxembourg, Netherlands, Belgium, Hungary, Poland, Slovenia;
(Note:If your address is defind as remote area:Zone 5 Canary Island post code start with 35/38 and Zone 4 Ceuta & Melilla post code start with 07/51/52, we can't send your order from Spain warehouse,but we can send your order from China as free)
5.Poland Warehouse can Ship to Poland, Portugal,France,Germany, Italy, Austria, Czech Republic, Denmark,Luxembourg,Netherlands,Belgium, United Kingdom,Hungary,Spain, Slovakia, Slovenia, Ireland,Finland, Latvia, Lithuania, Sweden, Bulgaria, Estonia, Greece,Romania Country.
Note:

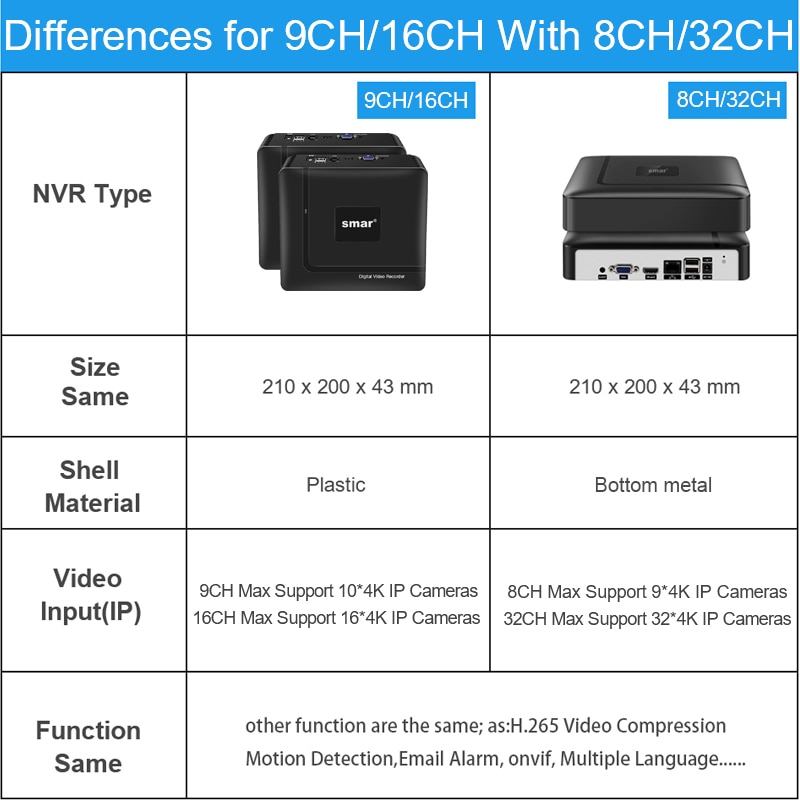

8CH NVR is differences with 9CH/16CH NVR
Differences1: 8CH Shell Material: Botton Metal(White), 9CH/16CH Shell Material:Plastic(Full Black)
Differeance2:Video Input(IP): 8CH Max support 9*4K IP Cameras,9CH max support 10*4K IP Cameras,16CH max support 16*4K IP Cameras.
Same: Other function are t he same,as H.265 Video Compression,motion detection,Email alarm,Multiple Language....
Please check the picture as follow：
Now the parameters of the 16CH CCTV NVR are being updated, Please refer to the actual product reference standard.
1. H.265 Vdieo Compresion for 9CH/ 10CH/ 16CH,4MP/5MP/1080P HD Resolution
2.Realtime live display up to 9 / 10 / 16 IP Cameras
3.Support Multi Languages.
4.Support VGA & HDMI Video Output.
5. Backup Via USB Drive + 3.5'' Hard disk (up to 6T )( NO Hard Disk in the Package)
6.Support iPhone,Android Mobile remote access through P2P Cloud.
7.Cloud:XMEYE.NET;APP: XMEYE
8.Motion detection and Email alarm.
9.Support ONVIF2.3 Agreement.(Compatible ONVIF2.0)
(Note: We recommend that when you buying the Network video recorder, also buying the IP Camera from our store, Because they have perfect private agreement between them and docking, it can fully display products all of the functions. If you have buying the IP Camera from other manufacturers, then connect to our network video recorder through ONVIF, however,you will find that some function of the IP Camera can't work normaly,, such as: motion detecting Or audio and video are not synchronized and so on; Why? Because ONVIF protocol cann't be compatible with all functions; Please note that before you buying.)

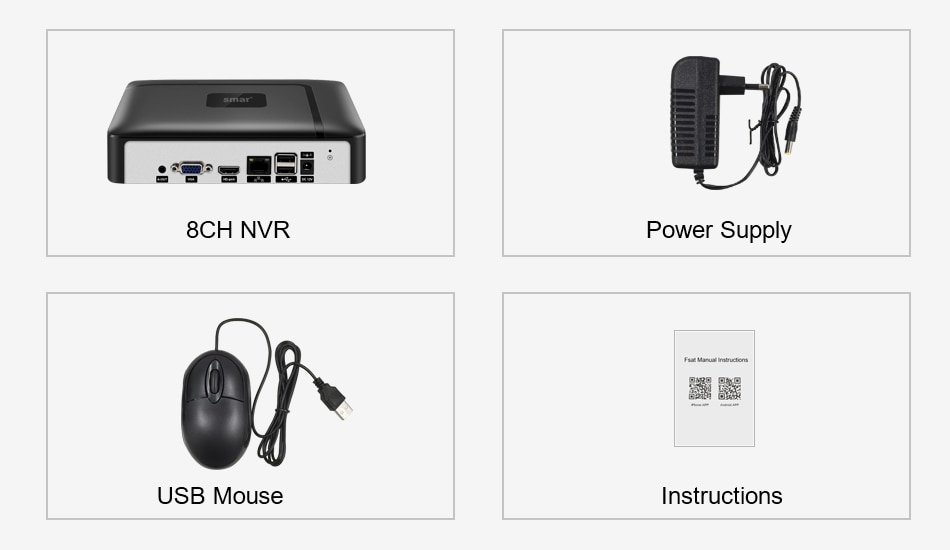

Packing List:
1* 8 Ch /9 Ch/16 CH Mini NVR
1* USB Mouse
1* DC12V Power Adapter for NVR
1* User's Manual
For 8CH NVR:
1. 8CH:Actually is 9CH, it's XM Chip;
2. Max support 9*4K(8MP) IP Camera
3. Don't support Wifi Adapter;
4. 9CH(XM) Board Max Support 1920x1080P Display
5. 9CH NVR, Please choose Video Input：8CH(Order)

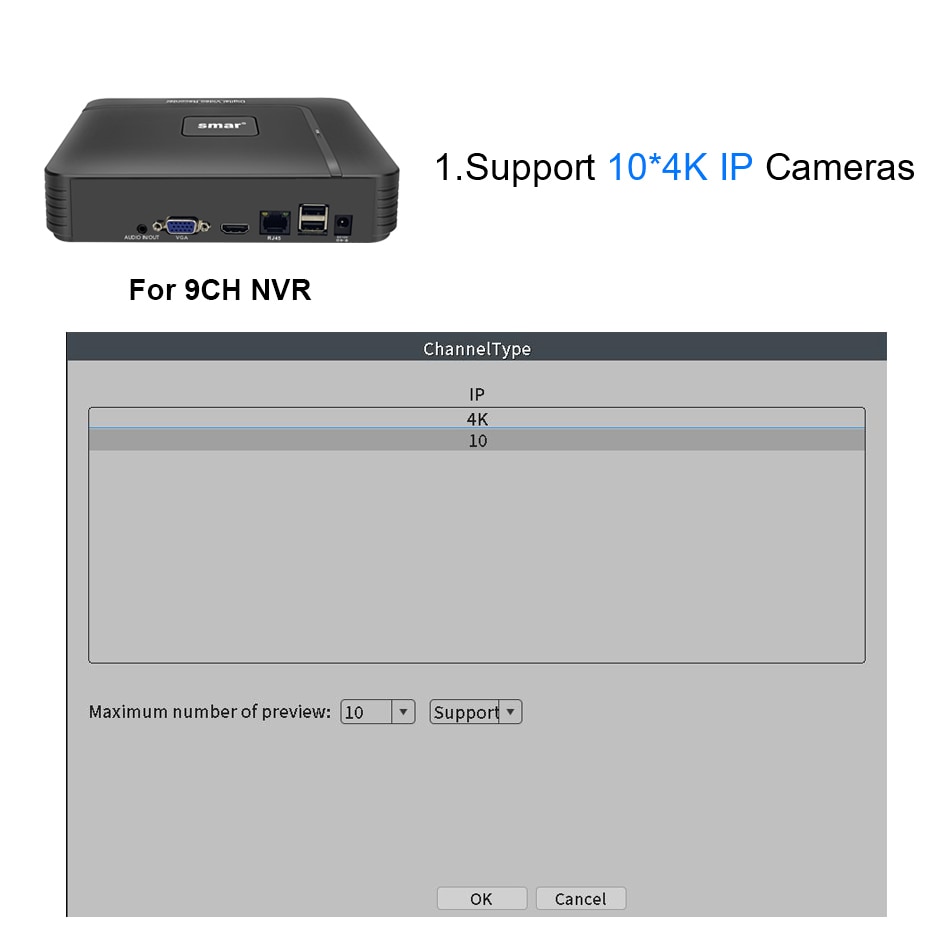

For 9CH NVR:
1. 9CH:Actually is 10CH, It's Hi3536 Chip;
2. Max support 10*4K(8MP) IP Camera
3. Support Wifi Adapter, the Wifi Adapter model is:7601

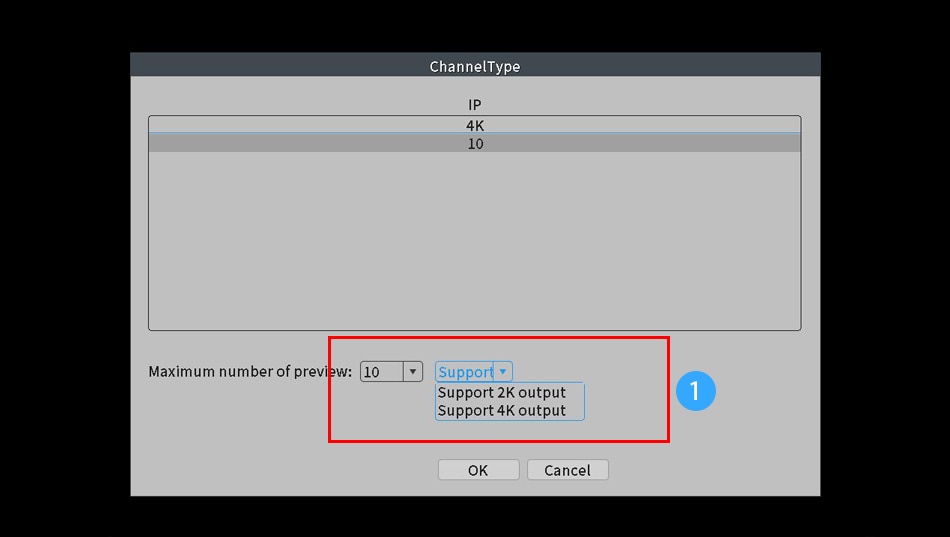

4.10CH(Hi3536) Board Max Support the 4K Display
5.10CH Board of NVR, Please choose Video Input:9CH(Order)
2. Max support 10*4K(8MP) IP Camera
3. Support Wifi Adapter, the Wifi Adapter model is:7601
4.10CH(Hi3536) Board Max Support the 4K Display
5.10CH Board of NVR, Please choose Video Input:9CH(Order)

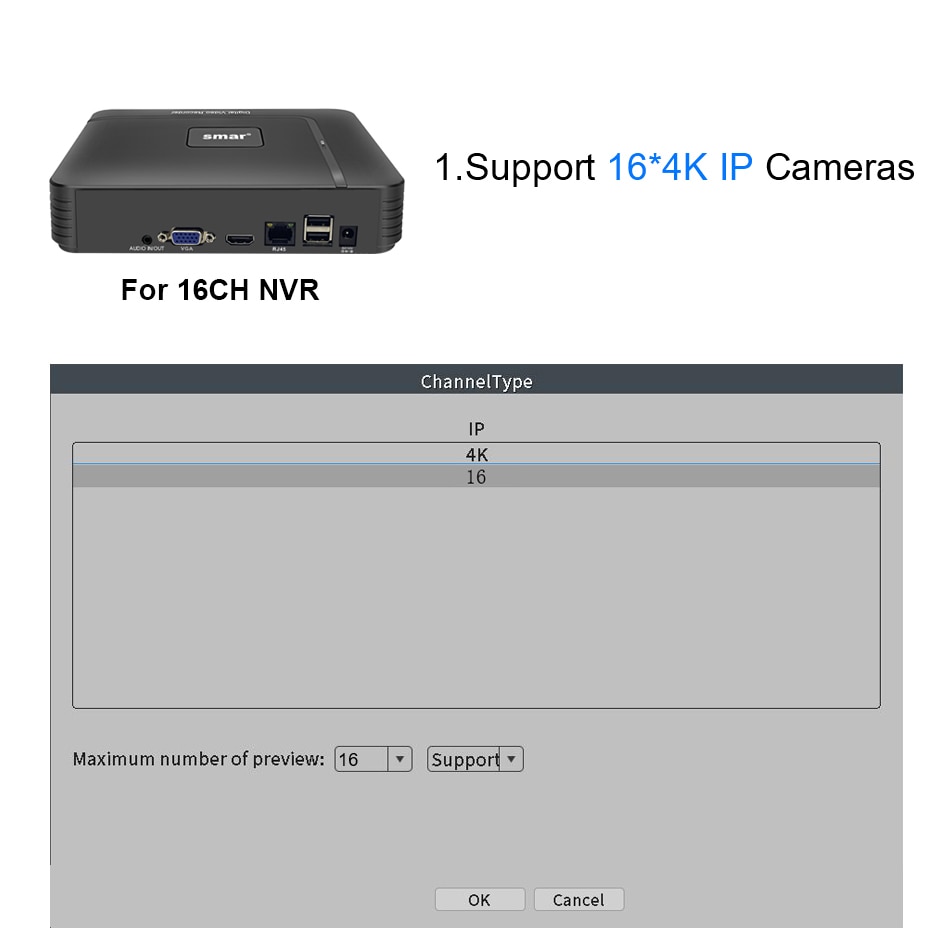

For 16CH NVR:
1. 16CH is Hi3536 Chip;
2. Max support 16*4K(8MP) IP Camera
3. Support Wifi Adapter, the Wifi Adapter model is:7601
4.16CH(Hi3536) Board Max Support the 4K Display
2. Max support 16*4K(8MP) IP Camera
3. Support Wifi Adapter, the Wifi Adapter model is:7601
4.16CH(Hi3536) Board Max Support the 4K Display

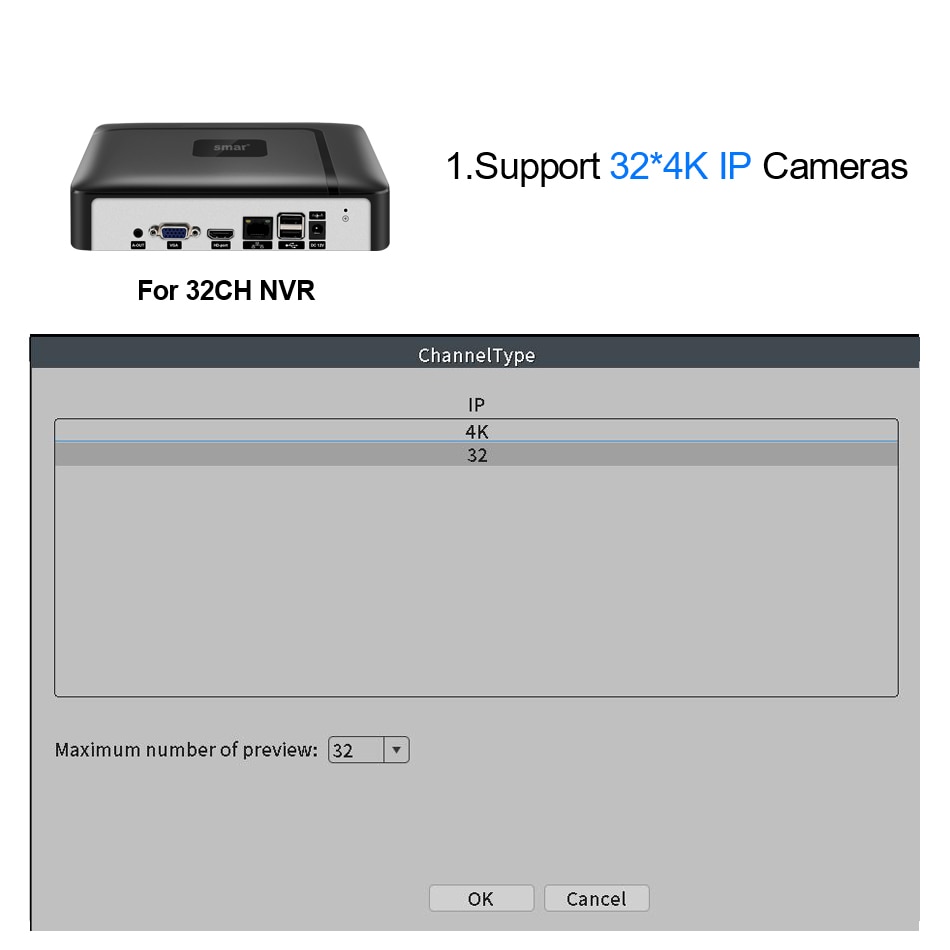

For 32CH NVR:
1.32CH is NT98323 Chip;
2. Max support 32*4K(8MP) IP Camera
3. Support Wifi Adapter, the Wifi Adapter model is:7601
4.32CH(NT982323) Max Support the 4K Display

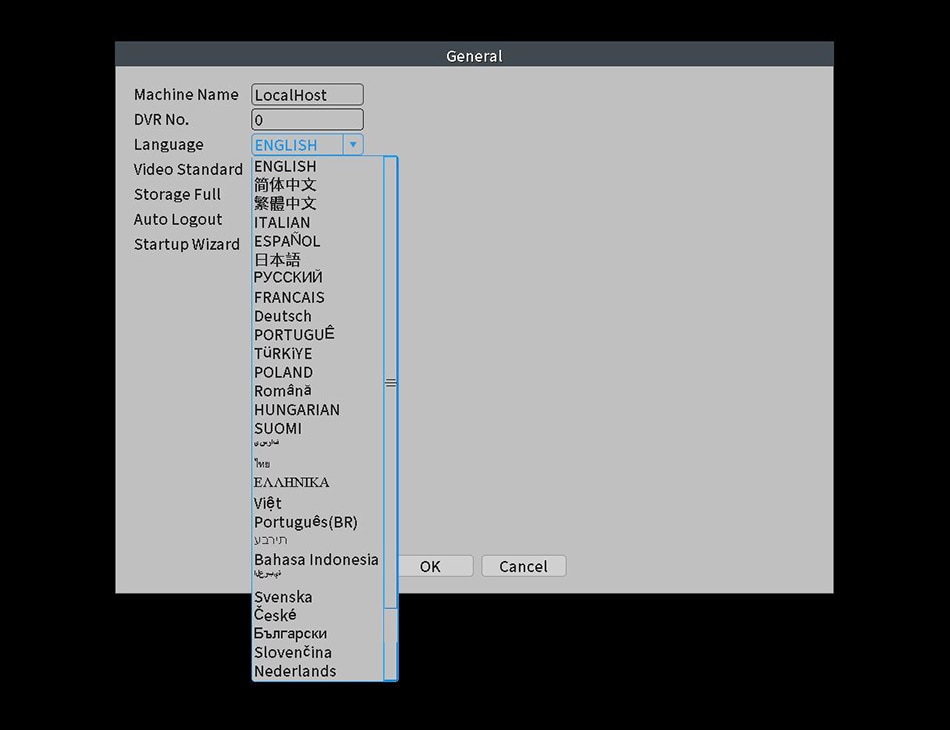

Multiple Language
Support more than 20 Language, Chinese, English,Russian, Portuguese, French, German, Polish, Dutch, Hungarian, Turkish, Japanese, Turkish, Romanian, Indonesian and Etc.......
PS:If you need set language for your local use, please leave us a message, we would set and send to you. Or If there is no your country's language please contact us soon we would send language pack to your e-mail.

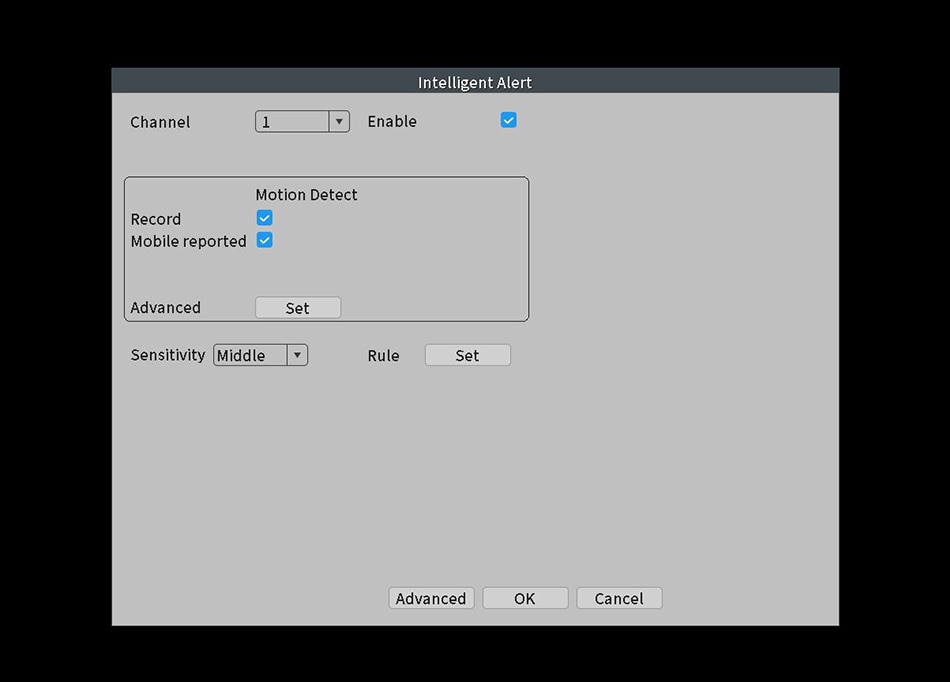

Motion Detection & Email Alert
When the Detect Motion happened in your home and office. you'll get instant alarming email when the home or office is invaded. You can even ensure that false alarms are avoided by setting the motion detection "mask"to block areas with constant movement.
Note:Our DVR Motion Detection Function only Support the following Brand of IP Camera; As: XM, Dahua, Safer, HIVT, Part of HIKVISION. And if your IP Camera is other Brand, Can't used the Motion Detection Function with Our DVR. ( Please note before when you buying)
E-mail Set
Please note: SMTP Server only support these Email Box:126,163,gmail,sina,139,156,qq format, And the recipient can set up 5 vaild mail.

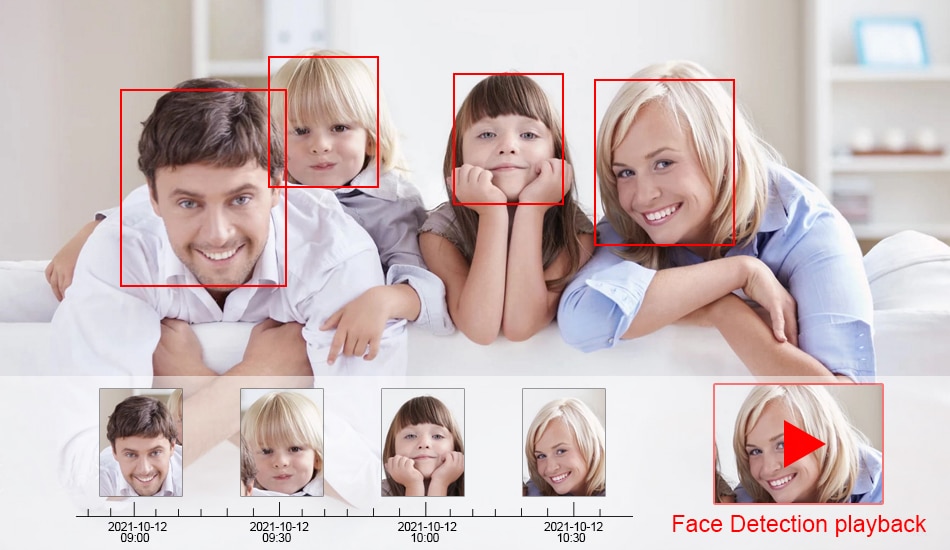

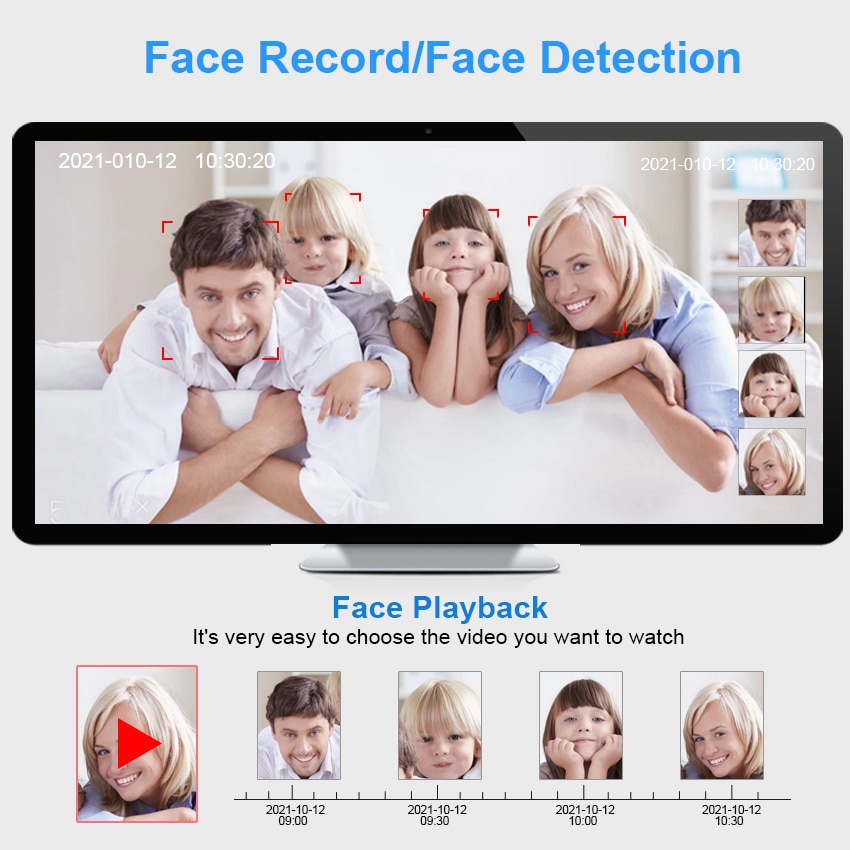

AI Face Detection
AI face detection is more easy to catch the detail arround you . When someone invades, the smar security camera can clearly capture the details of the person's face and protect your property at all times.

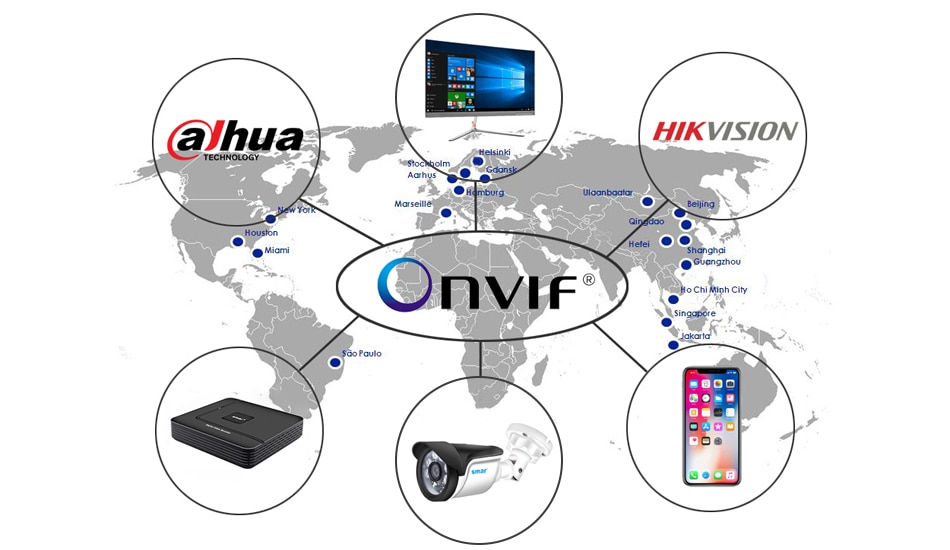

Support ONVIF
You can connect any brand's Onvif IP Cameras to our this NVR;
Reminder:
Smar's Video Recorder all support ONVIF and NETIP Protocol;
Netip: It is a Private protocol, only applicable to Network Video Products of XM Scheme；
Onvif: It is an international open network video product standard network interface protocol；
Onvif Advantages:
Onvif likes a communication bridge, It can implement multiple devices(IP Camera and Video Recorder) from different manufacturers connected to each other, mutual Communication.
Onvif Disadvantages:
The standards of onvif protocol are also different for video network products of different manufacturers;
So,Their communication with each other will cause some bad problems, such as: motion detection can not work normally; Audio and video can't be synchronized; Loss of video data, etc......
(Note: We recommend that when you buying the Network Video Recorder, also buying the IP Camera from our store, Because they have perfect private protocol between them, it can fully display products all of the functions.)

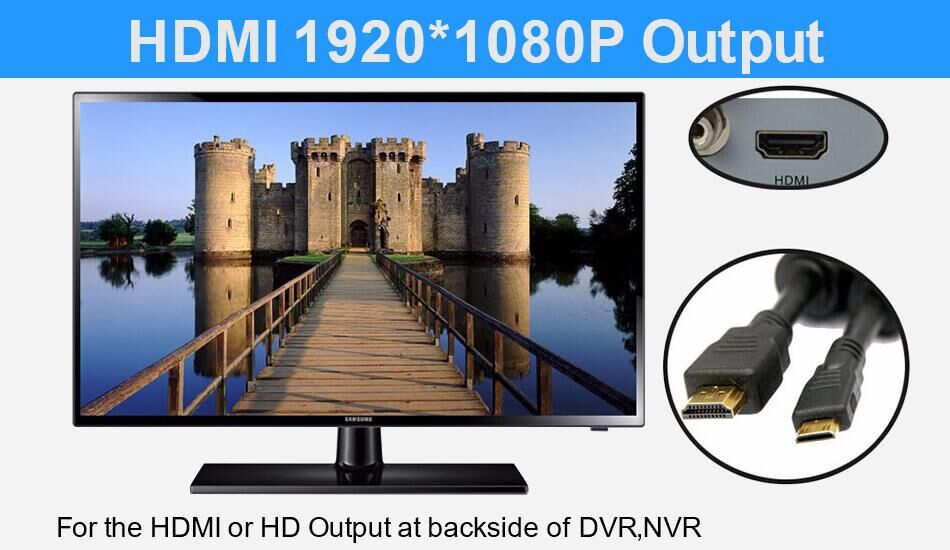

HDMI & VGA Output

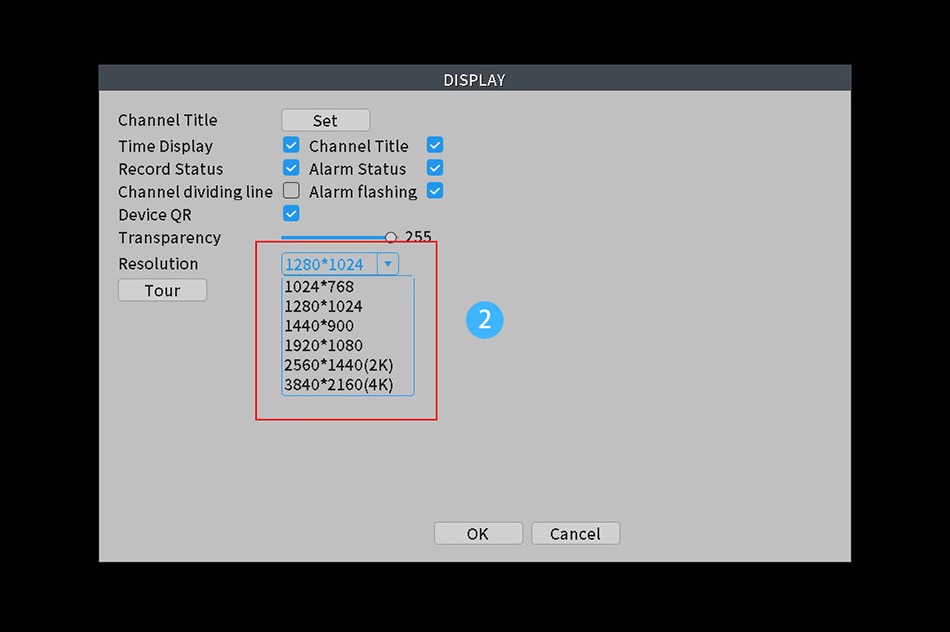

Default Display of Resulution:1920*1080,Your monitor must be has the same display of Resolution, otherwise it will not image output
Easy access via multi-platform
Support Mobile Phone iOS, Android System，Remote view of mobile phones, any time... any where...

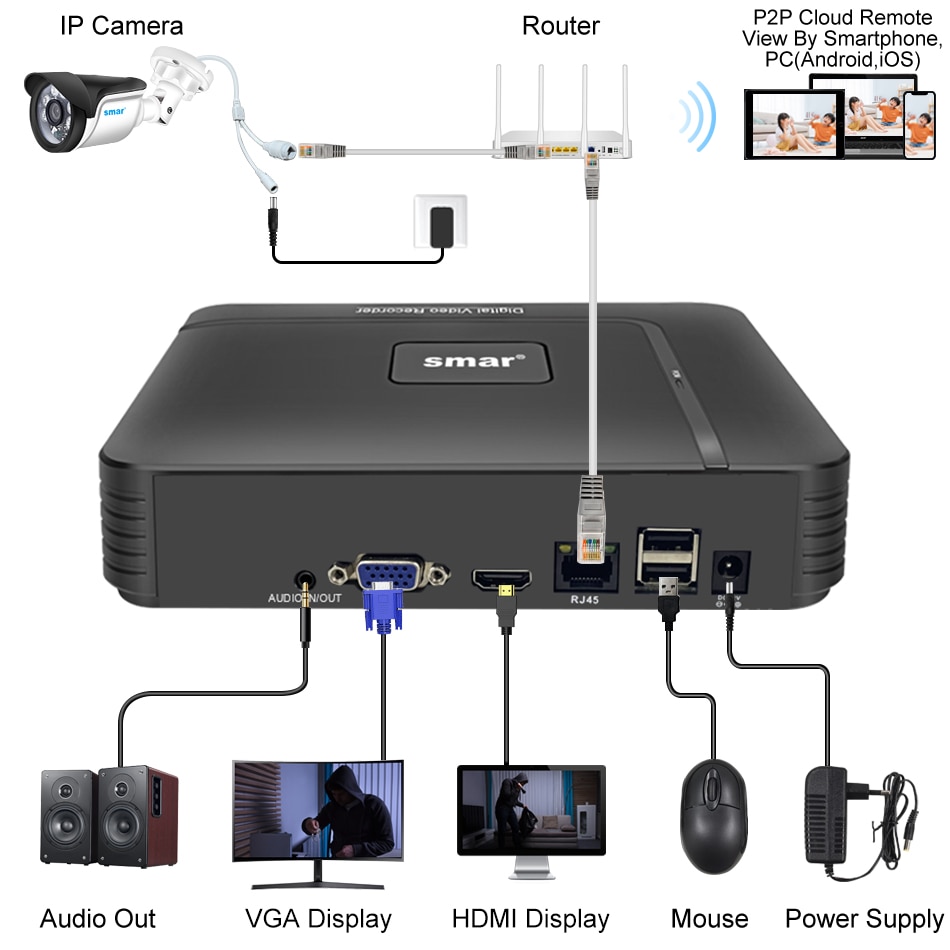

How to connect IP cameras to NVR?
1. Please connect the power supply to IP Cameras and NVR;
2. Please connect the IP cameras to the Router through the network cable (Select router for different channels according to the number of cameras)
3. Please connect NVR to Router through the network cable;
4. Log in to the NVR, then search the IP address of IP cameras through NVR, add the IP address of IP cameras to NVR, and then they will be able to work together!
（Note: If your IP Cameras is not ours, Please check whether your IP cameras support the onvif protocol, otherwise they will not work together!）

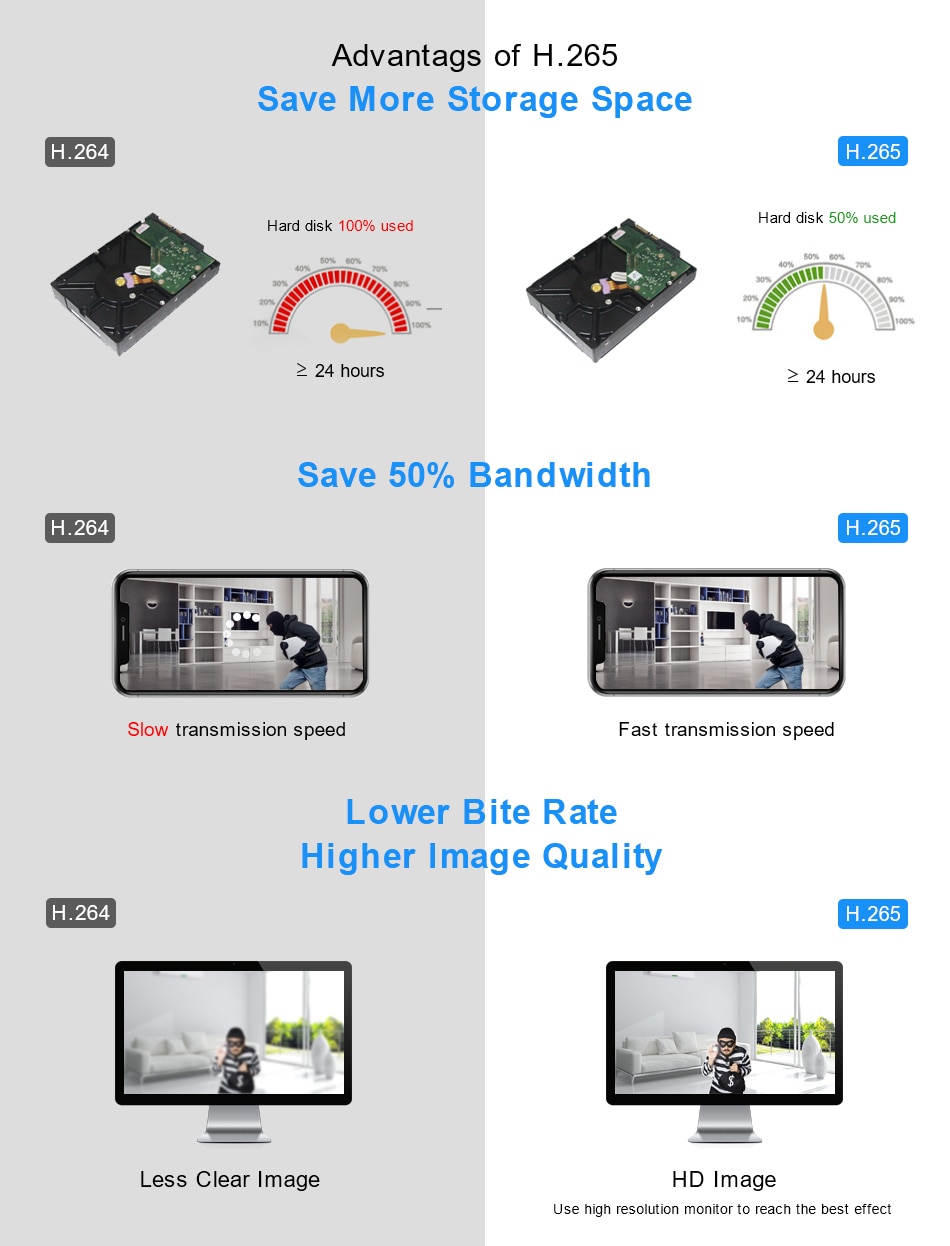

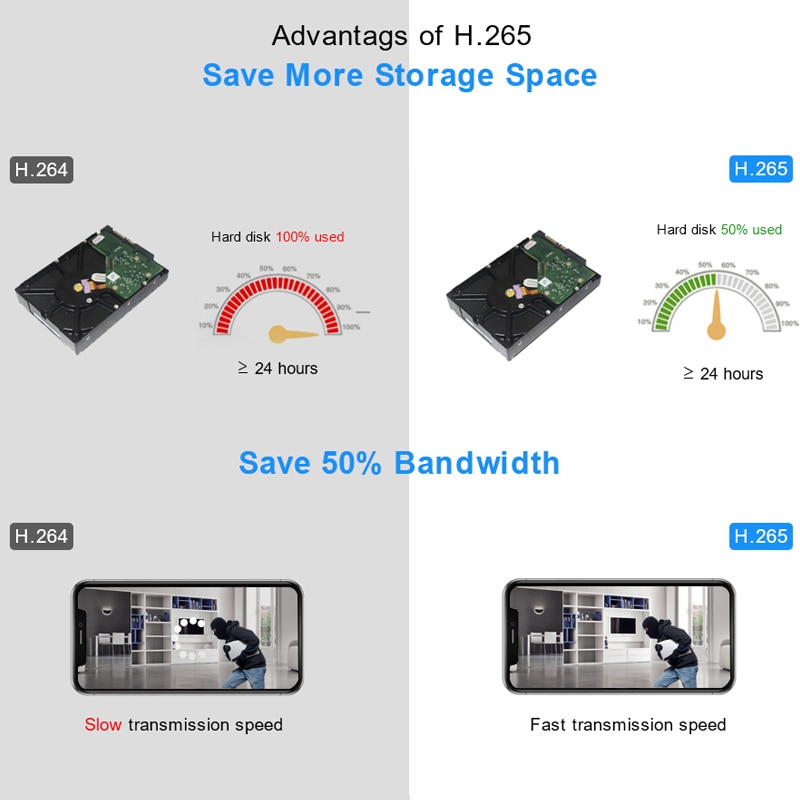

Why choose H.265 NVR?
H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.
Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost
If you need 1TB/2TB/3TB/4TB HDD, please click below pic for shopping.

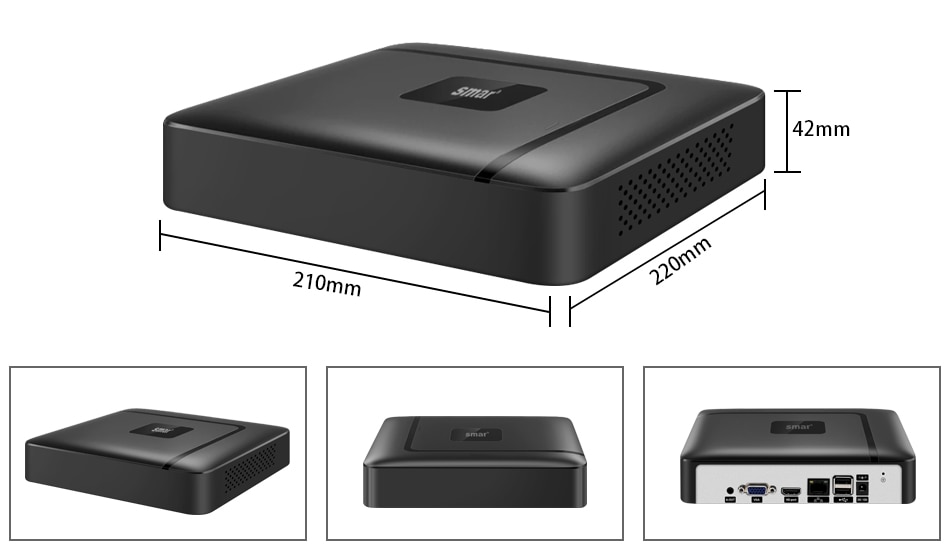

9CH/16CH NVR Size and Multi angle display:

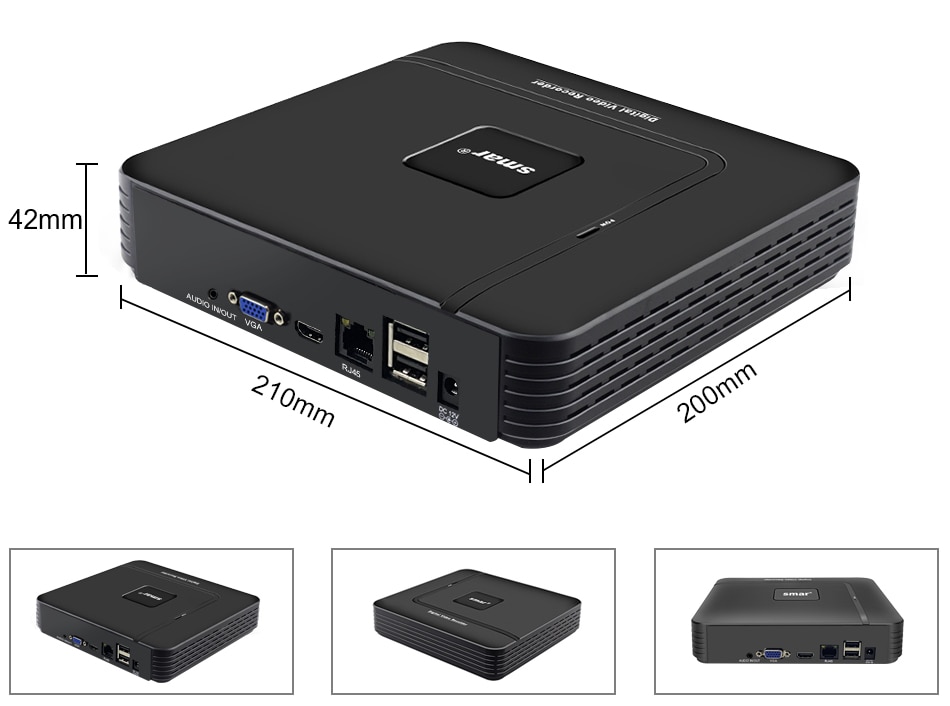

8CH/32CH NVR Size and Multi angle display:
Specifications | 8CH | 10CH | 16CH | 32CH | |
System | Main processor | XM8536D | NT9832X | NT9832X | NT98323 |
Operating System | Embedded Linux | ||||
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | ||||
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation | |||
Preview | 1/2/4/6/8/9 | 1/2/4/6/9/10 | 1/2/4/6/8/9/16 | 1/2/4/6/8/9/16/25/32 | |
Video | Video input (IP | 9*4K Unreal-time（Access bandwidth 60Mbps） | 10*4K（Access bandwidth 72Mbps） | 16*4K（Access bandwidth 72Mbps） | 32*4K |
Video compression | H.265AI/H.265+(compatible H.265/H.264) | ||||
Display quality | Max:4K | ||||
Playback quality | 4K/5M/4M/3M/1080P | ||||
VR | Not support | ||||
human shape / Face | Support(depend on camera,the camera of NETIP protocol can support face recognition) | ||||
Audio | Audio compression | G.711A | |||
Intercom | support | ||||
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing | |||
Localpayback(real-time+ | 1ch4K/2ch5M/1ch4M/2ch3M/3h1080P | 4K（1*real time）/5M（1+1）/4M（2+1）/3M（2+2）/1080P（4+1） | 2ch4K@12fps/3ch5M@20fps/4ch4M@20fps/4ch3M@20fps/6ch1080P@25fps | ||

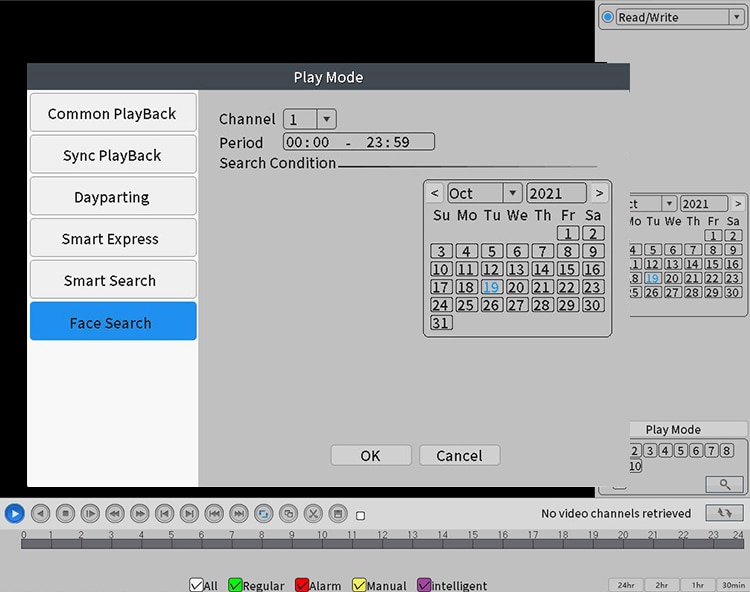

Search mode | Search by Time/Calendar/Event/Channel/Face | ||||
Record storage | HDD、Network | ||||
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | ||||
External | Video output | 1ch VGA，1ch HDMI HD output | |||
Audio I/O | 1/1（3.5mm） | ||||
Alarm I/O | 0/0 | ||||
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | ||||
USB interface | 2*USB2.0 ports(one USB extension interface is reserved) | ||||
HDD | 1 SATA(Up to 14TB for each disk) | ||||
ESATA | No | ||||
Serial interface | No | ||||
Other | ONVIF | Support | |||
power supplyr | DC12V 2A | ||||
Power Consumption | <10W(Without HDD) | ||||
Work environment | Temperature:0°C －55°C, Humidity:10%－90%RH , Atm:86kpa－106kp | ||||

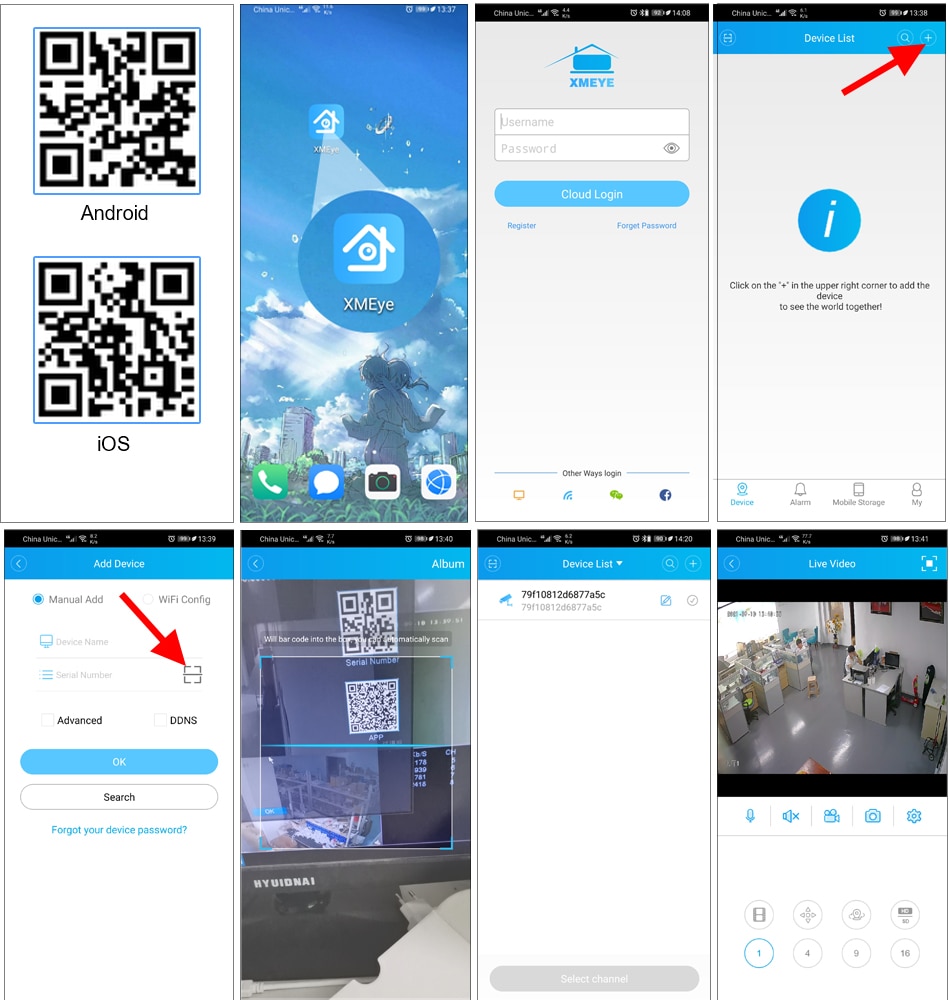

How to remote view through Mobile phone?
1. You must be installed a APP in your mobile phone,where to find or download APP?
2. Please used your mobile phone to scan the following QR code.(iPhone APP,Android APP)

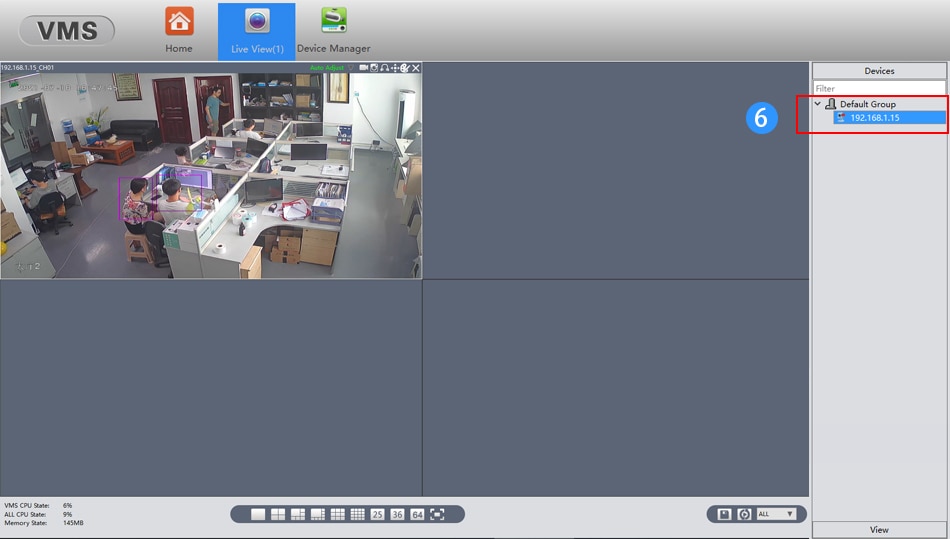

VMS For Local Review & Record
Default IP Address: 192.168.1.9
Username: admin
Password: null (empty)
Default Username of CMS: super
Password: null (empty)
When you log in to VMS for the first time, Device list is empty, Please add your device at "System->Device Manager"
(As usual, DVR default IP address will be 192.168.1.9, but if your local Internet IP address with the same our default IP address, You must be changed the default IP address, you can edit the IP address of DVR by VMS.)
More 5 star Feedback More buyer's prefer
Escrow is our preferable payment method, We also accept other payments by Paypal, T/T, Western union.
Payment must be finished within 3 days since your place the order.
Please be assured that your payment will be temporarily held by Hogaki, and will be released until you confirm the delivery of your order and are satisfied with it.
Warranty
Please contact the seller directly for a copy of the warranty.
Our store warrants this product and parts against defects in material for a period of (1) one year from the date of original purchase. Warranty does not cover service or replacements made necessary by any
external cause including without limitation, rust, corrosion, lightning, fire, theft, acts of nature, negligence,misuse, abuse, alteration, installation, delivery, unauthorized repairs, power failure or shortage.
During this period, we will repair or replace a defective product or part with a new or refurbished item. The user is responsible for all transportation and insurance charges for the product to the our facility.
Return Policy
We have successfully to join service overseas return storehouse from Hogaki. Currently supported return from Russia, United States and Spain.
We accept the return for any reason within 7 days from your receipt. Please make sure that the goods are the original packaging conditions.
The buyer would be responsible for the shipping freight to return the goods.
If the items are lost or damaged on the way to us, the buyer needs be responsible for the loss.
We will leave the postive feedback to every customer.
We also hope can get a positive feedback and 5 stars from every customer, your postive feedback is very important to us.
If you meet any problem with our item or services, please contact to us at the frist time, we will try our best to help you . Negative feedback can not solve the problem ,but contact with us first will get a good solution.
|
- POE: None
- e-Cloud(P2P): YES
- Two-way Audio: No
- Alarm Action: FTP Photo
- Backup Type: Hard Drive
- Supported Operating Systems: Microsoft Windows 2000,Microsoft Windows ME,Microsoft Windows XP,Microsoft Windows Vista,Microsoft Windows 98,Microsoft Windows 7
- Supported Mobile Systems: iPhone OS,Android
- IP Mode: Static IP address
- Network Protocol: TCP/IP
- Communication Interface: RS232
- Network Interface: RJ45 10/100M
- Hard Drive Size: 3.5''
- Hard drive Interface Type: SATA
- Audio Output: None
- Video Resolution: 1080P
- Video Standard: NTSC,PAL
- Audio Input: No
- Compression Format: H.265
- Technology: Network
- Model Number: N1004F/N1008F/N1016GL
- Brand Name: smar
- Origin: Mainland China
- Certification: NONE
- Smart home platform: NONE
- Name: Digital Video Recorder
- Input for 8 Channel NVR: 9*4K 8MP IP Camera
- Input for 9 Channel NVR: 10*4K 8MP IP Camera
- Input for 16 Channel NVR: 16*4K 8MP IP Camera
- Onvif/P2P: Support
- Compression Format: H.265
- Video Output: 1*1080P HDMI/1*VGA
- Type: Mini CCTV NVR
- Power: EU Standard(AU/UK can choice)
- Input for 32 Channel NVR: 32*4K 8MP IP Camera
SHIPPING AND DELIVERY
We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.
How do you ship packages?
Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.
Do you ship worldwide?
Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.
What about customs?
We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.
How long does shipping take?
Shipping time varies by location. These are our estimates:
| Location | *Estimated Shipping Time |
|---|---|
| United States | 10-30 Business days |
| Canada, Europe | 10-30 Business days |
| Australia, New Zealand | 10-30 Business days |
| Central & South America | 15-30 Business days |
Do you provide tracking information?
Yes, you will receive an email once your order ships that contains your tracking information.
My tracking says “no information available at the moment”.
For some shipping companies, it takes 2-5 business days for the tracking information to update on the system.
Will my items be sent in one package?
For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.
If you have any other questions, please contact us and we will do our best to help you out.
REFUNDS & RETURNS POLICY
Order cancellation
All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.
Refunds
Your satisfaction is our #1 priority. Therefore, if you’d like a refund you can request one no matter the reason.
If you did not receive the product within the guaranteed time(45 days not including 2-5 day processing) you can request a refund or a reshipment.
If you received the wrong item you can request a refund or a reshipment.
If you do not want the product you’ve receive you may request a refund but you must return the item at your expense and the item must be unused.
- Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
- Your order did not arrive due to exceptional circumstances outside the control of HOGAKI.COM - Home, Garden & Kitchen shop (i.e. not cleared by customs, delayed by a natural disaster).
- Other exceptional circumstances outside the control of hogaki.com
*You can submit refund requests within 15 days after the guaranteed period for delivery (45 days) has expired. You can do it by sending a message on Contact Us page
If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.
Exchanges
If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.
Please do not send your purchase back to us unless we authorise you to do so.
LARGE ORDER DEALS
Thank you for your interest doing business with us!
If you would like to get a discounted price for your large purchase orders, fill in the required blanks along with your email address, the product Item ID # and/or the link of the item that you want to order, item quantity (minimum of 30 pieces), shipping country and payment method is required. We will contact you with a discounted price as soon as we receive your inquiry.
