Smar CCTV DVR Hybrid 4CH 8CH 5M-N 5 IN 1 AHD CVI TVI CVBS 1080P Security DVR NVR For AHD Camera IP Camera Analog Camera XMEYE
75.60 $
SALE
ID: 133230

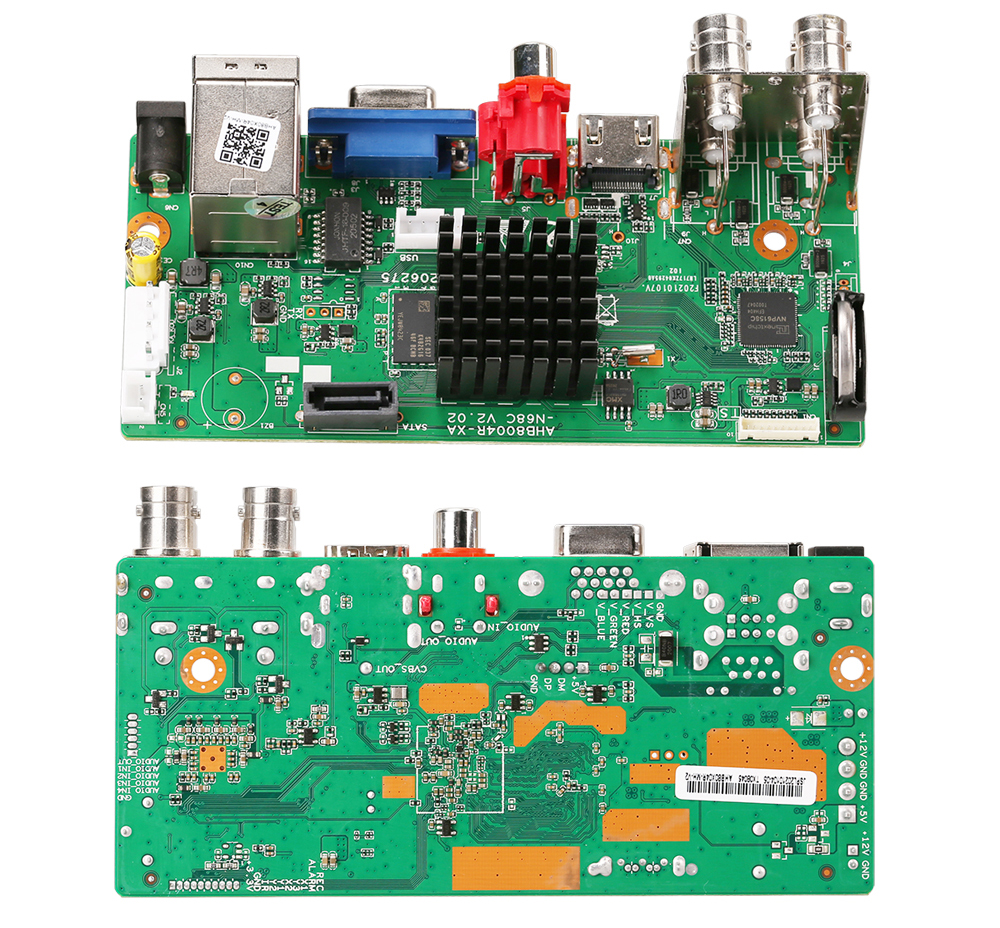

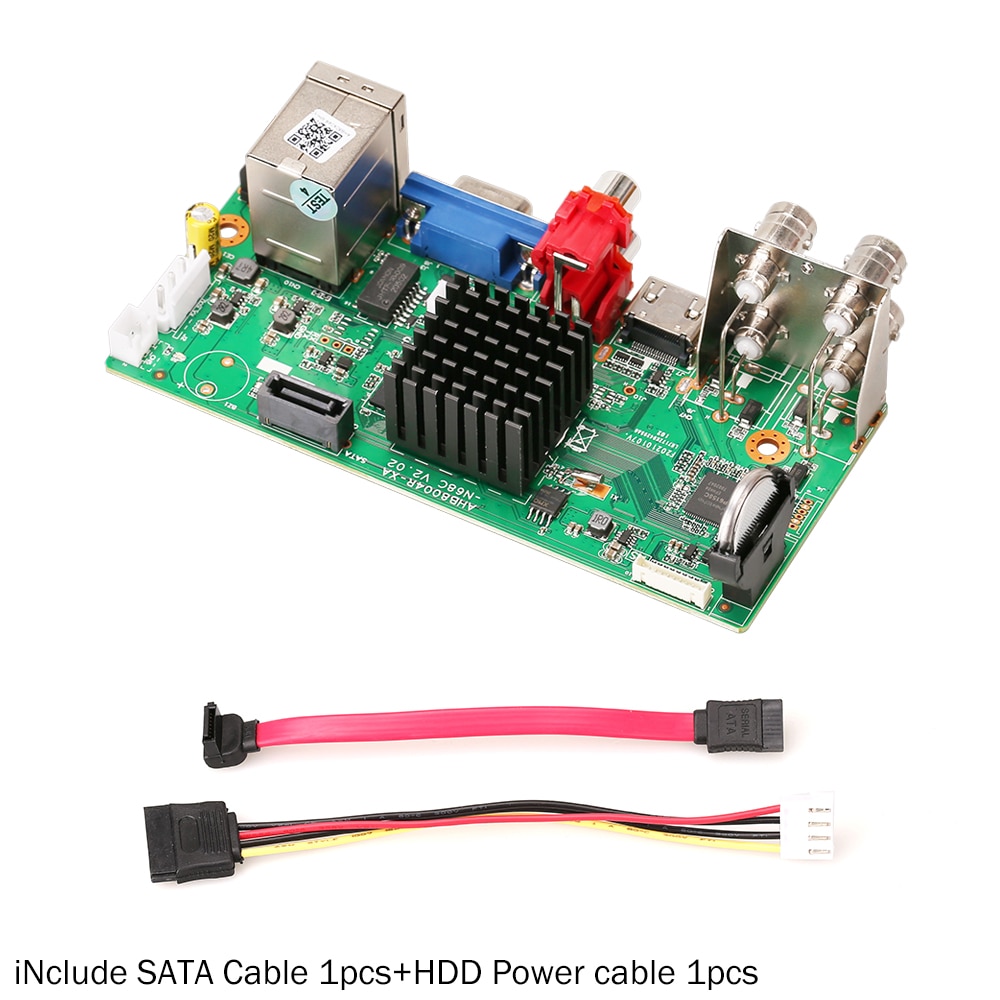

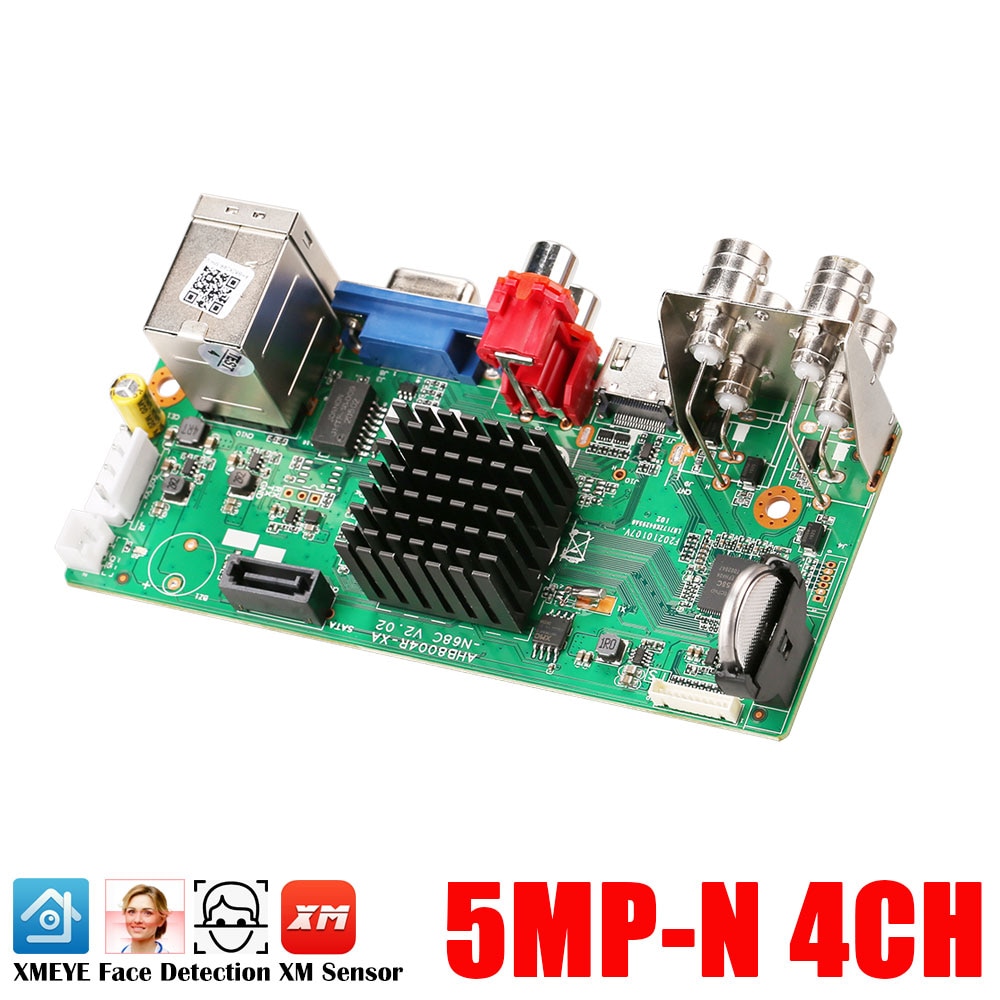

DVR 4CH 5 in 1 CCTV Dvr Recorder Board TVI CVI AHD CVBS AHD Camera Digital Video Recorder XMEYE CCTV System Support 2MP 5MP
4.9 (46 votes) | 116 orders
Price:
US $89.50
/ piece
Discount Price:
US $
46.28
/ piece
-48%
Sorry! This item is out of stock
Note:

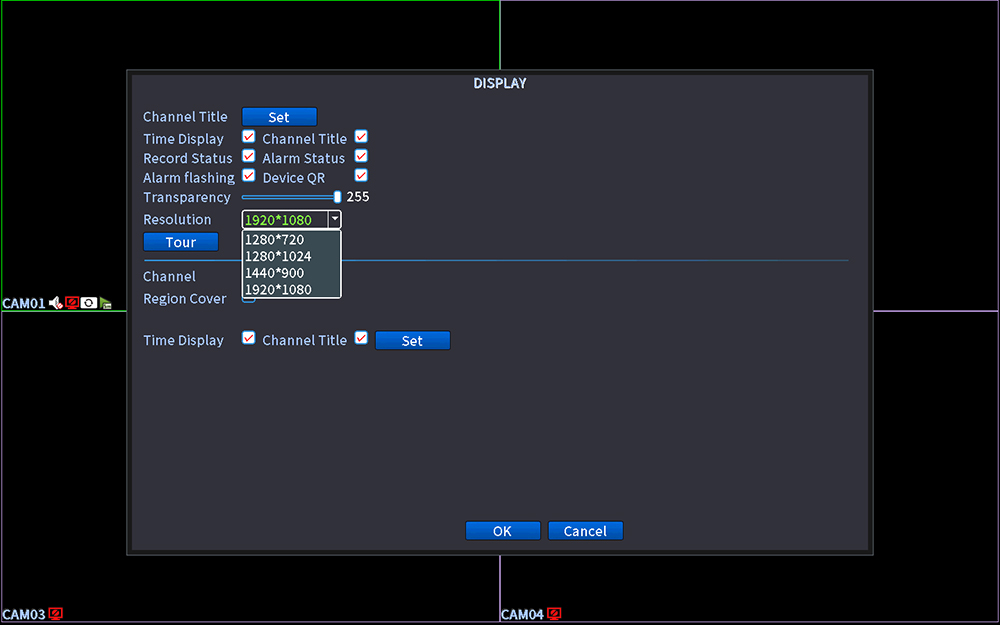

This one have defult output resuliton
No matter use HD Output or VGA, Please make sure your monitor have the same resulution
About the HDD:
We only recommend to use the security HDD.
TOSHIBA,Seagate,WD all have security HDD.
If your cameras is buy from other stores, please contact us to make sure they can work together, or we will not accept any dispute because use other brands items on our items.
Many languages support
Please make sure include your country language, we will not update firmware to other language
Support PAL and NTSC Mode
Display 1920x1080P
Newest H.265 AHD Mode

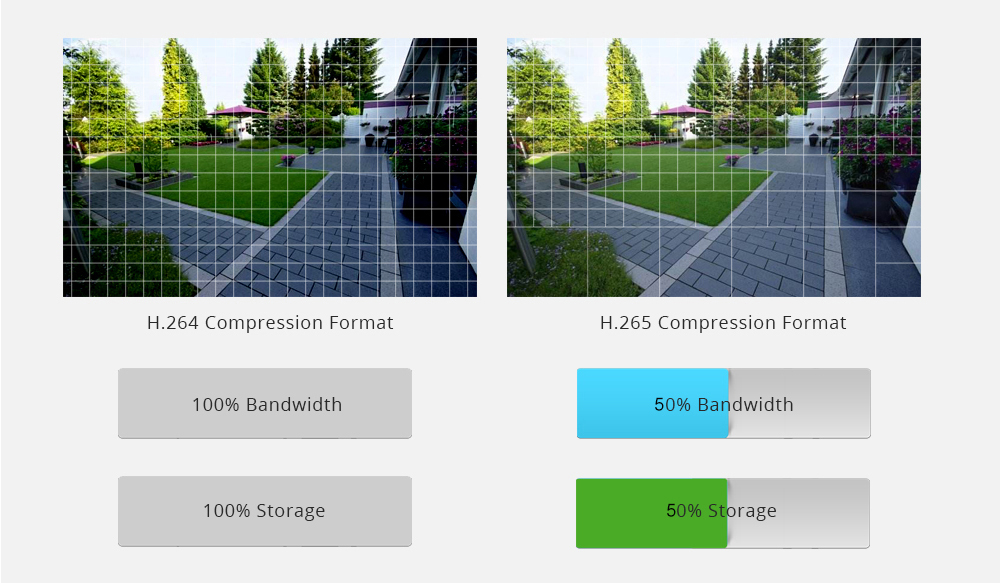

This is the AHD H.265, not the same as IP H.265,No require for the camera, if your camera is the AHD camera and contact this dvr, it will be H.265 storage, can save around 50% RAM than normal ahd dvr

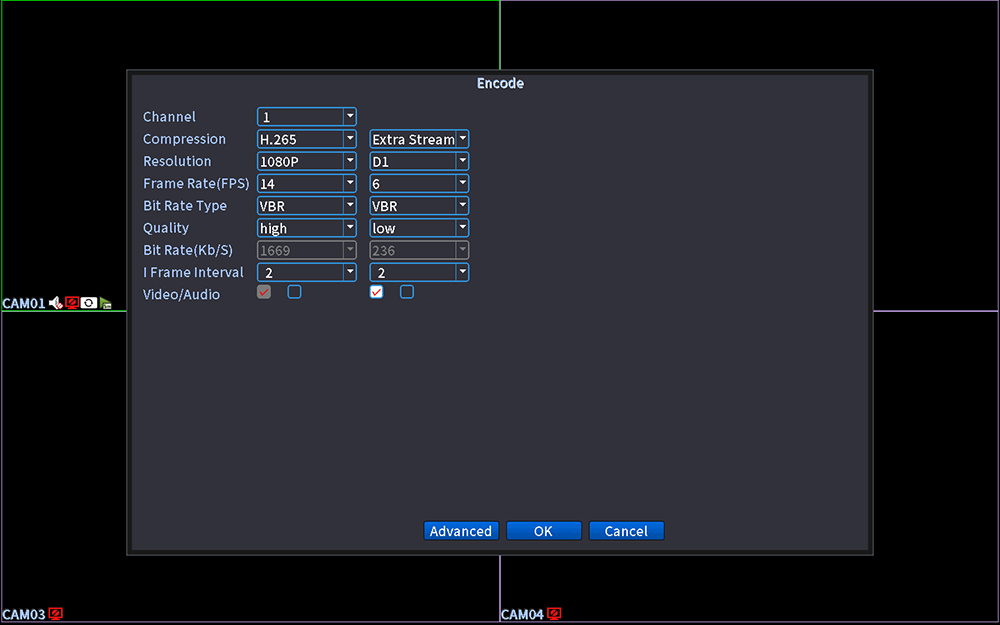

The Encode menu will show only 1080P for defult, you must contact your AHD camera then will have the right information of this camera, for example,if you contact AHD 5mp camera, it will show 5MP-N, not 1080P.
Motion Detection & Email Alert/Record
when motion is detected, the NVR can send email or start record to the hard disk without missing any important events.

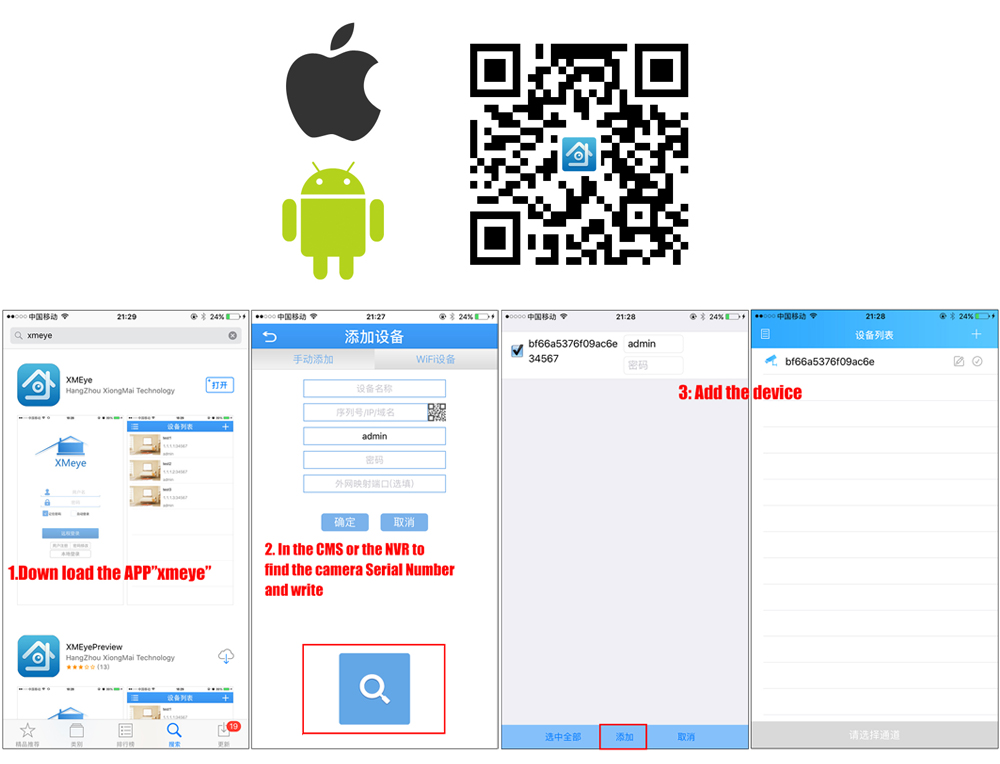

Support Xmeye APP
Different Models optional
1: 4CH 5MP-N XVI/AHD/CVI/TVI
2: 4CH 1080P XVI/AHD/CVI/TVI
3: 4CH 4MP-N XVI/AHD/CVI/TVI
4: 8CH IP 5MP
Features:
Ø Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings;
Ø Support VGA, HD Output full HD output simultaneously;
Ø Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Ø Support web, CMS, center platform management software MYEYE, provide SDK development;
Ø Support various mobile monitoring (iPhone, Android);
Ø Remote Access, With DNS (ARSP),easy to monitor remotely
Ø Support UTC, control signal& video stream transmit through one single coaxial
Ø Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
Ø Support Digital to analog conversion,Instant playback
Model | AHB80X04R-MH-V2 | |
System | Main processor | XM8520 |

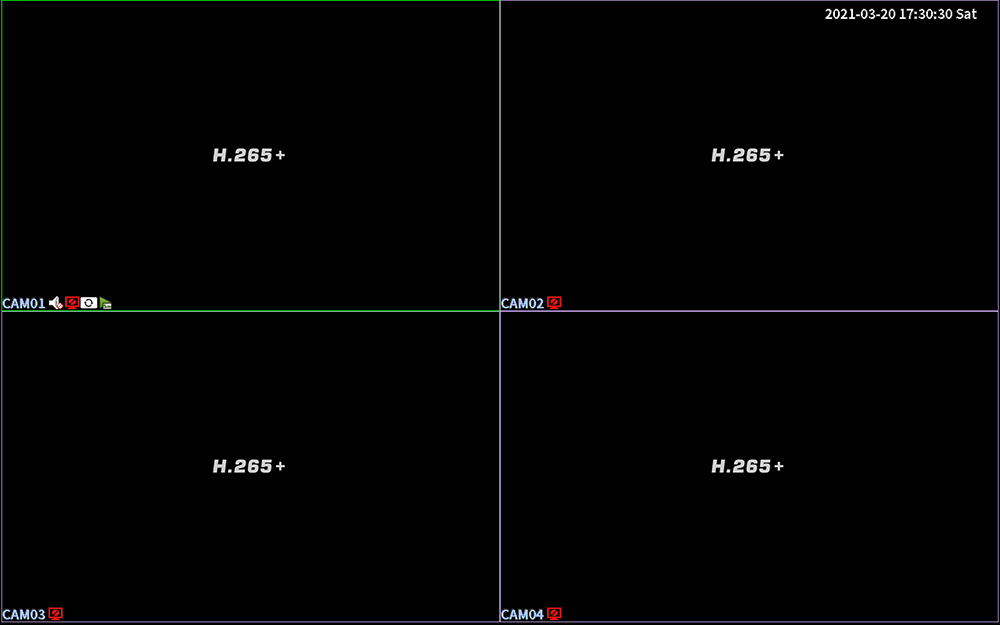

Interface | Preview | 1/4/8/9 |
Video | Codec | H.265+ |
Monitor quality | VGA(1080P at most);HD Output(1080P at most) | |
Preview ability | 4*5M-N@20fps(6 in 1)/4*4M-N@25fps(6 in 1)/4*1080P(6 in 1)default:5M-N | |
Encode ability | 4*5M-N@12fps(6in1)/4*4M-N@12fps(6in1)/4*1080P@12fps(6in1)default:5M-N | |
Decode ability | 2*5M-N@12fps(6in1)/2*4M-N@12fps(6in1)/4*1080P@12fps(6in1)default:5M-N | |

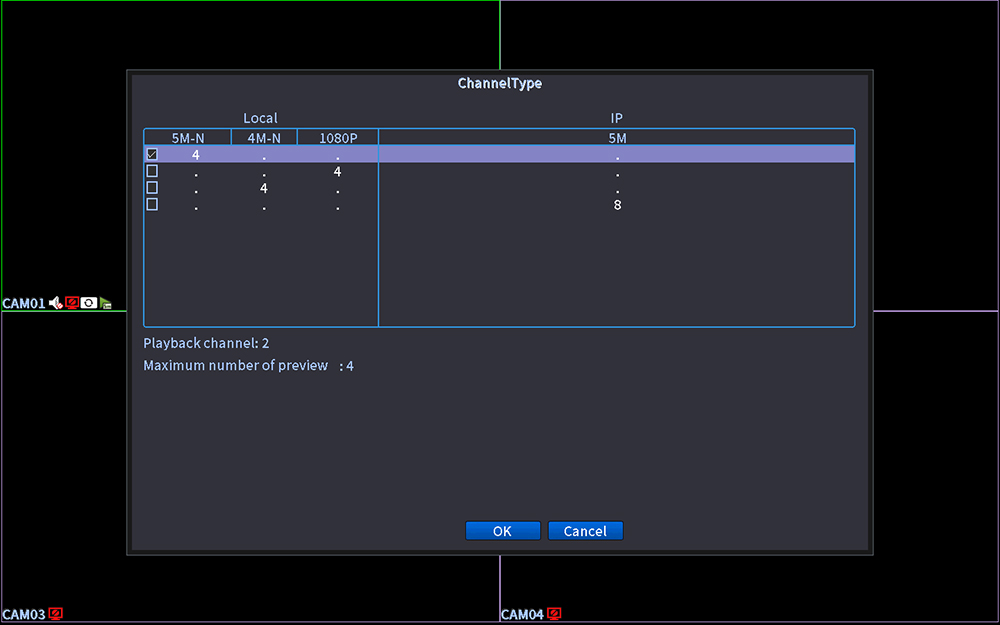

Multi-mode input | Analog:4*5M-N; 4*1080P; 4*4M-N network:8*5M | |
Digital to analog conversion | Unsupport(except hybrid mode) | |
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Record mode | manual>alarm>motion detection>timing |

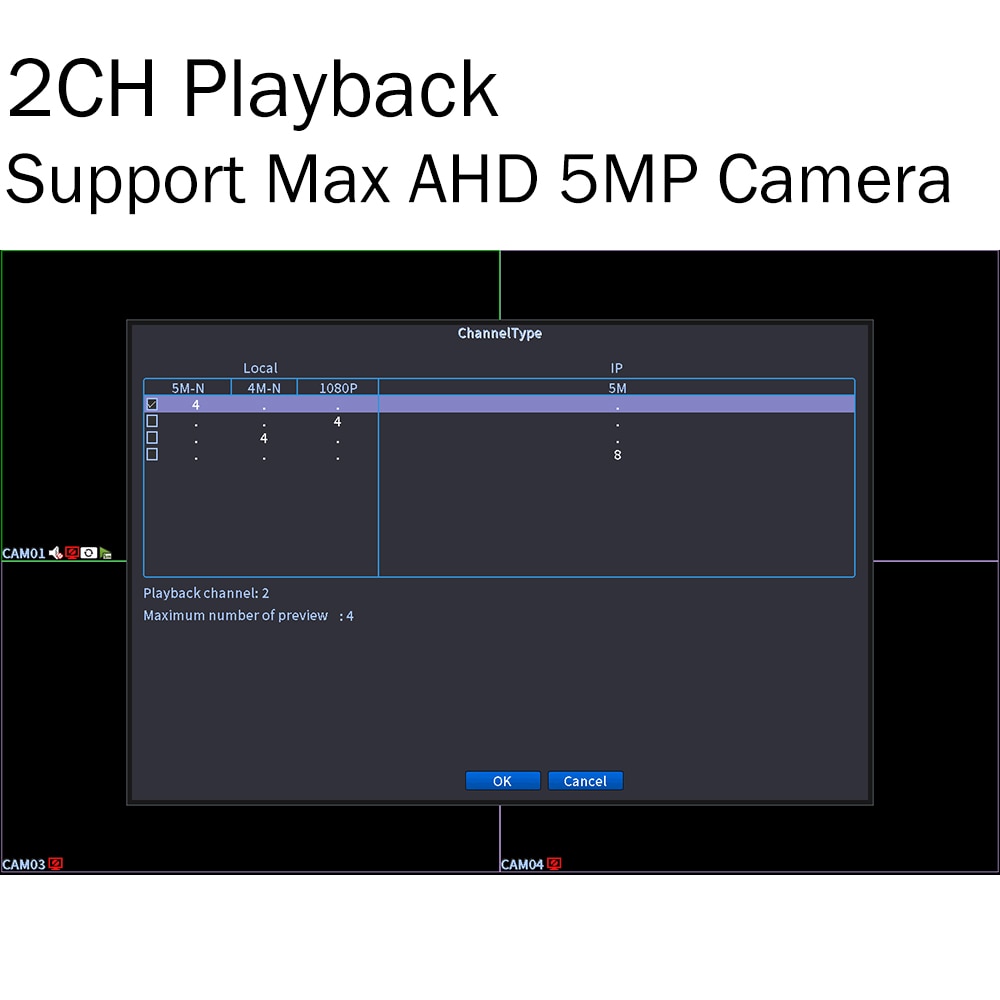

Local Playback | 2ch(analog input mode) | |
Search mode | Search by time, calendar, event, channel | |
Storage & backup | Video storage | HDD, network |
Backup mode | Network, USB hard disk, USB burner, SATA burner | |

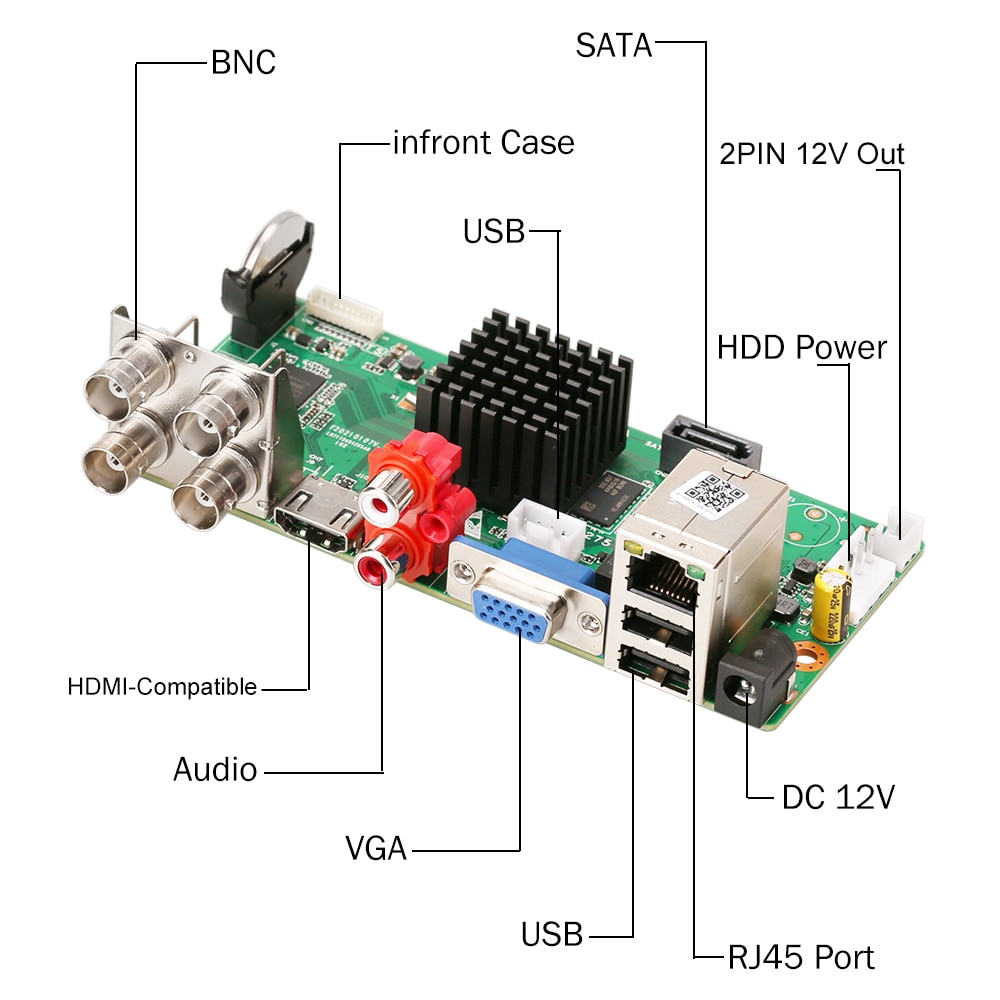

External Interface | Video input | 4ch BNC |
Video output | 1ch VGA, 1ch HD Output | |
Loop Vout | N/A | |
Audio I/O | 1/1 | |
Alarm I/O | 0/0 | |
Network interface | RJ45 10M/100M self-adaption | |
PTZ control | Support kinds of PTZ protocols | |
USB | 2* USB 2.0 ports | |
HDD | 1*SATA ports (Max 14TB/per) | |
Wireless | Not Support | |
General | Power supply | 12V/2A(Not include) |
Power Consumption | <15W (without HDD) | |
Working environmen | Temperature:0℃-+55℃,Humidity:10%-90%,Atm:86kpa-106kpa | |
Dimension | 134.5mm*60mm | |
Weight | 90g |

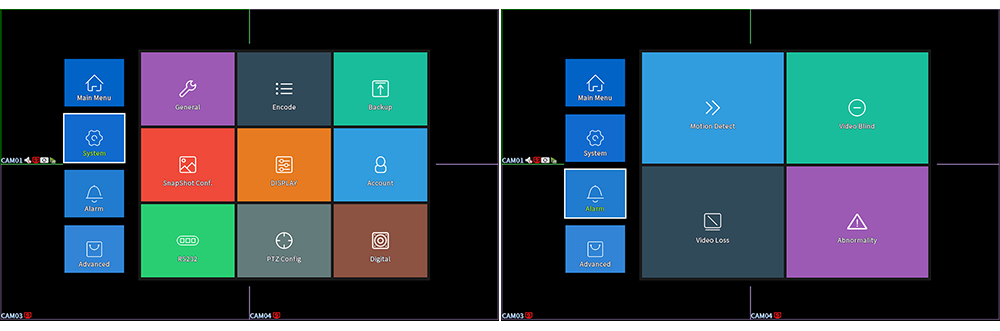

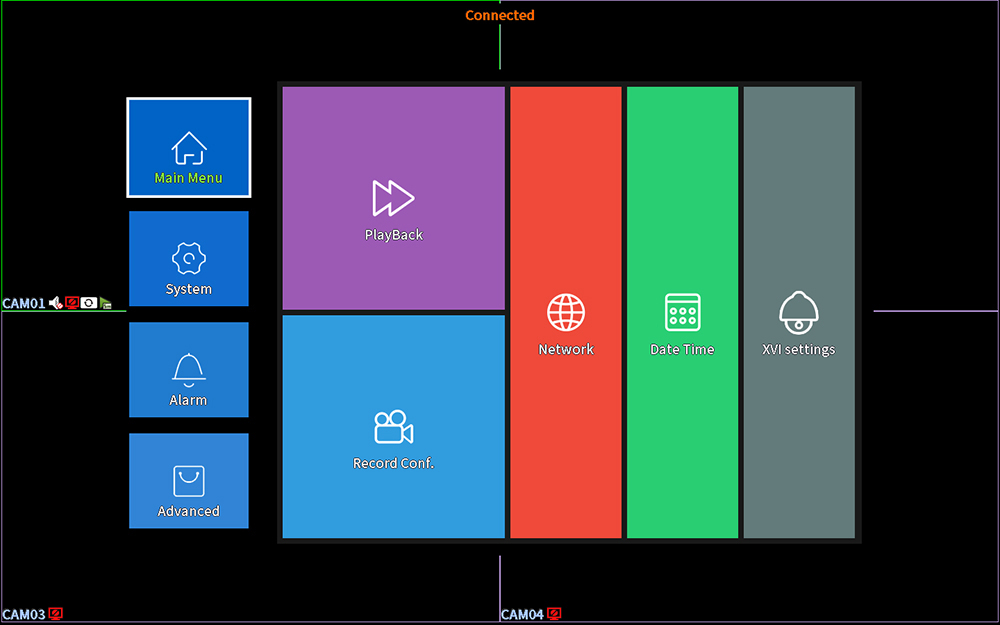

Item menu style

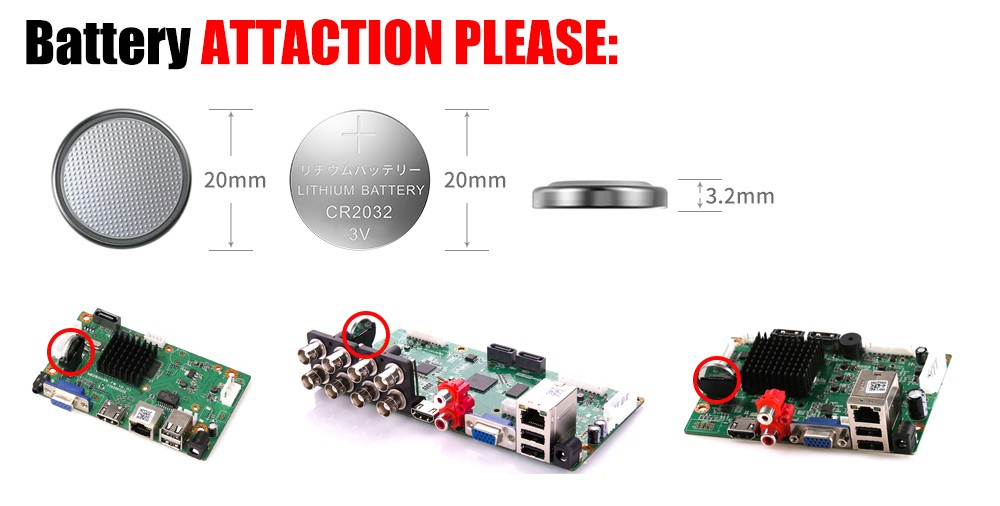

Because of Hogaki Shipping Rules
Some of countries will send without Battery.
You need by CR2032 battery by yourself if receive item without it.
How to receive the parcel without problem ?
When the item dispatch to your place, the first need to check weather have Severely deformed, if yes, You can take some photos and reject the parcel.
Then send the photos to us, we will help you make full refund first, then if you need, you can make a new order to us.
All the International mail allow receiver to check the parcel before receive it.
Shipping
Orders prcessed timely after the payment vrification within 1-3days, we only ship to confirmed order addresses.
If you do not receive your shipment within Delivery protection time, please contact us at firstly.
Warranty&Returns
12 months Manufacturer's limited Warranty for defective items (excluding temns damaged and/or misused after recelpt).
Defective items must be reported and returned within the warranty period.
Feedback
We maintainhigh standards of excellence and strive for 100% customer satisfaction! Feedback is very imporant.
Please contact us before you give us neutral or negative feedback, so that we can address your concerns satisfactorily.
- Brand Name: USAFEQLO
- Origin: Mainland China
- Two-way Audio: YES
- Compression Format: H.265,H.264
- Wireless Security: WEP
- Hard drive Interface Type: SATA
- e-Cloud(P2P): YES
- IP Mode: Static IP address
- Hard Drive Size: 3.5''
- DVR Power Supply: DC12V
- Video Input Interface: BNC (1.0 Vp-p, 75Ω)
- Supported Mobile Systems: iPhone OS,Android,Windows Mobile
- Audio Compression Format: G711A
- Model Number: AHB80X04R-MH-V2
- Audio Input: 1 RCA
- Supported Operating Systems: Microsoft Windows 98,Microsoft Windows 2000,Microsoft Windows XP,Microsoft Windows 7,Mac OS
- Video Standard: NTSC/PAL
- Smart home platform: Xmeye
- Backup Type: Hard Drive
- Video Resolution: 5MP
- Alarm Action: Local Alarm
- Certification: NONE
- Network Interface: RJ45 10/100M
- Audio Output: 1CH RCA
- HDD Capacity: None
- Communication Interface: NONE
- Video Adjustment: Auto White Balance
- Technology: Analog,AHD,HDCVI,HDTVI,Network
- Network Protocol: SMTP
- Encode capacity: 5MP-N
- Video output: 1ch VGA, 1ch HD Output
- HDD Connector: 1 SATA ports(each max to 8TB)
- USB: 2* USB 2.0
- Power supply: 12V2A(not include)
- CMS: Support
- Support Camera: AHD/IP/Analog camera
- Email photo: Send message to email, not photo
- HVR: AHD/CVI/TVI/CVBS/IP/XVI
