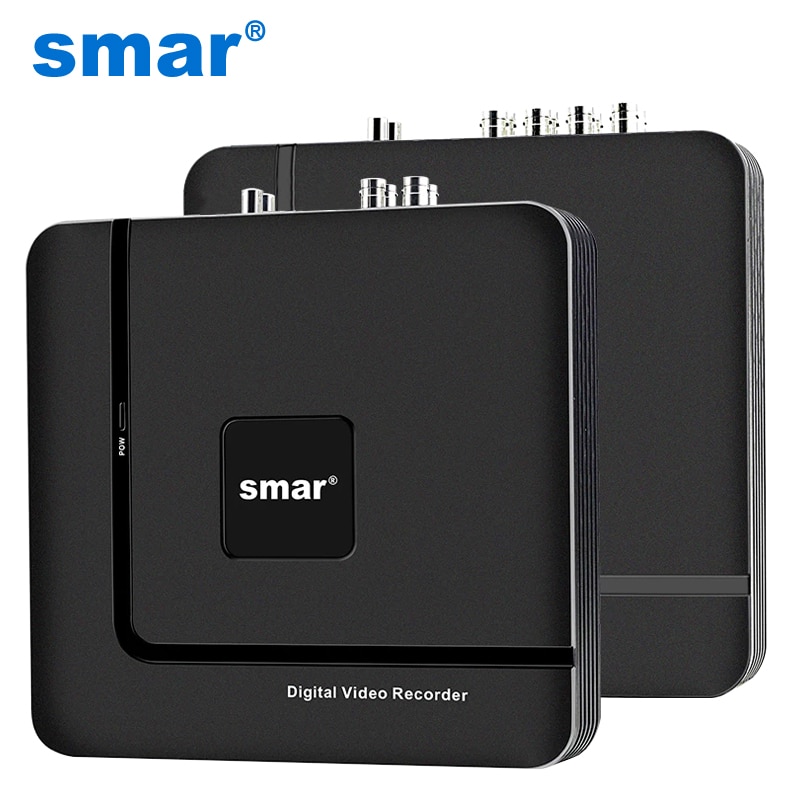

Smar CCTV DVR 4 Channel 8 Channel 1080N AHD DVR Digital Video Recorder 5 IN 1 Hybrid DVR 1080P NVR Security Surveillance P2P
4.6 (52 votes) | 180 orders
Price:
US $73.51 - 100.83
/ piece
Discount Price:
US $
64.69 -
86.33
/ piece
-12%
- Ships From
Main Features:
HD iDVR Five in one:multi-mode input, support analog video encoding, support for high-definition video mixing analog inputs + network support pure HD network video input+AHD/TVI/CVI video encoding
Step on the Internet:With XM cloud service, easy to achieve a variety of network penetrations ,one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
Compression algorithm ideal:H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.
Playback quality:Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
Main and Sub Stream:Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
Mobile monitor:Support various mobile monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android).
Display:support VGA, HDMI HD output.
Operation interface:Similar to Windows operating style, easy to get started with powerful mouse right-click function.
Network:Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.
Browsers:Support IE. Chrome. Firefox. Safari browsers.
Remote Access:3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
Differentiation:Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
Others:With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
Specification for 4 Channel DVR:
System | Model | A1004N | A1008NHS |
Video compression | H.265(High Profile） | ||
Operating System | Embedded Linux | ||
System Resources | Simultaneous multi-channel real-time recording, playback, network operation,USB backup | ||
Interface | User Interface | Support 16-bit true color graphical menu interface and mouse operation | |
Preview Screen | take analog channel as an example, other is base on the selected channel mode | ||
1/4 | 1/4/8/9 | ||
Video | Video Standards | PAL(625TVL,50f/s)；NTSC(525TVL,60f/s) | |
display quality | VGA,HDMI:HD | ||
playback quality | Max.1080P;under analog modeAHDL(960H)/D1/HD1/CIF/QCIF | ||
Preview capability | 4*1080N@25fps | 8*1080N@25fps | |
Encode capability | 4*1080N@25fps | 8*1080N@12fps/4*1080P@15fps | |
Decode capability | 1*1080N@25fps | 8*1080N@12fps/4*1080P@15fps | |
Multi-mode input | AHDNH/1080N 4CH | AHDNH/1080N | |
Motion Detection | Zones: 192 (16*12) detection zones,sensitivity: multi-level sensitivity (Only local channels) | ||
Audio | Audio Conpression | G711A | |
Intercom | Unsupport | ||
Record & Playback | Recording Mode | Manual>Alarm>Video Detection>Continuous | |
Local Payback | 2ch(analog input mode) | 4ch(analog input mode) | |
Search Mode | Time/Date,Alarm,Motion Detection & exact search(accurate to second) | ||
Storage & Backup | Space Occupation | Video: 1080p 35-45G/day/ch, 720p 20-30G/day/ch( According to the h 264 compression standard, for reference only, h 265 reduces storage space by half compared with h 264); Audio: 691.2M/day/channel | |
Record Storage | Local HDD,network | ||
Backup Mode | Network backup, USB hard disk, USB burner, SATA burner | ||
interfaccia | BNC | N/A | |
Video Output | 1ch VGA,1ch HDMI | ||
Audio I/O | 0/0 | ||
Alarm I/O | 0/0 | ||
Network interface | 1*RJ45 10M/100M self-adaptive Ethernet port | ||
Interfaccia USB | 2* USB 2.0 | ||
Hard Disk | 1*SATA port (Max 8TB/per) 3.5”HDD | ||
Environmental | ONVIF | ONVIF2.3 | |
Power Supply | DC12V/2A(if you use more than 2tb hdd, please change 12V4A or more adaptor by yourself) | ||
Consumption | <10W（without HDD) | ||
Work Environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | ||

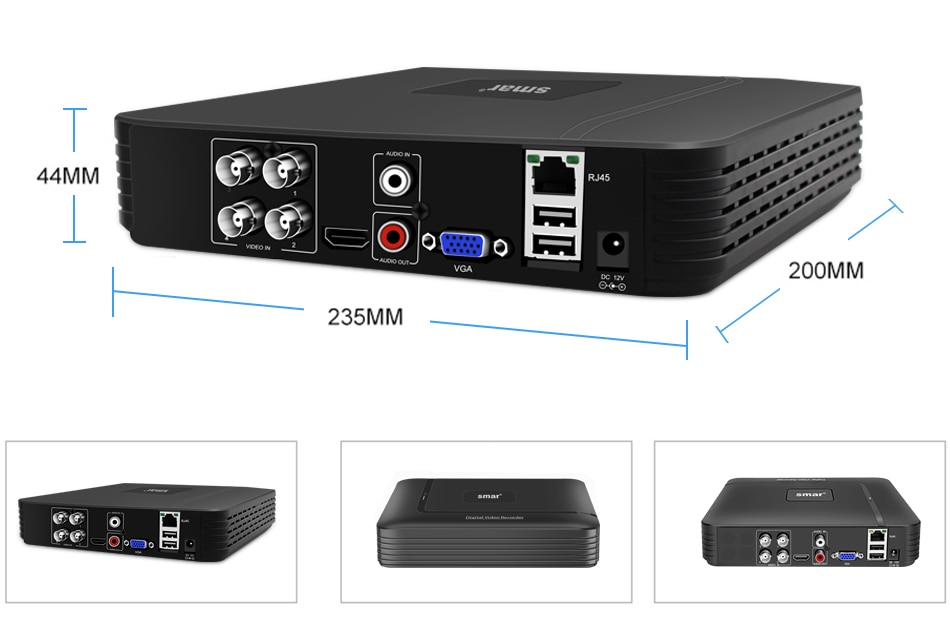

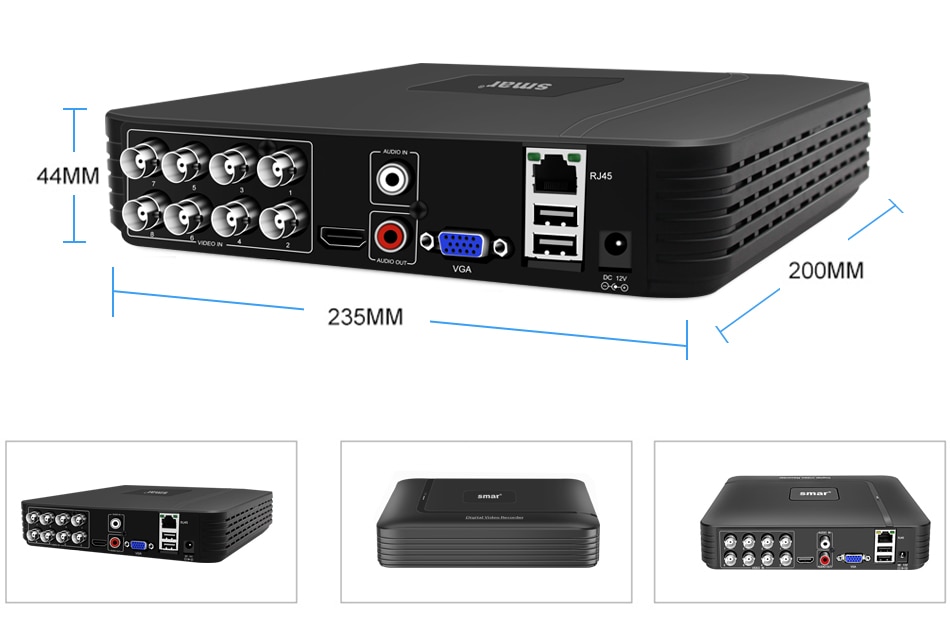

Dimension | 200mm(length)*200mm(width)* 42mm(height) | ||
Weight | 0.43KG(about) | 0.46KG(about) | |
Package weight | 0.74KG(about) | 0.77KG(about) | |

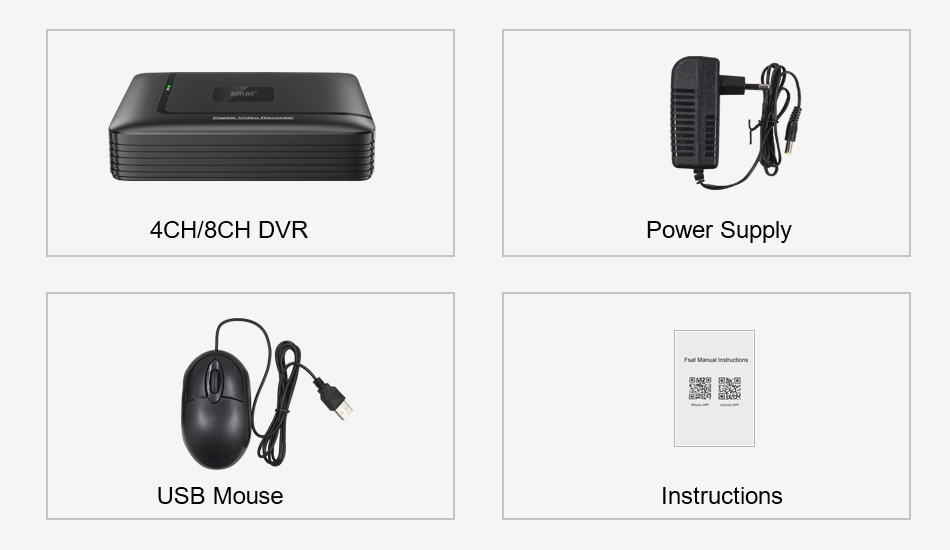

Packing List:
1 x 4CH or 8CH Mini Hybrid CCTV DVR 5 in 1 (No HDD Included HDD)
1 x USB Mouse
1 x Power Plug
1 x Fast Operation Manual

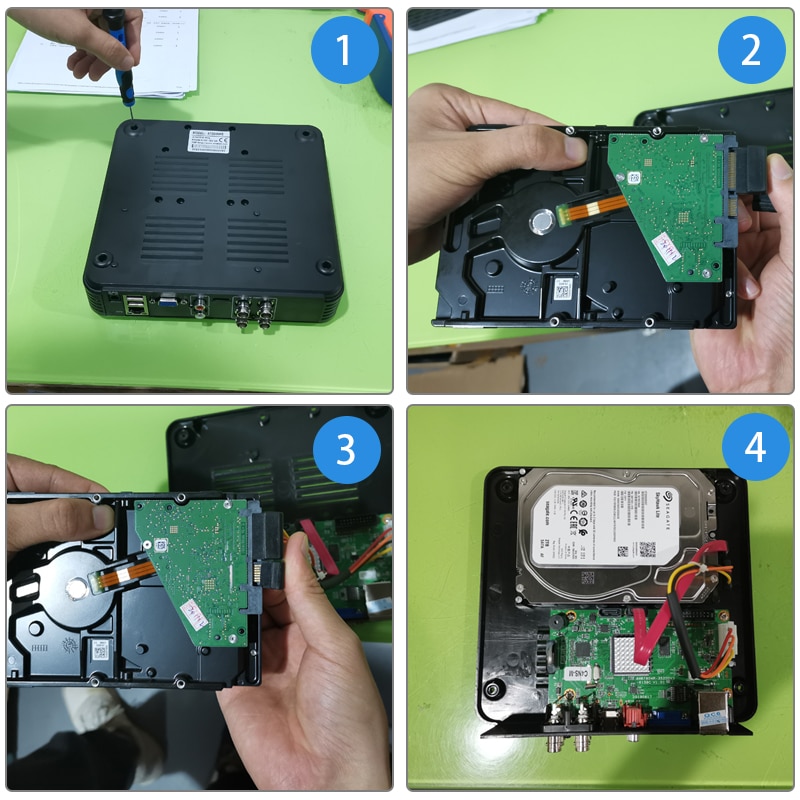

Please refer to the following picture for how to install the hard disk:
This DVR Not include HDD, Support 3.5" SATA HDD ,Max Support 1*8TB HDD,We can Recommend 3.5" SATA Interface Professional Hard Disk of 1TB/2TB/3TB/4TB For you ,Please click below picture:
4CH 1080N For 4 Channel Hybrid DVR(5 IN 1)
1. Video Compression: H.264
2. Encode Capacity: 4 * 1080N @25FPS, NTSC @30FPS
3. Video Input/Output: 4CH BNC/1CH VGA Input,1CH HDMI/VGA Output
4. Audio Input/Output: 1CH RCA Input, 1CH RCA Output
5. Recording,Playback,Backup Resolution：2* 5M-N
6. USB:2*USB 2.0
7. HDD:1*3.5" SATA Port(Max support UP TO 8TB)
8. P2P Remote View：Support IOS,Android
9. Three Different Channel Type Optional:
Analog ChannelType: 4CH 5MP-N XVI/AHD/CVI/TVI
Network ChannelType: 16CH IP 1080P or 8CH IP 5MP
Analog+Network ChannelType:4CH 5MP-N XVI/AHD/CVI/TVI+2CH IP 1080P
10. Language: Support 10+languages，has English, Chinese, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, Thai,
Estonia, Vietnamese, Brazilian, Indonesian, Czech...
Note: Default Display of Resulution:1920*1080,Your monitor must be has the same display of Resolution, otherwise it will not image output.
8CH 1080N or 4CH 5MP-N For 8 Channel Hybrid DVR(5 in 1)
1. Video Compression: H.266X
2. Encode Capacity: 8 * 1080N/4 * 5M-N @25FPS, NTSC @30FPS
3. Video Input/Output: 8CH BNC/1CH VGA Input,1CH HDMI/VGA Output
4. Audio Input/Output: 1CH RCA Input, 1CH RCA Output
5. Recording,Playback,Backup Resolution：8* 1080N
6. USB:2*USB 2.0
7. HDD:1*3.5" SATA Port(Max support UP TO 8TB)
8. P2P Remote View：Support IOS,Android
9. Three Different Channel Type Optional:
Analog ChannelType: 8CH 1080N or 4CH 5MP-N XVI/AHD/CVI/TVI
Network ChannelType: 16CH IP 1080P or 8CH IP 5MP Analog+Network ChannelType:8CH 1080N XVI/AHD/CVI/TVI+2CH IP 1080P

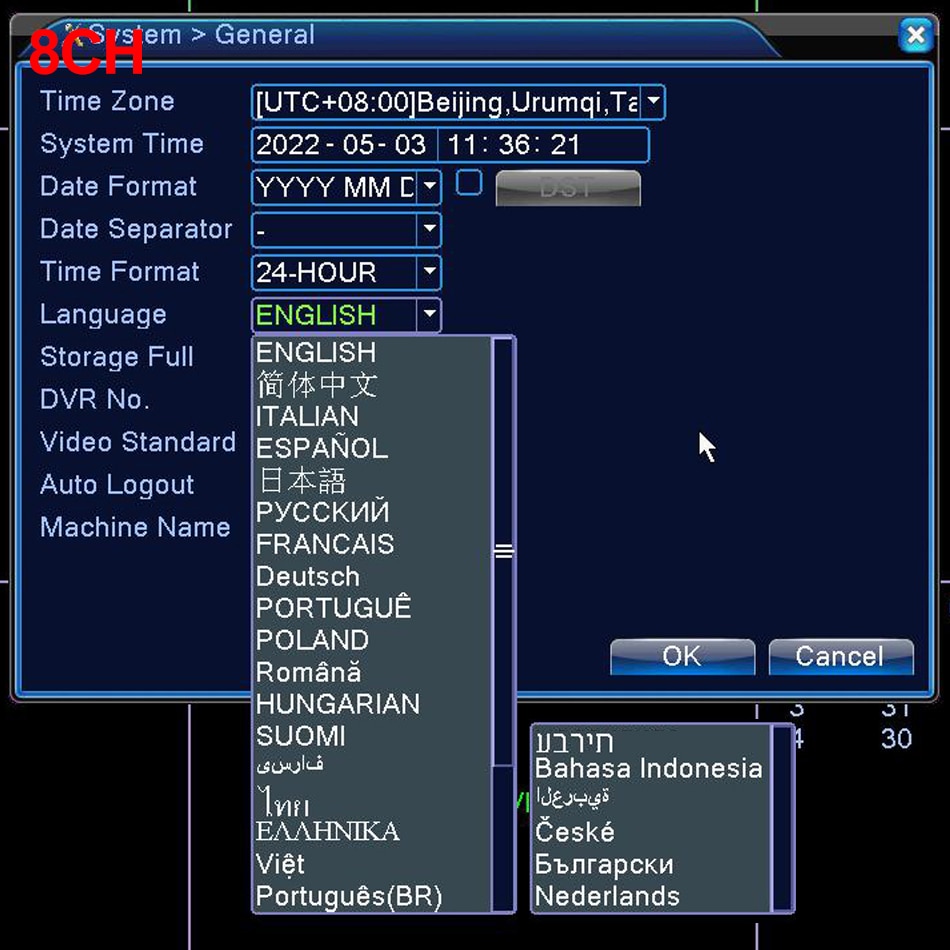

10.Language: Support 20+languages: It has English, Chinese, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish,Polish,
Romanian, Hungarian, Finnish, Farsi, Thai, Estonia, Vietnamese, Brazilian, Hebrew, Indonesian, Arabic, Swedish, Czech,Slovenian, Dutch...
Note: Default Display of Resulution:1920*1080,Your monitor must be has the same display of Resolution, otherwise it will not image output.
Advanced Motion Detection Recording
The motion detection recording function: when motion is detected the DVR will save the footage into hard disk without missing any important events.
You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
Note:Our DVR Motion Detection Function only Support the following Brand of IP Camera:
As: XM, Dahua, Safer, HIVT, Part of HIKVISION. And if your IP Camera is other Brand, Can't used the Motion Detection Function with Our DVR. ( Please note before when you buying)

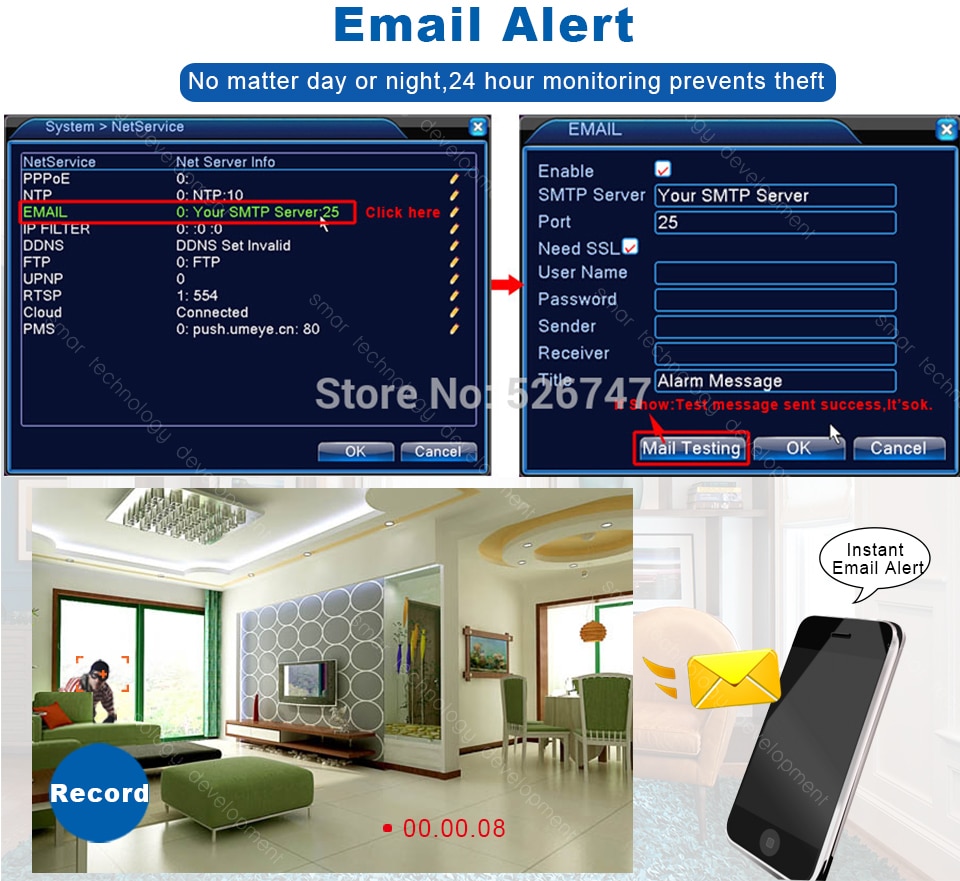

Please note: SMTP Server only support these Email Box:126, 163, gmail, sina, 139, 156, qq format, And the recipient can set up 5 valid mail.
Mail Testing: Test message ent success. (It’s ok)
Mail Testing:Failed to connect to server. (It’s failure)

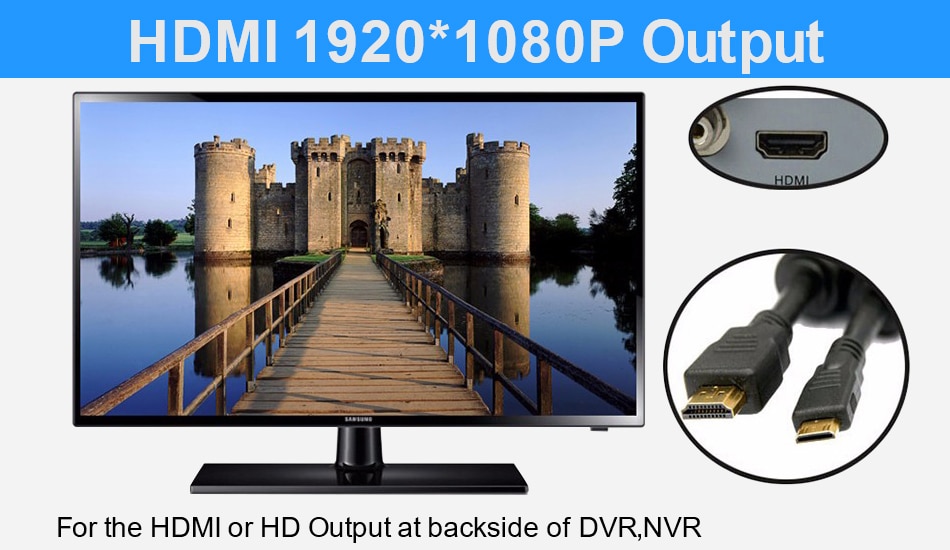

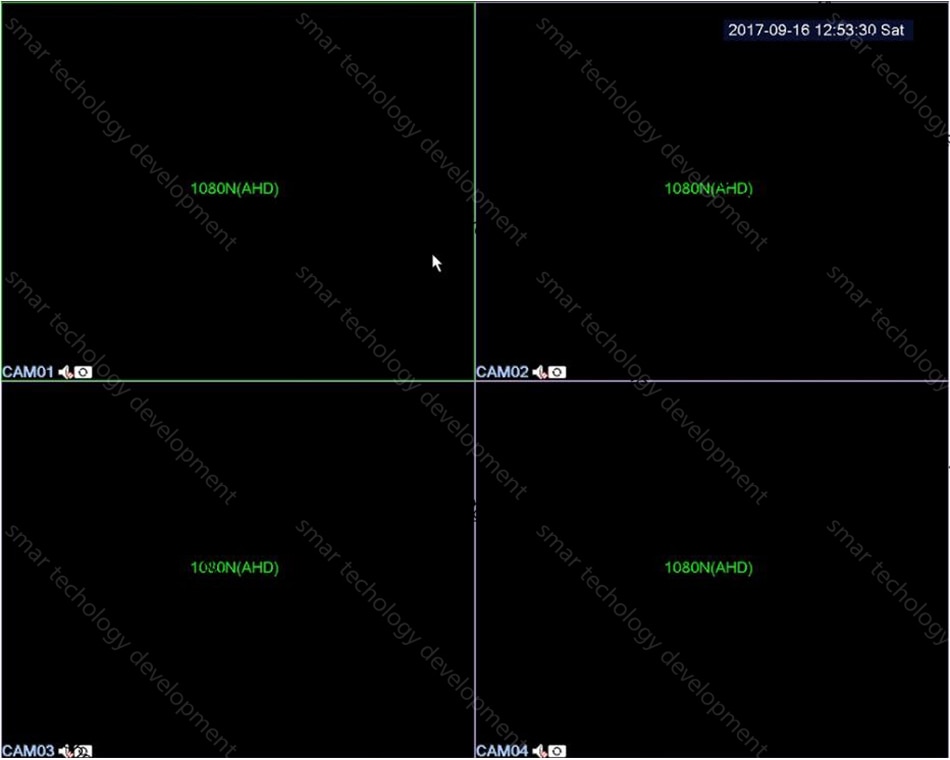

HDMI & VGA Output
Default Display of Resulution:1920*1080,Your monitor must be has the same display of Resolution, otherwise it will not image output

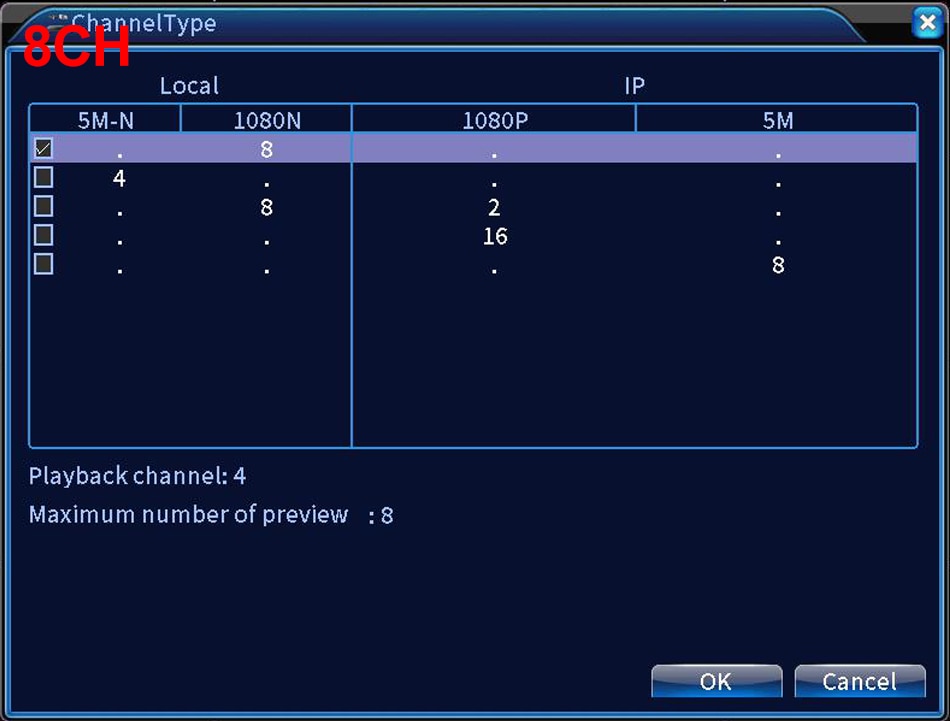

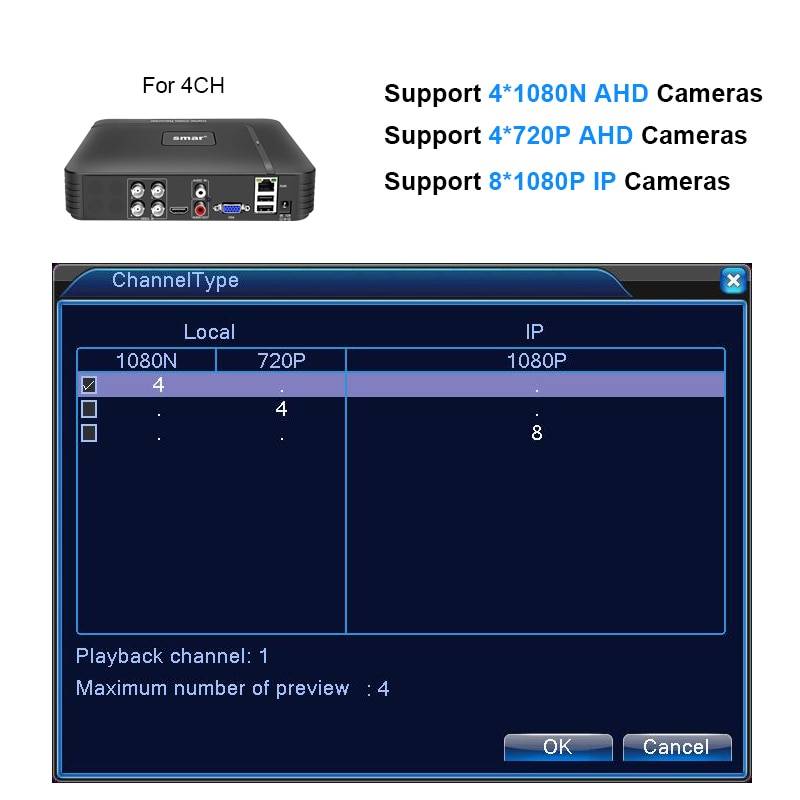

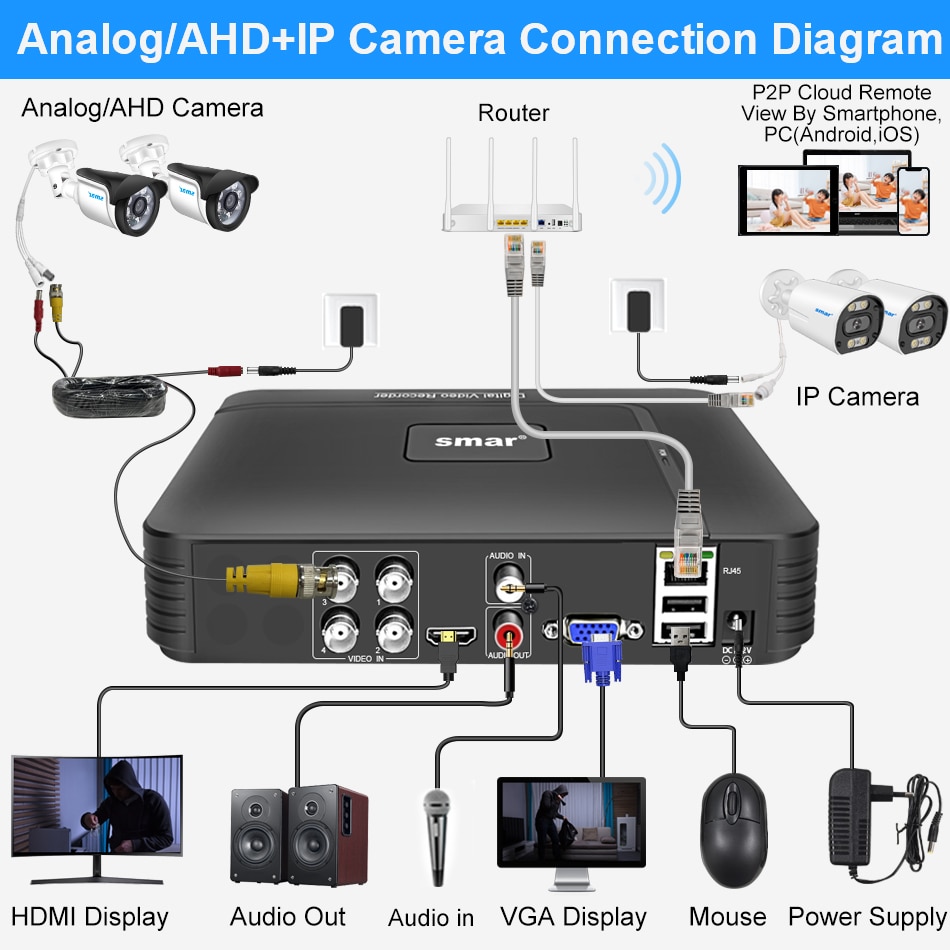

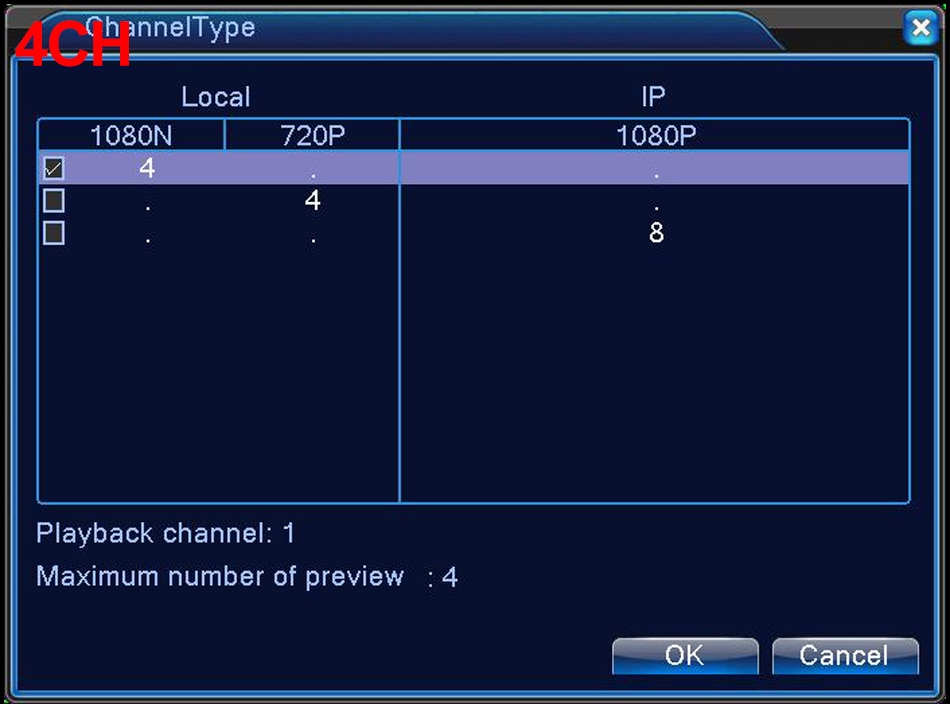

Our hybrid DVR function is very stronger, It has three Different ChannelType Optional: Pure Analog/AHD ChannelType(Factory Default) , Pure Network ChannelType, Analog/AHD+Network Hybrid ChannelType；Please refer to the system connection diagram below;
Note:If you want to used Pure Network ChannelType, or used Analog/AHD+Network Hybrid ChannelType, you must be change the ChannelType first, Otherwise, it will not work normally.

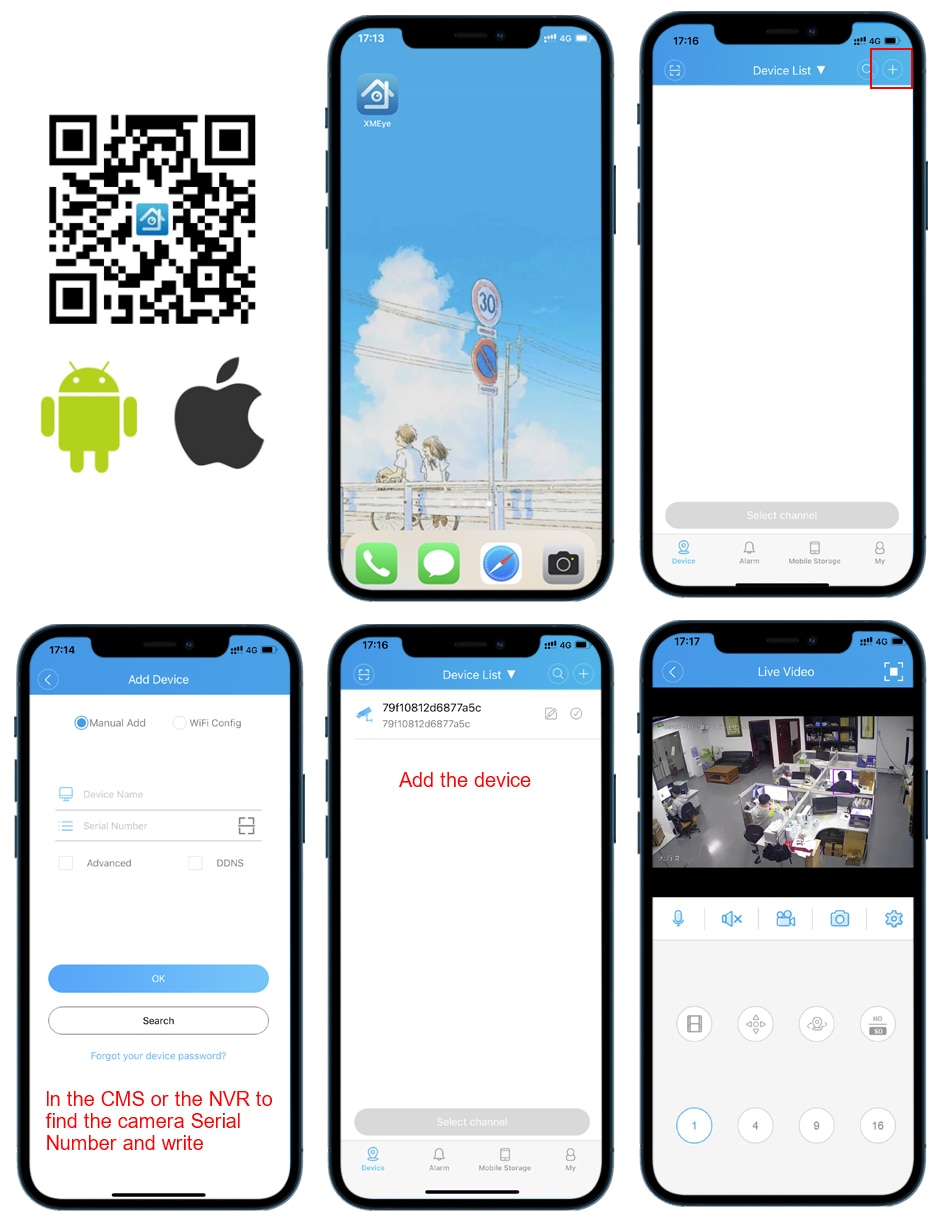

How to remote view through Mobile phone?
1. You must be installed a APP in your mobile phone,where to find or download APP?
2. Please used your mobile phone to scan the following QR code.(iPhone APP,Android APP)

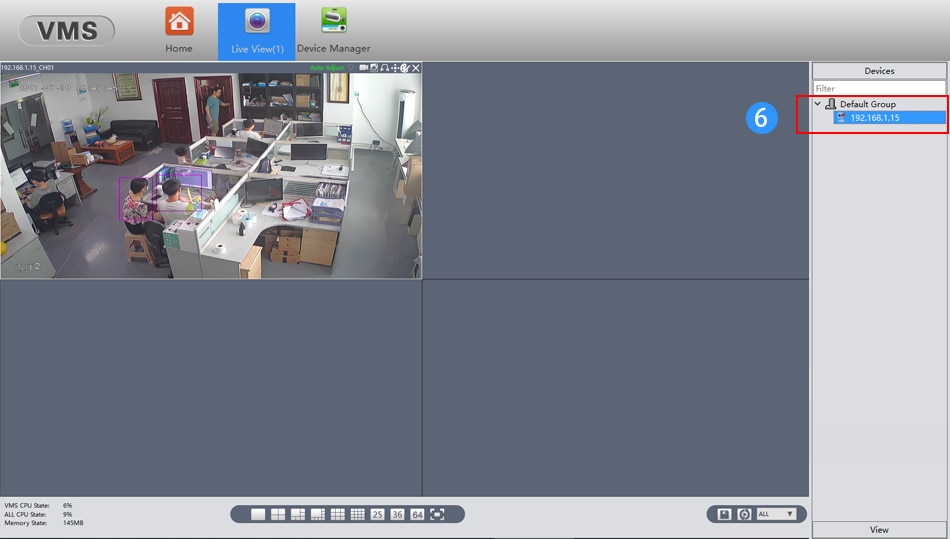

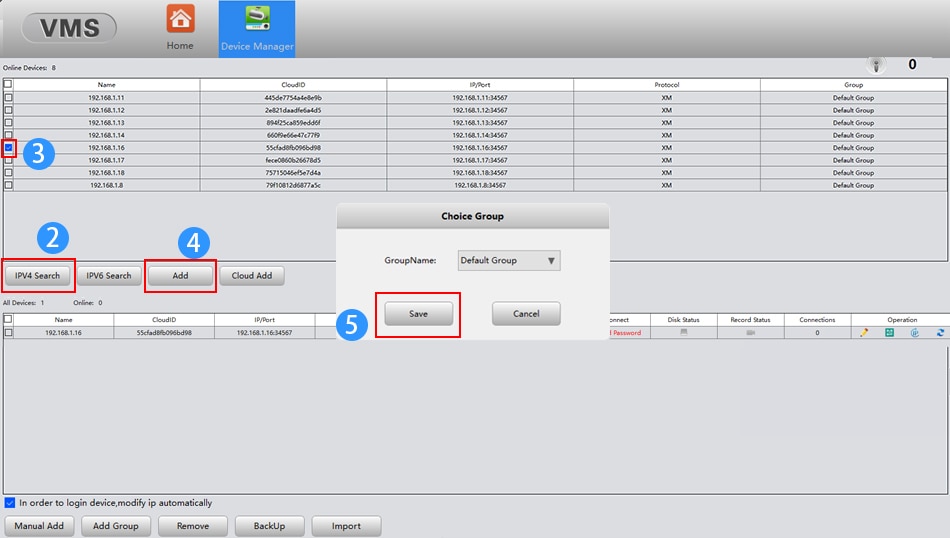

How to manage the cameras through PC client?

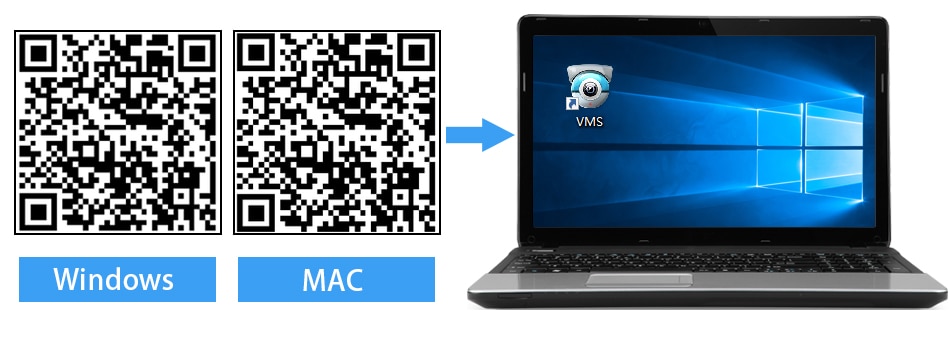

1. Please used your mobile phone to scan the QR code as below, and then click to download；
2. Please install VMS software on your computer, then login VMS Software, Username: admin, Password:admin

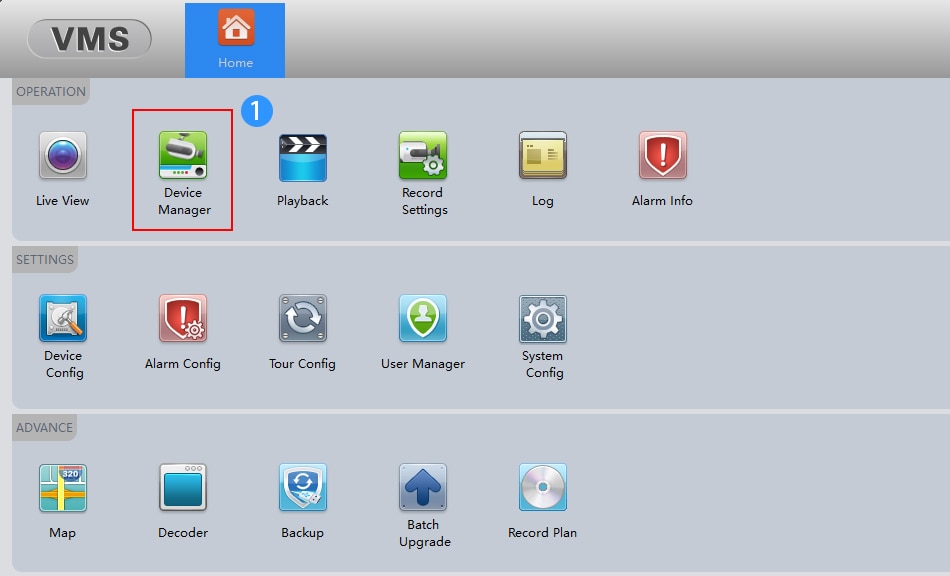

3. Please click the Device Manager-IPV4 Search-choose address of IP Camera- ADD-SAVE,Search and Camera successfully;
How to access the Cameras through Website?
Please login your Google or IE or Firefox browser,
Then input default address 192.168.1.10 in your browser
Username:amdin
Password:null (empty)
Remind: If you use the software first time, you need to install a plugin in your computer.

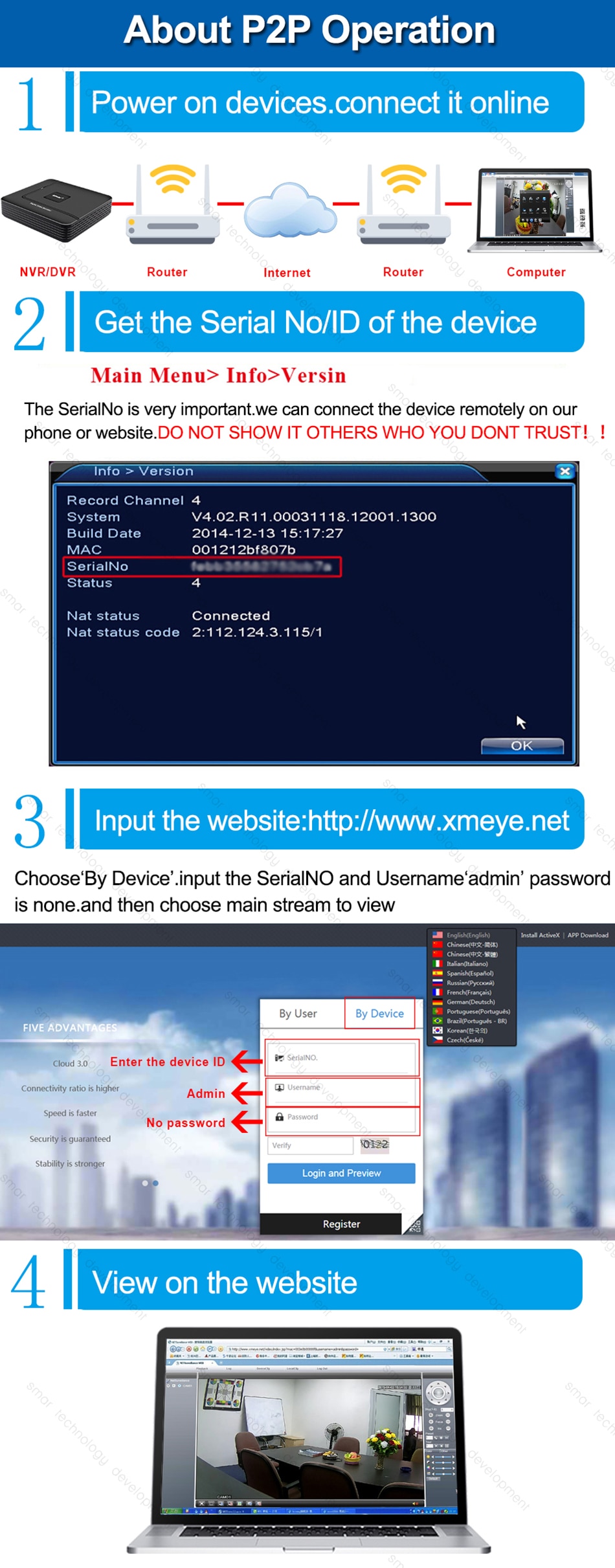

How to access the Cameras through P2P Cloud?
If you want to remote view through P2P Cloud,Please search the P2P cloud website in IE/ Firefox / Google browser:https://www.xmeye.net/index
then enter your P2P ID and Password, then login in.
Remind: If your computer can't open this website, please install all the Plug-ins in your computer, otherwise, Otherwise, you will not be able to remotely access this DVR.
| |||
| |||
| |||
| |||
| |||
- POE: None
- e-Cloud(P2P): YES
- Two-way Audio: No
- Alarm Action: FTP Photo
- Backup Type: Hard Drive
- Supported Operating Systems: Microsoft Windows ME,Microsoft Windows XP,Microsoft Windows 7,Microsoft Windows Vista,Microsoft Windows 2000
- Supported Mobile Systems: Android,iPhone OS
- IP Mode: Static IP address
- Wireless Security: WEP
- Network Protocol: DDNS,HTTP,DHCP,FTP,SMTP,UPNP,DNS,TCP/IP,PPPoE
- Communication Interface: RS232
- Network Interface: RJ45 10/100M
- Hard Drive Size: 3.5''
- Hard drive Interface Type: SATA
- Audio Output: 1CH RCA
- Video Output: 1VGA + 1HDMI-Compatible
- Video Resolution: 1080N,960P,720P,1080P,960H
- Video Standard: NTSC,PAL
- Audio Compression Format: G711A
- Audio Input: 1 RCA
- Video Input Interface: BNC (1.0 Vp-p, 75Ω)
- Compression Format: H.264
- Technology: HDCVI,Analog,AHD,Network,HDTVI
- Model Number: A1004N&A1008NHS
- Brand Name: smar
- Origin: Mainland China
- Certification: CE
- Smart home platform: NONE
- Name: Video Recorder
- Resolution: 1080N/960H/5MP/1080P//960P/720P/960H
- Feature: Support AHD Camera,Analog Camera.IP Camera, TVI Camera,CVI Camera
- Video Input: 4 Channel /8 Channel
- Onvif/P2P: Support XMEYE P2P, ONVIF2.3
- Power Supply: Standard EU plug (AU/UK/US Optional)
- Type: Mini CCTV DVR Recorder 5 in 1
- Hard Disk: Support 1 SATA 3.5" HDD,Max 6TB(Not include HDD)
- Alarm: Email Text ( No Photo )
