H.265 9CH*4K NVR Network DVR Digital Video Recorder Board IP Camera Max 8T Motion Detection OVNIF CMS XMEYE SATA Line P2P Cloud
40.28 34.64 $
SALE
ID: 98480
Quantity
Mstar Xmeye CCTV 8CH 9CH 16CH NVR H.265+ Network Video Recorder 16 Channel 4K NVR HDMI Output Support Onvif Cloud monitoring
4.7 (10 votes) | 26 orders
Price:
US $94.96
/ piece
Discount Price:
US $
43.89
/ piece
-54%

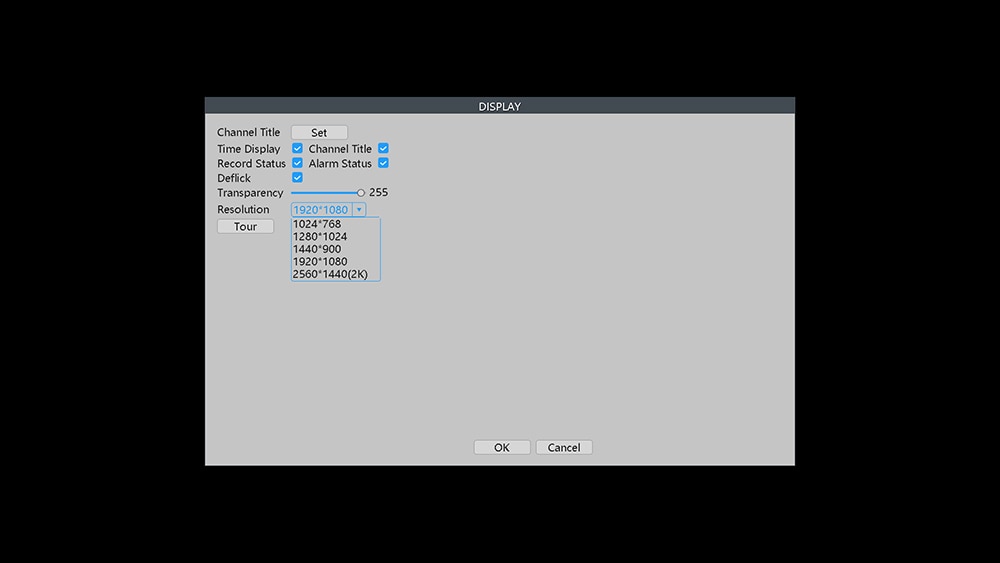

1. HDD question: We recommend use the Newest HDD. Use the security HDD will work more better. PC HDD most can not work. 2.IP Camera 264 and 265 question: This one only support the xmeye IP camera H.265, if you use the dahua or hik camera, nvr will not match all of their cameras and not support h.265 3. VGA and HDMI question: NVR have a defult display resolution,Your monitor must use the same resolution then will work first time. The second you can change the nvr output resolution as you need.

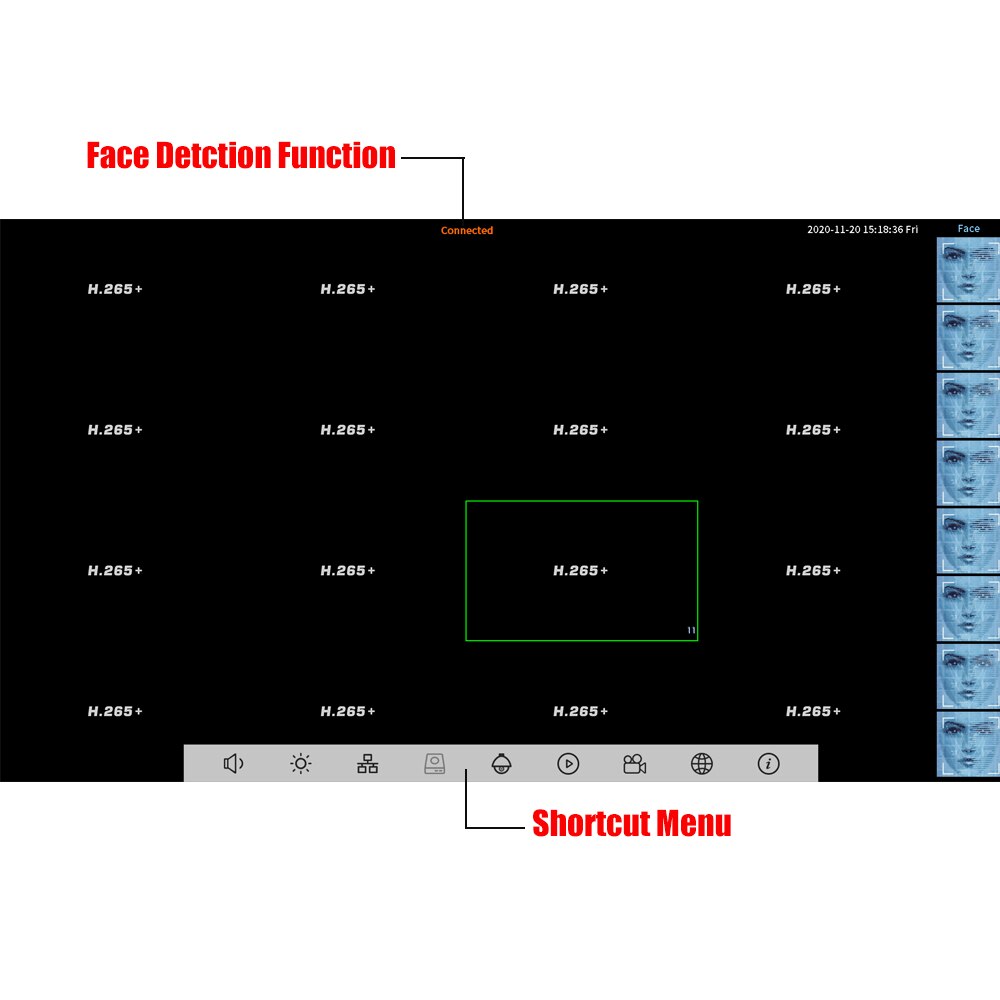

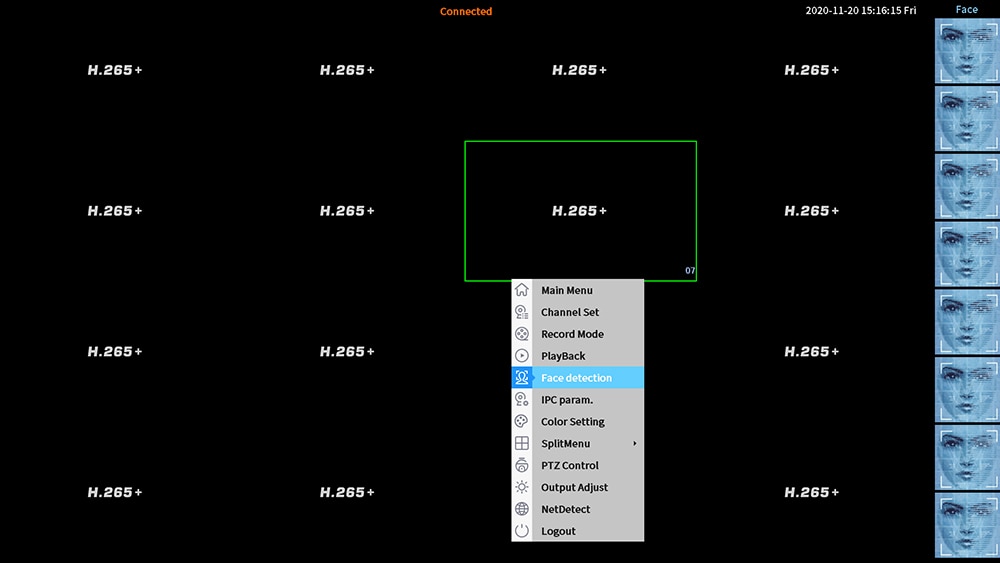

Face Record/Face Detection/Face Playback Record every face that appears on the lens, without missing any details. You need use the Face Detction Function IP Camera

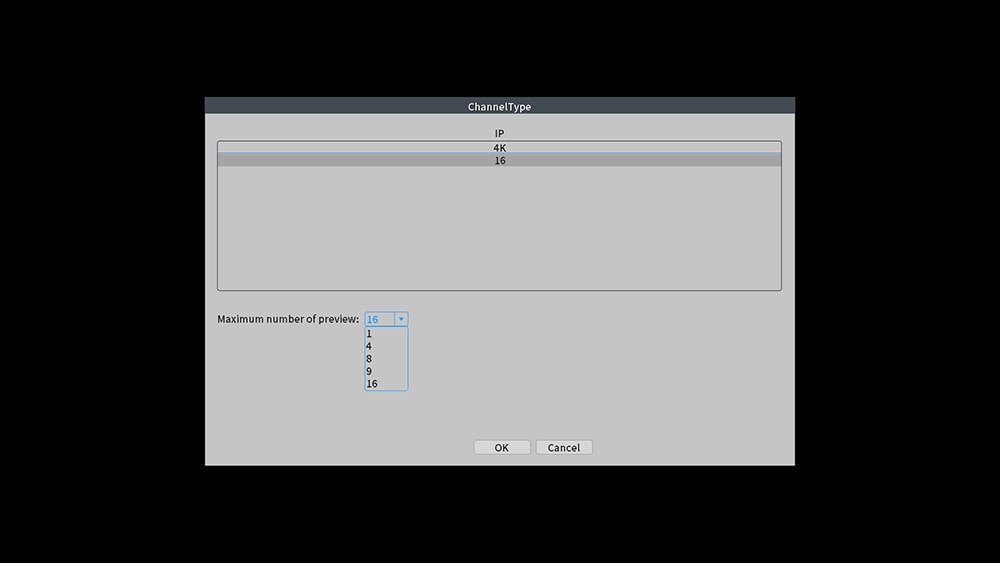

Support 16CH 4K IP Camera

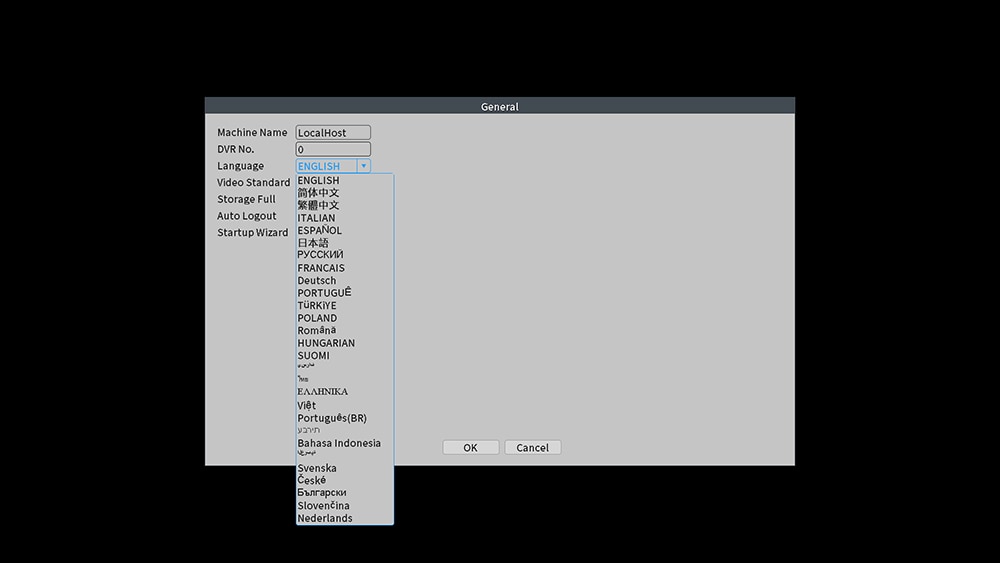

Langauages: English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc... Total 28 languages

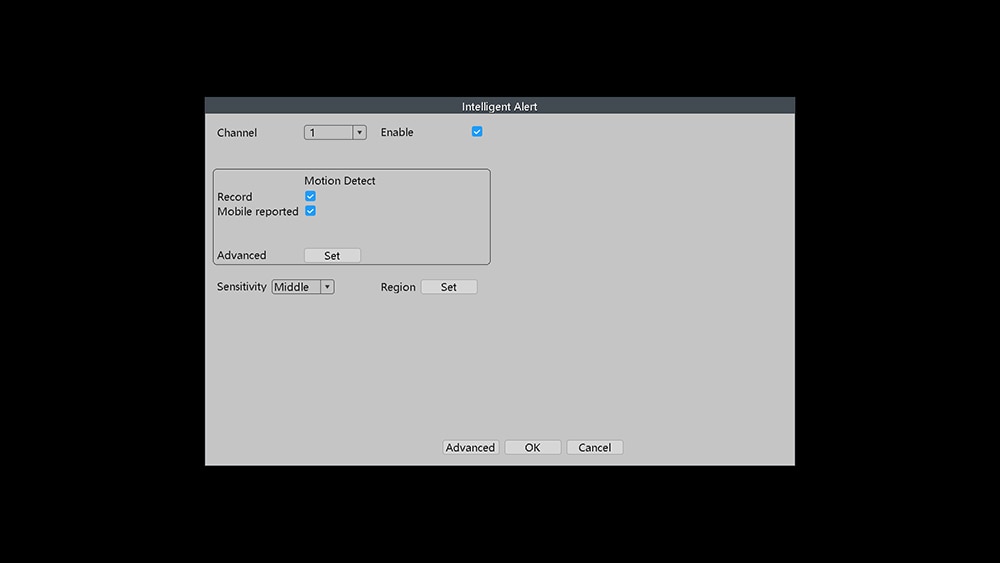

Motion Detection & Email Alert/Record when motion is detected, the NVR can send email or start record to the hard disk without missing any important events.
Max Support the 2K Display

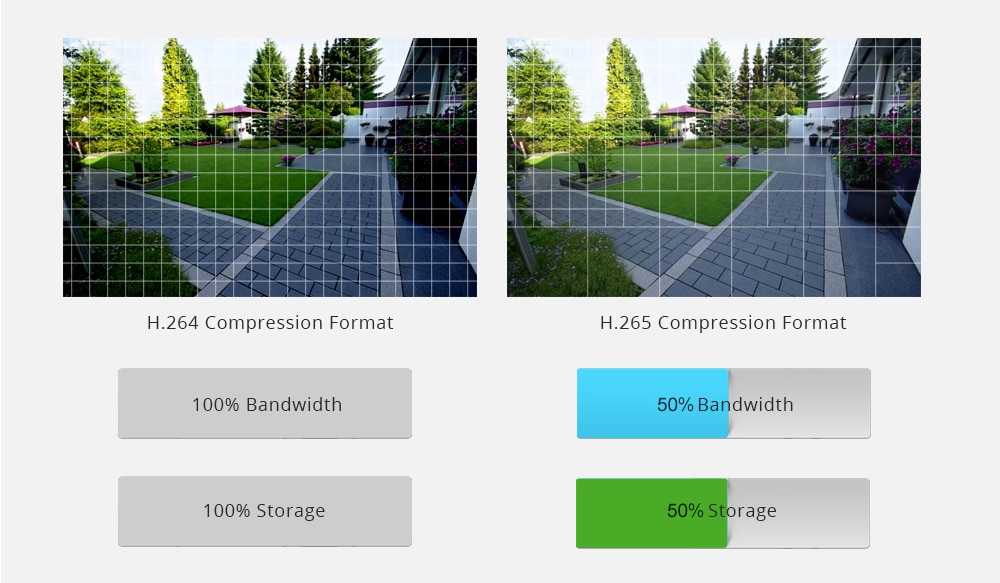

Advanced H.265+ Video Compression H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265+ video saves around 70% of the bit rate at the same quality of coding.
Easy remote access Anytime anywhere P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the camera.

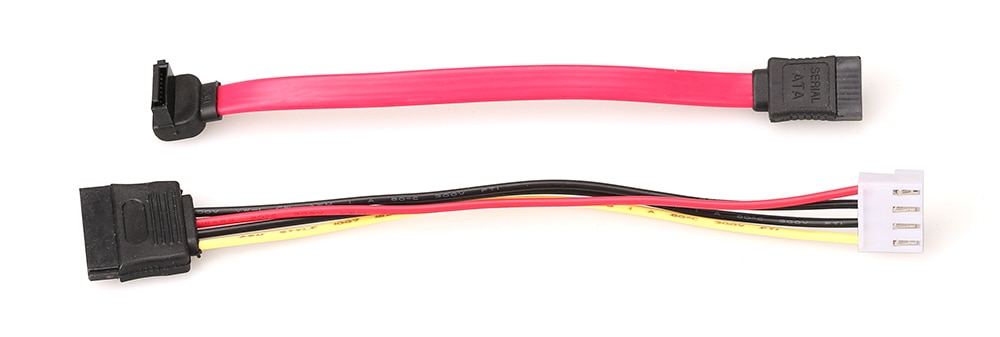

Gift SATA Data and Power cable

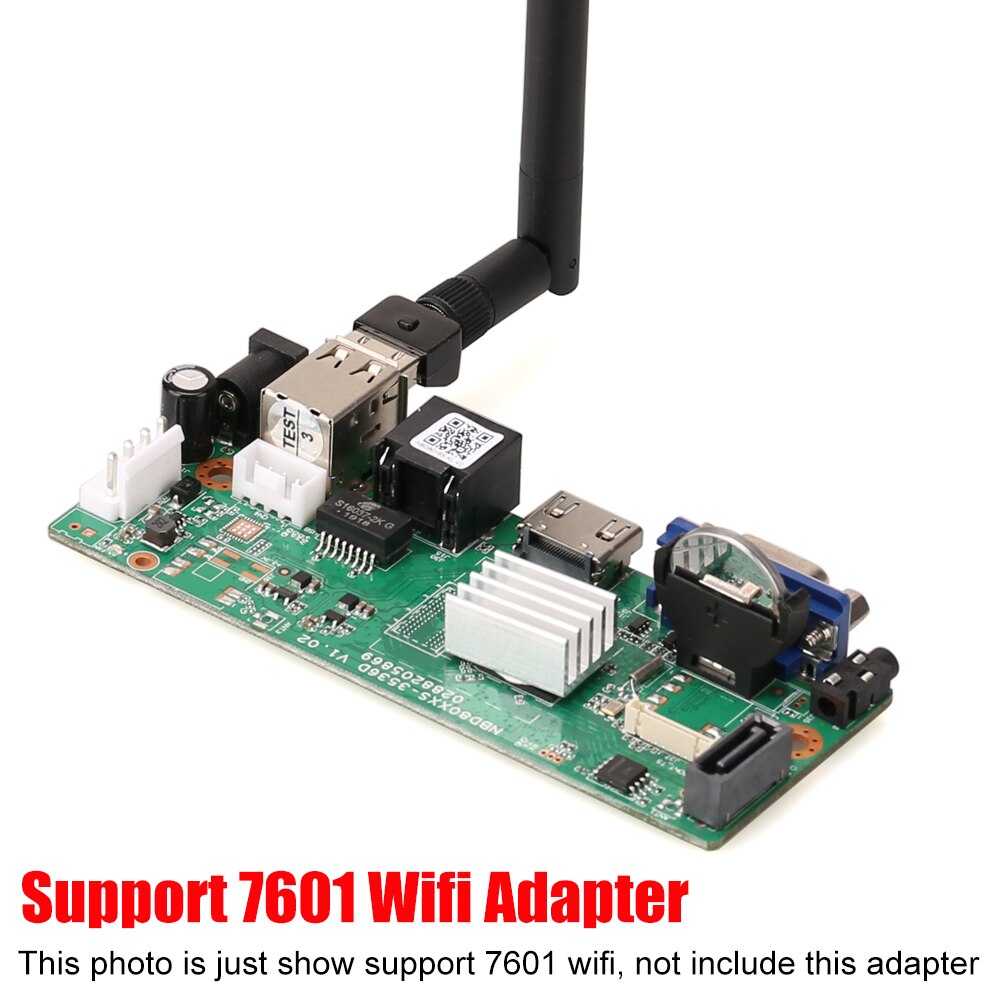

Support 7601 Model Wifi Adapter This link is not include wifi adapter, if you need, you can press the photo below to by.

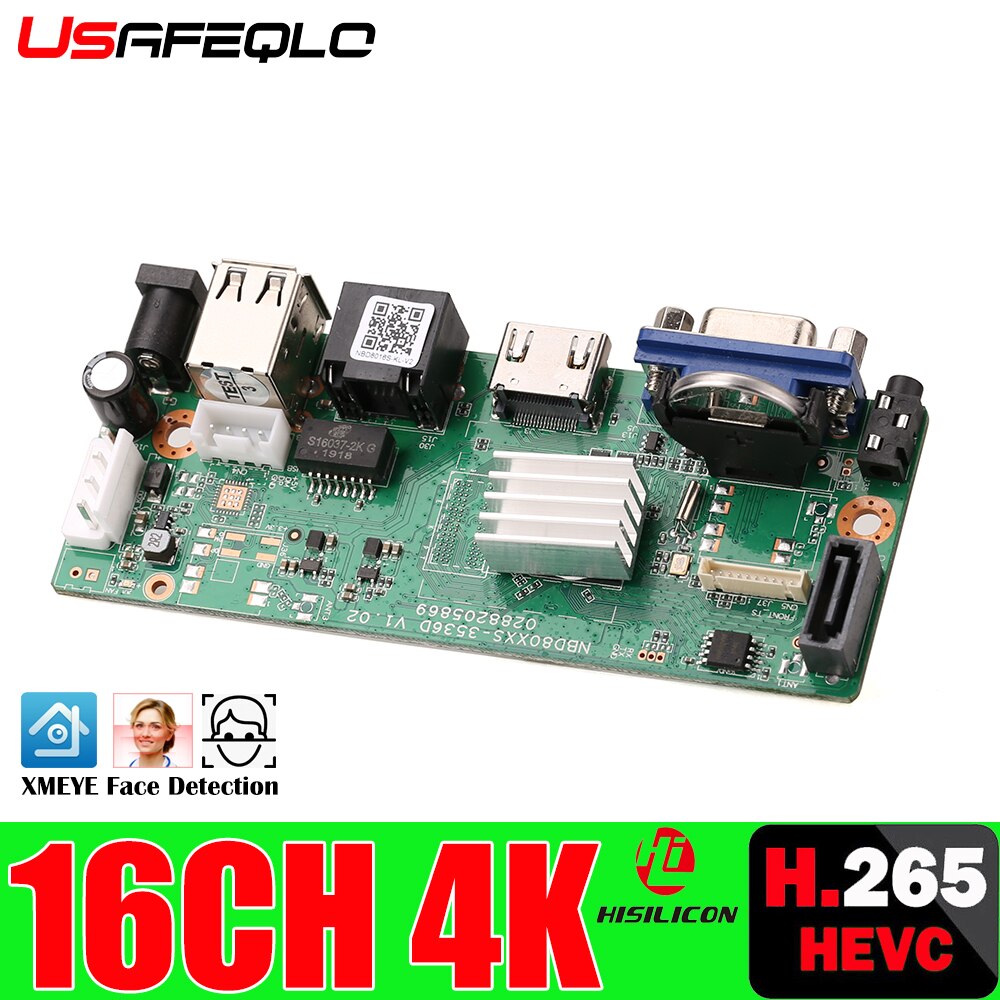

Interface Definition
Model | NBD80S16S-KL | |
System | Main processor | Mstar |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |

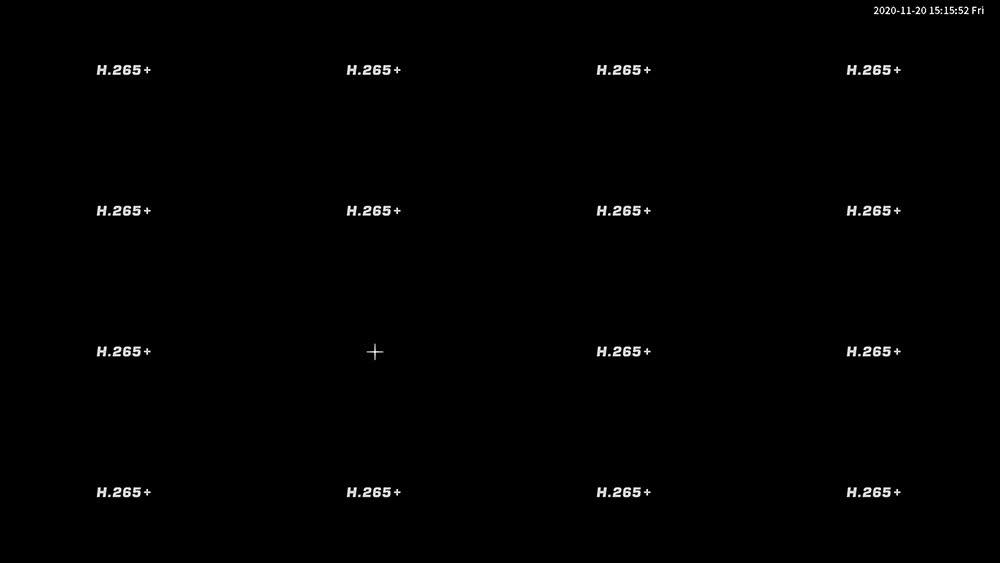

Preview | 1/4/8/9/16 | |
Video | Video input (IP) | 16*4K(Access bandwidth 72Mbps) |
Video compression | H.265AI/H.265+(compatible H.265/H.264) | |
Display quality | Max:4K | |
Playback quality | 4K/5M/4M/3M/1080P | |
VR | Unsupport | |
human shape / Face | Support(depend on camera) | |
Audio | Audio compression | G.711A |
Intercom | unsupport | |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Localpayback(real-time+Un real-time) | 4K(1*real-time)/5M(1+1)/4M(2+1)/3M(3+1)/1080P(5+1) | |

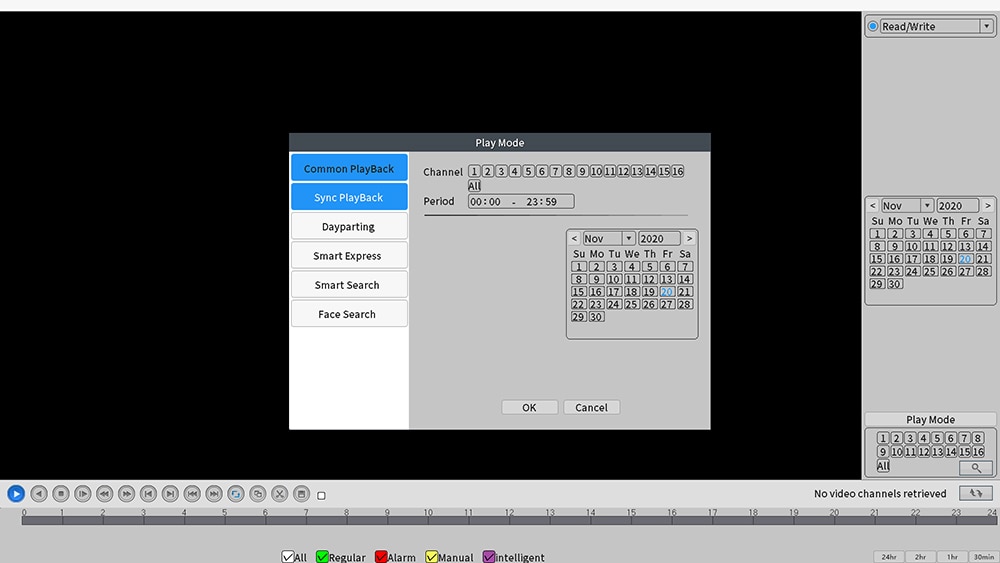

Search mode | Search by Time/Calendar/Event/Channel/Face | |
Record storage | HDD,Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch VGA,1ch HDMI HD output |
Audio I/O | 0/1(3.5MM audio output) | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports(one USB extension interface is reserved) | |
HDD | 1 SATA(Up to 14TB for each disk) | |
ESATA | No | |
Serial interface | No | |
Other | ONVIF | Support |
Power supply | 12V/2A | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |
Dimension | 118mm*46mm | |
Weight | A total of about 44g |

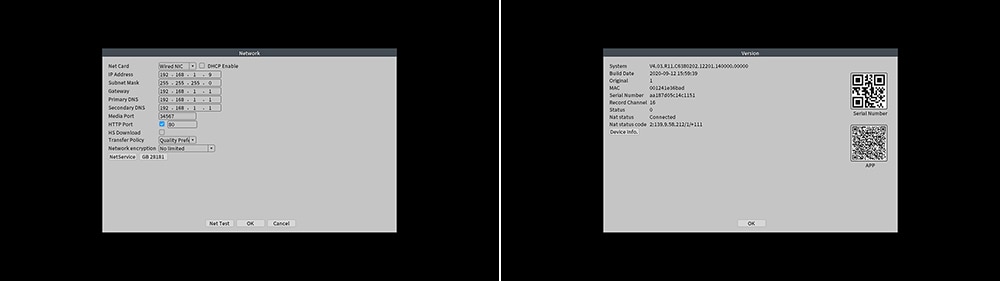

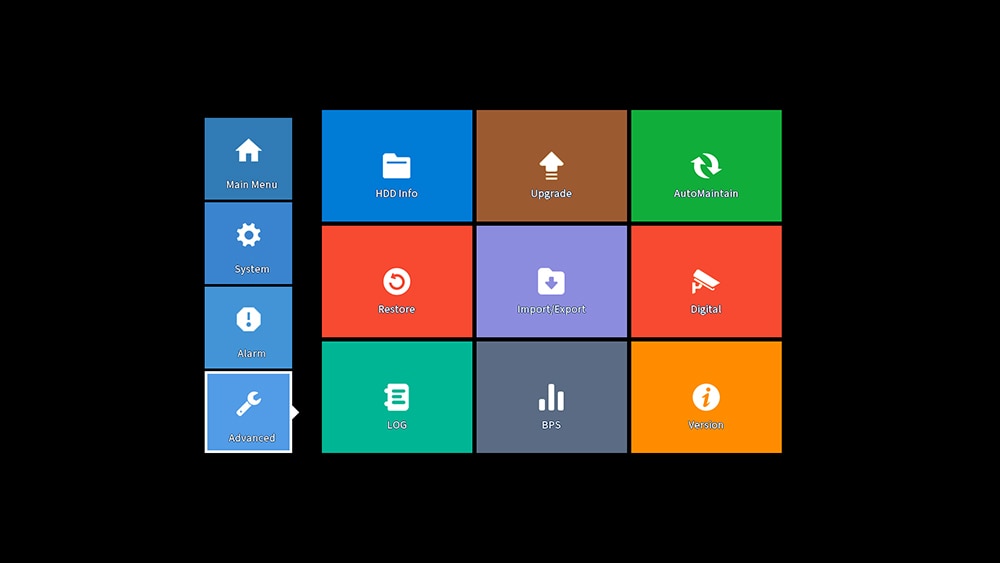

New Style Win10 Menu
How to receive the parcel without problem ? When the item dispatch to your place, the first need to check weather have Severely deformed, if yes, You can take some photos and reject the parcel. Then send the photos to us, we will help you make full refund first, then if you need, you can make a new order to us. All the International mail allow receiver to check the parcel before receive it. Shipping Orders prcessed timely after the payment vrification within 1-3days, we only ship to confirmed order addresses. If you do not receive your shipment within Delivery protection time, please contact us at firstly. Warrantyℜturns 12 months Manufacturer's limited Warranty for defective items (excluding temns damaged and/or misused after recelpt). Defective items must be reported and returned within the warranty period. Feedback We maintainhigh standards of excellence and strive for 100% customer satisfaction! Feedback is very imporant. Please contact us before you give us neutral or negative feedback, so that we can address your concerns satisfactorily.
- POE: None
- e-Cloud(P2P): YES
- Two-way Audio: YES
- Alarm Action: FTP Photo,Email Photo,Local Alarm
- Backup Type: Hard Drive
- Supported Operating Systems: Microsoft Windows 98,Microsoft Windows 2000,Microsoft Windows XP,Microsoft Windows 7,Mac OS
- Supported Mobile Systems: iPhone OS,Android,Windows Mobile
- IP Mode: Static IP address
- Wireless Security: WEP
- Network Protocol: TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,PPPoE,FTP,DNS
- Communication Interface: None
- Network Interface: RJ45 10/100M
- Hard Drive Size: 3.5''
- Hard drive Interface Type: SATA
- Audio Output: None
- Video Standard: NTSC,PAL
- Audio Compression Format: G711A
- Audio Input: 1 Channel
- Compression Format: H.265,H.264
- Technology: Network
- Model Number: NBD80S16S-KL
- Brand Name: USAFEQLO
- Origin: Mainland China
- Certification: NONE
- Smart home platform: Other
- Main processor: Mstar
- Video compression: H.265/H.264
- Display quality: Max: 2K
- Playback quality: 4K
- HDD: 1* SATA(Up to 8TB for each disk)
- 1/4/8/9/16: 4K
- Face Identification: Support
