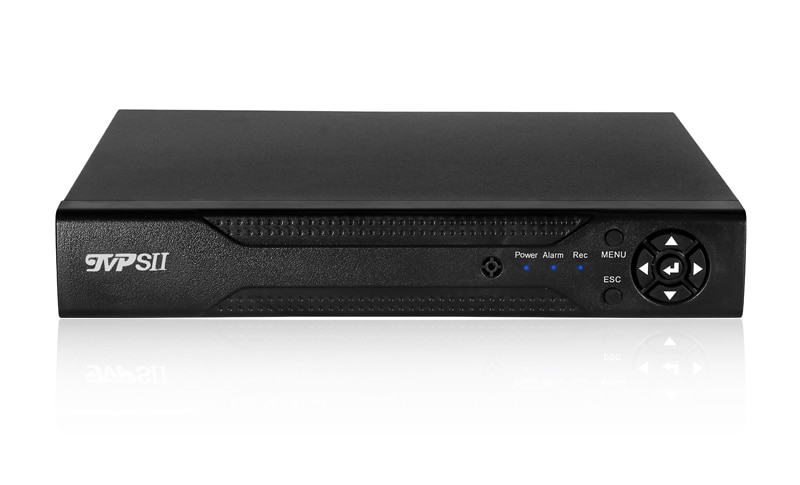

Face Detection H.265 Max 4K Audio CCTV NVR 9/10/16/32CH 4K/5MP Security Video Recorder H.265 Motion Detect ONVIF P2P CCTV NVR
143.12 110.67 $
SALE
ID: 63815
Quantity

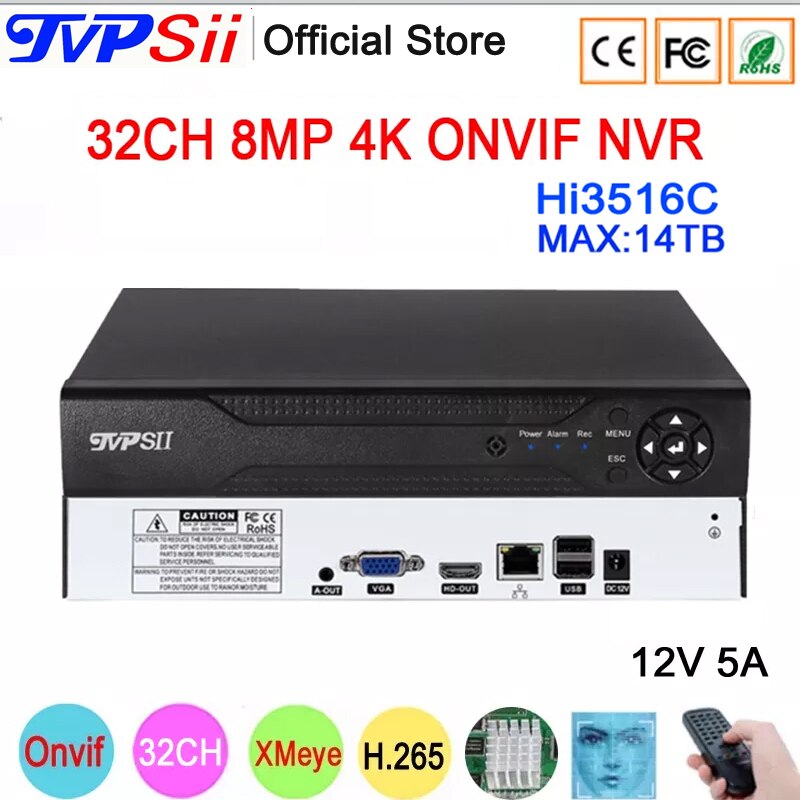

12V 5A Hi3536C XMeye Surveillance Video Recorder Face Detection H.265+ 8MP 4K 32CH 32 Channel Max 14TB Onvif CCTV NVR DVR System
4.9 (8 votes) | 41 orders
Price:
US $226.90 - 798.16
/ piece
Discount Price:
US $
132.55 -
466.93
/ piece
-42%
- Ships From
Friendly reminder:
HiSilicon processor has stable performance, long life, and is not easy to heat up.

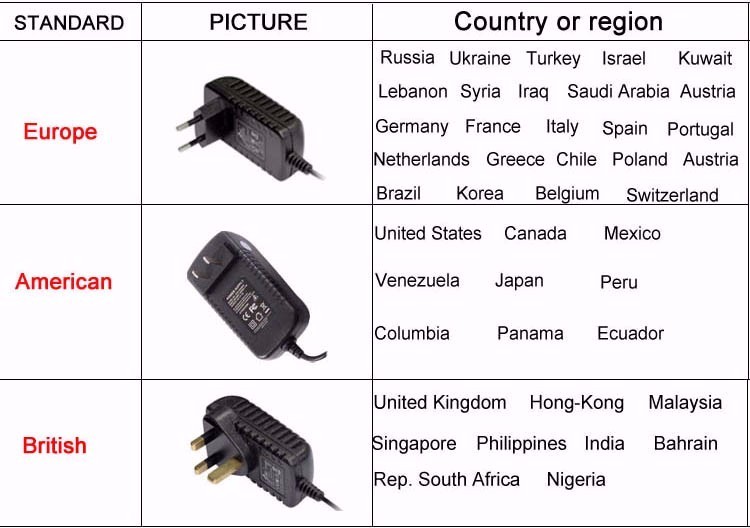

12V 2A Power adpater 32CH NVR will not work with 2TB,3TB,4TB 6TB 8TB hard disk ,so must use 12V 5A power adpater!!!(many seller use 12V 2A for cutting cost,so be careful).

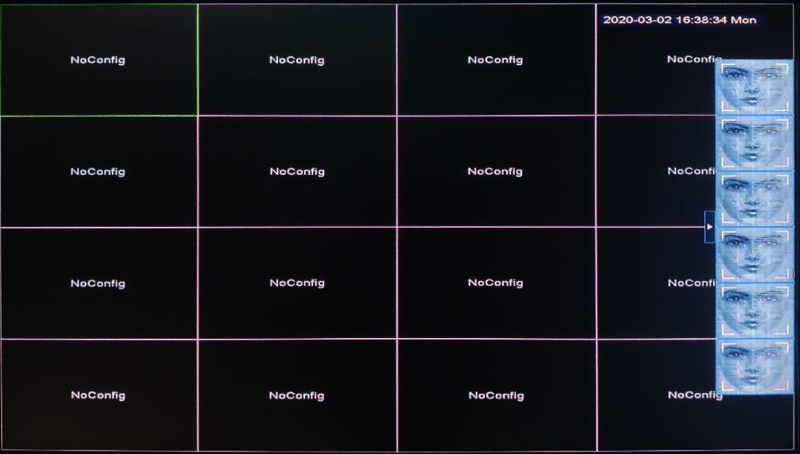

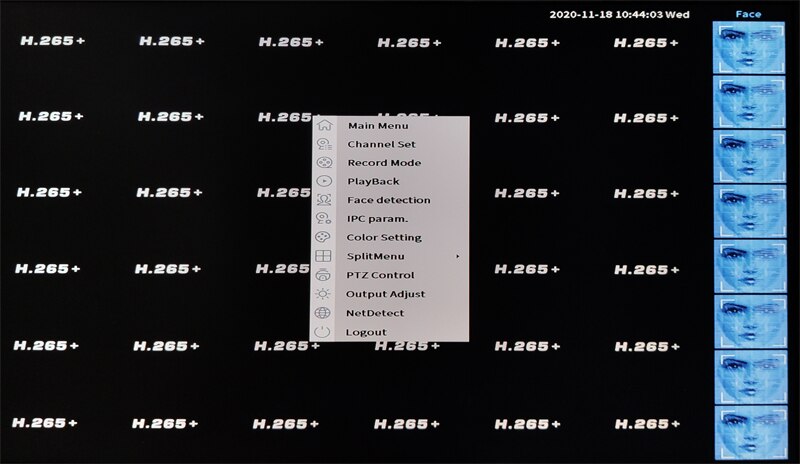

Q:How to use face detection function?
A:It is work with AI Camera ,and click link for see operation video, link in description.(if the nvr not have the face detection function,please upgrade to newest version)

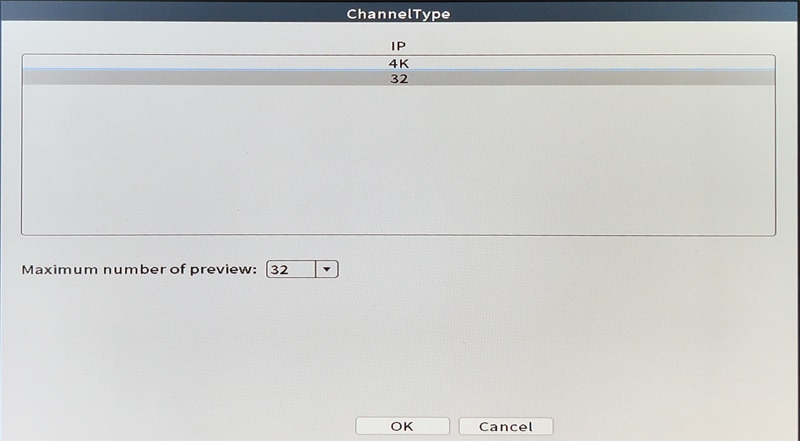

32CH*4K 8MP
16CH*4K 8MP
Q:What is H.265+ Compression?
A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.

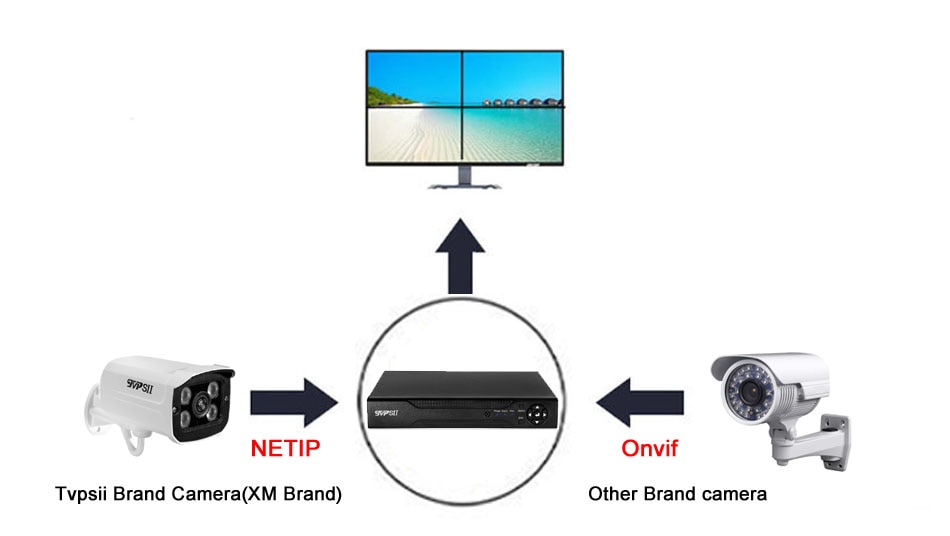

Q:Is it support other brand IP camera?
A:This nvr have NETIP protocol (XM:Xmeye and ICsee System ),onvif protocol and so on...,so if your IP camera,wifi camera ,PTZ IP camera is Tvpsii brand ,XM brand and other onvif brand ip camera,it work well.
Feature:
Support HDMI 4K output VGA HD output;
Support ONVIF;access third party;

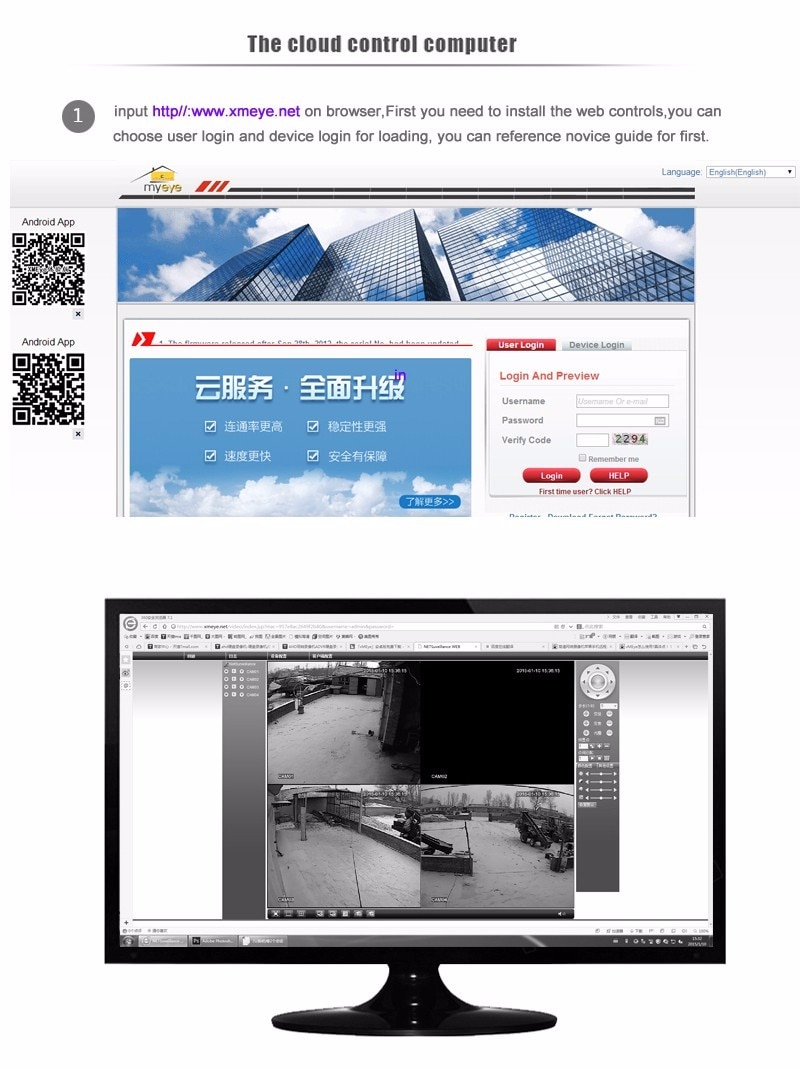

Support web, CMS, center platform management software MYEYE,provide SDK development;

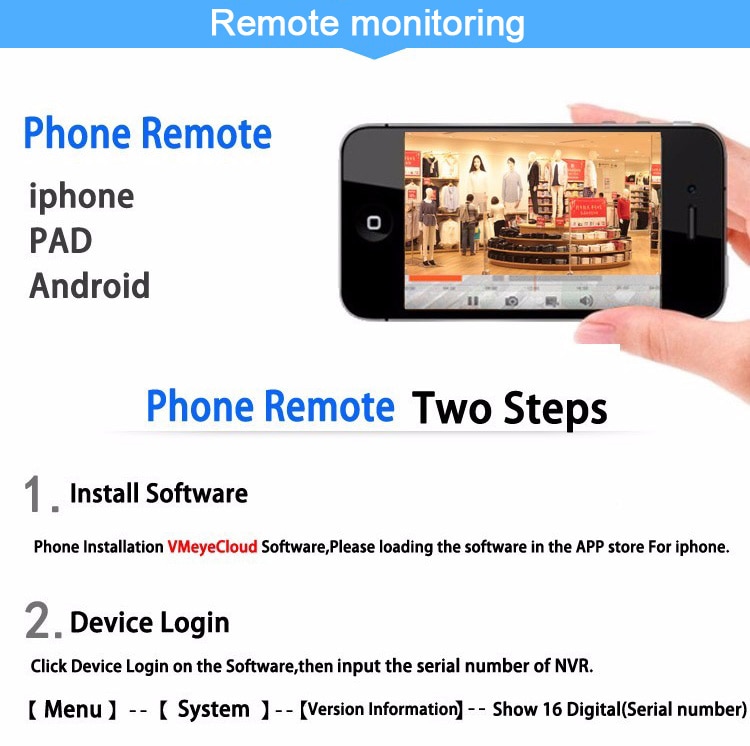

Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP,UPNP, EMAIL,IP searches, Alarm Center, etc.)
32CH:
Model | 6032NVR | |
System | Main processor | Hi3536C |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/4/9/16/25 | |
Video | Video input (IP) | 32*8mp |
Access bandwidth | 300Mbps | |
Forwarding bandwidth | 240Mbps | |
Video compression | H.265+/H.264 | |
Display quality | Max:4K | |
Playback quality | 4K/5M/1080P | |
Decode | 1*4K/2*5M/4*1080P | |
Motion detection | Support(depend on camera) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Local payback | 1*4K/2*5M/4*1080P | |
Search mode | Search by Time/Calendar/Event/Channel | |
Record storage | HDD Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |

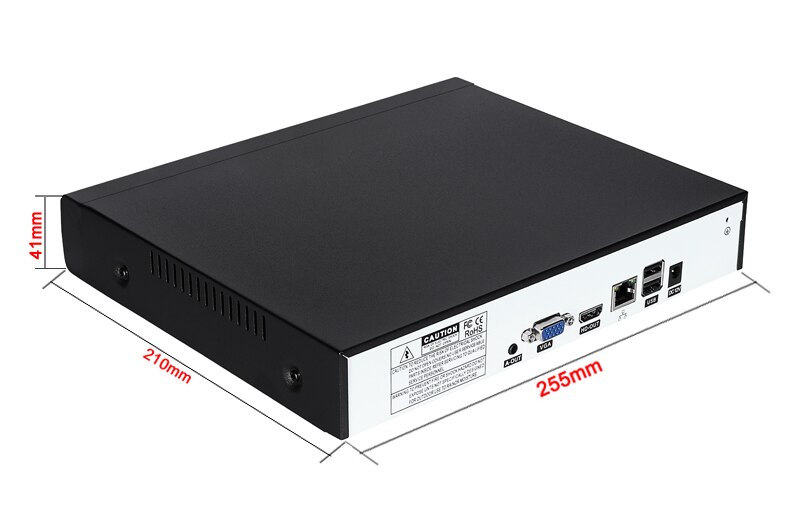

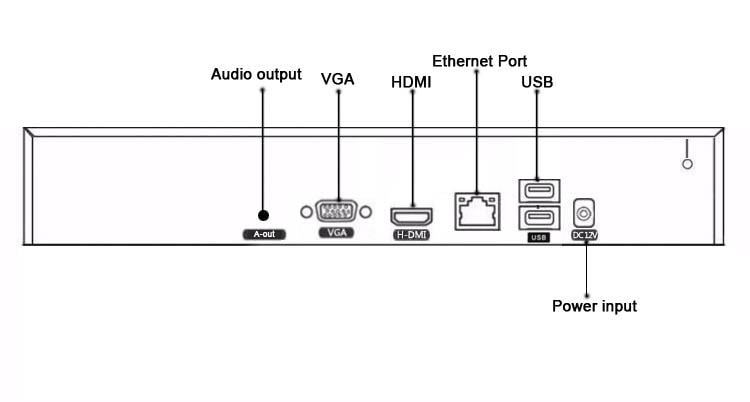

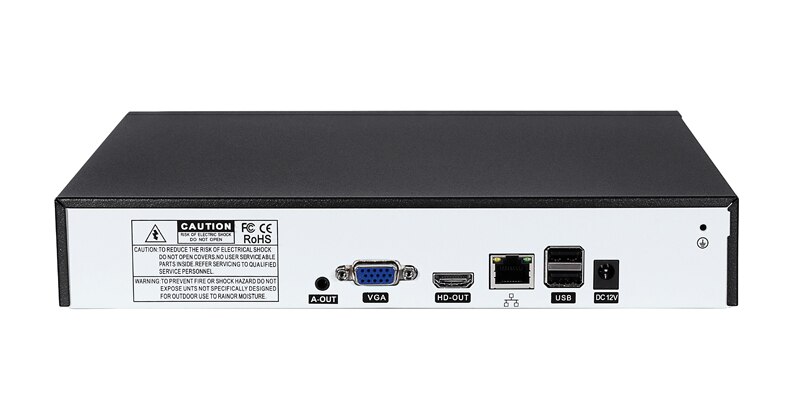

External interface | Video output | 1ch VGA,1ch HDMI HD output |
Audio I/O | 0/1 | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M/1000M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports | |
HDD | 1 SATA(Up to 14TB for each disk) | |
ESATA | No | |
Serial interface | No | |
Other | ONVIF | Support |
Power supply | 12V 5A | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |
Dimension(Motherboard) | 135mm*81mm | |
Weight | 1.6kg |
16CH:
Model | 8016NVR | |
System | Main processor | Hi3536E |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |

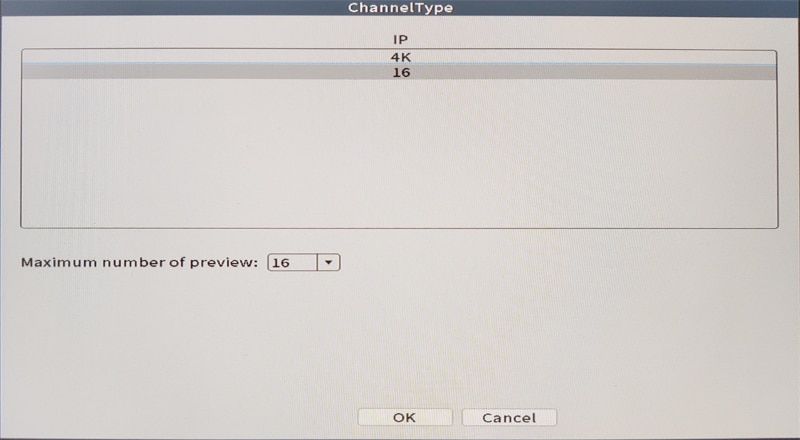

Preview | 1/2/4/6/8/9/16 | |
Video | Video input (IP) | 16*4K |
Access bandwidth | 64Mbps | |
Forwarding bandwidth | 64Mbps | |
Video compression | H.265AI/H.265+ (compatible with H.265/H.264) | |
Display quality | Max:4K | |
Playback quality | 4K/5M | |
Humanoid face detection | Support(depend on camera) | |
VR | Unsupport | |
Motion detection | Support(depend on camera) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Local payback | 4K(1*real time)/5M(1+1)/4M(2+1)/3M(3+1)/1080P(5+1) | |
Search mode | Search by Time/Calendar/Event/Channel | |
Record storage | HDD,Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch VGA，1ch HDMI HD output |
Audio I/O | 0/1 | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports | |
HDD | 1 SATA(Up to 14TB for each disk) | |
ESATA | No | |
Serial interface | No | |
Other | ONVIF | Support |
Power supply | 12V/3A | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |
Dimension(motherboard) | 118mm*46mm | |
Weight | 1.6KG |
Friendly Reminder:
we only spent two days (48 hours) for sent parcel , have tracking number and tracking number information,Thanks!
if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer,Thanks!
if you have some request for custom clrearance and Tariff, please leave message in order or sent messages by other communication APP,Thanks!
Notice:
If you want to use WIFI function,please click the following button to buy USB WIFI Antenna Module,Thanks!
Our Surveillance Video Recorder NVR have heat sink,metal material (long life),remote control,3G(4G)function,WIFI function and so on, quality assurance.
Notice:
12V 3A Power adpater 32CH NVR will not work with 5TB,6TB,7TB,8TB hard disk ,so must use 12V 5A power adpater!!!(many seller use 12V 2A for cutting cost,so be careful).
if there is Software File (CMS,VMS)in CD,you can download it by link.
NOTICE:
Q:it always cause problems in trade between countries, for example , bad weather for delay, custom problem , post worker broken it, and so on.
A:if you have any problem, please frist contact us, not easy input dispute or give me a bad feedback, we will try our best to help you reslove problem ,We welcome those friendly customers,Thanks!
- POE: None
- e-Cloud(P2P): YES
- Two-way Audio: No
- Alarm Action: Email Photo,FTP Photo,Local Alarm
- Backup Type: Hard Drive
- Supported Operating Systems: Microsoft Windows XP,Microsoft Windows 7,Microsoft Windows Vista,Mac OS
- Supported Mobile Systems: Android,iPhone OS
- IP Mode: Dynamic IP address,Static IP address
- Wireless Security: WEP
- Network Protocol: DDNS,HTTP,DHCP,FTP,SMTP,DNS,UPNP,TCP/IP,PPPoE
- Communication Interface: None
- Network Interface: RJ45 10/100M,WIFI,4G,3G
- Hard Drive Size: 3.5''
- Hard drive Interface Type: SATA
- Audio Output: 1CH RCA
- Video Output: 1VGA + 1HDMI-Compatible
- Video Standard: NTSC,PAL
- Audio Compression Format: G711A
- Audio Input: No
- Video Input Interface: RJ45
- Compression Format: H.265,H.264
- Technology: Network
- Model Number: 6032NVR/8016NVR
- Brand Name: TVPSii
- Origin: Mainland China
- Certification: CE,RoHS
- Smart home platform: Other
- Main processor: Hi3536C
- Compression: H.265+ (High Profile)
- Supported Mobile Systems: IOS and Android
- ONVIF: Yes
- APP: XMeye
- Warranty: one Year

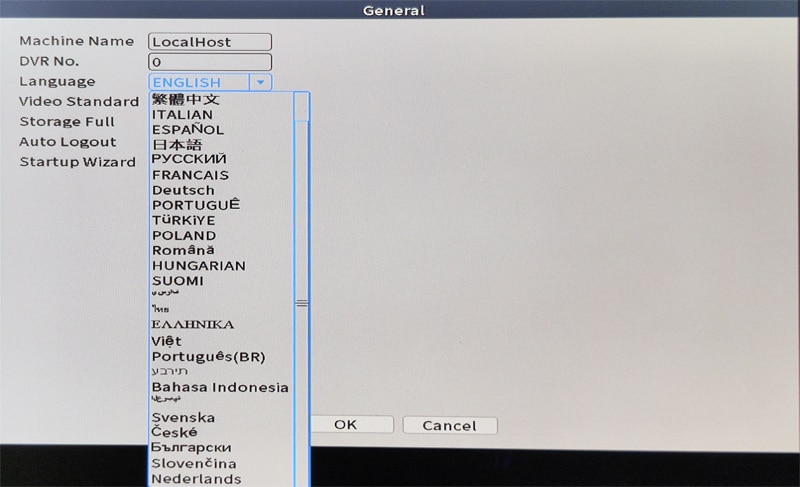

- Language: 27 Multi language(English,Spain,Russia...)
- CMS link: https://download.xm030.cn/d/MDAwMDA0NjI=
- Audio output: 1RCA
- Remote Control: yes
- heat sink: yes
- Face Detection: support
- Face Detection operational Video: http://v.xm030.net/p/xm-m/ehaiaddhgd.htm#
