Drill Press Work Station Rotary Tool Workstation 60-120W 4.72*5.9*10.6in
0.0 ( votes)
Price:
US $298.76
Discount Price:
US $
153.74
-49%

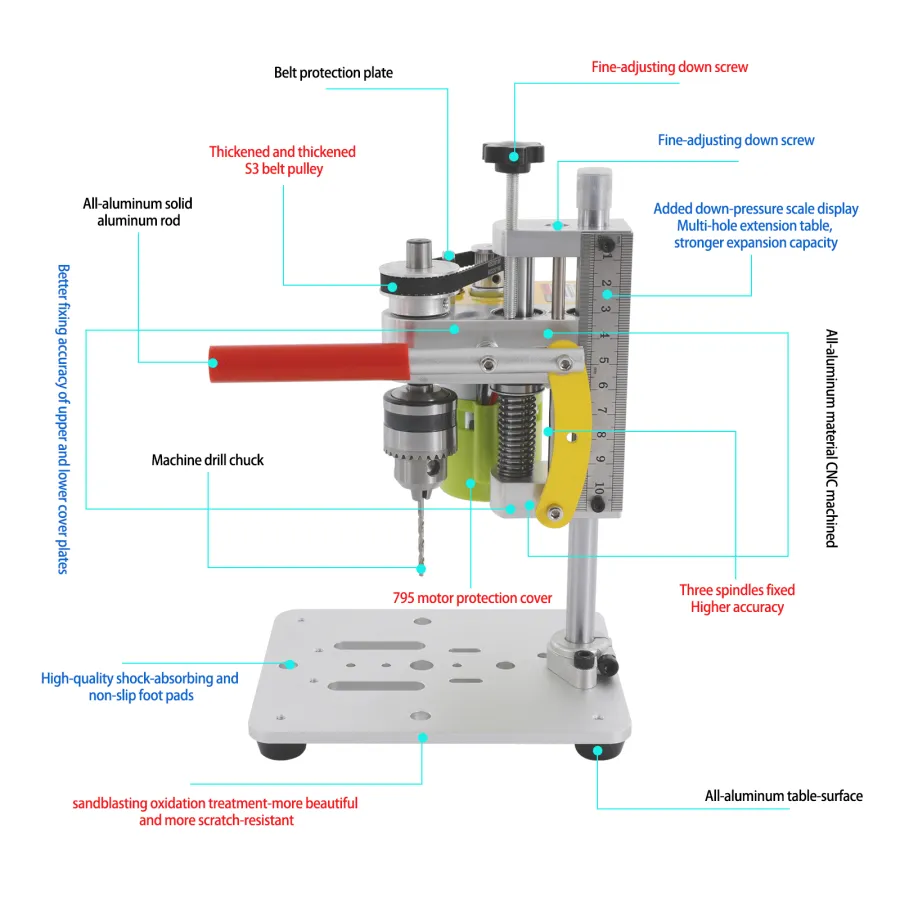

Key Features
Sturdy and Durable: The premium aluminum, iron, plastic, and the oxidation process give the product excellent corrosion resistance and protect the product from abrasion and wear, ensuring a long service life.
High Precision: Upper and lower double cover fixed design, three fixed spindles, fine adjustment screw, micrometer reserved holes, and scale to ensure the stability of the work, and attenuate the wobble, so that the work of higher precision.
User-friendly Design: The fine adjustment screw and the utility handle allow you to operate the drilling depth with ease and high precision. In addition, the product is able to rotate 360° and move up and down as you wish, allowing you to drill and mill more flexibly.
Wide Compatability: The multi-hole countertop is suitable for a variety of fixtures, making this product more expandable.
Excellent Performance: The powerful motor, 1500-3000rpm quick speed and steel drill bit can greatly improve your working efficiency.
Compact and Lightweight: With a compact size(4.72*5.9*10.6 in) and lightweight(4.85 lbs), the product is easy to move and simple to store without taking up much space when not in use.
Easy to Clean: With a simple structure and smooth surface, you can easily wipe it clean with a soft cloth.
Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".
Details
Sturdy Feet: Non-slip feet effectively dampen vibration, preventing the machine from sliding while drilling for accurate drilling and milling.
Protective Covers: Motor and belt covers can keep out dust and provide protection for longer product life.
Limit Ring: You can use it to adjust the drilling depth limit.
Application
The product is specially designed for small objects and soft materials such as wood, acrylic, PCB, plastic, carbon fiber, and soft metals such as aluminum and copper.
Specifications
Color: Green
Material: Aluminum, Iron, Plastic, Steel
Process: Oxidation
Mount Type: Free Standing
Power Source: Electric Corded
Plug Type: US Standard
Power: 60-120W
Rated Voltage: 12-24V, 5-20A
Rotating Speed: 1500-3000rpm
Chuck Type: B10
Clamping Range: 0.6-6mm/ 0.02-0.24 in
Max. Drill Stroke: 3.9cm/1.53in (For Reference Only)
Drill Bit Size: 2.5mm/0.098in
Assembly Required: No

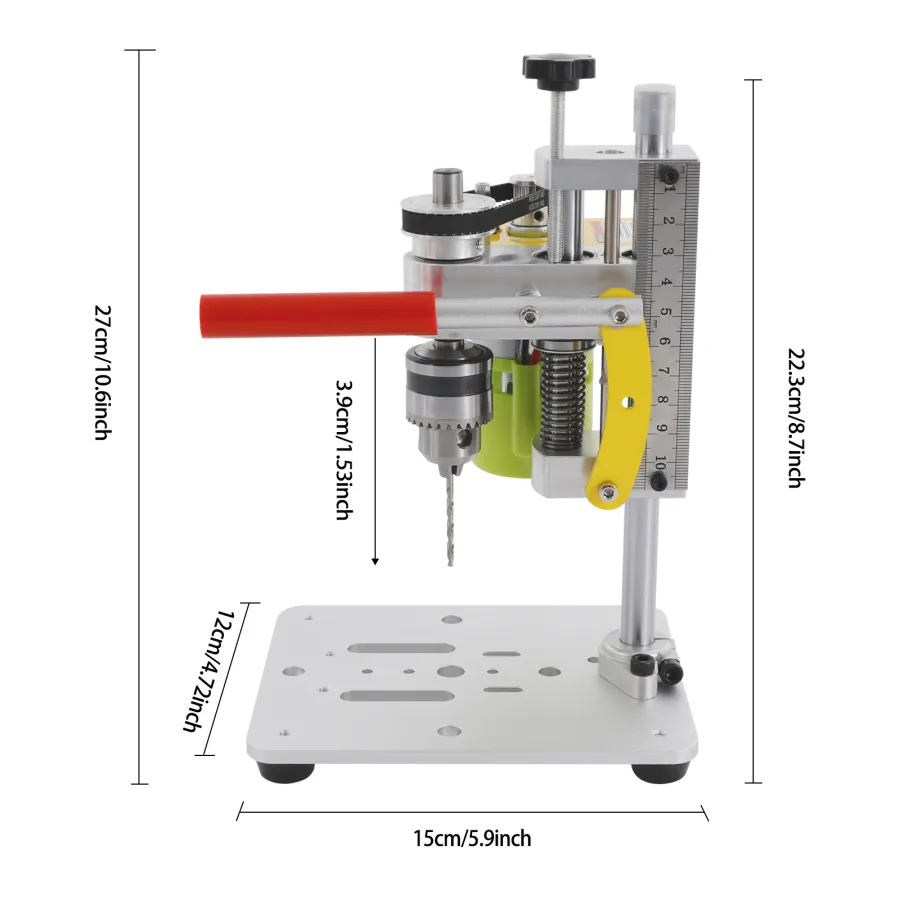

Product Overall Size: 12*15*27cm/4.72*5.9*10.6in
Package Size: 19*19*26cm/7.48*7.48*10.23in
Gross Weight: 2.25kg/4.96lbs
Net Weight: 2.2kg/4.85lbs
Package Included
1* Mini Drill Workstation
1* Lubricating Oil
1* Adjustable Power Supply
1* Power Cord
Other Needed Accessories
Notes
- Please check the size carefully before ordering.
- Please note that the product is not suitable for drilling large, deep holes and hard materials. It is not recommended for drilling and milling harder metals.
- Please carefully determine the size you need before purchasing, this machine is very small and is only suitable for small crafts or small productions, etc.
- Please note that the drilling stroke is not equal to the drilling depth. The drilling depth is determined by a variety of factors such as workpiece material, hardness, hole size, and so on.
- Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
Packaging Details
- Unit Type:
- Package Weight: 2.268
- Package Size: 19x19x26
- Brand Name: NoEnName_Null
- CNC or Not: Normal
- Origin: Mainland China
- Hign-concerned Chemical: None
- Plug Type: US Standard
- Rated Voltage: 12-24V, 5-20A
- Rotating Speed: 1500-3000rpm
- Chuck Type: B10
- Clamping Range: 0.6-6mm/ 0.02-0.24 in
- Max. Drill Stroke: 3.9cm/1.53in (For Reference Only)
- Drill Bit Size: 2.5mm/0.098in
- Product Overall Size: 12*15*27cm/4.72*5.9*10.6in
