Complete Set 3 Axis LCD Digital Readout DRO with 3 Pieces 0-1000mm Glass Linear Scale Encoder Sensor For Milling Lathe YH800-3S

4.8 (97 votes) | 414 orders
Price: US $497.25 - 610.04 / Set
Discount Price:
US $ 422.66 - 505.58 / Set
-15%
Ships From
Color
Quantity

Complete Set 3 Axis LCD Digital Readout DRO with 3 Pieces 0-1000mm Glass Linear Scale Encoder Sensor For Milling Lathe

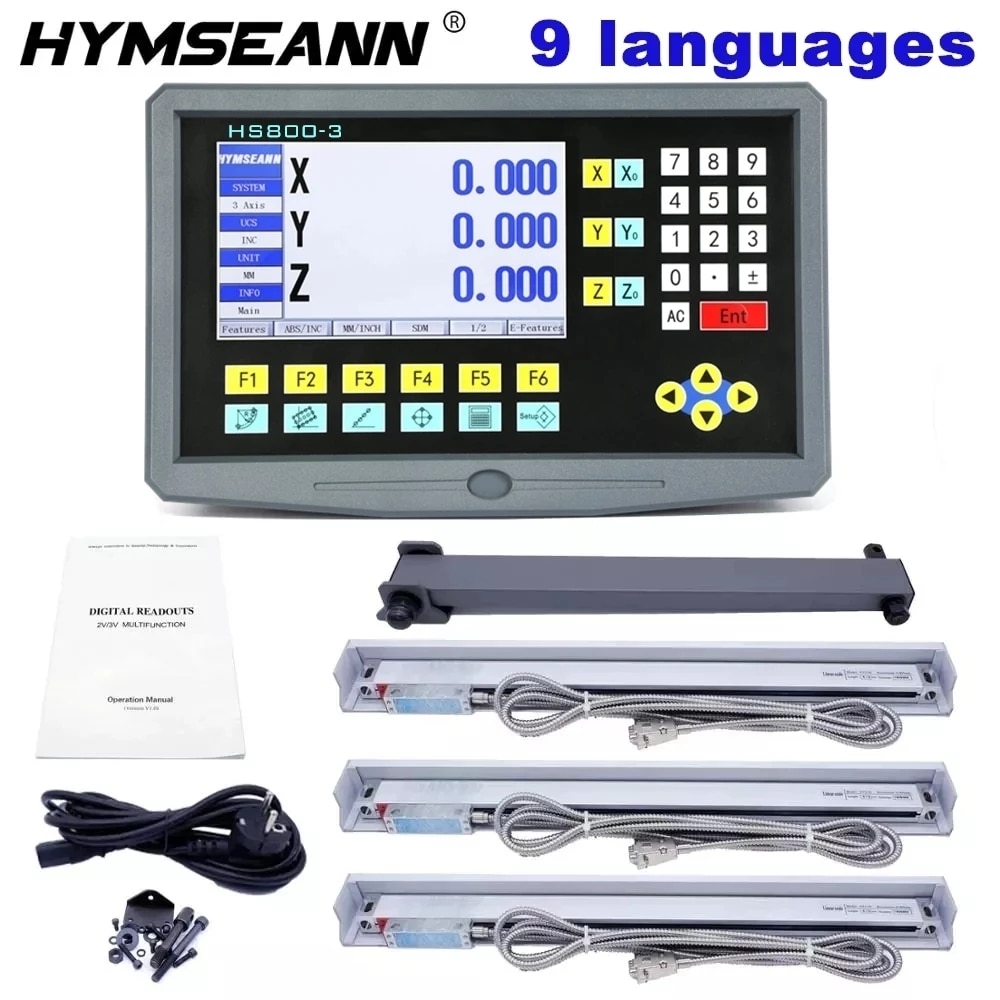

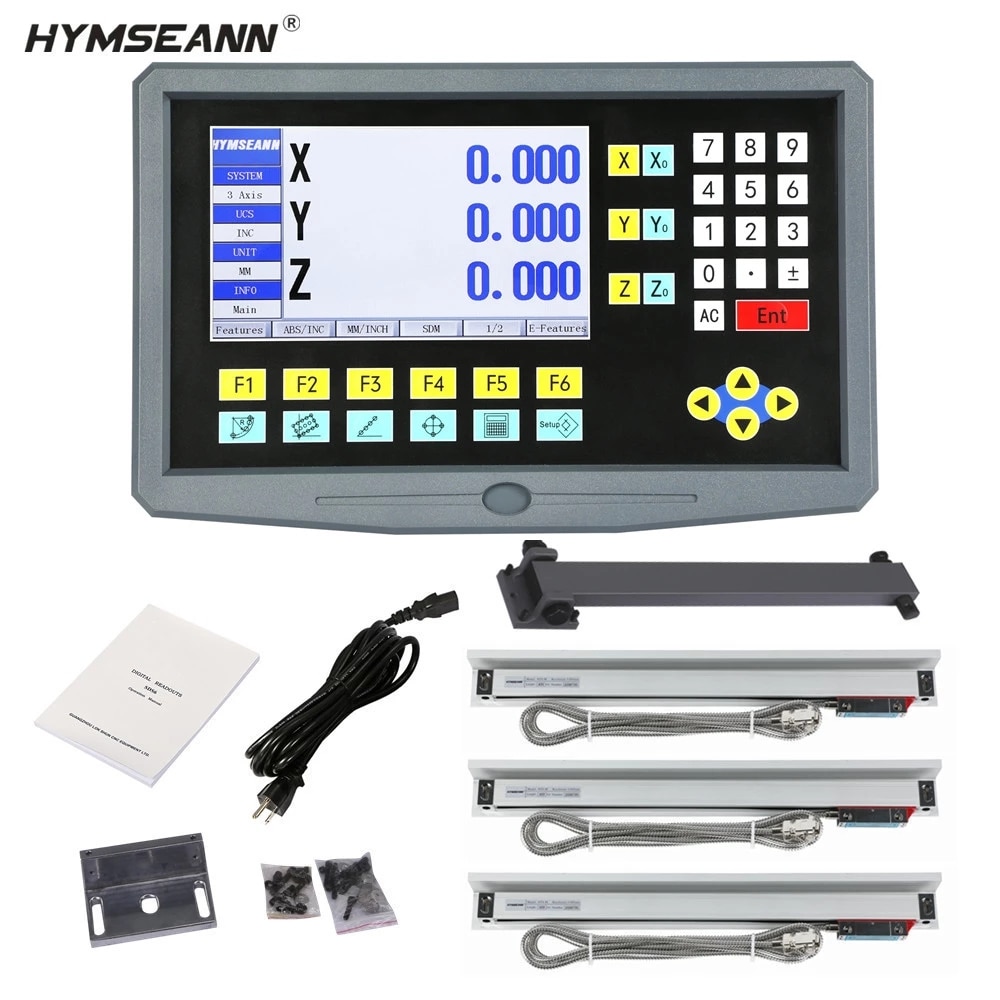

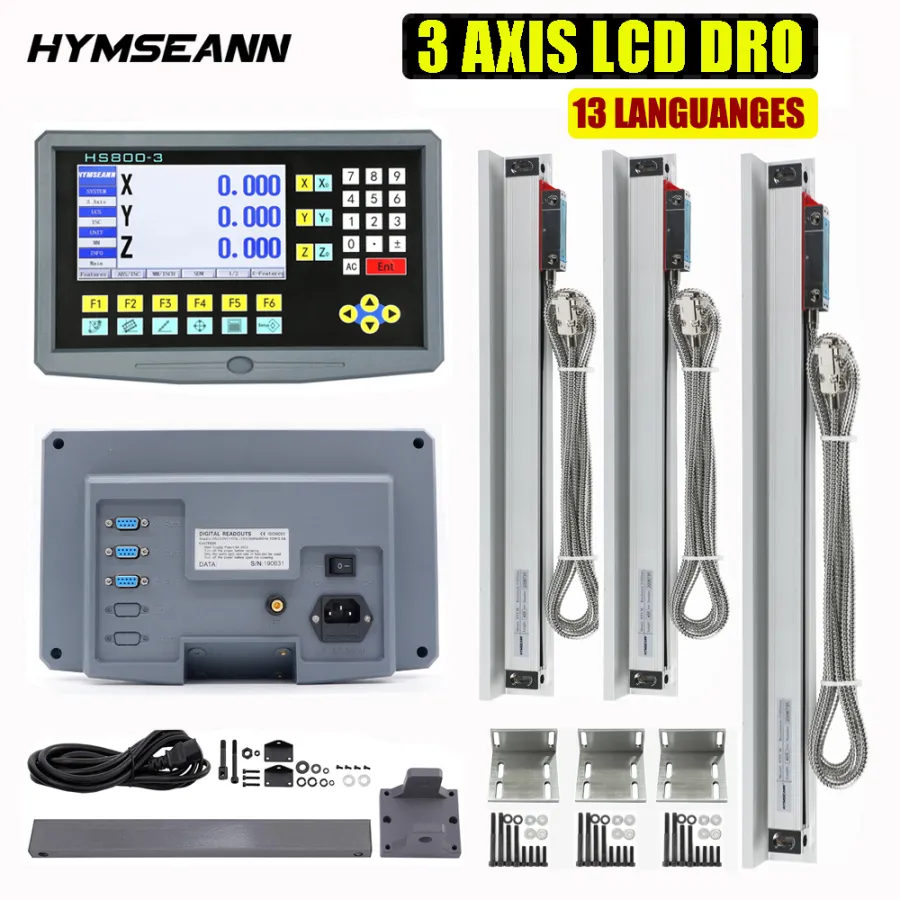

Packing Includes:

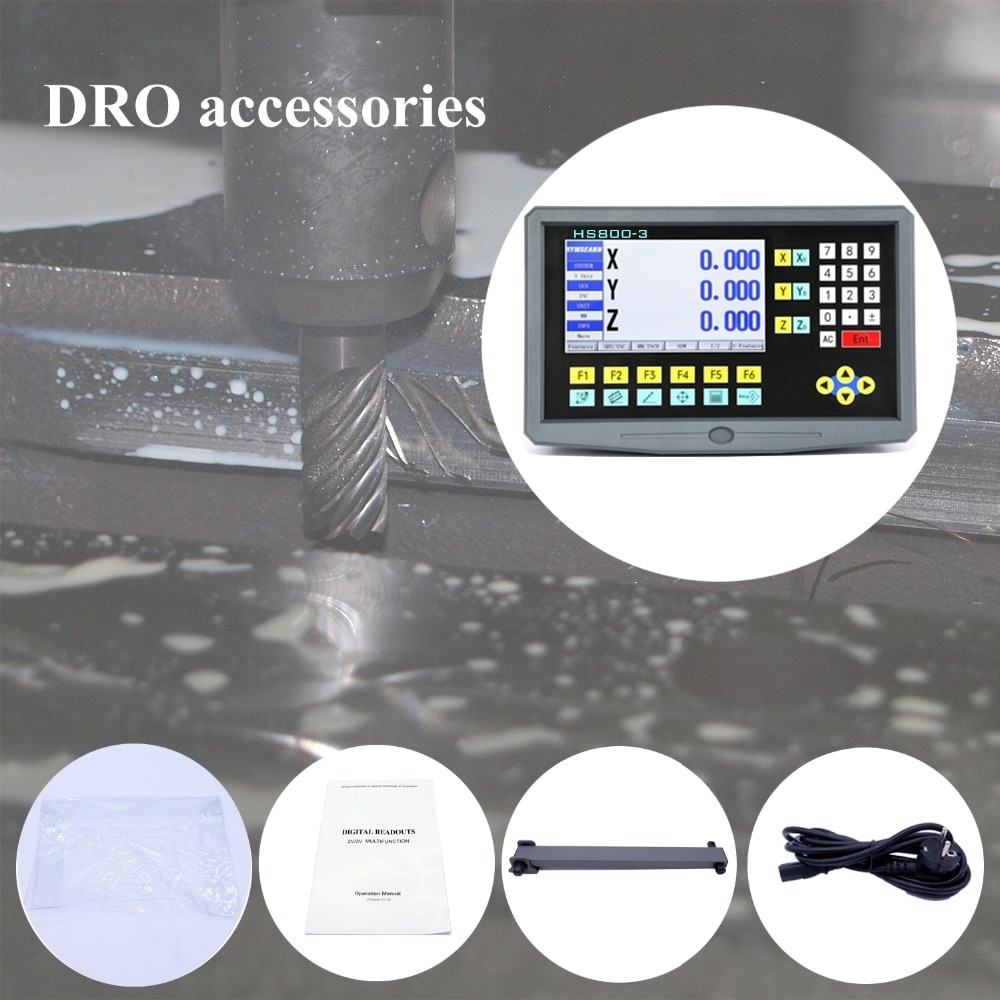

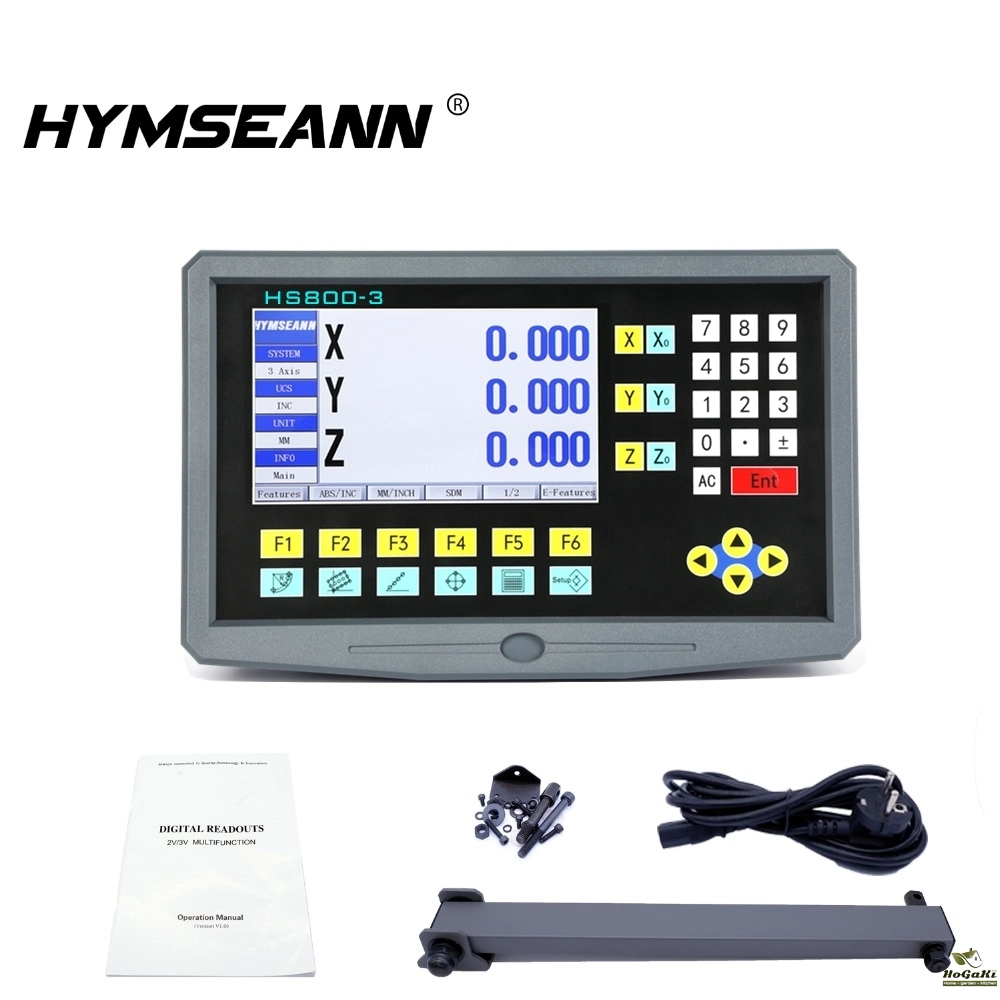

1 piece HS800-3 LCD display, user manual, mounting bracket, power cable, screw bag

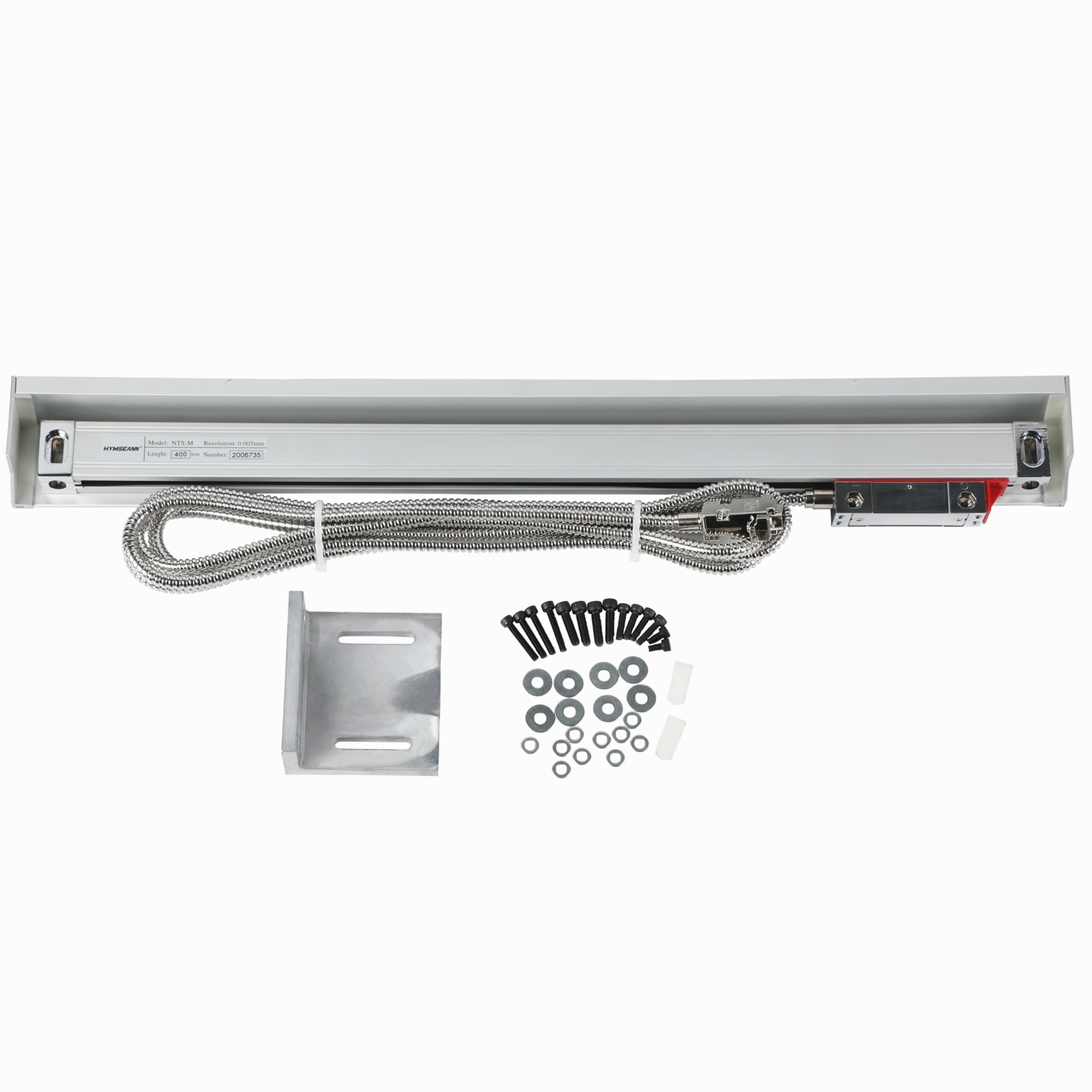

3 pieces scales, scale covers, mounting brackets & screw bags

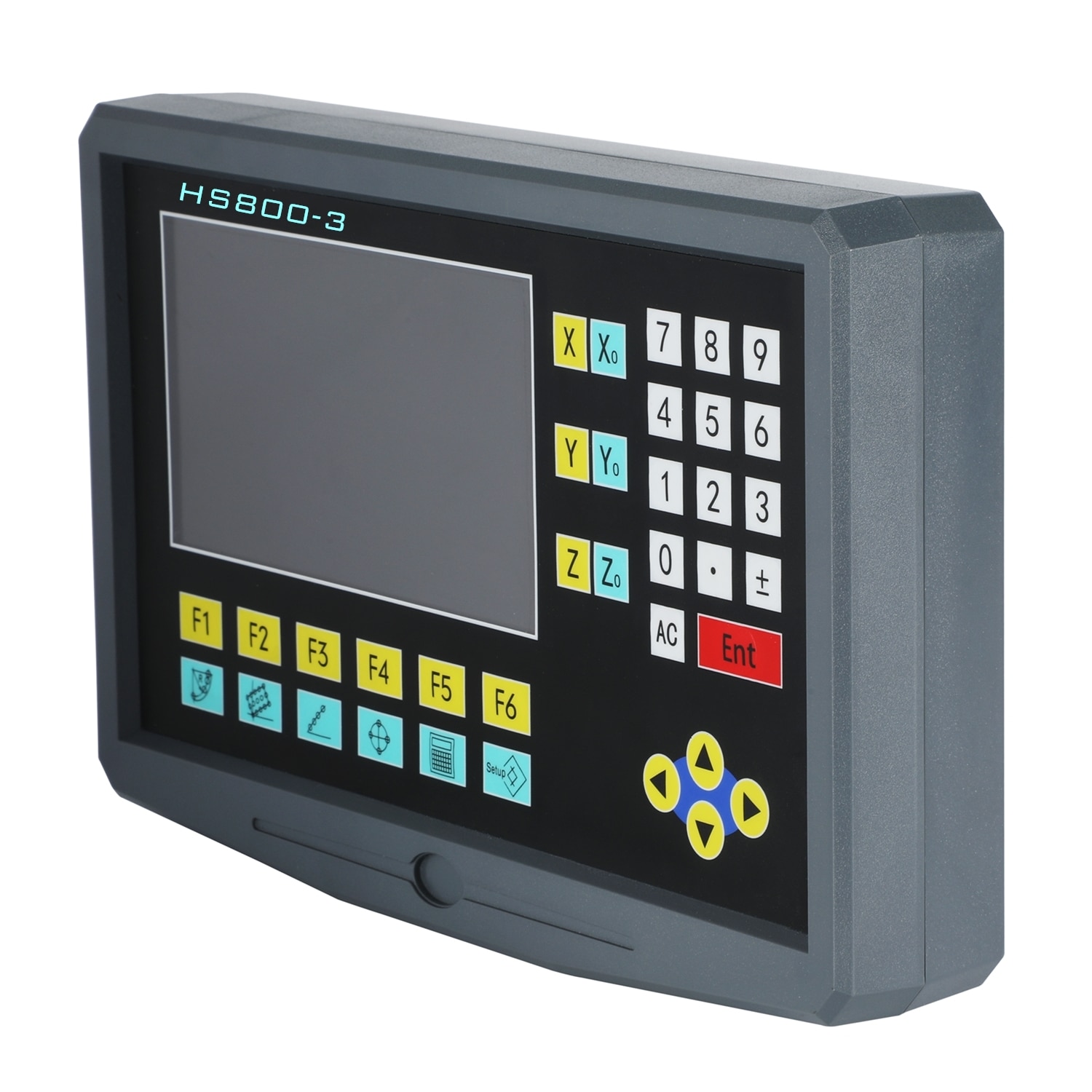

HS800-3 Features

The LCD display accepts all Chinese optical linear glass scales and widely used for lathe, drilling, boring and milling machine.

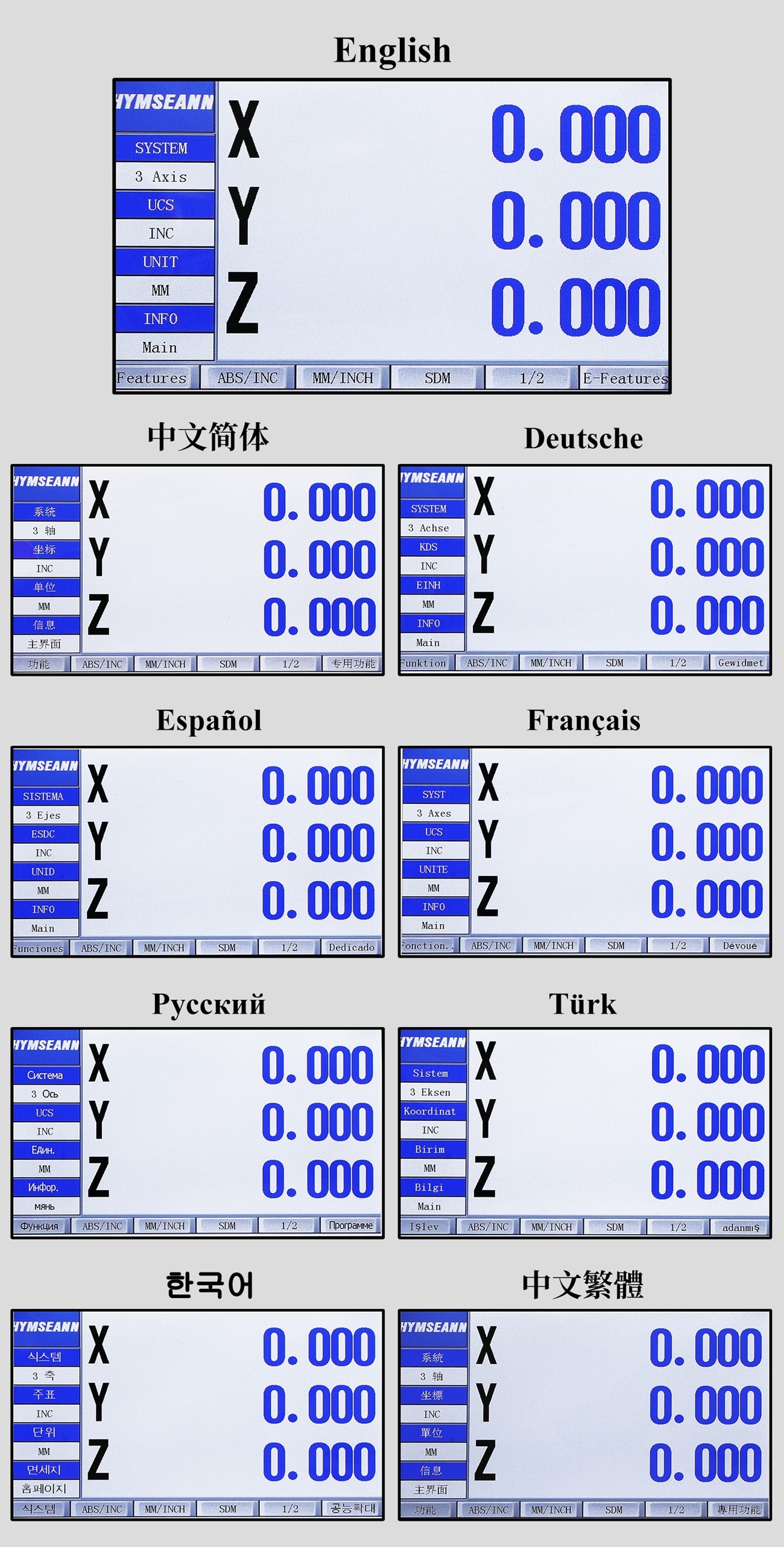

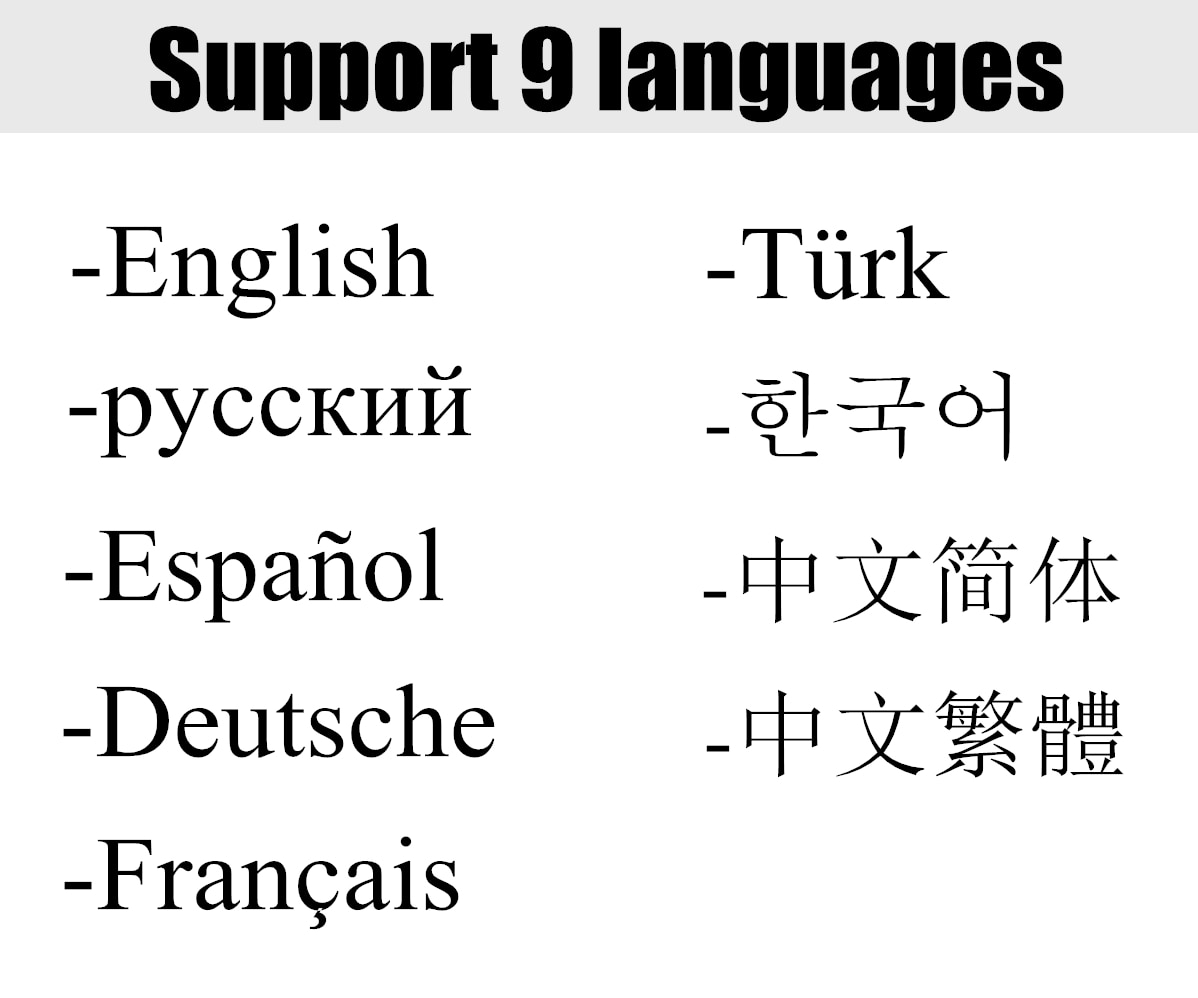

It can exchange 9 languages by system in one display, more functional for lathe & milling machine for the users from different countries.

Parameter
Model: HS800-3
Input voltage: AC80V-240V
Input signal: TTL
Plug: AU, EU, US, UK etc.

Specifications
The HS800-3 offers a high performance universal display console with Milling, Lathe and Grinding functions.

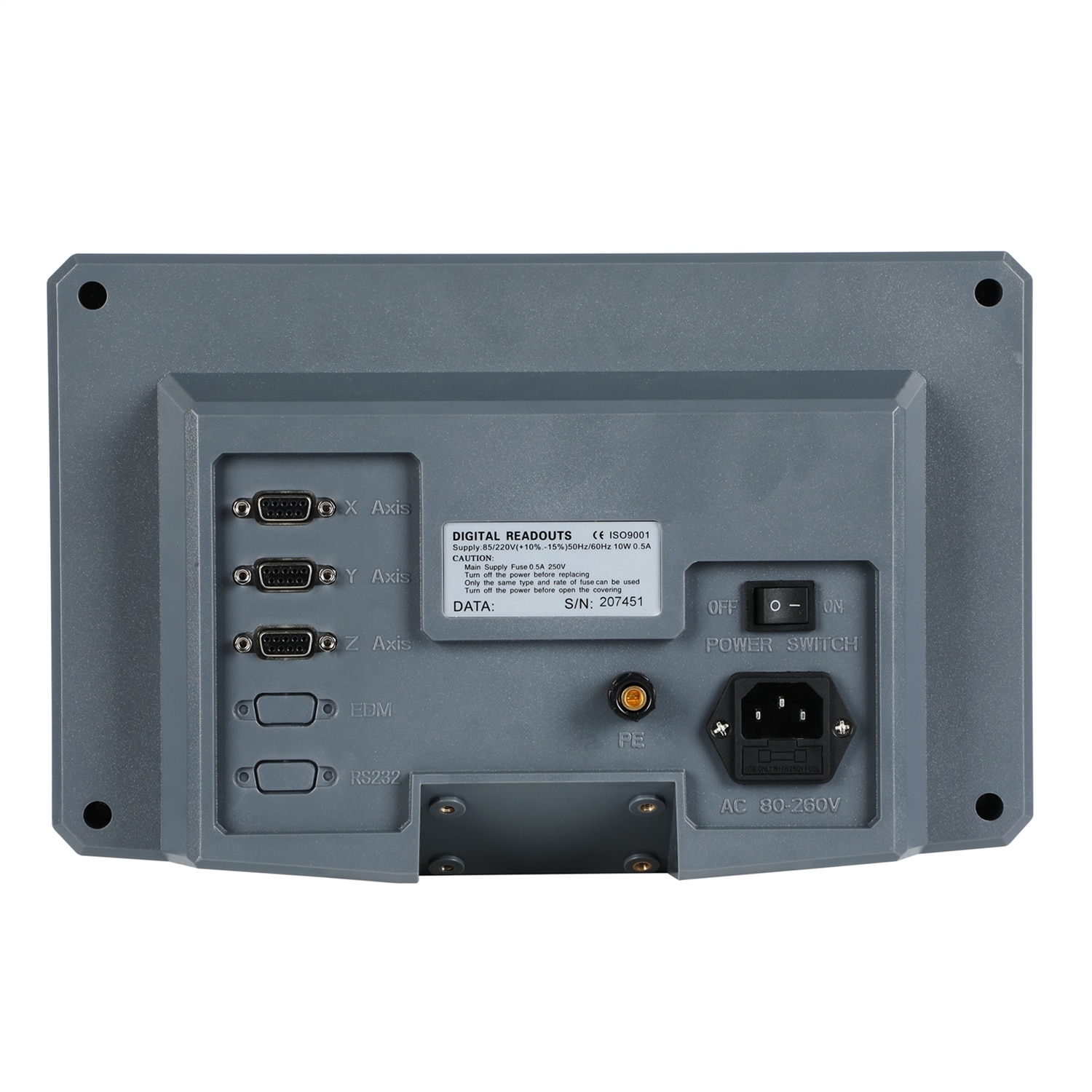

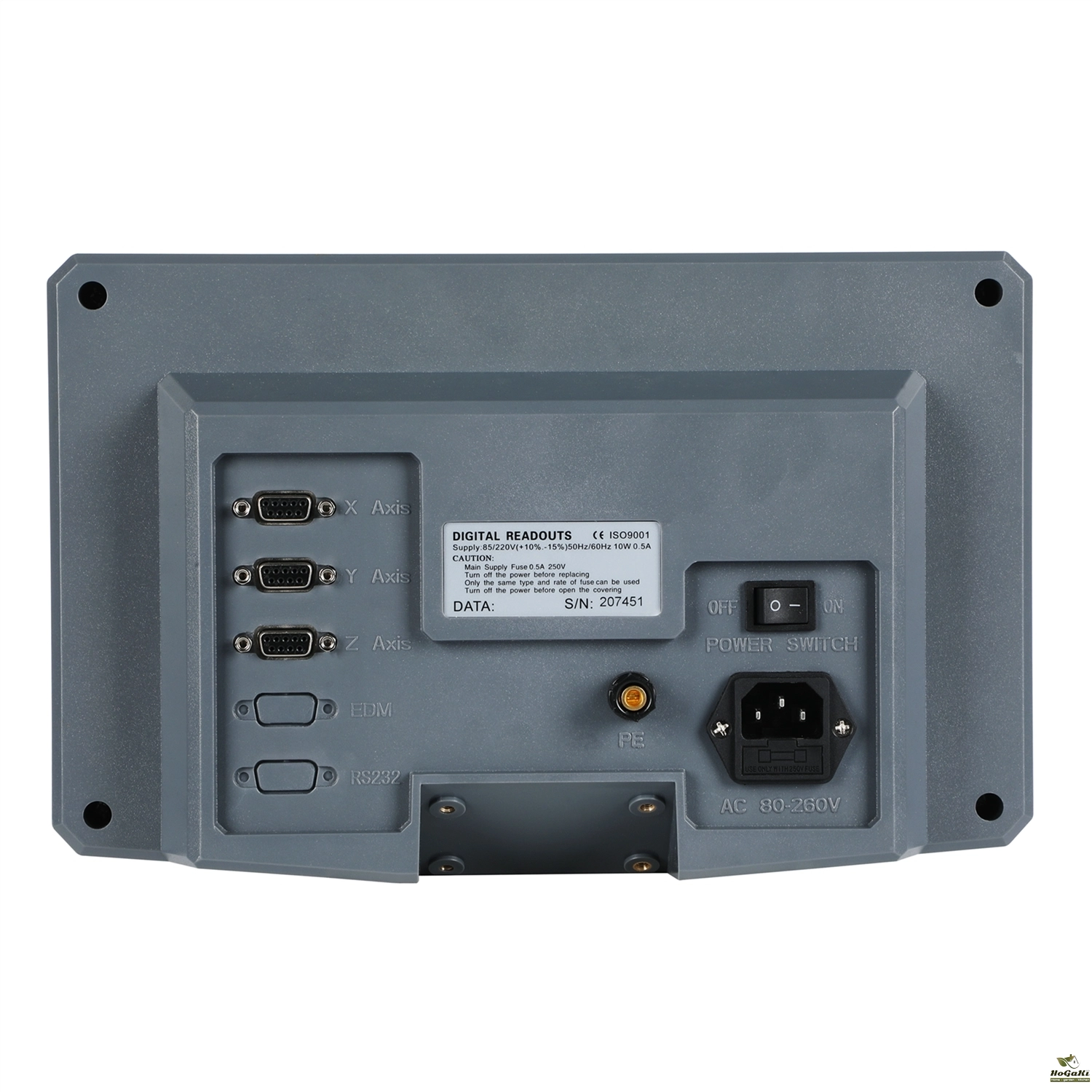

This 3 axis model allow up to 3 linear encoders to be connected. Additional interfaces are available to combine axis or convert the input to suit other manufacturers equipment. Please see the encoder compatibility guide below.

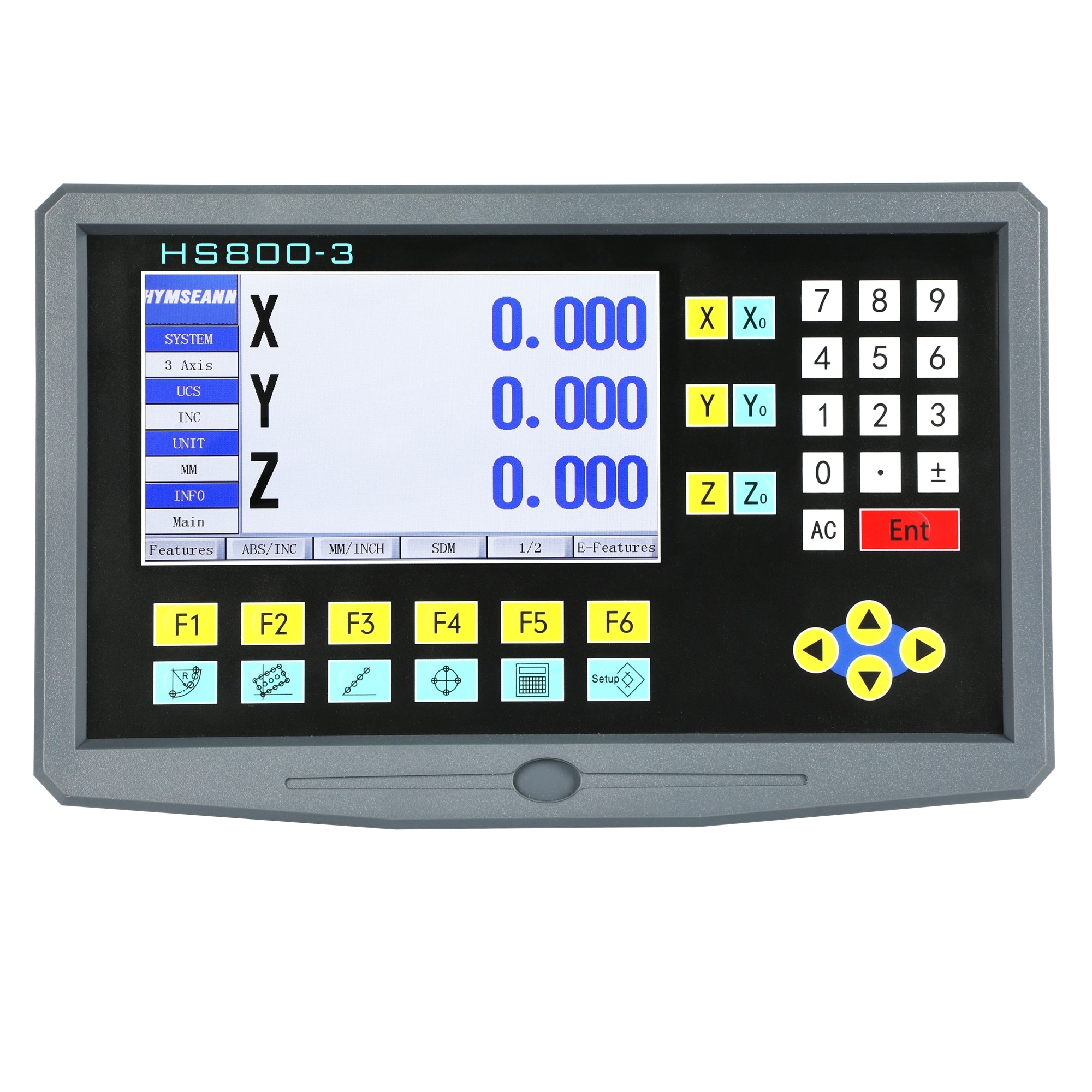

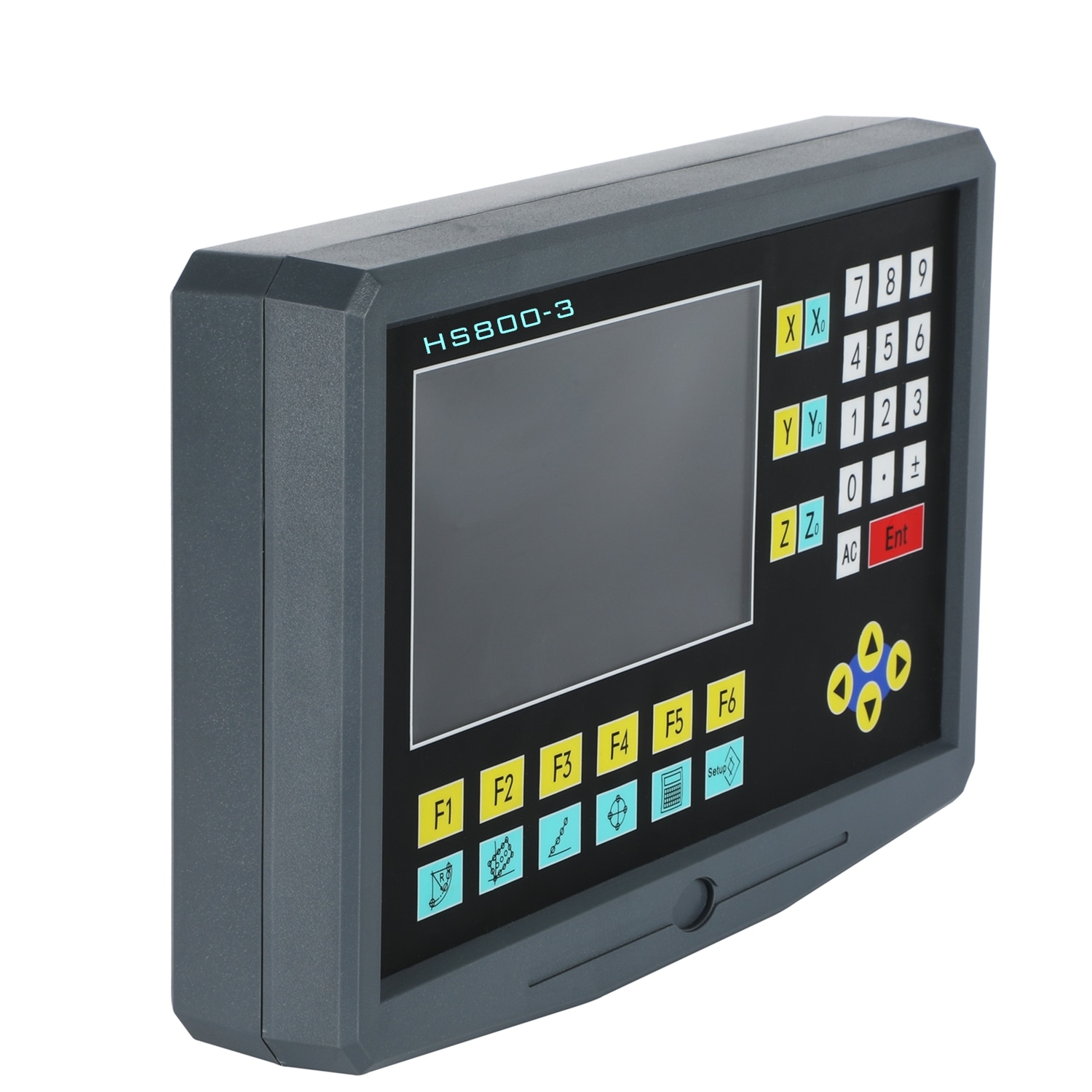

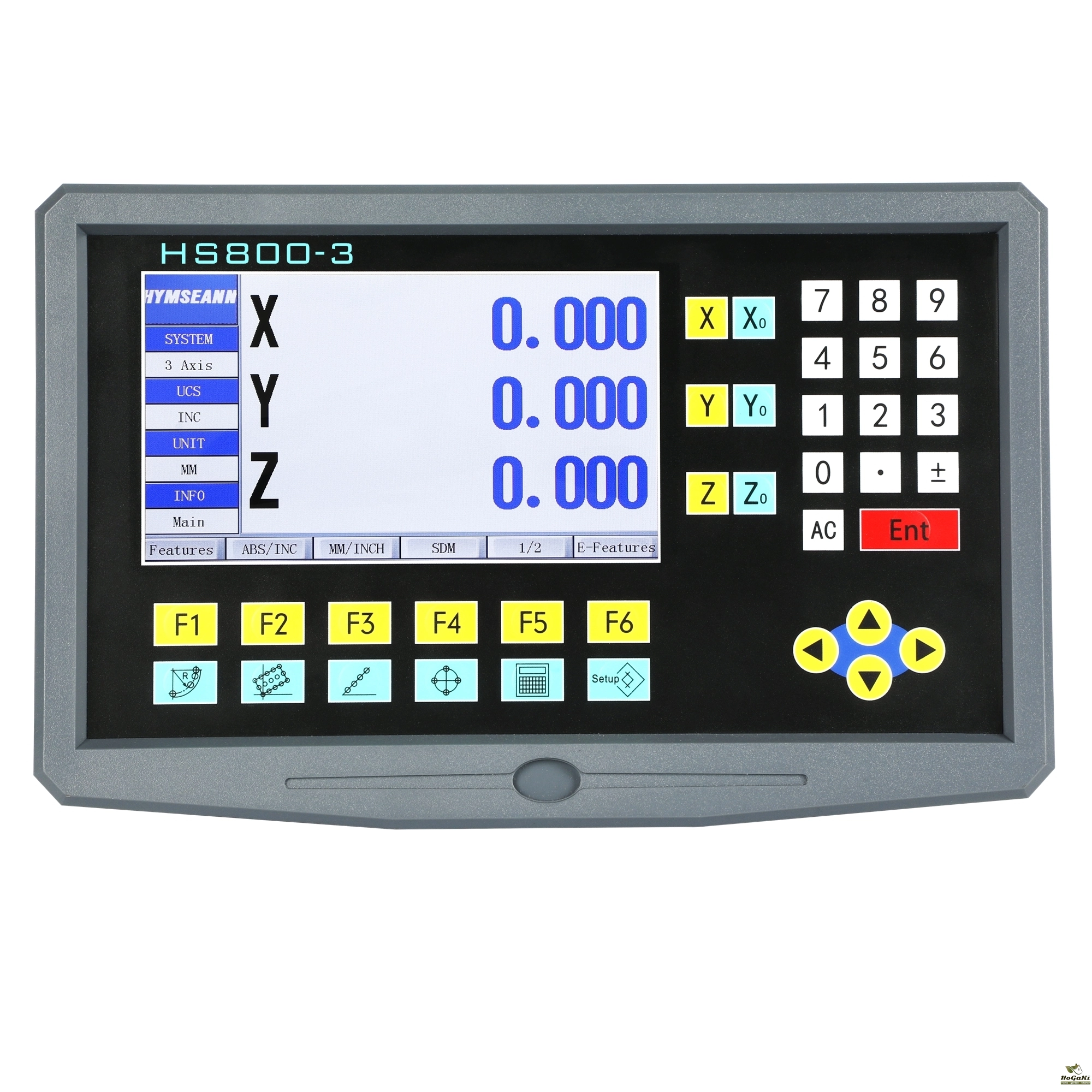

Durable front panel membrane with tactile switches and robust die cast housing.
Large easy to read LCD display.
Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.

The DRO HS800-3 is a Multifunctional 3 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function. The available input frequency of DRO is up to 5MHZ with A/B, it is also advanced in the world, and it's the first manufactory who employs 16 and 32 bits calculator in DRO system in China.

Basic Functions
200 Points Auxiliary Zero Position Function
Mid-split Function
"mm/inch" Conversion Display
Radius/Diameter Switch Display
Segmented Error Compensation
Linear Error Compensation
Power Interruption Memory
Sleep Switch
Mathematics calculation
RS-232-C ineterface (option)

Machining Functions
PCD circumferential division (Applicable to milling machine and spark tester)
Involute chamber machining function (Applicable to milling machine)
Bevel machining/Angular Surface Processing (Applicable to milling machine)
N3 function (Applicable to milling machine)
Diagonal boring (Applicable to milling machine)
R-arc function (Applicable to milling machine)
Taper measuring function (Applicable to lathe)
200-tool library (Applicable to lathe)
Anti-dithering function (Applicable to grinding machine)

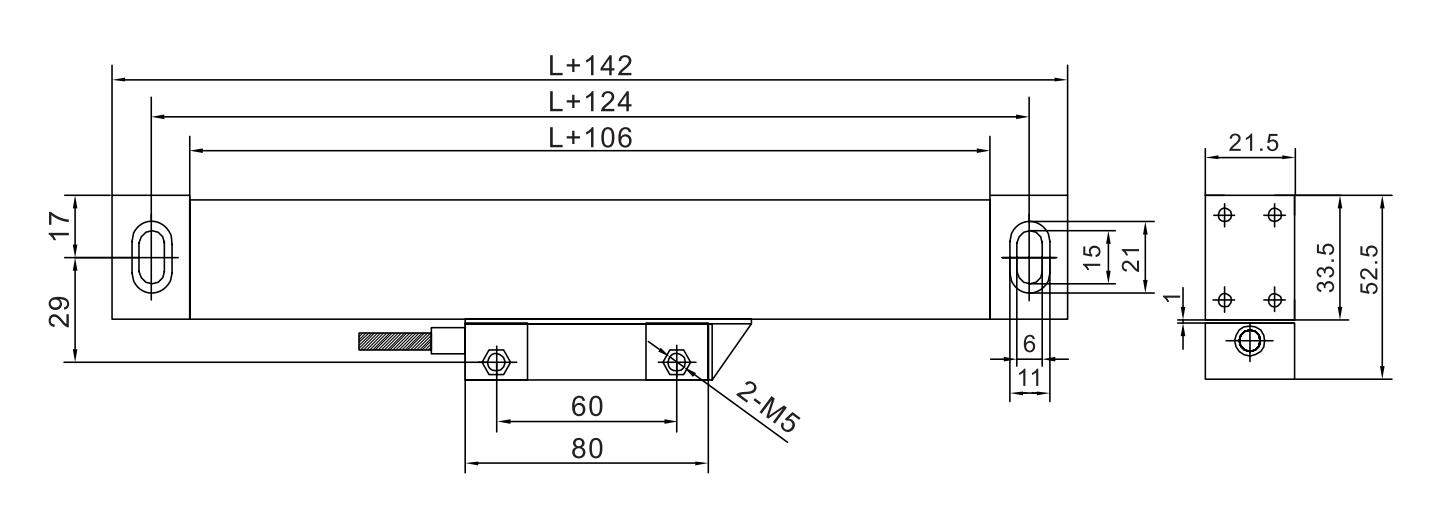

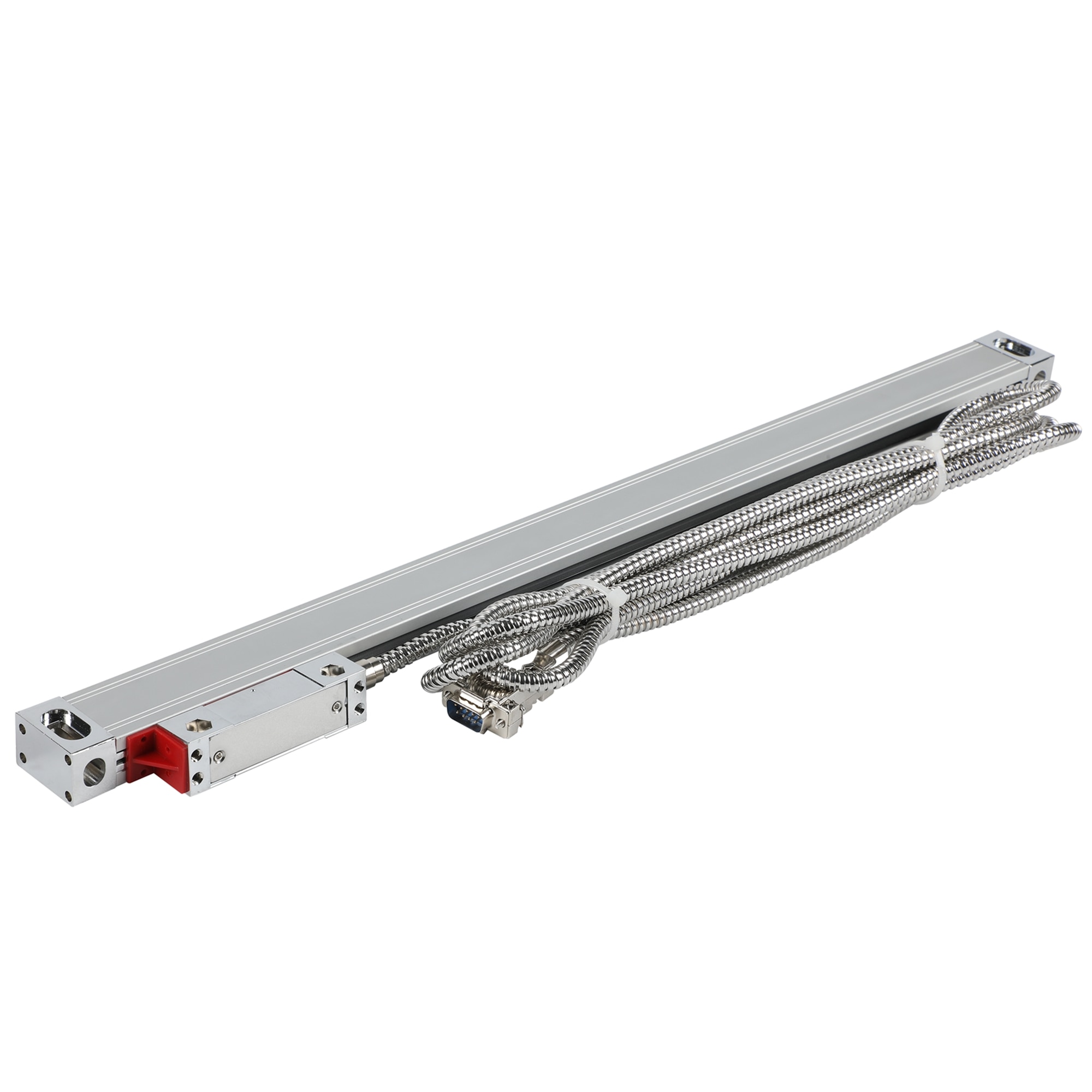

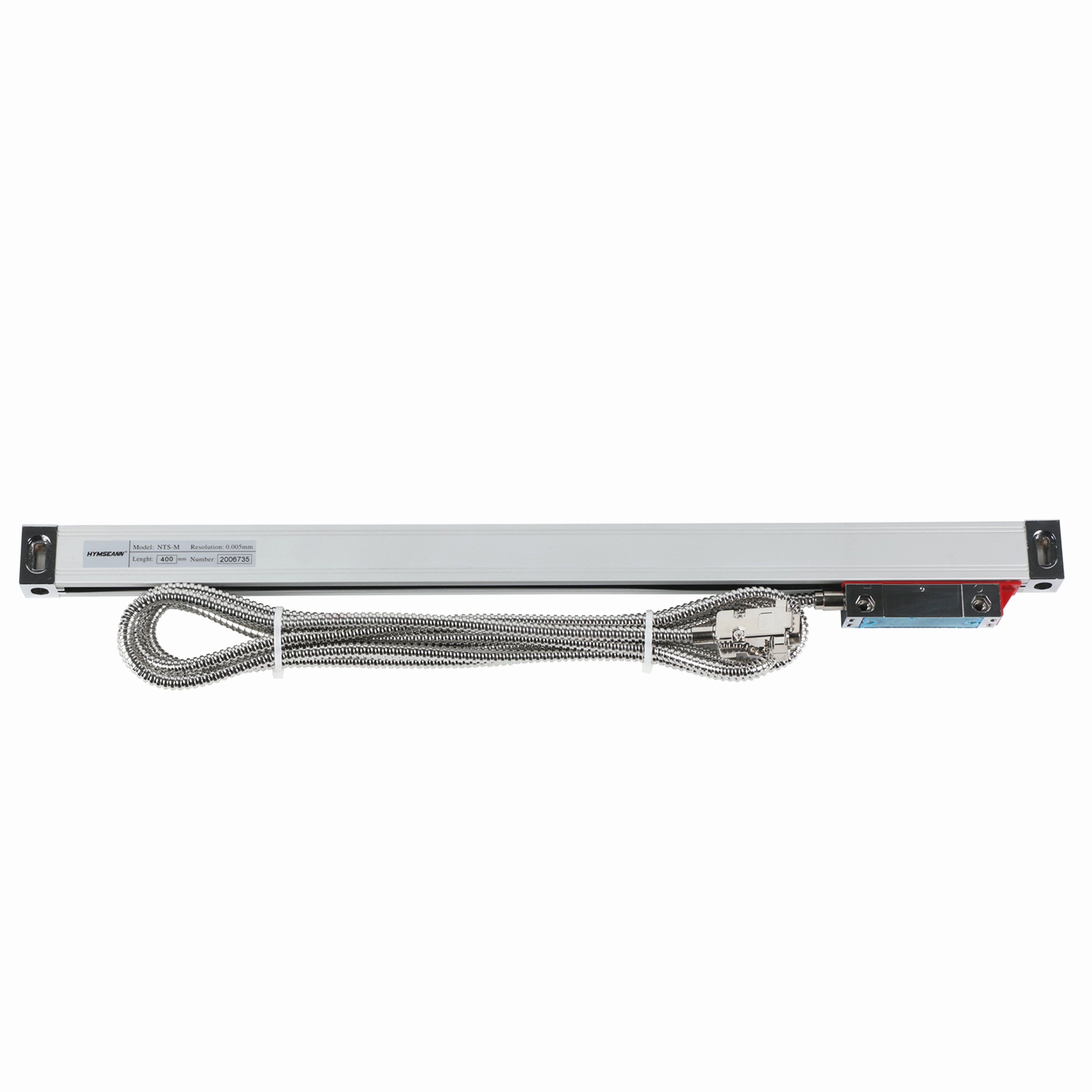

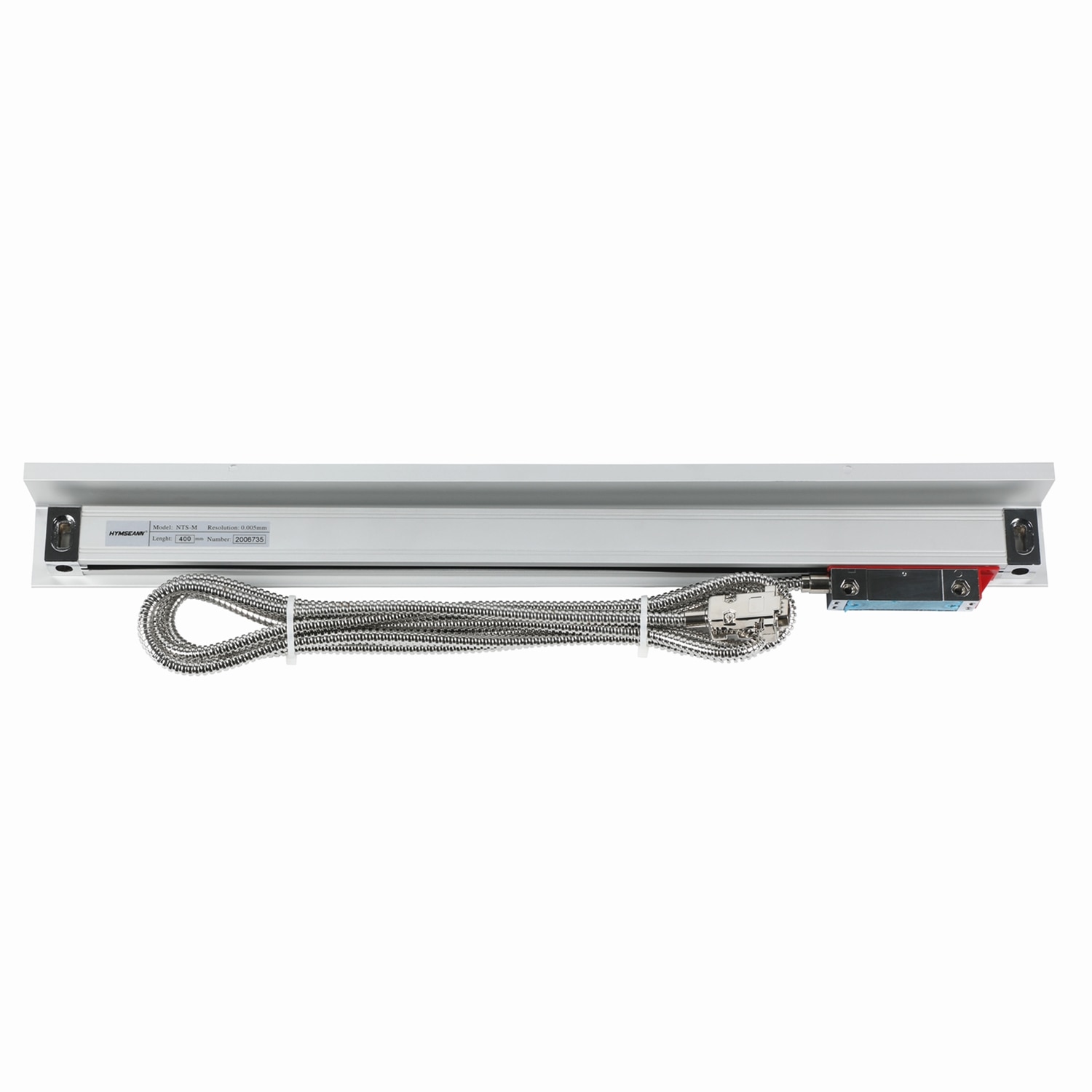

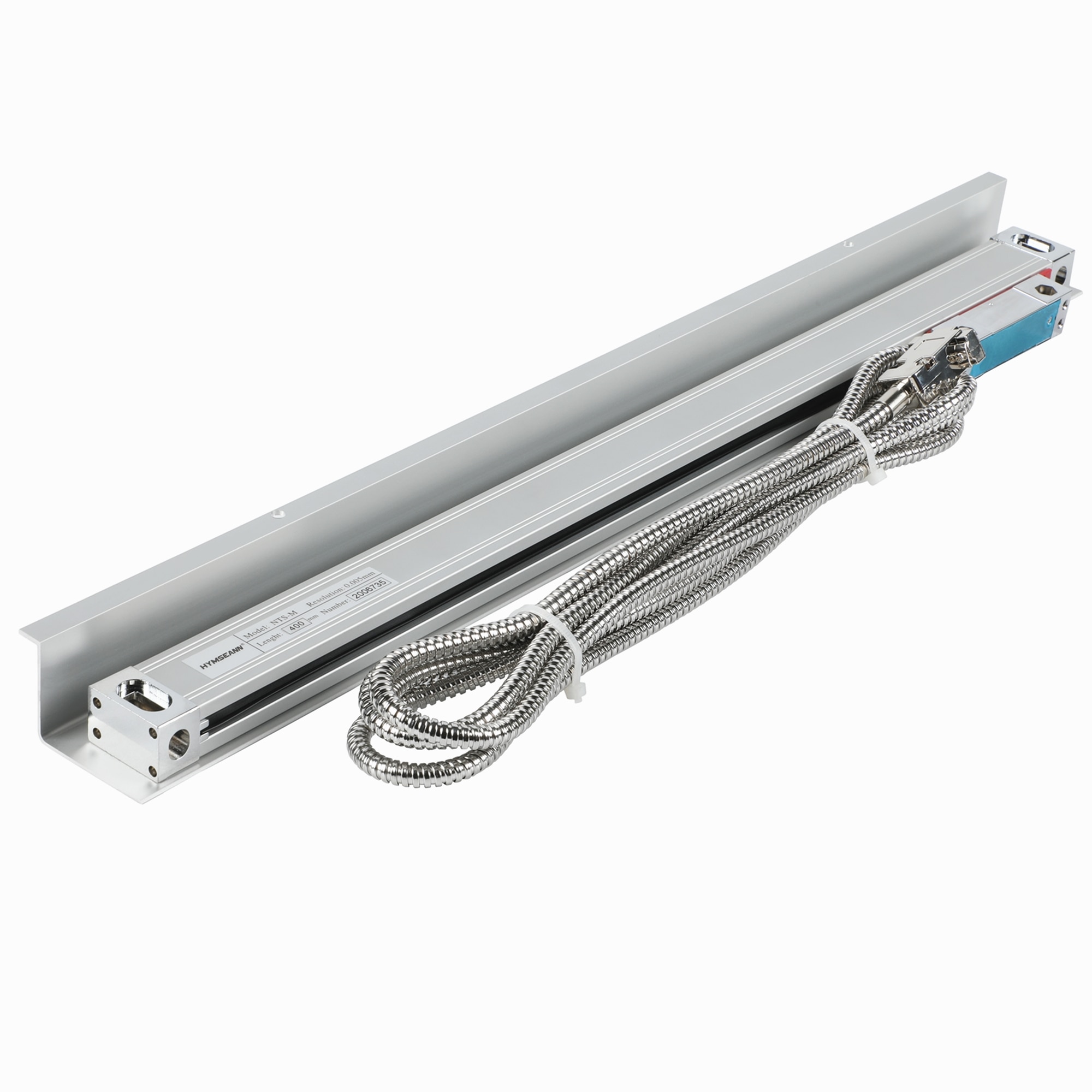

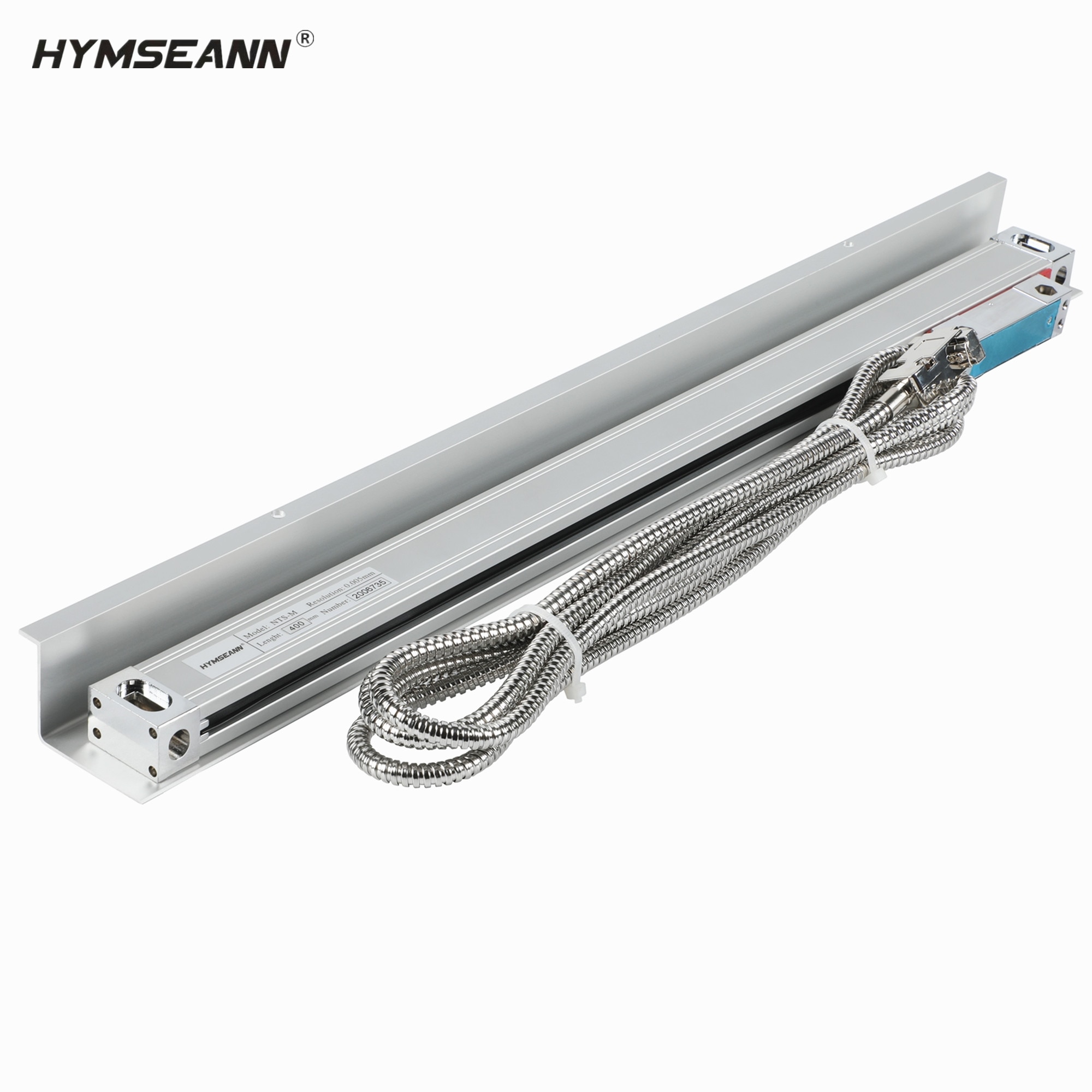

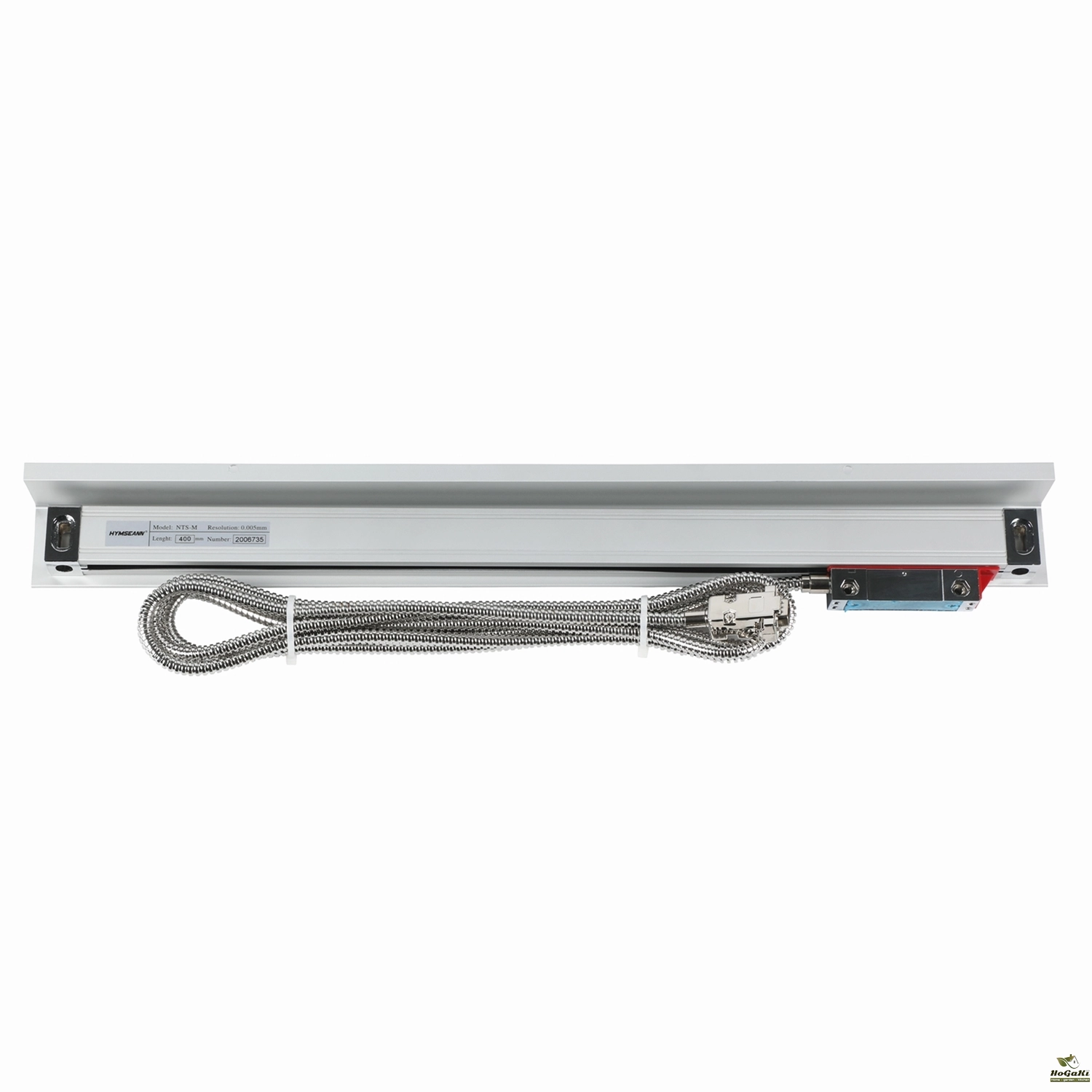

Scale Features

Product name: Linear scale
Applicated DRO: All China brand DRO
Resolution: 0.005mm
Travel length: 50mm-1000mm

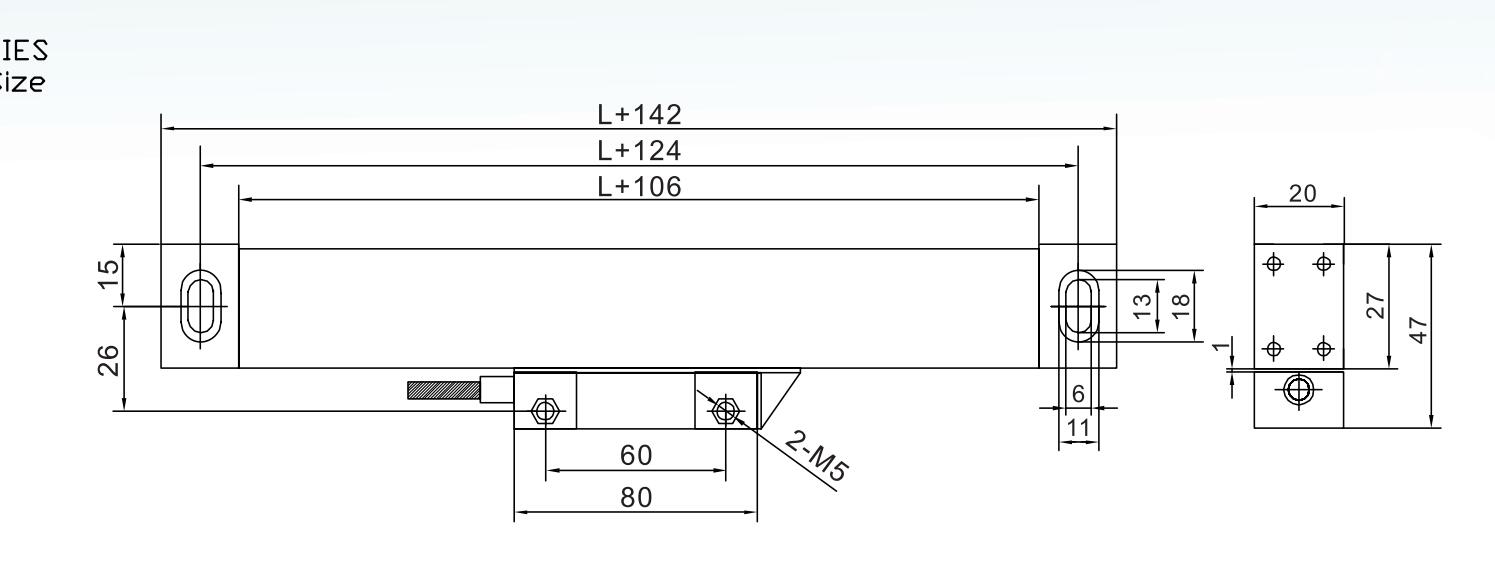

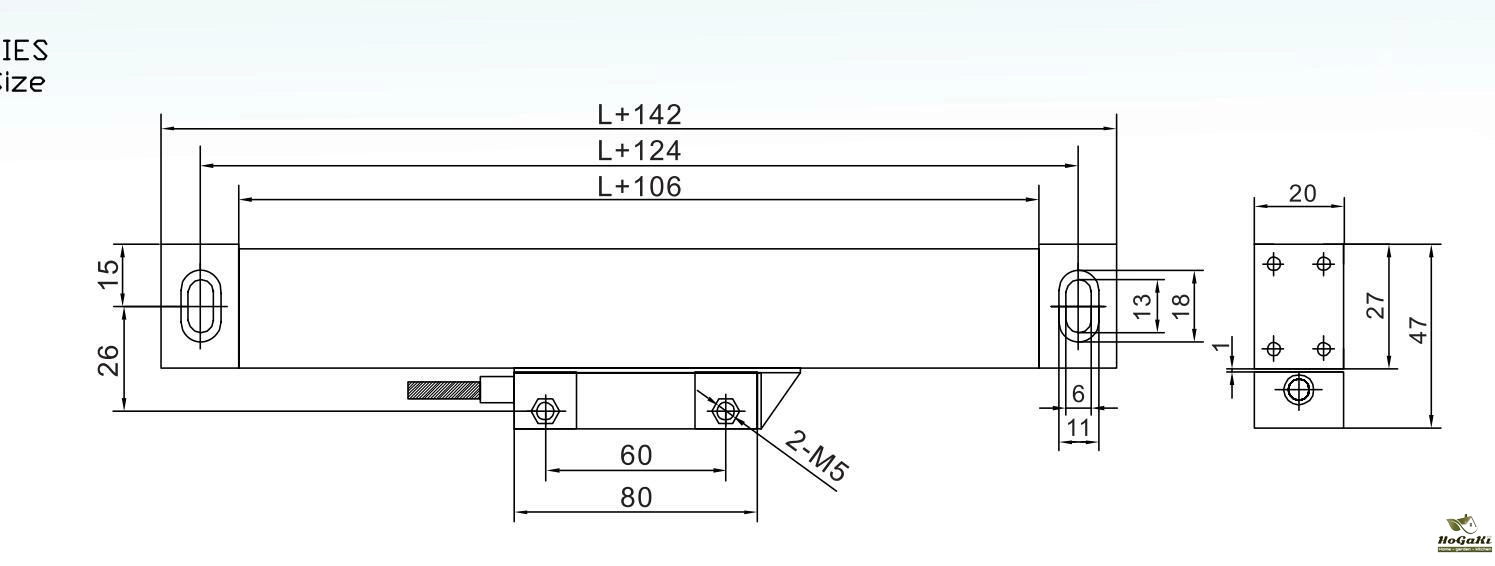

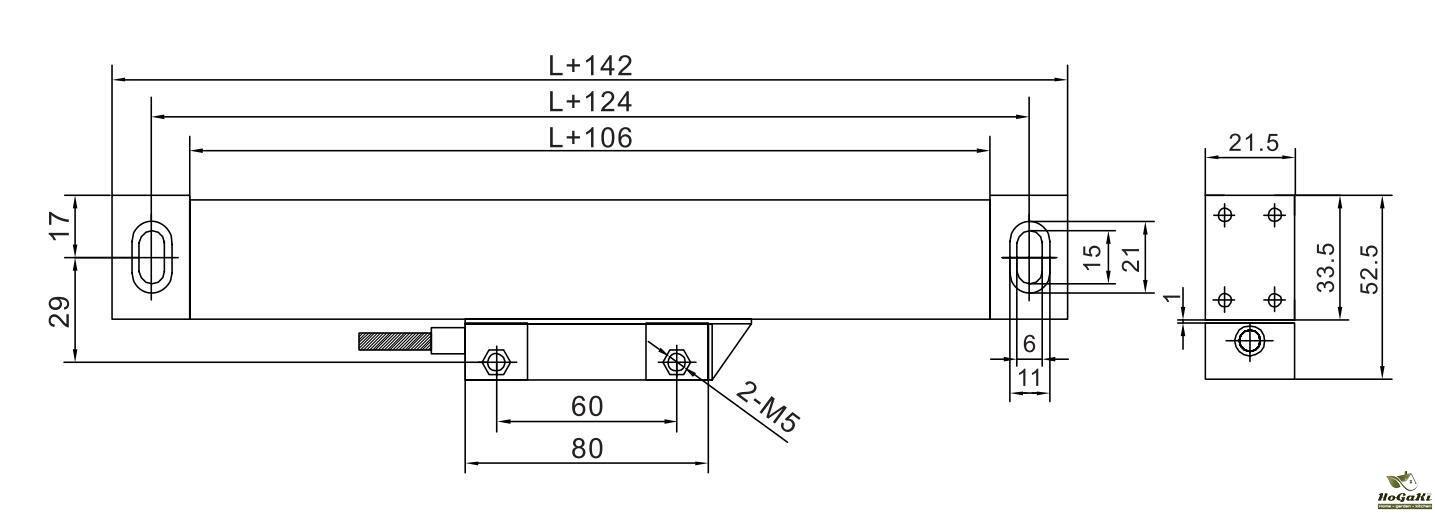

Actrual length: Travel + 141mm
Accuracy: +/-10umm
Ouput: TTL
Input voltage: 5VDC
Grating steps: 20um

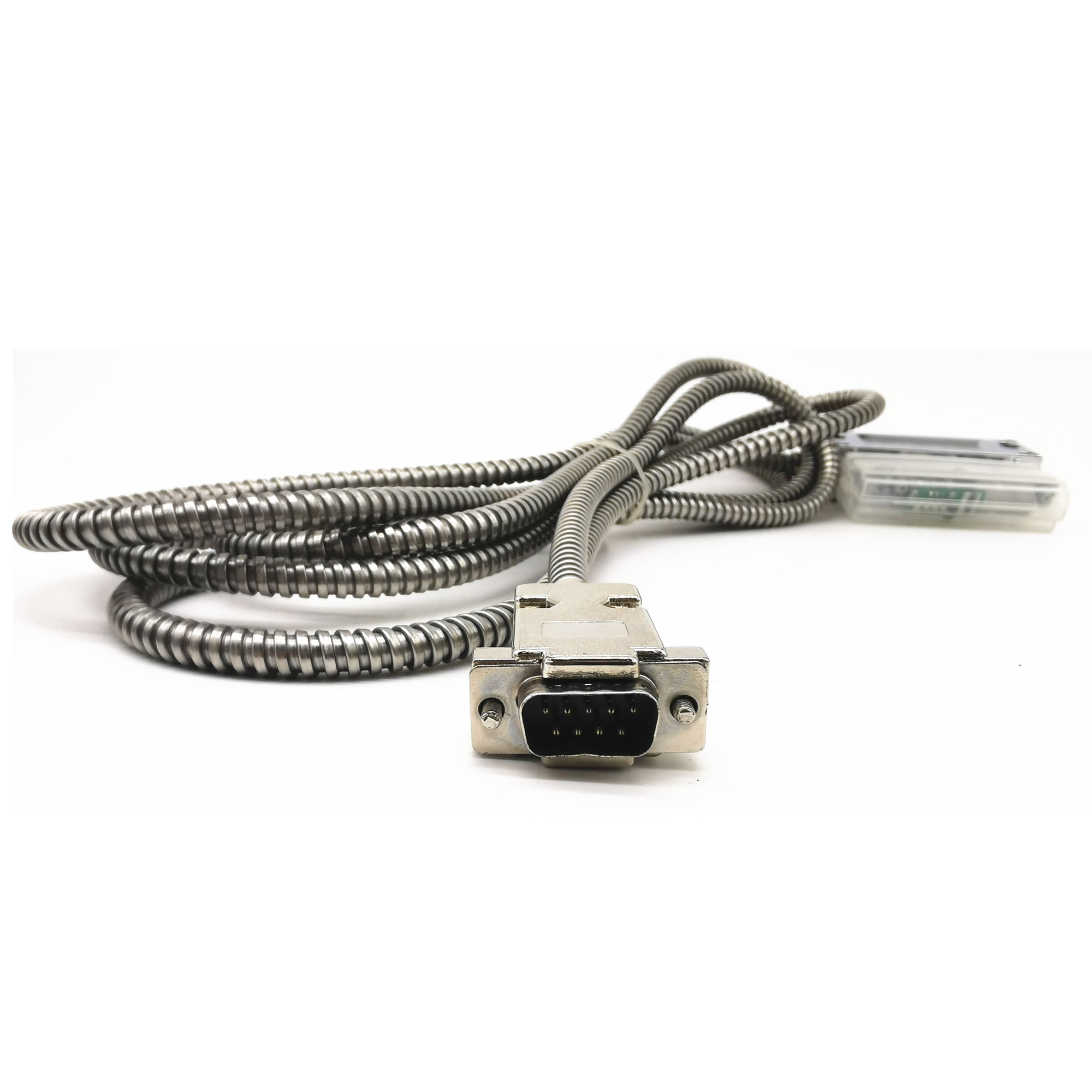

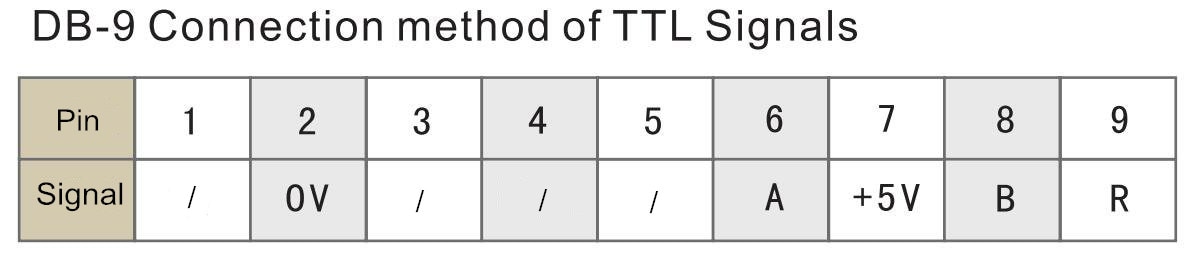

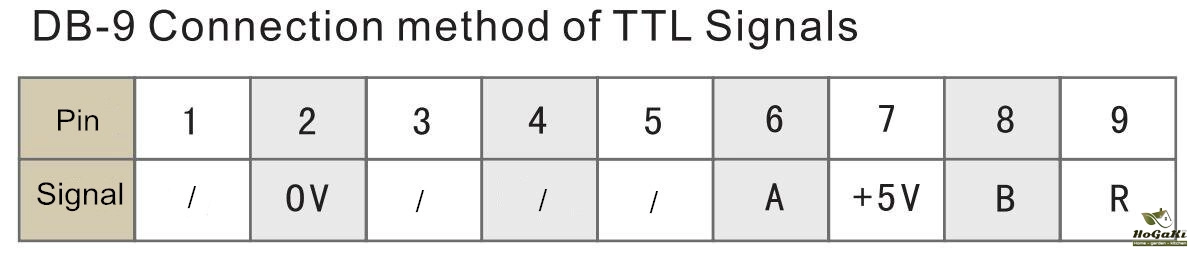

Connector type: DB9
Cable length: 3m
Warranty 2 years

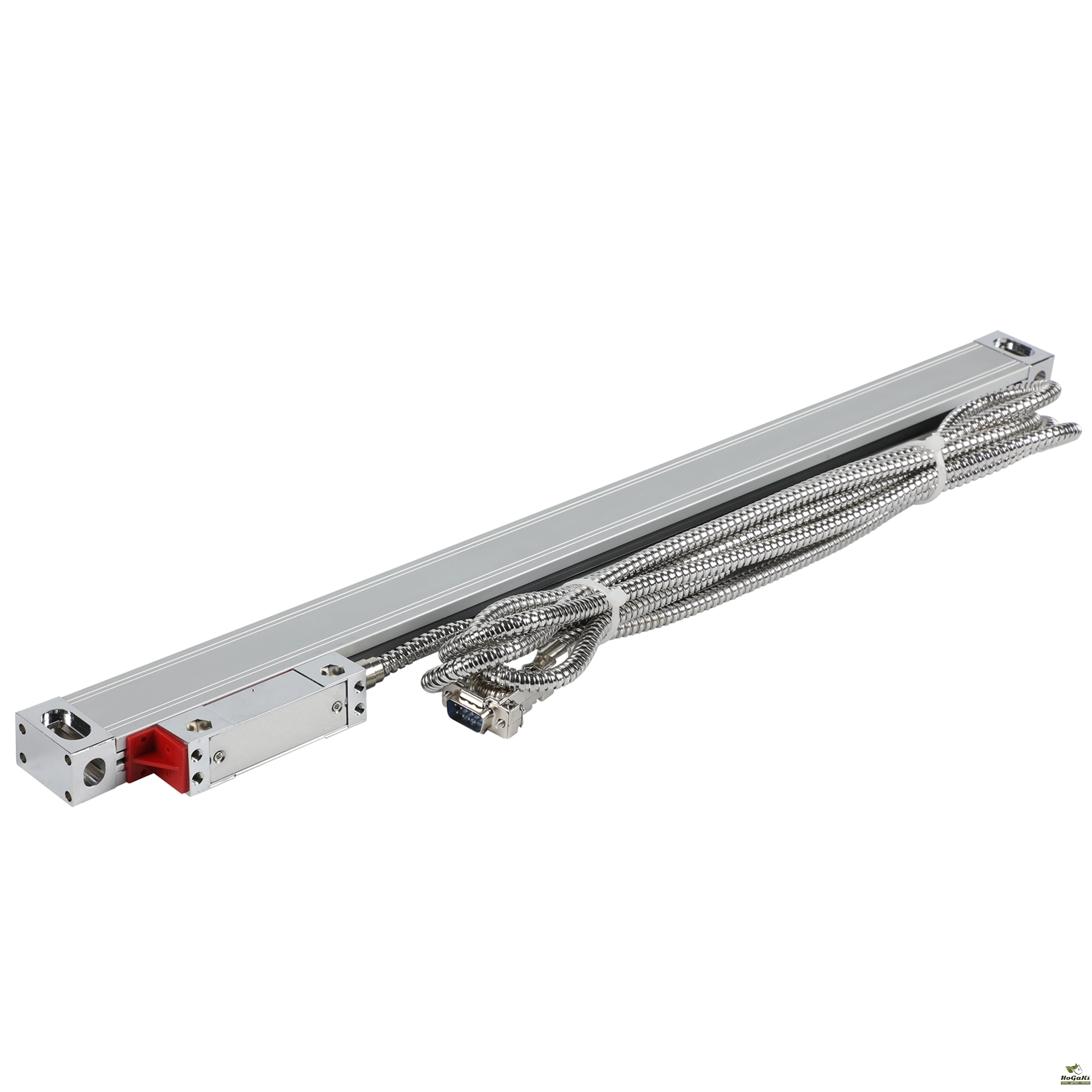

Slim scales available as following size

The slim scale doesn't charge any extra cost.

Shipment

When you place an order, plase choose a shipping method and pay for the order including the shipping fee (except free shipping). We will send the items within the delivery time once your payment is completed.
We will inform you if need to change to other shipping method or delay shipping.
We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We wiil not refund charges for refused shipments.
The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

Returns

We do our best to serve our customers the best that we can.
We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are intheir original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer will be responsible for the shipping fees to return the items.

Warranty

We offer the1-month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
We also provide 12-month free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced,the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.

Feedback

Your satisfaction and positive feedback is very important to us. Please leave feedback and 5 stars if you are satisfied wiht our items and services.
If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.




  • Model Number: HS800-3 / NTS
  • Brand Name: HYMSEANN
  • Certification: CE
  • Origin: Mainland China
  • Product Name: Mill Lathe Turning CNC DRO kit
  • Advantange: Big LCD display
  • Input voltage: AC110V/220V 50/60Hz
  • Resolution: 0.005mm
  • Scale Travel length: 50-1000mm available
  • Scale cable length: 3 meters
  • Siginal: TTL
  • Number of Axis: 3 Axis
  • Application: Milling, Lathe, Turning, Boring Machine etc.
  • Warranty: 2 years
