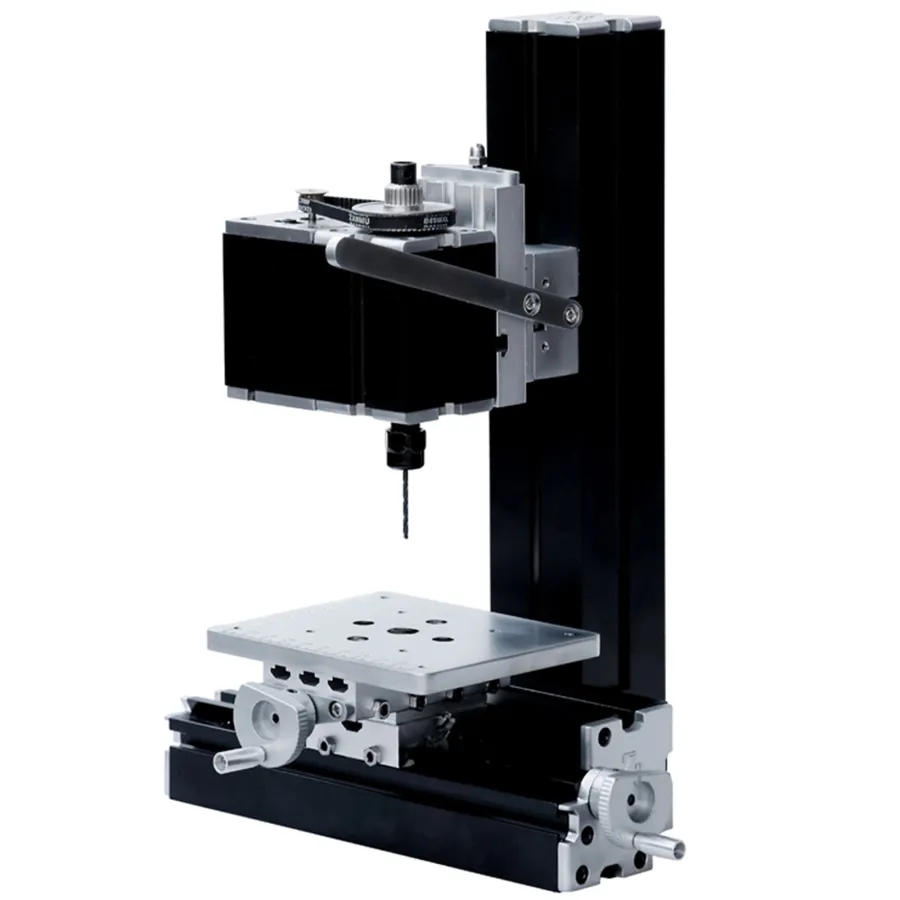

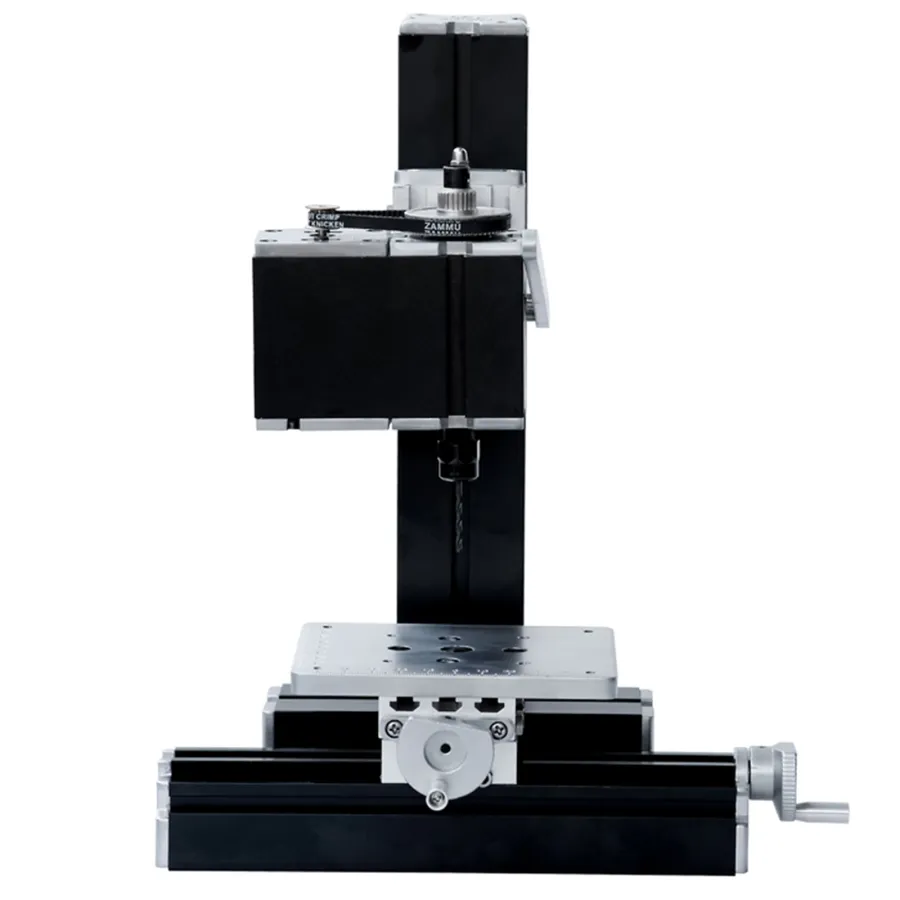

ZRZX01036 STEM Mini Metal Drilling Machine , 36W 12V Miniature Driller DIY Maker Tools for Hobbyist Modelmaking Craft



Product Characteristic

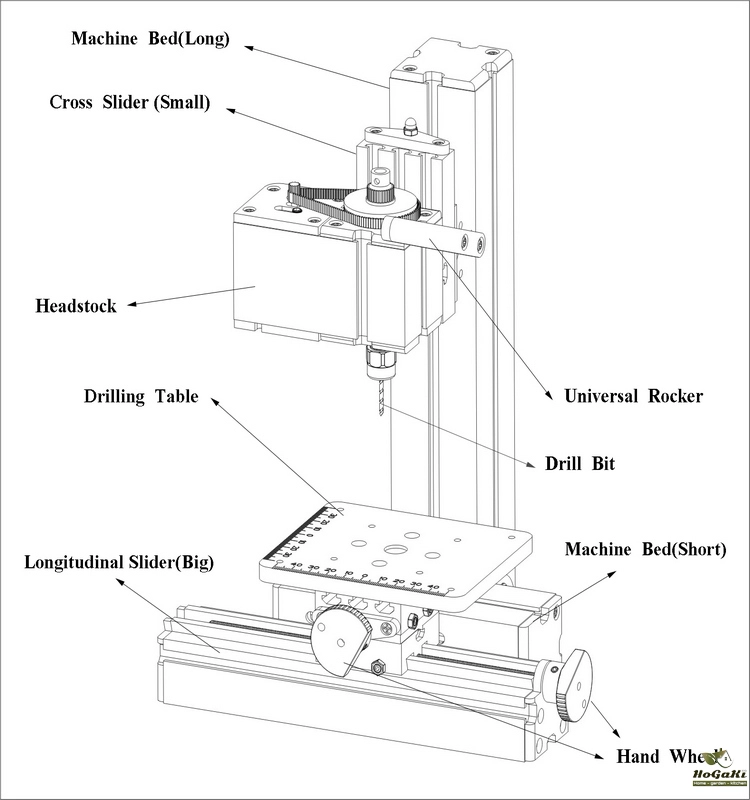

1.The motor case and headstock of all-metal machine tools is jointed completely. Main parts configure with metal structure and no plastic components in the whole machine body, such as motor box, headstock, slider, machine bed, gear, side cover, working table, connection piece, tailstock, countershaft, drive belt cover etc.

2.Fan built-in motor is featured with Ultra-quiet & high rotary speed. That's special customized option for motor cooling & effective work.

3.The most parts of machine tools are dealt with two surface treatment methods of electroplating and ink-jet anodized to make appearance more cleaning & glorious, lasting rust-proof.

4.Machine bed is made of Europe standard T-type aluminum material, moving more precisely &smoothly.

5.3C quality assured transformers have the function of over-current, over-voltage and over-heat protection.

6.To improve the stability and service life, the connection piece be fixed by square nuts, which avoid screw loosing after long time vibration.

7.The connection piece adopts dovetail structure, which matches with each slot of the machine tools parts to enhance its performance and accuracy.

8.Children-proof design & safe fillet processing technology, they are all to prevent metal parts from scratching the skin.

9.Versatile application: the mini metal drilling machine can be used to cut & process all kinds of material, such as plywood, paper-based board, organic glass, thin aluminum sheets and aluminum-plastic panels etc.

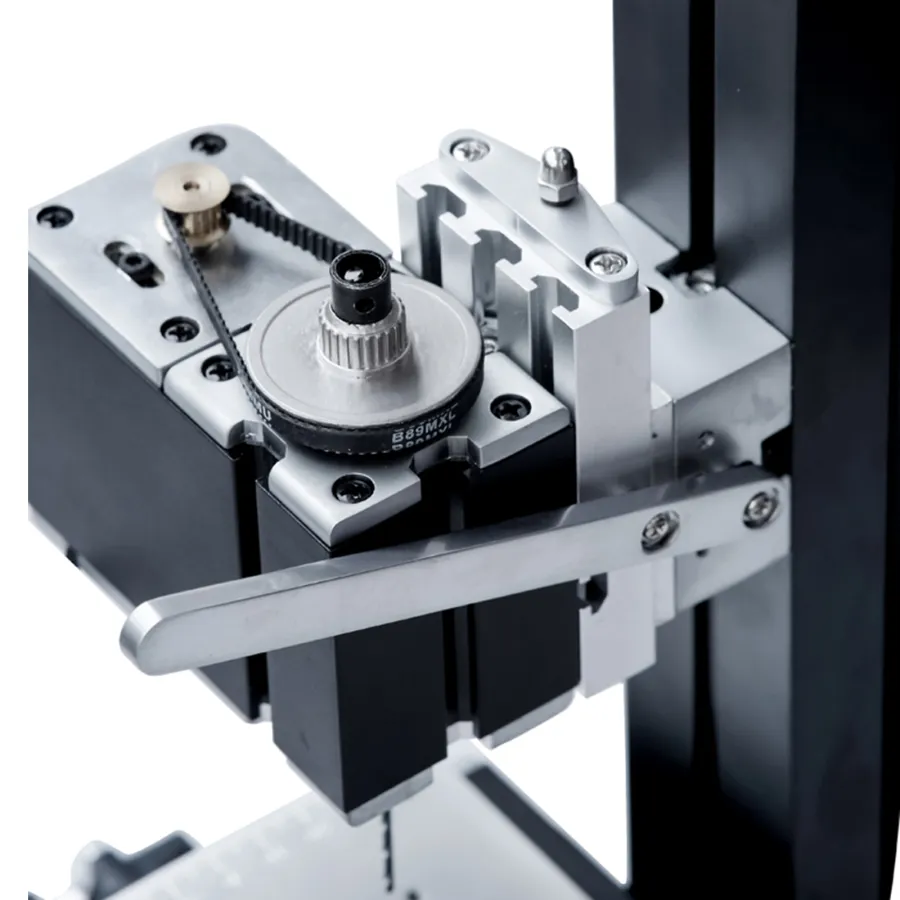

10.The up and down of mini metal drilling machine be controlled by universal rocker. It's suitable for drilling on the soft metal (gold, silver, copper & aluminum), acrylic and engineering plastics etc.

11. The chuck is fixed by a hexagon nut to increase the tightness of the clamping tools (such as drill bits, cutters, wood-turning lathe driver).

12.By adding some loose-preventing nuts on the side of small& big slider, not only avoid the gap after excessive vibration, but also improve the processing accuracy.

13.The right& left sides of the electroplated metal intermediate piece have U-shaped holes for mounting rocker arms of the machine tools

Technical Parameter

1.Hi-power motor is adopted with all drive axes, maximum speed up to 20,000 rpm

2.Input voltage/Current /Power: 12V/3A /36W

3.Input Voltage of Switch Power Supply: 110V - 240V

4.X-axis slider travels: 150mm

5.The chuck and collets is 1 to 6mm

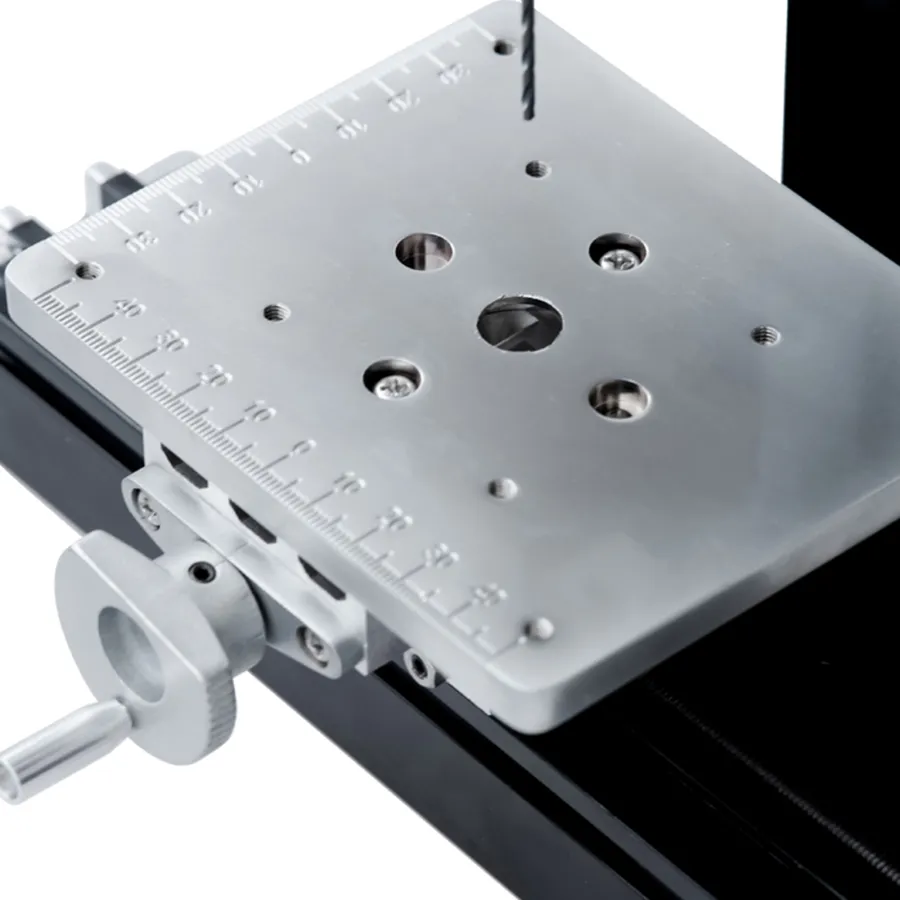

6.Drilling table area: 120 X120 mm, molded with accuracy of 0.02mm scale line, that's great helpful.

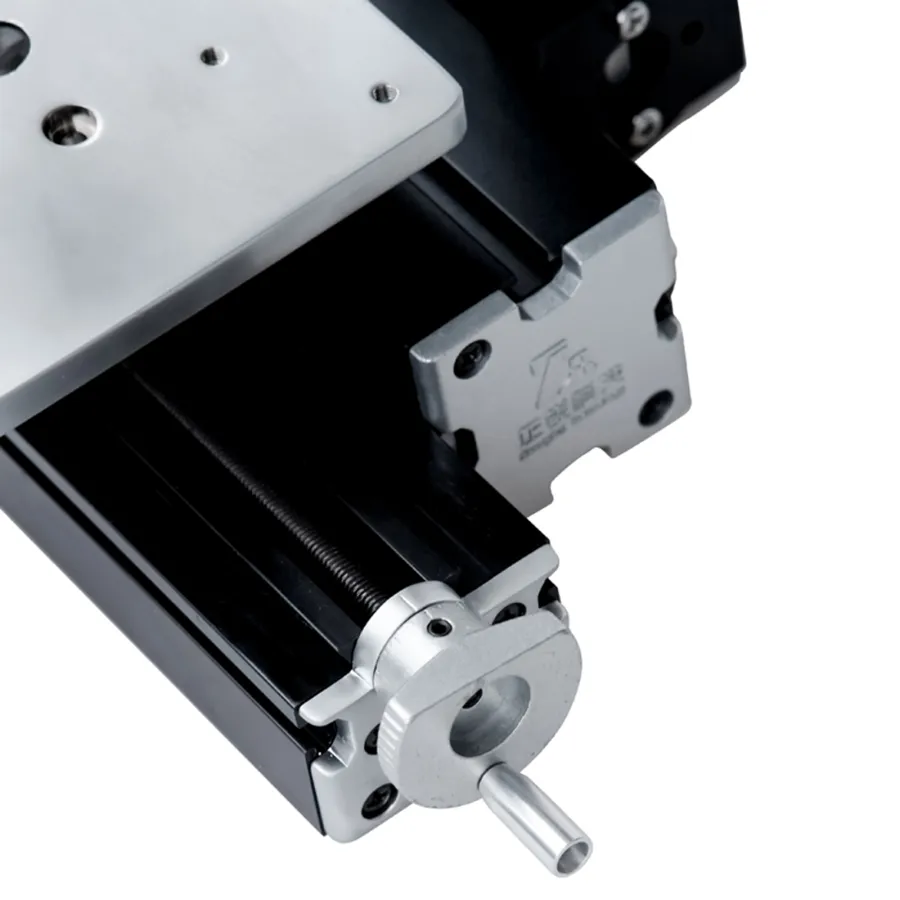

7.The whole hand wheel is made of super alloy material, which be assembled in X, Y and Z axis. Featuring with 0.02mm scale line, the hand wheel increases the precision when processing. (The scale lines are molded at one time, aren't sticky label)

8.3/4 semi-circular structure designed hand wheel, that's quite convenient for dismantling connection blocks.

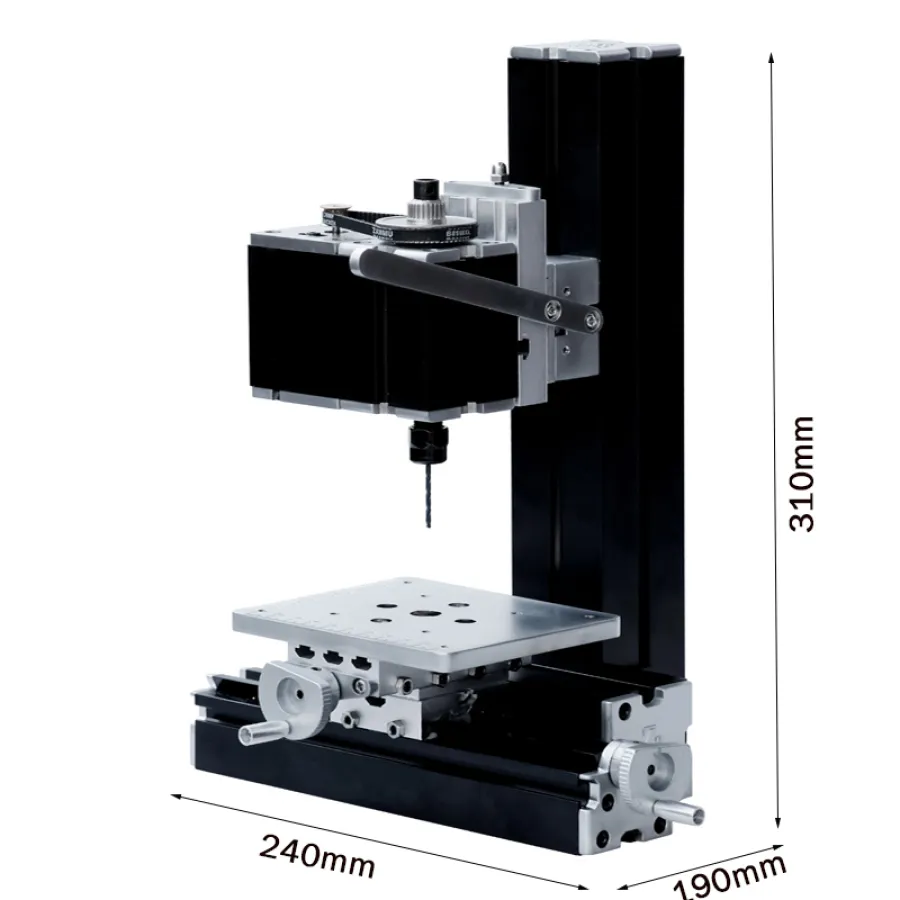

9.Machine size:250mm*208mm*300mm

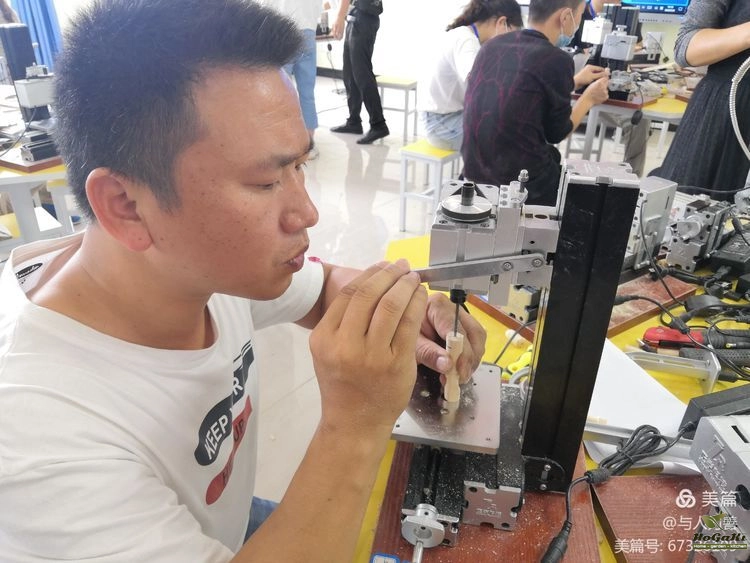

Application Case &Modelmaking Sample

Packaging & Shipping

Outside vacuum plastic bag+Corrugated paper box,inner EPE foam packing

DHL/Fedex/TNT/UPS and special cargo service are all available, the lowest rate will be quoted for long term cooperation

After receiving the payment, we will arrange the delivery within 3-5 wokring days accordingly

FAQ

Question1: What's the usage of ZR miniature machine tools?
The miniature machine tools have the same features as big industrial machines, the only differences are their size and the 12V drive. You can use it for DIY model making and some little crafts, which is also able to process hard wood, soft metal, alloy etc...
Based on its modularity and the child friendly use, that's ideal& creative product to inspire children hand-on skill &innovative ability.

Question 2: Is it easy to assemble and operate the miniature machine tools?
What we provided is the installed complete machine tools, meanwhile, there is full set of English manual & guide videos to show you how to use it smoothly. If you still have any query, please contact us by e-mail / whatsapp/ mobile phone for online service.

Question 3 : How about the after sales service?
Firstly, quality guaranteed by the authoritative certificate of CE, RoHS, FCC , ISO9001:2008
Second, free spare parts and one year warranty
Third, regional agent service system & 24*7hrs on-line technical support available
