DC 12V RFID Embedded Barcode 2D QR Code Reader Access Control Reader Wegand USB RS232 RS485 Interface QR Scanner 2D Box
4.8 (27 votes) | 153 orders
Price:
US $176.51 - 202.86
Discount Price:
US $
54.04 -
60.16
-69%
- Color
-
-
Overview

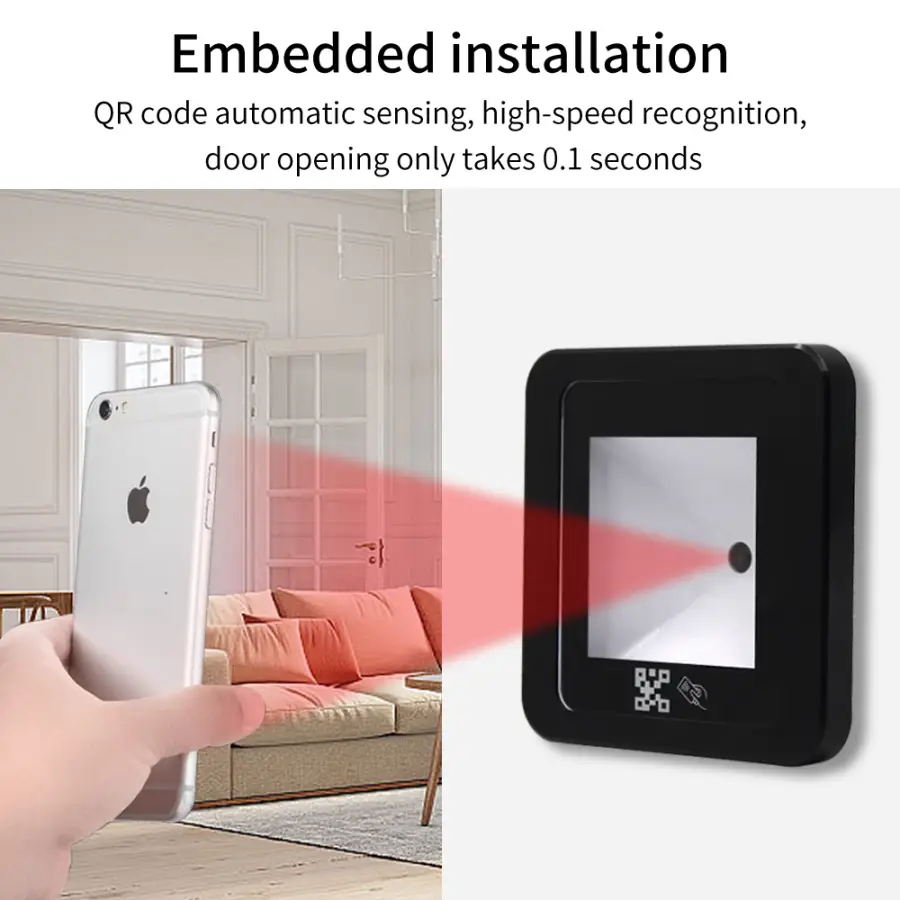

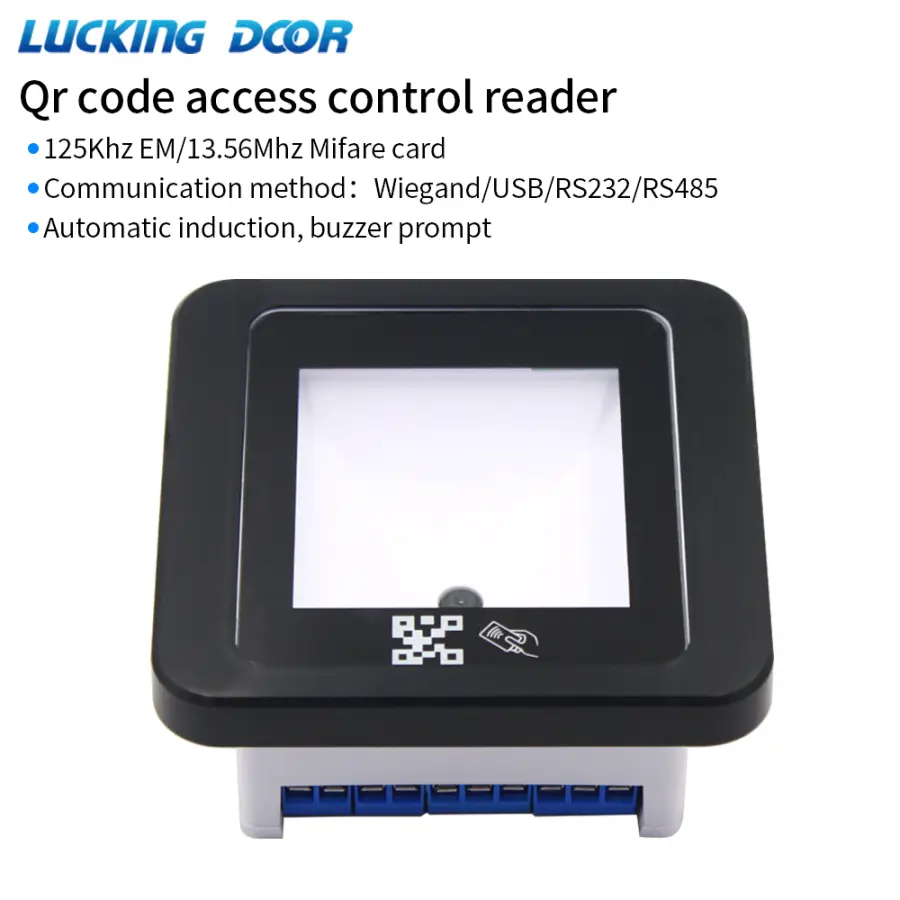

The QR code + RFID card reader is a new generation of smart card reader developed by our company. The appearance of the product adopts the standard 86-box industry standard. It has fast scanning speed, high recognition rate, and strong compatibility. It can be connected to any Wiegand input Controller, suitable for various application scenarios. At present, it is widely used in business office building visitor entry management, scenic tourist staff management, community visitor entry and exit management, administrative hall access control management, supporting gates, access control, visitor machines, smart homes, etc.; it is a perfect upgrade for the traditional credit card system of various industries.
technical parameter
project | parameter | project | parameter |
Card reader type | EM card or Mifare card | Barcode type | QR, one/two-dimensional code |
communication method | Wiegand/USB/RS232/TCP-IP/RS485 | Decoding mode | Image decoding |
Reading direction (bar code) | Angle 45° with the lens as the center point | Scan code characteristics | Automatic induction, buzzer prompt |
Operating Voltage | 8-12V | Working current | 800mA |
Reading distance(card) | 3~6CM | Reading speed | ＜200ms |
Reading distance(QR code) | 0-20cm | Material quality | PC and tempered glass (scan code window) |
Working humidity | 10%~90% | Operating temperature | -20℃~70℃ |
operating system | WindowsXP/7/8/10), Linux | Size | 86mm×86mm×42mm |
Indicator light | Red work light, green feedback light, emerald green network light | Weight | 150G |
Remarks | Restore factory settings: Use a sharp object to insert into the Reset hole on the back of the QR code reader, and automatically restart and release the card reader. | ||
General

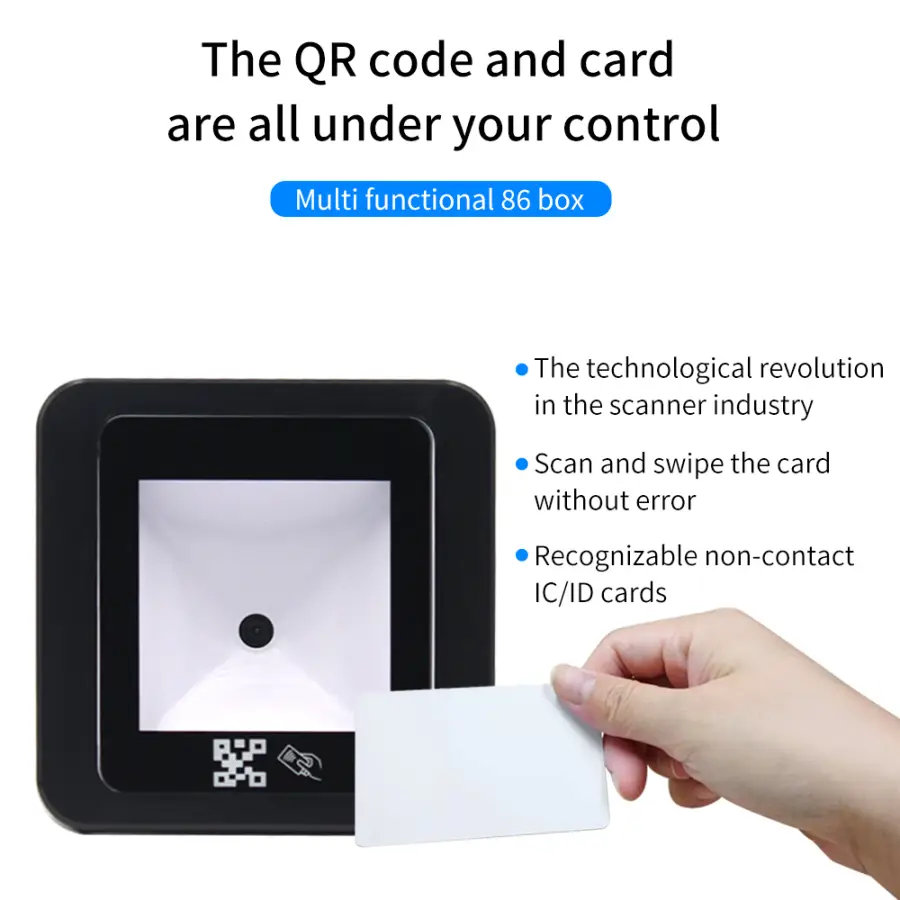

QR Code Access card Reader is our new intelligent Access Card Reader, Fast reading speed, High recognition rate, Strong compatibility, can connect to any Wiegand input contronller, widely Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home; Upgrade old access control systems etc.
Specification
Card type | EM or Mifare |
Code Type | QR Code, 1D |

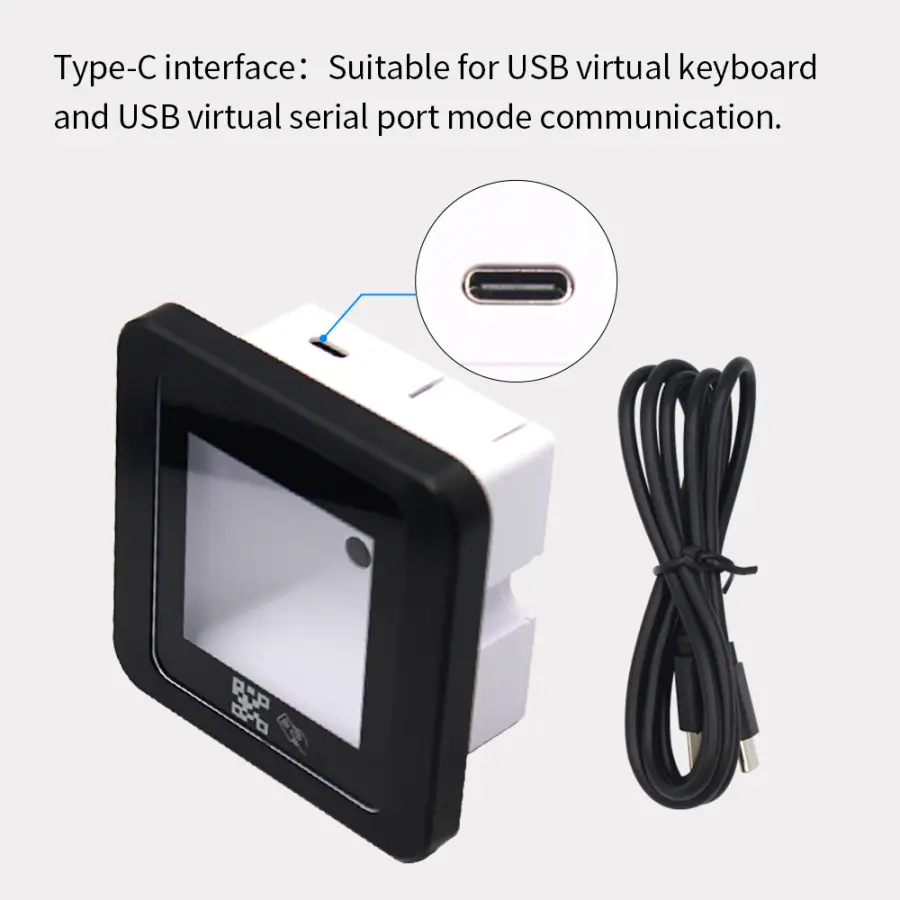

Interface | Wiegand26/34, RS232,USB,RS485,TTL |
Decode mode | Immage decoding |
Reading directions | Camera centric slant 45° |
Reading feature | Auto-induction & beeper |
Voltages | 4-12V Wide voltage input |
Current | 800mA |
Reading range of range | 3-6CM |
Reading speed | <200ms |
Reading range of QR | 0-20CM |
Materialcase | PC & temperrd glass |
Humidity | 10%~90% |
Temperature | -20℃~70℃ |
Operate system | Windows(XP,7,8,10), Linux |
Size | 86mm×86mm×42mm |
Status light | Red-work,Green-feedback,Light Green-internet |
Wight | 150G |
Remark | Use sharp objects inserted into RESET hole of QR code reader backside, release till the QR code reader automatically restarted. |
Model

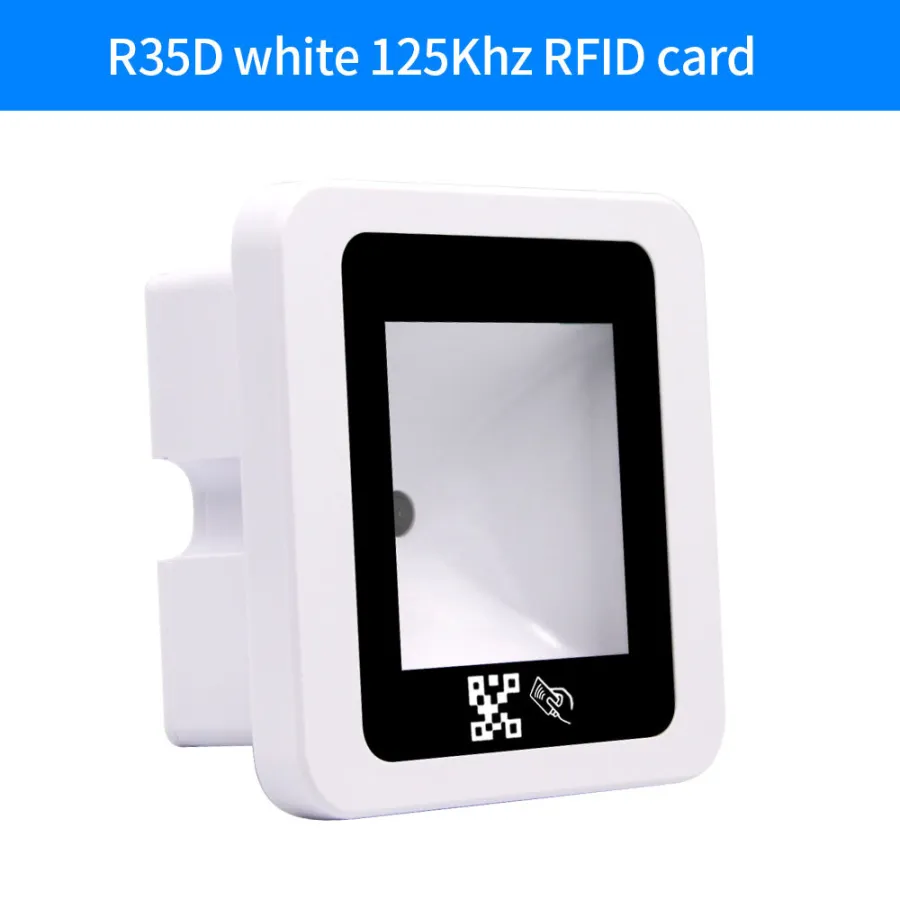

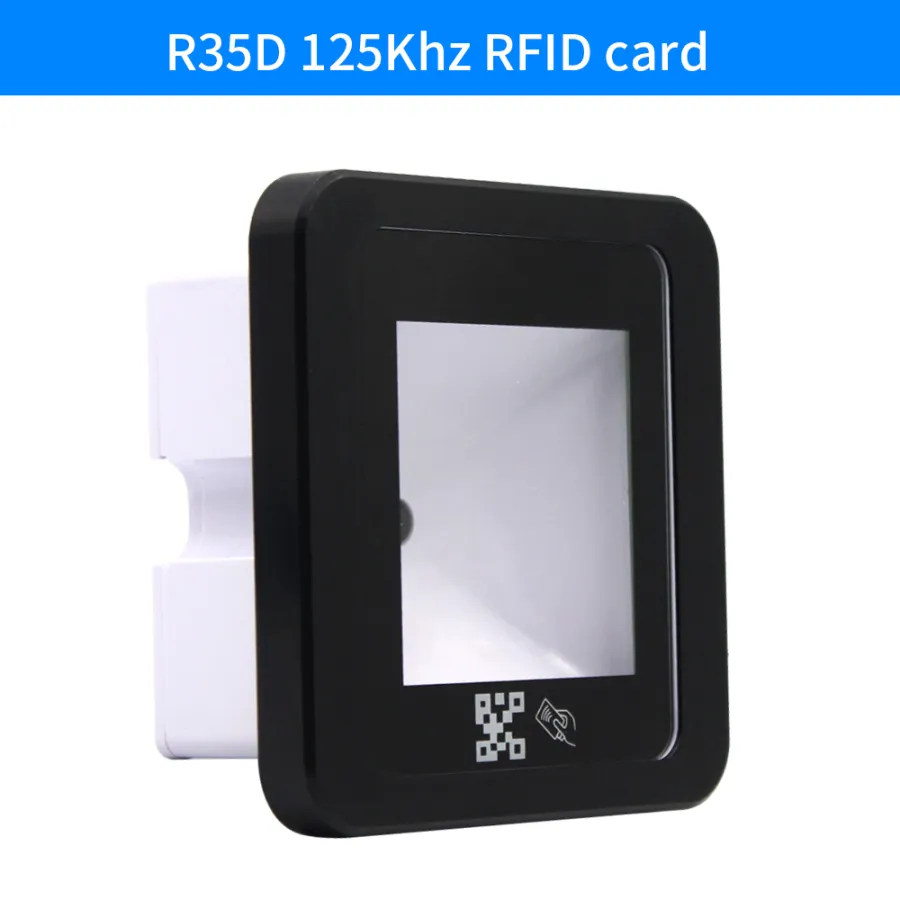

R35-ID | QR 2D Barcode + EM (125KHZ) |

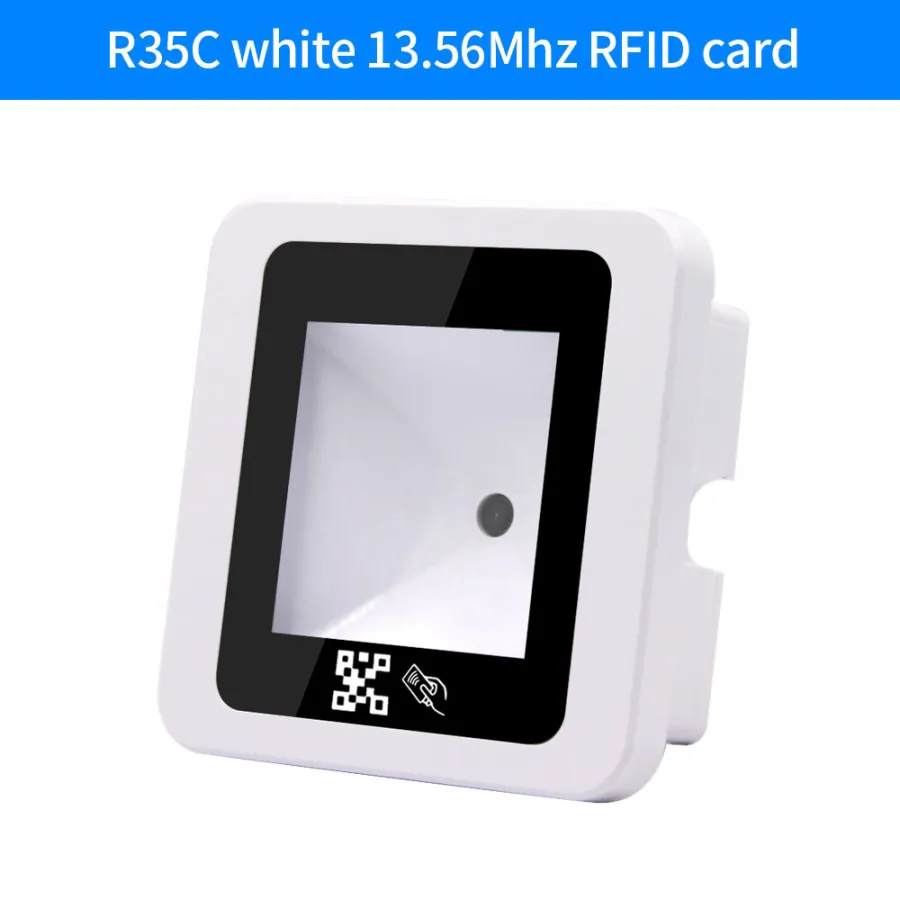

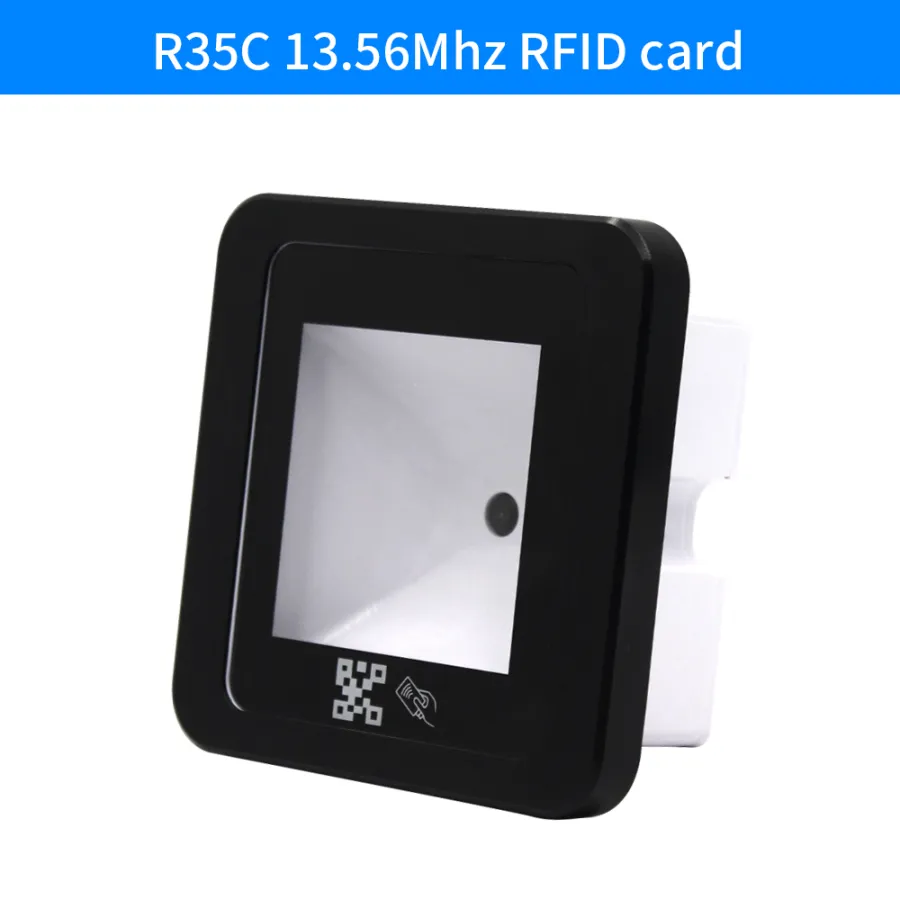

R35-IC | QR 2D Barcode + Mifare (13.56MHZ) |
Application
Self-service equipment,
Brake machine products,
Retail, cashier POS, medical,
Mobile phone coupon,
Ticket check
Lottery betting station,
Bank, etc.
Packaging Details
- Unit Type:
- Package Weight: 0.176
- Package Size: 13x10x14
- Brand Name: LUCKING DOOR
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: R35D/R35C
- Direction: None
- Certification: None
- Smart home platform: None
- Security Mode: Fail Safe with Signal
- Choice: yes
