DC 12V Access Control Power Supply Switch 5A 3A Output AC110V-240V Input Power Source Supplier Adapter for Video Intercom System
4.8 (68 votes) | 366 orders
Price:
US $54.31 - 62.42
Discount Price:
US $
22.02 -
24.92
-59%
- Color
-
-
DC12V 3A/ 5A Access Control Power Supply
very suitable for door access control system and video intercom system
Product Features
1) Made of high quality metal.
2) Less Power consumption, and high power.
3) It controls electric lock directly.
4) Can reduce the load of access controller, save wiring to reduce the hidden trouble
5) Set NC / NO outputs, can control various types of electric locks
6) Based delay control circuit, lock time is adjustable.
7) Automatic protection function
8) Operative device: E/M Lock, Access Controller, Exit Push Button, Door Bell

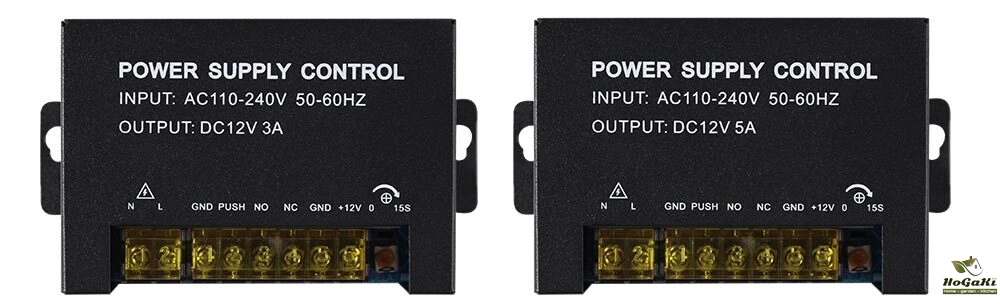

Kindly note: 3A can control 1 electric lock, 5A can control 2 electric locks.
Product Specifications

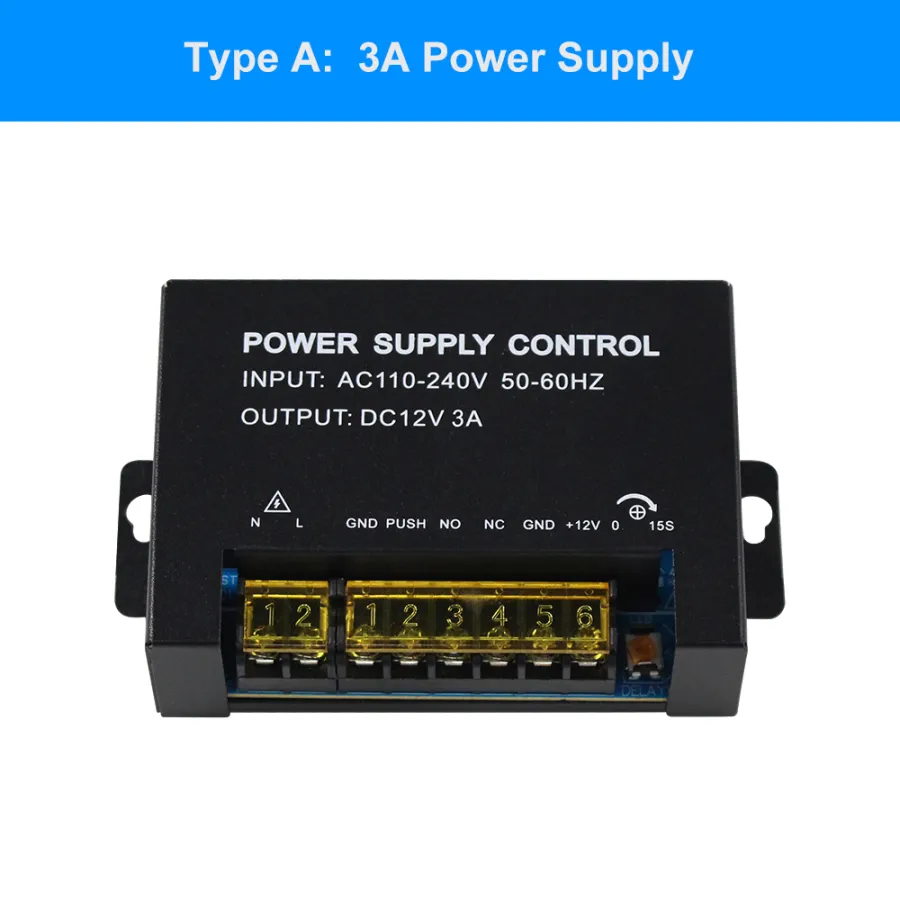

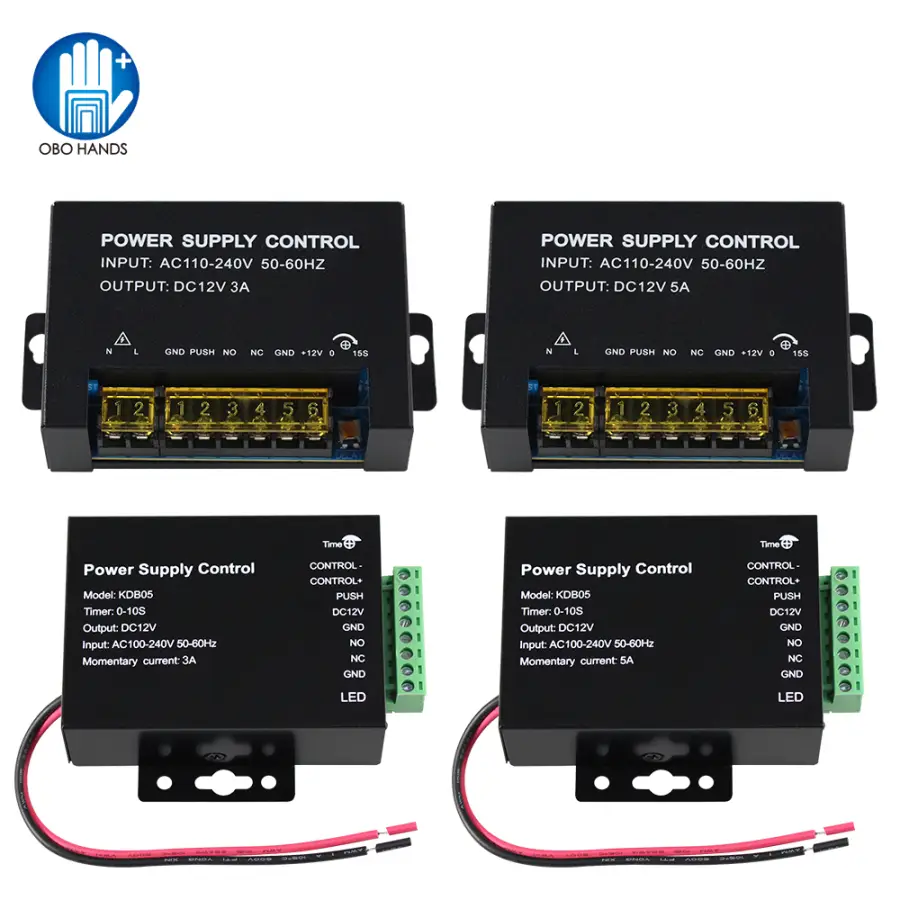

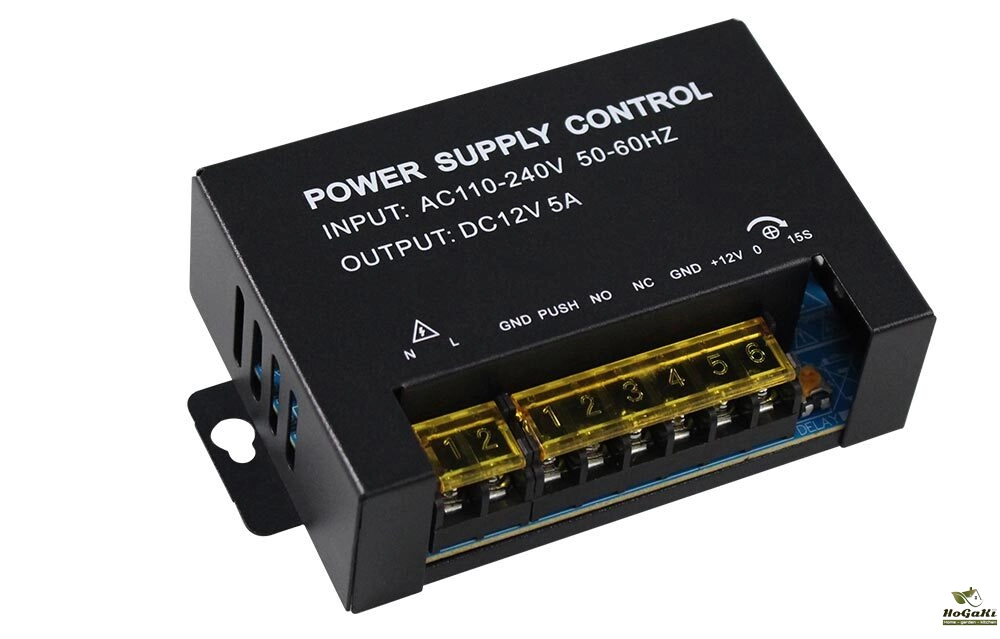

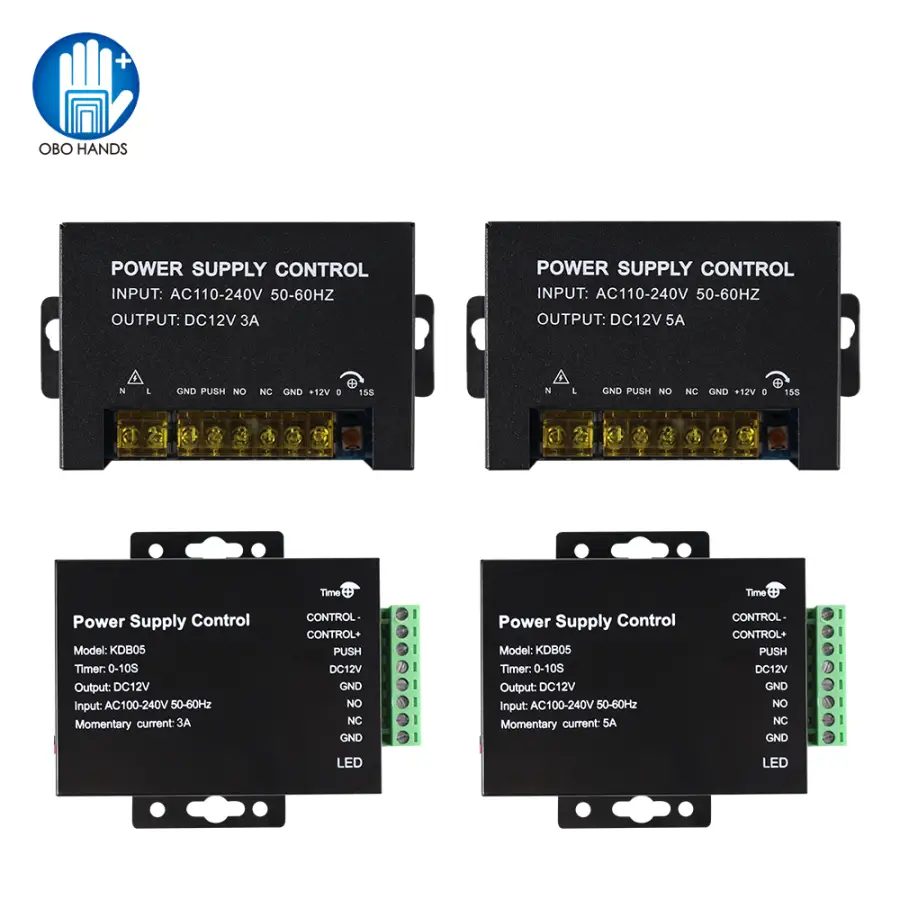

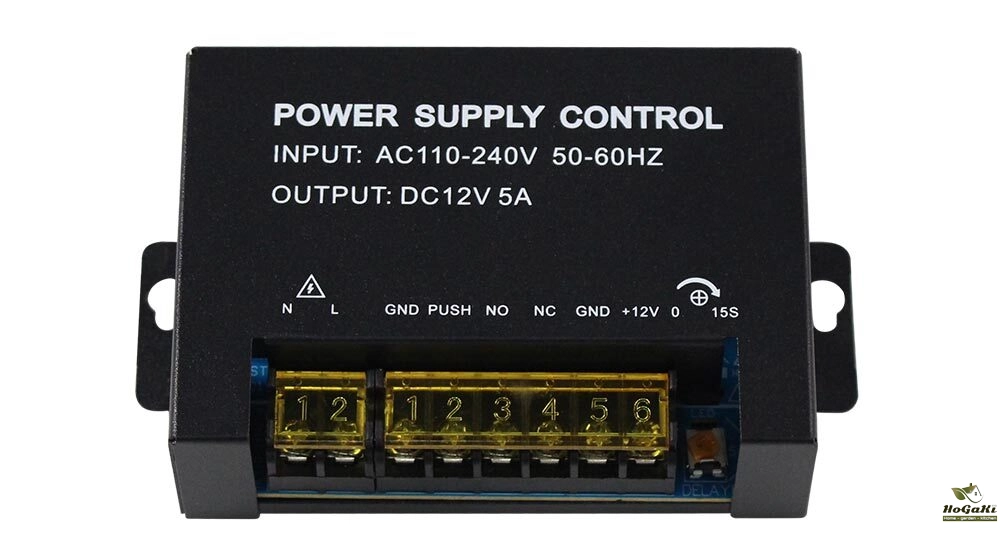

Type A
Input Voltage: AC110V-AC240V / 50-60HZ
Output Voltage: DC12V
Momentary Current: 3A/5A
Persistent Current: 3.5A
Working Temperature:﹣20℃~﹢60℃
Operating Humidity: ≦ 90%
Time Delay: 0~15 seconds adjustable

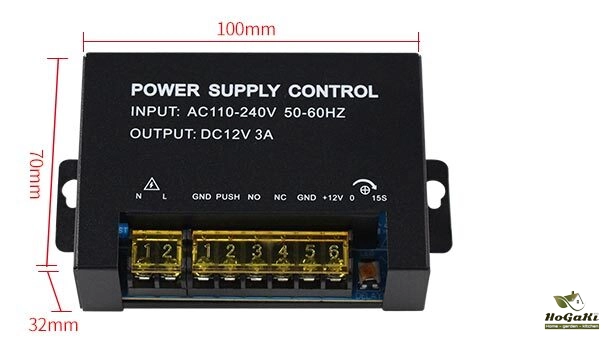

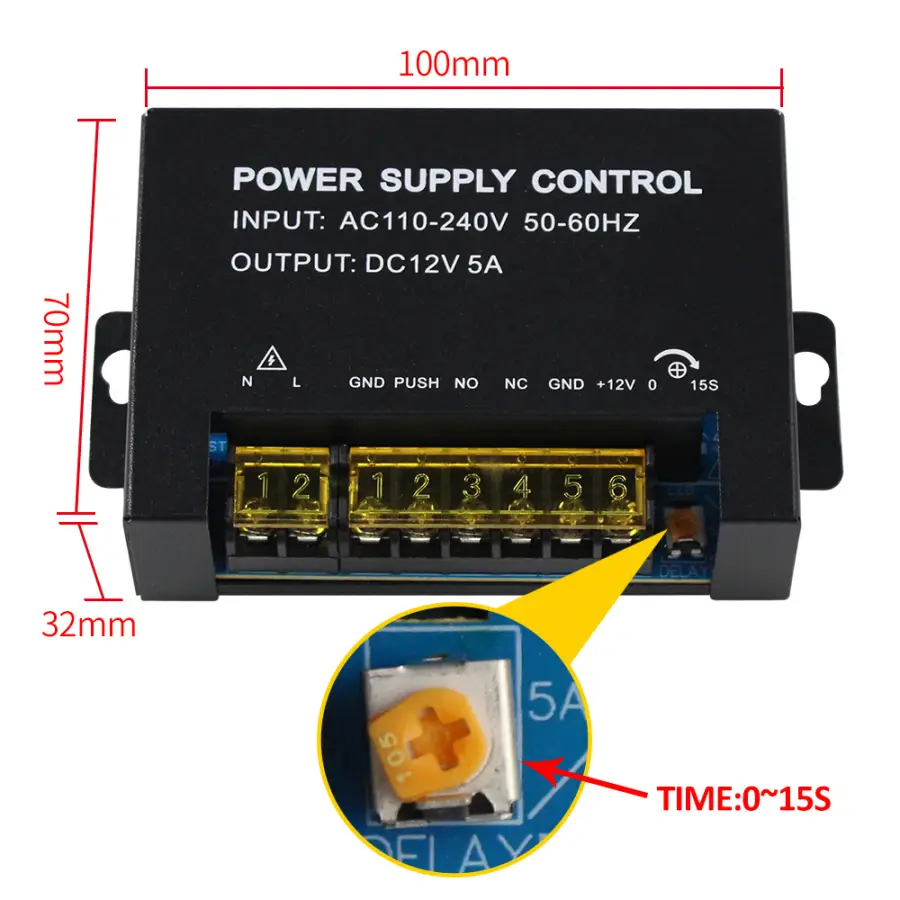

Dimension: 100X70X32mm( L/W/H )

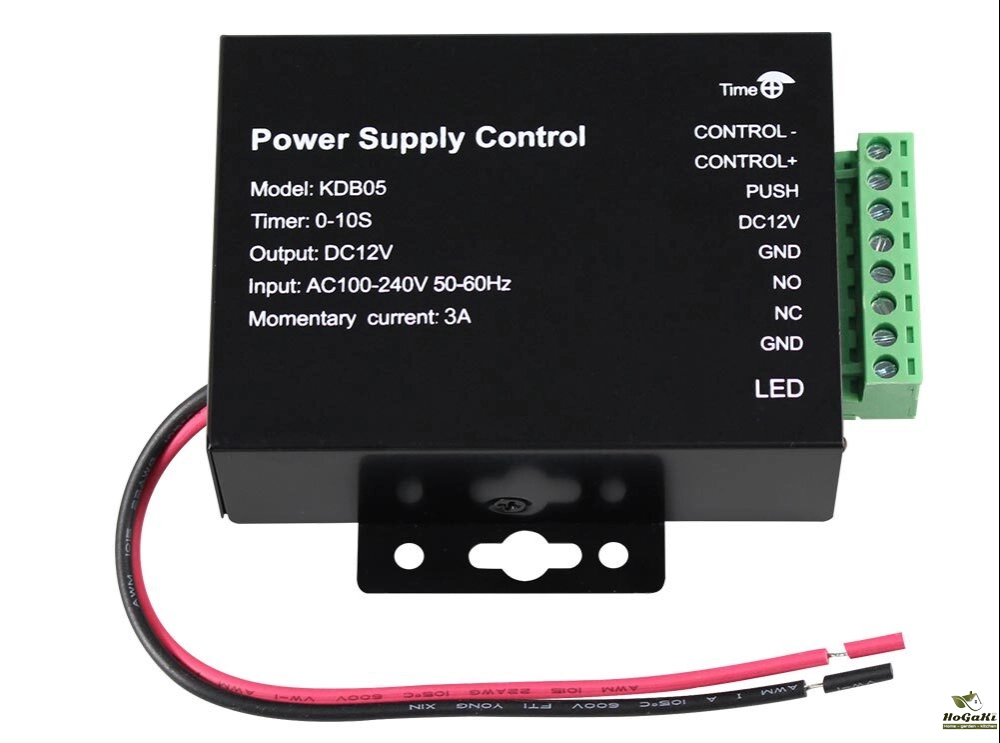

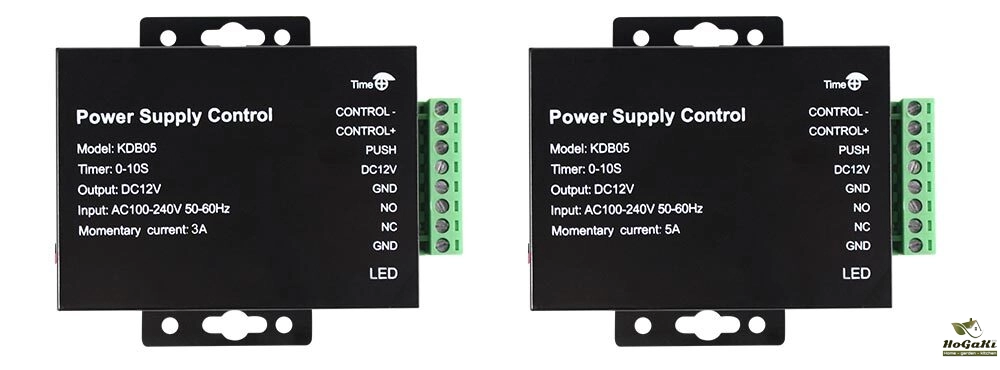

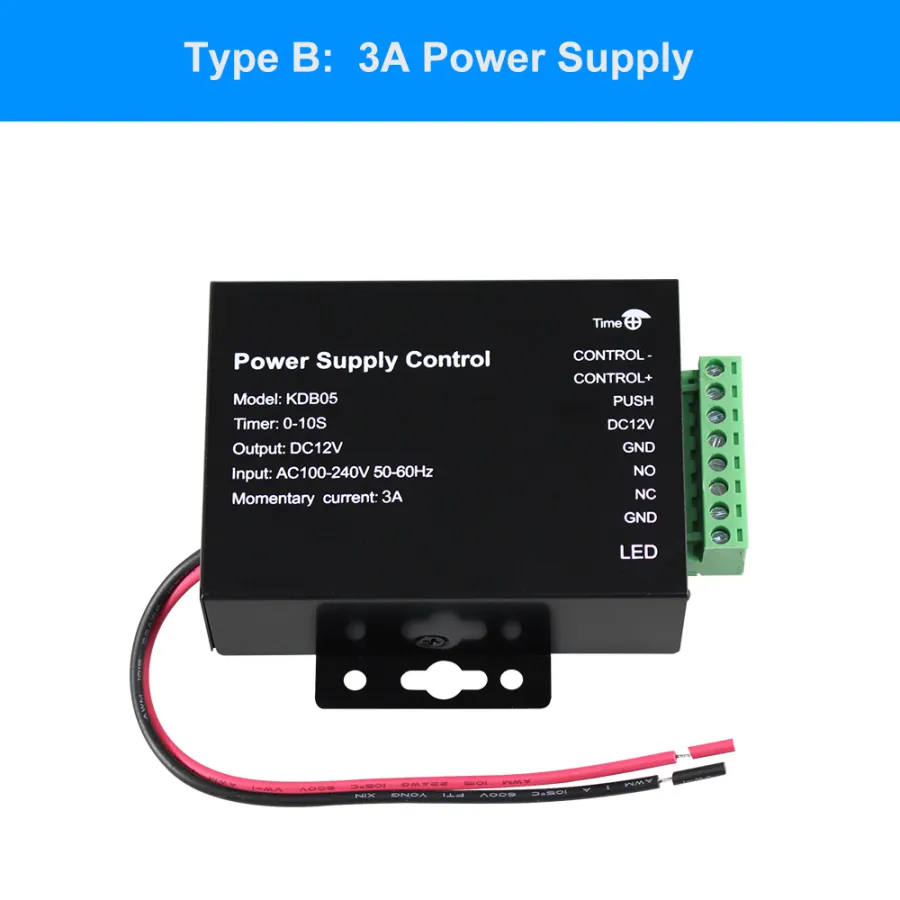

Type B
Input Voltage: AC110V-AC240V / 50-60HZ
Output Voltage: DC12V
Momentary Current: 3A/5A
Persistent Current: 3.5A
Working Temperature:﹣20℃~﹢60℃
Operating Humidity: ≦ 90%
Time Delay: 0~10 seconds adjustable

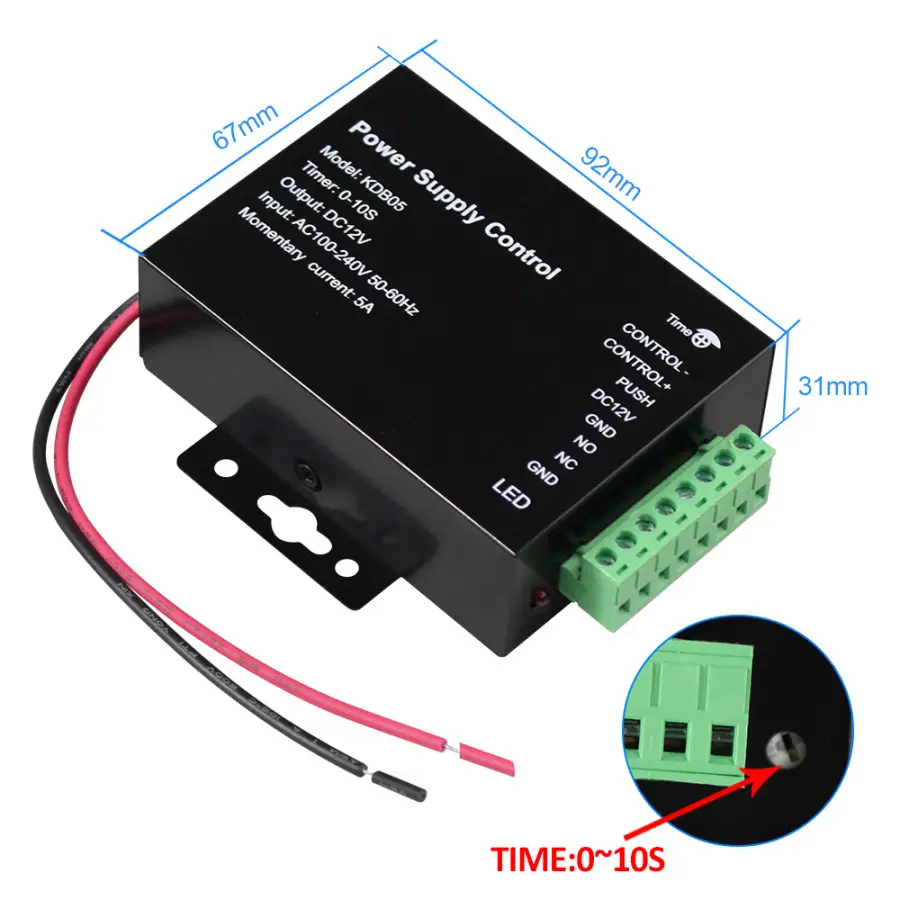

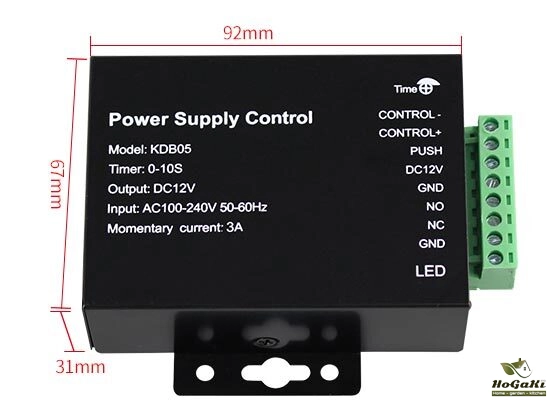

Dimension: 92X67X31mm( L/W/H )

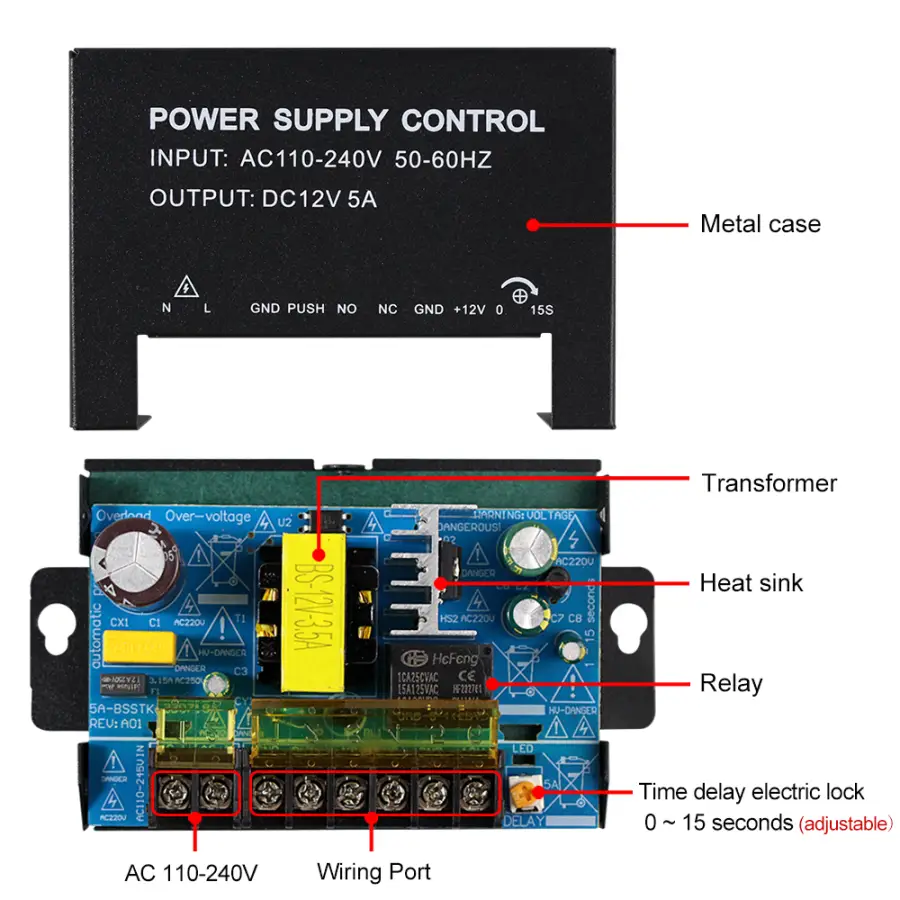

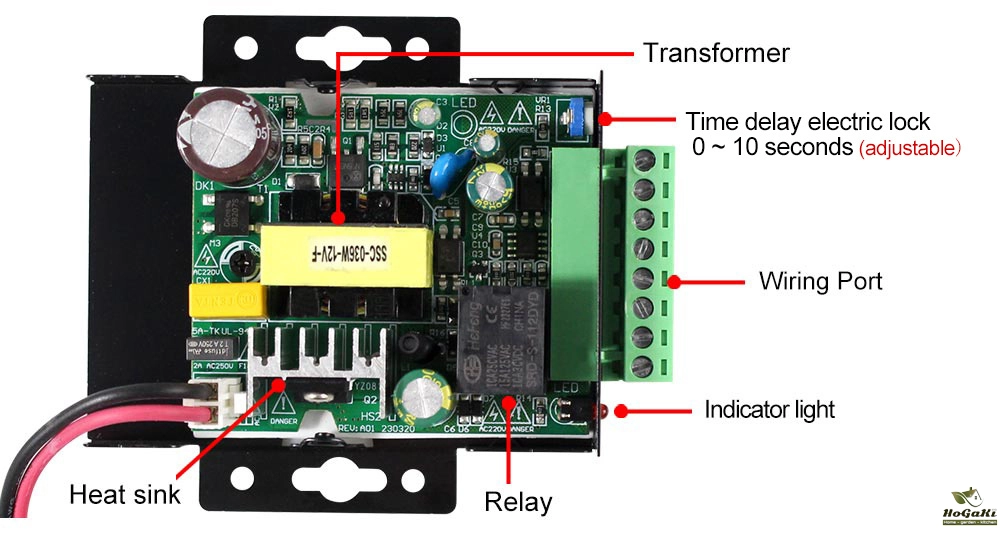

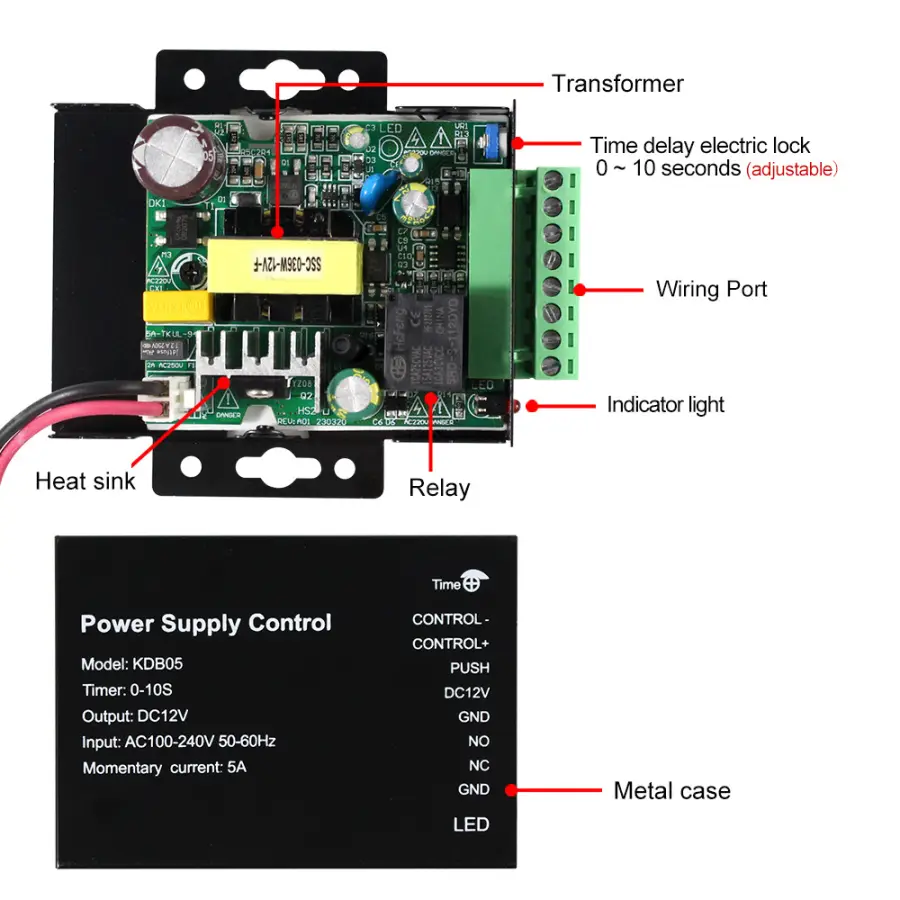

Product Analysis

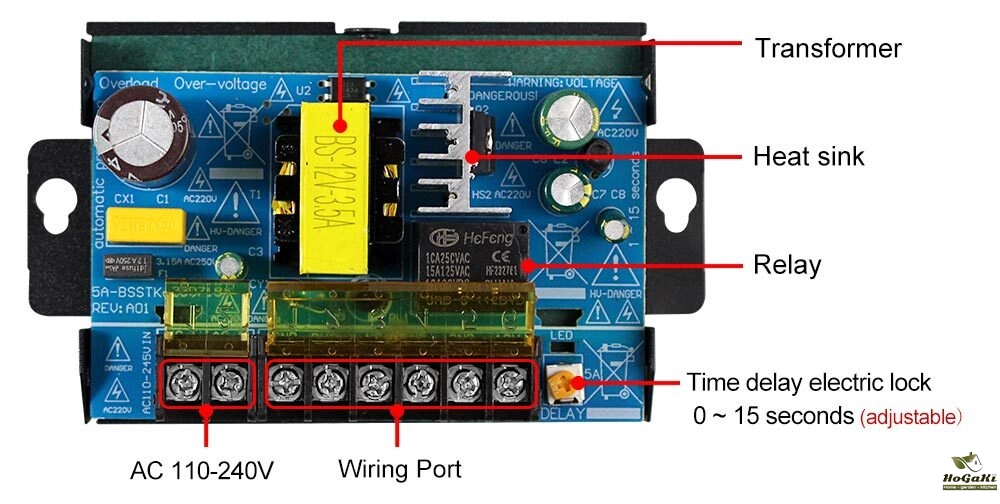

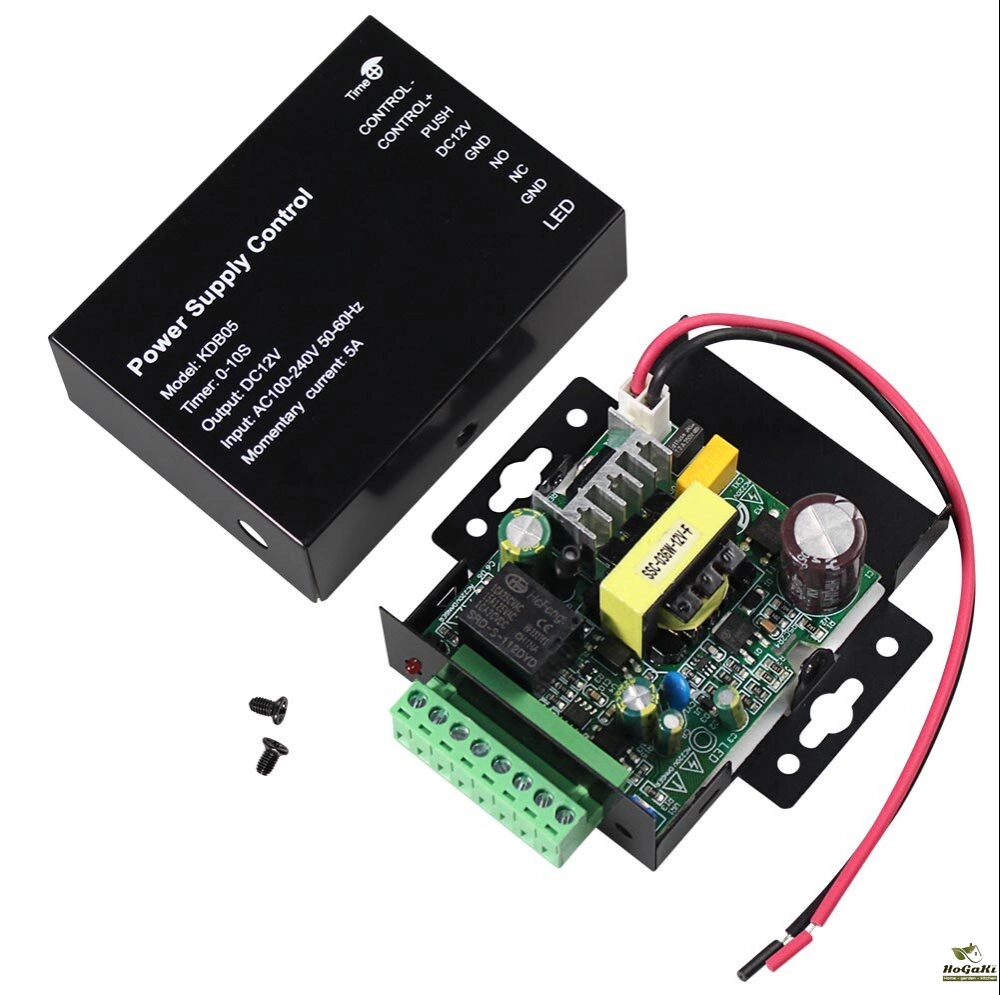

Product Details

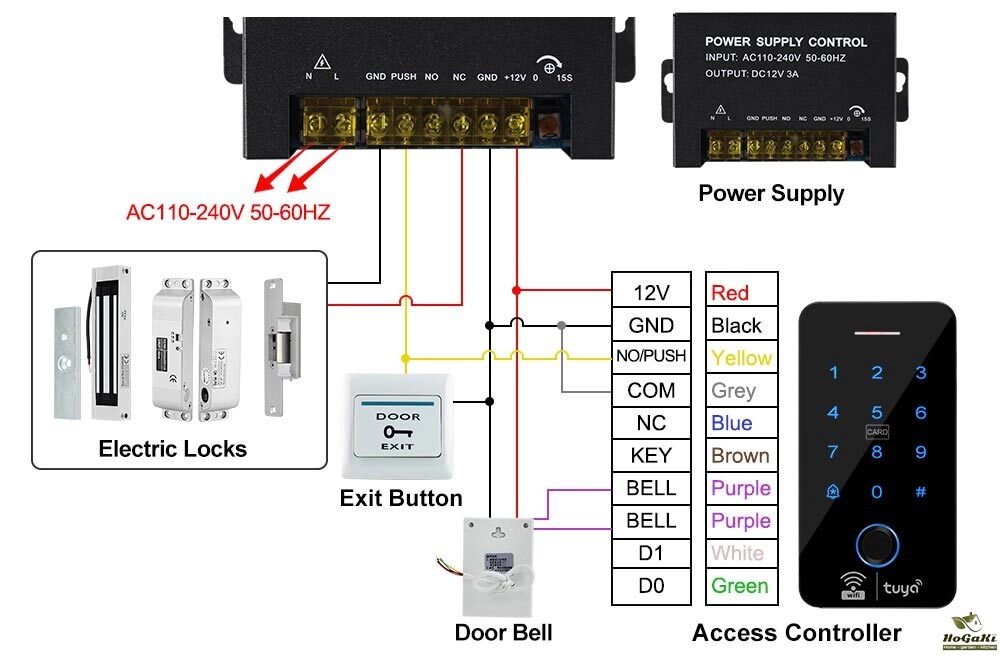

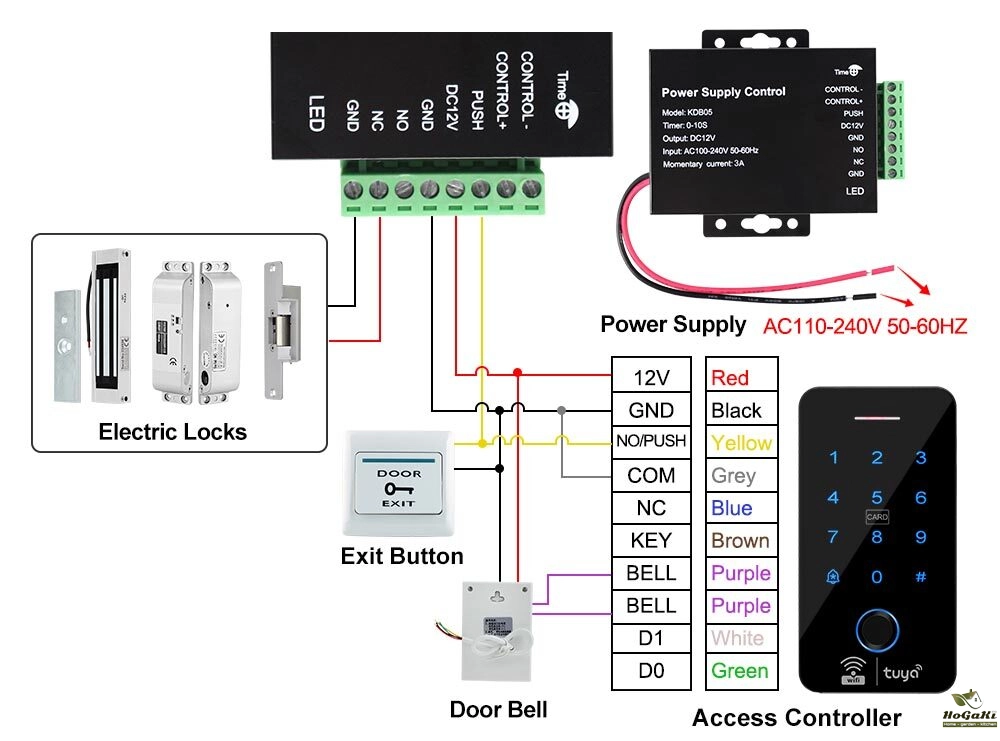

Wiring Diagram
( please note that the access controller, locks, exit button are not including in the package, need to buy additional. Thanks)
Type A
Type B
Packaging Details
- Unit Type:
- Package Weight: 0.226
- Package Size: 9x4x12
- Brand Name: OBO HANDS
- Origin: Mainland China
- Model Number: DYB80
- Direction: None
- Security Mode: Fail Safe
- Type: Access Control Power Supply
- Material: Metal
- Out Voltage: DC12V
- Input voltage: AC110-240V
- Working frequency: 50-60Hz
- Time Delay: 0-15 seconds adjustable
- Working Ampere: 3A/5A optional
- Choice: yes
