CE FCC Ble Tracker waterproof Panic Button Beacon With nRF52810 chipset For Attendance

0.0 (1 votes) | 4 orders
Price: US $35.09 / piece
Discount Price:
US $ 34.66 / piece
-1%
Quantity



Ble Tracker Push Panic Button Beacon With nRF52810 chipset For Attendance

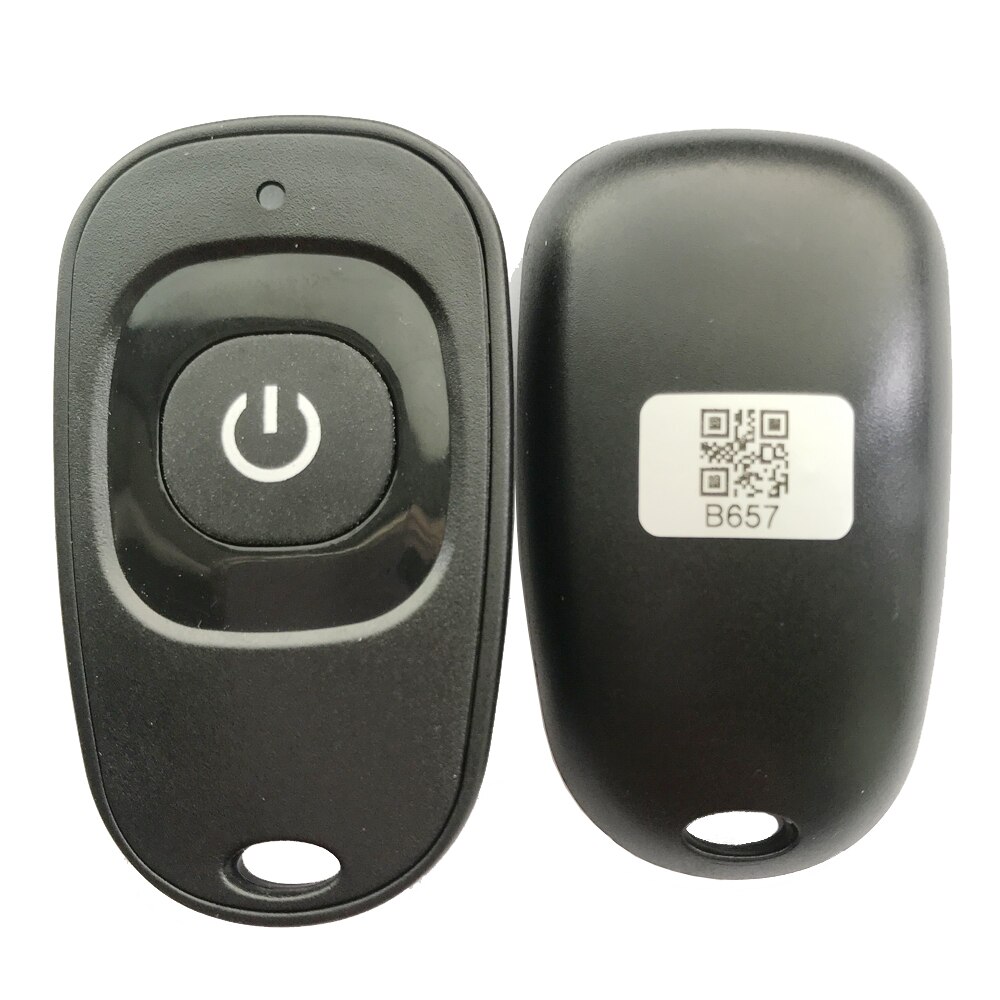

April Beacon N06 is a Ble beacon with a custom button. it can be set 2 sets of UUID, you can take one of them to advertise the Ble beacon data for positioning and tracking people or assets as they move from one place to another place. You can program and take use of the 2nd UUID for custom functions as one button for an emergency call, or one button for access control or visitor management of conference or activities, etc.


Construction

Features

Model

ABN06

People/ Assets Tracking

Material

ABS Plastic Housing

Button & LED Indicator

Color

Black & Custom Colors

Replaceable Battery

Form Factor

Standalone Beacon

iBeacon (IOS7.0+)

Dimensions

60mm x 35mm x 12mm

Eddystone (ANDROD 4.3+)

√  UID/URL/TLM Unencrypted

Weight

16g Including battery

OTA Firmware Updates

Power Source

CR2032 Battery(replaceable)

Encrypted Firmware Updates

Battery Life

2 Years

Encrypted Settings Updates

Recommended Operating Temperature

-20°C to +60°C

(Battery Limit)

Custom Housing Option

Micro Controller

Nordic Semiconductor nRF52810

SDK  Download

Connectivity

UUID, Major, Minor Custom Settings

Ble  Specification

Ble4.0+



Frequency

2.402GHz - 2.480GHz

Default Setting

Transmit Power

4 to -20dBm With 9 Options

Device Name

abeacon_xxxx,(PS:"xxxx" means last 2 bytes of mac address)

Receiver Sensitivity

-96dBm

Advertising Interval

700ms

Antenna

On-Board Antenna

Proximity UUID

B5B182C7-EAB1-4988-AA99-B5C1517008D9

Range

Major

1

Proximity Detection, Line of Sight

Up to 100m

Minor

Last 2 Bytes of MAC  Address

Normal Operation

30m

Advertising Type

iBeacon



Transmit Power

0 dBm






Switchable Dual UUIDs(You need to program for youself)

Further Development Allowed

It can be programmed to press the button, the switchable 2 sets of UUIDs allow multi applications and further development. (Default firmware can not switchable, can be customized for bulk order)

Shatter,  Dustproof
Anti-static, UV Resistance

Protect Your Beacon From Environmental Threats

Tough April Beacon N06 ABS Plastic Housing protects it against environmental punishment, impact, and moisture.

Portable Beacon

A Portable BLE Beacon

April Beacon N06 is a portable card beacon for real-time asset tracking and people tracking.

Ble4.0 Low Energy

Ble4.0 Low Energy

It adopts Ble4.0 Low Energy technology, and there would be lower power consumption at rest.

iBeacon + Eddystone

Supported

Don't Limit Yourself to Either Eddystone or iBeacon

Easy to switch back and forth between iBeacon & Eddystone with our Apps;

Product Compliance

To Meet Your Market Requirments.

CE, FCC, ISO9001





  • Model Number: ABN06
  • Brand Name: Aprilbeacon
  • Origin: Mainland China
  • Name: Waterproof Panic Button Beacon For Attendance
  • Communication range: 100M
  • System: IOS 7.0, Android 4.3
  • Chip: BLE micro controller NRF52810
  • Battery: CR2032
  • Default frequency: 700ms
  • Default tx power: 0dBm
  • Color: Black
  • Battery life: 2-3years, changeable
  • Dimension: 60mm*35mm*12mm
