CNC CONTROLLER XHC electronic handwheel Cnc MPG Controller for Fanuc,Mitsubishi, Siemens, Syntec,Fagor, GSK,NUM,Masso,DDCS
0.0 (1 votes) | 1 orders
Price:
US $
498.30
/ piece

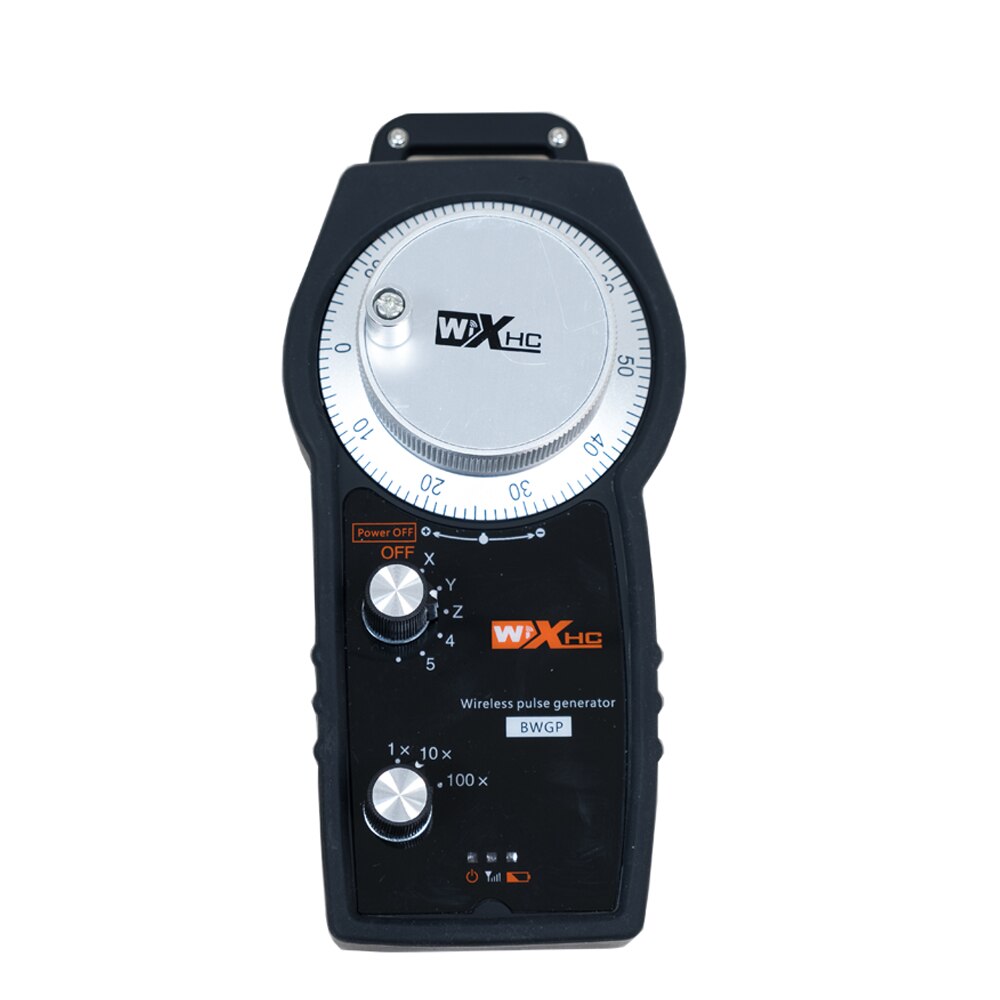

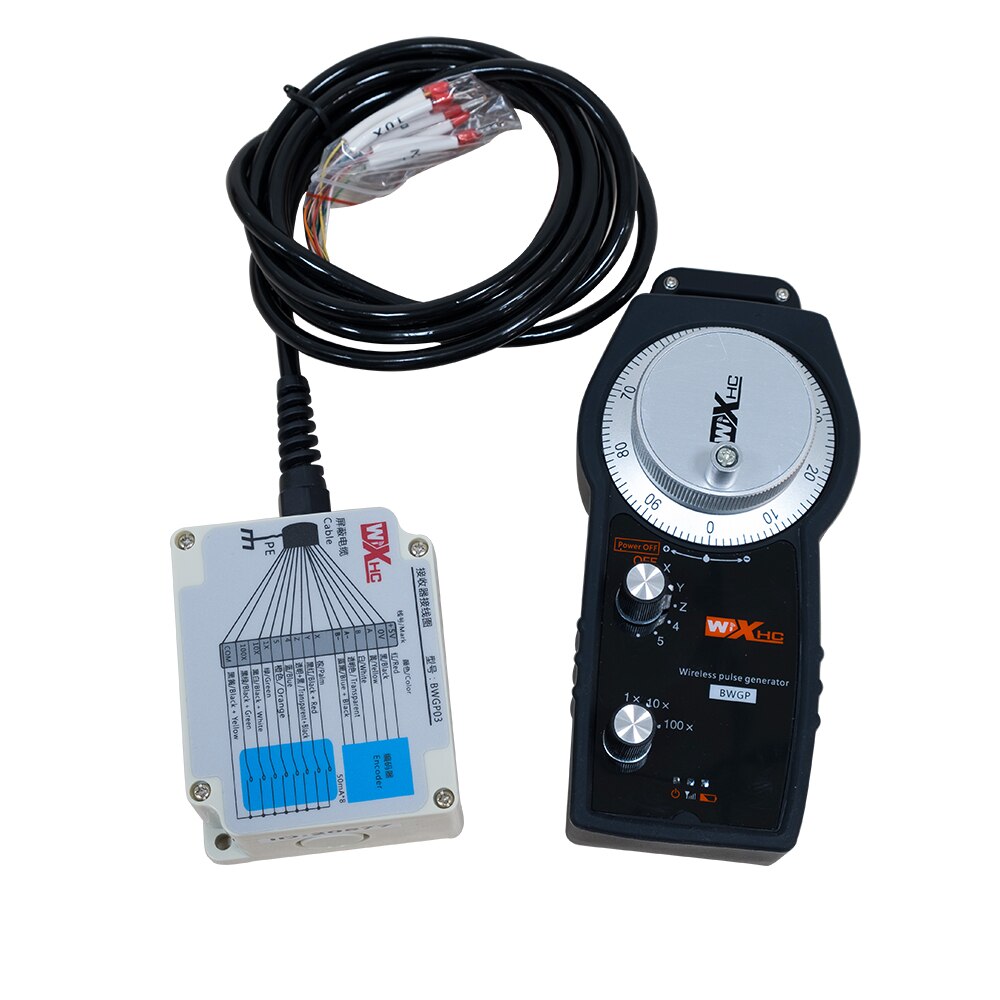

HANDY CONTROLLER XHC electronic handwheel BWGP for FANUC system
Product Description
type | Wireless handwheel (instead of wired handwheel) |
Number of axes | 5 |
Applicable system | Fanuc,Mitsubishi, Siemens, Syntec,Hust, GSK,NUM,Masso,DDCS,Fagor,etc. If the system you use is not listed here, please refer to the table |
Emergency stop button | No |
Communication frequency | 433MHZ |
anti-interference | The same range supports 32 sets of equipment to operate stably at the same time |
Pulse signal | Support differential and non differential, NPN, PNP and other signal types |
relevant | Support point to point |
Parameters related to model selection | Please let us know your model number after selection |
Signal transmission distance | 40 meters wireless operating distance |
parameter | A pulse encoder, 100 pulses/turn |

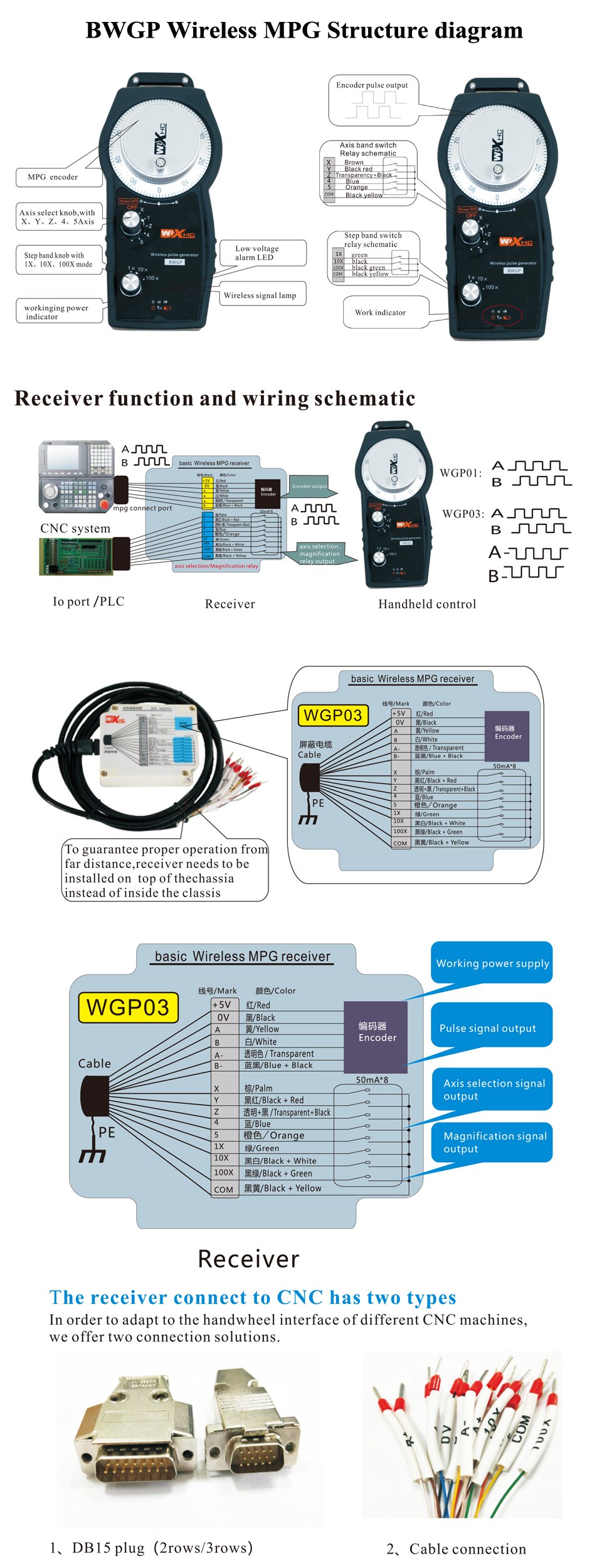

Model selection:
Selection parameters | |
1 | Appearance of the product: A /B/C/S/E represents the model of A/B/C/S/E . |
2 | TWGP: means with emergency stop button; WGP: means without emergency stop button |
3 | Pulse signal standard:
|
4 | The number of axes supported by the handwheel: 5 means 5 axes; 6 means 6 axes; 7 means 7 axes |
5 | Handwheel axes selection output mode: A means point-to-point output;
|
6 | Handwheel maglification output mode: A means point-to-point output;
|
7 | Expansion buttons on the handwheel: 3 means supporting 3 expansion buttons; X means that the magnification signal is a special output mode of pulse output, which is unique to Siemens systems.
|
8 | Indicates the working voltage of the wireless signal receiver: 05 means 5V power supply; 12 means 12V power supply; 24 means 24V power supply |
Our Services
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4. OEM/ODM accept . But the MOQ of OEM/ODM is at least 100 sets.
Company Information
Chengdu XinHeChengtechnology co.,ltdis located in Chengdu Sichuan China.Our company integrates the development,production and sale as a wholeandproviding motion control and wireless transimission solutions.XHC has always dovoted itself to develop wireless data transmission products with excellent -performance,low-cost,low-power,which is widely used in cnc machine,helping numerous manufactors. XHC focused on motion control devevopment with cost effective and specialize.Provide perfect cnc product to custmomers .
- Style: Solid
- Model Number: BWGP
- Material: Plastic
- Brand Name: WiXHC
- Origin: Mainland China
- Certification: CE
- Application: FANUC/Mitsubishi/Siemens/Higerman/Fagor /etc
- Type: Machine tool accessories
- Function: Wireless remote control machine, get rid of cable limit
- Feature: Support 32 in the same room, no interference
- Support Axis: 5
- Emergency stop button: NO
- Communication frequency: 433MHZ
- Wireless operation: use distance 40m (barrier free distance)
