CCTV Zoom Camera Module Block Decoding Control Board RS485 Pelco Protocol Decode PCB w/ BNC OSD Menu Button 9Pin Ribbon Cable
0.0 ( votes) | 1 orders
Price:
US $
19.71 -
21.47
/ piece
CCTV Zoom Camera Module Block RS485 Decoding Control Board
Description:
1. This rear control decoding board is applied to load the OSD menu of our designated zoom camera modules, operate zoom in/out via control buttons and provide RS485 connection to other devices like DVR, pan/tilt scanner and keyboard controller.The control board is mainly for working with our respective regular analog, AHD and HDCVI zoom camera modules (NOT with default PTZ camera use Sony VISCA protocol firmware). Though it is a general use decoding board for some of our zoom camera modules, we DON'T guarantee that it can work with other zoom camera modules out of our store because of different factory default programs or commands, for example, Sony FCB and HITACHI VK series block cameras (with video out but no OSD/zoom control). We don't suggest you place order if you expect the decoding board to fully support your existing zoom camera module.
2. We can provide price only USD6.00 if you buy this decoding board together with our zoom camera module. Please leave message in order for us to revise the total cost before you complete payment.
3. There are Type 1, Type 4 and Type 5 decoding boards optional. Each only works with some of our zoom camera modules with camera firmware changed to match decoding board (Default Sony VISCA protocol camera firmware is only for PTZ camera use). If you order decoding board and zoom camera module in the same order, we will provide you the related decoding board according to the selected camera module (Camera program will be changed to Pelco protocol firmware to match decoding board). Without designation, we will send default Type 1 board.
4. For working with our 10x mini zoom camera module, the provided Type 4 board supports buttons and wire control, butNOT supports RS485 control.
Features:
1. Zoom camera module decoding board (Only work with camera modules with firmware changed in factory. The board doesn't support default VISCA protocol camera firmware which is for PTZ camera use.)

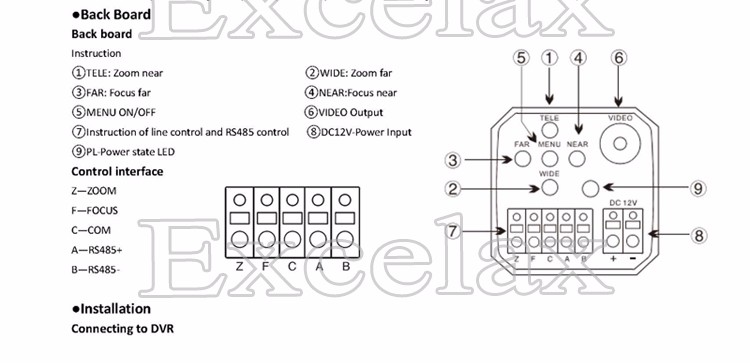

2. 5-button control for TELE/WIDE, NEAR/FAR and OSD menu
3. RS485 port for remote zoom/focus/OSD operation
4. DC 12V +/- power input
5. BNC video output
6. Red LED indicator
7. PCB size (not including connector and buttons): 50x43.5mm (Type 1), 50x50mm (Type 4). 9-pin ribbon cable >/=70mm
8. Specialized for Excelax/Novoxy AHD/CVI/TVI/CVBS zoom camera modules
Remarks:
1. The decoding board only works with our camera modules with program changed to Pelco protocol firmware in factory. It doesn't directly support the default zoom camera modules (sold separately in store) with default VISCA protocol firmware which is for PTZ camera use only. Please consult us if you need furture support on this issue.
2. The product pictures are for demonstration purpose only, subject to change without prior notification.
3. We can provide price only USD6.00 if you buy this decoding board together with our zoom camera module. Please leave message in order for us to revise the total cost before you complete payment.

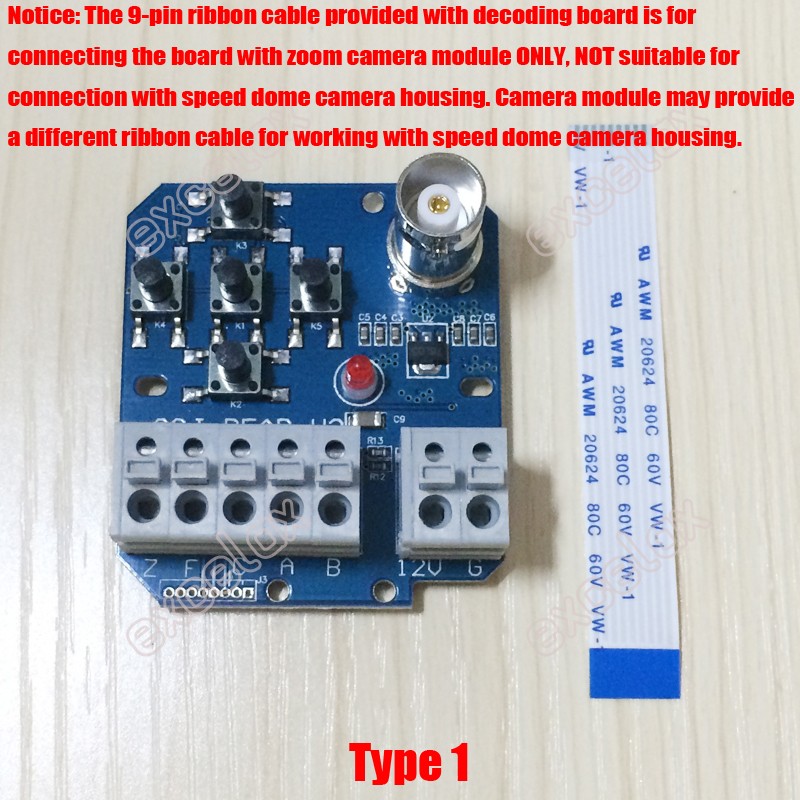

4. The default decoding board comes with a short 9-pin ribbon cable, which is applied for connecting the board with zoom camera module only, not for connecting zoom camera module with speed dome camera housing. The pins' sequence of this short 9-pin ribbon cable is different from the sequence of the long 9-pin ribbon cable for connecting camera module and speed dome camera housing.
5. The PCB board color (blue/green) will be subject to stock availability and production lots.
6. Please leave message in order if you need us to provide 2pcs 6mm copper support and fixing screws for jointing decoding board and zoom camera module. You can also use your existing accessories to mount the decoding board to the back of your zoom camera module.
7. If you need decoding board for Sony block camera (FCB-EX480/EX980/EX1020/...), please refer to our store.
Package Content:
1* Decoding Board (Default Type 5. Please leave message for Type 4. For 10x camera module, Type 4 board supports button and wire control only, NOT RS485.)
1* Connection Cable
Very Important Notice:
1. Type 1/5 and Type 4 decoding boards are based on different design and suitable for different zoom camera modules. The 3 boards can't replace each other on the same camera.
2. The decoding board only works with our camera modules with default VISCA protocol firmware changed to Pelco protocol firmware in factory. It doesn't directly support the default zoom camera modules (sold separately in store) with default Sony VISCA protocol firmware which is for PTZ camera use. Please consult us if you need future support on this issue.

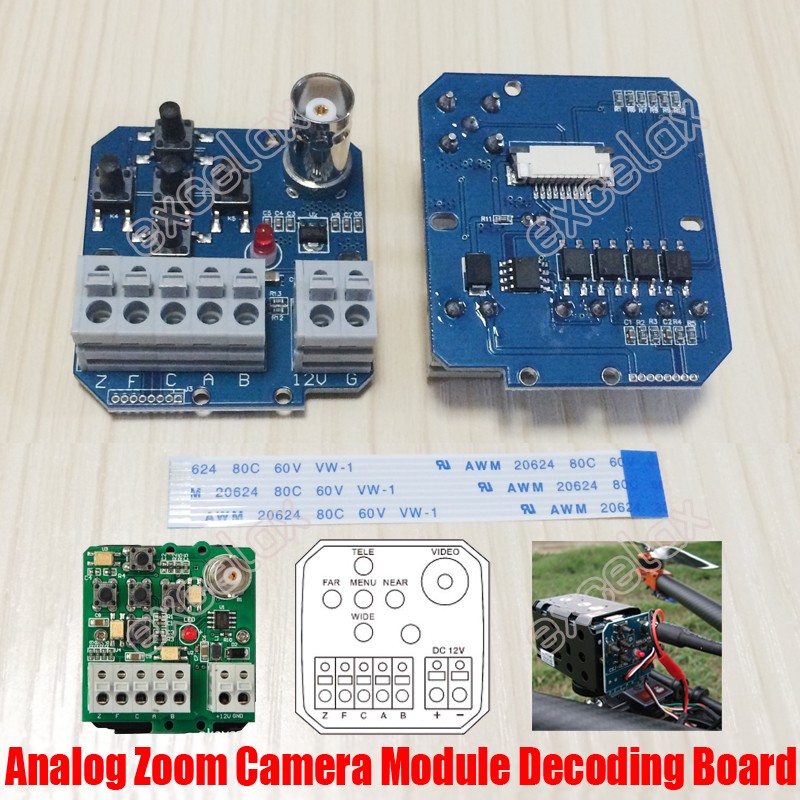

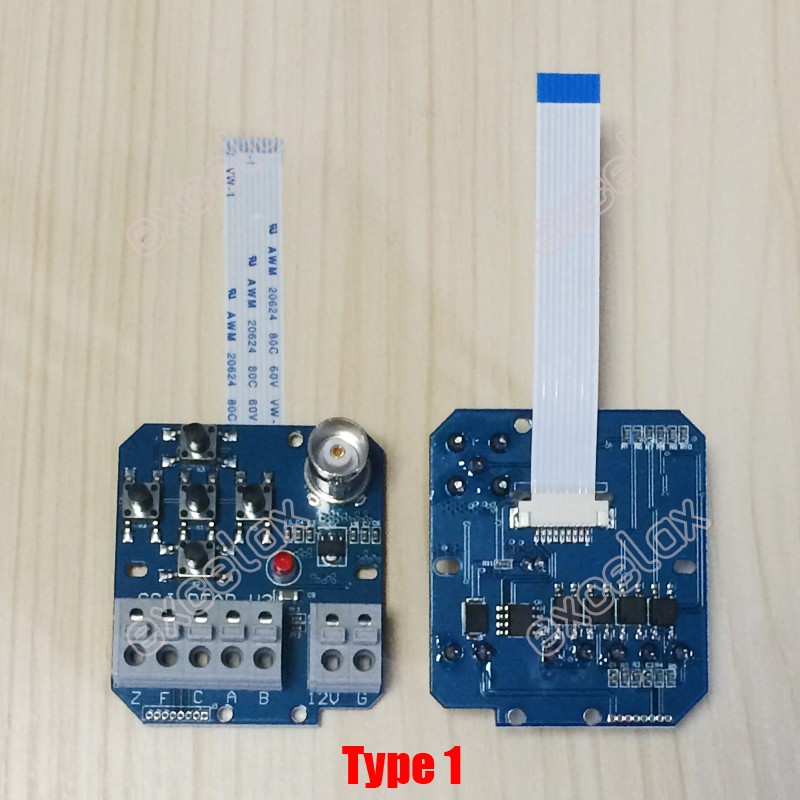

Decoding Board Type 1
(Default, Work with our SK-RT/ART/CRT series and some SK-ZM zoom camera modules)
****************************************************************************************************************************************************

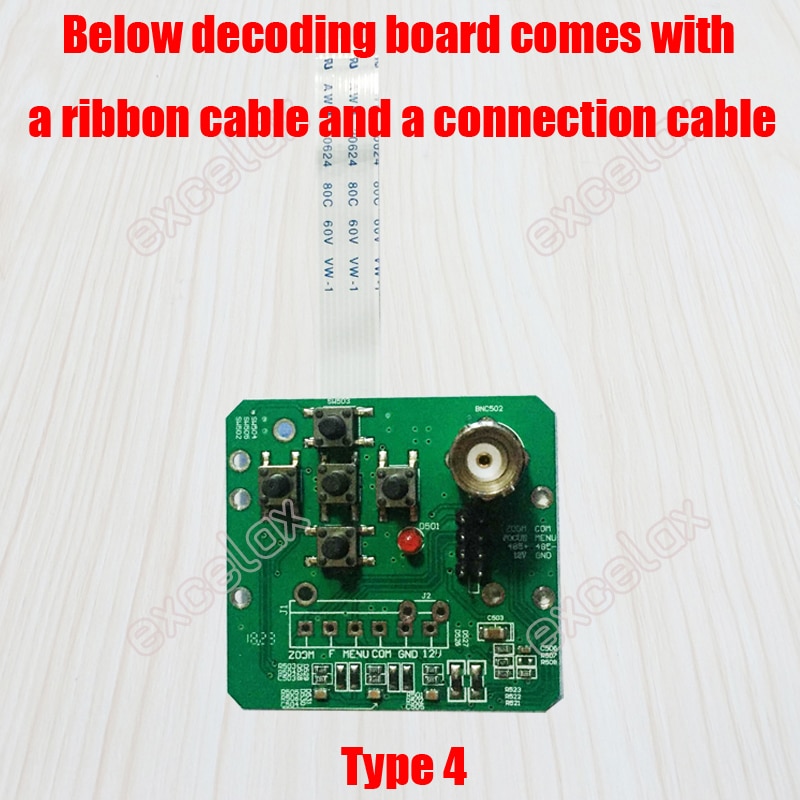

Decoding Board Type 4

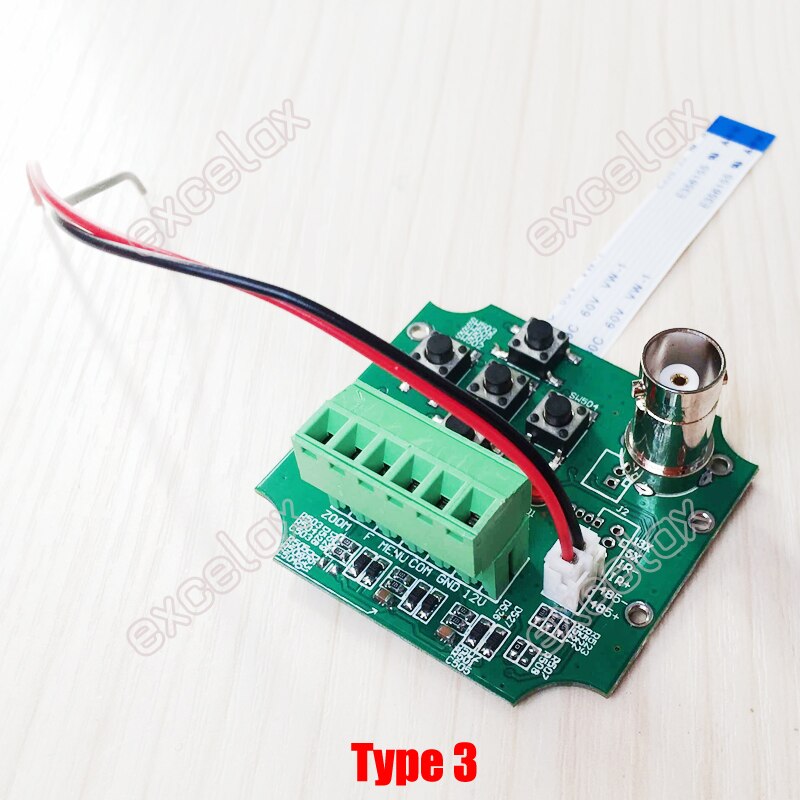

(Type 2 and Type 3 are discontinued)
(Work with some of our SK-ZM series zoom camera modules)
****************************************************************************************************************************************************

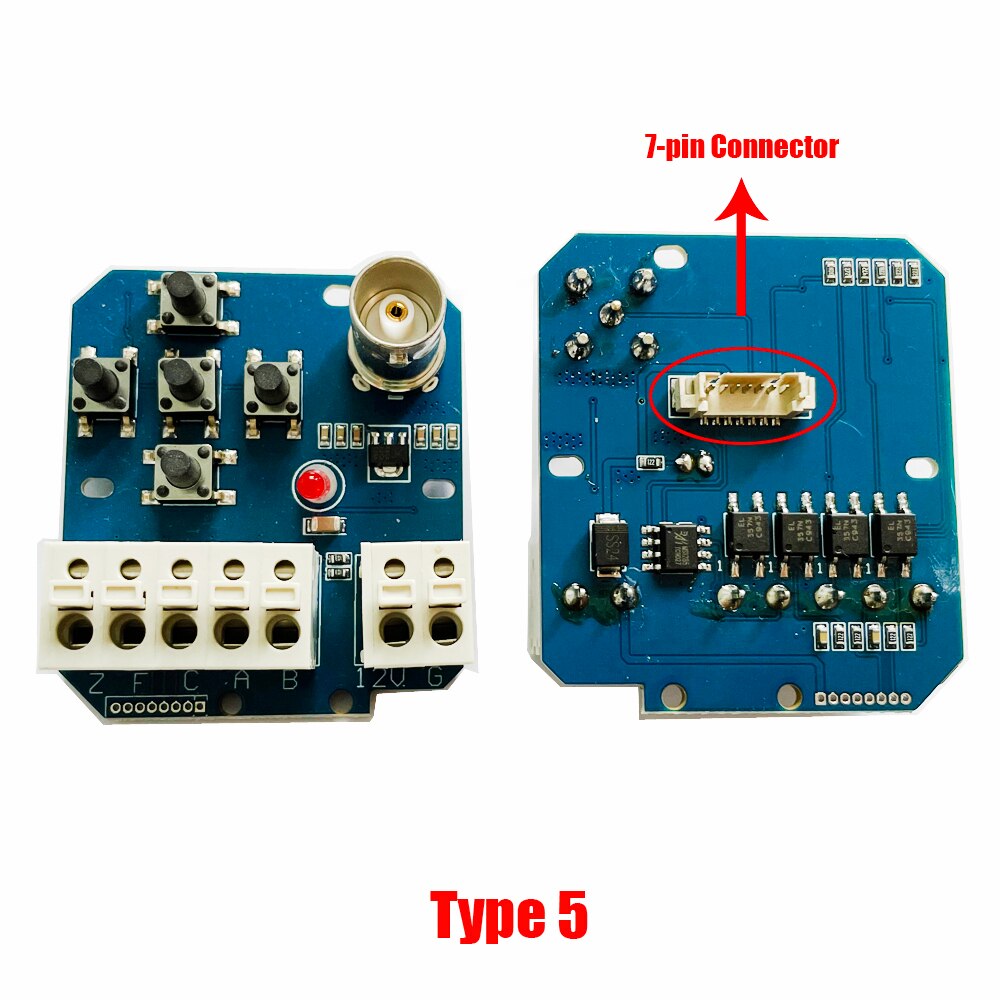

Decoding Board Type 5

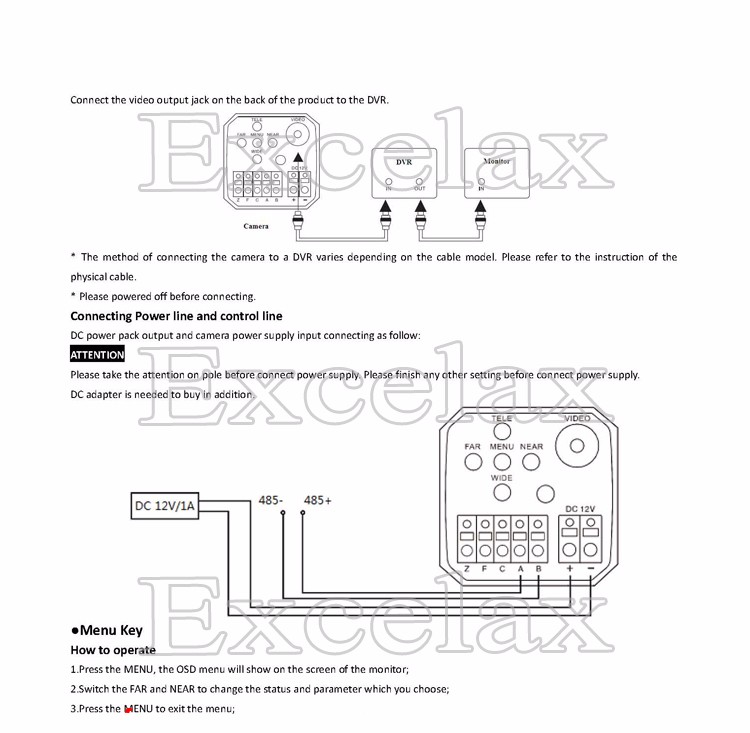

Notice: If you use this decoding board to work with our AHD or CVI zoom camera module, you need AHD or CVI supported DVR to connect to the decoding board, then output from DVR to monitor. You can't get video by direct connection between camera/decoding board and monitor.

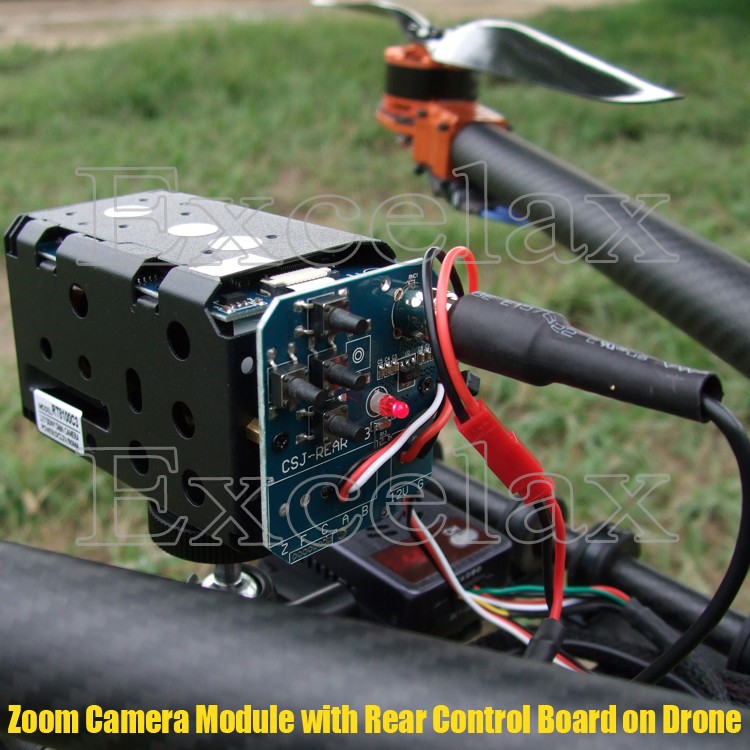

Above picture was provided by one of our customers located in South Korea. Our 1000TVL analog zoom camera module and decoding board were installed on a drone.
Remarks:
If you need control board for Sony FCB-EX and FCB-CX series CCD block cameras (e.g. FCB-EX(CX)480/490/980/985/995/1000/1010/1011/1020/2200/2400/2700/etc.), please refer to below.
- Model Number: DB-SJZM-CVBS-RS485
- Brand Name: SankiView
- Origin: Mainland China
- Smart home platform: NONE
- Certification: NONE
- Application: Designated Zoom Camera Modules
- OSD Load: Yes
- BNC Out: Yes
- Power Input: DC 12V
- RS485 +/-: Yes
- Zoom Control: Yes
- Focus Control: Yes
- Cable: 9-pin/7-pin
- LED Indicator: Yes
